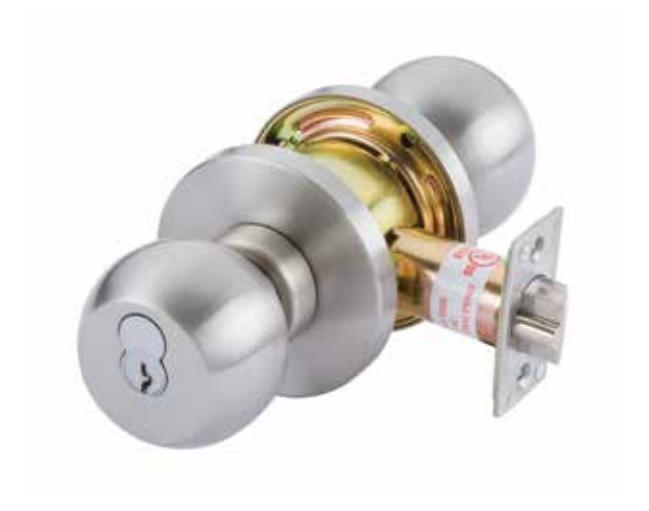

SX SERIES COMMERCIAL GRADE 1 CYLINDRICAL
SUGGESTED ARCHITECTURAL SPECIFICATIONS
Lockset will be SX Series from PDQ Industries, Inc., Leola, Pennsylvania. Lock will conform to ANSI A156.2-2003 Grade 1, surpassing 800,000 cycles, with a five-year manufacturer's limited warranty. 3 hours of fire testing qualified and stainless
steel latch bolt. Lock fits ANSI 161 cut-out. Lockset to be fully adjustable for 1-3/8" to 2" doors. Lock will accommodate keyways of major manufacturers.
SPECIFICATIONS – SX Series SX SERIES
FOR DOORS: 1-3/8" to 2" thick.
DOOR PREP: Fits standard 161 door prep.
BACKSET: 2-3/4", 2-3/8", 5".
CASE: Steel, yellow chromate plate.
FRONT: 2-1/4" x 1-1/8" or 2-1/4" x 1"/Stainless steel or wrought bronze.
STRIKE: 4-7/8" x 1-1/4" (ASA). "T" or "FL" Strike optional.
Stainless steel or wrought bronze.
UL F LATCHBOLT: 3 hours of fire testing qualified, stainless steel latch bolt
TRIM: CQ ball knob. Stainless steel or wrought brass. KEYWAYS: Available in keyways of most major manufacturers. CYLINDER: Supplied standard to accommodate SFIC core.
(Cylinder not included)
KEYING: Standard core is available and can be MK, CMK, GMK,
or CK. Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing masterkey
systems of other manufacturers.
FINISHES: US32D(630).
CERTIFICATIONS: Meets ANSI/BHMA A156.2–2003 Grade 1,
surpassed 800,000 cycles.
WARRANTY: Five-year limited warranty.

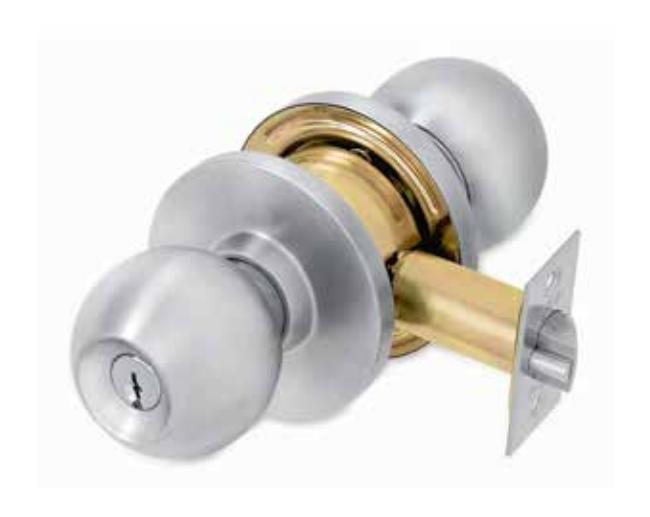

SV SERIES COMMERCIAL GRADE 2 CYLINDRICAL
SUGGESTED ARCHITECTURAL SPECIFICATIONS
Lockset will be SV Series from PDQ Industries, Inc., Leola, Pennsylvania. Lock will conform to ANSI A156.2, Series 4000, Grade 2, and U.L./U.L.C. Listed with a one-year
manufacturer's limited warranty. Fits ANSI 161 cut-out. Lockset to be fully adjustable for 1-3/8" to 1-3/4" doors. Lock will accommodate keyways of major manufacturers.
SPECIFICATIONS – SV Series SV SERIES
FOR DOORS: 1-3/8" to 1-3/4" thick. DOOR PREP: Fits standard 161 door prep.
BACKSET: 2-3/4", 2-3/8", 5".
CASE: Steel, yellow chromate plate.
FRONT: 2-1/4" x 1-1/8" or 2-1/4" x 1"/Stainless steel or wrought bronze.
STRIKE: 4-7/8" x 1-1/4" (ASA). "T" or "FL" Strike optional.
Stainless steel or wrought bronze.
LATCHBOLT: 1/2" throw. Solid brass. Adjustable for beveled doors. TRIM: CQ ball knob. Stainless steel or wrought brass.
KEYS: Two change keys per lock.
KEYWAYS: Available in keyways of most major manufacturers.
CYLINDER: Brass 6-pin cylinder keyed to 5 pins. KEYING: Can be MK, CMK, GMK, or CK.
Available Zero Bitted (KO), Keyed Different (KD), Keyed Alike (KA).
Can be keyed into existing masterkey systems
of other manufacturers.
FINISHES: US3(605), US10(612), US10B(613), US32(629), US32D(630). CERTIFICATIONS: Complies with ANSI A156.2, Series 4000, Grade 2.
U.L./U.L.C. Listed for "A" label (3 hour) single
swing
doors (4'0" x 8'0").
WARRANTY: One-year limited warranty.
SX SERIES COMMERCIAL GRADE 1 FUNCTION CHART
| FUNCTION |
FUNCTION
NO. |
INSIDE | OUTSIDE | FUNCTION DESCRIPTION |
ANSI
NO. |
|---|---|---|---|---|---|
| Storeroom | SX 115 |
• Latchbolt operated from outside by key, inside by knob
• Outside knob is rigid at all times • Inside knob always free for immediate exit • Deadlocking (guarded) latchbolt |
F86 | ||
| Entrance | SX 116 |
• Latchbolt operated by both knobs
• Outside knob locked or unlocked by turn/push button • Inside knob always free • Pushing and turning button locks outside knob requiring use of key until button is manually unlocked • Pushing button only locks outside knob until unlocked with key or inside knob is turned |
F109 | ||
| Passage | SX 126 | • Latchbolt operated by both knobs | F75 | ||
| Entry | SX 182 |
• Latchbolt operated by knob from either side
or key in outside knob • Outside knob locked by push button on inside • Outside knob unlocked by key from outside |
F82 | ||
|
Bathroom
Privacy |
SX 176 |
• Latchbolt operated by knob from either side
• Latchbolt operated by both knobs • Push button in inside knob locks outside knob • Inside knob or closing door releases button • Emergency opening from outside |
F76 | ||
NOTE: Other functions available by Special Order.
SV SERIES COMMERCIAL GRADE 2 FUNCTION CHART
| FUNCTION |
FUNCTION
NO. |
INSIDE | OUTSIDE | FUNCTION DESCRIPTION |
ANSI
NO. |
|---|---|---|---|---|---|
| Storeroom | SV 115 | Latchbolt operated from outside by key, inside by knob Outside knob is rigid at all times Inside knob always free for immediate exit Deadlocking (guarded) latchbolt | F86 | ||
| Entrance | SV 116 | (a) Fig. 3 | Latchbolt operated by both knobs Outside knob locked or unlocked by turn/push button Inside knob always free Pushing and turning button locks outside knob requiring use of key until button is manually unlocked Pushing button only locks outside knob until unlocked with key or inside knob is turned | F109 | |
|
Closet/
Communicating |
SV 125 | Blank plate outside Inner knob always free Deadlocking (guarded) latchbolt | |||
| Passage | SV 126 | Latchbolt operated by both knobs | F75 | ||
| General Entrance | SV 137 | Latchbolt operated by both knobs Key on either side locks or unlocks Deadlocking (guarded) latchbolt | |||
|
Classroom,
Storage |
SV 148 | Latchbolt operated from outside by knob except when locked from outside by key Latchbolt operated from inside by knob at all times Deadlocking (guarded) latchbolt | F84 | ||
|
Exit or Twin
Communicating |
SV 150 | Blank plate outside Key inside locks or unlocks inside knob No outside operation Deadlocking (guarded) latchbolt | |||
| Hotel Room | SV 161 | @ 0||| ||||||||||||||||||||||||||||||| | Outside knob rigid at all times Latchbolt operated from outside by guest key, master key or grand master key, except when shut-out button is used Emergency key operates latchbolt at all times Outside is equipped with indicator pin Inside is always free Deadlocking (guarded) latchbolt | F93 | |
|
Bathroom
Privacy |
SV 176 | @ ! !! | Latchbolt operated by both knobs Push button in inside knob locks outside knob Inside knob or closing door releases button Emergency opening from outside | F76 | |
| Patio | SV 177 | Latchbolt operated by both knobs Push button in inside knob locks outside knob Inside knob or closing door releases button Deadlocking (guarded) latchbolt | |||
| Dummy |
SV 211
SV 205 |
Single or double pull knob(s) One or both side(s) No mechanical operation Surface mounted (SV 211) 2-1/8" bored hole (SV 205) | |||
