PRICE BOOK 2019

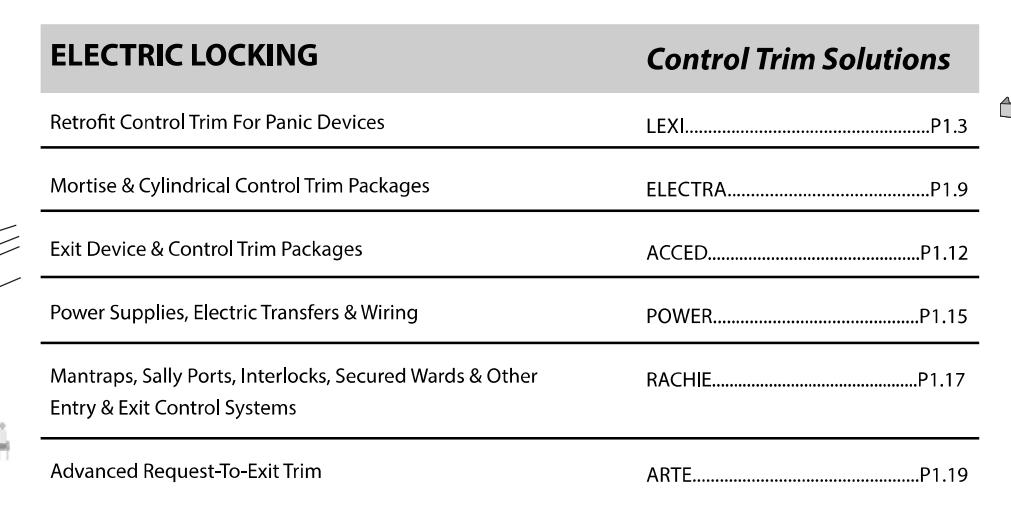

| PRICING | Pricing & Policies |
|---|---|
| Pricing, Policies & Warranty | Pricing PoliciesP1.1 |
| MECHANICAL LOCKING | Forced Entry Solutions | |||
|---|---|---|---|---|
| Cylinder Protection | Securiguard(6000)P1.21 | |||
Please Visit
www.securitech.com/registration
To Register Your Price Book
toll free 800.622.LOCK local 718.392.9000 fax 718.392.8944
SECURITECH GROUP, INC. 54-60 46th St., Maspeth, NY 11378 www.securitech.com
Pricing, Policies & Warranty
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
Securitech's policy is to work cooperatively with our distributors and dealers to exceed the needs and requirements of our users.
ACCEPTANCE
Orders are accepted at the sole discretion of Securitech Group, Inc. Securitech reserves the right to decline an order at it's sole descretion.
AUTHORIZATION TO PURCHASE
Knowledge or possession of the price list does not constitute the right to purchase from Securitech.
CHANGES & CANCELLATIONS
All changes to an order must be in writing. Changes and cancellations are subjected to material and labor charges incurred prior to the change or cancellation notification and shall be due and payable upon billing by Securitech.
CLAIMS
All claims for shortages must be made within one week of receipt of material. Any claims for shortages or damages by the carrier shall be made directly by the customer to the carrier. Any change or alteration to an invoice must be approved by Securitech in advance of payment.
CONFIRMATION
To ensure accuracy, Securitech requires a signed Order Entry Confirmation prior to releasing an order to production. Failure to provide Securitech with a confirmation will delay the order.
CREDIT TERMS
Securitech retains the right to issue or change credit terms at it's sole descretion.
DELIVERY
Securitech will provide an estimated delivery date. Securitech shall not be held liable or accountable for any damages or costs incurred due to missed or changed delivery date.
FINANCE CHARGES
Securitech retains the right to issue finance charges of 1.5% per month on all delinquent accounts. The customer shall be responsible for all collection costs, court costs and attorney's fees (where allowed by law) in connection with the recovery of any delinquent account.
FREIGHT
F.O.B. Maspeth, NY. Customer is responsible for all freight costs. Securitech will ship with the carrier of it's choice, unless instructed otherwise. Freight in not included in rush charge.
MINIMUM INVOICE AMOUNT
Securitech retains the right to determine the minimum invoice amount for any account.
LEGAL
All transactions shall be governed by the laws of the State of New York.
PRICES
Prices are subject to change without notice and are only guaranteed when presented by Securitech by a quotation and subject to the dates listed in the quotation. Securitech reserves the right to correct any printed or clerical errors at any time.
RETURNS
All returns shall require pre-authorization by Securitech and the issuance of an RGA number. All returns must comply with the terms and requirements listed on the RGA and are subject to review and acceptance upon receipt by Securitech. Returns are subject to a restocking fee as determined by Securitech and are issued at the sole discretion of Securitech.
TAXES
Securitech sales are to authorized resellers who shall furnish applicable sales certificates to Securitech. All prices exclude any federal, state or local taxes.
TERMS OF SALE
Securitech terms for open status accounts are Net 30 days. Discounts are offered at the sole discretion of Securitech and are listed individually upon the invoice.
Securitech Group, Inc. Rush Order Policy (Effective 10/07)
We try very hard accommodate all our customers and honor requested ship dates. We understand that there will be circumstances requiring "Rush" orders and will make good faith efforts to honor those requests, according to the policy below. However, it is impossible for Securitech to honor each and every rush order request. Dealers should maintain an inventory of the most popular items they sell.
Rush charges are necessary as greater effort and expenses are incurred to fulfill rush shipments. Rush orders also impact our ability to make on-time shipments. Customers will be informed of rush charges before they are entered on the order. Customers must accept the rush charge before the order can be processed.
Rush orders will be accepted until 2pm EST (3pm EST for west coast customers). Any orders received after that time cannot be processed on the same day. Rush charges may be waived at the discretion of management and will be indicated in writing on the purchase order confirmation.
Rush Charge Schedule:
-Standard: 10% - shipped within 48 hours after receipt of a confirmed order. -Extreme: 15% -shipped within 24 hours of a confirmed order, requires telephone request as well.
FREIGHT IS NOT INCLUDED IN RUSH CHARGE
Under normal circumstances the following products can ship with RUSH status. Quantity may affect availability
All products must be of standard finish, size and have no custom mechanical or electric components.
-
1. SERPENT Complete Products: SEL-100, 200, 110, 210,120, 220, SEL-IAL, SEL-DDA, SEL-481/482, SEL-GK2
- a. Exterior Trim: SEL-KLT, SEL-MTT, SEL-KDT, SEL-MDT
- b. Alarms: SEL-A10, SEL-A20
- c. Spare Parts: SEL-SSO,
-
2. 4800 Complete Products: 4820, 4820V, 4840, 4840P, 4831,4832,4833 (In swing or out swing)
- a. Exterior Control: XX, HG, BG
- b. Internal Control: All options (TT, LT, CO, RO)
- c. Standard Door width, height and thickness ("37")
- d. Spare Parts: MPK-EK12, 4840MECH, 48TPC-ASM
- 3. SECURIGUARD Models 6300, 6305
The following products are not available under the above rush program: 7000 Series, 8000 Series, any SHD, any SBD, any TT, special finishes, LEXI, ACCED, ELECTRA, RACHIE, ARTE, CUSTOM ELECTRICAL AND/OR MECHANICAL PRODUCTS.
Please contact the factory for lead times.
This policy is subject to change without notice.
Pricing, Policies & Warranty
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
Limited Warranty
The Securitech Group, Inc (The Company) warrants that its products sold are free from defects in workmanship and materials under normal use and service.
This warranty does not cover damage or defects arising from improper installation, improper storage, abuse, or products being used in application other than in a manner which product was intended.
The only liability of the Company in tort or contract whether under warranty or otherwise shall be limited to the repair or replacement of any product or component part which shall prove defective as covered by this warranty.
Electric Locks & Trims
UG Trims: (2) Two Year Mechanical Warranty
(5) Five Year Warranty on electrical components
GG Trims: (2) Two Year Mechanical Warranty
(5) Five Year Warranty on electrical components
Power Transfer Hinges, TransX, Yamaka, Mini Hinge:
(1) One Year Warranty
Power Supplies, Alarms, Key Switches, other products:
(1) One Year Warranty
Multi-Point & Mechanical Locks
Serpent: [5] Five Year Mechanical & [1] One Year Electrical Warranty
4800 Series: (3) Three Year Mechanical Warranty 6000 Series: (1) One Year Mechanical Warranty 7000 Series: (1) One Year Mechanical Warranty 8000 Series: (1) One Year Mechanical Warranty
Glossary of Terms
Classroom Function: Lever remains unlocked until re-locked by key
Storeroom Function: Single entry, lever relocks when key is removed
Fail-Secure: Lever remains locked with loss of power
Fail-Safe: For re-entry applications; lever unlocks with loss of power
Request-To-Exit: Moving interior lever or pushing panic bar sends signal for exiting. Eliminates need for P-I-R switches or other detectors.
Key Usage Switch: Single rotation of the key changes state of switch from off to on or on to off
Momentary Switch: State of switch changes only as long as key is rotated
Latch Position Switch: Indicates that latch is fully extended
Key On/Off Switch: A switch performs a function when activated by rotating the key
Bond Sensor: Verifies bonding between magnet and armature on magnetic locks
Door Status Switch: Senses open and closed door position.
Finishes
| B. H. M. A. | Description |
|---|---|
| 630 | Satin Stainless Steel |
| 605 | Bright Brass |
| 606 | Satin Brass |
| 611 | Bright Bronze |
| 612 | Satin Bronze |
| 613 | Oil Rubbed Bronze |
| 625 | Bright Chrome |
| 626 | Satin Chrome |
| 629 | Bright Stainless |
| 676 | Powder Coated Black |
Handing
The door handing is determined by looking at the door from the exterior (key) side of the door
Look at the hinges.
See if the door swings into the room or out of the room.
LEXI <sup>™</sup> Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
RETROFIT CONTROL TRIM FOR EXISTING EXIT DEVICES
Below is pricing for Securitech's popular LEXI models.
To price other custom models start with the series as the base price.
Add the appropriate prices for each designation.
The total is the model's list price.
LEXI POPULAR MODEL PRICES (Specify handing.)
| ELMIT OF OLM MODEL | THE LE (Speeny manang.) | |
|---|---|---|
| MODELS (page E2.2) | LIS | T PRICE |
| EDT-G20-D11-J2F1-630 | 24vDC Release For Jackson Concealed Vertical Rod Exit Devices (CVR-885, 1085, 1285, 2085); Single Entry, Fail-Secure | $990 |
| EDT-G20-D13-J2F1-630 | 24vDC Release For Jackson Concealed Vertical Rod Exit Devices (CVR-885, 1085, 1285, 2085); Single Entry, Fail-Secure, Key Usage Switch | $1195 |
| EDT-G20-D11-D4G2-630 | 24vDC Release For Doromatic Concealed Vertical Rod Exit Devices (CVR-1690, 990); Single Entry, Fail-Secure | $990 |
| EDT-G20-D13-D4G2-630 | 24vDC Release For Doromatic Concealed Vertical Rod Exit Devices (CVR-1690, 990); Single Entry, Fail-Secure, Key Usage Switch | $1195 |
| EDT-G20-D11-V1A1-630 | 24vDC Release For Von Duprin Rim Exit Devices (RIM-99EO, 99NL(cyl), 99TP, 99K, 9927EO, 9927NL(cyl), 9927L, 9927K, 9947EO, 9947NL(cyl), 9947L); Single Entry, Fail-Secure | $955 |
| EDT-G20-D13-V1A1-630 | 24vDC Release For Von Duprin Rim Exit Devices (RIM-99EO, 99NL(cyl), 99TP, 99K, 9927EO, 9927NL(cyl), 9927L, 9927K, 9947EO, 9947NL(cyl), 9947L); Single Entry, Fail-Secure, Key Usage Switch | $1160 |
| EDT-G20-D11-Y1A1-630 | 24vDC Release For Yale & Corbin Russwin Exit Devices (Yale: SVR-7110, SQB-7150n, CVR-7140n, RIM-7200w, CVR-7240; Corbin Russwin: RIM-ED5200n, SVR-ED5400n, CVR-ED5800n, RIM-ED4200, SVR-ED4400, SVR-ED4800, RIM-ED6200, SVR-6400EO, CVR-ED6800EO); Single Entry, Fail-Secure | $910 |
| EDT-G20-D13-Y1A1-630 | 24vDC Release For Yale & Corbin Russwin Exit Devices (Yale: SVR-7110, SQB-7150n, CVR-7140n, RIM-7200w, CVR-7240; Corbin Russwin: RIM-ED5200n, SVR-ED5400n, CVR-ED5800n, RIM-ED4200, SVR-ED4400, SVR-ED4800, RIM-ED6200, SVR-6400EO, CVR-ED6800EO); Single Entry, Fail-Secure, Key Usage Switch | $1115 |
START HERE TO BUILD YOUR CUSTOM MODEL
LEXI PRICE LIST
| SERIES | DESCRIPTION | LIST PRICE |
|---|---|---|
| EDT | Exit Device Trim | $820 |
| EMT | Exit Device Trim, Maglock Built In Trim | $995 |
| TRIM STYLE | DESCRIPTION | LIST PRICE |
|---|---|---|
| G2 | GG Style Trim; Durable, Slip Clutch Model (vandal-resistant) | - |
| LEVER TYPE | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| 0 | Standard With Return | - |
| 2 | Tapered | 55 |
| 3 | Tubular With Return | 55 |
| 4 | Tapered With Return | 55 |
| · |
CONTINUED ON NEXT PAGE
LEXI ™ Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
| 7 | ||
|---|---|---|
| FUNCTION GRO | OUPS DESCRIPTION ADD TO L | IST PRICE |
| D11 | 24vDC Release, Single Entry, Fail-Secure | - |
| D13 | 24vDC Release, Key Usage Switch | 205 |
| D15 | 24vDC Release, Key On/Off Switch | 150 |
| D31 | 24vDC Release, Classroom Function | 70 |
| R11 | Re-Entry Function, 24vDC Required, Fail-Safe | 70 |
| R13 | Re-Entry Function, Key Usage Switch | 275 |
| A11 | 24vAC (30VA) Release, Single Entry, Fail-Secure | - |
| A13 | 24vAC (30VA) Release, Key Usage Switch | 205 |
| M10 | Mechanical, Single Entry | - 140 |
| M30 | Mechanical, Classroom Function | -90 |
| M00 | Mechanical, Dummy Trim | -165 |
| M02 | Passage | -190 |
| MP&O | DESCRIPTION ADD TO L | IST PRICE |
| D4G2 | Doromatic, CVR-1690, 990 | 170 |
| D6G2 | Doromatic, CVR-3700 | 170 |
| J2F1 | Jackson, CVR-885, 1085, 1285, 2085 | 170 |
| K1E1B | Kawneer, CVR-Paneline (wide stile only) | 305 |
| V1A1 | Von Duprin, Rim-99EO, 99NL(cyl), 99TP, 99K, 9927EO NL(cyl), 9927L, 9927K, 9947EO, 9947NL(cyl), 9947L | 135 |
| Y1A1 | Yale, VR7110, SQB7150(n), CVR7140(n), Rim7200(w), CVR7240, Rim-ED5200(n), SVR-ED5400(n), CVR-ED5800(n), Rim-ED4200, SVR-ED4400, SVR-ED4800, Rim-ED6200, SVR-ED6400(EO), CVR-ED6800(EO) | 90 |
| Y3A1 | Yale, Rim7100(w), SQB7150(w), SVR7110(w), CVR7140(w) | 135 |
| OTHER MP&O M | MODELS ADD TO L | IST PRICE |
| LEVEL I | (Includes Mounting Plate For Dummy Trim) | 90 |
| LEVEL II | · · · · · · · · · · · · · · · · · · · | 135 |
| LEVEL III | 170 | |
| I EVEL IV | 190 |
| OTHER MP&O MODELS | ADD TO LIST PRICE | |
|---|---|---|
| LEVEL I (Inc | cludes Mounting Plate For Dummy Trim) | 90 |
| LEVEL II | , | 135 |
| LEVEL III | 170 | |
| LEVEL IV | 190 | |
| LEVEL V | 265 | |
| LEVEL VI | 305 | |
| SPECIAL FUNCTIONS DESCRIPTION ADD TO | ||||
|---|---|---|---|---|
| OPTIONAL (List As Needed) | ||||
| F1 | Lever Position Switch | 190 | ||
| F3 | Thick Door (2-2 1/2) | 55 | ||
| F4 | LED Lever Release Indicator | 340 | ||
| F5 | Security Fasteners | 45 | ||
| F6 | Piezo Sounder For Lever | 90 | ||
| FINISH | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| 630 | Satin Stainless Steel | • |
| 605 | Bright Brass | 240 |
| 606 | Satin Brass | 160 |
| 613 | Oil Rubbed Bronze -Powder Coated- | 160 |
| 629 | Polished Stainless Steel | 245 |
| DOOR HANDING | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| LHR | Left Hand Reverse Door | |
| RHR | Right Hand Reverse Door | |
| All hardware is manufactured for Standard 3' x 7' x 1-3/4" doors. |
LEXI™ MP&O Finder
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
FIND YOUR EXIT DEVICE MODEL NUMBER. FIND THE CORRESPONDING MP&O. PLACE THE MP&O DESIGNATION INTO FIELD #4 ON THE LEXI MODEL BUILDER PAGE.
Von Dunrin Exit Devices

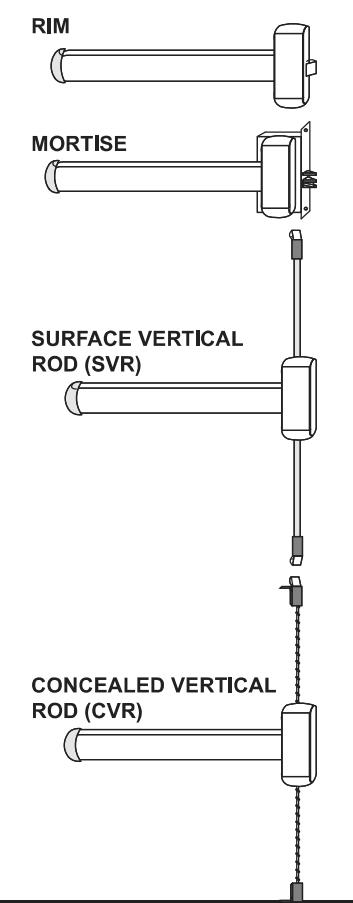

| MODEL | TYPE | DEVICE | EXTERIOR | OPERATOR | MP&O | LEVEL |
|---|---|---|---|---|---|---|
| 22 | RIM | 22NL | No Longer Supported | N/A | N/A | N/A |
| 33 | RIM | 33EO | No Longer Supported | N/A | N/A | N/A |
| 33 | RIM | 33NL-OP | No Longer Supported | N/A | N/A | N/A |
| 33 | RIM | 33L | No Longer Supported | N/A | N/A | N/A |
| 3327 | SVR | 3327L | No Longer Supported | N/A | N/A | N/A |
| 3347 | CVR | 3347L | LEVER TRIM | 372L | V9D6 | IV |
| 3347 | CVR | 3347TL | THUMBTURN | 376T | V13D6* | IV |
| 33A | RIM | 33AEO | NONE | N/A | V10A4 | II |
| 33A | RIM | 33ANL | CYLINDER | 386NL | V10A4 | II |
| 33A | RIM | 33AL | LEVER TRIM | 360L | V10A4 | II |
| 3327A | SVR | 3327A | LEVER TRIM | V10A4 | II II | |
| 33A47 | CVR | 33A47EO | NONE | N/A | V10A4 | | | | |
| 33A47 | CVR | 33A47NL | CYLINDER | 386NL | V10A4 | II II |
| 33A47 | CVR | 33A47L | LEVER TRIM | 360L | V10A4 | | | |
| 33A47 | CVR | 33A47TL | THUMBTURN | 376T | V13D6* | IV |
| 5547 | CVR | 5547TL | THUMBTURN | 376T | V13D6* | IV |
| 55 | RIM | 55NL | LEVER TRIM | 5575NL | V18A1 | IV |
| 88 | RIM | 88NL | CYLINDER | 880NL | V2A1 | " |
| 88 | RIM | 88TP | THUMB PIECE | 880TP | V15A1** | IV |
| 88 | RIM | 88L | LEVER TRIM | 373L | V20B4 | " |
| 88 | RIM | 88K | KNOB | 880K | V2B1 | | || |
| 8875 | MORTISE | 8875L | LEVER TRIM | 373L | V7B1 | " |
| 8827 | SVR | 8827TP | THUMB PIECE | 880TP | V11D9*** | IV |
| 8827 | SVR | 8827L | LEVER TRIM | 373L | V12B4 | II II |
| 8847 | CVR | 8847EO | NONE | N/A | V13D6* | IV |
| 8847 | CVR | 8847TL | THUMBTURN | 377T | V13D6* | IV |
| 99 | RIM | 99EO | NONE | N/A | V1A1 | II |
| 99 | RIM | 99L | LEVER TRIM | 996L | V1A1 | II II |
| 99 | RIM | 99NL | CYLINDER/PLATE | 990NL | V4A1 | II II |
| 99 | RIM | 99NL | CYLINDER ONLY | 110NL | V1A1 | II |
| 99 | RIM | 99TP | THUMB PIECE | 990TP | V1A1 | II |
| 99 | RIM | 99K | KNOB | 991K | V1A1 | II |
| 9975 | MORTISE | 9975L | LEVER TRIM | 992L | V14B8 | III |
| 9975 | MORTISE | 9975K | KNOB | 991K | V14B8 | | || |
| 9927 | SVR | 9927EO | NONE | N/A | V1A1 | II |
| 9927 | SVR | 9927NL | CYLINDER/PLATE | 990NL | V4A1 | II. |
| 9927 | SVR | 9927NL | CYLINDER ONLY | 110NL | V1A1 | II. |
| 9927 | SVR | 9927TP | THUMB PIECE | 990TP | V4A1 | II |
| 9927 | SVR | 9927L | LEVER TRIM | 992L | V1A1 | II |
| 9927 | SVR | 9927K | KNOB | 991K | V1A1 | II |
| 9947 | CVR | 9947EO | NONE | N/A | V1A1 | II |
| 9947 | CVR | 9947NL | CYLINDER/PLATE | 990NL | V4A1 | II |
| 9947 | CVR | 9947NL | CYLINDER ONLY | 110NL | V1A1 | II |
| 9947 | CVR | 9947L | LEVER TRIM | 992L | V1A1 | ll ll |
Universal Mounting Plates
| MP&O | LEVEL | WIDTH | HEIGHT |
|---|---|---|---|
| U1A1 | = | 2" | 13" |
| U2A1 | II | 3" | 13" |
| U3D2 | II | 3" | 13" |
| U4A7 | = | 2.5" | 14.25" |
| U1D6 | III | 2" | 13" |
| U1D7 | III | 2" | 13" |
Universal Mounting Plates do not match a specific manufacturer's templating and do not thru-bolt to exit devices. They are designed to thru-bolt around the exit device head and can be used with various, but not all exit devices.
All Universal Mounting Plates include 4 thru-bolts except the U3D2 MP&O which comes with 2 thru-bolts.
U1A1 & U2A1 replicate rim cylinder tailpiece
D2 operator used for Monarch 18 CVR
D6 operator used for lifting motion on different CVR devices
D7 operator used for lifting motion on Sargent CVR devices
We are constantly adding MP&O's based upon customer requests. If the MP&O for an exit device you need is not listed, please contact the factory and we'll work with you to meet your needs.
* Must use rod member #109112 for MP&O #V13D6 ** Requires Von Duprin #CKNL kit to use MP&O #V15A1
LEXI™ MP&O Finder
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
FIND YOUR EXIT DEVICE MODEL NUMBER. FIND THE CORRESPONDING MP&O. PLACE THE MP&O DESIGNATION INTO FIELD #4 ON THE LEXI MODEL BUILDER PAGE.
Adams-Rite Exit Devices
TYPE
MORTISE
CVR
CVR
CVR
CVR
TYPE
RIM
MORTISE
RIM
SVR
SVR
RIM
Monarch Exit Devices
MODEL
8400
8600-LHR
8600-RHR
8675-LHR
8675-RHR
MODEL
17R
17M
18R
18SVR
19SVR
19 R EO
ALUMINUM DOOR SOLUTIONS
MP&O LEVEL
Contact Securitech
Ш
Ш
Ш
LEVEL
П
Ш
ш
Ш
Ш
A2A8
A3A8
A2A8
A3A8
MP&O
M1D2
M1D2
M3B9
M2A1
M4A1
M5A1
Jackson Exit Devices
| MODEL | TYPE | MP&O | LEVEL |
|---|---|---|---|
| 885 | CVR | J2F1 | III |
| 1085 | CVR | J2F1 | III |
| 1085 | CVR | J6F1* | III |
| 1285 | CVR | J2F1 | III |
| 2085 | CVR | J2F1 | III |
| 3185 | CVR | J1H2 | IV |
| 1095 | RIM | J3A4 | III |
| 1295 | RIM | J4A5 | III |
Kawneer Exit Devices
| STILE | TYPE | MP&O | LEVEL | |
|---|---|---|---|---|
| WIDE | CVR | K1E1B** | VI | |
| NARROW | CVR | K2E2** | П | V |
Stanley Exit Devices
| MODEL | TYPE | DEVICE | EXTERIOR | MP&O | LEVEL | STILE |
|---|---|---|---|---|---|---|
| QED100 | RIM | QED111 | LEVER OR PULL | Q1A7 | III | WIDE |
Corbin/Russwin Exit Devices
| MODEL TYPE DEVICE EXTERIOR MP&O LEVEL STIL ED5000 RIM ED5200 Y1A1/Y3A1 I/II NARROW. ED5000 SECURITY ED5200S Y1A1/Y3A1 I/II NARROW. ED5000 MORTISE ED5600L LEVER TRIM Y2B1 II N/A ED5000 SVR ED5400 Y1A1/Y3A1 I/II NARROW. ED5000 CVR ED5800 Y1A1/Y3A1 I/II NARROW. ED4000 RIM ED4200 Y1A1 I N/A ED4000 SVR ED4400 Y1A1 I N/A | WIDE WIDE |
|---|---|
| ED5000 SECURITY ED5200S Y1A1 / Y3A1 I / II NARROW. ED5000 MORTISE ED5600L LEVER TRIM Y2B1 II N/A ED5000 SVR ED5400 Y1A1 / Y3A1 I / II NARROW. ED5000 CVR ED5800 Y1A1 / Y3A1 I / II NARROW. ED4000 RIM ED4200 Y1A1 I N/A | WIDE |
| ED5000 MORTISE ED5600L LEVER TRIM Y2B1 II N/A ED5000 SVR ED5400 Y1A1 / Y3A1 I / II NARROW ED5000 CVR ED5800 Y1A1 / Y3A1 I / II NARROW ED4000 RIM ED4200 Y1A1 I N/A | WIDE |
| ED5000 SVR ED5400 Y1A1 / Y3A1 I / II NARROW. ED5000 CVR ED5800 Y1A1 / Y3A1 I / II NARROW. ED4000 RIM ED4200 Y1A1 I N/A | WIDE |
| ED5000 CVR ED5800 Y1A1 / Y3A1 I / II NARROW ED4000 RIM ED4200 Y1A1 I N/A | |
| ED4000 RIM ED4200 Y1A1 I N/A | WIDE |
| ED4000 NAM | |
| | ED4000 | SVR | ED4400 | | Y1A1 | I | N/A | - 1 |
| ED4000 CVR ED4800 Y1A1 I N/A | |
| ED6000 RIM ED6200*** EXIT ONLY Y1A1 I N/A | |
| ED6000 RIM ED6200**** THUMBPIECE C6L1 III N/A | |
| ED6000 RIM ED6200 LEVER TRIM C6L1 III N/A | |
| ED6000 RIM ED6200 KNOB C6L1 III N/A | |
| ED6000 SVR ED6400*** EXIT ONLY Y1A1 I N/A | |
| ED6000 SVR ED6400**** THUMBPIECE C6L1 III N/A | |
| ED6000 SVR ED6400 LEVER TRIM C5C2 III N/A | |
| ED6000 SVR ED6400 KNOB C6L1 III N/A | |
| ED6000 CVR ED6800*** EXIT ONLY Y1A1 I N/A | |
| ED6000 CVR ED6800**** THUMBPIECE C6L1 III N/A | |
| ED6000 CVR ED6800 LEVER TRIM C6L1 III N/A | |
| ED6000 CVR ED6800 KNOB C6L1 III N/A | |
| ED8000 RIM ED8200 EXIT ONLY C3A3 III N/A | |
| ED8000 RIM ED8200 LEVER OR KNOB C3A3 III N/A | * |
| ED8000 SVR ED8400 EXIT ONLY C3A3 III N/A | * |
| ED8000 SVR ED8400 LEVER OR KNOB C3A3 III N/A |
Doromatic Exit Devices
| MODEL | TYPE | MP&O | LEVEL |
|---|---|---|---|
| 1690 | CVR | D4G2 | III |
| 990 | CVR | D4G2 | II |
| 1990 | CVR | D10G2 | III |
| 1790-RHR | RIM | D6G2 | III |
| 1790-LHR | RIM | D6G1 | III |
| 3700 | RIM | D6G2 | III |
| 3690 | CVR | D4G2 | III |
Detex Exit Devices
| MODEL | TYPE | MP&O | LEVEL |
|---|---|---|---|
| V4001 | RIM | T1A10 | IV |
Hager Exit Devices
| MODEL | [ 7 | YPE | MP&O | LEVEL |
|---|---|---|---|---|
| 4500 | RIM | H1A7 | IV |
ED5000 Series
All exits will accept trims.
Function of device is in trim not in the exit head.
The narrow Y1 plate should be used on new construction or doors not yet prepped for Corbin Russwin 700/900 trims.
The Y3 backplate is the same dimensions as the escutcheon for the 700/900 trim by Corbin Russwin. Use on retrofit projects.
ED4000 Series
All narrow-stile exits will accept trims.
Function of device is in trim not in the exit head.
The Y1A1 MP&O bolts directly to the head of the exit device.
ED8000 Series
Trim bolts thru door above and below device as well as once to head of device for alignment
* For retrofit. Covers old exterior trim holes.
* For use with PANELINE 350 Doors
*** Requires upgrade cassette in exit device head to accept trim ****The C2 Plate will not cover all old thumbpiece holes
We are constantly adding MP&O's based upon customer requests. If the MP&O for an exit device you need is not listed, please contact the factory and we'll work with you to meet your needs.
LEXI™ MP&O Finder
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
FIND YOUR EXIT DEVICE MODEL NUMBER. FIND THE CORRESPONDING MP&O. PLACE THE MP&O DESIGNATION INTO FIELD #4 ON THE LEXI MODEL BUILDER PAGE.
Yale Exit Devices
| MODEL | TYPE | EXTERIOR | OPERATOR | MP&O | LEVEL | STILE | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7100/7150 | RIM | Г | NONE | N/A | Γ | Y1A1 / Y3A1 | Γ | 1711 | Г | NARROW / WIDE | |
| 7100/7150 | RIM | Г | CYLINDER | Г | N/A | Γ | Y1A1 / Y3A1 | Γ | 1711 | Γ | NARROW / WIDE |
| 7100/7150 | RIM | Г | THUMBPIECE | Γ | 530 | Γ | Y1A1 / Y3A1 | Γ | 1711 | Γ | NARROW / WIDE |
| 7100/7150 | RIM | Γ | LEVER TRIM | Γ | 520/620 | Г | Y1A1 / Y3A1 | Γ | 1711 | Γ | NARROW / WIDE |
| 7100/7150 | RIM | Г | KNOB | Γ | CA544 | Г | Y3A1 | Г | Ш | Г | N/A |
| 7130 | MORTISE | Г | NONE | Γ | N/A | Г | Y2B1 | Г | Ш | Г | N/A |
| 7130 | MORTISE | Г | LEVER TRIM | Γ | 520/620 | Г | Y2B1 | Г | П | Г | N/A |
| 7110 | SVR | Г | NONE | Γ | N/A | Г | Y1A1 / Y3A1 | Г | 1711 | Г | NARROW / WIDE |
| 7110 | SVR | Г | THUMBPIECE | 530 | Г | Y1A1 / Y3A1 | Γ | 1711 | Г | NARROW / WIDE | |
| 7110 | SVR | Г | LEVER TRIM | Г | 520/620 | Г | Y1A1 / Y3A1 | Г | 1711 | Г | NARROW / WIDE |
| 7110 | SVR | Г | KNOB | Γ | CA544 | Г | Y3A1 | Γ | Ш | Г | N/A |
| 7140 | CVR | Г | NONE | Γ | N/A | Γ | Y1A1 / Y3A1 | Г | 1711 | Г | NARROW / WIDE |
| 7140 | CVR | Г | THUMBPIECE | Γ | 530 | Г | Y1A1 / Y3A1 | Γ | 1711 | Γ | NARROW / WIDE |
| 7140 | CVR | Г | LEVER TRIM | Г | 520/620 | Г | Y1A1 / Y3A1 | Г | 1711 | Г | NARROW / WIDE |
| 7140 | CVR | Г | KNOB | Г | CA544 | Г | Y3A1 | Г | II | Г | N/A |
| 7200 | RIM | Г | NONE | Γ | N/A | Γ | Y1A1 | Γ | ı | Γ | N/A |
| 7200 | RIM | Г | CYLINDER | Γ | 501 | Г | Y1A1 | Γ | ı | Γ | N/A |
| 7200 | RIM | Г | THUMBPIECE | T14 | Г | Y1A1 | Γ | I | Г | N/A | |
| 7200 | RIM | Г | LEVER TRIM | Γ | 500 | Г | Y1A1 | Г | I | Г | N/A |
| 7210 | SVR | Г | NONE | Γ | N/A | Γ | Y1A8 | Γ | ı | Γ | N/A |
| 7210 | SVR | Г | CYLINDER | 501 | Г | Y1A8 | Γ | I | Г | N/A | |
| 7210 | SVR | Г | THUMBPIECE | Γ | T14 | Г | Y1A8 | Γ | I | Г | N/A |
| 7210 | SVR | LEVER TRIM | 500 | Y1A8 | I | Г | N/A | ||||
| 7240 | CVR | NONE | N/A | Y1A1 | I | N/A | |||||
| 7240 | CVR | CYLINDER | 501 | Y1A1 | Г | I | Г | N/A | |||
| 7240 | CVR | THUMBPIECE | Γ | T14 | Γ | Y1A1 | I | Γ | N/A | ||
| 7240 | CVR | Г | LEVER TRIM | Г | 500 | Г | Y1A1 | Г | 1 | Г | N/A |
Yale 7100 Series
All exit devices will accept trims. Function of device is in trim not in the exit head.
Y1A1 - The Y1 is a narrow plate and should be used on new construction or doors not yet prepped for Yale wide-stile trims.
Y3A1 - The Y3 is a wide backplate and uses the same dimensions as the escutcheon for the 520/620 lever trims. Use on retrofit projects.
The Y1 plate used with 7100 devices uses 4 thrubolt studs.
Yale 7200 Series
All narrow stile exits will work with lever trims. Function of device is in trim not in the exit head.
Y1 plate bolts directly to head of 7200 narrow stile exit device in the middle 2 locations.
Sargent Exit Devices
| MODEL | TYPE | MP&O | LEVEL |
|---|---|---|---|
| 8400 | CVR | S1D7 | III |
| 8400ET | CVR | S1D8 | III |
| 8600 | CVR | S1D8 | III |
| 8810F | RIM | S2A1 | J |
| 8810RD | RIM | S2A1 | 1 |
| 8800R | RIM | S2A1 | J. |
| 8880R | RIM | S2A1 | J |
| 8813 | RIM | S2A1 | 1 |
| 8888R | RIM | S6A1 | III |
| 8300 | MORTISE | S4B2 | 1 |
| 8700 | SVR | S4B2 | I |
| 8900 | MORTISE | S4B2 | J |
| 9800 | RIM | S4B2 | l l |
| 9900 | MORTISE | S3C1 | III |
| 9900 | MORTISE | S4B2 | ı |
| 9700 | SVR | S4B2 | I |
Precision Exit Devices
| MODEL | TYPE | MP&O | LEVEL |
|---|---|---|---|
| 110 | RIM | P1A1 | Ш |
| 110 | RIM | P3C1 | III |
| 1103R | RIM | P15C3 | = |
| 1103R | RIM | P15C3 | = |
| 1203 | SVR | P1A1 | II |
| 200 | SVR | P15C1 | III |
| 1200 | SVR | P1A1 | II |
| 1305 | MORTISE | P2B1 | Ш |
| 1800 | CVR | P601 | III |
| 2603 | CVR | P8A1 | II |
| 2103 | RIM | P9A1 | III |
| 2208 | SVR | P10A1 | Ш |
| 2400 | RIM | P13A1 | Ш |
* For retrofit. Covers old exterior trim holes.
Dorma Exit Devices
| MODEL | TYPE | MP&O | LEVEL | |
|---|---|---|---|---|
| 9100 | CVR | B1A1 | П | |
| 5100 | CVR | B2A7 | Ш | |
| 5300 | RIM | B2A7 | II | |
| 9400 | SVR | П | B1A1 | П |
| 9700 | RIM | B3A4 | Ш |
American Devices
| MODEL | TYPE | MP&O | LEVEL | |
|---|---|---|---|---|
| 6100-LHR | CVR | A4A1 | II | |
| 6100-RHR | CVR | Г | A5A1 | II |
Stanley K2
| MODEL | TYPE | MP&O | LEVEL | |
|---|---|---|---|---|
| QED111 | RIM | Г | Q1A7 | II |
We are constantly adding MP&O's based upon customer requests. If the MP&O for an exit device you need is not listed, please contact the factory and we'll work with you to meet your needs.
ELECTRA ™ Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
CONTROL TRIM PACKAGES FOR MORTISE & CYLINDRICAL LOCKS
Below is pricing for Securitech's popular ELECTRA models.
To price other custom models start with the series as the base price.
Add the appropriate prices for each designation.
The total is the model's list price.
ELECTRA POPULAR MODEL PRICES (Specify handing.)
| ( - ) ( - ) | ||
|---|---|---|
| MODELS (page E3.2) | L | ST PRICE |
| MLA-G20-D11-630 | Fire-Rated "A" Series Mortise Lockset; 24vDC Release, Single Entry, Fail-Secure | $1285 |
| MLA-G20-D21-630 | Fire-Rated "A" Series Mortise Lockset; 24vDC Release, Single Entry, Fail-Secure, Request-To-Exit | $1375 |
| MLA-G20-D24-630 | Fire-Rated "A" Series Mortise Lockset; 24vDC Release, Single Entry, Fail-Secure, Key Usage Switch, Latch Position Switch, Request-To-Exit | $1720 |
| MLA-G20-R11-630 | Fire-Rated "A" Series Mortise Lockset; 24vDC Re-Entry Release, Single Entry, Fail-Safe | $1355 |
| MLA-G20-R21-630 | Fire-Rated "A" Series Mortise Lockset; 24vDC Re-Entry Release, Single Entry, Fail-Safe, Request-To-Exit | $1445 |
| MLA-G20-R24-630 | Fire-Rated "A" Series Mortise Lockset; 24vDC Re-Entry Release, Single Entry, Fail-Safe, Request-To-Exit, Key Usage Switch, Latch Position Switch | $1785 |
| MLN-G20-D21-630 | Fire-Rated Narrow-Stile Mortise Lockset; 24vDC Release, Single Entry, Fail-Secure Request-To-Exit | $1375 |
| CLS-G20-D21-630 | Cylindrical Control Trim Package With Fire-Rated Deadlatch; 24vDC Release, Single Entry, Fail-Secure, Request-To-Exit | $1300 |
| CLS-G20-D24-630 | Cylindrical Control Trim Package With Fire-Rated Deadlatch; 24vDC Release, Single Entry, Fail-Secure, Request-To-Exit, Key Usage Switch, Latch Position Switch |
$1645
h |
| 1 |
ELECTRA PRICE LIST
| ELECTRA M. Carias | PEOCRIPTION | LICT DDIOC |
|---|---|---|
| ELECTRA M Series | DESCRIPTION | LIST PRICE |
| MLA | With "A" Series Mortise Lock | $1,285 |
| MLP | MLA With Door Position Switch | $1,510 |
| MLS | With "S" Series Mortise Lock | $1,380 |
| MLM | With Mini-Mortise Lock | $1,285 |
| MLN | Narrow Stile Mortise Lock | $1,285 |
| MLX | Mortise Lock By Others | $1,175 |
| MLD | MLX With Spindle On Diamond | $1,225 |
| MLZ | With "Z" Series Detention Mortise Lock | $1,825 |
| MLQ | MLM With Door Position Switch | $1,505 |
| _M_ | Change "L" To "M" For Maglock Control Models | add 355 |
| ELECTRA C Series | DESCRIPTION | LIST PRICE |
|---|---|---|
| CLS | With 2 1/4" Wide Mounting Plate | $1,210 |
| CLW | With Extra Wide 3 1/2" Mounting Plate | $1,260 |
| _M_ | Change "L" To "M" For Maglock Control Models | add 355 |
| TRIM STYLE | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| G2 | GG Style Trim; Durable, Slip Clutch Models (vandal-resistant) | - |
| LEVER TYPE | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| 0 | Standard With Return | - |
| 2 | Tapered | 90 |
| 3 | Tubular With Return | 90 |
| 4 | Tapered With Return | 90 |
| CONTINUED ON NEXT PAGE |
ELECTRA™ Pricing
| 54-60 46th Street, Masp | oeth NY 11378 | | 800.622.LOCK | | local: 718.392.9000 | | fax: 718.392.8944 | | www.sc | ecuritech.com |
|---|---|---|
| FUNCTION GROUPS | LIST PRICE | |
| D11 | 24vDC Release, Single Entry, Fail-Secure (Store Room Function) | - |
| D13 | 24vDC Release, Key Usage Switch | $205 |
| D14 | 24vDC Release, Key Usage Switch, Latch Position Switch | 365 |
| D15 | 24vDC Release, Key On/Off Switch | 150 |
| D16 | 24vDC Release, Latch Position Switch, Key On/Off Switch | 275 |
| D17 | 24vDC Release, Latch Position Switch | 160 |
| D21 | 24vDC Release, Request-To-Exit Signal | 90 |
| D23 | 24vDC Release, Key Usage Switch, Request-To-Exit Signal | 285 |
| D24 | 24vDC Release, Key Usage Switch, Latch Position Switch, Request-To-Exit Signal | 435 |
| D25 | 24vDC Release, Request-To-Exit Signal, Key On/Off Switch | 215 |
| D26 | 24vDC Release, Latch Position Switch, Request-To-Exit Signal, Key On/Off Switch | 375 |
| D27 | 24vDC Release, Latch Position Switch, Request-To-Exit Signal | 235 |
| \27 | 24vAC Release, Latch Position Switch, Request-To-Exit Signal | 235 |
| D31 | 24vDC Release, Classroom Function | 70 |
| 037 | 24vDC Release, Latch Position Switch, Classroom Function | 190 |
| D41 | 24vDC Release, Request-To-Exit Signal, Classroom Function | 155 |
| 047 | 24vDC Release, Latch Position Switch, Request-To-Exit Signal, Classroom Function | |
| R11 | Re-Entry Function, 24vDC Required, Fail-Safe | 70 |
| R13 | Re-Entry Function, Key Usage Switch | 255 |
| R17 | Re-Entry Function, Latch Position Switch | 205 |
| R21 | Re-Entry Function, Request-To-Exit Signal | 160 |
| R23 | Re-Entry Function, Key Usage Switch, Request-To-Exit Switch | 360 |
| R24 | Re-Entry Function, Key Usage Switch, Latch Position Switch, Request-To-Exit Sign | |
| R27 | Re-Entry Function, Latch Position Switch, Request-To-Exit Switch | 295 |
| \11 | 24vAC (30VA) Release, Single Entry, Fail-Secure | - |
|
|
24vAC (30VA) Release, Request-To-Exit Signal | 90 |
| И10 | Mechanical, Single Entry | -140 |
| M30 | Mechanical, Classroom Function | - 90 |
| M00 | Mechanical, Dummy Trim | -350 |
|
иоо
ио2 |
Passage Trim With No Cylinder Opening | -180 |
|
ло2
Л03 |
Passage Trim With Cylinder Opening | -180 |
| MAGLOCK CONTROL | LIST PRICE | |
| OPTIONAL (For Magic | LIGITINIOL | |
| 50 110NAL (1 01 Mag it | Maglock By Others | _ |
|
=0
=1 |
1,200 lb. Holding Force Electromagnetic Lock | 755 |
| 2 | E1 With Bond Sensor | 955 |
|
=2
=3 |
E1 With Door Status Switch | 955 |
|
-9
-4 |
E1 With E2 & E3 Features | 1155 |
| - T | ET With E2 & E0 T Catales | 1100 |
| SPECIAL OPTIONS | DESCRIPTION ADD TO LIST | PRICE |
| OPTIONAL (List As No | ||
|
|
Lever Position Switch | 190 |
| =3 | Thick Door (2 - 2 1/2") | 50 |
|
|
LED Lever Release Indicator | 340 |
|
|
Security Fasteners | 40 |
| F6 | Piezo Sounders For Lever | 85 |
| CONTINUED ON | I NEXT PAG | |
All hardware is manufactured for Standard 3' x 7' x 1-3/4" doors.
P1.10
ELECTRA ™ Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
| FINISH | DESCRIPTION | ADD TO LIST PRICE | |
|---|---|---|---|
| 630 | Satin Stainless Steel | - | |
| 605 | Bright Brass | $425 | |
| 606 | Satin Brass | 370 | |
| 611 | Bright Bronze | Call Factory | |
| 612 | Satin Bronze | Call Factory | |
| 613 | Oil Rubbed Bronze | -Powder Coated- | 250 |
| 625 | Bright Chrome | Call Factory |
| DOOR HANDING | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| LHR | Left Hand Reverse Door | - |
| RHR | Right Hand Reverse Door | - |
| LH | Left Hand Door | - |
| RH | Right Hand Door | - |
ACCED™ Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
COMPLETE CONTROL TRIM & EXIT DEVICE PACKAGES
Below is pricing for Securitech's popular ACCED models.
To price other custom models start with the series as the base price.
Add the appropriate prices for each designation.
The total is the model's list price.
POPULAR MODEL PRICING (Specify handing.)
| = ( - | - | - | - | - | - | - | | ||
|---|---|---|
| MODELS (page E4.2) | LIST PRICE | |
| EDR-G20-D24-AI-630 | 24vDC Release, Single Entry, Fail-Secure, Key Usage Switch, Latch Position | $2,700 |
| Switch, Request-To-Exit | A | |
| EDR-G20-D21-AI-630 | 24vDC Release, Single Entry, Fail-Secure, Request-To-Exit | $2,315 |
| EDR-G20-R24-AI-630 | 24vDC Re-Entry Release, Single Entry, Fail-Safe, Key Usage Switch, Latch Position Switch, Request-To-Exit | $2,765 |
| EDR-G20-R21-AI-630 | 24vDC Re-Entry Release, Single Entry, Fail-Safe, Request-To-Exit | $2,365 |
| FDR-G20-D24-AI-630 | Fire-Rated, 24vDC Release, Single Entry, Fail-Secure, Key Usage Switch, Latch Position Switch, Request-To-Exit | $2,845 |
| FDR-G20-D21-AI-630 | Fire-Rated, 24vDC Release, Single Entry, Fail-Secure, Request-To-Exit | $2,460 |
| FDR-G20-R24-AI-630 | Fire-Rated, 24vDC Re-Entry Release, Single Entry, Fail-Safe, Key Usage Switch Latch Position Switch, Request-To-Exit | , $2,910 |
| FDR-G20-R21-AI-630 | Fire-Rated, 24vDC Re-Entry Release, Single Entry, Fail-Safe, Request-To-Exit | $2,510 |
ACCED PRICE LIST
| ACCED R | DESCRIPTION | LIST PRICE |
| EDR | Rim Exit Device | $2,205 |
| FDR | Fire-Rated Rim Exit Device | $2,350 |
| EMR | Rim Device With Maglock Control | $2,535 |
| FMR | Fire-Rated Rim Device With Maglock Control | $2,670 |
| ACCED SVR | DESCRIPTION | LIST PRICE |
|---|---|---|
| EDS | Surface Vertical Rod Exit Device | $2,670 |
| FDS | Fire-Rated Surface Vertical Rod Exit Device | $2,845 |
| EMS | Surface Vertical Rod With Maglock Control | $3,030 |
| FMS | Fire-Rated EMS Surface Vertical Rod With Maglock Control | $3,165 |
| ACCED CVR | DESCRIPTION | LIST PRICE |
|---|---|---|
| EDC | Concealed Vertical Rod Exit Device | $2,845 |
| FDC | Fire-Rated Concealed Vertical Rod Exit Device | $2,985 |
| EMC | Concealed Vertical Rod With Maglock Control | $3,165 |
| FMC | Fire-Rated Concealed Vertical Rod With Maglock Control | $3,315 |
| ACCED M | DESCRIPTION | LIST PRICE |
|---|---|---|
| EDM | Mortise Exit Lock | $2,635 |
| FDM | Fire-Rated Mortise Exit Lock | $2,775 |
| EMM | Mortise Device With Maglock Control | $2,965 |
| FMM | Fire-Rated Mortise Device With Maglock Control | $3,110 |
| ACCED RB | DESCRIPTION | LIST PRICE |
|---|---|---|
| EDB | Rim Bolt Exit Device | $2,310 |
| FDB | Fire-Rated Rim Bolt Exit Device | $2,450 |
| EMB | Rim Bolt Device With Maglock Control | $2,635 |
| FMB | Fire-Rated Rim Bolt Device With Maglock Control | $2,775 |
| CONTINUED ON NEXT PAGE |
ACCED™ Pricing
| ACCED PIICIII | 9 | |
|---|---|---|
| 54-60 46th Street, Ma | speth NY 11378 I 800.622.LOCK I local: 718.392.9000 I fax: 718.392.8944 I www.secu | ritech.cor |
| IARROW STILE | DESCRIPTION ADD TO LIS | T PRICE |
| -N | Narrow-Cover (add designation after series code); Not Available For ACCED M | $180 |
| 14 | Harrow cover (and designation and control code); Not Available For Noce 2 | Ψ100 |
| RIM STYLE | DESCRIPTION ADD TO LIS | T PRICE |
| 2 | GG Style Trim; Durable, Slip Clutch Models (vandal-resistant) | - |
| co cojio, z si asio, cip ciarocacja (.aaacocca) | ||
| EVER TYPE | DESCRIPTION ADD TO LIS | T PRICE |
| Standard With Return | - | |
| Tapered | 55 | |
| Tubular With Return | 55 | |
| Tapered With Return | 55 | |
| FUNCTION GROUPS | S DESCRIPTION ADD TO LIS | T PRICE |
| D11 | 24vDC Release, Single Entry, Fail-Secure | - |
| )13 | 24vDC Release, Key Usage Switch | 205 |
| )14 | 24vDC Release, Key Usage Switch, Latch Position Switch | 365 |
| 15 | 24vDC Release, Key On/Off Switch | 150 |
| 16 | 24vDC Release, Latch Position Switch, Key On/Off Switch | 325 |
| 17 | 24vDC Release, Latch Position Switch | 180 |
| 21 | 24vDC Release, Request-To-Exit Signal | 110 |
| 23 | 24vDC Release, Key Usage Switch, Request-To-Exit Signal | 335 |
| 24 | 24vDC Release, Key Usage Switch, Latch Position Switch, Request-To-Exit Signal | 495 |
| 25 | 24vDC Release, Request-To-Exit Signal, Key On/Off Switch | 250 |
| 26 | 24vDC Release, Latch Position Switch, Request-To-Exit Signal, Key On/Off Switch | 420 |
| 27 | 24vDC Release, Latch Position Switch, Request-To-Exit Signal | 265 |
| 31 | 24vDC Release, Classroom Function | 70 |
| )37 | 24vDC Release, Latch Position Switch, Classroom Function | 210 |
| )41 | 24vDC Release, Request-To-Exit Signal, Classroom Function | 155 |
| 47 | 24vDC Release, Latch Position Switch, Request-To-Exit Signal, Classroom Function | 330 |
| 11 | Re-Entry Function, 24vDC Required, Fail-Safe | 70 |
| .13 | Re-Entry Function, Key Usage Switch | 255 |
| 17 | Re-Entry Function, Latch Position Switch | 235 |
| 21 | Re-Entry Function, Request-To-Exit Signal | 160 |
| 23 | Re-Entry Function, Key Usage Switch, Request-To-Exit Switch | 360 |
| 24 | Re-Entry Function, Key Usage Switch, Latch Position Switch, Request-To-Exit Signal | 560 |
| 27 | Re-Entry Function, Latch Position Switch, Request-To-Exit Switch | 345 |
| .11 | 24vAC (30VA) Release, Single Entry, Fail-Secure | -105 |
| 21 | 24vAC (30VA) Release, Request-To-Exit Signal | 105 |
| 110 | Mechanical, Single Entry | -135 |
| 130 | Mechanical, Classroom Function | -90 |
| 100 | Mechanical, Dummy Trim | -160 |
| OOR | DESCRIPTION ADD TO LIS | T PRICE |
| 30" - 36" Wide Doors | - | |
| 36 1/2" - 48" Wide Doors |
75
545 |
|
| 24" - 29 1/2" Wide Doors | 545 | |
| VIRING | DESCRIPTION ADD TO LIS | T PRICE |
| Internal Wiring (at back of bar) | - | |
| • | Armored Transfer Cable | 55 |
| Internal Wiring With Long Leads | 40 |
All hardware is manufactured for Standard 3' x 7' x 1-3/4" doors. General Solutions Binder 2019 V1.1 P1.13
ACCED™ Pricing
| 54-60 46th Street, Maspeth NY 11378 | 800.622,LOCK | local: 718.39 | 92.9000 | fax: 718.392.8944 | www.securitech.com |
|---|
| HEIGHT | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| FOR VERTICA | AL ROD MODELS ONLY (7' Is Standard) | |
| 8 | For Doors Up to 96" | 65 |
| 10 | For Doors Up to 120" | 245 |
| MECHANICAL DOGGIN | NG DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| MECHANICAL DOGGII | NG DESCRIPTION | ADD TO EIST TRIBE |
| OPTIONAL (Electric D | ogging Is Standard) | |
| D | Allen Keyed Dogging | 55 |
| KD | Cylinder Keyed Dogging | 70 |
| , , , |
| MAGLOCK | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| OPTIONAL (For M | laglock Control Only) | |
| E0 | Maglock By Others | - |
| E1 | 1,200 lb. Holding Force Electromagnetic Lock | 730 |
| E2 | E1 With Bond Sensor | 930 |
| E3 | E1 With Door Status Switch | 930 |
| E4 | E1 With E2 & E3 Features | 1125 |
| ADD TO LIST PRICE | ||
|---|---|---|
| OPTIONAL (List As Needed) | ||
| F1 | Lever Position Switch | 185 |
| F3 | Thick Door (2-2 1/2) | 55 |
| F4 | LED Lever Release Indicator | 335 |
| F5 | Security Fasteners | 45 |
| F6 | Piezo Sounder For Lever | 90 |
| FINISH (For TrimOnly) | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| 630 | Satin Stainless Steel | - |
| 605 | Bright Brass | 425 |
| 606 | Satin Brass | 370 |
| 611 | Bright Bronze | Call Factory |
| 612 | Satin Bronze | Call Factory |
| 613 | Oil Rubbed Bronze -Powder Coated- | 250 |
| 629 | Polished Stainless Steel | - |
| 626 | Satin Chrome | Call Factory |
| DOOR HANDING | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| LHR | Left Hand Reverse Door | - |
| RHR | Right Hand Reverse Door | - |
SS Device
add 145
POWER SUPPLY Pricing
54-60 46th Street, Maspeth NY 11378 | toll: 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
POWER SUPPLY PRICE LIST
-2
| SINGLE DOOR POWER | LIST PRICE | |
|---|---|---|
| PS-D111 | 24vDC Release; Function Groups Begin With "D" | $480 |
| PS-A111 | 24vAC (30VA) Release; Function Groups Begin With "A" | 480 |
| PS-R111 | Re-Entry DC Power; Function Groups Begin With "R" | 480 |
| PS-A112 | 24vAC (30VA) Release; Function Groups Begin With "A" Wet/Dry Input | 565 |
| PS-R121 | 24vDC Release; For Double Sided Trim (Fail Safe) | 665 |
| PS-D121 | 24vDC Release; For Double Sided Trim (Fail Secure) | 665 |
| -E | 24vDC Electromagnetic Lock Power | add 205 |
| -2 | 2 Separate Doors; Release By Single Input | add 205 |
| TWO DOOR POWER | DESCRIPTION | LIST PRICE |
| PS-D131 | 24vDC Release; Function Groups Begin With "D" | 615 |
| PS-A131 | 24vAC (30VA) Release; Function Groups Begin With "A"; Access Control, Dry Contact | 615 |
| PS-R131 | Re-Entry DC Power; Function Groups Begin With "R" | 615 |
| PS-A132 | 24vAC (30VA) Release; Function Groups Begin With "A"; Intercom, 16vA0 Wet Input or Dry Contact | C 790 |
| TIMED RELEASE | DESCRIPTION | LIST PRICE |
| PS-D141 | 24vDC Release; Function Groups Begin With "D" | 1060 |
| PS-R141 | Re-Entry DC Power; Function Groups Begin With "R" | 1060 |
To Control 2 Doors With Single Timer
POWER TRANSFER Pricing
54-60 46th Street, Maspeth NY 11378 | toll: 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
| POWFR | TDAL | ISEED | DDICE | I IQT |
|---|---|---|---|---|
| PUVVER | IRAN | ISECK. | PRILIE | 1 1.5 |
ELECTRIFIED HINGE DESCRIPTION
| YAMAKA | DESCRIPTION | LIST PRICE |
|---|---|---|
| YMK-20 | Power Transfer Module; Mounts On Top Of Door; Flat Plate Onto Heade | er $110 |
| YMK-21 | Power Transfer Module; Mounts In Frame With Flat Plate On Door | 120 |
| DOOR CORDS | DESCRIPTION | LIST PRICE |
|---|---|---|
| DC1-18-A | 18" Loop; Stainless Steel Cable, Aluminum Finish Cap | 80 |
| DC1-18-D | 18" Loop; Stainless Steel Cable, Duronodic Finish Cap | 80 |
| DC1-24-A | 24" Loop; Stainless Steel Cable, Aluminum Finish Cap | 90 |
| DC1-24-D | 24" Loop; Stainless Steel Cable, Duronodic Finish Cap | 90 |
| PANIC BAR CORD | DESCRIPTION | LIST PRICE |
|---|---|---|
| PTC-48 | For Doors Up To 36"; Stainless Steel Cable, Includes Clips For Panic Bar | 85 |
| PTC-60 | For Doors Up To 48"; Stainless Steel Cable, Includes Clips For Panic Bar | 105 |
| PTCP-48 | For Doors Up To 48"; Stainless Steel Cable & Pipe, Includes Clips For Le | evers 175 |
| MINI-HINGE | DESCRIPTION | LIST PRICE |
|---|---|---|
| ECHFM-R-AL-4 | Matches Roton 780-112 - 4 Wires - Aluminum | 200 |
| ECHFM-R-DU-4 | Matches Roton 780-112 - 4 Wires - Duronodic | 200 |
| ECHFM-Z-AL-4 | Matches Zero 910 - 4 Wires - Aluminum | 200 |
| ECHFM-Z-DU-4 | Matches Zero 910 - 4 Wires - Duronodic | 200 |
| ECHFM-R-AL-6 | Matches Roton 780-112 - 6 Wires - Aluminum | 225 |
| ECHFM-R-DU-6 | Matches Roton 780-112 - 6 Wires - Duronodic | 225 |
| ECHFM-Z-AL-6 | Matches Zero 910 - 6 Wires - Aluminum | 225 |
| ECHFM-Z-DU-6 | Matches Zero 910 - 6 Wires - Duronodic | 225 |
| ECHFS-R-AL-4 | Matches Roton 780-157 - 4 Wires - Aluminum | 290 |
| ECHFS-R-DU-4 | Matches Roton 780-157 - 4 Wires - Duronodic | 290 |
| ECHFS-Z-AL-4 | Matches Zero 935 - 4 Wires - Aluminum | 290 |
| ECHFS-Z-DU-4 | Matches Zero 935 - 4 Wires - Duronodic | 290 |
| ECHHS-R-AL-4 | Matches Roton 780-054 - 4 Wires - Aluminum | 290 |
| ECHHS-R-DU-4 | Matches Roton 780-054 - 4 Wires - Duronodic | 290 |
| ECHHS-Z-AL-4 | Matches Zero 920 - 4 Wires - Aluminum | 290 |
| ECHHS-Z-DU-4 | Matches Zero 920 - 4 Wires - Duronodic | 290 |
| ELECTRIFIED HINGE | DESCRIPTION | LIOI | PRICE |
|---|---|---|---|
| EH4040-626-4 | Full Mortise; 4 Wires, 4" Tall, 4" Wide | 345 | |
| EH4540-626-4 | Full Mortise; 4 Wires, 4.5" Tall, 4" Wide | 345 | |
| EH4545-626-4 | Full Mortise; 4 Wires. 4.5" Tall, 4.5" Wide | 345 | |
| EH5045-626-4 | Full Mortise; 4 Wires, 5" Tall, 4.5" Wide | 400 | |
| EH5050-626-4 | Full Mortise; 4 Wires, 5" Tall, 5" Wide | 400 | |
| For Door Position Switch Change Designation "EH" To "ED" | add | 185 | |
| For 6 Wires; Change Last Designation To -6 | add | 95 | |
| For 8 Wires; Change Last Designation To -8 | add | 145 | |
| For 10 Wires; Change Last Designation To -10 | add | 170 | |
| Change Finish Designation From "626" To 630 (Stainless Steel) | add | 110 | |
| Contact Factory For Heavy Hinge Pricing | |||
RACHIE™ Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
CODE-COMPLIANT ENTRY & EXIT CONTROL SYSTEMS
Below is pricing for Securitech's basic 2 door RACHIE Entry & Exit Control Systems. Contact the factory for Custom Entry & Exit Control Systems.
BASIC RACHIE MODEL PRICING
| | BASIC RACHIE M | ODEL PRICING | |
|---|---|---|
| SYSTEM (see E6.0) | DESCRIPTION LIST PRICE | |
| RA-M101 | RA-M100 Controller; 2 Doors With Electromagnetic Locks Call Factory | |
| A/B Door: "A" Series Mortise Lock With GG Trim, Bond Sensor, Door Status Switch, | ||
| Security Fasteners, 630 Stainless Steel Finish | ||
| Exterior: Fail-Secure | ||
| Interior: Fail-Safe | ||
| C/D Door: "A" Series Mortise Lock With GG Trim, Bond Sensor, Door Status Switch, | ||
| 630 Stainless Steel Finish | ||
| Exterior: Fail-Secure | ||
| Interior: Fail-Secure | ||
| RA-M102 | RA-M100 Controller; 2 Doors With Electromagnetic Locks Call Factory | |
| A/B Door: "A" Series Mortise Lock With GG Trim, Bond Sensor, Door Status Switch, | ||
| Security Fasteners, 630 Stainless Steel Finish | - 1 | |
| Exterior: Fail-Secure | ||
| Interior: Fail-Safe | ||
| C/D Door: "A" Series Mortise Lock With GG Trim, Bond Sensor, Door Status Switch, | ||
| 630 Stainless Steel Finish | ||
| Exterior: Fail-Secure | ||
| Interior: Fail-Safe | ||
| RA-M103 | RA-M100 Controller; 2 Doors With Electromagnetic Locks Call Factory | |
| A/B Door: "A" Series Mortise Lock With GG Trim, Bond Sensor, Door Status Switch, | ||
| Security Fasteners, 630 Stainless Steel Finish | ||
| Exterior: Fail-Secure | ||
| Interior: Fail-Safe | ||
| C/D Door: "A" Series Mortise Lock With GG Trim, Bond Sensor, Door Status Switch, | ||
| 630 Stainless Steel Finish | ||
| Exterior: Fail-Safe | ||
| RA-M104 | Interior: Fail-Safe PA M100 Controller: 3 Deere With Floatramagnetic Leeks Coll Factory | |
| KA-WITU4 | RA-M100 Controller; 2 Doors With Electromagnetic Locks Call Factory A/B Door: "A" Series Mortise Lock With GG Trim, Bond Sensor, Door Status Switch, | |
| Security Fasteners, 630 Stainless Steel Finish | ||
| Exterior: Fail-Safe | ||
| Interior: Fail-Safe | ||
| C/D Door: "A" Series Mortise Lock With GG Trim, Bond Sensor, Door Status Switch, | ||
| 630 Stainless Steel Finish | ||
| Exterior: Fail-Safe | ||
| Interior: Fail-Safe | ||
| interior i dii Galo | ||
All hardware is manufactured for Standard 3' x 7' x 1-3/4" doors.
General Solutions Binder 2019 V1.1
RACHIE™ Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
CODE-COMPLIANT ENTRY & EXIT CONTROL SYSTEMS
Below is pricing for Securitech's basic 2 door RACHIE Entry & Exit Control Systems. Contact the factory for Custom Entry & Exit Control Systems.
BASIC RACHIE MODEL PRICING
| | BASIC RACHIE M | ODEL PRICING | |
|---|---|---|
| SYSTEM (see E6.0) | DESCRIPTION | LIST PRICE |
| RA-E101 | RA-E100 Controller; 2 Doors With Electric Trims Only A/B Door: "A" Series Mortise Lock With GG Trim, Door Position Switch Body, Request-To-Exit (both sides), Latch Position Switch 630 Stainless Steel Finish Exterior: Fail-Secure Interior: Fail-Safe C/D Door: "A" Series Mortise Lock With GG Trim, Lever Postion Switch, Latch Position Switch, Request-To-Exit (both sides), Door Position Switch, 630 Stainless Steel Finish Exterior: Fail-Secure Interior: Fail-Secure | Call Factory |
| RA-E102 | RA-E100 Controller; 2 Doors With Electric Trims Only A/B Door: "A" Series Mortise Lock With GG Trim, Door Position Switch Body, Request-To-Exit (both sides), Latch Position Switch 630 Stainless Steel Finish Exterior: Fail-Secure Interior: Fail-Safe C/D Door: "A" Series Mortise Lock With GG Trim, Lever Postion Switch, Latch Position Switch, Request-To-Exit (both sides), Door Position Switch, 630 Stainless Steel Finish Exterior: Fail-Secure Interior: Fail-Safe | Call Factory |
| RA-E103 | RA-E100 Controller; 2 Doors With Electric Trims Only A/B Door: "A" Series Mortise Lock With GG Trim, Door Position Switch Body, Request-To-Exit (both sides), Latch Position Switch 630 Stainless Steel Finish Exterior: Fail-Secure Interior: Fail-Safe C/D Door: "A" Series Mortise Lock With GG Trim, Lever Postion Switch, Latch Position Switch, Request-To-Exit (both sides), Door Position Switch, 630 Stainless Steel Finish Exterior: Fail-Safe Interior: Fail-Safe | Call Factory |
| RA-E104 | RA-E100 Controller; 2 Doors With Electric Trims Only A/B Door: "A" Series Mortise Lock With GG Trim, Door Position Switch Body, Request-To-Exit (both sides), Latch Position Switch 630 Stainless Steel Finish Exterior: Fail-Safe Interior: Fail-Safe C/D Door: "A" Series Mortise Lock With GG Trim, Lever Postion Switch, Latch Position Switch, Request-To-Exit (both sides), Door Position Switch, 630 Stainless Steel Finish Exterior: Fail-Safe Interior: Fail-Safe | Call Factory |
ARTE ™ Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
CODE-COMPLIANT RELEASE OF ELECTROMAGNETIC LOCKS
Below is pricing for Securitech's popular ELECTRA models.
To price other custom models start with the series as the base price.
Add the appropriate prices for each designation.
The total is the model's list price.
POPULAR MODEL PRICING (Specify handing.)
| MODELS (page E5.1) | LIST PRICE |
|---|---|
| STL-G10-SJN-EO-630 Single Trim With Jack-Nuts; No Lock Control | $ 640 |
| STA-G10-PTB-EO-630 Pair Of Trims With Thru-Bolts; "A" Series Mortise Lock | $1025 |
ARTE PRICE LIST
| SERIES | DESCRIPTION | LIST PRICE |
| STL | Single Lever Trim Only; No Lock Control | 640 |
| STA | Single Lever Trim With "A" Series Mortise Lock | 820 |
| STC | Single Lever Trim With Cylindrical Latch set | 755 |
| STM | Mini Mortise Lock | 805 |
| STN | Narrow Stile Mortise Lock | 805 |
| STX | Single Lever Trim With Mortise Lock By Others | 755 |
| _M_ | Change "T" To "M" For Maglock Control - Single Trim | add 170 |
| | | - Pair of Trims | add 330 |
| TRIM STYLE | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| G1 | GG Style Trim |
| LEVER TYPE | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| 0 | Standard With Return | Single/Pair |
| 2 | Tapered | 55 90 |
| 3 | Tubular With Return | 55 90 |
| 4 | Tapered With Return | 55 90 |
| TRIM SIDES | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| S | Single Trim | _ |
| Р | Pair; Exterior Lever Does Not Have Switches | 170 |
| MOUNTING | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| OPTIONAL (Fo | r Single Trim Models Only) | |
| JN | Jack-Nuts | - |
| TB | Thru-Bolt | 35 |
| MAGNETIC LOCK | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| OPTIONAL (Magloo | ck Control Models Only) | |
| E0 | Maglock By Others |
|
| E1 | 1,200 lb. Holding Force | 730 |
| E2 | E1 With Bond Sensor | 930 |
| E3 | E1 With Door Status Switch | 930 |
| E4 | E1 With E2 & E3 Features | 1155 |
CONTINUED ON NEXT PAGE
All hardware is manufactured for Standard 3' x 7' x 1-3/4" doors.
General Solutions Binder 2019 V1.1
ARTE <sup>™</sup> Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
| SPECIAL OPTIONS | DESCRIPTION | ADD TO LIST PRICE |
| OPTIONAL (List As | Needed) | |
| OI HOWAL (LISTAS) | 11000001 | |
| | F3 | Thick Door (2 - 2 1/2") | 50 |
| F5 | Security Fasteners | 45 |
| F7 | Exterior Lever Activated Switch | 165 |
| FINISH | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| 630 | Satin Stainless Steel | - |
| 605 | Bright Brass | 390 |
| 606 | Satin Brass | 330 |
| 625 | Bright Chrome | 390 |
| 626 | Satin Chrome | 390 |
| HANDING | DESCRIPTION | ADD TO LIST PRICE |
|---|---|---|
| LH | Left Hand | - |
| LHR | Left Hand Reverse | - |
| RH | Right Hand | - |
| RHR | Right Hand Reverse | - |
SECURIGUARD™ Pricing
54-60 46th Street, Maspeth NY 11378 | 800.622.LOCK | local: 718.392.9000 | fax: 718.392.8944 | www.securitech.com
CONCEALED CYLINDER RESISTS VANDALISM, BUMPING, & UNAUTHORIZED KEY USE
Select a model and finish.
SECURIGUARD PRICE LIST
| MODELS | DESCRIPTION | LIST PRICE |
|---|---|---|
| 6300 | Standard Unit | $235 |
| 6302 | Use Over 'Schlage' Dead Bolts | 275 |
| 6305 | For IC Cylinders (includes 63BAP) | 275 |
| 63PP | With Pull For Use With Exit Devices | 450 |
| 6310 | 6300 Furnished With 3 Keys | 250 |
| 6315 | 6305 Furnished With 3 Keys | 305 |
| 6400 | 6300 With Removable Bay | 255 |
| 6402 | 6302 With Removable Bay | 320 |
| 6405 | 6305 With Removable Bay | 320 |
| 64PP | 63PP With Removable Bay | 480 |
| 6300DG | Blank Faceplates - No Locking | 145 |
| FINISH | DESCRIPTION | LIST PRICE |
| AL | Aluminum |
| FINISH | DESCRIPTION | LIST P |
|---|---|---|
| AL | Aluminum | |
| JB | Jet Black |
| ACCESSORIES | DESCRIPTION | LIST PRICE |
|---|---|---|
| 63BAP | Converts 6300 Or 6310 For Use With Removable Core Cylinders | 55 |
| 63KEY | 1 Additional Key With Combination | 27 |
| 63BAY | 2 Replacement Locking Bay With 2 Keys | 145 |
All hardware is manufactured for Standard 3' x 7' x 1-3/4" doors.
General Solutions Binder 2019 V1.1
