SPECIFICATIONS
FOR DOORS: APPLICATION:
FRONT:
• 1-3/8" to 1-3/4" thick • Preset for 1-3/4" door
• Through door thru-bolting • Fits standard 160 and 161 Door prep
• Thru-Bolts are removable
BACKSET: • 2-3/4" standard CHASSIS:
2-3/8" optional • Heavy-gauge cold rolled steel mechanism
• Dichromated for corrosion resistance
• 2-1/4" x 1-1/8" or 2-1/4" x 1" • Beveled 1/8" on 2"
• Stainless Steel or Wrought Brass
• ASA standard • T-Strike or Full Lip Strike optional STRIKE:
Stainless Steel or Wrought Brass ROSE: • 3-3/8" DIA Wrought
LATCHBOLT: • 1/2" Throw
HAND: Non-handed (Except Memphis)
TRIM: • Solid Zinc diecast PHL, BSN, MIA, MEM and ORL Levers
Wrought Brass Roses Concealed Screws
KEYS: • Two (2) per Lock
KEYWAYS: • SCC standard (Schlage C Compatible)
Also available in keyways of other manufacturers
INTERCHANGEABLE CORE:
• 6 or 7-pin
• Compatible with Best, Falcon & Arrow. Not available with Memphis lever.
CYLINDER: KEYING:
• 6-pin Brass Insert Cylinder keyed to 5-pins
Options: MK, CMK or GMK / Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)
Can be keyed into existing master key systems
FINISHES: CERTIFICATIONS, LISTINGS COMPLIANCES:
• 605 (US3), 613 (US10B), 626 (US26D)
• UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0" Certified to ANSI/BHMA A156.2-2003 Grade 2
Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
• Meets requirements of the Buy American Act.
WARRANTY:
• Five (5) year Limited Warranty
‡ Available with antimicrobial coating, technology that is known to inhibit the growth of microbes.
FINISHES
ARCHITECTURAL
605 (US3) Bright Brass, No Coating
613 (US10B) Oil Rubbed Bronze, No Coating
626 (US26D) Satin Chromium Plated. No Coating

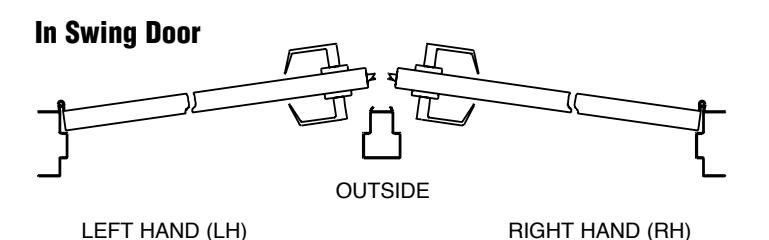

HANDING

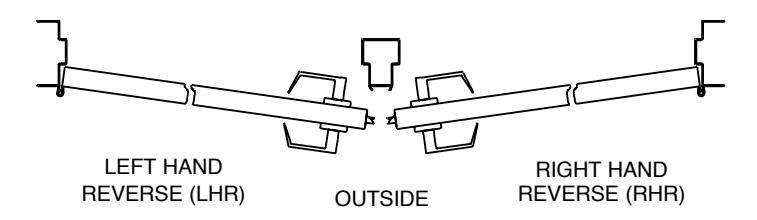

Out Swing Door
CROSS REFERENCE
|
ANSI # /
Function |
PDQ | ARROW | CAL ROYAL | CORBIN | DORMA | FALCON | HAGER | SARGENT | SCHLAGE | YALE |
|---|---|---|---|---|---|---|---|---|---|---|
|
F75
PASSAGE |
SD 126 | RL01 | 30 | CL3710 | C510 | W101 | 2510 | 6U15 | AL10S | 4601LN |
|
F76
PRIVACY |
SD 176 | RL02 | 20 | CL3720 | C540 | W301 | 2540 | 6U65 | AL40S | 4602LN |
|
F109
ENTRANCE |
SD 116 | RL11 | N/A | CL3751 | C553 | W511 | 2553 | 65G37 | AL53PD | 4607LN |
|
F84
CLASSROOM |
SD 148 | RL17 | 3 | CL3755 | C570 | W561 | 2570 | 6G37 | AL70PD | 4608LN |
|
F86
STORE ROOM |
SD 115 | RL12 | 5 | CL3759 | C580 | W581 | 2580 | 6G04 | AL80PD | 4605LN |
|
SINGLE
DUMMY |
SD 211 | RL08 | 40 | CL3750 | C501 | W12 | 2517 | 6U93 | AL170 | 4655LN |
LEVER COMPARISON
| PDQ | ARROW | CAL ROYAL | CORBIN | DORMA | FALCON | HAGER | SARGENT | SCHLAGE | YALE |
|---|---|---|---|---|---|---|---|---|---|
| MIA — MIAMI | N/A | AT | AZD | N/A | N/A | N/A | В | ATH | MO |
| PHL — PHILADELPHIA | BRR | GN | NZD | LR | D | WTS | L | RH0 | AU |
| BSN — BOSTON | SR | SPA | PZD | LC | Q | ARC | Р | SPA | PB |
| MEM — MEMPHIS | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| ORL — ORLANDO | N/A | N/A | N/A | N/A | N/A | N/A | N/A | LAT | N/A |
MIAMI (MIA)

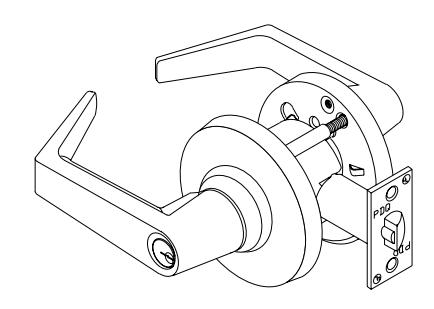

PHILADELPHIA (PHL)
BOSTON (BSN)

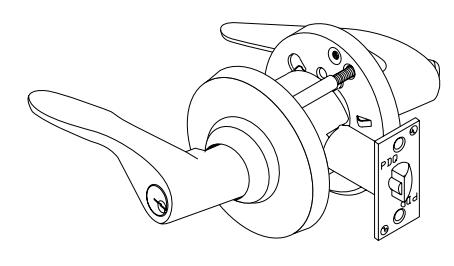

MEMPHIS (MEM) - SPECIFY HANDING. - NOT AVAILABLE WITH SFIC
ORLANDO (ORL)
Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.
HOW TO ORDER
| QUANTITY | SERIES | FUNCTION | TRIM | FINISH | HANDING | BACKSET | STRIKE |
CYLINDER
OR HOUSING |
KEYWAY | KEYING |
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | SD | 116 | PHL | 626 | RH* | 234 | ASA | D | SCC | KD |
*Memphis keyed and dummy functions only.
— ANSI/ASA (Default) FL — Full Lip T — "T" Strike
– Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin
SFL — SFIC Housing less core
CYLINDERS/CORES/KEYWAYS
PDQ cylinders and cores are designed to interface with the keyways of most major lock manufacturers. Insert cylinders are designed to accept 6 pins and are combinated for 5 pins. These cylinders are shipped with two keys. Interchangeable core cylinders are available combinated or uncombinated for 6 and 7 pins and must be specified when ordering. Available in two finishes—606 (US4) and 626 (US26D); specify when ordering separately.
Key in Knob/Lever Cylinder (Default)
Small Format Interchangeable Core.
CYLINDERS & CORES
| DESCRIPTION | PINS | FINISHES | |||
|---|---|---|---|---|---|
| JESGRIFTION | FINS | 606 | 626 | ||
| Conventional Key In Knob/Lever Cylinder | 6 Pin | V4802-8 | V4802-7 | ||
| Small Format, Best® Compatible - Uncombinated |
6 Pin
7 Pin |
15206 -8
15207-8 |
15206 -7
15207-7 |
||
| Small Format, Best® Compatible - Combinated |
6 Pin
7 Pin |
15206-1-8
15207-1-8 |
15206-1 -7
15207-1 -7 |
||
NOTE: Part Numbers Listed For Default Keyway. For Other Keyways, See Price List.
HIGH SECURITY CYLINDERS & CORES
| DESCRIPTION | DINC | FINISHES | |||
|---|---|---|---|---|---|
| L. | PINS | 606 | 626 | ||
| Key in Knob/Lever Cylinder | 6 Pin | HSC125-8 | HSC125-7 | ||
| Key in Knob/Lever Cylinder - UL437 | 6 Pin | HSC425-8 | HSC425-7 | ||
| Small Format, Best® Compatible - Combinated | 6 Pin | HSC806-8 | HSC806-7 | ||
| Small Format, Best® Compatible - Combinated | 7 Pin | HSC807-8 | HSC807-7 | ||
KEYWAYS
| CONVENTION | AL CYLINDER |
SMALL |
Interc hang |
FORMAT
EABLE CORE |
|---|---|---|---|
| KEYWAY |
PDQ KEYWAY
Designator |
KEYWAY (BEST
Compatible) |
PDQ KEYWAY
Designator |
| Schlage C (Default) | SCC | ||
| PDQ Restricted | TA | BEST A (Default), B, C, D, | A (Default), B, C, D, E, |
| Arrow AR1 | ARA | E, F, G, H, J, K, L, M, Q, | |
| Corbin 59A1 | C059A1 | R, WA, WB, WG, WH, TB, | WA, WB, WG, WH, TB, |
| Corbin 60 | C06 | TD, TE, R | TD, TE, R |
| Corbin L4 | CL4 | ||
| Russwin D1 | RUD | PDQ Exclusive | PDQ1 |
| Russwin 981 | RUD981 | PDQ EXCIUSIVE | PDQ2 |
| Schlage E | SCE | PDQ Exclusive and Restricted | PDQ3 |
| Schlage C | SCC | ||
| Schlage C-K | SCC-K | ||
| Sargent LA | SAL | 1 | |
| Sargent RA-RC | RA-RC | 1 | |
| Yale E1R | YA8 | 7 | |
| Yale GA | GA | 7 | |
| Falcon E-R | FAL | 7 | |
| Kwikset | KW | 7 |
KEYING
| DESCRIPTION |
PDQ KEYING
Designator |
|---|---|
| Keyed Different (Default) | KD |
| Keyed Alike | KA |
| "O" Zero Bitted | KO |
| Master Keyed | MK |
| Construction Master Keyed | СМК |
| Grand Master Keyed | GMK |
SUGGESTED ARCHITECTURAL SPECIFICATIONS
Lockset will be SD series from PDQ Industries, Inc., Leola, Pennsylvania. Lock will feature a five-year manufacturer's limited warranty. and be U.L./U.L.C. listed and certified to ANSI/BHMA A156.2–2003, Series 4000, Grade 2. Listed by UL / ULC for ratings of "A" label (3 hours) and less, UL10C / UBC 7-2 (1997) positive pressure, for single doors up to 4'0" x 8'0". Lock shall
fit type 160 or 161 door preparation. Lockset to be fully adjustable for 1-3/8" to 1-3/4" door thickness. Lock will accommodate keyways of major manufacturers. Lockset fasteners to be concealed with through-the-door through-bolt attachment outside the 2-1/8" door preparation. Through-bolts to be removable, if desired, to use only the 2-1/8" door preparation.

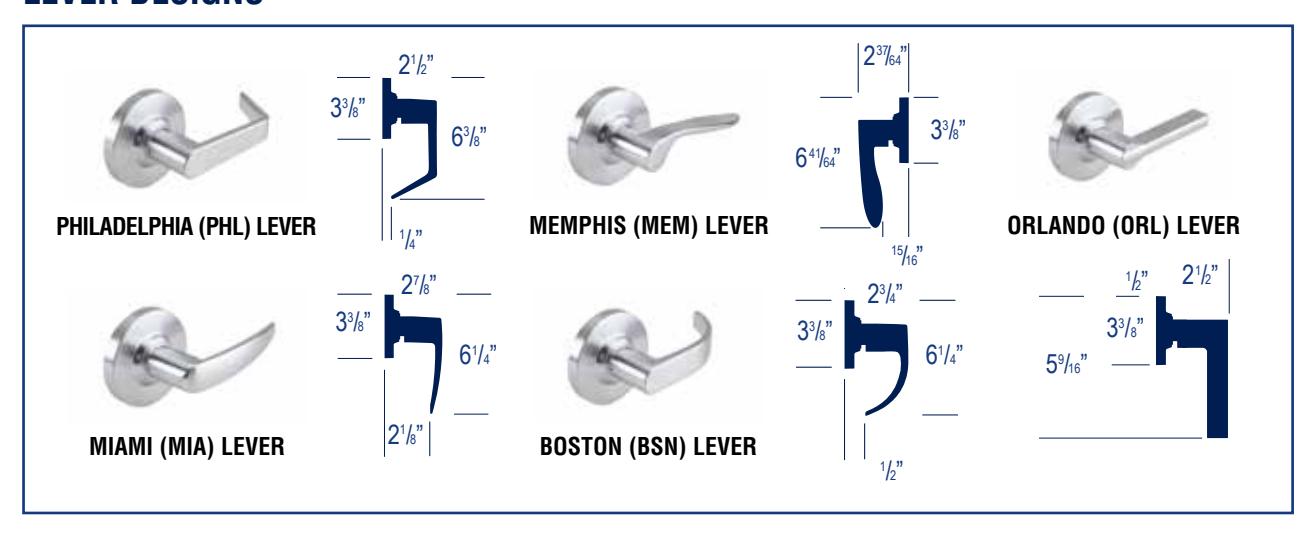

LEVER DESIGNS
PDQ FUNCTIONS
| FUNCTION |
FUNCTION
NUMBER |
INSIDE | OUTSIDE | DESCRIPTION |
ANSI
Number |
|---|---|---|---|---|
| NON KEYED | ||||
| Communicating | SD125 |
|
_ | |
| Passage | SD126 | Latchbolt operated by lever from either side at all times | F75 | |
|
Privacy
Bedroom Bathroom |
SD176 | Latchbolt operated by lever from either side or emergency release in outside lever Outside lever locked by push button on inside Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door | F76 | |
| Single Dummy | SD211 | Pull lever one side No mechanical operation | _ | |
| KEYED | ||||
| Storeroom | SD115 |
|
F86 | |
| Entrance | SD116 | Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever When outside lever is locked by pushing and turning the button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever Deadlocking (guarded) latchbolt | F109 | |
| Classroom | SD148 | Latchbolt operated by lever from either side Outside lever locked or unlocked by key from outside Inside lever always operates latch Deadlocking (guarded) latchbolt | F84 |
Headquarters: 2754 Creek Hill Road • Leola, PA 17540 • 800.441.9692 • 717.656.6892 Fax Regional Distribution Centers: Kansas City, MO, Salt Lake City, UT, Seattle, WA www.pdqlocks.com
