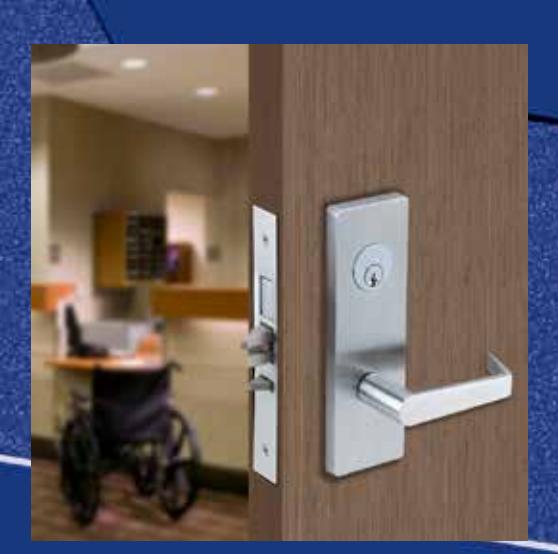

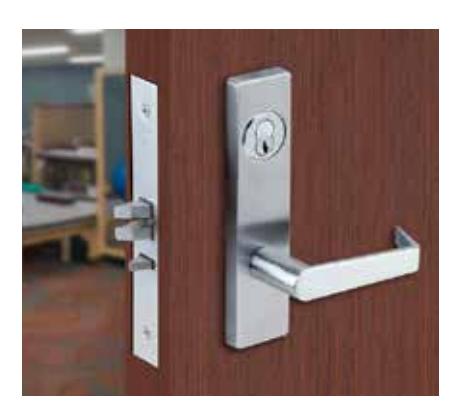

MR Series Mortise Locks

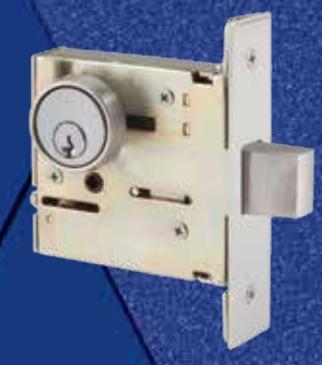

MJ SERIES MORTISE DEADBOLT (SEE PAGES XX THRU YY)

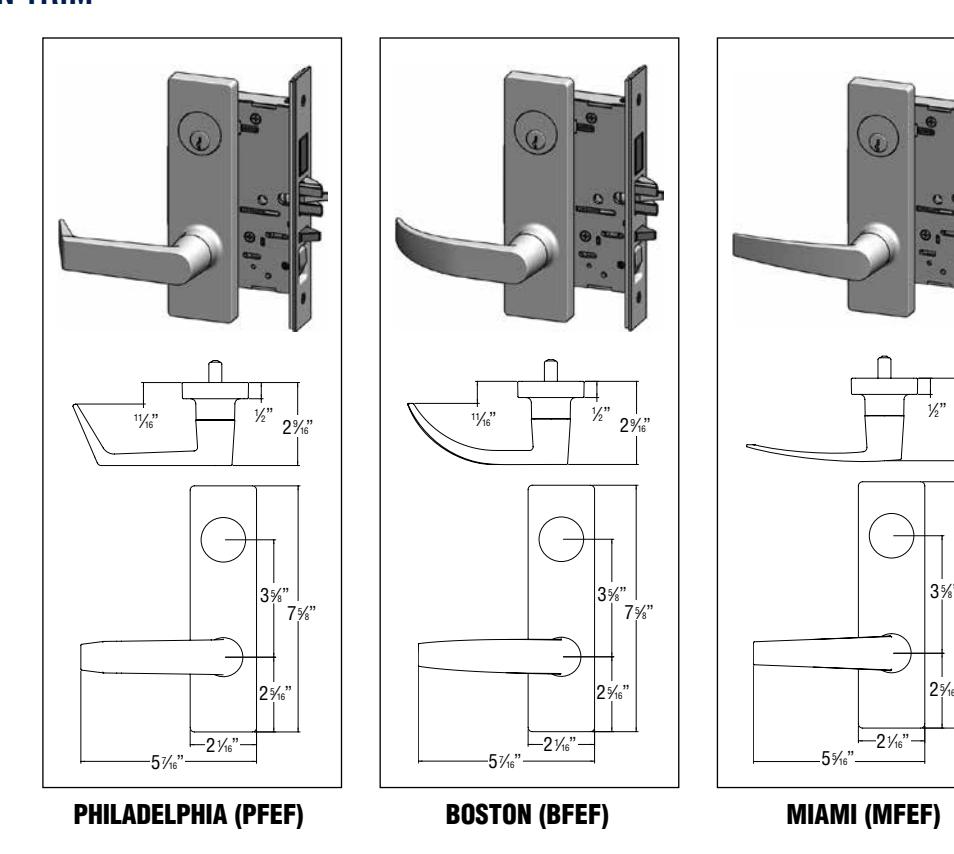

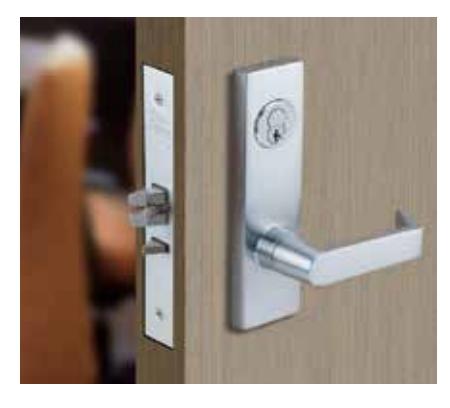

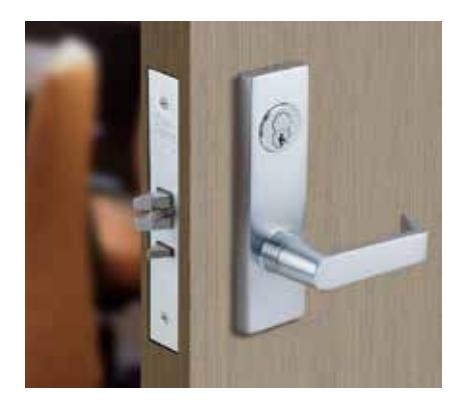

SHOWN WITH F SERIES ESCUTCHEON TRIM, PHILADELPHIA LEVER

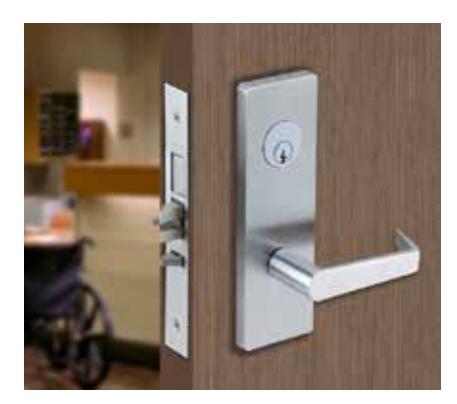

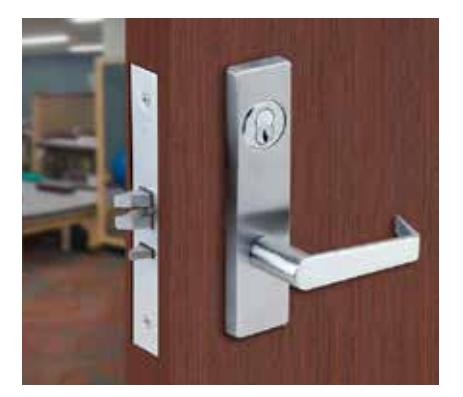

SHOWN WITH J SERIES ESCUTCHEON TRIM, PHILADELPHIA LEVER

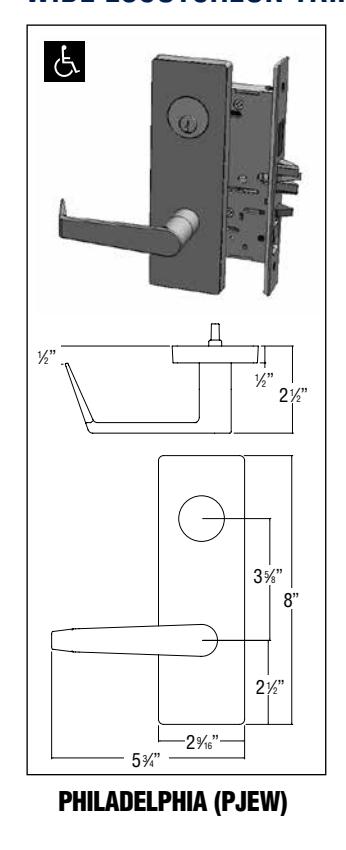

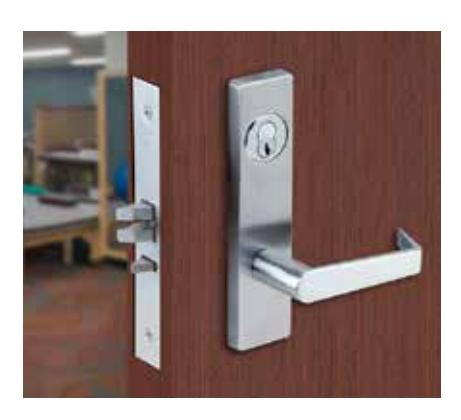

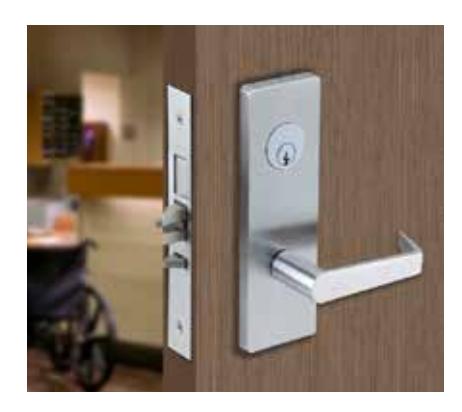

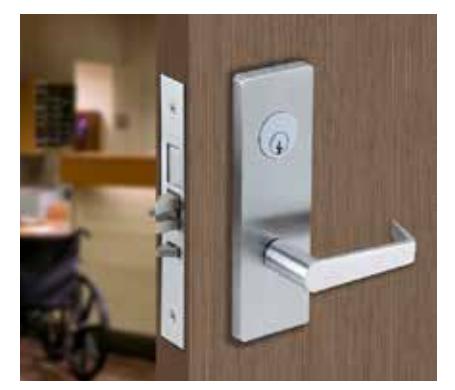

SHOWN WITH JW SERIES ESCUTCHEON TRIM, PHILADELPHIA LEVER

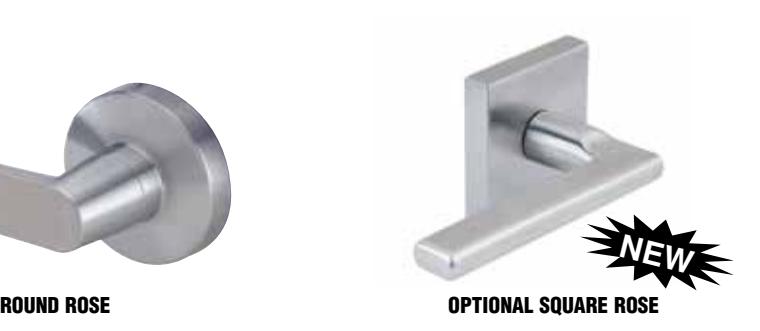

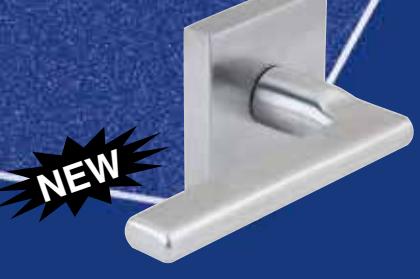

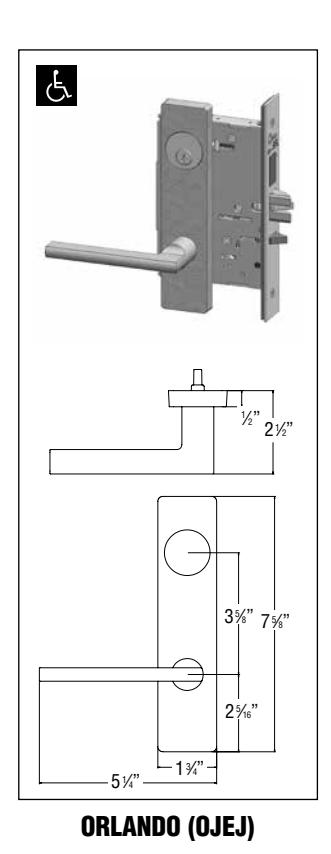

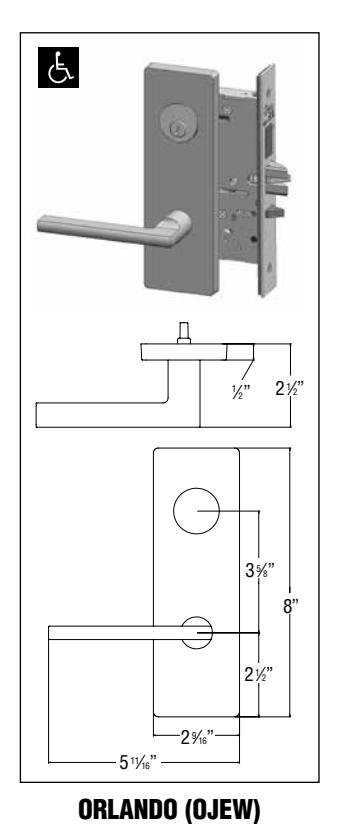

INTRODUCING SQUARE ROSE SECTIONAL TRIM SHOWN WITH ORLANDO LEVER (SEE PAGES AA THE BB)

TABLE OF CONTENTS

SPECIFICATIONS 1
FUNCTIONS 8

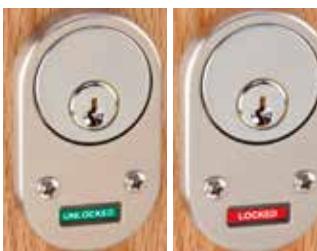

INDICATORS 9
CROSS REFERENCE TABLES 9
HOW TO ORDER, F SERIES TRIM 10
HOW TO ORDER, J SERIES TRIM
ELECTRONIC ACCESS CONTROL

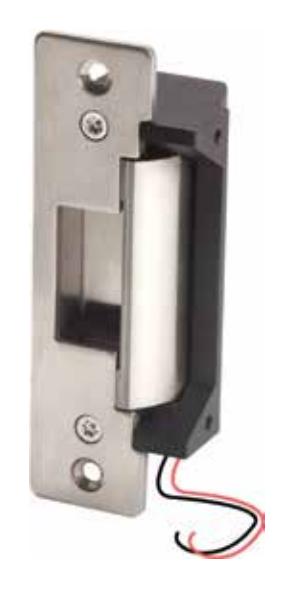

ELECTRIFIED LOCKING/UNLOCKING (FAIL SECURE/FAIL SAFE)
REQUEST TO EXIT, LATCH BOLT MONITORING 13
POWER TRANSFER HINGES
MORTISE DEADBOLTS
CYLINDERS, CORES, KEYWAYS

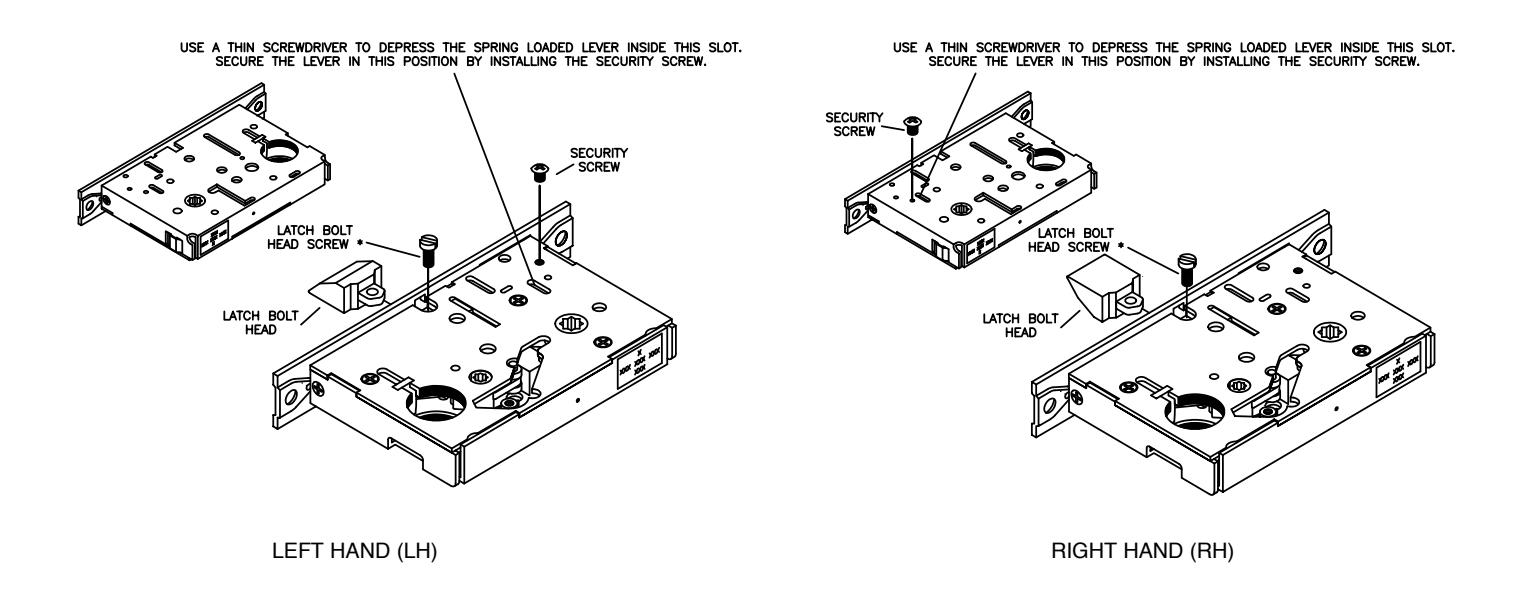

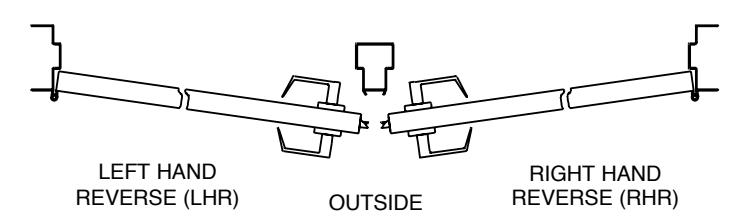

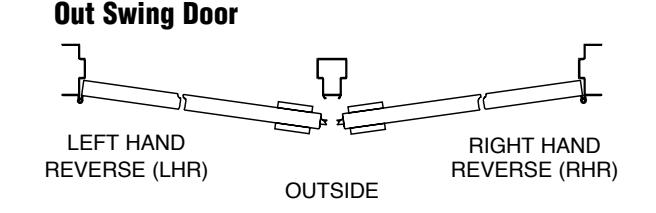

HANDING
FINISHES
ARCHITECTURAL SPECIFCATIONS _
AIGHTEOTOTIAE OF CONTONIO 10

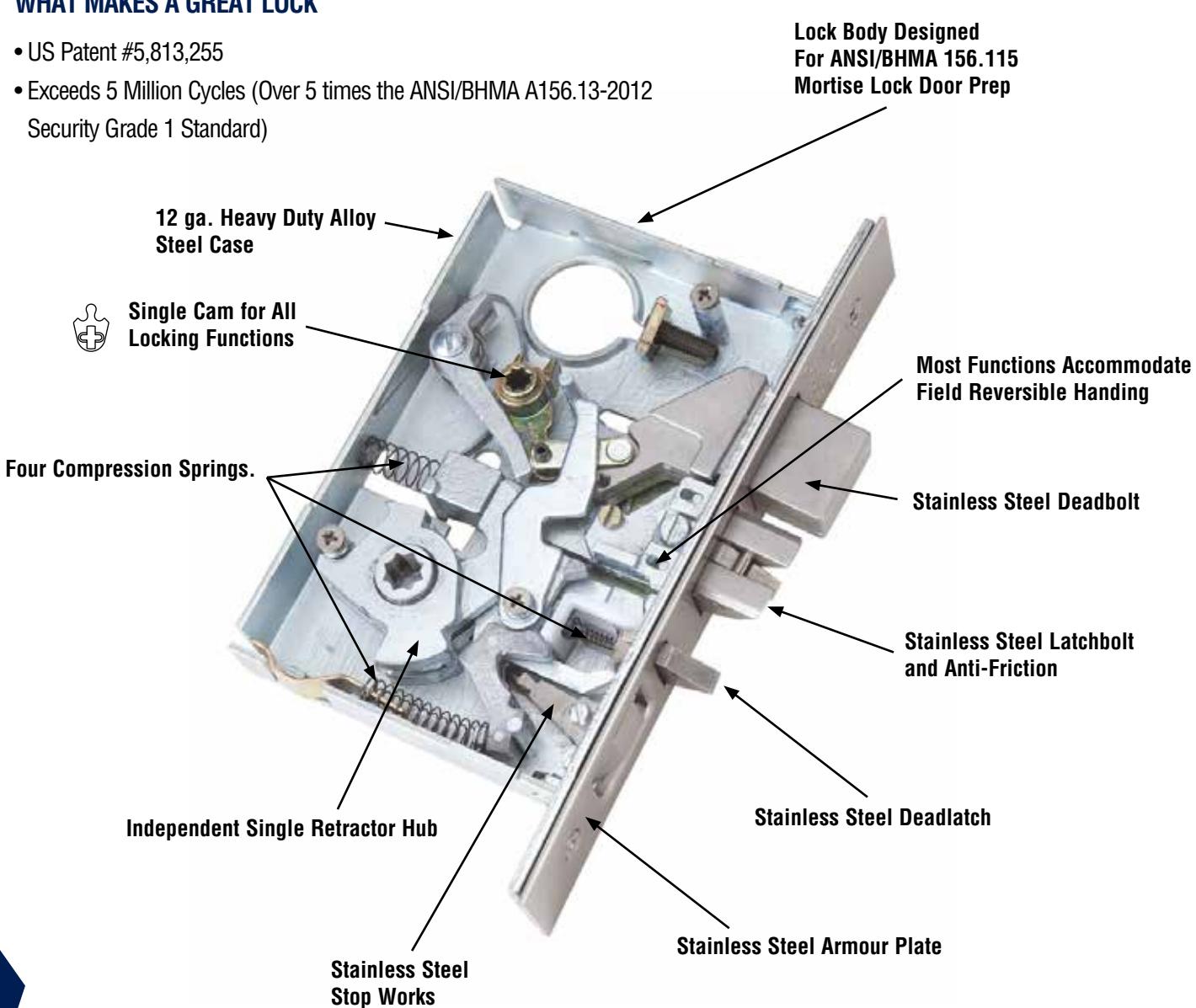

WHAT MAKES A GREAT LOCK

THREE ESCUTCHEON DESIGNS

F SERIES J SERIES J WIDE SERIES

TWO SECTIONAL TRIM DESIGNS (SPECIFIC TO SERIES)

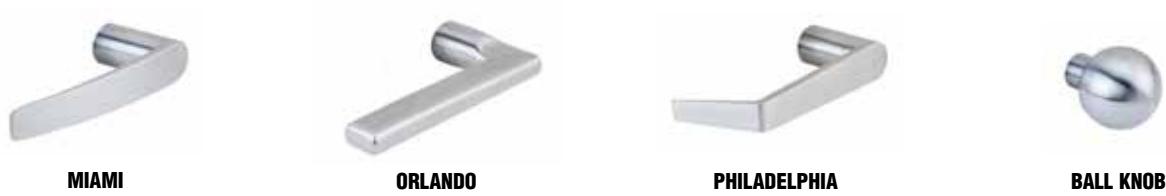

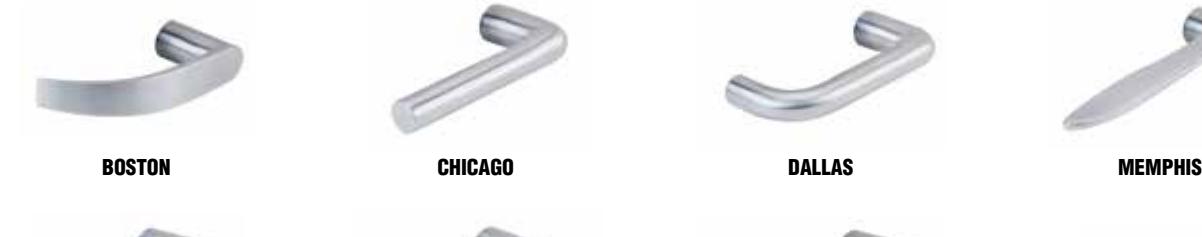

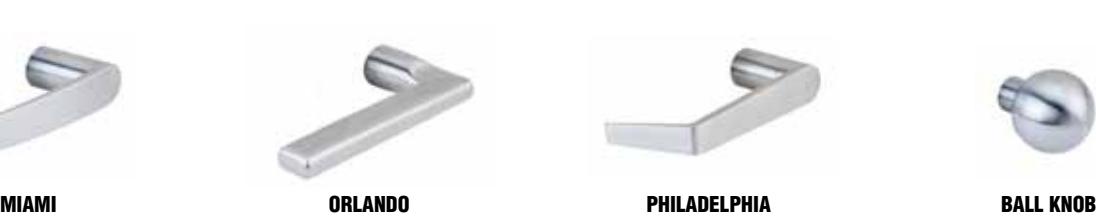

DECORATIVE LEVER COLLECTION (SPECIFIC TO SERIES)

FINISH OPTIONS (SPECIFIC TO SERIES)

605 (US3) Bright Brass, Clear Coated

606 (US4) Satin Brass, Clear Coated

612 (US10) Satin Bronze, Clear Coated

613 (US10B) Oil Rubbed Bronze, Oxidized Satin Bronze, Oil Rubbed, No Coating

625 (US26) Bright Chromium Plated, No Coating

626 (US26D) Satin Chromium Plated, No Coating

630 (US32D) Satin Stainless Steel, No Coating

F SERIES J SERIES J WIDE SERIES

SPECIFICATIONS

DOOR PREP: • Fits standard ANSI/BHMA A156.115 for Mortise Locks. FOR DOORS: • 1-3/4" standard, 2" and 2-1/4" special order from factory.

BACKSET: • 2-3/4"

CASE: • 12-gauge cold rolled steel mechanism • Dichromated for corrosion resistance

ARMOR FRONT: • Beveled 1/8" on 2" • 625(US26) & 630 (US32D) use stainless steel as base material,

all other finishes use stainless steel or brass as base material

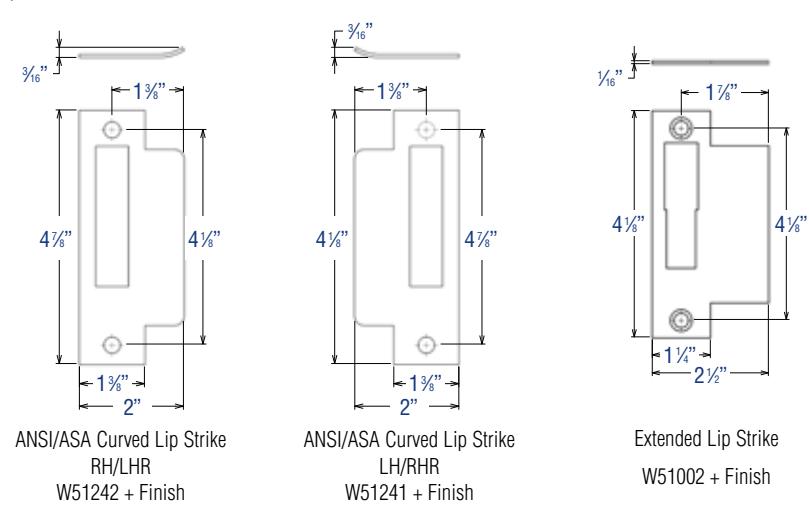

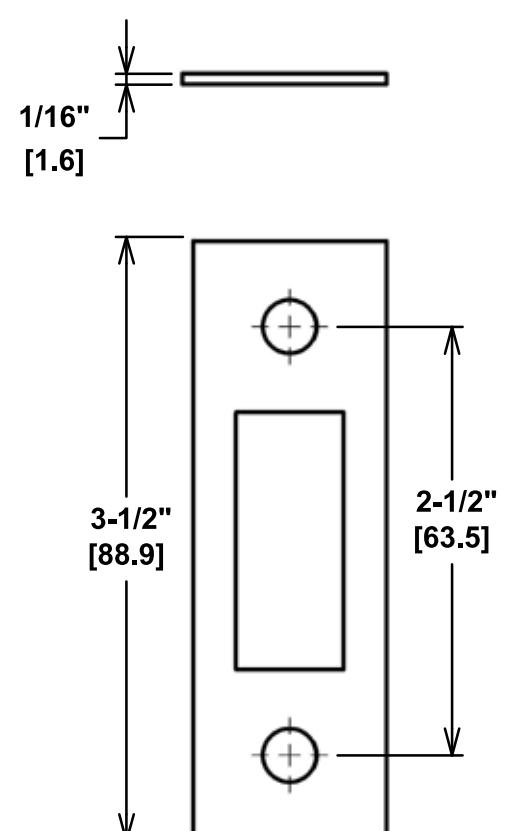

STRIKE: • Handed Curved Lip Strike • 625(US26) & 630 (US32D) use stainless steel as base material,

all other finishes use stainless steel or brass as base material

LATCHBOLT: • 3/4" Throw • Investment Cast Stainless Steel • Anti-friction

DEADBOLT: • 1" Throw • Investment Cast Stainless Steel

HANDING: • Most functions field reversible. Specify handing for strikes, consult factory for details

TRIM: • F trim - forged brass levers, escutcheons and turns.

• J & JW trim - stainless steel escutcheon and levers, PHL, Mem, MIA and Bsn are solid levers, ORL, DAL and CHI are tube levers. Ball Knobs are wrought.

KEYS: • Two (2) per Lock

KEYWAYS: • SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers INTERCHANGEABLE

CORE: • 6 or 7-pin • Compatible with Best, Falcon & Arrow

• Large Format IC Cores compatible with Schlage. CYLINDER: • 6 or 7-pin Brass Mortise Cylinder

KEYING: • Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems

FINISHES: • F Series Trim: 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D)

• J and JW Series Trim: 613 (US10B), 630 (US32D)

• Antimicrobial Coating available on 626 (US26D) & 630 (US32D) for F, J, and J Wide Series.

CERTIFICATIONS, LISTINGS

COMPLIANCES: • UL/CUL 10C listed for 3 hrs, for single doors up to 4'0" x 8'0"

• Certified to ANSI/BHMA 156.13-2005 Operational Grade 1 and Security Grade 1

• Windstorm Rated - Florida Building Code listed FL3262, ANSI A250.13, ASTM E1886, ASTM E330, Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 2,453 lbf. (functions with deadbolts only)

• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings

• J Wide Series Escutcheon Trim complies with Unified Facilities Guide Specification 08 71 00 (August 2008)

• Meets Federal Specification FF-H-106C

WARRANTY: • Lifetime Limited Warranty

COUNTRY OF ORIGIN: • Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

Note: Heavy Duty Spindle for High Abuse situations is available for F trim.

‡ Available with antimicrobial coating, technology that is known to inhibit the growth of microbes.

PDQ FUNCTIONS - NON KEYED

FUNCTION FUNCTION
Number 		OUTSIDE | INSIDE DESCRIPTION ANSI
Number
Passage MR126™ Latchbolt operated by lever from either side Available with option LM - Latch Bolt Monitor F01
Privacy with
Thumbturn on
Both Sides 		MR174
  • Latchbolt operated by lever from either side
  • Thumbturn outside locks/unlocks outside lever
  • Thumbturn inside locks/unlocks outside lever
  • Closing door unlocks outside lever
  • Rotating inside lever unlocks outside lever
_
Privacy MR176™
  • Latchbolt operated by lever from either side
  • Emergency coin turn outside unlocks outside lever
  • Thumbturn inside locks/unlocks outside lever
  • Closing door unlocks outside lever
  • Rotating inside lever unlocks outside lever
F22
Privacy with
Deadbolt 		MR178 Latchbolt operated by lever from either side Emergency coin turn outside retracts deadbolt Thumbturn inside extends/retracts deadbolt Not field reversible Specify handing F02
Privacy with
Deadbolt and
Egress 		MR179
  • Latchbolt operated by lever from either side
  • Emergency coin turn outside retracts deadbolt
  • Thumbturn inside extends/retracts deadbolt
  • Inside lever simultaneously retracts latchbolt and deadbolt
F19

PDQ FUNCTIONS - NON KEYED DUMMY

FUNCTION FUNCTION
NUMBER 		OUTSIDE | INSIDE DESCRIPTION ANSI
Number
Double
Dummy 		MR205
  • Rigid outside lever
  • Rigid inside lever
_
Double
Dummy with
Chassis 		MR206 Rigid outside lever Rigid inside lever _
Double
Dummy with
Active Trim 		MR207
  • Moveable outside lever
  • Moveable inside lever
_

PDQ FUNCTIONS - NON KEYED DUMMY

FUNCTION FUNCTION
NUMBER 		OUTSIDE | INSIDE DESCRIPTION ANSI
NUMBER
Single
Dummy 		MR211 • Rigid outside lever I
Single
Dummy with
Chassis 		MR212 • Rigid outside lever I

PDQ FUNCTIONS - DEADLOCKS

FUNCTION FUNCTION
NUMBER 		OUTSIDE | INSIDE DESCRIPTION ANSI
Number
Single
Cylinder
Deadbolt 		MR131 0 Key outside extends/retracts deadbolt F18
Cylinder and
Thumbturn
Deadbolt 		MR132 4 . Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt F17
Double
Cylinder
Deadbolt 		MR133 d · Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt F16
Classroom
Deadbolt 		MR134 2 .
  • Key outside extends/retracts deadbolt
  • Inside cylinder turn retracts but does not extend deadbolt
  • Not field reversible
  • Specify handing
F29

INDICATES RIGID LEVER

PDQ FUNCTIONS - KEYED

FUNCTION FUNCTION
Number 		OUTSIDE | INSIDE DESCRIPTION ANSI
Number
Hold Back
Single
Cylinder 		MR113
  • Latchbolt operated by lever from inside
  • Key outside retracts latchbolt
  • Rigid outside lever
  • Auxiliary latch deadlocks latchbolt
  • Key outside secures latchbolt when latchbolt is retracted by inside lever
  • Not field reversible
  • Specify handing
Available with option LM - Latch Bolt Monitor 		F06
Hold Back
Double
Cylinder 		MR114
  • Latchbolt operated by lever from inside
  • Key outside retracts latchbolt
  • Rigid outside lever
  • Auxiliary latch deadlocks latchbolt
  • Key inside secures latchbolt when latchbolt is retracted by inside lever
  • Not field reversible
  • Specify handing
_
Storeroom MR115
  • Latchbolt operated by lever from inside
  • Key outside retracts latchbolt
  • Rigid outside lever
  • Auxiliary latch deadlocks latchbolt
Available with option LM - Latch Bolt Monitor 		F07
Entry MR116
  • Latchbolt operated by lever from either side
  • Toggle locks/unlocks outside lever
  • Key outside retracts latchbolt
  • Auxiliary latch deadlocks latchbolt
  • Available with option LM - Latch Bolt Monitor
Available with option LM - Latch Bolt Monitor 		F04
Front Door MR117
  • Latchbolt operated by lever from either side
  • Toggle locks/unlocks outside lever
  • Key outside retracts latchbolt
  • Key outside extends/retracts deadbolt
  • Thumbturn inside extends/retracts deadbolt
F08
or F10
Institution
with Deadbolt 		MR128 Key outside retracts latchbolt Key inside retracts latchbolt Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Rigid outside lever Rigid inside lever Auxiliary latch deadlocks latchbolt _
Entrance/
Storeroom 		MR135 Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt F21
Dormitory/
Exit 		MR136
  • Latchbolt operated by lever from either side
  • Key outside extends/retracts deadbolt
  • Thumbturn inside extends/retracts deadbolt
  • Inside lever simultaneously retracts latchbolt and deadbolt
  • Auxiliary latch deadlocks latchbolt
F13

PDQ FUNCTIONS - KEYED

FUNCTION FUNCTION
NUMBER 		OUTSIDE | INSIDE DESCRIPTION ANSI
NUMBER
Store Door MR137 Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Key locks/unlocks outside lever F14
Institution MR138
  • Key outside retracts latchbolt
  • Key inside retracts latchbolt
  • Rigid outside lever
  • Rigid inside lever
  • Auxiliary latch deadlocks latchbolt
Available with option LM - Latch Bolt Monitor 		F30
Closet /
Storeroom 		MR139 Latchbolt operated by lever from either side Key outside extends/retracts deadbolt _
Storeroom
with Deadbolt 		MR141 Latchbolt operated by lever from inside Key outside retracts latchbolt Key outside extends/retracts deadbolt Rigid outside lever Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt Thumbturn inside locks/unlocks outside lever -
Classroom MR148
  • Latchbolt operated by lever from either side
  • Key outside retracts latchbolt
  • Inside Lever Always Free
  • Auxiliary latch deadlocks latchbolt
Available with option LM - Latch Bolt Monitor 		F05
Assisted
Living 		MR149
  • Latchbolt operated by lever from either side
  • Key outside locks/unlocks outside lever
  • Thumbturn inside locks/unlocks outside lever
  • Closing door unlocks outside lever
  • Rotating inside lever unlocks outside lever
  • Auxiliary latch deadlocks latchbolt
Entrance MR154
  • Latchbolt operated by lever from either side
  • Toggle locks/unlocks outside lever
  • Key outside retracts latchbolt
  • Key outside extends/retracts deadbolt
  • Thumbturn inside extends/retracts deadbolt
  • Inside lever simultaneously retracts latchbolt and deadbolt
  • Auxiliary latch deadlocks latchbolt
  • Projecting then retracting the deadbolt releases the toggle
I
Intruder
Deadbolt
with
Deadlatch 		MR157 Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt F34
Dormitory MR158
  • Latchbolt operated by lever from either side
  • Toggle locks/unlocks outside lever
  • Key outside extends/retracts deadbolt
  • Key inside extends/retracts deadbolt
  • Inside lever simultaneously retracts latchbolt and deadbolt
  • Auxiliary latch deadlocks latchbolt
F11
Dormitory MR159 Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt F33

PDQ FUNCTIONS - KEYED

FUNCTION FUNCTION
Number 		OUTSIDE | INSIDE DESCRIPTION ANSI
Number
Apartment/
Corridor 		MR162
  • Latchbolt operated by lever from either side
  • Toggle locks/unlocks outside lever
  • Key outside retracts latchbolt
  • Key outside extends/retracts deadbolt
  • Thumbturn inside extends/retracts deadbolt
  • Inside lever simultaneously retracts latchbolt and deadbolt
  • Auxiliary latch deadlocks latchbolt
F20
Office MR181
  • Latchbolt operated by lever from either side
  • Key outside locks/unlocks outside lever
  • Thumbturn inside locks/unlocks outside lever
  • Closing door unlocks outside lever
  • Rotating inside lever unlocks outside lever
  • Auxiliary latch deadlocks latchbolt
_
Apartment MR186
  • Latchbolt operated by lever from either side
  • Key inside locks/unlocks outside lever
  • Key outside retracts latchbolt
  • Auxiliary latch deadlocks latchbolt
F09

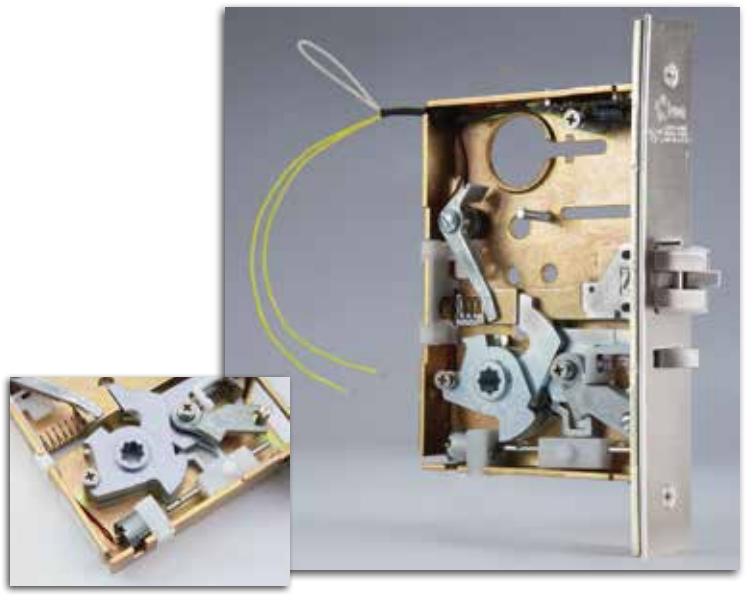

Electrified
Storeroom 		MR199A
  • Key outside retracts latchbolt
  • Latchbolt operated by lever from inside
  • Auxiliary latch deadlocks latchbolt
  • Fail safe – latchbolt operated by lever from outside unless electrically locked
  • Fail secure – latchbolt operated by lever from outside when electrically unlocked
  • Motor drive locking/unlocking
  • Not field reversible
  • Specify handing
  • Available with options:
    • LM - Latch Bolt Monitor REX - Request to Exit
I
Electrified
Institutional 		MR200
  • Key outside retracts latchbolt
  • Key inside retracts latchbolt
  • Auxiliary latch deadlocks latchbolt
  • Fail safe – latchbolt operated by either lever when electrically locked
  • Fail secure– latchbolt operated by either lever when electrically unlocked
  • Motor drive locking/unlocking
  • Not field reversible
  • Specify handing
  • Available with options:
    • LM - Latch Bolt Monitor REX - Request to Exit
    		• _
    Cylinder and
    Thumbturn
    Deadbolt with
    Dummy Trim     		MR213 Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt Rigid outside lever Rotating inside lever retracts deadbolt _
    Double
    Cylinder
    Deadbolt with
    Dummy Trim     		MR214
    • Key outside extends/retracts deadbolt
    • Key inside extends/retracts deadbolt
    • Rigid outside lever
    • Rotating inside lever retracts deadbolt
    		_
    Single
    Cylinder
    Deadbolt with
    Dummy Trim     		MR215
    • Key outside extends/retracts deadbolt
    • Rigid outside lever
    • Rotating inside lever retracts deadbolt
    		_

    INDICATES RIGID LEVER

    PDQ INDICATOR FUNCTIONS

    • Locked/Unlocked Indicator conforms with ANSI Z535.1 Safety Colors: Red and Green.

    Shown with optional Security Screws. For more information, contact PDQ Customer Service

    FUNCTION FUNCTION
    NUMBER     		OUTSIDE | INSIDE DESCRIPTION ANSI
    Number
    Intruder
    Deadbolt
    with
    Deadlatch     		MR257 Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Auxiliary latch deadlocks latchbolt Indicator, inside F34
    w/Indicator
    Dormitory MR259 Latchbolt operated by lever from either side Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt Inside lever simultaneously retracts latchbolt and deadbolt Indicator, inside — LOCKED UNLOCKED F33
    w/Indicator
    Faculty
    Restroom
    with Deadbolt
    w/Indicator     		MR260
    • Latchbolt retracted by key outside or lever inside
    • Key outside extends/retracts deadbolt
    • Rigid outside lever
    • Thumbturn inside extends/retracts deadbolt
    • Rotating inside lever retracts deadbolt and latchbolt simultaneously
    • Inside lever is always free for immediate egress
    • Indicator, outside — Vacant/Occupied
    Privacy
    w/Indicator     		MR276
    • Latchbolt operated by lever from either side
    • Emergency coin turn outside unlocks outside lever
    • Thumbturn inside locks/unlocks outside lever
    • Closing door unlocks outside lever
    • Rotating inside lever unlocks outside lever
    • Indicator, outside — Vacant/Occupied
    		F22
    w/Indicator
    Privacy with
    Deadbolt
    w/Indicator     		MR278
    • Latchbolt operated by lever from either side
    • Emergency coin turn outside retracts deadbolt
    • Thumbturn inside extends/retracts deadbolt
    • Indicator, outside — Vacant/Occupied
    		F02
    w/Indicator
    Privacy with
    Deadbolt and
    Egress
    w/Indicator     		MR279
    • Latchbolt operated by lever from either side
    • Emergency coin turn outside retracts deadbolt
    • Thumbturn inside extends/retracts deadbolt
    • Inside lever simultaneously retracts latchbolt and deadbolt
    • Indicator, outside — Vacant/Occupied
    		F19
    w/Indicator

    LET US HELP YOU — WIN MORE PROJECTS!!

    PDQ offers complimentary key systems design, project quotation and cross reference services— To get started, contact our quote desk at 800-441-9692

    CROSS REFERENCE

    ANSI # PDQ FUNCTION ARROW BEST CORBIN DORMA FALCON MARKS SARGENT SCHLAGE YALE
    DUMMY 1 SIDE MR211 BM/AM08 45H1DT ML2050 M9001 MA12 DI/DO 8293 L0170 AU865
    DUMMY 1 SIDE MR212 N/A N/A N/A M9003 N/A N/A N/A L9175 N/A
    DUMMY 2 SIDES MR207 BM/AM09 45H2DT ML2071 M9002 MA18 DT 8294 L0172 AU838A
    DUMMY 2 SIDES MR206 N/A N/A N/A M9004 N/A N/A N/A L9176 N/A
    F01 MR126 BM/AM01 45HN ML2071 M9010 MA101 5N 8215 L9010 AU8801FL
    F02 MR178 N/A N/A ML2020 N/A MA301 5-55L 8268 N/A N/A
    F04 MR116 BM/AM22 45HA ML2051 M9050 MA521 5E 8205 L9050 AU8807FL
    F05 MR148 BM/AM17 45HR ML2055 M9070 MA561 5J 8237 L9070 AU8808FL
    F06 MR113 N/A 45HR/HB ML2056 M9076 MA551 5JM/JR 8289 L9076 AU8800
    F07 MR115 BM/AM12 45HD ML2057 M9080 MA581 5EW 8204 L9080 AU8805FL
    F09 MR186 BM/AM32 45HC ML2042 M9060 MA381 5G 8216 L9060 AU8817-2FL
    F11 MR158 N/A N/A N/A M9957 N/A 5FA N/A N/A AU8800
    F13 MR136 BM/AM19 45HT ML2065 M9956 MA571 5FW 8225 L9456 AU8822FL
    F14 MR137 BM/A/31 45HG ML2017 M9966 MA371 5C 8226 L9466 AU8860-2FL
    F16 MR133 BM42 45HWD ML2012 N/A M931 5T 8222 L9462 AU8814-2
    F17 MR132 BM41 45HAD ML2013 N/A M941 5P 8221 L9460 AU8815
    F18 MR131 BM40 45HYB NML2011 N/A MA921 5S 8220 L9464 AU8814
    F19 MR179 BM/AM02 45HL ML2030 M9940 MA311 5LF 8266 L9440 AU8802FL
    F20 MR162 BM/AM20 45HAB ML2067 M9953 MA531 5FD 8243 L9453 AU8847FL
    F21 MR135 BM/AM13 45HB ML2024 M9973 MA541 5B 8224 L9473 AU8860FL
    F22 MR176 BM/AM26 45HLT ML2060 M9040 MA321 5LJ 8265 L9040 AU8862FL
    F29 MR134 BM44 45HRD ML2017 MB9963 M911 5SC 8203 L9463 AU8813ST
    F30 MR138 BM/AM33 45HW ML2032 M9082 MA411 5WW N/A L9082 AU8830-2FL
    F31 SEE TJ SERIES BM/AM07 45HNX N/A M9025 MA161 5EX N/A N/A AU8828
    F33 MR159 N/A 45HIND N/A M9968 N/A 5FX N/A L9457 AU8811-2FL
    F34 MR157 N/A 45HIDA ML2022 M9967 MA431 5FC 8240 N/A AU8812-2FL
    MR199A BM/AM17/177 45HEL ML22901 M9080EL MA851 5EL 8270 L9080EL AU8890FL
    MR199A BM/AM17/178 45HEU ML22904 M9080EU MA881 5EU 8270 L9080EU AU8891FL
    MR199A W/REX N/A 45HEURQE ML22901 M92 M9080ELRX N/A 5EL W10 RX-8272 L9080ELRX AU8890FLREX
    MR199A W/REX N/A 45HEURQE ML22904 M92 M9080ELRX N/A 5EU W10 RX-8273 L9080EU-rx AU8891FLREX
    LEVER
    AND KNOB
    OPTIONS     		PDQ ARROW BEST CORBIN DORMA FALCON MARKS SARGENT SCHLAGE YALE
    BOSTON BR 14 PS LC Q QUANTUM CRESCENT P 17SPARTA PB PACIFIC
    CHICAGO N N/A RS LA N/A MAXWELL ME 02 PNR
    DALLAS HS 3 LS LUSTR LT K KIM PLAZA LEVER J 03TUBULAR CR CARMEL
    LEVER MEMPHIS WL 69 DS L114 N/A N/A MV 12 TT
    MIAMI V 16 AS LG A AVALON TITAN LEVER B 07ATHENS JN JEFFERSON
    ORLANDO N/A N/A N/A N/A N/A N/A N/A LATITUDE N/A
    PHILADELPHIA X 15 NS NEWPORT LR D DANE AMERICAN LEVER L 06 RHODES AU AUGUSTA
    N/A HB 4 YW KB T TROY ROUND KNOB C 41 PLYMOUTH LF LITCHFIELD
    KNOB K HT N/A GR KB H HANA ROUND KNOB B 42 ORBIT CA CAROLINA
    N/A A R F KB G GALA RW N/A B R

    Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

    F SERIES

    DECORATIVE LEVER COLLECTION

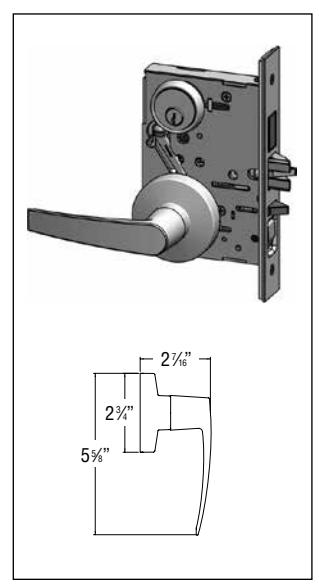

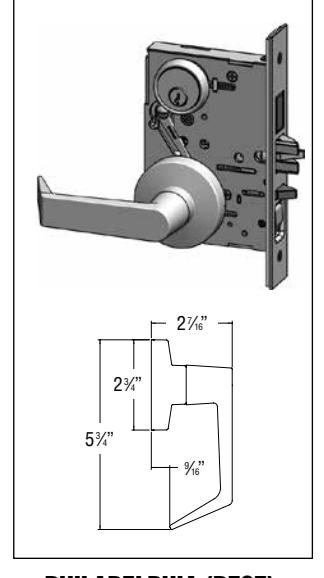

    BOSTON MIAMI PHILADELPHIA

    FINISH OPTIONS

    605 (US3) Bright Brass, Clear Coated

    606 (US4) Satin Brass, Clear Coated

    612 (US10) Satin Bronze, Clear Coated

    625 (US26) Bright Chromium Plated, No Coating

    626 (US26D) Satin Chromium Plated, No Coating

    SECTIONAL TRIM

    PHILADELPHIA (PFSF)

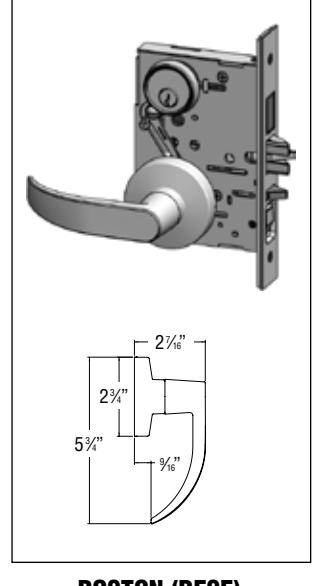

    BOSTON (BFSF)

    MIAMI (MFSF)

    F SERIES

    ESCUTCHEON TRIM

    HOW TO ORDER F SERIES MORTISE LOCKS

    SERIES FUNCTION OPTIONS TRIM FINISH HANDING 1 CYLINDER KEYWAY
    Or Housing     		KEYING
    MR SEE
    FUNCTIONS
    TABLE     		LM PFEF 626 RH D SCC - Default
    Others - See
    Keyway Table
    on page 19     		KD - Keyed
    Different,
    Default
    Others - See
    Keying Table
    on Page 19
    LEVER DESIGN B — BOSTON LM — Latch
    Bolt Monitoring
    REX — Request
    to Exit (Functions
    199A and 200
    only).     		P F EF 605 (US3) Bright
    Brass
    606 (US4) Satin
    Brass
    612 (US10) Satin
    Bronze
    613 (US10B) Oil
    Rubbed Bronze
    625 (US26)
    Bright Chrome
    626 (US26D)atin

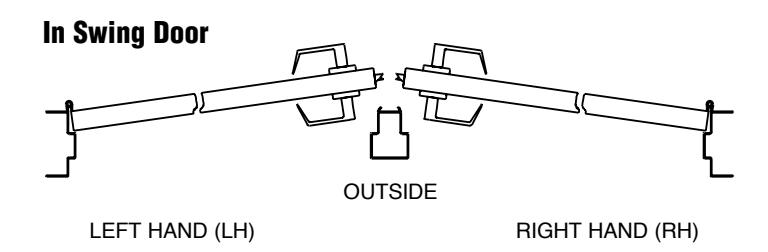

    Chrome     		RH — Right Hand
    (Default)
    RHR — Right
    Hand Reverse
    LH — Left Hand
    LHR — Left Hand
    Reverse     		D — Conventional I Cylinder (Defa L — Less Cylinder SF6 — SFIC w/Corr SF7 — SFIC w/Corr LF — Schalge© Co w/Core SF6L — SFIC 6 Pin SF7L — SFIC 7 Pin LFL — Schalge© C Housing les ult)\ne, 6 Pin\ne, 7 Pin mpatible LFIC Housing less core Housing, less core ompatible LFIC
    M — MIAMI P — PHILADELPHI. TRIM SERIES F TRIM TYPE SF — SECTIONAL, ROUND ROSE EF — ESCUTCHEOI Notes: ed for functions MR11 1
    3, MR114, MR134, MI     		R178, MR199A.

    SECTIONAL TRIM WITH ROUND ROSE, PHILADELPHIA LEVER

    ESCUTCHEON TRIM, PHILADELPHIA LEVER

    WIDE ESCUTCHEON TRIM, PHILADELPHIA LEVER

    DECORATIVE COLLECTION

    FINISH OPTIONS

    613 (US10B) Oil Rubbed Bronze, Oxidized Satin Bronze, Oil Rubbed, No Coating

    630 (US32D) Satin Stainless Steel, No Coating

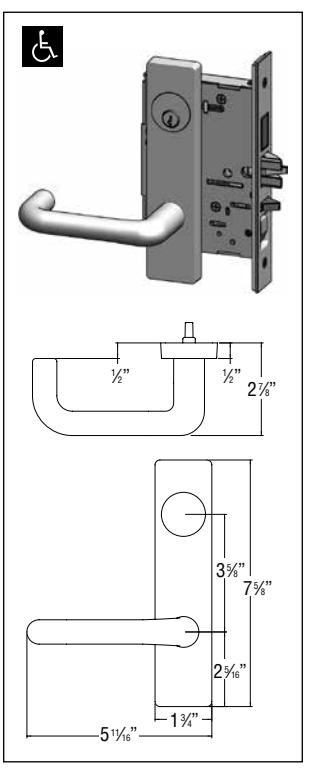

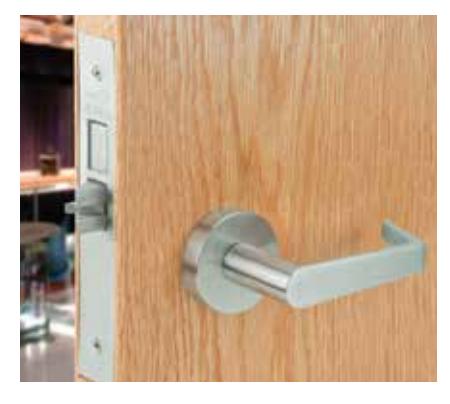

    SECTIONAL TRIM WITH ROUND ROSE

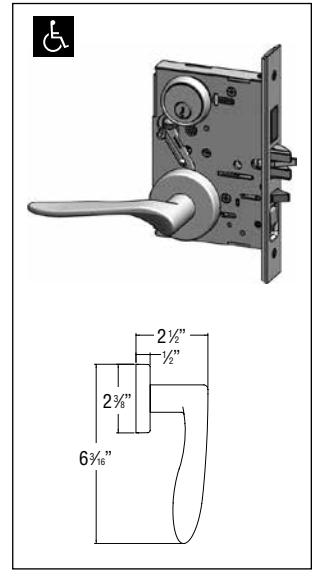

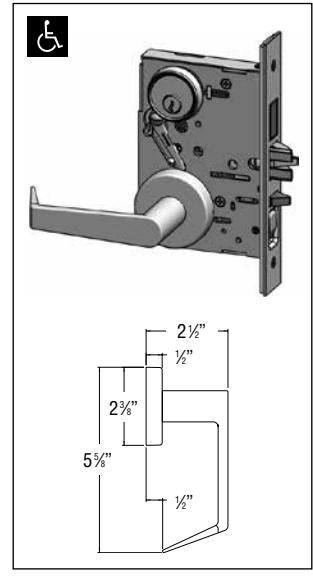

    PHILADELPHIA (PJSJ)

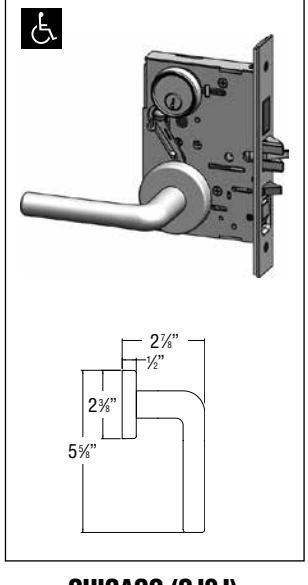

    CHICAGO (CJSJ)

    MEMPHIS (TJSJ) (SPECIFY HANDING)

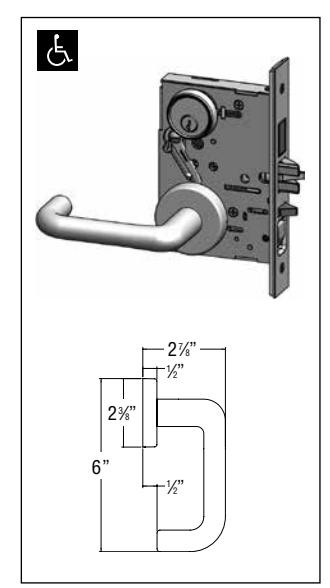

    DALLAS (DJSJ)

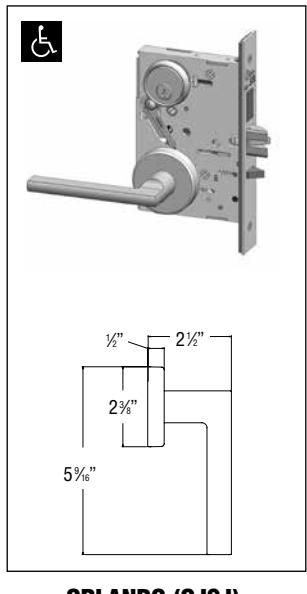

    ORLANDO (OJSJ)

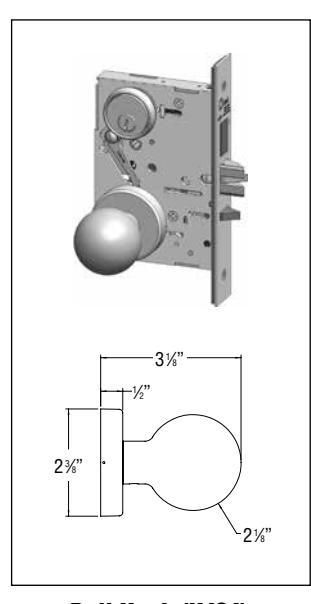

    Ball Knob (KJSJ)

    Denotes Compliance with ADA Guidelines

    SECTIONAL TRIM WITH SQUARE ROSE

    PHILADELPHIA (PJSR)

    CHICAGO (CJSR)

    MEMPHIS (TJSR) (SPECIFY HANDING)

    DALLAS (DJSR)

    ORLANDO (OJSR)

    BOSTON (BJSR)

    Ball Knob (KJSR)

    Denotes Compliance with ADA Guidelines

    ESCUTCHEON TRIM

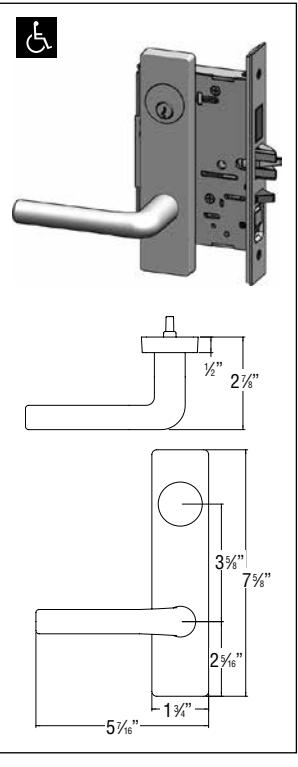

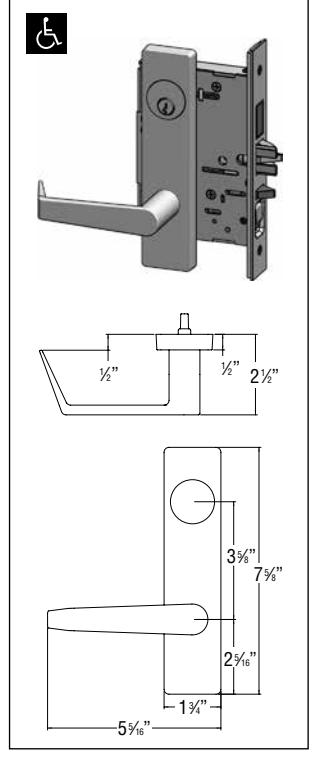

    PHILADELPHIA (PJEJ)

    CHICAGO (CJEJ)

    MEMPHIS (TJEJ) (SPECIFY HANDING)

    DALLAS (DJEJ)

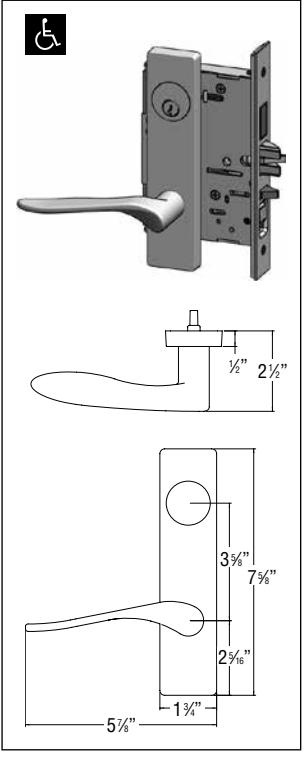

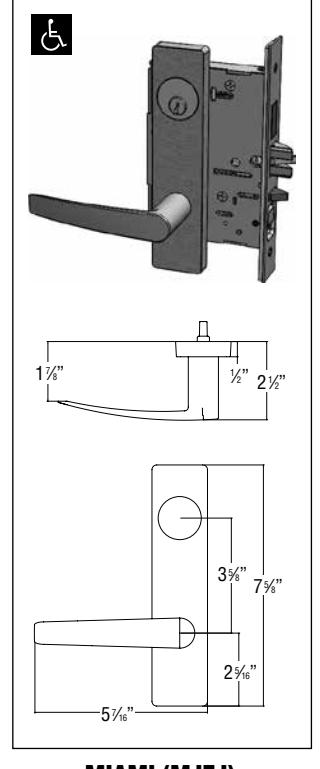

    MIAMI (MJEJ)

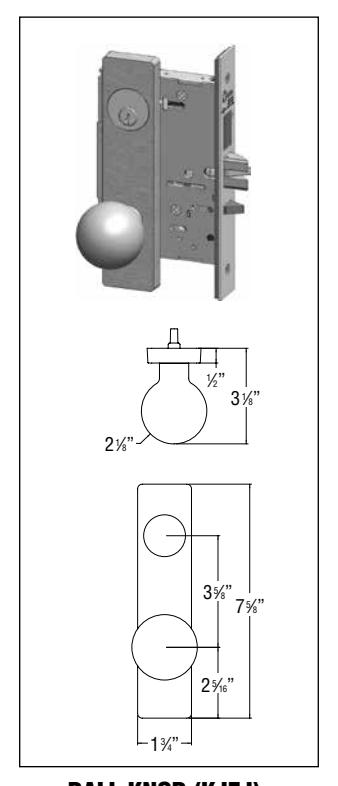

    BALL KNOB (KJEJ)

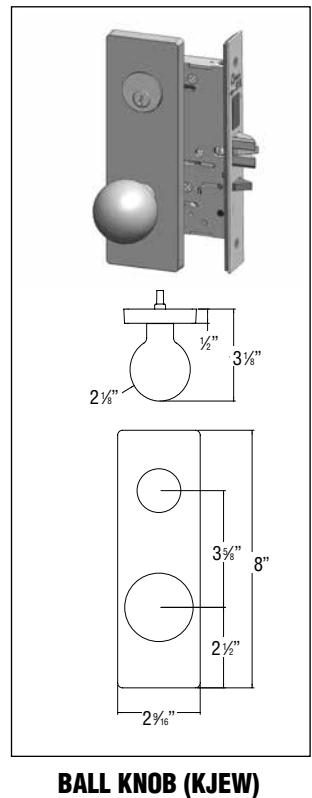

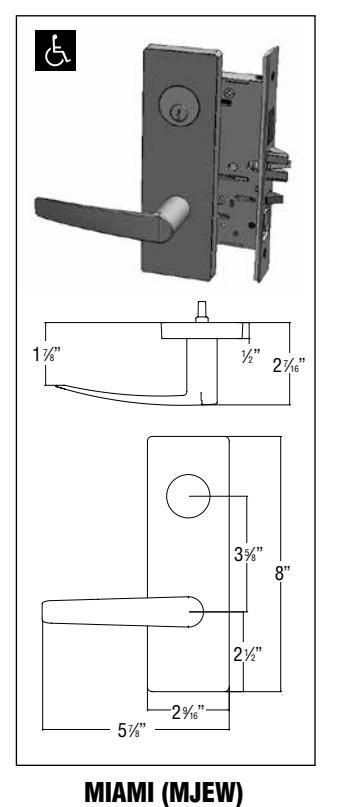

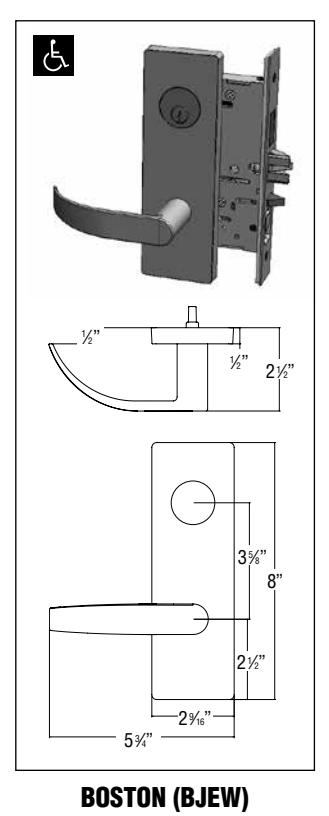

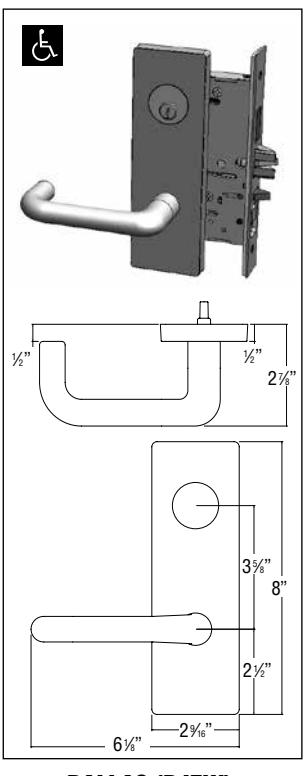

    WIDE ESCUTCHEON TRIM

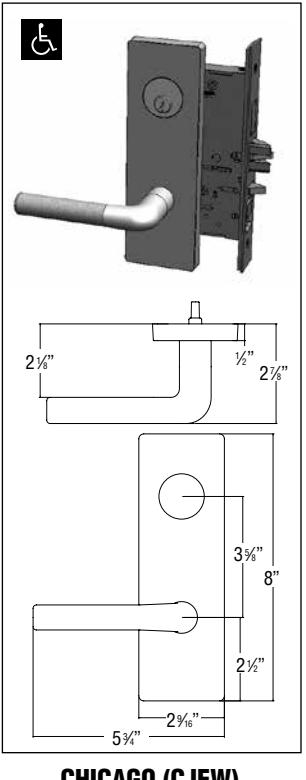

    CHICAGO (CJEW)

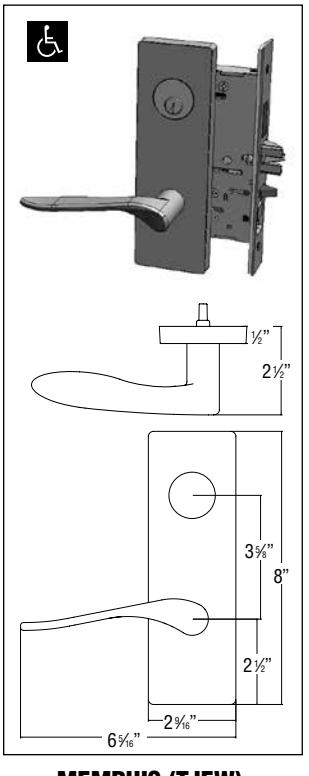

    MEMPHIS (TJEW) (SPECIFY HANDING)

    DALLAS (DJEW)

    Denotes Compliance with ADA Guidelines

    HOW TO ORDER J SERIES MORTISE LOCKS

    SERIES FUNCTION OPTIONS TRIM FINISH HANDING1 CYLINDER KEYWAY
    OR HOUSING     		KEYING
    MR SEE
    FUNCTIONS
    TABLE     		LM PJEJ 630 RH D SCC -Default
    Others - See
    Keyway Table     		KD - Keyed
    Different
    Others - See
    Keying Table
    LM — Latch
    Bolt Monitoring
    REX — Request
    to Exit (Functions
    199A and 200
    only).     		FPO
    P J EJ     		630 (US32D)
    Satin Stainless
    Steel     		RH — Right Hand
    (Default)
    RHR — Right
    Hand Reverse
    LH — Left Hand
    LHR — Left Hand
    Reverse     		D — Conventional Mortise
    Cylinder (Default)
    L — Less Cylinder
    SF6 — SFIC w/Core, 6 Pin
    SF7 — SFIC w/Core, 7 Pin
    LF — Schalge© Compatible LFIC
    w/Core
    LEVER DESIGN SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing, less core
    K — BALL KNOB
    B — BOSTON     		LFL — Schalge© Compatible LFIC
    Housing less core
    C — CHICAGO Notes:
    D — DALLAS 1 - Handing is required for functions MR113, MR114, MR134, MR178, MR199A.
    T — MEMPHIS
    M — MIAMI
    O — ORLANDO
    P — PHILADELPHIA
    TRIM SERIES
    J
    TRIM TYPE
    EJ — ESCUTCHEON
    FPO EW — ESCUTCHEON WIDE
    SJ — SECTIONAL,
    ROUND ROSE
    SR — SECTIONAL,
    SQUARE ROSE

    Example: PJEJ = Philadelphia Lever, J Series, Escutcheon Trim

    KEYWAYS

    CONVENTIONAL CYLINDER SMALL FORMAT INTERCHANGEABLE CORE LARGE FORMAT INTERCHANGEABLE CORE
    KEYWAY PDQ KEYWAY DESIGNATOR KEYWAY (BEST COMPATIBLE) PDQ KEYWAY DESIGNATOR KEYWAY (SCHLAGE COMPATIBLE) PDQ KEYWAY DESIGNATOR
    Schlage C (Default) SCC Schlage C (Default) SCC (Default)
    PDQ Restricted TA
    Arrow AR1 ARA BEST A (Default), B, C, D, E, F, A (Default), B, C, D, E, F, G, KEYING
    Corbin 59A1 CO59A1 G, H, J, K, L, M, Q, R, WA, WB,
    WG, WH, TB, TD, TE, R     		H, J, K, L, M, Q, R, WA, WB,
    WG, WH, TB, TD, TE, R
    Corbin 60 CO6 PDQ KEYING
    Corbin L4 CL4 DESCRIPTION
    Russwin D1 RUD PDQ Exclusive PDQ1 DESIGNATOR
    Russwin 981 RUD981 PDQ2 Keyed Different (Default) KD
    Schlage E SCE PDQ Exclusive and Restricted PDQ3
    Schlage C SCC Keyed Alike KA
    Schlage C-K SCC-K "O" Zero Bitted KO
    Sargent LA SAL
    Sargent RA-RC RA-RC Master Keyed MK
    Yale E1R YA8 Construction Master Keyed CMK
    Yale GA GA Grand Master Keyed GMK
    Falcon E-R FAL
    Kwikset KW

    ELECTRONIC ACCESS CONTROL

    ELECTRIFIED MORTISE LOCKS

    Motorized locking/unlocking.

    FAIL SECURE (Factory Default) - Outside trim is UNLOCKED when power is ON, and LOCKED when power is OFF. Lockset will lock in the event of a power failure.

    FAIL SAFE – Outside trim is LOCKED when power is ON. and UNLOCKED when power is OFF.Lockset will unlock in the event of a power failure.

    • Field changeable from FAIL SECURE to FAIL SAFE.
    • Built around PDQ's world class MR series mortise lock chassis platform.
    • Designed for AC or DC input voltage. No need to select voltage when specifying or ordering.
    • Under U.S. law. qualifies for Made in U.S.A., of U.S. and imported parts.
    • Meets requirements of the Buy American Act.
    • SMARTSENSE™ control board automatically accepts AC or DC input voltage.

    PERFORMANCE

    • Motor drive factory tested to over1.4 million cycles(1.4 times the ANSI/BHMA grade 1 std).

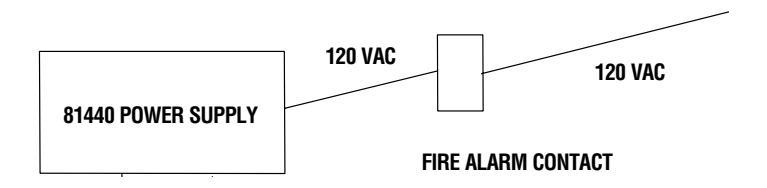

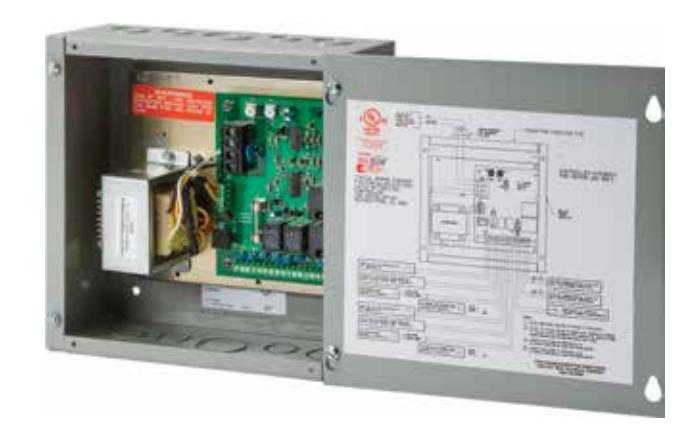

    RECOMMENDED POWER SUPPLY

    • PDQ Model # 81440.
    • Input: 120VAC, .9A, 50/60Hz 240VAC, .6.A, 50/60Hz
    • Output: 24VDC, 2A, filtered and regulated.
    • Rated for simulataneuous operation of 2ea mortise lock assemblies.
    • Power Supply Requirements:
    • AC/DC Output Voltage 1A min (filtered and regulated).
    • 12-24VDC @ < 1A initial surge (1 sec), 5mA standby after 30 sec.
      • AC Output Voltage.
    • 12-24VAC (60Hz) @ < 1A initial surge (1 sec), 15mA standby after 30 sec

    Innovative motor drive controls FAIL SECURE or FAIL SAFE locking mode.

    ELECTRICAL SPECIFICATIONS

    Note: Operating voltage at \pm 10% of rated voltage.

    • Input voltage: 12-24VDC or 12-24VAC.
    • Max In-rush current: < 1.0A.</li>
    • Standby current:
    • 12VAC: 12mA.
    • 24VAC: 10mA.
    • 12VDC: 3mA. - 24VDC: 5mA.

    CERTIFICATIONS, COMPLIANCES, LISTINGS

    • ANSI/UL10C and CAN/ULC-5104 Listed for "Fire Exit Hardware" up to 3 hours for 4'0" x 8'0" maximum single. 8'0" x 8'0" maximum pairs.
    • Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy American Act.

    PDQ FUNCTIONS - KEYED AND ELECTRIFIED

    FUNCTION FUNCTION
    NUMBER     		OUTSIDE | INSIDE DESCRIPTION ANSI
    Number
    Electrified
    Storeroom     		₽
    MR199A     		Key outside retracts latchbolt Latchbolt operated by lever from inside Auxiliary latch deadlocks latchbolt Fail safe – latchbolt operated by lever from outside unless electrically locked Fail secure – latchbolt operated by lever from outside when electrically unlocked Motor drive locking/unlocking Not field reversible Specify handing Available with option LM - Latch Bolt Monitor I
    Electrified
    Institutional     		∦
    MR200     		Key outside retracts latchbolt Key inside retracts latchbolt Auxiliary latch deadlocks latchbolt Fail safe – latchbolt operated by either lever when electrically locked Fail secure– latchbolt operated by either lever when electrically unlocked Motor drive locking/unlocking _

    ELECTRONIC ACCESS CONTROL

    REQUEST FOR EXIT, OPTION: REX

    • CURRENT
    • 3.0A @ 125VAC
    • 2.0A @ 30VDC
    • Available in F and J Series, Functions MR 199A and MR 200 only.

    LATCH BOLT MONITORING, OPTION: LM

    • CURRENT
    • 3.0A @ 125VAC
    • 2.0A @ 30VDC
    • Available with functions MR113, MR115, MR116, MR126, MR138, MR148, MR199A, MR200

    85003 ELECTRIC STRIKE

    • Designed for use with all PDQ MR Series Mortise Locks Without Deadbolt.

    FEATURES

    • Input voltage:12-24 VDC
    • Field changeable from FAIL SECURE to FAIL SAFE
    • Factory tested to 1,000,000 cycles

    CURRENT

    • 0.28A @ 12VDC
    • •0.14A @ 24 VDC

    FINISH

    • 630 (US32D) Finish

    It is strongly recommended that you consult a licensed electrician todetermine wire size based upon your wire runs to prevent voltage drop. All wiring must meet local codes

    MINIMUM WIRE GAGE CHART (AWG) FOR 24V AC/DC

    AMPS 25 FEET 50 FEET 75 FEET 100 FEET 150 FEET 200 FEET 250 FEET 300 FEET
    0.25 AMPS 18 GAGE 18 GAGE 18 GAGE 18 GAGE 18 GAGE 18 GAGE 18 GAGE 18 GAGE
    0.50 AMPS 18 GAGE 18 GAGE 18 GAGE 18 GAGE 18 GAGE 18 GAGE 18 GAGE 16 GAGE
    0.75 AMPS 18 GAGE 18 GAGE 18 GAGE 18 GAGE 18 GAGE 16 GAGE 16 GAGE 14 GAGE
    1.00 AMPS 18 GAGE 18 GAGE 18 GAGE 18 GAGE 16 GAGE 16 GAGE 14 GAGE 14 GAGE
    1.50 AMPS 18 GAGE 18 GAGE 18 GAGE 16 GAGE 16 GAGE 14 GAGE — —
    2.00 AMPS 18 GAGE 18 GAGE 16 GAGE 16 GAGE 14 GAGE — — —
    2.50 AMPS 18 GAGE 18 GAGE 16 GAGE 14 GAGE — — — —
    3.00 AMPS 18 GAGE 18 GAGE 14 GAGE 14 GAGE — — — —

    Distance In Feet For 2 conductor wire from Power Source To Locking Device

    81440 SERIES POWER SUPPLY

    • Rated for simultaneous operation of 2ea Functions MR199A or MR200 Fail Secure/Fail Safe Mortise Lock assemblies.

    FEATURES

    • UL 294 Listed
    • Filtered and Regulated 24 VDC OUTPUT for multiple devices, 2.0A maximum load
    • Locking device outputs are isolated from control switch
    • Continuous 24 VDC output for devices such as keypads, motion detectors or door status indicators
    • Multiple power input options
    • Class 2 rated outputs

    INPUT

    • 120 VAC*, 0.9A, 50/60Hz
    • 240 VAC*, 0.6A, 50/60Hz
    • Automatic input voltage detection

    OUTPUT

    • Switched** 24 VDC, 2.0A* filtered and regulated
    • Continuous 24 VDC, 2.0A* filtered and regulated
    • * 24 VDC, 2.0A maximum across all outputs
    • ** Isolated from continuous terminal block and surge suppressed

    PROTECTION

    • Overload
    • Over voltage
    • Short Circuit

    ENCLOSURE DIMENSIONS

    • 10" x 10" x 4"

    ENCLOSURE TYPE

    • NEMA 1 screw cover junction box, interior mounting only

    ENCLOSURE WEIGHT

    • 8.5 lbs

    Note: For Fire Labeled Openings, Requires Separate Fire Control Relay.

    ELECTRONIC ACCESS CONTROL

    ELECTRIFIED HINGES

    FEATURES OPTION
    DESIGNATOR     		DESCRIPTION
    EL 2 Concealed electric through-wire (2 wires, 22GA)
    UL Fire
    Listed for use with electrified     		EL 4 Concealed electric through-wire (4 wires, 28GA)
    mortise or cylindrical locks,
    exit devices with electric latch
    retraction, electric strikes, locks     		EL 10 Concealed electric through-wire (10 wires, 28GA)
    or exit devices with monitoring
    or request to exit switches     		EL 24 Concealed electric through-wire (2 wires @ 22GA, 4 wires @ 28GA)
    Electrical Specifications
    Concealed electric through-wire: 50
    volts AC/DC @ 3.5 amps continuos,     		ELM 3 Concealed electric monitor (3 wires, 28GA)
    16 amps pulse (maximum pulse
    width:400msec.,10 sec minimum
    off time between pulses)     		ELM 4 Concealed electric through-wire and monitor (4 through wires and 3 monitor wires, all
    28GA)
    Concealed electric monitor: 30 VDC
    @ .5 amps     		ELM 6 Concealed electric through-wire and monitor (6 through wires and 3 monitor wires, all
    28GA)
    ELM 8 Concealed electric through-wire and monitor (8 through wires and 3 monitor wires, all
    28GA)

    HOW TO ORDER

    ELECTRIFIED OPTIONS1 SERIES STYLE FINISH
    EL 2 – Concealed electric through-wire
    (2 wire, 22 ga)
    EL 4 – Concealed electric through-wire
    (4 wire, 28 ga)
    EL 10 – Concealed electric through-wire
    (10 wire, 28 ga)
    EL 24 – Concealed electric through-wire
    (2 wires @ 22 ga, 4 wires @ 28ga)     		35 – FULL MORTISE 600 (P) — Prime Coated
    605 (3) — Bright Brass
    613 (10B) — Oil Rubbed Bronze
    626 (26D) — Satin Chrome
    630 (32D) — Satin Stainless Steel
    ELM 3 – Concealed electric monitor
    (3 wire, 28 ga)     		35 SS BB 4545 630 NRP
    ELM 4 – Concealed electric through-wire
    and monitor (4 through wires and 3
    monitor wires, all 28GA)
    ELM 6 – Concealed electric through-wire
    and monitor (6 through wires and 3
    monitor wires, all 28GA)3
    ELM 8 – Concealed electric through-wire     		ST – Steel
    SS – Stainless Steel     		4040 – 4" X 4"
    4540 – 4-1/2" X 4"
    4545 – 4-1/2" X 4-1/2"
    5045 – 5" x 4-1/2"     		NRP – Non Removable Pin
    and monitor (8 through wires and 3
    monitor wires, all 28GA)3     		MATERIAL SIZE SECURITY FEATURE2

    Ordering example: 4 Wire Std Weight Hinge: EL 4 35 SS BB 4545 630 NRP

    Notes: 1- EL Series only available in 2 and 4 ball bearing. Includes NRP. 2 - NRP only available in 2 and 4 ball bearing. 3 - Not available in 4 ball bearing heavy weight hinges.

    ELECTRONIC ACCESS CONTROL

    81310 SERIES KEY SWITCHES

    NARROW FRAME MOUNT

    FEATURES:

    • Includes #6-32 x 1/2" FHMS TR Torx Tamper Resistant Security Faceplate Screws.
    • 1-3/4" frame mount
    • Mortise cylinder not included (See table
    • · Anti-rotation cylinder security

    FACEPLATE:

    • 630 (32D) Satin Stainless Steel faceplate
    • Dimensions: 1-3/4"W x 4-1/2"H

    ELECTRICAL RATINGS:

    ELECTRICAL RATINGS:

    • DPDT contact configuration

    • Switch Contacts: 4A @ 30VDC

    • DPDT contact configuration
    • Switch Contacts: 4A @ 30VDC
    • LED Red and Green indicators: 24 VDC

    81310-4MT - MOMENTARY 81310-4MM - MAINTAINED

    81310-2MT - MOMENTARY 81310-2MM - MAINTAINED

    SINGLE GANG WALL MOUNT

    FEATURES:

    • Includes #6-32 x 1/2" FHMS TR Torx Tamper Resistant Security Faceplate Screws.
    • 2 indicators, 1-red and 1-green
    • Mortise cylinder not included (See table below)
    • · Anti-rotation cylinder security

    FACEPLATE:

    • 630 (32D) Satin Stainless Steel faceplate
    • Dimensions: 2-3/4"W x 4-1/2"H

    MORTISE CYLINDER

    INCLUDES CAM

    CYLINDER REFERENCE GUIDE

    ТҮРЕ LENGTH PDQ CAM NUMBER
    Conventional 1-1/4" 1127-4204
    SFIC Housing, 6 Pin 1-1/4" I54031
    SFIC Housing, 7 Pin 1-3/8" I54031
    LFIC Housing 1-1/2" I54231

    KEYWAYS

    CONVENTI ONAL CYLINDER SMALL FORMAT INTE RCHANGEABLE CORE LARGE FORMAT INTERC LARGE FORMAT INTERCHANGEABLE CORE
    KEYWAY PDQ KEYWAY DESIGNATOR KEYWAY (BEST COMPATIBLE) PDQ KEYWAY DESIGNATOR KEYWAY (SCHLAGE COMPATIBLE) PDQ KEYWAY DESIGNATOR
    Schlage C (Default) SCC Schlage C (Default) SCC (Default)
    PDQ Restricted TA DECT A (D-fib) D O D E E A (D-fII) D O D E E O
    Arrow AR1 ARA BEST A (Default), B, C, D, E, F,
    G, H, J, K, L, M, Q, R, WA, WB,
    Corbin 59A1 C059A1 WG, WH, TB, TD, TE WG, WH, TB, TD, TE KEYING
    Corbin 60 C06 WG, WH, 1B, 1B, 1E WG, WII, ID, ID, IL
    Corbin L4 CL4 DDO KEVINO
    Russwin D1 RUD PDQ Exclusive PDQ1 DESCRIPTION PDQ KEYING
    Russwin 981 RUD981 PDQ Exclusive PDQ2 DESIGNATOR
    Schlage E SCE PDQ Exclusive and Restricted PDQ3 Keyed Different (Defeuit) KD
    Schlage C SCC Keyed Different (Default) KU
    Schlage C-K SCC-K Keyed Alike KA
    Sargent LA SAL ||O|| 7 Ditt- d 1/0
    Sargent RA-RC RA-RC "O" Zero Bitted KO
    Yale E1R YA8 Master Keyed MK
    Yale GA GA ,
    Falcon E-R FAL Construction Master Keye d CMK
    Kwikset KW Grand Master Keved GMK

    KFYING

    DESCRIPTION PDQ KEYING
    Designator
    Keyed Different (Default) KD
    Keyed Alike KA
    "O" Zero Bitted ко
    Master Keyed МК
    Construction Master Keyed СМК
    Grand Master Keyed GMK

    CYLINDERS/CORES/KEYWAYS

    PDQ cylinders and cores are designed to interface with the keyways of most major lock manufacturers. Insert cylinders are designed to accept 6 pins and are combinated for 5 pins. These cylinders are shipped with two keys. Interchangeable core cylinders are available combinated or uncombinated for 6 and 7 pins and must be specified when ordering. Available in two finishes — 606 (US4) and 626 (US26D); specify when ordering separately.

    Large Format Interchangeable Core

    CORES

    DESCRIPTION DINC FINIS FINISHES
    DESCRIPTION PINS 606 626
    - Small Format, Best® Compatible - Uncombinated 6 Pin
    7 Pin     		15206 -8
    15207-8     		15206 -7
    15207-7
    T. P. Small Format, Best® Compatible - Combinated | RIPTION | PINS | 606 | 6 | | 15206-1 -7
    15207-1 -7
    7 Large Format, Schlage® Compatible - Uncombinated 6 Pin 15206-816 15206-716
    Large Format, Schlage® Compatible - Combinated 6 Pin 15206-8116 15206-7116

    NOTE: Part Numbers Listed For Default Keyway. For Other Keyways, See table below.

    CYLINDER

    CYLINDER REFERENCE GUIDE

    ТҮРЕ LENGTH PDQ CAM NUMBER
    Conventional 1-1/4" 1127-4201
    SFIC Housing, 6 Pin 1-1/4" I54061
    SFIC Housing, 7 Pin 1-3/8" I54061
    LFIC Housing 1-1/2" I54261

    HIGH SECURITY CYLINDERS

    KW

    DE SCRIPTION PINS FINISHES
    DE SCRIPTION LINO 605 613 626
    Ta Mortise Cylinder 1 1/4"
    Mortise Cylinder 1 1/2"     		6 Pin
    6 Pin     		HSC030-5
    HSC050-5     		HSC030-6
    HSC050-6     		HSC030-7
    HSC050-7
    UL 437 Mortise
    Cylinder 1-1/4"     		6 Pin HSC330-5 HSC330-6 HSC330-7

    NOTE: Part Numbers Listed For Default Keyway. For Other Keyways, See table below.

    HIGH SECURITY CORES

    DE SCRIPTION PINS FINIS SHES
    DΕ SURIFIIUN PINS 606 626
    116 Small Format, Best®
    Compatible - Combinated
    Small Format, Best®
    Compatible - Combinated     		6 Pin
    7 Pin     		HSC806-8
    HSC807-8     		HSC806-7
    HSC807-7
    Large Format, Schlage®
    Compatible - Combinated     		6 Pin HSC906-8 HSC906-7

    NOTE: Part Numbers Listed For Default Keyway. For Other Keyways, See table below.

    KEAIWVAG

    Kwikset

    CONVENTI ONAL CYLINDER SMALL FORMAT INTE RCHANGEABLE CORE LARGE FORMAT INTERC LARGE FORMAT INTERCHANGEABLE CORE
    KEYWAY PDQ KEYWAY DESIGNATOR KEYWAY (BEST COMPATIBLE) PDQ KEYWAY DESIGNATOR KEYWAY (SCHLAGE COMPATIBLE) PDQ KEYWAY DESIGNATOR
    Schlage C (Default) SCC Schlage C (Default) SCC (Default)
    PDQ Restricted TA ]
    Arrow AR1 ARA BEST A (Default), B, C, D, E, F, A (Default), B, C, D, E, F, G, KEYING
    Corbin 59A1 C059A1 G, H, J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R WG, WH, TB, TD, TE, R
    Corbin 60 C06 , WG, WII, ID, ID, IL, II WG, WII, 1D, 1D, 1L, II PDQ KEYING
    Corbin L4 CL4 DESCRIPTION DESIGNATOR
    Russwin D1 RUD DDO Evolucivo PDQ1 DESIGNATOR
    Russwin 981 RUD981 PDQ Exclusive PDQ2 Keyed Different (Default () КД
    Schlage E SCE PDQ Exclusive and Restricted PDQ3
    Schlage C SCC Keyed Alike KA
    Schlage C-K SCC-K "O" Zero Bitted КО
    Sargent LA SAL Mantau Kayad NALV.
    Sargent RA-RC RA-RC Master Keyed MK
    Yale E1R YA8 Construction Master Ke yed CMK
    Yale GA GA Grand Master Keyed GMK
    Falcon E-R FAL Grand Master Reyeu UNIK

    SERIES

    DESCRIPTION FINISHES
    605 606 612 613 625 626 630
    1-1/4" x 4-7/8" ANSI/ASA Curved Lip (LH/RHR) W51241- W51241- W51241- W51241- W51241- W51241- W51241-
    1-1/4" x 4-7/8" ANSI/ASA Curved Lip (RH/LHR) W51242- W51242- W51242- W51242- W51242- W51242- W51242-
    Extended Straight Lip W51002- W51002- W51002- W51002- W51002- W51002- W51002-

    Ordering example: RH Strike, Stainless Steel finish: W51242 630

    OPTIONS

    DESCRIPTION

    Tactile Abrasive Strip - Inside only (PFSF, PFEF, BFSF and BFEF only) Tactile Abrasive Strip - Outside only (PFSF, PFEF, BFSF and BFEF only) Tactile Abrasive Strip - Both Sides (PFSF, PFEF, BFSF and BFEF only)

    Security Head Screws Lead-wrapped Case

    Calit Finishes

    Split Finishes

    Sectional Single Sided Mounting Assembly

    HD Spindle

    ADA Compliant Thumbturn

    ADA Thumbturn

    Note: Other Lip sizes available. Contact PDQ Technical Service.

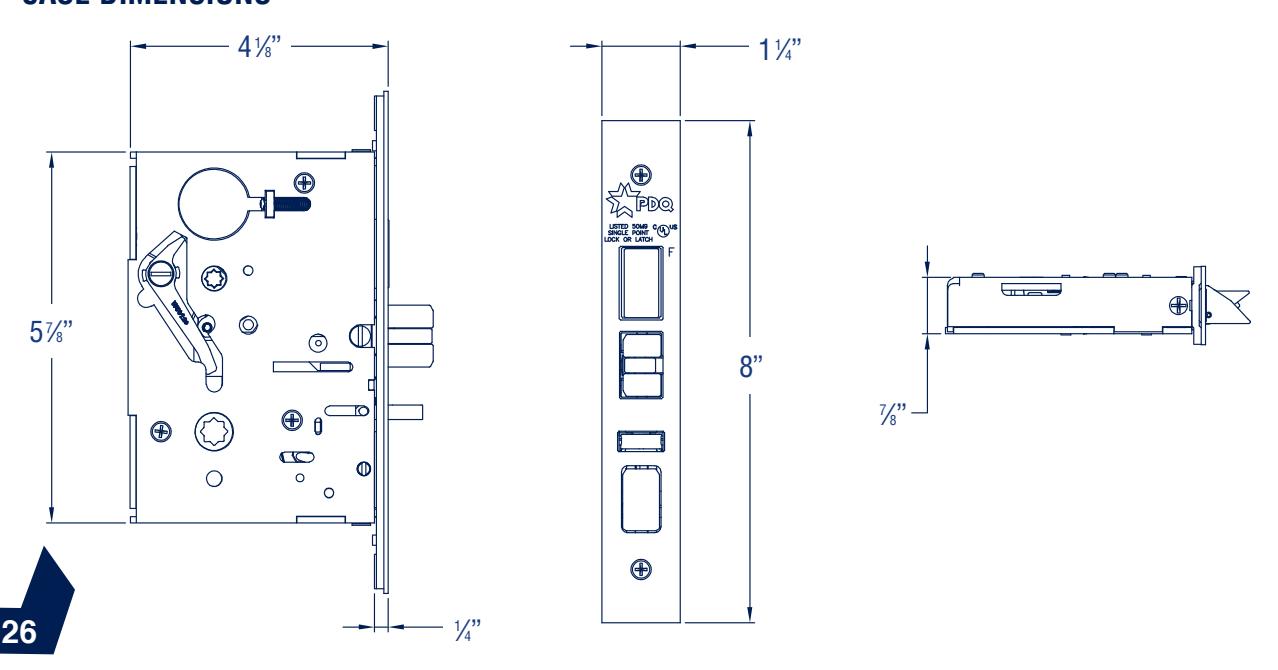

    CASE DIMENSIONS

    HANDING

    PDQ's innovative handing design allows for quick and easy changing in the field. To switch the handing from Right Hand to Left Hand, simply unscrew the Latch Bolt screw and remove the Latch Bolt head. Rotate the Latch Bolt head 180 degrees and reinsert back into the chassis. Insert and tighten the Latch Bolt Screw. We recommend applying Loctite #242 or equivelant to the threads when re-assembling the latch Bolt Screw.

    Shown above is PDQ's Function MR115. For other functions, always consult the Handing Instructions @ www.pdqlocks.com. PDQ Functions MR113, MR114, MR134, MR178, MR186, MR199, MR199A are NOT field reversible. For these functions, specify handing when ordering from the factory.

    Out Swing Door

    MJ SERIES MORTISE DEADBOLTS

    SHOWN WITH STANDARD THUMBTURN SHOWN WITH OPTIONAL "ADA" COMPLIANT THUMBTURN

    SPECIFICATIONS

    FOR DOORS: • 1-3/4".

    BACKSET: • 2-3/4"

    CASE: • Steel—Dichromated for corrosion resistance.

    FACEPLATE: • 1-1/4" x 5-5/8"

    FRONT: • 2-1/4" x 1" • Stainless Steel or Wrought Brass

    STRIKE: • 1-1/8" x 2-1/2"

    DEADBOLT: • 1" Throw • Stainless Steel

    OPTIONAL THUMBTURN: • ADA Compliant

    HAND: • Non-handed except for function MJ134 Classroom (See Function Table and How to Order Guide).

    KEYS: • Two (2) per Lock

    KEYWAYS: • SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers

    INTERCHANGEABLE

    CORE: • 6 or 7-pin • Compatible with Best, Falcon & Arrow • Large Format IC Cores compatible with Schlage.

    CYLINDER: • 6 or 7-pin Mortise Cylinder

    KEYING: • Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)

    • Can be keyed into existing master key systems

    FINISHES: • 630 (US32D) - Satin Stainless Steel

    CERTIFICATIONS, • ANSI/UL 10C Listed, "Positive Pressure Fire Tests of Door Assemblies" for up to and including 3 hrs.

    LISTINGS, COMPLIANCES: • Meets requirements of the Buy American Act.

    WARRANTY: • 10-YearLimitedWarranty

    CROSS REFERENCE

    ANSI # A156.5
    (A156.13)     		PDQ
    FUNCTION     		BEST CORBIN DORMA MARKS
    #31/32/33
    SERIES     		SARGENT SCHLAGE YALE
    E06081 (F18) MJ131 48H L DL4111 D961 L 4876 L464 353
    E06071 (F17) MJ132 48H K DL4113 D960 K 4875 L460 352
    E06061 (F16) MJ133 48H M DL4112 D962 M 4874 L462 351
    MJ134LH
    E06091 (F29) MJ134LH 48H R DL4117 D963 S 4877 L463 357

    HANDING

    In Swing Door

    LEFT HAND (LH) RIGHT HAND (RH) OUTSIDE

    MJ SERIES MORTISE DEADBOLTS

    FUNCTIONS

    FUNCTION FUNCTION
    NUMBER     		OUTSIDE | INSIDE DESCRIPTION ANSI NUMBER
    A156.5(A156.13)
    Single Cylinder MJ131 T. T. Key outside extends/retracts deadbolt E06081
    (F18)
    Single Cylinder
    with Thumbturn     		MJ132 d
    d     		Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt E06071
    (F17)
    Double Cylinder MJ133 dib Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt E06061
    (F16)
    Single Cylinder
    (Classroom)
    Left Hand     		MJ134LH din Key outside extends/retracts deadbolt Inside cylinder turn retracts but does not extend deadbolt Thumbturn rotates clockwise E06091
    (F29)
    Single Cylinder
    (Classroom)
    Right Hand     		MJ134RH
    • Key outside extends/retracts deadbolt
    • Inside cylinder turn retracts but does not extend deadbolt
    • Thumbturn rotates counter-clockwise
    		E06091
    (F29)
    SERIES FINISH CYLINDER
    OR HOUSING     		KEYING
    MJ — Mortise Deadbolts 630 — Satin Stainless Steel D — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schalge® Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing, less core LFL — Schalge® Compatible LFIC Housing less core KD — Keyed Different (Default)
    Others - See Keying Table
    MJ 131 630 _ D SCC KD
    See Function Table ADA — ADA Compliant Thumbturn SCC — Default
    Others - See Keyway Table
    FUNCTION
    NUMBER     		THUMBTURN KEYWAY

    Ordering Example: MJ 131 630 SCC KD

    CYLINDER REFERENCE GUIDE

    INCLUDES CAM

    MORTISE

    SFIC HOUSING

    ТҮРЕ LENGTH PDQ CAM
    Number
    Conventional 1-1/4" l127-4204
    SFIC Housing, 6 Pin 1-1/4" 154031
    SFIC Housing, 7 Pin 1-3/8" 154031
    LFIC Housing 1-1/2" I54231

    LFIC CORE

    MJ SERIES MORTISE DEADBOLTS

    KEYWAYS

    CONVENTIONAL CYLINDER SMALL FORMAT INTERCHANGEABLE CORE LARGE FORMAT INTERCHANGEABLE CORE
    KEYWAY PDQ KEYWAY DESIGNATOR KEYWAY (BEST COMPATIBLE) PDQ KEYWAY DESIGNATOR KEYWAY (SCHLAGE COMPATIBLE) PDQ KEYWAY DESIGNATOR
    Schlage C (Default) SCC Schlage C (Default) SCC (Default)
    PDQ Restricted TA BEST A (Default), B, C, D, E, F, A (Default), B, C, D, E, F, G,
    H, J, K, L, M, Q, R, WA, WB,
    WG, WH, TB, TD, TE, R
    Arrow AR1 ARA KEYING
    Corbin 59A1 CO59A1 G, H, J, K, L, M, Q, R, WA, WB,
    WG, WH, TB, TD, TE, R
    Corbin 60 CO6
    Corbin L4 CL4
    Russwin D1 RUD PDQ1 DESCRIPTION PDQ KEYING
    Russwin 981 RUD981 PDQ Exclusive PDQ2 DESIGNATOR
    Schlage E SCE PDQ Exclusive and Restricted PDQ3
    Schlage C SCC Keyed Different (Default) KD
    Schlage C-K SCC-K Keyed Alike KA
    Sargent LA SAL "O" Zero Bitted KO
    Sargent RA-RC RA-RC
    Yale E1R YA8 Master Keyed MK
    Yale GA GA Construction Master Keyed CMK
    Falcon E-R FAL
    Kwikset KW Grand Master Keyed GMK

    FINISHES

    630 (US32D)

    Satin Stainless Steel, No Coating

    MORTISE DEADBOLT

    ARCHITECTURAL SPECIFICATION SHEET

    MR Series Mortise Locks are manufactured by PDQ Industries, Inc., Leola, Pennsylvania and are assembled in the U.S.A., meeting the requirements of the Buy American Act. They carry a Limited Lifetime manufacturer's warranty. All lock bodies to conform to Federal Specification FF-H-106 Type 86 and to all dimensional specifications of ANSI A156.13-2005 Series 1000, Grade 1. Locks meet Operational and Security Grade 1 with F and W Trims . Operational Grade 1 and Security Grade 2 with J Trim. MR series is Windstorm Resistant Product Listed–ANSI A250.13- 2005, ASTM E1886-02, ASTM E330-02, Outswing: 350 ft-lbs., N/R, Design Load Rating: 2453 lbf. (functions with deadbolts only). Thirty nine mortise lock functions are currently available.

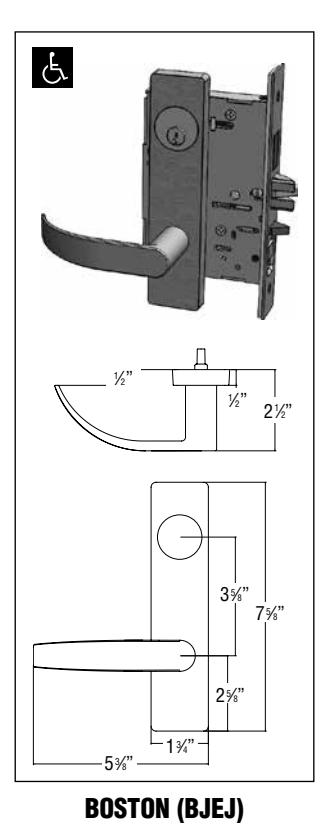

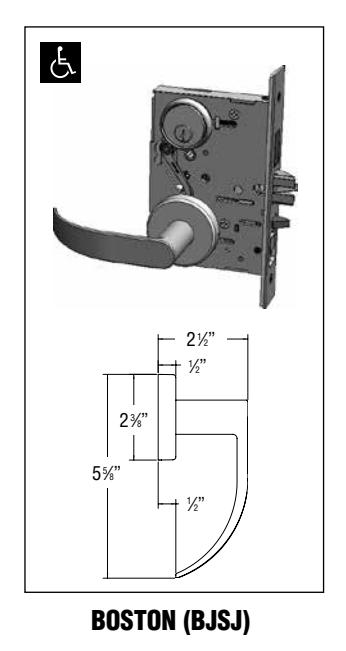

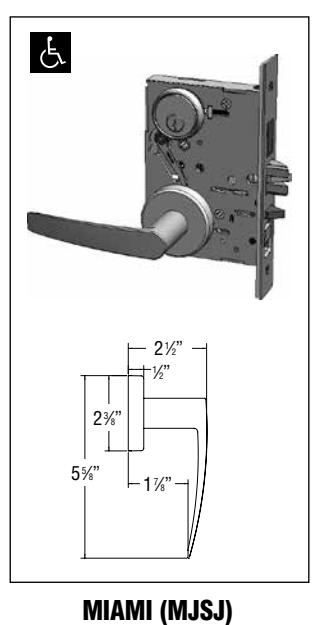

    While Handing of most lock functions is field reversible, strikes are handed. Latchbolt can be fully retracted with 35° lever rotation. Levers Levers will have a Miami, Dallas, Philadelphia, Boston Chicago, Memphis and Ball knob design. Dallas W trim is furnished in solid stainless steel, Dallas and Chicago J trim are tube levers. Locksets for single doors up to 4'0" x 8'0" shall be listed by UL / ULC for ratings of "A" (3 hours) label and less. All locksets shall have a Limited Lifetime warranty from date of installation. All locksets shall meet or exceed all applicable requirements of the Americans with Disabilities Act of 1990.

    NOTES

    Headquarters: 2754 Creek Hill Road • Leola, PA 17540 • 800.441.9692 • 717.656.6892 Fax Regional Distribution Centers: Kansas City, MO, Salt Lake City, UT, Seattle, WA www.pdqlocks.com

    PDQ'S MR Series Brochures are now printed entirely on Forest Stewardship Council™ certified paper. FSC Certification ensures that the paper used in this catalog contains fiber from well-managed and responsibly harvested forests that meet strict environmental and socioeconomic standards. We're proud to be one of the first hardware manufacturers in the country to make this significant move to help our environment. The FSC logo on our brochure signals not only FSC Certification, but also PDQ's commitment to improving the environment.
