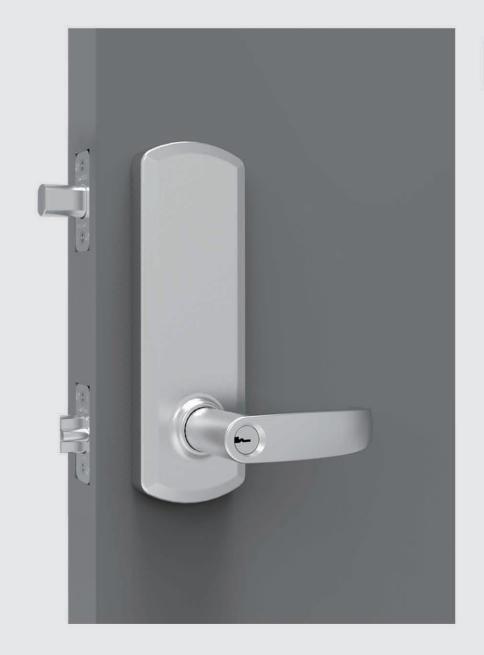

m-Genius Mechanical Interconnect Lock 4" Entry lock with turn button shown

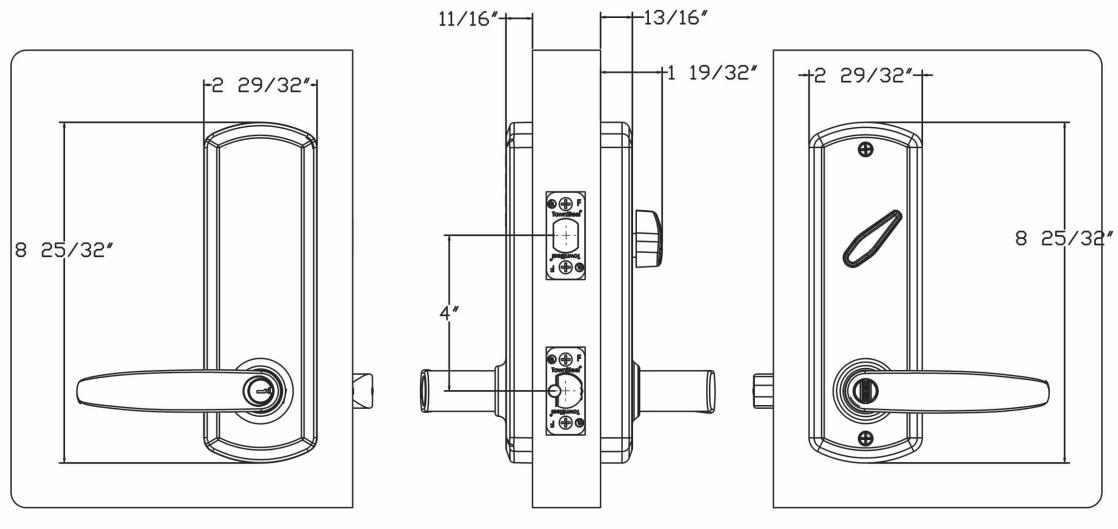

Mechanical Specifications

• Door Thickness: 1-3/4"
• Backset: 2-3/8" 2-3/4" adjustable
• Clutched trim
• Latch Bolt: 1/2" throw stainless steel deadlocking
• Deadbolt: 1" stainless steel deadbolt
• Faceplates: 1" x 2-1/4" or 1-1/8" x 2-1/4" with radius corners
• Latch Strike: Full lip with radius corners
• Deadbolt Strike: 1-1/8" x 2-3/4" radius corners with security underplate
• Escutcheon: Zinc front cover and steel back cover
• Lever: Zinc or stainless steel
• 4" or 5-1/2" deadbolt center to latch bolt center distance available
• Available Storeroom Function (always locked) or Entry Function (with Toggle passage)

Available Lever Styles

Code Compliance

• Americans with Disabilities Act
• EU RoHS Directive 2002/95/EC
• ANSI/BHMA A156.12 Grade 1
• UL 10C 3 Hour Rated

m-Genius

Mechanical series of the Genius family

Mechanical Interconnect lock with a unique and patented design

A commercial grade Interconnect Lock that offers the safety and convenience of simultaneous retraction of the latch and deadbolt during entry or egress. Extending the deadbolt is done by simply lifting the inside or outside lever, no key required to securely lock your door. Only one key to unlock both latch and deadbolt.

Latch can always be locked, so that when shut the door it automatically locked. Deadbolt is extended for added security.

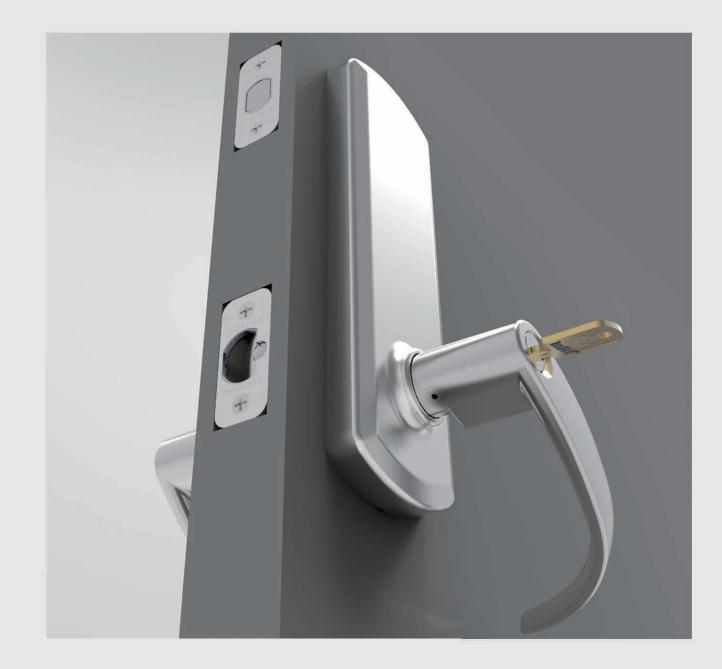

Clutching lever design: When locked, the outside lever will rotate but will not retract the latch or deadbolt.

A unique, secure and stylish mechanical interconnect lock that can retract the deadbolt and latch bolt in a single motion.

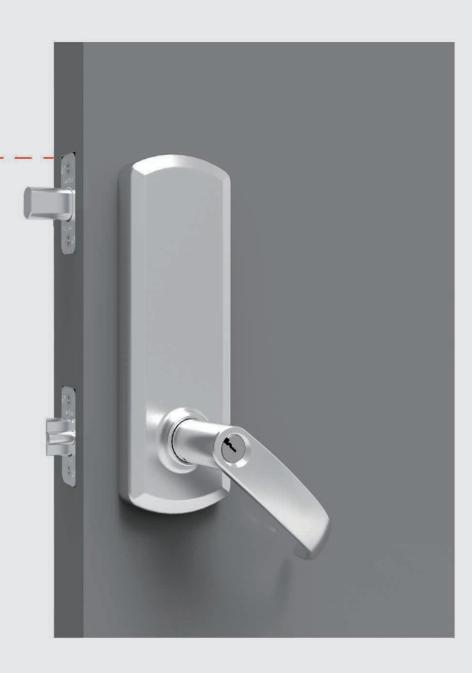

One unique feature is that the deadbolt can extended by simply lifting the inside or outside lever.

Inside lever will simultaneously retract the latch bolt and deadbolt to comply with single motion egress fire code.

Outside lever, when unlocked, will simultaneously retract the latch bolt and deadbolt for easy entry.

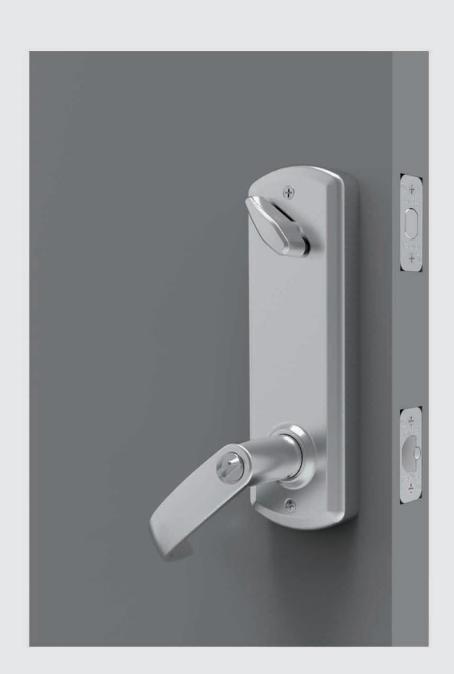

Optional inside turn (Toggle Function) will allow the user to toggle between locked or unlocked on the outside lever.

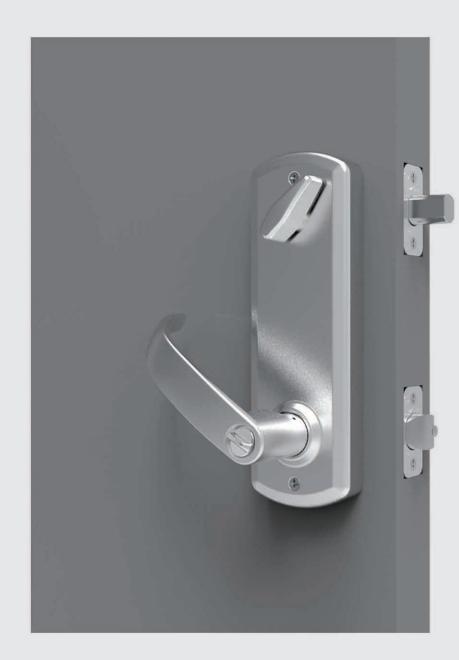

Turn button on inside lever (Toggle Function)

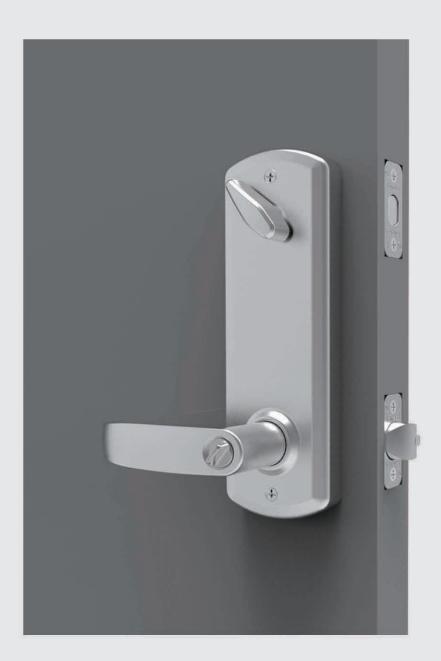

Outside lever locked position

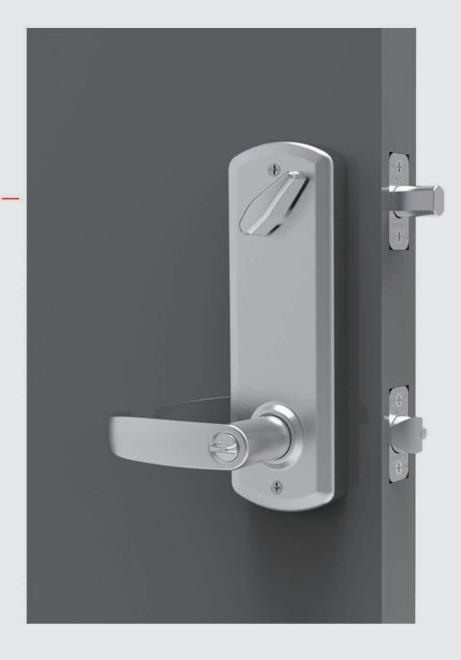

Outside lever unlocked position

m-Genius

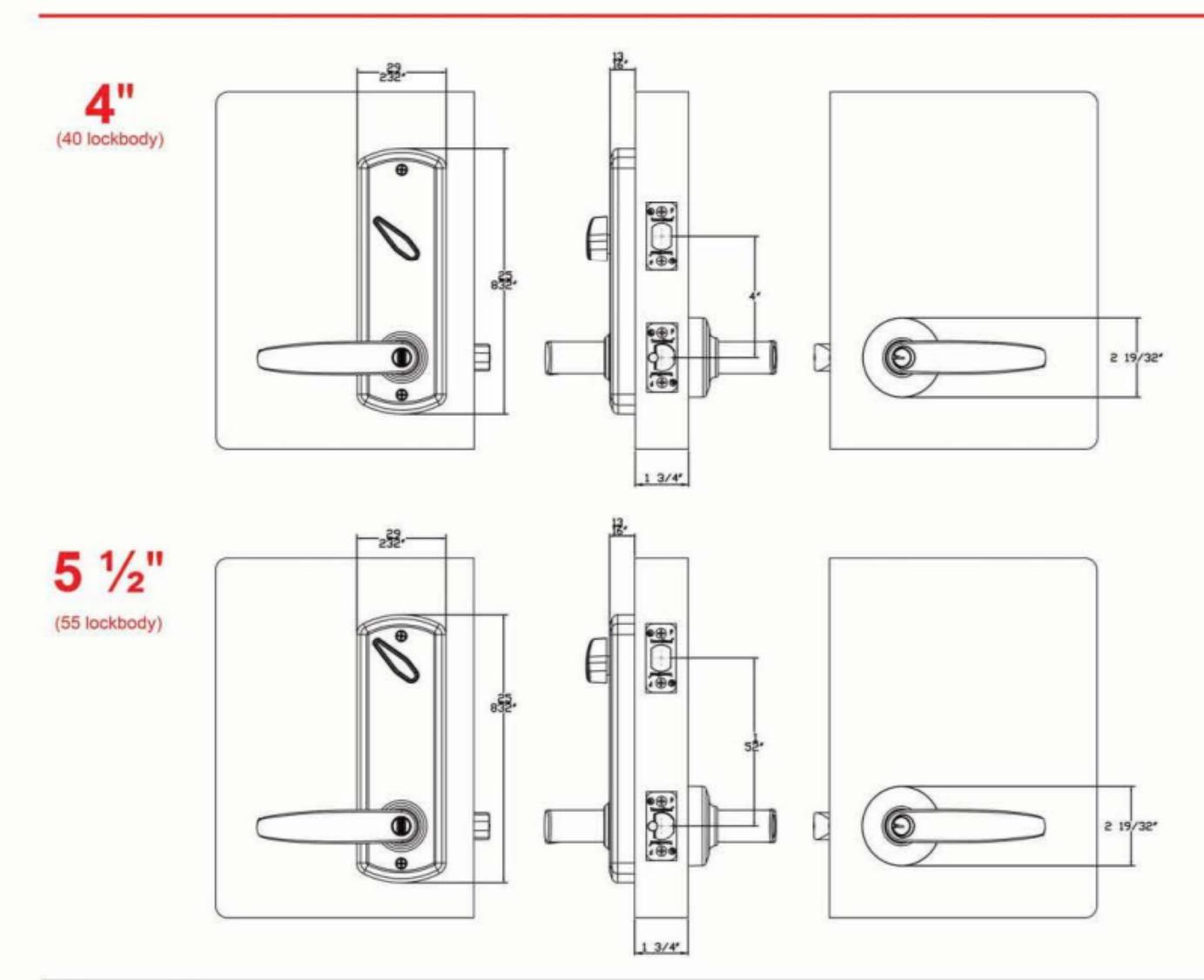

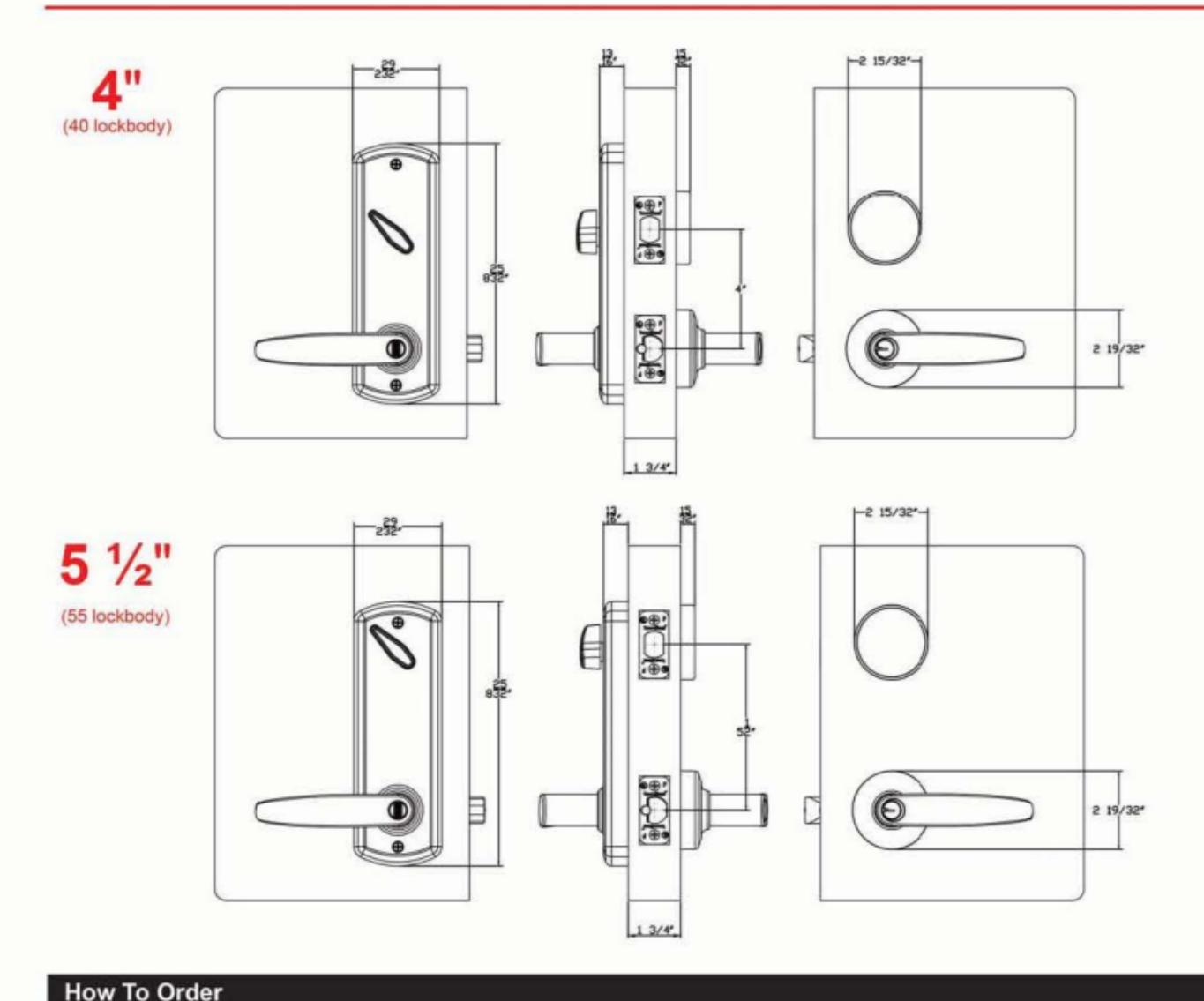

Mechanical Interconnect Lock (available in 4" or 5 ½" spacing)

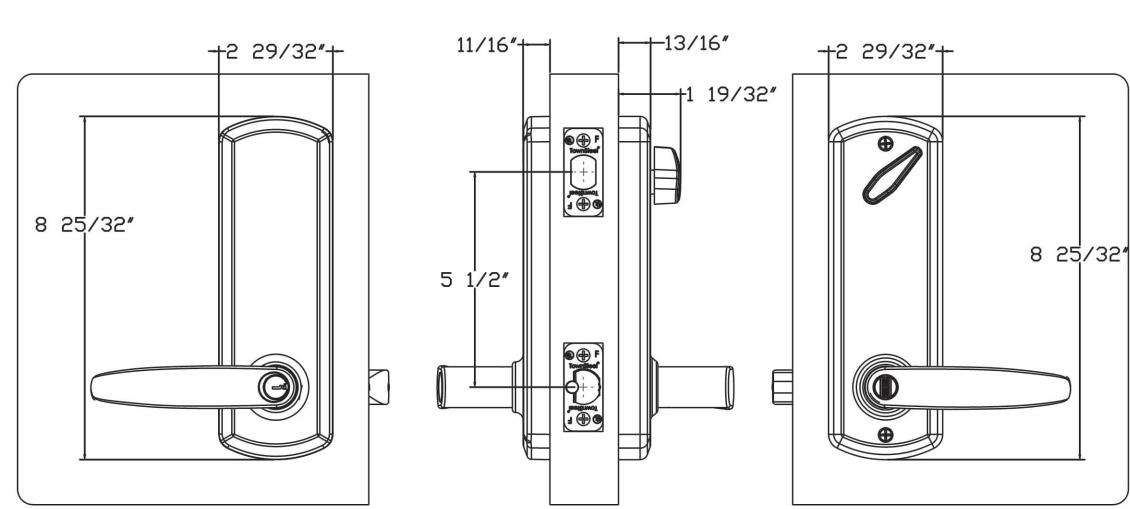

(55 lockbody)

How To Order
Series	m-Genius
Function	S: Storeroom / T: Entry (Toggle Function)
Lever Style	S: Sentinel / Q: Quest
Handing	RH / LH / RHR / LHR
Faceplates	N: 1" x 2-1/4" / W: 1-1/8" x 2-1/4"
Lockbody	40: 4" / 55: 5-1/2"	Lever Finish Lockbody
Finish	SN: US15, Satin Nickel / FB: US19, Flat Black SC: US26D, Satin Chrome / Or special color upon request	MGTT-SLHSC-W-55-SC
	SC- 6 pin Schlage® C keyway, standard KW10- Kwikset® 6 pin (please specify)	Function Handing Faceplates Cylinder
Cylinder	Cylinders below are available by special order SFIC- Small format IC (SFIC) without core SFIC6 or SFIC7- Best® IC core, 6 or 7 pin Best® "A" keyway SLFIC- Schlage® large format IC less core CLFIC- Corbin® 6 pin large format IC less core L6- High security 6 pin cylinder with TownSteel® "L" keyway L7- High security 7 pin cylinder with TownSteel® "L" keyway

m-Genius-C

Mechanical Interconnect Lock (available in 4" or 5 1/2" spacing)

Series	m-Genius-C
Function	S: Storeroom / T: Entry (Toggle Function)	Lever Finish Faceplates
Lever Style	S: Sentinel / Q: Quest / W: Wolfsburg / WR: Wolfsburg R
Handing	RH / LH / RHR / LHR
Finish	619: US15, Satin Nickel / 622: US19, Flat Black 626: US26D, Satin Chrome / Or special color upon request
Lockbody	40: 4" / 55: 5-1/2"	MODEL DIMINOS PRIMINO
Faceplates	N: 1" x 2-1/4" / W: 1-1/8" x 2-1/4"	MGCTT-SLH 626 - 55 WSC Function Handing Lockbody Cylinder
Cylinder	Key in lever option: SC Schlage® 6-pin with "C" keyway, standard K6 Kwikset® 6-pin with "KW" keyway H36 High security 6-pin with TownSteel "L" keyway SF6 Best® 6-pin, IC core with "A" keyway SF7 Best® 7-pin, IC core with "A" keyway H37 High security 7-pin, IC core with TownSteel "L" keyway
	Less cylinder core option: SF Schlage® small format IC, SFIC SLF Schlage® large format IC, SLFIC CLF Corbin® large format IC, CLFIC

m-Genius-S

Mechanical Interconnect Lock (available in 4" or 5 1/2" spacing)

Series	m-Genius-S
Function	S: Storeroom / T: Entry (Toggle Function)
Lever Style	S: Sentinel / Q: Quest / W: Wolfsburg / WR: Wolfsburg R
Handing	RH / LH / RHR / LHR
Finish	619: US15, Satin Nickel / 622: US19, Flat Black 626: US26D, Satin Chrome / Or special color upon request	MGSTT-SLH 626 - 55 W SC Function Handing Lockbody Cylinder
Lockbody	40: 4" / 55: 5-1/2"
Faceplates	N: 1" x 2-1/4" / W: 1-1/8" x 2-1/4"
Cylinder	Key in lever option: SC Schlage® 6-pin with "C" keyway, standard K6 Kwikset® 6-pin with "KW" keyway H36 High security 6-pin with TownSteel "L" keyway SF6 Best® 6-pin, IC core with "A" keyway SF7 Best® 7-pin, IC core with "A" keyway H37 High security 7-pin, IC core with TownSteel "L" keyway
	Less cylinder core option: SF Schlage® small format IC, SFIC SLF Schlage® large format IC, SLFIC CLF Corbin® large format IC, CLFIC
