KM, KT, KV Series

Bored Deadbolts

MJ Series

Mortise Deadbolts

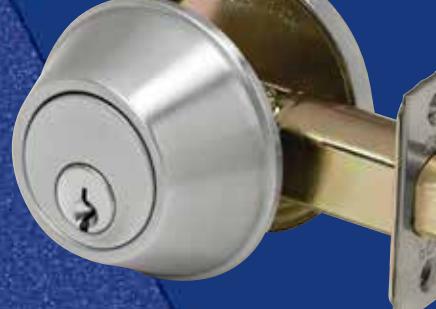

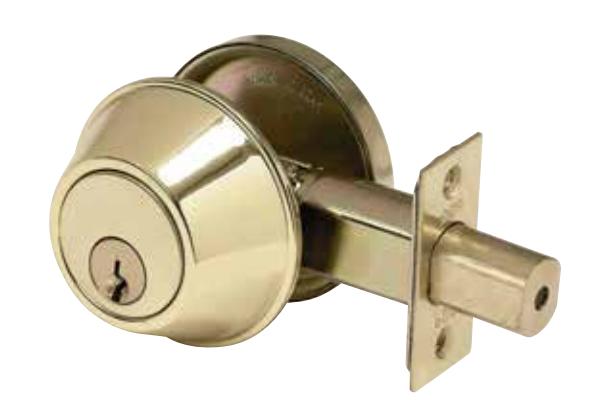

KM SERIES BORED DEADBOLT

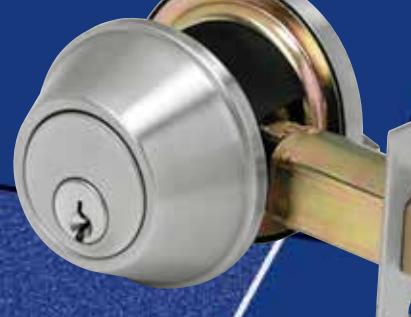

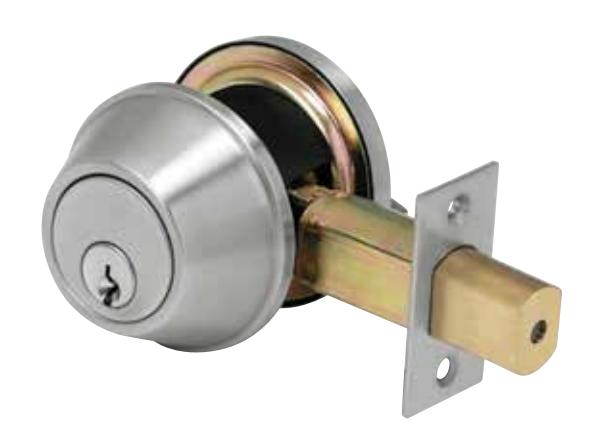

KV SERIES BORED DEADBOLT

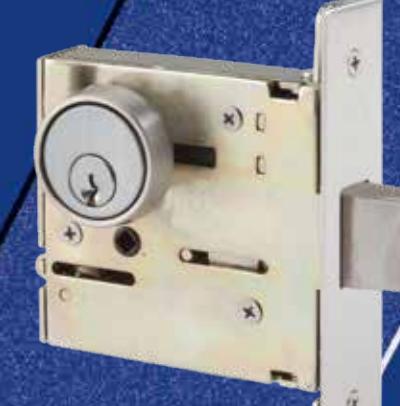

MJ SERIES MORTISE DEADBOLT

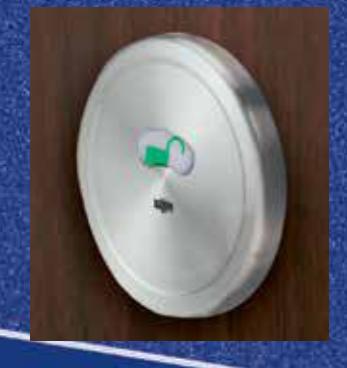

KV SERIES PRIVACY INDICATORS

TABLE OF CONTENTS

KT SERIES BORED DEADBOLTS	2-3
KM SERIES BORED DEADBOLTS
KV SERIES BORED DEADBOLTS	6-7
KV SERIES BORED DEADBOLTS WITH PRIVACY INDICATORS
MJ SERIES MORTISE DEADBOLTS.	_
FINISHES
I INIOI LO

KT Series (Extra Heavy Duty Commercial Grade)

FOR DOORS: • 1-3/8" to 1-3/4" thick

DOOR PREP: • 2-1/8" DIA

BACKSET: • 2-3/4" ((Default)) • 2-3/8" available

FRONT: • 2-1/4" x 1-1/8" or 2-1/4" x 1" • Stainless Steel or Wrought Brass

STRIKE : • 2-3/4" x 1-1/8" • Stainless Steel or Wrought Brass

DEADBOLT: • 1" Throw

Brass Bolt containing two concealed 1/4" case-hardened Steel Roll Pins

HAND: • Non-handed

TRIM: • Wrought Brass Scalp • Reinforced Zinc Diecast Rose

KEYS : • Two (2) per Lock

KEYWAYS: • SCC standard (Schlage C Compatible)

Also available in keyways of other manufacturers Onin Press Morting Ordinder key and to Fining.

CYLINDER: • 6-pin Brass Mortise Cylinder keyed to 5-pins • Options: MK. CMK or GMK

Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)

• Can be keyed into existing master key systems • 605 (US3) - Bright Brass. 606 (US4) - Satin Brass. 613 (US10B) - Oil Rubbed Bronz

605 (US3) - Bright Brass, 606 (US4) - Satin Brass, 613 (US10B) - Oil Rubbed Bronze, 625 (US26) - Bright Chrome Or 626 (US26D) - Satin Chrome

WARRANTY: • One (1) year Limited Warranty

COUNTRY OF ORIGIN: • Assembled in the U.S.A. with U.S. and foreign material.

Meets requirements of the Buy American Act.

LET US HELP YOU — WIN MORE PROJECTS!!

PDQ offers complimentary key systems design, project quotation and cross reference services — To get started, contact our quote desk at 800-441-9692

SERIES		FINISH		CYLINDER OR HOUSING		KEYING
KT — KT Series		605 — Polished Brass 606 — Satin Brass 613 — Oil Rubbed Bronze 625 — Bright Chrome 626 — Satin Chrome		BLANK — Default L — Less Cylinder		KD — Keyed Different (Default) Others - See Keying Table
KT 116		630	234	—	SCC	KD
See Function Table		234 — 2-3/4" (Default) 238 — 2-3/8"		SCC — Default Others - See Keyway Table
FUNCTION NUMBER			BACKSET		KEYWAY

ORDERING EXAMPLE: KT 116 626 234 D SCC KD

CYLINDER REFERENCE GUIDE

LENGTH INCLUDES CAM CONVENTIONAL MORTISE CYLINDER

TYPE	LENGTH	PDQ CAM NUMBER
Conventional	1-1/8"	I127-4205

KEYWAYS

CONVENTIONAL CYLINDER
KEYWAY	PDQ KEYWAY DESIGNATOR
Schlage C (Default)	SCC
PDQ Restricted	TA
Arrow AR1	ARA
Corbin 59A1	CO59A1
Corbin 60	CO6
Corbin L4	CL4
Russwin D1	RUD
Russwin 981	RUD981
Schlage E	SCE
Schlage C	SCC
Schlage C-K	SCC-K
Sargent LA	SAL
Sargent RA-RC	RA-RC
Yale E1R	YA8
Yale GA	GA
Falcon E-R	FAL
Kwikset	KW

KEYING

DESCRIPTION	PDQ KEYING DESIGNATOR
Keyed Different (Default)	KD
Keyed Alike	KA
"O" Zero Bitted	KO
Master Keyed	MK
Construction Master Keyed	CMK
Grand Master Keyed	GMK

KM Series (Heavy Duty Commercial Grade)

FOR DOORS: • 1-3/8" to 1-3/4" thick

DOOR PREP: • 2-1/8" DIA

BACKSET: • 2-3/4" (Default - UL Listed)

• Option - 2-3/4" - 2-3/8" adjustable with 2-1/4" x 1"

faceplate available (Not UL Listed)

FRONT: • 2-1/4" x 1-1/8" • Stainless Steel or Wrought Brass STRIKE: • 2-3/4" x 1-1/8" • Stainless Steel or Wrought Brass

DEADBOLT: • 1" Throw

• Brass Bolt containing one 1/4" case-hardened

Steel Roll Pin

THUMBTURN: • ADA Compliant • Non-handed

TRIM: • Stainless Steel or Wrought Brass Scalp

Reinforced Zinc Diecast Rose

KEYS: • Two (2) per Lock

KEYWAYS: • SCC standard (Schlage C Compatible)

Also available in keyways of other manufacturers

INTERCHANGEABLE • 6 or 7-pin

CORE: • Compatible with Best, Falcon and Arrow CYLINDER: • 6-pin Brass RIM Cylinder keyed to 5-pins

KEYING: • Options: MK, CMK or GMK

Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems

• Gall De Reyeu IIIIU existing master key systems

FINISHES: • 605 (US3 ) - Bright Brass, 606 (US4) - Satin Brass,

613 (US10B) - Oil Rubbed Bronze, 626 (US26D) - Satin Chrome,

630 (US32D) - Satin Stainless Steel

CERTIFICATIONS , • ANSI/UL 10C Listed, "Positive Pressure Fire Tests of Door

LISTINGS , Assemblies" for up to and including 3 hrs.

COMPLIANCES: • Complies with ADA (Americans with Disabilities Act) and

ICC/ANSI 117.1 for Accessible and Usable Buildings

WARRANTY: • One (1) year Limited Warranty

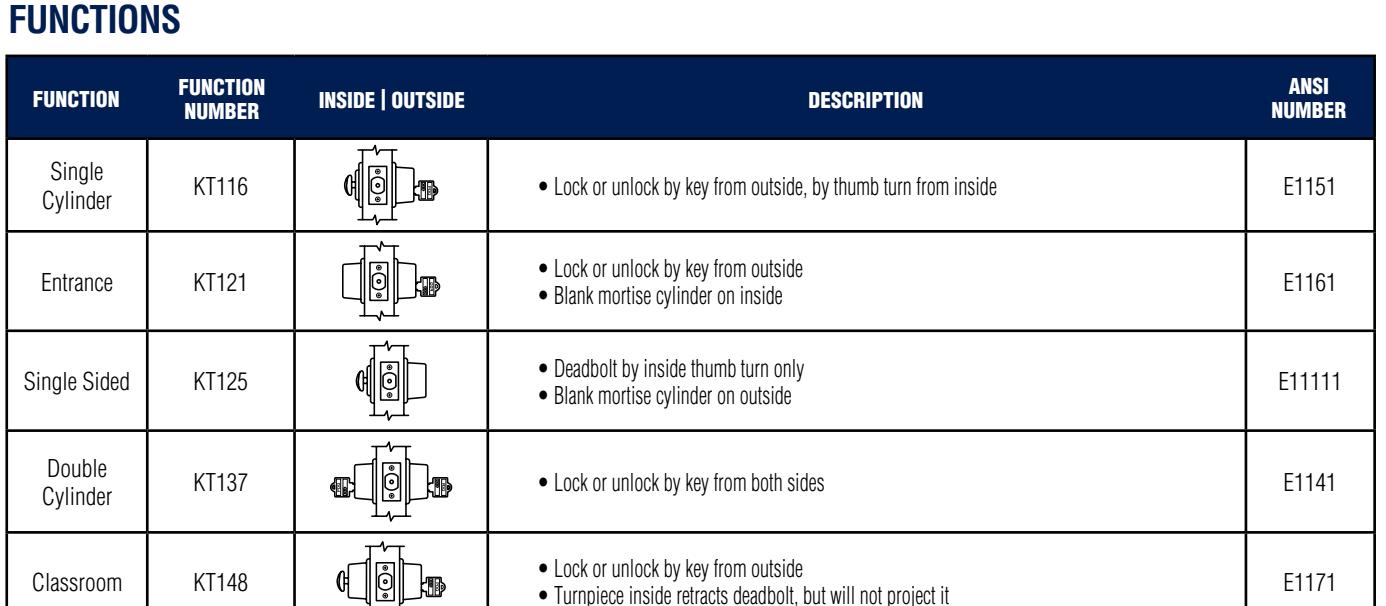

FUNCTIONS

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI Number
Single Cylinder	KM116		• Lock or unlock by key from outside, by thumb turn from inside	E1151
Double Cylinder	KM137		• Lock or unlock by key from both sides	E1141
NEW	KM148		Lock or unlock by key from outside Turnpiece inside retracts deadbolt, but will not project it	E1171

	SERIES	FINISH		CYLINDER OR HOUSING		KEYING
	KM — KM Series	605 — Polished Brass 606 — Satin Brass 613 — Oil Rubbed Bronze 626 — Satin Chrome 630 — Satin Stainless Steel		BLANK — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing, less core		KD — Keyed Different (Default) Others - See Keying Table
KM	116	630	234	—	SCC	KD
234 — 2-3/4" (Default) See Function Table ADJ — 2-3/4" and 2-3/8"		SCC — Default Others - See Keyway Table
FUNCTION NUMBER			BACKSET		KEYWAY

Ordering Example: KM 116 630 234 SCC KD

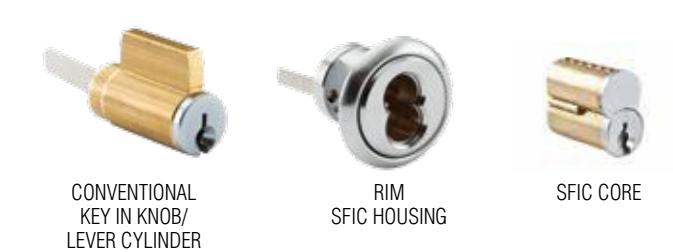

CYLINDER REFERENCE GUIDE

RIM SFIC HOUSING SFIC CORE

TYPE LENGTH Conventional — SFIC Housing, 6 Pin 1-1/4" SFIC Housing, 7 Pin 1-3/8"

KEYWAYS

	CONVENTIONAL CYLINDER		SMALL FORMAT INTERCHANGEABLE CORE
KEYWAY	PDQ KEYWAY DESIGNATOR	KEYWAY (BEST COMPATIBLE)	PDQ KEYWAY DESIGNATOR
Schlage C (Default)	SCC
PDQ Restricted	TA
Arrow AR1	ARA	BEST A (Default), B, C, D, E, F,	A (Default), B, C, D, E, F, G,
Corbin 59A1	CO59A1	G, H, J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R	H, J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R
Corbin 60	CO6
Corbin L4	CL4
Russwin D1	RUD		PDQ1
Russwin 981	RUD981	PDQ Exclusive	PDQ2
Schlage E	SCE	PDQ Exclusive and Restricted	PDQ3
Schlage C	SCC
Schlage C-K	SCC-K
Sargent LA	SAL
Sargent RA-RC	RA-RC
Yale E1R	YA8
Yale GA	GA
Falcon E-R	FAL
Kwikset	KW

KEYING

DESCRIPTION	PDQ KEYING DESIGNATOR
Keyed Different (Default)	KD
Keyed Alike	KA
"O" Zero Bitted	KO
Master Keyed	MK
Construction Master Keyed	CMK
Grand Master Keyed	GMK

KV Series (Standard Duty Commercial Grade)

FOR DOORS: • 1-3/8" to 1-3/4" thick

DOOR PREP: • 2-1/8" DIA

BACKSET: • 2-3/4" (Factory Default) adjustable to 2-3/8"

FRONT : • 2-1/4" x 1"

Stainless Steel or Wrought Brass

STRIKE : • 2-3/4" x 1-1/8"

Stainless Steel or Wrought Brass

DEADBOLT: • 1" Throw

• Brass Bolt containing one 1/4" case-hardened

Steel Roll Pin

HAND: • Non-handed

TRIM: • Stainless Steel or Wrought Brass Scalp

KEYS: • Two (2) per Lock

KEYWAYS: • SCC standard (Schlage C Compatible)

• Also available in keyways of other manufacturers

INTERCHANGEABLE • 6 or 7-pin

CORE: CYLINDER: 6-pin Brass Insert Cylinder keyed to 5-pins Options: MK, CMK or GMK Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)

• Can be keyed into existing master key systems

• 605 (US3 ) - Bright Brass, 606 (US4) - Satin Brass,

613 (US10B) - Oil Rubbed Bronze, 626 (US26D) - Satin Chrome or 630 (US32D) - Satin Stainless Steel

WARRANTY: • One (1) year Limited Warranty

FUNCTIONS

FUNCTION	FUNCTION NUMBER	INSIDE | OUTSIDE	DESCRIPTION	ANSI Number
Single Cylinder	KV116		• Lock or unlock by key from outside, by thumb turn from inside	E2152
Single Sided	KV125		Deadbolt by inside thumb turn only Special door preparation required Surface mounted, 1-3/4" bore hole, one side	E2192
Single Sided	KV125 BK		Deadbolt by inside thumb turn only 2-1/8" bore hole, one side Backplate opposite side of thumb turn.	E21112
Double Cylinder	KV137		• Lock or unlock by key from both sides	E2142

	SERIES	FINISH		CYLINDER OR HOUSING		KEYING
	KV — KV Series	605 — Polished Brass 606 — Satin Brass 613 — Oil Rubbed Bronze 626 — Satin Chrome 630 — Satin Stainless Steel		BLANK — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing, less core		KD — Keyed Different (Default) Others - See Keying Table
KV	116	630	ADJ	—	SCC	KD
See Function Table ADJ — 2-3/4" and 2-3/8"		SCC — Default Others - See Keyway Table
FUNCTION NUMBER			THUMBTURN		KEYWAY

Ordering Example: KV 116 630 ADJ SCC KD

CYLINDER REFERENCE GUIDE

KEYWAYS

Yale GA GA Falcon E-R FAL Kwikset KW

	CONVENTIONAL CYLINDER		SMALL FORMAT INTERCHANGEABLE CORE
KEYWAY	PDQ KEYWAY DESIGNATOR	KEYWAY (BEST COMPATIBLE)	PDQ KEYWAY DESIGNATOR
Schlage C (Default)	SCC
PDQ Restricted	TA
Arrow AR1	ARA	BEST A (Default), B, C, D, E, F, G, H, J, K, L, M, Q, R, WA, WB,	A (Default), B, C, D, E, F, G, H, J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R
Corbin 59A1	CO59A1	WG, WH, TB, TD, TE, R
Corbin 60	CO6
Corbin L4	CL4
Russwin D1	RUD		PDQ1
Russwin 981	RUD981	PDQ Exclusive	PDQ2
Schlage E	SCE	PDQ Exclusive and Restricted	PDQ3
Schlage C	SCC
Schlage C-K	SCC-K
Sargent LA	SAL
Sargent RA-RC	RA-RC
Yale E1R	YA8

KEYING

DESCRIPTION	PDQ KEYING DESIGNATOR
Keyed Different (Default)	KD
Keyed Alike	KA
"O" Zero Bitted	KO
Master Keyed	MK
Construction Master Keyed	CMK
Grand Master Keyed	GMK

KV SERIES with PRIVACY INDICATOR (LIGHT DUTY COMMERCIAL GRADE)

PRIVACY INDICATOR: • Symbol showing Unoccupied- Occupied THUMBTURN: • ADA Compliant

FOR DOORS: • 1-3/8" to 1-3/4" Thick

BACKSET: • 2-3/4" (Factory Default) adjustable to 2-3/8"

DOOR PREP: • 2-1/8" DIA FACEPLATE: • 1" x 2-1/4" STRIKE : • 1-1/8" x 2-3/4"

DEADBOLT: • 1" Throw with hardened steel roller

• Brass Bolt containing one concealed 1/4" case-hardened

Steel Roll Pin

TRIM: • Wrought Brass

KEYS: • Emergency Key Included

FINISHES: • 613 (US10B) Oil Rubbed Bronze, 626 (US26D) Satin Chrome

WARRANTY: • One (1) year Limited Warranty

UNOCCUPIED

OCCUPIED

FUNCTIONS

FUNCTION	FUNCTION Number	INSIDE | OUTSIDE	DESCRIPTION	ANSI Number
Single Sided	KV125IND		No key outside Indicator outside Thumbturn inside extends/retracts deadbolt Emergency key outside retracts deadbolt	E2192

HOW TO ORDER

SERIES	FUNCTION NUMBER	FINISH	BACKSET
KV	125IND	626	ADJ - 2-3/4" AND 2-3/8"

ORDERING EXAMPLE: KV 125IND 626 ADJ

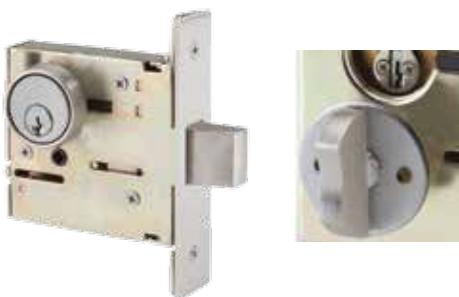

MJ SERIES MORTISE DEADBOLTS

SHOWN WITH STANDARD THUMBTURN SHOWN WITH OPTIONAL "ADA" THUMBTURN

SPECIFICATIONS

FOR DOORS: • 1-3/4". BACKSET: • 2-3/4"

CASE: • Steel—Dichromated for corrosion resistance.

FACEPLATE: • 1-1/4" x 5-5/8"

FRONT: • 2-1/4" x 1" • Stainless Steel or Wrought Brass

STRIKE: • 1-1/8" x 2-1/2"

DEADBOLT: • 1" Throw • Stainless Steel

OPTIONAL THUMBTURN: • ADA Compliant

HAND: • Non-handed except for function MJ134 Classroom (See Function Table and How to Order Guide).

KEYS: • Two (2) per Lock

KEYWAYS: • SCC standard (Schlage C Compatible) • Also available in keyways of other manufacturers

INTERCHANGEABLE

CORE: • 6 or 7-pin • Compatible with Best, Falcon & Arrow • Large Format IC Cores compatible with Schlage.

CYLINDER: • 6 or 7-pin Mortise Cylinder

KEYING: • Options: MK, CMK or GMK • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA)

• Can be keyed into existing master key systems

FINISHES: • 630 (US32D) - Satin Stainless Steel

CERTIFICATIONS, • ANSI/UL 10C Listed, "Positive Pressure Fire Tests of Door Assemblies" for up to and including 3 hrs.

LISTINGS, COMPLIANCES: • Meets requirements of the Buy American Act.

WARRANTY: • 10-YearLimitedWarranty

CROSS REFERENCE

ANSI # A156.5 (A156.13)	PDQ FUNCTION	BEST	CORBIN	DORMA	MARKS #31/32/33 SERIES	SARGENT	SCHLAGE	YALE
E06081 (F18)	MJ131	48H L	DL4111	D961	L	4876	L464	353
E06071 (F17)	MJ132	48H K	DL4113	D960	K	4875	L460	352
E06061 (F16)	MJ133	48H M	DL4112	D962	M	4874	L462	351
MJ134LH E06091 (F29) MJ134LH
		48H R	DL4117	D963	S	4877	L463	357

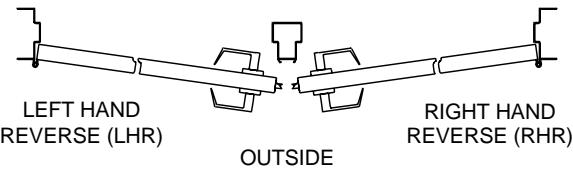

HANDING

In Swing Door

OUTSIDE

LEFT HAND (LH) RIGHT HAND (RH)

Out Swing Door

MJ SERIES MORTISE DEADBOLTS

FUNCTIONS

FUNCTION	FUNCTION NUMBER	OUTSIDE | INSIDE	DESCRIPTION	ANSI NUMBER A156.5(A156.13)
Single Cylinder	MJ131	T. T.	Key outside extends/retracts deadbolt	E06081 (F18)
Single Cylinder with Thumbturn	MJ132	a a	Key outside extends/retracts deadbolt Thumbturn inside extends/retracts deadbolt	E06071 (F17)
Double Cylinder	MJ133		Key outside extends/retracts deadbolt Key inside extends/retracts deadbolt	E06061 (F16)
Single Cylinder (Classroom) Left Hand	MJ134LH	a in	Key outside extends/retracts deadbolt Inside cylinder turn retracts but does not extend deadbolt Thumbturn rotates clockwise	E06091 (F29)
Single Cylinder (Classroom) Right Hand	MJ134RH		Key outside extends/retracts deadbolt Inside cylinder turn retracts but does not extend deadbolt Thumbturn rotates counter-clockwise	E06091 (F29)

SERIES	FINISH		CYLINDER Or Housing		KEYING
MJ — Mortise Deadbolts	MJ — Mortise Deadbolts 630 — Satin Stainless Steel		BLANK — Default L — Less Cylinder SF6 — SFIC w/Core, 6 Pin SF7 — SFIC w/Core, 7 Pin LF — Schalge® Compatible LFIC w/Core SF6L — SFIC 6 Pin Housing less core SF7L — SFIC 7 Pin Housing, less core LFL — Schalge® Compatible LFIC Housing less core		KD — Keyed Different (Default) Others - See Keying Table
MJ 131	630	_	_	SCC	KD
See Function Table ADA — ADA Compliant Thumbturn		SCC — Default Others - See Keyway Table
FUNCTION Number	IHIIMBIIIBN		KEYWAY

Ordering Example: MJ 131 630 SCC KD

CYLINDER REFERENCE GUIDE

LENGTH INCLUDES CAM

			-19
L	FIC	CO	)RI

ТҮРЕ	LENGTH	PDQ CAM Number
Conventional	1-1/4"	l127-4204
SFIC Housing, 6 Pin	1-1/4"	154031
SFIC Housing, 7 Pin	1-3/8"	154031
LFIC Housing	1-1/2"	154231

MJ SERIES MORTISE DEADBOLTS

KEYWAYS

CONVENTIONAL CYLINDER		SMALL FORMAT INTERCHANGEABLE CORE		LARGE FORMAT INTERCHANGEABLE CORE
KEYWAY	PDQ KEYWAY DESIGNATOR	KEYWAY (BEST COMPATIBLE)	PDQ KEYWAY DESIGNATOR	KEYWAY (SCHLAGE COMPATIBLE)	PDQ KEYWAY DESIGNATOR
Schlage C (Default)	SCC			Schlage C (Default)	SCC (Default)
PDQ Restricted	TA	BEST A (Default), B, C, D, E, F, G, H, J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R	A (Default), B, C, D, E, F, G, H, J, K, L, M, Q, R, WA, WB, WG, WH, TB, TD, TE, R
Arrow AR1	ARA
Corbin 59A1	CO59A1			KEYING
Corbin 60	CO6
Corbin L4	CL4
Russwin D1	RUD		PDQ1	DESCRIPTION	PDQ KEYING
Russwin 981	RUD981	PDQ Exclusive	PDQ2		DESIGNATOR
Schlage E	SCE	PDQ Exclusive and Restricted	PDQ3
Schlage C	SCC			Keyed Different (Default)	KD
Schlage C-K	SCC-K			Keyed Alike	KA
Sargent LA	SAL			"O" Zero Bitted	KO
Sargent RA-RC	RA-RC
Yale E1R	YA8			Master Keyed	MK
Yale GA	GA			Construction Master Keyed	CMK
Falcon E-R	FAL
Kwikset	KW			Grand Master Keyed	GMK

FINISHES

(SEE INDIVIDUAL SERIES FOR SPECIFIC FINISHES AVAILABLE)

ARCHITECTURAL

Finishes shown are representative only. PDQ cannot guarantee that product shipped will match finishes shown. Not all products are available in all finishes listed.

Headquarters: 2754 Creek Hill Road • Leola, PA 17540 • 800.441.9692 • 717.656.6892 Fax Regional Distribution Centers: Kansas City, MO, Salt Lake City, UT, Seattle, WA www.pdqlocks.com

PDQ'S Deadbolt Series Brochures are now printed entirely on Forest Stewardship Council™ certified paper. FSC Certification ensures that the paper used in this catalog contains fiber from well-managed and responsibly harvested forests that meet strict environmental and socioeconomic standards. We're proud to be one of the first hardware manufacturers in the country to make this significant move to help our environment. The FSC logo on our brochure signals not only FSC Certification, but also PDQ'S commitment to improving the environment.
