Brass Cylinders and Storefront Hardware MSRP List Price

September 1, 2018

Brass Cylinders:

Mortise Cylinder Deadbolts 2-5

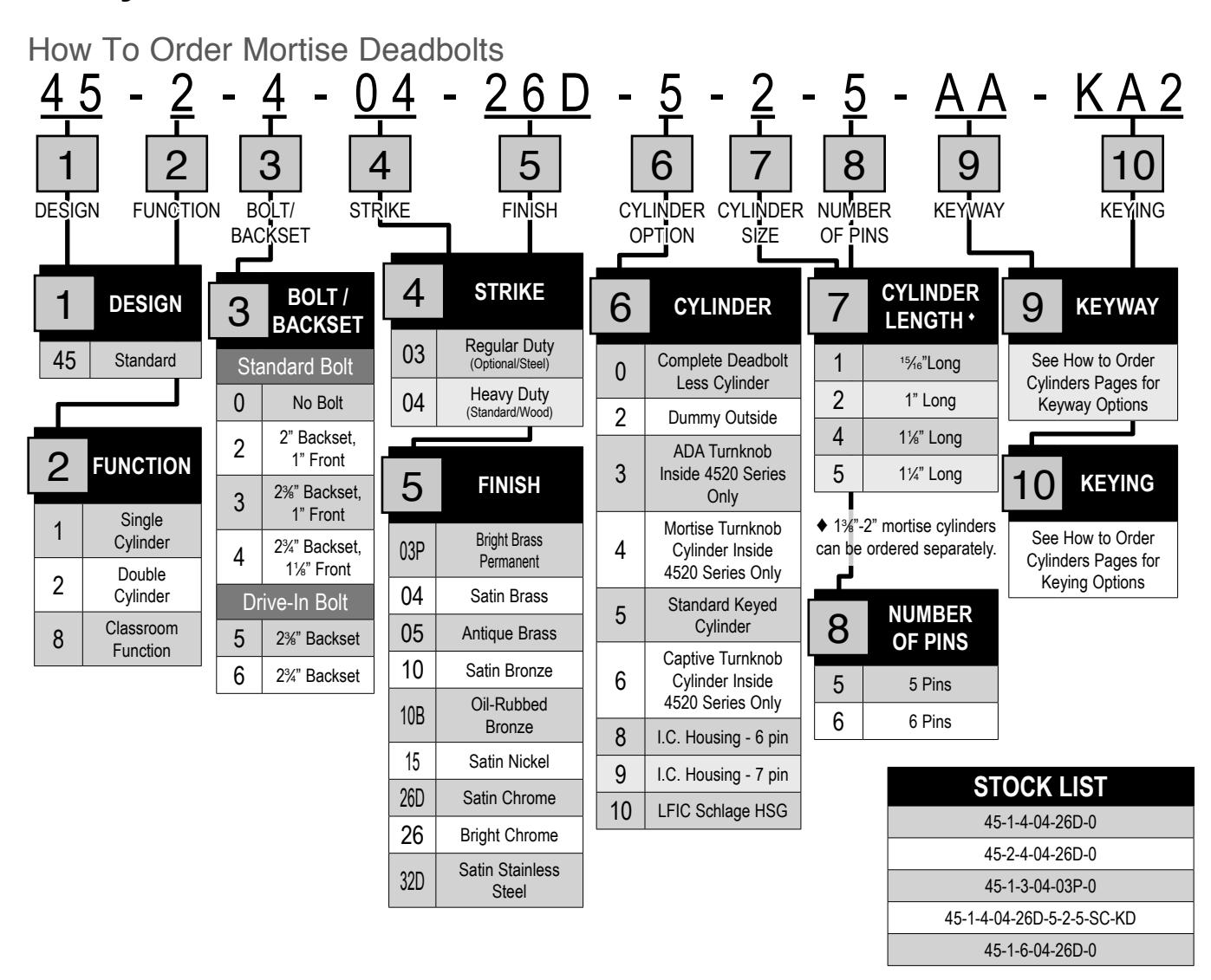

How to Order and Models 2-3
Bolts, Components, Accessories, Cylinders 4-5
How to Order Cylinders 6-12
Mortise Cylinders, Parts, Accessories 8-10
Rim Cylinders, Parts, Accessories 10
KIK Universal and Specialty Cylinders 11-12
Euro Profile Cylinders 13

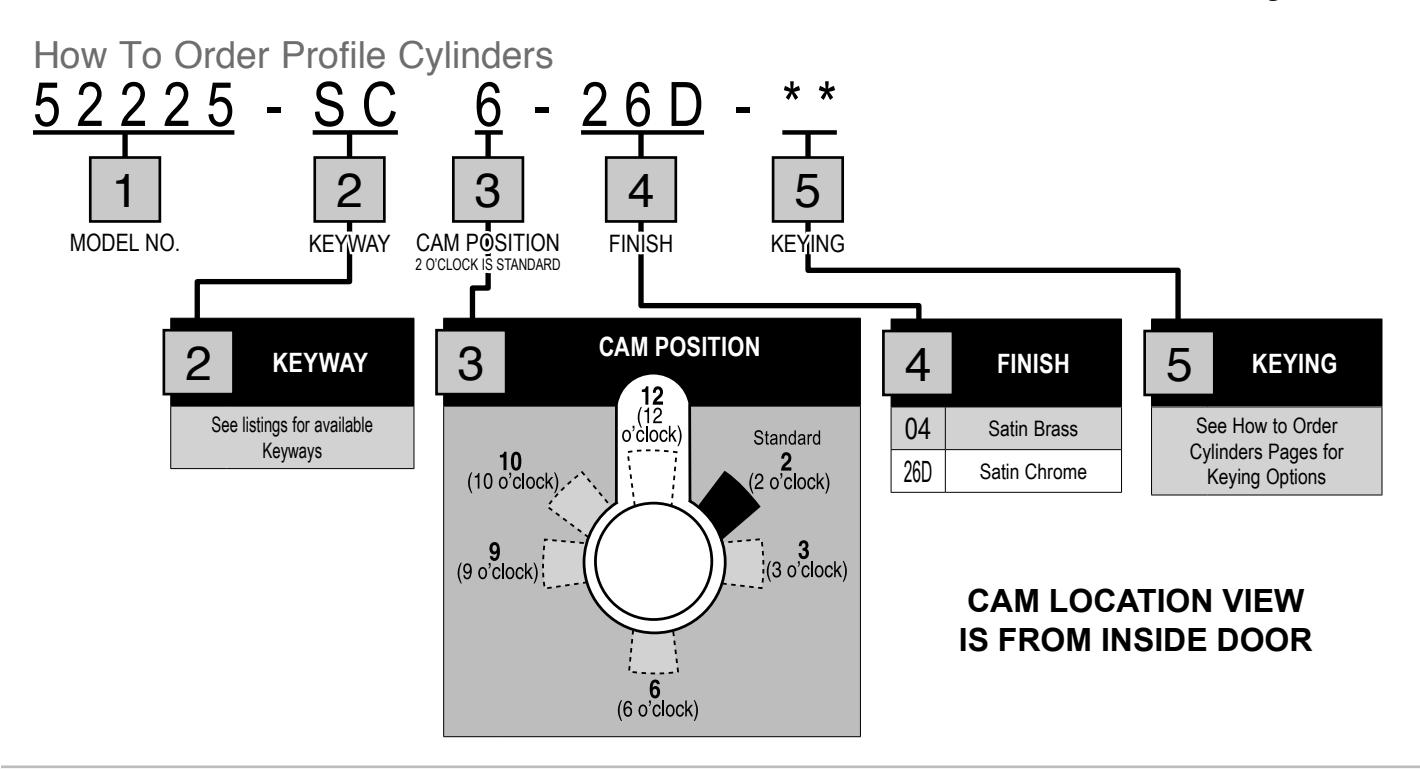

How to Order, Models 13
SFIC / LFIC Core 14-18

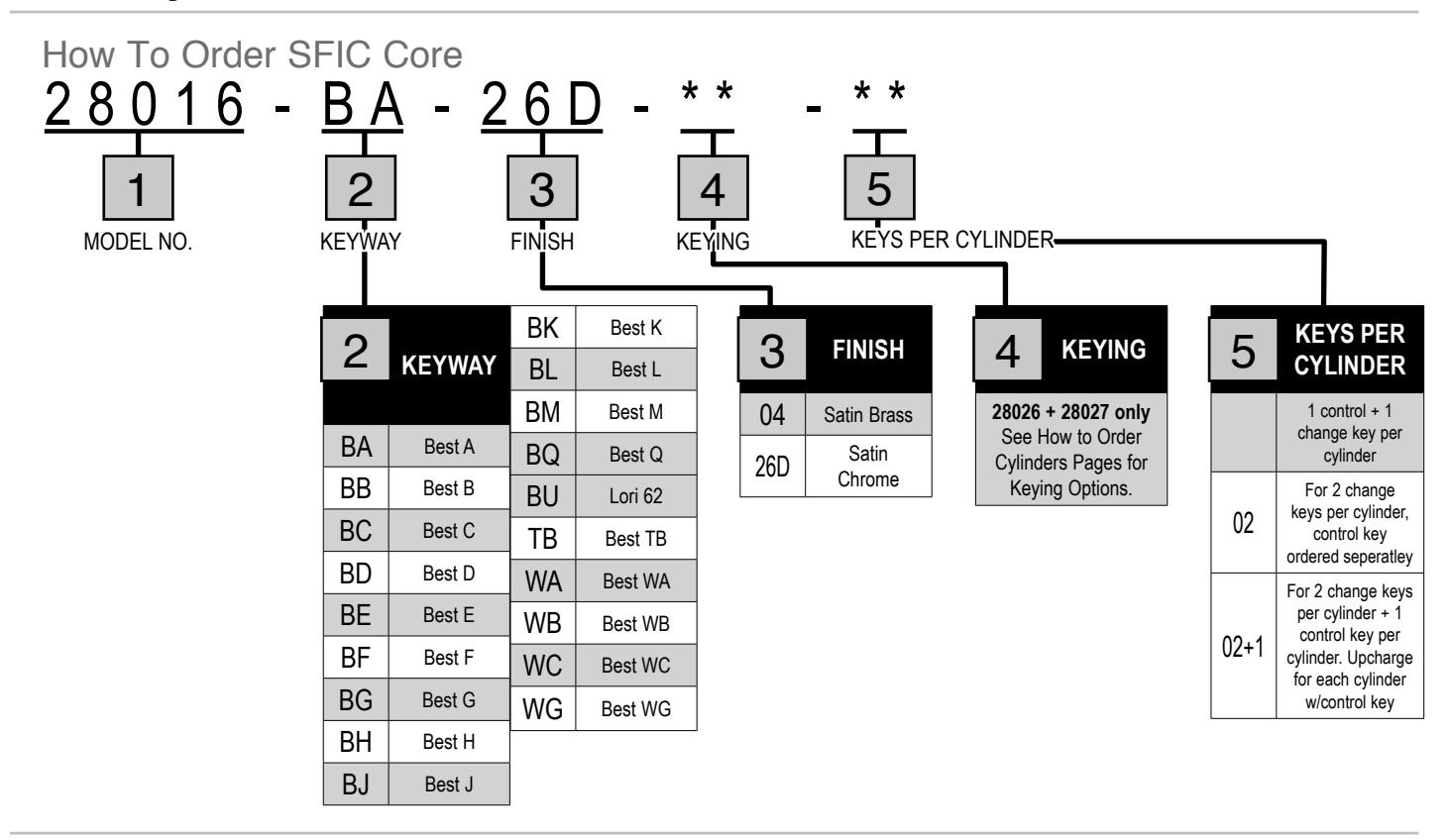

Small Format, How to Order, Models 14

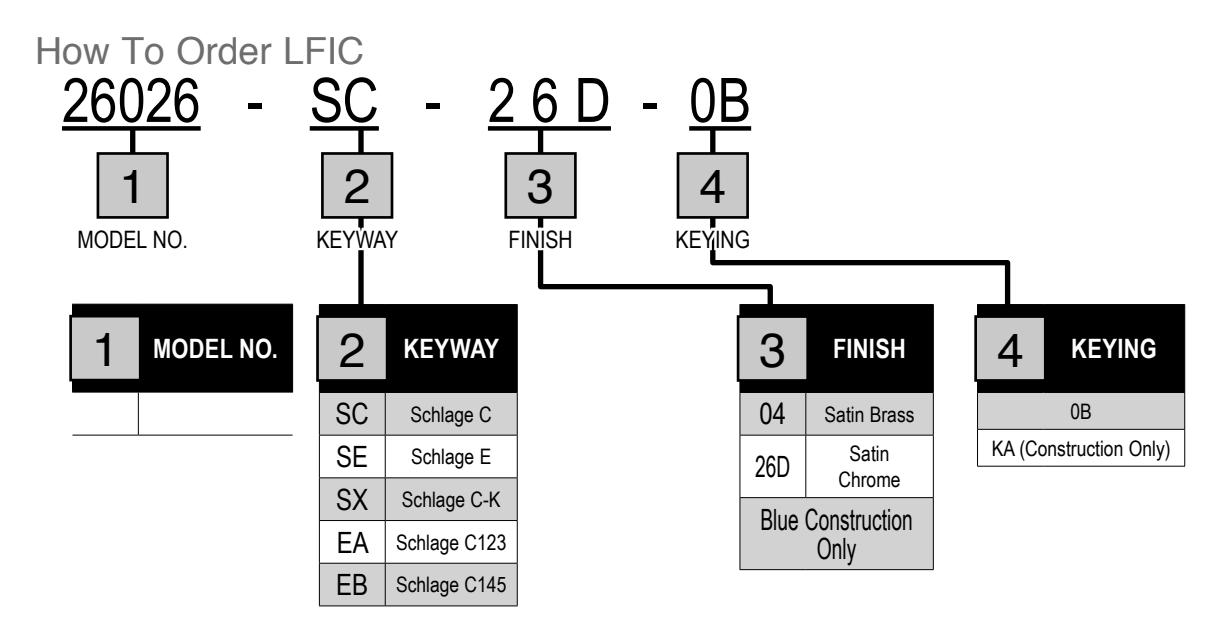

Large Format, How to Order, Models 15

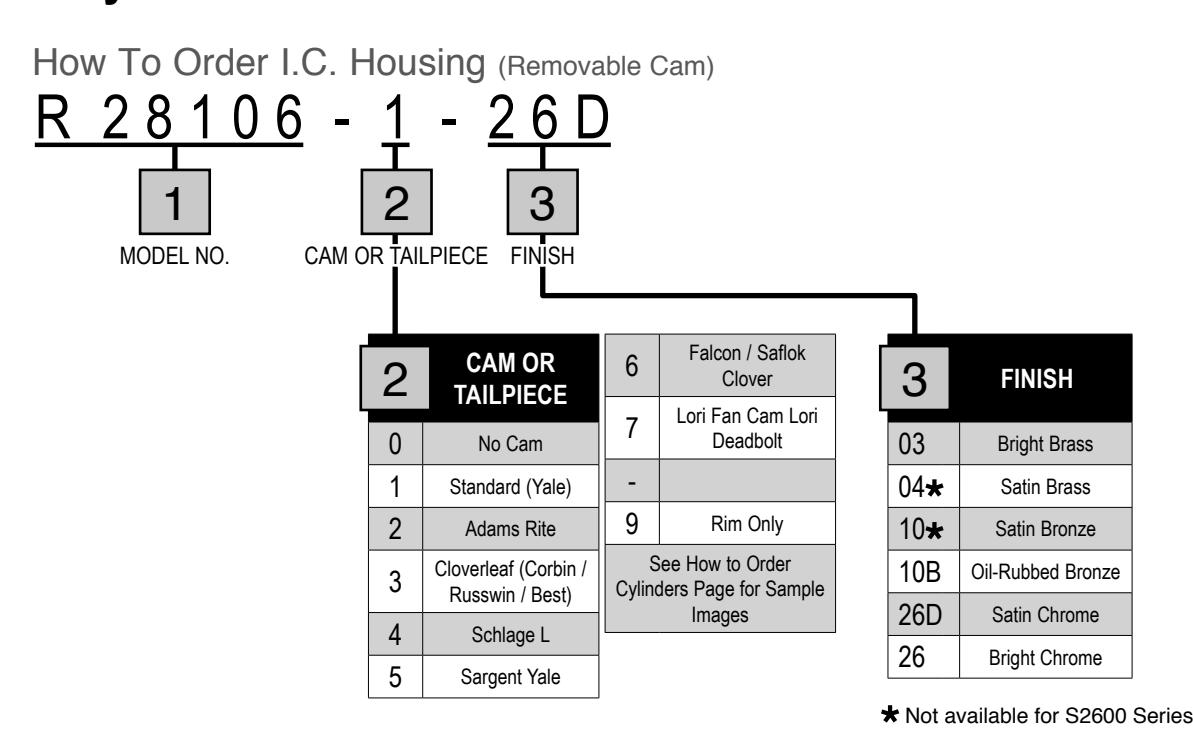

IC Housings, How to Order, Models 16-18
USPS Box Cylinders 18
Cylinder Kits 18
Brass Cylinder Stock List 19
Brass Cylinder Replacement Keys 20

Storefront Hardware:

How to Order 21
Mortise Locks - For Aluminum Site Doors 22-25
Deadbolt, Hookbolt, Deadlatch 22-23
Faceplates, Strikes 23-25

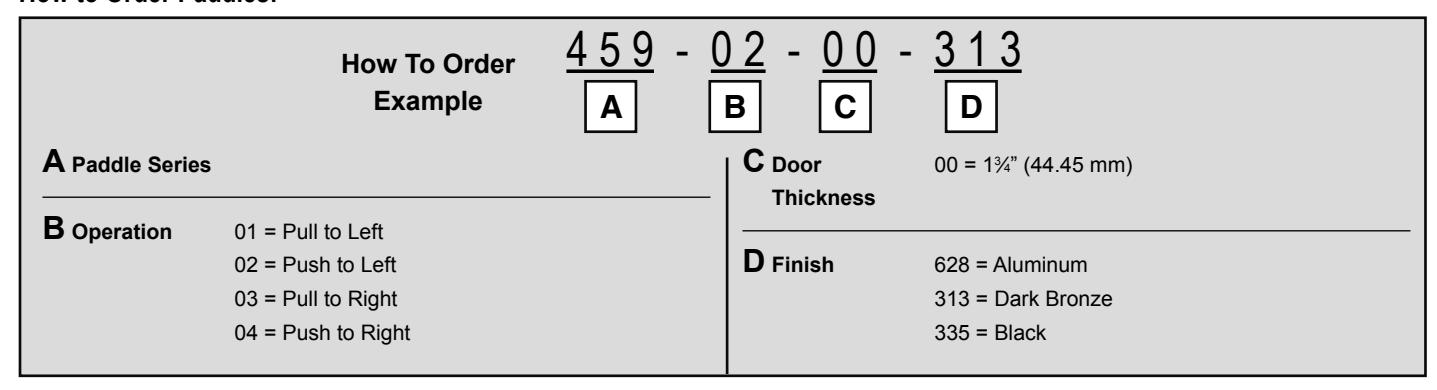

Lever Handles and Push/Pull Paddles 26-27

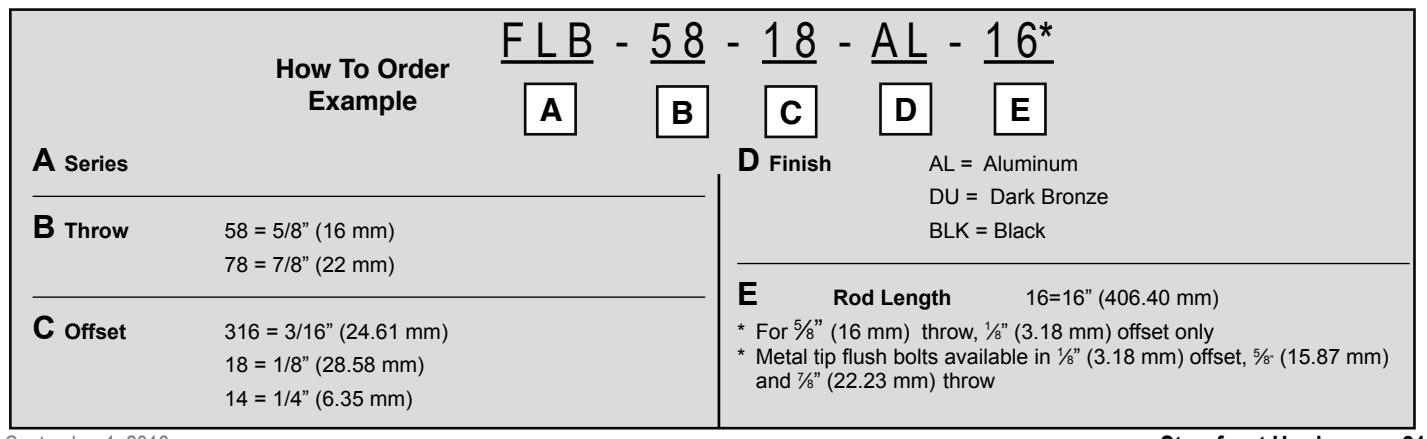

Threshold, Header and Flush Bolts 27-28
Flushbolts, Header Bolts, Threshold Bolt 27
Lock Indicator Set, Bottom Locks 28
Dust Proof Strikes 28
Offset Pivots 28-30
IL-OP Series 28-30
IP-10, 12, 22 Series 30
Door Stops 30
Zinc Cylinders 31

Mortise Cylinder Deadbolts

Product Number	Description	MSRP
4510	Single Complete Deadbolts
	04 Finish	$56.30
	03P, 05,10,15, & 26D Finish	$59.75
	10B, 26, & 32D Finish	$71.55
4520	Double Complete Deadbolts
	04 Finish	$65.70
	03P, 05,10,15, & 26D Finish	$69.70
	10B, 26, & 32D Finish	$76.65
4580	Classroom Function Complete Deadbolts
	04 Finish	$68.80
	03P, 05,10,15, & 26D Finish	$73.15 '
	10B, 26, & 32D Finish	$80.15
Deadbolt Deductions
Less Cyl Single Bolt		$6.20
Less Cyl Single Deadbolt		$6.20
Less Cyl Double Deadbolt		$15.45
Less Cyl Classroom Deadbolt		$6.20

Deadbolt Upcharges

Upcharges	MSRP
Add ADA Mortise Turnknob Double Deadbolt	$5.65	^
Add ADA Mortise Turnknob Classroom Deadbolt	$6.80	^
Add Mortise Turnknob Double Deadbolt	$4.10	^
Add Captive Turnknob All Models	$28.40	^
Add 6 Pin SFIC Housing Single & Classroom Deadbolt	$6.55	^
Add 7 Pin SFIC Housing Single & Classroom Deadbolt	$6.75	^
Add 6 Pin SFIC Housing Double Deadbolt	$13.15	^
Add 7 Pin SFIC Housing Double Deadbolt	$13.55	^
Add 6 Pin Schlage LFIC Housing Single & Classroom Deadbolt	$8.75	^
Add 6 Pin Schlage LFIC Housing Double Deadbolt	$16.50	^
6 Pin Standard Cylinder Single Deadbolt	$2.65	^
6 Pin Standard Cylinder Double Deadbolt	$5.25	^
Keyway Upcharges	$2.50	^

4510 Deadbolt Component Pricing

XX = Finish

Component	Description	MSRP
4510-xx-1-00-900	04 Finish	$31.40	^
4510-xx-1-00-900	03P, 05,10,15, & 26D Finish	$34.85	^
4510-xx-1-00-900	10B, 26, 32D Finish	$46.65	^

4520 Deadbolt Component Pricing

XX = Finish

Component	Description	MSRP
4520-xx-1-00-900	04 Finish	$30.50	^
4520-xx-1-00-900	03P, 05,10,15, & 26D Finish	$34.45	^
4520-xx-1-00-900	10B, 26, 32D Finish	$41.80	^

Bolts

XX = Finish

Component	Description	MSRP
4540-xx-5014	Drive In 2 3/8" Backset	$18.00	^
4550-xx-5001	Drive In 2 3/4" Backset	$18.00	^
4500-xx-5000	Standard 2 3/8" Backset	$14.40	^
4510-xx-5001	Standard 2 3/4" Backset	$14.40	^
4900-xx-5008	Special 2" Backset Bolt & Hsg	$28.75	^
4900-xx-5004	Special 2" Backset Bolt Only	$14.40	^
4900-xx-5005	Special 2" Backset Hsg Only	$14.40	^

Front/Faceplate

XX = Finish

Component	Description
4500-xx-5012	1" For 2" & 2 3/8" Bolts	$3.60	^
4510-xx-5012	1 1/8" For 2 3/4" Bolts	$3.60	^

Strikes

XX = Finish

Component	Description	MSRP
4500-xx-5011	For Wood Jam With Reinforcer	$7.85	^
4500-xx-5013	For Steel Jam With Dust Box	$5.25	^
4500-83-2000	Dust Box Only	$1.55	^

Housing for Bolts

Component	Description	MSRP
4500-84-5003	For 2 3/8" & 2 3/4" Backsets	$15.15	^
4900-84-5005	For 2" Backsets	$15.15	^

Thumbturn Lever /Rose Assembly

XX = Finish

Component	Description	MSRP
4500-xx-5016	Thumbturn Lever Assembly For 4500 Series	$17.45	^
4500-82-2007	Thumbturn Tailpiece Only	$0.65	^
4500-82-2008	Long Thumbturn Tailpiece (1 1/4")	$1.25	^
702-00-10	Thumbturn/Tailpiece C Retainer	$1.35	^

Screws

XX = Finish

Component	Description	MSRP
4500-82-4014	Housing Screw (8/32 X 1")	$0.50	^
4500-xx-4018	Thumbturn Lever Rose Assembly Screws	$0.50	^
4500-xx-4025	Long Rose Screws For Thick Doors	$0.50	^
4500-99-4015	Set Screw	$0.50	^
4500-80-1017	3" Screw For HD Strike	$1.15	^
4500-xx-1036	3/4" Screw For standard Strike/Front	$0.50	^

Collars & Roses

XX = Finish

Component	Description	MSRP
4500-xx-5017	Outside Rose	$12.50	^
861E-xx-10	5/32" Aluminum Collar	$2.35
4500-81-4020	Wave Washer	$1.15	^
4500-xx-5025	Spacer - For Use With SFIC & Schlage LFIC	$3.45	^

Miscellaneous

XX = Finish

Component	Description	MSRP
4500-80-4016	5/64" Long Shank Allen Wrench	$1.00	^
863R-00-10	Deadbolt Fan Cam For Mortise Cylinder	$1.40	^
4500-80-2013	Security Cover For Cam/Keyway	$0.50	^
4500-82-1012	Steel Strike Reinforcer Less Screws	$1.15	^
4500-xx-5050	2 1/4" Thick Door Kit For 4510 - Use With 1 1/4" Cylinder	$15.15	^

Cylinder Upcharges - Mortise, Rim, and KIK

Charge	MSRP
Add Bump Halt Upcharge	2.65
Keyway Upcharge *	2.40
MK	6.05
GMK	6.75
Extra Keys	4.70
Construction MK Keying	7.75
Add Construction Prep	1.65
Finish Upcharge	1.10
Non-Stock KA Combo	2.40

^* Keyways that are upcharged: CC, CD, RA, UE, and UD

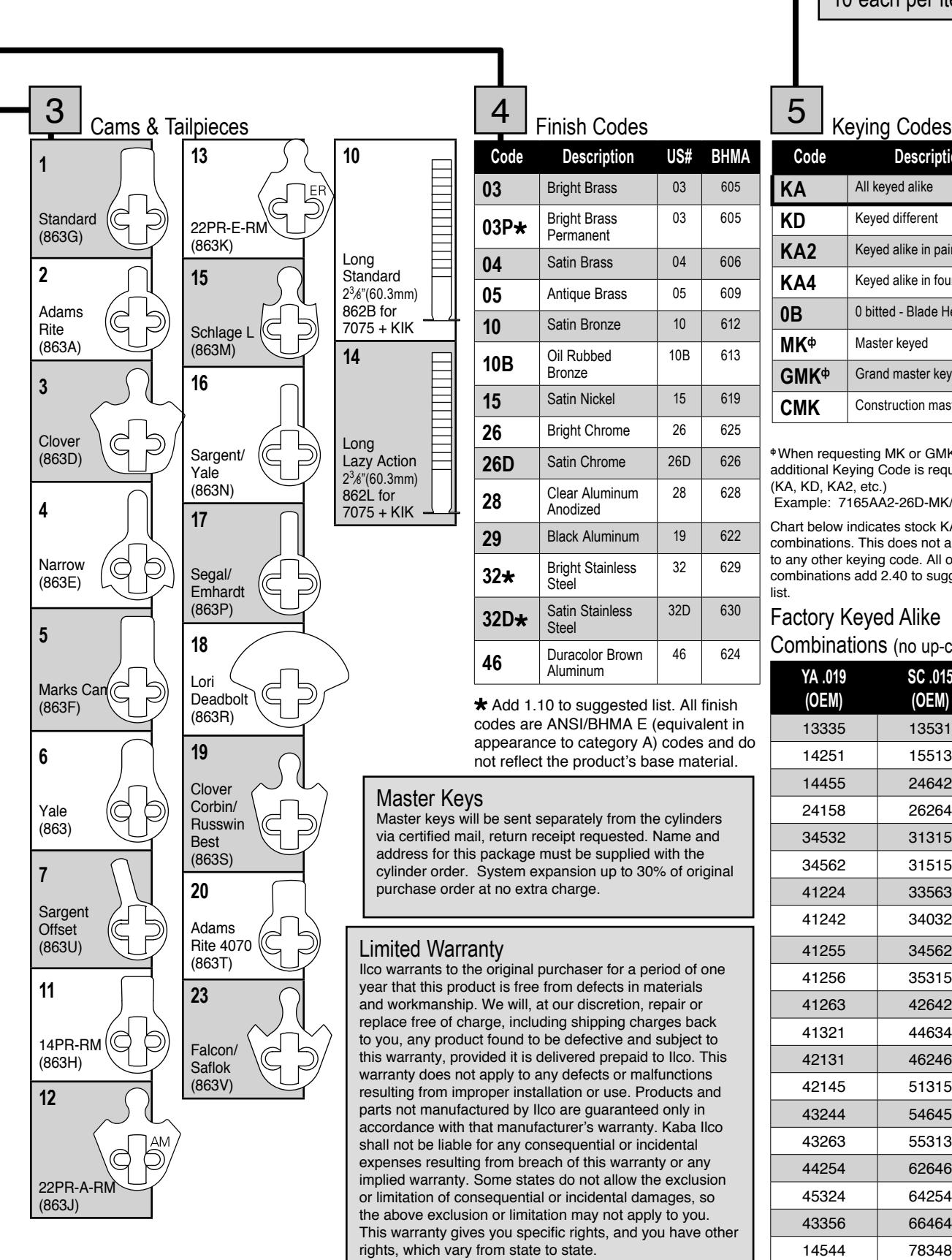

How to Order Cylinders

Example: Standard 1 inch, 5 pin mortise cylinder, Arrow keyway with Adams Rite cam, satin chrome finish, keyed alike in pairs.

MODEL NO.

Add 'BH' prefix for Bump Halt Bump Resistance Technology. this adds 2.40 to Sugg. List

FINISH

KEYING

Product Numbers

Mortise Cylinders			Turn Knob Mortise Cylinders			Cylinders
Model		Des	cription		Model		Desci	ription
7124	3⁄4"	(19 mm)	4 Pin		7151	¹⁵ ⁄16"	(23.8 mm)	Turn Knob
7155	¹⁵ ⁄16"	(23.8 mm)	5 Pin		7161	1"	(25.4 mm)	Turn Knob
7165	1"	(25.4 mm)	5 Pin		7181	11/6"	(28.6 mm)	Turn Knob
7185	11/6"	(28.6 mm)	5 Pin	Drilled 6 Pin	7201	1¼"	(31.7 mm)	Turn Knob
7186	11/6"	(28.6 mm)	6 Pin		7221	1 ³ ⁄8"	(34.9 mm)	Turn Knob
7205	1¼"	(31.7 mm)	5 Pin	Drilled 7 Pin	7241	1 ¹ /2"	(38.1 mm)	Turn Knob
7206	1¼"	(31.7 mm)	6 Pin	Drilled 7 Pin	7261	1 ⁵ ⁄8"	(41.2 mm)	Turn Knob
7207	1¼"	(31.7 mm)	7 Pin		7281	1 ³ ⁄4"	(44.4 mm)	Turn Knob
7225	1 ³ ⁄6"	(34.9 mm)	5 Pin	Drilled 7 Pin	7301	1 ⁷ ⁄8"	(47.6 mm)	Turn Knob
7226	1 ³ ⁄6"	(34.9 mm)	6 Pin	Drilled 7 Pin	7321	2"	(50.8 mm)	Turn Knob
7227	1 ³ ⁄6"	(34.9 mm)	7 Pin		ADA7151	¹⁵ ⁄16"	(23.8 mm)	ADA Turn Knob
7245	1 ¹ ⁄2"	(38.1 mm)	5 Pin	Drilled 7 Pin	ADA7161	1"	(25.4 mm)	ADA Turn Knob
7246	11/2"	(38.1 mm)	6 Pin	Drilled 7 Pin	ADA7181	11/8"	(28.6 mm)	ADA Turn Knob
7247	1 ¹ ⁄2"	(38.1 mm)	7 Pin	SC Keyway Only	ADA7201	1¼"	(31.7 mm)	ADA Turn Knob
7265	1 ⁵ ⁄6"	(41.2 mm)	5 pin	SC Keyway Only	ADA7221	1 ³ ⁄8"	(34.9 mm)	ADA Turn Knob
7266	1 ⁵ ⁄6"	(41.2 mm)	6 pin	SC Keyway Only	ADA7241	1 ¹ /2"	(38.1 mm)	ADA Turn Knob
7285	1 ³ ⁄4"	(44.4 mm)	5 pin	SC Keyway Only	ADA7261	1 ⁵ ⁄8"	(41.2 mm)	ADA Turn Knob
7286	1 ³ ⁄4"	(44.4 mm)	6 pin	SC Keyway Only	ADA7281	1 ³ ⁄4"	(44.4 mm)	ADA Turn Knob
7305	1 ⁷ ⁄8"	(47.6 mm)	5 pin	SC Keyway Only	ADA7301	1 ⁷ ⁄8"	(47.6 mm)	ADA Turn Knob
7306	1 ⁷ ⁄8"	(47.6 mm)	6 pin	SC Keyway Only	ADA7321	2"	(50.8 mm)	ADA Turn Knob
7325	2"	(50.8 mm)	5 pin	SC Keyway Only	41651	¹⁵ /16"	(23.8 mm)	Captive Turn Knob
7326	2"	(50.8 mm)	6 pin	SC Keyway Only	41671	11/8"	(28.6 mm)	Captive Turn Knob
	Key	-In-Knob (	ylinde	rs		R	im Cylinde	rs
Model		Des	criptio	n	Model		Desci	ription
15395	5 Pin	UniversalLo	ockset/Le	everset/Padlock	7075	5	Pin Cylinder	with screw cap
15396	6 Pin	UniversalLo	ockset/Le	everset/Padlock	7076	6	Pin Cylinder	with screw cap
	1	1

					itiiii Oyiiii
Model		Description	Model		Des	scription
15395	5 Pin	UniversalLockset/Leverset/Padlock	7075		5 Pin Cylind	ler with screw cap
15396	6 Pin	UniversalLockset/Leverset/Padlock	7076		6 Pin Cylind	ler with screw cap
15495	5 Pin	Cylindrical Deadbolt		Du	nmy Rim C	vlindors
15496	6 Pin	Cylindrical Deadbolt		Dui
15695	5 Pin	Emtek Cylindrical Deadbolts	Model		Desc	cription
15696	C Dia	Emtek Cylindrical Deadbolts	7010	1½"	(28.6 mm)	Dummy Rim Cylinder
15090	6 Pin	Lintek Cylinarical Deaubolts
15795	5 Pin	Sargent 6 Line, 10 Line, T Zone		Dumi	ny Mortise	Cylinders
	-	,	Model	Dumi
15795	5 Pin	Sargent 6 Line, 10 Line, T Zone	Model		Desc	cription
15795 15796	5 Pin 6 Pin	Sargent 6 Line, 10 Line, T Zone Sargent 6 Line, 10 Line, T Zone	7150	¹⁵ /16"	(23.8 mm)	cription Dummy
15795 15796 15985	5 Pin 6 Pin 5 Pin	Sargent 6 Line, 10 Line, T Zone Sargent 6 Line, 10 Line, T Zone Combination Knob/Deadbolt	7150 7160	¹⁵ /16"	(23.8 mm) (25.4 mm)	Dummy Dummy
15795 15796 15985 15995	5 Pin 6 Pin 5 Pin 5 Pin 6 Pin	Sargent 6 Line, 10 Line, T Zone Sargent 6 Line, 10 Line, T Zone Combination Knob/Deadbolt Combination Knob/Deadbolt Combination Knob/Deadbolt	7150	¹⁵ /16"	(23.8 mm)	cription Dummy
15795 15796 15985 15995	5 Pin 6 Pin 5 Pin 5 Pin 6 Pin	Sargent 6 Line, 10 Line, T Zone Sargent 6 Line, 10 Line, T Zone Combination Knob/Deadbolt Combination Knob/Deadbolt	7150 7160	¹⁵ /16"	(23.8 mm) (25.4 mm)	Dummy Dummy

7011

Turnknob Rim Cylinder

	l Keywa	ys
Arro			Sargent LA-LC		1	Schlage		\
AA			GB LA-LC			SX C-K, 1145	\
Corb	oin 60	乀	Sargent		1	ILCO®	$\negthinspace{-}$	\
CA	\		RA-RC GC RA-RC			UA X1054K	(F	)
Corb	oin 67	₹	Kwikset		1	Lori L100	29
CB			KS		, )	Eagle 1192 Harloc 700	( \	$\Big)$
Corb	oin 77 ★		Lockwoo	d /	$\downarrow$	Lori 90 🖈
_	O1EN		LA 1004	( }		6 pin only UD Centric 90		$\Big)$
Corb	oin \star 🖊	$\overline{}$	Composi	te	$\checkmark$	Lori 80 🖈	$\neq$
CD 59A	1-A2		NA R1064E	\		5 pin UE Lori 80		$\Big)$
Corb Russ		$\overline{}$	Composi	te	$\checkmark$	Weiser E		Ĺ
CE L4			NB HR1	7		Falcon WA 1054WB	[]	$\Big)$
1054	nin ion IF		Russwin' RA	*/-	$\checkmark$	1054WC
DA S54F			5981R N1011P	\		Weiser WE		)
Schl Ever	٠,	$\overline{}$	Russwin	D1/	$\checkmark$	P1555
EA C123			RB	(}		Yale 8	( 5
Schl	~ /	₹	Schlage	c	1	999	\
Ever EB		) )	sc		)	Yale		\
C14	₅ !	Y	1145	7	$\mathcal{A}$	YG	( {	)
Sega	al 9	$\overline{}$	Schlage	E		Yale GA
FA (102	\ .		SE 1145E	3	)
Sarg	ent LA	$\overline{}$	Schlage	F	1
GA			SF 1145F	4	_)

* Add 2.40 to Sugg. List for these keyways

Less Keys

^& quot;All cylinders are OB to Blade Height"

Minimum Order of 10 each per item.

Code	Description
KA	All keyed alike
KD	Keyed different
KA2	Keyed alike in pairs
KA4	Keyed alike in fours
0B	0 bitted - Blade Height
MKф	Master keyed
GMKф	Grand master keyed
CMK	Construction master keyed

^ф When requesting MK or GMK, an additional Keying Code is required (KA, KD, KA2, etc.) Example: 7165AA2-26D-MK/KA2

Chart below indicates stock KA bitting combinations. This does not apply to any other keying code. All other combinations add 2.40 to suggested list.

Factory Keyed Alike Combinations (no up-charge)


YA .019 (OEM)	SC .015 (OEM)
13335	13531
14251	15513
14455	24642
24158	26264
34532	31315
34562	31515
41224	33563
41242	34032
41255	34562
41256	35315
41263	42642
41321	44634
42131	46246
42145	51315
43244	54645
43263	55313
44254	62646
45324	64254
43356	66464
14544	78348

Mortise Cylinders

Product Number	Description	Length	Pinning	MSRP
7124	Keyed Mortise	3/4" (19mm)	4 Pin	$14.30 ^
7155	Keyed Mortise	15/16" (23.8mm)	5 Pin	$12.95 ^
7165	Keyed Mortise	1" (25.4mm)	5 Pin	$13.00 ^
7185	Keyed Mortise	1 1/8" (28.6mm)	5 Pin Drilled 6	$13.05 ^
7186	Keyed Mortise	1 1/8" (28.6mm)	6 Pin	$13.75
7205	Keyed Mortise	1 1/4" (31.7mm)	5 Pin Drilled 7	$13.10 ^
7206	Keyed Mortise	1 1/4" (31.7mm)	6 Pin Drilled 7	$13.85
7207	Keyed Mortise	1 1/4" (31.7mm)	7 Pin	$14.95
7225	Keyed Mortise	1 3/8" (34.9mm)	5 Pin Drilled 7	$24.85 ^
7226	Keyed Mortise	1 3/8" (34.9mm)	6 Pin Drilled 7	$26.05 ^
7227	Keyed Mortise	1 3/8" (34.9mm)	7 Pin	$27.20 ^
7245	Keyed Mortise	1 1/2" (38.1mm)	5 Pin Drilled 7	$25.10 ^
7246	Keyed Mortise	1 1/2" (38.1mm)	6 Pin Drilled 7	$26.30 ^
7247	Keyed Mortise	1 1/2" (38.1mm)	7 Pin	$27.40 ^
7265*	Keyed Mortise	1 5/8" (41.2mm)	5 Pin Drilled 6	$51.00
7266*	Keyed Mortise	1 5/8" (41.2mm)	6 Pin	$54.10
7285*	Keyed Mortise	1 3/4" (44.4mm)	5 Pin Drilled 6	$52.30
7286*	Keyed Mortise	1 3/4" (44.4mm)	6 Pin	$55.40
7305*	Keyed Mortise	1 7/8" (47.6mm)	5 Pin Drilled 6	$56.55
7306*	Keyed Mortise	1 7/8" (47.6mm)	6 Pin	$59.80
7325*	Keyed Mortise	2" (50.8mm)	5 Pin Drilled 6	$63.00
7326*	Keyed Mortise	2" (50.8mm)	6 Pin	$66.15
7120	Dummy Mortise	3/4" (19mm)	N/A	$7.85 ^
7150	Dummy Mortise	15/16" (23.8mm)	N/A	$7.90 ^
7160	Dummy Mortise	1" (25.4mm)	N/A	$7.95 ^
7180	Dummy Mortise	1 1/8" (28.6mm)	N/A	$8.00 ^
7200	Dummy Mortise	1 1/4" (31.7mm)	N/A	$8.05 ^
7220	Dummy Mortise	1 3/8" (34.9mm)	N/A	$10.10
7240	Dummy Mortise	1 1/2" (38.1mm)	N/A	$12.00
7260	Dummy Mortise	1 5/8" (41.2mm)	N/A	$13.85
7280	Dummy Mortise	1 3/4" (44.4mm)	N/A	$15.75
7300	Dummy Mortise	1 7/8" (47.6mm)	N/A	$17.65
7320	Dummy Mortise	2" (50.8mm)	N/A	$19.55
7121	Turnknob Mortise	3/4" (19mm)	N/A	$14.30 ^
7151	Turnknob Mortise	15/16" (23.8mm)	N/A	$12.80 ^
7161	Turnknob Mortise	1" (25.4mm)	N/A	$12.85 ^
7181	Turnknob Mortise	1 1/8" (28.6mm)	N/A	$12.90 ^
7201	Turnknob Mortise	1 1/4" (31.7mm)	N/A	$12.95 ^
7221	Turnknob Mortise	1 3/8" (34.9mm)	N/A	$12.95
7241	Turnknob Mortise	1 1/2" (38.1mm)	N/A	$31.30
7261	Turnknob Mortise	1 5/8" (41.2mm)	N/A	$31.95
7281	Turnknob Mortise	1 3/4" (44.4mm)	N/A	$32.55
7301	Turnknob Mortise	1 7/8" (47.6mm)	N/A	$33.25
7321	Turnknob Mortise	2" (50.8mm)	N/A	$33.75
4135	Classroom Turnknob Mortise	15/16" (23.8mm)	5 Pin	$15.90

^* Schlage C Keyway only • EA + EB keyway cylinders are OB to Blade height, Less Keys

Mortise Cylinders ( continued )

XX = Finish

Product Number	Description	Length	Pinning	MSRP
4136	Classroom Turnknob Mortise	1" (25.4mm)	5 Pin	$16.70
4137	Classroom Turnknob Mortise	1 1/8" (28.6mm)	5 Pin Drilled 6	$17.45
4138	Classroom Turnknob Mortise	1 1/4" (31.7mm)	5 Pin Drilled 6	$18.25
41651	Captive Turnknob Mortise	15/16" (23.8mm)	5 Pin	$29.15
41661	Captive Turnknob Mortise	1" (25.4mm)	5 Pin	$29.15
41671	Captive Turnknob Mortise	1 1/8" (28.6mm)	5 Pin Drilled 6	$29.15
4165-xx-5001	Captive Turnknob Key Blank	N/A	N/A	$19.60
4165-xx-5002	Captive Turnknob Cut Key	N/A	N/A	$24.00
4165-82-2001	Flat Steel Release Key	N/A	N/A	$1.75
ADA-7151	ADA Turnknob Mortise	15/16" (23.8mm)	N/A	$17.30
ADA-7161	ADA Turnknob Mortise	1" (25.4mm)	N/A	$17.35
ADA-7181	ADA Turnknob Mortise	1 1/8" (28.6mm)	N/A	$17.40
ADA-7201	ADA Turnknob Mortise	1 1/4" (31.7mm)	N/A	$17.45
ADA-7221	ADA Turnknob Mortise	1 3/8" (34.9mm)	N/A	$30.75
ADA-7241	ADA Turnknob Mortise	1 1/2" (38.1mm)	N/A	$31.30
ADA-7261	ADA Turnknob Mortise	1 5/8" (41.2mm)	N/A	$31.95
ADA-7281	ADA Turnknob Mortise	1 3/4" (44.4mm)	N/A	$32.55
ADA-7301	ADA Turnknob Mortise	1 7/8" (47.6mm)	N/A	$33.25
ADA-7321	ADA Turnknob Mortise	2" (50.8mm)	N/A	$33.75

Mortise Parts & Accessories

XX = Finish

Product Number	Description	# In Cylinder Description	MSRP
863G-00-10	Standard Cam	1	1.50
863A-00-10	Adams Rite Cam	2	1.50
863D-00-10	Lockwood/Marks Cloverleaf Cam	3	1.50
863E-00-10	Narrow Cam	4	1.50
863F-00-10	Marks Cam	5	1.50
863-00-10	Yale Cam	6	1.50
863U-00-10	Sargent Offset Cam	7	1.50
863H-00-10	Dominion 14PR-RM Cam	11	1.50
863J-00-10	Dominion 22PR-A-RM Cam	12	1.50
863K-00-10	Dominion 22PR-E-RM Cam	13	1.50
863M-00-10	Schlage L Cam	15	1.50
863N-00-10	Sargent/Yale Straight Cam	16	1.50
863P-00-10	Segal/Emhart C/R DL4000 Cam	17	1.50
863R-00-10	Lori Deadbolt Cam	18	1.50
863S-00-10	Corbin/Russwin/Best Clover Cam	19	1.50
863T-00-10	Adams Rite 4070 cam	20	1.50
863V-00-10	Falcon/Saflok Clover Cam	23	1.50
861A-03-10	Bright Brass Finish, Solid Brass Spring Collar	5/16"-13/32" (7.9-20.6mm)	6.75
861A-26D-10	Satin Chrome Finish, Solid Brass Spring Collar	5/16"-13/32" (7.9-20.6mm)	6.75
861A-26-10	Bright Chrome Finish, Solid Brass Spring Collar	5/16"-13/32" (7.9-20.6mm)	6.75
861V-xx-10	03,10B,26D,26,28 Finishes, Steel Spring Collar	7/64"-1/4" (2.8-6.35mm)	3.50
861B-03-10	Bright Brass Finish, Steel Tapered Collar	1/4" (6.4mm)	7.20
861B-26D-10	Satin Chrome Finish, Steel Tapered Collar	1/4" (6.4mm)	7.20
861B-46-10	Duro Color Finish, Steel Tapered Collar	1/4" (6.4mm)	7.20

Mortise Parts & Accessories ( continued )

XX = Finish Finishes 03,04,10,10B 26, 26D, 28, 29, or 46.

Product Number	Description	# In Cylinder Description	MSRP
861C-xx-10	Aluminum Collar	3/32" (2.4mm)	2.35
861D-xx-10	Aluminum Collar	1/8" (3.2mm)	2.35
861E-xx-10	Aluminum Collar	5/32" (4.0mm)	2.35
861F-xx-10	Aluminum Collar	1/4" (6.4mm)	2.35
861K-xx-10	Aluminum Collar	3/16" (4.8mm)	2.35
861L-xx-10	Aluminum Collar	7/32" (5.6mm)	2.35
861M-xx-10	Aluminum Collar	9/32" (7.1mm)	2.45
861N-xx-10	Aluminum Collar	5/16" (7.9mm)	2.45
861P-xx-10	Aluminum Collar	11/32" (8.7mm)	2.45
861Q-xx-10	Aluminum Collar	3/8" (9.5mm)	2.75
861R-xx-10	Aluminum Collar	1/2" (12.7mm)	2.75
861T-xx-10	Aluminum Collar	5/8" (15.9mm)	2.75
861K-00-10	Vinyl Collar	3/16" (4.8mm)	2.75
861X-28-10	Stamped Aluminum Collar	13/64" (5.2mm)	0.85
861X-10B-10	Stamped Aluminum Collar	13/64" (5.2mm)	0.85
861X-26D-10	Stamped Aluminum Collar	13/64" (5.2mm)	1.75
861X-26-10	Stamped Aluminum Collar	13/64" (5.2mm)	1.75
869-00-10	Cash Box Nut	N/A	3.90
866B-00-100	Mortise Cam Screws (Bag Of 100)	3 X 48	8.25
704-04-11	Standard Throw TK Disc	N/A	21.80
705-04-11	Long Throw TK Disc	N/A	21.80
7000BH-00-10	Mortise & Rim Bump Halt Kit	N/A	13.40

Brass Rim Cylinders

Product Number	Description	Length	Pinning	MSRP
7075	Keyed Rim	1 1/8" (28.6mm)	5 Pin Drilled 6	$13.90	^
7076	Keyed Rim	1 1/8" (28.6mm)	6 Pin	$14.65	^
7010	Dummy Rim	1 1/8" (28.6mm)	N/A	$10.50	^
7011	Turnknob Rim	1 1/8" (28.6mm)	N/A	25.65
ADA-7011	ADA Turnknob Rim	1 1/8" (28.6mm)	N/A	25.65
749-22-10	Universal Mounting Plate	N/A	N/A	2.00
750B-00-10	Standard Mounting Plate	N/A	N/A	2.00
864-00-10	Standard Break-Off Cylinder Mounting Screw	12-24 X 1 3/4"	N/A	1.45
794-19	Standard Break-Off Cylinder Mounting Screw ( Long )	12-24 X 2 3/8"	N/A	1.70
862B-00-10	Rigid Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	1.70
862C-00-10	Long Rigid Break-Off Tailpiece For Rim + KIK	4" (101.6mm)	N/A	1.60
862L-00-10	Lazy Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	1.70
861S-03-10	Rim Trim Ring	N/A	N/A	2.00
861S-10-10	Rim Trim Ring	N/A	N/A	2.00
861S-10B-10	Rim Trim Ring	N/A	N/A	2.00
861S-26D-10	Rim Trim Ring	N/A	N/A	2.00
861S-29-10	Rim Trim Ring	N/A	N/A	2.00
861S-32-10	Rim Trim Ring	N/A	N/A	2.00
861S-32D-10	Rim Trim Ring	N/A	N/A	2.00
861S-46-10	Rim Trim Ring	N/A	N/A	2.00
1599SW-00-10	Split Washer For Use With Lazy Tailpiece On Rim + KIK	N/A	N/A	1.30

^• EA + EB keyway cylinders are OB to Blade height, Less Keys

Brass KIK/KIL Universal Cylinders

Product Number	Description	Pinning	MSRP
15395SC-KS-YA	Keyed KIK/KIL Cylinder	5 Pin Drilled 6	$11.80	^
15395 Other	Keyed KIK/KIL Cylinder	5 Pin Drilled 6	$14.40	^
15396	Keyed KIK/KIL Cylinder	6 Pin	$15.10
1539 Dummy	Dummy KIK/KIL Cylinder	N/A	$11.20	^
702LA-00-10	"0" Ring Tailpiece Retainer	N/A	$1.30
702LB-00-10	Snap Ring Tailpiece Retainer	N/A	$1.30
702LD-00-10	Plug "E" Ring Retainer	N/A	$1.30
1539AA-00-10	Standard Short Tailpiece	N/A	$2.25
1539AB-00-10	Standard Medium Tailpiece	N/A	$2.25
1539AC-00-10	Standard Long Tailpiece	N/A	$2.25
1539BA-00-10	Sargent Short Tailpiece	N/A	$2.35
1539BB-00-10	Sargent Long Tailpiece	N/A	$2.35
1539DA-00-10	Anderson French & Sliding Door Tailpiece	N/A	$2.10
1539GA-00-10	Marks Knob Locks (Same As 1903-L9)	N/A	$1.90
1539GB-00-10	Marks lever Locks (Same As 1903-SL9)	N/A	$1.90

Brass KIK/KIL/KID Universal Cylinders W/ Screwcap

Product Number	Description	Length	Pinning	MSRP
15985	Keyed KIK/KIL/KID Cylinder (5 Pin Only Length)	N/A	5 Pin Only	$15.95	^
15995SC-KS-YA	Keyed KIK/KIL/KID Cylinder	N/A	5 Pin Drilled 6	$12.15	^
15995 All Others	Keyed KIK/KIL/KID Cylinder	N/A	5 Pin Drilled 6	$15.95	^
15996	Keyed KIK/KIL/KID Cylinder	N/A	6 Pin	$16.65	^
1599DL-00-10	Double Deadbolt Long Lazy Tailpiece	N/A	N/A	1.80
1599DS-00-10	Double Deadbolt Short Lazy Tailpiece	N/A	N/A	1.80
1599LM-00-10	Single Deadbolt Long Lazy Tailpiece	N/A	N/A	1.80
1599RL-00-10	KIK/KIL Long Tailpiece	N/A	N/A	1.80
1599RM-00-10	KIK/KIL Medium Tailpiece	N/A	N/A	1.80
1599RS-00-10	KIK/KIL Short Tailpiece	N/A	N/A	1.80
1599FT-00-10	Falcon T Series Tailpiece	N/A	N/A	1.80
1599CL-00-10	CL3900 Corbin Russwin Tailpiece	N/A	N/A	1.80
1599LP-00-10	Screw Cap Lock Pin	N/A	N/A	0.65
1599LPS-00-10	Screw Cap Lock Pin Spring	N/A	N/A	0.65
1599SN-00-10	Screw Cap/Nut	N/A	N/A	2.00
1599SW-00-10	Split Washer For Lazy Tailpieces	N/A	N/A	1.30
1599PSW-00-10	Plastic Spacer Washer	N/A	N/A	0.60
1599TPK-00-10	Standard 6 Piece 1599 Cylinder Tailpiece Kit	N/A	N/A	9.45
862B-00-10	Rigid Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	1.70
862C-00-10	Long Rigid Break-Off Tailpiece For Rim + KIK	4" (101.6mm)	N/A	1.70	^
862L-00-10	Lazy Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	1.70

^• EA + EB keyway cylinders are OB to Blade height, Less Keys

Brass KIK/KIL/KID Specialty Cylinders W/ Screwcap

Product Number	Description	Length	Pinning	MSRP
15495	Keyed Cylinder For C/R & Yale Deadbolts	N/A	5 Pin Drilled 6	$15.95	^
15496	Keyed Cylinder For C/R & Yale Deadbolts	N/A	6 Pin	$16.65	^
1549CRYD	Standard Tailpiece	N/A	N/A	$1.80
1549FA	Standard Female Adapter	N/A	N/A	$1.80
15685	Keyed Cylinder For Emtek Products	N/A	5 Pin Only	$15.95	^
1569EKDH	Double Deadbolt Horizontal Tailpiece (Black)	N/A	N/A	$1.80
1569EKDV	Double Deadbolt Verticle Tailpiece (Chromate)	N/A	N/A	$1.80
1569EKS	Single Deadbolt tailpiece	N/A	N/A	$1.80
1569FA	Knob & Lever Female Adapter	N/A	N/A	$1.80
15795	Sargent 6 Line, 10 Line, 11 Line (T-Zone)	N/A	5 Pin Drilled 6	$15.95	^
15796	Sargent 6 Line, 10 Line, 11 Line (T-Zone)	N/A	6 Pin	$16.65	^
1579WDTPK	For Use With Weiser Deadbolts	N/A	N/A	1.80
1579SGT6	6 Line Tailpiece	N/A	N/A	1.80
1599RS	10 Line Tailpiece	N/A	N/A	1.80
1579TZ	11 Line ( T-Zone) Tailpiece	N/A	N/A	1.80
1500BH	All KIK/KIL/KID Cylinders Bump Halt Kit	N/A	N/A	13.40
862B-00-10	Rigid Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	1.70
862C-00-10	Long Rigid Break-Off Tailpiece For Rim + KIK	4" (101.6mm)	N/A	1.70	^
862L-00-10	Lazy Tailpiece For Rim + KIK	2 3/8" (60.3mm)	N/A	1.70

^• EA + EB keyway cylinders are OB to Blade height, Less Keys

Euro Profile Cylinders

Product Number	Description	Length	Pinning	MSRP
51221	Double Turnknob	28mm X 10mm X 28mm	N/A	63.25
5222E	Turnknob Inside - Privacy/Emergency Slot On Outside	28mm X 10mm X 28mm	N/A	63.25
52225	Turnknob Inside - SC,SE,SF,SX,CD,KS (Composite),WA (Composite) Keyways	28mm X 10mm X 28mm	5 Pin	60.25
52885	Turnknob Inside - SC,SE,SF,SX,CD,KS (Composite),WA (Composite) Keyways	25mm X 10mm X 25mm	5 Pin	73.00
52336	Turnknob Inside - SC,SE,SF,SX, Keyways	30mm X 10mm X 30mm	6 Pin	65.65
523A6	Turnknob Inside - GA,GC Keyways	30mm X 10mm X 32mm	6 Pin	73.00
53225	Keyed Both Sides - SC,SE,SF,SX,CD,KS (Composite),WA (Composite) Keyways	28mm X 10mm X 28mm	5 Pin	60.30
53226	Keyed Both Sides - SC,SE,SF,SX Keyways	28mm X 10mm X 28mm	6 Pin	65.65
53885	Keyed Both Sides - SC,SE,SF,SX,CD,KS (Composite),WA (Composite) Keyways	25mm X 10mm X 25mm	5 Pin	73.00
53025	Keyed Outside Half Cylinder - SC,SE,SF,SX Keyways	28mm X 10mm	5 Pin	28.30
53026	Keyed Outside Half Cylinder - SC,SE,SF,SX Keyways	28mm X 10mm	6 Pin	34.85
52021	Turnknob Inside - Half Profile	28mm X 10mm	N/A	29.60
5300-04-4014	Set Screws	M4-0.70 X 6mm	N/A	0.30
Custom Profile 1-50	Turnknob Inside or Keyed Both Sides - SC,SE,SF,SX, Keyways	Custom Length 4 3/8" or Less	Any	260.90
Custom Profile 51-100	Turnknob Inside or Keyed Both Sides - SC,SE,SF,SX, Keyways	Custom Length 4 3/8" or Less	Any	196.50
Custom Profile 101-+	Turnknob Inside or Keyed Both Sides - SC,SE,SF,SX, Keyways	Custom Length 4 3/8" or Less	Any	130.45
Non-Stock KA Combo Upcharge				2.40
Add Upcharge For Finishes Not Listed				10.00

Brass SFIC Cylinders

Product Number	Description	Pinning	MSRP
28016	6 Pin Uncombinated	N/A	13.70
28016 W	6 Pin W Series Uncombinated	N/A	14.55
28017	7 Pin Uncombinated	N/A	14.10
28017 W	7 Pin W Series Uncombinated	N/A	14.90
28026	6 Pin Combinated	ANY	28.20
28026 W	6 Pin W Series Combinated	ANY	34.50
28027	7 Pin Combinated	ANY	29.55
28027 W	7 Pin W Series Combinated	ANY	34.90
C28026-BA-26D-02+1	26D Finish Combinated Construction Core - Includes 2 Change Keys & 1 Control Key Per Cylinder	Construction Standard	22.80
C28026-BA-Blue-02+1	Blue Painted Combinated Construction Core - Includes 2 Change Keys & 1 Control Key Per Cylinder	Construction Standard	22.80
C28026-BA-Red-02+1	Red painted Combinated Construction Core - Includes 2 Change Keys & 1 Control Key Per Cylinder	Construction Standard	22.80
C28026-BA-Marketing Black-02+1	Black painted Combinated Marketing Construction Core - Includes 2 Change Keys & 1 Control Key Per Cylinder	Ilco Market ing Combina tion	22.80
Extra Cut Keys			4.70
HID or VID	All uncombinated cores + construction cores are stock items available immediatley. No upcharge for MK on SFIC.		3.30

Brass Schlage® LFIC Core Cylinders

Product Number	Description	MSRP
26026	6 Pin Blade Height Combinated - Control Key Only Included	24.75
C26026	Keyed Alike Combinated Construction Core - Blue Scalp-Includes 2 Change Keys & 1 Control Key Per Cylinder	33.75
Extra Cut Keys		4.70
HID or VID		3.30

Brass Schlage® LFIC Core Cylinders - Stock List

Product Number	Description
26026-SC-04-0B	Schlage C Keyway-04 Finish-Pinned Blade Height - Control Key Only Included
26026-SC-26D-0B	Schlage C Keyway-26D Finish-Pinned Blade Height - Control Key Only Included
26026-SX-04-0B	Schlage C-K Keyway-04 Finish-Pinned Blade Height - Control Key Only Included
26026-SX-26D-0B	Schlage C-K Keyway-26D Finish-Pinned Blade Height - Control Key Only Included
26026-EA-04-0B	Schlage C123 Keyway-04 Finish-Pinned Blade Height - Control Key Only Included
26026-EA-26D-0B	Schlage C123 Keyway-26D Finish-Pinned Blade Height - Control Key Only Included
26026-EB-04-0B	Schlage C145 Keyway-04 Finish-Pinned Blade Height - Control Key Only Included
26026-EB-26D-0B	Schlage C145 Keyway-26D Finish-Pinned Blade Height - Control Key Only Included
26026-SE-04-0B	Schlage E Keyway-04 Finish-Pinned Blade Height - Control Key Only Included
26026-SE-26D-0B	Schlage E Keyway-26D Finish-Pinned Blade Height - Control Key Only Included
C26026-SC-BLUE-KA	Schlage C Keyway-Blue Finish-Pinned KA Construction Combination
C26026-SC-26D-KA	Schlage C Keyway-26D Finish-Pinned KA Construction Combination

September 1, 2018 Brass Cylinders 15

Brass SFIC Cylinder Housings + Accessories

Product Number	Description	Core That Fits	Length	MSRP
R28106	Thin Head Mortise	6 Pin	1 1/4" (31.7mm)	15.10
R28107	Thin Head Mortise	6 & 7 Pin	1 3/8" (34.9mm)	15.10
R28507	Thin Head Mortise	6 & 7 Pin	1 1/2" (38.1mm)	16.10
R28607	Thin Head Mortise	6 & 7 Pin	1 5/8" (41.2mm)	16.45
R28206	Thin Head Rim	6 Pin	1 1/4" (31.7mm)	15.80
R28207	Thin Head Rim	6 & 7 Pin	1 3/8" (34.9mm)	15.80
R28406	Tapered Head Mortise	6 Pin	15/16" (23.8mm)	15.40
R28407	Tapered Head Mortise	6 & 7 Pin	1" (25.4mm)	15.40
R2800 Conv. Kit	Mortise To Rim Cylinder Kit	N/A	N/A	3.05
R2800-00-8X	Assorted Parts & Accessories Kit	N/A	N/A	120.00
R2800SP-00-10	Plastic Spacer Used When Putting a 6 Pin Core In a 7 Pin Housing	N/A	N/A	1.45
R2800CS-00-100	Cam Screws (Bag Of 100)	N/A	N/A	8.25
R2800G#1-00-10	Standard IC Cam	N/A	N/A	1.50
R2800A#2-00-10	Adams Rite IC Cam	N/A	N/A	1.50
R2800S#3-00-10	Clover IC Cam	N/A	N/A	1.50
R2800M#4-00-10	Schlage L IC Cam	N/A	N/A	1.50
R2800N#5-00-10	Sargent/Yale IC Cam	N/A	N/A	1.50
R2800V#6-00-10	Falcon/Saflok IC Cam	N/A	N/A	1.50
R2800R#7-00-10	Lori Mortise Deadbolt IC Cam	N/A	N/A	1.50
862A-00-10	Rim Cylinder Tailpiece (2 3/8")	N/A	N/A	1.70
R2800RR-00-10	Retaining Ring - Rim Cylinder Adapter	N/A	N/A	0.95
R2800TR-00-10	Retaining Ring - Rim Tailpiece	N/A	N/A	0.95
R2800TE-00-10	Thread Extender	N/A	N/A	7.10
R2800AP-00-10	Plastic Housing Tool	N/A	N/A	0.70

Brass SFIC Cylinder Housings - Stock List

Product Number	Description	Core That Fits	Length
R28106-0-03	Thin Head Mortise-No Cam-03 Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-04	Thin Head Mortise-No Cam-04 Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-10	Thin Head Mortise-No Cam-10 Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-10B	Thin Head Mortise-No Cam-10B Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-26	Thin Head Mortise-No Cam-26 Finish	6 Pin	1 1/4" (31.7mm)
R28106-0-26D	Thin Head Mortise-No Cam-26D Finish	6 Pin	1 1/4" (31.7mm)
R28106-1-26D	Thin Head Mortise-Standard Cam-26D Finish	6 Pin	1 1/4" (31.7mm)
R28106-2-26D	Thin Head Mortise-AR Cam-26D Finish	6 Pin	1 1/4" (31.7mm)
R28106-3-26D	Thin Head Mortise-Best Clover Cam-26D Finish	6 Pin	1 1/4" (31.7mm)
R28107-0-03	Thin Head Mortise-No Cam-03 Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-04	Thin Head Mortise-No Cam-04 Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-10	Thin Head Mortise-No Cam-10 Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-10B	Thin Head Mortise-No Cam-10B Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-26	Thin Head Mortise-No Cam-26 Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-0-26D	Thin Head Mortise-No Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-1-26D	Thin Head Mortise-Standard Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-2-26D	Thin Head Mortise-AR Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-3-26D	Thin Head Mortise-Best Clover Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28107-6-26D	Thin Head Mortise-Falcon/Saflok Cam-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28206-9-26D	Thin Head Rim-26D Finish	6 Pin	1 1/4" (31.7mm)
R28207-9-26D	Thin Head Rim-26D Finish	6 & 7 Pin	1 3/8" (34.9mm)
R28406-0-10B	Tapered Head Mortise-No Cam-10B Finish	6 Pin	15/16" (23.8mm)
R28406-0-26D	Tapered Head Mortise-No Cam-26D Finish	6 Pin	15/16" (23.8mm)
R28407-0-10B	Tapered Head Mortise-No Cam-10B Finish	6 & 7 Pin	1" (25.4mm)
R28407-0-26D	Tapered Head Mortise-No Cam-26D Finish	6 & 7 Pin	1" (25.4mm)
R28407-2-26D	Tapered Head Mortise-AR Cam-26D Finish	6 & 7 Pin	1" (25.4mm)

Brass Schlage Size LFIC Cylinder Housings + Accessories

Product Number	Description	Length	MSRP
S26506	Mortise Cylinder	1 1/2" (38.1mm)	20.00
S26206	Rim Cylinder	1 1/2" (38.1mm)	23.00
S2600 Rim Conv. Kit	Mortise To Rim Cylinder Kit	N/A	3.05
R2800CS-00-100	Cam Screws (Bag Of 100)	N/A	8.25
R2800G#1-00-10	Standard IC Cam	N/A	1.50
R2800A#2-00-10	Adams Rite IC Cam	N/A	1.50
R2800S#3-00-10	Clover IC Cam	N/A	1.50
R2800M#4-00-10	Schlage L IC Cam	N/A	1.50
R2800N#5-00-10	Sargent/Yale IC Cam	N/A	1.50
R2800V#6-00-10	Falcon/Saflok IC Cam	N/A	1.50
R2800R#7-00-10	Lori Mortise Deadbolt IC Cam	N/A	1.50
862A-00-10	Rim Cylinder Tailpiece (2 3/8")	N/A	1.70
R2800RR-00-10	Retaining Ring - Rim Cylinder Adapter	N/A	0.95
R2800TR-00-10	Retaining Ring - Rim Tailpiece	N/A	0.95
R2800TE-00-10	Thread Extender	N/A	6.75

Brass Schlage Size LFIC Cylinder Housings - Stocklist

Product Number	Description	Length
S26506-0-03	Mortise - No Cam - 03 Finish	1 1/2" (38.1mm)
S26506-0-26D	Mortise - No Cam - 26D Finish	1 1/2" (38.1mm)
S26506-0-10B	Mortise - No Cam - 10B Finish	1 1/2" (38.1mm)
S26506-0-26	Mortise - No Cam - 26 Finish	1 1/2" (38.1mm)
S26506-1-26D	Mortise - Standard Cam - 26D Finish	1 1/2" (38.1mm)
S26506-2-26D	Mortise - Adams Rite Cam - 26D Finish	1 1/2" (38.1mm)
S26506-3-26D	Mortise - Clover Cam - 26D Finish	1 1/2" (38.1mm)
S26506-4-26D	Mortise - Schlage L Cam - 26D Finish	1 1/2" (38.1mm)
S26506-5-26D	Mortise - Sargent/Yale Cam - 26D Finish	1 1/2" (38.1mm)
S26206-9-03	Rim - 03 Finish	1 1/2" (38.1mm)
S26206-9-26D	Rim - 26D Finish	1 1/2" (38.1mm)
S26206-9-10B	Rim - 10B Finish	1 1/2" (38.1mm)
S26206-9-26	Rim - 26 Finish	1 1/2" (38.1mm)

USPS Box Cylinders

Product Number	Description	MSRP
7835YA-04-KD	USPS PO Box Cylinder - Yale 8 Keyway	31.25
876	Mortise & Rim Cylinder Accessory Kit	$95.30
870	Mortise Cylinder Collar Kit	$197.30

Cylinder Kits

Product Number	Description	MSRP
876-00-8X	Cylinder Cam Kit	95.30
870-00-8X	Cylinder Collar Kit	197.30
R2800-00-8X	SFIC Housing Accessory Kit	120.00

	Ilco Stock List Brass Cylinders 2018
Arrow 1179 (AA)	Segal 9 (FA)	Kwikset 1176 (KS)	Schlage C (SC)	Schlage C-K (SX)	Weiser 1555 (WE)	Dummys
7165AA2-03-KA2	7165FA2-03-KA2	7165KS2-03-KA2	7155SC2-26D-KA2	7165SX2-26D-KD	7165WE2-26D-KA2	7150DC-03
7165AA2-26D-KA2	7165FA2-26D-KA2	7165KS2-26D-KA2	7165SC2-10B-KA2	7165SX2-03-KA2	7165WE2-26D-KD	7150DC-10B
7165AA2-46-KA2	7165FA2-46-KA2	7165KS2-46-KA2	7165SC2-03-KA2	7165SX2-26D-KA2	7185WE1-26D-KD	7150DC-26D
7185AA1-03-KD	7185FA1-03-KD	7185KS1-03-KD	7165SC2-26D-KA2	7165SX2-46-KA2	7185WE1-26D-KA2	7160DC-03
7185AA1-26D-KD	7185FA1-26D-KD	7185KS1-26D-KD	7165SC2-26D-KD	7165SX2-46-KD	7075WE10-26D-KD	7160DC-10B
7185AA1-03-KA2	7185FA1-03-KA2	7185KS1-03-KA2	7165SC2-46-KA2	7185SX1-03-KD	15995WE-26D-0B	7160DC-26D
7185AA1-26D-KA2	7185FA1-26D-KA2	7185KS1-26D-KA2	7185SC1-03-KD	7185SX1-26D-KD	15995WE-26D-KD	7160DC-46
7205AA1-03-KD	7185FA1-03-TE6060	7205KS1-03-KD	7185SC1-26D-KD	7185SX1-03-KA2	Yale 8 (YA)	7180DC-03
7205AA1-26D-KD	7205FA1-03-KD	7205KS1-03-KA2	7185SC2-26D-KD	7185SX1-26D-KA2	7165YA2-03-KA2	7180DC-10B
7205AA1-03-KA2	7205FA1-26D-KD	7075KS10-03-KD	7185SC1-10B-KA2	7185SX1-46-KA2	7165YA2-26D-KA2	7180DC-26D
7205AA1-26D-KA2	7205FA1-03-KA2	7075KS10-26D-KD	7185SC1-03-KA2	7205SX1-03-KD	7165YA2-46-KA2	7180DC-46
7075AA10-03-KD	7205FA1-26D-KA2	7075KS10-03-KA2	7185SC1-26D-KA2	7205SX1-26D-KD	7185YA1-03-KD	7200DC-03
7075AA10-26D-KD	7205FA1-03-TE6060	7075KS10-26D-KA2	7185SC1-46-KA2	7205SX1-03-KA2	7185YA1-26D-KD	7200DC-26D
7075AA10-03-KA2	7075FA10-03-KD	15395KS-04-0B	7185SC2-26D-KA2	7205SX1-26D-KA2	7185YA1-03-KA2	7200DC-46
7075AA10-26D-KA2	7075FA10-26D-KD	15395KS-04-KD	7205SC1-03-KD	7075SX10-03-KD	7185YA1-26D-KA2	7010DC-03
15395AA-04-0B	7075FA10-03-KA2	15395KS-26D-0B	7205SC1-26D-KD	7075SX10-26D-KD	7205YA1-03-KD	7010DC-10B
15395AA-04-KD	705FA10-26D-KA2	15395KS-26D-KD	7205SC1-03-KA2	7075SX10-03-KA2	7205YA1-26D-KD	7010DC-26D
15395AA-26D-0B	7185GA1-03-KD	15995KS-04-0B	7205SC1-26D-KA2	7075SX10-26D-KA2	7205YA1-03-KA2	7010DC-46
15395AA-26D-KD	7185GA1-26D-KD	15995KS-04-KD	7075SC10-03-KD	15395SX-04-0B	7205YA1-26D-KA2	Schlage C145 (EB)
15995AA-04-0B	7185GA1-03-KA2	15995KS-26D-0B	7075SC10-26D-KD	15395SX-04-KD	7075YA10-03-KD	7186EB1-03-0B-00
15995AA-04-KD	7185GA1-26D-KA2	15995KS-26D-KD	7075SC10-46-KD	15395SX-26D-0B	7075YA10-26D-KD	7186EB1-10B-0B-00
15995AA-26D-0B	15395GA-04-0B	1004 Lockwood (LA)	7075SC10-03-KA2	15395SX-26D-KD	7075YA10-03-KA2	7186EB1-26D-0B-00
15995AA-26D-KD	15395GA-04-KD	7185LA1-03-KD	7075SC10-26D-KA2	15995SX-04-0B	7075YA10-26D-KA2	7186EB1-46-0B-00
Corbin 60 (CA)	15395GA-26D-0B	7205LA1-03-KD	7075SC10-46-KA2	15995SX-04-KD	15395YA-04-0B	7206EB1-10B-0B-00

7185CA1-03-KD	15395GA-26D-KD	Russwin D1 (RB)	15395SC-04-0B	15995SX-26D-0B	15395YA-04-KD	7206EB1-26D-0B-00
7185CA1-26D-KD	15995GA-04-0B	7165RB2-03-KA2	15395SC-04-KD	15995SX-26D-KD	15395YA-26D-0B	7206EB1-46-0B-00
7185CA1-03-KA2	15995GA-04-KD	7165RB2-26D-KA2	15395SC-26D-0B	Weiser/Falcon E (WA)	15395YA-26D-KD	7076EB10-03-0B-00
7185CA1-26D-KA2	15995GA-26D-0B	7165RB2-46-KA2	15395SC-26D-KD	7165WA2-03-KA2	15995YA-04-0B	7076EB10-10B-0B-00
15395CA-26D-0B	15995GA-26D-KD	7185RB1-03-KD	15995SC-04-0B	7165WA2-26D-KA2	15995YA-04-KD	7076EB10-26D-0B-00
15395CA-26D-KD	Schlage C123 (EA)	7185RB1-26D-KD	15995SC-04-KD	7165WA2-46-KA2	15995YA-26D-0B	7076EB10-46-0B-00
15995CA-26D-KD	7186EA1-03-0B-00	7185RB1-03-KA2	15995SC-26D-0B	7185WA1-03-KD	15995YA-26D-KD	15996EB-04-0B-00
15995CA-26D-0B	7186EA1-10B-0B-00	7185RB1-26D-KA2	15995SC-26D-KD	7185WA1-26D-KD	Yale GA (YG)	15996EB-26D-0B-00
Corbin/Russwin L4 (CE)	7186EA1-26D-0B-00	7205RB1-03-KD	Schlage E (SE)	7185WA1-03-KA2	7185YG1-26D-0B	Turnknobs
15395CE-26D-0B	7186EA1-46-0B-00	7205RB1-26D-KD	7165SE2-26D-KA2	7185WA1-26D-KA2	7185YG1-26D-KA2	7151TK2-26D
15395CE-26D-KD	7206EA1-10B-0B-00	7205RB1-03-KA2	7185SE1-03-KA2	7075WA10-03-KD	7185YG1-26D-KD	7161TK1-03
15995CE-26D-0B	7206EA1-26D-0B-00	7205RB1-26D-KA2	7185SE1-26D-KA2	7075WA10-26D-KD	7186YG2-26D-KA2	7161TK2-03
15995CE-26D-KD	7206EA1-46-0B-00	15395RB-04-0B	7185SE1-26D-KD	7075WA10-03-KA2	7205YG1-26D-0B	7161TK2-10B
	7076EA10-03-0B-00	15395RB-04-KD	7205SE1-26D-KA2	7075WA10-26D-KA2	7205YG1-26D-KA2	7161TK2-26D
	7076EA10-10B-0B-00	15395RB-26D-0B	7205SE1-26D-KD	15395WA-04-0B	7075YG10-26D-KA2	7161TK2-46
	7076EA10-26D-0B-00	15395RB-26D-KD	15395SE-04-0B	15395WA-04-KD	7075YG10-26D-KD	7181TK1-03
	7076EA10-46-0B-00	15995RB-04-0B	7075SE10-26D-KA2	15395WA-26D-0B	15395YG-26D-KD	7181TK1-26D
	15996EA-04-0B-00	15995RB-04-KD	7075SE10-26D-KD	15395WA-26D-KD	15395YG-26D-0B	7181TK1-46
	15996EA-26D-0B-00	15995RB-26D-0B	15395SE-04-KD	15995WA-04-0B	15995YG-26D-KD	7181TK2-26D
		15995RB-26D-KD	15395SE-26D-0B	15995WA-04-KD	15995YG-26D-0B	7201TK1-26D
		Sargent LA-LC (GB)	15395SE-26D-KD	15995WA-26D-0B
		15395GB-26D-0B	15995SE-04-0B	15995WA-26D-KD
		15395GB-26D-KD	15995SE-04-KD	Ilco X1054K (UA)
		15995GB-26D-0B	15995SE-26D-0B	7205UA1-03-KD
		15995GB-26D-KD	15995SE-26D-KD	7075UA10-03-KD
		Sargent RA-RC (GC)	Mortise Deadbolts	Lori L100 (UB)
		15395GC-26D-0B	45-1-4-04-26D-0	7075UB10-03-KD

		15395GC-26D-KD	45-2-4-04-26D-0
		15995GC-26D-0B	45-1-3-04-03P-0
		15995GC-26D-KD	45-1-6-04-26D-0

Replacement Keys for Cylinders


	Keyway	Order Code	ILCO®	5 Pin ILCO-EZ®	Look- Alike®	ILCO®	6 Pin ILCO-EZ®	Look- Alike®			Keyway	Order Code	ILCO®	5 Pin ILCO-EZ®	Look- Alike®	ILCO®	6 Pin ILCO-EZ®	Look- Alike®
	Arrow	AA	1179	AR1	K2-A	1179A	AR4	K7			Russwin D1	RB	1011D1	RU45	5D1R	A1011D1	RU46	6D1R
	Composite	NA	R1064E	NA25	4295	pini	ay accepts a ned to Kwikse Falcon 1st pir	et &			Russwin 981R	RA	N1011P	RU52	5981R	A1011P	RU16	-
	Composite	NB	1014C	HR1	-	This keyw repinned Harloc SE	ay accepts a to Dexter, F 1, Lori L200,	nd can be alcon G, Sargent S			Sargent LA-LC	GB	1007LA	S22½	275LA	01007LA	S22	6275LA
	Corbin 60	CA	1001EH	CO87	Z1-60-5	& U, and \	Veslock 1 ^st pi CO88	n @ .216" Z1-60-6			Sargent RA-RC	GC	1007RA	-	-	01007RA	-	-
	Corbin 67	СВ	1001EN	C07	-	1001EG	CO36	-	1	$\overline{\bigcirc}$	Sargent	GA	1007LA	S22½	275LA	01007LA	S22	6275LA
	Corbin 77	СС	R1001EN	SK1	-	R1001EG	CO62	-			LA		100727	022/2	ZIOLIX	OTOGYEN	022	OZIOZN
A	Corbin /	CE	1011L-4		_	A1011-L4	RU101	_	/		Schlage C	SC	1145	SC1	100-C	1145A	SC4	101-C
	Russwin L4		101112-4	-	-	AIUII-L4	KUIUI		\|`	)	Schlage E	SE	1145E	SC8	100-E	A1145E	SC9	101-E
	Corbin 59	CD	1001AH	_	_	A1001AH	CO91	Z1- 59A1-6			Schlage F	SF	1145F	SC7	-	A1145F	SC10	101-F
V			\|					JJAI-0	ł	Ĺ	Schlage C-K	SX	Accepts	all Schlage ke	eys C to L
	)IIco X1054K	UA	X1054K	IN3	-	-	-	-			Segal 9	FA	1022	SE1	K9- Segal	1022AB	-	-
	Kwikset 1176	KS	1176	KW1	1063KW	A1176	KW5	-	(		Weiser Ez/ Falcon	WA	1054WB	WR3	1555	A1054WB	WR4	-
	Lockwood 1004	LA	1004	L1	B308	1004A	-	B310			Weiser 1555	WE	N1054WB	WR5	P1555	-	-	-
	Lori L100, Harloc 700, Eagle 11929	UB	X1014F	EA27	Harloc	-	-	-			Yale 8 (999)	YA	999	Y1	8-Yale	999A	Y2	-
	Lori Locksmith 80	UE	5 pin or 80 Lor	nly, order ricentric	-	-	-	-			Yale GA	YG	999GA	-	-	998GA	Y78	-
	Loricentric 90	UD	-	-	-	6 pin on 90 Lori	ly, order centric	-		_	Supp	ly keyi	ng inforr	nation o	n comb	ined cyli	nder

For complete product and ordering information, please refer to the catalog.

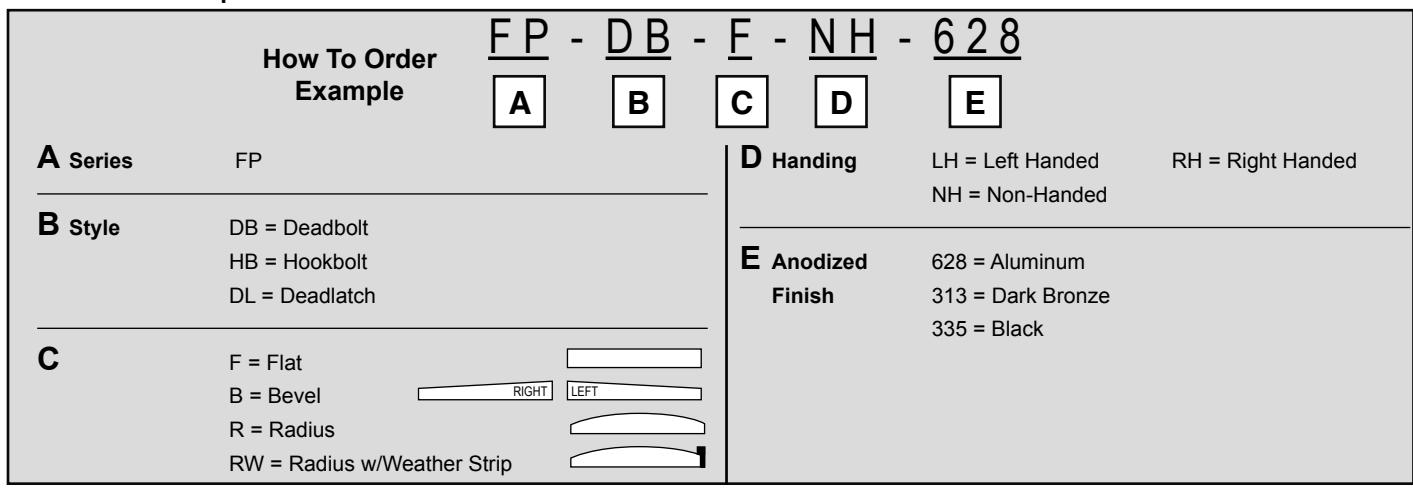

How to Order Faceplates:

How to Order Paddles:

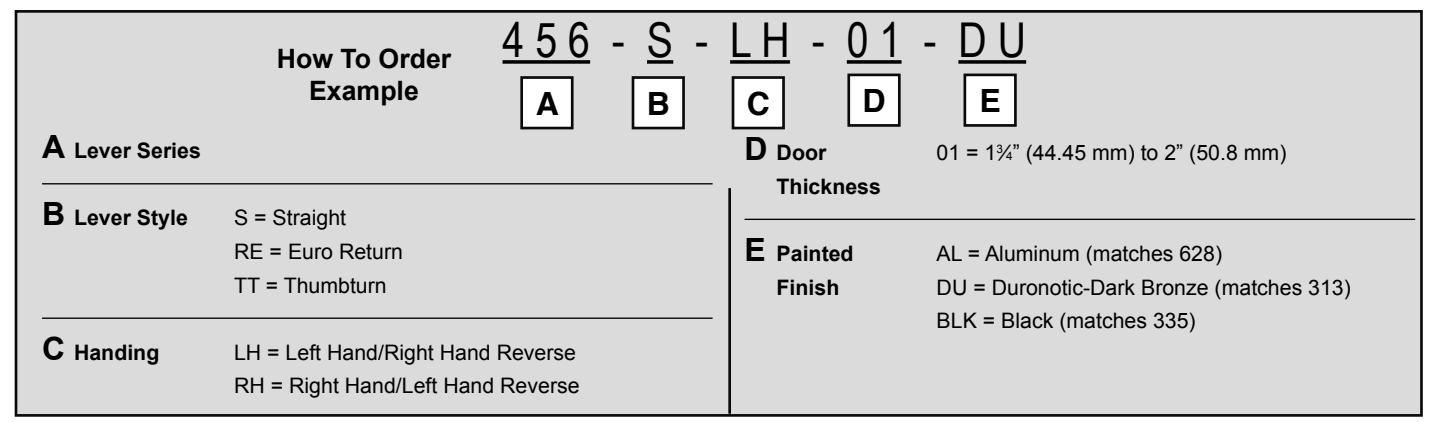

How to Order Levers:

How to Order Flush Bolts:

Storefront Hardware 21 September 1, 2018

Pricing, terms and conditions are subject to Kaba Ilco Corp. Sales Policy. A copy of this policy is available on our private site or from your sales representative.

Mortise Locks - For Aluminum Stile Doors

Deadbolt - 185 Series

Product Number	Description	STD PKG	MSRP
185-2-NH-SINGLE-PC	DEADBOLT, 31/32" BACKSET	1	18.67
185-3-NH-SINGLE-PC	DEADBOLT, 1 1/8" BACKSET	1	18.67
185-4-NH-SINGLE-PC	DEADBOLT, 1 1/2" BACKSET	1	19.60
185-F-2-NH-SINGLE-628/313-PC	DEADBOLT, 31/32" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	21.61
185-F-3-NH-SINGLE-628/313-PC	DEADBOLT, 1 1/8" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	21.61
185-F-4-NH-SINGLE-628/313-PC	DEADBOLT, 1 1/2" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	22.69

Hookbolt - 185 Series

Product Number	Description	STD PKG	MSRP
HB185-2-NH-SINGLE-PC	HOOKBOLT, 31/32" BACKSET	1	18.67
HB185-3-NH-SINGLE-PC	HOOKBOLT, 1 1/8" BACKSET	1	18.67
HB185-4-NH-SINGLE-PC	HOOKBOLT, 1 1/2" BACKSET	1	19.60
HB185-F-2-NH-SINGLE-628/313-PC	HOOKBOLT, 31/32" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	21.61
HB185-F-3-NH-SINGLE-628/313-PC	HOOKBOLT, 1 1/8" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	21.61
HB185-F-4-NH-SINGLE-628/313-PC	HOOKBOLT, 1 1/2" BACKSET, NH FLAT CLEAR/DARK BRONZE FP	1	22.69

Deadlatch - 451 Series

Product Number	Description	STD PACK	MSRP
451-2-RH-SINGLE-PC	DEADLATCH, 31/32" BACKSET, RH	1	22.35
451-3-RH-SINGLE-PC	DEADLATCH, 1 1/8" BACKSET, RH	1	22.35
451-4-RH-SINGLE-PC	DEADLATCH, 1 1/2" BACKSET, RH	1	23.47
451-2-LH-SINGLE-PC	DEADLATCH, 31/32" BACKSET, LH	1	22.35
451-3-LH-SINGLE-PC	DEADLATCH, 1 1/8" BACKSET, LH	1	22.35
451-4-LH-SINGLE-PC	DEADLATCH, 1 1/2" BACKSET, LH	1	23.47
451-F-2-RH-628/313-PC	DEADLATCH, 31/32" BACKSET, RH FLAT CLEAR/DARK BRONZE FP	1	28.22
451-F-2-LH-628/313-PC	DEADLATCH, 31/32" BACKSET, LH FLAT CLEAR/DARK BRONZE FP	1	28.22
451-F-3-RH-628/313-PC	DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP	1	28.22
451-F-3-LH-628/313-PC	DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP	1	28.22
451-F-4-RH-628/313-PC	DEADLATCH, 1 1/2" BACKSET, RH FLAT CLEAR/DARK BRONZE FP	1	29.64
451-F-4-LH-628/313-PC	DEADLATCH, 1 1/2" BACKSET, LH FLAT CLEAR/DARK BRONZE FP	1	29.64
451-F-2-LH-1-01-628/313-PC	DEADLATCH, 31/32" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	35.00
451-F-2-LH-2-01-628/313-PC	DEADLATCH, 31/32" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	35.00
451-F-2-RH-1-01-628/313-PC	DEADLATCH, 31/32" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	35.00
451-F-2-RH-2-01-628/313-PC	DEADLATCH, 31/32" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	35.00
451-F-3-LH-1-01-628/313-PC	DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	35.00
451-F-3-LH-2-01-628/313-PC	DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	35.00
451-F-3-RH-1-01-628/313-PC	DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	35.00
451-F-3-RH-2-01-628/313-PC	DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	35.00

22 Storefront Hardware September 1, 2018

Deadlatch - 451 Series ( continued )

Product Number	Description	STD PKG	MSRP
451-F-4-LH-1-01-628/313-PC	DEADLATCH, 1 1/2" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	36.75
451-F-4-LH-2-01-628/313-PC	DEADLATCH, 1 1/2" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	36.75
451-F-4-RH-1-01-628/313-PC	DEADLATCH, 1 1/2" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE LONG STD STRIKE	1	36.75
451-F-4-RH-2-01-628//313-PC	DEADLATCH, 1 1/2" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, CLEAR/DARK BRONZE SHORT STD STRIKE	1	36.75

Deadlatch - Reversible 452 Series

Product Number	Description	STD PKG	MSRP
452-3-LH-SINGLE-PC	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, LH	1	32.93
452-3-RH-SINGLE-PC	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, RH	1	32.93
452-F-3LH-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP	1	39.98
452-F-3RH-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP	1	39.98
452-F-3LH-101-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, LONG STD STRIKE	1	50.21
452-F-3LH-201-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, LH FLAT CLEAR/DARK BRONZE FP, SHORT STD STRIKE	1	50.21
452-F-3RH-101-628/313	REVERSIBLE DEADLATC H, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, LONG STD STRIKE	1	50.21
452-F-3RH-201-628/313	REVERSIBLE DEADLATCH, 1 1/8" BACKSET, RH FLAT CLEAR/DARK BRONZE FP, SHORT STD STRIKE	1	50.21

Faceplates

Product Number	Description	STD PKG	MSRP
FP-DB-F-NH-628	FACEPLATE - DEADBOLT - FLAT NH CLEAR	1	2.94
FP-DB-F-NH-313	FACEPLATE - DEADBOLT - FLAT NH DARK BRONZE	1	2.94
FP-DB-F-NH-335	FACEPLATE - DEADBOLT - FLAT NH BLACK	1	2.94
FP-DB-B-RH-628	FACEPLATE - DEADBOLT - BEVEL RH CLEAR	1	2.94
FP-DB-B-LH-628	FACEPLATE - DEADBOLT - BEVEL LH CLEAR	1	2.94
FP-DB-B-RH-313	FACEPLATE - DEADBOLT - BEVEL RH DARK BRONZE	1	2.94
FP-DB-B-LH-313	FACEPLATE - DEADBOLT - BEVEL LH DARK BRONZE	1	2.94
FP-DB-B-RH-335	FACEPLATE - DEADBOLT - BEVEL RH BLACK	1	2.94
FP-DB-B-LH-335	FACEPLATE - DEADBOLT - BEVEL LH BLACK	1	2.94
FP-DB-R-NH-628	FACEPLATE - DEADBOLT - RADIUS NH CLEAR	1	2.94
FP-DB-R-NH-313	FACEPLATE - DEADBOLT - RADIUS NH DARK BRONZE	1	2.94
FP-DB-R-NH-335	FACEPLATE - DEADBOLT - RADIUS NH BLACK	1	2.94
FP-DB-RW-NH-628	FACEPLATE - DEADBOLT - RADIUS NH CLEAR W/ WEATHERSTRIP	1	4.72
FP-DB-RW-NH-313	FACEPLATE - DEADBOLT - RADIUS NH DARK BRONZE W/ WEATHERSTRIP	1	4.72
FP-DB-RW-NH-335	FACEPLATE - DEADBOLT - RADIUS NH BLACK W/ WEATHERSTRIP	1	4.72
FP-DB-B-RH-628 (BULK)	FACEPLATE - DEADBOLT - BEVEL RH CLEAR (BULK)	25	2.08
FP-DB-B-LH-628 (BULK)	FACEPLATE - DEADBOLT - BEVEL LH CLEAR (BULK)	25	2.08
FP-DB-B-RH-313 (BULK)	FACEPLATE - DEADBOLT - BEVEL RH DARK BRONZE (BULK)	25	2.08
FP-DB-B-LH-313 (BULK)	FACEPLATE - DEADBOLT - BEVEL LH DARK BRONZE (BULK)	25	2.08
FP-DB-B-RH-335 (BULK)	FACEPLATE - DEADBOLT - BEVEL RH BLACK (BULK)	25	2.08
FP-DB-B-LH-335 (BULK)	FACEPLATE - DEADBOLT - BEVEL LH BLACK (BULK)	25	2.08
FP-DB-R-NH-628 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH CLEAR (BULK)	25	2.08
FP-DB-R-NH-313 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH DARK BRONZE (BULK)	25	2.08

Storefront Hardware 23 September 1, 2018

Faceplates ( continued )

Product Number	Description	STD PKG	MSRP
FP-DB-R-NH-335 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH BLACK (BULK)	25	2.08
FP-DB-RW-NH-628 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH CLEAR W/ WEATHERSTRIP (BULK)	25	4.28
FP-DB-RW-NH-313 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH DARK BRONZE W/ WEATHERSTRIP (BULK)	25	4.28
FP-DB-RW-NH-335 (BULK)	FACEPLATE - DEADBOLT - RADIUS NH BLACK W/ WEATHERSTRIP (BULK)	25	4.28
FP-HB-F-NH-628	FACEPLATE - HOOKBOLT - FLAT NH CLEAR	1	2.94
FP-HB-F-NH-313	FACEPLATE - HOOKBOLT - FLAT NH DARK BRONZE	1	2.94
FP-HB-F-NH-335	FACEPLATE - HOOKBOLT - FLAT NH BLACK	1	2.94
FP-HB-B-RH-628	FACEPLATE - HOOKBOLT - BEVEL RH CLEAR	1	2.94
FP-HB-B-LH-628	FACEPLATE - HOOKBOLT - BEVEL LH CLEAR	1	2.94
FP-HB-B-RH-313	FACEPLATE - HOOKBOLT - BEVEL RH DARK BRONZE	1	2.94
FP-HB-B-LH-313	FACEPLATE - HOOKBOLT - BEVEL LH DARK BRONZE	1	2.94
FP-HB-B-RH-335	FACEPLATE - HOOKBOLT - BEVEL RH BLACK	1	2.94
FP-HB-B-LH-335	FACEPLATE - HOOKBOLT - BEVEL LH BLACK	1	2.94
FP-HB-R-NH-628	FACEPLATE - HOOKBOLT - RADIUS NH CLEAR	1	2.94
FP-HB-R-NH-313	FACEPLATE - HOOKBOLT - RADIUS NH DARK BRONZE	1	2.94
FP-HB-R-NH-335	FACEPLATE - HOOKBOLT - RADIUS NH BLACK	1	2.94
FP-HB-RW-NH-628	FACEPLATE - HOOKBOLT - RADIUS NH CLEAR W/ WEATHERSTRIP	1	4.72
FP-HB-RW-NH-313	FACEPLATE - HOOKBOLT - RADIUS NH DARK BRONZE W/ WEATHERSTRIP	1	4.72
FP-HB-RW-NH-335	FACEPLATE - HOOKBOLT - RADIUS NH BLACK W/ WEATHERSTRIP	1	4.72
FP-HB-F-NH-628-AN	FACEPLATE - HOOKBOLT - FLAT ANSI CLEAR	1	4.67
FP-HB-F-NH-313-AN	FACEPLATE - HOOKBOLT - FLAT ANSI DARK BRONZE	1	4.67
FP-HB-R-NH-628-AN	FACEPLATE - HOOKBOLT - RADIUS ANSI CLEAR	1	4.67
FP-HB-R-NH-313-AN	FACEPLATE - HOOKBOLT - RADIUS ANSI DARK BRONZE	1	4.67
FP-HB-B-RH-628 (BULK)	FACEPLATE - HOOKBOLT - BEVEL RH CLEAR (BULK)	25	2.08
FP-HB-B-LH-628 (BULK)	FACEPLATE - HOOKBOLT - BEVEL LH CLEAR (BULK)	25	2.08
FP-HB-B-RH-313 (BULK)	FACEPLATE - HOOKBOLT - BEVEL RH DARK BRONZE (BULK)	25	2.08
FP-HB-B-LH-313 (BULK)	FACEPLATE - HOOKBOLT - BEVEL LH DARK BRONZE (BULK)	25	2.08
FP-HB-B-RH-335 (BULK)	FACEPLATE - HOOKBOLT - BEVEL RH BLACK (BULK)	25	2.08
FP-HB-B-LH-335 (BULK)	FACEPLATE - HOOKBOLT - BEVEL LH BLACK (BULK)	25	2.08
FP-HB-R-NH-628 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH CLEAR (BULK)	25	2.08
FP-HB-R-NH-313 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH DARK BRONZE (BULK)	25	2.08
FP-HB-R-NH-335 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH BLACK (BULK)	25	2.08
FP-HB-RW-NH-628 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH CLEAR W/ WEATHERSTRIP (BULK)	25	4.28
FP-HB-RW-NH-313 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH DARK BRONZE W/ WEATHERSTRIP (BULK)	25	4.28
FP-HB-RW-NH-335 (BULK)	FACEPLATE - HOOKBOLT - RADIUS NH BLACK W/ WEATHERSTRIP (BULK)	25	4.28
FP-DL-F-NH-628	FACEPLATE - DEADLATCH - FLAT NH CLEAR	1	2.94
FP-DL-F-NH-313	FACEPLATE - DEADLATCH - FLAT NH DARK BRONZE	1	2.94
FP-DL-F-NH-335	FACEPLATE - DEADLATCH - FLAT NH BLACK	1	2.94
FP-DL-B-RH-628	FACEPLATE - DEADLATCH - BEVEL RH CLEAR	1	2.94
FP-DL-B-LH-628	FACEPLATE - DEADLATCH - BEVEL LH CLEAR	1	2.94
FP-DL-B-RH-313	FACEPLATE - DEADLATCH - BEVEL RH DARK BRONZE	1	2.94
FP-DL-B-LH-313	FACEPLATE - DEADLATCH - BEVEL LH DARK BRONZE	1	2.94
FP-DL-B-RH-335	FACEPLATE - DEADLATCH - BEVEL RH BLACK	1	2.94
FP-DL-B-LH-335	FACEPLATE - DEADLATCH - BEVEL LH BLACK	1	2.94
FP-DL-R-NH-628	FACEPLATE - DEADLATCH - RADIUS NH CLEAR	1	2.94
FP-DL-R-NH-313	FACEPLATE - DEADLATCH - RADIUS NH DARK BRONZE	1	2.94

24 Storefront Hardware September 1, 2018

Faceplates ( continued )

Product Number	Description	STD PKG	MSRP
FP-DL-R-NH-335	FACEPLATE - DEADLATCH - RADIUS NH BLACK	1	2.94
FP-DL-RW-NH-628	FACEPLATE - DEADLATCH - RADIUS NH CLEAR W/ WEATHERSTRIP	1	4.72
FP-DL-RW-NH-313	FACEPLATE - DEADLATCH - RADIUS NH DARK BRONZE W/ WEATHERSTRIP	1	4.72
FP-DL-RW-NH-335	FACEPLATE - DEADLATCH - RADIUS NH BLACK W/ WEATHERSTRIP	1	4.72
FP-DL-B-RH-628 (BULK)	FACEPLATE - DEADLATCH - BEVEL RH CLEAR (BULK)	25	2.08
FP-DL-B-LH-628 (BULK)	FACEPLATE - DEADLATCH - BEVEL LH CLEAR (BULK)	25	2.08
FP-DL-B-RH-313 (BULK)	FACEPLATE - DEADLATCH - BEVEL RH DARK BRONZE (BULK)	25	2.08
FP-DL-B-LH-313 (BULK)	FACEPLATE - DEADLATCH - BEVEL LH DARK BRONZE (BULK)	25	2.08
FP-DL-B-RH-335 (BULK)	FACEPLATE - DEADLATCH - BEVEL RH BLACK (BULK)	25	2.08
FP-DL-B-LH-335 (BULK)	FACEPLATE - DEADLATCH - BEVEL LH BLACK (BULK)	25	2.08
FP-DL-R-NH-628 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH CLEAR (BULK)	25	2.08
FP-DL-R-NH-313 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH DARK BRONZE (BULK)	25	2.08
FP-DL-R-NH-335 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH BLACK (BULK)	25	2.08
FP-DL-RW-NH-628 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH CLEAR W/ WEATHERSTRIP (BULK)	25	4.28
FP-DL-RW-NH-313 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH DARK BRONZE W/ WEATHERSTRIP (BULK)	25	4.28
FP-DL-RW-NH-335 (BULK)	FACEPLATE - DEADLATCH - RADIUS NH BLACK W/ WEATHERSTRIP (BULK)	25	4.28
FP-RDL-F-NH-628	FACEPLATE - REVERSIBLE DEADLATCH - FLAT NH CLEAR	1	2.94
FP-RDL-F-NH-313	FACEPLATE - REVERSIBLE DEADLATCH - FLAT NH DARK BRONZE	1	2.94
FP-RDL-F-NH-335	FACEPLATE - REVERSIBLE DEADLATCH - FLAT NH BLACK	1	2.94
FP-RDL-R-NH-628	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH CLEAR	1	2.94
FP-RDL-R-NH-313	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH DARK BRONZE	1	2.94
FP-RDL-R-NH-335	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH BLACK	1	2.94
FP-RDL-RW-NH-628	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH CLEAR W/ WEATHERSTRIP	1	3.97
FP-RDL-RW-NH-313	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH DARK BRONZE W/ WEATHER STRIP	1	3.97
FP-RDL-RW-NH-335	FACEPLATE - REVERSIBLE DEADLATCH - RADIUS NH BLACK W/ WEATHERSTRIP	1	3.97

Strikes

Product Number	Description	STD PKG	MSRP
4501-01	1.87" LONG LIP STANDARD	1	8.52
4501-01-DU	1.87" LONG LIP STANDARD - DARK BRONZE	1	8.52
4501-02	1.87" LONG LIP RADIUS	1	8.52
4501-02-DU	1.87" LONG LIP RADIUS - DARK BRONZE	1	8.52
4502-01	1.87" SHORT LIP STANDARD	1	8.52
4502-01-DU	1.87" SHORT LIP STANDARD - DARK BRONZE	1	8.52
4502-02	1.87" SHORT LIP RADIUS	1	8.52
4502-02-DU	1.87" SHORT LIP RADIUS - DARK BRONZE	1	8.52
4501-17	2.90" LONG STRIKE EXTENDED LIP FOR CENTER HUNG DOORS 4" FRAME	1	9.26
4501-21	3.13" LONG STRIKE EXTENDED LIP FOR CENTER HUNG DOORS 4.5" FRAME	1	9.26
4502-17	2.90" SHORT STRIKE EXTENDED LIP FOR CENTER HUNG DOORS 4" FRAME	1	9.26
4502-21	3.13" SHORT STRIKE EXTENDED LIP FOR CENTER HUNG DOORS 4.5" FRAME	1	9.26

Storefront Hardware 25 September 1, 2018

Lever Handles and Push / Pull Paddles

Push / Pull Paddles - 459 Series

Product Number	Description	STD PKG	MSRP
459-01-00-313	PADDLE - PULL TO LEFT, DARK BRONZE	1	47.04
459-01-00-335	PADDLE - PULL TO LEFT, BLACK	1	47.04
459-01-00-628	PADDLE - PULL TO LEFT, CLEAR	1	47.04
459-02-00-313	PADDLE - PUSH TO LEFT, DARK BRONZE	1	47.04
459-02-00-335	PADDLE - PUSH TO LEFT, BLACK	1	47.04
459-02-00-628	PADDLE - PUSH TO LEFT, CLEAR	1	47.04
459-03-00-313	PADDLE - PULL TO RIGHT, DARK BRONZE	1	47.04
459-03-00-335	PADDLE - PULL TO RIGHT, BLACK	1	47.04
459-03-00-628	PADDLE - PULL TO RIGHT, CLEAR	1	47.04
459-04-00-313	PADDLE - PUSH TO RIGHT, DARK BRONZE	1	47.04
459-04-00-335	PADDLE - PUSH TO RIGHT, BLACK	1	47.04
459-04-00-628	PADDLE - PUSH TO RIGHT, CLEAR	1	47.04
SS-26-39	3/8-24 BRASS SET SCREW W/NYLOC (459 PADDLE-PK OF 5)	5	12.13
9160	PADDLE SPRING KIT	5	4.41

Push Paddles - 457 Series

Product Number	Description	STD PKG	MSRP
457-02-00-313	TREND PADDLE - PUSH TO LEFT, DARK BRONZE	1	52.92
457-02-00-335	TREND PADDLE - PUSH TO LEFT, BLACK	1	52.92
457-02-00-628	TREND PADDLE - PUSH TO LEFT, CLEAR	1	52.92
457-04-00-313	TREND PADDLE - PUSH TO RIGHT, DARK BRONZE	1	52.92
457-04-00-335	TREND PADDLE - PUSH TO RIGHT, BLACK	1	52.92
457-04-00-628	TREND PADDLE - PUSH TO RIGHT, CLEAR	1	52.92

Lever Handles - 456 Series

Product Number	Description	STD PKG	MSRP
456S-LH-01-AL	LEVER HANDLE, LH, STRAIGHT, CLEAR	1	22.93
456S-RH-01-AL	LEVER HANDLE, RH, STRAIGHT, CLEAR	1	22.93
456S-LH-01-DU	LEVER HANDLE, LH, STRAIGHT, DARK BRONZE	1	22.93
456S-RH-01-DU	LEVER HANDLE, RH, STRAIGHT, DARK BRONZE	1	22.93
456RE-LH-01-AL	LEVER HANDLE, LH, RETURN END, CLEAR	1	24.40
456RE-RH-01-AL	LEVER HANDLE, RH, RETURN END, CLEAR	1	24.40
456RE-LH-01-DU	LEVER HANDLE, LH, RETURN END, DARK BRONZE	1	24.40
456RE-RH-01-DU	LEVER HANDLE, RH, RETURN END, DARK BRONZE	1	24.40
456RE-LH-01-BLK	LEVER HANDLE, LH, RETURN END, BLACK	1	24.40
456RE-RH-01-BLK	LEVER HANDLE, RH, RETURN END, BLACK	1	24.40
456TT-LH-01-BLK	THUMB TURN, LH, BLACK	1	22.93
456TT-RH-01-BLK	THUMB TURN, RH, BLACK	1	22.93
456TT-LH-01-AL	THUMB TURN, LH, CLEAR	1	22.93

26 Storefront Hardware September 1, 2018

Lever Handles - 456 Series ( continued )

Product Number	Description	STD PKG	MSRP
456TT-RH-01-AL	THUMB TURN, RH, CLEAR	1	22.93
456TT-LH-01-DU	THUMB TURN, LH, DARK BRONZE	1	22.93
456TT-RH-01-DU	THUMB TURN, RH, DARK BRONZE	1	22.93
CP456-RH	CAM PLUG, 1 3/4" PADDLE OR 2" LEVER DOOR THICKNESS, RH	1	5.51
CP456-LH	CAM PLUG, 1 3/4" PADDLE OR 2" LEVER DOOR THICKNESS, LH	1	5.51
CP456-RH-1	CAM PLUG, 1 13/16"- 2" PADDLE OR 2 1/4"- 2 1/2" LEVER DOOR THICKNESS, RH	1	5.51
CP456-LH-1	CAM PLUG, 1 13/16"- 2" PADDLE OR 2 1/4"- 2 1/2" LEVER DOOR THICKNESS, LH	1	5.51
CP456-RH-2	CAM PLUG, 2 1/4"- 2 1/2" PADDLE OR 2 3/4"- 3" LEVER DOOR THICKNESS, RH	1	5.51
CP456-LH-2	CAM PLUG, 2 1/4"- 2 1/2" PADDLE OR 2 3/4"- 3" LEVER DOOR THICKNESS, LH	1	5.51

Threshold, Header and Flush Bolts

Flushbolts - FLB Series

Product Number	Description	STD PKG	MSRP
FLB-58-316-AL	FLUSH BOLT 5/8" THROW, 3/16" OFFSET, CLEAR	1	8.08
FLB-58-316-DU	FLUSH BOLT 5/8" THROW, 3/16" OFFSET, DARK BRONZE	1	8.08
FLB-58-18-AL	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, CLEAR	1	8.08
FLB-58-18-DU	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, DARK BRONZE	1	8.08
FLB-58-18-BLK	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, BLACK	1	8.08
FLB-58-14-AL	FLUSH BOLT 5/8" THROW, 1/4" OFFSET, CLEAR	1	8.08
FLB-58-14-DU	FLUSH BOLT 5/8" THROW, 1/4" OFFSET, DARK BRONZE	1	8.08
FLB-78-316-AL	FLUSH BOLT 7/8" THROW, 3/16" OFFSET, CLEAR	1	8.08
FLB-78-316-DU	FLUSH BOLT 7/8" THROW, 3/16" OFFSET, DARK BRONZE	1	8.08
FLB-78-18-AL	FLUSH BOLT 7/8" THROW, 1/8" OFFSET, CLEAR	1	8.08
FLB-78-18-DU	FLUSH BOLT 7/8" THROW, 1/8" OFFSET, DARK BRONZE	1	8.08
FLB-78-14-AL	FLUSH BOLT 7/8" THROW, 1/4" OFFSET, CLEAR	1	8.08
FLB-78-14-DU	FLUSH BOLT 7/8" THROW, 1/4" OFFSET, DARK BRONZE	1	8.08
FLB-58-18-AL-16"	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, CLEAR - 16" ROD	1	8.08
FLB-58-18-DU-16"	FLUSH BOLT 5/8" THROW, 1/8" OFFSET, DARK BRONZE - 16" ROD	1	8.08
FLB-GUIDE PACK	GUIDE PACK (FOR FLUSHBOLTS)	1	1.10
FLUSHBOLT STEEL ROD	FLUSHBOLT STEEL ROD 20-3/8"	1	1.40

2 Point Flush Bolts

Product Number	Description	STD PKG	MSRP
IL1880-1-84-AL	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 84" DOORS, CLEAR	1	57.33
IL1880-1-84-DU	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 84" DOORS, DARK BRONZE	1	57.33
IL1880-1-84-BLK	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 84" DOORS, BLACK	1	57.33
IL1880-1-96-AL	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 96" DOORS, CLEAR	1	57.33
IL1880-1-96-DU	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 96" DOORS, DARK BRONZE	1	57.33
IL1880-1-96-BLK	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 37", 96" DOORS, BLACK	1	57.33
IL1880-2-96-AL	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 42", 96" DOORS, CLEAR	1	60.64
IL1880-2-96-DU	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 42", 96" DOORS, DARK BRONZE	1	60.64
IL1880-2-96-BLK	TWO POINT FLUSH BOLT, CYLINDER HEIGHT UP TO 42", 96" DOORS, BLACK	1	60.64
IL1880-AL	TWO POINT FLUSH BOLT, LOCK ONLY, NO RODS, CLEAR	1	45.78
IL1880-DU	TWO POINT FLUSH BOLT, LOCK ONLY, NO RODS, DARK BRONZE	1	45.78
IL1880-BLK	TWO POINT FLUSH BOLT, LOCK ONLY, NO RODS, BLACK	1	45.78
IL-285-1 TWO POINT LOCK	TWO POINT LOCK FOR ROLLING GRILL DOORS	1	23.36

Storefront Hardware 27 September 1, 2018

Header Bolts - 4016 / 4085 Series - Threshold Bolt - 4015 Series

Product Number	Description	STD PKG	MSRP
HDB-4016 - 31/32"	HEADER BOLT - 31/32" BACKSET	1	35.28
HDB-4016 - 1 1/8"	HEADER BOLT - 1 1/8" BACKSET	1	35.28
HDB-4016 - 1 1/2"	HEADER BOLT - 1 1/2" BACKSET	1	35.28
HDB-4016 - 31/32" BULK	HEADER BOLT - 31/32" BACKSET (BULK)	25	29.77
HDB-4016 - 1 1/8" BULK	HEADER BOLT - 1 1/8" BACKSET (BULK)	25	29.77
HDB-4016 - 1 1/2" BULK	HEADER BOLT - 1 1/2" BACKSET (BULK)	25	29.77
HDB-4085-2	HEADER BOLT - 79" - 92" CYLINDER HEIGHT	1	33.22
HDB-4085	HEADER BOLT - 30" - 53" CYLINDER HEIGHT	1	33.22
HDB-4085-1	HEADER BOLT - 55" - 78" CYLINDER HEIGHT	1	33.22
THB-4015	THRESHOLD BOLT	1	23.58
THB-4015 BULK	THRESHOLD BOLT (BULK)	25	23.58

Lock Indicator Set

Product Number	Description	Std Pkg.	MSRP
LI-408-AL	LOCK INDICATOR - CLEAR	1	20.58
LI-408-DU	LOCK INDICATOR - DARK BRONZE	1	20.58

Glass Door Bottom Rail Locks - BR Series

Product Number	Description	Std Pkg.	MSRP
BRL-03	BOTTOM RAIL LOCK 1 - 9/16"	1	35.28
BRL-01	BOTTOM RAIL LOCK 1 - 7/8"	1	35.28

Dust Proof Strikes

Product Number	Description	STD PKG	MSRP
DPS-DU	DUST PROOF STRIKE DU FINISH	1	19.11
DPS-26D	DUST PROOF STRIKE 26D FINISH	1	19.11
DPS-BLK	DUST PROOF STRIKE BLACK FINISH	1	19.11
DPS-US3	DUST PROOF STRIKE US3 FINISH	1	19.11
DPS-32	DUST PROOF STRIKE US14 (32) FINISH	1	19.11
DPS-US32D	DUST PROOF STRIKE US15 (32D) FINISH	1	19.11
DPS-US4	DUST PROOF STRIKE US4 FINISH	1	19.11
DPS-AL	DUST PROOF STRIKE 628 FINISH	1	19.11
DPS-26	DUST PROOF STRIKE 26 FINISH	1	19.11

Offset Pivots

IL-OP-10 Series - Vista Wall and Old Castle Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-10-LH-AL SETS	FLUSH PIVOT SET - LH CLEAR	1	18.82
IL-OP-10-LH-DU SETS	FLUSH PIVOT SET - LH DARK BRONZE	1	18.82
IL-OP-10-RH-AL SETS	FLUSH PIVOT SET - RH CLEAR	1	18.82
IL-OP-10-RH-DU SETS	FLUSH PIVOT SET - RH DARK BRONZE	1	18.82
IL-OP-10-LH-AL-18 SETS	1/8" RECESSED PIVOT SET - LH CLEAR	1	18.82
IL-OP-10-LH-DU-18 SETS	1/8" RECESSED PIVOT SET - LH DARK BRONZE	1	18.82
IL-OP-10-RH-AL-18 SETS	1/8" RECESSED PIVOT SET - RH CLEAR	1	18.82
IL-OP-10-RH-DU-18 SETS	1/8" RECESSED PIVOT SET - RH DARK BRONZE	1	18.82
IL-OP-10 SCREW PACK - AL	SCREW PACK - AL	1	1.27
IL-OP-10 SCREW PACK - DU	SCREW PACK - DU	1	1.27

28 Storefront Hardware September 1, 2018

IL-OP-12 Series - Armalite and Trulite Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-12-RH-AL SETS	1/8" RECESSED PIVOT SET - RH CLEAR	1	17.52
IL-OP-12-LH-AL SETS	1/8" RECESSED PIVOT SET - LH CLEAR	1	17.52
IL-OP-12-RH-DU SETS	1/8" RECESSED PIVOT SET - RH DARK BRONZE	1	17.52
IL-OP-12-LH-DU SETS	1/8" RECESSED PIVOT SET - LH DARK BRONZE	1	17.52
IL-OP-12 SCREW PACK - AL	SCREW PACK - AL	1	1.27
IL-OP-12 SCREW PACK - DU	SCREW PACK - DU	1	1.27

IL-OP-13 Series - YKK Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-13-LH-AL SETS	1/8" RECESSED PIVOT SET - LH CLEAR	1	29.07
IL-OP-13-LH-DU SETS	1/8" RECESSED PIVOT SET - LH DARK BRONZE	1	29.07
IL-OP-13-RH-AL SETS	1/8" RECESSED PIVOT SET - RH CLEAR	1	29.07
IL-OP-13-RH-DU SETS	1/8" RECESSED PIVOT SET - RH DARK BRONZE	1	29.07
IL-OP-13 SCREW PACK - AL	SCREW PACK - AL	1	1.65
IL-OP-13 SCREW PACK - DU	SCREW PACK - DU	1	1.65

IL-OP-14 Series - US Aluminum and Arcadia Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-14-LH-AL SETS	FLUSH PIVOT SET - LH CLEAR	1	19.11
IL-OP-14-LH-DU SETS	FLUSH US PIVOT SET - LH DARK BRONZE	1	19.11
IL-OP-14-RH-AL SETS	FLUSH PIVOT SET - RH CLEAR	1	19.11
IL-OP-14-RH-DU SETS	FLUSH PIVOT SET - RH DARK BRONZE	1	19.11
IL-OP-14 SCREW PACK - AL	SCREW PACK - AL	1	1.27
IL-OP-14 SCREW PACK - DU	SCREW PACK - DU	1	1.27

IL-OP-15 Series - Pittco and Efco Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-15-LH-AL SETS	31/32" PIVOT SET - LH CLEAR	1	19.11
IL-OP-15-LH-DU SETS	31/32" PIVOT SET - LH DARK BRONZE	1	19.11
IL-OP-15-RH-AL SETS	31/32" PIVOT SET - RH CLEAR	1	19.11
IL-OP-15-RH-DU SETS	31/32" PIVOT SET - RH DARK BRONZE	1	19.11
IL-OP-15 SCREW PACK - AL	SCREW PACK - AL	1	1.27
IL-OP-15 SCREW PACK - DU	SCREW PACK - DU	1	1.27

IL-OP-18 Series - Kawneer Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-18-AL TOP PIVOT SET	1/8" RECESSED KAWNEER TOP PIVOT SET CLEAR	1	12.93
IL-OP-18-DU TOP PIVOT SET	1/8" RECESSED KAWNEER TOP PIVOT SET DARK BRONZE	1	12.93
IL-OP-18-LH-AL BOTTOM SET	1/8" RECESSED KAWNEER BOTTOM PIVOT SET CLEAR - LH	1	21.43
IL-OP-18-LH-DU BOTTOM SET	1/8" RECESSED KAWNEER BOTTOM PIVOT SET DARK BRONZE - LH	1	21.43
IL-OP-18-RH-AL BOTTOM SET	1/8" RECESSED KAWNEER BOTTOM PIVOT SET CLEAR - RH	1	21.43
IL-OP-18-RH-DU BOTTOM SET	1/8" RECESSED KAWNEER BOTTOM PIVOT SET DARK BRONZE - RH	1	21.43
IL-OP-18 SCREW PACK - AL	SCREW PACK - AL	1	1.76
IL-OP-18 SCREW PACK - DU	SCREW PACK - DU	1	1.76

Storefront Hardware 29 September 1, 2018

IL-OP-19 Series - Aldora Style Doors

Product Number	Description	STD PKG	MSRP
IL-OP-19-LH-AL SETS	1/8" RECESSED BOTTOM PIVOT SET CLEAR - LH	1	27.20
IL-OP-19-LH-DU SETS	1/8" RECESSED BOTTOM PIVOT SET DARK BRONZE - LH	1	27.20
IL-OP-19-RH-AL SETS	1/8" RECESSED BOTTOM PIVOT SET CLEAR - RH	1	27.20

IP-10 Series

Product Number	Description	STD PKG	MSRP
IP-10-LH-AL	INTERMEDIATE PIVOT SET - LH CLEAR	1	32.52
IP-10-RH-AL	INTERMEDIATE PIVOT SET - RH CLEAR	1	32.52
IP-10-LH-DU	INTERMEDIATE PIVOT SET - LH DARK BRONZE	1	32.52
IP-10-RH-DU	INTERMEDIATE PIVOT SET - RH DARK BRONZE	1	32.52
IP-10-LH-DU-2	INTERMEDIATE PIVOT SET - LH BLACK	1	32.52
IP-10-RH-DU-2	INTERMEDIATE PIVOT SET - RH BLACK	1	32.52

IP-12 Series

Product Number	Description	STD PKG.	MSRP
IP-12-NH-AL	INTERMEDIATE PIVOT - NH CLEAR	1	28.67
IP-12-NH-DU-2	INTERMEDIATE PIVOT - NH BLACK	1	28.67
IP-12-NH-DU	INTERMEDIATE PIVOT - NH DARK BRONZE	1	27.30

IP-22 Series

Product Number	Description	STD PKG.	MSRP
IP-22-RH-AL	INTERMEDIATE PIVOT - RH CLEAR	1	20.01
IP-22-RH-DU	INTERMEDIATE PIVOT - RH DARK BRONZE	1	20.01
IP-22-LH-AL	INTERMEDIATE PIVOT - LH CLEAR	1	20.01
IP-22-LH-DU	INTERMEDIATE PIVOT - LH DARK BRONZE	1	20.01

Door Stops

IL-KDDH Series 4" and 5"

Product Number	Description	STD PKG	MSRP
IL-KDDH-4-AL	4" KICK DOWN DOOR HOLDER - CLEAR	1	7.00
IL-KDDH-4-DU	4" KICK DOWN DOOR HOLDER - DARK BRONZE	1	7.00
IL-KDDH-4-BLK	4" KICK DOWN DOOR HOLDER - BLACK	1	7.00
IL-KDDH-4-26D	4" KICK DOWN DOOR HOLDER - 26D	1	7.00
IL-KDDH-5-AL	5" KICK DOWN DOOR HOLDER - CLEAR	1	7.00
IL-KDDH-5-DU	5" KICK DOWN DOOR HOLDER - DARK BRONZE	1	7.00
IL-KDDH-5-BLK	5" KICK DOWN DOOR HOLDER - BLACK	1	7.00
IL-KDDH-5-26D	5" KICK DOWN DOOR HOLDER - 26D	1	7.00

IL-PDDH Series

Product Number	Description	STD PKG	MSRP
IL-PDDH-AL	PUSH DOWN DOOR HOLDER - CLEAR	1	17.81
IL-PDDH-DU	PUSH DOWN DOOR HOLDER - DARK BRONZE	1	17.81
IL-PDDH-BLK	PUSH DOWN DOOR HOLDER - BLACK	1	17.81
IL-PDDH-26D	PUSH DOWN DOOR HOLDER - 26D	1	17.81
IL-PDDH-REPLACEMENT TIP	PUSH DOWN REPLACEMENT TIP	1	$1.65

30 Storefront Hardware September 1, 2018

Zinc Cylinders

Product Number	Description	STD PKG	MSRP
MDC-AL-DUMMY	1" DUMMY - CLEAR	1	3.23
MDC-DU-DUMMY	1" DUMMY - DARK BRONZE	1	3.23
MDC-BLK-DUMMY	1" DUMMY - BLACK	1	3.23
MKC-SC-2-AL-KD	1" SCHLAGE C KEYWAY AR CAM - CLEAR - KEYED DIFFERENT	1	6.62
MKC-SC-2-DU-KD	1" SCHLAGE C KEYWAY AR CAM - DK BRONZE (ANODIZED) KEYED DIFFERENT	1	6.62
MKC-SC-2-BLK-KD	1" SCHLAGE C KEYWAY AR CAM - BLACK - KEYED DIFFERENT	1	6.62
MKC-SC-2-AL-KA2	1" SCHLAGE C KEYWAY AR CAM - CLEAR - KEYED ALIKE	1	13.23
MKC-SC2-DU-KA2	1" SCHLAGE C KEYWAY AR CAM - DARK BRONZE (ANODIZED) KEYED ALIKE	1	13.23
MKC-SC-2-BLK-KA2	1" SCHLAGE C KEYWAY AR CAM - BLACK - KEYED ALIKE	1	13.23
MKC-SC-2-AL-KA25	1" SCHLAGE C KEYWAY AR CAM - CLEAR - KEYED ALIKE	1	6.62
MKC-SC-2-DU-KA25	1" SCHLAGE C KEYWAY AR CAM - DARK BRONZE (ANODIZED) KEYED ALIKE	1	6.62
MKC-SC-2-BLK-KA25	1" SCHLAGE C KEYWAY AR CAM - BLACK - KEYED ALIKE	1	6.62
MKC-SC-2-AL-KA50	1" SCHLAGE C KEYWAY AR CAM - CLEAR - KEYED ALIKE	1	6.62
MKC-SC-2-DU-KA50	1" SCHLAGE C KEYWAY AR CAM - DARK BRONZE (ANODIZED) KEYED ALIKE	1	6.62
MKC-SC-2-BLK-KA50	1" SCHLAGE C KEYWAY AR CAM - BLACK - KEYED ALIKE	1	6.62
RKC-RIM-SC-AL-KD	5 PIN - CLEAR - KEYED DIFFERENT	1	7.79
RKC-RIM-SC-DU-KD	5 PIN - DARK BRONZE - KEYED DIFFERENT	1	7.79
RKC-RIM-SC-BLK-KD	5 PIN - BLACK - KEYED DIFFERENT	1	7.79
MTC-TK-2-AL	1" TURN KNOB AR CAM - CLEAR	1	5.15
MTC-TK-2-DU	1" TURN KNOB AR CAM - DARK BRONZE	1	5.15
MTC-TK-2-BLK	1" TURN KNOB AR CAM - BLACK	1	5.15

Cylinder Guards

Product Number	Description	STD PKG	MSRP
CL-404-AL	CYLINDER GUARD POWDER COAT FINISH - CLEAR	1	8.82
CL-404-DU	CYLINDER GUARD POWDER COAT FINISH - DARK BRONZE	1	8.82
CL-404-BLK	CYLINDER GUARD POWDER COAT FINISH - BLACK	1	8.82

Storefront Hardware 31 September 1, 2018

Notes:






	_

	_





	_
	_
	_





	_
	_


	_
	_
	_
	_
	_
	_
	_
	_
	_

All the brand and product names mentioned in this book are registered trademarks and exclusive property of authorized manufacturers. Said trademarks or trade names are nominated only for the purposes of information in order to be rapidly identified.

20180901
