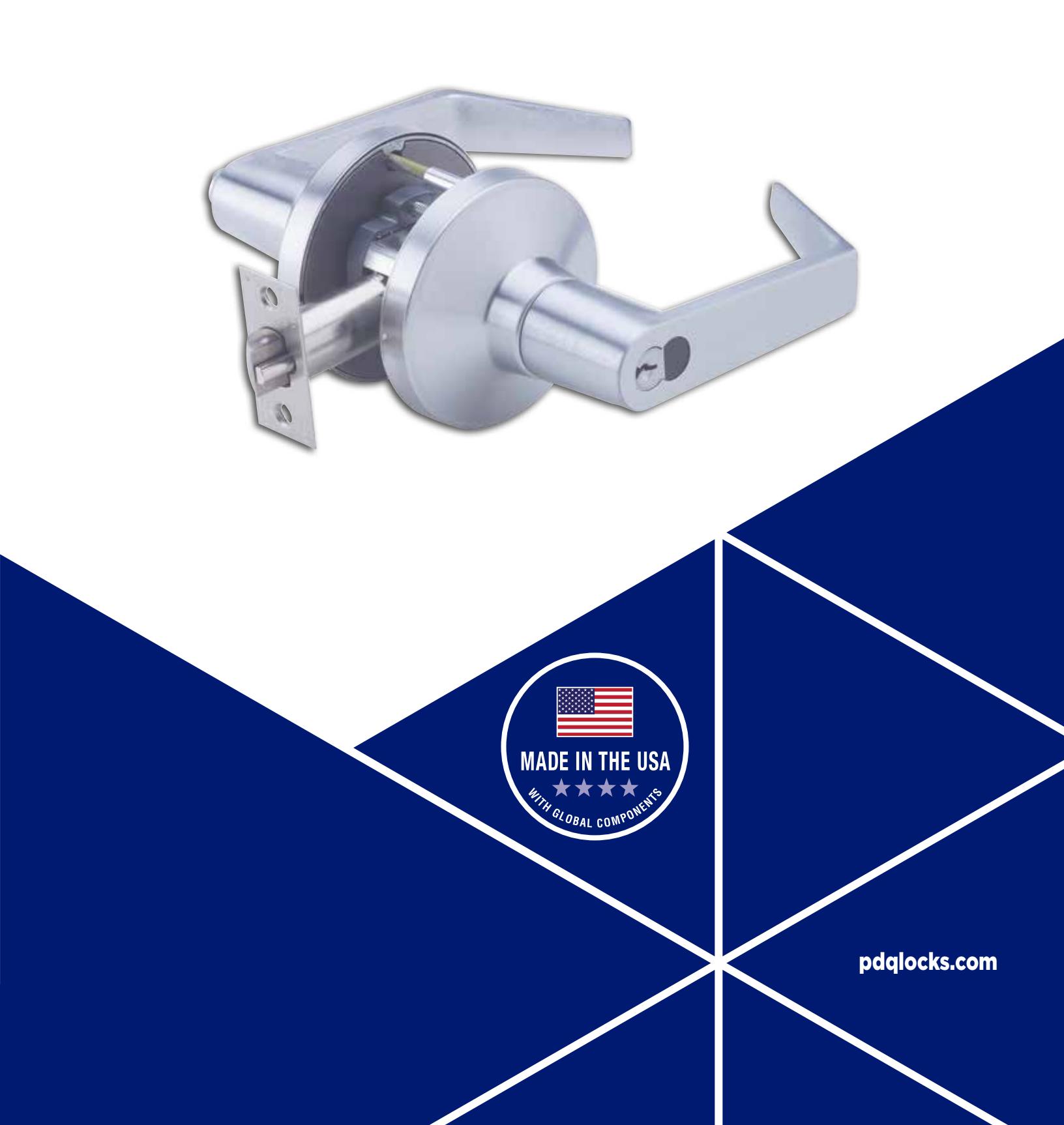

GP SERIES Grade 2 Heavy-Duty Cylindrical

GP SERIES GRADE 2 HEAVY-DUTY CYLINDRICAL LOCKS

FEATURES

  • 10 Mechanical Functions
  • Smashes BHMA Abusive Lever Torque Test Standard
  • Retrofits All Major Competitor Door Preps
  • 3 Backset Options
  • Assembled in the U.S.A.

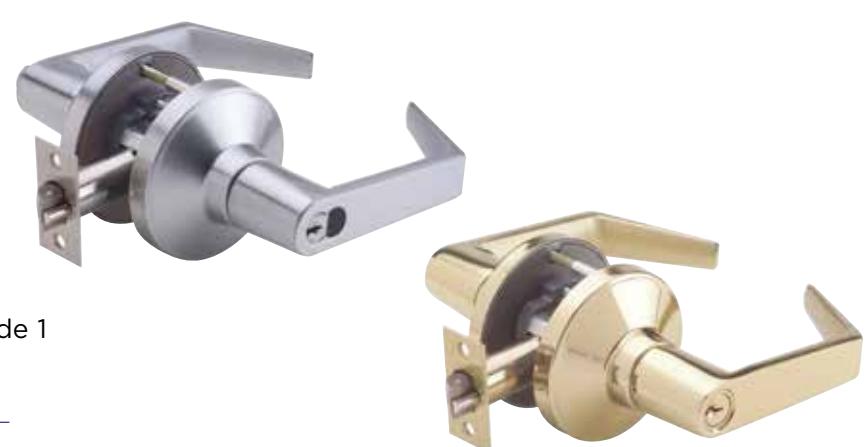

  • Versatile Trim Matches PDQ Grade 1 XGT and GT Cylindrical Locks

TYPICAL APPLICATIONS

  • Assisted Living
  • Federal Government
  • State and Local Government Higher Education
  • Healthcare
  • Hospitality
  • K-12 Education
  • Industrial
  • Multi-Family
  • Office
  • Retail
  • Religious

PRODUCT SPECIFICATIONS

FOR DOORS: • 1-3/8" to 1-3/4" thick • Preset for 1-3/4" door
APPLICATION: Through door thru-bolting Fits 160 and 161 Door prep
BACKSET: • 2-3/4" standard • 2-3/8", 5" optional
CHASSIS: Heavy duty zinc diecast, investment cast, cold rolled steel, stainless steel mechanism
FRONT: • 2-1/4" x 1-1/8" or 2-1/4" x 1" • Stainless Steel or Wrought Brass • Beveled 1/8" on 2"
STRIKE: ASA standard Stainless Steel or Wrought Brass T-Strike or Full Lip Strike optional

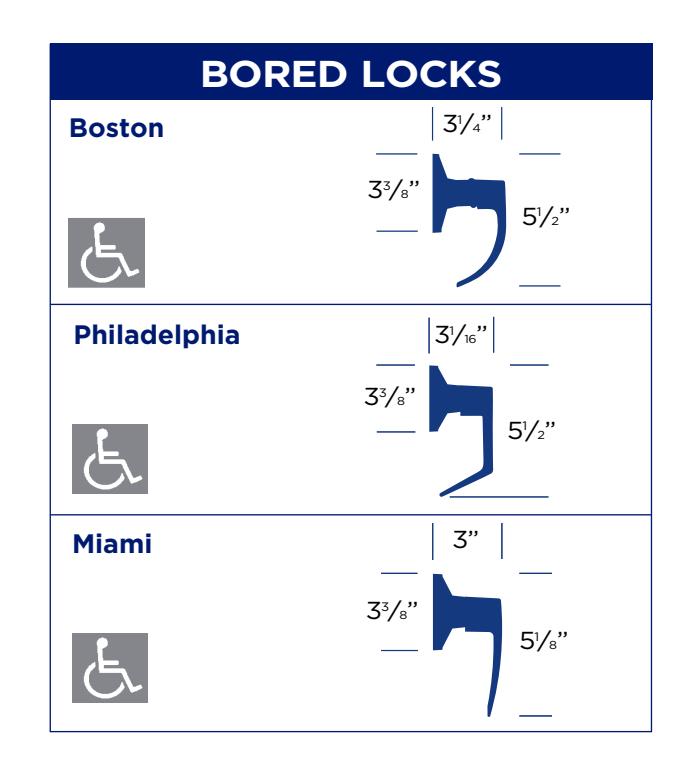

LEVERS: Philadelphia, Boston, Miami
ROSE: • 3-3/8" DIA Wrought
LATCHBOLT: • 1/2" Throw
HAND: Non-handed
TRIM:
  • Solid Zinc diecast PHL, BSN or MIA Levers
  • Concealed Screws
  • Wrought Brass Roses
KEYS: • Two (2) per Lock
KEYWAYS: SCC standard (Schlage C Compatible) Also available in keyways of other manufacturers
INTERCHANGEABLE
CORE:
  • Available for all keyed functions
  • Large Format IC Core available for PHL Lever ONLY.
  • For other lever shapes, contact PDQ Customer Service.
  • 6 or 7-pin
  • Compatible with Best, Falcon & Arrow
CYLINDER: 6-pin Brass Insert Cylinder keyed to 5-pins
KEYING:
  • Options: MK, CMK or GMK
  • Zero Bitted (KO), Keyed Different (KD) or Keyed Alike (KA) Can be keyed into existing master key systems
FINISHES:
  • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 625 (US26), 626 (US26D)
  • Optional Antimicrobial Coating
CERTIFICATIONS,
LISTINGS,
COMPLIANCES:
  • UL listed for 3 hrs, for single doors up to 4'0" x 8'0"
  • Certified to ANSI/BHMA 156.2, Grade 2
  • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY: • Eight (8) Year Limited Warranty
COUNTRY OF ORIGIN:
  • Assembled in the U.S.A. with U.S. and foreign material. Meets requirements of the Buy
    American Act.

\ frak{1} Available with antimicrobial coating, technology that is known to inhibit the growth of microbes.

CYLINDERS

PDQ cylinders and plugs are designed to interface with the keyways of most major lock manufacturers. Insert cylinders are designed to accept 6 pins and are combinated for 5 pins. These cylinders are shipped with two keys. Interchangeable core cylinders are available combinated or uncombinated for 6 and 7 pins and must be specified when ordering. Available in two finishes — US4(606) and US26D(626); specify when ordering separately.

Interchangeable core cylinder

Standard insert cylinder for 1-3/8" to 1-3/4" doors

HIGH SECURITY CORES

Also available w/a patented high security keyway in Standard, SFIC and LFIC configurations. (LFIC requires Large Format Lever)

Combination Core

IC Core

LFIC Core

STRIKES

All PDQ series locks are reversible and shipped with screws. Specify required strike when ordering by defining door frame.

"T" Strike Square Corners* 1-1/8" x 2-3/4" x 3/32"

"ASA" Strike* 1-1/4" x 4-7/8" x 3/32"

"Full Lip" Strike* 1-5/8" x 2-1/4" x 3/32"

*Not to scale

OPTIONS

  • Tactile Abrasive Coating Inside, Outside or Both Sides
  • Split Finishes

  • Lead-Lined Rose
  • Dust Box
  • Antimicrobial Coating
  • Electric Strike (UL Listed)

WHAT MAKES A GREAT LOCK

STRENGTH TEST -TORQUE ON LOCKED LEVER BHMA 400 STANDARD in-lbs 1.500 BHMA STANDARD GP SERIES in-lbs 375 LB 0 2

DURABILITY TEST — CYCLES OF OPENING AND CLOSING

BHMA STANDARD

GP SERIES

SUGGESTED ARCHITECTURAL SPECIFICATIONS

Lockset will be GP Series from PDQ Industries, Inc., Lancaster, Pennsylvania, assembled in the U.S.A., with a eight-year manufacturer's limited warranty, and be certified to ANSI/BHMA A156.2-2003, Series 4000, Grade 2. Windstorm Resistant Product Listed - ANSI A250.13-2003, ASTM E1886-02, ASTM E330-02. Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 685 lbf. Locksets shall be listed by U.L./U.L.C. for ratings of "A" (3 hours) label and less, for single doors up to 4'0" x 8'0". U.L. 10C/UBC 7-2 (1997) Positive

Pressure Rated and U.L. 10B Neutral Pressure Rated. Levers to be solid cast, with no plastic inserts, minimum 5-1/2" in overall length with supportive spring power totally independent of chassis or latch unit. Lockset to be fully adjustable for 1-3/8" to 1-3/4" doors. Positive lever stop is to be totally independent of chassis or latch mechanism. Lockset fasteners to be concealed with through-the-door through-bolt attachment outside the 2-1/8" door prep, exceeds 1600 in lbs. of torque resistance.

CROSS REFERENCE

ANSI # / FUNCTION PDQ ARROW BEST CORBIN DORMA FALCON HAGER К2 SARGENT SCHLAGE YALE
F75
PASSAGE 		GP 126 ML01 73K CL3810 CL710 B101 3510 QCL230 7U15 AL10 5301LN
F76
PRIVACY 		GP 176 ML02 73K CL3820 CL740 B301 3540 QCL240 7U65 AL40 5303LN
F82
ENTRY 		GP 182 NA 73K CL3861 CL750 B501 3550 NA NA AL50 5302LN
F109
ENTRANCE 		GP 116 ML11 73K CL3851 CL753 B511 3553 QCL250 7G05 AL53 5307LN
F84
CLASSROOM 		GP 148 ML17 73K CL3855 CL770 B561 3570 QCL260 7G37 AL70 5308LN
F86
STORE
ROOM 		GP 115 ML12 73K CL3857 CL780 B581 3580 QCL270 7G04 AL80 5305LN
SINGLE
DUMMY 		GP 211 ML08 73K CL3850 CL701 B12 3517 QCL220 7U93 AL170 5328LN

LEVER COMPARISON

PDQ ARROW BEST CORBIN DORMA FALCON HAGER K2 SARGENT SCHLAGE YALE
MIA — MIAMI VR 16 AZD LG NA AUS SLA В JUP МО
PHL —
PHILADELPHIA 		BRR 15 NZD LR D WTS PNN L SAT AU
BSN — BOSTON SR 14 PZD LC Q ARC PEA Р NEP PB

Boston

Miami

Information on this sheet is compiled form public documents and third parties. As a result, PDQ makes no guarantees as to their accuracy, content, quality or availability. Comparisons were made using the technical features only and are not commercial comparisons. Final suitability should be determined by a professional hardware consultant.

FUNCTIONS

FUNCTION FUNCTION
NUMBER 		INSIDE | OUTSIDE DESCRIPTION ANSI
NUMBER
NON KEYED
Communicating GP125
  • Latchbolt operated by inside lever
  • Blank plate outside
  • Minimum clearance of 1-1/2" between doors
  • Frame depth 7-1/8"
  • Deadlocking (guarded) latchbolt
ı
Passage GP126 Latchbolt operated by lever from either side at all times F75
Privacy
Bedroom
Bathroom 		GP176 Latchbolt operated by lever from either side or emergency release in outside lever Outside lever locked by push button on inside Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door F76
K EYED
Storeroom GP115 Latchbolt operated by inside lever or key in outside lever Outside lever always fixed F86
Entrance GP116 Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever When outside lever is locked by pushing and turning button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever F109
Classroom GP148 Latchbolt operated by lever from either side Outside lever locked by key from outside Outside lever unlocked by key from outside Inside lever always operates latch F84
Exit or Twin
Communicating 		• Latchbolt operated by inside lever • Blank plate outside • Inside lever locked by key inside • Inside lever unlocked by key inside • Minimum clearance of 1-1/2" between doors • Use only in rooms with more than one exit • Frame depth 7-1/8" Blank plate outside Inside lever locked by key inside Inside lever unlocked by key inside Minimum clearance of 1-1/2" between doors Use only in rooms with more than one exit -
Entry GP182 Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push button on inside Outside lever unlocked by key from outside, and rotating inside lever F82
DUMMY
Double Dummy GP205 Pull lever both sides No mechanical operation _
Single Dummy GP211 Pull lever one side No mechanical operation _
