Electronic Interconnect Lock

US PATENTED

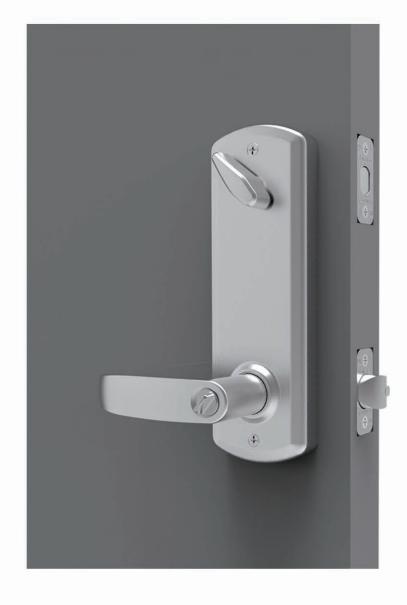

4" Entry lock with turn button shown

Mechanical Specifications

■ Door Thickness: 1-3/4"

■ Backset: 2-3/8" - 2-3/4" adjustable

Clutched trim

■ Latch Bolt: 1/2" throw stainless steel deadlocking

■ Deadbolt: 1" stainless steel deadbolt

■ Faceplates: 1" x 2-1/4" or 1-1/8" x 2-1/4"

■ Latch Strike: Full lip with radius corners

■ Deadbolt Strike: 1-1/8" x 2-3/4" radius corners with security underplate

■ 4" or 5-1/2" deadbolt center to latchbolt center distance available

■ Available Storeroom Function (always locked) or Entry Function (with Toggle passage)

■ Multiple credentials available such as keypad, RFID and BLE. Offline or online, stand-alone or Maxx Access system

Available Lever Styles

Sentinel (S)

Wolfsburg R(WR)

e-Genius

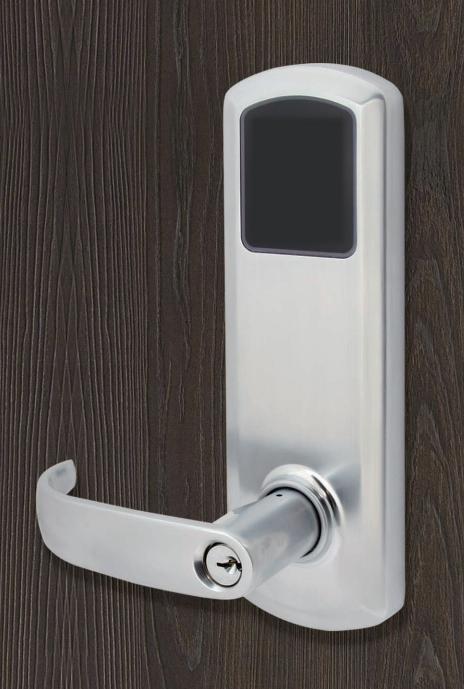

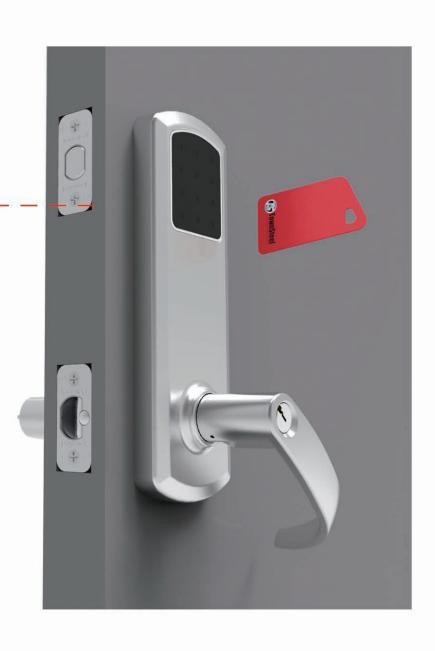

Electronic Interconnect lock with a unique and patented design

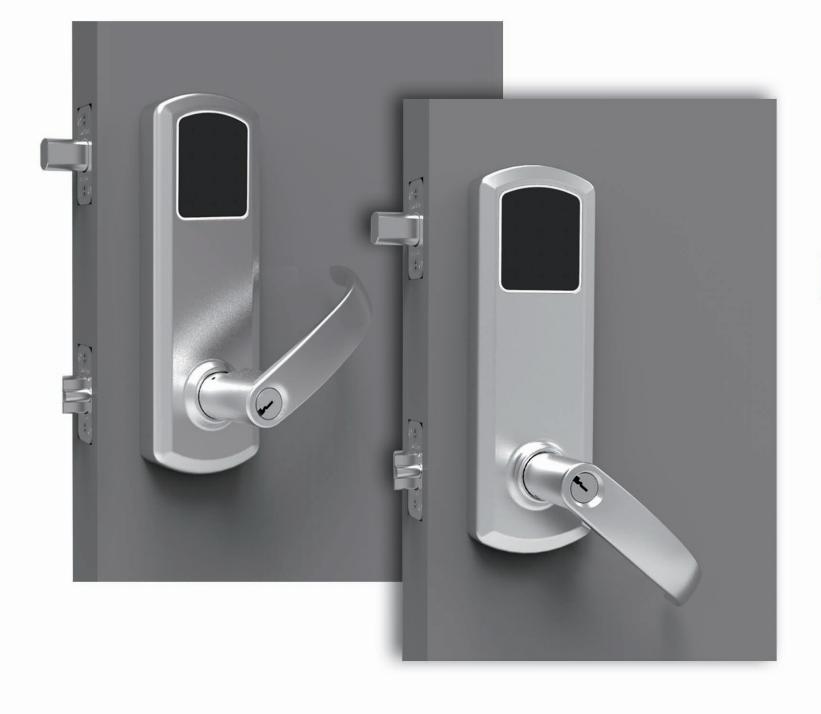

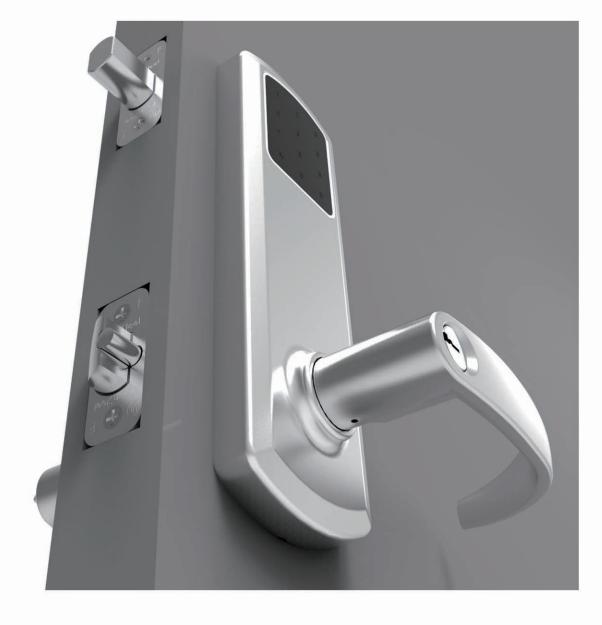

A commercial grade Interconnect Lock that offers the safety and convenience of simultaneous retraction of the latchbolt and deadbolt during entry or egress. Extending the deadbolt is done by simply lifting the inside or outside lever, no key required to securely lock your door.

Latchbolt can always be locked, so that when shutting the door, it is automatically locked. Deadbolt is extended for added security by lifiting the outside lever.

A unique, secure and stylish interconnect lock that can retract the deadbolt and latchbolt in a single motion not only from the inside but from the outside as well.

Clutching lever design: When locked, the outside lever can be rotate but will not retract the latchbolt or deadbolt.

One unique feature is that the deadbolt can be extended by simply lifting the inside or outside lever.

When thumb-turn is tilting toward the door jamb, it indicates the deadbolt is extended for added security.

Inside lever will simultaneously retract the latchbolt and deadbolt to comply with single motion egress fire code.

Outside lever, when unlocked, will simultaneously retract the latchbolt and deadbolt for easy entry.

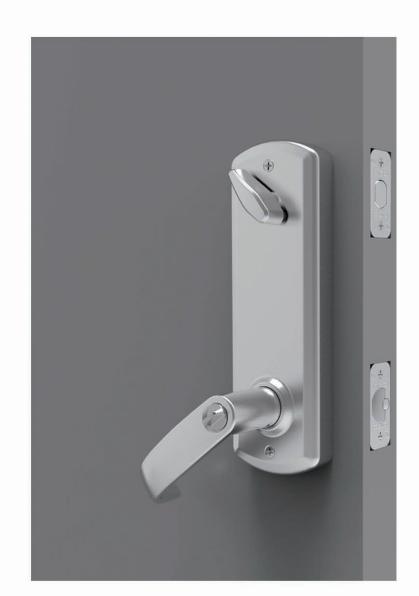

Optional inside turn (Toggle Function) will allow the user to toggle between locked or unlocked on the outside lever.

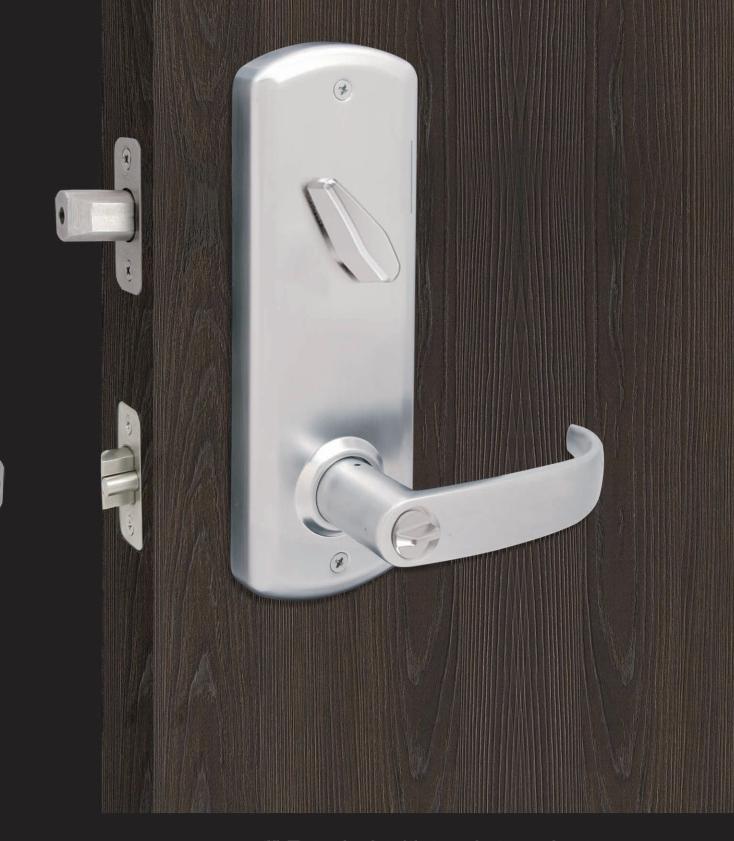

Turn button on inside lever (Toggle Function)

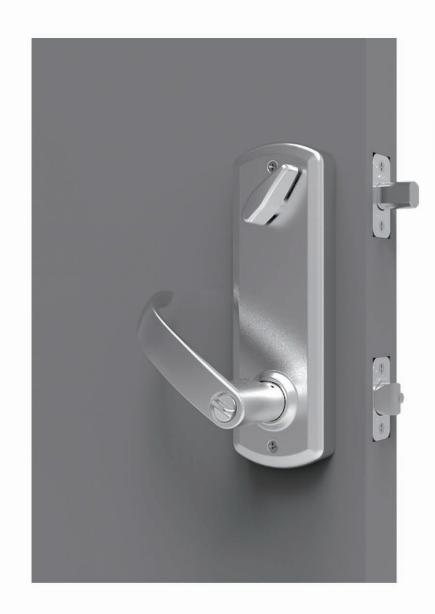

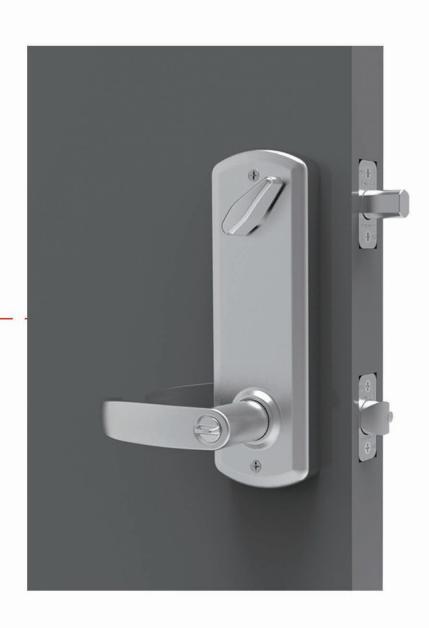

Outside lever unlocked position

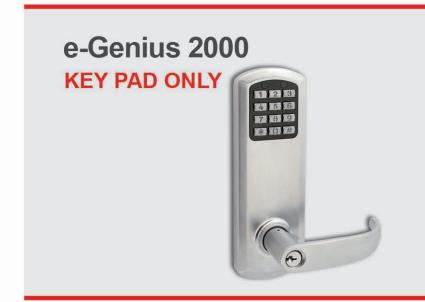

e-Genius 4000

e-Genius 5000 BLE or WIFI

e-Genius 6000

MAXX ACCESS

e-Genius Series

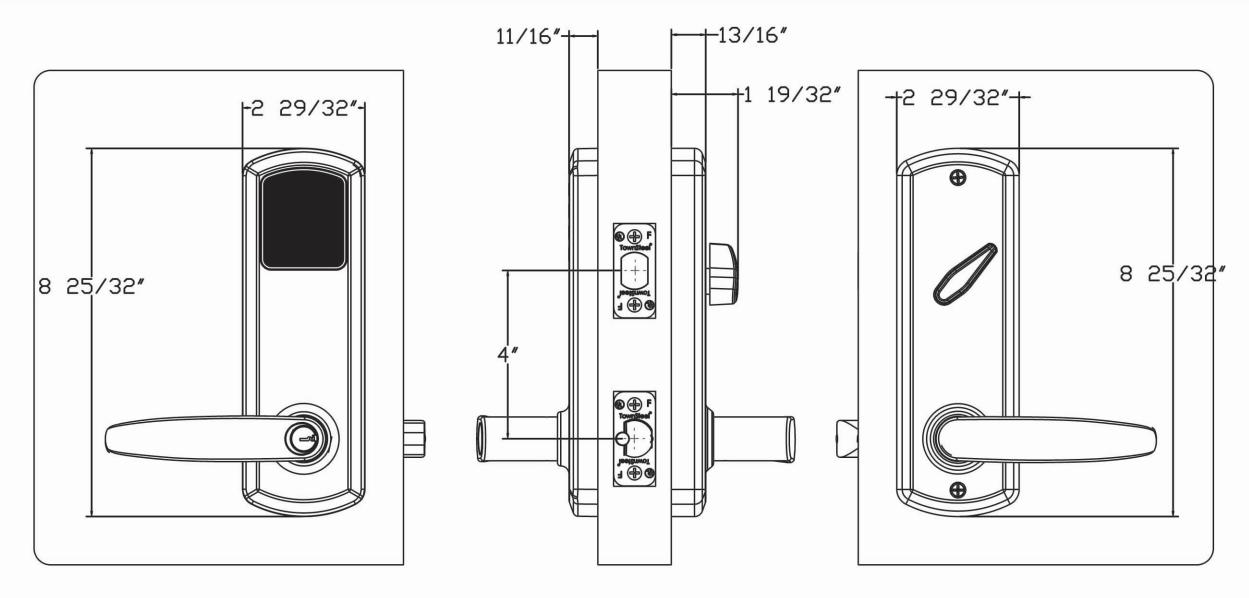

Electronic Interconnect Lock (available in 4" or 5 ½" spacing)

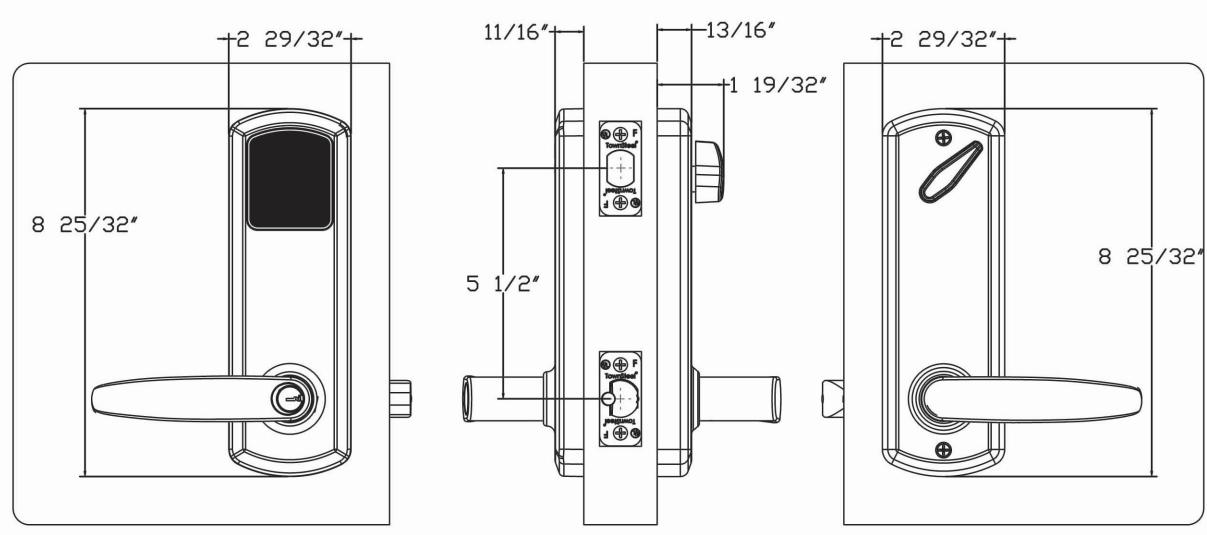

5 1/2" (55 lockbody)

How To Order
Series	e-Genius		2 . Kounad
Function	S: Storeroom / T: Entry (Toggle Function)	Model Number	2 : Keypad
Lever Style	S: Sentinel / Q: Quest / W: Wolfsburg / WR: Wolfsburg R		4 : RFID + Keypad
Handing	RH / LH / RHR / LHR		5B : RFID + Keypad + BLE
Lockbody	40: 4" / 55: 5-1/2"		5R: RFID + Keypad + RF
Faceplates	N: 1" x 2-1/4" / W: 1-1/8" x 2-1/4"		6 : RFID + MAXX ACCESS
Finish	619: US15, Satin Nickel / 622: US19, Flat Black 626: US26D, Satin Chrome / Or special color upon request		• . IN ID : IN/VX/NOCESO
	SC- 6 pin Schlage ® C keyway, standard KW10- Kwikset ® 6 pin (please specify)	Example: Model Number Lever Finish Faceplates
Cylinder	Cylinders below are available by special order SF- Small format IC (SFIC) without core
	SF6 or SF7- Best® IC core, 6 or 7 pin Best® "A" keyway SLF- Schlage® large format IC less core CLF- Corbin® 6 pin large format IC less core L6- High security 6 pin cylinder with TownSteel® "L" keyway L7- High security 7 pin cylinder with TownSteel® "L" keyway		T-SLH 626 - 55 W SC ction Handing Lockbody Cylinder
