Aluminum Continuous Geared Hinges

Full Concealed

Standard Features

Full concealed, heavy duty
•
aluminum doors
48" door width maximum
450 lbs. door weight maximum
" LL " model for doors up to 1,000 lbs. (lead-lined staggered hole pattern)
• Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws
• Standard lengths : 79", 83", 85", 95" and 120"
• Finishes : Clear, dark bronze and black anodized
• Fire Rating
- Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
- Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details

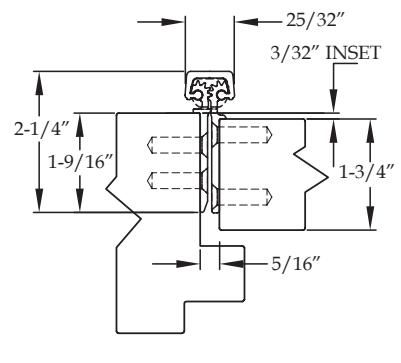

A160 HD A160 LL

Standard Features

Full concealed, heavy duty
door inset
Beveled edge on frame leaf
48" door width maximum
450 lbs. door weight maximum
" LL " model for doors up to 1,000 lbs. (lead-lined staggered hole pattern)
• Fasteners : 12-24 x ⅞" undercut self-drilling, thread-forming tek machine screws
• Standard lengths : 79", 83", 85", 95" and 120"
• Finishes : Clear, dark bronze and black anodized
• Fire Rating
- Approved for use on metal swinging type minutes (Specify " FR " option for 3 hour rating)
- Approved for use on wood swinging 60 minutes (Specify " FR " option for 90 minute rating)

Options Available

• See pages F-7 to F-8 for option availability and details

*Brand names are trademarks or registered trademarks of their respective companies.

Aluminum Continuous Geared Hinges

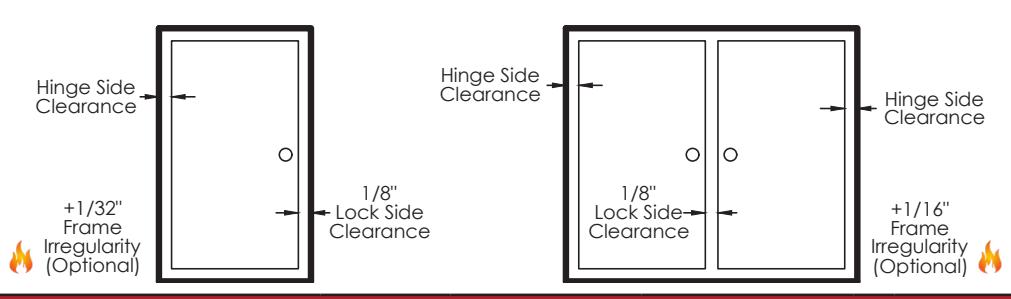

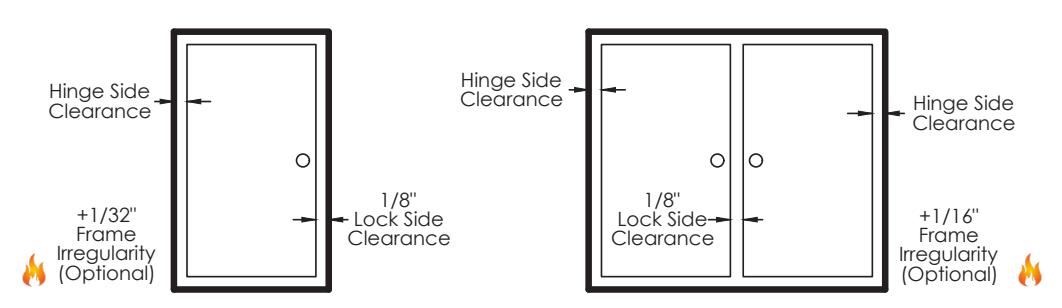

Door Clearance Chart Squared Edge

Single Door - Squared Edged
Hinge Model		Hinge Thickness	+	Lock Side Clearance	+	*Frame // Irregularity (OPTIONAL)	=	Square Edged Door Undersized (Single)
Full Concealed	A110, A110WT, A111 A111WT, A120,A140, A150, A160, A240, A260, A270, A410	5/16"	+	1/8"	+	1/32"	=	15/32"
	A130, A135	13/16"	+	1/8"	+	1/32"	=	31/32"
Half Surface	A211, A213, A450, A460, A520, A530, A540, A550	3/16"	+	1/8"	+	1/32"	=	11/32"
Full Surface	A210, A570, A571, A575	1/16"	+	1/8"	+	1/32"	=	7/32"

Single Door

Pair of Doors

Pair of Doors - Squared Edged
Hinge Model		Hinge Thickness (Pair)	+	Lock Side Clearance	+	*Frame // Irregularity (OPTIONAL)	=	Square Edged Door Undersized (Pair)
Full Concealed	A110, A110WT, A111 A111WT, A120, A140, A150, A160, A240, A260, A270, A410	5/8"	+	1/8"	+	1/16"	=	13/16"
	A130, A135	1-5/8"	+	1/8"	+	1/16"	=	1-13/16"
Half Surface	A211, A213, A450, A460, A520, A530, A540, A550	1/4"	+	1/8"	+	1/16"	=	7/16"
Full Surface	A210, A570, A571, A575	1/8"	+	1/8"	+	1/16"	=	5/16"

^{* 1/16&} quot; Frame Irregularity Allowance, Optional and included in all Total Door Undersize for single and pairs of doors

Aluminum Continuous Geared Hinges

Door Clearance Chart Beveled Edge

Single Door - Beveled Edged
Hinç	ge Model	Hinge Thickness	+	Lock Side Clearance	+	* Frame () Irregularity (OPTIONAL)	+	Beveled + Door Clearance		Beveled Edged Door Undersized (Single)
Full Concealed	A110, A110WT, A111 A111WT, A120,A140, A150, A160, A240, A260, A270, A410	5/16"	+	1/8"	+	1/32"	+	1/32"	=	1/2"
	A130, A135	13/16"	+	1/8"	+	1/32"	+	1/32"	=	1"
Half Surface	A211, A213, A450, A460, A520, A530, A540, A550	3/16"	+	1/8"	+	1/32"	+	1/32"	=	3/8"
Full Surface	A210, A570, A571, A575	1/16"	+	1/8"	+	1/32"	+	N/A	=	7/32"

Single Door

Pair of Doors

Pair of Doors - Beveled Edged
Hinç	ge Model	Hinge Thickness (Pair)	+	Lock Side Clearance	+	* Frame () Irregularity (OPTIONAL)	+	Beveled Door Clearance	=	Beveled Edged Door Undersized (Pair)
Full Concealed	A110, A110WT, A111 A111WT, A120, A140, A150, A160, A240, A260, A270, A410	5/8"	+	1/8"	+	1/16"	+	+ 1/16"	=	7 ₈ "
	A130, A135	1-5/8"	+	1/8"	+	1/16"	+	1/16"	=	1-%"
Half Surface	A211, A213, A450, A460, A520, A530, A540, A550	1/4"	+	1/8"	+	1/16"	+	N/A	=	7/16"
Full Surface	A210, A570, A571, A575	1/8"	+	1/8"	+	1/16"	+	N/A	=	5/16"

^{* 1/16&} quot; Frame Irregularity Allowance, Optional and included in all Total Door Undersize for single and pairs of doors

INSTALLATION INSTRUCTIONS FOR FULL CONCEALED HINGES

A110HD/LL, A111HD/LL, A130HD, A135HD, A140HD/LL, A150HD/LL, A160HD/LL A240HD/LL, A260HD/LL, A270HD/LL, A280HD/LL & A410HD/LL

A. All uncut standard length hinges are non-handed and can be used for right or left hand doors.
B. Standard length hinges are supplied slightly shorter than nominal door height to accommodate threshold and carpeting clearances.

CUTTING THE HINGE TO FIT

· Keep hinge in the closed position
· Determine HANDING if required. Not all hinges will become handed after cutting.
· Cut one end of the hinge only. Cut end will be installed at the bottom (Six-hole pattern remains at the top)
· Use a Metal Cutting Saw cut through the gear cap first.

Note: If cut length interferes with a set screw bearing remove it and switch it with a plain bearing above the cut location.

FRAME PREP

With the hinge in the open position

1. Locate the top of the hinge 1/8" below the header

With the frame leaf flange tight against the frame

2. Mark or Center Punch hole locations

Note: If using wood screws drill a 5/32" pilot hol e DO NOT ATTACH HINGE TO FRAME AT THIS TIME

ATTACH THE HINGE TO THE DOOR

4. Position Door Leaf on door. Door leaf alignment flange or door leaf lip must be seated against door edge.
5. Align the top end of the hinge to be absolutely flush with the top of the door.
6. Mark or Center Punch hole locations
7. Using the provided Self Drilling/Thread Forming Screws and the proper drive bit please proceed to attach the hinge to the door Note: If using wood screws drill a 5/32" pilot hol e.

ATTACHING DOOR TO FRAME

8. Position door 90 degrees to frame
9. Shim door to the proper height to line up the screw holes in hinge frame leaf with the marks at the top of the frame.
10. Install two screws at the top of the hinge to hold in place
11. Remove shim and align the remaining holes. Install two additional screws in the middle and at the bottom.
12. Check door for proper swing and clearance before installing remaining screws, making necessary adjustments.
13. Install the remaining fasteners after any adjustments are made.

REINFORCING AND RIVNUTS

· No reinforcing is necessary except on extremely high-frequency, extremely heavy or extra-wide doors.
· Rivnuts are recommended for use in the frame when the door exceeds 450lbs.

Note:RIVNUTS are not to be used with Fire Rated Hinges

PAIRS OF DOORS WITH MULLIONS

· If the mullion is between the doors, install as single doors.
· If the mullion is behind the doors, install as a double doors.

GROUT/SLUSHED-IN FRAMES

It is recommended that a mudguard be installed behind the frame for ease of installation. Do not use self-drill screws with grouted steel frames without a mudguard. If no mudguard has been used, drill holes through frame and remove grout for screw clearances. Do not oversize hole.

	SCREW DETAIL
FRAME	12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF DRILLING, THREAD FORMING TEK MACHINE SCREW
DOOR	12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF DRILLING, THREAD FORMING TEK MACHINE SCREW

Note: #12 x 1-1/2" FLAT HEAD UNDERCUT WOOD SCREWS AVAILABLE UPON REQUEST

The following actions will void any warranty, expressed or implied.

· Failure to Install the hinge according to ABH's specifications and requirements
· Use of Fasteners other than those supplied with the hinge.
· Unauthorized field modifications including removing any of the bearings, altering the original finish or painting the hinge.

www.abhmfg.com E-mail: bhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

REVISED 9-17-20 PAGE 1 OF 1 FULL CONCEALED INSTALLATION INSTRUCTIONS FM INSTALLATION-05.DWG

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

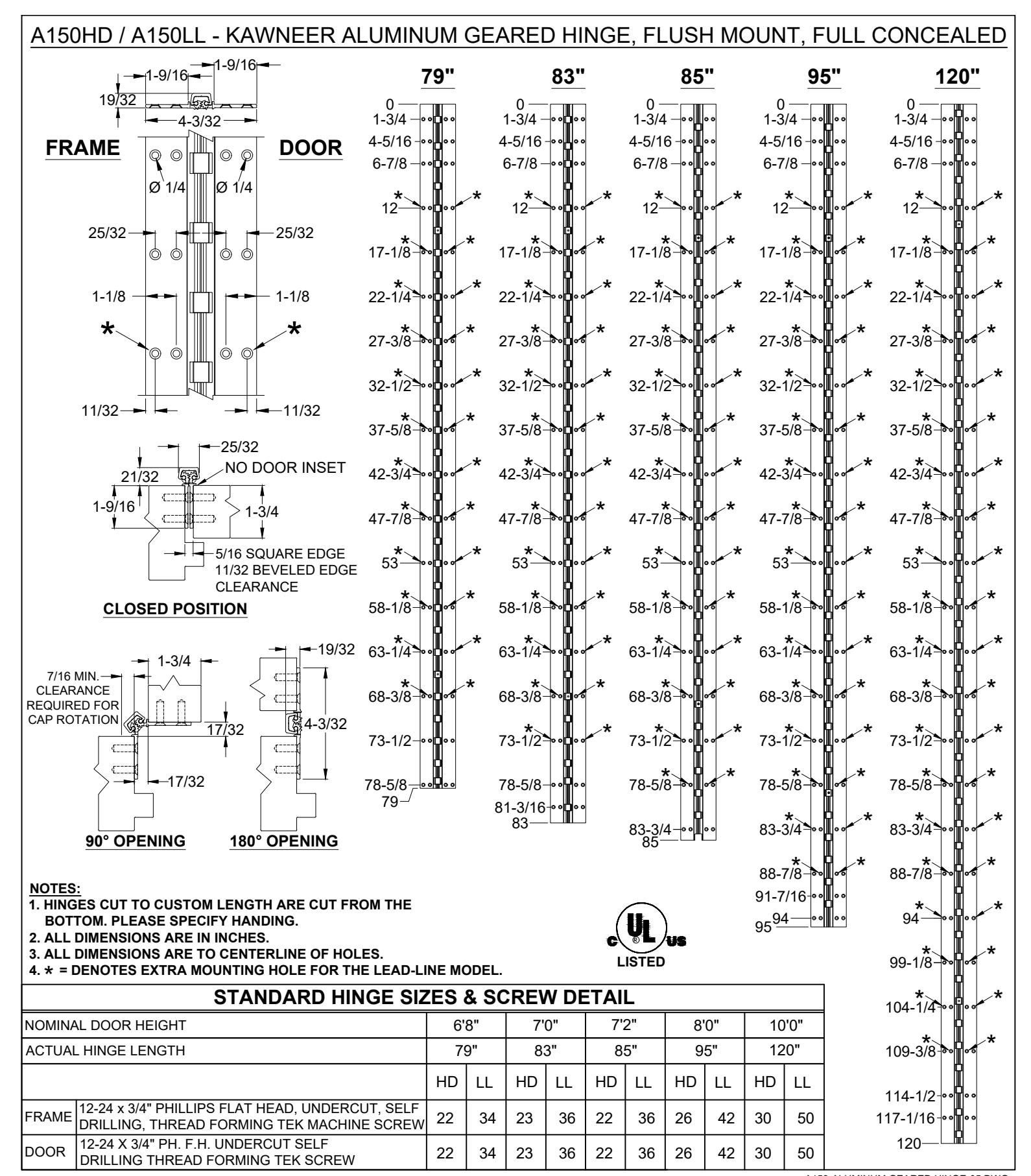

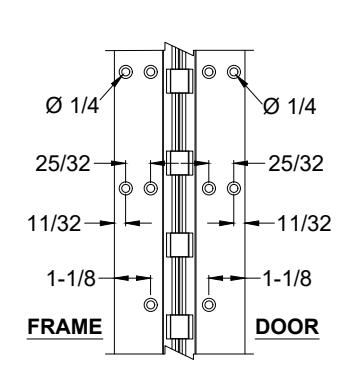

A150-ALUMINUM GEARED HINGE-05.DWG

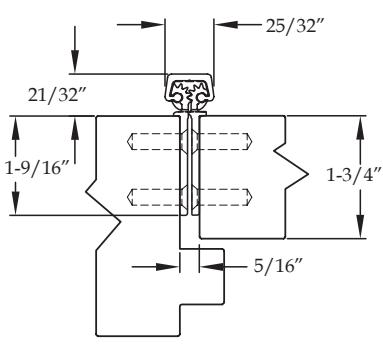

A150 ALUMINUM GEARED HINGE

PAGE 1 OF 1 REVISED 9-10-20

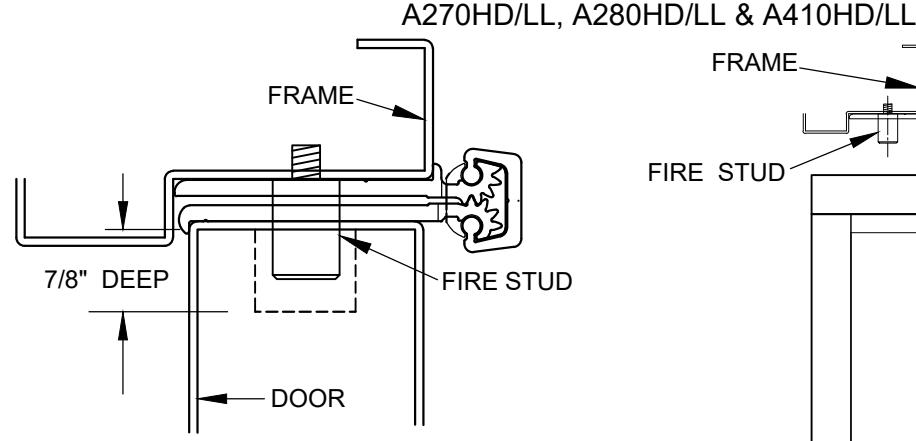

UL FIRE RATED STUDS FOR INSTALLATION FULL CONCEALED ALUMINUM GEARED HINGES

FRAME

FIRE STUD

DOOR SHOWN CLOSED WITH FIRE STUD IN PLACE USING MODEL A240HD HINGE

NOTES:

1. INSTALL HINGE PER INSTALLATION INSTRUCTIONS FOR EACH MODEL.
2. FOR THE FRAME SIDE DRILL AND TAP (4) 12-24 HOLES FOR FIRE STUDS.
3. FOR THE DOOR SIDE DRILL (4) 3/4" DIA. HOLES IN THE DOOR TO CORRESPOND TO THE STUD HOLES IN THE FRAME SIDE.
4. INSERT STUDS IN THE FOUR (4) TAPPED FRAME HOLES, TIGHTEN SECURELY.
5. SLOWLY CLOSE DOOR MAKING SURE THAT THE STUDS ARE PROPERLY ALIGNED.
6. MINOR INTERFERENCE CAN BE TAKEN CARE OF WITH A ROUND METAL FILE.

S O D I M E N I N
" " A H I N G E L E N G T H	" 9 7	" 8 3	" 8 5	" 9 5	" 1 2 0
" " B	" 1 2	" 1 2	" 1 2	" 1 2	" 1 2
" " C	" 2 5 3 / 8 -	" 2 7 3 / 8 -	" 2 8 3 / 8 -	" 3 2 3 / 8 -	" 4 2 1 / 2 -
" " D	" 3 / 8 5 5 -	" / 8 5 5 5 -	" 6 / 8 5 5 -	" 6 2 / 8 5 -	" 1 / 2 7 7 -
" " E	" 6 7	" 1 7	" 7 3	" 8 3	" 1 0 8

HOLES ON THE FRAME, DRILL AND TAP (4)12-24 HOLES

1/2 THE DOOR THICKNESS + 1/32" FROM CENTER OF HOLE TO EDGE OF FRAME

ALL FOUR (4) STUDS MUST BE INSTALLED TO COMPLY WITH U.L. RATING

DOOR SHOWN OPEN 180°

printed in USA www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

FRAME

FIRE STUD - FULL CONCEALED-03.DWG

FIRE STUD - FULL CONCEALED

DOOR

c 2021 ABH Mfg., Inc.

CL OF BEARING

DOOR

7/8" DEEP

STD. ¹ ⁸ "

CLEARANCE

² DOOR THICKNESS

ON THE DOOR DRILL (4) ³

⁴ " DIA.

REVISED 11-22-21 PAGE 1 OF 1

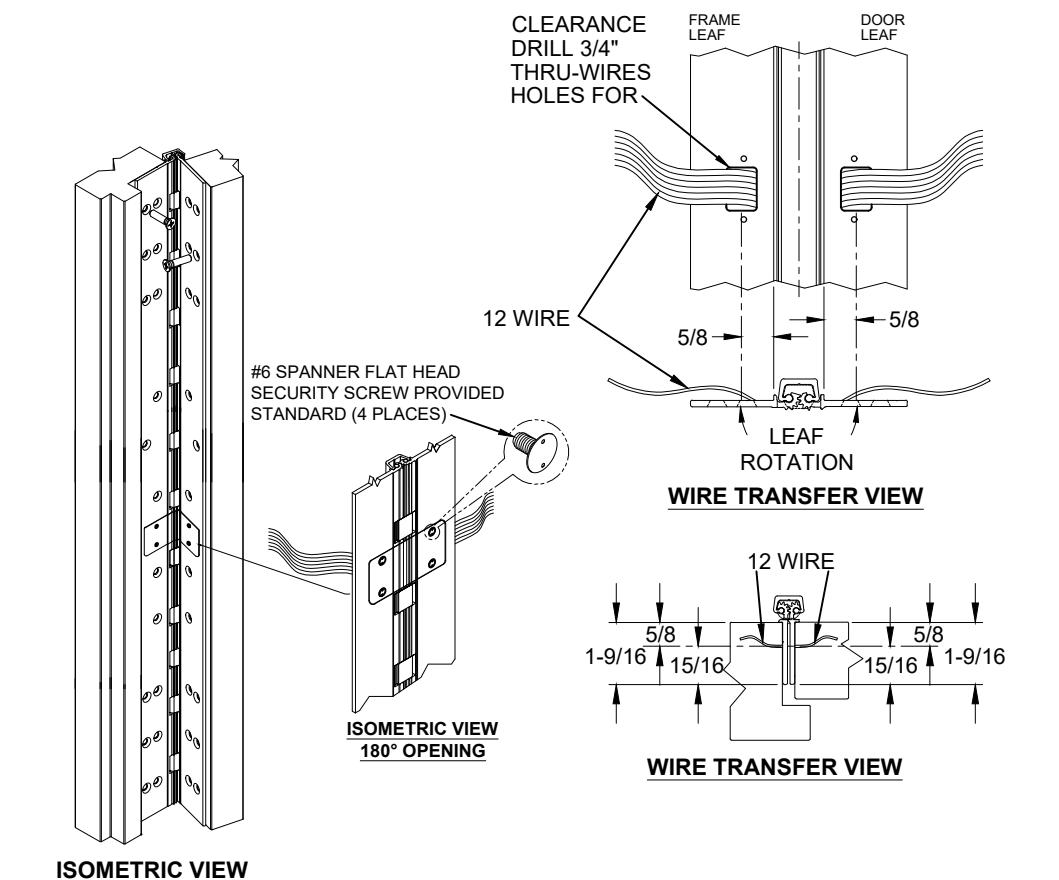

A150HD - "EA" & "R" OPTION, KAWNEER, EASY ACCESS WITH REMOVABLE OPTION, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE 83" *85" *95" 120" NON-HANDED NON-HANDED NON-HANDED NON-HANDED NON-HANDED 1-3/4 1-3/4 1 - 3/41-3/4 1 - 3/44-5/16 4-5/16 4-5/16 4-5/16 4-5/16 6-7/8 6-7/8 6-7/8 6-7/8 6-7/8 12 12 12 12 17-1/8 17-1/8 17-1/8-17-1/8 17-1/8 22-1/4 22-1/4 22-1/4 22-1/4 22-1/4 27-3/8 27-3/8 27-3/8 27-3/8 27-3/8 32-1/2 32-1/2 32-1/2-32-1/2 32-1/236-1/8 36-1/8 37-1/2 37-1/2 37-5/8 37-5/8 37-5/8 39-9/16 39-9/16 41-3/8 42-5/8 42-5/8 42-5/8 42-5/8 42-3/4 * 44-13/16 * 44-13/16 -46-5/846-5/8-47-5/8 47-5/8 47-3/4 47 - 3/447-7/8 50-1/16 50-1/16 52-3/4 52-3/4 52-3/4 52-3/4 53-7/8 57-7/8 57-7/8 57-7/8 57-7/8 * 61-5/32→ 63 63 63-1/8 63 63 65-7/8 68-1/8 68-1/8 68-1/8-68-1/8 68-1/8-73-1/4 73-1/4 73-1/4 73-1/4 73-1/4 78-3/8 78-3/8 78-3/8 78-3/8 78-3/8 79-80-15/16 82-3/4 83-1/2 83-1/2 83-1/2 12 WIRE STANDARD *THE THRU WIRING IS NOT 88-5/8 88-5/8 CENTERED IN THE HINGE 93-3/4 NOTES: 1. HINGES CUT TO CUSTOM LENGTH ARE *THE THRU WIRING IS NOT 98-7/8 CUT FROM BOTTOM OF HINGE. CUSTOM CENTERED IN THE HINGE CUT HINGE REQUIRES HANDING. 104 R = REMOVABLE. (3) INDIVIDUAL HINGES. THRU WIRE CAN BE REMOVED TO ACCESS WIRES. 109-1/8 STANDARD HINGE SIZES & SCREW DETAIL NOMINAL DOOR HEIGHT 7'0' 7'2" 8'0' 6'8' 10'0' 114-1/4 ACTUAL HINGE LENGTH 79' 83' 85' 95' 120' 12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF 21 23 30 21 26 DRILLING, THREAD FORMING TEK MACHINE SCREW *THE THRU WIRING IS NOT 12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF DOOR 23 21 26 30 21 DRILLING, THREAD FORMING TEK MACHINE SCREW CENTERED IN THE HINGE A150HD- EA & R, ELECTRICAL MODIFICATION WITH REMOVABLE OPTION-1-03

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A150HD - "EA" & "R" ELECTRICAL MODIFICATION WITH REMOVABLE OPTION PAGE 1 OF 2

REVISED 8-11-21

A150HD - "EA" & "R" OPTION, KAWNEER, EASY ACCESS WITH REMOVABLE OPTION, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE

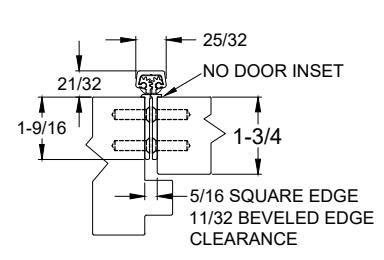

CLOSED POSITION

NOTES:

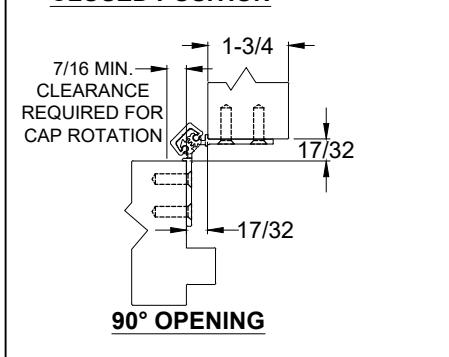

~90° OPENING

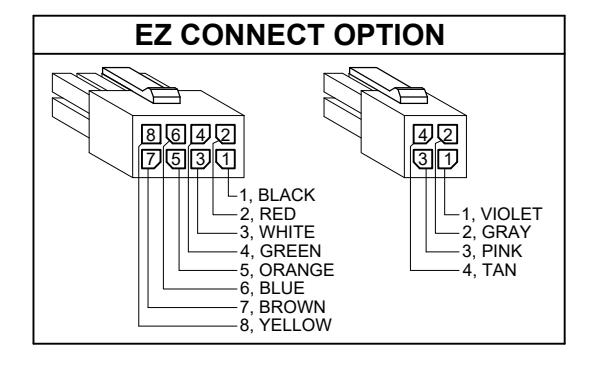

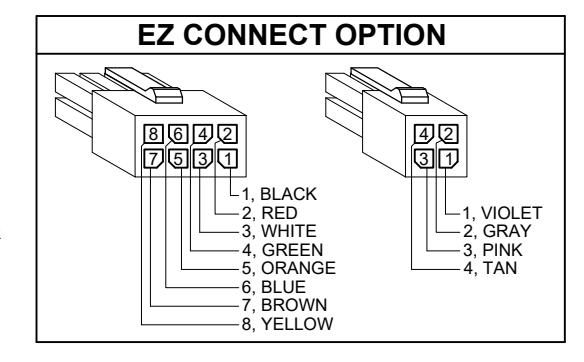

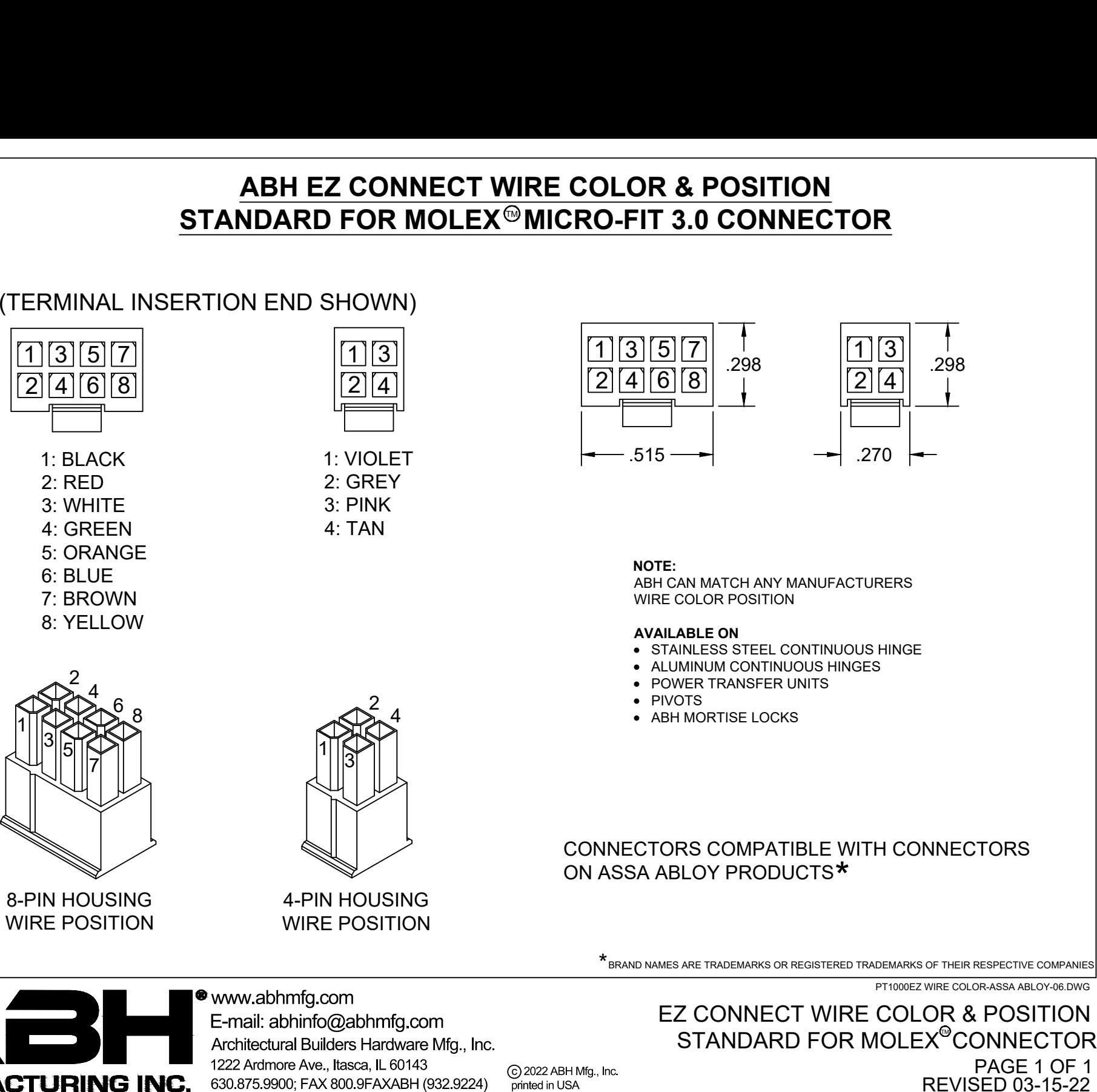

1. MOLEX ® CONNECTOR OPTION AVAILABLE - SUFFIX "EZ".
- * SPECIFY ELECTRIFIED HARDWARE MANUFACTURER FOR CONNECTOR COMPABILITY

180° OPENING

SPECIFICATION:

DESCRIPTION: SINGLE CONDUCTOR #22 AWG MINIATURE HOOK-UP

WIRE FOR APPLICATIONS REQUIRING EXTREME FLEXIBILITY.

CONDUCTOR: #22 AWG 168/44 (0.002") SOFT BARE COPPER LHL.

INSULATION: PROPRIETARY FORMULATION PVC 0.010" NOM. WALL MEETS

printed in USA

VW-1 FLAME REQUIREMENT.

DIAMETER: 0.053" ± 0.003".

RESISTANCE: 16.7 OHMS MAX. @ 20°C, PER 1000 FT.

VOLTAGE RATING: 600 VOLTS RMS, DEPENDING ON SPECIFICATION.

AVAILABLE AS ROHS COMPLIANT.

A150HD- EA & R, ELECTRICAL MODIFICATION WITH REMOVABLE OPTION-2-03

MANUFACTURING INC.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A150HD- EA OPTION, EASY ACCESS ELECTRICAL MODIFICATION-1-03

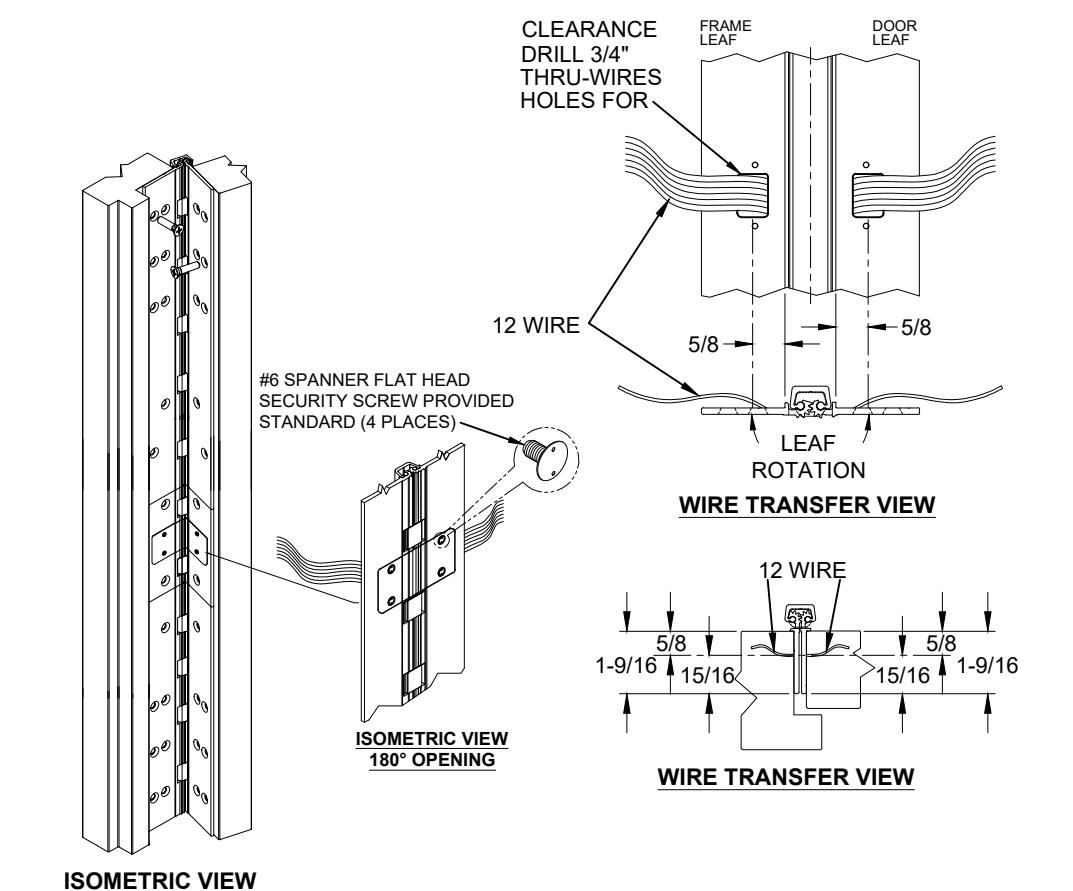

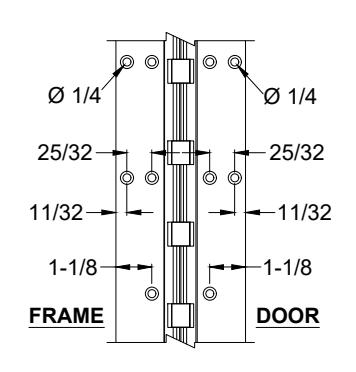

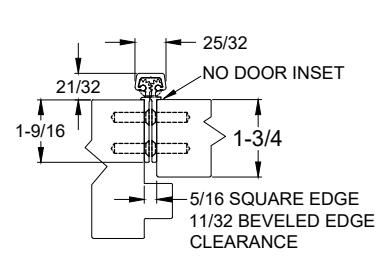

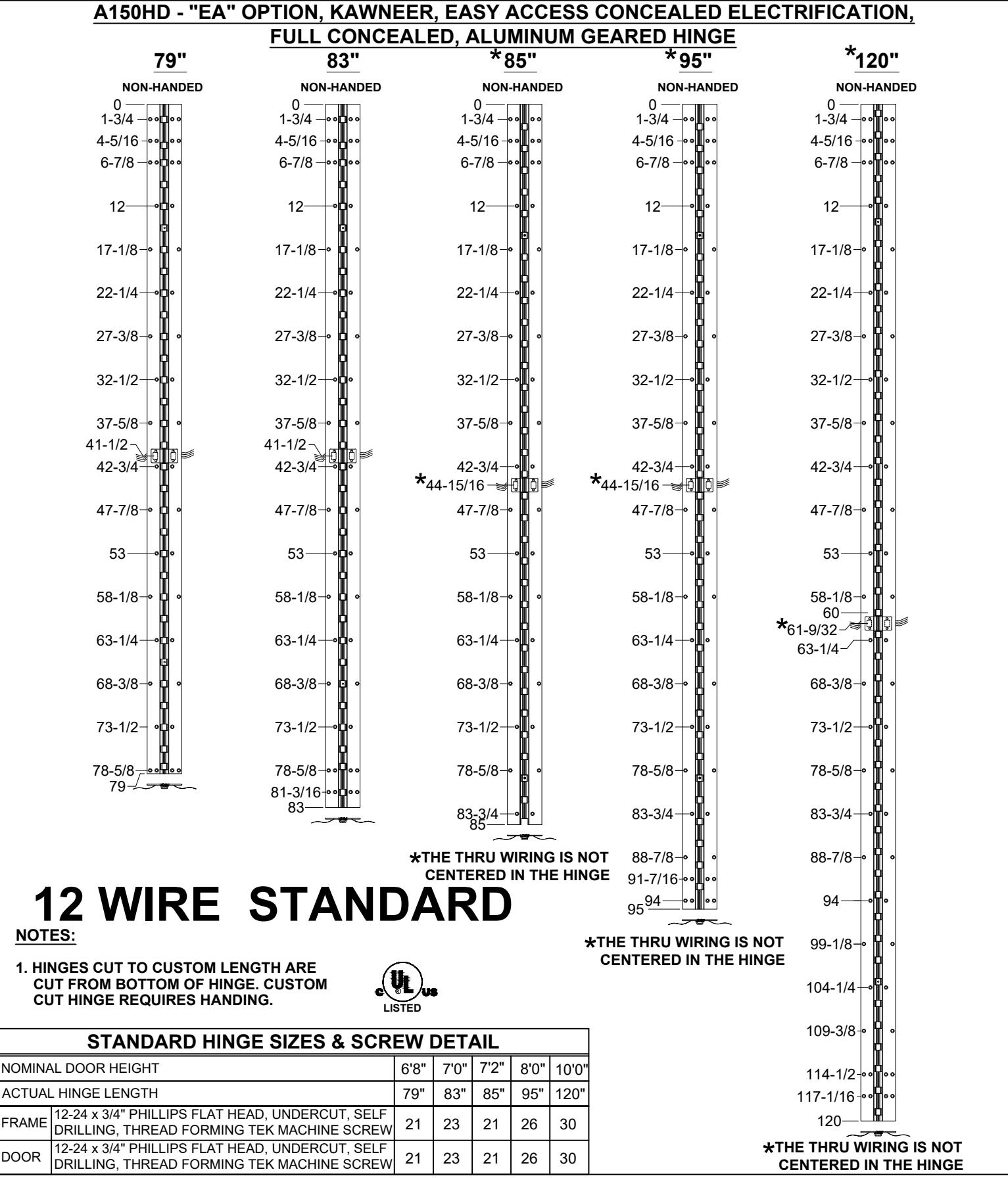

A150HD - "EA" OPTION EASY ACCESS CONCEALED ELECTRIFICATION

PAGE 1 OF 2 REVISED 08-11-21

A150HD - "EA" OPTION, KAWNEER, EASY ACCESS CONCEALED ELECTRIFICATION, FULL CONCEALED. ALUMINUM GEARED HINGE

CLOSED POSITION

NOTES:

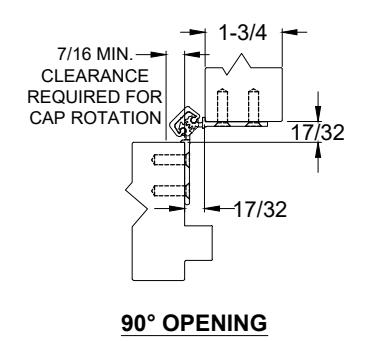

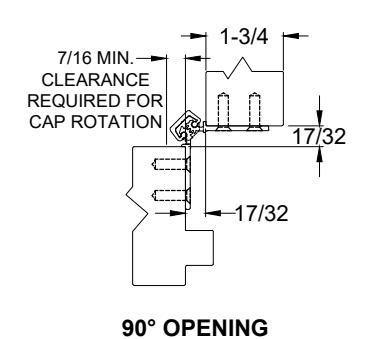

~90° OPENING

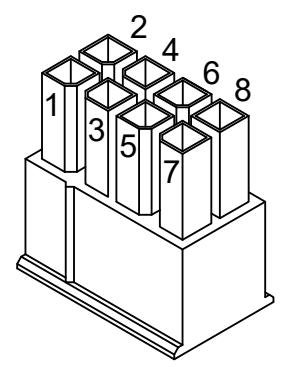

MOLEX ® CONNECTOR OPTION AVAILABLE - SUFFIX "EZ".
- * SPECIFY ELECTRIFIED HARDWARE MANUFACTURER FOR CONNECTOR COMPABILITY

180° OPENING

SPECIFICATION:

DESCRIPTION: SINGLE CONDUCTOR #22 AWG MINIATURE HOOK-UP

WIRE FOR APPLICATIONS REQUIRING EXTREME FLEXIBILITY.

CONDUCTOR: #22 AWG 168/44 (0.002") SOFT BARE COPPER LHL.

INSULATION: PROPRIETARY FORMULATION PVC 0.010" NOM. WALL MEETS

VW-1 FLAME REQUIREMENT.

DIAMETER: 0.053" ± 0.003".

RESISTANCE: 16.7 OHMS MAX. @ 20°C, PER 1000 FT.

VOLTAGE RATING: 600 VOLTS RMS, DEPENDING ON SPECIFICATION.

AVAILABLE AS ROHS COMPLIANT.

A150HD- EA OPTION, EASY ACCESS ELECTRICAL MODIFICATION-2-03

A150HD - "EA" OPTION EASY ACCESS CONCEALED ELECTRIFICATION

PAGE 2 OF 2 REVISED 8-11-21

ABH. MANUFACTURING INC.

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A150HD - "ES" OPTION, KAWNEER, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE

DRILLING THREAD FORMING TEK SCREW

DOOR

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A150HD-ES OPTION, CONCEALED ELECTRIFICATION-1-04

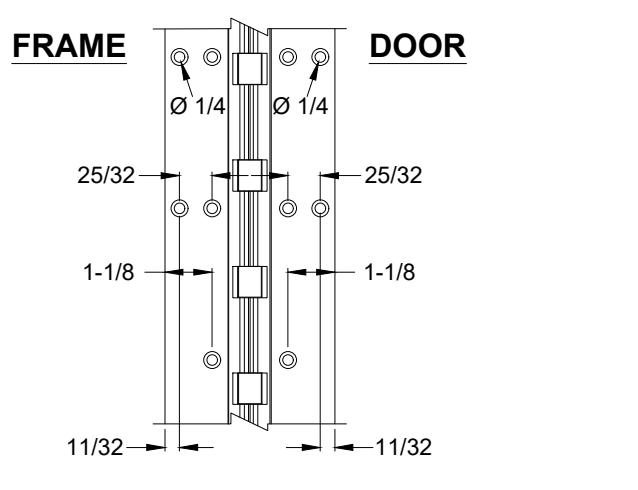

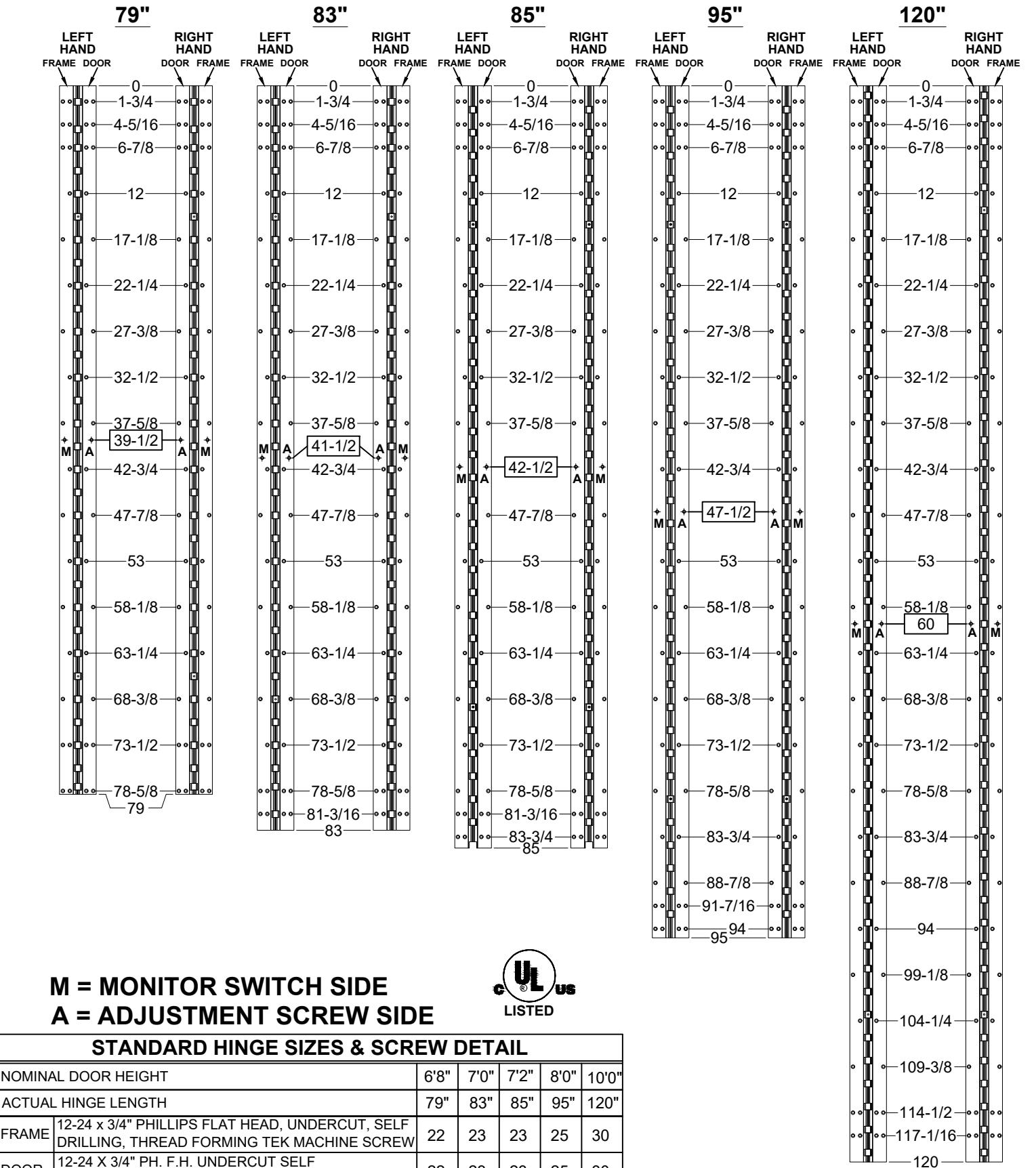

A150HD - "ES" OPTION CONCEALED ELECTRIFICATION

PAGE 1 OF 2 REVISED 8-11-21

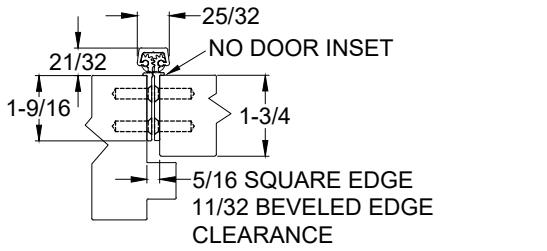

A150HD - "ES" OPTION, KAWNEER, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE

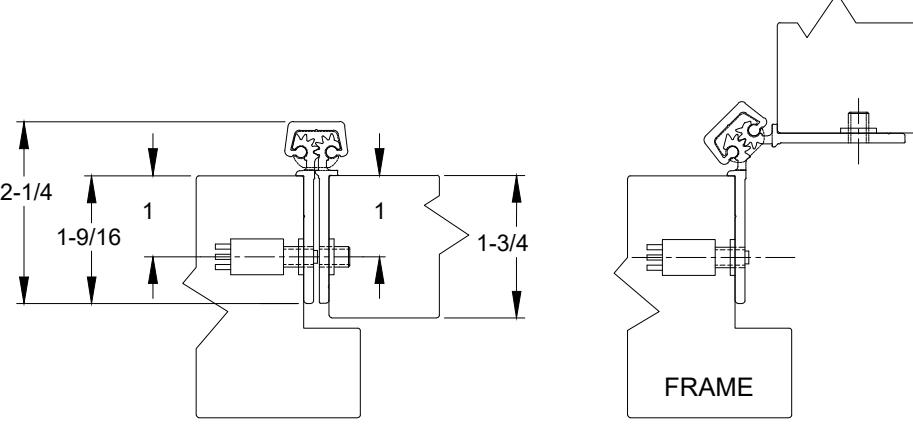

CLOSED POSITION

NOTES:

1. HINGES CUT TO CUSTOM LENGTH ARE CUT FROM BOTTOM OF HINGE.
2. SPECIFY HANDING WHEN ORDERING.
3. IF "M" OPTION (MOVEABLE PANEL) OR "R" OPTION (REMOVABLE PANEL) IS CHOSEN, TEMPLATE REMAINS THE SAME.

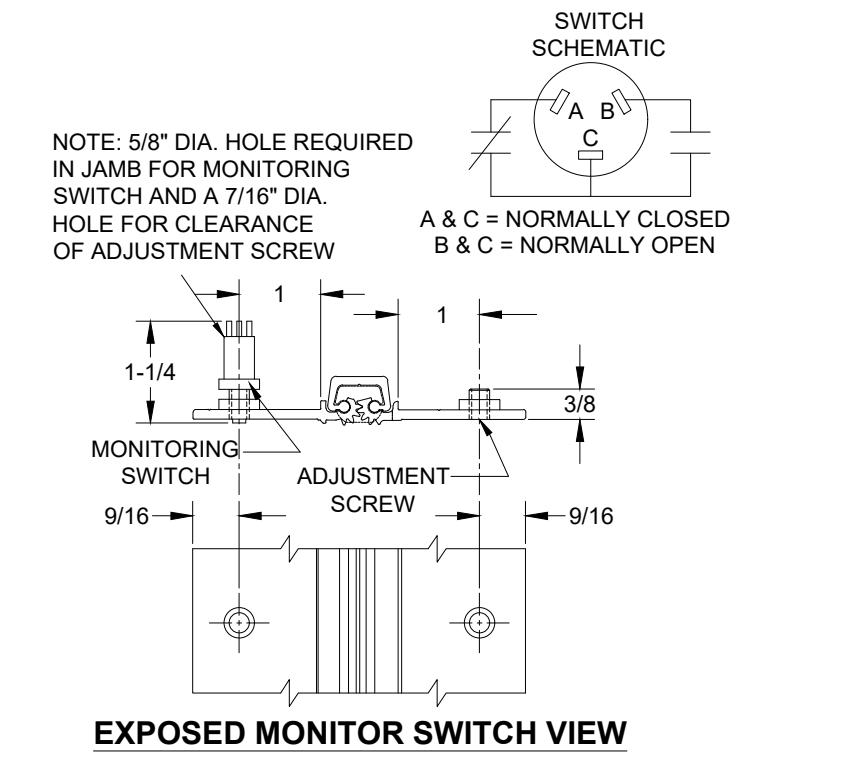

EXPOSED MONITOR SWITCH VIEW, LEFT HAND SHOWN

A150HD-ES OPTION, CONCEALED ELECTRIFICATION-2-04 A150HD - "ES" OPTION CONCEALED ELECTRIFICATION www.abhmfg.com E-mail: abhinfo@abhmfg.com

Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

REVISED 8-11-21 PAGE 2 OF 2

DOOR

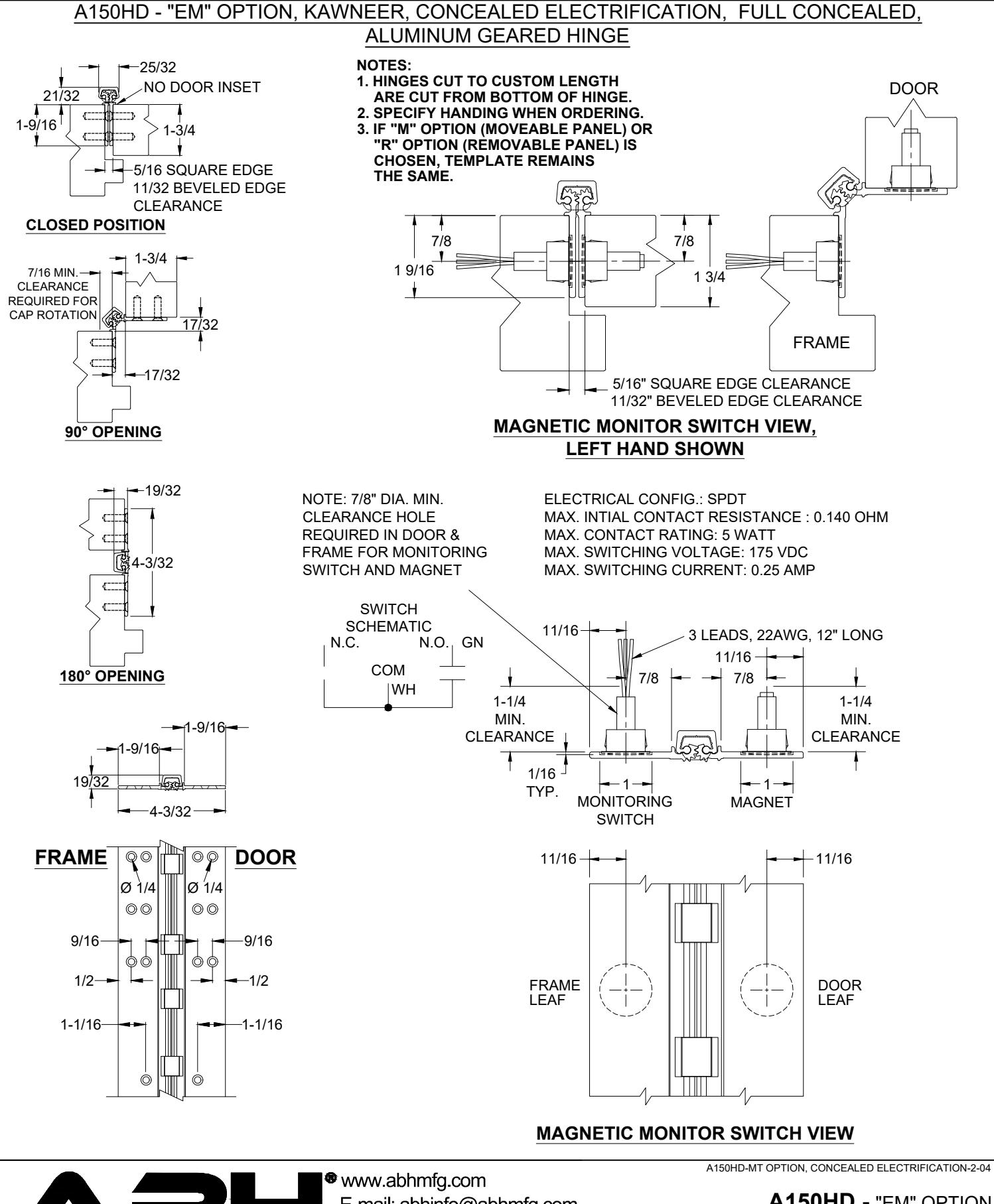

A150HD - "EM" OPTION, KAWNEER, CONCEALED ELECTRIFICATION, FULL CONCEALED, ALUMINUM GEARED HINGE 79" 83" 85" 95" 120" LEFT HAND LEFT HAND RIGHT HAND RIGHT LEFT RIGHT RIGHT LEFT HAND RIGHT HAND HAND HAND HAND HAND HAND RAME DOO DOOR FRAME AME DO DOOR FRAME DOOR FRA DOOR FRAME AME DO 1 - 3/4-3/4-3/4 4-5/16 4-5/16 -5/166-7/8 17-1/8 17-1/8 17-1/8 17-1/8 17-1/8 22-1/4 27-3/8 27-3/8 27-3/8 27-3/8 27-3/8 32-1/2 32-1/2 37-5/8 37-5/8 37-5/8 37-5/8 37-5/8 39-1/2 41-1/2 42-1/2 42 - 3/442-3/4 42-3/4 42-3/4 47-1/2 47-7/8 47-7/8 47-7/8 47-7/8 58-1/8 58-1/8 58-1/8 58-1/8 60 63-1/4 63-1/4 63-1/4 63 - 1/463 - 1/468-3/8 68-3/8 68-3/8 68-3/8 68-3/8 73-1/2 73-1/2 73-1/2 73-1/2 73-1/2 78-5/8 78-5/8 78-5/8 78-5/8 81-3/16 83 83-3/4 88-7/8 99 - 1/8M = MONITOR SWITCH SIDE U = MAGNET SIDE STANDARD HINGE SIZES & SCREW DETAIL 109-3/8 NOMINAL DOOR HEIGHT 7'0" 7'2" 6'8" 8'0" 10'0' ACTUAL HINGE LENGTH 120' 79' 83' 85 95' 12-24 x 3/4" PHILLIPS FLAT HEAD, UNDERCUT, SELF FRAME 22 23 23 25 30 DRILLING, THREAD FORMING TEK MACHINE SCREW 12-24 X 3/4 PH. F.H. UNDERCUT SELF DOOR 22 23 25 30 23 DRILLING THREAD FORMING TEK SCREW

www.abhmfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A150HD-EM OPTION, CONCEALED ELECTRIFICATION-1-04

A150HD - "EM" OPTION CONCEALED ELECTRIFICATION

PAGE 1 OF 2 REVISED 8-11-21

MANUFACTURING INC.

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

A150HD - "EM" OPTION CONCEALED ELECTRIFICATION

PAGE 2 OF 2 REVISED 8-11-21

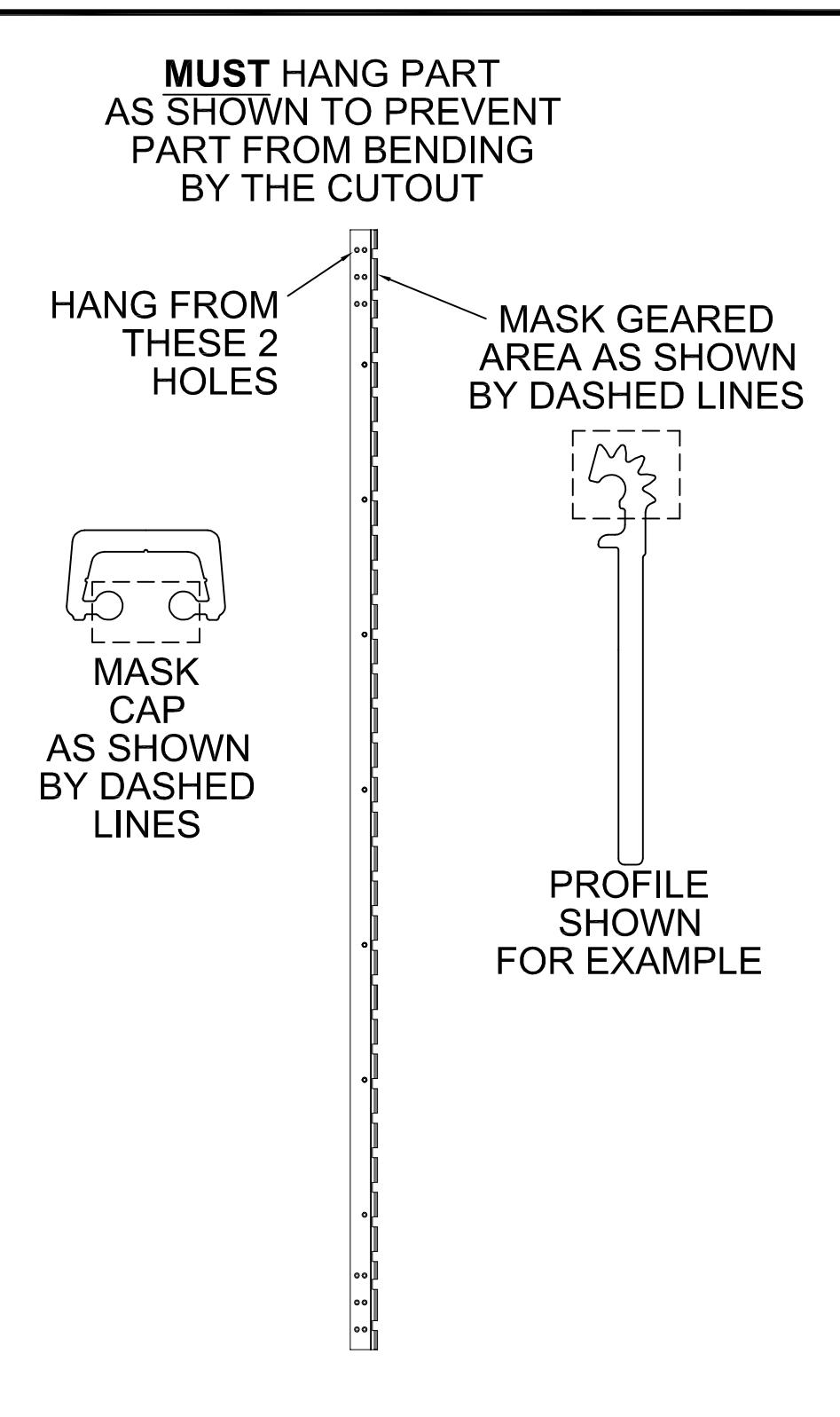

POWDER COAT MASKING

www.abhmfg.com F mail: abbinfg.com

E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

POWDER COAT MASKING-00.DWG

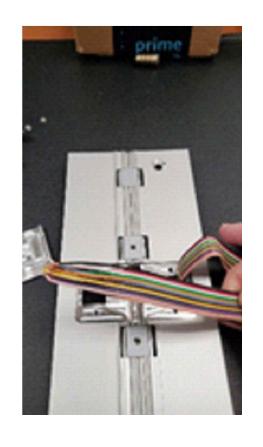

EA THRU-WIRE REPLACEMENT INSTRUCTIONS

Removal of Old Wires

1. Turn off Power to avoid shock.
2. Remove (4) #6 Spanner Flat Head Screws from the covers on the face of each hinge leaf.

3. Remove (2) covers to expose the wires.

4. Pull wires through opening and disconnect from power source and electrified hardware.

EA THRU-WIRE REPLACEMENT.DWG

EA THRU-WIRE REPLACEMENT INSTRUCTIONS

Installation of New Wire Ribbon

All wire connections must follow local codes and/or ABH Manufacturing's Minimum Requirements** to ensure proper and lasting connections

**ABH requires the use of wire nuts and electrical tape or Crimp Connectors when connecting wires to their source or supplied EZ Connectors

1. Connect wire to the power source (FRAME SIDE) and pass wires back through hinge and frame opening.
2. Connect wires on DOOR side to electrified hardware and pass wires back through the hinge and door opening.
3. Excess Wire Ribbon should then be folded into the void of the cap.

4. Once wires are properly connected, line up the Thru-Wire Face plate gears and fasten with (4) #6 Spanner Flat Head Screws, making sure the plates sit flush to the face of the hinge leafs.

5. Turn Power back on

www.abhmfg.com E-mail: abhinfo@abhmfg.com Architectural Builders Hardware Mfg., Inc. 1222 Ardmore Ave., Itasca, IL 60143 630.875.9900; FAX 800.9FAXABH (932.9224)

EA THRU-WIRE REPLACEMENT.DWG
