we're creating the future of home security.

175 years in the making..

Still pioneering.

Since 1843 we have provided the security to protect what matters most in over 125 countries.

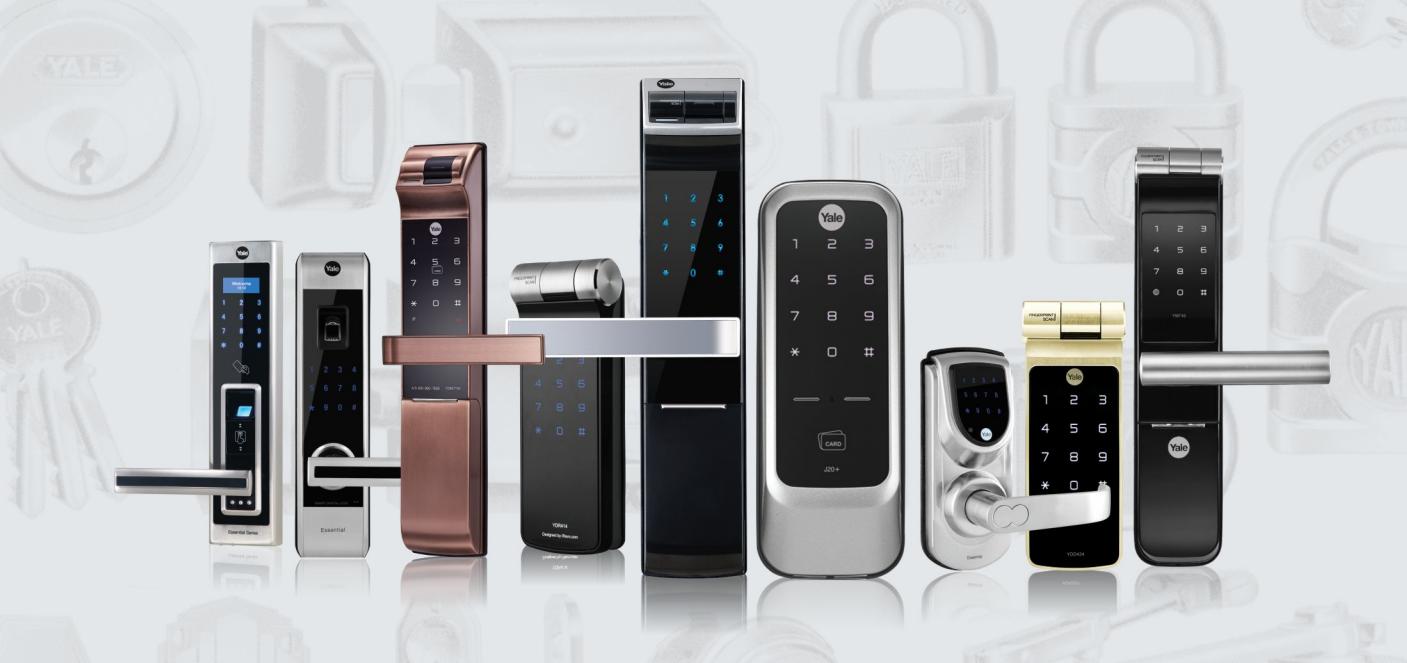

MODERNIZE YOUR SECURITY SYSTEMS

SEAL SECURITY WITH DIGITAL DOOR LOCKS

DIGITAL DOOR LOCK BIOMETRIC ACCESS

VARIOUS ACCESS

OPERATION STATUS NOTIFICATION

VOICE GUIDE FEATURE

AUTOMATIC LOCKING

ONE-TOUCH FINGERPRINT VERIFICATION METHOD (Easy Scan)

ALARM (BREAK/DAMAGE/FIRE)

LOW BATTERY AND EMERGENCY POWER

Fake PIN CODE

Remote Control (Optional)

Fingerprint + Keypad+ App Yale Link

DIGITAL DOOR LOCK CARD/KEYPAD ACCESS

Keypad + Card + Key

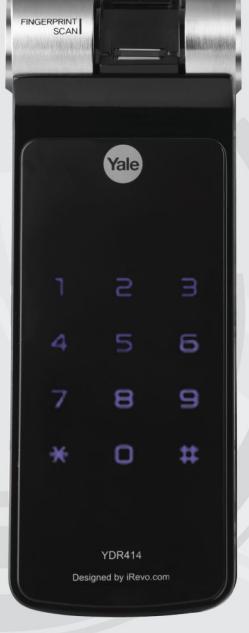

YDR414

Front Body 31.5(D)X66(W)X176(H)mm

Back Body 46(D)X76(W)X201(H)mm

Keypad + Card +Key

Fingerprint + Keypad + Key

DIGITAL DOOR LOCK CARD/KEYPAD ACCESS

RF Smart Chip & Touch keypad

High Temperature Alarm

Fake PIN Code

Remote Control (Optional)

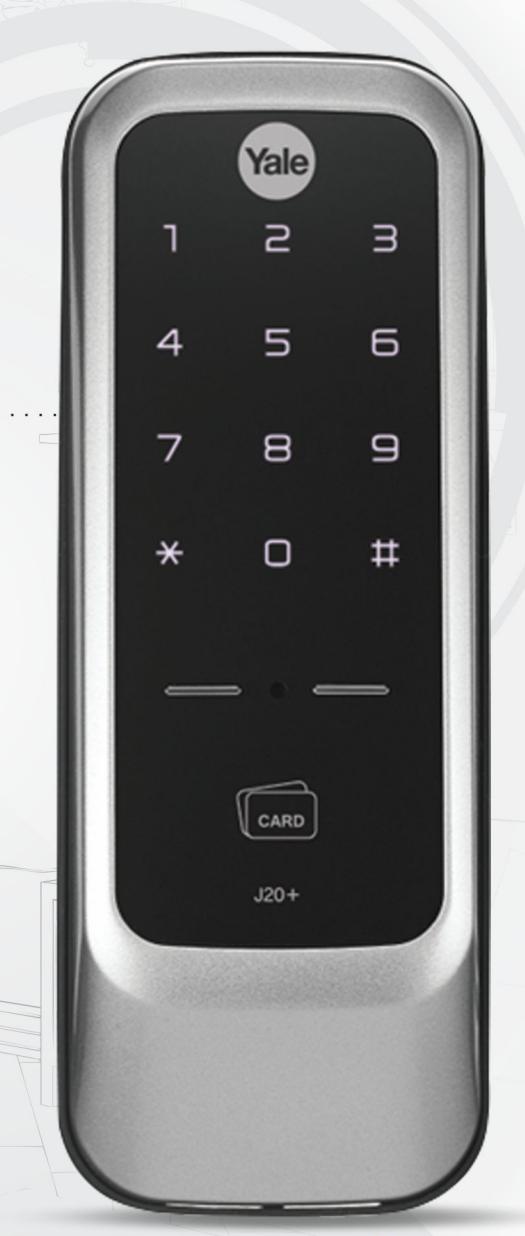

J-20

Front Body 18(D)X62(W)X179.8(H)mm

36.4(D)X142(W)X57.1(H)mm

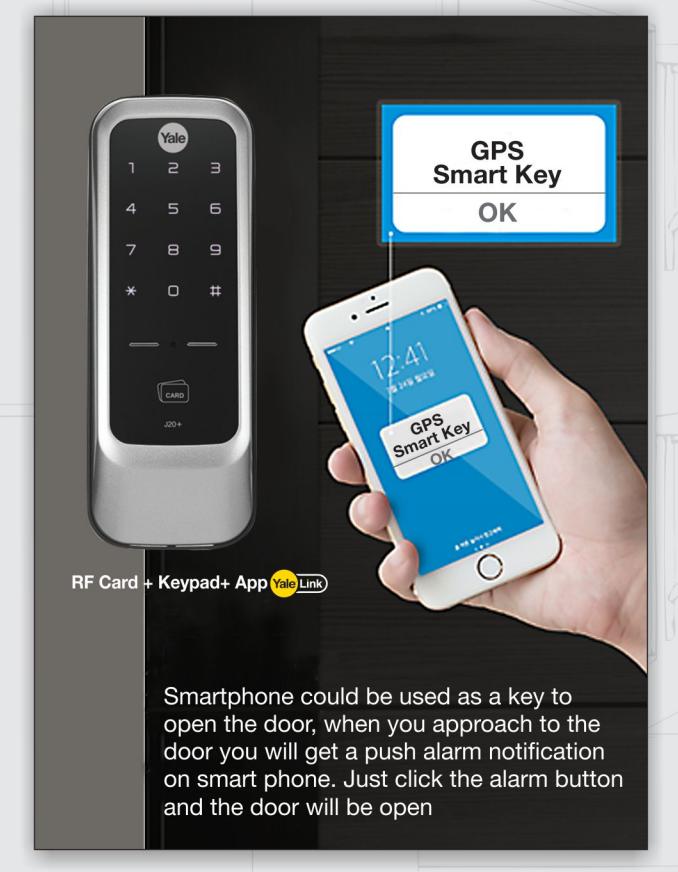

RF Card + Keypad+ App Yale Link

VARIOUS ACCESS

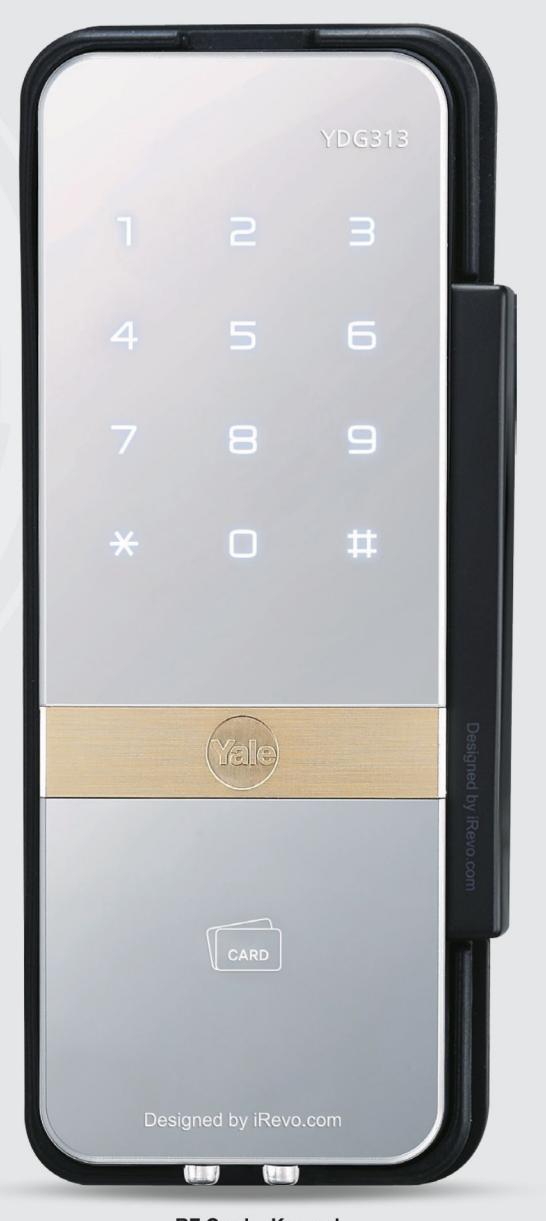

YDG-313GL

MAGIC MIRROR

SAFE THUMB-TURN

CLIP TYPE BRACKET

HIGH TEMPERATURE ALARM

FAKE PIN CODE

REMOTE CONTROL (OPTIONAL)

ADVANCED MODE

VISITOR CODE

Front Body 14(D)X72.8(W)X186(H)mm

Back Body 48.8(D)X77.5(W)X190.5(H)mm

RF Card + Keypad

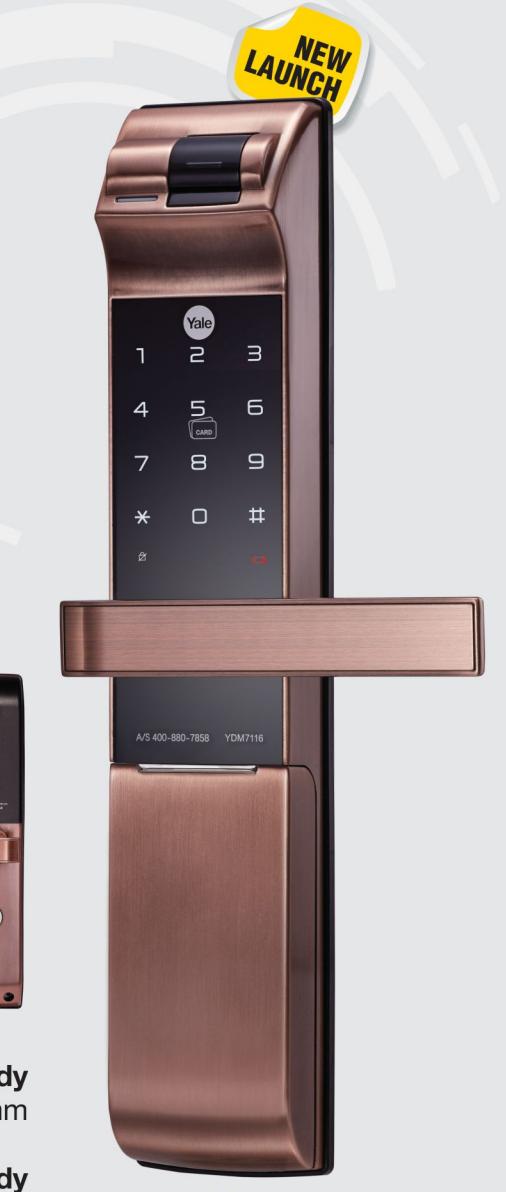

Yale YDM 7116 Smart Solutions for Your Home

Fingerprint

RF Card

5-In-One ACCESS

Yale digital door locks have multiple access solutions such as, PIN code, One touch fingerprint verification method (Progressive Scan), Fingerprint, PIN Code, RFID Card, Mechanical Key Automatic locking for your convenience.

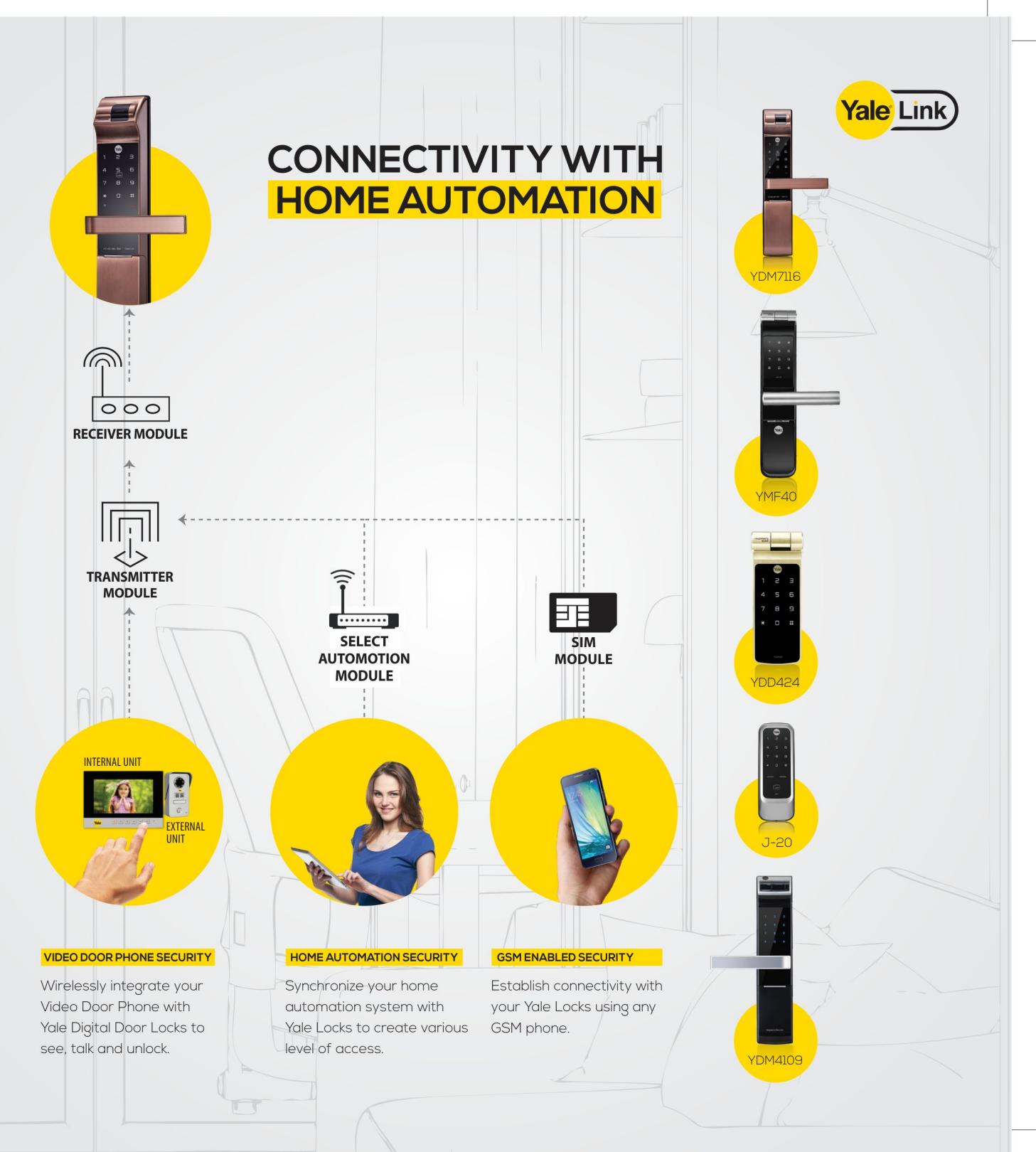

LOCK CONNECTIVITY TO PHONE AND HA SYSTEM

SAFE BUTTON ON THE HANDLE

INTERNAL FORCED LOCK

BLUETOOTH (BLE) INSIDE THE BOX

Front Body 40(D)X68(W)X340(H)mm

Back Body 38(D)X72(W)X344(H)mm

App Yale Link

SMART DOOR LOCK HIGHLIGHTS

INVISIBLE KEYPAD

Keypad can be seen only when you touch the screen with your palm

ONE TOUCH FINGER PRINT

Easy scan technology has been applied to conveniently read a fingerprint in one shot without the need to open or close the cover to enter a fingerprint.

VOICE GUIDE FEATURE

This feature lets you know the operation status and how to set each feature and mode for easier and more convenient use.

FAKE PIN CODE

To prevent the PIN code from being exposed. It allows you to enter Fake numbers before and after entering your PIN code

LOW BATTERY AND EMERGENCY POWER

It warns in case of low battery. When the batteries are completely discharged ,9V battery can easily supply emergency power to unlock

AUTO LOCKING

The Yale DDL series automatically locks the door after checking it is properly closed

ANTI- PANIC EGRESS

For convenience as well as for safety in case of emergency, Yale mortise lock is automatically unlocked from inside with the lever handle

ALARM (BREAK/DAMAGE)

80 db alarm rings when anyone attempts to damage the lock or force open the door.

VARIOUS ACCESS CODES

YALE DDL have various primary access solutions like Pin Code, Fingerprint, RFID Card and Mechanical Key Override. Also have secondary access solutions (optional) like Remote Control and Bluetooth for your convenience. All of the Yale DDL have combination of multiple (Minimum2 and maximum 4) primary access solution along with either one or both secondary access.

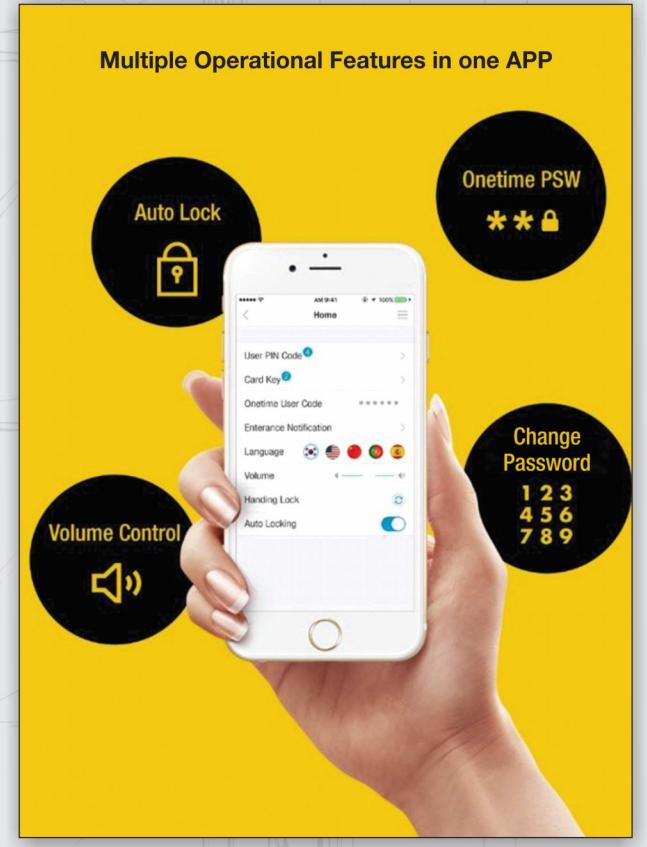

BENEFITS OF YALE LINK APP

TECHNICAL FEATURE COMPARISON

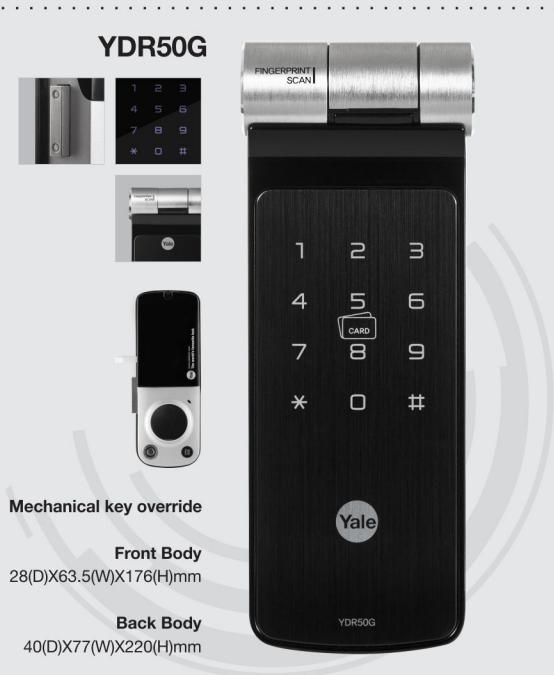

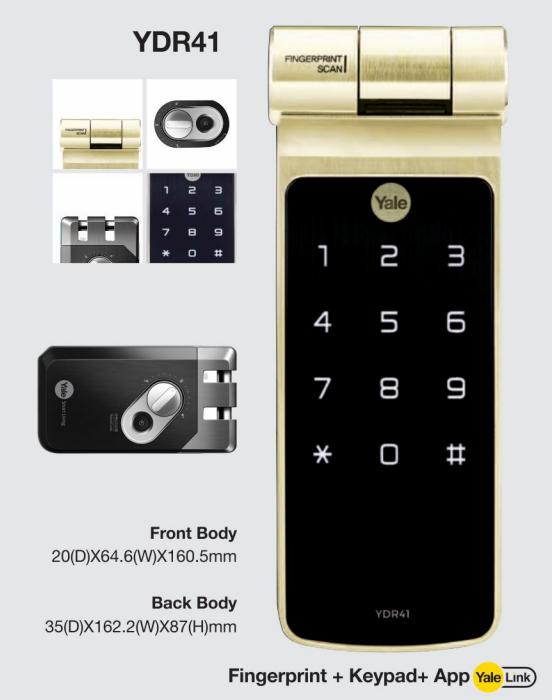

Model Type	YDM 7116 Mortise	YDM 4109 Mortise	YDM 3109 Mortise	YMF 40 Mortise	YDR 50G Rim	J-20 Rim	YDR41 Vertibolt
Access Modes	Fingerprint + Keypad + Card + Key + BLE Inside	Biometric+ Keypad + Key	Keypad + Card +Key	Fingerprint+ Keypad + Key	Fingerprint+ RF Card + Keypad + Key (Back Panel)	Keypad + Card	Fingerprint + Keypad
Alarm Break/ Damage	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Auto Locking	Yes Within 5 Seconds	Yes Within 5 Seconds	Yes Within 5 Seconds	Yes Within 5 Seconds	Yes Within 5 Seconds	Yes Within 5 Seconds	Yes Within 5 Seconds
Finger Print	Upto 20	Upto 20	No	Upto 20	Upto 20	No	Upto 20
PIN Codes	Upto 30 User Code	Upto 30 User Code	Upto 30 User Code	Upto 30 User Code	Upto 30 User Code	Upto 30 User Code	Upto 30 User Code
RFID Card	Upto 20	No	Upto 40	No	Upto 40	Upto 40	No
Remote Control (Optional)	Yes	Yes	Yes	Yes	Inbuilt module with package	Yes	Yes
N Protocol / Bletooth (Optional)	Yes	Yes	Yes	Yes	Yes	Yes	Yes
App Access Compatible Module	Yale Link N protocol or BLE	Yale Link N protocol or BLE	Yale Link N protocol or BLE	Yale Link N protocol or BLE	Yale Link N protocol or BLE	Yale Link N protocol or BLE	Yale Link N protocol or BLE
Door Thickness (in mm)	40-80	40-80	40-80	40-110	35-55	35-55	35-55
Compatible Door Type	Metal/Wooden	Metal/Wooden	Metal/Wooden	Metal/Wooden	Metal/Wooden	Metal/Wooden	Wooden Sliding / Double Door
Integeration with VDP	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Integeration with Home Automation	Yes	Yes	Yes	Yes	Yes	Yes	Yes

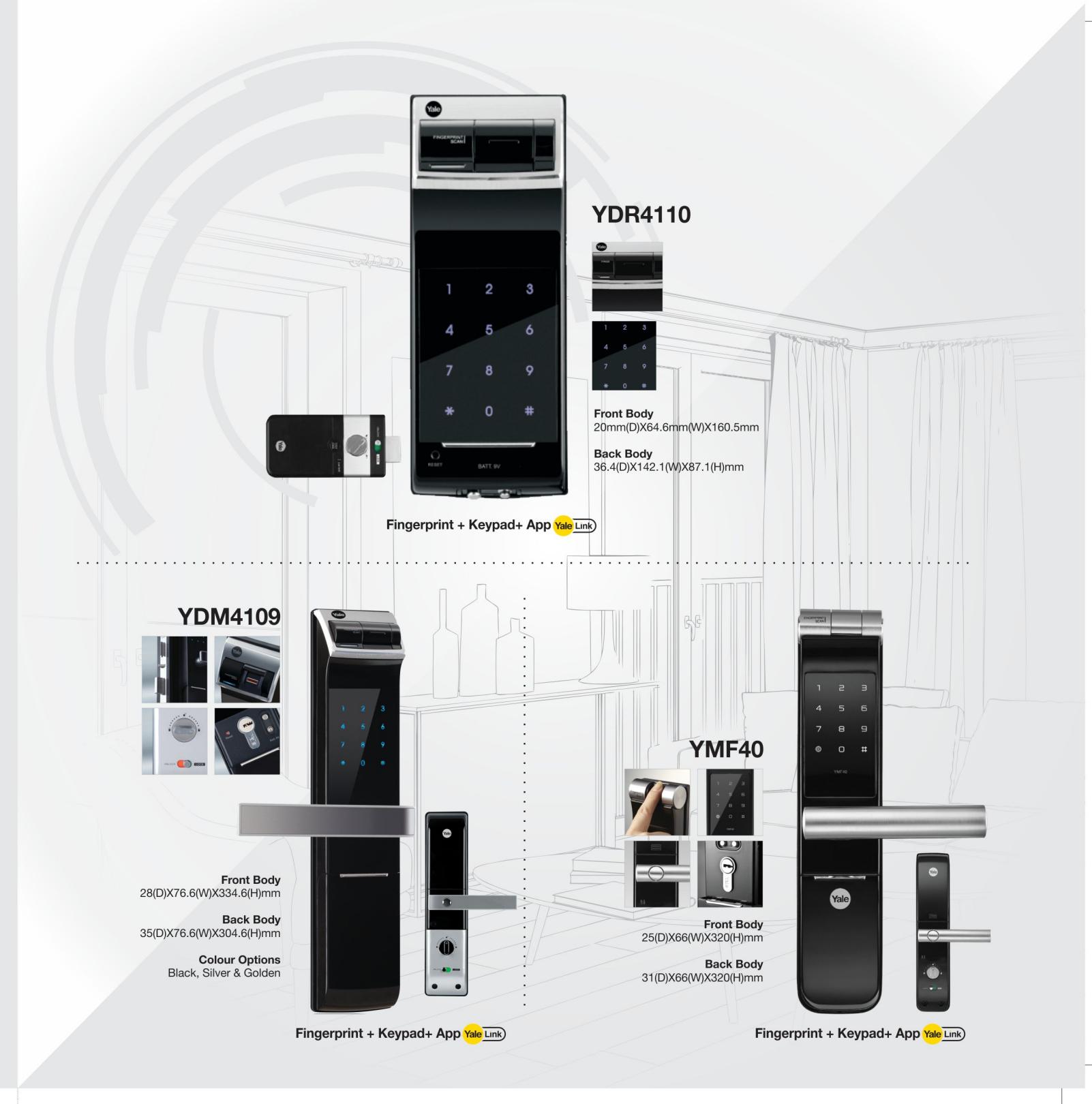

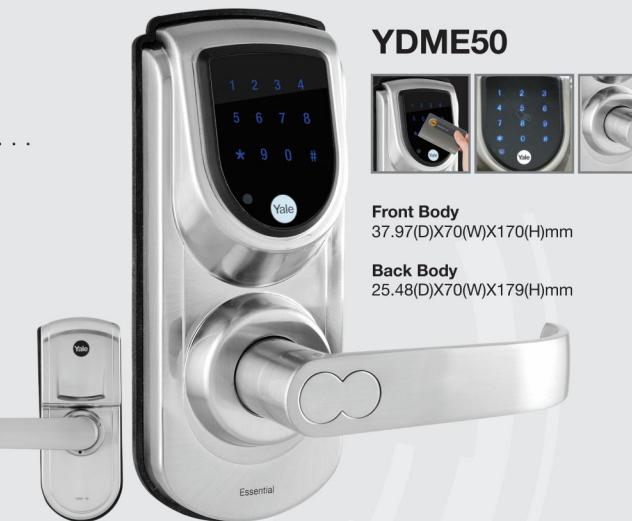

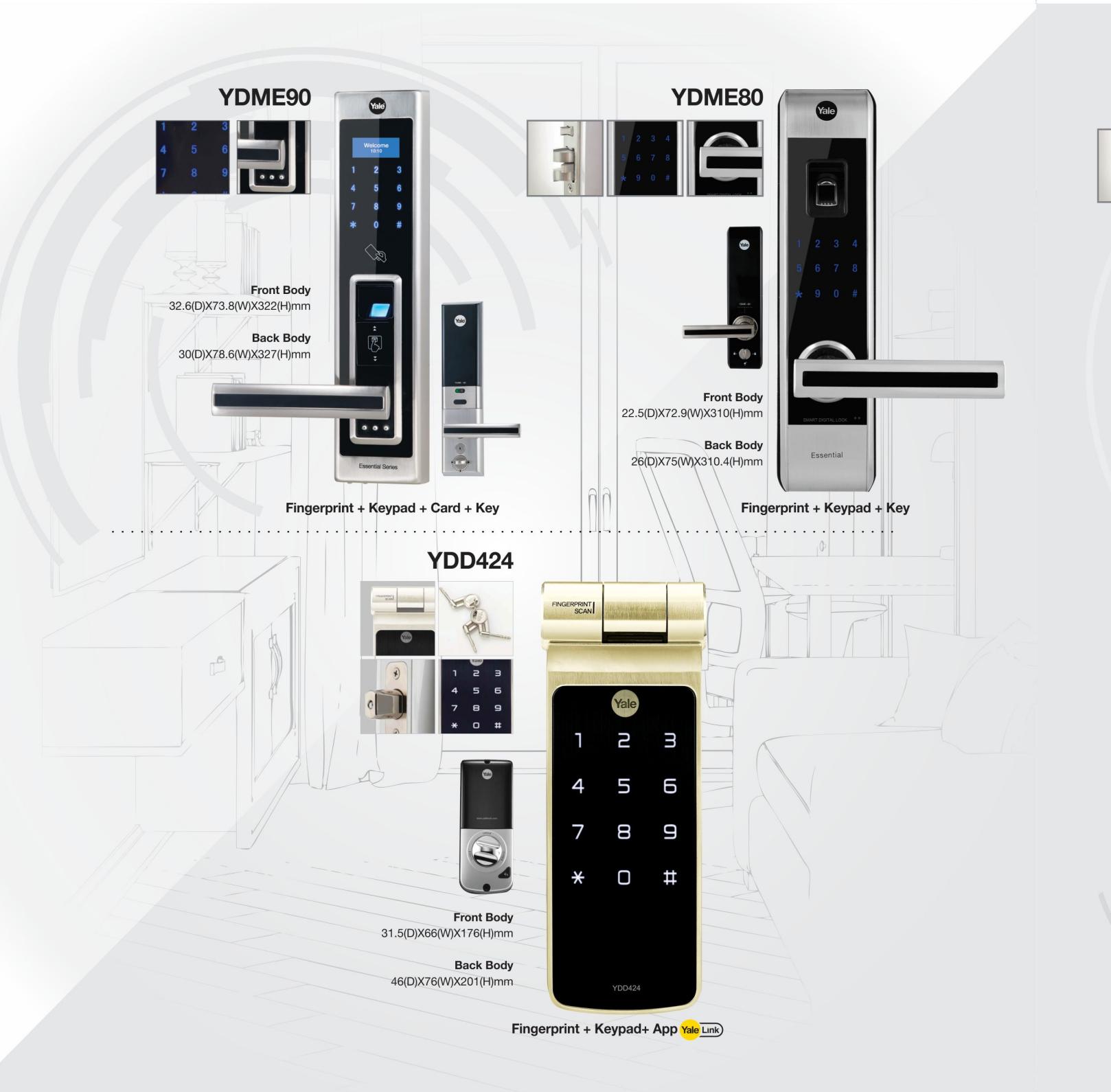

Model Type	YDR4110 Rim	YDD 424 Rim	YDR414 Rim	YDME 90 Mortise	YDME 80 Mortise	YDME 70 Mortise	YDME 50 Deadlatch	YDG 313GL Glass
Access Modes	Fingerprint Keypad	Fingerprint+ Keypad + Key	Fingerprint+ Keypad + Key	Fingerprint+Keypad + Card +Key	Fingerprint + Keypad + Key	Keypad + Card +Key	Keypad + Card + Key	Keypad + Card + Key
Alarm Break/ Damage	Yes	Yes	Yes	Yes	Yes	Yes	No	Yes
Auto Locking	Yes Within 5 Seconds	Yes Within 5 Seconds	Yes Within 5 Seconds	Yes	Yes	Yes	Yes	Yes Within 5 Seconds
Finger Print	Upto 20	Upto 20	Upto 20	Upto 37	Upto 32	No	No	No
PIN Codes	Upto 30 User Code	Upto 30 User Code	Upto 30 User Code	Upto 78 Pin Code	Upto 32 Pin codes	Upto 32 Pin codes	Upto 32 Pin Code
RFID Card	No	No	No	Upto 30	No	Upto 32	Upto 30	Upto 40
Remote Control (Optional)	Yes	Yes	Yes	No	No	No	No	Yes
N Protocol / Bletooth (Optional)	No	Yes	No	No	No	No	No	No
App Access	No	Yale Link	No	No	No	No	No	No
Compatible Module	No	N protocol or BLE	No	No	No	No	No	No
Door Thickness (in mm)	35-55	38-55	35-55	38-52	38-52	38-52	38-52	9-13
Compatible Door Type	Metal/Wooden	Metal/Wooden	Metal/Wooden	Metal/Wooden	Metal/Wooden	Metal/Wooden	Metal/Wooden	Glass
Integeration with VDP	Yes	Yes	Yes	Yes - Wired	Yes - Wired	Yes - Wired	No	Yes
Integeration with Home Automation	Yes	Yes	Yes	Yes - Wired	Yes - Wired	Yes - Wired	No	Yes

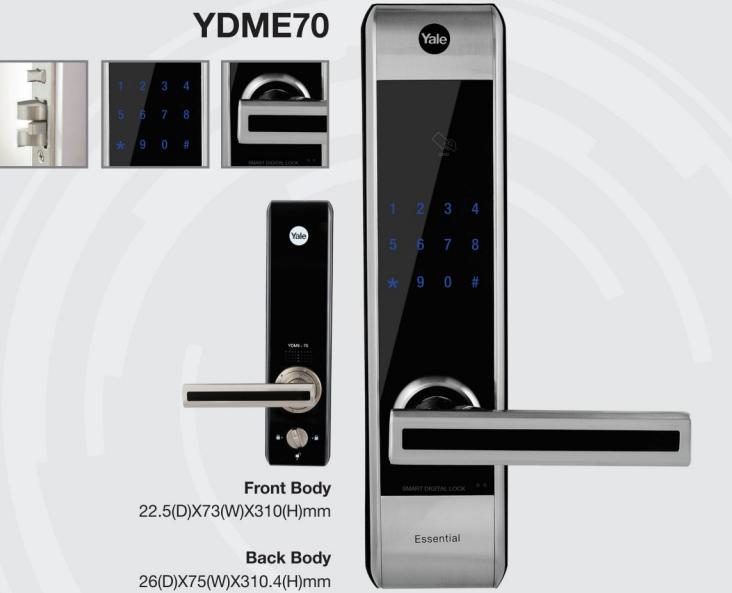

Mortise Digital Door Lock

RIM Digital Door Lock

Accessories

YRM20AMC YRM20/YRM20N

RFID Card
