SPINDLES ARE INSERTED INTO THE MORTISE LOCK HUBS, THERE IS A SCREV CLIPPED INTO I SPINDLE FOR SCREVING INTO THE OTHER SPINDLE AND HOLDING THEM IN PLACE.

AFTER SECURING ROSES ON THE DOOR, PLACE KNOB ASSEMBLY IN ROSE. THERE ARE 2 HOLES IN THE ROSE, INSERT A 5764TH ALLING WEENEN IN THE SET SOREV THROUGH THE HOLE IN ROSE AND SECURE KNOB ASSEMBLY BY TURNING COUNTER-CLOCKVISE (TO REMOVE ROTATE CLOCKVISE). FIG 4 SCREWS (TIGHTEN EVENLY) OR

SINDING MAY OCCUR.

TURN COUNTER-CLOCKWISE TO TIGHTEN

RX KNOB INSTALLATION GUIDE FOR TOWNSTEEL MORTISES

RE/

DESCRIPTION

DATE

• INSTALL SPINDLES IN MORTISE PER FIG 1, INSTALL I/S & 0/S ESCUTCHEONS ON THE DOOR SECURE WITH ESCUTCHEON MOUNTING SCREWS, DO NOT TIGHTEN UNTIL STEP 5. AS SHOWN,
• ω Ūν PLACE THE 2 INSIDE MOUNTING POSTS THROUGH HOLE NUMBER AS DESIGNATED ON THE ROSE- SEE FIG 2 & TABLE FOR CORRECT HOLES.
• HOLDING THE 2 POSTS IN POSITION SLIDE ONTO THE MORTISE WITH POSTS GOING THROUGH THE MORTISE THROUGH HOLES. SEE FIG 2, NOTE- CAN INSTALL THE KNOB ASSEMBLY ON THE OUTSIDE PER STEP 7 AND THIS WILL HOLD THE POSTS IN POSITION.
• ON THE OPPOSITE SIDE- PUT THE 2 MOUNTING SCREWS THROUGH HOLES (SEE TABLE) AS ON THE ROSE- SEE FIG 2. ALIGN THE SCREWS WITH THE POSTS AND TIGHTEN. DESIGNATED
• ū INSTALL THE KNOB ASSEMBLY INTO THE ROSE- ALIGN TABS. SET SCREWS HAVE TO BE FL BELOW THE SURFACE TO ALLOW CLEARANCE. SEE FIG 3. USH IR

NOTE: TE: DNCE THE KNOB ASSEMBLY IS SET ON BOTH SIDES- ROTATE THE KNOB ON BOTH SIDES TO ENSURE THE MORTISE LATCH RETRACTS AND THERE IS NO BINDING. IF THE LATCH OR KNOB BINDS REMOVE THE KNOB ASSEMBLY FROM THE MOUNTING SCREW SIDE AND LOOSEN THE MOUNTING SCREWS AND ALIGN THE ROSE WITH THE CENTER OF THE HUBS AS MUCH AS POSSIBLE UNTIL NO BINDING OCCURS. TIGHTEN THE SCREWS (INCLUDING ESCUTCHEON MOUNTING SCREWS) AND RETRY.

φ INSERT THE ALLEN WRENCH THROUGH EACH HOLE (2 IN EACH ROSE) TO SECURE THE KNOB ASSEMBLY, ROTATE COUNTERCLOCKWISE TO TIGHTEN CLOCKWISE TO LOOSEN, SEE FIG 4, NOTE: WHEN TIGHTENING BALANCE JEVENLY) OR BINDING MAY OCCUR. THE SET SCREW AND AND ROTATE CTIGHTEN

CHECK LOCK FOR CORRECT OPERATION BEFORE CLOSING Ħ

$\backslash supset$ BLE NUMBER

LOCK MANUFACTURE	ON ROSE INSERT	PACK BAG NUMBER
SCHLAGE	1	BAG 4
CORBIN	1	BAG 2
ARROW	1	BAG 2
PDQ	1	BAG 2
SARGENT	1	BAG 4
TOWNSTEEL	2	BAG 4
FALCON *	2	BAG 4
MARKS	2	BAG 4
BEST	2	BAG 4
YALE 8700	3	BAG 3
YALE 8800	ω	BAG 3
		1

* FOR FALCON LOCKS USE 2 EACH BUSHINGS (FROM THE SCREW PACK)

THIS DRAWING AND THE INFORMATION CONTAINED THEREON OR DERIVED THEREFROM ARE THE CONFIDENTIAL PROPERTY OF TOWNSTEEL, INC. IT IS NOT TO BE REPRODUCED, OR DISCLOSED TO OTHERS, AND MAY BE USED ONLY FOR THE PURPOSE OF ENABLING THE PARTY TO WHOM IT HAS BEEN LOANED TO QUOTE ON OR FILL AN ORDER FOR TOWNSTEEL, INC., OR AS MAY BE OTHERWISE AUTHORIZED BY TOWNSTEEL, INC. IN WRITING.

DATE:

MACHINED SURFACES 125/

PART#

RRX-E-K

THIRD ANGLE

10/19/12

FIG 2 IN BOTH HOLES IN THE THUMB TURN, PLACE A 5/64TH ALLEN WRENCH (PROVIDED) THROUGH THE HOLE IN THE SET SCREW IN THE INNER PLATE AND SECURE THE THUMB TURN BY TURNING COUNTER-CLOCKWISE (TO REMOVED ROTATE CLOCKWISE).

OTATE CLOCKWISE).

TURN COUNTER-CLOCKWISE TO TIGHTEN

EXTLUDED VIEW

RE/

DESCRIPTION

DATE

ALIGN INNER PLATE

HOSPITAL THUMB TURN INSTRUCTIONS

• 1. PREPARE DOOR PER TEMPLATE.
• 2. USE THE GUIDE PIN TO HELP ALIGN THE INNER PLATE, MATCH DRILL (OR MARK LOCATION AND DRILL) THE 4 HOLES TO MOUNT THE INNER PLATE, PILOT HOLE SIZE FOR #6 SCREW IN A WOOD DOOR IS $\backslash frac\{\backslash pi\}\{6\}$ .
• 3. MOUNT THE INNER PLATE WITH THE 4 SCREWS.
• 4. INSTALL THE SPINDLE AND THUMB TURN (SEE EXPLODED VIEW).
• 5. OPERATE THE LOCK TO ENSURE PROPER INSTALLATION AND ALIGNMENT.

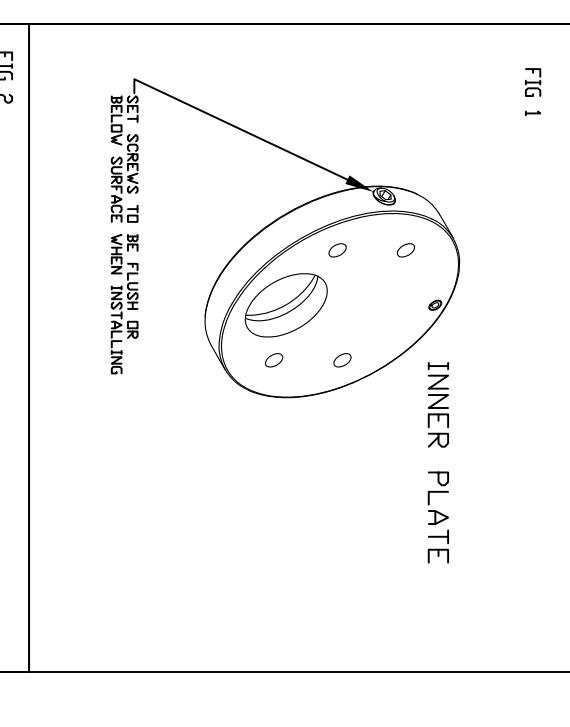

• 6. TIGHTEN THE THUMB TURN ONTO THE INNER PLATE- SEE FIG 1 & 2. INSERT THE ALLEN WRENCH THROUGH EACH HOLE (2 IN EACH INNER PLATE) TO ENGAGE THE SET SCREW AND SECURE THE THUMB TURN ASSEMBLY, ROTATE COUNTERCLOCKWISE TO TIGHTEN IN THE ASSEMBLY AND ROTATE CLOCKWISE TO LOOSEN, SEE FIG 1 & 2.
• 7. CHECK LOCK FOR CORRECT OPERATION BEFORE CLOSING THE DOOR.

707 N.	$T\; \backslash circ\; W$
BARRANCA	nste
AVE	$\backslash bigcirc$
#

C||V	707
VINA.	Z
, CALIF 91723	BARRANCA AVE #6

10/7/11	DATE:		SC	DRAWN BY:		1° MAX	SPECIFIED:	UNLESS	DRAFT
								t	IJ
⊕∰ THIRD ANGLE	MACHINED SURFACES 125/	O .12	ANGLES = $\backslash pm\; 1/2^\{\backslash bullet\}$	FRACTIONS = ±.8	X.XX (METRIC) =±0.15	X.X (METRIC) =±0.4	SPECIFIED	UNLESS OTHERWISE	TOLERANCES
ADA-TTURN	PART#;	ASSY INSTRUCTIONS	AUA IHUMB IUKN	)		FINISH 32D	HEAT TREAT: NA		MATERIAL: NOTED

THIS DRAWING AND THE INFORMATION CONTAINED THEREON OR DERIVED THEREFROM ARE THE CONFIDENTIAL PROPERTY OF TOWNSTEEL, INC. IT IS NOT TO BE REPRODUCED, OR DISCLOSED TO OTHERS, AND MAY BE USED ONLY FOR THE PURPOSE OF ENABLING THE PARTY TO WHOM IT HAS BEEN LOANED TO QUOTE ON OR FILL AN ORDER FOR TOWNSTEEL, INC., OR AS MAY BE OTHERWISE AUTHORIZED BY TOWNSTEEL, INC. IN WRITING.

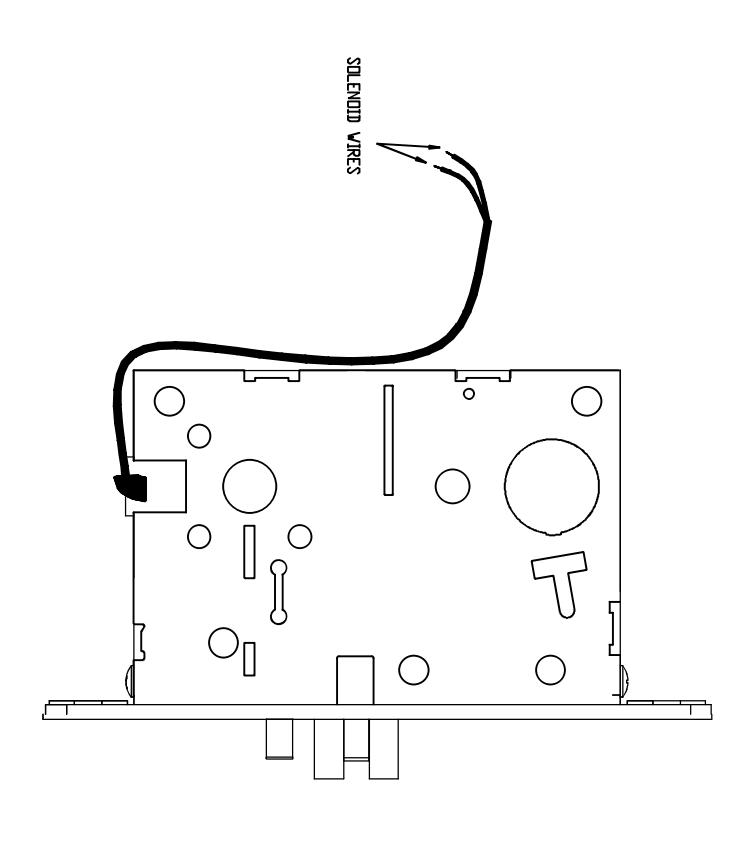

INSTALLATION GUIDE FOR ELECTRIFIED MORTISES- SOLENDID ONLY

INSTRUCTIONS

• 1. PREPARE MORTISE POCKET IN DOOR PER TEMPLATE, ACCESS FOR THE WIRING TO BE PER INSTALLERS REQUIREMENTS, IT IS RECOMMENDED THAT AN ACCESS CHANNEL IS BORED TO PROVIDE CONTACT FROM THE ELECTRIC TRANSFER HINGE OR OTHER MEANS OF TRANSFER TO THE MORTISE POCKET.
• 2. CONNECT WIRES AS NECESSARY AND SLIP THE MORTISE INTO THE PREPARED POCKET IN THE DOOR, TAKE CARE TO ENSURE WIRES ARE NOT PINCHED OR DAMAGED, NOTE: IT IS RECOMMENDED THAT ALL WIRING BE DONE BY A LICENSED ELECTRICIAN FAMILIAR WITH THE SUPPORTING EQUIPMENT.
• 3, ALWAYS ENSURE DOOR OPERATES PROPERLY BEFORE LOCKING.

SPECIFICATIONS:

SOLENDID (SPECIFIED BY MODEL NUMBER):

24VDC 114.7+10%-0 Ω WIRE SIZE 24AWG

TERMS

<u>EAIL SECURE</u>- DUTER TRIM IS UNLOCKED WHEN POWER IS APPLIED. WHEN POWER IS REMOVED THE DUTER TRIM REMAINS LOCKED.

$\{\backslash tilde\; \{\backslash rm\; FAIL\}\}$ SAFE- DUTER TRIM IS LOCKED WHEN POWER IS APPLIED. WHEN POWER IS REMOVED THE DUTER TRIM REMAINS UNLOCKED,
