Overview

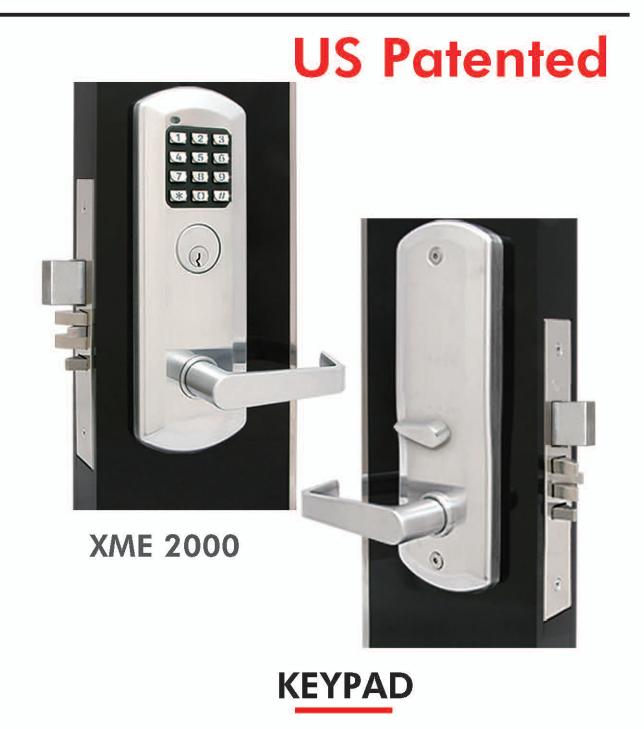

The XME-2000 is a standalone electronic function lock that provides keypad technology integrated with an ANSI Grade 1 heavy duty mortise lockset for greater security. Keypad technology simplifies the management of the system and provides ease of use. Maximum code capacity includes 1 master code, 10 manager codes, 90 user codes and 5 service codes. The XME-2000 provides two remote control terminals; One for a fire alarm system and the other for remote release by push button. The XME 2000 is quick and easy to program.

Features:

• Digital keypad mortise lock
• Use keypad to lock or unlock outside lever
• Mechanical key override
• Both clutched and rigid lever trim available
• ANSI/BHMA Certified heavy duty Grade 1 mortise chassis
• Various cylinder and keying options
• Easy installation, easy programming

Without Deadbolt, Inside

Electronic Specifications

Application Full indoor and outdoor

User codes Up to 90

Communication Multi-colored LED and Sound

Power supply 4AA battery Battery life Up to 2yrs

Operating temperature -31° to 151°F (-35° to 66°C)

Certifications FCC Part 15, UL 10C, A156.13

Mechanical Specifications

With Deadbolt, Outside

With Deadbolt Inside

Chassis A156.13 certified grade 1 mortise Handing Handed, easy field reversible

Door thickness 1-3/4" standard, other upon request

Backset 2-3/4"

Latch bolt Stainless steel, anti-friction split, 3/4" throw

Faceplate 1-1/8" X 8" standard, 1-1/16" x 8" narrow style available Escutcheon Wrought steel or zinc alloy, plated to match finish symbols

Levers Forged brass or cast zinc, plated to match finish symbols

Lever Style Sentinel (S), Quest (Q) and Gala (G). Designer lever styles

upon request

Grade 1 Electronic Mortise Lockset with Keypad

Strike ANSI strike, 1-1/4" X 4-7/8", steel plated to match finish symbols

Lead line Available Clutching Available

Cylinder and keys 6 pin brass, schlage "C" keyway standard, 2 brass keys per cylinder

SFIC Small format IC available, 6 or 7 pin, Best "A" keyway

Schlage® LFIC Schlage® Large format IC housing available

Corbin® LFIC Corbin® Large format IC housing available, for 6 pin core

$\backslash textbf\{High\; Security\; Cylinder\}\; \backslash quad\; \backslash text\{Available,\; TownSteel\; "L"\; keyway,\; Regular\; 6\; pin,\; SFIC\; 7\; pin\}$

Warranty 1 year limited for electronic, 10 year limited for mechanical,

Finish US26D and US10B stocked finish, other finishes upon request

5 year limited for finish

Code Compliance

• ANSI/BHMA A156.13: Chassis A156.13-2005 Grade 1 certified

• ANSI/BHMA A156.25: Meets or exceeds all applicable requirements

• UL/ULC: UL10C 3-hour rated

• BAA: Meets guidelines of the Buy American Act

• ADA: Meets requirements of the Americans with Disabilities Act

• RoHS: Meets requirements of EU RoHS Directive 2002/95/EC

• FCC: FCC part 15 certified

How to order

Series	Lever Style	Finish	Keying/Cylinder
XME-2010: Mortise, Keypad, Rigid XME-2020: Mortise, Keypad, Clutched XME-2030: Mortise, Keypad, High Security Cylinder, Rigid XME-2040: Mortise, Keypad, High Security Cylinder, Clutched XME-2050: Mortise, Keypad, Rigid, With Deadbolt XME-2060: Mortise, Keypad, Clutched, With Deadbolt XME-2070: Mortise, Keypad, High Security Cylinder, Rigid, With Deadbolt XME-2080: Mortise, Keypad, High Security Cylinder, Clutched, With Deadbolt	S: Sentinel Q: Quest G: Gala	US26D: Satin Chrome US10B: Powder Coat	Specify when ordering

Example:

XME-2010 - S - US26D XME-2010: Mortise, Keypad, Rigid S: Sentinel Lever US26D: Satin Chrome

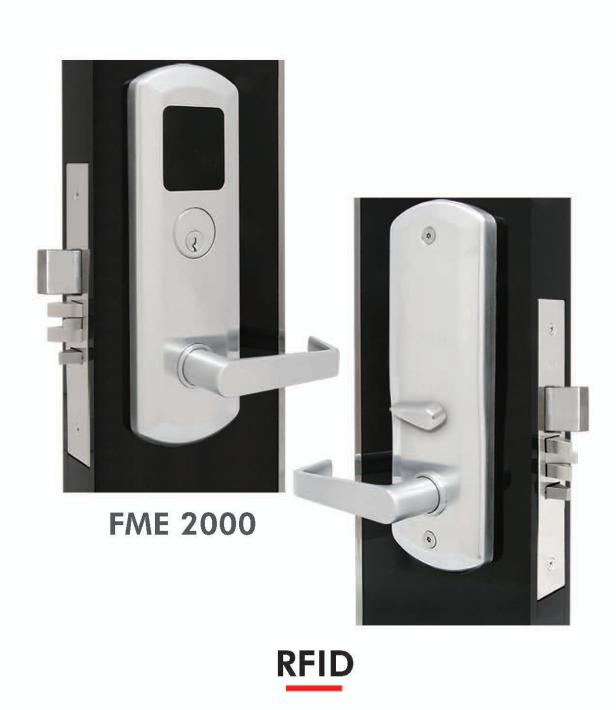

FME-2000 & XME-2000

Standalone Electronic Lock Series

ANSI/BHMA Certified Grade 1 Mortise Lock

Finish 622 (US19), 626 (US26D), others upon request Cylinder SC (Schlage C keyway), SFIC / SLFIC / CLFIC

with/without core, or high security

ANSI/BHMA A156.13 Grade 1 certified

ANSI/BHMA A156.25 Meets Industry Standards

UL/ULC UL10C 3-hour rated

BAA Meets guidelines of the Buy American Act

FCC FCC Part 15 certified

How To Orde	er
Model	XME: Keypad FME: RFID
Series	2010: Rigid 2020: Clutched 2030: High Security Cylinder, Rigid 2040: High Security Cylinder, Clutched 2050: Rigid, with Deadbolt 2060: Clutched, with Deadbolt 2070: Rigid, High Security Cylinder, with Deadbolt 2080: Clutched, High Security Cylinder, with Deadbolt	Model Lever Cylinder XME - 2010 - S - 626 - SC - LH Series Finish
Lever Style	S: Sentinel / Q: Quest / Or see TownSteel Catalog
Finish	622: US19, Flat Black / 626: US26D, Satin Chrome Or special color upon request
Cylinder	Specify when ordering, any mortise cylinder can be used
