Overview

The XCE-2000 is a standalone electronic function lock that provides keypad technology integrated with an ANSI Grade 1 heavy duty cylindrical lockset for greater security. Keypad technology simplifies the management of the system and provides ease of use. Maximum code capacity includes 1 master code, 10 manager codes, 90 user codes and 5 service codes. The XCE-2000 provides two remote control terminals; one for a fire alarm system and the other for remote release by push button. The XCE 2000 is quick and easy to program.

Features

• Digital keypad cylindrical lock
• Use keypad to lock or unlock outside lever
• Mechanical key override
• Heavy duty Grade 1 cylindrical chassis
• Both clutched and rigid lever trim available
• Various cylinder and keying options
• Easy installation, easy programming

Electronic Specifications

Application Full indoor and outdoor

User codes Up to 90

Communication Multi-colored LED and Sound

Power supply 4AA battery Battery life Up to 2yrs

Operating temperature -31° to 151°F (-35° to 66°C)

Certifications FCC Part 15, UL 10C, A156.2

Mechanical Specifications

A156.2 certified grade 1 cylindrical

Handing Non-handed

Door thickness 1-3/4"-2"

Backset 2-3/4" standard, 5" optional

Latch bolt Self-adjustable, Stainless steel, ½" throw, dead-locking

Stainless steel, 1-1/8" X 2-1/4" Faceplate

Escutcheon Wrought steel or zinc alloy, plated to match finish symbols

Cast zinc or stainless steel, plated to match finish symbols

Grade 1 Electronic Cylindrical Lockset with Keypad

Lever Style Sentinel(S), Quest(Q) and Gala(G)

Clutching Available

Strike ASA strike, 1-1/4" X 4-7/8", steel plated to match finish symbols

Cylinder and keys 6 pin brass, schlage "C" keyway standard, 2 brass keys per cylinder

SFIC Small format IC available, 6 or 7 pin, Best "A" keyway

Schlage® LFIC Schlage® Large Format I.C. less core available

Corbin® LFIC Corbin® Large Format I.C. less core available, for 6 pin core

$\backslash textbf\{High\; Security\; Cylinder\}\; \backslash quad\; \backslash text\{Available,\; TownSteel\; "L"\; Keyway,\; Regular\; 6\; pin,\; SFIC\; 7\; pin\}$

Finish US26D and US10B stock finishes, other upon request

Warranty 1 year limited for electronic, 10 year limited for mechanical,

5 year limited for finish

Code Compliance

ANSI/BHMA A156.2: Chassis A156.2-2011 Certified

• ANSI/BHMA A156.25: Meets or exceeds all applicable requirements

• UL/ULC: UL10C 3-hour rated

• BAA: Meets guidelines of the Buy American Act

• ADA: Meets requirements of the Americans with Disabilities Act

• RoHS: Meets requirements of EU RoHS Directive 2002/95/EC

• FCC: FCC part 15 certified

How to order

Series	Lever Style	Backset	Finish	Keying/Cylinder
XCE-2010: Cylindrical, Keypad, Rigid XCE-2020: Cylindrical, Keypad, Clutched XCE-2030: Cylindrical, Keypad, High Security Cylinder, Rigid XCE-2040: Cylindrical, Keypad, High Security Cylinder, Clutched	S: Sentinel Q: Quest G: Gala	2-3/4" 5"	US26D: Satin Chrome US10B: Powder Coat	Specify when ordering

Example:

XCE-2010 - S - 2-3/4 - US26D XCE-2010: Cylindrical, Keypad, Rigid S: Sentinel Lever 2-3/4": 2-3/4" Backset US26D: Satin Chrome

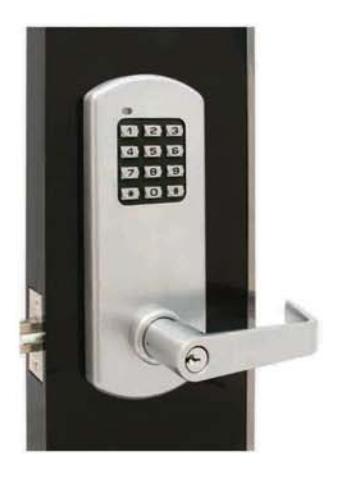

CYLINDRICAL WITH KEYPAD

Introduction

The XCE 9000 is a Standalone Electronic Classroom Security function lock that provides a remote lockdown along with the security afforded by using a grade 1 heavy duty cylindrical lockset.

Lockdown is accomplished using a Remote Control Unit (RCU) that is paired with one or more locks within the RCU's 75 foot range. The RCU is specific to the paired lock or locks. With a simple push of the RCU button the lock is secured against unauthorized outside entry. Lockdown is further indicated by red LEDs on both inside and outside portions of the lock that signify a lockdown is in progress. The RCU is normally controlled by a teacher or other designated individual that is granted responsibility for the room. The RCU will be carried at all times by the designated individual of the room, much like any other small piece of security or safety equipment.

The room will remain in lockdown until a lockdown cancellation code is entered from outside. The lock is always able to be opened from the inside to allow for a safe evacuation when necessary. During lockdown, a user code, office code or key override may be used to gain access to the room. The locking system is operated by batteries and is not affected by power outages. Overall the system is a secure, safe, practical and simple method to ensure the safety of the room and especially children.

Features

• Standalone electronic classroom intruder function
• · Remote control unit (RCU) for lockdown
• · Mechanical key override
• · Inside and outside red LED lockdown indicators
• · Lockdown cancellation code releases lockdown mode
• · Heavy duty Grade 1 cylindrical lockset

Electronic Specifications

• · Application: For classroom lockdown, full indoor and outdoor
• User/Office code capacity per lock: 90
• Emergency code capacity per lock: 9
• · RCU verification time: less than 1 second
• · Communication: Multi-colored LEDs and Sound
• · Power supply: 4AA battery
• Battery life: Up to 2 years
• Operating temperature: -31° to 151° F (-35° to 66°C)
• Certifications: FCC Part 15, UL 10C, ANSI/BHMA A156.2

Mechanical Specifications

Door Thickness 1-3/4"-2"

Backset 2-3/4" standard, 5" optional

Strike ASA Strike standard, 1-1/4" X 4-7/8"

Latch bolt Stainless Steel, deadlocking, 1/2" projection

Faceplate $1-1/8"\; \backslash times\; 2-1/4"$

Escutcheon Steel or zinc alloy

Lever Zinc or stainless steel

Lever Style Sentinel (S), Quest (Q) and Gala(G)

Cylinder - 6 pin Schlage® C Keyway, standard

- Small Format IC with or without core available, 6 or 7 pin core, Best® "A" keyway

- Schlage® Large Format IC less core available

- Corbin® Large Format IC less core available, for 6 pin core

- High Security Cylinder available, 6 pin, TownSteel "L" keyway

- High Security SFIC Core available, 7 pin, TownSteel "L" keyway

Keying KD standard, KA, MK, GMK, GGMK and construction available

Stock Finish US26D and US10B, other upon request.

Code Compliance

ANSI/BHMA A156.2 A156,2-2011 Grade 1 Certified

ANSI/BHMA A156.25 Meets or exceeds all applicable requirements

UL/ULC UL 10C 3-hour rated

BAA Meets guidelines of the Buy American Act

ADA Meets requirements of the Americans with Disabilities Act RoHS Meets requirements of EU RoHS Directive 2002/95/EC

FCC FCC part 15 certified

CYLINDRICAL WITH KEYPAD

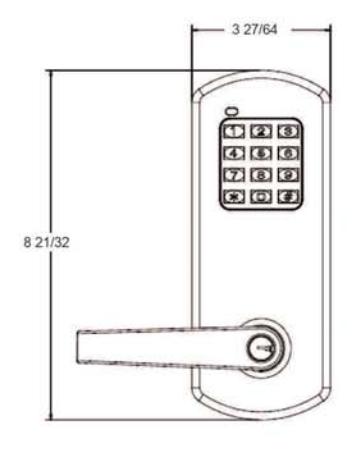

Profile

How to order

XCE Series: XCE-9010 Rigid XCE-9010 Clutched Rigid, High Security XCE-9030 Clutched, High Security XCE-9040 Lever Style: S Sentinel Q Quest G Gala Backset 2-3/4" 5" Finshes: Satin Chrome US26D US10B Powder Coat Keying Specify when ordering
