Von Duprin Windstorm Data Sheet
Open the original PDF document
View PDF

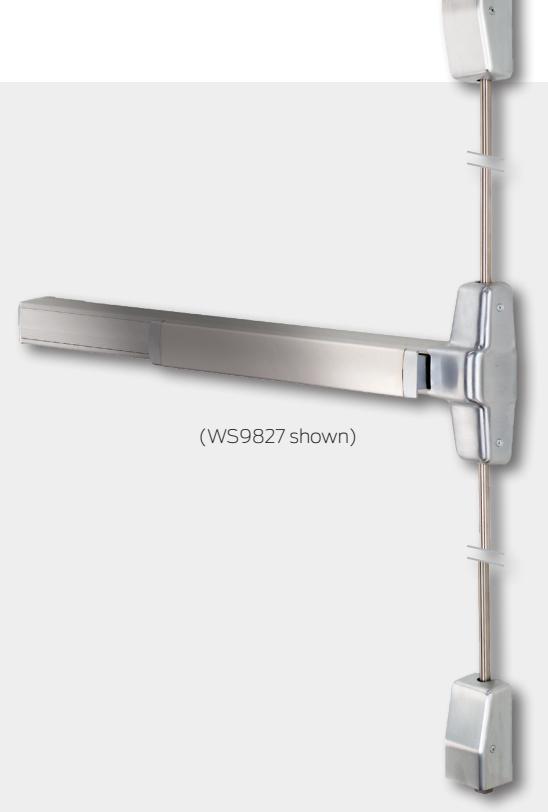

WS9827/9927 WS9857/9957
Multi-point exit device
The Von Duprin 98/99 Series exit device is designed with durability to withstand the toughfest of environments. The WS9827/9927 and WS9857/9957 multi-point two and three point exit device incorporate reinforced components to help ensure the building and its occupants are kept safe from wind and projectile debris. These devices are the leading choice for severe weather protection both the WS 27 and WS 57 device styles are certified to comply with building codes such as FEMA 361 and Florida Building Code. Making these devices ideal for Tornado Storm Shelter applications.
Since pioneering the first exit device in 1908, Von Duprin life safety products have provided unparalleled quality, performance and flexibility for schools, hospitals, stadiums and public buildings.These products come with the support and customer care only offered by Von Duprin. Providing the confidence and peace of mind that at critical moments of life safety.
Features and benefits
- § Uniquely designed center case
- § Vertical rods designed to reinforce the strength of the door
- § Reinforced top and bottom latch housing with strengthening strap
- § Stamped end cap mounting bracket
- § Top soffit latch with reinforced ratchet release bracket
- § Cast latch covers
- § Stronger latch mounting screws
- § Thru-bolted attachment points
WS9827/9927 Windstorm ratings
- Door applications 8'0" x 8'0" (2438mm x 2438mm) pairs (swinging same direction); 4'0" x 8'0" (1219mm x 2438mm) single (non-fire rated only) flush hollow metal
- Florida Building Code Compliance Compliance to TAS 201, TAS 202, TAS 203; design load rating +150/-150 PSF (245 mph wind zone); Enhanced Hurricane Protection (EHPA) ASTM E1996; ANSI/ICC 500 (245 mph wind zone)
- UL-FEMA 361 Compliance to TAS 201, TAS 202, TAS 203; design load rating +150/-150 PSF (245 mph wind zone); Enhanced Hurricane Protection (EHPA) ASTM E1996; ANSI/ICC 500 (245 mph wind zone)
WS9857/9957 Windstorm ratings
- Door applications 4'0" x 8'0" (1219mm x 2438mm) single (panic and fire rated) flush hollow metal
- UL-FEMA 361 Certified 4'0" x 8'0" (1219mm x 2438mm) single (panic and fire rated) flush hollow metal
- These devices are listed with Steelcraft Paladin™ Doors for tornado listing and Steelcraft H and HE-Series Doors for hurricane listings
| Considientions | |||
|---|---|---|---|
| Specifications | Device this FO (Fith cally) For TD (Three https://www.htm.) I/ (Vools) | ||
|
Device
functions |
Device ships EO (Exit only). For TP (Thumbturn), K (Knob), or L (Lever). Remove NL drive screw from device | ||
| Device lengths | 3': 2'4" to 3' (71mm to 914mm) Door size | ||
| 4': 2'10" to 4' (864mm to 1219mm) Door size | |||
| Strikes | Bottom – 304L Unfinished | ||
| Dogging feature | Hex key dogging standard (Panic) | ||
| Dogging options | CD Cylinder Dogging | ||
| LD Less Dogging | |||
| Electrical | LX Latchbolt monitor switch | ||
| options | RX Pushpad monitor switch | ||
| RX-2 Double pushpad monitor switch | |||
| ALK Alarm exit kit | |||
| SS Signal switch OEL Ouiet Electric Latch | |||
| Fasteners & sex | Includes 13/4" (44mm) Metal Doors | ||
| bolts (SNB) | SNB furnished for top & bottom | ||
| latches and device (required) | |||
| Device centerline | 39 ½" (1003mm) | ||
|
from finished
floor |
|||
| Door undercut | ¼" (7mm) | ||
|
Center case
dimensions |
8" x 2 3 / 4 " x 2 3 / 8 " | ||
| Mechanism case dimensions | 2 ¼" x 2 ½" (57mm x 57mm) | ||
|
Top & bottom
latch case |
4 ½" x 2 ½" x 1 ½" | ||
| (114mm x 64mm x 48mm) | |||
| Vertical rods | ½" (13mm) round tubing, standard | ||
| rods accommodate 7' (2134mm) door | |||
| Top rod length is 36 ¼" (921mm) | |||
| Bottom rod length is 31 ¾" (806mm) | |||
| Projection | Bottom rod length is 31 ½" (806mm) Pushbar Neutral – 3 ½" (97mm) | ||
| Projection | |||
|
Projection
Finishes |
Pushbar Neutral – 3 13 / 16 " (97mm) | ||
| Pushbar Neutral – 3 13 / 6 " (97mm) Pushbar Depressed – 3 ½" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* | |||
| Pushbar Neutral – 3 13 / 16 " (97mm) Pushbar Depressed – 3 ½" (78mm) US3, US4, US10, US26, US26D, US28, | |||
| Finishes | Pushbar Neutral – 3 13 / 6 " (97mm) Pushbar Depressed – 3 ½" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* | ||
| Finishes Certifications | Pushbar Neutral — 3 13 / 16 " (97mm) Pushbar Depressed — 3 ½" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* *US32D available on WS9827 and WS9857 devices only | ||
| Finishes Certifications General | Pushbar Neutral – 3 13 / 6 " (97mm) Pushbar Depressed – 3 ½" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* | ||
| Finishes Certifications | Pushbar Neutral — 3 13 / 16 " (97mm) Pushbar Depressed — 3 ½" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* *US32D available on WS9827 and WS9857 devices only | ||
| Finishes Certifications General | Pushbar Neutral – 3 13 / 16 " (97mm) Pushbar Depressed – 3 ½" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* *US32D available on WS9827 and WS9857 devices only Panic Hardware UL 305 | ||
| Finishes Certifications General | Pushbar Neutral – 3 13 / 16 " (97mm) Pushbar Depressed – 3 ½6" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* *US32D available on WS9827 and WS9857 devices only Panic Hardware UL 305 Fire Exit hardware UL 10 C | ||
| Finishes Certifications General certifications | Pushbar Neutral – 3 13 / 16 " (97mm) Pushbar Depressed – 3 ½,6" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* *US32D available on WS9827 and WS9857 devices only Panic Hardware UL 305 Fire Exit hardware UL 10 C UL ANSI/ICC 500 F5 Tornado Applications | ||
| Finishes Certifications General certifications | Pushbar Neutral – 3 13/16" (97mm) Pushbar Depressed – 3 1/16" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* *US32D available on WS9827 and WS9857 devices only Panic Hardware UL 305 Fire Exit hardware UL 10 C UL ANSI/ICC 500 F5 Tornado Applications Rating 3 hours pair of doors (double egress), | ||
| Finishes Certifications General certifications | Pushbar Neutral – 3 13 / 16 " (97mm) Pushbar Depressed – 3 ½6" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* *US32D available on WS9827 and WS9857 devices only Panic Hardware UL 305 Fire Exit hardware UL 10 C UL ANSI/ICC 500 F5 Tornado Applications Rating 3 hours pair of doors (double egress), 90 minute pairs (swinging same direction) | ||
| Certifications General certifications WS 9827/9927 | Pushbar Neutral – 3 13/16" (97mm) Pushbar Depressed – 3 1/16" (78mm) US3, US4, US10, US26, US26D, US28, 313, 315 and US32D* *US32D available on WS9827 and WS9857 devices only Panic Hardware UL 305 Fire Exit hardware UL 10 C UL ANSI/ICC 500 F5 Tornado Applications Rating 3 hours pair of doors (double egress), 90 minute pairs (swinging same direction) Door size 8'0" x 8'0" (2438mm x 2438mm) hollow metal | ||
Trim guide
|
Exit only
(EO) |
Thumbturn
keylocks and unlocks |
Thumbturn blank escutcheon |
Lever
key locks and unlocks |
Lever
blank escutcheon |
|
|---|---|---|---|---|---|
| Product description | WS9927EO | WS9827TL | WS9827TL-BE | WS9827L | WS9827L-BE |
| WS9827EO | WS9927TL | WS9927TL-BE | WS9927L | WS9927L-BE | |
| WS9857EO | WS9857TL | WS9857TL-BE | WS9857L | WS9857L-BE | |
| WS9957EO | WS9957TL | WS9957TL-BE | WS9957L | WS9957L-BE | |
| Trim | None | 377Tx990DT | 377T-BEx990DT | 996L-R/V | 996L-BE-R/V |
| Escutcheon plate | 2 % 16 "x 5 ½" x 2 5/8" | 2 3 / 4 "x 10 3 / 4 " x 27 / 32 " | 2 3 / 4 "x 10 3 / 4 " x 27 / 32 " | 2 3 / 4 "x 10 3 / 4 " x 27 / 32 " | |
| size | (65mm x 140mm x 67mm) | (70mm x 273mm x 21mm) | (70mm x 273mm x 21mm) | (70mm x 273mm x 21mm) | |
| Projection | 3 ¼" (83mm) | 3 ¼" (83mm) | 2 ½" (73mm) | 2 ½" (73mm) | |
| ANSI function | 1 | 11 | 8 | ||
| Cylinder type | 1 1/4" (32mm) Mortise | Rim | |||
|
Required 425 sex
bolt quantity |
6 | 2 | 2 | 2 | 2 |
Lever styles
M Collection dec
M57 ··
(Handed)
M63
(Handed)
(Handed)
M85
M81 Knurling available
M82
02
Knurling available
M83
M84
(Handed)
·· Available in Stainless Steel substrate ONLY.
Standard levers
01
12 (Handed)
03* Knurling available
MER
(Merano)
(Handed)
05
(Handed)
06*
Default lever
ACC
(Accent)
(Handed)
* Available in Stainless Steel - specify SS when ordering
Ordering information
| WS |
-
98 |
-
27 |
-
EO - |
06
- |
F |
-
ALK - |
3'
- |
US26
- |
LHR |
|---|---|---|---|---|---|---|---|---|---|
| Prefix | Series | Device style | Function |
Lever
style |
Fire exit | Alarm kit |
Device
length |
Finishes | Handing |
| 1 |
2
3 |
4
5 |
6
7 |
8
9 |
10 |
Selections correspond with the numbers above.
See price book for specific configuration options.
| 1 | Prefix |
|---|---|
|
QEL
LX RX RX2 SS WS* |
Quiet Electric Latch
Retraction Latch Bolt monitoring Request to Exit Double Request to Exit Signal Switch Windstorm *Must designate WS; may select more than one prefix. |
| 2 | Series |
|
98
99 |
Series 98 - smooth
Series 99 - grooved |
| 3 | Device Style |
| 27 |
Two point latch mounted
vertical rod device |
| 57 |
Three point latch mounted
vertical rod device |
| 4 | Function |
|
EO
K L TL |
Exit Only
Knob Lever (Classroom) Thumbturn |
| 5 | Lever style |
|---|---|
| Standard | |
| Decorative | |
| *See price book or product catalog for lever style | |
| options. | |
| 6 | Fire exit devices |
| F | Fire exit device |
| 7 | Alarm kit |
| ALK | Alarm kit |
| 8 | Device length |
| 3' | Device (2'4" - 3' Door size) |
| 4' | Device (2'10" - 4' Door size) |
| 9 | Finishes |
| US3 | Brass, Polished |
| US4 | Brass, Satin |
| US10 | Bronze, Satin |
| US26 | Chrome, Polished |
| US26D | Chrome, Satin |
| US28 | Anodized, Aluminum |
| US32D* | Stainless Steel, Satin |
|
313
315 |
Dark Bronze
Black |
| *For the WS9827 and WS9857 Devices only |
| 10 | Handing | |
|---|---|---|
|
RHR
LHR |
Right Hand Reverse
Left Hand Reverse |
