Introduction
Flexible solutions for real-world applications
There's a reason why customers have trusted Von Duprin® to keep them safe for more than 100 years. From robust materials to flexible design, Von Duprin products are engineered with you in mind. Quiet electric latch retraction (QEL) and field reversible handing provide versatility and allows 94/95 Series devices to be easily customized for the application.
As a commonly utilized product in facilities where building openings must accommodate high volumes of people and equipment, the INPACT 94/95 Series provides a recessed push pad design that can reduce impact and protect it from abuse. A variety of finishes, trim functions, and mechanical and electronic options allow you to accommodate for a variety of applications.
Passion driving performance
Supported by industry-leading expertise, Von Duprin customers receive superior products and exceptional customer service. From fire and life safety codes to installation resources, Allegion's knowledgeable technical support representatives average more than 15 years of experience each. And for those looking to take their expertise to the next level, Allegion offers instructor-led workshops, videos and online courses. It's another way Von Duprin stands by its customers today, tomorrow and for years to come.
Table of contents
| Exit hardware | |
|---|---|
| How to order | 5 |
| Applications / Trim options | 6 |
| Lever styles | 7 |
| Concealed Vertical | |
| 9447 / 9547 | 8 |
| 9447 / 9547 Fire | 10 |
| Mortise Lock Exit devices | |
| 9475 / 9575 | 12 |
| 9475 / 9575 Fire | 14 |
| Options and Accessories | 16 |
| Trim Options | 17 |
UL Listings/Finishes 18
Options and accessories
|
Applications & trim
operation |
Features
Appearance and trim options Lever styles |
|
|---|---|---|
|
Trim
options |
Trim selection
Trim options |
|
| Specifications |
UL listed
Finishes |
|
|
Additional
information |
Single door
Double door |
|

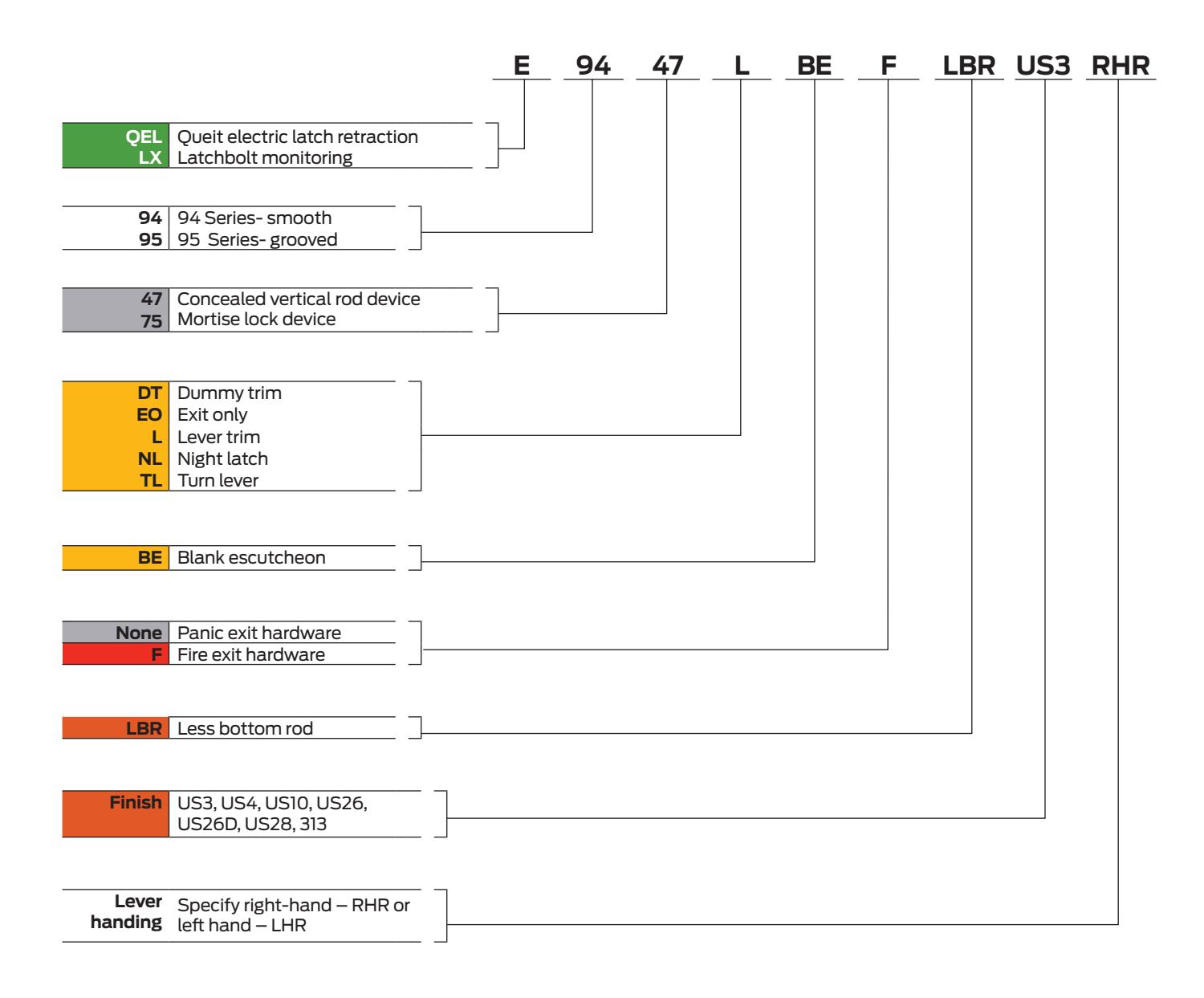

Single door 9475 and 9575
- 1. Specify model and trim selection. Examples: 9475L-F (Fire exit device, mortise lock, smooth pushpad, lever trim) 9575DT (Panic device, mortise lock, grooved pushpad, dummy trim)
- 2. Specify finish
- 3. Handing required on lever trims. Specify RHR or LHR.
- 4. Options as desired Example: QEL prefix (Quiet electric latch retraction) QEL9475-F x US26D x RHR
Double door 9447 and 9547
- 1. Specify model and trim selection. Examples: 9447L-F (Fire exit device, concealed rod, smooth pushpad, lever trim) 9547DT (Panic device, concealed rod, grooved pushpad, dummy trim)
- 2. Specify finish
- 3. Handing required on lever trims. Specify RHR or LHR.
- 4. Options as desired Example: QEL prefix (Quiet electric latch retraction) QEL9547-F x US26D x RHR
Popular applications and handling
Single door applications
Single mortise lock device
Double door applications
Mortise lock and surface mounted or concealed vertical rod device combination—same direction
Two vertical rods—double egress

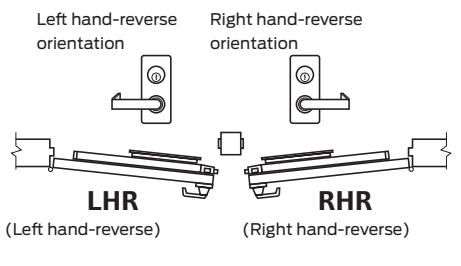

Door handing
Outside
Two Fire Exit Hardware vertical rods with auxilary fire latch-LBR option
Two concealed vertical rods
INPACT™ Trim operation
Standard trim
Lever 940L*
Forged brass 1 <sup>3</sup>/<sub>8</sub>" (35mm) depth escutcheon. #06 lever is standard. Optional lever designs are available.
Optional trim
Dummy Pull 550DT
Heavy aluminum forged brackets with 10" (254mm) stainless steel pullbar.
Thumbturn 376T
TL
Forged brass <sup>7</sup>/<sub>8</sub>" (22mm) escutcheon. It is often used with a 550DT pull trim.
Only available with concealed rod devices.
* Blank escutcheon "BE" available. Example: 940L-BE.

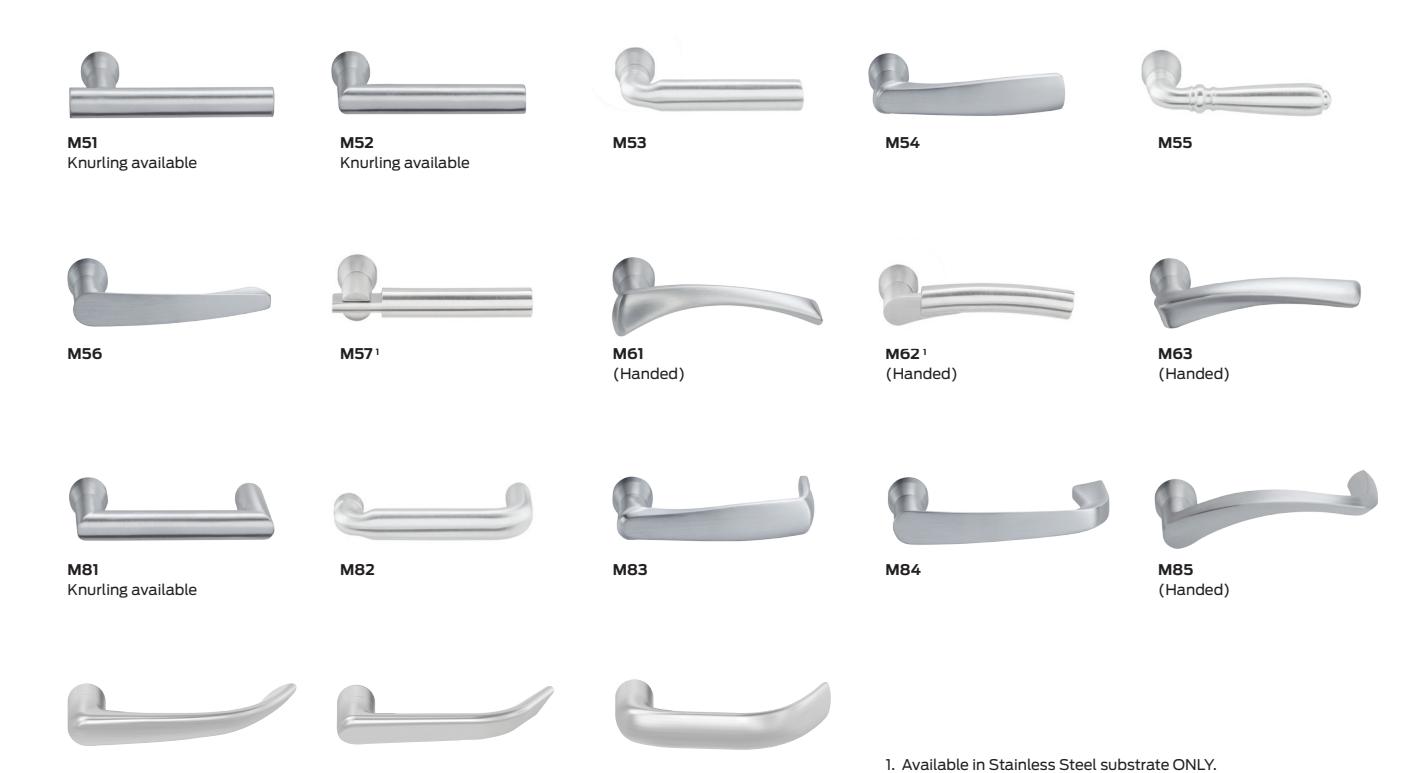

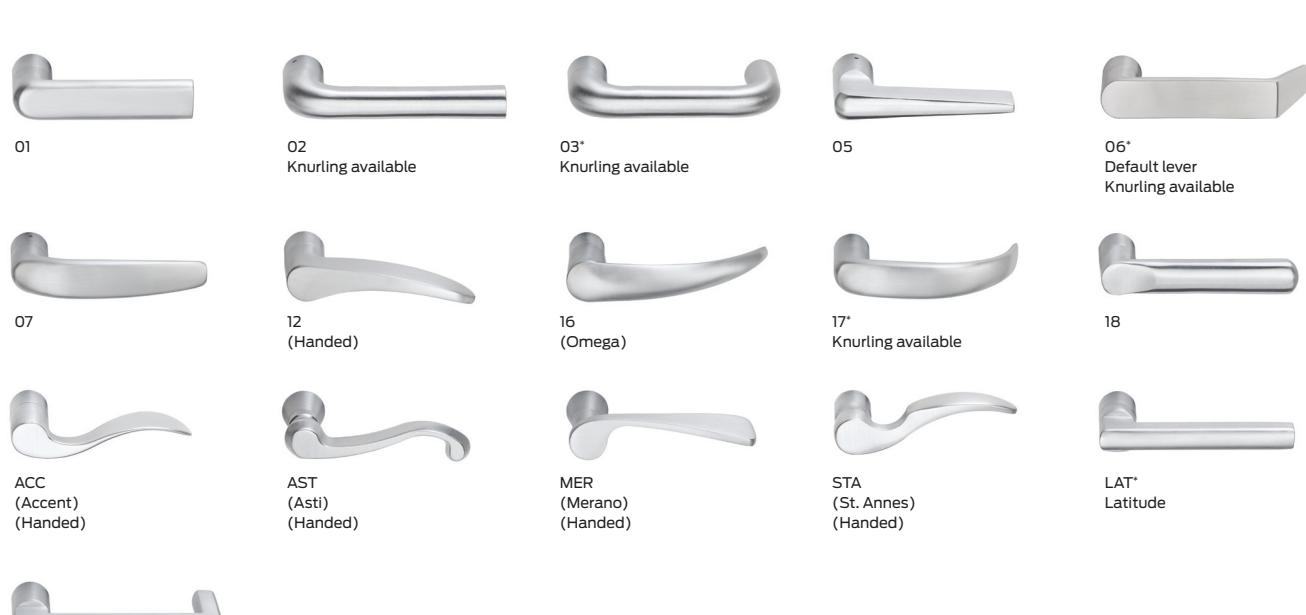

Lever styles
Decorative Levers
ME3 2
Standard Levers
ME2 2 (Handed)
ME1 2 (Handed)
LON* Longitude
* Available in stainless steel - specify SS when ordering.
2. Designed with Gensler as product design consultant.

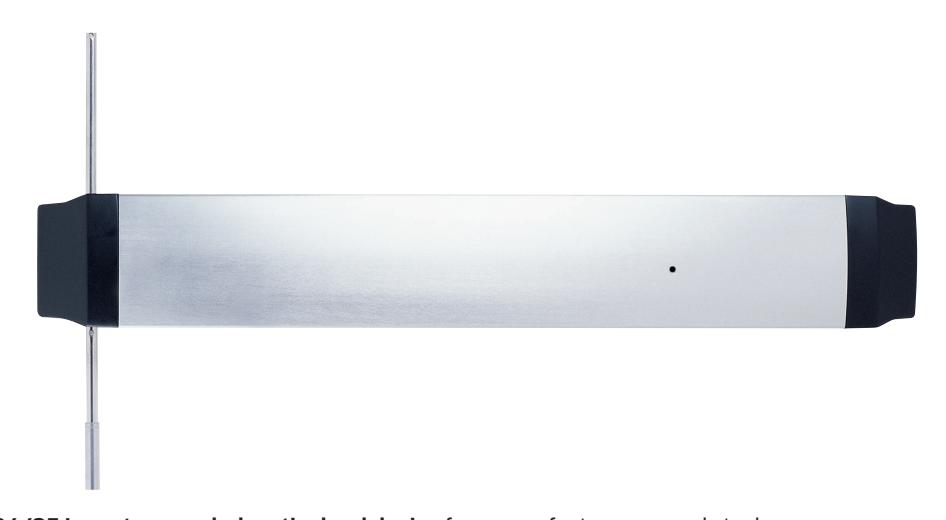

9447/9547 INPACT™ Concealed vertical rod devices
94/95 Inpact concealed vertical rod device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.
Finishes – US3, US4, US10, US26, US28, 313.
Hex key dogging comes standard on 94/95 Concealed vertical rod device
QEL
Quiet electric latch retraction
- Bolt retraction via switch
- Converts exit door to push-pull operation
LX
Latchbolt monitor switch
- Signals use of an opening
- SPDT switch to monitor latch bolt
LBR
Less bottom rod
- Available with UL Fire Label
- For pairs of vertical rod devices
| Specifications | |
|---|---|
| Device functions | Device ships EO, DT, TL, L |
| Blank escutcheon (BE) available | |
| Device lengths | 2'6" Up to 2'9" for 24 5/32" device |
| 2'10" up to 4' for 30 5/32" device | |
| Device centerline | 39 5/8" (1006 mm) |
| from finished floor | |
| Projection |
1 5
/8" (41 mm) neutral |
|
1
1/4" (32 mm) depressed |
|
| Latchbolt |
/8" (16 mm) throw
5 |
| deadlocking latchbolt standard | |
| Door undercut |
/4" (7 mm) maximum
1 |
| Top & bottom latch | 4 1/2" X 2 1/8" x 1 1/2" |
| case assembly | (114 mm x 54 mm x 38 mm) |
| Vertical rods | Two-piece adjustable rods, door 6'8" (2032 mm) to |
| 8'0" (2540 mm) can be adjusted by removing the latchside endcap | |
| Fasteners | Included for surface mounting to recessed door prep |
| and through bolting to trim | |
| Electric options | QEL quiet electric latch retraction |
| LX latchbolt monitor switch | |
| Mechanical options | LBR less bottom rod |
| PL pullman latch (with electric strike -ES) | |
| Dogging | Hex key dogging |
| option | |

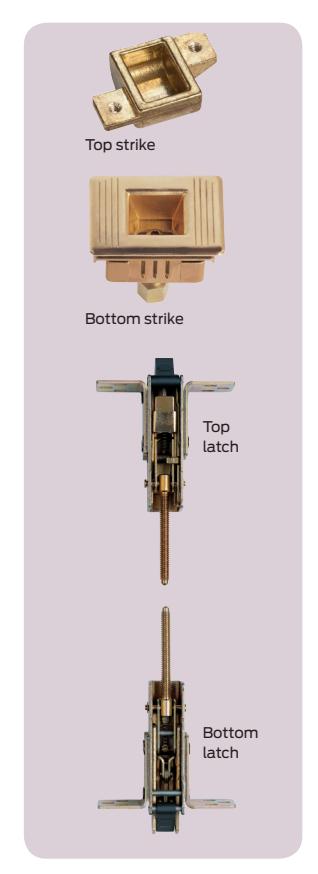

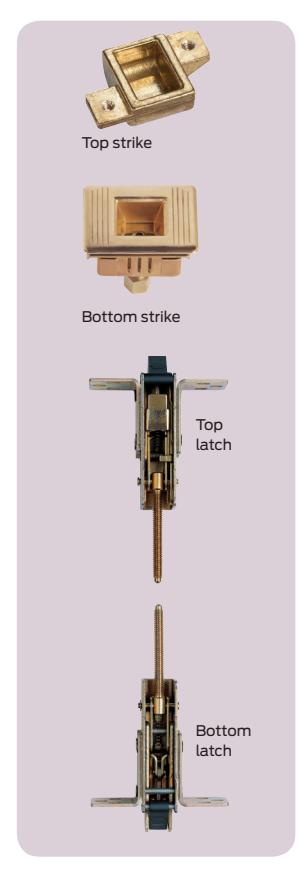

| Strikes | Top - 338 unfinished, botom - 385A unfinished |
Standard trim EO DT Thumbturn key Dummy trim Key locks & unlocks (Use with DT trim) Pull when dogged Exit only Product description 9447EO 9447DT 9447TL 9547TL 9547EO 9547DT Trim description 550DT 550DT x 376T 7 1/2" x 1 11/16" Escutcheon plate (190mm x 43mm) size Pull overall length 35/8" x 119/16" (93 mm / 294mm) 10" Pull center to center (254 mm) Projection/Offset 25/8" x 17/8" 25/8" x 17/8"
(67 mm / 48 mm)
02
ANSI function
Cylinder type
Handing
01
(67 mm x 48mm)
11 or 12
11/4" Mortise

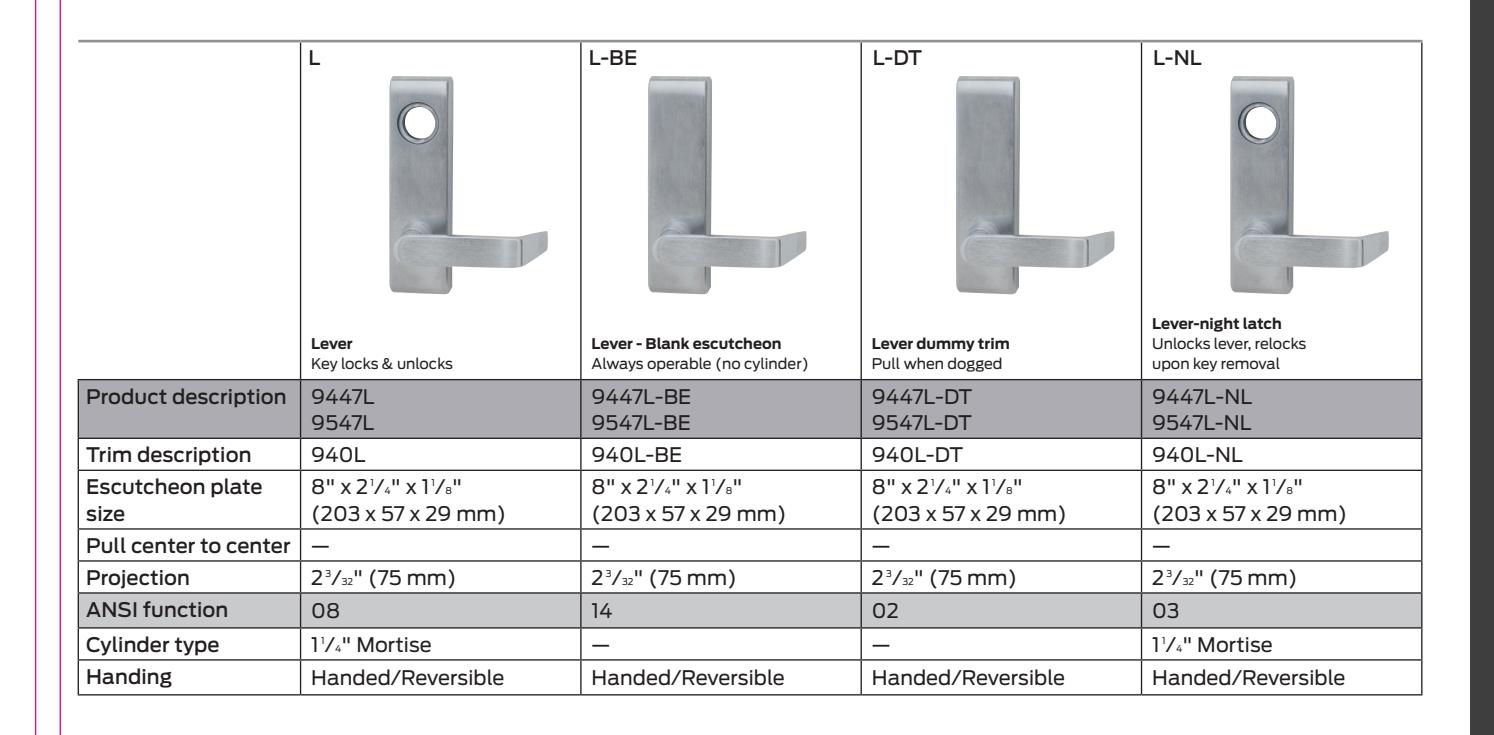

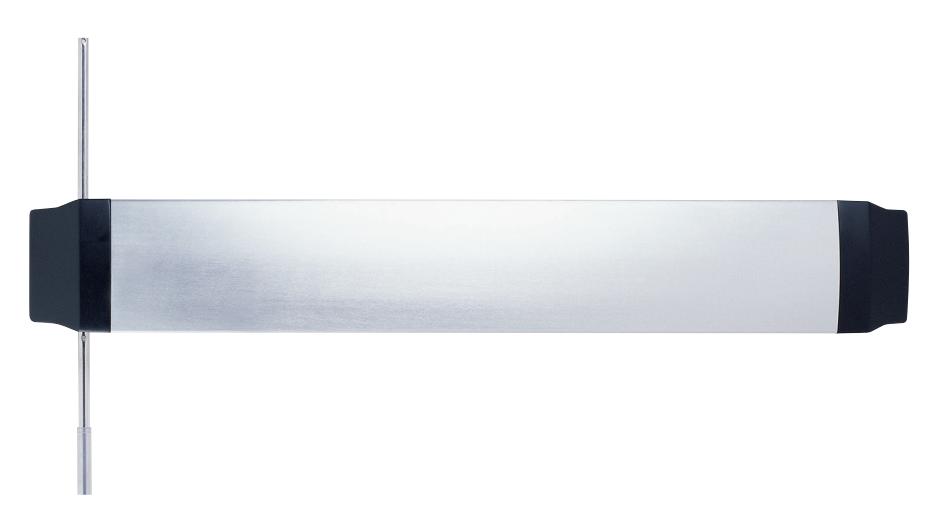

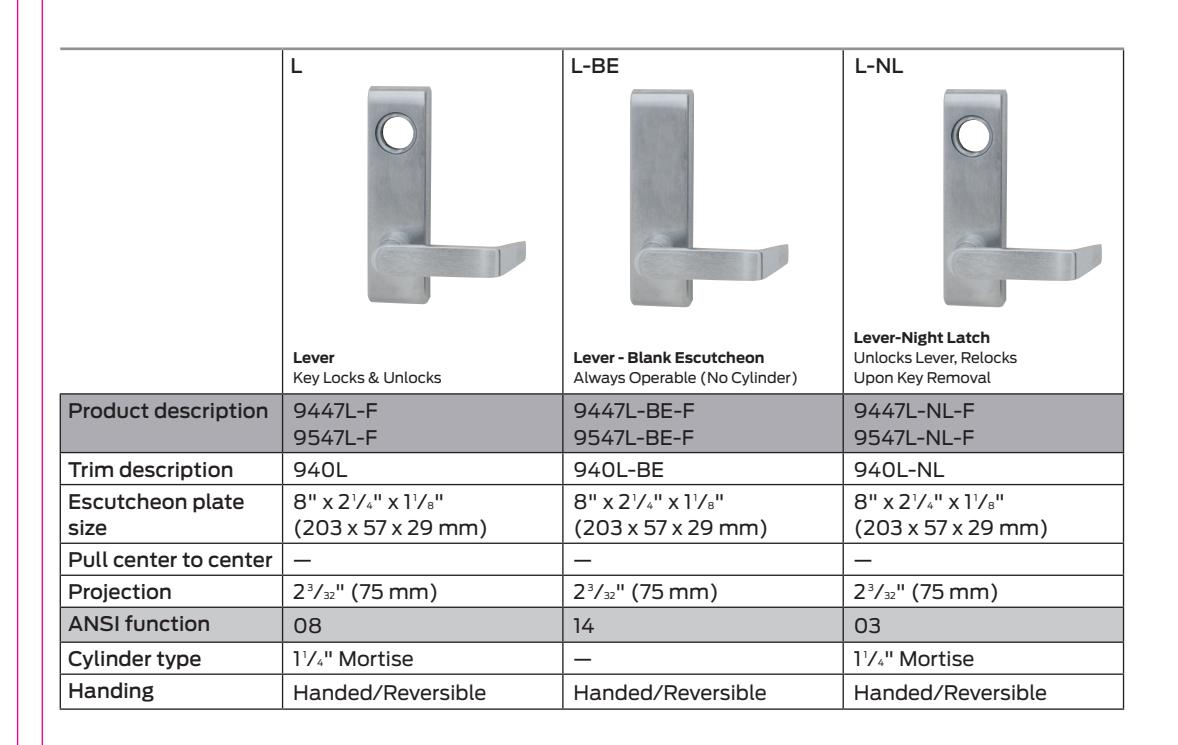

9447/9547 INPACT™ Concealed vertical rod fire exit device
94/95 Inpact concealed vertical rod fire exit device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.
Finishes – US3, US4, US10, US26, US28, 313.
| Specifications | |
|---|---|
| Device functions | Device ships EO, TL, L |
| Blank escutcheon (BE) available | |
| Device lengths | 2'6" up to 2'9" for 24 5/32" device |
| 2'10" up to 4' for 30 5/32" device | |
| Device centerline | 39 5/8" (1006 mm) |
| from finished floor | |
| Projection |
1
5/8" (41 mm) neutral |
|
1
1/4" (32 mm) depressed |
|
| Latchbolt |
/8" (16 mm) throw
5 |
| deadlocking latchbolt standard | |
| Door undercut | 1/4" (7 mm) maximum |
| Top & bottom latch | 4 1/2" x 2 1/8" x 1 1/2" |
| case assembly | (114 mm x 54 mm x 38 mm) |
| Vertical rods | Two-piece adjustable rods, door 6'8" (2032 mm) to 8'0" (2540 mm) Can be |
| adjusted by removing the latchside endcap | |
| Fasteners | Included for surface mounting to recessed door prep and through bolting to trim |
| Electric options | QEL Quiet electric latch retraction |
| LX Latchbolt monitor switch | |
| Mechanical options | LBR Less bottom rod |
| PL Pullman latch (with electric strike -ES) | |
| Dogging | No mechanical dogging |
| option | |
| Strikes | Top - 338 unfinished, botom - 385A unfinished |
QEL
Quiet electric latch retraction
- Bolt retraction via switch
- Converts exit door to push-pull operation
LX
Latchbolt monitor switch
- Signals use of an opening
- SPDT switch to monitor latch bolt
LBR
Less bottom rod
- Available with UL Fire Label
- For pairs of vertical rod devices
Standard trim
| Standard trim | ||
|---|---|---|
| EO Exit only | Thumbturn key key locks & unlocks (use with DT trim) | |
| Product description |
9447EO -F
9547EO-F |
9447TL-F
9547TL-F |
| Trim description | _ | 550DT x 376T |
| Escutcheon plate size | _ |
7½" x 1½"
(190mm x 43mm) |
| Pull center to center | _ | |
| Projection/Offset | _ |
2
5
/
8
" x 1
7
/
8
"
(67 mm x 48mm) |
| ANSI function | 01 | 11 or 12 |
| Cylinder type | _ | 11/4" Mortise |
| Handing | _ | _ |

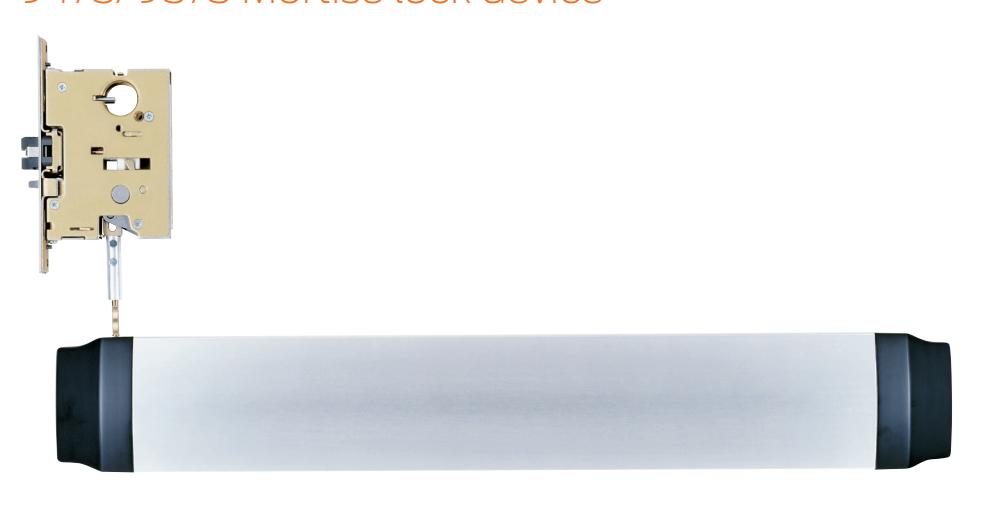

9475/9575 Mortise lock device
94/95 Inpact mortise lock device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.
Finishes – US3, US4, US10, US26, US26D, US28, 313.
Hex key dogging comes standard on 94/95 Mortise lock device
| Specifications | ||
|---|---|---|
| Device functions | Device ships EO, DT, TL, L, NL | |
| Blank escutcheon (BE) available | ||
| Device lengths | 2'6" up to 2'9" for 24 5/32" device | |
| 2'10" up to 4' for 30 5/32" device | ||
| Mortise lock | ||
| centerline from | 48 1/8" (1222 mm) | |
| finished floor | ||
| Projection |
1
5/8" (41 mm) neutral 1 1/4" (32 mm) depressed |
|
| Latchbolt |
/4" (19 mm) anti-friction
3 |
|
|
Fasteners
Included for surface mounting to recessed door prep |
||
| and through bolting to trim | ||
| Electric options | QEL Quiet electric latch retraction | |
| LX Latchbolt monitor switch | ||
| SS7500-IN Signal switch mortise lock | ||
| Mechanical options | PL Pullman Latch (with electric strike -ES) | |
| Dogging | Hex key dogging | |
| option | ||
| Strikes | 575 - Dull black | |
QEL
Quiet electric latch retraction
- Bolt retraction via switch
- Converts exit door to push-pull operation
LX
Latchbolt monitor switch
- Signals use of an opening
- SPDT switch to monitor latch bolt

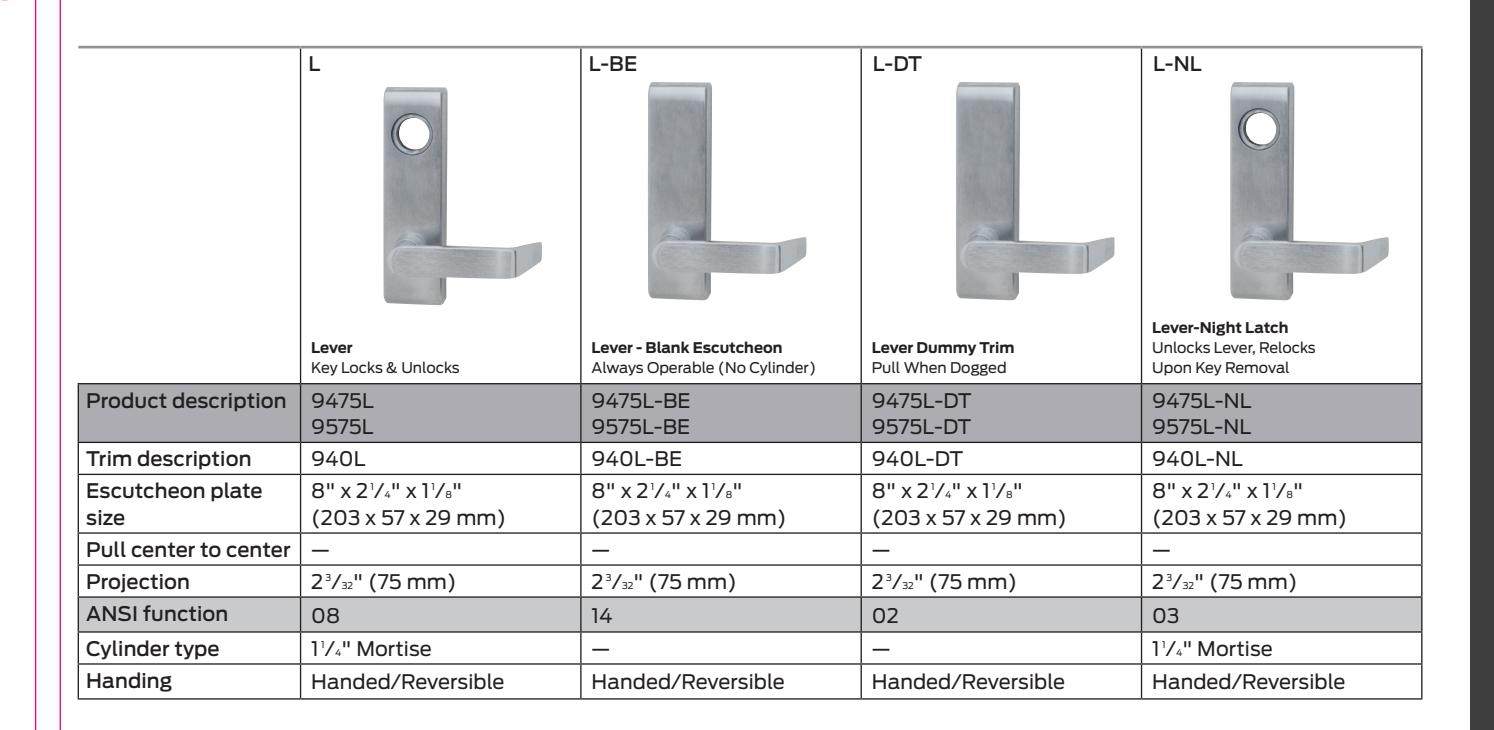

Standard trim
| EO | DT | NL | ||
|---|---|---|---|---|
| Exit only |
Dummy Trim
Pull When Dogged |
Night Latch
Key Retracts Latchbolt |
||
| Product description |
9475EO
9575EO |
9475DT
9575DT |
9475NL
9575NL |
|
| Trim description | — | 550DT | 550DT x Cylinder | |
|
Escutcheon plate
size |
— | — | (40mm x 273mm x 21 mm) | |
| Pull overall length | — |
3 5/8" x 11 9/16"
(93 mm / 294mm) |
— | |
| Pull center to center |
10"
(254 mm) |
|||
| Projection | — |
2 5/8" x 1 7/8"
(67 mm / 48mm) |
2 5/8" x 1 7/8"
(67 mm x 48mm) |
|
| ANSI function | 01 | 02 | 03 | |
| Cylinder type | — | — |
1
1/4" Mortise |
|
| Handing | — | — | — | |

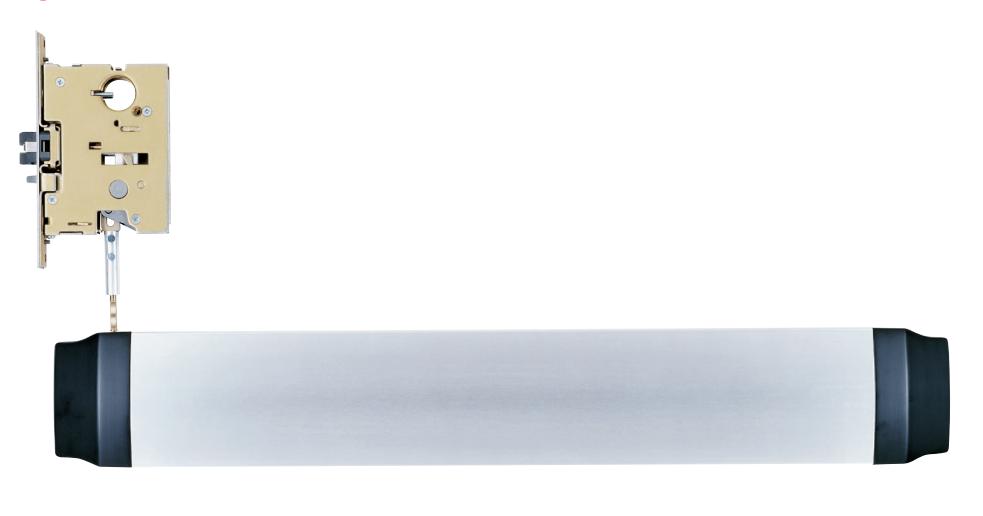

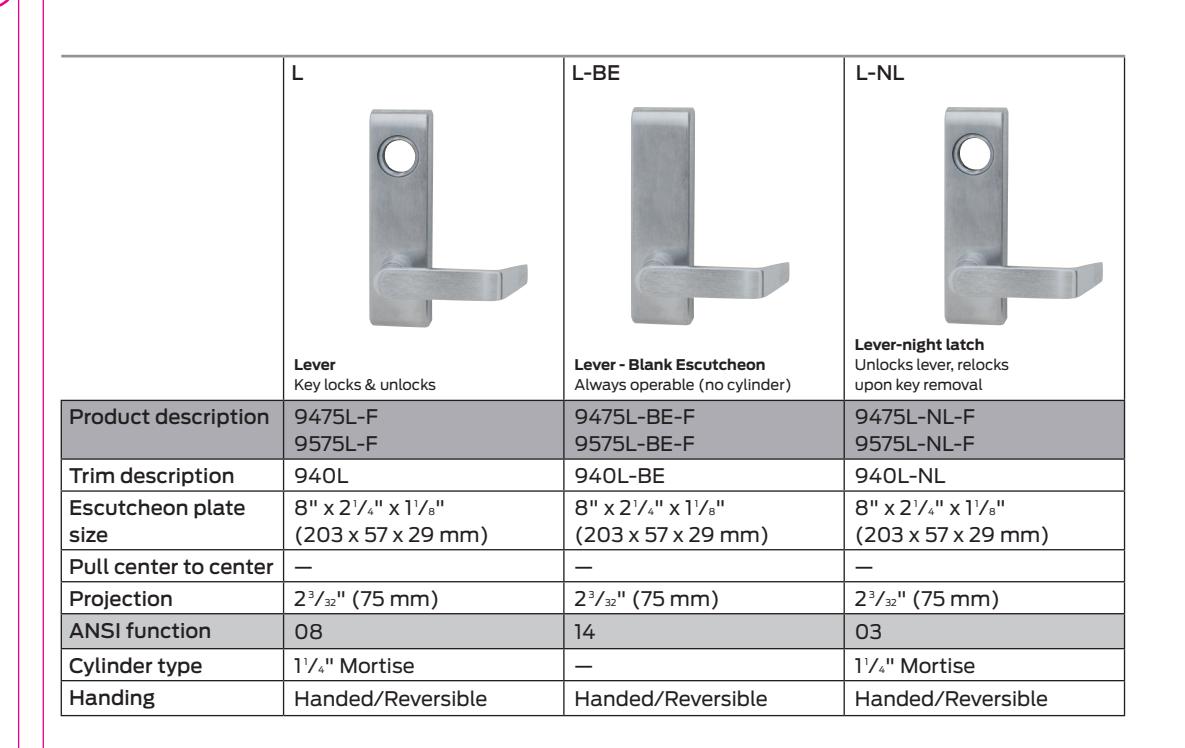

9475/9575-F Mortise lock fire exit device
94/95 Inpact mortise lock fire exit device for use on factory prepped steel doors, not available for wood doors. The Inpact device is UL listed for panic and fire, ANSI/BHMA 156.3 Grade 1. The Inpact device is non-handed.
Finishes – US3, US4, US10, US26, US26D, US28, 313.
| Specifications | |
|---|---|
| Device functions | Device ships EO, DT, TL, L |
| Blank escutcheon (BE) available | |
| Device lengths | 2'6" up to 2'9" for 24 5/32" device |
| 2'10" up to 4' for 30 5/32" device | |
| Mortise lock | |
| centerline from | 48 1/8" (1222 mm) |
| finished floor | |
| Projection |
1
5/8" (41 mm) neutral 1 1/4" (32 mm) depressed |
| Latchbolt |
3
/4" (19 mm) anti-friction, field reversible |
| Fasteners | Included for surface mounting to recessed door prep |
| and through bolting to trim | |
| Electric options | QEL Quiet electric latch retraction |
| LX Latchbolt monitor switch | |
| SS7500-IN Signal switch mortise lock | |
| Mechanical options | PL Pullman Latch (with electric strike -ES) |
| Dogging | No mechanical dogging |
| option | |
| Strikes | 575 - Dull black |
QEL
Quiet electric latch retraction
- Bolt retraction via switch
- Converts exit door to push-pull operation
LX
Latchbolt monitor switch
- Signals use of an opening
- SPDT switch to monitor latch bolt
Standard trim
| EO |
NL
Night latch |
|||
|---|---|---|---|---|
| Exit only | Key retracts latchbolt | |||
| Product description |
9475EO -F
9575EO-F |
9475NL-F
9575NL-F |
||
| Trim description | — | 550DT x Cylinder | ||
|
Escutcheon plate
size |
— | (40mm x 273mm x 21 mm) | ||
| Pull overall length | — | — | ||
| Pull center to center | — | |||
| Projection | — |
2 5/8" x 1 7/8"
(67 mm x 48mm) |
||
| ANSI function | 01 | 03 | ||
| Cylinder type | — |
1
1/4" Mortise |
||
| Handing | — | |||
INPACT™ Device options & accessories
QEL Quiet electric latch retraction
The QEL feature allows for the remote unlatching of exit devices. A control station operator can flip a switch to retract the latch bolt and immediately change an exit door to push-pull operation. Different than the popular EL, the QEL quiet operation is achieved using an electric drive motor which retracts the latch bolt either momentary unlatching or for extended periods of time. This feature is an alternative to manual dogging.
If cylinder dogging is required, the standard cylinder dogging is not available, but special center case dogging is available, specify
SD-QEL. SD-QEL is not available on the 9875 or 9975 devices.
QEL devices are also useful with automatic door operators, and may be applied to fire-rated applications when under the control of an automatic fire alarm system.
UL approved for Class II circuit applications.
The QEL option does not include the power transfer from door to frame, the power supply, or the control operator. Refer to EPT-2 power transfer and the PS902 or 914 power supply.
The PS902/914 with the 2RS, 4RL or 4R board is the minimum required. Other option boards available for other functions, see PS902/914 power supply for additional information.
The QEL has a low in rush current, so it can be used with standard Schlage power supplies. Calculate the peak current draw of all devices in the system to determine the required amperage of the supply.
| QEL Electri | cal load |
|---|---|
| Voltage | 24VDC |
| Current | 1.0 A Inrush (0.5 sec.) / 0.14 A Holding |

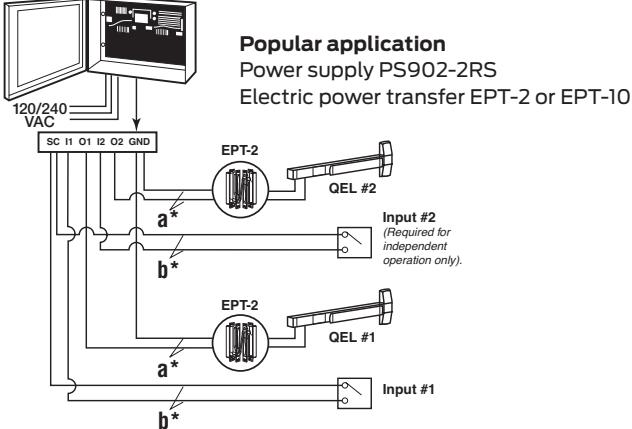

The 900-2RS option board designed to control two electric latch retraction devices and provide time delay between the firing of outputs is required. The power transfer is also sold separately.
| Schlage PS902 | Schlage PS904 | Schlage PS906 |
|---|---|---|
| up to 2 amps | up to 4 amps | up to 6 amps |
To order, specify:
Standard — use prefix QEL, example QEL94L. Special center case dogging — use prefix SD-QEL, example SD-QEL94L
| * ا | Distance (one-way) | Wire gauge |
|---|---|---|
| 200′ | 18 AWG | |
| 320´ | 16 AWG | |
| 500´ | 14 AWG | |
| 800′ | 12 AWG |
Wire selection Switch wire size 1200 ft. Max. 18 gauge standard
Latchbolt monitoring
The latchbolt monitor or (LX) feature gives an electronic signal when someone enters an opening from the trim side of the door. The device can then be connected to a security console or may be used as a single door alarm when used with a horn and power supply. The (LX) switch is located inside the device's pushpad on a concealed vertical rod device. For a mortise device, the switch is located inside the mortise lock. Electrical Ratings: 0.5 Amp., 24 VDC.
To Order: Specify prefix LX.
INPACT accessories
Cylinders are not furnished with device or trim and must be specified when ordering. Mortise lock exit devices and the 940L use mortise-type cylinders.
Less bottom rod
The less bottom rod (LBR) option is available for concealed vertical rod devices. In lieu of a bottom rod and latch, a spring-loaded auxiliary bolt is installed in the lower door edge.
When exposed to heat, during a fire, the auxiliary latch releases, keeping the doors in alignment and closed. UL listed for 3 hours on double egress doors and for 90 minutes on doors swinging in the same direction. The LBR option is not recommended for exterior door openings or where security is critical.
а
INPACT™ Trim selection
| 550DT | 550 DT x Cylinder | 940L | 550DT x 376T | |||
|---|---|---|---|---|---|---|
|
Trim number
and dimension |
ns |
11 1/2"
(292mm) 3 1/2" (89mm) |
11 1/2"
(292mm) 3 1/2" (89mm) |
1 15/16"
(50mm) 8" (203mm) 2 1/4" (57mm) |
11 1/2"
(292mm) 3 1/2" (89mm) 550DT 7 1/2"" (191mm) |
|
|
01
Exit only |
02
Pull when dogged |
O3
Key retracts latch bolt |
08
Key locks lever |
1 11/16"
(43mm) II Key locks thumbturn |
||
|
Device/Trim
center line to finished flo |
or | € ——( | € — ( | €——(| | | | | | | | | | | | | | | | | | | | € — ( | € — ( |
| Projection | _ | 25/8" | 25/8" | 31/8" | 113/16" / 25/8" | |
|
Concealed
vertical rod |
Panic |
9447EO
9547EO |
9447DT
9547DT |
_
_ |
9447L
9547L |
9447TL
9547TL |
| Fire |
9447EO-F
9547EO-F |
9447L-F
9547L-F |
9447TL-F
9547TL-F |
|||
| Ctr. line | 39 5 / 8 (1006mm) |
A 39
5
/
8
(1006mm)
B 39 5 / 8 (1006mm) |
A 39
5
/
8
(1006mm)
B 39 5 / 8 (1006mm) |
A 39
5
/
8
(1006mm)
B 53 1 / 2 (1359mm) |
||
| Panic |
9475EO
9575EO |
9475DT
9575DT |
9475NL
9575NL |
9475L
9575L |
||
| Mortise lock | Fire |
9475EO-F
9575EO-F |
_
_ _ |
9475NL-F
9575NL-F |
9475L-F
9575L-F |
|
| Ctr. Line | 39 5 / 8 (1006mm) |
A 39
5
/
8
(1006mm)
B 39 5 / 8 (1006mm) |
A 39
5
/
8
(1006mm)
B 39 5 / 8 (1006mm) |
|||
| Cylinder type |
Vert. rod
device |
_ | _ | _ | Mortise* | Mortise* |
| required |
Mortise
device |
_ | _ | Mortise* | _ | Mortise* |
* See page 13 for cylinder information.
UL Listings, Fire exit hardware label / Opening size
UL Listed — fire exit hardware label/opening size
| Double door | ||||
|---|---|---|---|---|
| Exit device | Single door |
Same direction**
Double egress |
||
| 9475-F | 3 Hour | |||
| 9575-F | 4' x 10' | |||
| 9447-F | 90 Minute | 3 Hour | ||
| 9547-F | 8' x 10' | 8' x 10' | ||
| 9447LBR-F | 90 Minute | 3 Hour | ||
| 9547LBR-F | 8' x 10' | 8' x 10' | ||
Consult your door manufacturer for maximum listed door height.
Finishes
Finishes*
| Color |
US
Number |
BHMA
Number |
|---|---|---|
|
Chromium,
polished |
US26 | 625 |
| Chromium, dull | US26D | 626 |
| Brass, polished | US3 | 605 |
| Brass, dull | US4 | 606 |
|
Aluminum,
anodized |
US28 | 628 |
|
Duranodic dark
bronze |
313 | 710 |
* Note : Durable powder coated finishes available at specific special request. PLEASE CONTACT FACTORY.
About Allegion
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands like CISA®, Interflex®, LCN®, Schlage®, SimonsVoss® and Von Duprin®. Focusing on security around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions. Allegion is a $2 billion company, with products sold in almost 130 countries.
For more, visit www.allegion.com
