Introduction

Your trusted solution

Our brand's reputation, respect and legacy stem from that first exit device in 1908—and they continue because of the quality of Von Duprin® products we've produced since. Today, Von Duprin remains the trusted name in the industry by engineering products that meet the highest industry standards for fire and life safety. It's this dedication to providing customers with dependable products that ensures you can put your trust in the Von Duprin brand.

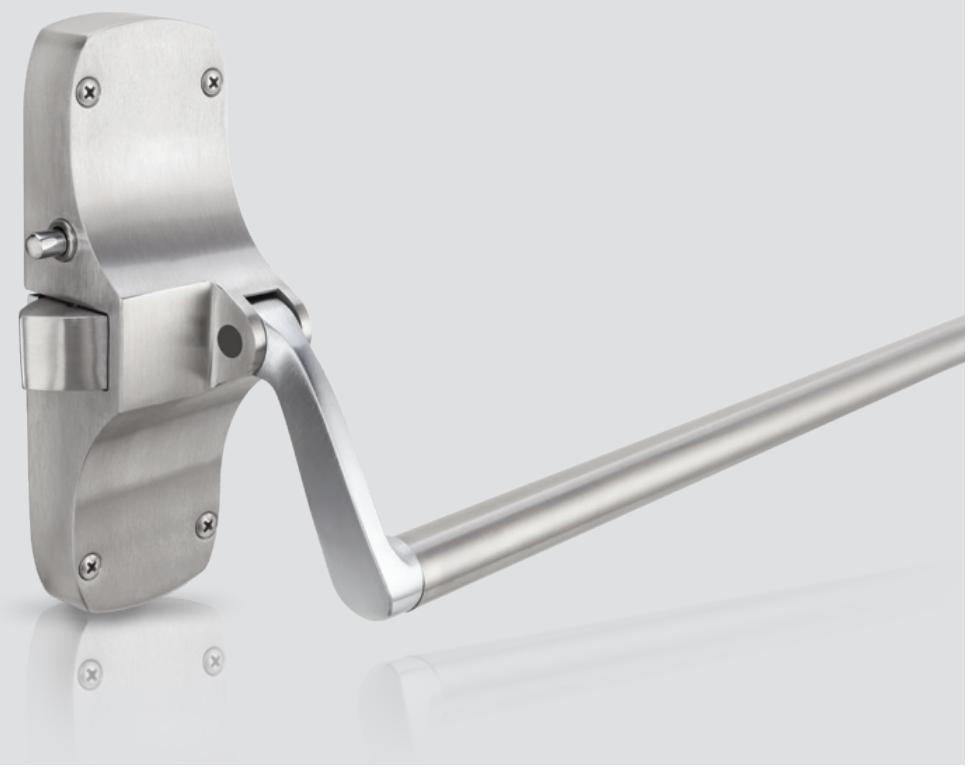

The 88 Series is a wide style cross bar device. Rim, surface mounted vertical rod, concealed vertical rod and mortise configurations are available for panic and fire rated applications. The 88 Series features a non-handed design and flexible field sizing.

Passion driving performance

With superior products comes exceptional customer care. Von Duprin customers are supported by industry-leading expertise. Allegion's representatives average more than 15 years of experience, so you're assured to receive knowledgeable advice on fire and life safety codes, installation resources and more. And for those looking to take their skills to the next level, Allegion offers instructor-led workshops, videos and online courses. It's another way Von Duprin stands by our customers—today, tomorrow and for years to come.

Table of contents

Exit hardware

Rim devices

88 Rim	8
88 Rim Fire	10

Mortise lock exit devices

8875	12
8875 Fire	14

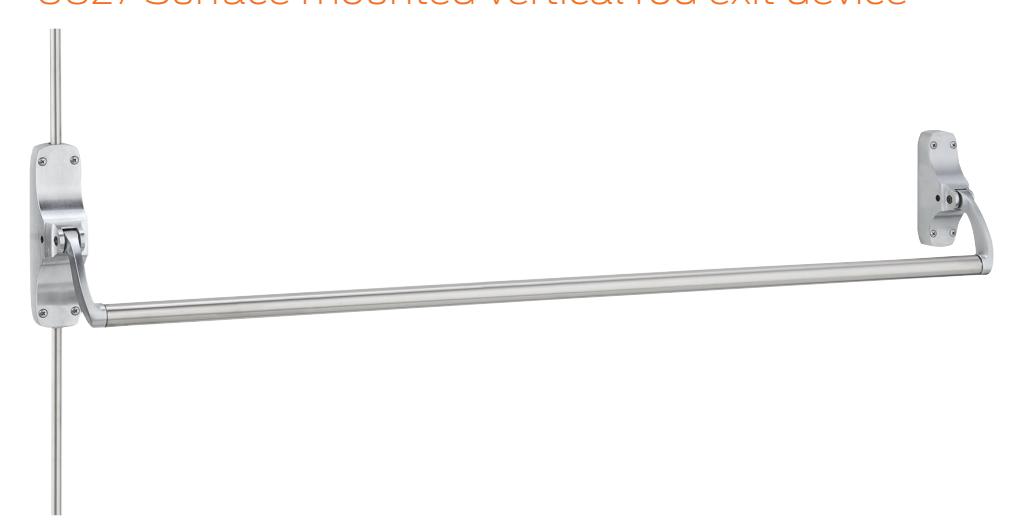

Surface mounted vertical rod exit devices

8827	16
8827 Rim Fire	18

Concealed mounted vertical rod exit devices

8847 Fire	20
Trim options	22

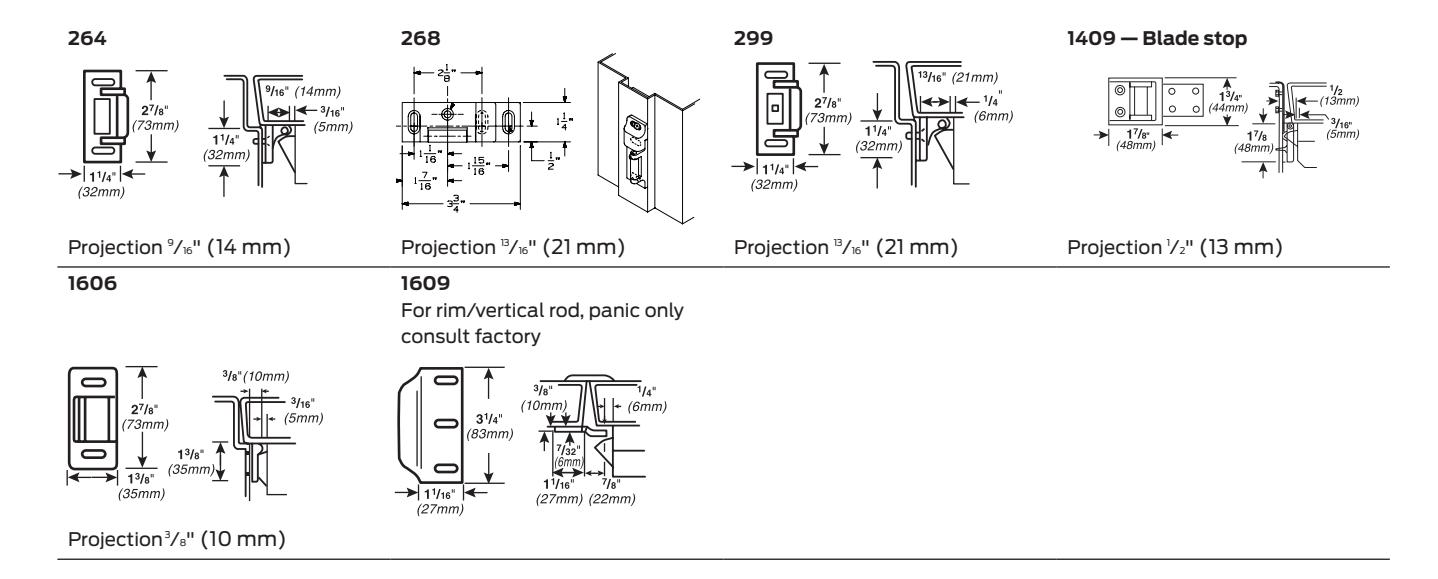

Strike options	24
Electrical options	26
Accessories	27
UL Listing	29

Finishes 31

Options and accessories

Applications & trim operation	Double door applications Door handing	Electrical accessories	E8875 E373l-BE
	Outside trim operation Lever styles	Device accessories	Axle security pin Cover plates
Trim options			Cylinders Optional levers
Strike options/ Stile information	Strike application/minimum stile strikes for rim devices		Power supplies Vertical rod and latch guard
		Additional information	ANSI grade, type & function Function conversion kit UL listed - fire exit hardware label opening
		Finishes	Standard & special finishes

Symbols

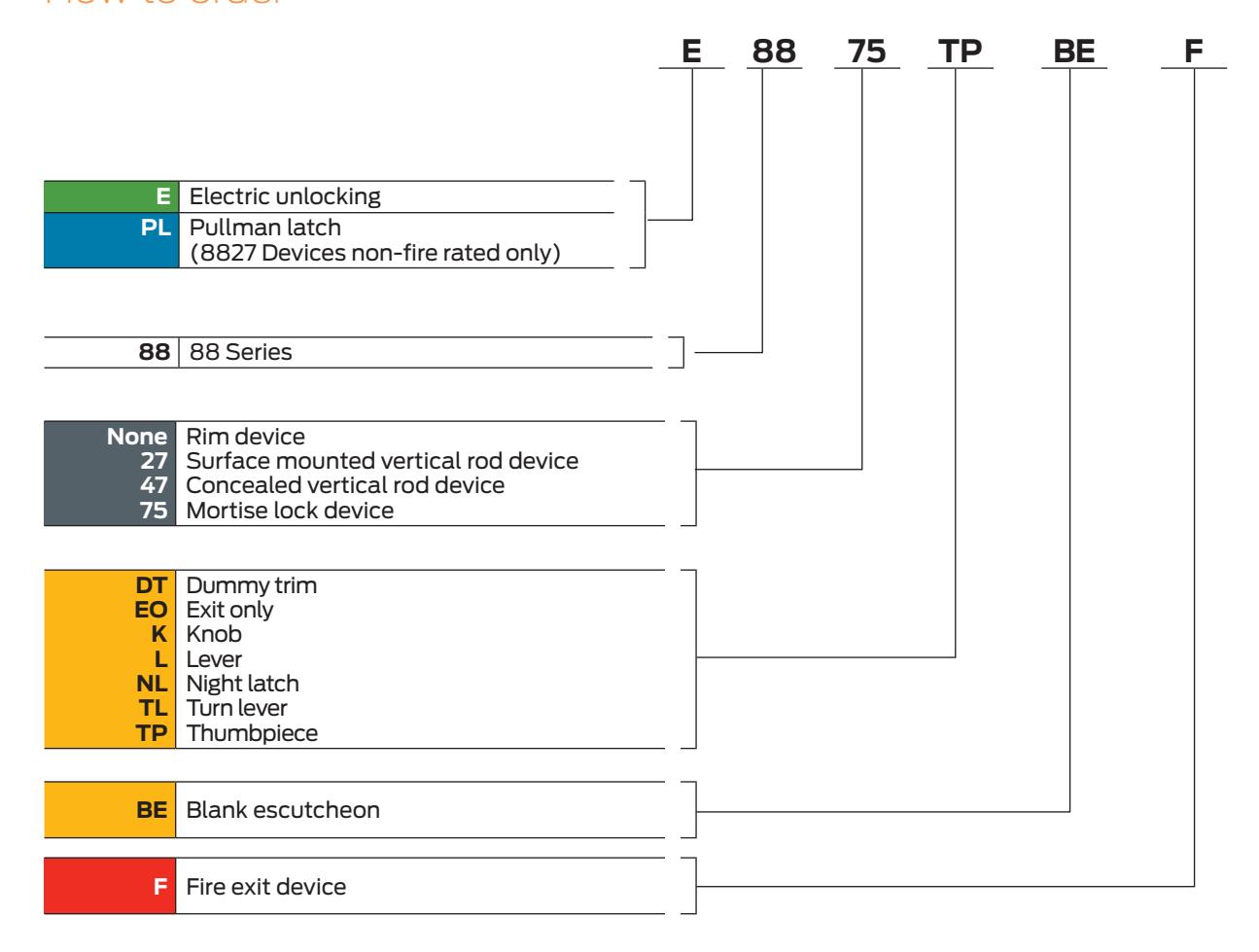

How to order

Rim and mortise lock devices, specify:

• 1. Exit device model number with trim selection. Examples: 88EO (Exit only with no outside trim). 88TP (Includes standard 880TP thumbpiece trim). 88TP x 608TP (Includes the optional 608TP thumbpiece trim).
• 2. Door width 3' (914mm), or 4' (1219 mm).
• 3. Door thickness if other than 1 3/4" (44 mm).
• 4. Door and frame material if other than hollow metal.
• 5. Finish
• 6. Handing required on "L" function, "F" fire devices. Specify LHR or RHR. See diagram below.
• 7. "SNB" when using sex nuts and bolts.

Vertical rod devices, specify:

• 1. Exit device number with trim selection. Examples: 8827EO (Exit only, no outside trim). 8827TP (Includes 880TP thumbpiece trim). 8827TP x 608 TP (Includes the optional 608TP thumbpiece trim).
• 2. Door width 3' (914mm), or 4' (1219 mm).
• 3. Door thickness if other than 1 3/4" (44 mm).
• 4. Door and frame material if other than hollow metal.
• 5. Door height if greater than 7' (2134 mm), extension rods must be ordered. (One piece top rod available)
• 6. Finish
• 7. Handing, LHR or RHR, required on "L" function. Specify LHR or RHR. See diagram below.
• 8. "SNB" when using sex nuts and bolts..

Pullman latches are optional for 8827 devices. Latchbolts remain extended at all times. Specify "Pullman Latch" when required. (Normally used with an electric strike and less bottom rod)

Popular double door applications

Double door applications

Mortise lock and vertical rod device combination — same direction

Two rim devices with mullion — same direction

Two vertical rods — double egress

Two vertical rod devices — same direction (do not use with overlapping astragal)

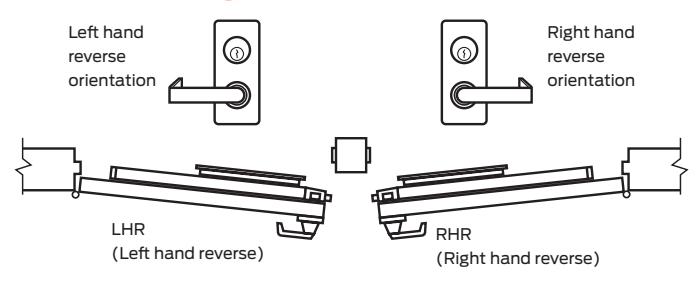

Door handing

Outside

Outside trim operation

Trim operation lever

Standard operation

Key locks and unlocks lever.

NL Function

Lever will be locked when key is removed.

Blank escutcheon

Lever always active. BE suffix, E.G., 371L-BE.

Cylinder options

Mortise – 3215 (Schlage B502-191 cams)

Rim – 3216

Key retracts latch bolt, knob is rigid.

K-NL function trim is locked when key is removed.

Available with 88 Rim only. To order trim, specify 880K-NL-R.

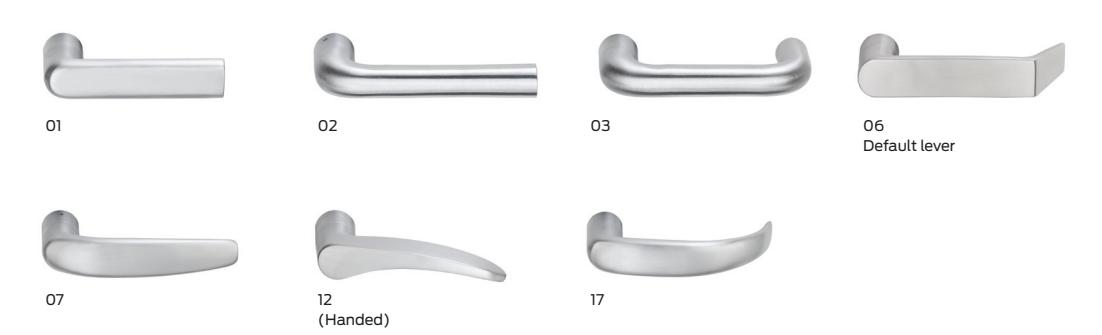

Lever styles

Standard levers

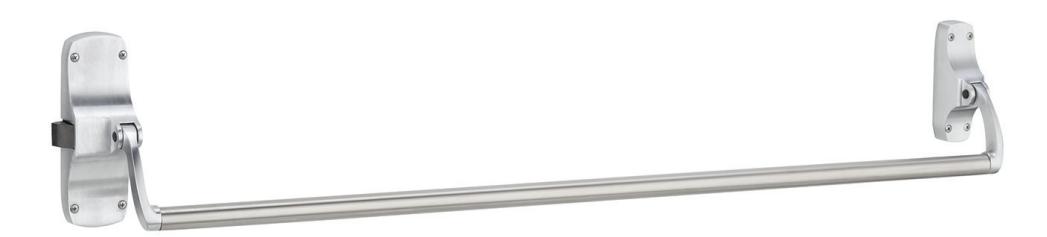

88 Rim exit device

88 rim devices for all types of single and double doors with mullion, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 or 161* cutouts. This device is field reversible.

Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK

Hex key dogging comes standard on 88 Rim exit devices

Specifications
Device functions	Device ships EO, DT, NL, TP, L, K
Handing	Field reversible
Crossbar length	30" for 3' door, 42" for 4' door
Device centerline	39 13/16"
Crossbar centerline	36 13/16" (935 mm) at center
to finished floor
Lock stile case	8 1/4" X 2 3/4" x 15/16" (210 mm x 70 mm x 24 mm)
Hinge stile case	6" X 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing	1" (25 mm) outside diameter
Projection	Neutral – 4 3/4" (121 mm)
	Depressed – 4" (102 mm)
Latch bolt	/4" (19 mm), throw 3
Fasteners	All necessary mounting fasteners are included.
Electrical options	Crossbar monitor switch in end case RX
	Electric unlocking (BE trim only) E
Mechanical options	RCB Reinforced crossbar
	Knurled crossbar KN

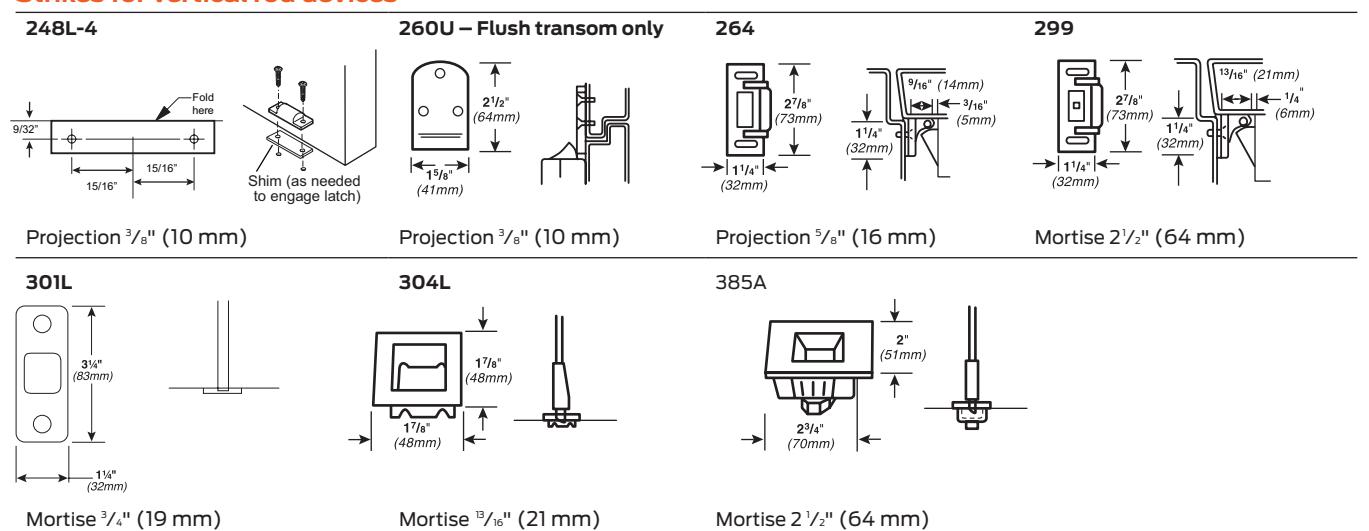

Strikes	299 - Dull black

^* Not applicable with all strike and mullion combinations, consult factory.

RX Crossbar monitor switch • Signals use of an opening

• SPDT switch to monitor crossbar

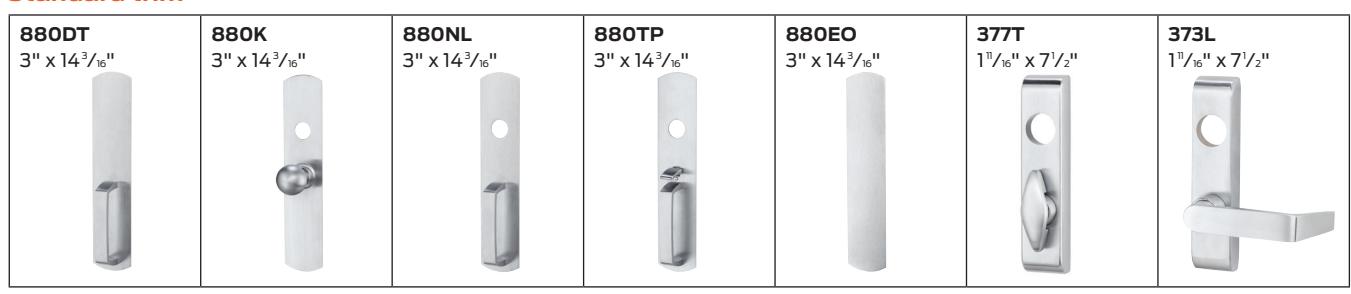

Standard trims
	EO	NL	TP	DT	K
	Exit only	Night latch Key retracts latchbolt	Key locks thumbpiece	Dummy trim Pull when dogged	Key locks knob	Key locks lever #06 Standard
Product description	88EO	88NL	88TP	88DT	88K 1,2,3	88L 1,2,4,5,6,7
Trim description	_	880NL-R	880TP-R	880DT-R	880K-R	373L
Escutcheon plate size	_	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	1 11/16" x 7 1/2" x 7/8"
Grip mounting center	_	51/2"	51/2"	51/2"	_	61/4"
Projection	_	2"	2"	2"	23/4"	2 5 / 8 "
ANSI function	01	03	05	02	08	08/09
Cylinder type	_	Rim	Rim	_	Rim	11/4" Mortise
Sex bolt quantity #425 (optional)	8	4	4	4	4	4

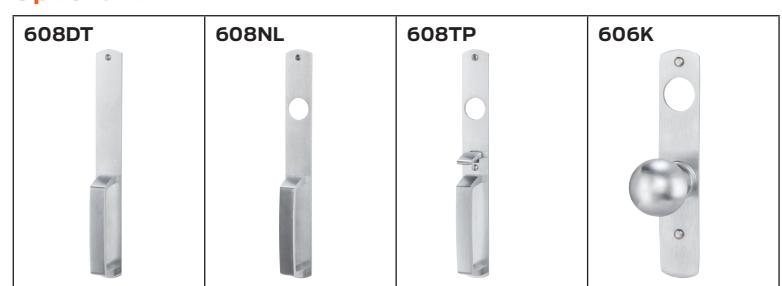

Optional trims
	NL .	TP	DT	K	EO
	Night latch Key retracts latchbolt	Key locks thumbpiece	Dummy trim Pull when dogged	Key locks knob	Exit only
Product description	88NL x 608NL	88TP x 608TP	88DT x 608DT	88K x 606K 1,2,3,5	88L x 880EO
Trim description	608NL-R	608TP-R	608DT-R	606K-R	880EO-R
Escutcheon plate size	15/8" x 13 1 /2" x 3 /16"	15/8" x 13 1 / 2 " x 3 / 16 "	15/8" x 13 1 / 2 " x 3 / 16 "	15/8" x 83/4" x 3/16"	3" x 14 3 / 16 " x 3 / 32 "
Grip mounting center	51/2"	51/2"	51/2"	_	_
Projection	21/6"	21/6"	21/6"	23/4"	_
ANSI function	03	05	02	08	01
Cylinder type	Rim	Rim	_	Rim	_
Sex bolt quantity #425 (optional)	NR	NR	NR	NR	4

If no cylinder operation is required, specify "BE" blank escutcheon, trim always operable; example 88TP-BE. Matching dummy trim available, use suffix "DT"; example 88K-DT. Night latch function available, order 88NL x 880K-R rigid. When using sex bolts, an 889 cover plate is required. See page 24. When using on wood doors without sex bolts, "WDA" cover plate is required. See page 24.

^** Not available with E88. The 373L is shipped L. An NL cylinder plate is also furnished standard (for operation only when key is used). NR-Not recommended

88-F Rim fire exit device

The 268 Strike ships standard, optional strikes available

88-F fire exit rim devices for all types of 4' X 8' (1219 mm X 2438 mm) single and 8' X 8' (2438 mm x 2438 mm) double doors with 9954 mullion, UL listed, 3 hours. This device is handed.

Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK

Specifications
Device functions	Device ships EO, NL, TP, L, K
Handing	Handed
Crossbar length	30" for 3' door, 42" for 4' door
Device centerline	39 13/16"
Crossbar centerline to finished floor	36 13/16" (935 mm) at center
Lock stile case	8 1/4" X 2 3/4" x 15/16" (210 mm x 70 mm x 24 mm)
Hinge stile case	6" X 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing	1" (25 mm) outside diameter
Projection	Neutral – 4 3/4" (121 mm)
	Depressed – 4" (102 mm)
Latch bolt	Deadlocking – 3/4" (19 mm), throw
Fasteners	All necessary mounting fasteners are included.
Electrical options	RX Crossbar monitor switch in end case
	Electric unlocking (BE trim only) E
Mechanical options	RCB Reinforced crossbar
	KN Knurled crossbar
Strikes	299 - Dull black

RX

Crossbar monitor switch

• Signals use of an opening
• SPDT switch to monitor crossbar

Standard trims
	EO	NL	TP	K
	Exit only	Night latch Key retracts latchbolt	Key locks thumbpiece	Key locks knob	Key locks lever #06 Standard
Product description	88EO-F	88NL-F	88TP-F1	88K-F 1,5	88L-F 1,2,3,4
Trim description	_	880NL-R	880TP-R	880K-R	373L
Escutcheon plate size	_	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	1 11/16" x 7 1/2" x 7/8"
Grip mounting center	_	51/2"	51/2"	_	_
Projection	_	2"	2"	23/4"	25/8"
ANSI function	01	03	05	08	08/09
Cylinder type	_	Rim	Rim	Rim	11/4" Mortise
Sex bolt quantity #425 (optional) 6	8	4	4	4	4

Optional trims
	NL Night latch	TP	L °
	Key retracts latchbolt	Key locks thumbpiece	Key locks knob
Product description	88NL-F x 608NL	88TP-F x 608TP	88K-F x 606K 1,3
Trim description	608NL-R	608TP-R	606K-R
Escutcheon plate size	15/8" x 13 1 /2" x 3 /16"	15/8" x 13 1 /2" x 3 /16"	15/8" x 13 1 /2" x 3 /16"
Grip mounting center	51/2"	51/2"	_
Projection	21/6"	21/6"	23/4"
ANSI function	03	05	08
Cylinder type	Rim	Rim	Rim
Sex bolt quantity #425 (optional) 6	NR	NR	NR

If no cylinder operation is required, specify "BE" blank escutcheon, trim always operable; example 88TP-F-BE.

$^\{\backslash rm\; 2\}$ When using on composite or wood doors, an 889 cover plate is required. See page 24.

^& lt;sup>3</sup> Not available wtih E88-F. ⁴ The 373L is shipped L. An NL cylinder plate is also furnished standard (for operation only when key is used). ⁵ Night Latch Function available, order 88NL-F x 880K-R Rigid.

Sex bolts must be used on wood or composite fire doors. NR-Not recommended

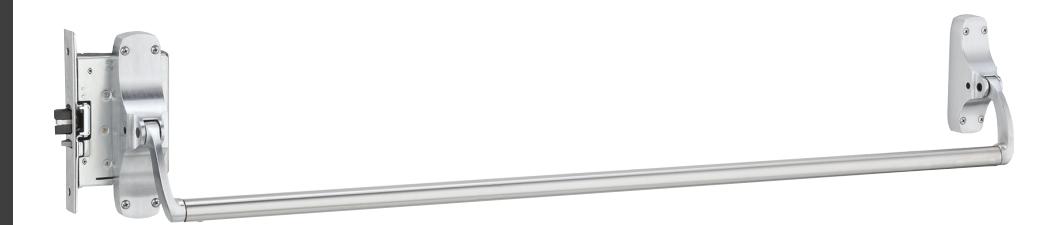

8875 Mortise lock exit device

8875 mortise lock devices or all types of single or double doors, UL listed for accident hazard installations. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4 3/4" (121 mm). The 7500 mortise lock is equipped with a 3 /4" (19 mm) anti-friction latch bolt which is field reversible without removing the lock from the door. It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Field selection of functions are furnished standard. TP and K function may be field selected by turning down a set screw in mortise lock body. Electric locking or unlocking options are available.

Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK

Hex key dogging comes standard on 8875 Series mortise lock exit devices

Specifications
Device functions	Device ships EO, DT, NL, TP, K, L
Handing	Handed
Crossbar length	30" for 3' door, 42" for 4' door
Device centerline	39 13/16"
Crossbar centerline to finished floor	36 13/16" (935 mm) at center
Latch bolt height to finished floor	40 3/32" (1018 mm) at center
Lock stile case	8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Lock case	4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
Faceplate	1 1/4" x 8" x 7 /32" (32 mm x 203 mm x 6 mm)
Cylinder backset	2 3/4" (70 mm)
Hinge stile case	6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing	1" (25 mm) outside diameter
Projection	Neutral – 4 7/8" (124 mm)
	Depressed – 4" (102 mm)
Latchbolt	Deadlocking - 3 /4" (19mm) throw
Fasteners and sex	Includes screw pack for 1 3/4" (44 mm) and 2 1/4"
bolts (SBN)	(57 mm) thick metal or wood doors.
Electric options	Crossbar monitor switch RX
	E8875 Electric mortise lock device
Mechanical options	RCB Reinforced crossbar
	Knurled crossbar KN

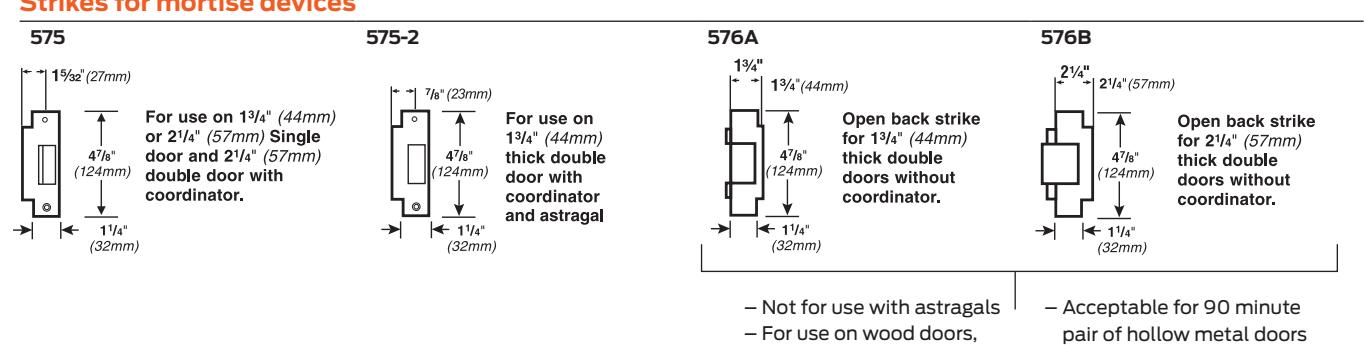

Strikes	575 - Dull black

RX

Crossbar monitor switch

• Signals use of an opening
• SPDT switch to monitor crossbar

E8875

Electric mortise lock device

• Controls locking of the outside trim

Standard trims
	EXIT ONLY	NL Night latch Key retracts latchbolt	Key locks thumboiece	Dummy trim Pull when dogged	K Key locks knob	Key locks lever
Product description	8875EO	8875NL	8875TP 1	8875DT	8875K 1,2	8875L 1,2,3,4,5,6
Trim description	_	880NL-M	880TP-M	880DT-M	880K-M	373L
Escutcheon plate size	_	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	1 11/16" x 7 1/2" x 7/8"
Grip mounting center	_	51/2"	51/2"	51/2"	_	61/4"
Projection	_	2"	2"	2"	23/4"	25/8"
ANSI function	01	03	05	02	08	08/09
Cylinder type	_	11/4" Mortise	11/4" Mortise	_	11/4" Mortise	11/4" Mortise
Sex bolt quantity #425 (optional)	8	4	4	4	4	4

Optional trims
	NL .	TP	DT	K	EO
	Night latch Key retracts latchbolt	Key locks thumbpiece	Dummy trim Pull when dogged	Key locks knob	Exit only
Product description	8875NL x 608NL	8875TP x 608TP	8875DT x 608DT	8875K x 606K 1,2	8875L x 880EO
Trim description	608NL-M	608TP-M	608DT-M	606K-M	880EO-M
Escutcheon plate size	15/8" x 13 1 /2" x 3 /16"	15/8" x 131/2" x 3/16"	15/8" x 13 1 /2" x 3 /16"	15/8" x 83/4" x 3/16"	3" x 14 3 / 16 " x 3 / 32 "
Grip mounting center	51/2"	51/2"	51/2"	_	_
Projection	21/6"	21/6"	21/6"	23/4"	_
ANSI function	03	05	02	08	01
Cylinder type	11/4" Mortise	11/4" Mortise	_	11/4" Mortise	_
Sex bolt quantity #425 (optional)	NR	NR	NR	NR	4

If no cylinder operation is required, specify "BE" blank escutcheon, trim always operable; example 8875TP-BE. Matching dummy trim available, use suffix "DT"; example 8875K-DT.

^* When using on wood doors without sex bolts, "WDA" cover plate is required. See page 24. *The 373L is shipped L. An NL cylinder plate is also furnished standard (for operation only when key is used). *When used with E8875, no cylinder operation is available. Control furnished "BE".

NR-Not recommended

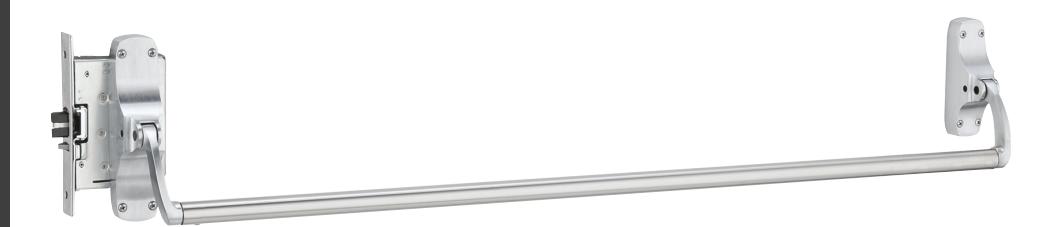

8875-F Mortise lock fire exit device

8875-F mortise lock fire exit devices for all types of 4' X 8' (1219 mm X 2438 mm) single and 8' X 8' (2438 mm x 2438 mm), UL listed, 3 hours. Fits door stiles as narrow as 4 3/4" (121 mm).

The 7500 mortise lock is field reversible without removing the lock from the door. It has a nonhanded auxiliary bolt for deadlocking and a faceplate with an adjustable bevel. Field selection of functions are furnished standard. TP and K function may be field selected by turning down a set screw in mortise lock body. Electric locking or unlocking options are available.

Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK

Hex key dogging comes standard on 8875 Series mortise lock fire exit devices

Specifications
Device functions	Device ships EO, NL, TP, K, L
Crossbar length	30" for 3' door, 42" for 4' door
Device centerline	39 13/16"
Crossbar centerline	36 13/16" (935 mm) at center
to finished floor
Latch bolt height to	40 3/32" (1018 mm) at center
finished floor
Lock stile case	8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Lock case	4 5/8" x 5 3/4" x 1 1/16" (117 mm x 146 mm x 27 mm)
Faceplate	1 1/4" x 8" x 7 /32" (32 mm x 203 mm x 6 mm)
Cylinder backset	2 3/4" (70 mm)
Hinge stile case	6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar tubing	1" (25 mm) outside diameter
Projection	Neutral – 4 7/8" (124 mm)
	Depressed – 4" (102 mm)
Latchbolt	Deadlocking - 3 /4" (19mm) throw
Fasteners and sex	Includes screw pack for 1 3/4" (44 mm) and 2 1/4"
bolts (SBN)	(57 mm) thick metal or wood doors.
Electric options	Crossbar monitor switch RX
	E8875 Electric mortise lock device
Mechanical options	RCB Reinforced crossbar
	Knurled crossbar KN
Strikes	575 - Dull black

RX

Crossbar monitor switch

• Signals use of an opening
• SPDT switch to monitor crossbar

E8875

Electric mortise lock device

• Controls locking of the outside trim

Standard trims EO NL TP Night latch Key locks Exit only Key retracts latchbolt Key locks knob #06 Standard 8875EO-F 8875K-F1 8875L-F^1,2,3,4 Product description 8875NL-F 8875TP-F1 Trim description 880NL-M 880TP-M 880K-M 373L Escutcheon 3" x 14³/₁₆" x ³/₃₂" $3"\; \backslash times\; 14^\{3\}/\_\{16\}"\; \backslash times\; 3^\{3\}/\_\{32\}"$ 3" x 14³/₁₆" x ³/₃₂" $1^\{11\}/\_\{16\}$ " x $7^\{1\}/\_\{2\}$ " x $^\{7\}/\_\{8\}$ " plate size Grip mounting 51/2" 51/2" center Projection 2" 2" 23/4" 25/8" ANSI function 01 03 05 80 08/09 Cylinder type 11/4" Mortise 11/4" Mortise 11/4" Mortise 11/4" Mortise Sex bolt quantity 8 4 4 4 4 #425 (optional)

Optional trims
	NL .	TP Key locks
	Key retracts latchbolt	thumbpiece	Key locks knob
Product description	8875NL-F x 608NL	8875TP-F x 608TP 1	8875K-F x 606K 1
Trim description	608NL-M	608TP-M	606K-M
Escutcheon plate size	15/8" x 131/2" x 3/16"	15/8" x 131/2" x 3/16"	15/8" x 13 1 / 2 " x 3 / 16 "
Grip mounting center	51/2"	51/2"	_
Projection	21/6"	21/6"	23/4"
ANSI function	03	05	08
Cylinder type	11/4" Mortise	11/4" Mortise	11/4" Mortise
Sex bolt quantity #425 (optional)	NR	NR	NR

If no cylinder operation is required, specify "BE" blank escutcheon, trim always operable; example 8875TP-F-BE.

Ontional trims

$^\{\backslash rm\; 2\}$ When using on composite or wood doors, an 889 cover plate is required. See page 24.

^& lt;sup>3</sup> The 373L is shipped L. An NL cylinder plate is also furnished standard (for operation only when key is used). ⁴ When used with E8875-F, no cylinder operation is available. Control furnished "BE".

^& lt;sup>5</sup> Sex bolts must be used on wood or composite fire doors. NR-Not recommended

8827 Surface mounted vertical rod exit device

8827 surface mounted vertical rod devices for all types of single and double doors, UL listed for accident hazard installations. Covers stock hollow metal doors with 86 cutout and fits door stiles as narrow as 2 1/2" (90 mm). This device is field sizeable.

Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK

Specifications
Device functions	Field reversible
	Device ships EO, DT, TP, K, L, TL
Crossbar length	30" for 3' door, 42" for 4' door
Device centerline	3913/16"
Crossbar centerline	36 13/16" (935 mm) at center
to finished floor
Lock stile case	8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Hinge stile case	6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Top and bottom	4" x 2" x 1 7 ⁄8" (102mm x 51mm x 48mm).
latch case
Faceplate	1 1/4" x 8" x 7 /32" (32 mm x 203 mm x 6 mm)
Cylinder backset	2 3/4" (70 mm)
Crossbar tubing	1" (25 mm) outside diameter
Projection	Neutral – 4 7/8" (124 mm)
	Depressed – 4" (102 mm)
Latchbolt	/8" (16mm) throw 5
Fasteners and sex	Includes screw pack for 1 3/4" (44 mm) and 2 1/4"
bolts (SBN)	(57 mm) thick metal or wood doors.
Rods/Latch guards	LBR (Less bottom rod) available for use with electric strike mounted
	in header and device supplied with pullman latch.
Electrical options	RX Crossbar monitor switch in end case
	E Electric unlocking (BE trim only)
Mechanical options	RCB Reinforced crossbar
	Knurled crossbar KN
	Pullman latch top and bottom PL

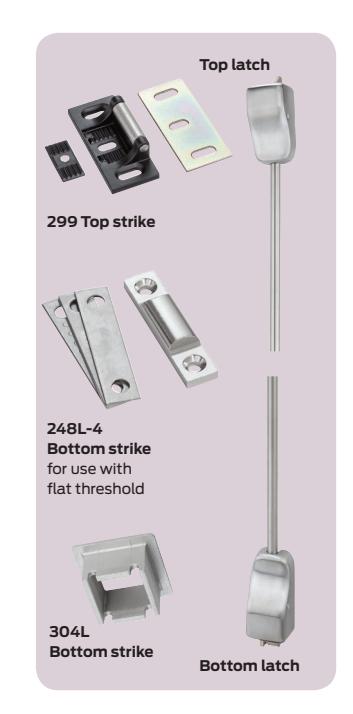

Strikes	Top 299 - Dull black
	Bottom 248L-4 and 304L - unfinished

Note: Maximum door undercut, 1/4" (6mm).

Hex key dogging comes standard on 8827 Series surface mounted vertical rod exit device

RX

Crossbar monitor switch

• Signals use of an opening
• SPDT switch to monitor crossbar

Standard trims
	EO	TP	DT	K		T Key locks thumbturn
	Exit only	Key locks thumbpiece	Pull when dogged	Key locks knob	Key locks lever #06 Standard	(Pull required)
Product description	8827EO	8827TP 1,2	8827DT	8827K 1,2,3	8827L 1,2,4,5,6	8827TL 1,5,6
Trim description	_	880TP-V	880DT-V	880K-V	373L	377T x 880DT-V
Escutcheon plate size	_	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	1111/16" x 71/2" x 7/8"	1"/16" x 71/2" x 7/8"
Grip mounting center	_	51/2"	51/2"	_	_	_
Projection	_	2"	2"	23/4"	25/8"	113/16"
ANSI function	01	05	02	08	08/09	11/12
Cylinder type	_	Rim	_	Rim	11/4" Mortise	11/4" Mortise
Sex bolt quantity #425 (optional)	16	12	12	12	12	12

Optional trims
	TP Key locks thumbpiece	Dummy trim Pull when dogged	K O O O O O O O O O O O O O O O O O O O	EXIT only
Product description	8827TP x 608TP1,3	8827DT x 608DT	8827K x 606K1,3	8827L x 880EO
Trim description	608TP-V	608DT-V	606K-V	880EO-V
Escutcheon plate size	15/8" x 13 1 /2" x 3 /16"	15/8" x 13 1 / 2 " x 3 / 16 "	15/8" x 83/4" x 3/16"	3" x 14 3 / 16 " x 3 / 32 "
Grip mounting center	51/2"	51/2"	_	_
Projection	21/6"	21/6"	23/4"	_
ANSI function	03	02	08	01
Cylinder type	Rim	_	Rim	_
Sex bolt quantity #425 (optional)	NR	NR	NR	12

If no cylinder operation is required, specify "BE" blank escutcheon, trim always operable; example 8827TP-BE. Matching dummy trim available,use suffix "DT"; example 8827K-DT. Can be furnished with NL action, thumbpiece or knob operates only when key is used. Use suffix NL; example 8827TP-NL. When using sex bolts, an 889 cover plate is required. See page 24. When using on wood doors without sex bolts, "WDA" cover plate is required. See page 24. The 373L and 377T are shipped L or TL. An NL cylinder plate is also furnished standard (for operation only when key is used).

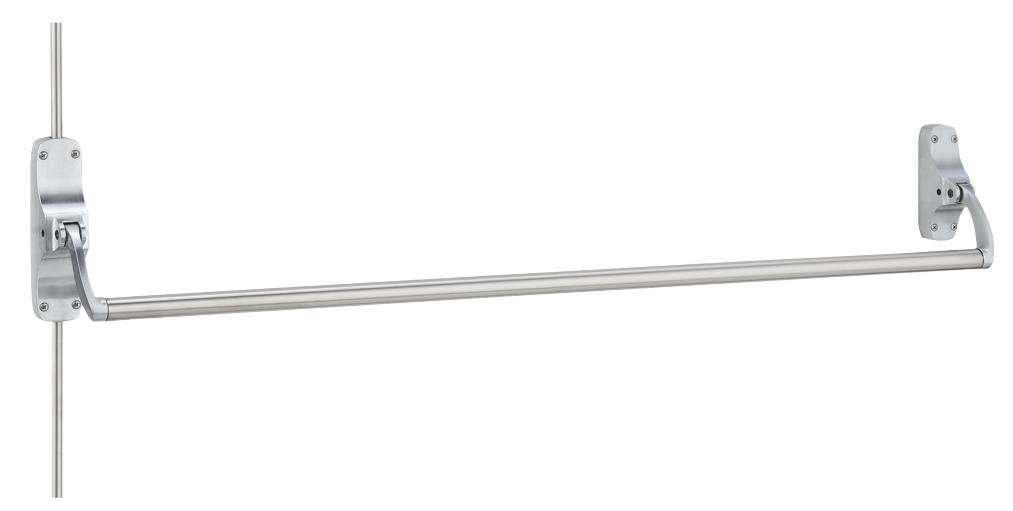

8827-F Surface mounted vertical rod fire exit device

8827-F surface mounted vertical rod devices for all types of 8' X 8' (2438 mm x 2438 mm), UL listed, 3 hours. Fits door stiles as narrow as 3 3/4" (95 mm). This device is field reversible.

Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK

Hex key dogging comes standard on 8827 Series surface mounted vertical rod fire exit device

RX

Crossbar monitor switch

• Signals use of an opening
• SPDT switch to monitor crossbar

Standard trims

Staridard triris
	EO Exit only	TP Key locks thumbpiece	K Key locks knob	Key locks lever #06 Standard	T Key locks thumbturn (Pull required)
Product description	8827EO-F	8827TP-F 1,5	8827K-F 1,5	8827L-F 1,2,4	8827TL-F 1,2,4
Trim description	_	880TP-V	880K-V	373L	377T x 880DT-V
Escutcheon plate size	_	3" x 14 3 / 16 " x 3 / 32 "	3" x 14 3 / 16 " x 3 / 32 "	1"/16" x 71/2" x 7/8"	1"/16" x 71/2" x 7/8"
Grip mounting center	_	51/2"	_	_	_
Projection	_	2"	23/4"	25/8"	113/16"
ANSI function	01	05	08	08/09	11/12
Cylinder type	_	Rim	Rim	11/4" Mortise	11/4" Mortise
Sex bolt quantity #425 (optional) 6	16	12	12	12	12

Optional trims

	TP	K
	Key locks thumbpiece	Key locks knob
Product description	8827TP-F x 608TP	8827K-F x 606K 1
Trim description	608TP-V	606K-V
Escutcheon plate size	15/8" x 13 1 / 2 " x 3 / 16 "	15/8" x 83/4" x 3/16"
Grip mounting center	51/2"	_
Projection	21/6"	23/4"
ANSI function	05	08
Cylinder type	Rim	Rim
Sex bolt quantity #425 (optional)	NR	NR

^& lt;sup>1</sup> If no cylinder operation is required, specify "BE" blank escutcheon, trim always operable; example 8827TP-F-BE.

When using on composite or wood doors, an 889 cover plate is required. See page 24. When using on wood doors "WDA" cover plate is required. See page 24. The 373L and 377T are shipped L or TL. An NL cylinder plate is also furnished standard (for operation only when key is used).

^& lt;sup>5</sup> Can be furnished with NL action, thumbpiece of knob operates nly when key is used. Used suffix NL; example 8827TP-NL-F. ⁶ Sex bolts must be used on wood or composite fire doors. NR-Not recommended

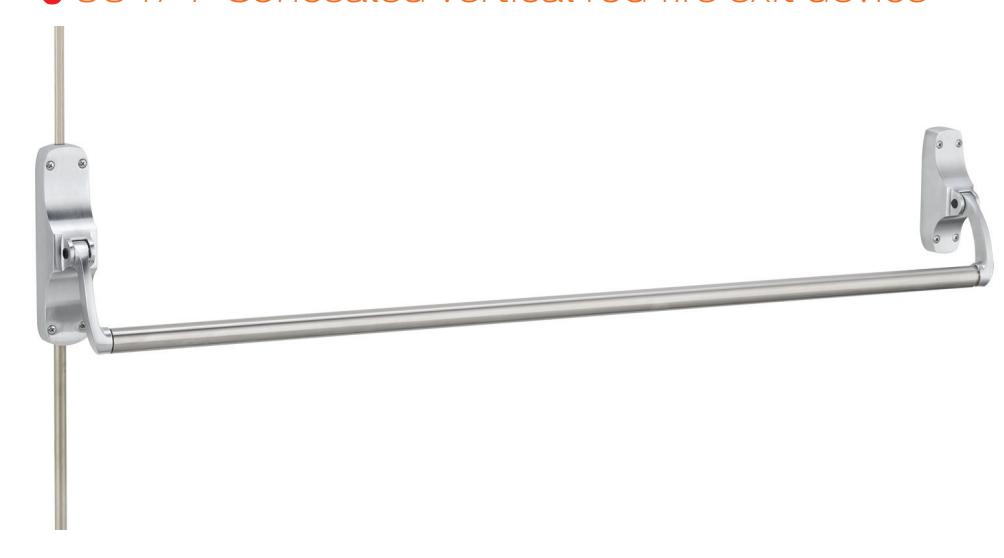

8847-F Concealed vertical rod fire exit device

8847-F fire exit concealed vertical rod devices for all types of 8'x8' (2438 mm x 2438 mm) double metal doors, UL listed, 3 hours and fits door stiles as narrow as 4 3/4" (121mm).

Finishes – US26, US26D, US3, US4, US10B, US10, SPBLK

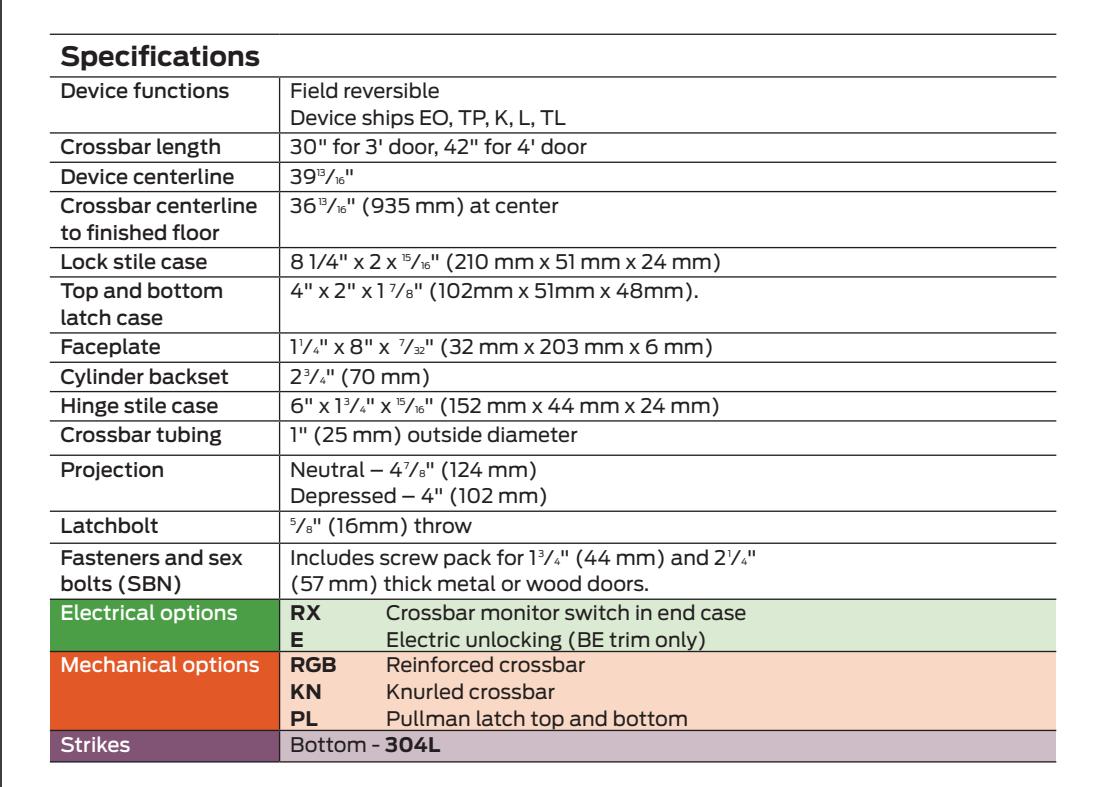

Specifications
Device functions	EO, L, TL
Handing	Field reversible
Crossbar length	30" for 3' door, 42" for 4' door
Device centerline	39 13/16"
Crossbar centerline to finished floor	36 13/16" (935 mm) at center
Lock stile case	8 1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)
Hinge stile case	6" x 1 3/4" x 15/16" (152 mm x 44 mm x 24 mm)
Crossbar projection	Neutral – 4 7/8" (124 mm)
	Depressed – 4" (102 mm)
Crossbar tubing	1" (25 mm) outside diameter
Vertical rod	/8" (10 mm) hexagon 3
Latchbolt	5 /8" (16mm) throw
Fasteners	All necessary mounting fasteners are included.
Electrical options	Crossbar monitor switch in end case RX
	E Electric unlocking (BE trim only)
Mechanical options	Reinforced crossbar RCB
	Knurled crossbar KN
Strikes	301L Strike-bottom

RX

Crossbar monitor switch

• Signals use of an opening
• SPDT switch to monitor crossbar

Standard trims Exit only Key locks knob Key locks lever #06 Standard Product description 8847EO-F 8847L-F1,2 8847TL-F1,2 Trim description — 371L 376T x 880DT-V-SA Escutcheon plate size — 1 11/16" x 7 1/2" x 7/8" ¹ 11/16" x 7 1/2" x 7 /8" Grip mounting center — — — Projection — 2 5/8" 1 13/16" ANSI function 01 08/09 11/12 Cylinder type — 1 1/4" Mortise 1 1/4" Mortise Sex bolt quantity #425 (optional)6 ^{4 4 4} EO L T

If no cylinder operation is required, specify "BE" blank escutcheon, trim always operable; example 8847L-F-BE.

² The 371 and 376T are shipped L or TL. An NL cylinder plate is also furnished standard (for operation nly when key is used).

Trim options

Function		01 Exit only	02 Pull when dogged	03 Key retracts latch bolt	05 Key retracts thumbpiece	06 Key locks lever	08 Key locks knob	08 Key locks lever	11/12 Key locks thumbturn
Trim number and		880EO	880DT	880NL	880TP	371-L	880K	373-L	377T or 376T x 880DT-V
dimensions
Device/trim center line to finished floor
Projection		—	2" (51 mm)	2" (51 mm)	2" (51 mm)	2 5/8" (67 mm)	2 3/4" (70 mm)	2 5/8" (67 mm)	1 13/16" (46 mm)
Rim	Panic	880EO	88DT	88NL	88TP	—	88K	88L	—
	Fire	88EO-F	—	88NL-Fp	88TP-Fp	—	88K-Fp	88L-Fn	—
	Ctr. line	A 39 13/16 (1011 mm) —	A 39 13/16 (1011 mm) B 33 11/32 (847mm)	A 39 13/16 (1011 mm) B 33 11/32 (847mm)	A 39 13/16 (1011 mm) B 33 11/32 (847mm)	—	A 39 13/16 (1011 mm) B 36 13/16 (935 mm)	A 39 13/16 (1011 mm) B 36 13/16 (935 mm)	—
	Panic	8875EO	8875DT	8875NL	8875TP	—	8875K	8875L	—
	Fire	8875EO-F	—	8875NL-F	8875TP-F	—	8875K-F	8875L-F	—
Mortise lock	Ctr. line	A 39 13/16 (1011 mm) —	A 39 13/16 (1011 mm) B 33 1/2 (851 mm)	A 39 13/16 (1011 mm) B 33 1/2 (851 mm)	A 39 13/16 (1011 mm) B 33 1/2 (851 mm)	—	A 39 13/16 (1011 mm) B 38 9/16 (979 mm)	A 39 13/16 (1011 mm) B 38 9/16 (979 mm)	—
	Panic	8827EO	8827DT	—	8827TP	—	8827K	8827L	8827TL
Surface	Fire	8827EO-F	—	—	8827TP-F	—	8827K-F	8827L-F	8827TL-F
mounted vertical rod	Ctr. line	A 39 13/16 (1011 mm) —	A 39 13/16 (1011 mm) B 33 1/2 (851 mm)	—	A 39 13/16 (1011 mm) B 33 1/2 (851 mm)	—	A 39 13/16 (1011 mm) B 38 5/16 (973 mm)	A 39 13/16 (1011 mm) B 38 5/16 (973 mm)	A 39 13/16 (1011 mm) B 53 1/2 (1359 mm)
	Fire	8847EO-F	—	—	—	8847L-F	—	—	8847TL-F
Concealed vertical rod	Ctr. line	A 39 13/16 (1011 mm) —	—	—	—	A 39 13/16 (1011 mm) B 41 11/16 (1059 mm)	—	—	A 39 13/16 (1011 mm) B 53 1/2 (1359 mm)
Additional snb requirements		4/8/16	4, 12	4	4, 12	4	4, 12	4, 12	4
	Rim	—	—	Rim	Rim	—	Rim	Mortise	—
Cylinder type	Mortise	—	—	Mortise	Mortise	—	Mortise	Mortise	—
required	Vert. rod	—	—	—	Rim	—	Rim	Mortise	Mortise
	C.V.R.	—	—	—	—	Mortise	—	—	Mortise

p Requires stainless steel trim for wood or composite fire doors.

Note: 8827-F uses 377T, 8847-F uses 376T.

n Requires 889 Plate for wood or composite fire doors.

Trim options

Standard trim

880 Series trim

Heavy 10 gauge (2.4 mm) brass, bronze, or stainless steel. Available functions: 880DT, 880K, 880NL, and 880TP. Optional 880EO exit only trim plate is available. To order with the exit device, specify 88EOx880EO.

*880 Stainless Steel Trim used with fire rated rim device on wood doors.

377T Series trim

Thumbturn control has a forged brass 7 /8" (22 mm) thick escutcheon. Often used with DT trim or pull. An NL cylnder plate is included for thumbturn operation only when key is used. BE blank escutcheon is available, specify 377T-BE

373L/371L Series trim

Lever control has a forged brass 7 /8" (22 mm) thick escutcheon. An NL cylinder plate is included for lever operation only when key is used. BE blank escutcheon is available, specify 373L-BE.

Optional trim

608 Series trim

Narrow design 3 /16" (5 mm) thick brass, bronze, or stainless steel with flat pull grip. Available functions: 608DT, 608NL, and 608TP. When ordering with the exit device, specify 88NLx608NL.

606K Series trim

Narrow design knob trim 3 /16" (5 mm) thick brass, bronze, or stainless steel 3 /16" (5 mm) escutcheon.

Strike/Stile information

Strike application/Minimum stile

Device type	Standard single door		Standard OPTIONAL OPTIONAL double door double door
	Strike	Stile	Strike w/mullion	Stile	Strike	Stile	Strike w/mullion***	STILE
					264	4'/ " " (105 mm)	299 x 5254/5654	4½" (105 mm)
88	299	4³/₀"	299 x 4954	4 11/1611	1409	3 3 / 8 " (86 mm)	264 x 5254/5654 264 x 4954	4" (107 mm) 4 7 / * " (113 mm)
		(111 mm)		(119 mm)	1606	3°/ " " (100 mm)	1606 x 1654	4'/." (108 mm)
					_	_	1609*	4" (107 mm)
					_	_	1610**	4 7 / 10 " (113 mm)
88-F	268	4³/₀" (111 mm)	268 x 9954	4³/₀" (119 mm)	_	_	_	_
	STRIKE	STILE	STRIKE	STILE	STRIKE	STILE	STRIKE	STILE
8875	575	4³/₄" (121 mm)	_	_	_	_	575-2 576A-576B	4³/₄" (121 mm)
8875-F	575	4³/₄" (121 mm)	_	_	_	_	575-2 576A-576B	4 3 / 4 " (121 mm)
	STRIKE	STILE	STRIKE	STILE
8827	299 (top)		Single door	2°/ " " (71 mm)	260U (top)		Single Door	2°/ 10 " (71 mm)
Latch			Two vertical rod devices	2½" (64 mm)	385A (bottom) Two Vertical Rod Devices (64		2½" (64 mm)
retraction	304L/248L-4	(bottom)	Vertical rod w/mortise lock device	4³/₄" (121 mm)			Vertical Rod w/Mortise Lock Device	4³/₄" (121 mm)
	Soffit latch (to	(ממ	Two vertical rod devices	3 3 / 4 " (95 mm)
8827-F	(bottom) 304		Vertical rod w/mortise lock device	4³/₄" (121 mm)
	Soffit Latch (T	ōn)	Two vertical rod devices	4 3 / 4 " (121 mm)
8847-F	Soffit Latch (Top) 301L (Bottom)		Vertical rod w/mortise lock device	4 3 /4" (121 mm)

^* Use for rim/vertical rod combination — consult factory. **Use for rim/vertical rod combination on stock hollow metal doors — consult factory. ***For mullion information, refer to the General and Auxiliary catalog.

Strike options

Strikes for rim devices

Strikes for vertical rod devices

Strikes for mortise devices

contact door manufacturer

88 Electrical options

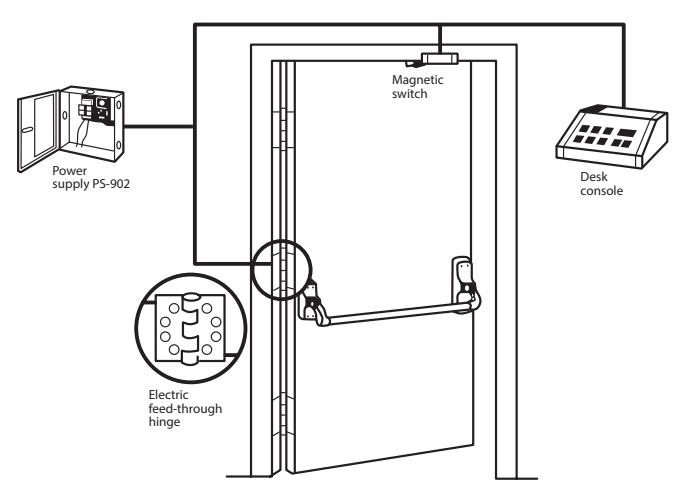

E8875 Electric mortise lock device

The E8875 electric mortise lock device has all the versatility and advantages of the 8875 mortise lock device, plus the advantage of being electrically controllable by a remote switching device, an access control or automatic device, or an automatic fire alarm system. The E8875 feature controls the locking of the outside trim. When unlocked, the door remains latched, preserving the fire rating of the door and making it particularly useful where codes permit locking, but require unlocking during a fire emergency. Key override is an NL type function.

Standard features:

• · Field reversible mortise lock
• · 24 VDC continuous duty solenoid
• Tamper resistant (auxiliary dead latch)
• · Silent operation
• Corrosion resistant
• Signaling functions
• Key mechanically retracts latchbolt

Optional features:

• Fail safe (locked when energized, unlocked when de-energized or during power failure, specify with suffix "FS").
• Fail secure (unlocked when energized specify with suffix "FSE"). Outside trim automatically relocks, unless held unlocked electrically.
• 24 VAC (by adding SO option).
• 12 VDC or 12 VAC with SO option.

To order, specify:

1a. E8875 or E8875F.

1b. E7500 (if lock only is required).

• 2. FS or FSE.
• 3. Voltage.
• 4. Handing, LHR or RHR
• Outside trim. "TP", "TP-BE", "K", "K-BE" or "L-BE" function only. When using with "L" function, no cylinder operation is available. Outside control is furnished "BE".

E373L-BE/E371L-BE

FS or FSE lever control for electric unlocking of lever.

E373L-BE

For use with rim and surface vertical rod.

F3711-BF

For use with concealed vertical rod.

Adaptable for openings where continuous latching is required while the trim may be electrically locked or unlocked from a remote location — stairwells, exterior doors, etc.

88 Device options & accessories

RG-27 Vertical rod and latch guard

Series RG-27 Vertical rod and latch guards protect the bottom rods of exit devices from the damaging impacts of carts or gurneys passing through doors. (If bottom rods become damaged, the exit device will not function as intended and can jeopardize the ability to exit safely during an emergency.)

In addition to protecting the vertical rod, the guard provides a smooth, unobstructed surface so the door can be pushed open easily with the bumpers of a wheelchair. The latch guard portion is 10" high. The standard latch guard features a 45° ramp. The extended latch guard offers a continuous ramp in 3' or 4' widths.

All stainless steel construction in US32D finish. Latch guards can cover latches as large as 1 1 /4"W x 10"H x 1 7/8" projection.

Rod guard

Models

RGO Rod guard only (projection 1 3/16")

RG-27 Rod and latch guard

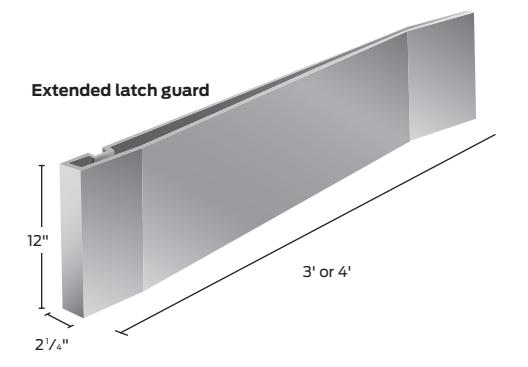

RG-27-3 3' (914mm) Rod guard and extended latch guard RG-27-4 4' (1219mm) Rod guard and extended latch guard

LGO Latch guard only

LGO-3 3' (914mm) Extended latch guard only LGO-4 4' (1219mm) Extended latch guard only

When using on wood fire doors, high density block is required.

To order, specify:

• 1. Model number.
• 2. Handing (except on RGO).
• 3. Door material if other than hollow metal.
• 4. Optional sex bolt mounting available.

Device options & accessories

Cover plate kits

Device

882 Kit

For use to cover mortise lock or discontinued device cut-outs. Specify finish.

887 Kit

Required for 88 rim/8827 vertical rod device combinations on pairs of doors with ANSI 161 cutout. (The 88 rim device backset is increased and exposes the 161 cutout when used with 8827).

888 Kit

Required for 8875 mortise or 8827 vertical rod devices on doors with ANSI 161 cutouts (device center case will not cover stock cutout).

To order, specify:

• 1. Kit number.
• 2. Finish.
• 3. Device type (889 kit only).

Axle security pin

Non-removable security pin can be inserted into lever arm axle to prevent tampering or removal of lever arm.

To order, specify

Part Number 033022 (package of 50).

Controls

#10 WDA Kit

2 ¹/₁₆" (52mm)

#10 WDA Kit

Required when 373L or 377T controls are used on wood doors with the following devices: 88L, 8827L, 8827TL-F, or 8875L (kit covers cutout and prevents control from damaging door).

7⁷/8" (200mm)

889 Kit

3" (76mm)

889 Kit

Required when 373L controls are used with sex bolts (sex bolts must be used on wood or composite fire doors). Four studs on cover plate allow through-bolting to the device center case.

11" (279mm)

Additional information

UL Listed — Fire exit hardware label/opening size

			Double door
Exit device	Single door	With mullion	Same direction vert./vert.	Same direction vert/ mortise	Double egress
88-F	3 Hour 4' X 8'	3 Hour 8' X 8'	—	—	—
8875-F	3 Hour 4' X 10'	—	—	3 Hour 8' X 8'	—
8827-F	—	—	90 Min. 8' X 8'	3 Hour 8' X 8'	3 Hour 8' X 8'
8847-F	—	—	90 Min. 8' X 8'	3 Hour 8' X 8'	3 Hour 8' X 8

ANSI Function, grade & type

Function	Grade 1 type 1	Grade 1 type 2	Grade 1 type 3	Grade 1 type 8
01	88EO, 88EO-F	8827EO, 8827EO-F	8875EO, 8875EO-F	8847EO-F
02	88DT	8827DT	8875DT	—
03	88NL, 88NL-F	—	8875NL, 8875NL-F	—
05	88TP, 88TP-F	8827TP, 8827TP-F	8875TP, 8875TP-F	—
06	—	8827TP-NL, 8827TP-NL-F
08	88K, 88K-F, 88L, 88L-F	8827K, 8827K-F 8827L, 8827L-F	8875K, 8875K-F 8875L, 8875L-F	8847L-F
09	88L-NL, 88L-NL-F	8827K-NL, 8827K-NL-F, 8827L-NL, 8827L-NL-F	8875L-NL, 8875L-NL-F	8847L-NL-F
09	—	8827TL-NL, 8827TL-NL-F	—	8847TL-NL-F
11-12	—	8827TL, 8827TL-F	—	8847TL-F

Additional information

Function conversion kits

Device type	Kit	Converts from –	Converts to –	Use with trim
88	CK-NL	TP, K	NL	880NL-R
	CK-TP	EO, DT, NL, K	TP	880TP-R
	CK-K/L	EO, DT, NL, TP	K	880K-R
	CK-K/L	EO, DT, NL, TP	L	373L x 889 Plate (NL, DT, TP)
88F	CK-NL-F	TP-F, K-F	NL-F	880NL-R
	CK-TP-F	EO-F, NL-F, K-F	TP-F	880TP-R
	CK-K/L-F	EO-F, NL-F, TP-F	K-F	880K-R
	CK-K/L-F	EO-F, NL-F, TP-F	L-F	373L x 889 Plate (NL, DT, TP)
8827, 8827-F	CK27-TP	EO, DT, K (std. or fire)	TP (std. or fire)	880TP-V
	CK27-K/L	EO, DT, TP (std. or fire)	K (std. or fire)	880K-V
	CK27-K/L	EO, DT, TP (std. or fire)	L (std. or fire)	373L x 889 Plate (NL, DT, TP)
	CK27-TP-NL	EO, DT, K (std. or fire)	TP-NL	880TP-V
	CK27-K-NL	EO, DT, K (std. or fire)	K-NL	880K-V

Conversion kits are required for 88 rim and 8827 devices. To convert functions on 8847 and 8875 devices, only new trim is required. The 8875 mortise lock is field convertible for function.

88 Series finishes

Finishes*

Finishes*
Color	US Number	BHMA Number
Chromium, polished	US26	625
Chromium, dull	US26D	626
Brass, polished	US3	605
Brass, dull	US4	606
Bronze, dull-oxidized	US10B	613
Bronze, dull	US10	612
Sprayed black	SPBLK

^* Note : Durable powder coated finishes available at specific special request. PLEASE CONTACT FACTORY.

About Allegion

Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands like CISA®, Interflex®, LCN®, Schlage®, SimonsVoss® and Von Duprin®. Focusing on security around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions. Allegion is a $2 billion company, with products sold in almost 130 countries.

For more, visit www.allegion.com
