THE UNIVERSAL 4850 - SIZE ADJUSTABLE VOLTAGE SELECTABLE, ALWAYS DEPENDABLE

Fits in Tight Installs like Glass.

Smart Plug & Play Self Adjusting 12V through 24V DC Surge & Kickback Protection included

Install Securely with our Patented Anchor Pin System

FEATURES:

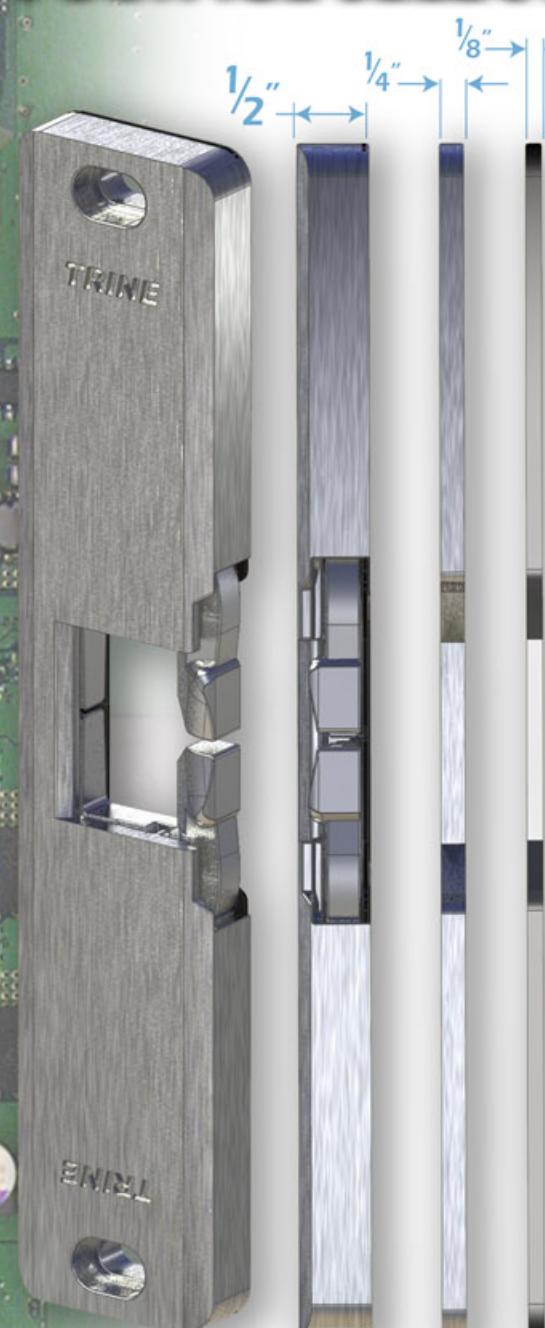

• Grade 1 Strike 1/2" thick Surface Mount that comes with a 1/4" and a 1/8" Spacer – this provides the flexibility of up to 4 different sizes!
• Allows for up to a 1" throw.
• NO CUTTING OF THE FRAME
• Built-in electronics automatically allows 11 thru 28 DC Voltage input – with surge and kickback protection included.
• Comes with Trines Patented 6-pin Anchoring System for extra strength and stability.
• Contains a one piece locking mechanism with one Solenoid less parts mean less problems.
• Grade 1 strike: 1,500 lbs Holding Force.
• 1,000,000+ Life cycles.

4850-32 (Polished Stainless Steel – BHMA629) Www.trineonline.com

4850-32D (Satin Stainless Steel – BHMA630) 4850-US3 (Bright Brass – BHMA605) 4850-US4 (Satin Brass – BHMA606) 4850-US10 (Satin Bronze – BHMA612) 4850-US10B (Dark Bronze – BHMA640)

Finishes:

THE UNIVERSAL 4850

TOTAL THICKNESS COMPARISON

0° 1/2° 5/8° 3/4° 7/8° 4850 SERIES AXION { 9400 9600 The Axion 4850 provides 4 sizes right out of the box!

1/2"

PRINCE

TRINE

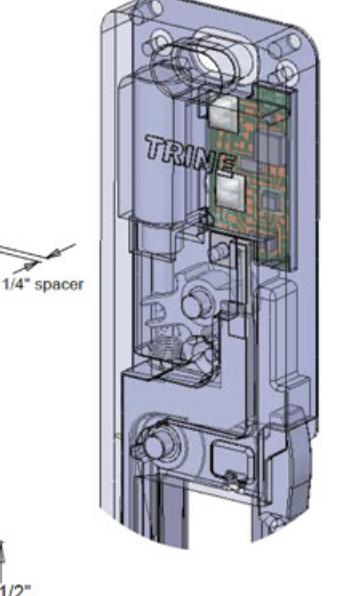

Grade 1 Strike – 1/2" thick Surface Mount that comes with a 1/4" and a 1/8" Spacer this provides the flexibility of up to 4 different sizes!

Built-in electronics automatically allow 11 thru 28 DC Voltage surge & kickback protection is included.

• Patented 6-pin Anchoring System.
• One piece mechanism One Solenoid.
• 1,000,000+ Life cycles.
• No cutting or worrying about voltage means you are always prepared.

Built-in electronics automatically allow 11 thru 28 DC Voltage input – with surge and kickback protection.

Clearance for a 7/16 dia. head of a blind threaded insert with a #1/4-20 thread for aluminum frame applications.

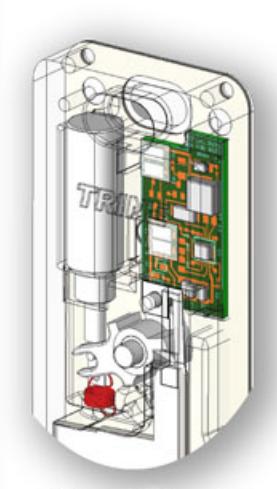

Patented One Piece Locking Mechanism

A simpler and more durable model of strike for the highest level of performance.

Patented 6-pin Anchoring System:

Six additional points of protection and helps you to handle the toughest installations.

This brings the 4850 to a total 8 points of connection between the frame and strike. All at your choosing.
