Townsteel Maxx Access System Catalog
Open the original PDF document
View PDF
• HOSPITALITY • MULTI - HOUSING • ACCESS CONTROL
Index
Electronic Mortise Lock
- 7 e-KONTOS 1A Series
- 8 e-KONTOS 1A Automatic Deadbolt Series
- 9 e-KONTOS 1B Series
- 10 e-KONTOS 1B Automatic Deadbolt Series
- 11 e-TRIDENT 1A Series
- 12 e-TRIDENT 1A Automatic Deadbolt Series
- 13 e-TRIDENT 1B Series
- 14 e-TRIDENT 1B Automatic Deadbolt Series
- 15 e-TRIDENT 2A Series
- 16 e-TRIDENT 2A Automatic Deadbolt Series
- 17 e-TRIDENT 2B Series
- 18 e-TRIDENT 2B Automatic Deadbolt Series
- 19 e-CRONUS 1A Series
- 20 e-CRONUS 1A Automatic Deadbolt Series
- 21 e-CRONUS 1B Series
- 22 e-CRONUS 1B Automatic Deadbolt Series
- 23 e-CRONUS 2A Series
- 24 e-CRONUS 2A Automatic Deadbolt Series
- 25 e-CRONUS 2B Series
- 26 e-CRONUS 2B Automatic Deadbolt Series
Electronic Exit Device Trim
- 28 e-KESTROS 1A Series
- 29 e-KESTROS 1B Series
Electronic Interconnect

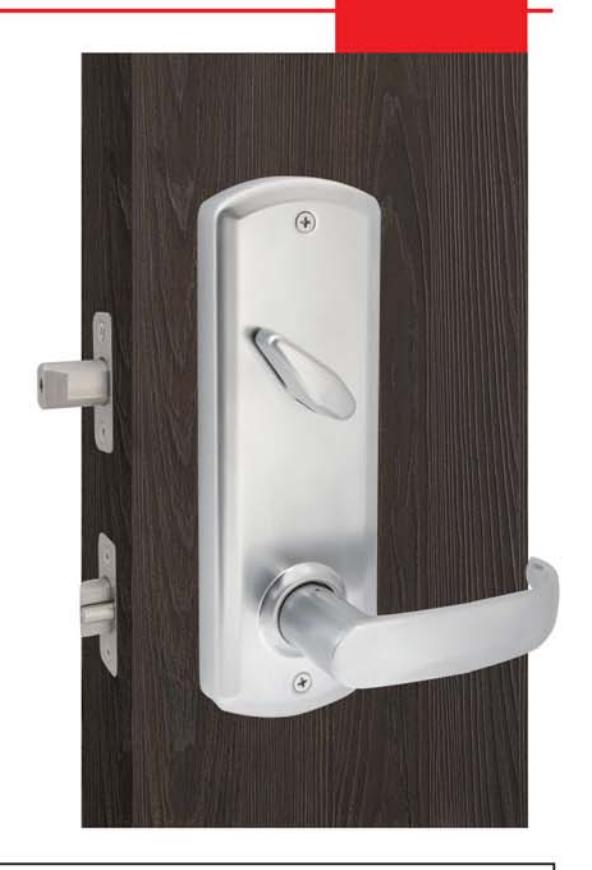

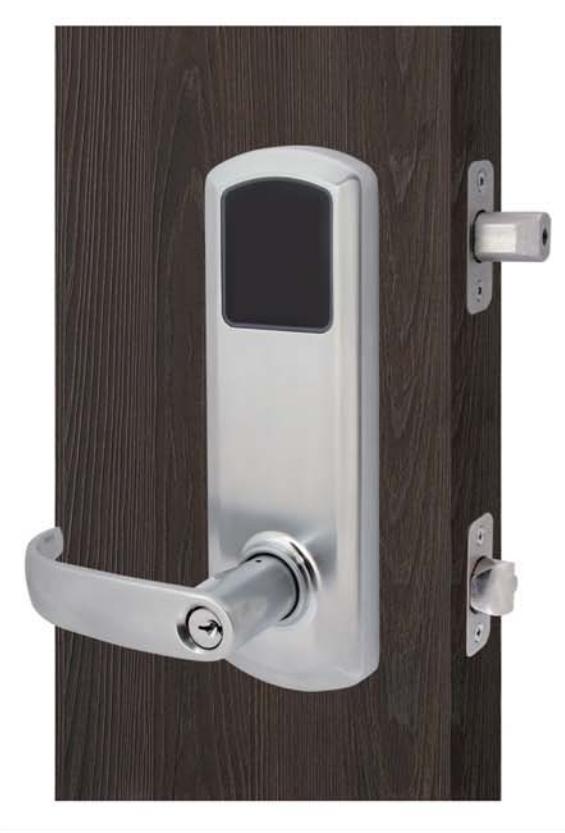

31 e-Genius Series

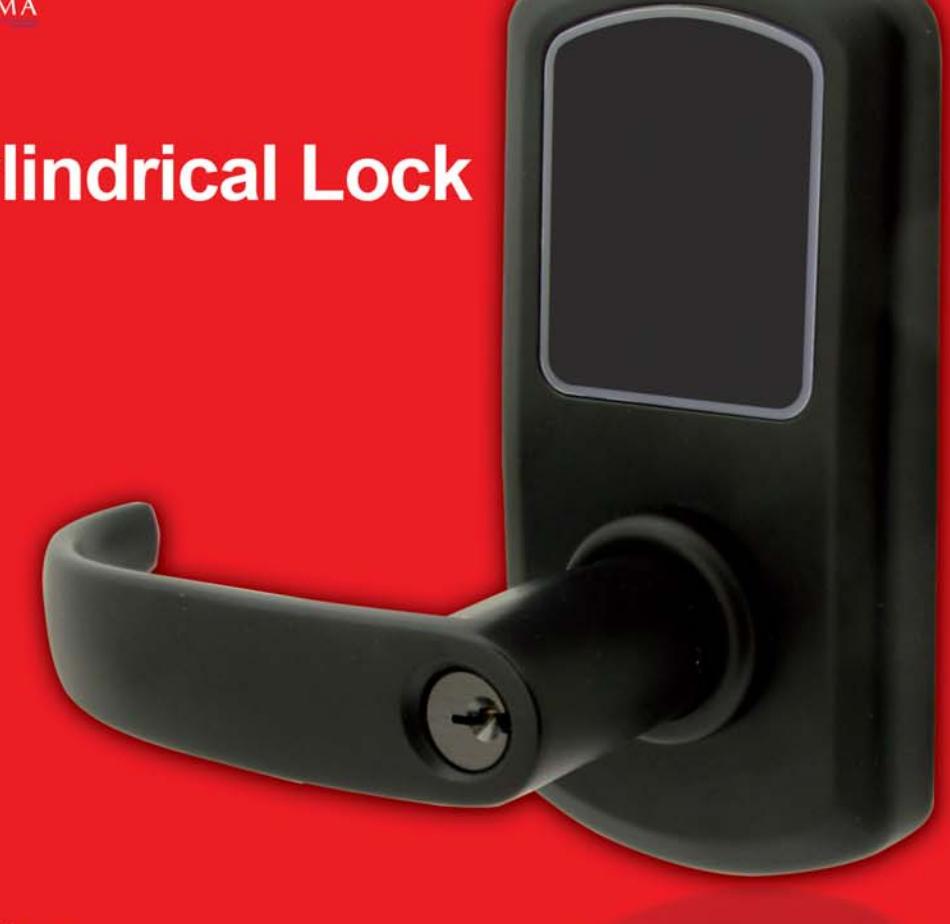

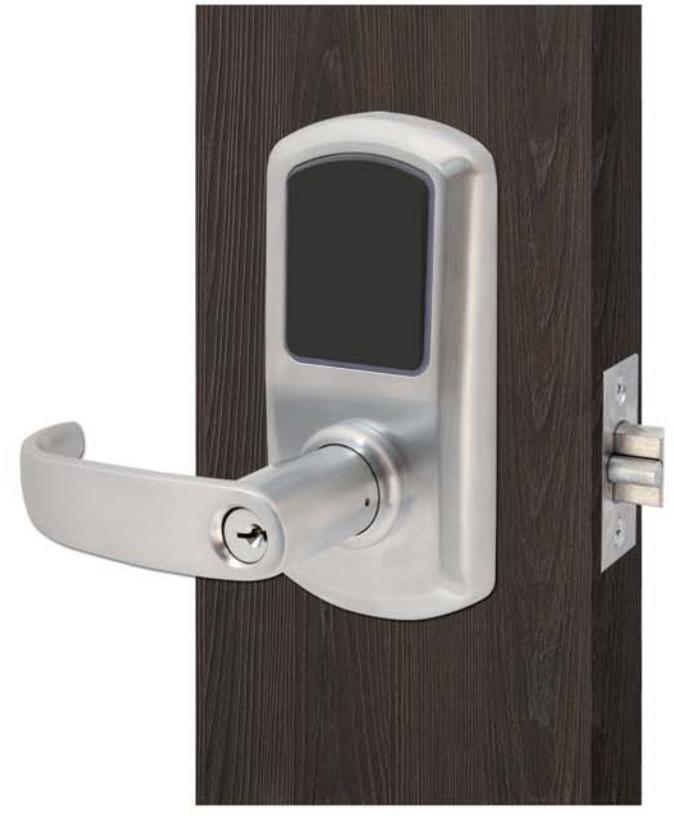

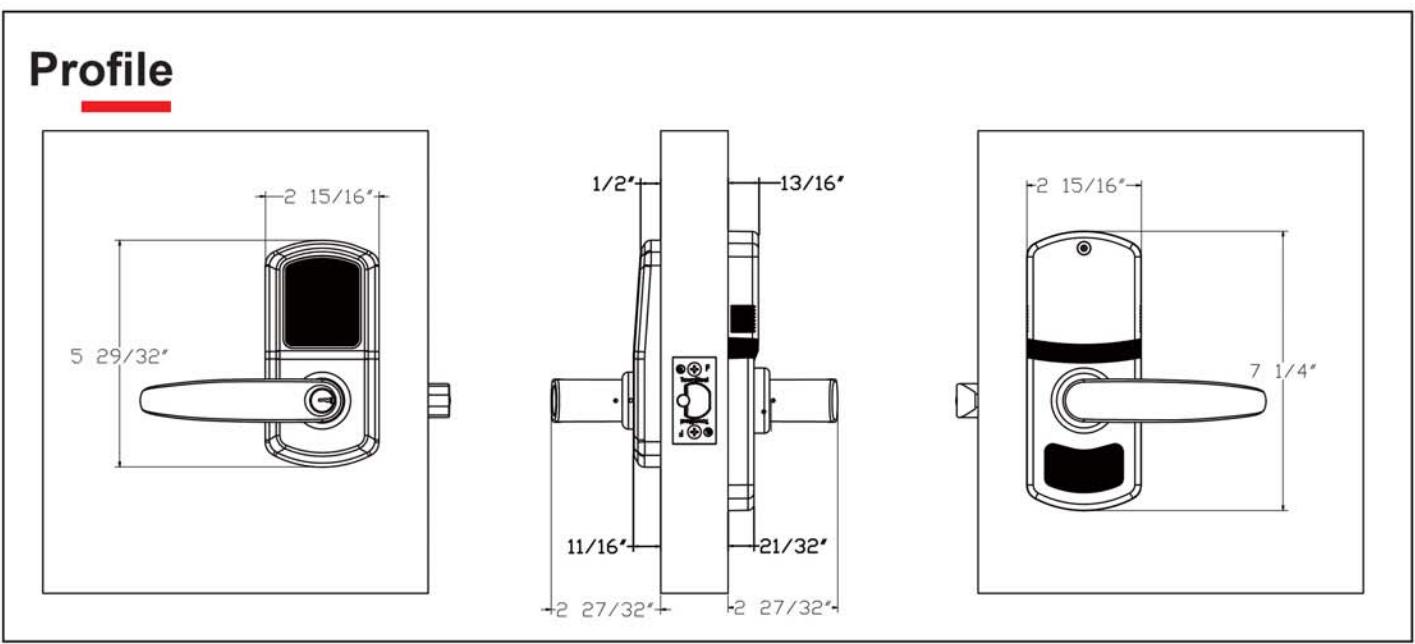

Electronic Cylindrical Lock

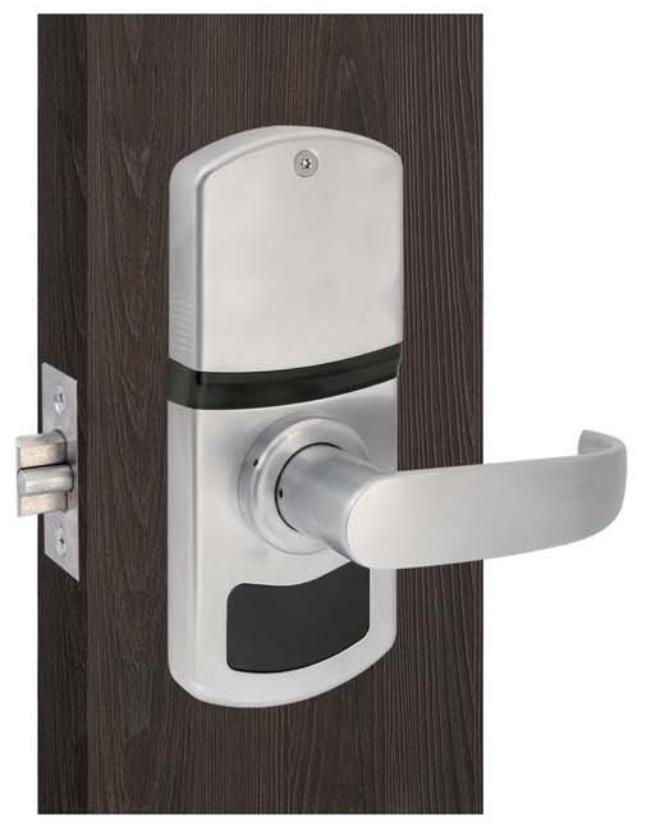

34 e-Elite Series

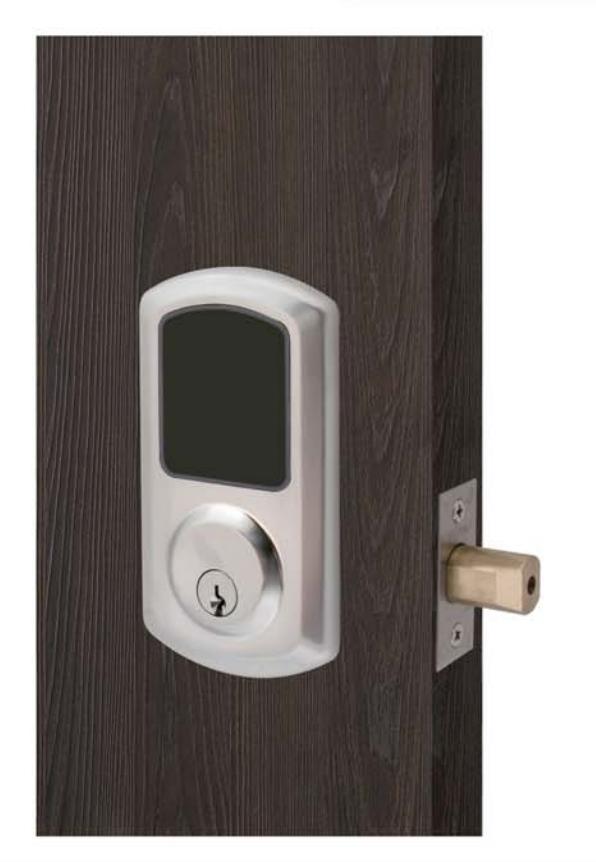

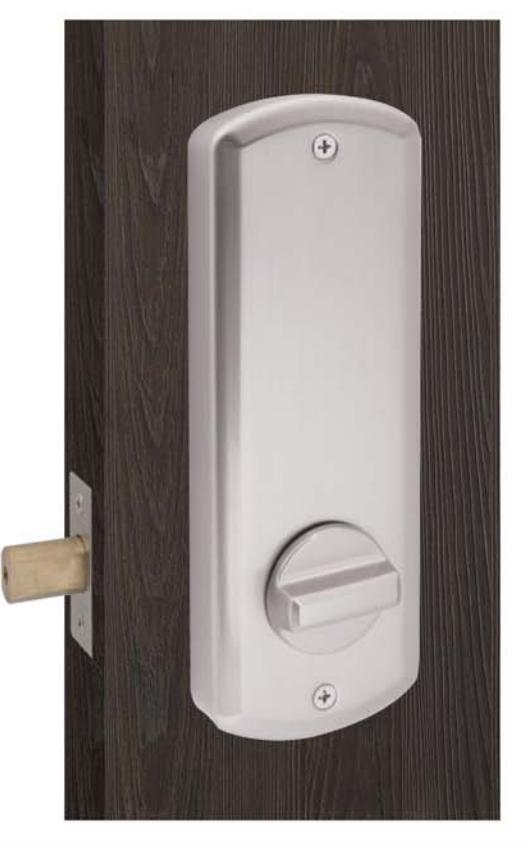

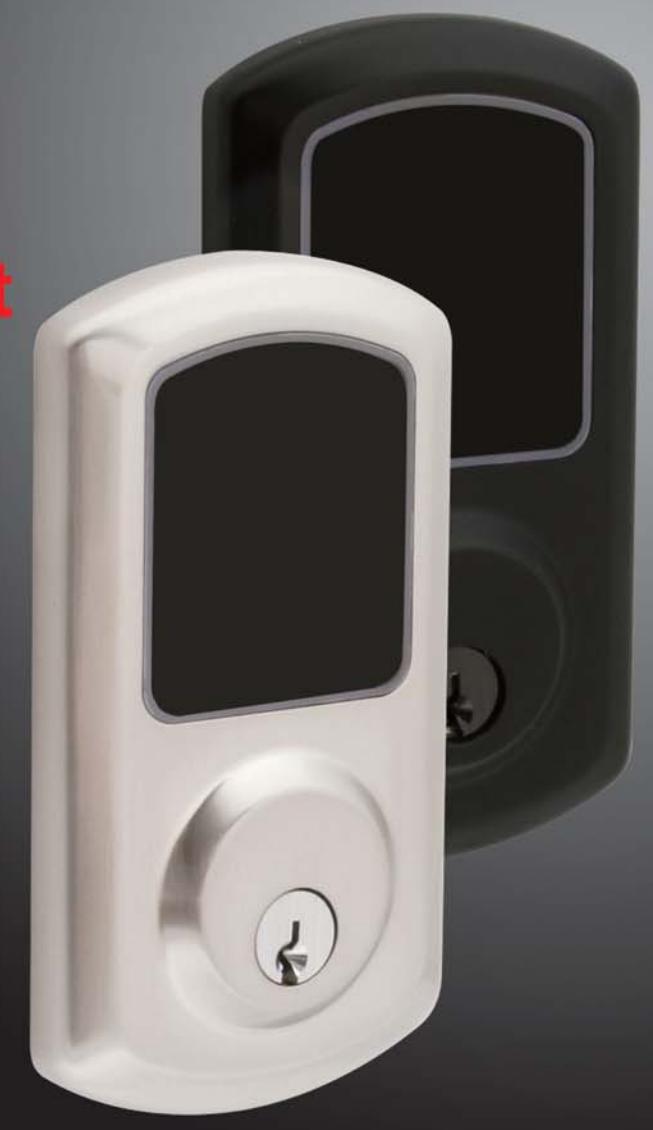

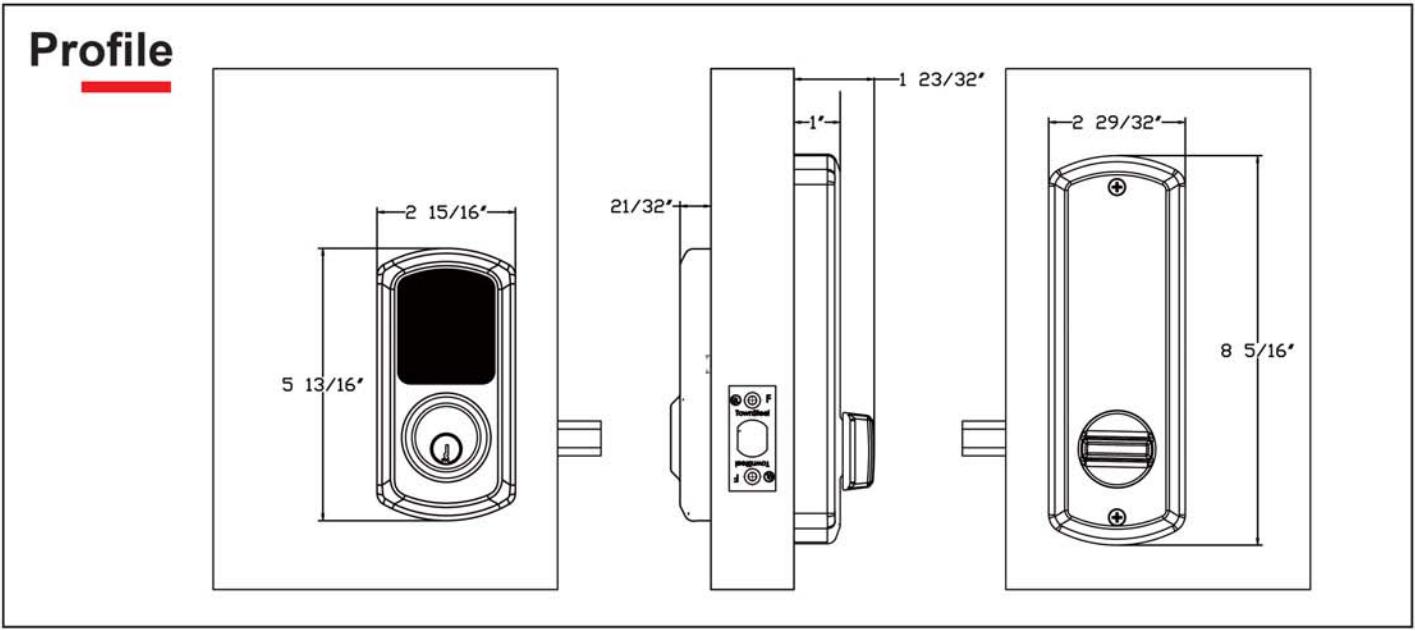

Electronic Deadbolt
36 e-Smart Series
System Components

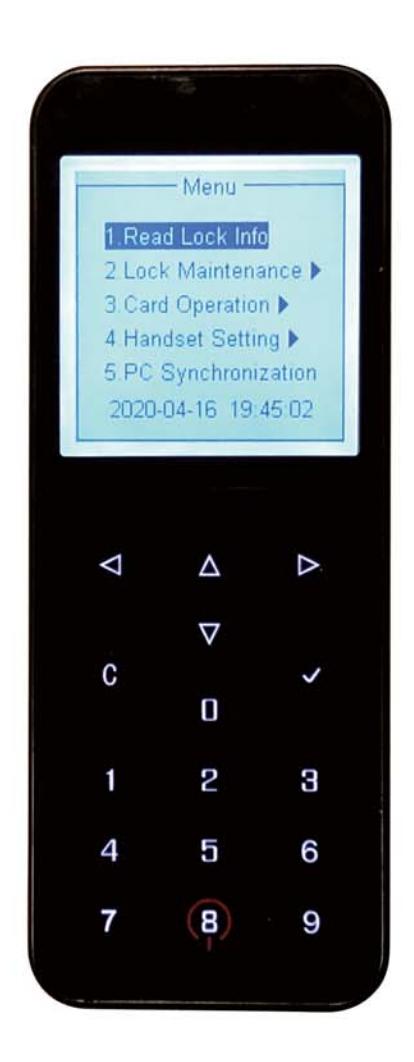

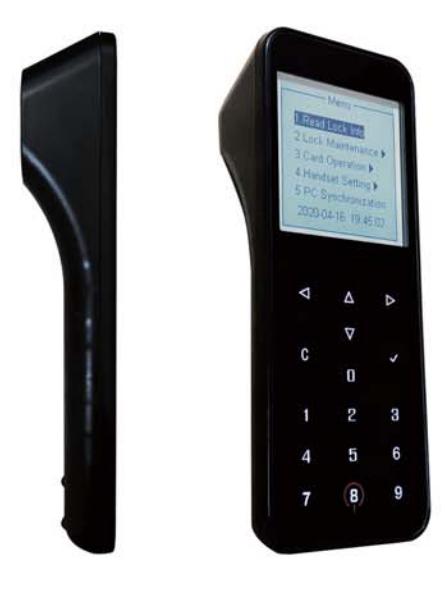

- 37 Door Lock Programmer (DLP)

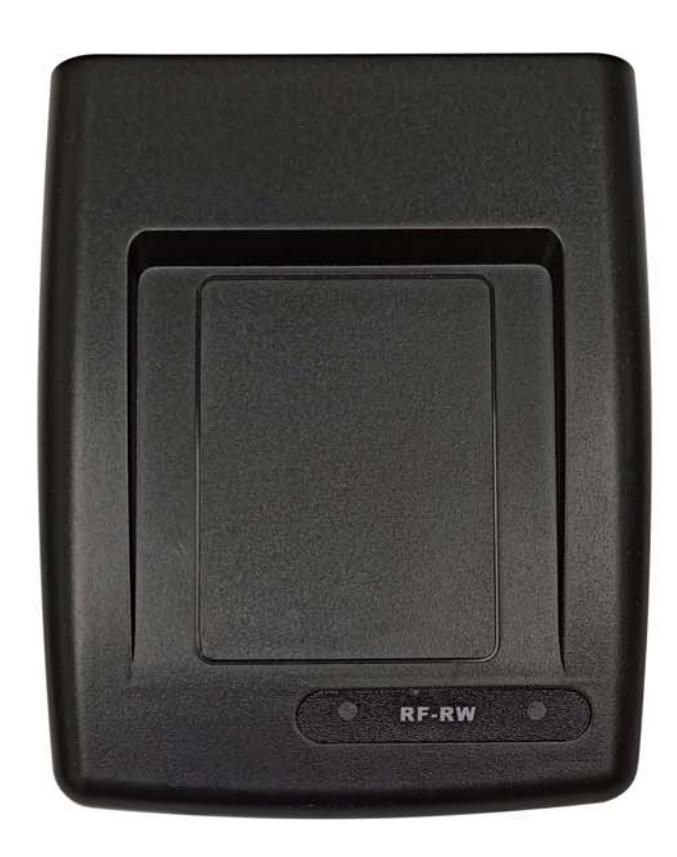

- 38 Keycard Programmer (KCP)
Management System

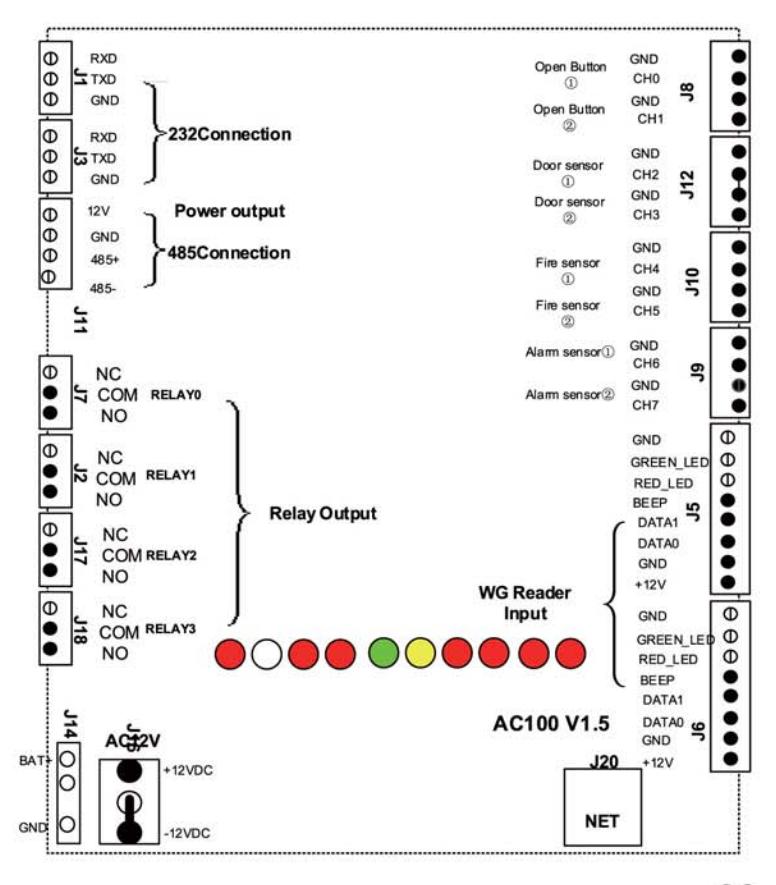

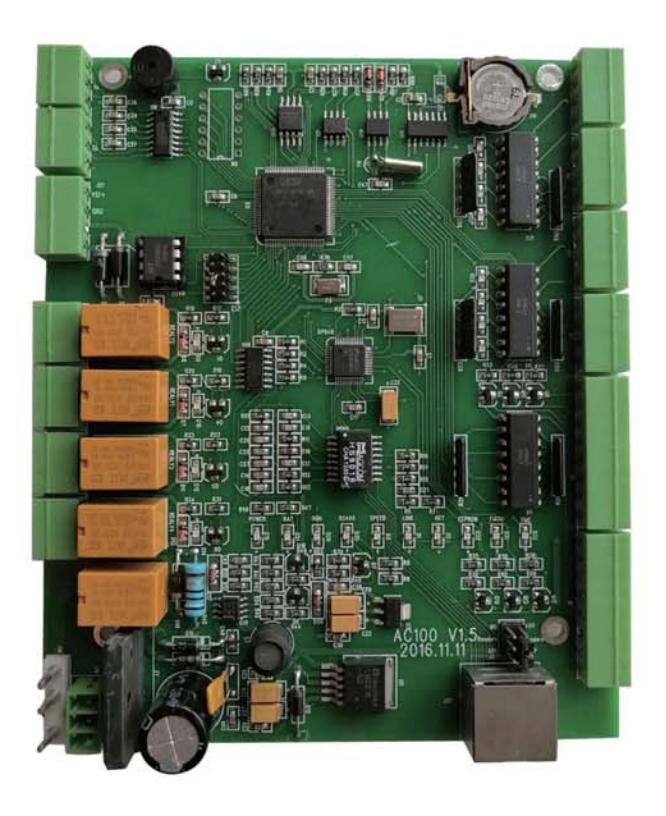

- 39 4 Doors Access Control (AC4)

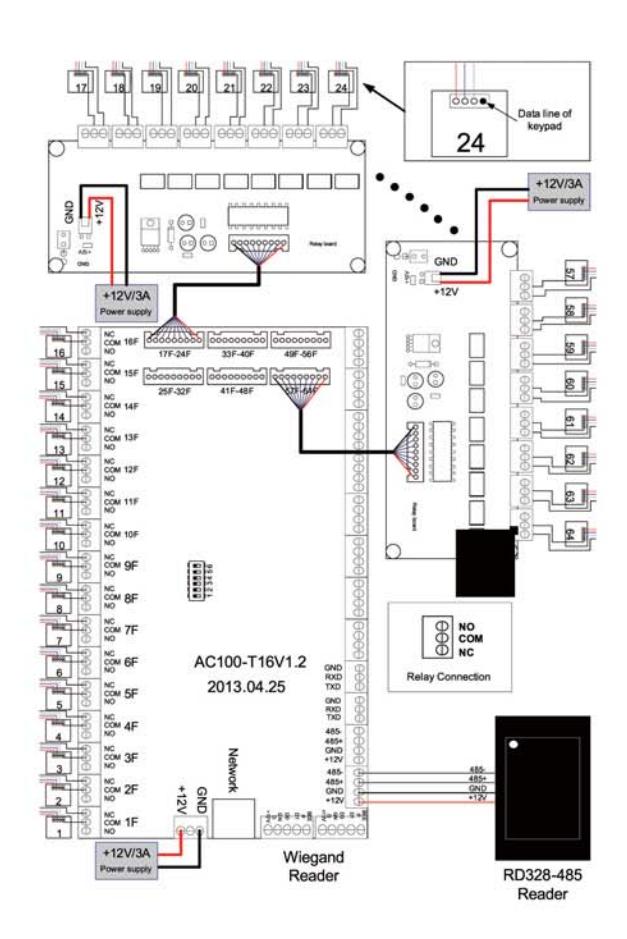

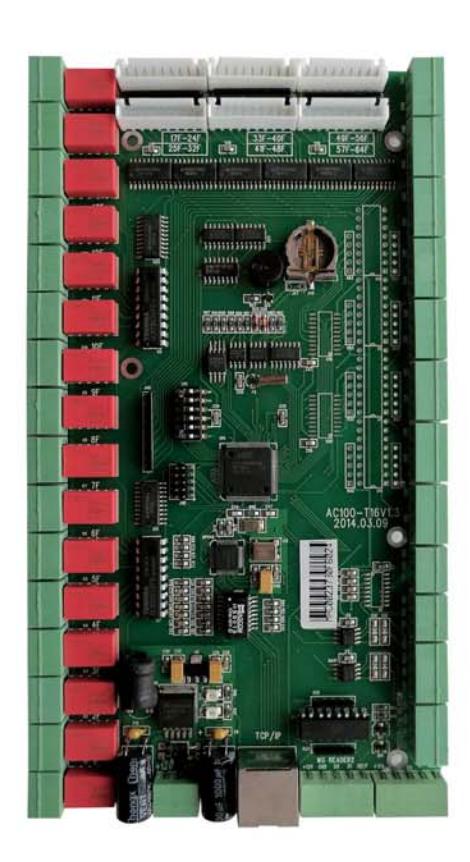

- 40 Elevator Control (EC16)

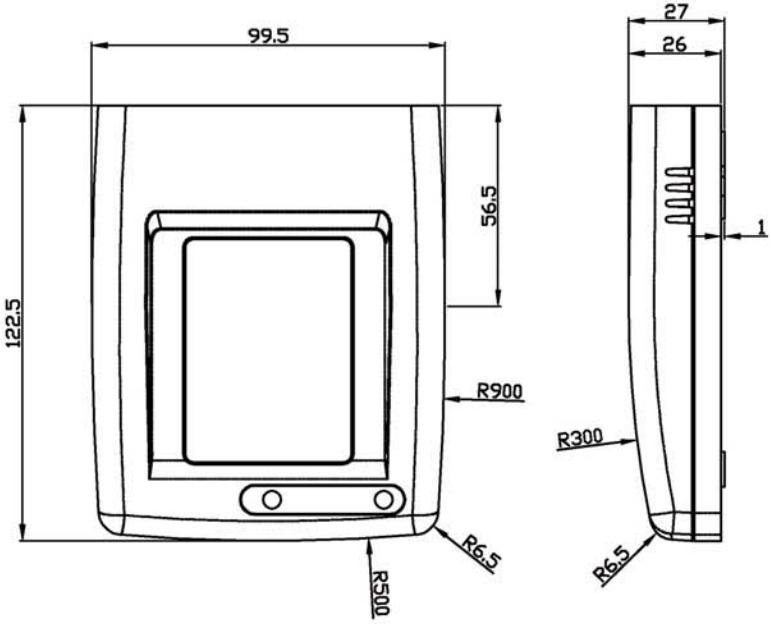

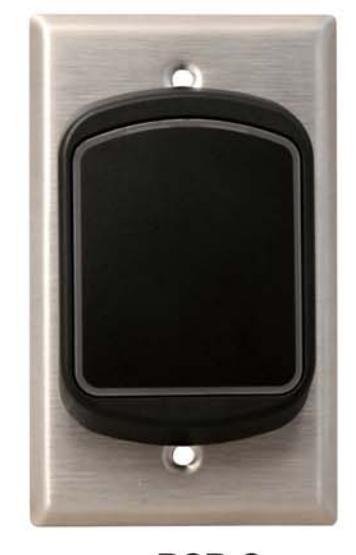

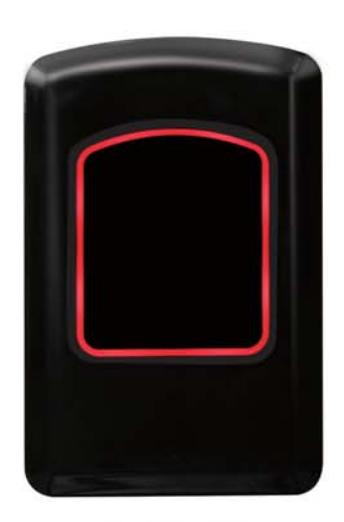

Readers

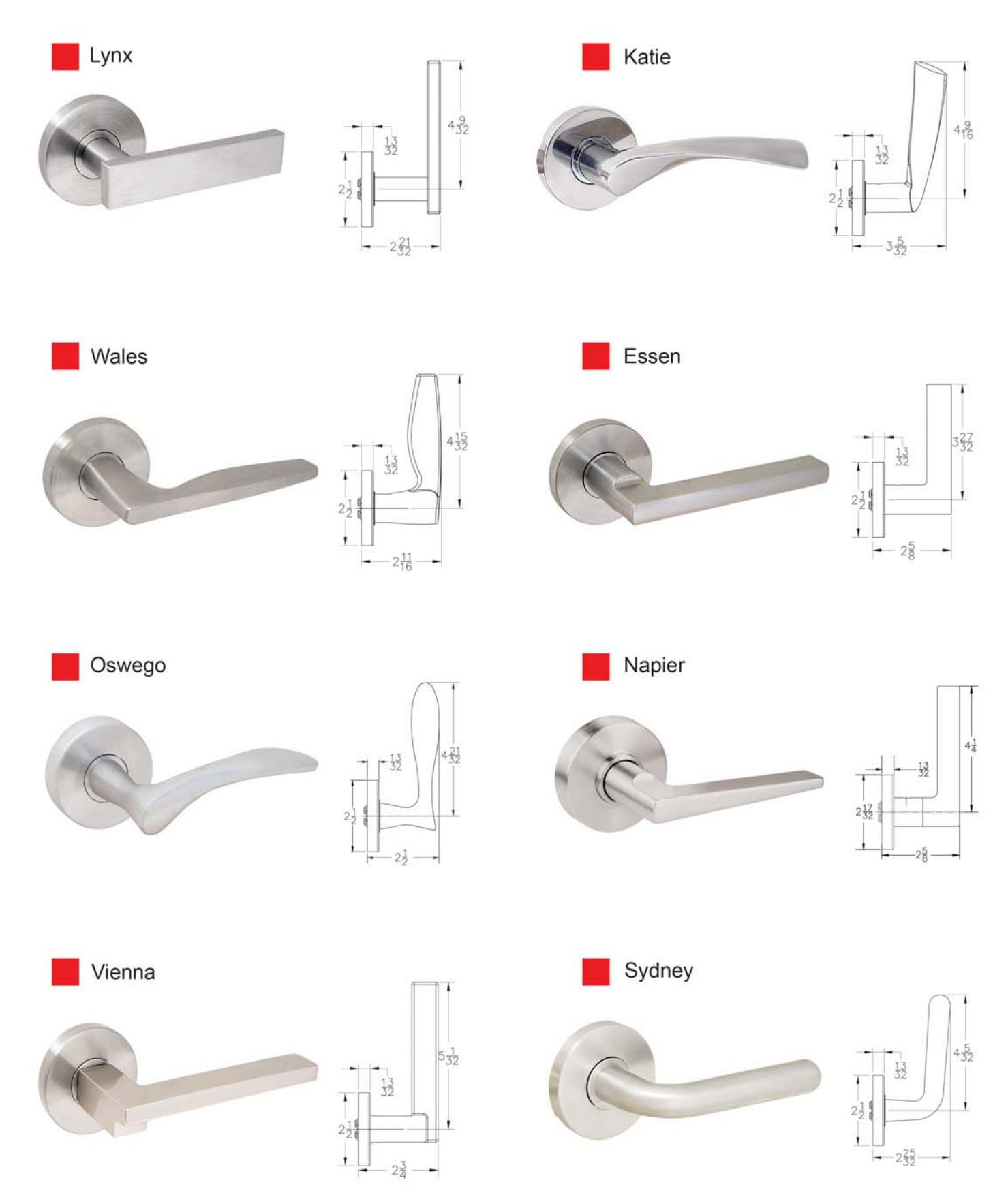

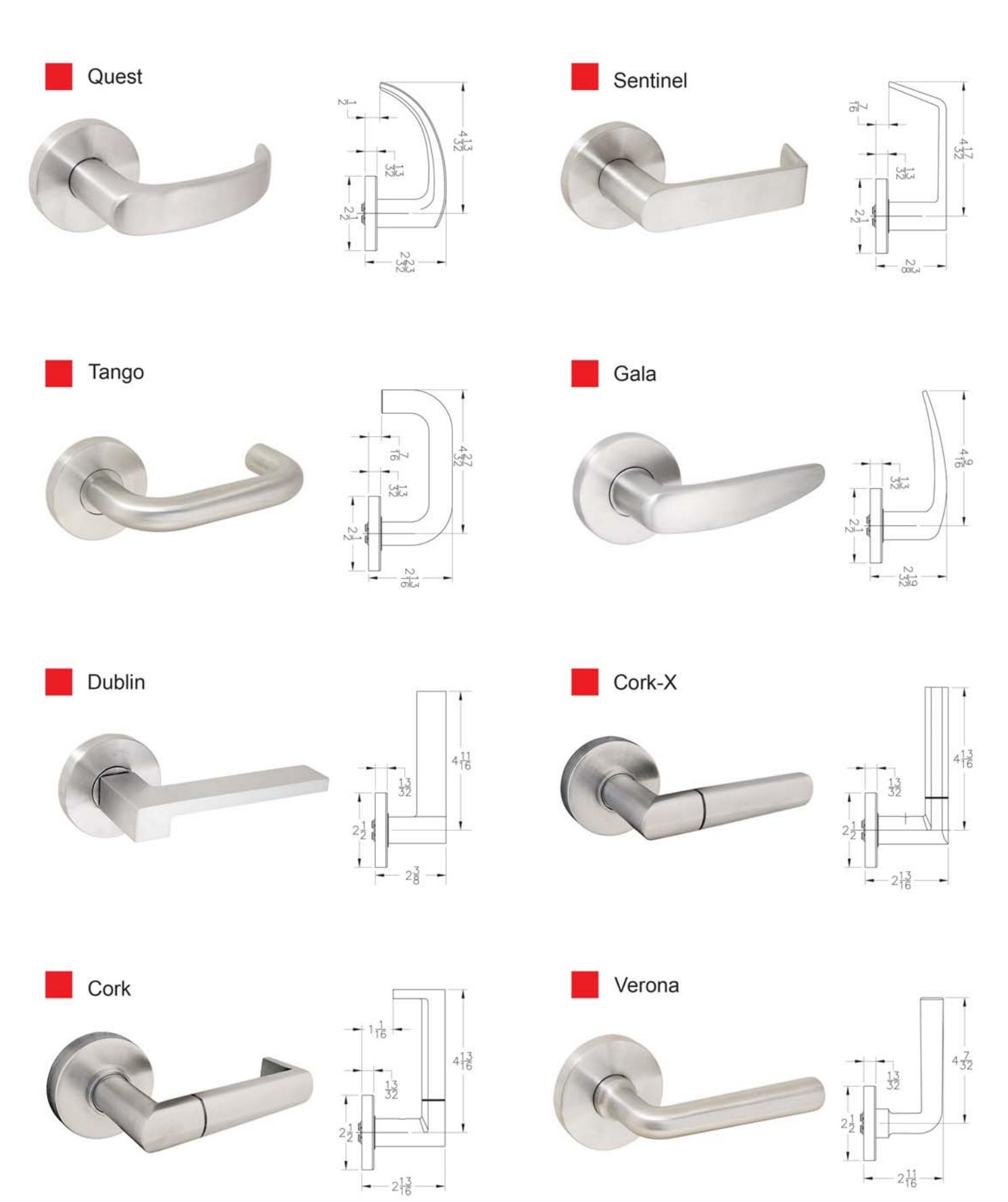

Levers
MAXX ACCESS SYSTEM
Maxx Access Features
- ▶ Time-based access control system with selectable keycard expiration
- ► High security Multiple levels of encryption and unique to each property
- ► Keycard encryption: proprietary and unique to each installation
- Configurable user profiles to secure system access & securely programs and encodes credentials and accessories
- ▶ Different authorization levels, ranging from front desk staff to upper management users
- Setup and audit memory: internal real-time clock with non-volatile memory
- ► Convenient lost or stolen guest key cancellation and replacement
- Supports multi-room access with one key
- Common and restricted area management through credential or scheduled access
- Keycard programmability customized to each user's access authorization
-
Provides extensive and detailed system-use reports, including:
- Key creation transactions
- Key user authorizations
- Complete system access audit trails
MAXX ACCESS
Electronic Mortise Lock
Electronic Exit Device Trim
Door Lock Programmer
Keycard Programmer

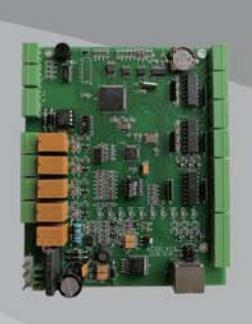

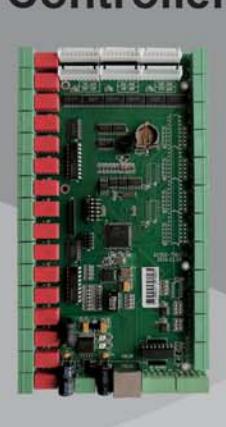

4 Door Controller
Elevator Controller
TOTAL SOLUTIONS

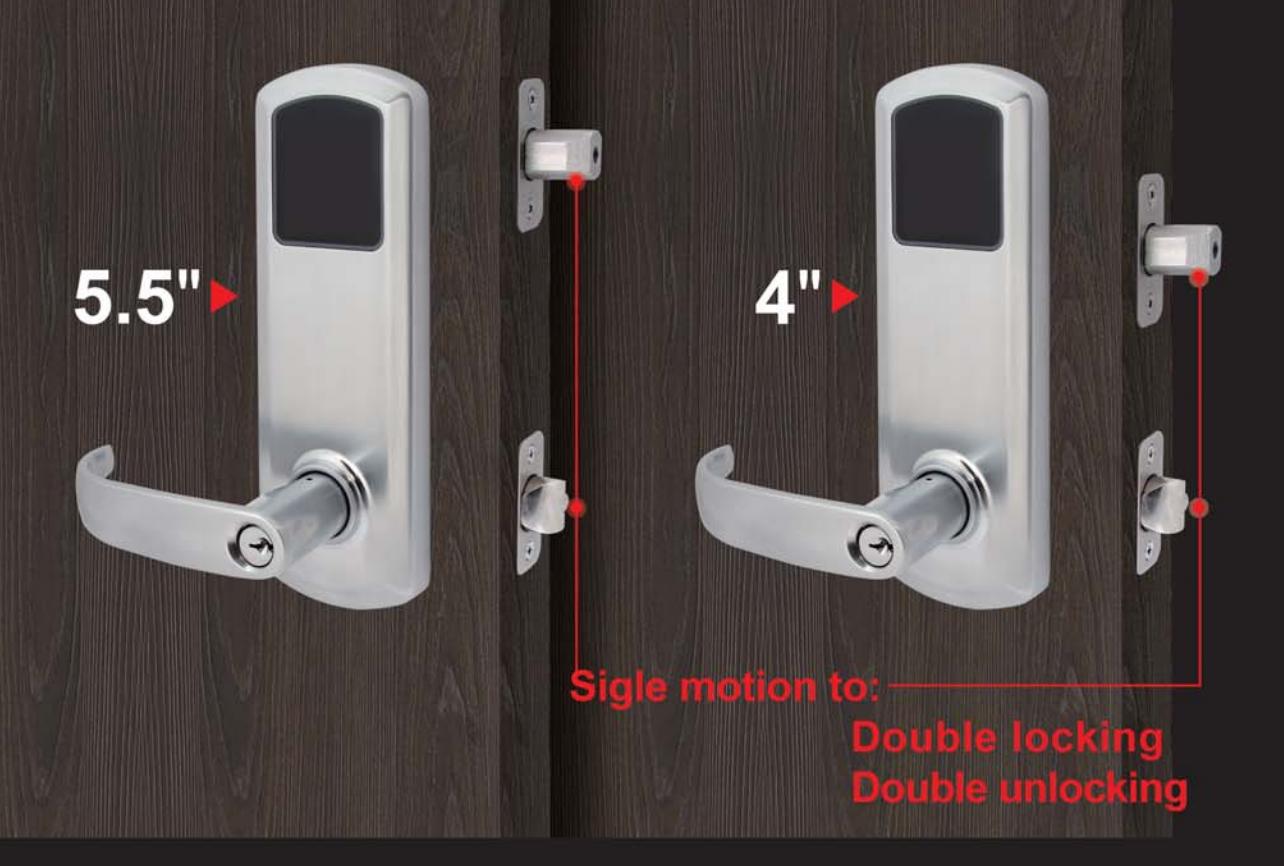

Electronic Interconnect

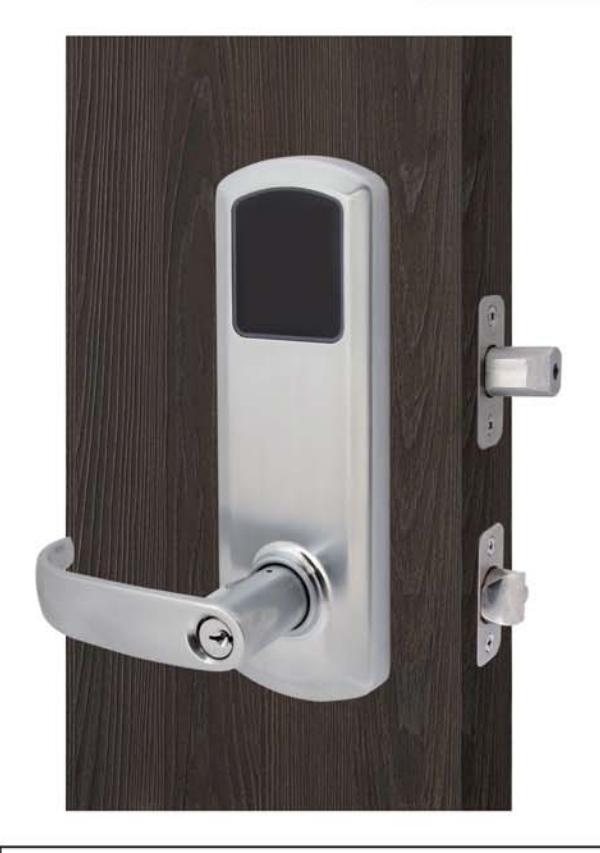

Electronic Cylindrical Lock
Electronic Deadbolt

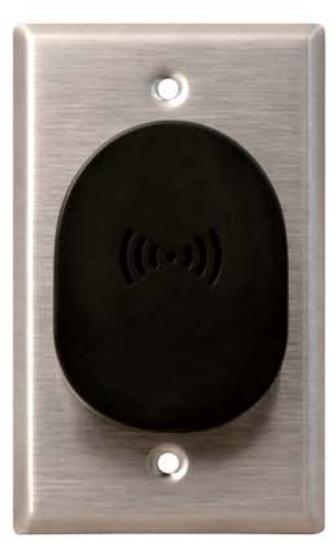

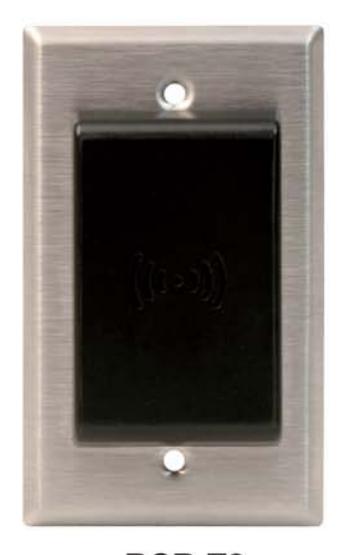

Readers

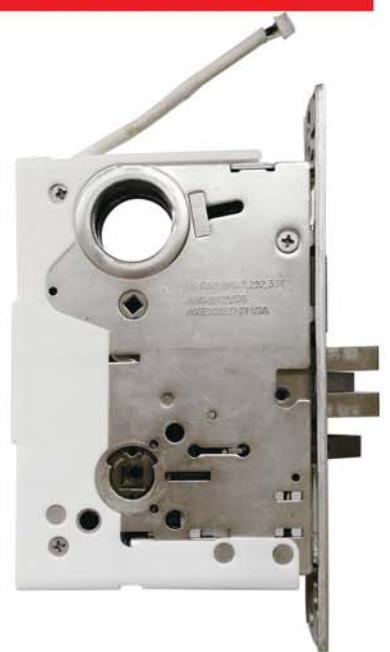

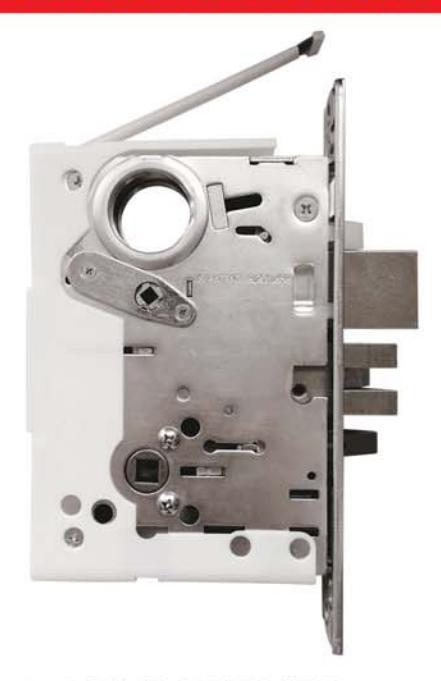

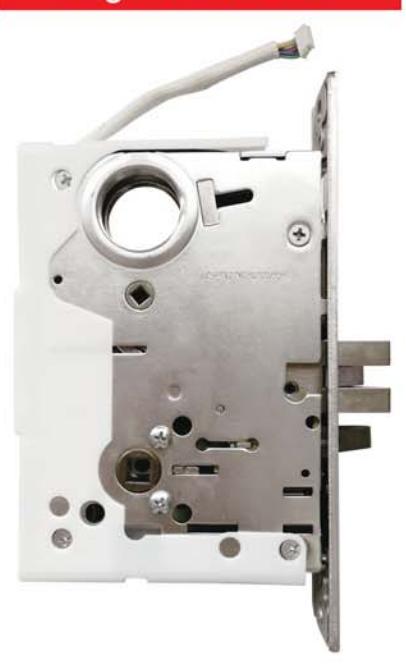

Mortise Three functions and chassis to choose from:
Regular mortise
* US PATENTS # 8201858 # 8419086
Clutch mortise
* US PATENTS # 8292336 # 8424935
Automatic deadbolt mortise
* US PATENTS # 8201858
Key Features
- * 2000 event audit trail
- REX sensor built-in
- Door position sensor
- Mechanical key-override sensor
★ Privacy sensor
Mechanical Specifications
- ANSI/BHMA Grade 1 listed mortise lockset
- UL 10C 3 Hour Rated
- Lever return less than 1/2" (dependent upon lever selection)
- Backset: 2-3/4"
- Door thickness: 1-3/4", other upon request
- Stainless steel deadbolt with 1" throw,
- anti-saw hardened pins
- Stainless steel latch bolt, 3/4" projection, split
- ANSI strike, stainless steel or plated
- Handing is field reversible

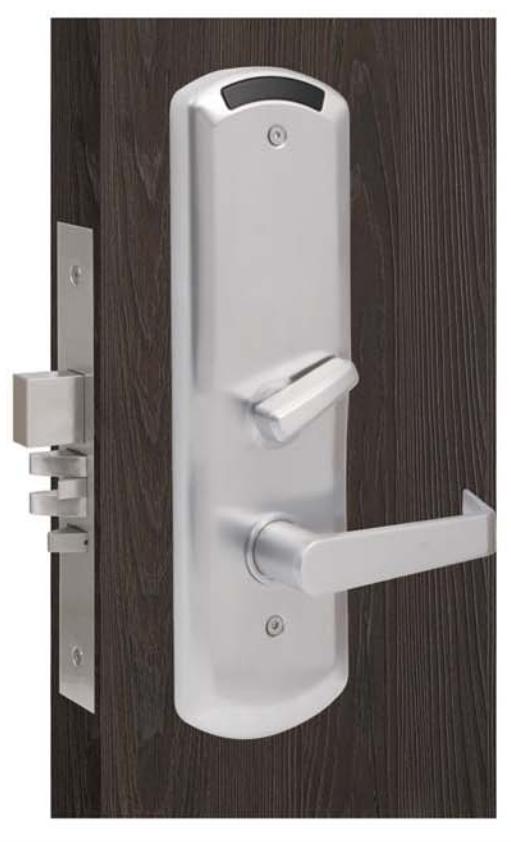

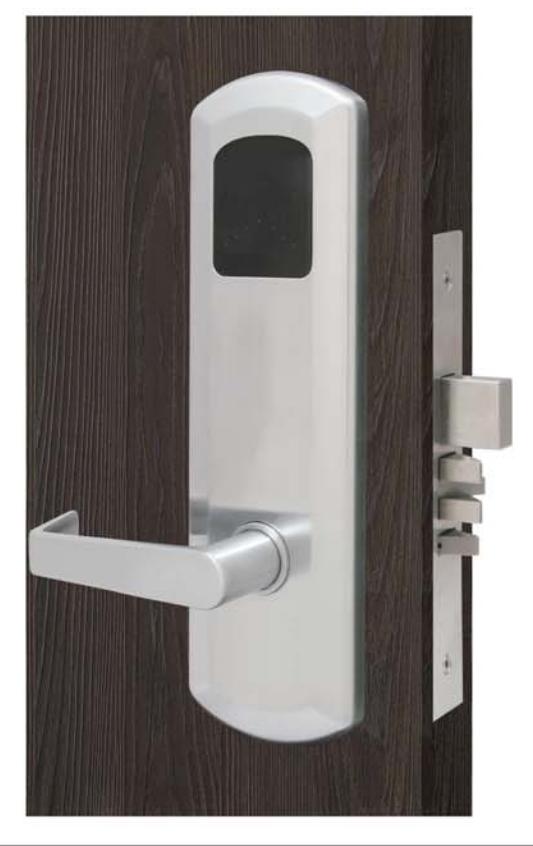

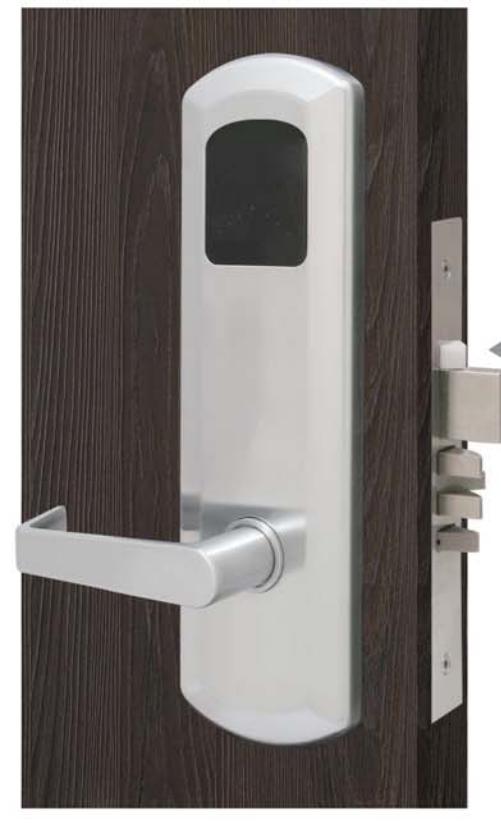

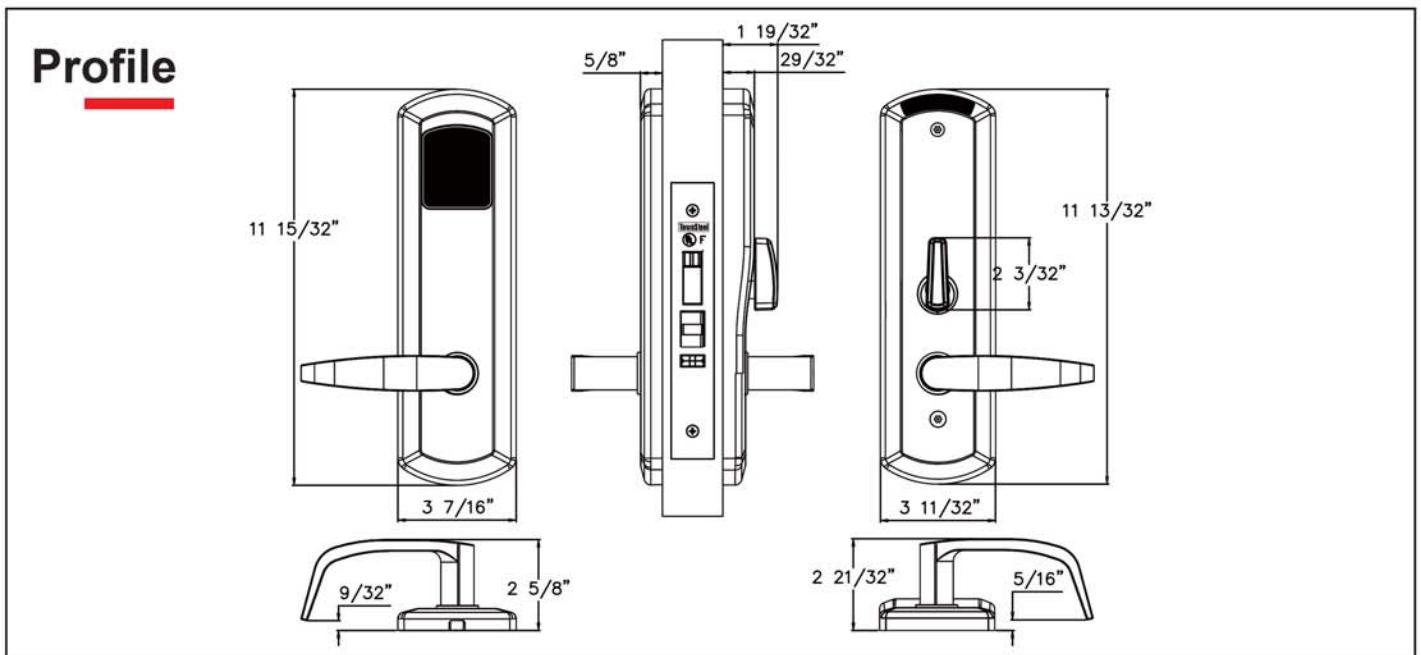

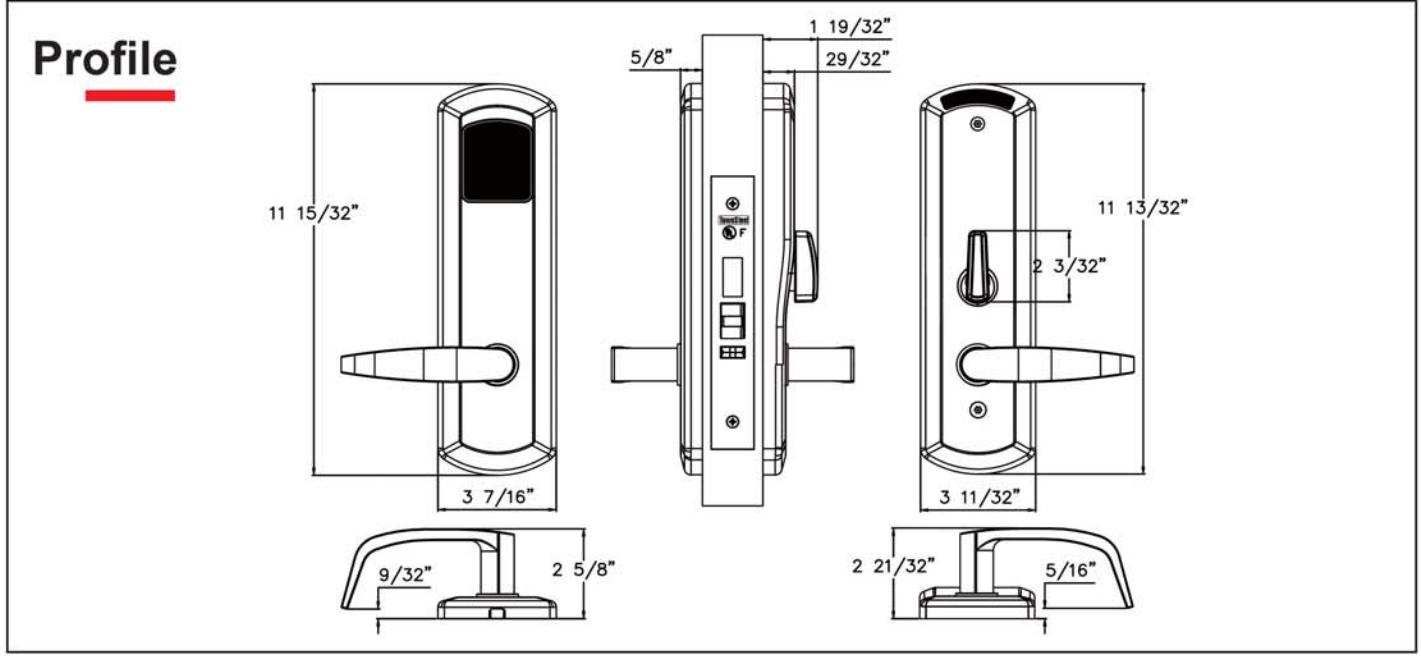

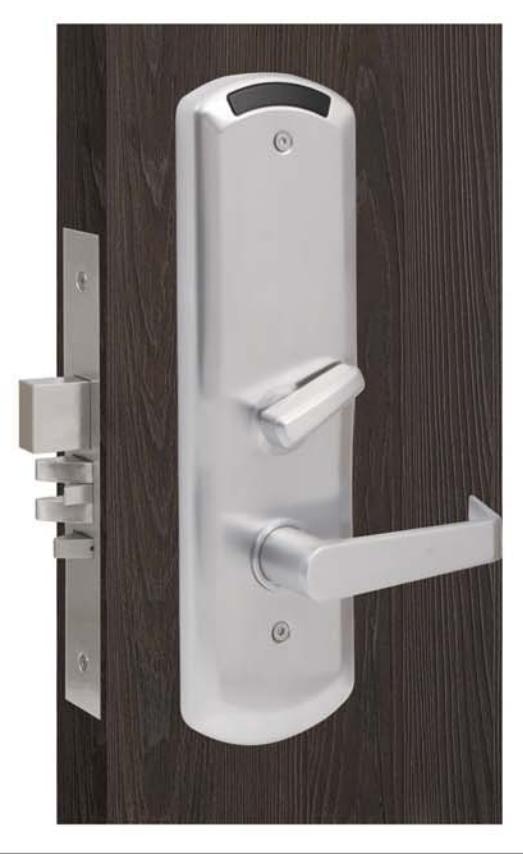

e-KONTOS 1A Series
| How To Order | |
|---|---|
| Series | e-Kontos 1A |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request |
| Cylinder | N/A |
e-KONTOS 1A
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1 UL Listed
| How To Order | |
|---|---|
| Series | e-Kontos 1A |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request |
| Cylinder | N/A |

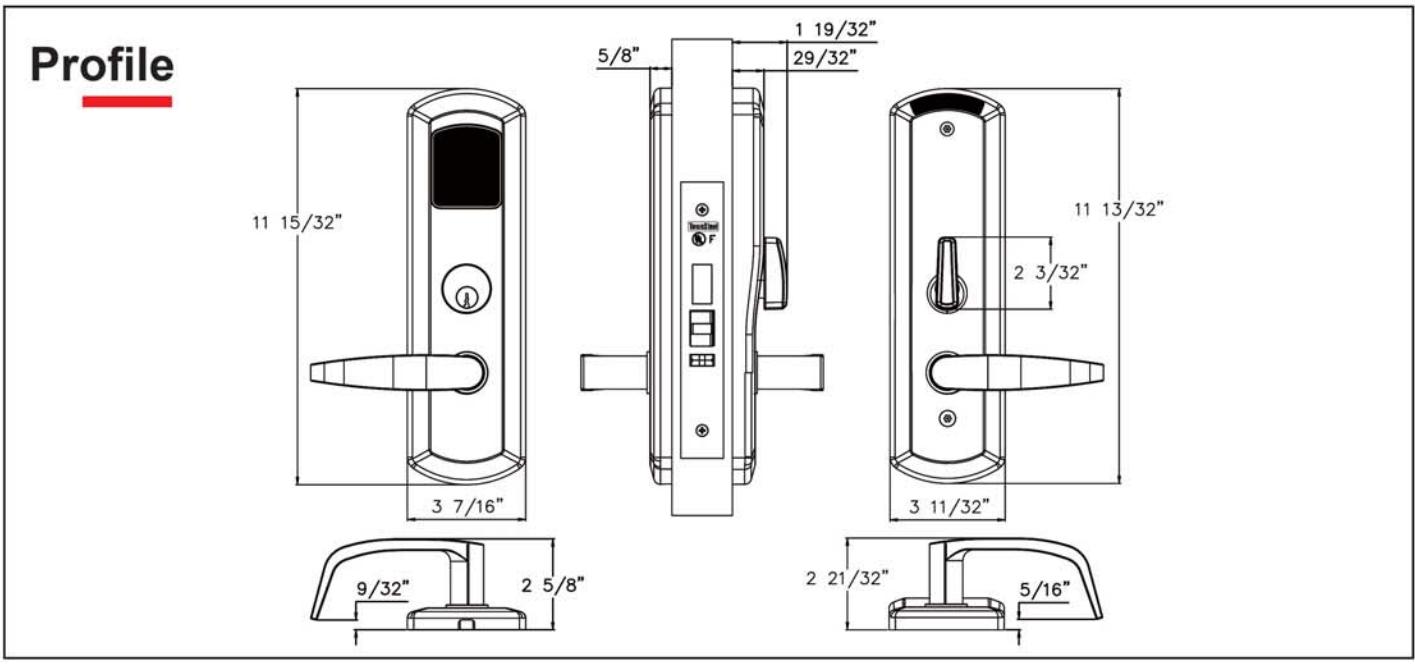

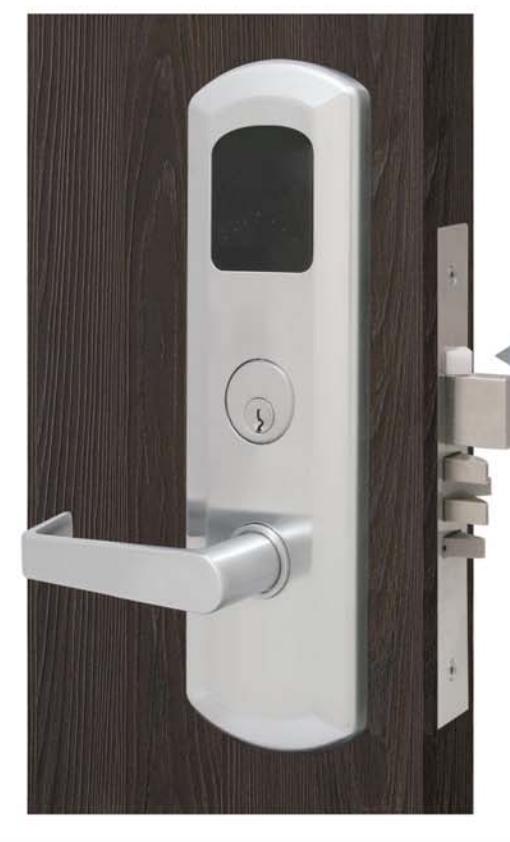

e-KONTOS 1B Series
| How To Order | ||
|---|---|---|
| Series | e-Kontos 1B | Louis |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | EKO1B6R-SLHSC-SFIC7 |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lookbody Fillon |
e-KONTOS 1B
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
| How To Order | ||
|---|---|---|
| Series | e-Kontos 1B | Lover |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | EKO1B6X-SLHSC-SFIC7 |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lookbody I man |
e-TRIDENT 1A Series
| How To Order | ||
|---|---|---|
| Series | e-Trident 1A | |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ETR1A6R-SLHSC |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | N/A |

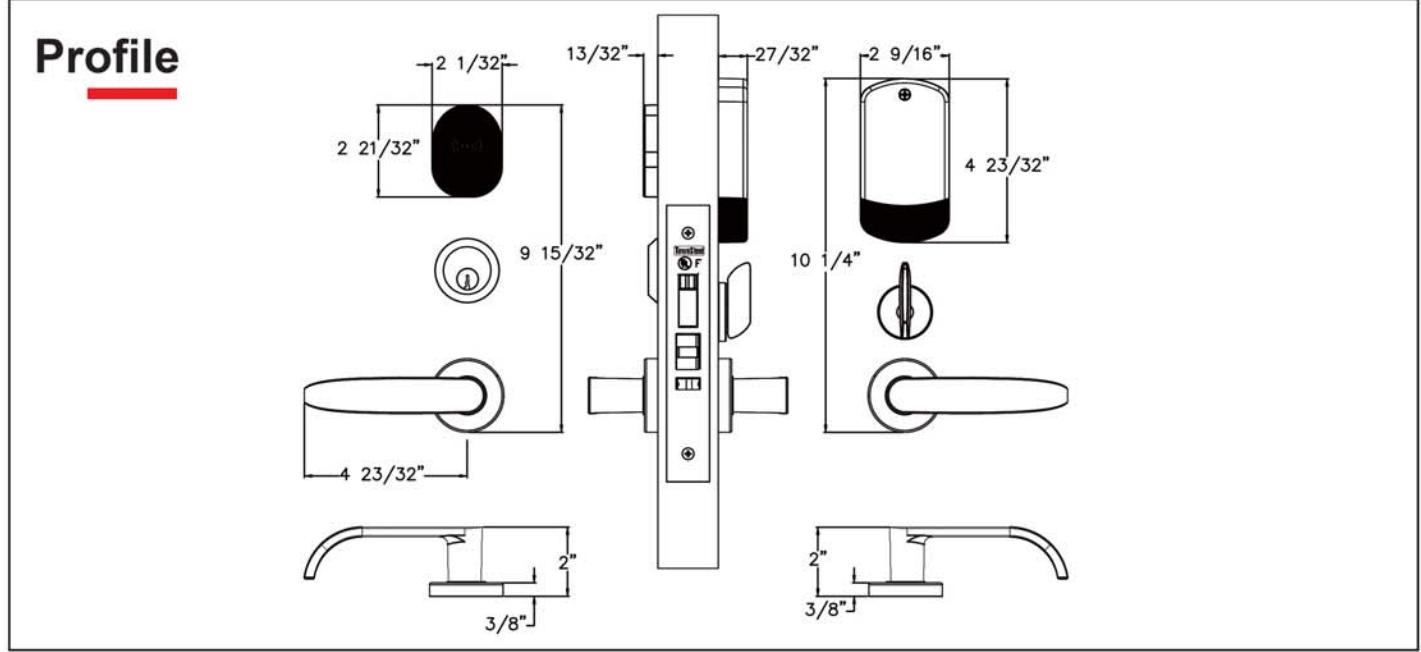

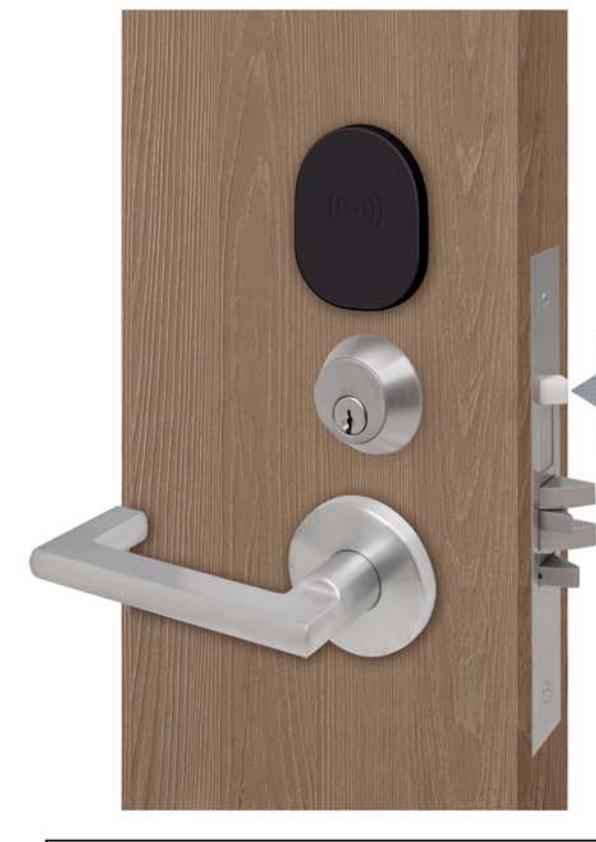

e-TRIDENT 1A
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
| How To Order | |
|---|---|
| Series | e-Trident 1A |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request |
| Cylinder | N/A |

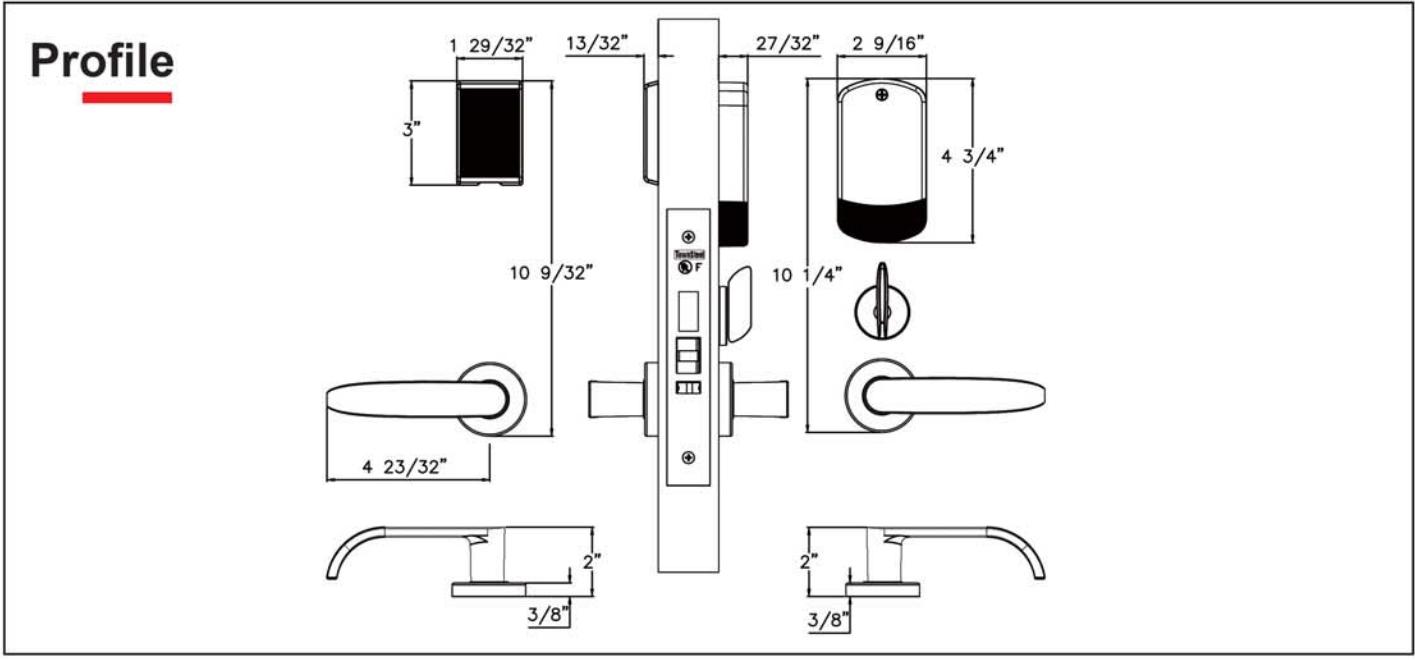

e-TRIDENT 1B Series
| How To Order | ||
|---|---|---|
| Series | e-Trident 1B | Lover Cylinder |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ETR1B6R-SLHSC-SFIC7 |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lockbody I IIIsii |

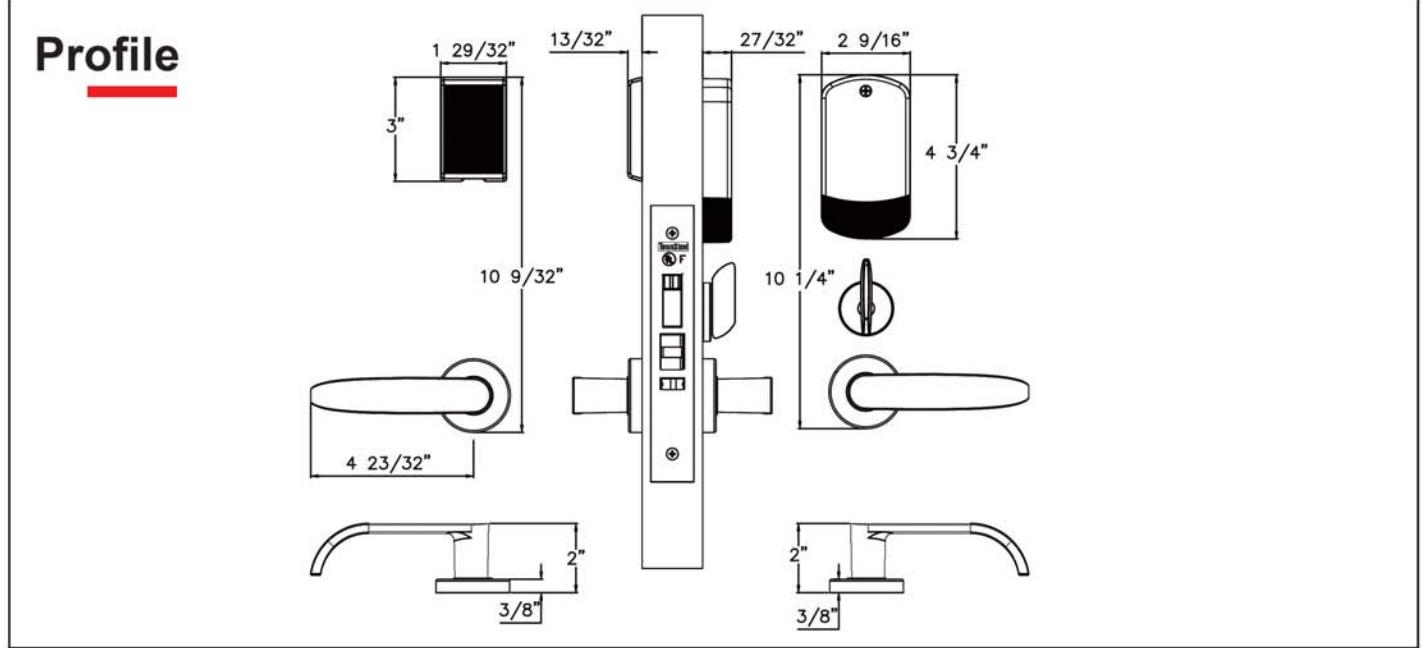

e-TRIDENT 1B
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
| How To Order | ||
|---|---|---|
| Series | e-Trident 1B | Leves |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ETR1B6X-SLHSC-SFIC7 |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lockbody Tillsii |

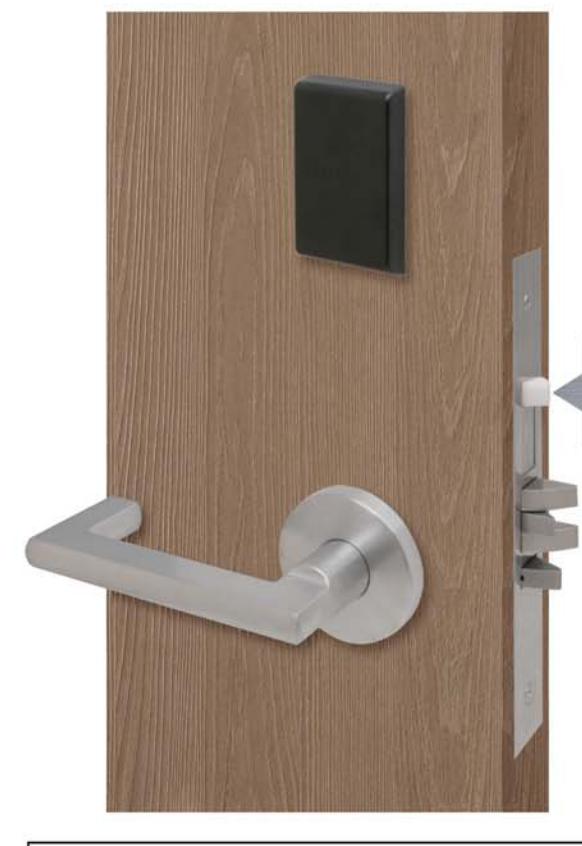

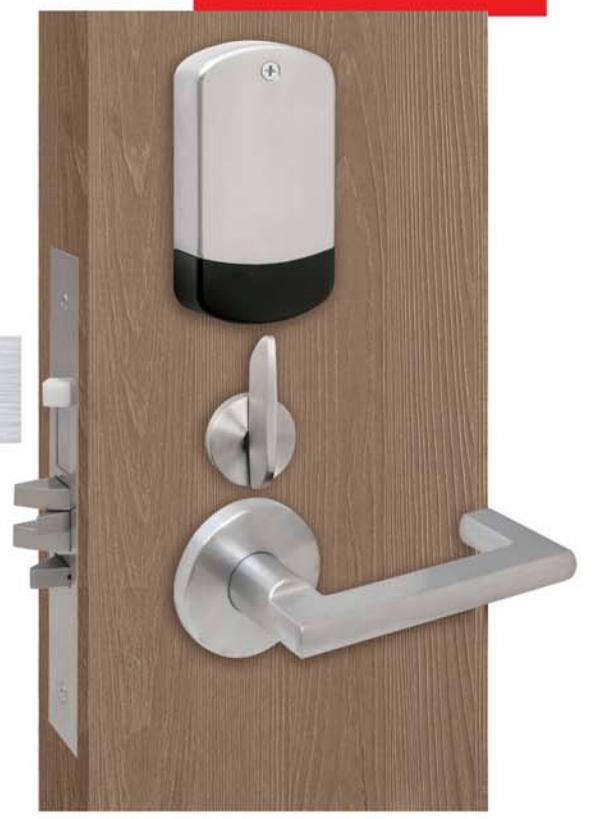

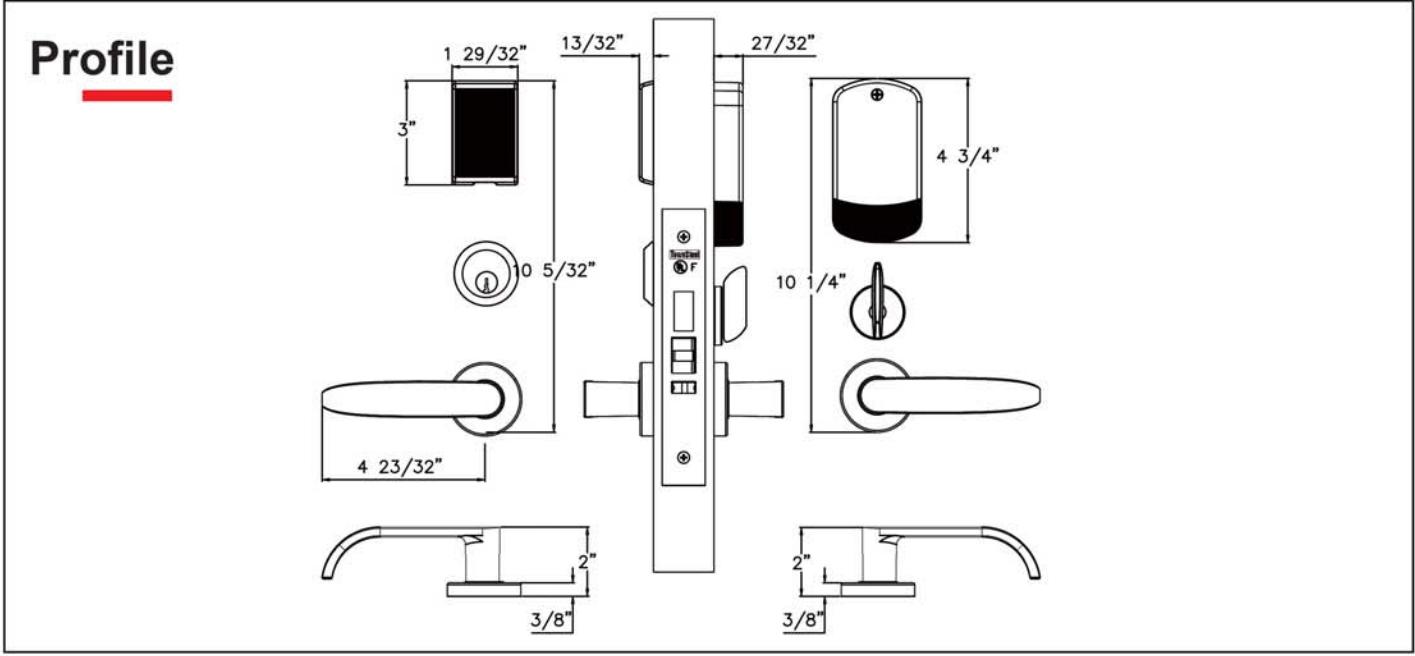

e-TRIDENT 2A Series
| How To Order | ||
|---|---|---|
| Series | e-Trident 2A | A CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR OF THE CONTRACTOR |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever |
| Lever Style | Sentinel / Quest / Or see TownSteel Catalog | ETR2A6R-SLHSC |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | N/A |
e-TRIDENT 2A
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
| How To Order | |
|---|---|
| Series | e-Trident 2A |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request |
| Cylinder | N/A |

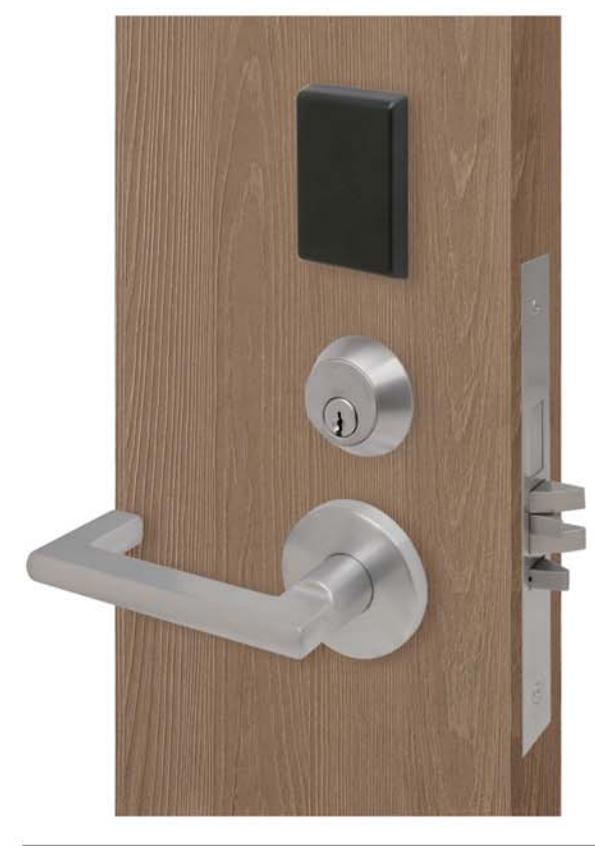

e-TRIDENT 2B Series
| How To Order | ||
|---|---|---|
| Series | e-Trident 2B | Lauran Culinda |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinde |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ETR2B6R-SLHSC-SFIC |
| Finish |
FB: US19, Flat Black / SC: US26D, Satin Chrome
Or special color upon request |
Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lockbody 1 msn |
e-TRIDENT 2B
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
| How To Order | ||
|---|---|---|
| Series | e-Trident 2B | Lover |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ETR2B6X-SLHSC-SFIC7 |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lockbody 1 man |

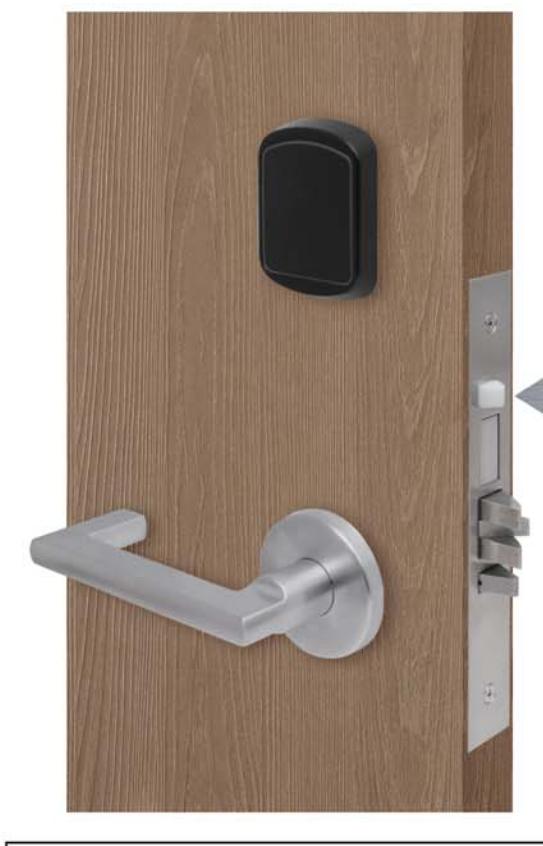

e-CRONUS 1A Series
| How To Order | ||
|---|---|---|
| Series | e-Cronus 1A | Lover |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR1A6R-SLHSC |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | N/A |
e-CRONUS 1A
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
| How To Order | ||
|---|---|---|
| Series | e-Cronus 1A | |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR1A6X-SLHSC |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | N/A |

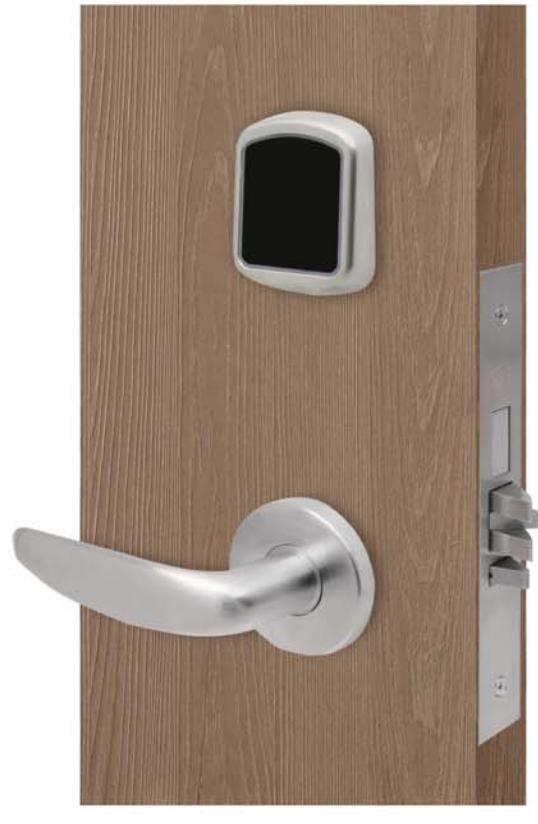

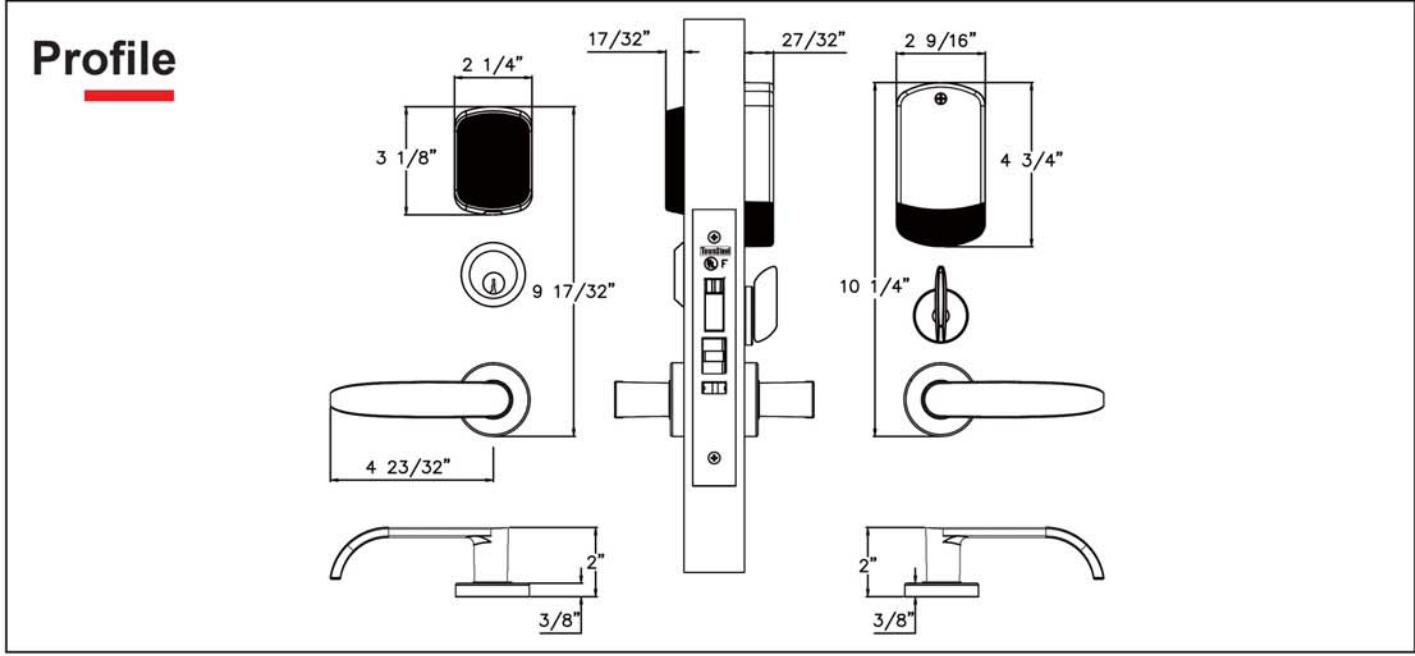

e-CRONUS 1B Series
| How To Order | |||
|---|---|---|---|
| Series | e-Cronus 1B | Lavies College | |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder | |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR1B6R-SLHSC-SFIC | |
| Finish |
FB: US19, Flat Black / SC: US26D, Satin Chrome
Or special color upon request |
Lockbody Finsh | |
| Cylinder | Any mortise cylinder can be used | Lookbody I IIIsii | |

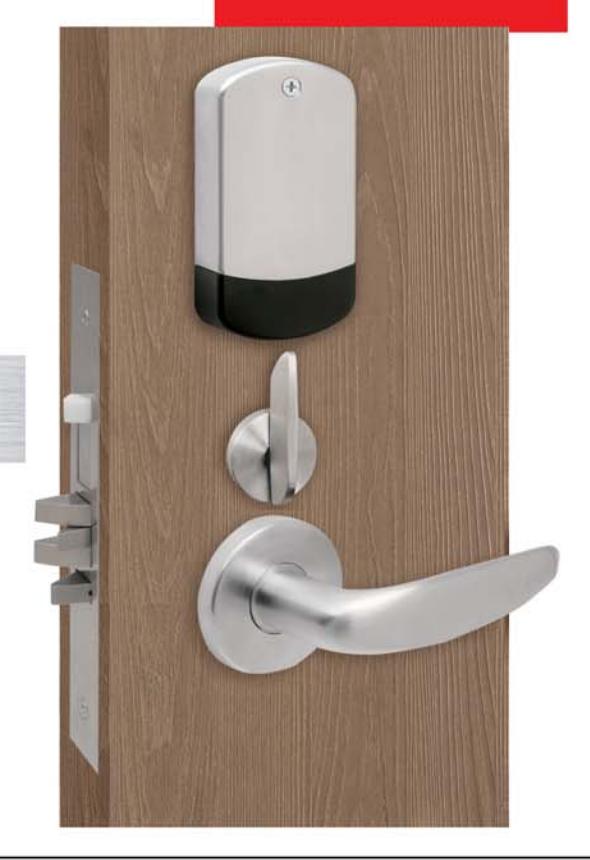

e-CRONUS 1B
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
| How To Order | ||
|---|---|---|
| Series | e-Cronus 1B | Louis Culindos |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR1B6X-SLHSC-SFIC7 |
| Finish |
FB: US19, Flat Black / SC: US26D, Satin Chrome
Or special color upon request |
Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lockbody 1 mon |

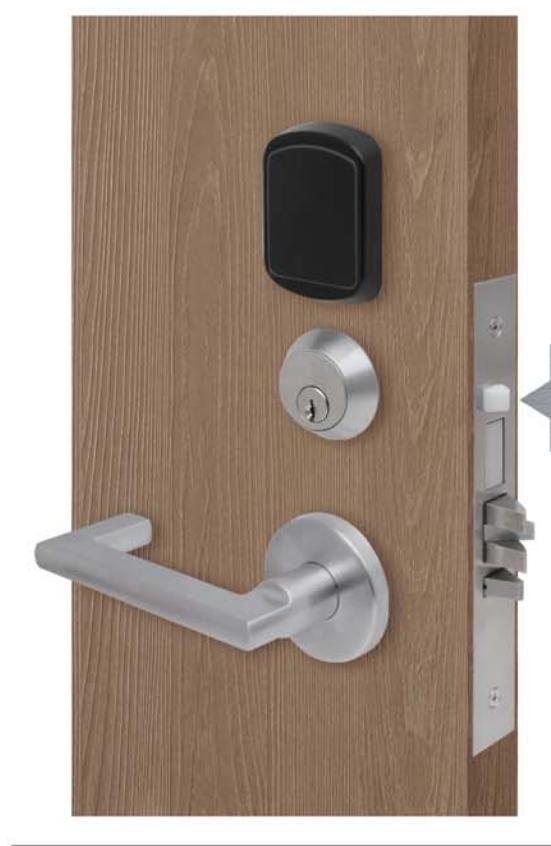

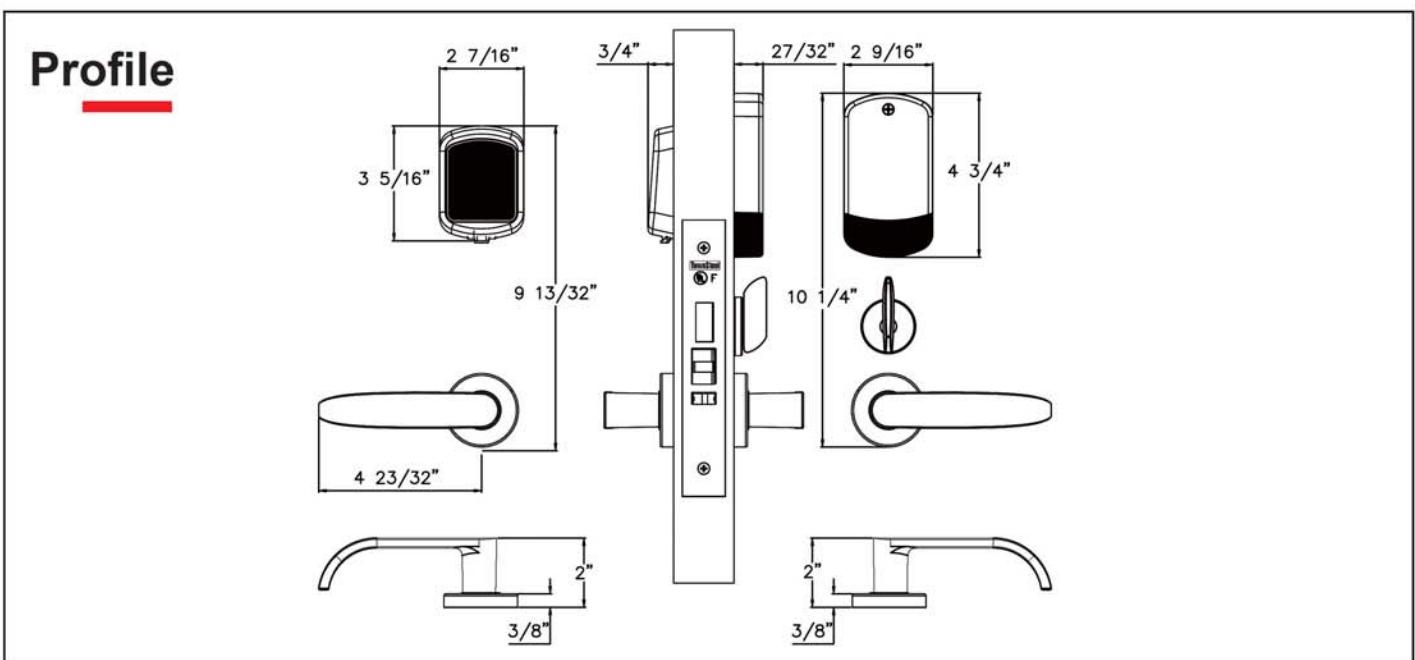

e-CRONUS 2A Series
ANSI Grade 1 UL Listed
| How To Order | ||
|---|---|---|
| Series | e-Cronus 2A | Taxaa |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR2A6R-SLHSC |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody Finsh |
| Cylinder | N/A |
e-CRONUS 2A
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
Finsh
| How To Order | ||
|---|---|---|
| Series | e-Cronus 2A | Landara |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR2A6X-SLH |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Lockbody |
| Cylinder | N/A | \\ \tag{\tag{\tag{\tag{\tag{\tag{\tag{ |
e-CRONUS 2B Series
(4)
ANSI Grade 1 (IL) UL Listed
| How To Order | ||
|---|---|---|
| Series | e-Cronus 2B | Laura |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR2B6R-SLHSC-SFIC7 |
| Finish |
FB: US19, Flat Black / SC: US26D, Satin Chrome
Or special color upon request |
Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lockbody i msn |
e-CRONUS 2B
Automatic Deadbolt Series
Automatic deadbolt thrown upon closing
ANSI Grade 1
| How To Order | ||
|---|---|---|
| Series | e-Cronus 2B | Louis |
| Lockbody | R: Rigid / C: Clutch / X: Automatic Deadbolt Series | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR2B6X-SLHSC-SFIC7 |
| Finish |
FB: US19, Flat Black / SC: US26D, Satin Chrome
Or special color upon request |
Lockbody Finsh |
| Cylinder | Any mortise cylinder can be used | Lockbody I man |

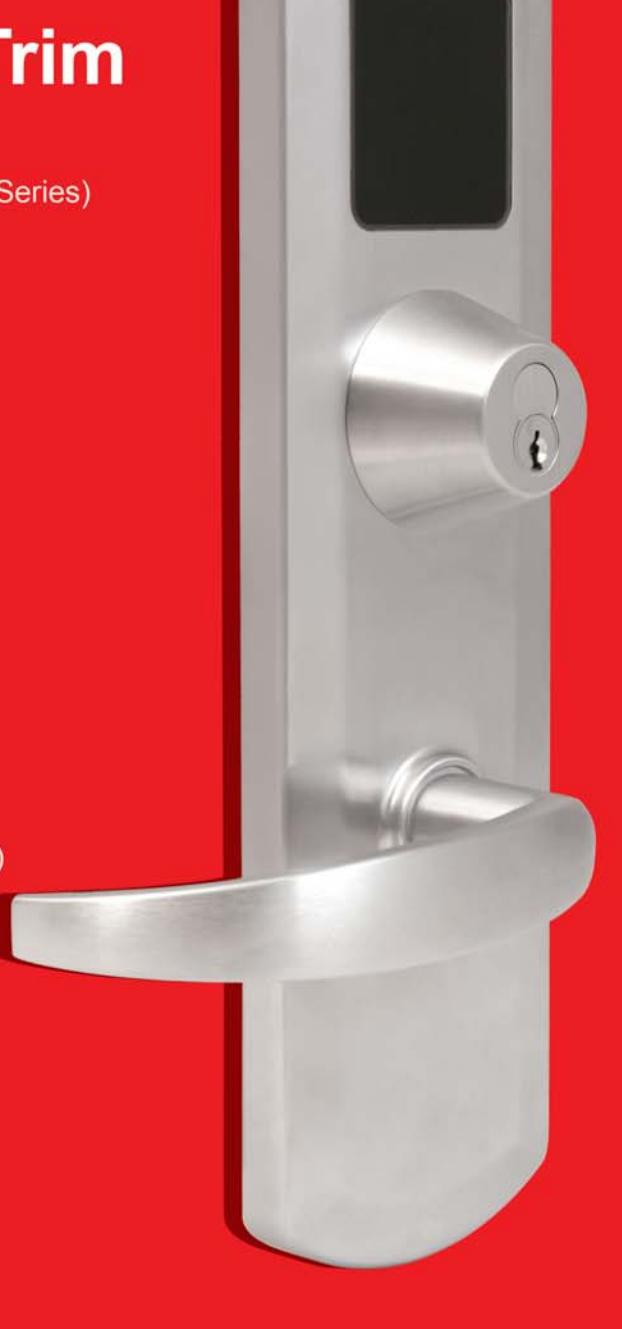

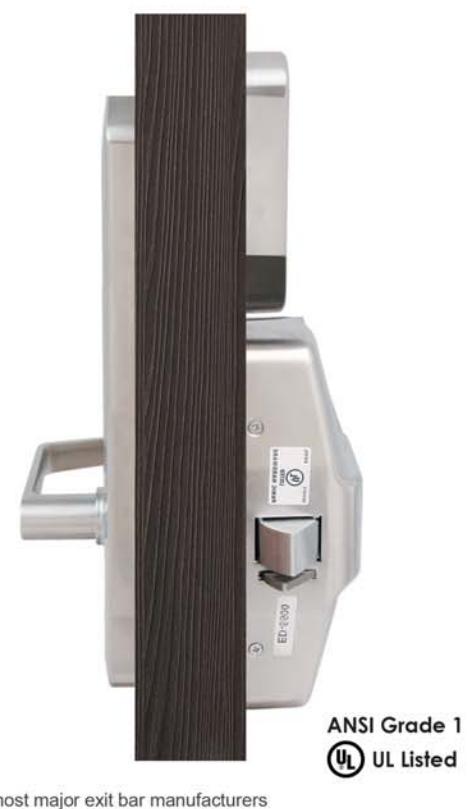

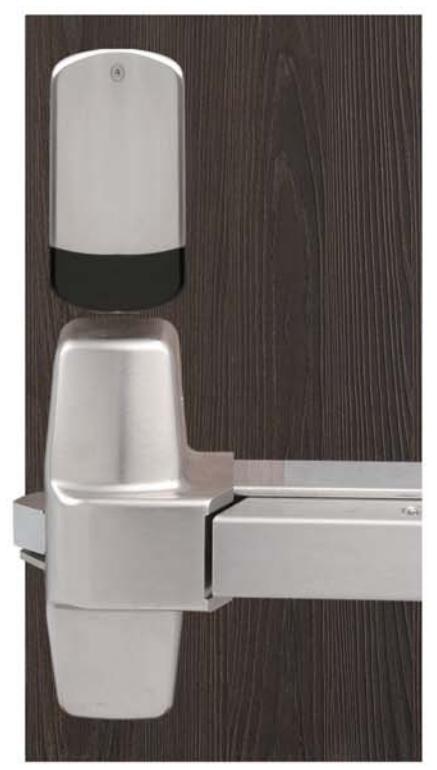

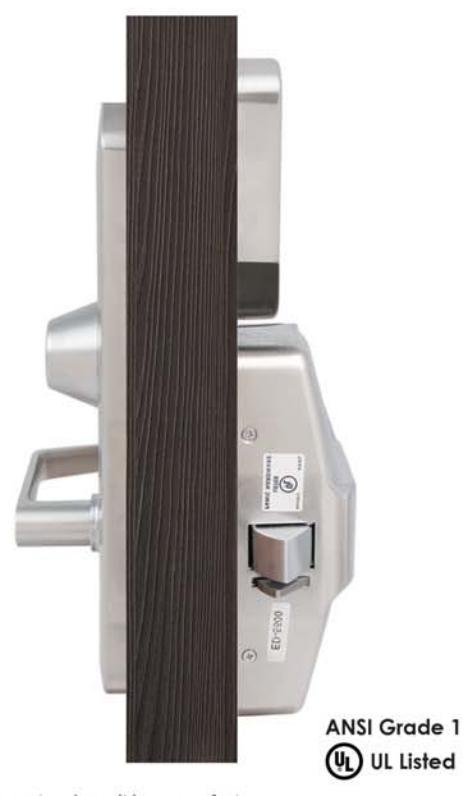

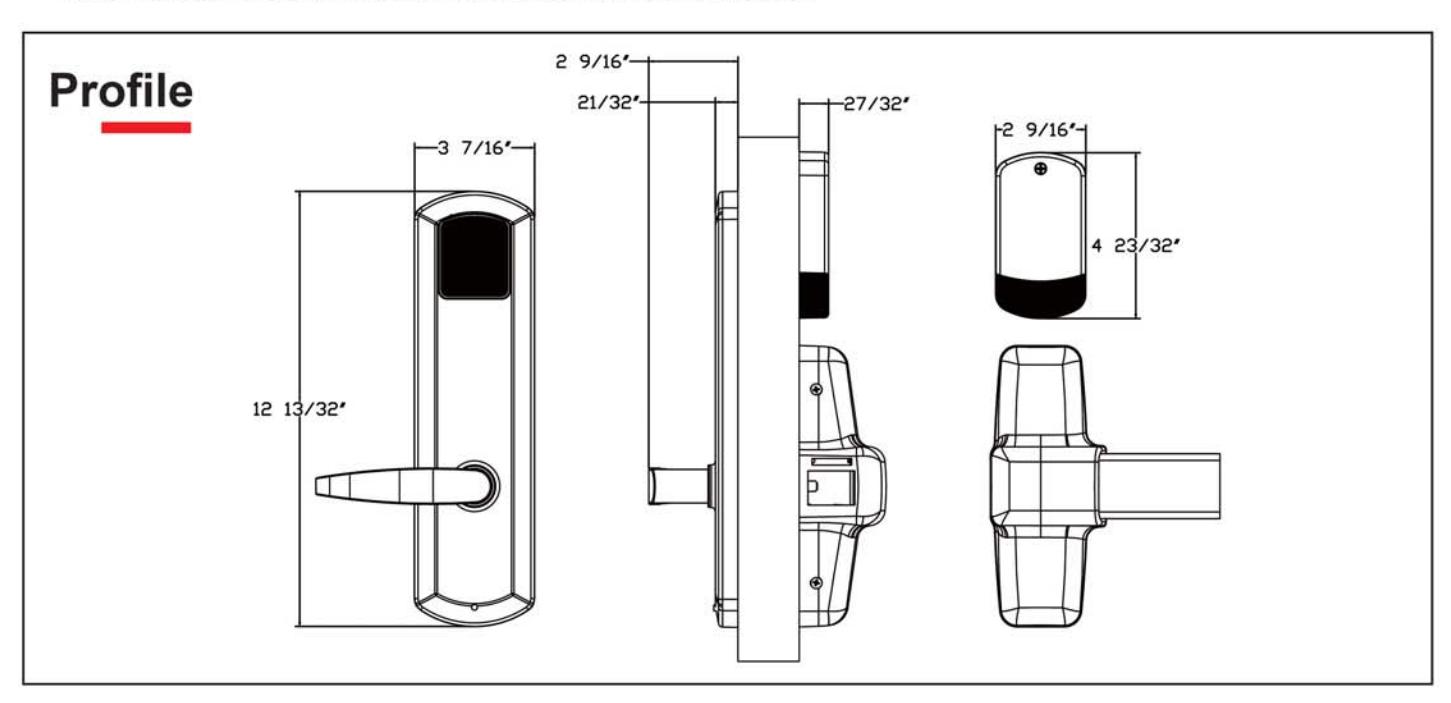

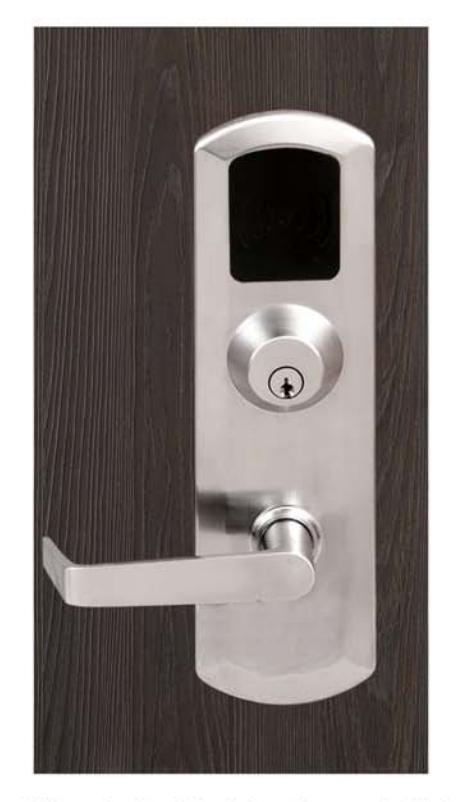

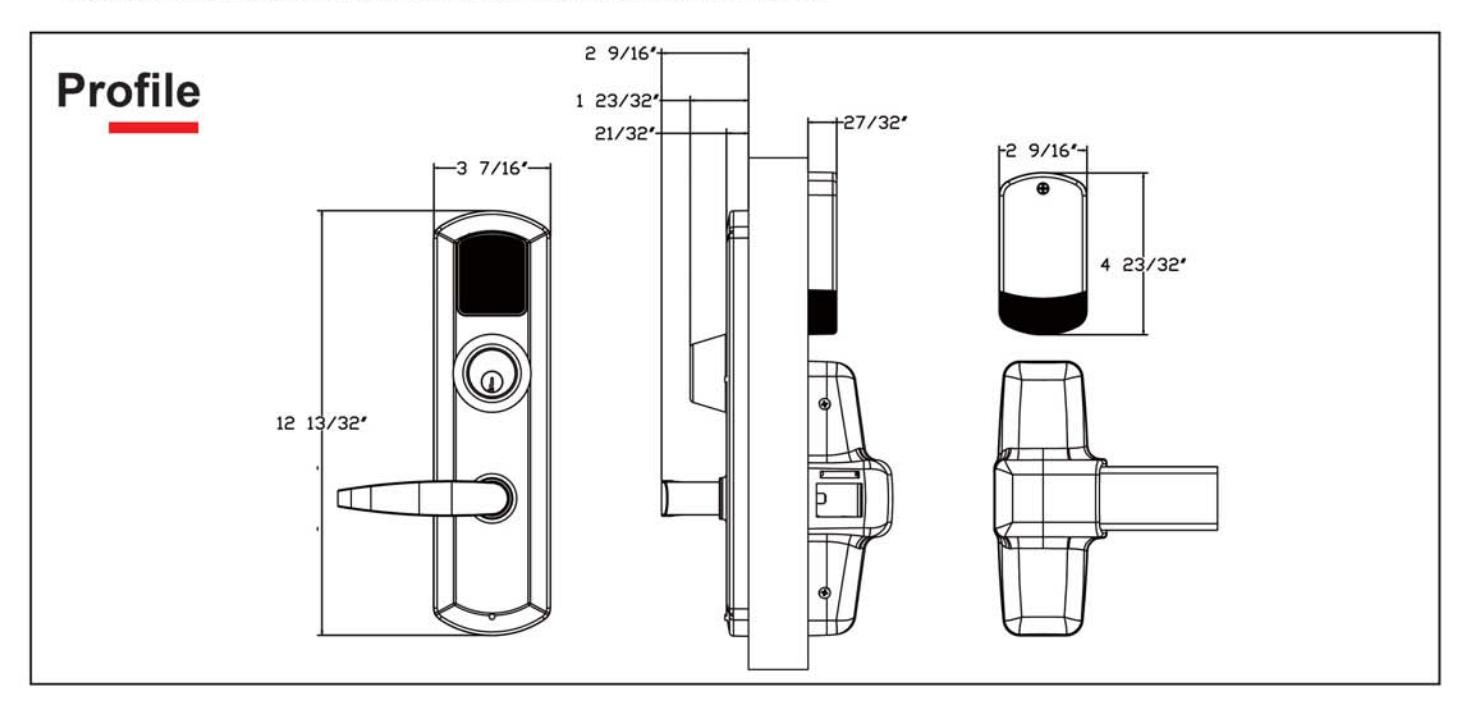

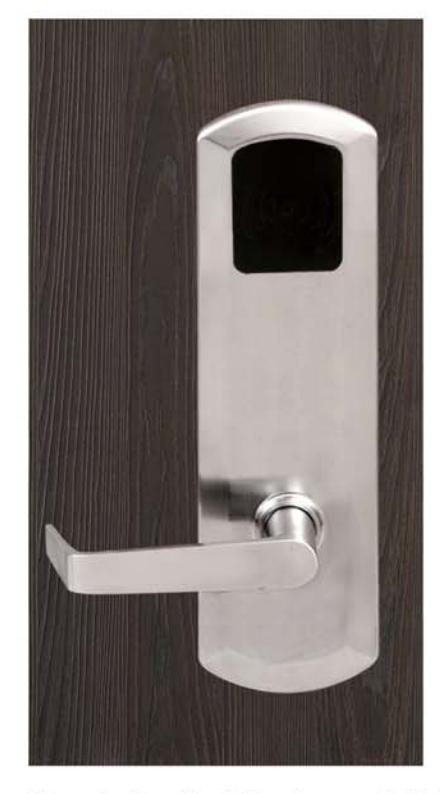

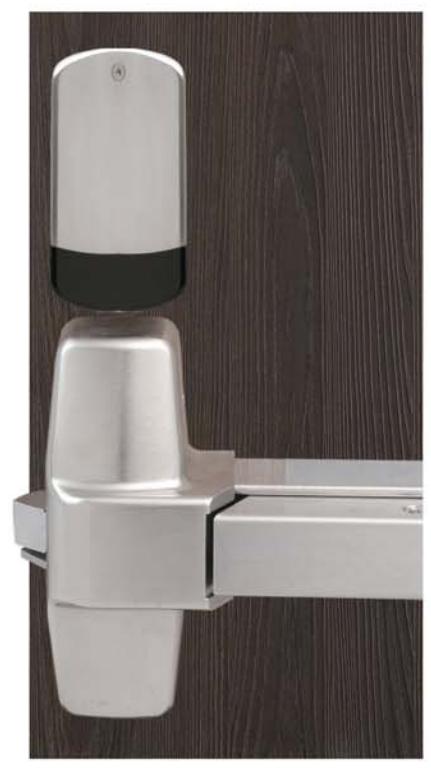

Motorized Exit Device Trim
★ US PATENT: #10604963 (e-KESTROS 1B Series)
Mechanical Specifications
- Push bar with electronic control (Electronic trim only. Exit push bar sold separately)
- UL 10C 3 Hour Rated
- Lever return less than 1/2" (dependent upon lever selection)
- Backset: 2-3/4"
- Door thickness: 1-3/4", other upon request
Cylinder Specifications
- Schlage® C keyway, brass 6 pin cylinder standard
- SFIC, with or without core available, 6 or 7 pin core
- Schlage® LFIC less core, Corbin® LFIC less core available
- High security cylinder available, TownSteel "L" keyway, 6 pin
- High security SFIC core available, TownSteel "L" keyway, 7 pin.
- KD, KA, MK, GGMK, and construction keying available
e-KESTROS 1A Series
Picture of exit push bar is for reference only. Works with most major exit bar manufacturers
| How To Order | ||
|---|---|---|
| Series | e-Kestros 1A | |
| Lockbody | R: Rigid | Lever |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | EKE1A6R-SLHSC |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Finsh |
| Cylinder | N/A |
e-KESTROS 1B Series
Picture of exit push bar is for reference only. Works with most major exit bar manufacturers
| How To Order | ||
|---|---|---|
| Series | e-Kestro 1B | Louis |
| Lockbody | R: Rigid | Lever Cylinder |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | EKE1B6R-SLHSC-SFICT |
| Finish | FB: US19, Flat Black / SC: US26D, Satin Chrome Or special color upon request | Finsh |
| Cylinder | SC: KIK 6 Pin/ SFIC6/ SFIC7/ CLFIC/ SLFIC | 1 111311 |
Smart Interconnected Lock
US PATENT: #10260253
Mechanical Specifications
- Door Thickness: 1-3/4"
- Backset: 2-3/8" 2-3/4" adjustable
- Clutched trim
- Latch Bolt: 1/2" throw stainless steel deadlocking
- Deadbolt: 1" stainless steel deadbolt
- Faceplates: 1" x 2-1/4" with radius corners
- Latch Strike: Full lip with radius corners
- Deadbolt Strike: 1-1/8" x 2-3/4" radius corners with security underplate
- Escutcheon: Zinc front cover and steel back cover
- Lever: Zinc or stainless steel
- 4" or 5-1/2" deadbolt center to latch bolt center distance available
Available Lever Styles
- Sentinel(S)
- Quest(Q)
- Custom lever styles available upon request
e-Genius Series
5.5"
※ 55: 5.5" center-center (4" also avaliable, please see next page)
| How To Order | |||
|---|---|---|---|
| Series | e-Genius | Lavar Lad | de e els |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | Lever Lock | kbody |
| Finish | SN: US15, Satin Nickel / FB: US19, Flat Black SC: US26D, Satin Chrome Or special color upon request | EG6T-SLHSC-5 | • |
| Cylinder | SC: 6 pin KIK Core, Schlage C Keyway HS: High Security | Finsh | Cylinder |
e-Genius Series
¾ 40: 4" center-center (5.5" also avaliable, please see previous page)
| How To Order | |||
|---|---|---|---|
| Series | e-Genius | ||
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | Lever | Lockbody |
| Finish |
SN: US15, Satin Nickel / FB: US19, Flat Black
SC: US26D, Satin Chrome Or special color upon request |
EG6T-SLHSC-40-S | 1 |
| Cylinder | SC: 6 pin KIK Core, Schlage C Keyway HS: High Security | Finsl | h Cylinder |

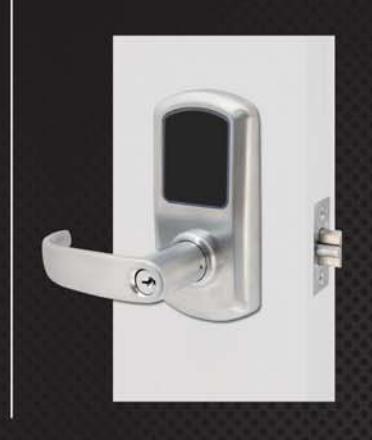

Motorized Cylindrical Lock
★ US PATENT
#8844330
# 9394722
# 9528300
# 9372542
Mechanical Specifications
- Door Thickness: 1-3/4"
- Backset: 2-3/4" standard, optional: 5", 2-3/8"
- Rigid or Clutched trim
- Latch Bolt: stainless steel, deadlocking, 1/2" throw
- Faceplate: 1-1/8" x 2-1/4"
- Strike: ASA strike standard, 1-1/4" x 4-7/8"
- Escutcheon: Steel or zinc alloy
- Lever: Zinc or stainless steel
Cylinder Specifications
- 6 pin Schlage® C keyway, standard
- Small format IC (SFIC) with or without core
- Best IC core, 6 or 7 pin core, Best® "A" keyway
- Schlage® large format IC less core
- Corbin® 6 pin large format IC less core
- High security 6 pin cylinder with TownSteel "L" keyway
- High security 7 pin SFIC core with TownSteel "L" keyway
Available Lever Styles
Sentinel(S)
Quest(Q)
Gala(G)
e-Elite Series
| Series | e-Elite | ||
|---|---|---|---|
| Lockbody | 1: Rigid / 2: Clutch | Lever | Cylinder |
| Lever Style | S: Sentinel / Q: Quest / G: Gala | _ + | |
| Finish |
SN: US15, Satin Nickel / FB: US19, Flat Black
SC: US26D, Satin Chrome Or special color upon request |
EE61T-SLHSN-SFIC | 1 |
| Cylinder | SC(KIK 6 pin) / SFIC6 / SFIC7 / CLFIC6 / SLFIC / HS |
Motorized Deadbolt
★ US PATENT: # 10400477
Mechanical Specifications
- Heavy duty motorized deadbolt lock
- Standard 161 door prep
- For door thickness 1-3/4"
- 1" x 2-1/4" faceplate, plated finish
- 1-1/8" x 2-3/4" strike
- 1" throw deadbolt, anti-saw pins, drive-in deadbolt available
- 2-3/8" and 2-3/4" backset adjustable
- Dummy trim available for inactive leaf of paired door
- Programmable at the lock or through an app
- For single residential homes or multi-housing facilities
- Illuminated touch keypad, RFID card, and mechanical key override
- Robust and unique motor design provides stronger, faster and more reliable gear drive
Cylinder Specifications
- 6 pin Schlage® C keyway, standard
- Small format IC (SFIC) with or without core
- Schlage® large format IC less core
- Corbin® 6 pin large format IC less core
- Optional high security cylinder, 2 nickel silver keys
Code Compliance
- Certified ANSI/BHMA A156.36, Grade 2 listed
- UL 10C 3 Hour Rated
e-Smart Series
| How To Orde | r | |
|---|---|---|
| Series | e-Smart\ne-Smart Dummy (ESDT) | Series Cylinder |
| Finish |
SN: US15, Satin Nickel
FB: US19, Flat Black SC: US26D, Satin Chrome Or special color upon request |
ES 6 T - SIN - SIC |
| Cylinder | SC(KIK) / SFIC / CLFIC / SLFIC / HS |
Door Lock Programmer (DLP)
Features
- USB Interface
- 1 LED and sound indicators
- Supports Windows XP, Windows 7, Windows 8.x; and Windows 10
- Working frequency: 13.56 MHz
- Power supply: 5VDC (2xA Alkaline Batteries)
- Working current: <100mA</p>
- Standby current: <10uA</p>
Materials and Finish
The housing is made of ABS and has a black finish
Profile
Keycard Programmer (KCP)
Features
- Mifare technology
- USB Interface
- 2 LED and sound indicators
- Supports Windows XP, Windows 7, Windows 8.x; and Windows 10
- Working frequency: 13.56 MHz
- Power supply: 5VDC USB power
- Working current: 120 mA
Materials and Finish
The housing is made of ABS and has a black finish
Profile
4 Doors Access Control (AC4)
Features
- Based on TCP/IP communication
- 1 RS485 reader interface, supports maximum of 4 RS485 readers
- 2 Wiegand reader interfaces (W26/34/66)
- 1 RS232
- 8 TTL signal inputs
- 4 relay outputs
- Maximum users: 25,000
- Maximum events records: 100,000
- Supports 16 groups, 8 time zones, and weekdays
- Supports holiday time zones
- Remote control
- Power supply: 12 VDC/VAC
Elevator Control (EC16)
Features
- Based on TCP/IP communication
- 1 RS485 reader interface
- 1 RS485 cextension interface
- 2 wiegand reader interfaces (W26/34/66)
- 1 RS232 optional
- 16 relays onboard and 6 extension ports up to 64 relayds extendable with 8 Floors extension boards(EC-8E)
- Max. users: 25,000
- Max. events records: 100,000
- Supports 16 groups, 8 time zones
- Power supply: 12 VDC/VAC
Readers
Features
- Mifare technology, 13.56 MHz
- Reading range: 0-40mm
- Induction speed: <=0.1s
- Indicator light: 3 color LED · (red, green, yellow) RS485 interface
- Power supply: 10-30VDC, 50mA
- Storage temperature: -40°C ~ +60°C
- Connection cable: RVV4, L = 1.5m
RD400-485
RD328-485
RD100-485
RCR-C
RCR-T1
RCR-T2
Levers
Levers
MAXX ACCESS SYSTEM
• HOSPITALITY • MULTI - HOUSING • ACCESS CONTROL
TownSteel Inc.
17901 Railroad Street, City of Industry, CA 91748
Toll Free: 1-877-858-0888
Tel: (626) 965-8917 Fax: (626) 965-8919 sales@townsteel.com www.townsteel.com
www.townsteelelectronics.com
