M380E EcoMag® Series Magnalock®

600 lbs holding force, bracket mounted, sustainable Magnalock

Intelligent, stylish and secure, with up to 80% reduction in energy consumption over the previous M380 Series.

With integrated features such as built-in smart voltage sensing, tamper sensor and an updated strike plate mounting template, the M380E joins the M680E in the family of sustainable magnalocks.

The M380EBD and M380EBDX models offer additional integrations, such as Securitron's patented BondSTAT lock sensor, Door Position Switch, built-in door prop sensing (which allows the magnet to de-energize the coil when the door is held open for extended periods), and a passive infrared request to exit (PIR REX).

Features

Standard Features

• Sustainability documentation
• Energy efficient, low power usage
• Synchronous double door release using a single Request to Exit
• Auto calibration upon installation
• Automatic dual-voltage no field adjustment required
• LED Indicator shows the lock is secure, open, or has an incomplete bond
• Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
• Rust resistant all ferrous metal surfaces plated for durability
• Adjustable automatic relock timer (0 to 30 seconds)
• Wire chamber anti-tamper switch
• Size optimized for use with door closers

• Patented BondSTAT lock sensor and integrated Door Position Switch (DPS) with relock timer
• MagnaCare® lifetime replacement, no fault, no questions asked warranty

Optional Features

• X Integrated passive infrared request to exit

Specifications

Certifications

• UL 10C Fire Rated, 3 hour
• UL 1034 Listed
• UL 294 Listed
• CAN4-S104, CAN/ULC Listed
• ANSI/BHMA A156.23, Grade 3
• CSFM—California State Fire Marshal Approved

Electrical Consumption

• Maglock Average Power Draw (±10%)
  • » 140 mA at 12 VDC, 90 mA at 24 VDC
• Maglock Maximum Power Draw (±10%)
  • » 585 mA at 12 VDC, 310 mA at 24 VDC
• REX Power (±10%)
  • » Adds 25 mA at 12 VDC
  • » Adds 10 mA at 24 VDC

Holding Force

• 600 lbs [272kg]

Operating Temperature

• 32° to 110°F [0° to 43°C]
• Indoor use only

Shipping Weight

• 6.5 lbs [2.94kg]

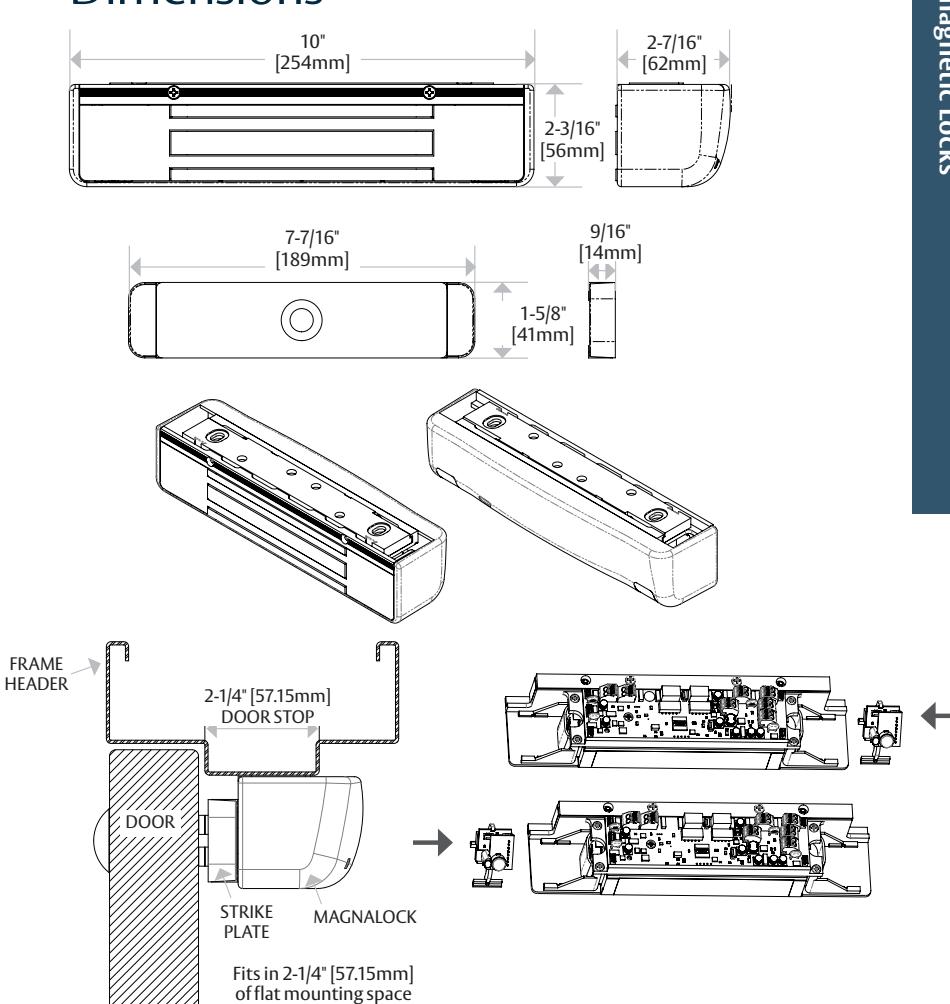

Dimensions

How to Order

MODEL SERIES	ACCESSORY OPTIONS	FINISH OPTIONS
M380EBD	X	– 606
M380EBD 600 lbs with BondSTAT Monitor & Door Position Switch	(blank) No Accessory Options	600 Paintable Primer Gray Finish
	X PIR Request to Exit	605/US3 Bright Brass
		606/US4 Satin Brass
		612/US10 Satin Bronze
		613E Dark Oxidized Satin Bronze
		629 Bright Stainless Steel
		630 Satin Stainless Steel
		BSP Black Suede Powder
