ENVIRONMENTAL PRODUCT DECLARATION

HANCHETT ENTRY SYSTEMS, INC

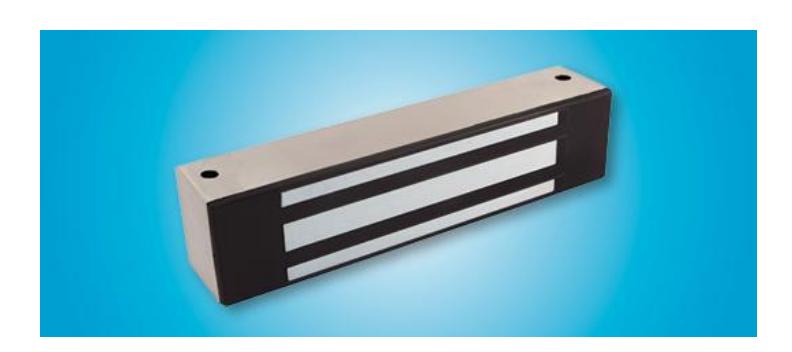

SECURITRON M32MAGNALOCK

Magnetic lock providing 600lbs of holding force: fully sealed electronics are protected from water and dust, surface mounted with minimal tools, mounted using steel machine screws into finishing nuts, ten feet [3.05m] of jacketed, stranded conductor, operates with 12 or 24V DC power

ASSA ABLOY is committed to providing products and services that are environmentally sound throughout the entire production process and the product lifecycle. Our unconditional aim is to make sustainability a central part of our business philosophy and culture, but even more important is the job of integrating sustainability into our business strategy. The employment of EPDs will help architects, designers and LEED-APs select environmentally preferable door openings. The Securitron M32 Magnalock EPD provides detailed requirements with which to evaluate the environmental and human health impacts related to producing our door openings. ASSA ABLOY will continue our efforts to protect the environment and health of our customers/end users and will utilize the EPD as one means to document those efforts.

Securitron M32 Magnalock

According to EN 15804 and ISO 14025 Dual Recognition by UL Environment and Institut Bauen und Umwelt e.V.

This declaration is an environmental product declaration (EPD) in accordance w ith ISO 14025. EPDs rely on Life Cycle Assessment (LCA) to provide information on a number of environmental impacts of products over their life cycle. Exclusions: EPDs do not indicate that any environmental or social performance benchmarks are met, and there may be impacts that they do not encompass. LCAs do not typically address the site-specific environmental impacts of raw material extraction, nor are they meant to assess human health toxicity. EPDs can complement but cannot replace tools and certifications that are designed to address these impacts and/or set performance thresholds – e.g. Type 1 certifications, health assessments and declarations, environmental impact assessments, etc. Accuracy of Results: EPDs regularly rely on estimations of impacts, and the level of accuracy in estimation of effect differs for any particular product line and reported impact. Comparability: EPDs are not comparative assertions and are either not comparable or have limited comparability w hen they cover different life cycle stages, are based on different product category rules or are missing relevant environmental impacts. EPDs from different programs may not be comparable.

PROGRAM OPERATOR	UL Environment
DECLARATION HOLDER	ASSA ABLOY / Hanchett Entry Systems, Inc / Securitron
ULE DECLARATION NUMBER 4786545067.137.1
IBU DECLRATION NUMBER	EPD-ASA-20150135-IBA1-EN
DECLARED PRODUCT	Securitron M32 Magnalock
REFERENCE PCR	Locks and fittings, 07.2014

DATE OF ISSUE	May 18, 2015
PERIOD OF VALIDITY	5 years

General information Product / Product description CONTENTS OF THE LCA calculation rules DECLARATION LCA scenarios and further technical information LCA results References
The PCR review was conducted by:		IBU – Institut Bauen und Umwelt e.V.
		PCR was approved by the Independent Expert Committee (SVA)
The CEN Norm EN 15804 serves as the core PCR. This declaration was independently verified in accordance with ISO 14025 by Underwriters Laboratories
☐ INTERNAL	☒ EXTERNAL	Wade Stout
with EN 15804 and the reference PCR by:	This life cycle assessment was independently verified in accordance	IBU – Institut Bauen und Umwelt e.V.

1. General Information

Hanchett Entry Systems, Inc Securitron M32 Magnalock

Programme holder

IBU - Institut Bauen und Umwelt e.V. Panoramastr. 1 10178 Berlin Germany

Declaration number

EPD-ASA-20150135-IBA1-EN

This Declaration is based on the Product Category Rules:

Locks and fittings , 07.2014 (PCR tested and approved by the independent expert committee (SVA))

Issue date

18.05.2015

Valid to

17.05.2020

Prof. Dr.-Ing. Horst J. Bossenmayer (President of Institut Bauen und Umwelt e.V.) internally x externally

Dr.-Ing. Burkhart Lehmann (Managing Director IBU)

Owner of the Declaration

Hanchett Entry Systems, Inc 10027 S 51st Street, Suite 102 Phoenix, AZ 85044

Declared product / Declared unit

The declaration represents 1 magnetic lock – Securitron M32 Magnalock consisting of the following items:

Securitron M32 Magnetic Lock
Strike
Mounting Hardware

Scope:

This declaration and its LCA study are relevant to Securitron M32 Magnalock.

The primary manufacturing processes are made by external suppliers and the final manufacturing processes and assembly for occur at the manufacturing factory in Phoenix, Arizona, USA.

The owner of the declaration shall be liable for the underlying information and evidence; the IBU shall not be liable with respect to manufacturer information, life cycle assessment data and evidences.

Verification

The CEN Standard EN 15804 serves as the core PCR Independent verification of the declaration according to ISO 14025

Dr. Wolfram Trinius (Independent verifier appointed by SVA)

2. Product

2.1 Product description

Product name: Securitron M32 Magnalock

Product characteristic: 600lb Magnetic Door Lock

Magnetic lock providing 600lbs of holding force
Fully sealed electronics are protected from water and dust
Surface mounted with minimal tools
Mounted using steel machine screws into finishing nuts
Architectural brushed stainless steel finish (US32D/630)
Ten feet [3.05m] of jacketed, stranded conductor
Operates with 12 or 24V DC power
UL Listed

2.2 Application

Securitron M32 Magnalocks are designed for: The Securitron M32 Magnalock can be used indoors or outdoors to secure high traffic, glass, wood or metal doors.

2.3 Technical Data

The table presents the technical properties of Securitron M32 Magnalock:

Technical data

Parameter	Value	Unit
Holding Force	600	lbs.
Current Draw and Voltage	300mA at 12VDC	mA and VDC
Operating Temperature	-40 to +140	°F
Shipping Weight	6	lbs.

2.4 Placing on the market / Application rules

The standards that can be applied for Securitron M32 Magnalocks are:

UL10C
UL294
ANSI/BHMA A156.23

2.5 Delivery status

Securitron M32 Magnalocks is delivered as in a box size - 380 mm x 185 mm x 26 mm

2.6 Base materials / Ancillary materials

The average composition for Securitron M32 Magnalocks is as following:

Component	Percentage in mass (%)
Copper	9.4
Steel	62.2
Stainless steel	7.6
Zinc	0.04
Electronics	0.8
Electro mechanics	0.2
Urethane	8.6
Others	11.1
Total	100.0

2.7 Manufacture

The primary manufacturing processes are made by Tier 1 suppliers and the final manufacturing processes occur at in factory Phoenix, Arizona.

The electronics and mechanics are produced in China, Mexico and USA. The components come from processes like stamped steel, turning, zinc and steel casting. Final assembly takes place in the United States.

The factory of Phoenix has a certification of Quality Management system in accordance with ISO 9001:2008

2.8 Environment and health during manufacturing

ASSA ABLOY is committed to producing and distributing door opening solutions with minimal environmental impact, where health & safety is the primary focus for all employees and associates.

Environmental operations, GHG, energy, water, waste, VOC, surface treatment and H&S are being routinely monitored. Inspections, audits, and reviews are conducted periodically to ensure that applicable standards are met and environmental management program effectiveness is evaluated.
Code of Conduct covers human rights, labor practices and decent work. Management of ASSA ABLOY is aware of their roles and responsibilities, providing appropriate training, supporting accountability and recognizing outstanding performance.
Any waste metals during machining are separated and recycled. The waste from the water-based painting process is delivered to waste treatment plant.

2.9 Product processing/Installation

Securitron M32 Magnalocks are distributed through and installed by trained installation technicians, such as locksmiths, carpenters etc. adhering to local/national standards and requirements

2.10 Packaging

Securitron M32 Series Magnalocks are packed in a cardboard box with corrugated carton inlays. The packaging is fully recyclable. Separate lock case package with dimensions: 380 mm x 185 mm x 26 mm 80% of carton is made from recycled material 100% of packaging paper are made from recycled material.

Material	Value (%)
Cardboard/paper	100.0
Total	100.0

2.11 Condition of use

To maintain a strong bond, dust debris and corrosion should be removed by cleaning with rubbing alcohol or a silicon based cleaner and a clean cloth. Cleaning once per year is usually sufficient.

2.12 Environment and health during use

There is no harmful emissive potential. No damage to health or impairment is expected under normal use corresponding to the intended use of the product.

2.13 Reference service life

Approved for 1,000,000 cycles under normal working conditions, 20 years depending on cycle frequency.

2.14 Extraordinary effects

Fire

Suitable for use in fire and smoke doors (EN 14846)

Water

Contain no substances that have any impact on water in case of flood. Electric operation of the device will be influenced negative.

Mechanical destruction

No danger to the environment can be anticipated during mechanical destruction.

2.15 Re-use phase

The majority, of components is steel, iron and copper which can be recycled. The magnalocks can be mechanically dissembled to separate the different materials. The plastic components can be used for energy recovery in an incineration plant.

The product is possible to re-use during the reference service life and be moved to one door to another.

2.16 Disposal

The product can be mechanically dissembled to separate the different materials. 89% of the materials used are recyclable. The rest is disposed as a construction waste for landfill.

2.17 Further information

Hanchett Entry Systems, Inc. 10027 S. 51st St, Ste. 102 Phoenix, AZ 85044

Tel: 1-800-626-7590 http://www.securitron.com www.ASSAABLOYdss.com

3. LCA: Calculation rules

3.1 Declared Unit

The declaration refers to the functional unit of 1 piece of Securitron M32 Magnalock as specified in Part B requirements on the EPD for PCR Locks and fittings: (mechanical & electromechanical locks & fittings)

Declared unit


Name	Value	Unit
Declared unit	1	1 piece of magnet
Mass of product (without packaging)	2.45	kg
Conversion factor to 1 kg	0.408	-

3.2 System boundary

Type of the EPD: cradle to gate - with Options The following life cycle phases were considered:

Production stage:

A1 Raw material extraction and processing
A2 Transport to the manufacturer and
A3 Manufacturing

Construction stage:

A4 Transport from the gate to the site
A5 Packaging waste processing

The use stage:

B2 - Maintenance (cleaning of the locks)

Use stage related to the operation of the building includes:

B6 – Operational energy use

End-of-life stage:

C2 Transport to waste processing
C3 Waste processing for recycling
C4 Disposal (landfill)

This includes provision of all materials, products and energy, packaging processing and its transport, as well as waste processing up to the end-of waste state or disposal of final residues.

D - Declaration of all benefits or recycling potential from EOL and A5.

3.3 Estimates and assumptions

Use Phase:

For the use phase, it is assumed that the electric strike is used in the United States of America, thus an US electricity grid mix is considered within this stage.

EoL:

In the End-of-Life phase, for all the materials which can be recycled, a recycling scenario with 100% collection rate was assumed

3.4 Cut-off criteria

In the assessment, all available data from the production process are considered, i.e. all raw materials used, auxiliary materials (e.g. lubricants),

thermal energy consumption and electric power consumption - including material and energy flows contributing less than 1% of mass or energy (if available). In case a specific flow contributing less than 1% in mass or energy is not available, worst case assumption proxies are selected to represent the respective environmental impacts.

Impacts relating to the production of machines and facilities required during production are out of the scope of this assessment.

3.5 Background data

For life cycle modeling of the considered products, the GaBi 6 Software System for Life Cycle Engineering, developed by PE INTERNATIONAL AG, is used /GaBi 6 2013/. The GaBi-database contains consistent and documented datasets which are documented in the online GaBi-documentation /GaBi 6 2013D/.

To ensure comparability of results in the LCA, the basic data of GaBi database were used for energy, transportation and auxiliary materials.

3.6 Data quality

The requirements for data quality and background data correspond to the specifications of the /IBU PCR PART A/.

PE INTERNATIONAL performed a variety of tests and validations during the commission of the present study in order to ensure its quality of the present document and results. This obviously includes an extensive review of project-specific LCA models as well as the background data used.

The technological background of the collected data reflects the physical reality of the declared products. The datasets are complete and conform to the system boundaries and the criteria for the exclusion of inputs and outputs.

All relevant background datasets are taken from the GaBi 6 software database. The last revision of the used background data has taken place not longer than 10 years ago.

3.7 Period under review

The period under review is 2013/14 (12 month average).

3.8 Allocation

Regarding incineration, the software model for the waste incineration plant (WIP) is adapted according to the material composition and heating value of the combusted material. In this EPD, the following specific life cycle inventories for the WIP are considered for:

Waste incineration of plastic
Waste incineration of paper
Waste incineration of electronic scrap

Regarding the recycling material of metals, the metal parts in the EoL are declared as end-of-waste status. Thus, these materials are considered in module D. Specific information on allocation within the background data is given in the GaBi dataset documentation.

3.9 Comparability

Basically, a comparison or an evaluation of EPD data is only possible if all the data sets to be compared

were created according to /EN 15804/ and the building context, respectively the product-specific characteristics of performance, are taken into account.

4. LCA: Scenarios and additional technical information

The following technical information is a basis for the declared modules or can be used for developing specific scenarios in the context of a building assessment if modules are not declared (MND).

Installation into the building (A5)


Name	Value	Unit
Output substances following waste treatment on site (Paper packaging)	0.07	kg

Maintenance (B2)


Name	Value Unit
Water for cleaning	0.5	kg/a

Reference service life

Name	Value	Unit
Reference service life	20	a

Operational energy use (B6)

Name	Value	Unit
Electricity consumption	604	kWh
Days per year in use	365	d
Hours per day in on mode	23	h
Power consumption per mode in W	3.6	W

End of life (C1-C4)

Name	Value	Unit
Collected separately Copper, stainless
steel, steel. zinc, electronics, electro	2.45	kg
mechanics, urethane
Collected as mixed construction waste	0.27	kg
– construction waste for landfilling
Reuse Plastics / Urethane	0.21	kg
Recycling Copper, stainless steel,
steel. zinc, electronics, electro	2.24	kg
mechanics
Landfilling - Construction waste for	0.21	kg
landfilling

Reuse, recovery and/or recycling potentials (D), relevant scenario information

Name	Value	Unit
Collected separately waste type
(including packaging)	2.25	kg
Recycling Copper	9.1	%
Recycling Stainless steel	7.4	%
Recycling Steel	60.6	%
Recycling Zinc	0.04	%
Recycling Electronics	0.8	%
Recycling Electro mechanics	0.2	%
Reuse Plastics / urethane	8.3	%
Reuse Paper packaging (from A5)	2.7	%
Loss Construction waste for landfilling (no recycling potential)	10.8	%

5. LCA: Results

Results shown below were calculated using CML 2001 – Apr. 2013 Methodology.

DESC	RIPT	ON O	F THE	SYST	EM E	30L	JND	ARY	X = IN	CLUDE	DI	N LCA	: MND =	= MODI	JLE N	OT D	ECLA	RED)
	CRIPTION OF THE SYSTEM BOUNDARY (X = INCLUDED IN LCA; MN												,					FITS AND
				TRUCTI														OADS
PROD	OUCT S	TAGE	ON PR	OCESS		USE STAGE								ND OF LII		OND THE
			STA	AGE														/STEM
																	BOU	NDARYS
			e .							_	Operational energy	.	\| _		p
a		Manufacturing	ransport from the				ĕ		Replacement ¹⁾	r_	ĕ	ä	ļ. ē _		Sir
eri	ort	uri	no s				JU.	. _	Jer	ne	e	\| ≤	달	1 5	es	g	4	جَ ۾ ھ
p d	sp	ıct	\|‡ †	Ē	Use		มร	ba	eπ	ř	ag g	iona	nstri nolit	ds	8	80	) Sr	Sil Sil
Raw material supply	Transport	ufa	호 호	Assembly	Š		Maintenance	Repair	ac	bis	[0]	: [2]	use -constructi demolition	Transport	д	Disposal	Reuse-	Recovery- Recycling- potential
a 8	Ļ	an	sp te	As			ai		g	Ţ.	ä	ā	무우	Ë	ię.		۱ ۴ ر	8 8 g
∝		Σ	Transport from the gate to the site				2		A A	Refurbishment ¹⁾	je.	Use Operational water	De-construction demolition		Waste processing
			F							_	ō	0			>
A1	A2	А3	A4	A5	B1	E	32	В3	В4	B5	В6	B7	C1	C2	C3	C4		D
Х	Х	Х	Х	Х	MND		X	MND	MND	MND	Х	MNI	D MND	Х	Х	Х		Χ
			_ ^ _															^
RESU	LIS	OF TH	IE LUP	4 - EN	/IRO	INIVI	ENI	AL IN	IPACT	One	orec	e or S	ecuritro \|	n W32	Magn	aloci
Param eter		Para	meter		U	nit	A	1 - A3	A4	A5		B2	В6	C2	C	3	C4	D
GWP	Glo	hal warr	ming pote	ential	Ika C	) ₂ -F	n 11 (	96F+01	1 44F-0	1 9 63F	.02 9	26F-02	4.06E+02	1 44F-0	1 3 26F	-03 7	62F-01	-
			otential o		[kg C		1				-							8.35E+00
ODP			ic ozone			q.]	2.	80E-09	6.88E-1	3 4.41E	13 3	3.66E-13	1.40E-07	6.88E-1	3 2.23E	-12 2	.29E-12	-7.94E-10
AP	Acidific			land and	íka Sí	Ο ₂ -Ει	a.l 1.i	34E-01	6.57E-0	4 2.20E	05 1	.28E-04	1.37E+00	6.57E-0	4 1.54E	-05 1	.97E-04	-5.93E-02
			ater				-				-
EP		utrophication potential $[kg (PO_4)^3 - Eq.]$ 9.34E-03 1.50E-04 3.83E-06 9.05E-05					7.33E-02	1.50E-0	4 8.66E	-07 1	.57E-05	-3.79E-03
POCP		tition potential of tropospheric kg.] [kg Ethen e photochemical oxidants kg.] 8.89E-03 -2.12E-04 1.56E-06 7.53E-06				8.39E-02	-2.12E-0	4 9.14E	-07 9	.69E-06	-4.05E-03
ADPE		depletio	letion potential for non [kg Sh Eg ] 4 96E-03 5 41E			5.41E-0	9 1.74E-09 2.50E-08 5			5.36E-05	5.36E-05 5.41E-09 4.51E-10			.30E-08	-3.45E-03
	Abiotic o		esources notentia		1		_			-					+
ADPF		resources			\| epletion potential for fossil \| [MJ] \| 2.42E+02 \| 1.98E+00 \| 2.70E-02 \| 1.53E-01 \| 4.68E+03 \| 1.98E							3.70E-02 3.26E-01
RESU	LTS (	OF TH	IE LCA	4 - RES	SOUF	RCE	US	E: Or	ne piec	e of Se	cur	itron N	И32 Ма с	gnaloci	(
Paramer er	et	Parameter			Unit	A1	- A3	A4	A5		B2	В6	C2	СЗ		C4	D
PERE	Re			y energy	as	[MJ]	1.79	E+01	-	-		-	-	-	١.		-	-
			energy carrier
PERM	res		urces as material utilization [MJ] 0.00E+00 - urces as material utilization al use of renewable primary		-	-		- \| -				-	-
PERT	10		rgy reso		iary	[MJ]	1.79	E+01 7	7.81E-02	2.52E-0	3 1.2	22E-02	4.58E+02	8E+02 7.81E-02		7.81E-02 1.06F		-02 2.	44E-02	-4.22E+00
PENRI	Non		ble prima	ary ener	gy as	[MJ]	2.63	E+02	-	-		-	-	-	-		-	-
PENRI	Non	renewa	ble prim	ary ener	gy as	[M,I1	0.00	E+00	_		+	_	-	_			-	-
	Total		erial utiliz non rene	zation ewable pr	rimon				005.00	2.105.0	2 4 6	SOE 04	E 02E : 00	1.005 : 00	F 00F	02.2	625.04	0.005 : 04
PENR.	· .	ene	rgy reso	urces														-9.80E+01
RSF				y materia condary														0.00E+00 0.00E+00
NRSF	Llco			ole secon	doni						_							0.00E+00
	$\perp$	Hac :	fuels	h wat		-
FW	I TC-		f net fres								_		2.08E+00\| S: One					-3.22E-02
Magn			E LUP	. – 00	TPU	FFL	-O VI	IS AIN	D WAS	TE C	(TE	JURIE	.s. One	piece (	or sec	uritr	OH WIS	2
Param
er		Р	aramete	er		Unit	A'	1 - A3	A4	A5		B2	В6	C2	C3		C4	D
HWD	_			dispose		[kg]							4.62E-03
NHWI				te dispos		[kg]												1.10E+00
RWD				dispose		[kg]	_				_				_			-1.78E-03
CRU			nents for als for re			[kg] [kg]							0.00E+00 0.00E+00
MED			או וטו פוב	CVUIIIU	1	լՒցյ
MFR MFR					rv	[kal	0.0	0F+00	$0.00E \pm 0.0$	0 00F+	വിവ	00F+00	0.00E + 0.0	$0.00E \pm 0.0$	വവ വെട	+0010	00F+00	_
MFR MER EEE	Ma	terials f	or energ	y recove al energy		[kg] [MJ]							0.00E+00 0.00E+00
MER	Ma E	terials f xported	or energ	y recove	′		0.0	0E+00	0.00E+00	1.22E-	01 0.	00E+00		0.00E+0	0.00E	+00 1.	44E+00	-

6. LCA: Interpretation

This chapter contains an interpretation of the Life Cycle Impact Assessment categories. Stated percentages in the whole interpretation are related to the overall life cycle, excluding credits (module D).

The production phase (modules A1-A3) contributes between 2% and 11% to the overall results for all the environmental impact assessment categories hereby considered, except for the abiotic depletion potential (ADPE), for which the contribution from the production phase accounts for app. 99% - this

impact category describes the reduction of the global amount of non-renewable raw materials, therefore, as expected, it is mainly related with the extraction of raw materials (A1).

Within the production phase, the main contribution for all the impact categories is the production of steel, with app. 97%, mainly due to the energy consumption on this process. Steel accounts with app. 62% to the overall mass of the product,

therefore, the impacts are in line with the mass composition of the product. The environmental impacts for the transport (A2) have a negligible impact within this stage.

To reflect the use phase (module B6), the energy consumption was included and it has a major contribution for all the impact assessment categories considered - between 88% and 98%, with the exception of ADPE (1%). This is a result of 23 hours of operation in on mode per day and per 365 days in a year.

In the end-of-life phase, there are loads and benefits (module D, negative values) considered. The benefits are considered beyond the system boundaries and are declared for the recycling potential of the metals and for the credits from the incineration process (energy substitution).

7. Requisite evidence

Not applicable in this EPD.

8. References

Institut Bauen und Umwelt

Institut Bauen und Umwelt e.V., Berlin (pub.): Generation of Environmental Product Declarations (EPDs);

General principles

for the EPD range of Institut Bauen und Umwelt e.V. (IBU), 2013-04 www.bau-umwelt.de

PCR Part A

Institut Bauen und Umwelt e.V., Berlin (pub.): Product Category Rules for Construction Products from the range of Environmental Product Declarations of Institut Bauen und Umwelt (IBU), Part A: Calculation Rules for the Life Cycle Assessment and Requirements on the Background Report. April 2013 www.bau-umwelt.de

IBU PCR Part B

IBU PCR Part B: PCR Guidance-Texts for Building-Related Products and Services. From the range of Environmental Product Declarations of Institute Construction and Environment e.V. (IBU). Part B: Requirements on the EPD for Locks and fittings. www.bau-umwelt.com

ISO 14025

DIN EN ISO 14025:2011-10: Environmental labels and declarations — Type III environmental declarations — Principles and procedures

EN 15804

EN 15804: 2012+A1:2014: Sustainability of construction works — Environmental Product Declarations — Core rules for the product category of construction products

GaBi 6 2013

GaBi 6 2013: Software-System and Database for Life Cycle Engineering. Copyright, TM. Stuttgart, Leinfelden-Echterdingen, 1992-2013.

GaBi 6 2013D

GaBi 6 2013D: Documentation of GaBi 6: Software-System and Database for Life Cycle Engineering. Copyright, TM. Stuttgart, Leinfelden-Echterdingen, 1992-2013. http://documentation.gabi-software.com/

ISO 14001

Environmental management systems - Requirements with guidance for use (ISO 14001:2004 + Cor. 1:2009)

ISO 9001:2008

ISO 9001:2008: Quality management systems - Requirements (ISO 9001:2008).

UL10C

Positive Pressure Fire Tests of Door Assemblies

UL294

Access Control System Units

ANSI/BHMA A156.23

This Standard establishes requirements for electromagnetic locks and includes cyclical, dynamic, operational, strength and finish tests

9. Annex

Results shown below were calculated using TRACI Methodology.

DESC	DESCRIPTION OF THE SYSTEM BOUNDARY (X = INCLUDED IN LCA; MND = MODULE NOT DECLARED)														RED)
			CONO	FDLICTI												BENEFITS AND
PROD	DUCT	STAGE	l l	TRUCTI OCESS	USE STAGE								ID OF LIF		LOADS BEYOND THE
STAGE							_		_					SYSTEM
																BOL	INDARYS
_		D	ransport from the gate to the site					5	f_		į	D	٦		ing
Raw material supply	Ħ	i.E	om sit	>		Maintenance		ent	je	nal	Se	ס ≥	S G	둫	SSS	_ \| _	- g -
nate	sbc	਼ \| ਜੂ	t fro	gue	Use	- Jua	Repair	em	shr	i i	D S	use	Str.	sbc	900	esr rse	clin
w mater	Transport	\| Jul	pg 5	Assembly	$\supset$	inte	Re	lac	rbis	Operational	energy use		-constructi demolition	Transport	D o	Disposal Reuse-	Recovery- Recycling- potential
Ra	-	Manufacturing	ansport from the	<		■		Replacement ¹⁾	Refurbishment ¹⁾	ŏ	energy use	֝֟֝֟֝֟֝֟֝֟֝֟֓֓֓֓֓֓֓֓֓֓֓֓֓֓֓֓֓֓֡֓֓֓֓֓֓֓֡֓֡֓֡֓֡	De-construction demolition	\| - \|	Waste processing	_ \| '	צ ב נו
																	_
A1	A2	2 A3	A4 X	A5	B1			B4	B5	В		B7 MND	C1	C2 X	C3	C4	D X
X					MNI			MND	MND							Х	Χ
RESU	LT	S OF TH	HE LC	4 - ENV	/IRC	NME	VTAL IN	IPACT:			ce of	r Se	curitro	n 14132 1	l lagnald	OCK
Parame	eter	P	aramete	r		Unit	A1-3	A4	A	.5	B2	2	В6	C2	C3	C4	D
GWF	>	Global v	varming p	otential	[kg	CO ₂ -Eq.	] 1.96E+0 ^-	1.44E-0	1 9.63	E-02	9.26E	E-02	4.06E+02	1.44E-01	3.26E-0	7.62E-01	- 8.35E+00
ODF	,		n potentia heric ozoi		[kg	CFC11- Eq.]	2.99E-09	7.31E-1	3 4.69	E-13	3.89E	≣-13	1.49E-07	7.31E-13	2.37E-1	2.44E-12	-8.67E-10
AP		Acidificati		ial of land	[kg		] 1.31E-01	8.59E-0	4 2.66	E-05	1.94E	E-04	1.28E+00	8.59E-04	1.46E-0	5 2.31E-04	-5.75E-02
EP			nication po		[kç	g N-eq.]	1.24E-02	6.07E-0	5 1.53	E-06	2.03E	-04	6.30E-02	6.07E-05	6.20E-0	7 7.39E-06	-1.82E-03
Smo	g	Ground-le	evel smog	formation	[kg	J O₃-eq.]	1.60E+00	1.77E-0	2 6.21	E-04	3.39E	E-03	1.09E+01	1.77E-02	1.32E-0	1.98E-03	-6.77E-01
Resour	ces		potertia	[MJ] 1.74E+01 2.85E-01 3.17E-03 1.56		1.56E	E-02	2.76E+02	2.76E+02 2.85E-01 2.64		3.35E-02	- 4.71E+00
RFSU	II TS	S OF TI	HF I CA	A - RES	OU	RCF I	JSE: On	e piece	e of S	ecu	ritro	n M	32 Mag	nalock			H.7 1E 100
Param			Parameter			Unit	A1-3	A4		A5		B2 B6		C2	C3	C4	D
PER	· E	Renewa	ble prima	ary energy as [MJ] 1.79E+01 -		11									_
	· L		energy carrier		a) /	[IVIO]	1.732+0	-		-			_			_
PER	М	Renewable primary energy resources as material			у	[MJ]	0.00E+0	- 0		-	-	-	-	-	-	-	-
		utilization
PER	RT.	1	e of renev nergy res	vable prin ources	nary	(MJ) 1.79E+01 7.81E-02		02 2.52	2.52E-03 1.22		1.22E-02 4.58		7.81E-02	1.06E-0	2.44E-02	- 4.22E+00
PEN	RE	Non rene	ewable pr	vable primary energy [M.I] 2 63F+02		12 -								_	_
PENF	No		ewable pr	carrier imary en	ergy	[MJ]	0.00E+0			\|
FEINE	X IVI		naterial u		ala.	[IVIJ]			_			-	-	-		-	-
PENI	RT	1		renewat resource		[MJ]	2.63E+0	2 1.99E+	00 3.16	6E-02	1.69	E-01	5.93E+03	1.99E+0	5.80E-0	2 3.63E-01	9.80E+01
SN	1	Use of	seconda	ıry materi	al	[kg]										0.00E+00
RSI	F	Use of	enewable fuels	e second	ary	[MJ]	0.00E+0	0.00E+	00.00	E+0(	0.00	E+00	0.00E+00	0.00E+0	0.00E+0	0.00E+00	0.00E+00
NRS	3F		of non re	enewable r fuels		[MJ]	0.00E+0	0.00E+	00 0.00	E+0(	0.00E	E+00	0.00E+00	0.00E+0	0.00E+0	0.00E+00	0.00E+00
FW	/			sh water		[m³]	9.72E-0	2 5.51E-	05 2.80	DE-04	6.41	E-04	2.08E+00	5.51E-0	5 2.62E-0	5 1.89E-03	-3.22E-02
			HE LC	4 – OU	TPU	JT FLC	OWS AN	D WAS	TE C	ATE	EGOI	RIES	S: One	piece c	f Secu	itron M3	32
Magn	alo	CK
Parame	eter		Paramet	er		Unit	A1-3	A4	A5	5	B2		В6	C2	C3	C4	D
HWE	)	Hazardo	ous waste	dispose	d	[kg]	8.51E-03	4.53E-06	2.18E	-06	1.63E-	-05 4	4.62E-03	4.53E-06	8.04E-06	2.65E-05	1.24E-03
NHW	D N	Non hazar	dous was	ste dispos	sed	[kg]	2.92E+00	2.50E-04	2.42E	:-03	3.01E-	-02 1	.89E+00	2.50E-04	1.87E-05	7.23E-02	- 1.10E+00
RWE	)	Radioac	tive waste	e dispose	d	[kg]	8.40E-03	2.60E-06	1.85E	-06	6.45E-	-06 4	4.88E-01	2.60E-06	8.36E-06	1.47E-05	-1.78E-03
CRL		Comp	onents fo	or re-use												0.00E+00	-
MFR			ials for re		_							-				0.00E+00	-
MER		Materials			-											0.00E+00	-
EEE	+			al energy			0.00E+00									1.44E+00	-
EET		Lynort	ad therms	al energy		[MJ]	0.00E+00	U.UUE+00	1\|3.44E	:-01	υ.00E+	+00\|0	0.00E+00	∪.00E+00	\|U.UUE+00	3.94E+00	-

Publisher

Institut Bauen und Umwelt e.V. Panoramastr. 1 10178 Berlin Germany Tel +49 (0)30 3087748- 0 Fax +49 (0)30 3087748- 29 Mail info@bau-umwelt.com Web www.bau-umwelt.com

Programme holder

Institut Bauen und Umwelt e.V. Panoramastr 1 10178 Berlin Germany Tel +49 (0)30 - 3087748- 0 Fax +49 (0)30 – 3087748 - 29 Mail info@bau-umwelt.com Web www.bau-umwelt.com

Author of the Life Cycle Assessment

PE INTERNATIONAL AG Hauptstraße 111-113 70771 Leinfelden-Echterdingen Germany Tel +49 (0)711 341817-0 Fax +49 (0)711 341817-25 Mail info@pe-international.com Web www.pe-international.com

Owner of the Declaration

Hanchett Entry Systems, Inc 10027 S 51st Street, Suite 102 Phoenix, AZ 85044

Tel 1-800-626-7590

Web www.securitron.com www.ASSAABLOYdss.com
