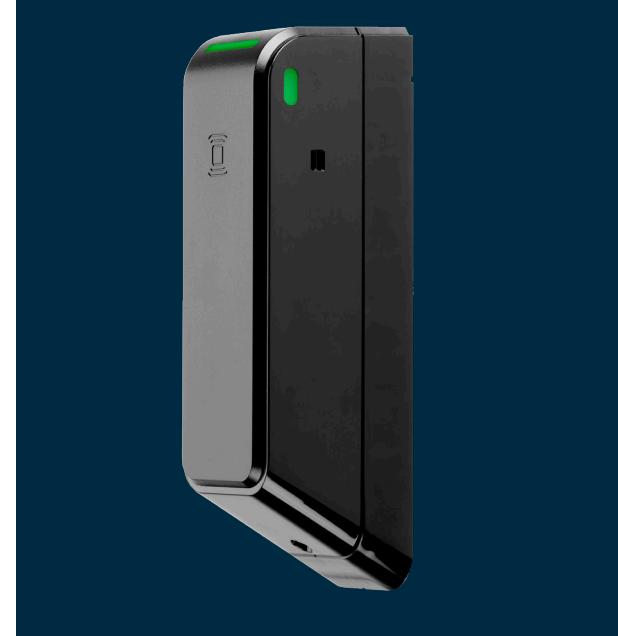

DR100 Aperio® Wireless Card Reader with Relay

The DR100 is the industry's first universal I/O module with built in reader and Aperio® wireless technology.

Flexible Wireless Connectivity

• Integrates with most existing access control systems and credentials
• Support for HID multiclass SE and NFC/BLE mobile access card technologies
• Real time monitoring for DPS

Designed for Versatility

• Universal compatibility with traditional electromechanical locking devices

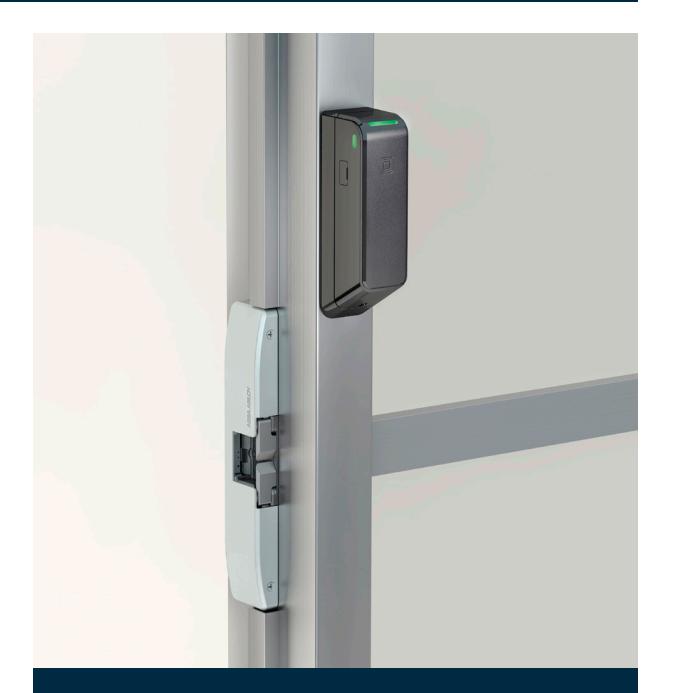

• Dual installation modes based on security needs: Standard (relay and reader together) or Secure (separate sides of door)
• Suitable for interior or exterior openings
• Secures openings with a unified look, standardized installation and operation

Convenient & Secure

• Easy surface-mounted, no-cut, no-drill installation
• Configurable relay options
• Fully encrypted data transmission for enhanced security
• SecuriCare three-year, no-fault, no questions asked warranty

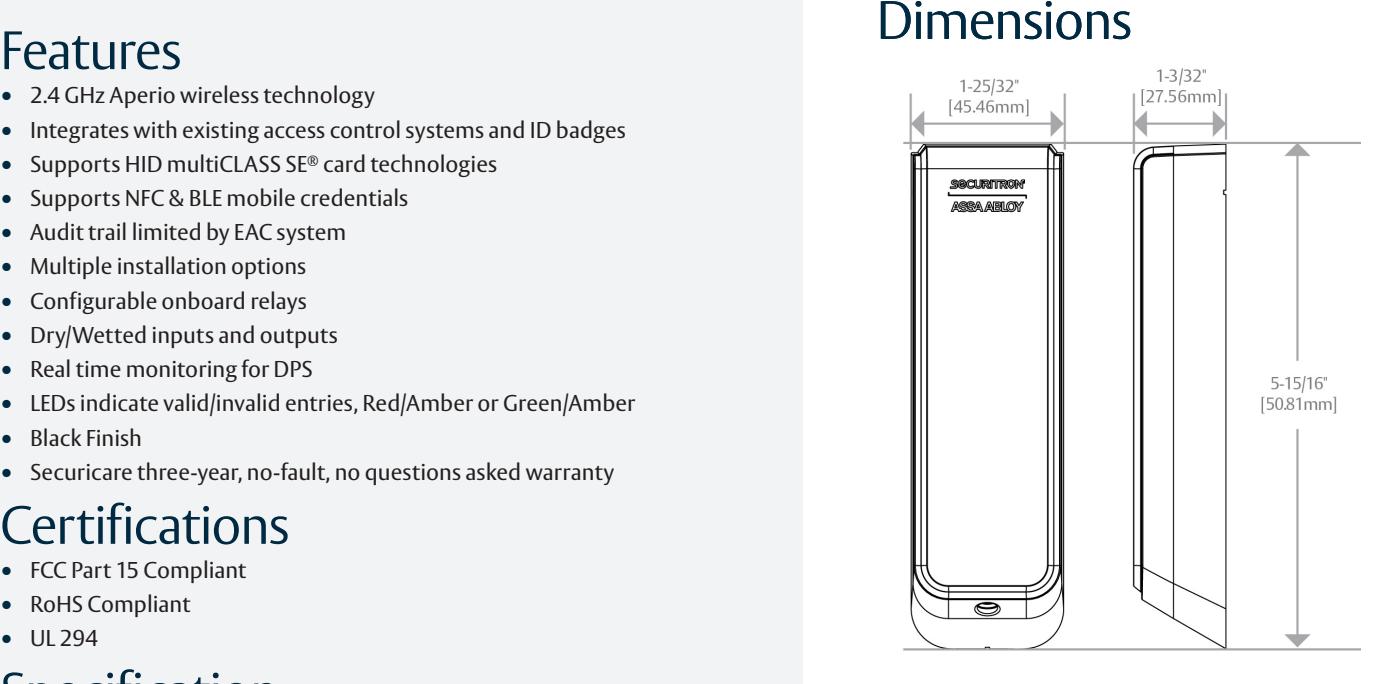

• 2.4 GHz Aperio wireless technology
• Integrates with existing access control systems and ID badges
• Supports HID multiCLASS SE® card technologies
• Supports NFC & BLE mobile credentials
• Audit trail limited by EAC system
• Multiple installation options
• Configurable onboard relays
• Dry/Wetted inputs and outputs
• Real time monitoring for DPS
• LEDs indicate valid/invalid entries, Red/Amber or Green/Amber
• Black Finish
• Securicare three-year, no-fault, no questions asked warranty

Certifications

• FCC Part 15 Compliant
• RoHS Compliant
• UL 294

Specification

Electrical

• Power 12-24 VDC
• (3) Relays (Dry or Wetted) Rated at 2 A/30 VDC
• (2) DPS Inputs act as a single input
• (1) Tamper Input used for any additional monitoring input

Environmental

• Operating Temperature -13° to 140° F [-25° to 60° C]
• Operating Temperature with Heater Element -40° to 140° F [-40° to 60° C]
• Tested to meet IP65

Accessories

• ACC10 Credential Test Cards

How to Order

SERIES		MODEL	OPTIONS		CARD TECHNOLOGY
DR100		C				-IPS
DR100	Card Reader with Relay	(Blank) Standard Model C DR100 + SIK: Secure Installation Kit E DR100 + HE: Heater Element		(Blank)* Field configured to work with AH20, AH30, or AH40 wireless hubs	IPEXXXXX † BIPSXXXXX** † BIPEXXXXX** †	IPS HID iCLASS®, HID iCLASS SE® (SIO-enabled), HID iCLASS® Seos™, HID MIFARE® SE, HID DESFire® EV1 SE, MIFARE Classic, MIFARE DESFire EV1, NFC-enabled Mobile Phones: HID Mobile Access (NFC), Seos Apple Wallet (NFC) Same as IPS but with factory loaded HID Elite Credential HID iCLASS, HID iCLASS SE (SIO-enabled), HID iCLASS Seos, HID MIFARE SE, HID DESFire EV1 SE, MIFARE Classic, MIFARE DESFire EV1, NFC & BLE-enabled Mobile Phones: HID Mobile Access (BLE and NFC), Seos Apple Wallet (NFC) Same as BIPS but with factory loaded HID Elite Credential

* Only available through ACP/CI channel. ** XXXXX is a unique or customer specific key that is only reorderable for that specific company. † HID authorization form will need to be filled out and signed by the end user who has authority of the ELITE KEY.
