View PDFRADIO KEY® XRM / XRS Installation Instructions

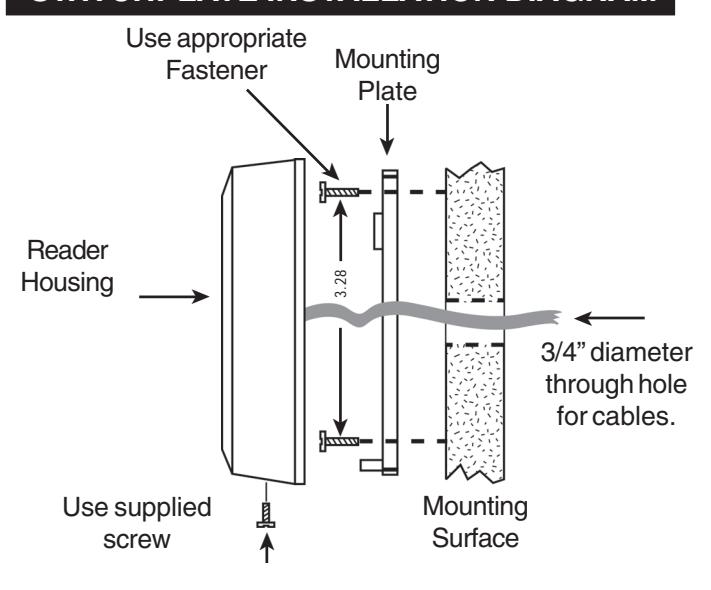

SWITCHPLATE INSTALLATION DIAGRAM
INSTALLATION STEPS FOR RK-XRS
- 1. Drill holes as needed per installation diagram shown to the left.
- 2. Feed cable through 3/4" hole.
- 3. Attach the mounting plate to the mounting surface with the appropriate fasteners.
- 4. Attach the housing to the mounting plate by inserting the two tabs inside the top of the housing into the two slots at the top of the mounting plate.
6. Connect cable per wiring diagram shown below.

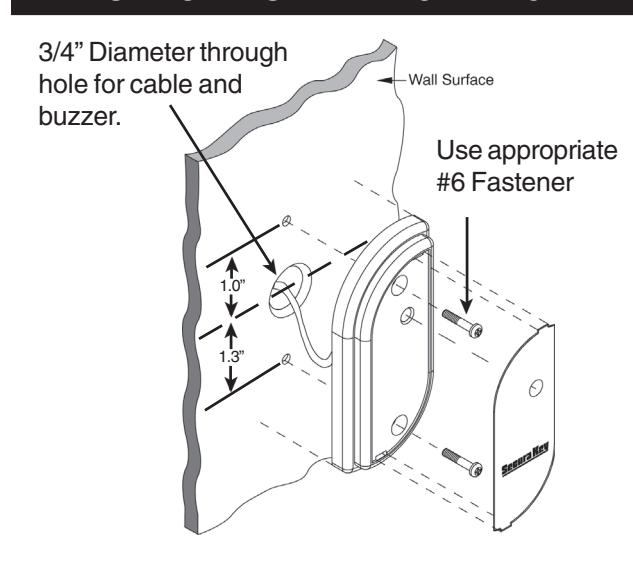

MULLION INSTALLATION DIAGRAM
INSTALLATION STEPS FOR RK-XRM
- 1. Drill holes as needed per installation diagram shown to the left.
- Feed cable through 3/4" hole.
- 3. Attach reader to any flat surface with two #6 screws.

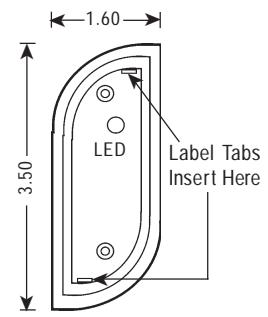

- 4. Snap label insert into front of reader to cover screws.
WIRING CONNECTIONS
| WIRE COLOR | DESCRIPTION | |||
| BROWN | GROUND | |||
| BROWN-WHITE | vcc | |||
| ORANGE | DATA-B | |||
| ORANGE-WHITE | DATA-A | |||
| GREEN | INPUT 2 | |||
| GREEN-WHITE | INPUT 1 | |||
| BLUE | RELAY | |||
| BLUE-WHITE | RELAY | |||
| *Connect to GROUND to activate. | ||||
POWER REQUIREMENTS
5-14 VDC, 120 mA maximum
INPUTS & OUTPUTS
LED Bicolor (Red or Green)
Short chirps upon presentation of any
Secura Key transponder.
Maximum Network Distance RS-485 - Single Twisted Pair, Plus
Ground and Shield, 18-24 AWG. Total
system cable length: 4,000 ft.
Cable: CAT 5
ENVIRONMENT
Buzzer
Access Control Unit and Key Tag
-40° to +70°C (-40° to +158°F) Ambient Temperature Humidity 0 to 95% (non-condensing)
20301 Nordhoff Street • Chatsworth, CA 91311 phone 818-882-0020 • fax 818-882-7052 TOLL-FREE (800) 891-0020 E-mail: mail@securakey.com
Web site: www.securakey.com
INSTRUCTION TO THE USER
FCC ID: NNHRK100M
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more or the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet of a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifications made to the equipment without the approval of the manufacturer could void the user's authority to operate this equipment.
European Community Approvals
| DECLARATION OF CONFORMITY | ||||||
|---|---|---|---|---|---|---|
| We, | Secura Key, A | A Division of Soundcraft | Inc, | |||
| of | 20447 Nordhoff Street, Chatsworth, CA 91311, USA | |||||
| decl | are under our sol | e responsibility that the pro | oduct | |||
| Rad | io Key XRM (RK | -XRM) | ||||
|
nich this declarati
r normative docu |
with the following standards and/or | |||||
| 300 330, May 199 | ||||||
|
300 683, June 1
0950: 1992 Incl |
||||||
|
Direct
BAB |
ctive 1999/5/EC h | nas been followed with the i | to in Article 10(5) and detailed in Annex IV of involvement of the following Notified Body(ies): Valton-on-Thames, KT12 4RQ | |||
| (Halli | e and address of N | olilled Body) | ||||
| Iden | ification mark: |
0168
(Notified Body number) |
The equipment will also carry the Class 2 equipment identifier | |||
|
inspe
Vanh |
ection on applicat
nalme, Lieven Ba |
ion to:
a iwemsstraat 13, Industri |
ve equipment can be made available for epark Waggelwater, | |||
| 8200 | Brugge, Belgiu | m | ||||
| (nam | e and address of E | U representative) | ||||
| (name | y Chan | bler | ||||
| Prac | MI | V+ M. | ||||
| (ипе) | Lucy I'E | urkeling likura | ger | |||
User Information
The following statement will be provided with the equipment as required by Article 6.3 of the R&TTE Directive, 1999/5/EC.
The Secura Key Radio Key RK-XRM is in conformity with all essential requirements of the R&TTE Directive (1999/5/EC).
This product is marked with which signifies conformity with Class II product requirements specified in the R&TTE Directive.
The following table indicates the areas of intended use of the equipment. Individual licences are not required. For countries not included in this list, please consult the responsible Spectrum Management Agency.
| Country of intended use | ||||||||
|---|---|---|---|---|---|---|---|---|
| EU | Yes | No | Non-EU | Yes | No | |||
| Austria | Iceland | |||||||
| Belgium | Liechtenstein | |||||||
| Denmark | Norway | |||||||
| Finland | Switzerland | |||||||
| France | ||||||||
| Germany | ||||||||
| Greece | ||||||||
| Ireland | ||||||||
| Italy | ||||||||
| Luxembourg | ||||||||
| The Netherlands | ||||||||
| Portugal | ||||||||
| Spain | ||||||||
| Sweden | ||||||||
| United Kingdom | ||||||||
