4-5	S Series and S200 Series introduction
6-7	S Series performance features and exploded view
8-9	S Series lever designs, lever finishes and door handing
10	S Series lock functions
11	Cylinders and key systems
12	Standard cylinders, full size interchangeable core and Primus XP high security cylinders
13	Interchangeable core conversion kits
14-15	Latches, strikes and rabbeted latch and strike kit
16	S Series specifications, certifications
18-19	S200 Series performance features and exploded view
20	S200 Series lever designs
21	S200 Series lever finishes and door handing
22	S200 Series lock functions
23	Cylinders and key systems
24	Standard cylinders and Primus high security cylinders
25	Interchangeable core, cores and IC cylinders and parts
26	S200 Series latches and deadbolts, door reinforcement and strikes
27	S200 Series specifications, certifications

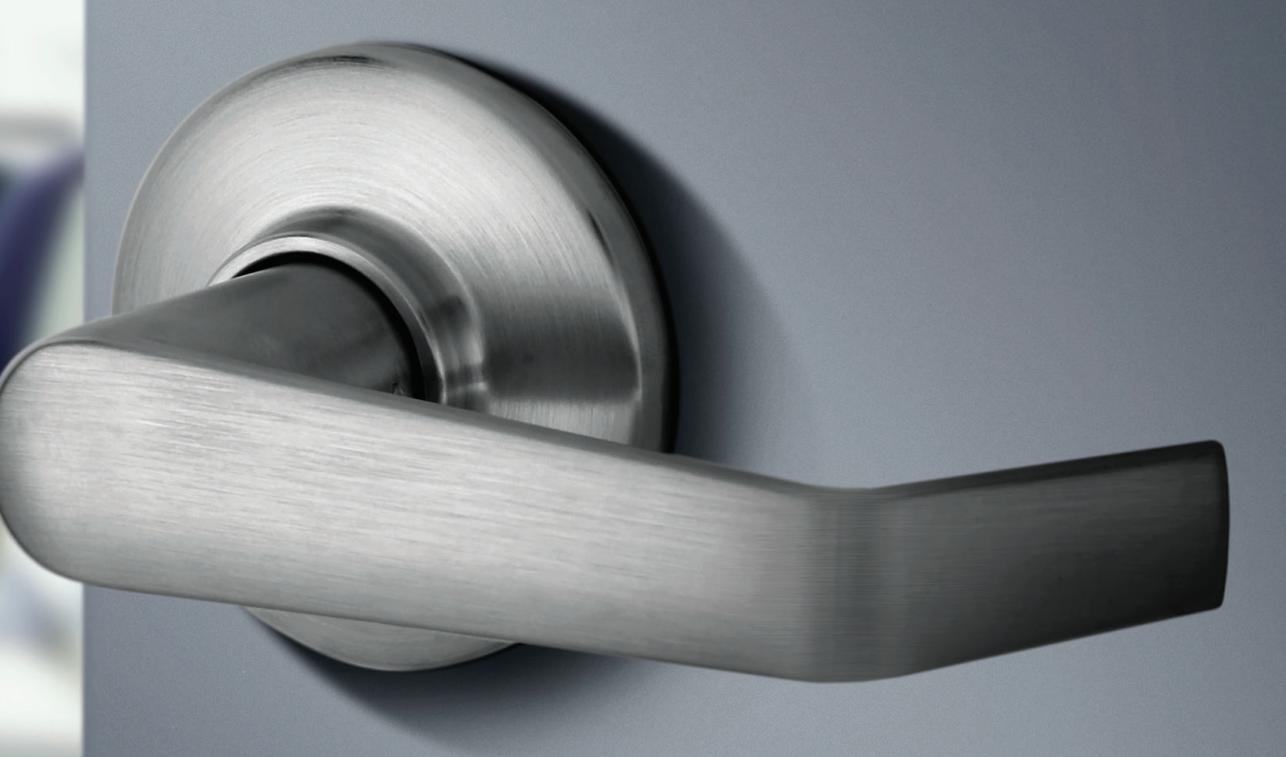

Pictured here: S Series Saturn lever shown in 626 satin chrome

Cover photo: S Series Jupiter lever shown in 626 satin chrome

Put your trust in the name you know

For more than 90 years, Schlage® has been creating the strongest and most technologically advanced security products for schools, hospitals, hotels, commercial and institutional buildings, multi-family properties and homes. From durable mechanical locks to comprehensive electronic access control solutions and biometrics, Schlage provides protection at critical moments – when property and personal security are at stake. With a wide range of products, styles and finishes, Schlage has products for the most demanding project specifications. In public buildings, in the workplace, and in homes, at the end of the day Schlage stands for one thing: strong.

Real security is knowing exactly what you want and getting it

When you know exactly what you want, you don't want to waste time finding out whether it meets your project specifications. That's why we offer the world's largest team of hardware specification writers to help you and your clients turn your vision into reality. And when it comes to products, our commercial suiting options, wide variety of lever designs and rich selection of finishes give you the tools you need to make your projects perfect. You know what you want. With Schlage, you can be sure you'll get it.

Safety, security and confidence

When you choose a Schlage lock, you can be sure you've done the job right, the first time. After all, our products are among the most durable and dependable on the market today. Our locks are easy to install, and simple to repair and maintain. That means fewer callbacks for you and total safety and security for your customers.

S Series and S200 Series

Smart security for light commercial and multi-family applications

At Schlage, we know that every product you specify has to stand up to constant use, while meeting your needs for security at every level. Our S Series and S200 Series locks are designed to deliver constant, reliable performance in light commercial applications like small hotels, laboratories and office tenant spaces, as well as apartment buildings.

We don't compromise on security

The safety and security of your clients' buildings is something we take very seriously. That's why every Schlage lock and deadbolt undergoes intensive testing to determine its ANSI grade level:

Cycle tests
Resistance tests
Door impact tests
Warped door tests
Bolt strength tests

We pay attention to these details so you can focus on creating a functional and aesthetically pleasing environment for your clients. In fact, every one of our S Series locks meets ANSI Grade 1 standards for safety.

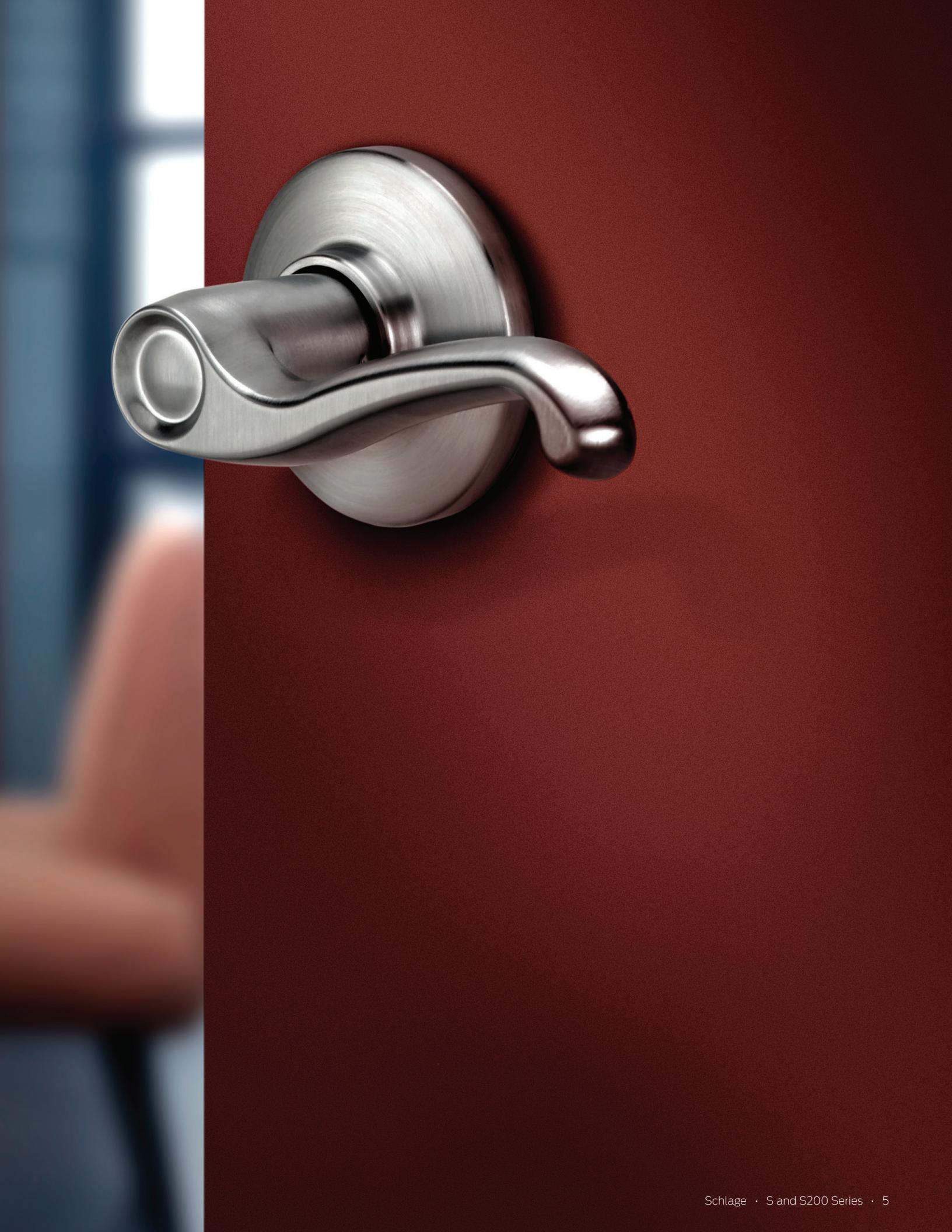

Pictured here: S Series Flair level shown in 626 satin chrome

S Series

Schlage S Series levers are engineered for long life and optimum durability. Easy to install, service and maintain, an S Series lever can help you keep people and property secure.

Pictured here: S Series Neptune lever shown in 626 satin chrome

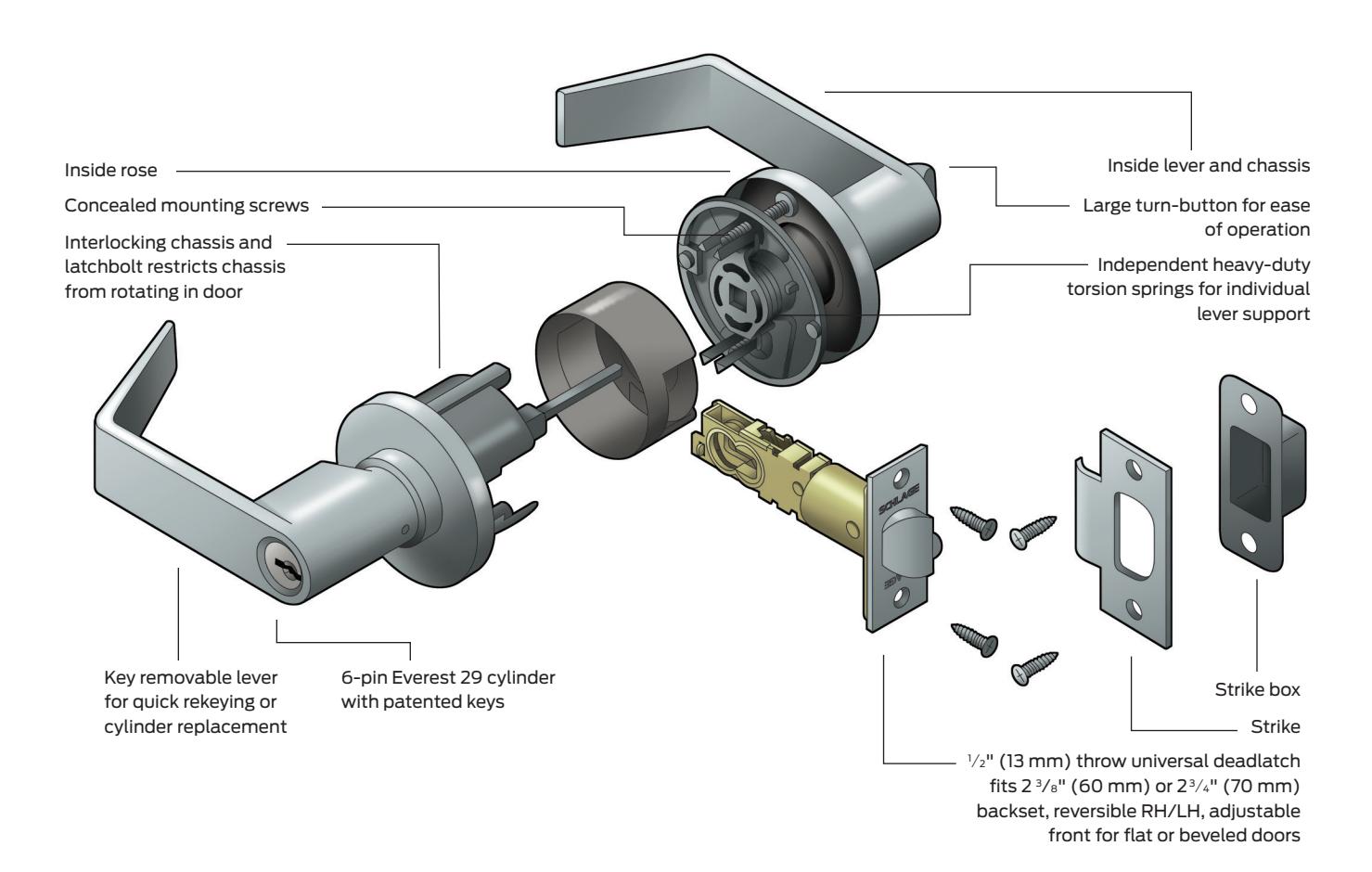

Built tough from the inside out

Heat-treated steel locking components for extra strength
Independent heavy-duty lever torsion springs for durability and long life
Everest 29™ patented keys standard for commercial applications

S Series lever designs

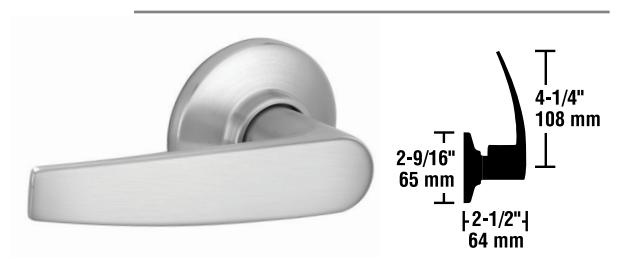

Jupiter (JUP)

Symbol: JUP Material: Pressure cast zinc

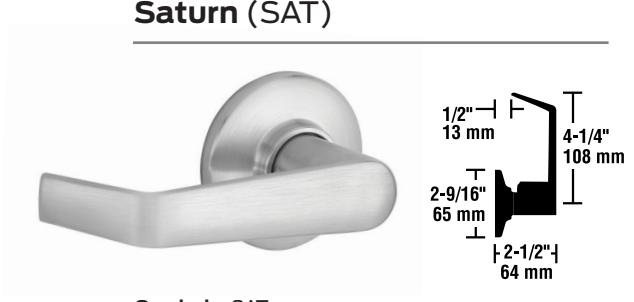

Symbol: SAT Material: Pressure cast zinc

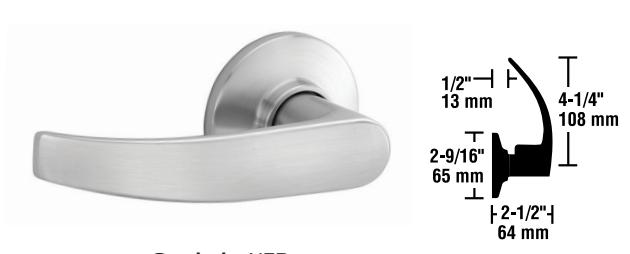

Neptune (NEP)

Symbol: NEP

Material: Pressure cast zinc

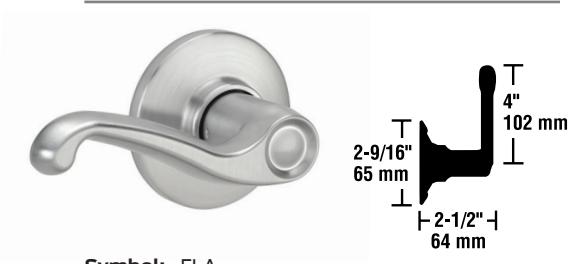

Flair (FLA)

Symbol: FLA Material: Pressure cast zinc

All designs shown in 626 satin chrome

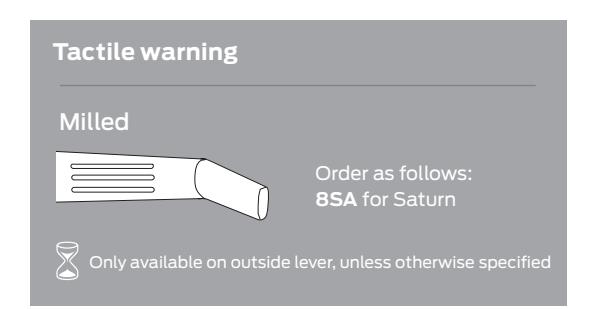

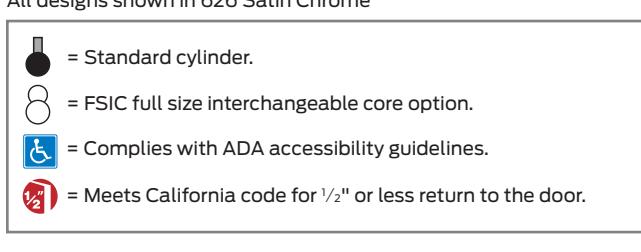

= FSIC full size interchangeable core option.

= Complies with ADA accessibility guidelines.

= Meets California code for 1 = Standard cylinder. ⁄2" or less return to the door.

= Extended factory lead time.

Lever finishes


	605 Bright brass	606 Satin brass	609 Antique brass	613 Oil rubbed bronze	619 Satin nickel	625 Bright chromium plated	626 Satin chromium plated
S Series locks
Flair	•	•	•	•	•	•	•
Jupiter	•	•		•	•	•	•
Neptune	•	•		•	•	•	•
Saturn	•	•	•	•	•	•	•

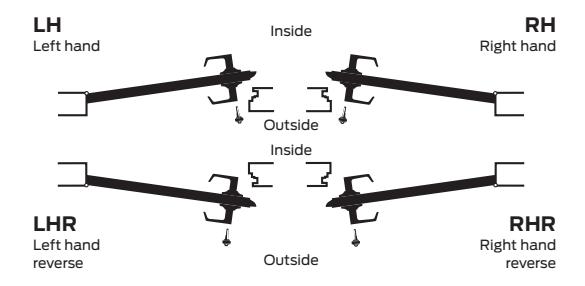

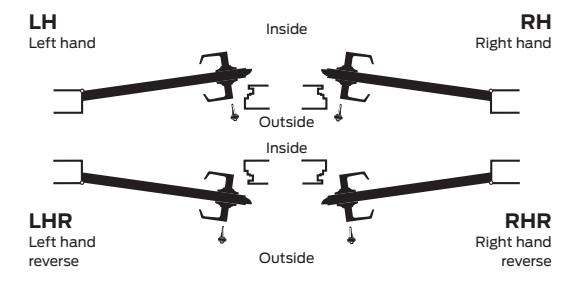

Door handing

With the exception of the Flair lever design, the S Series lock is reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.

ADA-compliant products

In compliance with the American National Standards Institute (ANSI A117.1) and the Americans with Disabilities Act (ADA), Schlage Lock Company offers a wide selection of locks designed for the needs of the physically challenged. This act is designed to provide protection for people with disabilities.

Product information and specifications contained in this catalog are subject to change without notice. Please consult the factory.

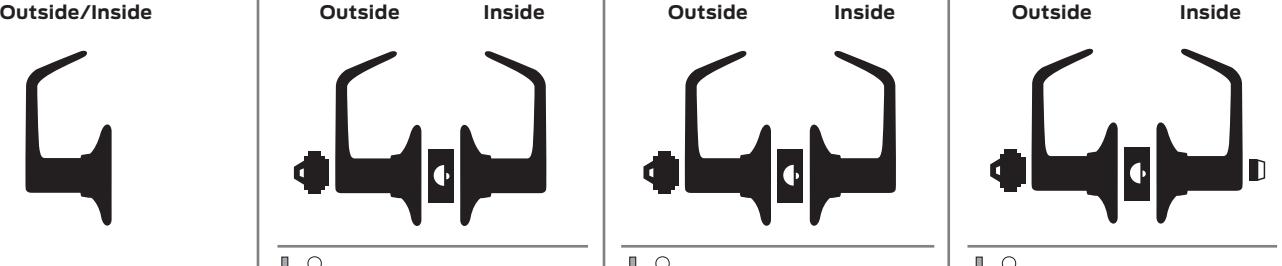

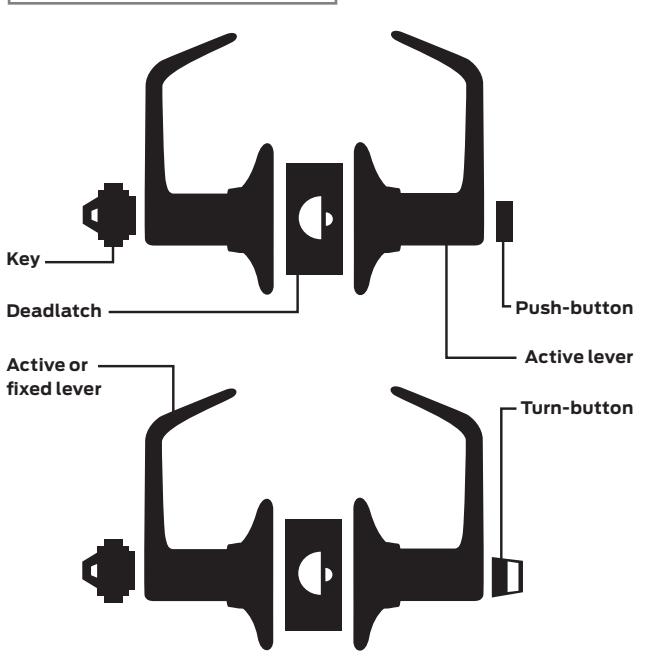

S Series lock functions

ANSI A156.2 Series 4000 Grade 2

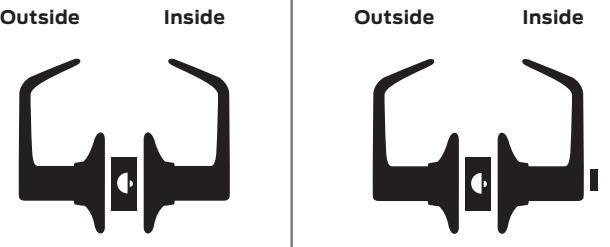

Non-keyed functions

Schlage ANSI S10D F75

Passage latch

§ Both levers always unlocked

Bath/bedroom privacy lock

Schlage ANSI S40D F76

§ Push-button locking

§ Can be opened from outside with small narrow tool
§ Turning the inside lever releases button

Schlage ANSI S170 –

Single dummy trim

§ Dummy trim for one side of door
§ Used for door pull or as matching inactive trim

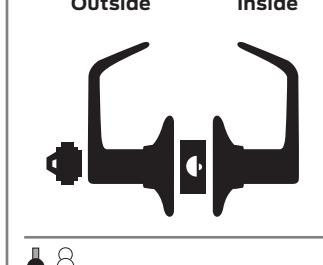

Keyed functions

Schlage ANSI S70PD F84

Classroom lock

§ Outside lever locked and unlocked by key
§ Inside lever always unlocked

Schlage ANSI S80PD F86

Storeroom lock

§ Outside lever fixed
§ Entrance by key only
§ Inside lever always unlocked

Schlage ANSI S51PD F81

Entrance lock

§ Outside lever locked and unlocked by key or by turn-button on inside lever
§ Inside lever always unlocked

10 • Schlage • S and S200 Series

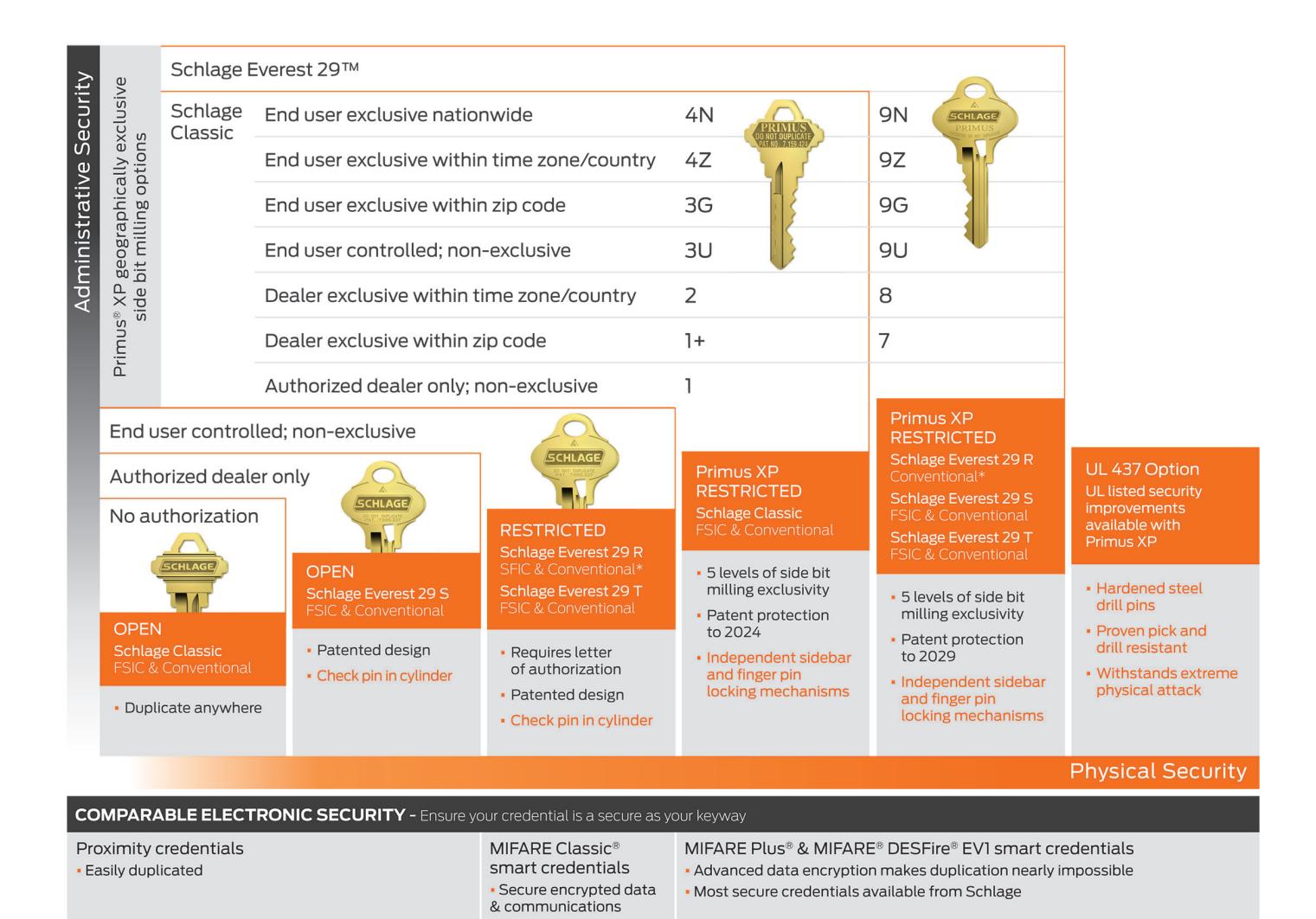

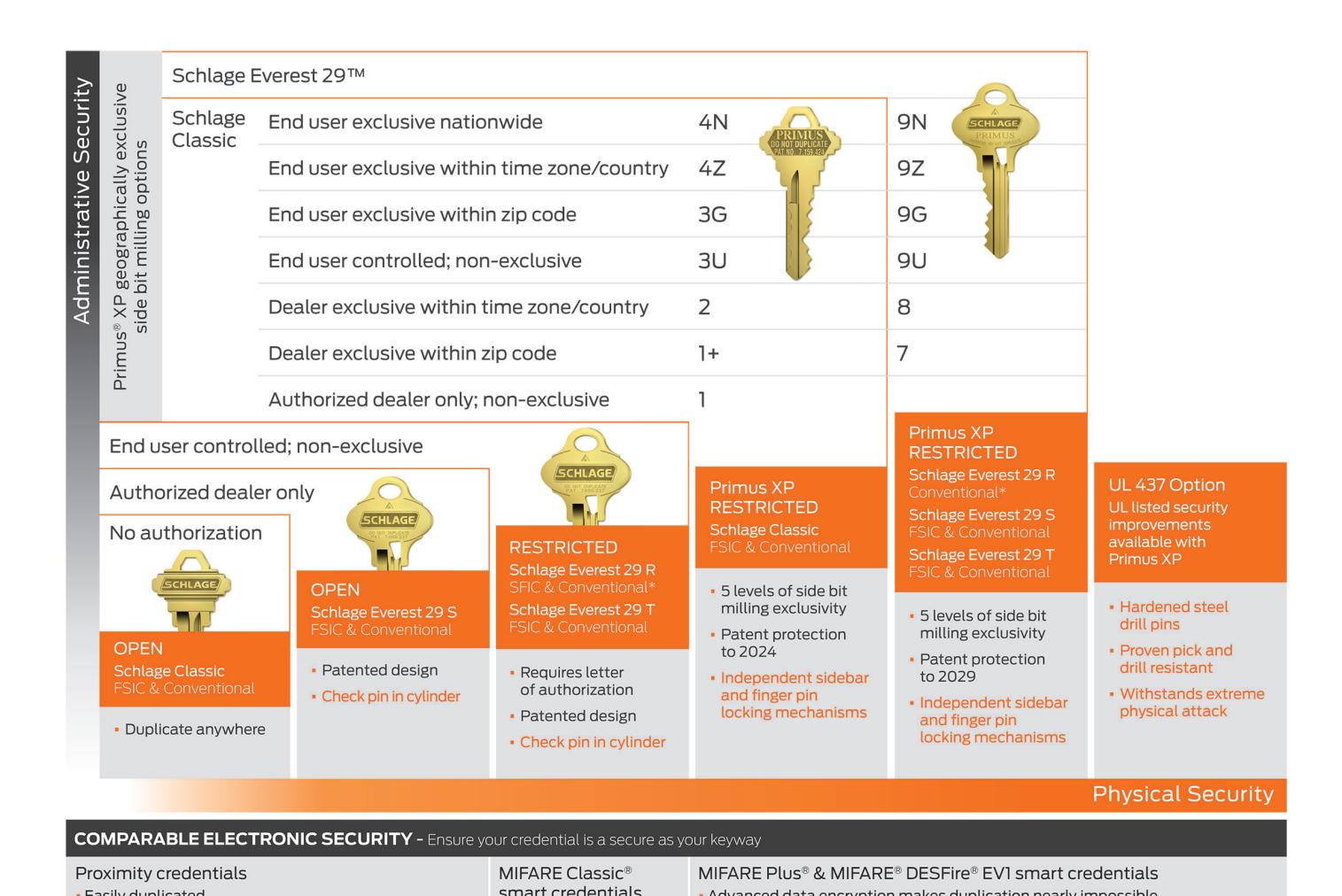

Cylinders and key systems

Primus XP access control and high security cylinders

Primus XP access control and high security cylinders are available to add patented key control and varying degrees of geographical exclusivity to most Schlage 6-pin key systems, whether Everest 29 or Classic keyways.

In addition to a conventional pin tumbler mechanism, Primus cylinders incorporate a patented finger pin and sidebar design, providing a "dual-locking" cylinder that is virtually pick-proof. Resistance to drilling and other physical attack is optional by specifying 20-500 Series UL437 Listed cylinders.

Classic Primus XP cylinders are recommended for upgrading existing Classic key systems. Due to its extended patent life, the newly designed Everest 29 Primus XP is recommended for new key systems and for upgrading existing Everest key systems. Specify keyway to differentiate between Everest 29 and Classic. Example: C or CP (Classic) vs. S123 (Everest 29).

Visit allegion.com/us for more information.

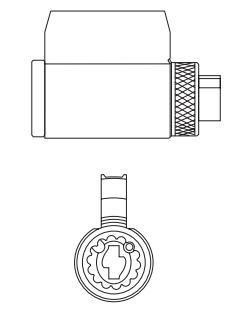

Standard cylinders

Standard cylinders are available in Classic keyways or in patented Everest 29 keyways. Specify keyway to differentiate between Everest 29 and Classic. Example: C (Classic) vs. S123 (Everest 29).

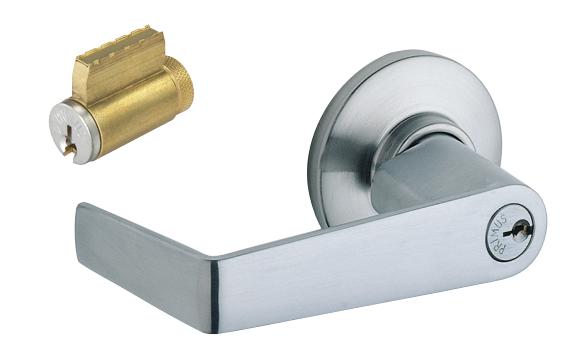

Cylinders for keyed levers - options

6-pin conventional cylinder (standard)
Primus high security cylinder
Primus UL437 Listed high security cylinder

Available in 606 and 626 finish only. Everest 29 S123 keyway standard for commercial; C keyway standard for residential.

Sleeve S605-192 included.

New Everest SL cylinder

A full-size KIL cylinder that pins to the Schlage SFIC keyways
Uses pick resistant L pins
SFIC system owners can gain geographic exclusivity with Primus XP
Achieves about 57,000 more combinations than a 6-pin system

Everest SL cylinder

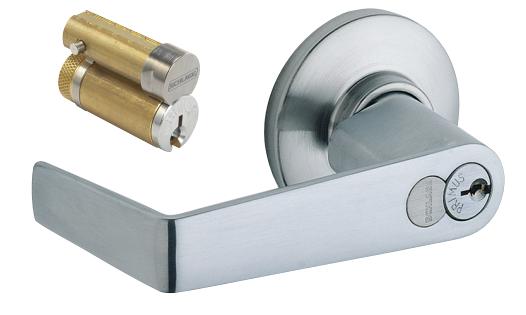

Full size interchangeable core

Schlage interchangeable core (IC) locksets allow immediate rekeying at the door simply by using the special control key to replace the core in seconds.

FSIC locksets are available in Jupiter, Neptune and Saturn designs.

Full size interchangeable cores - options

(for JD suffix locksets)

Conventional core
Primus high security core

Available in 606 and 626 finish only. Everest 29 S123 keyway standard for commercial; C keyway standard for residential.

Full size interchangeable cores can be integrated into any 5 or 6-pin Schlage key system with no adverse affects on keying capacity.

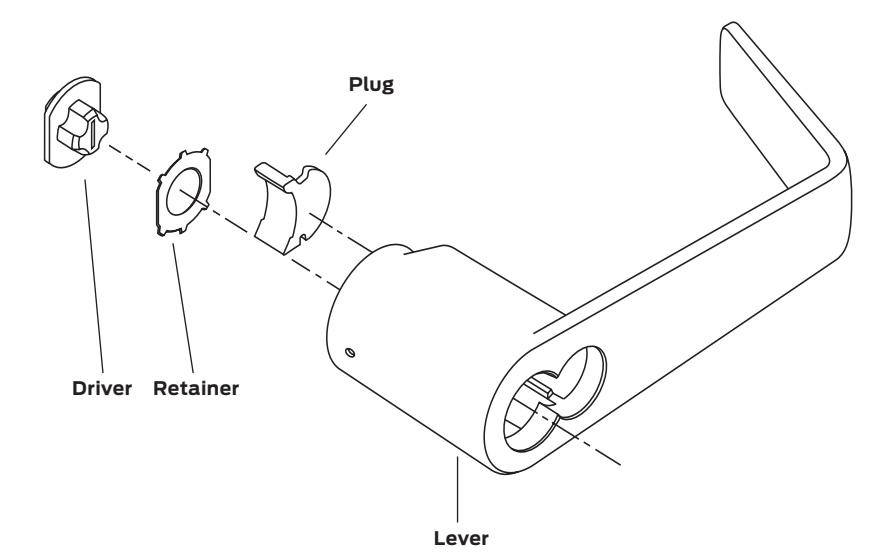

Interchangeable core conversion kits

It is easy to convert standard S Series locksets to accept Schlage full size interchangeable cores by changing the lever and adding the parts shown.

Interchangeable core components - options

Lever, driver, plug, retainer*
Lever only*
Retainer
Driver

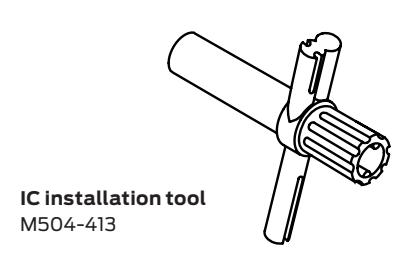

IC installation tool

^* Specify design and finish.

Latches

The standard universal backset deadlatch fits both $2^3/8$ " (60 mm) and $2^3/4$ " (70 mm) backsets. They are adjustable for flat or beveled edge doors and have a 1/2" (13 mm) throw. Orders for complete locks are provided with a G506-815 sleeve for 7/8" diameter latches installed in doors with 1" (25 mm) edge bore. All latches have 1" x 2 1/4" (25 mm x 57 mm) square corner fronts. Standard latches are shown in bold type.

Note: Failure to use the below referenced latches and fire cup, included with the lockset, will invalidate the UL Listing.

Deadlatches - options

Backset	Faceplate description	Hsg dia
2 ³ / ₈ " or 2 ³ / ₄ "	1" x 21/4" Square corner*	7/8 "
2 ³ / ₈ " or 2 ³ / ₄ "	1" x 2½",½" Radius round corner	7/8"
5"	1" x 21/4" Square corner*	⁷ /8"

^* Latches include A501-878 faceplate adapter for $1^{1}/8$ " face.

Square corner deadlatch 16-203

Round corner deadlatch

Latch front adapter

A501-878

Used to adapt 1" (25 mm) wide square front faceplates to 11/8" (29 mm) wide door preparations. Furnished in black plastic. Order in multiples of 100.

Sleeve

G506-815

Used on $^{7/8}$ " (22 mm) diameter latch housings in 1" (25 mm) edge bore. Furnished standard with complete locks.

Door Reinforcement

Schlage reinforcing units help prevent the collapse of hollow metal doors when locksets are tightly mounted.

A501-566 13/4" (44 mm) doors

A501-565 13/8" (35 mm) doors

Strikes

All Schlage strikes are furnished complete with screws. The 10-001 standard S Series strike has a $1^{1}/_{8}$ " (29 mm) lip. When ordering separately, specify quantity, product number, finish, and lip length. Standard strike is shown in bold type.

Strikes - options

1", 1½" (Std), 1½", 1½", 1¾", 2" (25 mm, 29 mm, 32 mm, 38 mm, 44 mm, 51 mm 1½" x 2¾" (29 mm x 70 mm) square corner, standard
$1\frac{1}{8}$ " (29 Mm) $1\frac{1}{8}$ " x $2\frac{3}{4}$ " (29 mm x 70 mm) $\frac{1}{8}$ " (3 mm) radius, round corner
13/16", 13/8" (30 mm, 35 mm) 11/4" x 47/8" (32 mm x 124 mm) ANSI
$1\frac{1}{8}$ " (29 mm) $1\frac{5}{8}$ " x $2\frac{1}{4}$ " (41 mm x 57 mm) full lip, square corner
1½8" (29 mm) 1½8" x 2½4" (41 mm x 57 mm) full lip,½" (6 mm) radius, round corner
Box, ANSI

T-strike – standard 10-001 1½8" x 2¾4" x ¾32" (29 mm x 70 mm x 2 mm)

ANSI strike 10-025 11/4" x 47/8" x 3/32" (32 mm x 124 mm x 2 mm)

Full lip - square corner 10-026 15/8" x 21/4" x 3/32" (41 mm x 57 mm x 2 mm)

Full lip - round corner 10-027 15/8" x 21/4" x 3/32" (41 mm x 57 mm x 2 mm)

Rabbeted latch and strike kit

Rabbeted latch and strike kit finishes: 605, 626.

This kit adapts square corner latches and strikes for 1/2"

(13 mm) rabbeted door and frame preparations.

Rabbeted latch and strike kit

39-030

Specifications

Handing:

Not handed, except Flair design.

Door thickness:

1 ³ ⁄8" to 2" (35 mm-51 mm) except S40D: 1 ³ ⁄8" to 1 ⁷ ⁄8" (35 mm-48 mm)

Backset:

Universal backset latches standard, fit either 2 3⁄8" (60 mm) or 2 ³ ⁄4" (70 mm). 5" (127 mm) optional.

Fronts:

Steel. 1" x 21 ⁄4" (25 mm x 57 mm) square corner, beveled, for 2 ³ ⁄4" backset standard.

Lock chassis:

Tubular construction. Zinc with steel cover.

Latch bolt:

Brass, chrome plated, 1 ⁄2" (13 mm) throw, deadlocking.

Exposed trim:

Levers are zinc base, plated to match finish symbols. Roses, latch faceplates and strikes are wrought brass or bronze.

Strike:

T-strike 11 ⁄8" x 2 ³ ⁄4" (29 mm x 70 mm) x 11 ⁄8" (29 mm) lip to center with box standard. Optional strikes, lip lengths and ANSI strike box available.

Cylinder and keys:

Commercial: 6-pin patented Everest 29 S123 keyway standard with two nickel silver keys per lock. Residential: 6-pin C keyway, keyed 5-pin.

Keying options:

Interchangeable core available, for Primus Xp cylinder, order locks less cylinder and order Primus Xp cylinder separately. Master keying, grand master keying, and construction keying.

Warranty:

Commercial: Three-year limited.

Certifications

ANSI

Meets or exceeds A156.2 Series 4000, Grade 2 strength and operational requirements.

Federal:

Meets FF-H-106C.

California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard)

All levers with a return to door of 1 ⁄2" (64mm) or less comply.

UL / cUL:

All locks listed for A label single doors, 4' x 8'. Letter F and UL symbol on latch front indicate listing. UL437 Listed locking cylinder optional: specify less cylinder and order Primus 20-500 Series cylinder separately.

ADA compliant:

Schlage Lock Company offers a wide selection of locks designed to meet the Americans With Disabilities Act.

S200 Series When it comes to quick, easy egress and dependable security, Schlage S200 Series interconnected locks get the job done. Designed for applications ranging from military housing to multi-family and small hotel/motel buildings, the S200 Series is a lock you can depend on. Pictured here: S200 Series interconnected lock with Flair lever in 626 satin chrome

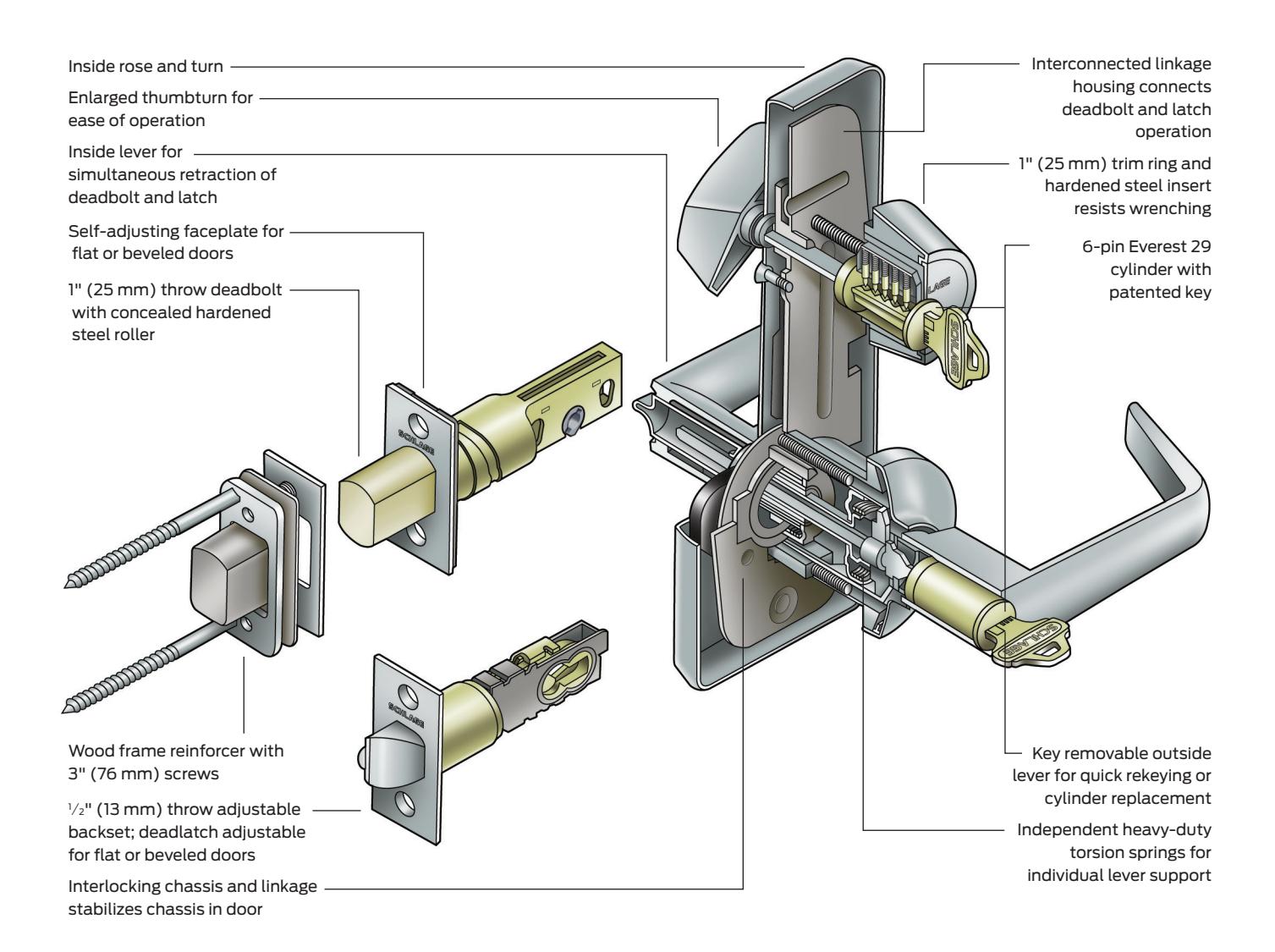

Safety, security and long-lasting performance

Heat-treated steel locking components for extra strength
Independent heavy-duty lever torsion springs for durability and long life
Non-handed levers for easy field installation
Extra-strong Everest 29™-patented keys standard for commercial applications

S200 Series lever designs

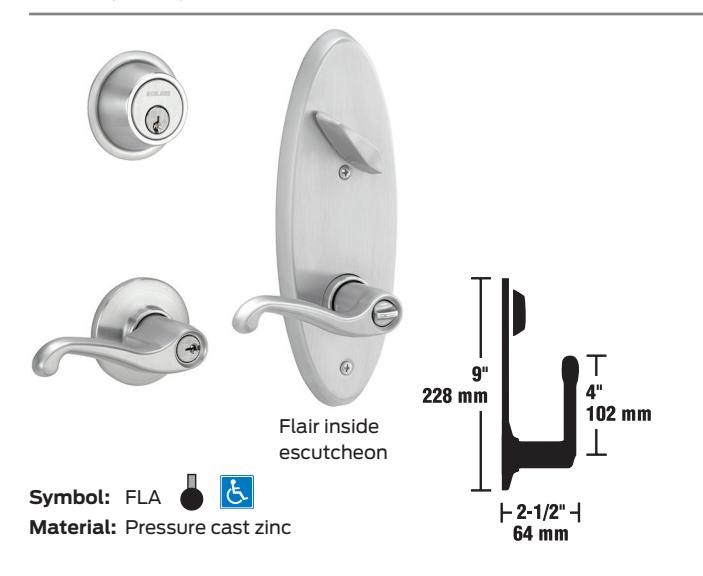

Flair (FLA)

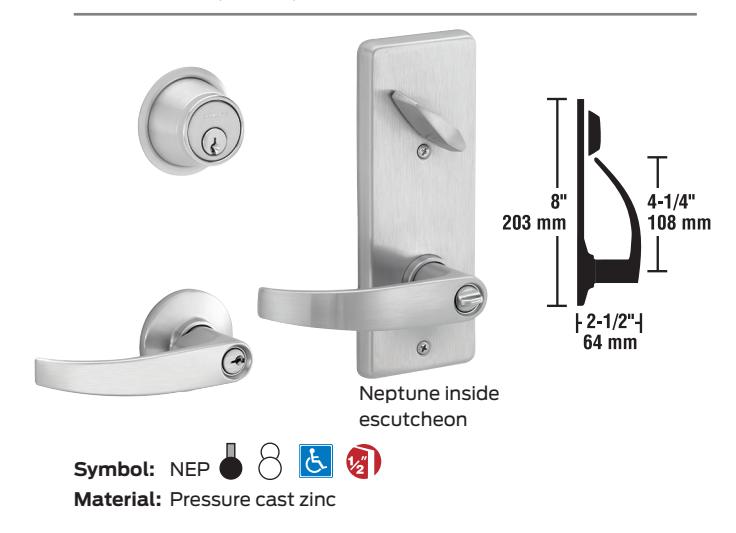

Neptune (NEP)

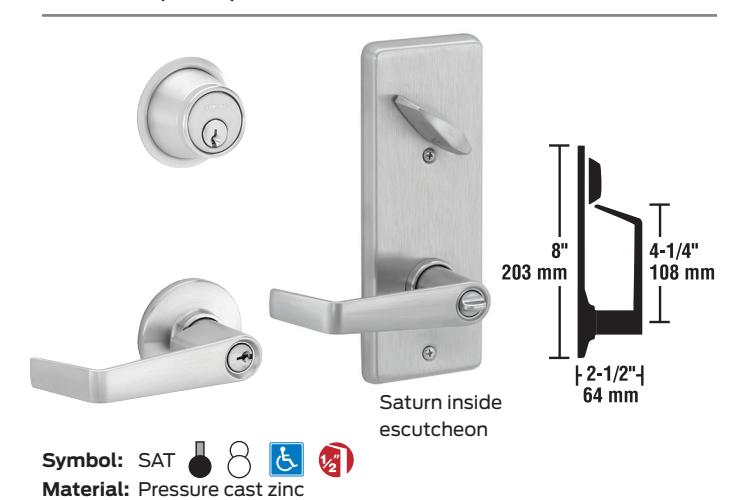

Saturn (SAT)

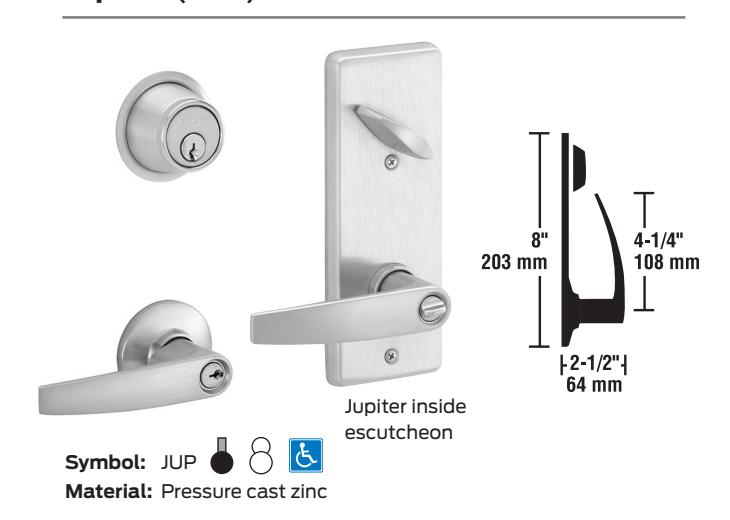

Jupiter (JUP)

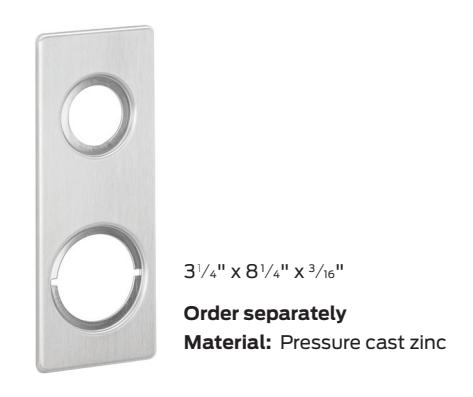

Meteor outside escutcheon

All designs shown in 626 Satin Chrome

Lever finishes


	605 Bright brass	606 Satin brass	609 Antique brass	612 Satin bronze	613 Oil rubbed bronze	619 Satin Nickel	625 Bright chromium plated	626 Satin chromium plated
S200 Series locks
Flair	•	•	•	•	•	•	•	•
Jupiter	•	•			•	•	•	•
Neptune	•	•			•	•	•	•
Saturn	•	•	•	•	•	•	•	•
Meteor (36-056)	•	•	•	•	•	•	•	•

Door handing

All Schlage locks are reversible. Hand information is necessary to ensure proper cylinder orientation in keyed functions, and finish of latchbolt and strike for locks that are to be installed on reverse bevel doors. Follow the diagram to correctly determine the hand of the door.

ADA-compliant products

Product information and specifications contained in this catalog are subject to change without notice. Please consult the factory.

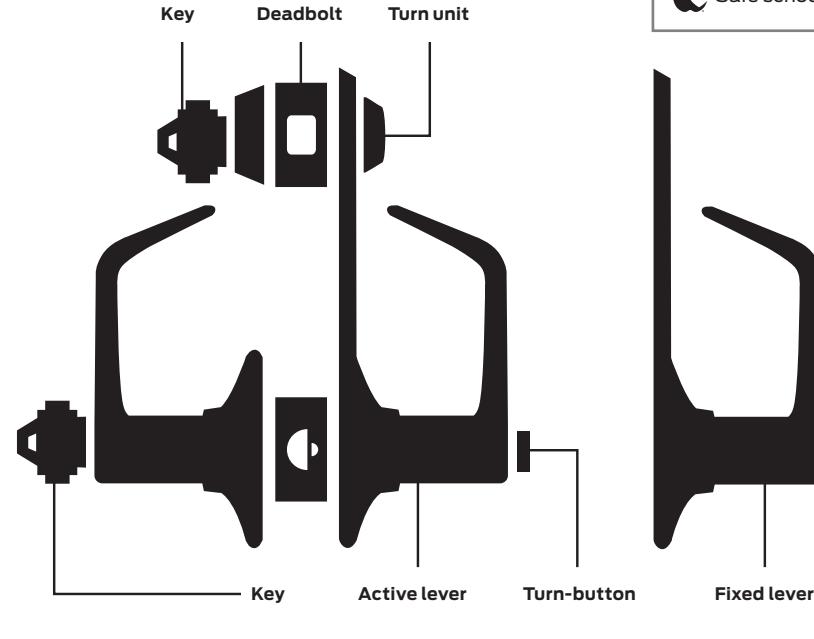

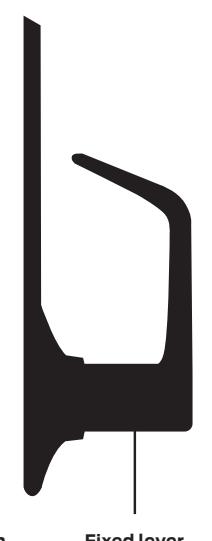

S200 lock functions

ANSI A156.12-1992, Grade 2

Standard cylinder

FSIC - full size interchangeable core option

Safe school locks

Keyed functions

Schlage ANSI

S210PD F95

Entrance, single locking

Deadbolt operated by key from outside or by turning unit from inside
Bolt automatically deadlocks when fully thrown
Latchbolt retracted by lever from either side
Turn inside lever to simultaneously retract deadbolt and latchbolt for immediate exit

Schlage ANSI S251PD F97

Entrance, double locking

§ Deadbolt operated by key from outside or by turning unit from the inside
§ Bolt automatically deadlocks when fully thrown
§ Outside lever is unlocked by key from the outside or by turn-button on inside lever
§ Turn inside lever tosimultaneously released deadbolt and latchbolt for immediate exit
§ Latch automatically deadlocks when door is closed

Schlage ANSI S270PD –

Classroom lock

§ Deadbolt operated by key from outside or by turning unit inside
§ Bolt automatically deadlocks when fully thrown
§ Outside lever is locked and unlocked by key from the outside
§ Turn inside lever to simultaneously retract deadbolt and latchbolt for immediate exit
§ Latch automatically deadlocks when door is closed

Schlage ANSI S280 F98

Storeroom lock

§ Deadbolt operated by key from outside or by turning unit from the inside
§ Bolt automatically deadlocks when fully thrown
§ Outside lever is fixed
§ Entrance by key only
§ Inside lever simultaneously retracts both latch and deadbolt for immediate exit
§ Latch automatically deadlocks when door is closed

Schlage ANSI

S290PD –
