Configuring the ALX Series lock

Using kits to build a lock to suit your needs anytime

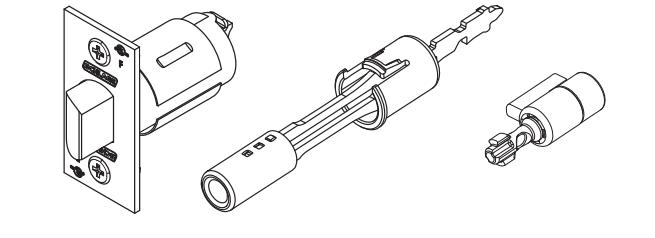

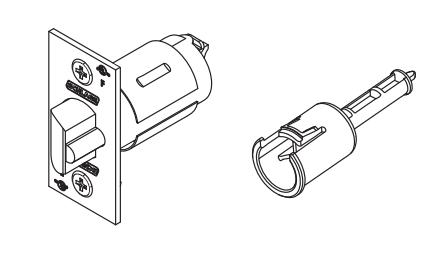

1 Start with chassis

Available in all finishes: 605, 606, 612, 613, 619, 622, 625, 626, or 643E (Rhodes rose and ANSI strike only)

Inside

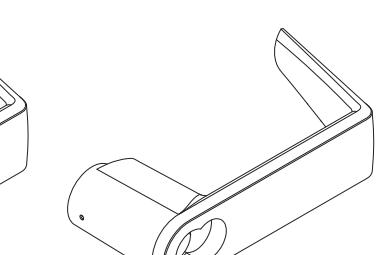

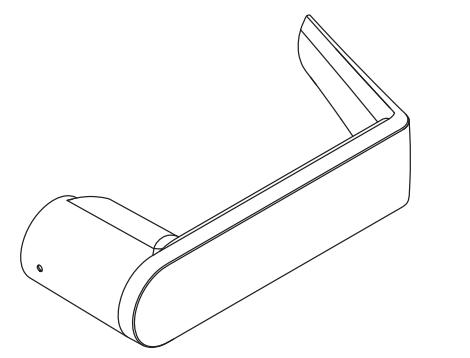

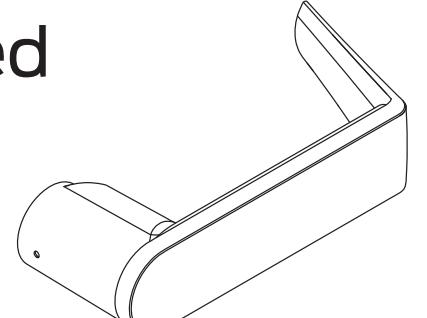

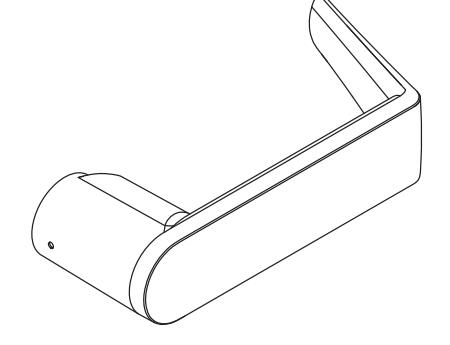

3 Select levers

Finish options: All Design ontions:

Design options.
Function or core ATH
Athens 		BRK
Boardwalk 		BRW
Broadway 		LAT
Latitude 		LON
Longitude 		RHO
Rhodes
Closed, Button, KIL
FSIC, SFIC •
L-SAR, L-CO6, J-SAR, J-CO6
J-CO7

Outside

4 Add cylinder

Finish options: - for 605, 606, 612 - for 622, - for 619, 625, 626

643e - for 613, 626 Note: Cylinders are sold separately. Specify finish when ordering.

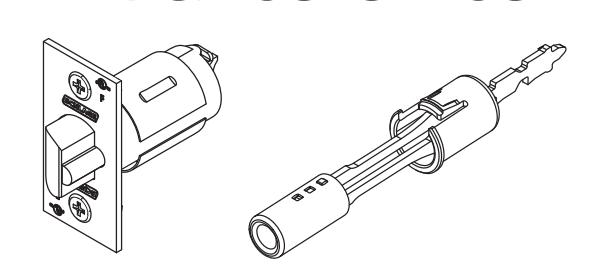

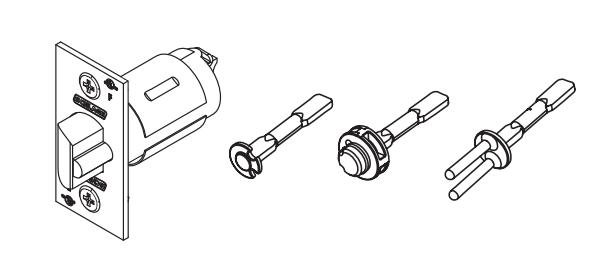

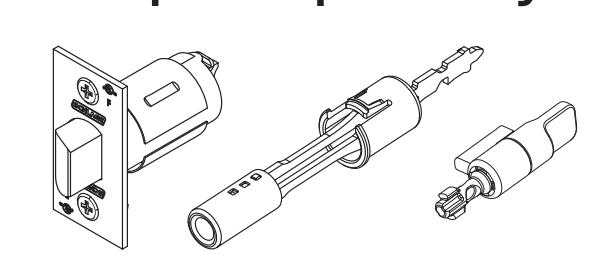

10 Passage

Backset options:

Finish options: All

2 3/8" or 2 3/4"

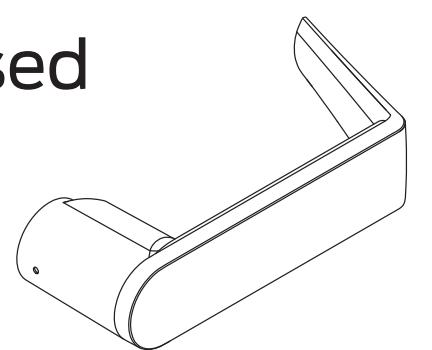

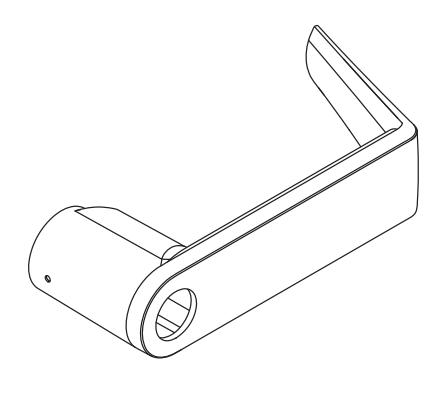

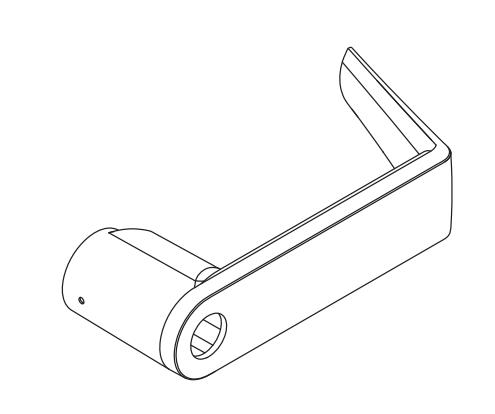

CL Closed

CL Closed

40 Bath/bedroom privacy

44 Hospital privacy

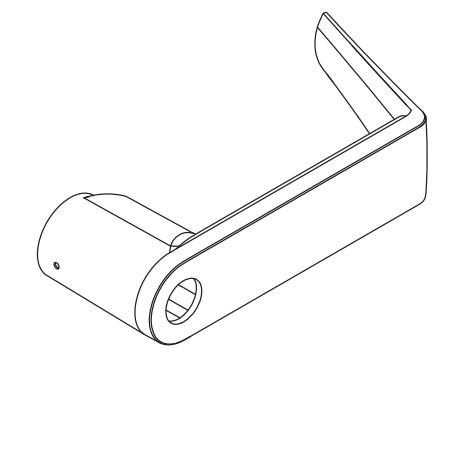

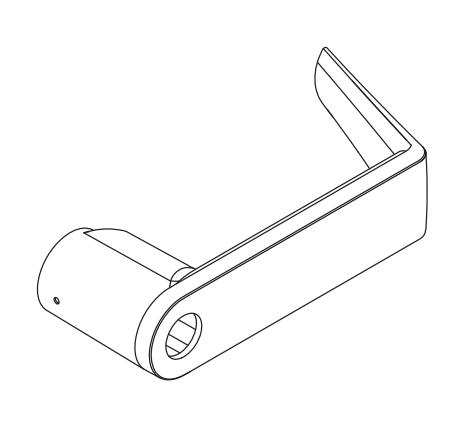

BT Button

Note: button hole is slightly smaller than a KIL hole.

KIL Schlage Key-in-lever

Note: Also used for coin turn and hospital emergency turn.

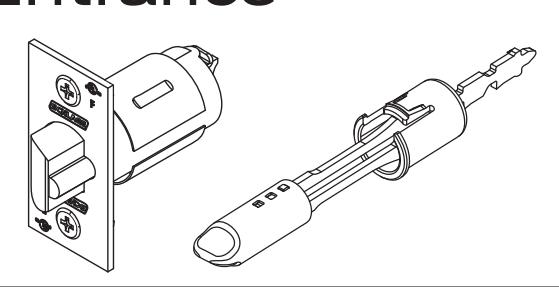

50 Entrance/office

BT Button

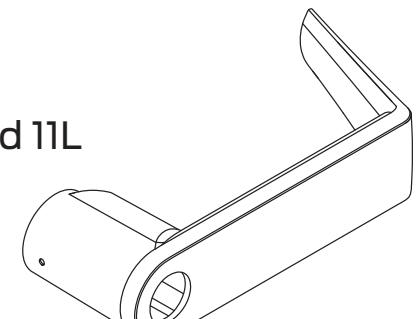

KIL Schlage L-SAR fits Sargent 10L and 11L L-CO6 fits Corbin 2000

KIL Schlage

53 Entrance

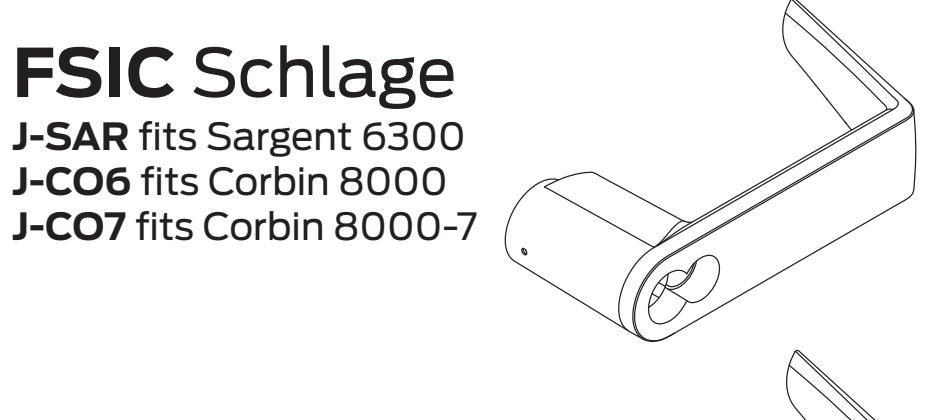

FSIC Schlage J-SAR fits Sargent 6300

J-CO6 fits Corbin 8000

FSIC Schlage

80 Storeroom

CL Closed

SFIC

SFIC Schlage

See chart below for ordering proper cylinder and tailpiece combinations.

70 Classroom

CL Closed

Schlage

SFIC

Schlage

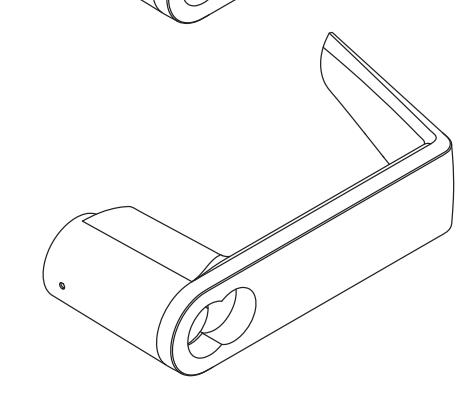

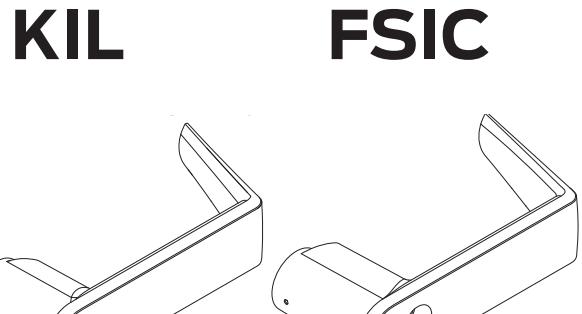

KIL FSIC SFIC

Note: All tailpiece options are provided in the function kit for 70 Classroom function.

Conventional KIL
Cylinder mechanism Cylinder and tailpiece Tailpiece only Functions Pins
Standard pin and tumbler 21-020 A700-031 50, 53, 80 5, 6
Standard pin and torribler 23-195 47270197 70 J, U
SL cylinder (restricted
Everest 29R and Everest B 		91-018 N523-022 50, 53, 80 7
only) 91-118 47270197 70 ,
Primus 20-765 N523-022 50, 53, 80 6
20-685 47270197 70
Primus UL 437 20-565 A700-031 50, 53, 80 6
(UL listed high security) 20-566 47270197 70
SL Primus XP 91-718-XP N523-022 50, 53, 80 7
(restricted Everest 29R and Everest B only) 91-118-XP 47270197 70
Primus XP 20-765-XP N523-022 50, 53, 80 6
PHHUS XP 20-685-XP 47270197 70 6
Primus XP UL 437 20-565-XP N523-022 50, 53, 80 6
(UL listed high security) 20-566-XP 47270197 70

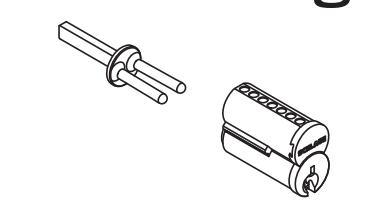

Interchangeable cores
Cylinder mechanism Cylinder only Tailpiece only Functions Pins
FSIC pin and tumbler 23-030 N523-127 50, 53, 80 6
47269168 70
FSIC SL cylinder
(restricted Everest 29R and
Everest B only) 		91-161 N523-127 50, 53, 80 7
91-101 47269168 70 /
FSIC Primus 20-740 N523-127 50, 53, 80 6
47269168 70
FSIC SL Primus XP (restricted
Everest 29R and Everest B only) 		91-861 N523-127 50, 53, 80 7
47269168 70
FSIC refundable construction core – color coded 22 020 ICV N523-127 50, 53, 80
23-030-ICX 47269168 70 6
SFIC combinated Everest 29 R
family keyway 		90 027 N523-091 50, 53, 80 7
80-037 47269620 70 7
SFIC refundable construction 80-035 N523-091 50, 53, 80 7
core – color coded 00-033 47269620 70
Less cylinder options
Cylinder
type 		Made to fit Tailpiece Functions
L-SAR Sargent 10L and
11L 6-pin KIL 		09-060 50, 53, 80
L-CO6 Corbin 2000,
6-pin KIL 		10-140 50, 53, 80
J-SAR Sargent 6300,
6-pin FSIC 		09-063 50, 53, 80
J-C06 Corbin 8000,
6-pin FSIC 		09-062 50, 53, 80
J-CO7 Corbin 8000-7,
7-pin FSIC 		10-141 50, 53, 80
