AD-400

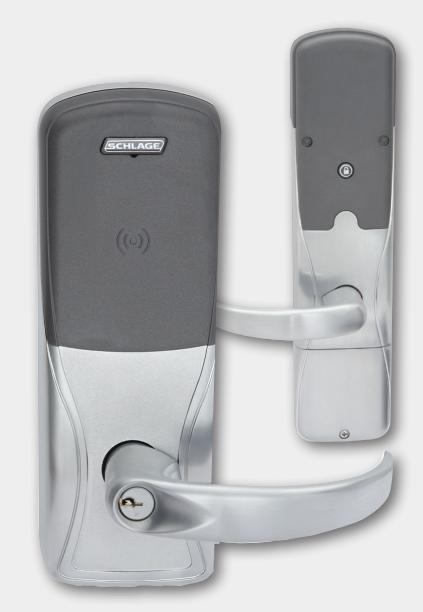

Networked wireless electronic lock

Overview

AD Series electronic locks from Schlage® are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patented modular design allows the lock to be customized to fit the needs of an application now, and changed to meet future needs without removing it from the door.

Factory orderable options include choices of credential readers, chassis type, network configurations, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings.

To simplify installation, the AD Series combines all the hardware components required at the door for a complete access control system into one integrated design that includes the electrified lock, credential reader, request-to-exit and request-to-enter sensors, door position switch, tamper guard and more.

The AD-400 wireless networked lock gives you many of the key benefits of a hardwired access control system — without the wires. This allows you to secure doors that were traditionally difficult to run wires to in the past—and increase the security throughout your facility.

The AD-400 has a number of features built in, that are configurable in the field and a long list of items that can be monitored by access control software. Please consult one of our Software Alliance Members for details on the integration of specific features.

Features and benefits

§ Open architecture platform
§ Panel interface options ensure seamless communication with your system
§ Non-invasive installations for historic buildings and sensitive areas
§ Secure encrypted data transmission
§ Unique communication protocols that won't interfere with other wireless networks
§ Patent-pending wireless feature enables centralized lockdown in less than 10 seconds while still optimizing battery life up to 2 years
§ Wireless accessories available for remote, gate, elevator and portable (mustering) applications
§ Allows use of current aptiQ (Schlage) mobile credential utilizing NFC technology1
§ ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL10C, FCC Part 15, ADA, RoHS, Industry Canada (IC), FL124002, FL15912, FL130132 and FL144822

¹ Refer to the Schlage/aptiQ mobile credential compatibility chart for a list of certified devices.

² Applies to cylindrical and mortise chassis only

Reliable communications

Secure and reliable wireless communication with the Panel Interface Module (PIM) is accomplished using 900 MHz frequency. 900 MHz band enables longer transmission ranges because signal propagation with longer wavelengths travel a greater distance and better penetrate typical building construction – allowing for simplified system design.

Wake-Up on Radio

This feature enables implementation of wireless locks in applications where centralized lockdown or unlock is required. 'Wake Up on Radio' utilizes patent-pending technology to enable real-time activation at a remote battery-powered wireless lock. The technology is configurable from 10 to 1 second increments. When Wake-Up on Radio is used in critical applications Dynamic Channel Switching should also be enabled.

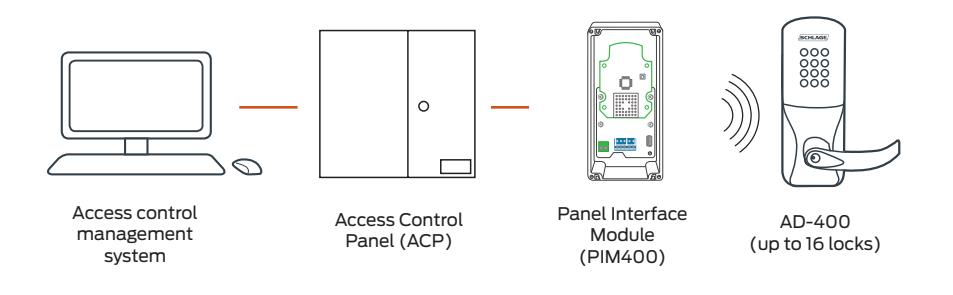

Panel Interface Module (PIM400)

The PIM400 (sold separately) is required for communication between the AD-400 wireless lock and the access control panel, and can support up to 16 locks depending on your access control system.

Schlage • AD-400

Modulation	900 MHz spread spectrum, direct sequence, 10 channels
Frequency range	902-928 MHz
Transmission/encryption	AES-128 bit key
Credential verification time	< 1 second1
Wake-Up on Radio	Responds to lock/unlock command from host in less than 10 seconds in battery powered applications (per field configuration)
Communication range	Up to 200 ft with obstructions (normal building construction), up to 1000 ft clear line of sight
RF interference avoidance	Configurable dynamic channel switching
Data rate	RF: 40 kbps
Visual/audible communications	Tri-colored LED's and audible indicators (field configurable)
System interface	RS-485, Wiegand, or Clock & Data via PIM400 to host
Power supply	4AA, 8AA, 12 VDC or 24 VDC
Voltage range	4 VDC to 26 VDC
Max current requirement	Up to 250 mA
Battery life	Up to 2 yrs with 4AA
Operating temperature/ exterior	-31° to 151°F (-35° to 66°C)
Operating temperature/ interior	32° to 120°F (0° to 49°C) (battery)
Operating humidity	0 - 100% non-condensing
Certifications	ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL10 C, FCC Part 15, ADA, RoHS
Accessories	Panel Interface Module (PIM400), Handheld Device (HHD), remote antennas for PIM400 to extend range, Dry Contact Relay Board (RLBD) may be required for supervised inputs (Wiegand systems)

Functions

§ Classroom/storeroom2
§ Office2, ³
§ Privacy3
§ Apartment3

Available status signals

§ Lock/unlock status4
§ Request-to-exit
§ Door position
§ Mechanical key override3
§ Deadbolt position3
§ Interior push button3
§ Interior cover tamper guard3
§ Battery status
§ Communication status3
§ Request-to-enter3

¹ Lock requires less than 100 msec, response time does not include latency time of ACP.
² Classroom/storeroom and office function not available with mortise deadbolt option.
³ Consult your access control software provider for specific scope of support. Interior pushbutton, mechanical key override and deadbolt position are only available when linked via PIM400-485.
⁴ Software indicates lock/unlock status based on sequence of events, but cannot validate mechanical clutch position unless monitored on RS-485 connection.

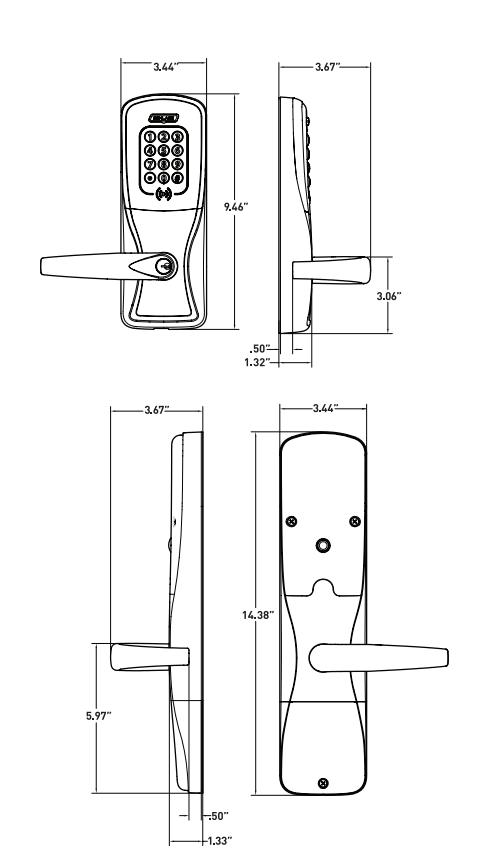

Mechanical specifications Chassis Cylindrical Mortise Exit trim Handed to order, field reversible Handing ANSI standard A156.25 A156.25 A156.25 A156.2 Series 4000 A156.3 (Meets or A156.13 Series 1000 exceeds) Grade 1 Door thickness $1^{3}/4$ " standard, $1^{3}/8$ " to $2^{3}/4$ " optional (available in 1/8" increments) Standard: 23/4" 2 3/4" only Defined by Backset Optional: 23/8", 33/4", 5" exit device Standard: 3/4" throw Standard: 1/2" throw Provided by Latch bolt Optional: 3/4" throw Optional: 1" throw on exit device mortise deadbolt Levers Pressure cast zinc, plated Standard: 13/16" lip, ANSI, 11/4" x 47/8" Provided by Strike Optional: Additional configurations available exit device please see price book Schlage® 6-pin Everest 29 S123 keyway Conventional cylinder with two patented Cylinder keys standard. Additional options available including SFIC, FSIC and competitor and keys brands. See lever and cylinder compatibility data sheet (010432)

Multi-technology reader specification
Frequency	125 kHz proximity 13.56 MHz smart
Standards	ISO 15693 ISO 14443
Read range	Up to 1.25" on 125 kHz proximity Up to 0.75" on 13.56 MHz smart
125 kHz proximity credential use	Compatibility: Schlage, XceedID®, HID®, GE/CASI ProxLite®, AWID® and LenelProx® Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob and PVC adhesive disk
13.56 MHz smart credential use	Secure sector compatibility: Schlage and aptiQ® MIFARE Classic®, XceedID, Schlage MIFARE Plus®, Schlage and aptiQ MIFARE® DESFire® EVI with PACSA, PIV and PIV-I¹; aptiQ (Schlage) mobile credential utilizing NFC technology CSN only compatibility: DESFire, HID iClass®, Inside Contactless Pico Tag® MIFARE, MIFARE DESFire EVI, ST Microelectronics®, Texas Instruments Tag-It®, Phillips I-Code® Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, wearable wristband, NFC mobile, PVC patch
Certifications/standards	FCC, Industry Canada (IC), UL 294 Listed, ISO standard 15693 and ISO standard 14443
Options	12 button, 3x4 matrix backlit keypad

1 FIPS 201-2 integration ready option available: The AD Series can be used in applications which require approval by the U.S. Federal Government under HSPD-12 for FIPS 201-2 compliance when installed as part of a tested and approved integrated solution. Please see the AD-402 data sheet or AD-302 data sheet for complete details.

<sup>2</sup> 75 bit output format default. Configurable to other output formats.
Please refer to the Schlage/aptiQ mobile credential compatibility chart for a list of certified devices.

Available AD Series reader modules

Multi-technology Proximity Proximity Smart card

Smart - iClass

Smart - iClass compatible Smart card

Magnetic stripe

Magnetic stripe (insertion)

AD Series exit trim:

AD-400 exit trim is exclusively compatible with Von Duprin 98/99 and 98/99XP (Rim. Mortise, and SVR. CVC and CVR on metal doors only), Von Duprin 22/22F (Rim and SVR) and Falcon 25 (Rim) exit devices made by Allegion. The proper low current request-to-exit switch (RX-LC or AE) is required.

Part numbers for request-to-exit switch:

Von Duprin: 050281
Falcon: 650359

Benefits of AD Series multi-technology readers:

Reads multiple brands of both proximity (125 kHz) and smart (13.56 MHz) technologies with single reader
Allows use of current aptiQ (Schlage) mobile credential utilizing NFC technology<sup>3</sup>
Allows facility to migrate to more secure credential technologies over time and as budgets permit

Additional readers

Smart - iClass compatible

Smart card reader only
Reads secure sector of HID iClass, iClass SE, iClass SEOS, iClass Standard Key, and iClass Elite Key; Schlage MIFARE Classic, MIFARE Plus, and MIFARE EV1
BLE mobile credential not supported

Magnetic stripe

Available with choice of insertion or swipe style readers
Triple track reader (1, 2 or 3), field configurable
ABA, ISO76XX standard

Keypad

Backlit keypad
12 button, 3x4 matrix

Magnetic stripe (swipe)

Keypad

NFC mobile

Ordering information

Available through one of our GSA schedule 84 approved distributions; BAA options available

AD-400-CY-70-MG-SPA-626-PD-S123-RH-4B-13-049-10-025-13/4

Series	Class	Chassis	Function	Reader	Lever	Finish	Lever	Keying type	Handing	Battery	Backset & latch	Strike	Door
1	2	3	4	5	б	7	8	9	10	11	12	13	14

Selections correspond with the numbers above

Standard options are indicated in bold. See price book for specific configuration options.

3	Chassis
CY	Cylindrical
MS	Mortise
MD	Mortise deadbolt
993R	Exit trim – Rim/CVC/CVR
993S	Exit trim – SVR
993M	Exit trim – mortise
993DT	Non-functioning dummy
	trim for exit
4	Function
70	Classroom/storeroom
50	Office
40	Privacy
60	Apartment
	n capabilities are determined by users
access contr	rol system
_	Dondor

access control system
5	Reader
KP	Keypad
MG	Magnetic stripe (insertion)
MGK	Magnetic stripe + keypad (insertion)
MS	Magnetic stripe (swipe)
MSK	Magnetic stripe + keypad (swipe)
MT	Multi-technology
	(125kHz and 13.56 MHz)
MTK	Multi-technology + keypad
	(125kHz and 13.56 MHz)
FMK	FIPS 201-1 compliant
	multi-technology + keypad
	(125 kHz and 13.56 MHz)
Si	Smart-iClass compatible
SiK	Smart-iClass compatible
	+ keypad
DT	Dummy trim


6	Lever
ATH	Athens
BRK	Boardwalk
BRW	Broadway
LAT	Latitude
LON	Longitude
RHO	Rhodes
SPA	Sparta
TLR	Tubular
Available	with tactile warning options
7	Einich

PD	Schlage 6-pin Conventional kev-
8	Lever cylinder type
626AM	Satin chrome antimicrobial
643e	Aged bronze
625	Bright chrome
619	Satin nickel
612	Satin bronze
606	Satin brass
605	Bright brass
626	Satin chrome
7	Finish
Available with tactile warning options

in-lever cylinder See price book for other SFIC, FSIC and less cylinder options available. Compatible with Schlage®, Sargent®, Corbin Russwin, Medeco® and Yale®.

9	Keyway type
S123	Everest 29

See price book for other available keyway options including restricted keyways in Primus XP high security cylinders and master keying

10	Handing
RH	Right handed
LH	Left handed
Field reve	ersible

Battery 4B 4 AA 8B 844 12 Backset & latch or armor front Cylindrical

13-049 2 3/4" backset, deadlatch,

square corner, 1 1/8" x 2 1/4" Mortise

09-663 Armor front, 11/4" wide, square corner

See price book for mortise deadbolt and other backset and

latch option	latch options or armor front options
13	Strike
Cylindric	al
10-025	1 ³ / ₁₆ " lip, ANSI, no box,
	11/4" x 47/8"
Mortise
10-072	13/16" lip. 11/4" x 47/8"

square corner, box

See price book for other available strikes Door thickness

13/4" Other thicknesses available between $1^{3}/_{8}$ " and $2^{3}/_{4}$ "

See price book for detail

Finishes

Satin nickel

619

Bright chrome

626 Satin chrome

626AM Satin chrome with antimicrobial
