AD-200

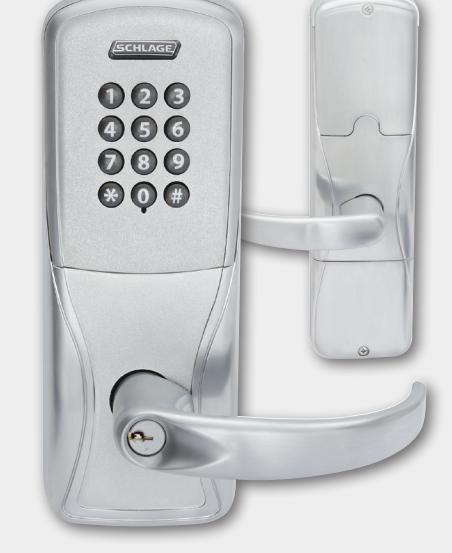

Standalone electronic lock

Overview

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door.

Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings.

The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don't require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future.

On all AD Series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features and benefits

• § Security that's more intelligent and convenient than traditional mechanical locking devices
• § Audit trail reports that allow you to track usage and events
• § Update users and access rights at the lock using the keypad or handheld device
• § The ability to upgrade to a networked solution without removing the lock from the door
• § Available in cylindrical, mortise, mortise deadbolt and exit trim
• § Compatible with major brands of master key systems and exit devices
• § Hardwired remote push button release capability
• § Allows use of current aptiQ (Schlage) mobile credential utilizing NFC technology1
• § ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS, FL124002, FL15912, FL130132 and FL144822
• ¹ Refer to the Schlage/aptiQ mobile credential compatibility chart for a list of certified devices.
• ² Applies to cylindrical and mortise chassis only

Allegion, the Allegion logo, aptiQ, Falcon, Schlage, the Schlage logo, Von Duprin and XceedID and are trademarks of Allegion plc, its subsidiaries and/or affiliates in the United States and other countries. All other trademarks are the property of their respective owners.

AD-200 electronic lock specifications
Users	Up to 5000
Audits	Up to 5000
Credential verification time	≤ 1 second1
Visual/audible communications	Tri-colored LEDs and audible indicators (field configurable)
System interface	Handheld Device (HHD)
Power supply	4AA, 8AA, 12 VDC or 24 VDC
Voltage range	4 VDC to 26 VDC
Max current requirement	Up to 250 mA
Battery life	Up to 2 yrs with 4AA
Operating temperature - exterior	-31° to 151°F (-35° to 66°C)
Operating temperature - interior	32° to 120°F (0° to 49°C) (battery)
Operating humidity	0 - 100% non-condensing
Certifications	ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
Accessories	Handheld Device (HHD)

Functions

• § Classroom/storeroom2
• § Office2
• § Privacy
• § Apartment

Standard status signals

• § Lock/unlock status
• § Mechanical key override
• § Battery status

Schlage Utility Software on Handheld Device

The Schlage Utility Software (SUS) on the Handheld Device (HHD) provides an easy way to manage people, audits and locks for simple access control management.

Schlage Utility Software

• § Initialize lock and accessories
• § Field configure devices
• Credential reader formats
• Lock function
• Unlock period
• Failure mode
• Audible alarm on/off
• § Service and diagnostics
  • Battery status
  • Validate hardware and software revision
• Troubleshooting status signals
• § New device template simplifies configuration

HHD

• § 3.5 inch display
• § Touch screen/keypad backlit
• § 32-bit processor
• § OS: Windows Mobile 6.5
• § Memory: 128 MB RAM/ 256 MB ROM
• § Battery: rechargeable Li-ion
• § Dimensions: 5.1" x 2.8" x 0.65" (13.0 cm x 7.2 cm x 1.7 cm)
• § Weight: 0.42 lbs (190 g)
• § 5 ft (1.2 m) drop to steel surface, 2 drops per 6 sides

The HHD connects with AD Series and CO Series locks and accessories via the USB interface

For replacement HHD devices with a serial cable connection, please contact Technical Support at 877.671.7011.

¹ Verification time is dependent on size of user base

² Classroom/storeroom and office function not available with mortise deadbolt option.

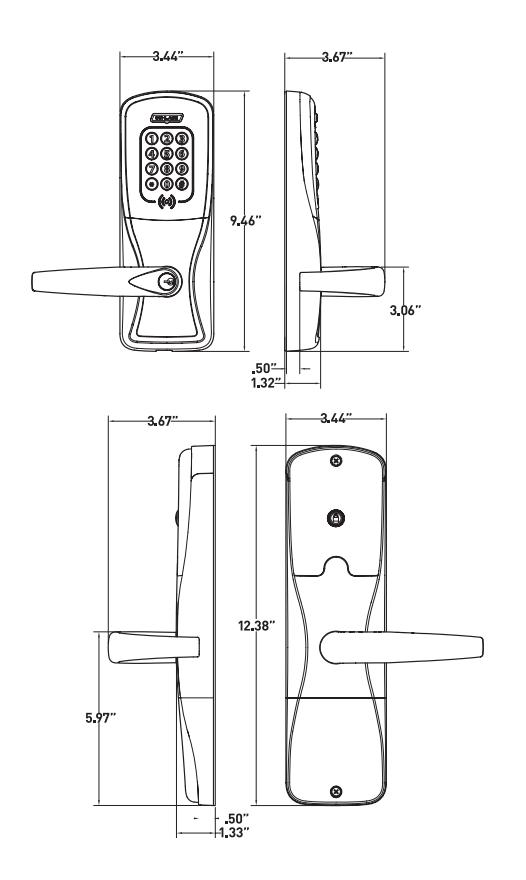

Mechanical specifications Chassis Cylindrical Mortise Exit trim Handed to order, field reversible Handing ANSI standard A156.25 A156.25 A156.25 A156.2 Series 4000 A156.13 Series 1000 (Meets or A156.3 exceeds) Grade 1 Grade 1 Door thickness $1^\{3\}/4$ " standard, $1^\{3\}/8$ " to $2^\{3\}/4$ " optional (available in 1/8" increments) Standard: 23/4" 2 3/4" only Defined by Backset Optional: 23/8", 33/4", 5" exit device Standard: 3/4" throw Standard: 1/2" throw Provided by Latch bolt Optional: 3/4" throw Optional: 1" throw on exit device mortise deadbolt Levers Pressure cast zinc, plated Standard: 13/16" lip, ANSI, 11/4" x 47/8" Provided by Strike Optional: Additional configurations available exit device please see price book Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented Cylinder keys standard. Additional options available including SFIC, FSIC and competitor and keys brands. See lever and cylinder compatibility data sheet (010432)

Multi-technology reader specification
Frequency	125 kHz proximity and 13.56 MHz smart card
Standards	ISO standard 15693 and ISO 14443
Maximum read range	Up to 1.25" on 125 kHz proximity, up to 0.75" on 13.56 MHz smart card
125 kHz proximity credential use	Compatibility: Schlage, XceedID, HID, GE/CASI ProxLite, AWID and LenelProx. Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, and PVC adhesive disk
13.56 MHz proximity credential use	Secure sector compatibility: Schlage and aptiQ™ MIFARE Classic®, XceedID, Schlage MIFARE Plus®, Schlage and aptiQ MIFARE® DESFire® EVI with PACSA, PIV and PIV-I³⁴; aptiQ (Schlage) mobile credential utilizing NFC technology CSN only compatibility: DESFire, HID iClass®, Inside Contactless Pico Tag® MIFARE, MIFARE DESFire EVI, ST Microelectronics®, Texas Instruments Tag-It®, Phillips I-Code® Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, wearable wristband, NFC mobile, PVC adhesive patch
Certifications/standards	FCC, UL 294 Listed, ISO standard 15693, and ISO standard 14443
Style/layout	Option for 12 button, 3x4 matrix backlit keypad

• Request-to-exit switch optional for future network migration
• ² Narrow design and reversible rim exits not compatible
• ³ 75 bit output format default. Configurable to other output formats. Check with access control provider for specific support
• 4 Smart card functionality dependant on access control software
• 5 Refer to the Schlage/aptiQ mobile credential compatibility chart for a list of certified devices

AD Series exit trim

Installed with a universal mounting plate, the AD Series exit trim is compatible with the following exit devices:

• Von Duprin 98/99 & 98/99XP¹ Rim. surface vertical rod. mortise. Concealed vertical cable and concealed vertical rod on metal doors only.
• Von Duprin 22/22F¹ Rim, surface vertical rod
• Falcon 25¹ Rim
• Sargent® 80² Series Rim
• Precision™ 21 Rim 2100 converts to 21 with Precision's BP21 kit
• Corbin Russwin® 5000 Series Rim
• Yale® 7000 Rim
• Dorma® 9300 Rim

Benefits of AD Series multi-technology readers:

• Reads multiple brands of both proximity (125 kHz) and smart (13.56 MHz) technologies with single reader
• Allows use of current aptiQ (Schlage) mobile credential utilizing NFC technology3
• Allows facility to migrate to more secure credential technologies over time and as budgets permit

Additional readers

Smart - iClass compatible

• Smart card reader only
• Reads secure sector of HID iClass, iClass SE, iClass SEOS, iClass Standard Key, and iClass Elite Key; Schlage MIFARE Classic, MIFARE Plus, and MIFARE EV1
• BLE mobile credential not supported

Magnetic strine

• Available with choice of insertion or swipe style readers
• Triple track reader (1, 2 or 3), field configurable
• ABA, ISO76XX standard

Keypad

• Backlit keypad
• 12 button, 3x4 matrix

Available AD Series reader modules

Proximity

NFC mobile

Smart card

KEYPAD

Smart - iClass

compatible Smart card

(insertion) ■ KEYPAD

(insertion)

Magnetic stripe (swipe) ■ KEYPAD

Magnetic stripe (swipe)

Kevpad

Multi-technology

Proximity

NFC mobile

Ordering information

Available through one of our GSA schedule 84 approved distributions; BAA options available

AD-200-CY-70-MG-SPA-626-PD-S123-RH-4B-13-049-10-025-1 3/4

Series	Class	Chassis	Function	Reader	Lever	Finish	Lever	Keying type	Handing	Battery	Backset and latch	Strike	Door
1	2	3	4	5	6	7	8	9	10	11	12	13	14

Selections correspond with the numbers above

Standard options are indicated in bold. See price book for specific configuration options.

3	Chassis
CY	Cylindrical
MS	Mortise
MD	Mortise deadbolt
993R	Exit trim – Rim/CVC/CVR
9935	Exit trim – SVR
993M	Exit trim – mortise
993DT	Non-functioning dummy
	trim for exit
4	Function
70	Classroom/storeroom
50	Office
40	Privacy
60	Apartment
5	Reader
KP	Keypad
MG	Magnetic stripe (insertion)
MGK	Magnetic stripe + keypad (insertion)
MS	Magnetic stripe (swipe)
MSK	Magnetic stripe + keypad (swipe)
MT	Multi-technology
	(125kHz and 13.56 MHz)
MTK	Multi-technology + keypad
	(125kHz and 13.56 MHz)
Si	Smart - iClass compatible
SiK	Smart - iClass compatible + keypad
DT	Dummy trim

6	Lever
ATH	Athens
BRK	Boardwalk
BRW	Broadway
LAT	Latitude
LON	Longitude
RHO	Rhodes
SPA	Sparta
TLR	Tubular
Available w	ith knurled surface
7	Finish
626	Satin chrome
605	Bright brass
606	Satin brass
612	Satin bronze
619	Satin nickel
625	Bright chrome
643e	Aged bronze
626AM	Satin chrome antimicrobial
8	Lever cylinder type
PD	Schlage 6-pin Conventional
	key-in-lever cylinder
See price book for other SFIC, FSIC and less cylinder options available. Compatible with Schlage, Sargent, Corbin, Medeco

S123 Everest 29 See price book for other available keyway options including restricted keyways in Primus XP high security cylinders and master keying 10 Handing RH Right handed LH Left handed Field reversible

Battery 4B 4AA 8B 8AA 12 Backset and latch or armor front Cvlindrical 13-049 2 3/4" backset, deadlatch, square corner, 1 1/8" x 2 1/4" Mortise 09-663 Armor front, 1 1/4" wide. square corner See price book for mortise deadbolt and other backset and latch options or armor front options Strike Cylindrical 1 3/16" lip, ANSI, no box, 10-025 11/4" x 47/8" Mortise 10-072 13/16" lip, 11/4" x 47/8" square corner, box See price book for other available strikes 14 Door thickness 13/4" Other thicknesses available between

Finishes

$1^\{3\}/8$ " and $2^\{3\}/4$ "

See price book for detail

11

Satin bronze

Cool tone finishes

Satin nickel

Bright chrome

Satin chrome

626AM Satin chrome with antimicrobial

Lever styles

ntional cylinders shown, SFIC and FSIC also available

Longitude

and Yale. 9

Keyway type

About Allegion

Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands like CISA, Interflex, LCN, Schlage, SimonsVoss and Von Duprin. Focusing on security around the door and adjacent areas, Allegion produces a range of solutions for homes, businesses, schools and other institutions. Allegion is a $2 billion company, with products sold in almost 130 countries. For more, visit www.allegion.com.

© 2019 Allegion 004442, Rev. 02/19 www.allegion.com/us
