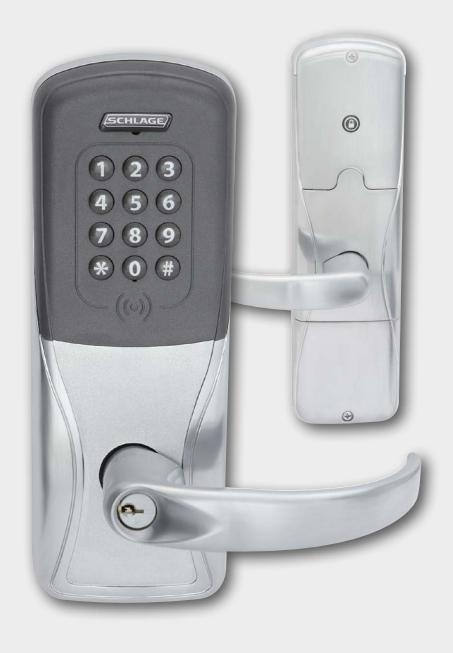

AD-300

Networked hardwired electronic lock

AD Series electronic locks from Schlage® are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and changed to meet future needs without removing it from the door.

Factory orderable options include choices of credential readers, chassis type, network configurations, locking functions, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings.

To simplify installation, the AD Series combines all the hardware components required at the door for a complete access control system into one integrated design that includes the electrified lock, credential reader, request-to-exit and request-to-enter sensors, door position switch, tamper switch and more.

The AD-300 has a number of features built-in that are configurable in the field and a long list of items that can be monitored by access control software. Please consult one of our Physical Access Control Software (PACS) providers for details on the integration of specific features.

Features and benefits

§ Open architecture platform
§ Panel interface options ensure seamless communication with your system
§ Real-time communication between access control system and lock
§ Field configurable fail safe/fail secure and other capabilities per code
§ Available in cylindrical, mortise, mortise deadbolt and exit trim
§ Compatible with major brands of master key systems
§ A wide selection of credential readers and networking options to choose from
§ Compatible with NFC mobile credentials on iOS and Android platforms 1
§ ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL10C, FCC Part 15, ADA, RoHS, Industry Canada (IC), FL124002, FL15912, FL130132 and FL144822

CYBERSECURITY

Learn about Allegion's commitment

¹ Check with PACS provider for specific support of Mobile Student IDs in Apple Wallet and Google Pay

² Applies to cylindrical and mortise chassis only


Credential verification time	< 1 second1
Data rate	RS-485 : 9.6 kbps
Visual/audible communications	Tri-colored LED's and audible indicators (field configurable)
System interface	Wiegand or Clock & Data via PIB300 or RS-485 directly
Power supply	12 VDC or 24 VDC
Voltage range	4 VDC to 26 VDC
Max current requirement	Up to 250 mA
	Cable specifications for power 18AWG, 2 conductor (Belden 8760 or equivalent)
Cable distance for power	AD-300 to power supply: up to 1000 ft (303 m)
Cable specifications for data	24AWG, 2 or 4 conductor shielded (Belden 9841, 9842 or equivalent)
Cabling distance for data	AD-300 to PIB300 or ACP, RS-485: up to 4000 ft (1219 m)
Operating temperature	-31° to 151°F (-35° to 66°C)
Operating humidity	0 - 100% non-condensing
Certifications	ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL10 C, FCC Part 15, ADA, RoHS
Accessories	Panel Interface Board (PIB300), SUS-A Cable used with SUS Android mobile app, Dry Contact Relay Board (RLBD) may be required for supervised inputs (Wiegand systems)

PIB300-2D specifications


Communication range	PIB300 to lock, RS-485: up to 4000 ft (1219 m) PIB300 to ACP, Wiegand or Clock & Data: up to 500 ft (152 m)
Visual/audible	13 LEDs for status indicators
System interface	Wiegand or Clock & Data
Power supply	12 VDC or 24 VDC
Voltage range	9.5 VDC to 26 VDC
Max current requirement	Up to 250 mA
Operating temperature	-31° to 151°F (-35° to 66°C)
Dimensions (H x W x D)	7.1" x 7.1" x 3.0" (18.0 cm x 18.0 cm x 7.6 cm)
Weight	1.25 lb (.57 kg)
Cable specifications (PIB300 to ACP)	22AWG, 8 conductor shielded (Alpha 1298C or equivalent)
Certifications	NEMA 1, 4, 4X, 6; UL 294; FCC Part 15; RoHS

¹ Lock requires less than 100 msec, response time does not include latency time of ACP.
² Classroom/storeroom and office function not available with mortise deadbolt option.
³ Consult your PACS provider for specific scope of support. Interior pushbutton, mechanical key override and deadbolt position are only available when linked via PIM400-485.
⁴ Not available on exit trim.
⁵ Software indicates lock/unlock status based on sequence of events, but cannot validate mechanical clutch position unless monitored on RS-485 connection.

Functions

§ Classroom/storeroom2
§ Office2, 3, 4
§ Privacy3, 4
§ Apartment3, 4

Available status signals

§ Lock/unlock status5
§ Request-to-exit
§ Door position
§ Mechanical key override 3
§ Deadbolt position 3
§ Interior cover tamper guard3
§ Communication status3
§ Interior push button3
§ Request-to-enter3

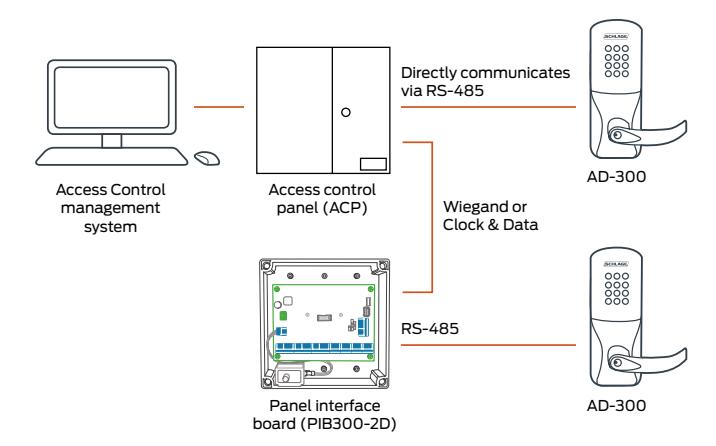

Panel Interface Board (PIB300-2D)

If the system requires Wiegand or Clock & Data protocol (rather than a direct RS-485 connection), the AD Series open architecture platform connects up to two AD-300 locks to the Panel Interface Board (PIB300 - sold separately, if required) that seamlessly connects to an access control panel or reader interface board. All monitoring is captured at the remote monitoring station.

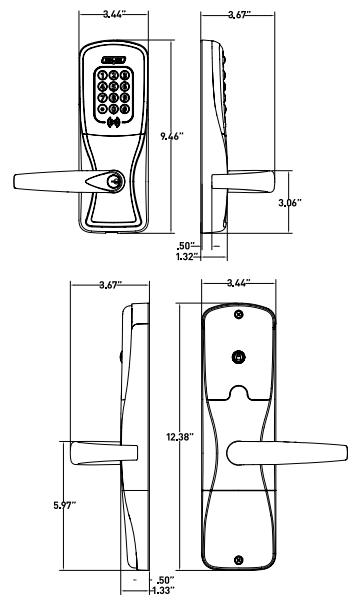

Mechanical	specifications
Chassis	Cylindrical	Mortise	Exit trim
Handing	На	anded to order, field reversible
ANSI standard (Meets or exceeds)	A156.25 A156.2 Series 4000 Grade 1	A156.25 A156.13 Series 1000 Grade 1	A156.25 A156.3
Door thickness	1 3/4" standard, 1 3/8" to 2 3/4" optional (available in 1/8" increments)
Backset	Standard: 2 ³ / ₄ " Optional: 2 ³ / ₈ ", 3 ³ / ₄ ", 5"	2 ³ /4" only	Defined by exit device
Latch bolt	Standard: 1/2" throw Optional: 3/4" throw	Standard: 3/4" throw Optional: 1" throw on mortise deadbo	Provided by exit device
Levers		Pressure cast zinc, plated
Strike	Standard: 13/16" lip, ANSI, 1 Optional: Additional confi please see price	Provided by exit device
Cylinder and keys	Schlage® 6-pin Everest 29 S123 keyway Conventional cylinder with two patented keys standard. Additional options available including SFIC, FSIC and competitor brands. See lever and cylinder compatibility data sheet (010432)

Multi-technology	reader specification
Credential technologies	Proximity (125 kHz), Smart (13.56 MHz) and Near Field Communication (NFC)
Standards	Standards ISO standard 15693 and ISO 14443
Maximum read range	Proximity: up to 1.25" Smart: up to .75" NFC mobile: mobile device dependent
Proximity credential compatibility	Compatibility: Schlage, ISONAS™, HID®, GE/CASI ProxLite®, AWID® and LenelProx® Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, PVC adhesive disk
Smart credential compatibility	Secure sector compatibility: Schlage MIFARE Classic®, Schlage MIFARE Plus®, Schlage MIFARE® DESFire® EV1 and EV2 with PACSA, PIV and PIV-I ^1,2 CSN only compatibility: DESFire, HID iClass®, Inside Contactless Pico Tag®, MIFARE, MIFARE DESFire EV1 and EV2, ST Microelectronics®, Texas Instruments Tag-It®, Phillips I-Code® Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, wearable wristband, PVC adhesive patch
Mobile credential compatibility	NFC-enabled mobile devices ³
Certifications/standards	FCC, Industry Canada (IC), UL 294 Listed, ISO standard 15693, and ISO standard 14443
Style/layout	Option for 12 button, 3x4 matrix backlit keypad

FIPS 201-2 integration ready option available: The AD Series can be used in applications which require approval by the U.S. Federal Government under HSPD-12 for FIPS 201-2 compliance when installed as part of a tested and approved integrated solution. Please see the AD-402 data sheet or the AD-302 data sheet for complete details.
75 bit output format default. Configurable to other output formats.
Check with PACS provider for specific support of Mobile Student IDs in Apple Wallet and Google Pay.

Available AD Series reader modules

Multi-technology

Smart - iClass compatible Smart card

Magnetic stripe

Magnetic stripe (insertion)

AD Series exit trim:

AD-300 exit trim is exclusively compatible with Von Duprin® 98/99 and 98/99XP (Rim, Mortise, and SVR. CVC and CVR on Metal doors only), Von Duprin 22/22F (Rim and SVR) and Falcon® 25 (Rim) exit devices made by $Allegion^{\mathsf{m}}$ . The proper low current request-to-exit switch (RX-LC or AE) is required.

Part numbers for request-to-exit switch:

Von Duprin: 050281
Falcon: 650359

Benefits of AD Series multi-technology readers:

Reads multiple brands of both proximity (125 kHz) and smart (13.56 MHz) technologies with single reader
Compatible with NFC mobile credentials on iOS and Android platforms 3
Allows facility to migrate to more secure credential technologies over time and as budgets permit

Additional readers

Smart only - iClass compatible

Reads secure sector of HID iClass, iClass SE, iClass SEOS, iClass Standard Key, and iClass Elite Key; Schlage MIFARE Classic, MIFARE Plus, and MIFARE DESFire EV1 and EV2
Reads NFC mobile credential. Bluetooth mobile credential not supported
Proximity not supported

Magnetic stripe

Available with choice of insertion or swipe style readers
Triple track reader (1, 2 or 3), field configurable
ABA, ISO76XX standard

Backlit keypad
12 button, 3x4 matrix

(swipe)

■ KEYPAD

Magnetic stripe (swipe)

Keypad

NFC mobile

■ KEYPAD

Ordering information

Available through one of our GSA schedule 84 approved distributions; BAA options available

AD-300-CY-70-MG-SPA-626-PD-S123-RH-13-049-10-025-13/4

Series	Class	Chassis	Function	Reader	Lever	Finish	Lever	Keying type	Handing	Backset and latch	Strike	Door
1	2	3	4	5	6	7	8	9	10	11	12	13

Selections correspond with the numbers above

Standard options are indicated in bold. See price book for specific configuration options.

	· · · · · · · · · · · · · · · · · · ·
3	Chassis
CY	Cylindrical
MS	Mortise
MD	Mortise deadbolt
993R	Exit trim – Rim/CVC/CVR
9935	Exit trim – SVR
993M	Exit trim – mortise
993DT	Non-functioning dummy
	trim for exit
4	Function
70	Classroom/storeroom
50	Office
40	Privacy
60	Apartment
	ion capabilities are determined by users atrol system
5	Reader
KP	Keypad
MG	Magnetic stripe (insertion)
MGK	Magnetic stripe + keypad (insertion)
MS	Magnetic stripe (swipe)
MSK	Magnetic stripe + keypad (swipe)


access control system
5	Reader
KP	Keypad
MG	Magnetic stripe (insertion)
MGK	Magnetic stripe + keypad (insertion
MS	Magnetic stripe (swipe)
MSK	Magnetic stripe + keypad (swipe)
MT	Multi-technology
	(125 kHz, 13.56 MHz, NFC)
MTK	Multi-technology + keypad
	(125 kHz, 13.56 MHz, NFC)
FMK	FIPS 201-2 compliant
	multi-technology + keypad
	(125 kHz and 13.56 MHz)
Si	Smart – iClass compatible
SiK	Smart – iClass compatible
	+ keypad
DT	Dummy trim

DOOK IOI	specific cornigoration options.
6	Lever
ATH	Athens
BRK	Boardwalk
BRW	Broadway
LAT	Latitude
LON	Longitude
RHO	Rhodes
SPA	Sparta
TLR	Tubular
Available	with tactile warning options
7	Finish
626	Satin chrome
605	Bright brass

7	Finish
626	Satin chrome
605	Bright brass
606	Satin brass
612	Satin bronze
619	Satin nickel
625	Bright chrome
643e	Aged bronze
626AM	Satin chrome antimicrobial
8	Lever cylinder type

PD Schlage 6-pin Conventional key-in-lever cylinder

See price book for other SFIC, FSIC and less cylinder options available. Compatible with Schlage $^{\! \circ}\!,$ Sargent $^{\! \circ}\!,$

Corbin Russwin, Medeco® and Yale®.
9	Keyway type
S123	Everest 29
See price book for other available keyway options including
restricted keyways in Primus XP high security cylinders and

10 Handing RH Right handed Left handed

Field reversible

ΙH

Backset and latch or armor front Cylindrical 13-247 23/4" backset, deadlatch, square corner, 1 1/8" x 2 1/4"

Mortise

Armor front, 1 1/4" wide, 09-663 square corner

See price book for mortise deadbolt and other backset and

taterroptions or armor from options
12	Strike
Cylindric	al
10-025	1 ³ / ₁₆ " lip, ANSI, no box,

11/4" x 47/8" Mortise

10-072 13/16" lip, 11/4" x 47/8" square corner, box

See price book for other available strikes

13 Door thickness

13/4"

Other thicknesses available between 13/8" and 23/4"

See price book for detail

Finishes

Warm tone finishes

Bright brass

Aged bronze

Satin nickel

625

Bright chrome

Satin chrome Satin chrome with

Allegion, the Allegion logo, Falcon, Schlage, the Schlage logo, and Von Duprin are trademarks of Allegion plc, its subsidiaries and/or affiliates in the United States and other countries. All other trademarks are the property of their respective owners.

Lever styles

SEIC and ESIC also available

Rhodes

Tubular
