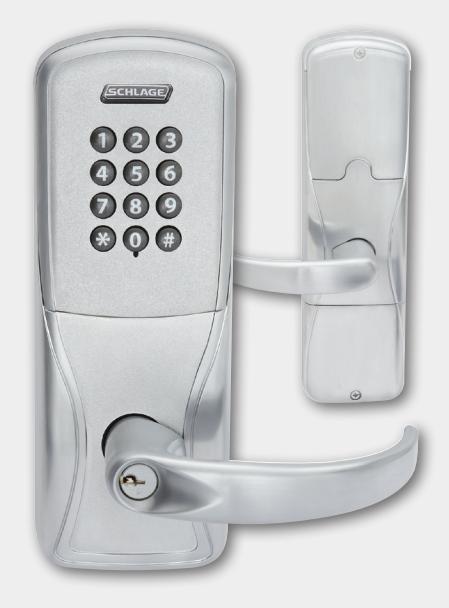

AD-200

Standalone electronic lock

Overview

AD Series electronic locks from Schlage are designed to be modular and provide more options to choose from, more functionality in the lock and more compatibility with existing systems. Its patent-pending modular design allows the lock to be customized to fit the needs of an application now, and can change to meet future needs without removing it from the door.

Factory orderable options include choices of credential readers, chassis type, locking functions, power options, lever styles and finishes. It also offers a wide selection of features that can be configured in the field to customize your openings.

The AD-200 is a simple, economical solution if no access control system currently exists in facility, or for openings that don't require the control of a networked solution. The AD-200 is easily upgradable to a networked lock if requirements change in the future.

On all AD Series standalone locks, Schlage has built in many of the incremental features needed in a networked system such as request-to-exit and -enter sensors, interior cover tamper guard, as well as the door position switch. This way, if the customer chooses to network this opening in the future, all the components will be there to make the transition an easy one.

Features and benefits

• § Security that's more intelligent and convenient than traditional mechanical locking devices
• § Audit trail reports that allow you to track usage and events
• § Update users and access rights at the lock using the keypad or handheld device
• § The ability to upgrade to a networked solution without removing the lock from the door
• § Available in cylindrical, mortise, mortise deadbolt and exit trim
• § Compatible with major brands of master key systems and exit devices
• § Hardwired remote push button release capability
• § Programmable option for lighted occupancy indication2
• § ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS, FL124001 , FL15911 , FL130131 and FL144821

¹ Applies to cylindrical and mortise chassis only

² Available on privacy function locks manufactured after May 2019 with firmware version AD.A.126 or higher.

AD-200 electronic lock specifications
Users	Up to 5000
Audits	Up to 5000
Credential verification time	≤ 1 second1
Visual/audible communications	Tri-colored LEDs and audible indicators (field configurable)
System interface	Handheld Device (HHD)
Power supply	4AA, 8AA, 12 VDC or 24 VDC
Voltage range	4 VDC to 26 VDC
Max current requirement	Up to 250 mA
Battery life	Up to 2 yrs with 4AA
Operating temperature - exterior	-31° to 151°F (-35° to 66°C)
Operating temperature - interior	32° to 120°F (0° to 49°C) (battery)
Operating humidity	0 - 100% non-condensing
Certifications	ANSI/BHMA A156.25, ANSI/BHMA Grade 1, UL 294, UL 10C, FCC Part 15, ADA, RoHS
Accessories	Handheld Device (HHD) or SUS-A Cable used with SUS Android mobile app (available late 2020)

Functions

• § Classroom/storeroom2
• § Office2
• § Privacy
• § Apartment

Standard status signals

• § Battery status indicated by flashing LED light
• § Lock/unlock status
• § Mechanical key override
• § Occupied indicated by red LED light (privacy function only)

Schlage Utility Software

The Schlage Utility Software (SUS) on the Handheld Device (HHD), or compatible Android mobile devices (available late 2020) provides an easy way to manage people, audits and locks for simple access control management.

Schlage Utility Software

• § Initialize lock and accessories
• § Field configure devices
  • Credential reader formats
  • Lock function
  • Unlock period
  • Failure mode
• Audible alarm on/off
• § Service and diagnostics
• Battery status
• Validate hardware and software revision
• Troubleshooting status signals
• § New device template simplifies configuration

¹ Verification time is dependent on size of user base

² Classroom/storeroom and office function not available with mortise deadbolt option.

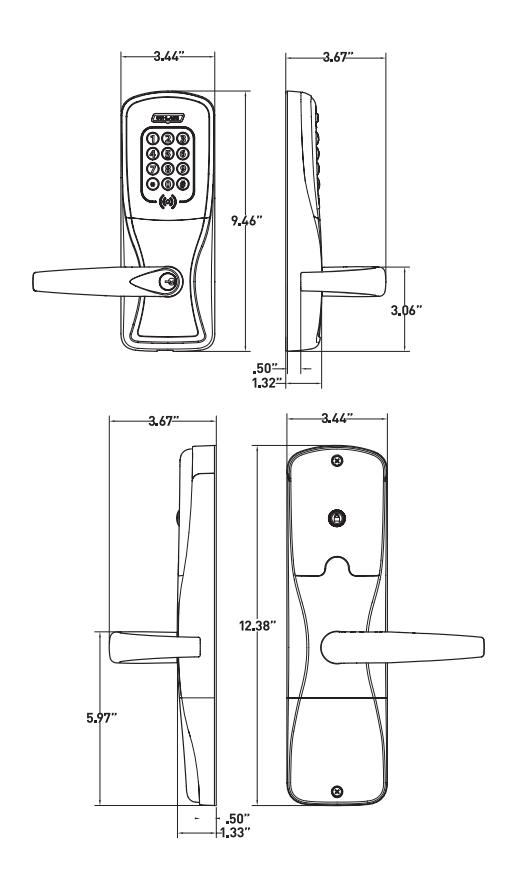

Mechanical specifications Chassis Cylindrical Mortise Exit trim Handing Handed to order, field reversible ANSI standard A156.25 A156.25 A156.25 A156.2 Series 4000 A156.13 Series 1000 (Meets or A156.3 exceeds) Grade 1 Grade 1 Door thickness $1^\{3\}/4$ " standard, $1^\{3\}/8$ " to $2^\{3\}/4$ " optional (available in 1/8" increments) Standard: 23/4" 2 3/4" only Defined by Backset Optional: 23/8", 33/4", 5" exit device Standard: 3/4" throw Standard: 1/2" throw Provided by Latch bolt Optional: 3/4" throw Optional: 1" throw on exit device mortise deadbolt Levers Pressure cast zinc, plated Standard: 13/16" lip, ANSI, 11/4" x 47/8" Provided by Strike Optional: Additional configurations available exit device please see price book Schlage 6-pin Everest 29 S123 keyway Conventional cylinder with two patented Cylinder keys standard. Additional options available including SFIC, FSIC and competitor and keys brands. See lever and cylinder compatibility data sheet (010432)

Multi-technology reader specification
Credential technologies	Proximity (125 kHz) and Smart (13.56 MHz)
Standards	ISO standard 15693 and ISO 14443
Maximum read range	Up to 1.25" on 125 kHz proximity, up to 0.75" on 13.56 MHz smart card
Proximity credential compatibility	Compatibility: Schlage,® ISONAS™, HID,® GE/CASI ProxLite,® AWID® and LenelProx® Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, PVC adhesive disk
Smart credential compatibility	Secure sector compatibility: Schlage MIFARE Classic®, Schlage MIFARE Plus®, Schlage MIFARE® DESFire® EVI and EV2 with PACSA, PIV and PIV-I 3,4 CSN only compatibility: DESFire, HID iClass®, Inside Contactless Pico Tag®, MIFARE, MIFARE DESFire EVI and EV2, ST Microelectronics®, Texas Instruments Tag-It®, Phillips I-Code® Schlage credential style formats: Clamshell, ISO card, ISO card with magnetic stripe, keyfob, thin keyfob, wearable wristband, PVC adhesive patch
Certifications/standards	FCC, UL 294 Listed, ISO standard 15693, and ISO standard 14443
Style/layout	Option for 12 button, 3x4 matrix backlit keypad

• Request-to-exit switch optional for future network migration
• ² Narrow design and reversible rim exits not compatible
• ³ 75 bit output format default. Configurable to other output formats. Check with access control provider for specific support
• 4 Smart card functionality dependant on access control software

AD Series exit trim

Installed with a universal mounting plate, the AD Series exit trim is compatible with the following exit devices:

• Von Duprin 98/99 & 98/99XP¹ Rim. surface vertical rod. mortise. Concealed vertical cable and concealed vertical rod on metal doors only.
• Von Duprin 22/22F¹ Rim, surface vertical rod
• Falcon 25¹ Rim
• Sargent® 80² Series Rim
• Precision™ 21 Rim 2100 converts to 21 with Precision's BP21 kit
• Corbin Russwin® 5000 Series Rim
• Yale® 7000 Rim
• Dorma® 9300 Rim

Benefits of AD Series multi-technology readers:

• Reads multiple brands of both proximity (125 kHz) and smart (13.56 MHz) technologies with single reader
• Allows facility to migrate to more secure credential technologies over time and as budgets permit

Additional readers

Smart - iClass compatible

• Smart card reader only
• Reads secure sector of HID iClass, iClass SE, iClass SEOS, iClass Standard Key, and iClass Elite Key; Schlage MIFARE Classic, MIFARE Plus, and MIFARE DESFire EV1 and EV2

Magnetic stripe

• Available with choice of insertion or swipe style readers
• Triple track reader (1, 2 or 3), field configurable
• ABA, ISO76XX standard

Keypad

• Backlit keypad
• 12 button, 3x4 matrix

Available AD Series reader modules

Multi-technology

Proximity

Smart card

Smart - iClass compatible Smart card

KEYPAD

Smart - iClass compatible Smart card

Magnetic stripe (insertion) ■ KEYPAD

Magnetic stripe (insertion)

Magnetic stripe (swipe) ■ KEYPAD

Magnetic stripe (swipe)

Kevpad

KEYPAD FIPS 201-1 compliant option available (FMK)

Multi-technology

Proximity

Smart card

Ordering information

Available through one of our GSA schedule 84 approved distributions; BAA options available

AD-200-CY-70-MG-SPA-626-PD-S123-RH-4B-13-049-10-025-1 3/4

Series	Class	Chassis	Function	Reader	Lever	Finish	Lever	Keying type	Handing	Battery	Backset and latch	Strike	Door
1	2	3	4	5	6	7	8	9	10	11	12	13	14

Selections correspond with the numbers above

Standard options are indicated in bold. See price book for specific configuration options.

3	Chassis
CY	Cylindrical
MS	Mortise
MD	Mortise deadbolt
993R	Exit trim – Rim/CVC/CVR
993S	Exit trim – SVR
993M	Exit trim – mortise
993DT	Non-functioning dummy
	trim for exit
4	Function
70	Classroom/storeroom
50	Office
40	Privacy
60	Apartment
5	Reader
KP	Keypad
MG	Magnetic stripe (insertion)
MGK	Magnetic stripe + keypad (insertion)
MS	Magnetic stripe (swipe)
MSK	Magnetic stripe + keypad (swipe)
MT	Multi-technology
	(125kHz and 13.56 MHz)
MTK	Multi-technology + keypad
	(125kHz and 13.56 MHz)
Si	Smart - iClass compatible
SiK	Smart - iClass compatible + keypad
DT	Dummy trim

Lever
Athens
Boardwalk
Broadway
Latitude
Longitude
Rhodes
Sparta
Tubular
le with knurled surface
Finish
Satin chrome
Bright brass
Satin brass
Satin bronze
Satin nickel
Bright chrome
Aged bronze
M Satin chrome antimicrobial
Lever cylinder type
Schlage 6-pin Conventional
key-in-lever cylinder
e book for other SFIC, FSIC and less cylinder options

available. Compatible with Schlage, Sargent, Corbin, Medec
and Yale.
9	Keyway type
S123	Everest 29
See price book for other available keyway options including restricted keyways in Primus XP high security cylinders and master keying
10	Handing

Lever styles

ntional cylinders shown, SFIC and FSIC also available

Right handed

Left handed

RH

LH

Field reversible

11 Battery 4B 4AA 8B 8AA 12 Backset and latch or armor front Cylindrical

13-049 2 3/4" backset, deadlatch, square corner, 1 1/8" x 2 1/4" Mortise

09-663 Armor front, 11/4" wide, square corner

See price book for mortise deadbolt and other backset and latch options or armor front options

Strike Cylindrical

10-025 1 3/16" lip, ANSI, no box,

11/4" x 47/8"

Mortise 10-072 13/16" lip, 11/4" x 47/8"

square corner, box

See price book for other available strikes

14 Door thickness

13/4"

Other thicknesses available between 13/8" and 23/4"

See price book for detail

Finishes

Warm tone finishes

Bright brass

619

Satin nickel

Cool tone finishes

Bright chrome

Satin chrome

626AM Satin chrome with antimicrobial
