SARGENT & GREENLEAF, INC.

1 SECURITY DRIVE • NICHOLASVILLE, KENTUCKY 40356

TELEPHONE: (606) 885-9411

TELEX: 21-8459

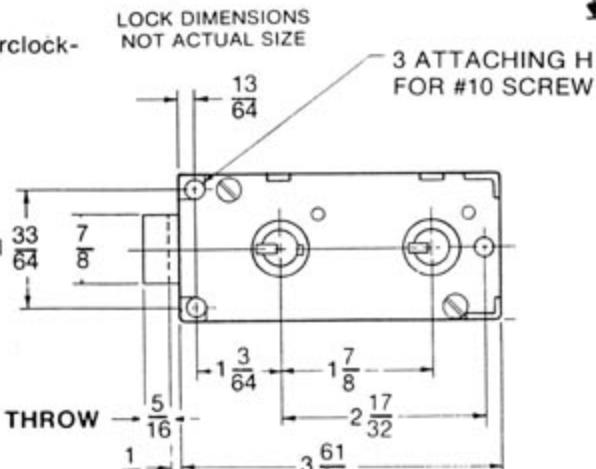

END VIEW

*MODELS 4542 3 8"

64

*<u>1</u>

64

DOUBLE CHANGEABLE SAFE DEPOSIT LOCK INSTRUCTIONS

OPERATING & CHANGING INSTRUCTIONS

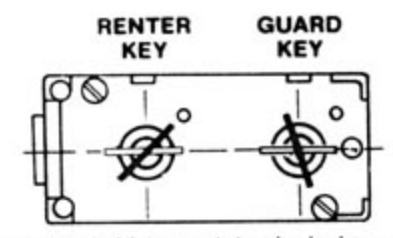

To Unlock:

STEP 1 -Insert guard key

Rotate clockwise until stop

LOCK SERIES: 4500

STEP 2 -Insert renter key

ROTATE CLOCKWISE UNTIL STOP

To Lock:

STEP 1 -Rotate renter's key counterclockwise until stop

Remove key

STEP 2 -Rotate guard key counterclockwise until stop

TOP VIEW

Remove key

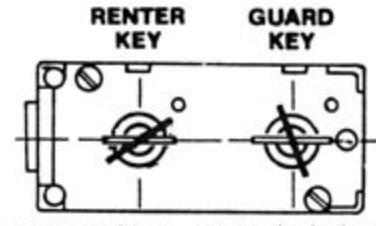

PERFORM CHANGE FUNCTION TO CHANGE RENTER KEY

STEP 1 -Insert guard key - rotate clockwise until stop

STEP 2 -Insert renter key - rotate clockwise until stop

STEP 3 -Loosen renter fence clamp screw (on back of lock) with change wrench 3 1/2 turns counterclockwise

STEP 4 -Rotate renter key clockwise to change slot position - remove key

STEP 5 -Insert new renter key - rotate counterclockwise until

CAUTION: MAKE SURE KEY DOES NOT MOVE FROM STOP POSITION WHILE TIGHTENING CLAMP SCREW

PERFORM CHANGE FUNCTION TO CHANGE RENTER KEY

STEP 6 - Tighten renter fence clamp screw clockwise

STEP 7 -Rotate renter key to lock position - remove key

STEP 8 -Rotate guard key to lock position - remove key

TO CHANGE GUARD KEY

STEP 1 -Insert guard key - rotate clockwise until stop STEP 2 -Insert renter key - rotate clockwise until stop

STEP 5 -Insert new guard key - rotate clockwise until stop CAUTION: MAKE SURE KEY DOES NOT MOVE FROM STOP POSITION WHILE TIGHTENING CLAMP SCREW

STEP 3 -Loosen guard fence clamp screw (on back of lock) with change wrench 3 1/2 turns counterclockwise

STEP 6 - Tighten guard fence clamp screw clockwise

STEP 4 -Rotate guard key counterclockwise to lock position REMOVE KEY

STEP 7 -Rotate renter key to lock position - Remove key

STEP 8 -Rotate guard key to lock position - remove key
