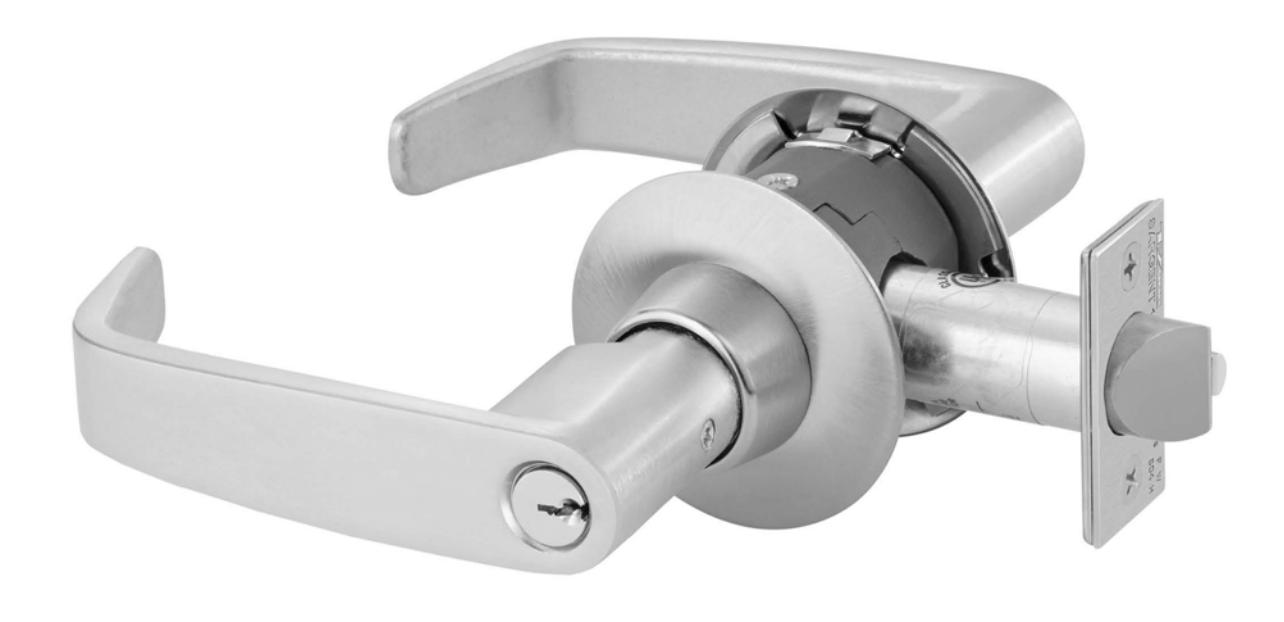

SARGENT Bored Lock 11 Line Parts Manual

Open the original PDF document

View PDF

11 Line Parts Manual

Table of Contents

SARGENT ASSA ABLOY

lable of Contents
Function Descriptions 3-5
11G04 Storeroom or Closet 6
11G05 Entrance or Office 7
11G24 Entrance or Office 8
11G37 Classroom
11G44 Service Station 1C
11G50 Hotel, Dormitory or Apartment 11
11G54 Corridor 12
11G16 Classroom, Security, Apartment, Exit, Privacy 13
11G17 Utility, Asylum or Institutional 14
11G30 Communicating 15
11G38 Classroom Security Intruder 16
11G13 Exit 17
11U15 Passage 18
11G15-3 Exit or Communicating 19
11U65 Privacy/Bathroom 20
11U68 Hospital Privacy 21
11U93 Single Lever Pull 22
11U94 Double Lever Pull 23
11U94-2 Double Lever Pull 24
Sleeve Assemblies 25-27
Bearing and Lock Body Assemblies 28

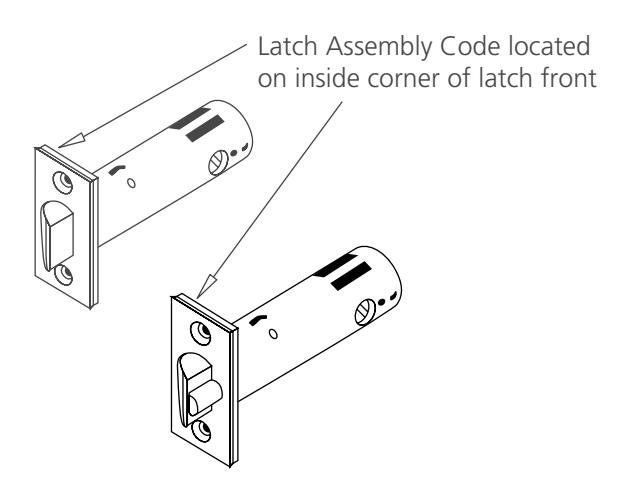

Latch Assemblies 29
Standard Levers and Components 30
Rose Assemblies 31
Strikes 32
Cylinders 33
Miscellaneous Parts 34

Single Cyl linder Func tions
Inside Outside Series/
Function 		Туре ANSI
No. 		Function Description Page
Number
11G04 Storeroom or
Closet 		F86 Deadlocking latch Latchbolt by lever inside or key outside Outside lever rigid at all times 6
11G05 Entrance or
Office 		F81
  • Deadlocking latch
  • Latchbolt by either lever unless outside lever is locked by push/turn button in inside lever
  • Turn button must be released manually
  • Key only retracts latchbolt when outside lever is locked
7
11G24 Entrance or
Office 		F82
  • Deadlocking latch
  • Latchbolt by either lever unless outside lever is locked by push button in inside lever
  • Push button released by key or turning inside lever
  • Closing door does not unlock outside lever or release button
8
11G37 Classroom F84
  • Deadlocking latch
  • Latchbolt by either lever unless outside lever is locked by key
  • Key in outside lever locks or unlocks outside lever
  • Inside lever always operative
9
11G44 Service
Station 		F92 Deadlocking latch Latchbolt by either lever unless outside lever is locked by push button of inside lever Key retracts latchbolt when outside lever is locked Push button will not depress unless door is in closed position Push button released by turning inside lever or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever 10
11G50 Hotel,
Dormitory or
Apartment 		F93
  • Deadlocking latch
  • Latchbolt by key outside and lever inside
  • Outside lever always rigid
  • Depressing push button when door is closed shuts out all keys except emergency key and projects visual occupancy indicator in cylinder face
  • Push button will not depress unless door is closed in position
  • Push button released by turning inside lever automatically reactivating all keys and retracting visual occupancy indicator
  • Lock out key fixes push button in locked position, shutting out all keys except emergency
  • Lock out key must be ordered separately (10-0042).
11
11G54 Corridor F90 Deadlocking latch Latchbolt by either lever unless outside lever is locked by push button inside or key outside Rotating inside lever releases button Push button will not depress unless door is in closed position Key outside locks or unlocks outside lever and releases inside button 12

Shaded lever indicates it is rigid at all times.

Double Cy Double Cylinder Functions
Inside Outside Series/
Function 		Туре ANSI
No. 		Function Description Page
Number
11G16 Classroom, Security,
Apartment, Exit,
Privacy 		F88 Deadlocking latch Latchbolt by either lever unless outside lever is locked by key in inside lever Key in outside lever only retracts latchbolt when outside lever is locked 13
11G17 Utility, Asylum or
Institutional 		F87
  • Deadlocking latch
  • Both levers rigid at all times
  • Latchbolt by key either side
  • Use only on rooms with more than one exit
14
11G30 Communicating F80 Deadlocking latch Latchbolt by either lever Key in either lever locks or unlocks its own lever only Use only on rooms with more than one exit 15
11G38 Classroom Security
Intruder 		_ Deadlocking latch Latchbolt by either lever unless outside lever is locked by key Key in either lever locks or unlocks outside lever When inside key locks the outside lever only the inside key can unlock the outside lever. The outside key only retracts the latchbolt until outside lever is unlocked by inside key Inside lever always operable Locking direction indicated on inside rose standard with this function. Available on rose designs E, L and O 16

Shaded lever indicates it is rigid at all times.

Non-Cylinder Functions
Inside Outside Series/
Function 		Туре ANSI
No. 		Function Description Page
Number
11G13 Exit F89
  • Deadlocking latch
  • Latchbolt by inside lever
  • Outside lever rigid at all times
17
11U15 Passage F75 Latchbolt by either lever 18
11G15-3 Exit or
Communicating 		_
  • Deadlocking latch
  • Blank rose outside
  • Latchbolt by lever inside
  • Minimum clearance of 1-1/4" (32mm) required between doors
19
11U65 Privacy/Bathroom F76A
  • Latchbolt by either lever unless outside lever is locked by push button in inside lever
  • Turning inside lever or closing door releases button
  • Emergency button in outside lever unlocks, with use of a blade screw driver in outside lever and releases inside button
  • Emergency key supplied only when ordered separately (14-0057)
20
11U68 Hospital Privacy _ Latch by either lever unless outside lever is locked by push button in inside lever Turning inside lever or closing door releases button Rotating thumbturn in outside lever unlocks the outside lever and releases the inside button Not available in the "J" lever design 21
0- · 11U93 Single Lever Pull _ For wood or custom hollow metal doors Lever and rose attached by through-bolt and four surface applied screws (hidden) Requires 5/16" (8mm) diameter hole 22
• 11U94 Double Lever Pull _ For wood or custom hollow metal doors Lever and rose both sides joined by one through-bolt and four surface applied screws each side (hidden) Requires special door preparation – see template 23
11U94-2 Double Lever Pull _ Lever and rose both sides joined by aligning tube and latchbolt tube Dummy latch plate 24

Shaded lever indicates it is rigid at all times.

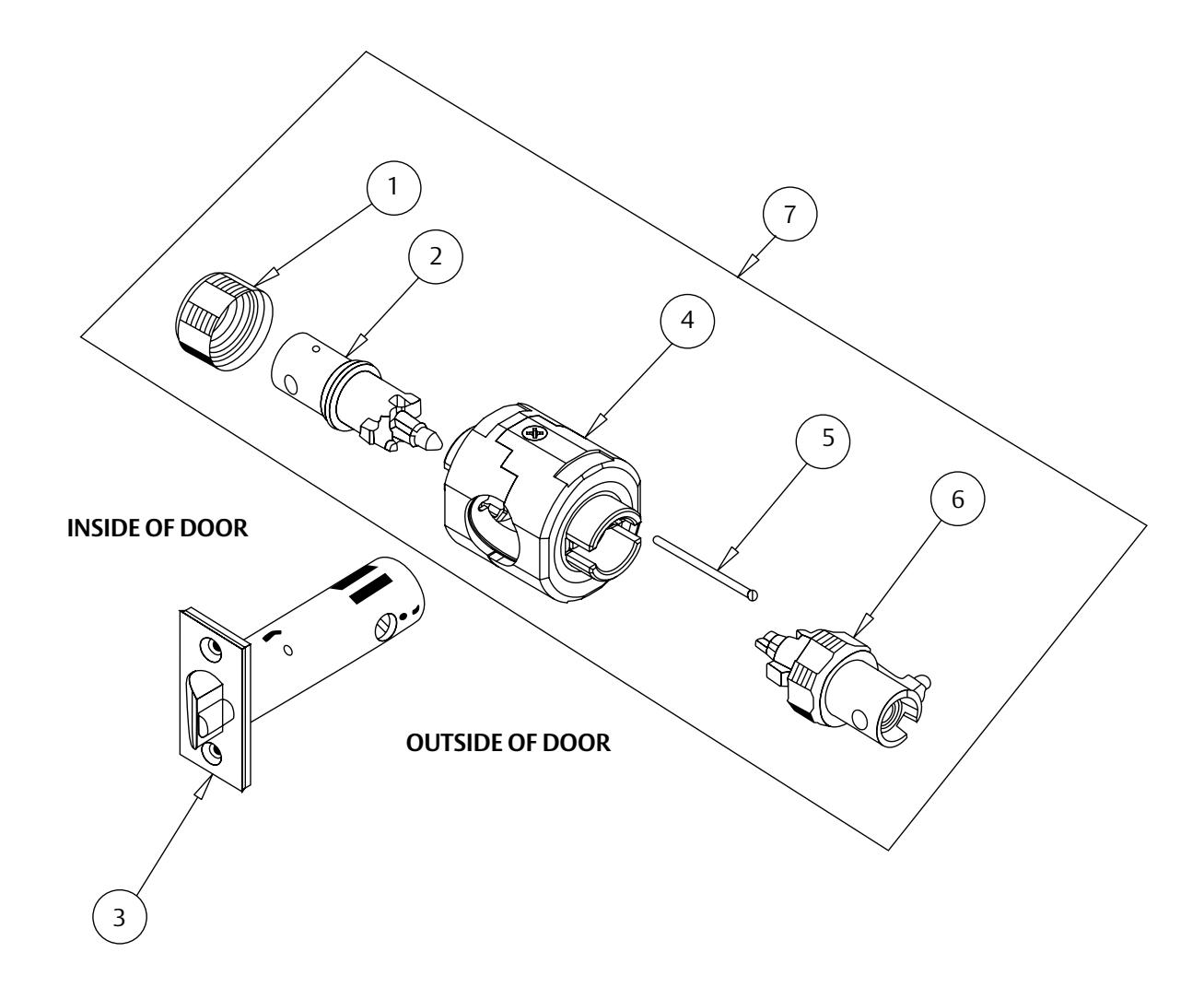

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 11-2151 Non-Locking Sleeve Assembly 1
3 *11-2106 Latch Assembly, B 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2009 Locking Sleeve Assembly 1
7 11-2294 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

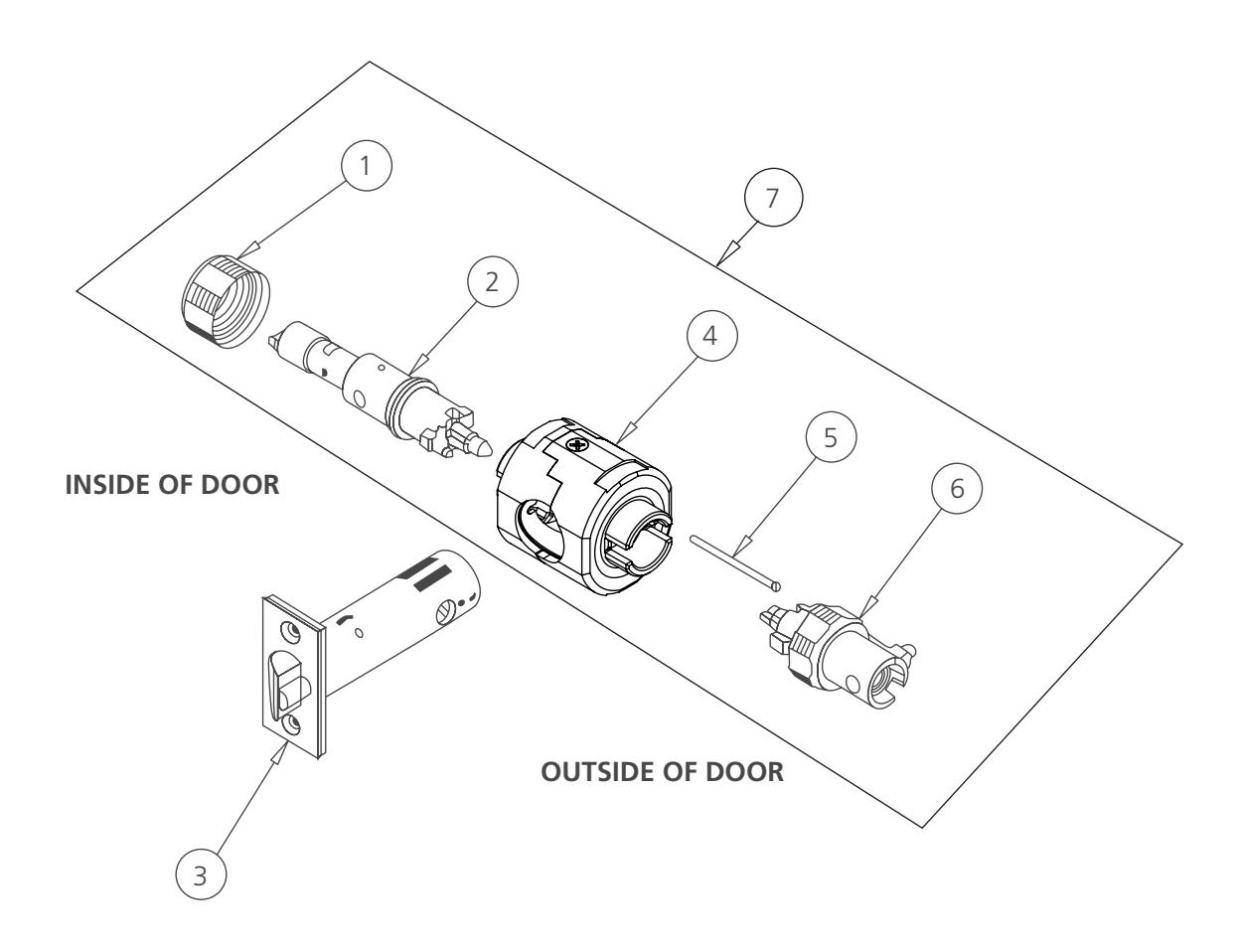

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 *11-2152 Non-Locking Sleeve Assembly 1
3 *11-2106 Latch Assembly, B 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2009 Locking Sleeve Assembly 1
7 11-2295 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

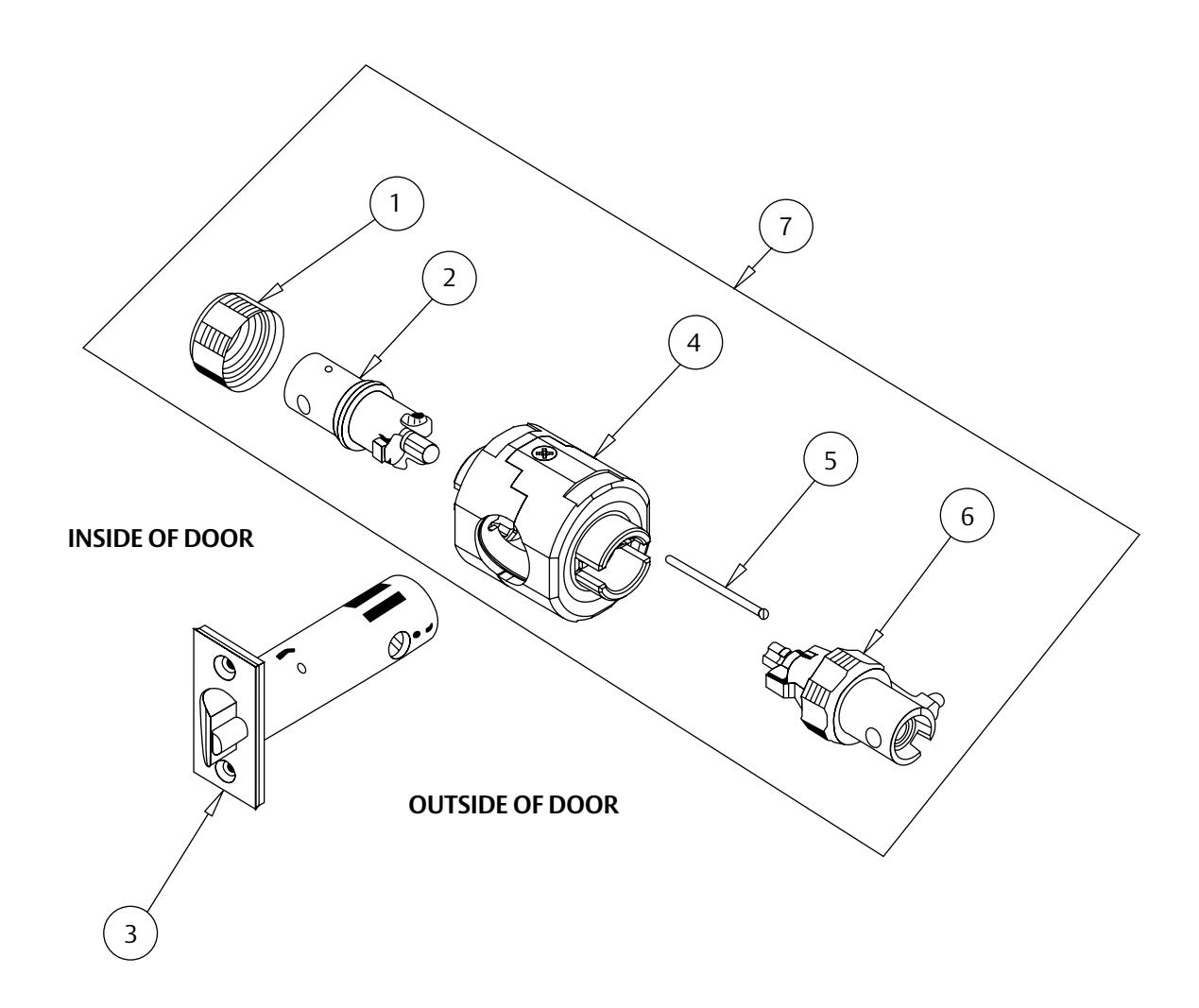

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 *11-2157 Non-Locking Sleeve Assembly 1
3 *11-2108 Latch Assembly, K 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2909 Locking Sleeve Assembly 1
7 11-2301 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

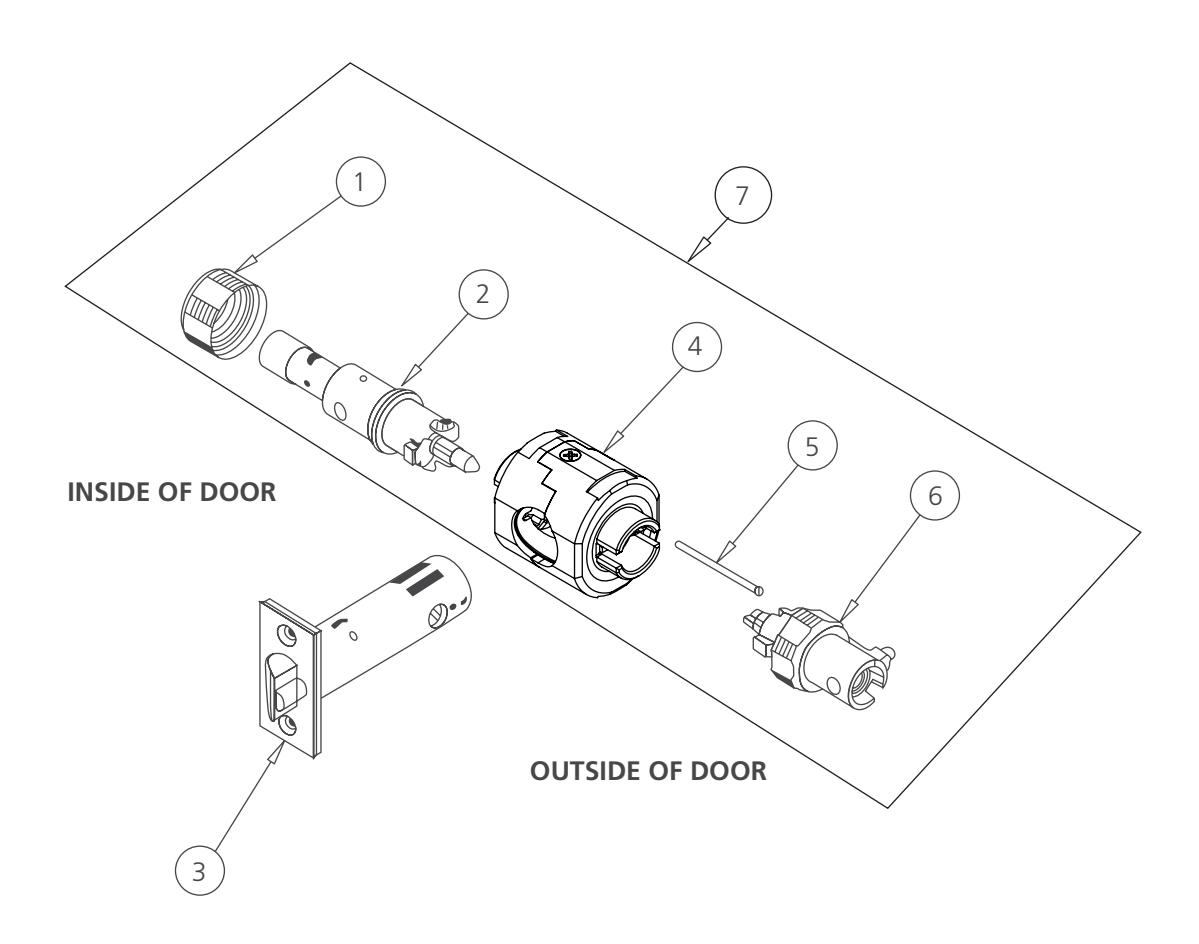

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 11-2153 Locking Sleeve Assembly 1
3 *11-2106 Latch Assembly, B 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2014 Locking Sleeve Assembly 1
7 11-2304 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine SARGENT product.

A8252:C 02/20

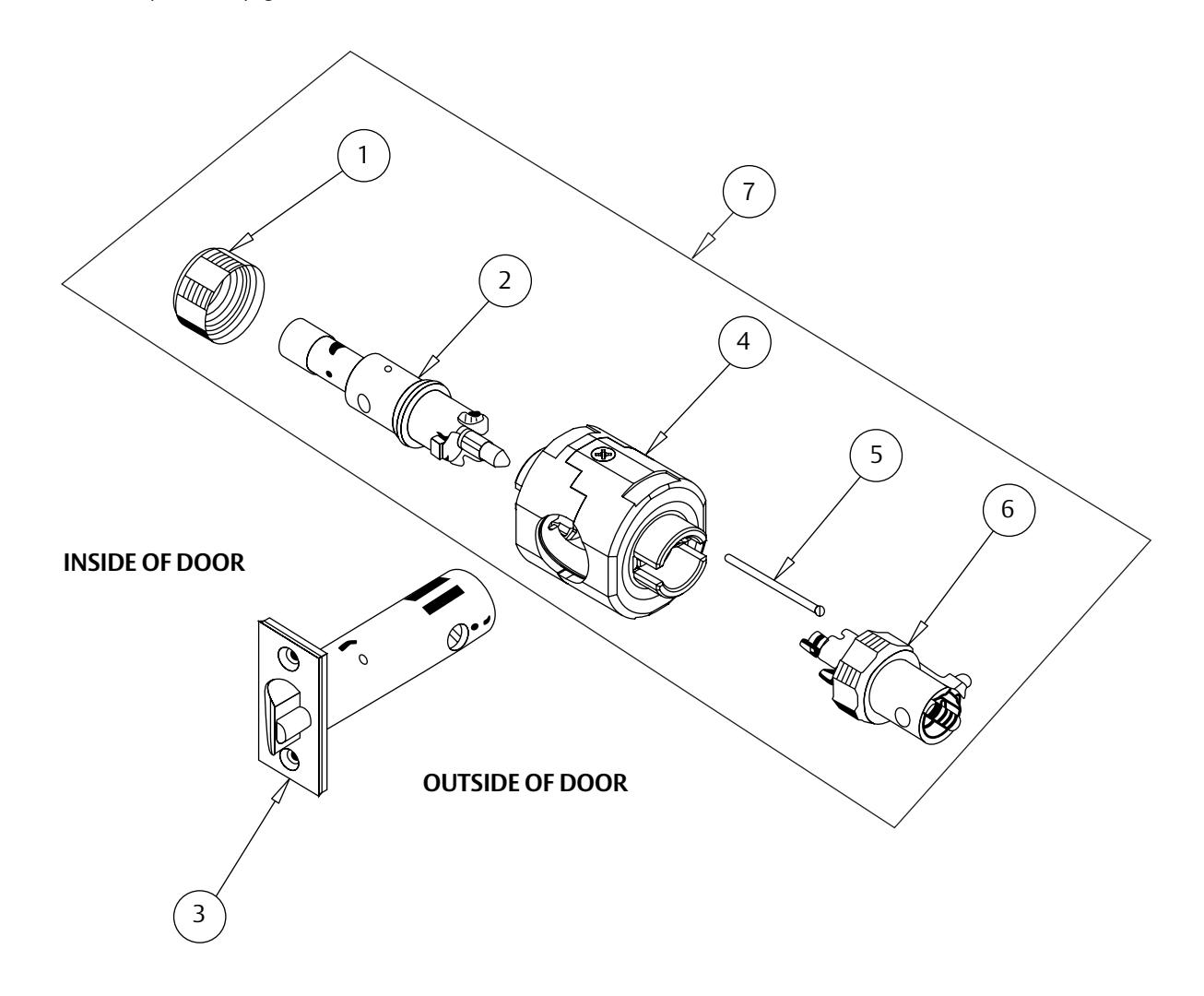

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 *11-2154 Non-Locking Sleeve Assembly 1
3 *11-2110 Latch Assembly, D 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2009 Locking Sleeve Assembly 1
7 11-2305 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

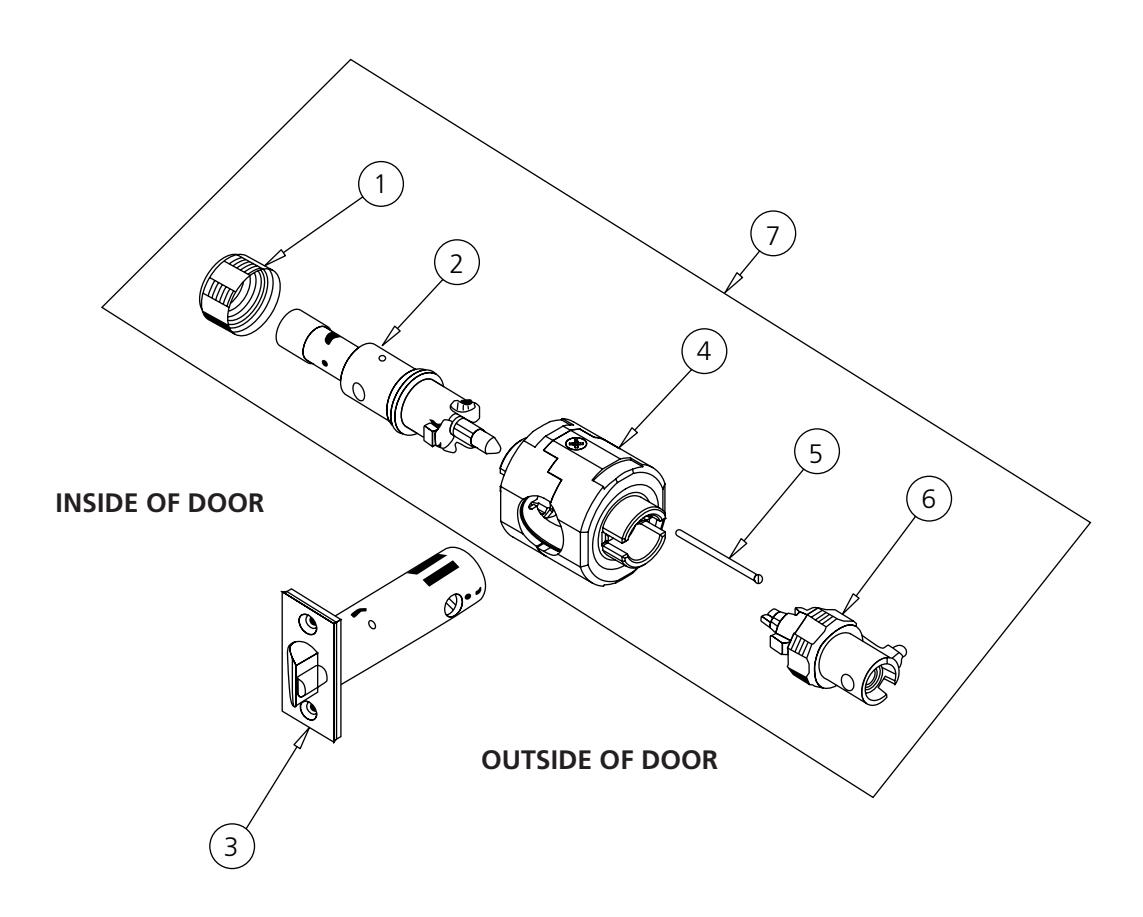

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 *11-2155 Non-Locking Sleeve Assembly 1
3 *11-2110 Latch Assembly, D 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2016 Locking Sleeve Assembly 1
7 11-2306 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

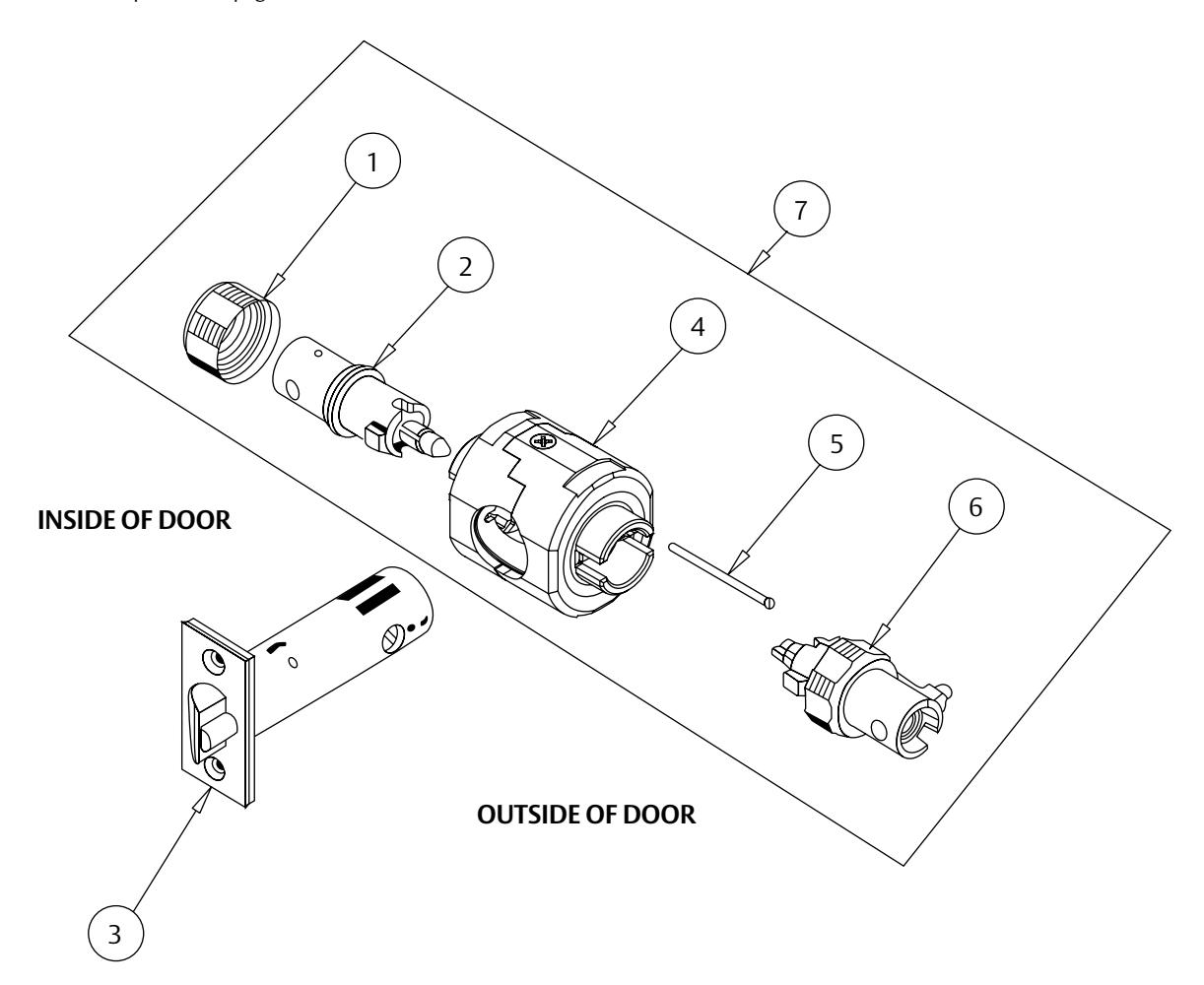

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 *11-2156 Non-Locking Sleeve Assembly 1
3 *11-2110 Latch Assembly, D 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2017 Locking Sleeve Assembly 1
7 11-2307 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 11-2011 Locking Sleeve Assembly 1
3 *11-2106 Latch Assembly, B 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 2
6 11-2009 Locking Sleeve Assembly 1
7 11-2299 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

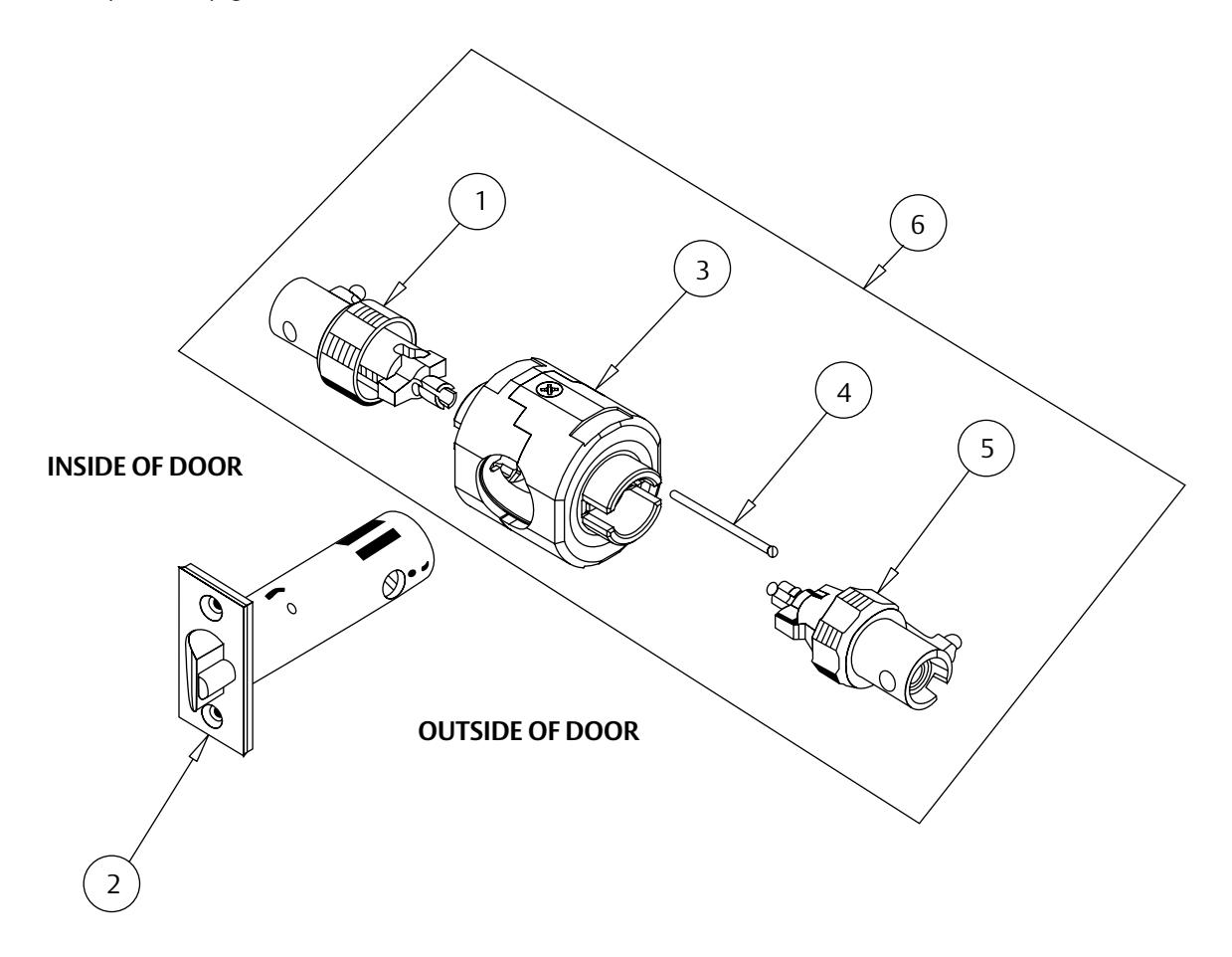

Item Part Number Description Quantity
1 11-2013 Locking Sleeve Assembly 1
2 *11-2106 Latch Assembly, B 1
3 11-2899 Bearing Assembly 1
4 11-0394 Aligning Pin 1
5 11-2012 Locking Sleeve Assembly 1
6 11-2300 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

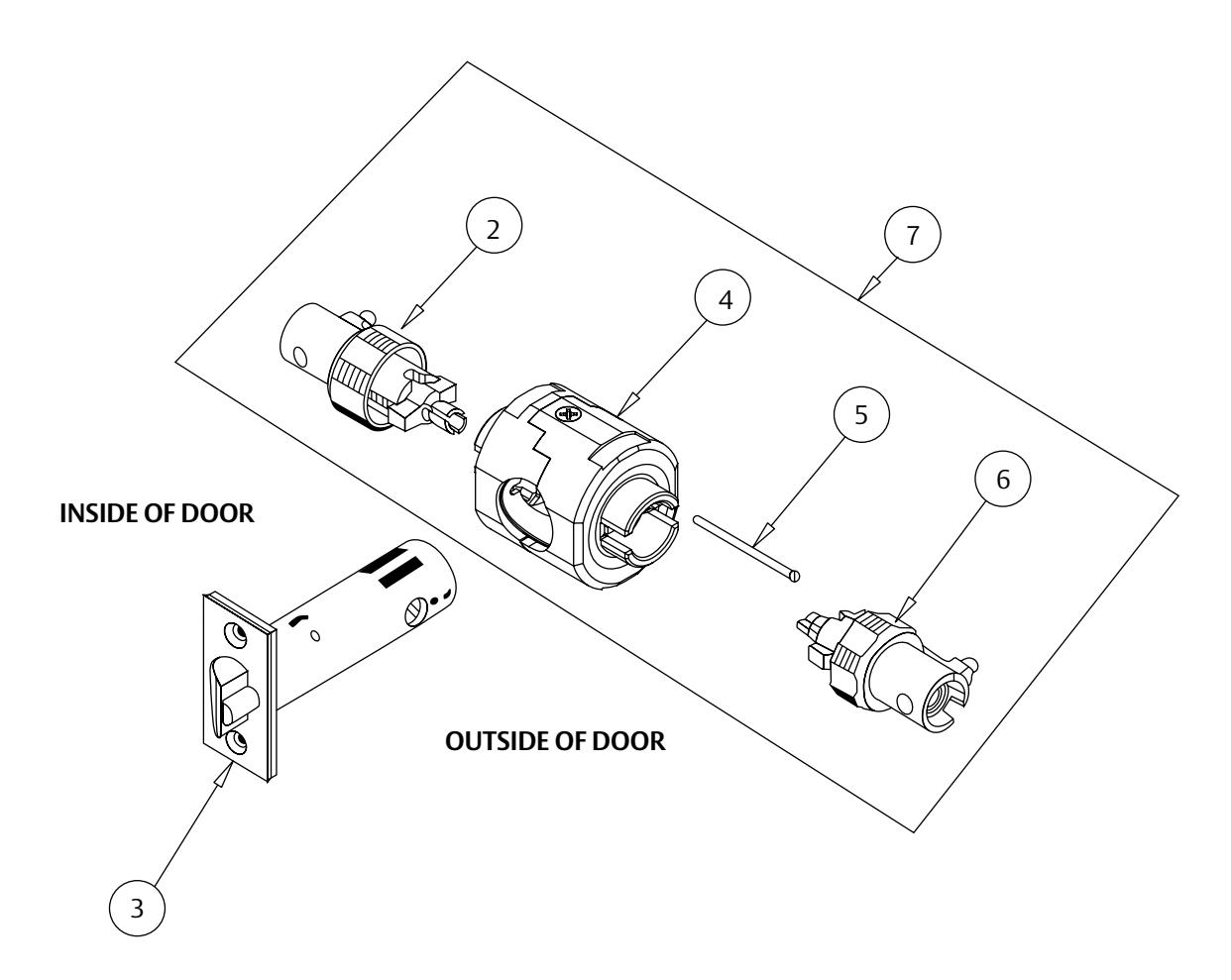

Item Part Number Description Quantity
2 11-2015 Locking Sleeve Assembly 1
3 *11-2106 Latch Assembly, B 1
4 11-2001 Bearing Assembly 1
5 11-0394 Aligning Pin 2
6 11-2014 Locking Sleeve Assembly 1
7 11-2303 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

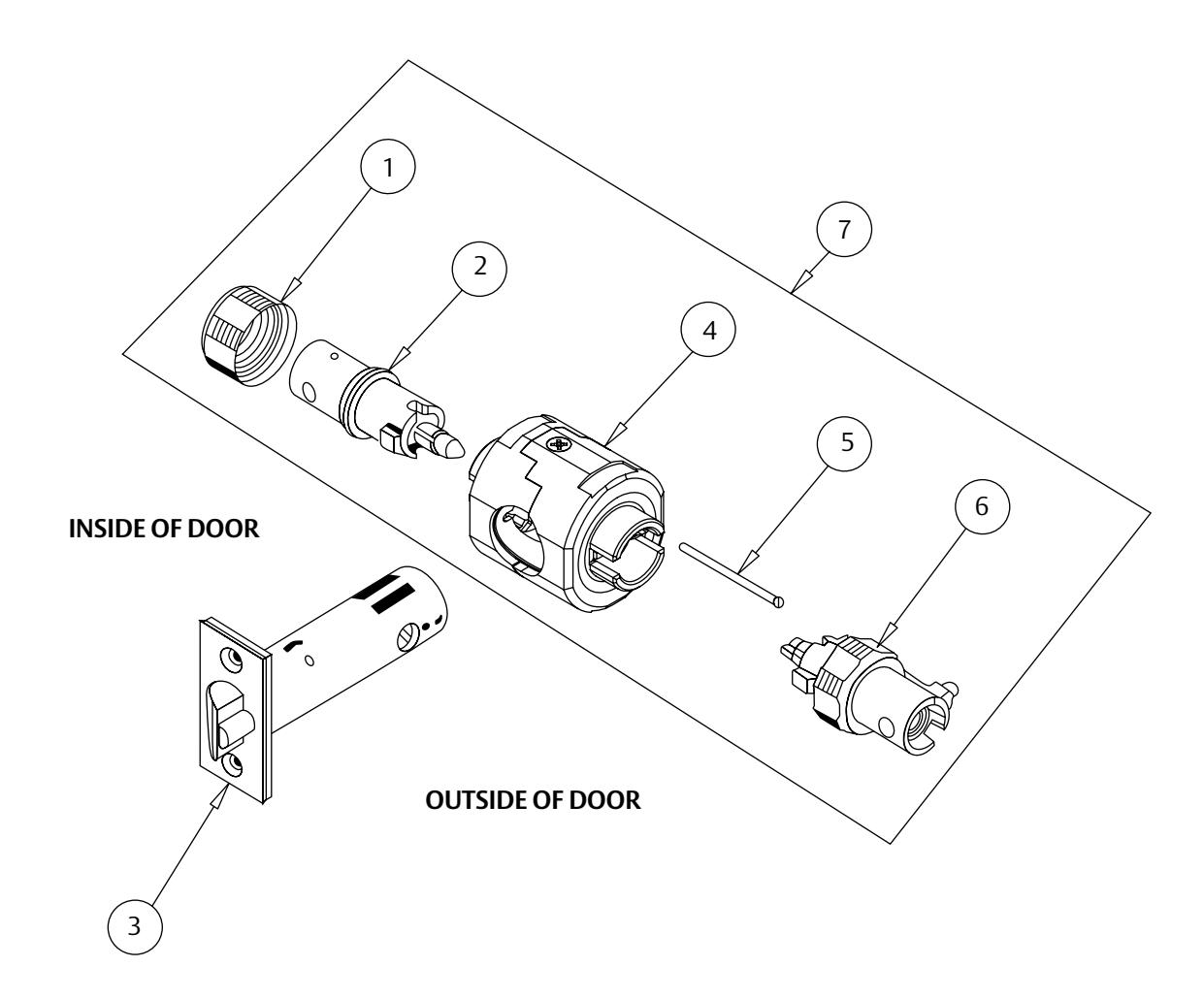

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 11-2011 Non-Locking Sleeve Assembly 1
3 *11-2106 Latch Assembly, B
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 2
6 11-2017 Locking Sleeve Assembly 1
7 11-2311 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 11-2151 Non-Locking Sleeve Assembly 1
3 *11-2106 Latch Assembly, B 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2009 Locking Sleeve Assembly 1
7 11-2296 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

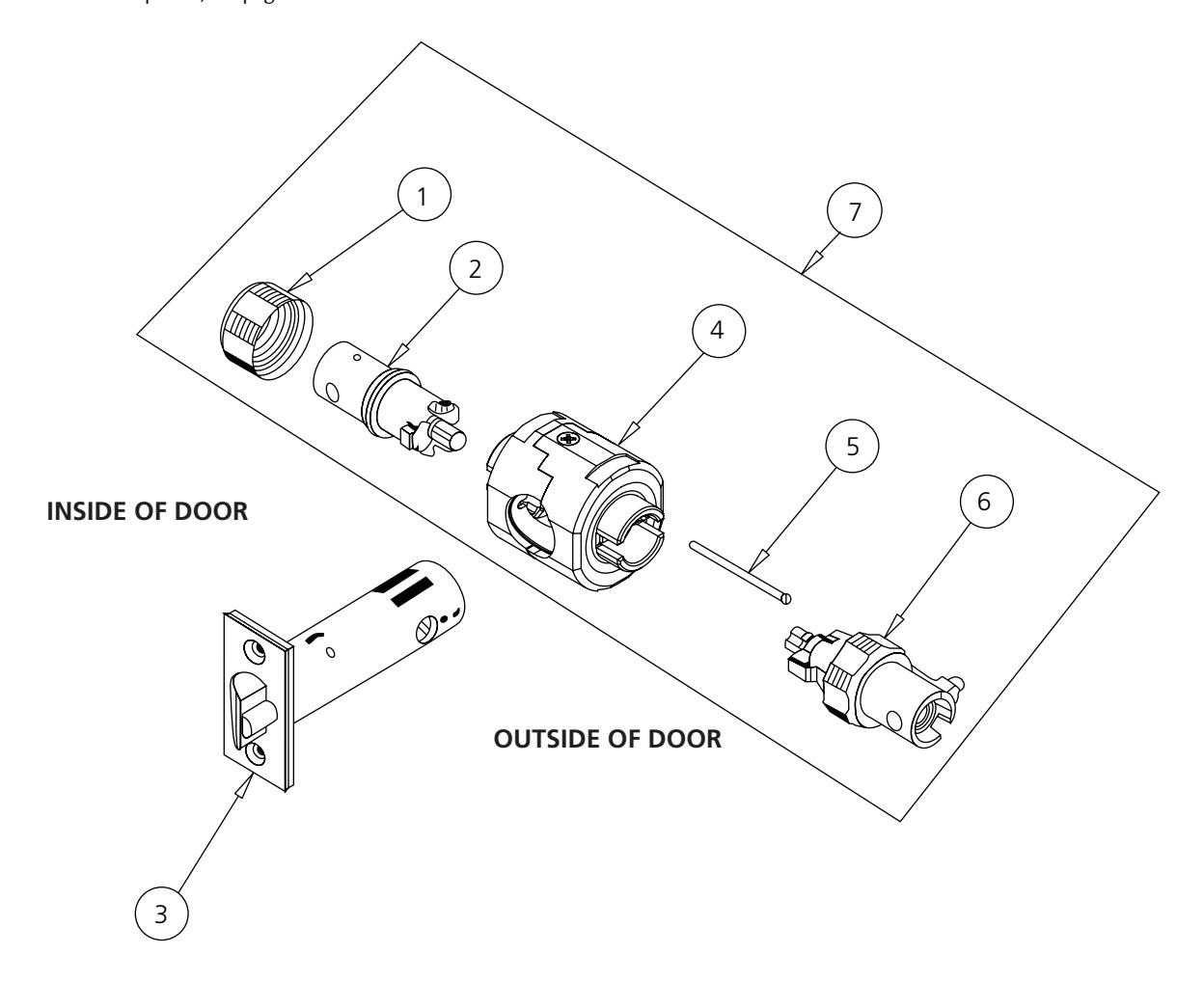

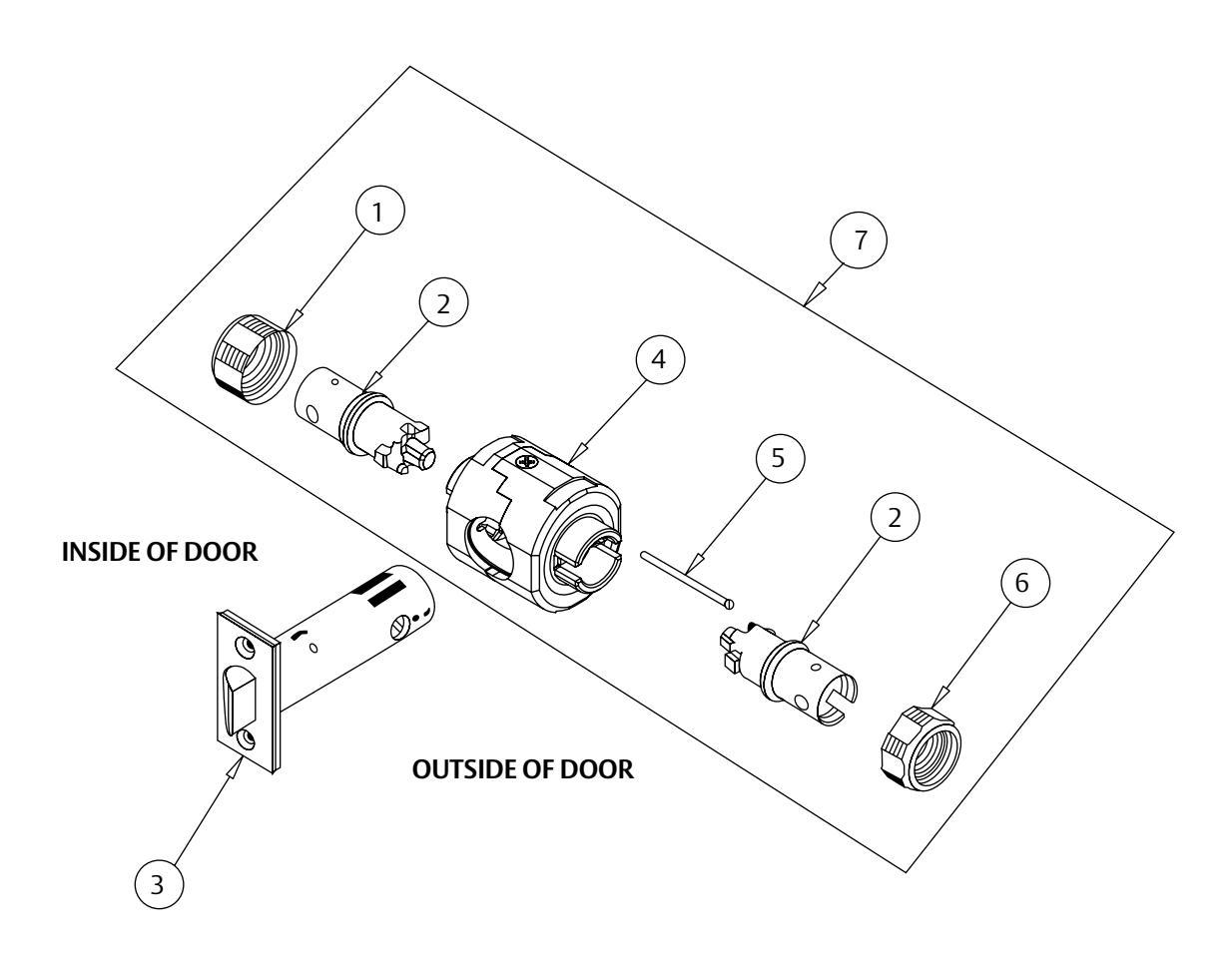

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 11-2153 Non-Locking Sleeve Assembly 2
3 *11-2107 Latch Assembly, A 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-0032 Outside Collar 1
7 11-2297 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

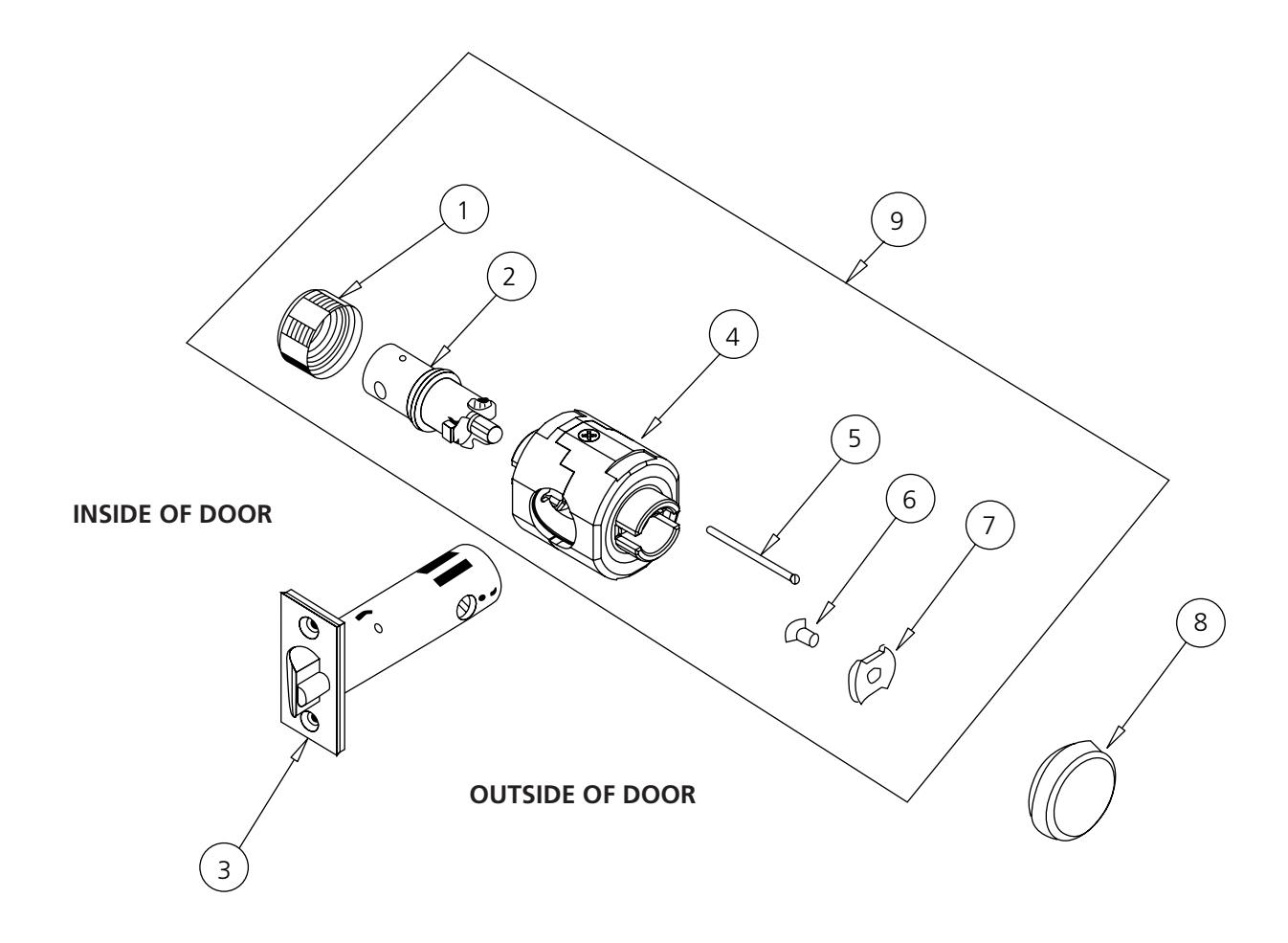

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 11-2153 Non-Locking Sleeve Assembly 1
3 *11-2106 Latch Assembly, B 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 01-1027 Countersunk Flat Head Screw 10-24 x 3/8" (1-3/4" Door) 1
7 11-0174 Anchor Plate 1
8 N/A Rosette Plug (Included as Part of Rose Assembly, see page 29) 1
9 11-2298 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

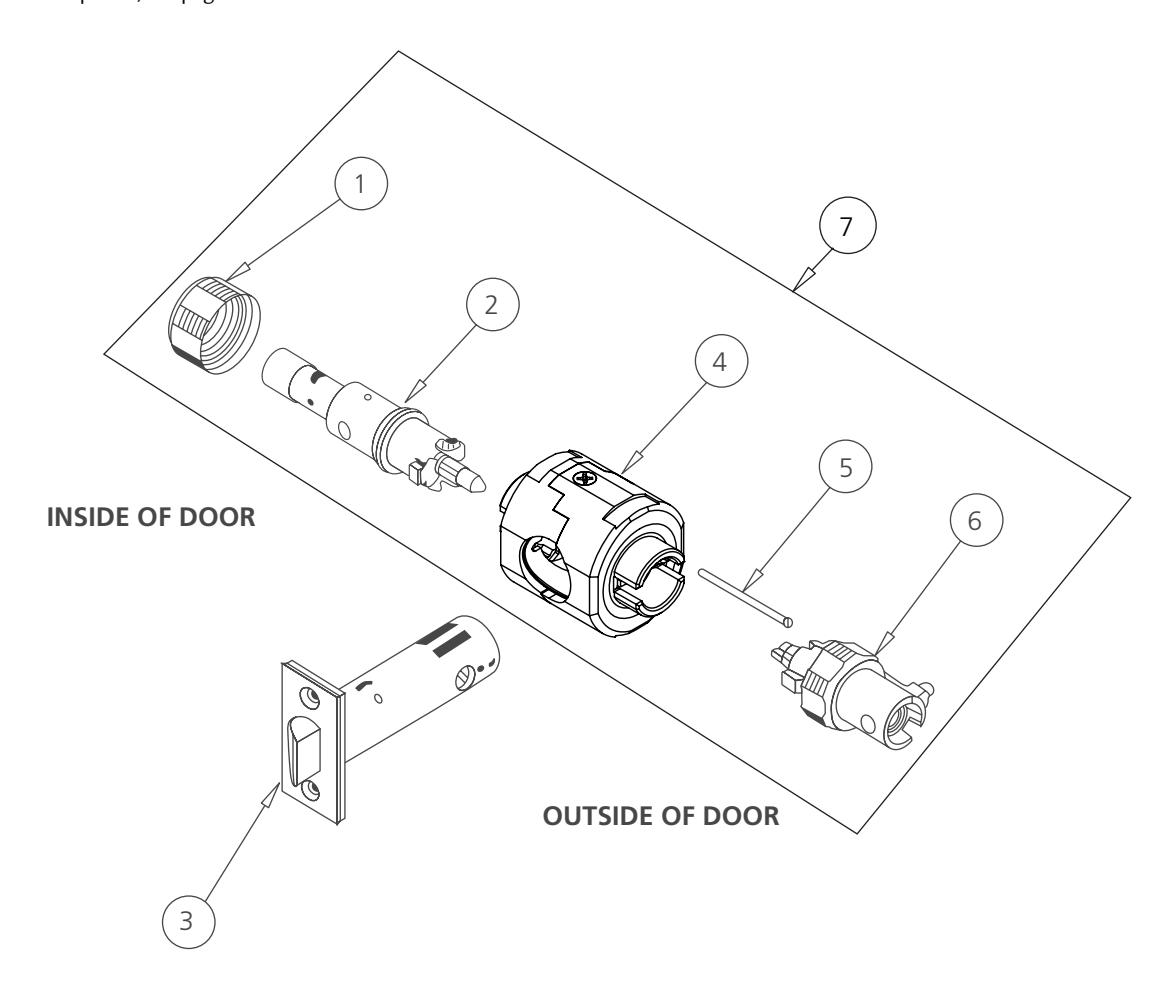

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 *11-2156 Non-Locking Sleeve Assembly 1
3 *11-2111 Latch Assembly, C 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2055 Locking Sleeve Assembly 1
7 11-2308 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

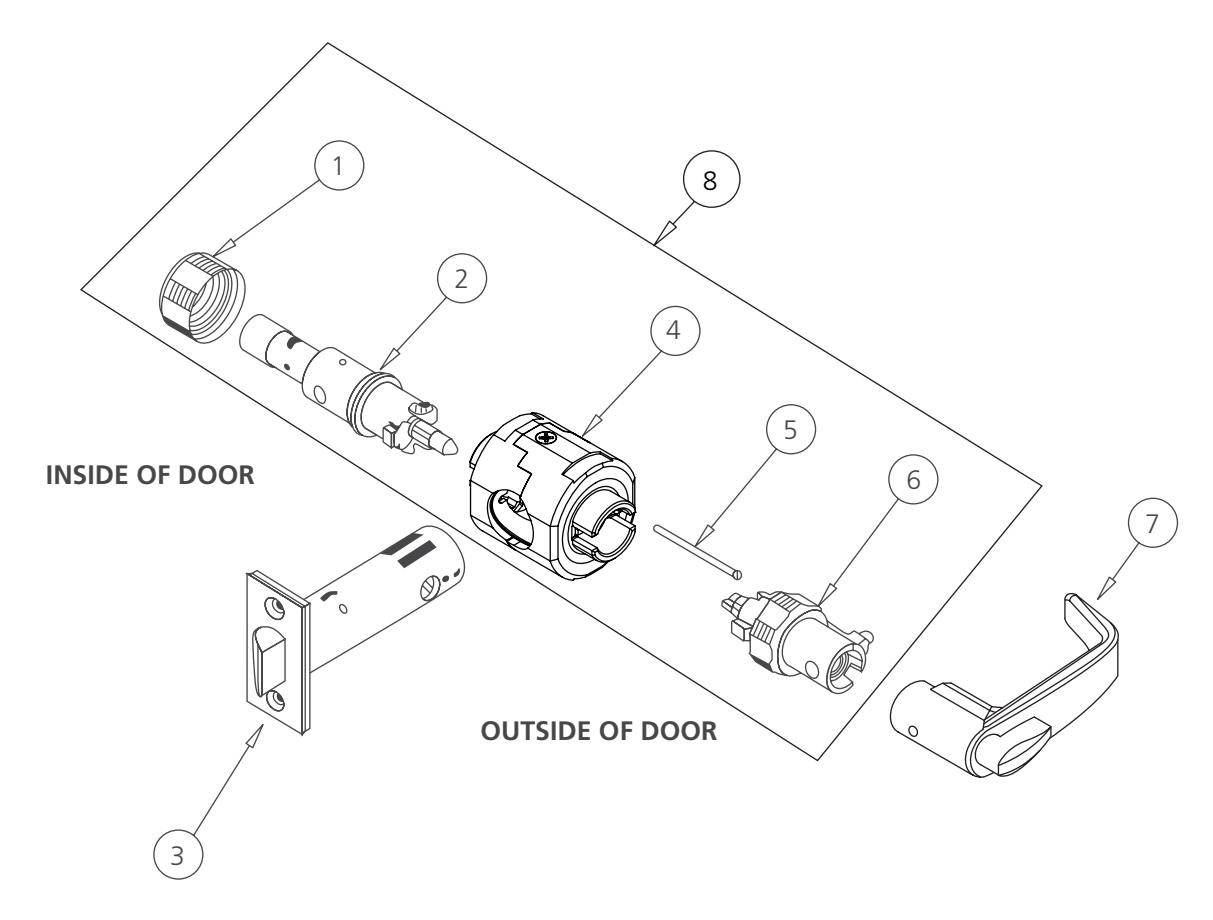

Item Part Number Description Quantity
1 11-0031 Inside Collar 1
2 *11-2156 Non-Locking Sleeve Assembly 1
3 *11-2111 Latch Assembly, C 1
4 11-2899 Bearing Assembly 1
5 11-0394 Aligning Pin 1
6 11-2055 Locking Sleeve Assembly 1
11-4064 Lever/Turnpiece Assembly (B Lever)
11-4065 Lever/Turnpiece Assembly (J Lever)
7 11-4066 Lever/Turnpiece Assembly (L Lever) 1
11-4067 Lever/Turnpiece Assembly (P Lever)
8 11-2308 Lock Body Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard cylinder and latch configurations. For other options, see pages 25-29.
  • For lever and rose options, see pages 30-31.

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine SARGENT product.

21

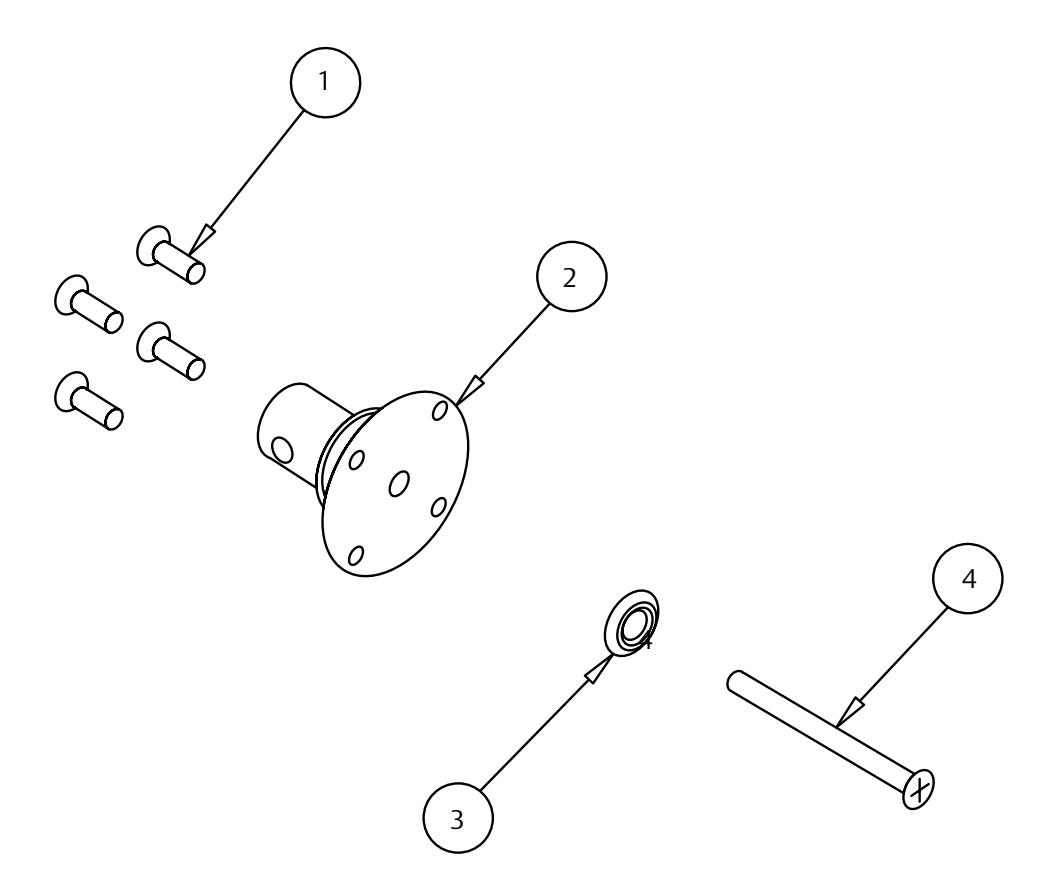

Item Part Number Description Quantity
01-2201 Wood Screw #4 x 1/2"
1 01-3337 Machine Screw #4-40 x 1/2" 4
2 11-2495 Mounting Flange Assembly 1
3 *01-0225 Cup Washer 1
4 *01-4373 Countersunk Flat Head Screw 1/4-20 x 2-3/4" 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • For lever and rose options, see pages 30-31.

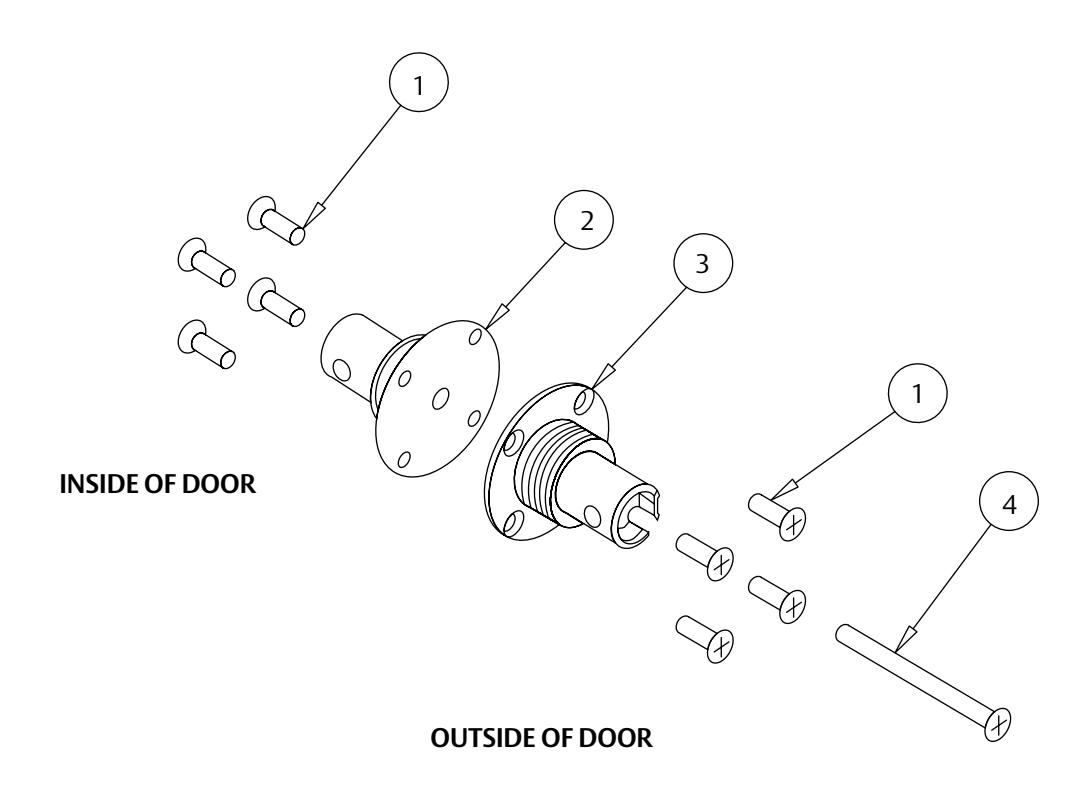

Item Part Number Description Quantity
1 01-2201 Wood Screw #4 x 1/2"
01-3337 Machine Screw #4-40 x 1/2" 8
2 11-2495 Inside Mounting Flange Assembly 1
3 11-2496 Outside Mounting Flange Assembly 1
4 01-4373 Countersunk Flat Head Screw 1/4-20 x 2-3/4" 1

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • For lever and rose options, see pages 30-31.

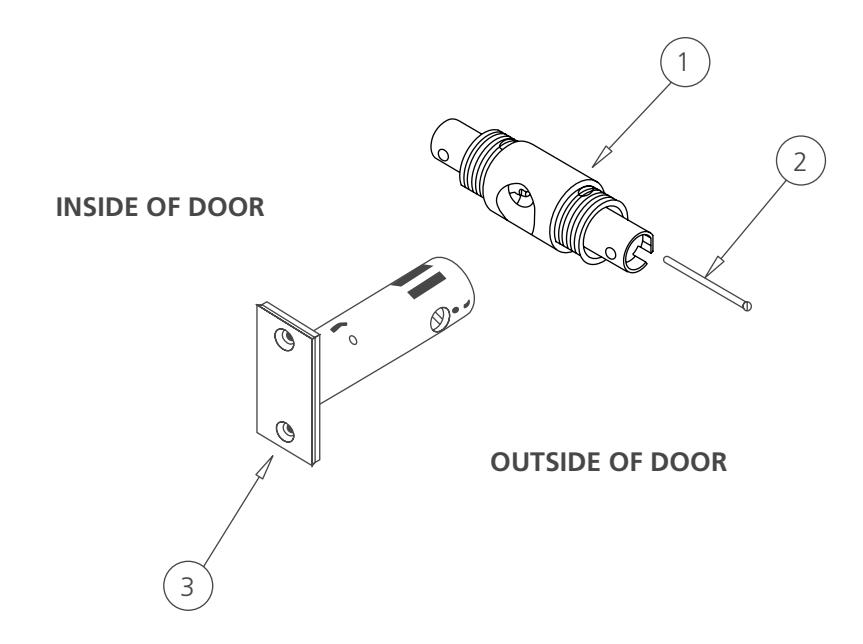

Item Part Number Description Quantity
1 11-2501 Tube Assembly 1
2 11-0394 Aligning Pin 1
3 *11-2112 Latch Assembly 1

* Specify Finish

  • Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.
  • Part numbers listed are for standard latch configurations. For other options, see page 27.
  • For lever and rose options, see pages 30-31.

Standard Cylinder Functions

Lock Function
Part Number 04 05 13 15 15-3 16 17 24 30 37 38 44 50 54 65
11-2009 O/S O/S O/S O/S
11-2010 O/S
11-2011 I/S I/S
11-2012 O/S
11-2013 I/S
11-2014 O/S O/S
11-2015 I/S
11-2016 O/S
11-2017 O/S O/S
11-2055 O/S
11-2909 O/S
11-2151 I/S I/S
11-2152* I/S
11-2153 I/S - O/S I/S I/S
11-2154* I/S
11-2155* I/S
11-2156* I/S I/S
11-2157* I/S

* Specify Finish

Standard Cylinder Functions - 3/4" Throw Latch (41- Option)

Lock Function
Part Number 04 05 15 15-3 16 37
11-2028 O/S O/S O/S
11-2029 I/S
11-2030 O/S
11-2166 I/S
11-2167* I/S
11-2168 I/S - O/S I/S I/S

* Specify Finish

LFIC (60- Option) and SFIC (70- Option) Functions Including Schlage® (SF- Option) and Yale® (YRC- Option)

Lock Function
Part Number 04 05 16 17
24
30
37
38 		44 54
11-2031 O/S O/S O/S O/S
11-2032 I/S I/S
11-2033 O/S
11-2034 I/S
11-2035 O/S O/S
11-2036 I/S
11-2037 O/S O/S
11-2911 O/S

Note: Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.

KESO (82- Option)

Lock Function
Part Number 04 05 16 17 24 30 37 38 44 54
11-2069 O/S O/S O/S O/S
11-2070 I/S I/S
11-2071 O/S
11-2072 I/S
11-2073 O/S O/S
11-2074 I/S
11-2075 O/S O/S
11-2915 O/S

ASSA V-10 (VC- Option)

Lock Function
Part Number 04 05 16 17 24 30 37 38 44 54
11-2039 O/S O/S O/S O/S
11-2040 I/S I/S
11-2041 O/S
11-2042 I/S
11-2043 O/S O/S
11-2044 I/S
11-2045 O/S O/S
11-2913 O/S

Sleeve Assembly Color Coding

Selected sleeves are color coded for easy identification.

Lock Functions
Red 04 05 16 44
Green 38 54
Blue 65
Yellow 24

Note: Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.

SL- Option Standard Cylinder Functions

Lock Function
Part Number 04 05 13 15 15-3 16 17 24 30 37 38 44 50 54 65
11-2597 O/S O/S O/S O/S O/S
11-2598 I/S I/S
11-2599 O/S
11-2600 I/S
11-2601 O/S O/S
11-2602 I/S
11-2603 O/S
11-2604 O/S O/S

SL- Option Standard Cylinder Functions - 3/4" Throw Latch (41- Option)

Lock Function
Part Number 04 05 15 15-3 16 37
11-2614 O/S O/S O/S
11-2615 I/S
11-2616 O/S

SL- Option LFIC (SL-60- Option) and SFIC (SL-70- Option) Functions Including Schlage® (SL-SF- Option)

Lock Function
Part Number 04 05 16 17 24 30 37 38 44 54
11-2617 O/S O/S O/S O/S O/S
11-2618 I/S I/S
11-2619 O/S
11-2620 I/S
11-2621 O/S O/S
11-2622 I/S
11-2623 O/S O/S

SL- Option KESO (SL-82- Option)

Lock Function
Part Number 04 05 16 17 24 30 37 38 44 54
11-2653 O/S O/S O/S O/S O/S
11-2654 I/S I/S
11-2655 O/S
11-2656 I/S
11-2657 O/S O/S
11-2658 I/S
11-2659 O/S O/S

SL- Option ASSA V-10 (SL-VC- Option)

Lock Function
Part Number 04 05 16 17 24 30 37 38 44 54
11-2635 O/S O/S O/S O/S O/S
11-2636 I/S I/S
11-2637 O/S
11-2638 I/S
11-2639 O/S O/S
11-2640 I/S
11-2641 O/S O/S

Note: Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.

Bearing and Lock Body Assemblies

Bearing Assemblies

Part Number Description
11-2004 Used with 2-1/4" -2-1/2" Thick Doors (31- Option)
11-2005 Used with 3/4" Throw Latch (41- Option)
11-2899 Standard

Lock Body Assemblies

Lock Function
Description 04 05* 13 15 15-3 16 17 24* 30 37 38 44* 50* 54* 65/68*
Non Cylinder and Standard
Cylinder 		11-2294 11-2295 11-2296 11-2297 11-2298 11-2299 11-2300 11-2301 11-2303 11-2304 11-2311 11-2305 11-2306 11-2307 11-2308
41- Option Non-Cylinder and
Standard Cylinder 		11-2337 11-2338 11-2339 11-2340 11-2341 11-2355
LFIC and SFIC 11-2349 11-2350 11-2351 11-2352 11-2353 11-2354 11-2355 11-2361 11-2356 11-2358
41- LFIC and SFIC 11-2380 11-2381 11-2382 11-2383
82- KESO 11-2426 11-2427 11-2428 11-2429 11-2430 11-2431 11-2432 11-2433 11-2434 11-2435
41-82-KESO 11-2585 11-2586 11-2587 11-2588
VC- ASSA V10 11-2388 11-2389 11-2390 11-2391 11-2392 11-2393 11-2394 11-2395 11-2396 11-2397
41-VC ASSA V10 11-2418 11-2419 11-2420 11-2421
SL- Option Non Cylinder and
Standard Cylinder 		11-2672 11-2673 11-2674 11-2675 11-2676 11-2677 11-2678 11-2679 11-2680 11-2681 11-2682
SL- Option, 41- Option
Non-Cylinder and Standard
Cylinder 		11-2696 11-2697 11-2698 11-2699
SL- Option LFIC 11-2700 11-2701 11-2702 11-2703 11-2704 11-2705 11-2706 11-2707 11-2708 11-2709
SL- Option, 41- Option LFIC 11-2722 11-2723 11-2724 11-2725
SL- Option SFIC 11-2775 11-2776 11-2777 11-2778 11-2779 11-2780 11-2781 11-2782 11-2783 11-2784
SL- Option, 41- Option SFIC 11-2813 11-2814 11-2815 11-2816
SL- Option KESO 11-2843 11-2844 11-2845 11-2846 11-2847 11-2848 11-2849 11-2850 11-2851 11-2854
SL- Option, 41- Option KESO 11-2865 11-2866 11-2867 11-2868
SL- Option VC- ASSA V10 11-2817 11-2818 11-2819 11-2820 11-2821 11-2822 11-2823 11-2824 11-2825 11-2826
SL- Option, 31- Option,
VC- ASSA V10 		11-2829 11-2830 11-2831 11-2832 11-2833 11-2834 11-2835 11-2836 11-2837 11-2838
SL- Option, 41- Option,
VC- ASSA V10 		11-2839 11-2840 11-2841 11-2842

* Specify Finish

Note: Lockbody assemblies are shipped with bearing assembly, inside/outside sleeve, and inside/outside collar.

Note: Part numbers listed are for 1-3/4" thick doors. Consult factory for part numbers associated with non-standard doors.

Part Assembly Lock Function
Number Code 04 05 13 15 15-3 16 17 24 30 37 38 44 50 54 65 68 94-2
Standard 2-3/4" (70mm) Backset
11-2106 B x x x x x x x x x
11-2107 A x
11-2108 K x
11-2110 D x x x
11-2111 C x x
11-2112 — x
23-option 3-3/4" (95mm) Backset
11-2113 B x x x x x x x x x
11-2114 A x
11-2115 K x
11-2117 D x x x
11-2118 C x x
11-2119 — x
25-option 5" (127mm) Backset
11-2120 B x x x x x x x x x
11-2121 A x
11-2122 K x
11-2124 D x x x
11-2125 C x x
11-2126 — x
41-option 3/4" (19mm) Throw
08-2517 — x x x x x x x

Note: Code letter stamped on inside corner of latch front identifies function(s) compatible with the latch assembly. Specify Finish

29

Lever & Rose Designs

OL Design

  • Rose: O Wrought
  • Lever: L Cast

Note: Any rose and lever on this page can be combined to suit individual taste

LJ Design

  • Rose: L Wrought
  • Lever: J Cast

Note: Lever projections shown are for 1-3/4" (44mm) doors and will vary by door thickness

EB Design

  • Rose: E Wrought
  • Lever: B Cast

BP Design

  • Rose: B Wrought
  • Lever: P Cast

Levers Plain Std Cylinder,
Button & 		Sargent
LFIC 		SFIC
70- Option 		KESO
82- Option 		Schlage®
30- Option 		Schlage®
SF- Option 		ASSA V10
VC- Option 		Yale® 6 or 7 Pin
YC- and YC-7P 		Yale® LFIC
6 Pin 		Yale® LFIC
7 Pin
Emergency
Release 		60- Option Options YRC
Option 		YRC-7P
Option
B 11-0061 11-0063 11-0064 11-0065 11-0068 11-0066 11-0067
J 11-2558 11-2560 11-2561 11-2562 11-2565 11-2563 11-2564
L 11-0041 11-0043 11-0044 11-0045 11-0048 11-0046 11-0399 11-0047 11-0441 11-0443 11-0445
P 11-0101 11-0103 11-0104 11-0105 11-0108 11-0106 11-0107 11-0447 11-0449 11-0451
SL-B 11-0317 11-0318 11-0319 11-0322 11-0320 11-0321
SL-J 11-2869 11-2870 11-2871 11-2874 11-2872 11-2873
SL-L 11-0301 11-0302 11-0303 11-0306 11-0304 11-0401 11-0305
SL-P 11-0349 11-0350 11-0351 11-0354 11-0352 11-0353

B Rose 2-3/4" Dia. Brass

E Rose 3-1/8" Sq. Brass

L Rose 3-1/2" Dia. Brass

O Rose 2-3/4" Dia. Brass

Part Number Rose Description
11-2445 B Assembly for inside or outside of all functions except outside for 15-3, 93 and 94
11-2483 B Assembly for outside of 15-3 function
11-2449 B Assembly for inside or outside of 93 and 94 functions
11-2447 E Assembly for inside or outside of all functions except outside for 15-3, 93, 94 and inside of 38 functions
11-2484 E Assembly for outside of 15-3 function
11-2889 E Assembly for inside of 38 function
11-2451 E Assembly for inside or outside of 93 and 94 functions
11-2446 L Assembly for inside or outside of all functions except outside for 15-3, 93, 94 and inside of 38 functions
11-2485 L Assembly for outside of 15-3 function
11-2888 L Assembly for inside of 38 function
11-2450 L Assembly for inside or outside of 93 and 94 functions
11-2444 O Assembly for inside or outside of all functions except outside for 15-3, 93, 94 and inside of 38 functions
11-2482 O Assembly for outside of 15-3 function
11-2887 O Assembly for inside of 38 function
11-2448 O Assembly for inside or outside of 93 and 94 functions

Specify Finish

Curved Lip "T" Strike (Standard)

Brass, bronze or stainless steel.

2-3/4" (70mm) x 1-1/8" (29mm) x 1-1/4" (32mm) lip to center.

Optional lip lengths: 1" (25mm), 1-1/2" (38mm), 1-3/4" (44mm) and 2" (51mm).

To order separately, specify model no x finish.

Plastic strike box AM-0044 available separately.

ANSI Curved Lip (Optional) (28- Option)

Brass, bronze or stainless steel.

4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.

Optional lip lengths: 1-1/8" (29mm), 1-3/8" (35mm), 1-5/8" (42mm), 1-7/8" (48mm), 2-1/8" (54mm), 2-3/8" (60mm), 2-5/8" (66mm), 2-7/8" (73mm)

To order separately, specify model no x finish.

Strike box 77-1141 available separately.

ANSI Wrought Strike Box

Used with ANSI curved lip strike.

To order separately, specify 77-1141.

Strikes - 2-3/4" T-Curved Lip* (Standard)

Model No. Description
800 x 1" 1" Lip Length
800 x 1-1/4" 1-1/4" Lip Length
800 x 1-1/2" 1-1/2" Lip Length
800 x 1-3/4" 1-3/4" Lip Length
800 x 2" 2" Lip Length

Strike Box

Model No. Description
77-1141 4-7/8" ANSI wrought strike box
AM-0044 Plastic strike box for T-strike

Strikes - 4-7/8" ANSI Curved Lip* (28- Option)

Model No. Description
808 x 1-1/8" 1-1/8" Lip Length
808 x 1-1/4" 1-1/4" Lip Length
808 x 1-3/8" 1-3/8" Lip Length
808 x 1-5/8" 1-5/8" Lip Length
808 x 1-7/8" 1-7/8" Lip Length
808 x 2-1/8" 2-1/8" Lip Length
808 x 2-3/8" 2-3/8" Lip Length
808 x 2-5/8" 2-5/8" Lip Length
808 x 2-7/8" 2-7/8" Lip Length

* Specify Finish

Brass, 6-pin 2 nickel silver keys Finishes: 04, 15

Brass, 6-pin 2 nickel silver keys Finishes: 04, 15

Brass, 6-pin 2 nickel silver keys Finishes: 04, 15

Interchangeable Core^
Type Pins Standard Cylinder Hotel Cylinder Large Format Small Format
Conventional 6 C11-1 C11-2 6300 7300B
7 N/A N/A N/A 7P-7300B
Signature 6 10-C11-1 N/A 10-6300 N/A
XC 6 11-C11-1 N/A 11-6300 N/A
7 N/A N/A N/A 11-7P-7300B
Degree® DG1 6 DG1-C11-1 DG1-C11-2 DG1-6300 N/A
Degree® DG2 6 DG2-C11-1 N/A DG2-6300 N/A
Degree® DG3 6 DG3-C11-1 N/A DG3-6300 N/A

^ Locks will be provided with the applicable tailpiece per the type interchangeable and/or removable core being used.

Cylinder Parts

Part # Description
C11-3 Emergency Release Cylinder (65)

Tailpieces and Tailpiece Packs

Part Number Description
11-0403 Cylinder tailpiece for SF- option Schlage® LFIC
11-0171 Cylinder tailpiece - SFIC 6 pin
11-0172 Cylinder tailpiece - SFIC 7 pin, LFIC 6 Pin
11-0276 Cylinder tailpiece pack for 11- SFIC 7 pin
11-2578 Cylinder tailpiece pack for 30- option Schlage® fixed core
11-5003 Cylinder tailpiece and retainer pack, DG/XC LFIC
11-5004 Cylinder spacer for Yale® 6 pin fixed core cylinder
11-5005 Cylinder tailpiece pack for Yale® 6 or 7 pin LFIC
13-1385 Cylinder tailpiece - adapts 10L cylinder to 11L

Screws and Screw Packs

Part Number* Description
01-1018 Countersunk flat head screw 10-24 x 1/2" (2" Dr)
01-1027 Countersunk flat head screw 10-24 x 3/8" (1-3/4" Dr)
01-1316 Spanner set screw - for lever only (bit size #6)
01-1426 6-Lobe security set screw for lever only 1/4-28 x .1675 (bit size T-20)
01-2201 Wood screw #4 x 1/2"
01-3337 Machine screw #4-40 x 1/2"
01-4373 Countersunk flat head security screw 1/4-20 x 2-3/4"
01-5000 Countersunk flat head security screw 8-32 x 3/4"
01-5001 Subfront screws (6010 kit)
01-9109 Machine screw #6-32 x 3/8"
11-2520 Screw pack
11-2521 Screw pack for 93 and 94 functions
11-2522 Screw pack for 36- option
11-2523 Screw pack for 36- option for 93 and 94 functions
11-2526 Screw pack for 28- option
11-2527 Screw pack for 28-36- option
11-2528 Screw pack for 28-37- option
11-2529 Screw pack for 41- option
11-2530 Screw pack for 41-36- option
11-2531 Screw pack for 41-37- option
82-3855 6-Lobe bit pack - includes 6 bits, sizes T8, T9, T10, T15, T20, T25, T27
82-3856 Spanner bit pack - includes 6 bits, sizes 6, 8, 10, 12, 14

Misc Parts

Part Number Description
01-0225* Cup washer
01-4530 6-Lobe security tool (Torx™) to assemble lever set screw
08-0562 Subfront (6010 kit)
11-0031 Collar inside
11-0032 Collar outside
11-0138 Installation wrench to assemble rose and collars
11-0174 Anchor plate
11-0263 Threaded plunger, SL- option
11-0266 Screwdriver
11-0394 Aligning pin, standard
11-0396 Aligning pin, 2-1/4" door
11-0397 Aligning pin, 2-1/2" door
11-2263* Thumbturn, 68 function
11-2495 Mounting flange assembly for 93 and 94 functions
11-2496 Mounting flange assembly for 94 function
11-2501 Tube assembly for 94-2 function
11-4068 Lever catch assembly with screw, standard
11-4069 Lever catch assembly with screw, SL- option
14-0057 Emergency key privacy function only
14-0299 Lockout key for 50 function

T-ZONE WRENCH 01-4530 6 Lobe Security Tool (T-20)

11-0138 Installation Wrench

14-0299 Lockout Key

The warranty on SARGENT® products becomes void if the product is modified in any way, regardless of whether the modification causes or contributes to any alleged defect. If a SARGENT product is modified it may no longer meet industry certification and quality control standards applicable to the original product and is no longer a genuine SARGENT product.

34

* Specify finish

SARGENT Manufacturing Company 100 Sargent Drive New Haven, CT 06511 USA 800-727-5477 www.sargentlock.com
