Spectra ™ S6000 Series Architectural Exit Devices

SPECTRA CLASS - SPECIFICATION GRADE EXIT DEVICES FOR SUPERIOR ARCHITECTURAL STYLE & PERFORMANCE

The new mechanical SDC S6000 Spectra™ Series panic and fire rated exit devices are available in rim mount, mortise and surface vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant and comply with all national and state building and fire life safety codes. The SDC Spectra series exit devices have a modern look and quiet push pad operation. Various Electric Options are also avalable to complement your system.

DEVICE TYPES

S6100 RIM Mount, Grade 1, Panic & Fire

S6200 SVR Surface Vertical Rod, Grade 1, Panic & Fire

S6300 Mortise, Grade 1, Panic & Fire

ELECTRIFIED OPTIONS

S6000E Electric Latch Retraction & Dogging, Integrated

S6000EM Electric Latch Retraction & Dogging, External Module

S6000G Electric Dogging, Failsecure

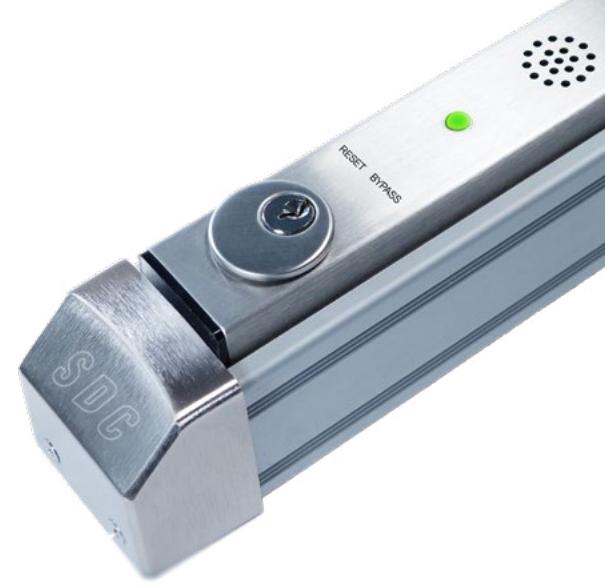

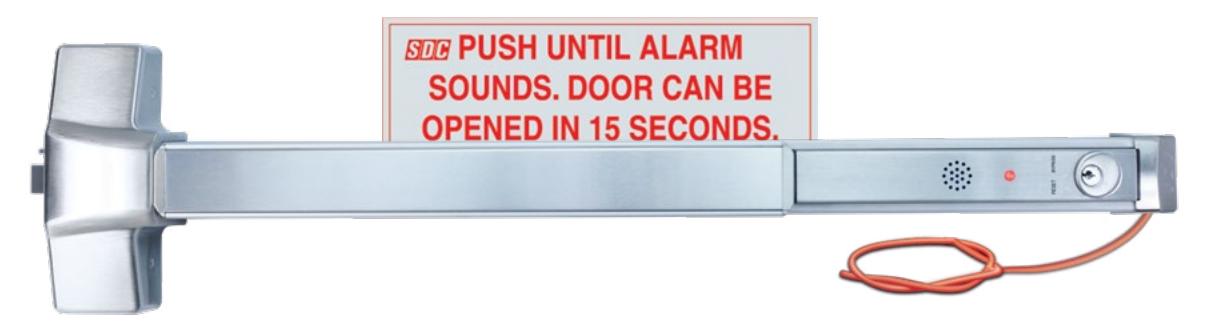

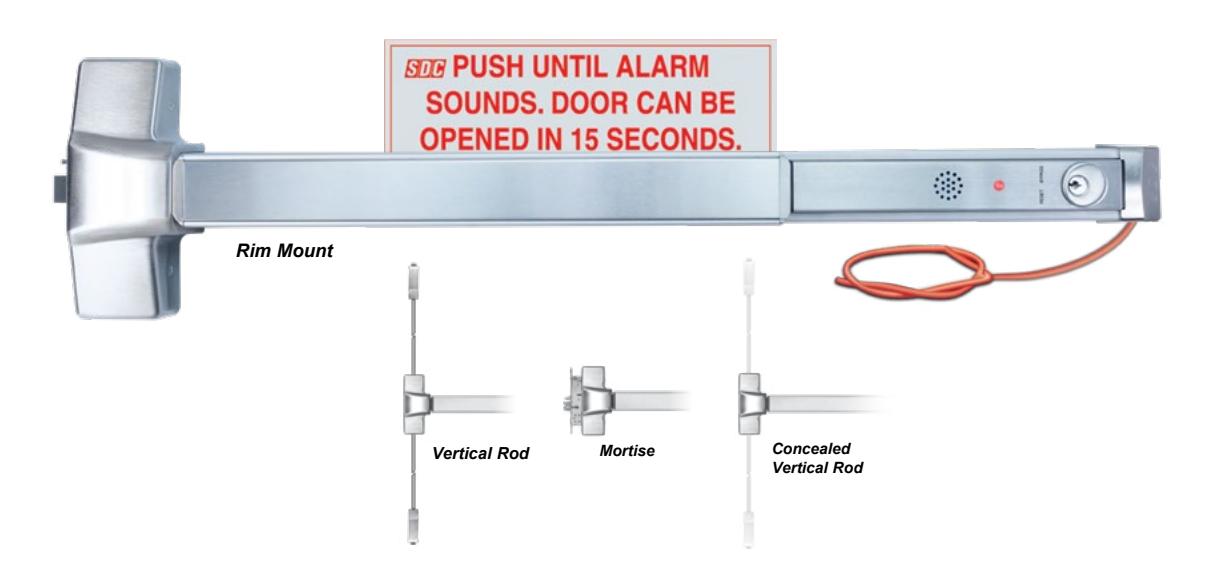

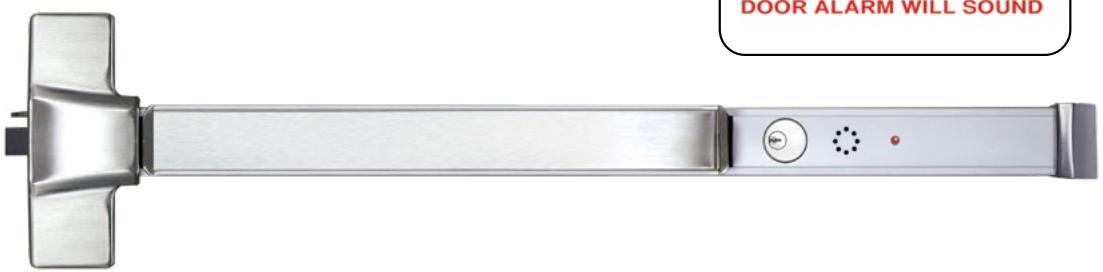

S6000A Alarmed Exit, 9V Battery Powered

S6000B Alarmed Exit, 12/24V AC/DC Input, 9V Battery Backup

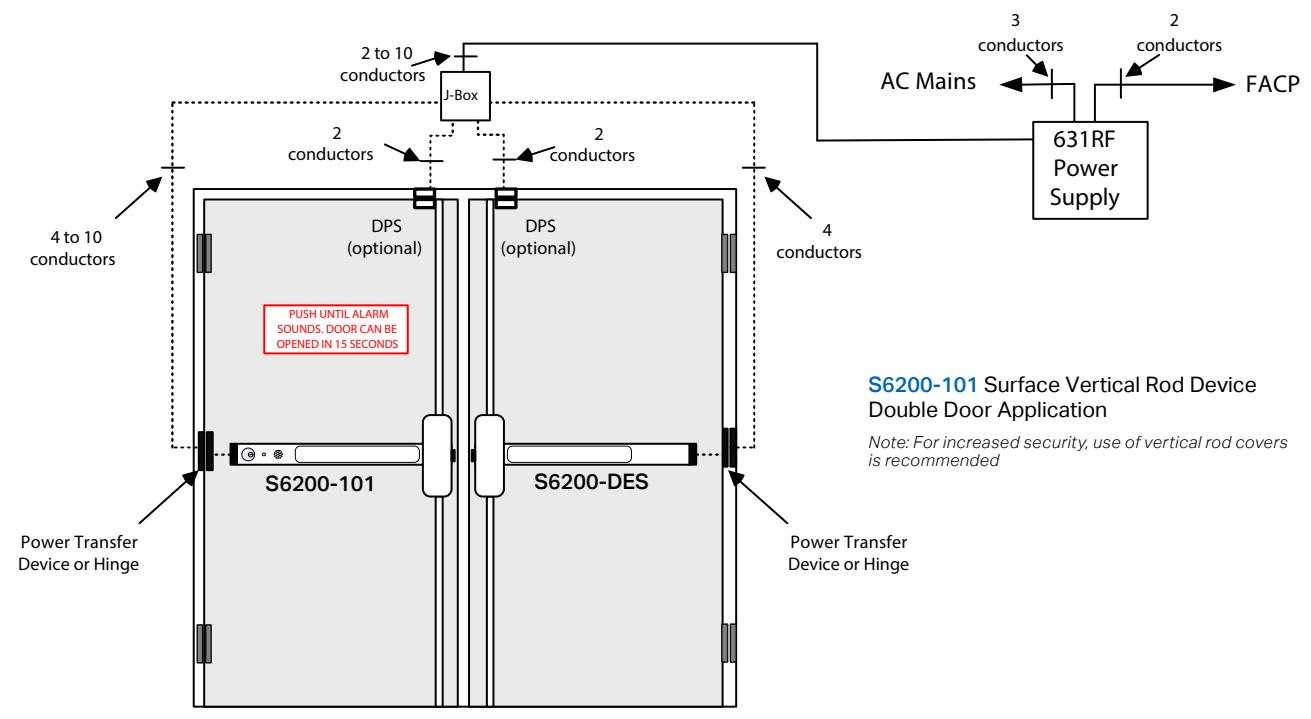

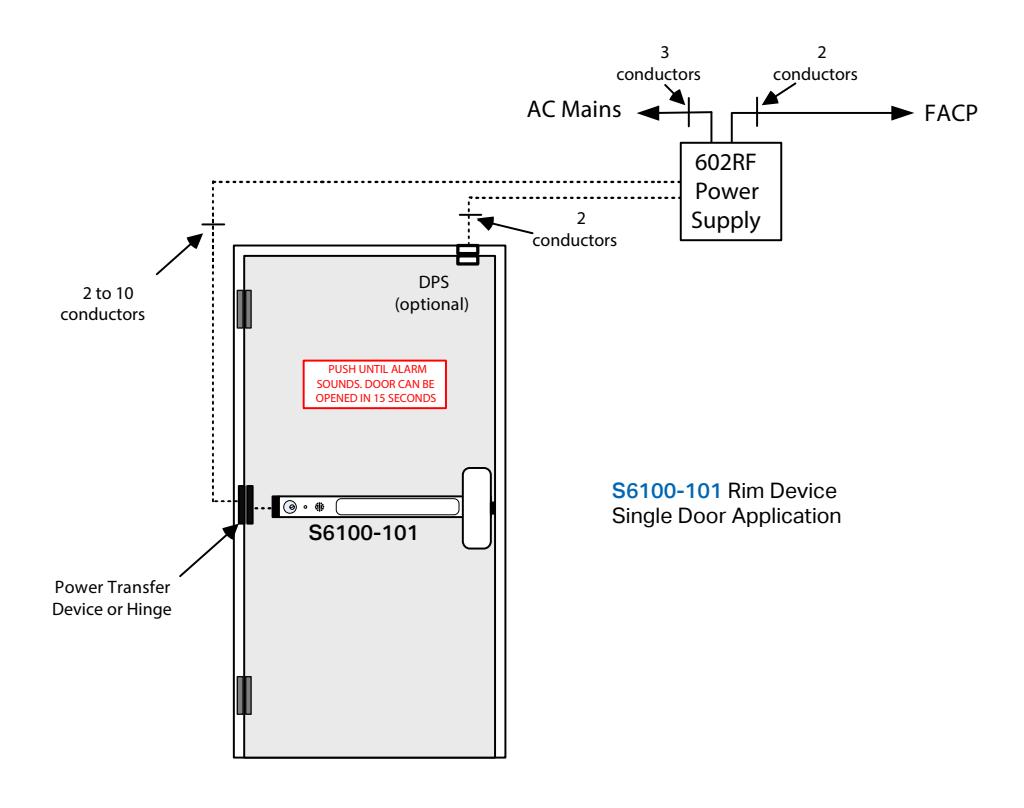

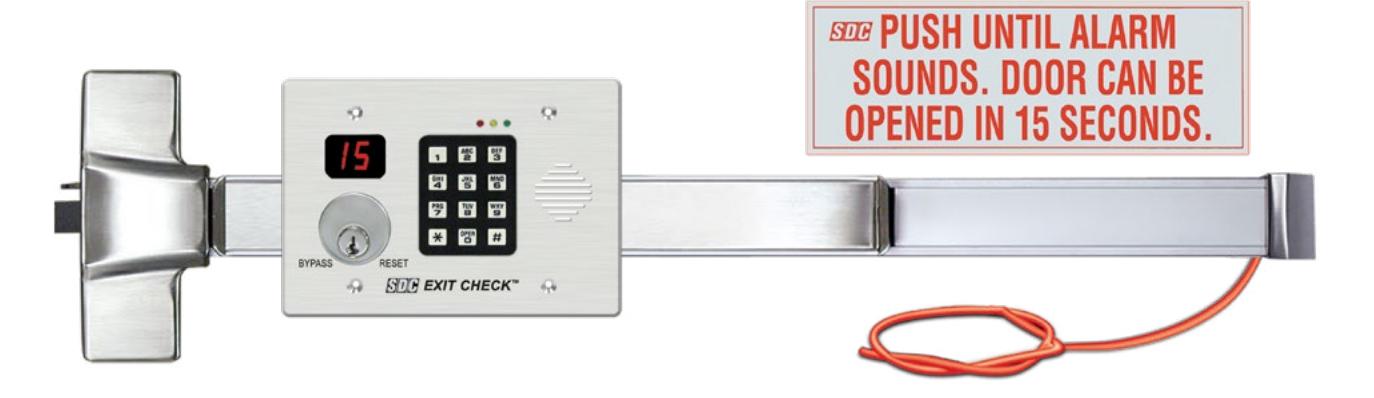

S6000-101 Delayed Egress, All-In-One

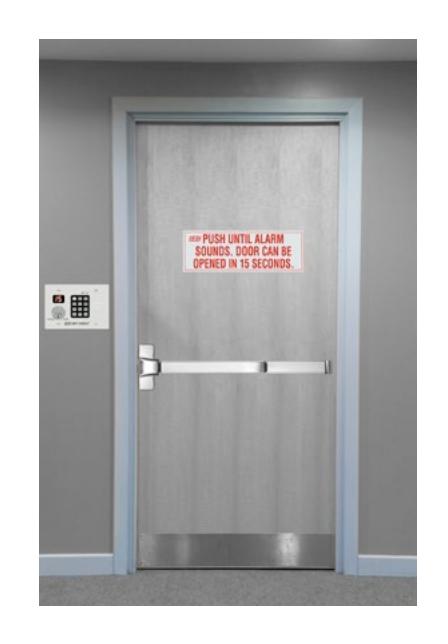

S6000DE Delayed Egress, 2-Piece, Wall Mount Controller, Keypad Control & Reset

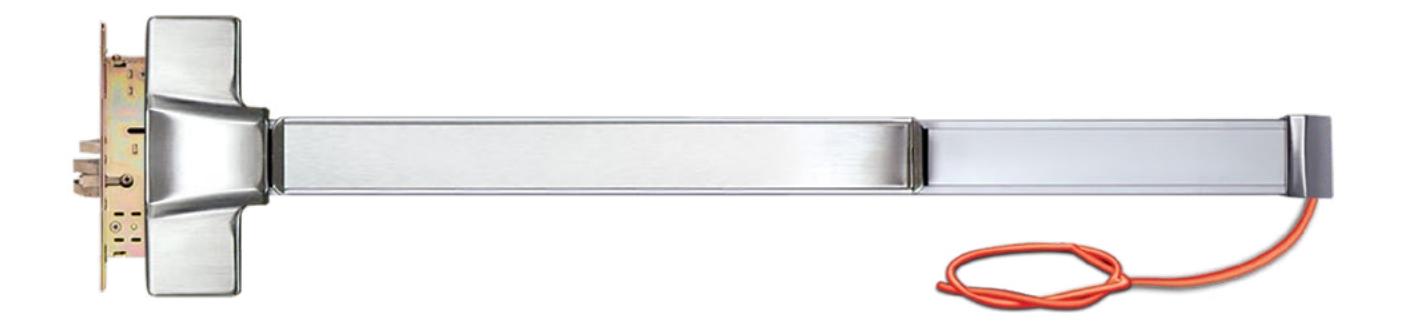

S6300MS Electrified Mortise, Failsecure

S6300MF Electrified Mortise, Failsafe

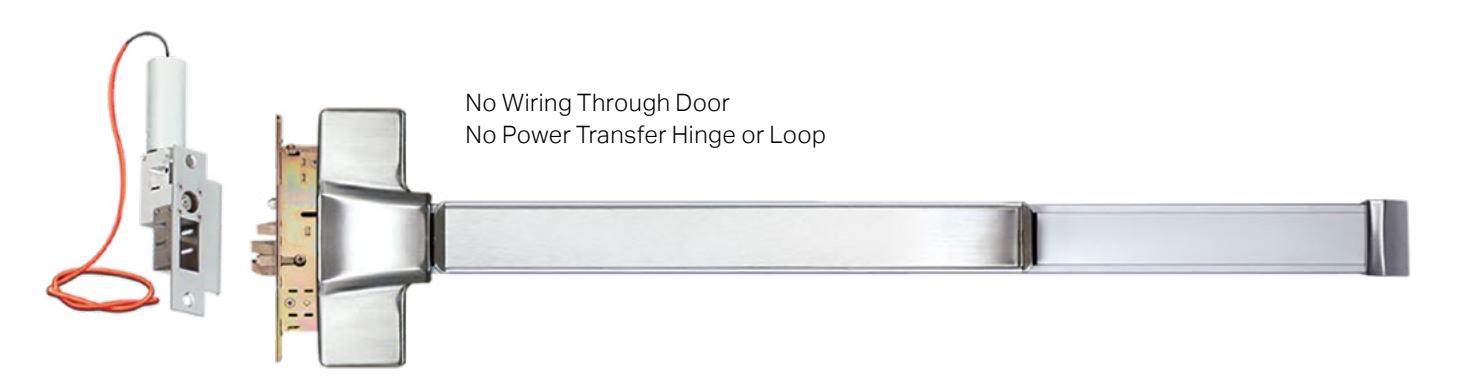

S6303FH Mortise, Electric Frame Actuator Controlled, Key Retracts Latch

Panic & Fire Exit Hardware
ANSI/BHMA A156.3 Grade 1
CA Title 19 Compliant
Meets/Exceeds ADA requirements
UBC 97, Standard 7.2

Spectra™ S6000 Series Specification Grade Exit Devices

The mechanical SDC S6000

Spectra™ Series panic and fire rated exit devices have a modern look and quiet push pad operation and are available in rim mount, mortise and surface vertical rod configurations. Spectra Class mechanical exit devices are UL listed and ANSI A156.3 Grade 1 compliant and comply with all national and state building and fire life safety codes.

APPLICATIONS

S6100 Rim Mount

S6300 Mortise

MODELS.

RHR or LHR Hollow Metal, Wood and Mineral Core Doors
1¾" Door Thickness Standard Specify Thickness Other Than 1¾"

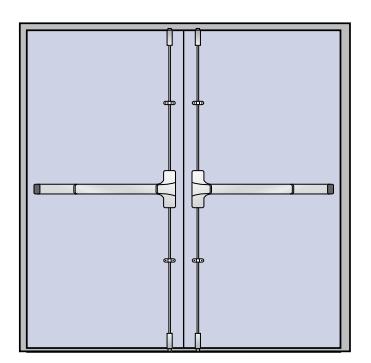

DOUBLE DOOR APPLICATIONS

Rim Device and SVR Device combination same direction. Overlapping astragal is not required, but coordinator required with a double door strike.

Two Rim Devices on 2 independent active doors with removable mullion.

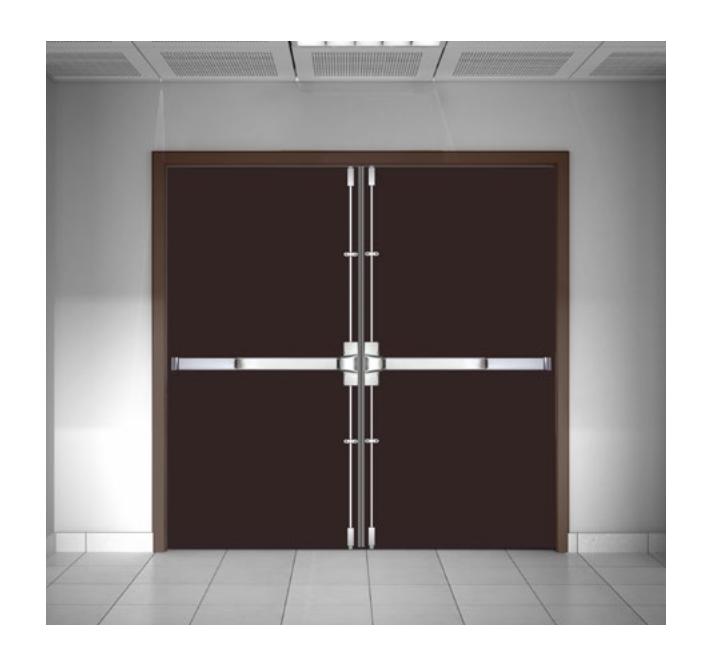

Two Surface Vertical Rod (SVR) same direction. Overlapping astragal is not required.

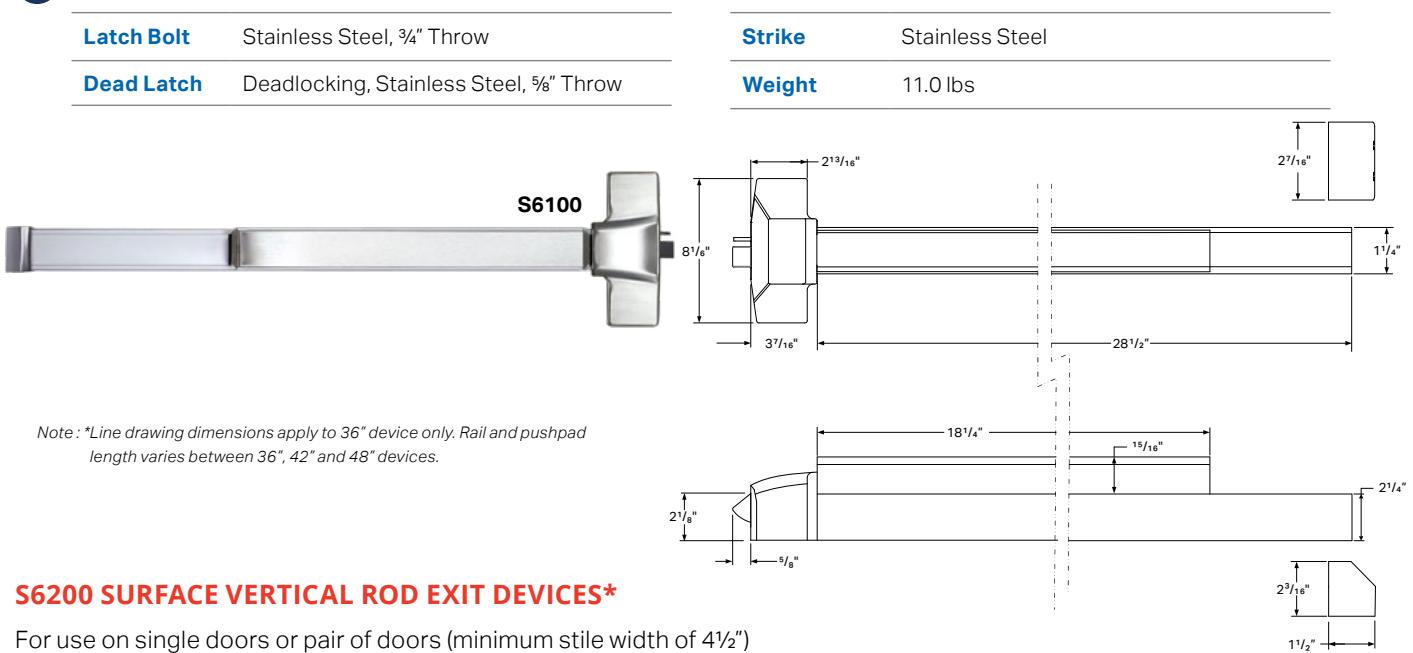

S6100 RIM MOUNT EXIT DEVICES

For use on single doors or pair of doors with mullion (minimum stile width of $4\frac{1}{2}$ ")

SPECIFICATIONS


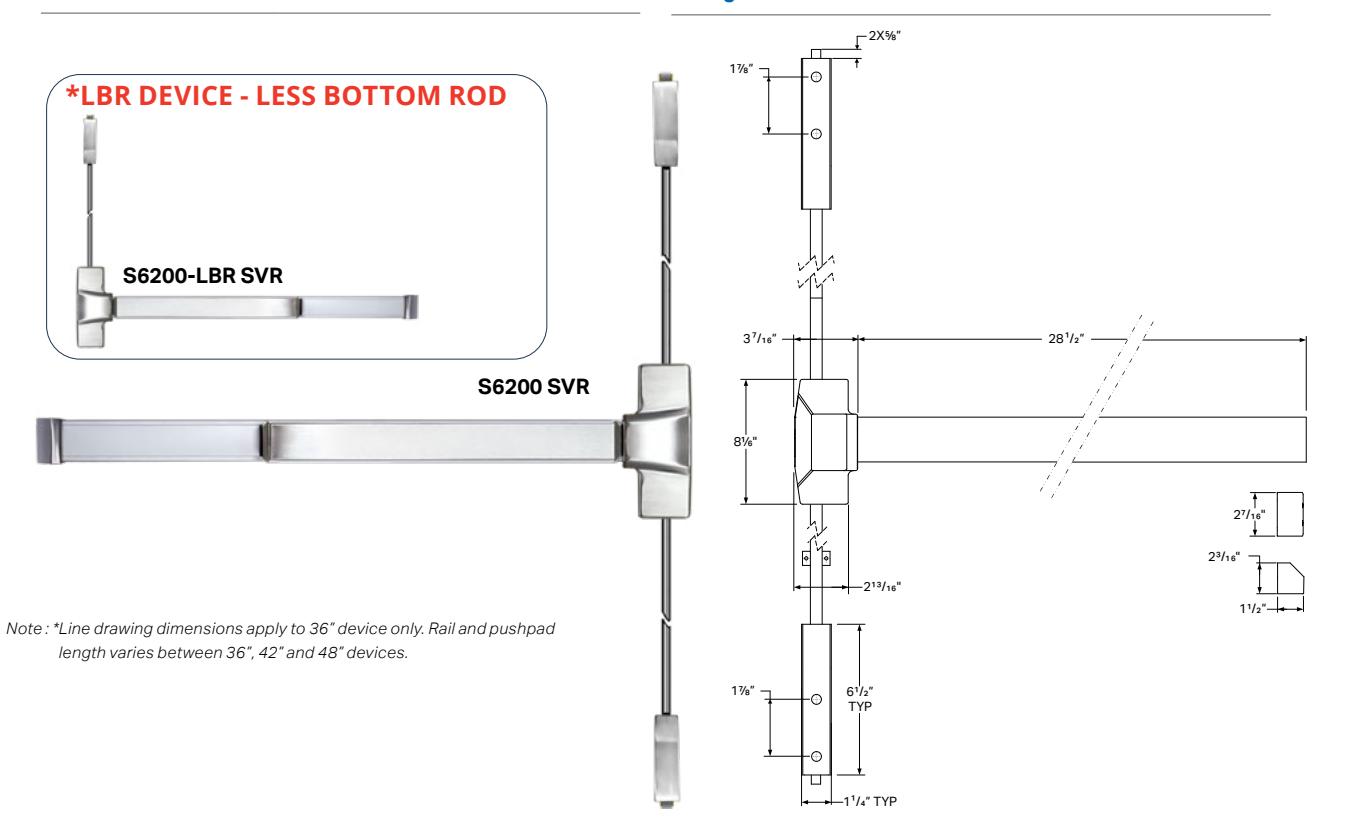

Top Latch	Stainless Steel, 37/64"	Lat
Top Strike	Included	Ver
Bottom Latch	Stainless Steel, 37/64"	Sta
Bottom Strike	Included	We


Latch Case Covers	Steel, Stainless Steel or Brass
Vertical Rods	Aluminum Tube
Standard Height	for 7'0" Doors
Weight	13.0 lbs

FOLLOW STEPS 1-6 FOR ORDERING

1| SPECIFY DEVICE TYPE

S61 Rim Mount

$62 SVR Surface Vertical Rod

2 | SPECIFY FUNCTION

01 Exit Only, No Trim

02 Dummy Trim, No Cylinder Prep

03 Key Retracts Latchbolt (Nightlatch)

08 Key Locks/Unlocks Lever (Classroom)

14 Lever Always Active, No Cylinder Prep

3 SPECIFY RATING

P Panic-Rated Device F Fire-Rated Device

4| SPECIFY FINISH

U 630 Dull Stainless Steel Standard

5| SPECIFY LENGTH

36 For 36" Door Width

42 For 42" Door Width

48 For 48" Door Width

61 SPECIFY DEVICE OPTIONS

MONITORING OPTIONS

STEP NUMBER:

R Request-To-Exit Output, SPDT L Latch Status Output, SPDT

MECHANICAL DEVICES ONLY

HEX KEY DOGGING STANDARD

CD Keyed Dogging. Specify Mortise Key Cylinder Separately. Not Available with (F) Fire-Rated Devices.

S62 SVR DEVICES ONLY

LBR Less Bottom Rod, Panic-Rated LBRF Less Bottom Rod, Fire-Rated

Designates optional step

ORDERING EXAMPLE: S61 | 03 | P | U | 36 | R

SELECT COMPATIBLE TRIM


TRIM TYPE	М	ECHANICAL	*	ELECTRIF	-IED, *
Applicable Devices	9	6100, S6200	)	S6100, S6200
	Eclipse Escutcheon	Galaxy Escutcheon	Saturn Escutcheon	Eclipse Escutcheon	Galaxy Escutcheon
02 Dummy Trim, No Cylinder Prep	EK02U	GK02U	SP02U	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EK03U	GK03U	SP03U	EKE03U	GKE03U
08 Key Locks/Unlocks Lever (Classroom)	EK08U	GK08U	n/a	n/a	n/a
14 Lever Always Active, No Cylinder Prep	EK14U	GK14U	n/a	n/a	n/a

COMPATIBLE KEY	CYLINDERS

Mortise Cylinder, 6-Pin, 11/8" Length, Keyed CYL-6KDQ Different, Dull Chrome

Mortise Cylinder 6-Pin, 11/8" Length, Keyed Alike, CYL-6KAQ Dull Chrome

Rim Cylinder, 6-Pin, Keyed Alike, Dull Chrome RIM-CYL-KA (For EK03U, GK03U & SP03U ONLY)

Notes: *Key cylinder not included with trim, specify separately **See S6300MS/MF for electrified mortise trim

STRIKES (SCREWS INCLUDED)

RIM DEVICE STRIKES (S61 ONLY)

ST1P Rim Strike, 13/16" Projection ST1F Rim Strike, 13/16" Projection, Fire-Rated

DOUBLE DOOR (S61 ONLY)

ST2DF Rim Strike, 115/16" Projection

VERTICAL ROD DEVICE STRIKES (S62, S68 ONLY)

ST2P Top Strike, 29/32" Projection

ST2F Top Strike, 11/8" Projection , Fire-Rated

ST28P Bottom Floor Strike, Mortise, 21/4"

ST28F Bottom Floor Strike, Mortise, 21/4", Fire-Rated

KR90F Removable Mullion, 8' Length, 2" Width, 11 Gauge Steel, Less Cylinder

ST1MP Mullion Strike, 7/8" Projection ST1MF Mullion Strike, 7/8" Projection, Fire-Rated

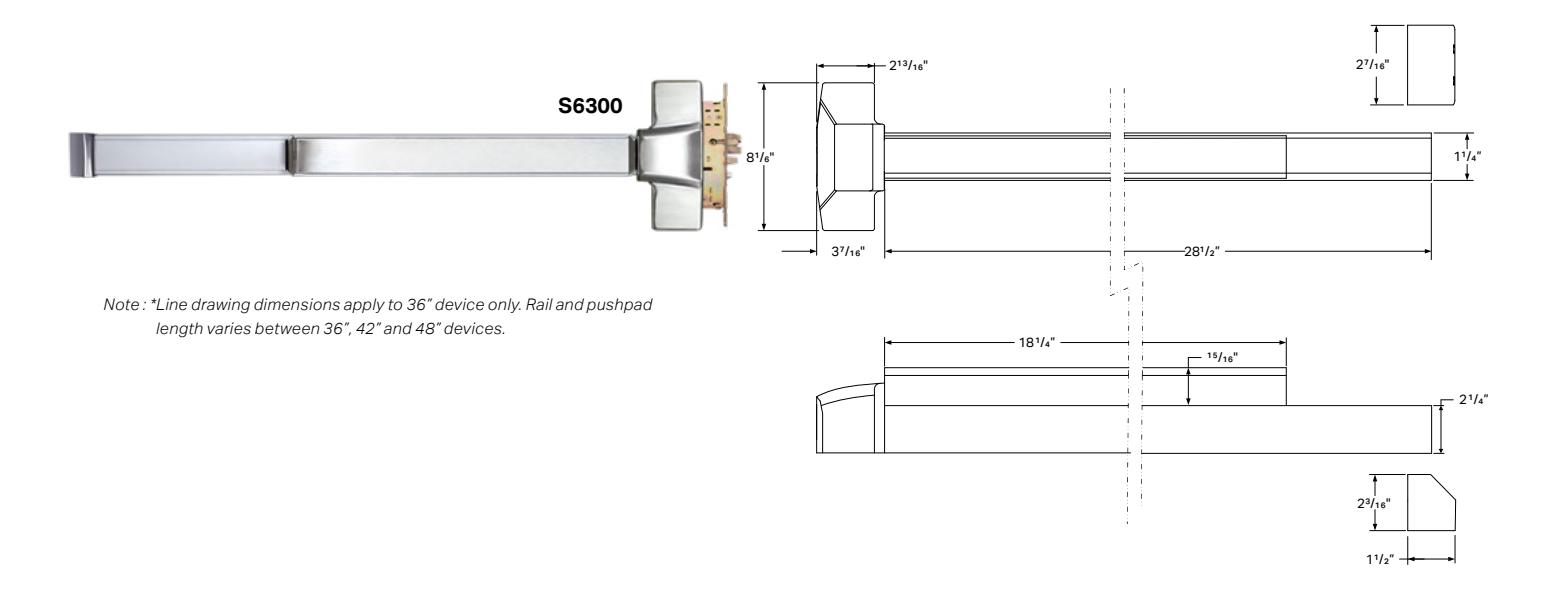

S6300 MORTISE EXIT DEVICE

For use on single doors or active leaf of double doors

SPECIFICATIONS

Lock Case	Steel Plated 6½16" x 3½16" x 2½32"
Anti-Friction Latchbolt	³¼" Throw
Hand	Reversible without removing the lock from the door


Auxiliary Deadlock Bolt	Non-Handed, Stainless Steel
Strike	ANSI 4%"
Trim	Included at No Cost, Specify Separately.
Weight	11.0 lbs

FOLLOW STEPS 1-7 FOR ORDERING

7| SPECIFY DEVICE OPTIONS

R Request-To-Exit Output, SPDT L Latch Status Output, SPDT MECHANICAL DEVICES ONLY HEX KEY STANDARD

Cylinder Separately.

CD Keyed Dogging. Specify Mortise Key

Not Available with (F) Fire-Rated Devices.

MONITORING OPTIONS

1| SPECIFY DEVICE TYPE

S63 Mortise*

2| SPECIFY FUNCTION

01 Exit Only, No Trim

03 Key Retracts Latchbolt (Nightlatch)

08 Key Locks/Unlocks Lever (Classroom)

14 Lever Always Active, No Cylinder Prep

3| SPECIFY RATING

P Panic-Rated Device

F Fire-Rated Device

*Trim included at no cost, specify separately

4| SPECIFY HAND

RR Right Hand Reverse Bevel, RHRB LR Left Hand Reverse Bevel, LHRB

5| SPECIFY FINISH

U 630 Dull Stainless Steel Standard

6| SPECIFY LENGTH

36 For 36" Door Width

42 For 42" Door Width

48 For 48" Door Width Designates optional step STEP NUMBER: 1 2 3 4 5 6 7

ORDERING EXAMPLE: S63 | ⁰³ | ^P | RR | ^U | ³⁶ | ^R

SELECT COMPATIBLE TRIM


MECHANICAL* (MORTISE)
	S6300 ONLY

Eclipse Escutcheon	Galaxy Escutcheon	Nova Escutcheon	Eclipse Rose	Galaxy Rose	Nova Rose
EE03U	GE03U	NE03U	E03U	G03U	N03U
EE08U	GE08U	NE08U	E08U	G08U	N08U
EE14U	GE14U	NE14U	E14U	G14U	N14U

CYL-6KDQ Mortise Cylinder, 6-Pin, 11/8" Length, Keyed

Different, Dull Chrome

CYL-6KAQ Mortise Cylinder 6-Pin, 11/8" Length, Keyed Alike, Dull Chrome

Note: *Key Cylinder Not Included With Trim, Specify Separately

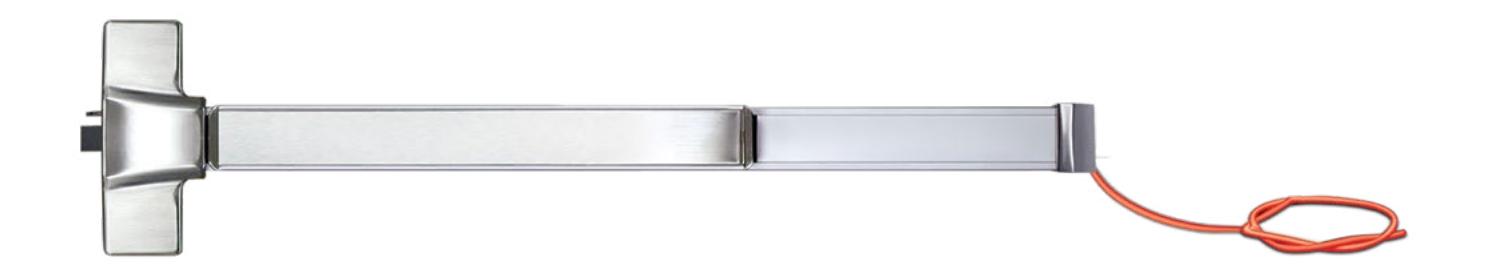

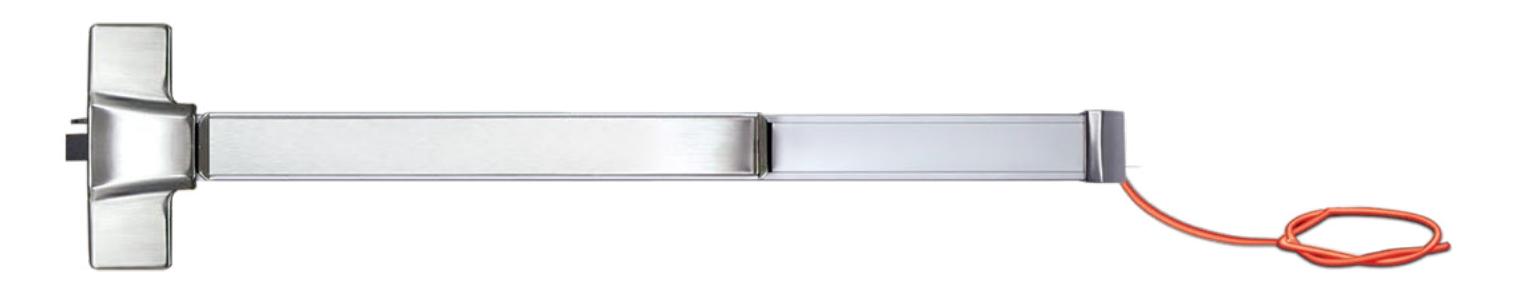

S6000E / S6000EM Series

Electric Latch Retraction & Dogging Devices

ELECTRIC LATCH RETRACTION

Electric Latch Retraction enables electric access control and dogging of mechanical exit devices. When energized the motor retracts the exit device latch and pulls the pushpad on most devices into the dogged (depressed) position enabling momentary or sustained push and pull operation of the door.

FEATURES

Choice of Internal or External Module Electric Latch Retraction and Dogging
Use for Rim, Surface Vertical or Mortise Exit Devices

MODELS

E Dual Electric Latch Retraction/Dogging
EM External Module Dual Electric Latch Retraction/Dogging

SPECIFICATIONS

Operation	Momentary or Maintained Latch Bolt and Push Pad Retraction, with Simultaneous Dogging. Automatic Re-Triggering of Latch Retraction
Finish	Dull Stainless Steel
Voltage	24VDC @ 700 mA Activation, 200 mA Continuous

FOLLOW STEPS 1-8 FOR ORDERING

1| SPECIFY DEVICE TYPE

S61 Rim Mount

S62 SVR Surface Vertical Rod

S63 Mortise*

2| SPECIFY FUNCTION

01 Exit Only, No Trim

02 Dummy Trim, No Cylinder Prep

03 Key Retracts Latchbolt (Nightlatch)

08 Key Locks/Unlocks Lever (Classroom)

14 Lever Always Active, No Cylinder Prep

3| SPECIFY RATING

P Panic-Rated Device

F Fire-Rated Device

*Trim included at no cost, specify separately

4| SPECIFY HAND

S63 MORTISE ONLY

RR Right Hand Reverse Bevel, RHRB LR Left Hand Reverse Bevel, LHRB

5| SPECIFY FINISH

U 630 Dull Stainless Steel Standard

6| SPECIFY LENGTH

36 For 36" Door Width

42 For 42" Door Width

48 For 48" Door Width

7| SPECIFY DEVICE OPTIONS

MONITORING OPTIONS

R Request-To-Exit Output, SPDT

L Latch Status Output, SPDT S62 SVR DEVICES ONLY

LBR Less Bottom Rod, Panic-Rated LBRF Less Bottom Rod, Fire-Rated

8| SPECIFY ELECTRIFICATION

E Motorized Electric Latch Retraction & Dogging

EM Motorized Electric Latch Retraction & Dogging, External Module

STEP NUMBER: Designates optional step 1 2 3 4 5 6 7 8

SELECT COMPATIBLE TRIM


TRIM TYPE		MECHANICAL*			MECHANICAL* (MORTISE)
Applicable Devices		S6100, S6200		S6300 ONLY
	Eclipse Escutcheon	Galaxy Escutcheon	Saturn Escutcheon	Eclipse Escutcheon	Galaxy Escutcheon	Nova Escutcheon	Eclipse Rose	Galaxy Rose	Nova Rose
02 Dummy Trim, No Cylinder Prep	EK02U	GK02U	SP02U	n/a	n/a	n/a	n/a	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EK03U	GK03U	SP03U	EE03U	GE03U	NE03U	E03U	G03U	N03U
08 Key Locks/Unlocks Lever (Classroom)	EK08U	GK08U	n/a	EE08U	GE08U	NE08U	E08U	G08U	N08U
14 Lever Always Active, No Cylinder Prep	EK14U	GK14U	n/a	EE14U	GE14U	NE14U	E14U	G14U	N14U

ORDERING EXAMPLE: S61 | ⁰³ | ^P | ^U | ^U | ³⁶ | ^L | ^E

Note: *Key Cylinder Not Included With Trim, Specify Separately

COMPATIBLE KEY CYLINDERS CYL-6KDQ Mortise Cylinder, 6-Pin, 11/8" Length, Keyed Different, Dull Chrome CYL-6KAQ Mortise Cylinder 6-Pin, 11/8" Length, Keyed Alike, Dull Chrome RIM-CYL-KA Rim Cylinder, 6-Pin, Keyed Alike, Dull Chrome

(For EK03U, GK03U & SP03U ONLY)

STRIKES (SCREWS INCLUDED)

RIM DEVICE STRIKES (S61 ONLY)

ST1P Rim Strike, 13/16" Projection

ST1F Rim Strike, 13/16" Projection, Fire-Rated

DOUBLE DOOR (S61 ONLY)

ST2DF Rim Strike, 115/16" Projection

VERTICAL ROD DEVICE STRIKES (S62, S68 ONLY)

ST2P Top Strike, 29/32" Projection

ST2F Top Strike, 11/8" Projection ,

Fire-Rated

ST28P Bottom Floor Strike, Mortise,

21/4"

ST28F Bottom Floor Strike, Mortise,

21/4", Fire-Rated

ST28T Threshold Strike, 3/8" Projection

KR90F Removable Mullion, 8' Length, 2" Width, 11 Gauge Steel, Less Cylinder

ST1MP Mullion Strike, 7/8" Projection ST1MF Mullion Strike, 7/8" Projection, Fire-Rated

POWER TRANSFER HINGE

PTH-4Q (4) Conductor

Hinge, Fire-Rated

PTH-10Q (10) Conductor

Hinge, Fire-Rated

CONCEALED MORTISE POWER TRANSFER HINGE

PTM-2 (2) Conductor Hinge, Mortise,

Fire-Rated

PTM-10 (10) Conductor Hinge, Mortise,

Fire-Rated

POWER TRANSFER LOOP

PT-3V Surface Mount, Armored Flex Conduit

CONCEALED MORTISE POWER TRANSFER LOOP

PT-5 Mortise, Frame Steel Dust Box, Flexible Steel, Fire-Rated

POWER TRANSFER POWER SUPPLY

POWER CONTROLLERS

602RF 1 Amp, Class 2 Output, Regulated &

Filtered

631RF 1.5 Amp, Class 2 Output, Regulated & Filtered

DOOR CONTROL MODULES

UR-1 Microprocessor Controller, Dip Switch Selectable

BACKUP BATTERIES

RB12V4 12V/5Ah Battery RB12V7 12V/8Ah Battery

S6000G Series

Electric Dogging Devices

ELECTRIC DOGGING

When energized by optional built-in key switch or remote switch manual, depressing the pushpad, causes the pushpad and latch to remain retracted (unlocked) providing push-pull door operation. When de-energized or signaled by a fire alarm, the pushpad and latch are released.

Available for Fire Rated & Non Fire Rated Devices
Built-In Optional Key Switch or Remote Switch enables Push-Pull Door Operation

SPECIFICATIONS

Voltage	170/100 mA @ 12/24VDC
Monitoring Available	Latch Status and REX Output Available

FOLLOW STEPS 1-9 FOR ORDERING

1| SPECIFY DEVICE TYPE

S61 Rim Mount

S62 SVR Surface Vertical Rod

S63 Mortise*

2| SPECIFY FUNCTION

01 Exit Only, No Trim

02 Dummy Trim, No Cylinder Prep

03 Key Retracts Latchbolt (Nightlatch)

08 Key Locks/Unlocks Lever (Classroom)

14 Lever Always Active, No Cylinder Prep

3| SPECIFY RATING

P Panic-Rated Device

F Fire-Rated Device

4| SPECIFY HAND

S63 MORTISE ONLY

RR Right Hand Reverse Bevel, RHRB LR Left Hand Reverse Bevel, LHRB

5| SPECIFY FINISH

U 630 Dull Stainless Steel Standard

6| SPECIFY LENGTH

36 For 36" Door Width

42 For 42" Door Width

48 For 48" Door Width

7| SPECIFY DEVICE OPTIONS

MONITORING OPTIONS

R Request-To-Exit Output, SPDT

L Latch Status Output, SPDT

S62 SVR DEVICES ONLY

LBR Less Bottom Rod, Panic-Rated LBRF Less Bottom Rod, Fire-Rated

8| SPECIFY ELECTRIFICATION

G Electric Dogging, Failsecure

9| SPECIFY ELECTRIC DOGGING OPTIONS

KS Built-In Key Switch

L1 1 Dogged Status Indicator, Green = Dogged (Unlocked), Less Cylinder

*Trim included at no cost, specify separately

Designates optional step STEP NUMBER: 1 2 3 4 5 6 7 8 9 ORDERING EXAMPLE: S61 | ⁰³ | ^P | RR | ^U | ³⁶ | ^L | ^G | KS

SELECT COMPATIBLE TRIM

TRIM TYPE		MECHANICAL*		MECHANICAL* (MORTISE)
Applicable Devices		S6100, S6200		S6300 ONLY
	Eclipse Escutcheon	Galaxy Escutcheon	Saturn Escutcheon	Eclipse Escutcheon	Galaxy Escutcheon	Nova Escutcheon	Eclipse Rose	Galaxy Rose	Nova Rose
02 Dummy Trim, No Cylinder Prep	EK02U	GK02U	SP02U	n/a	n/a	n/a	n/a	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EK03U	GK03U	SP03U	EE03U	GE03U	NE03U	E03U	G03U	N03U
08 Key Locks/Unlocks Lever (Classroom)	EK08U	GK08U	n/a	EE08U	GE08U	NE08U	E08U	G08U	N08U
14 Lever Always Active, No Cylinder Prep	EK14U	GK14U	n/a	EE14U	GE14U	NE14U	E14U	G14U	N14U

TRIM TYPE	ELECTRIFIED, *
Applicable Devices	S6100, S6200
	Eclipse Escutcheon	Galaxy Escutcheon
02 Dummy Trim, No Cylinder Prep	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EKE03U	GKE03U
08 Key Locks/Unlocks Lever (Classroom)	n/a	n/a
14 Lever Always Active, No Cylinder Prep	n/a	n/a

	COMPATIBLE KEY CYLINDERS
CYL-6KDQ	Mortise Cylinder, 6-Pin, 11/8" Length, Keyed Different, Dull Chrome
CYL-6KAQ	Mortise Cylinder 6-Pin, 11/8" Length, Keyed Alike, Dull Chrome
RIM-CYL-KA	Rim Cylinder, 6-Pin, Keyed Alike, Dull Chrome (For EK03U, GK03U & SP03U ONLY)

Notes : *Key cylinder not included with trim, specify separately **See S6300MS/MF for electrified mortise trim

STRIKES (SCREWS INCLUDED)

RIM DEVICE STRIKES (S61 ONLY)

ST1P Rim Strike, 13/16" Projection

ST1F Rim Strike, 13/16" Projection, Fire-Rated

DOUBLE DOOR (S61 ONLY)

ST2DF Rim Strike, 115/16" Projection

VERTICAL ROD DEVICE STRIKES (S62, S68 ONLY)

ST2P Top Strike, 29/32" Projection

ST2F Top Strike, 11/8" Projection ,

Fire-Rated

ST28P Bottom Floor Strike, Mortise,

21/4"

ST28F Bottom Floor Strike, Mortise,

21/4", Fire-Rated

ST28T Threshold Strike, 3/8" Projection

KR90F Removable Mullion, 8' Length, 2" Width, 11 Gauge Steel, Less Cylinder

ST1MP Mullion Strike, 7/8" Projection ST1MF Mullion Strike, 7/8" Projection, Fire-Rated

POWER TRANSFER HINGE

PTH-4Q (4) Conductor

Hinge, Fire-Rated

PTH-10Q (10) Conductor

Hinge, Fire-Rated

CONCEALED MORTISE POWER TRANSFER HINGE

PTM-2 (2) Conductor Hinge, Mortise,

Fire-Rated

PTM-10 (10) Conductor Hinge, Mortise,

Fire-Rated

POWER TRANSFER LOOP

PT-3V Surface Mount, Armored Flex Conduit

CONCEALED MORTISE POWER TRANSFER LOOP

PT-5 Mortise, Frame Steel Dust Box, Flexible Steel, Fire-Rated

POWER TRANSFER POWER SUPPLY

POWER CONTROLLERS

602RF 1 Amp, Class 2 Output, Regulated &

Filtered

631RF 1.5 Amp, Class 2 Output, Regulated & Filtered

DOOR CONTROL MODULES

UR-1 Microprocessor Controller, Dip Switch Selectable

BACKUP BATTERIES

RB12V4 12V/5Ah Battery RB12V7 12V/8Ah Battery

S6000A / S6000B Series

Alarmed Exit Devices

ALARMED EXIT

Audible alarm and multi-colored LED provide alert to emergency egress. A field selectable alarm mode includes continuous alarm with manual key reset; or automatic rearm of alarm 2 min after door closes and may be retriggered. May be manually rearmed by key before automatically rearmed.

100 dB Alarm; Visual and Audible On/Off Status:
- Armed Green LED Blinks Every 4 Seconds
- Alarm Mode Red LED, Bypass No LED
Remote Status Output (Requires B Option)
Remote Inhibit (Requires B Option)

SPECIFICATIONS

Arming Delay	15 or 60 Seconds
	Continuous Alarm with Manual Key Reset
Modes	Automatic Re-Arm 2 Minutes After Door
Modes	Closes or Manual Key Reset Before 2
Modes	Minutes

MODELS MODELS

A Exit Alarm, 9V Battery Powered

B Exit Alarm, 12-24V AC/DC Input, 9V Battery Backup

FOLLOW STEPS 1-8 FOR ORDERING

1| SPECIFY DEVICE TYPE

S61 Rim Mount

S62 SVR Surface Vertical Rod

S63 Mortise*

2| SPECIFY FUNCTION

01 Exit Only, No Trim

02 Dummy Trim, No Cylinder Prep

03 Key Retracts Latchbolt (Nightlatch)

3| SPECIFY RATING

P Panic-Rated Device

F Fire-Rated Device

*Trim included at no cost, specify separately

4| SPECIFY HAND

REQUIRED FOR S63 ONLY

RR Right Hand Reverse Bevel, RHRB

LR Left Hand Reverse Bevel, LHRB

5| SPECIFY FINISH

U 630 Dull Stainless Steel Standard

6| SPECIFY LENGTH

36 For 36" Door Width

42 For 42" Door Width

48 For 48" Door Width

7| SPECIFY DEVICE OPTIONS

MONITORING OPTIONS

L Latch Status Output, SPDT

S62 SVR DEVICES ONLY

LBR Less Bottom Rod, Panic-Rated LBRF Less Bottom Rod, Fire-Rated

8| SPECIFY ELECTRIFICATION

A Alarmed Exit, 9V Battery Powered

B Alarmed Exit, 12/24V AC/DC Input, 9V Battery Backup

Designates optional step STEP NUMBER: 1 2 3 4 5 6 7 8

ORDERING EXAMPLE: S63 | ⁰³ | ^P | RR | ^U | ³⁶ | ^L | ^A

SELECT COMPATIBLE TRIM

TRIM TYPE	MECHANICAL*			MECHANICAL* (MORTISE)
Applicable Devices		S6100, S6200				S6300 ONLY
	Eclipse Escutcheon	Galaxy Escutcheon	Saturn Escutcheon	Eclipse Escutcheon	Galaxy Escutcheon	Nova Escutcheon	Eclipse Rose	Galaxy Rose	Nova Rose
02 Dummy Trim, No Cylinder Prep	EK02U	GK02U	SP02U	n/a	n/a	n/a	n/a	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EK03U	GK03U	SP03U	EE03U	GE03U	NE03U	E03U	G03U	N03U

TRIM TYPE	ELECTRIFIED, *
Applicable Devices	S6100, S6200
	Eclipse Escutcheon	Galaxy Escutcheon
02 Dummy Trim, No Cylinder Prep	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EKE03U	GKE03U


	COMPATIBLE KEY CYLINDERS
CYL-6KDQ	Mortise Cylinder, 6-Pin, 11/8" Length, Keyed Different, Dull Chrome
CYL-6KAQ	Mortise Cylinder 6-Pin, 11/8" Length, Keyed Alike, Dull Chrome
RIM-CYL-KA	Rim Cylinder, 6-Pin, Keyed Alike, Dull Chrome (For EK03U, GK03U & SP03U ONLY)

Notes : *Key cylinder not included with trim, specify separately **See S6300MS/MF for electrified mortise trim

STRIKES (SCREWS INCLUDED)

RIM DEVICE STRIKES (S61 ONLY)

ST1P Rim Strike, 13/16" Projection

ST1F Rim Strike, 13/16" Projection, Fire-Rated

DOUBLE DOOR (S61 ONLY)

ST2DF Rim Strike, 115/16" Projection

VERTICAL ROD DEVICE STRIKES (S62, S68 ONLY)

ST2P Top Strike, 29/32" Projection

ST2F Top Strike, 11/8" Projection ,

Fire-Rated

ST28P Bottom Floor Strike, Mortise,

21/4"

ST28F Bottom Floor Strike, Mortise,

21/4", Fire-Rated

ST28T Threshold Strike, 3/8" Projection

KR90F Removable Mullion, 8' Length, 2" Width, 11 Gauge Steel, Less Cylinder

ST1MP Mullion Strike, 7/8" Projection ST1MF Mullion Strike, 7/8" Projection, Fire-Rated

POWER TRANSFER HINGE

PTH-4Q (4) Conductor

Hinge, Fire-Rated

PTH-10Q (10) Conductor

Hinge, Fire-Rated

CONCEALED MORTISE POWER TRANSFER HINGE

PTM-2 (2) Conductor Hinge, Mortise,

Fire-Rated

PTM-10 (10) Conductor Hinge, Mortise,

Fire-Rated

POWER TRANSFER LOOP

PT-3V Surface Mount, Armored Flex Conduit

CONCEALED MORTISE POWER TRANSFER LOOP

PT-5 Mortise, Frame Steel Dust Box, Flexible Steel, Fire-Rated

POWER TRANSFER POWER SUPPLY

POWER CONTROLLERS

602RF 1 Amp, Class 2

Output, Regulated &

Filtered

631RF 1.5 Amp, Class 2 Output, Regulated & Filtered

DOOR CONTROL MODULES

UR-1 Microprocessor Controller, Dip Switch Selectable

S6000-101 Series

All-In-One Delayed Egress Devices

The Exit Check® All-In-One device integrates our premium Spectra™ bar with SDC's innovative delayed egress electronics.

FEATURES

When unauthorized egress is initiated by depressing the push pad of the S6000-101, an audible alarm will sound and an irreversible delay period of 15 seconds will begin. After the delay period has expired, the device unlocks, permitting egress until the device is reset. In a life safety emergency, the device will immediately unlock upon loss of power or when powered by a fire control supervised power supply.

Low Power consumption 540 mA @24VDC
15 second exit delay, 1 or 2 second nuisance delay
Built-in Visual and Audible Annunciation
Single or pair of doors

Key reset, bypass
· Field-selectable 1 to 30 second request-to-exit, anti-tailgate and door prop alarm
UL Listed

APPLICATION

Restricting the egress of wandering patients for their own safety
Restricting the egress of commercial center patrons for security application needs
· Reducing shoplifting and employee theft
Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs
Compatible with access control for entry using electrified trim on rim and vertical rod devices or using mortise case electrification (Not compatible with rim electric strike)

CODE COMPLIANCE

NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC Compliant

Fixed 15 Second Exit Delay, 1 or 2 Second Nuisance Delay Calif. Building Code OSHPD/Manual Power Up

ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant

Fixed 15 Second Exit Delay, 1 or 2 Second Nuisance Delay

BC BOCA National Building Code and Chicago Building Compliant

Fixed 15 Second Exit Delay, 0 Second Nuisance Delay, Auto Reset 30 Seconds After Door Closure

BD BOCA National Building Code

Fixed 15 Second Exit Delay, 1 or 2 Second Nuisance Delay, Auto Reset 30 Seconds After Door Closure

OPERATION

1) When the door is closed, latched, and the lock is energized, the on-board status LED is solid green indicating the door is secure.
2) Pressing the device push pad activates a warning tone. If the pad is released in 1 second, the warning tone stops and the door stays locked.
3) When activation exceeds the nuisance time of 1 second an irreversible process begins that will unlock the door in 14 seconds. The warning tone continues.

TONE ONLY

Activation: Short beeps

Lock Release: Long continuous beep

4) The door unlocks when 15 seconds has elapsed, annunciation continues.
5) The lock is manually reset by the built-in keyswitch or optional wall mounted keypad or remote switch.
6) The door will unlock upon signal from the fire life safety system or power loss.

Auto Power-Up: Lock will re-arm automatically when power is restored and fire alarm system is reset.

Manual Power-Up: Per California Building Code, lock is re-armed by manual means at the door by keyswitch or optional wall mounted reset keypad or remote switch.

OPERATION

1) When the door is closed, latched, and the lock is energized, the on-board status LED is solid green indicating the door is secure.
2) Pressing the device push pad activates a warning tone. If the pad is released in 1 second, the warning tone stops and the door stays locked.
3) When activation exceeds the nuisance time of 1 second an irreversible process begins that will unlock the door in 14 seconds. The warning tone continues.

TONE ONLY

Activation: Short beeps

Lock Release: Long continuous beep

4) The door unlocks when 15 seconds has elapsed, annunciation continues.
5) The door must be opened and then closed for 30 seconds before the device automatically re-locks and annunciation stops. Reopening of the door before the end of the 30 second re-locking cycle will restart the 30 second re-locking cycle.
6) Built-in keyswitch or optional wall mounted keypad or remote switch provide timed or maintained bypass.
7) The door will unlock upon signal from the fire life safety system or power loss.

FOLLOW STEPS 1-9 FOR ORDERING

1| SPECIFY DEVICE TYPE

S61 Rim Mount
S62 SVR Surface Vertical Rod
S63 Mortise*
S68 CVR Concealed Vertical Rod

2| SPECIFY FUNCTION

01 Exit Only, No Trim
02 Dummy Trim, No Cylinder Prep
03 Key Retracts Latchbolt (Nightlatch)

3| SPECIFY RATING

P Panic-Rated Device
F Fire-Rated Device

4| SPECIFY HAND

REQUIRED FOR S63 ONLY

RR Right Hand Reverse Bevel, RHRB

LR Left Hand Reverse Bevel, LHRB

5| SPECIFY FINISH

U 630 Dull Stainless Steel Standard

6| SPECIFY LENGTH

36 For 36" Door Width
42 For 42" Door Width
48 For 48" Door Width

7| SPECIFY DEVICE OPTIONS

MONITORING OPTIONS

R Request-To-Exit Output, SPDT

L Latch Status Output, SPDT

S62 SVR DEVICES ONLY

LBR Less Bottom Rod, Panic-Rated LBRF Less Bottom Rod, Fire-Rated

8| SPECIFY ELECTRIFICATION

101 Delayed Egress Electrification of Master Exit Device and Integrated Controller with Key Switch Control and Reset, Less Cylinder
DES For Pair of Doors, Additional Exit Device Equipped with Delayed Egress Mechanism, Less Controller.

Must Order with 101 Device.

9| SPECIFY DELAYED EGRESS CODE OPERATIONS

NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC Compliant
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
BC BOCA National and Chicago Building Compliant
BD BOCA National Building Code Compliant

*Trim included at no cost, specify separately

Designates optional step STEP NUMBER: 1 2 3 4 5 6 7 8 9

ORDERING EXAMPLE: S61 | ⁰³ | ^P | RR | ^U | ³⁶ | ^L | ¹⁰¹ | NC

SELECT COMPATIBLE TRIM

TRIM TYPE	MECHANICAL*		MECHANICAL*(MORTISE)
Applicable Devices		S6100, S6200			S6300 ONLY
	Eclipse Escutcheon	Galaxy Escutcheon	Saturn Escutcheon	Eclipse Escutcheon	Galaxy Escutcheon	Nova Escutcheon	Eclipse Rose	Galaxy Rose	Nova Rose
02 Dummy Trim, No Cylinder Prep	EK02U	GK02U	SP02U	n/a	n/a	n/a	n/a	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EK03U	GK03U	SP03U	EE03U	GE03U	NE03U	E03U	G03U	N03U


TRIM TYPE	ELECTRIFIED*,	**
Applicable Devices	S6100, S6200
	Eclipse Escutcheon	Galaxy Escutcheon
02 Dummy Trim, No Cylinder Prep	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EKE03U	GKE03U


	COMPATIBLE KEY CYLINDERS
CYL-6KDQ	Mortise Cylinder, 6-Pin, 1-1/8" Length, Keyed Different, Dull Chrome
CYL-6KAQ	Mortise Cylinder 6-Pin, 1-1/8" Length, Keyed Alike, Dull Chrome
RIM-CYL-KA	Rim Cylinder, 6-Pin, Keyed Alike, Dull Chrome (For EK03U, GK03U & SP03U ONLY)

Notes : *Key cylinder not included with trim, specify separately **See S6300MS/MF for electrified mortise trim

STRIKES (SCREWS INCLUDED)

RIM DEVICE STRIKES (S61 ONLY)

ST1P Rim Strike, 13/16" Projection

ST1F Rim Strike, 13/16" Projection, Fire-Rated

DOUBLE DOOR (S61 ONLY)

ST2DF Rim Strike, 115/16" Projection

VERTICAL ROD DEVICE STRIKES (S62, S68 ONLY)

ST2P Top Strike, 29/32" Projection

ST2F Top Strike, 11/8" Projection ,

Fire-Rated

ST28P Bottom Floor Strike, Mortise, 21/4"

ST28F Bottom Floor Strike, Mortise, 21/4", Fire-Rated

ST28T Threshold Strike, 3/8" Projection

KR90F Removable Mullion, 8' Length, 2" Width, 11 Gauge Steel, Less Cylinder

ST1MP Mullion Strike, 7/8" Projection ST1MF Mullion Strike, 7/8" Projection, Fire-Rated

POWER TRANSFER HINGE

PTH-4Q (4) Conductor

Hinge, Fire-Rated

PTH-10Q (10) Conductor

Hinge, Fire-Rated

CONCEALED MORTISE POWER TRANSFER HINGE

PTM-2 (2) Conductor Hinge, Mortise,

Fire-Rated

PTM-10 (10) Conductor Hinge, Mortise,

Fire-Rated

PT-3V Surface Mount, Armored Flex Conduit

CONCEALED MORTISE POWER TRANSFER LOOP

PT-5 Mortise, Frame Steel Dust Box, Flexible Steel, Fire-Rated

POWER TRANSFER POWER SUPPLY

POWER CONTROLLERS

602RF 1 Amp, Class 2 Output, Regulated &

Filtered

631RF 1.5 Amp, Class 2 Output, Regulated & Filtered

DOOR CONTROL MODULES

UR-1 Microprocessor Controller, Dip Switch Selectable

BACKUP BATTERIES

RB12V4 12V/5Ah Battery RB12V7 12V/8Ah Battery

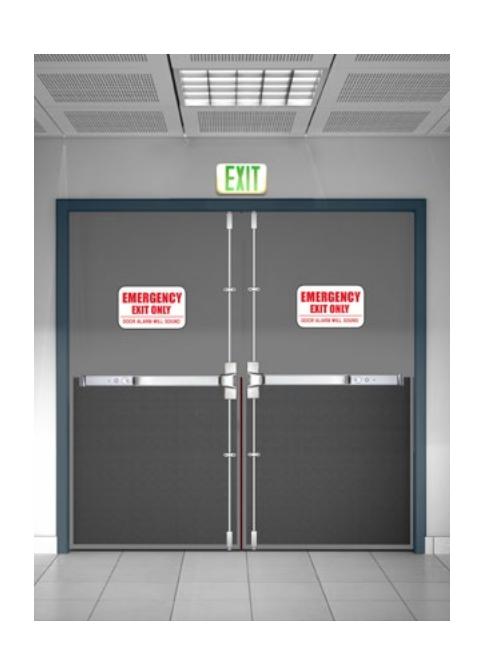

S6000DE Series

Two-Piece Delayed Egress Devices

DELAYED EGRESS

The delayed egress for the Spectra Exit Device is a 2-piece option. The master exit device is electrified and the wall mounted controller adds keypad control and key reset capabilities.

Code Dependent Exit Delay and Nuisance Times
Reset, Sustained Bypass and Momentary Bypass by Keypad or Optional Mortise Cylinder

Electrification of Master Exit Device and Wall Mount Controller with Keypad Control & Reset

Electrification of Master Exit Device and Wall Mount Controller with Both Keypad and Key Switch Control & Reset, Less Cylinder

for Pair of Doors, Additional Exit Device Equipped with Delayed Egress Mechanism, Less Controller.

MUST BE ORDERED TOGETHER WITH DE AND DEVICE

SPECIFICATIONS


Exit Delay	15 or 30-Second Exit Delay (Code Dependent)
Nuisance Delay	1 or 2 Second Delay
Voice Annunciation	Digital Countdown Display with Door Indicator
Power Requirements	Single: 24VDC @ 430mA Tandem: 24VDC @ 600mA

CODE COMPLIANCE

NA IBC, IFC, NFPA Compliant

Field Selectable 15 to 30 Second Exit Delay, 1 or 2 Second Nuisance Delay

NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC Compliant Fixed 15 Second Exit Delay, 1 or 2 Second Nuisance Delay Calif. Building Code OSHPD/Manual Power Up

ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant Fixed 15 Second Exit Delay, 1 or 2 Second Nuisance Delay

BC BOCA National Building Code and Chicago Building Compliant

Fixed 15 Second Exit Delay, 0 Second Nuisance Delay, Auto Reset 30 Seconds After Door Closure

BD BOCA National Building Code

Fixed 15 Second Exit Delay, 1 or 2 Second Nuisance Delay, Auto Reset 30 Seconds After Door Closure

OPERATION

1) When the door is closed, latched, and the lock is energized, the on-board status LED is solid green indicating the door is secure.
2) Pressing the device push pad activates a warning tone. If the pad is released in 1 second, the warning tone stops and the door stays locked.
3) When activation exceeds the nuisance time of 1 second an irreversible process begins that will unlock the door in 14 seconds. The warning tone continues.

TONE ONLY

Activation: Short beeps Lock Release: Long continuous beep

4) The door unlocks when 15 seconds has elapsed, annunciation continues.
5) The lock is manually reset by the built-in keyswitch or optional wall mounted keypad or remote switch.
6) The door will unlock upon signal from the fire life safety system or power loss.

Auto Power-Up: Lock will re-arm automatically when power is restored and fire alarm system is reset.

Manual Power-Up: Per California Building Code, lock is re-armed by manual means at the door by keyswitch or optional wall mounted reset keypad or remote switch.

OPERATION

1) When the door is closed, latched, and the lock is energized, the on-board status LED is solid green indicating the door is secure.
2) Pressing the device push pad activates a warning tone. If the pad is released in 1 second, the warning tone stops and the door stays locked.
3) When activation exceeds the nuisance time of 1 second an irreversible process begins that will unlock the door in 14 seconds. The warning tone continues.

TONE ONLY

Activation: Short beeps Lock Release: Long continuous beep

4) The door unlocks when 15 seconds has elapsed, annunciation continues.
5) The door must be opened and then closed for 30 seconds before the device automatically re-locks and annunciation stops. Reopening of the door before the end of the 30 second re-locking cycle will restart the 30 second re-locking cycle.
6) Built-in keyswitch or optional wall mounted keypad or remote switch provide timed or maintained bypass.
7) The door will unlock upon signal from the fire life safety system or power loss.

FOLLOW STEPS 1-9 FOR ORDERING

1| SPECIFY DEVICE TYPE

S61 Rim Mount
S62 SVR Surface Vertical Rod
S63 Mortise*

2| SPECIFY FUNCTION

01 Exit Only, No Trim
02 Dummy Trim, No Cylinder Prep
03 Key Retracts Latchbolt (Nightlatch)

3| SPECIFY RATING

P Panic-Rated Device
F Fire-Rated Device

4| SPECIFY HAND

REQUIRED FOR S63 ONLY

RR Right Hand Reverse Bevel, RHRB LR Left Hand Reverse Bevel, LHRB

5| SPECIFY FINISH

U 630 Dull Stainless Steel Standard

6| SPECIFY LENGTH

36 For 36" Door Width
42 For 42" Door Width
48 For 48" Door Width

7| SPECIFY DEVICE OPTIONS

MONITORING OPTIONS

R Request-To-Exit Output, SPDT

L Latch Status Output, SPDT

S62 SVR DEVICES ONLY

LBR Less Bottom Rod, Panic-Rated LBRF Less Bottom Rod, Fire-Rated

8| SPECIFY ELECTRIFICATION

DE Delayed Egress Electrification of Master Exit Device and Wall Mount Controller with Keypad Control & Reset

KDE Delayed Egress Electrification of Master Exit Device and Wall Mount Controller with both Keypad and Key Switch Control & Reset, Less Cylinder.

Must Order Mortise Cylinder

DES For Pair of Doors, Additional Exit Device Equipped with Delayed Egress Mechanism, Less Controller. Must Order with DE/KDE Device

9| SPECIFY DELAYED EGRESS CODE OPERATIONS

NA IBC, IFC, NFPA Compliant
NC IBC, IFC, NFPA 101, NFPA 1-UFC, UBC, SBC Compliant
ND IBC, IFC, NFPA 101, NFPA 1-UFC, UBC,SBC Compliant
BC BOCA National and Chicago Building Compliant
BD BOCA National Building Code Compliant

*Trim included at no cost, specify separately

Designates optional step STEP NUMBER: 1 2 3 4 5 6 7 8 9 ORDERING EXAMPLE: S61 | ⁰³ | ^P | ^R | ^U | ³⁶ | ^L | DE | NC

SELECT COMPATIBLE TRIM

TRIM TYPE	MECHANICAL*		MECHANICAL* (MORTISE)
Applicable Devices	S6100, S6200			S6300 ONLY
	Eclipse Escutcheon	Galaxy Escutcheon	Saturn Escutcheon	Eclipse Escutcheon	Galaxy Escutcheon	Nova Escutcheon	Eclipse Rose	Galaxy Rose	Nova Rose
02 Dummy Trim, No Cylinder Prep	EK02U	GK02U	SP02U	n/a	n/a	n/a	n/a	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EK03U	GK03U	SP03U	EE03U	GE03U	NE03U	E03U	G03U	N03U


TRIM TYPE	ELECTRIFIED, *
Applicable Devices	S6100, S6200
	Eclipse Escutcheon	Galaxy Escutcheon
02 Dummy Trim, No Cylinder Prep	n/a	n/a
03 Key Retracts Latchbolt (Nightlatch)	EKE03U	GKE03U


	COMPATIBLE KEY CYLINDERS
CYL-6KDQ	Mortise Cylinder, 6-Pin, 11/8" Length, Keyed Different, Dull Chrome
CYL-6KAQ	Mortise Cylinder 6-Pin, 11/8" Length, Keyed Alike, Dull Chrome
RIM-CYL-KA	Rim Cylinder, 6-Pin, Keyed Alike, Dull Chrome (For EK03U, GK03U & SP03U ONLY)

Notes : *Key cylinder not included with trim, specify separately **See S6300MS/MF for electrified mortise trim

DELAYED EGRESS CONTROLLER OPTIONS

DEC-J 3 Gang Surface Mount Box SHD-J Shroud for Outdoor Use

STRIKES (SCREWS INCLUDED)

RIM DEVICE STRIKES (S61 ONLY)

ST1P Rim Strike, 13/16" Projection

ST1F Rim Strike, 13/16" Projection, Fire-Rated

DOUBLE DOOR (S61 ONLY)

ST2DF Rim Strike, 115/16" Projection

KR90F Removable Mullion, 8' Length, 2"

Width, 11 Gauge Steel, Less Cylinder

VERTICAL ROD DEVICE STRIKES (S62, S68 ONLY)

ST2P Top Strike, 29/32" Projection

ST2F Top Strike, 11/8" Projection ,

Fire-Rated

ST28P Bottom Floor Strike, Mortise, 21/4"

ST28F Bottom Floor Strike, Mortise,

21/4", Fire-Rated ST28T Threshold Strike, 3/8" Projection

POWER TRANSFER POWER SUPPLY

POWER TRANSFER HINGE

PTH-4Q (4) Conductor

Hinge, Fire-Rated

PTH-10Q (10) Conductor

Hinge, Fire-Rated

CONCEALED MORTISE POWER TRANSFER HINGE

PTM-2 (2) Conductor Hinge, Mortise,

Fire-Rated

PTM-10 (10) Conductor Hinge, Mortise,

Fire-Rated

PT-3V Surface Mount, Armored Flex Conduit

CONCEALED MORTISE POWER TRANSFER LOOP

PT-5 Mortise, Frame Steel Dust Box, Flexible Steel, Fire-Rated

Fire-Rated

POWER CONTROLLERS

602RF 1 Amp, Class 2 Output, Regulated &

Filtered

631RF 1.5 Amp, Class 2 Output, Regulated & Filtered

DOOR CONTROL MODULES

UR-1 Microprocessor Controller, Dip Switch Selectable

BACKUP BATTERIES

RB12V4 12V/5Ah Battery RB12V7 12V/8Ah Battery

S6300MS / S6300MF Series

Electrified Mortise Exit Devices

ELECTRIC MORTISE EXIT DEVICE

The SDC Brand electrified mortise exit device incorporating a clutch for vandal resistance and failsafe-failse-cure function.

Field Reversible Failsecure/Failsafe.
Remains Latched When Unlocked for Fire Door Integrity
Failsafe (F) Fire Rated Device for Stairwell Doors
Power Loss or Signal from Fire Command Center Releases Failsafe Device Immediately
Complies with National Building and Fire Codes

MS Failsecure Electric Mortise Exit Device

MF Failsafe Electric Mortise Exit Device

SPECIFICATIONS

Voltage

600/300 mA @ 12/24VDC

HOW TO ORDER FOLLOW STEPS 1-8 FOR ORDERING

1| SPECIFY DEVICE TYPE S63 Mortise* 2| SPECIFY FUNCTION 03 Key Retracts Latchbolt (Nightlatch) 3| SPECIFY RATING P Panic-Rated Device F Fire-Rated Device 4| SPECIFY HAND RR Right Hand Reverse Bevel, RHRB LR Left Hand Reverse Bevel, LHRB 5| SPECIFY FINISH U 630 Dull Stainless Steel Standard 6| SPECIFY LENGTH 36 For 36" Door Width 42 For 42" Door Width 48 For 48" Door Width 7| SPECIFY DEVICE OPTIONS MONITORING OPTIONS R Request-To-Exit Output, SPDT L Latch Status Output, SPDT 8| SPECIFY ELECTRIFICATION MF Electrified Mortise Exit Device, Failsafe MS Electrified Mortise Exit Device, Failsecure STEP NUMBER: 1 2 3 4 5 6 7 8 ORDERING EXAMPLE: S63 | ⁰³ | ^F | RR | ^U | ³⁶ | ^L | MF *Trim included at no cost, specify separately Designates optional step

SELECT COMPATIBLE TRIM


TRIM TYPE	MECHANICAL* (MORTISE)
Applicable Devices		S6300 ONLY
	Eclipse Escutcheon	Galaxy Escutcheon	Nova Escutcheon	Eclipse Rose	Galaxy Rose	Nova Rose
03 Key Retracts Latchbolt (Nightlatch)	EE03U	GE03U	NE03U	E03U	G03U	N03U

	COMPATIBLE KEY CYLINDERS
CYL-6KDQ	Mortise Cylinder, 6-Pin, 11/8" Length, Keyed Different, Dull Chrome
CYL-6KAQ	Mortise Cylinder 6-Pin, 11/8" Length, Keyed Alike, Dull Chrome

*Note: Key cylinder not included with trim, specify separately

ACCESSORIES

POWER TRANSFER POWER SUPPLY

POWER TRANSFER HINGE

PTH-4Q (4) Conductor

Hinge, Fire-Rated

PTH-10Q (10) Conductor

Hinge, Fire-Rated

CONCEALED MORTISE POWER TRANSFER HINGE

PTM-2 (2) Conductor Hinge, Mortise,

Fire-Rated

PTM-10 (10) Conductor Hinge, Mortise,

Fire-Rated

POWER TRANSFER LOOP

PT-3V Surface Mount, Armored Flex Conduit

CONCEALED MORTISE POWER TRANSFER LOOP

PT-5 Mortise, Frame Steel Dust Box, Flexible Steel, Fire-Rated

POWER CONTROLLERS

602RF 1 Amp, Class 2

Output, Regulated & Filtered

631RF 1.5 Amp, Class 2 Output, Regulated & Filtered

DOOR CONTROL MODULES

UR-1 Microprocessor Controller, Dip Switch Selectable

BACKUP BATTERIES

RB12V4 12V/5Ah Battery RB12V7 12V/8Ah Battery

S6303FH Series

Electric Frame Actuator Controlled Mortise Exit Devices

ELECTRIC FRAME ACTUATOR CONTROLLED EXIT DEVICE

Incorporating the SDC patented HiTower® frame actuator to control the locking and unlocking of the door. Features include failsafe operation and unlocks by access control, power loss or signal from fire command center. Door stays latched even when unlocked. All wiring is maintained in the strike jamb. Complies with national building and fire codes.

FEATURES

· Fire Rated Exit Device
Failsafe (Unlocks by access control, power loss or signal from fire command center.)
For Use with Fire Rated Exit & Stairwell Doors
Door Stays Latched Even when Unlocked
· All Wiring is Maintained in The Strike Jamb
Complies with National Building and Fire Codes
No Power Hinge
Meets NFPA 80 & 101 for Life Safety

MODELS

S6303FH Fire Rated Mortise Exit Device with Electric Frame Actuator, Key Retracts Latch

SPECIFICATIONS

Voltage

24VDC, 24VAC or 115VAC

FOLLOW STEPS 1-8 FOR ORDERING

1| SPECIFY DEVICE TYPE S63 Mortise* 2| SPECIFY FUNCTION 03 Key Retracts Latchbolt (Nightlatch) 3| SPECIFY RATING F Fire-Rated Device 4| SPECIFY ELECTRIFICATION FOR 1-3/4" TO 2" FACE FRAMES HA Electric Frame Actuator Controlled, Failsafe, 200mA @ 115VAC HB Electric Frame Actuator Controlled, Failsafe, 500mA @ 24VAC HC Electric Frame Actuator Controlled, Failsafe, 500mA @ 24VDC FOR 1-1/4" TO 1-1/2" FACE FRAMES HD Electric Frame Actuator Controlled, Failsafe, 200mA @ 115VAC HE Electric Frame Actuator Controlled, Failsafe, 500mA @ 24VAC HF Electric Frame Actuator Controlled, Failsafe, 500mA @ 24VDC 5| SPECIFY HAND RR Right Hand Reverse Bevel, RHRB LR Left Hand Reverse Bevel, LHRB 6| SPECIFY LENGTH 36 For 36" Door Width 42 For 42" Door Width 48 For 48" Door Width 7| SPECIFY FINISH U 630 Dull Stainless Steel Standard 8| SPECIFY DEVICE OPTIONS MONITORING OPTIONS L Latch Status Output, SPDT S Latch & Deadlatch Status Output, SPDT SOCKET CONNECTORS SC-10 Socket Connectors with 10ft Cable, Power Wiring Only SC-10-5 Socket Connectors with 10ft Cable For Power and Options (L) or (S) Designates optional step STEP NUMBER: 1 2 3 4 5 6 7 8 *Trim included at no cost, specify separately

ORDERING EXAMPLE: S63 | ⁰³ | ^F | HA | RR | ³⁶ | ^U | ^L

SELECT COMPATIBLE TRIM


TRIM TYPE	MECHANICAL* (MORTISE)
Applicable Devices		S6300 ONLY

	Eclipse Escutcheon	Galaxy Escutcheon	Nova Escutcheon	Eclipse Rose	Galaxy Rose	Nova Rose
03 Key Retracts Latchbolt (Nightlatch)	EE03U	GE03U	NE03U	E03U	G03U	N03U
