S6000-101 Series Installation Instructions
Open the original PDF document
View PDF
801 Avenida Acaso, Camarrillo, Ca. 93012 • (805) 494-0622 Www.SDCSecurity.com • E-mail: service@SDCSecurity.com

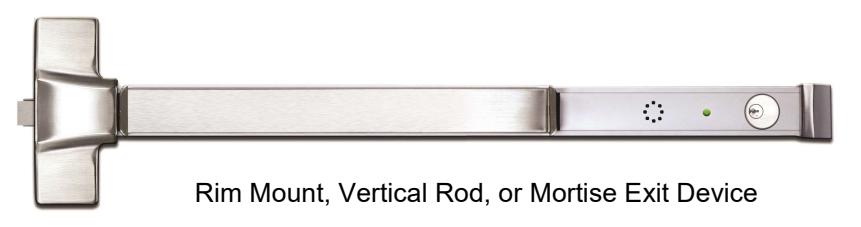

DELAYED EGRESS SYSTEM S6000-101 DEVICE (ALL-IN-ONE DEVICE)
PUSH UNTIL ALARM SOUNDS. DOOR CAN BE OPENED IN 15 SECONDS.
600 Series Power Supply (sold separately)
*NOT COMPATIBLE WITH
ELECTRIC RIM STRIKES
When unauthorized egress is initiated by depressing the push pad of the S6000-101, an audible alarm will sound and an irreversible unlock delay period of 15 seconds will begin. Meanwhile, the person exiting must wait to egress, allowing personnel or security time to respond to the alarm. After the delay period has expired, the device unlocks, permitting egress until the device is reset. In a life safety emergency, the device will immediately unlock upon loss of power or when powered by a fire control supervised power supply. The included signage provides clear and comprehensive instructions of the door egress operation for persons without prior knowledge of the exit delay, including the sight and hearing impaired.
S6000-101 Applications include:
- Restricting the egress of wandering patients for their own safety.
- Restricting the egress of commercial center patrons for security application needs.
- Controlling pedestrian traffic in transportation facilities, including airport jetways and tarmacs.
- · Reducing shoplifting and employee theft.
- Compatible with access control for entry using Electrified Trim for rim and vertical rod devices.
- When using mortise devices the mortise case is electrified to control entry.
Standard Features:
Egress Delay
- 15 second exit delay
- 1 or 2 second nuisance delay
- Optional 30 second delay with AHJ approval
Built-In Visual & Audible Annunciation
- Armed mode
- Nuisance mode
- Irreversible egress mode
- Release mode
Trigger Modes
- Egress alarm triggered by Push Pad
- Trigger input from external device (Pair of Doors)
- Door opened in secure mode (Door Forced or Prop)
Code Compliance
- IFC International fire Code
- IBC International Building Code
- NFPA 101 Life Safety Code
- NFPA 1 Uniform Fire Code
- California Building Code with the exception of Sec. 11B-309.4 2013 edition.
- Field selectable automatic or manual power up after emergency release or power loss. Use of manual power up complies with California Building Code (OSHPD) requirements.
- UL 294, 6<sup>th</sup> Ed performance Level I Line Security, Destructive Attack, Standby Power and Level IV Endurance
Control Inputs
- Field-selectable 1 to 30 second request-to-exit with anti-tailgate and door prop alarm.
- Bypass
- Reset
- Remote trigger (for Pairs of Doors)
- DPS (Required for Door Forced, Prop and Anti-Tailgate)
Monitoring Outputs
- Secure/Unsecure status
- Egress initiation status
- Released/Bypass status
Recommended Accessories
- S6000DES Series Delayed Egress Auxiliary Exit Device (for Pair of Doors)
- 600 Series regulated & filtered power supply – 602RF (1 Amp) or 631RF (1.5 Amp)
- Door contact (included) MC-4 recessed magnetic switch
- Power Transfer Device PTH-10, PTM-10 Series, PT-5
SECURITY
S6000-101 Series - Operational Description
The door is normally closed and secured by the S6000-101 Delayed Egress Exit Device. The on-board status LED illuminates Green indicating that the unit is secured. The integral Reset/Bypass key switch is in the center position.
Activation/Alarmed Release: Pressing the push pad of the S6000-101 device initiates the irreversible 15 second unlock delay cycle. To prevent false alarms, a pre-alarm audible warning tone is activated during the short nuisance delay period. Releasing the push pad during the nuisance delay period will silence the pre-activation warning tone, reset the unlock delay cycle, and keep the door locked.
Once the nuisance delay period has been exceeded, the S6000-101 continues its irreversible door release cycle. An audible tone and Yellow status LED inform the person intending to exit of the door release cycle activation. An alarm output is activated to alert personnel of an unauthorized exit. After the delay cycle has expired, the status LED illuminates Red, and power is removed from the locking device, allowing free egress by pressing the push pad. A second output is activated indicating that the door is unsecure.
Reset/Relock (from an Alarm, REX, or Bypass state): The S6000-101 can be manually reset by authorized personnel by closing the door and turning the integral key switch to the reset position, or by momentarily activating a N/O switch connected to the remote Reset/REX control input.
Request-to-Exit (from a Secure state): A timed Request-to-Exit (REX) cycle is initiated by authorized personnel by momentarily turning the integral key switch to the reset position, or by momentarily activating a N/O switch connected to the remote Reset/REX control input. The power will be removed from the locking device allowing free egress by pressing the push pad. The on-board status LED will rapidly flash Green (2x / sec) during the REX cycle. After the REX cycle has expired, the S6000-101 will automatically re-apply power to the locking device to re-secure the door. If an external door position switch is connected to the DPS input, the door will automatically relock on door closure.
Authorized Maintained Bypass (from a Secure state): Unlocking the door for an extended period of time is accomplished by momentarily turning the integral key switch to the Bypass position, or by momentarily activating a N/O switch connected to the remote Bypass control input. The power will be removed from the locking device allowing free egress by pressing the push pad. The on-board status LED will slowly flash Green (1x / sec) during Bypass mode. The S6000-101 may be re-secured using the Reset procedure described above.
(NFPA-101)
The S6000-101 operation complies with the following building and fire codes: NFPA 101; NFPA 1-UFC; UBC; IBC; IFC; SBC; California Building Code. Listings: UL Listed: Special Locking Arrangements and Auxiliary Locks; California State Fire Marshal (CSFM) Listed.
| Option | Delay Release | Nusiance | Reset after | Lock Status on |
|---|---|---|---|---|
| Code | Time | Time | Alarm | Power-Up |
| ND |
15 sec
Fixed |
1 sec or 2 sec
Selectable |
Manual |
Locked or Unlocked
Selectable |
| NH | 30 sec | 1 sec or 2 sec | Manual | Locked or Unlocked |
| (AHJ Approval) | Fixed | Selectable | Selectable | |
| NC | 15 sec | 1 sec or 2 sec | Manual | Unlocked |
| (CBC Compliant) | Fixed | Selectable | Fixed |
Per BOCA compliance, the S6000-101 is manually reset by authorized personnel after an alarm by closing the door and turning the integral key switch to the reset position, or by momentarily closing a contact connected to the remote Reset/Bypass control inputs. In addition, a reset will be automatically be initiated once the door has been opened, then closed, and remains closed for 30 consecutive seconds.
(BOCA/Chicago)
The S6000-101 operation complies with BOCA National Building Code and the Chicago Building Code: UL Listed, Special Locking Arrangements and Auxiliary Locks.
| ; |
Option
Code |
Delay Release
Time |
Nusiance
Time |
Reset after
Alarm |
Lock Status on
Power-Up |
|---|---|---|---|---|---|
| BD |
15 sec
Fixed |
1 sec or 2 sec
Selectable |
Auto/Manual |
Locked or Unlocked
Selectable |
|
|
BH
(AHJ Approval) |
30 sec
Fixed |
1 sec or 2 sec
Selectable |
Auto/Manual |
Locked or Unlocked
Selectable |
|
| ВС |
15 sec
Fixed |
0 sec
Fixed |
Auto/Manual |
Locked or Unlocked
Selectable |
S6100-101 RIM DEVICE
S6200-101 SURFACE VERTICAL ROD DEVICE

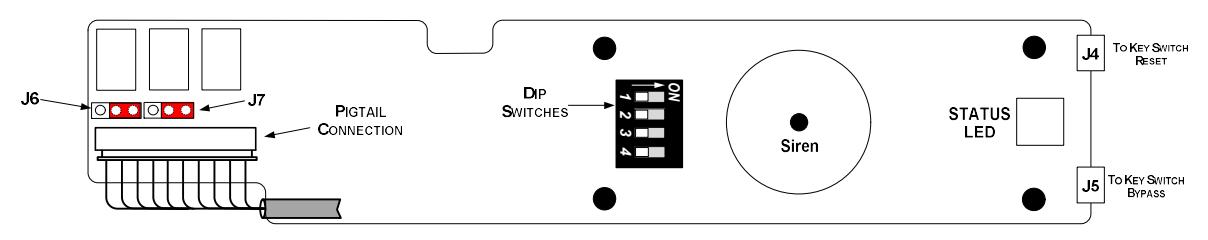

S6000-101 Board Layout (LR Device shown)
MONITOR RELAY JUMPER SETTINGS*
*Individually sets the polarity of the GRN & RED relays when the relay is in an ACTIVE state.
J6 = GRN RELAY (Active when device is secure) J7 = RED RELAY (Active upon alarm initiation)

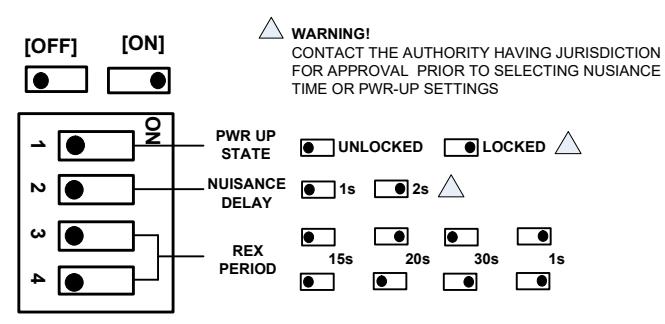

DIP SWITCH SETTINGS

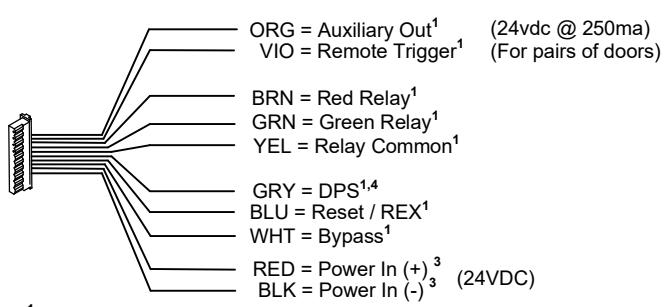

Device Wiring Pigtail
Electrical Specifications:
Input Voltage : 24VDC +/- 10% Input Current : 540ma Max
Monitor Relays: 1 Amp contacts @12/24vdc
Auxiliary Output: 24VDC @250ma
Enviromental:
Max Operating Temperature: 0°C to 70°C Tested to 85% RH @30°C
A DOOR CONTACT IS REQUIRED FOR ANTI-TAILGATE, BOCA AND DOOR PROP FUNCTIONS.
| Wire Color | Wire Designation | Description |
|---|---|---|
| Orange | Auxilliary Out | Used for a pair of doors (Master & Auxiliary). This is a voltage output (24VDC@250mA). Connect this wire to (+) 24VDC (Red Wire) of the auxiliary device. See "Typical Wiring for Single or Double Door Installation." |
| Violet | Remote Trigger | Used for a pair of doors (Master & Auxiliary). This is a dry input. Connect this wire to one leg of the Auxiliary Trigger output. The other leg of the Auxiliary Trigger output is connected to ground (-) VDC. Closing the switch shorts this wire to ground and initiates the alarm sequence. See "Typical wiring for Single or Double Door Installation." The Two White wires on the Auxiliary device are the Normally Open Trigger switch. |
| Brown | Red Relay | This the Alarm Relay Output (Dry, 1A @ 12/24VDC). It is normally INACTIVE when the door is secure. It changes state when the push pad is pressed beyond the nuisance delay and placed into an Alarm State. It may be configured as Normally Open or Normally Closed using jumper J7. The Yellow wire is the relay Common. |
| Green | Green Relay | This is the Door Secure Relay Output (Dry, 1A @ 12/24VDC). It is normally ACTIVE when the door is secure. It changes state when the device unlocks after; (a.) he delayed egress countdown expires, (b.) an authorized Request-to-Exit (REX) signal, or (c.) the device is Bypassed. It may be configured as Normally Open or Normally Closed using jumper J6. The Yellow wire is the relay Common. |
| Yellow | Relay Common | This is the shared relay common for both the Red & Green relay. |
| Grey |
Door Position Switch
(DPS) |
This is a dry input. Connect this wire to one leg of a Door Contact switch. The other leg of the Door Contact switch is connected to ground (-) VDC. The Door Contact polarity must be open when the door is closed. A door contact is required for anti-tailgate and door prop alarm function. |
| Blue | Reset/REX | This is a momentary, dry input. Connect this wire to one leg of a Normally Open switch. The other leg of the Normally Open switch is connected to ground (-) VDC. When the push pad is in a secure state, shorting this input will result in an authorized unlock (REX). The REX period is configured by the dip switch settings. When the device is in an alarm, authorized unlock state, or in a bypassed state, shorting this input will reset (secure) the device. |
| White | Bypass | This is a momentary, dry input. Connect this wire to one leg of a Normally Open switch. The other leg of the Normally Open switch is connected to ground (-) VDC. When the device is in a secure state, shorting this input will unlock the device indefinitely, until the device is Reset. |
| Red | Power IN (+) 24 VDC | Input Voltage: 24VDC +/- 10%; Input Current: 540mA (Max). The Red & Black wires are the |
| Black | Power IN (-) 24 VDC | minimum required connections for a single door appliaction. |
MAXIMUM CONNECTED WIRING LENGTH PERMITTED IS 98.5 FT. (30).
WIRING SHALL BE CONNECTED TO AN ACCESSORY WITHIN THE PROTECTED AREA AND UNUSED WIRE MUST BE CAPPED OFF.
3 THIS PRODUCT MUST BE POWERED BY A 600 SERIES POWER SUPPLY: Single Door – 602RE 1 AMP
Single Door – 602RF 1 AMP Double Door – 631RF 1.5 AMP

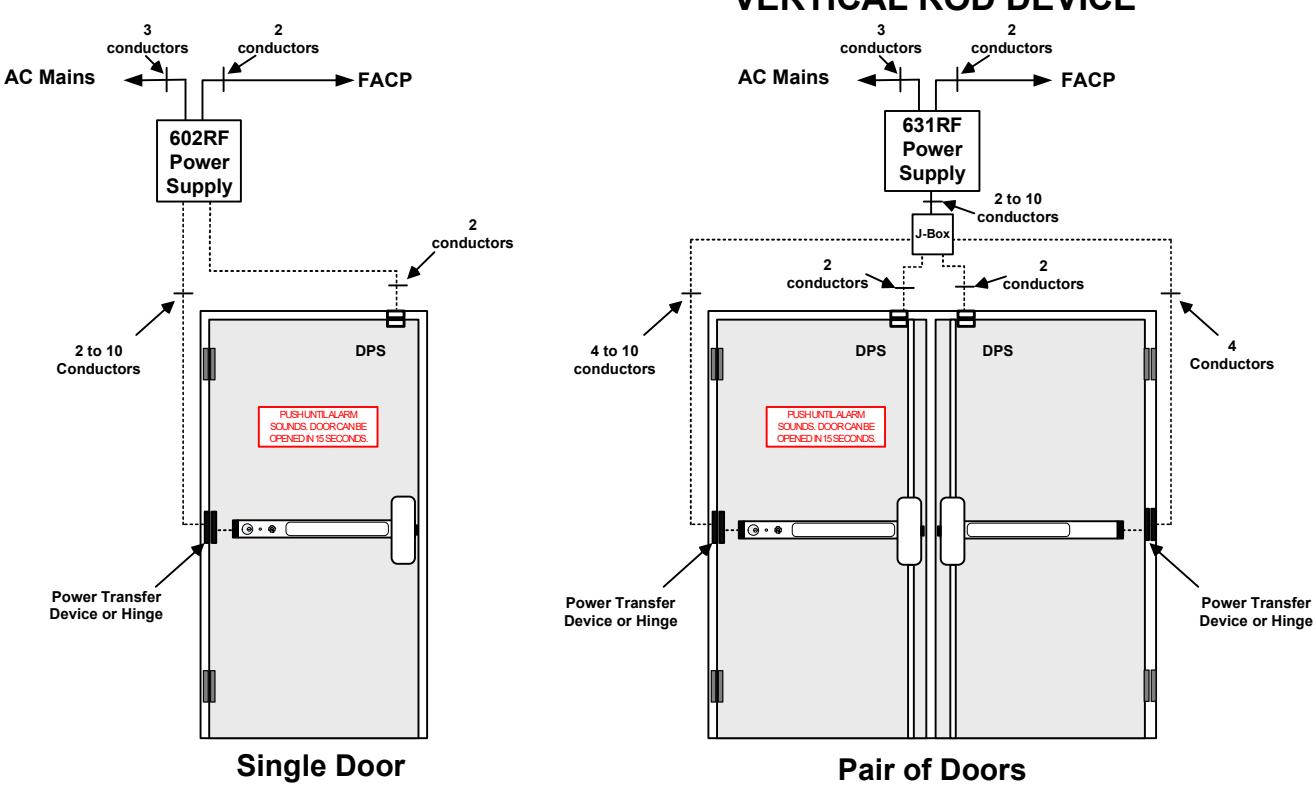

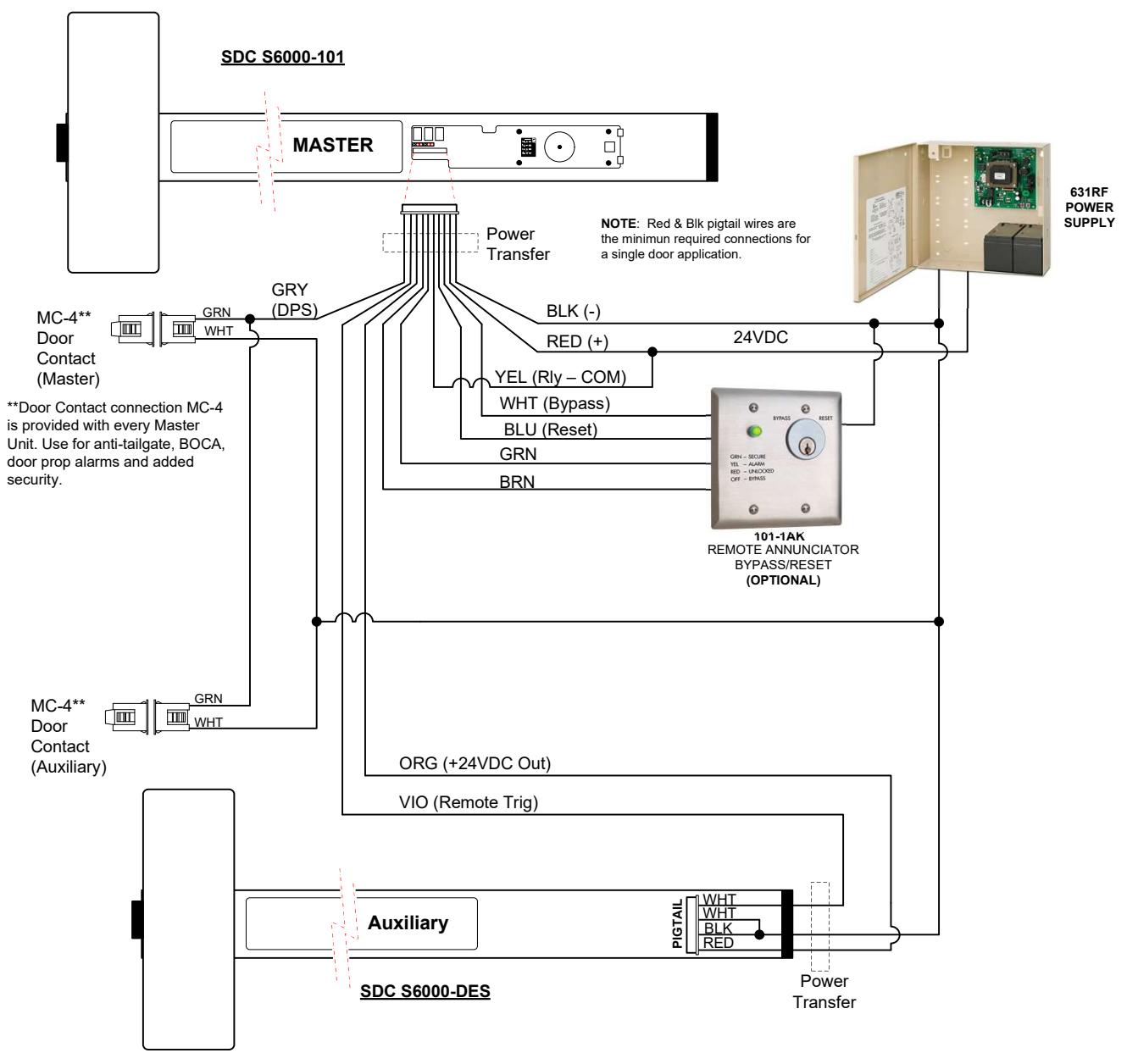

TYPICAL WIRING FOR SINGLE OR DOUBLE DOOR INSTALLATION

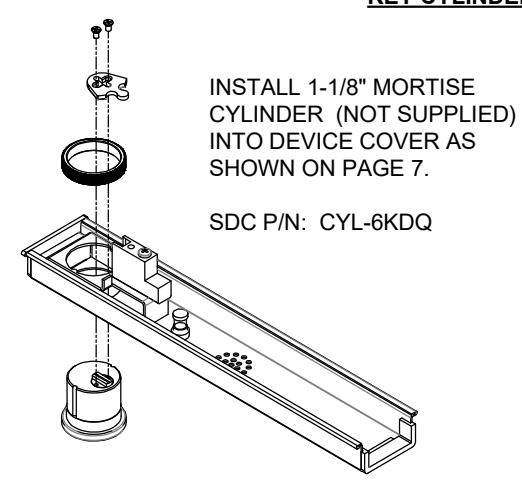

KEY CYLINDER INSTALLATION & OPERATION
Key cylinder is in the normal, center position. LED is solid green when the device is secure.
To bypass the device for an extended period of time, momentarily turn the key cylinder towards "Bypass" and return to the center position. LED will flash slowly.
When the device is in a secure state, momentarily turning the key cylinder towards "Reset" will result in a timed authorized unlock (REX).
When the device is in an alarm, authorized unlock, or bypassed state, momentarily turning the key cylinder towards "Reset" will re-secure the device.

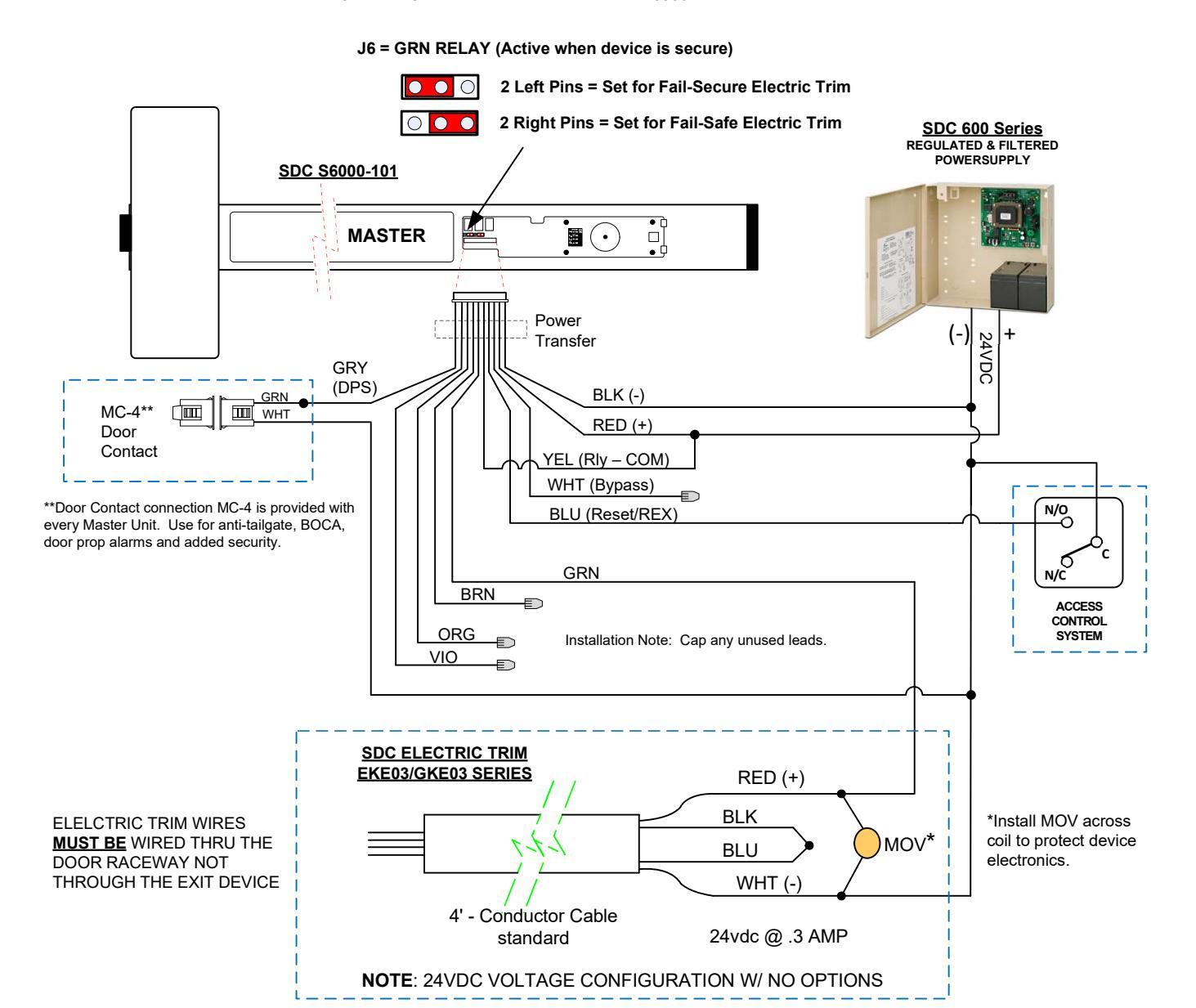

TYPICAL WIRING FOR SINGLE DOOR WITH SDC ELECTRIC TRIM
NOTE: SDC Electric Trim not available for S6300 Mortise Device
STATUS LED INDICATIONS
| Status | Device Mode | |
|---|---|---|
| OFF | No Power | |
| GREEN (Solid) | Secure | |
| YELLOW | Irreversible Delay in Progress | |
| RED (Solid) | Alarmed & Unlocked | |
| GREEN (Slow Flash) | Bypassed | |
| GREEN (Fast Flash) | Authorized Unlock (REX) | |
| RED (Fast Flash) | Alarmed, Unlocked, & Door Opened | |

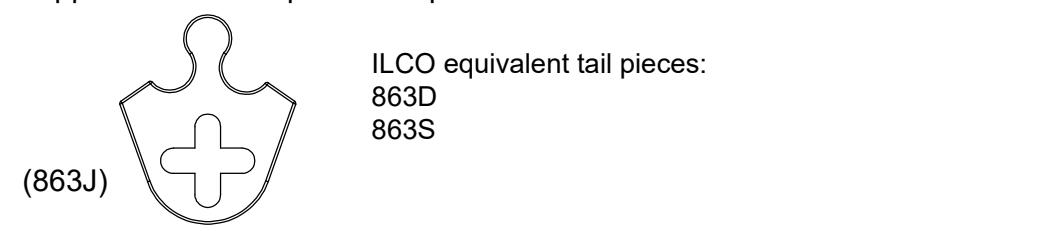

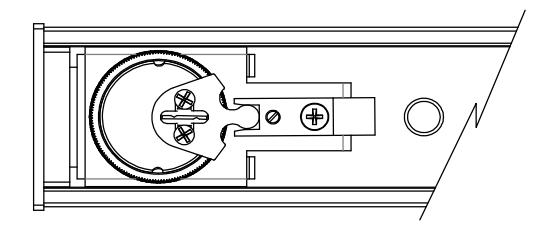

Use the supplied Clover Tailpiece or equivalent.

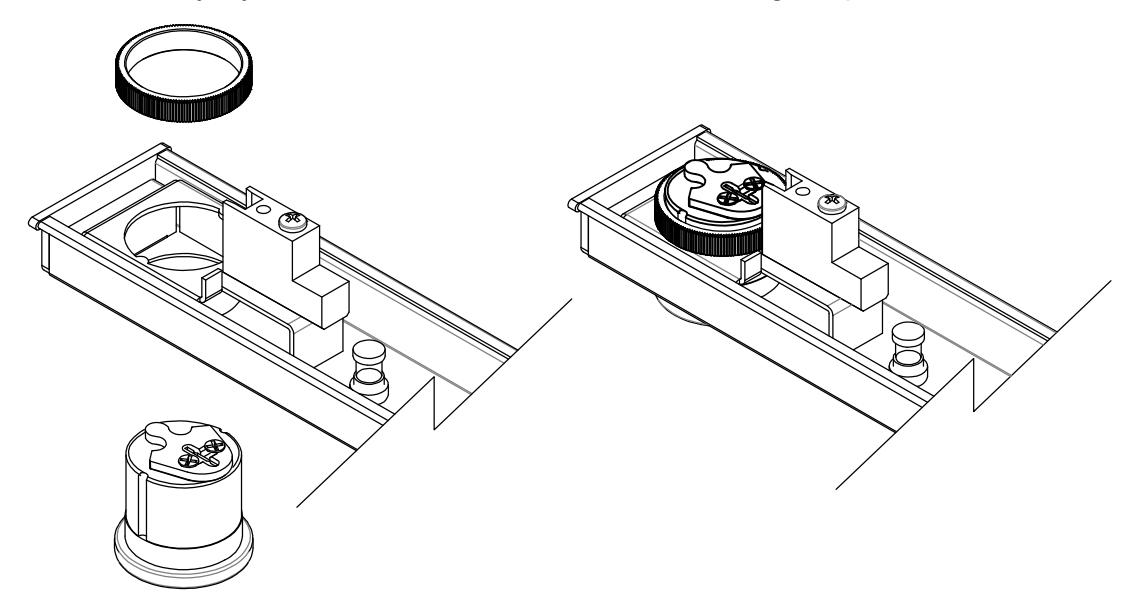

1 Install Key Cylinder as shown and secure with locking nut provided.
2 Remove and position Tailpiece as shown.
3 Insert Key and check for proper operation.
