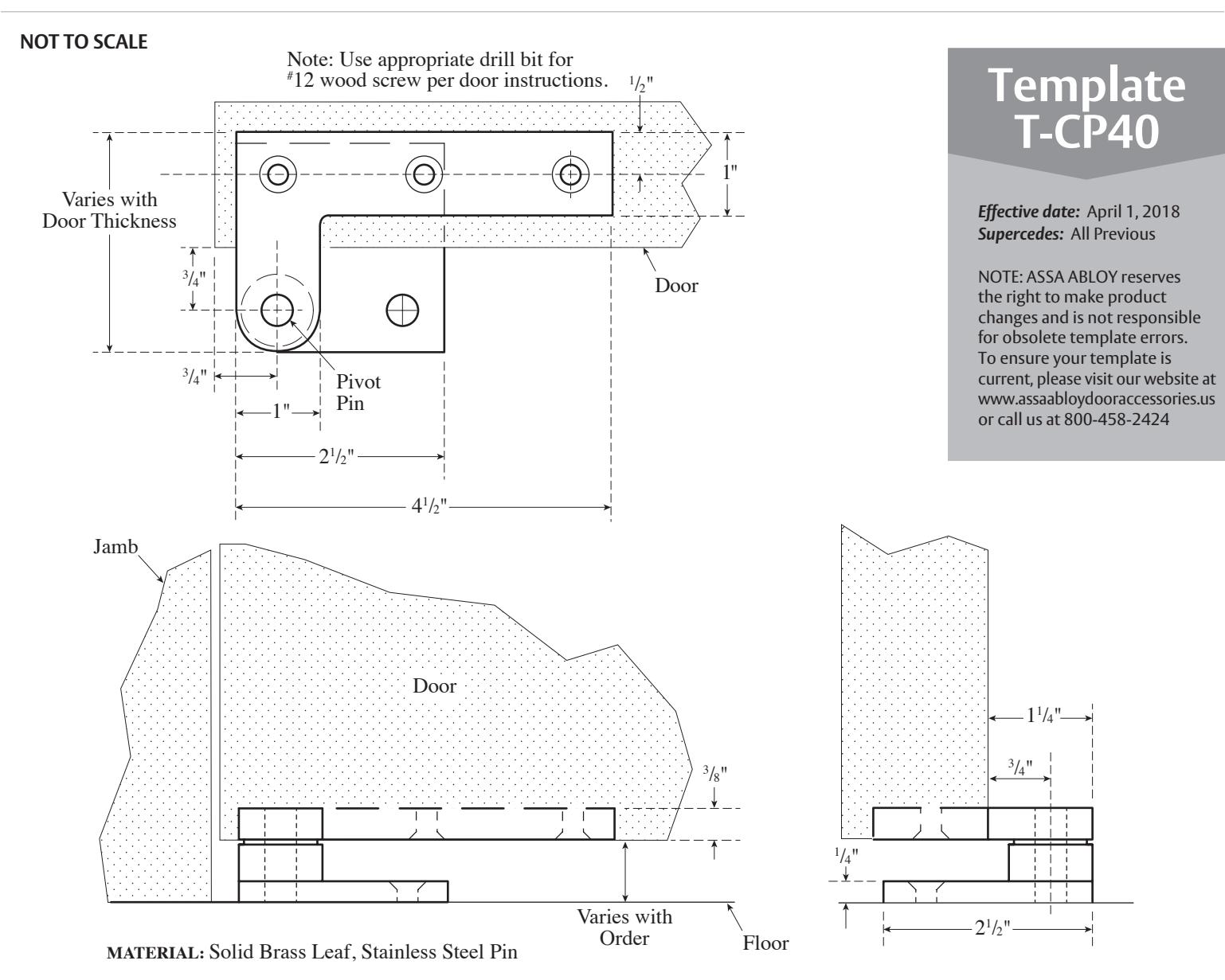

Rockwood CP40 Floor Pivot - Standard Duty <sup>3</sup>/<sub>8</sub>" Thick for Wood Doors Engineered to be Used in Conjunction with Offset Head Pivot

The global leader in door opening solutions

FASTENERS NOTE: 6 ea. #12 x 11/4" Flat Head Wood Screws

MATERIAL SIZE: 3/8" thick for doors up to 200 lbs., and maximum 42" wide.

Where applicable please use NFPA 80 6.4 guidelines in determining the number and locations of pivots.

**Modifying construction or components of Custom Pivot Assembly can impact performance and will void manufacturer's warranty and liability.
