Door Preparation

Step 5:

Attach Roller Assembly to bottom of door. Use shim plates if necessary.

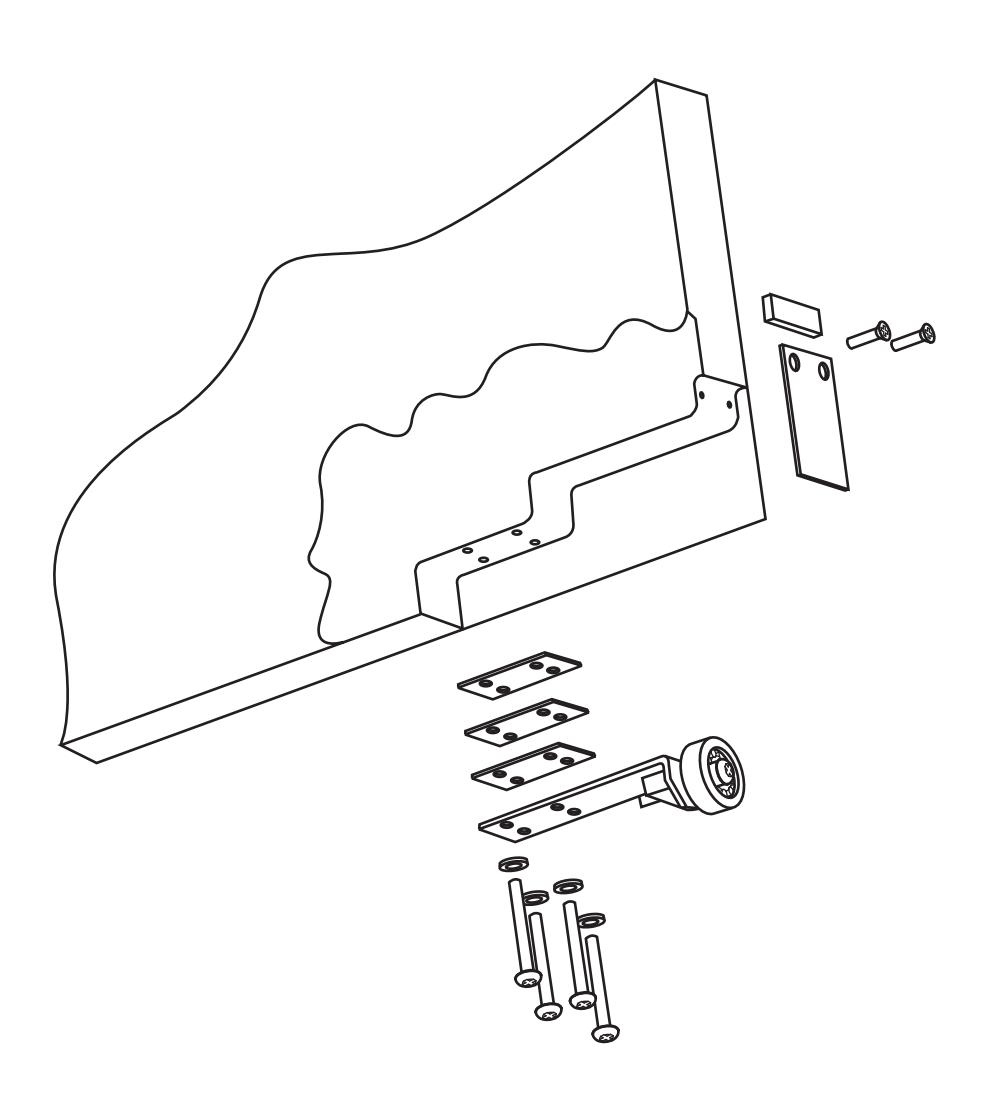

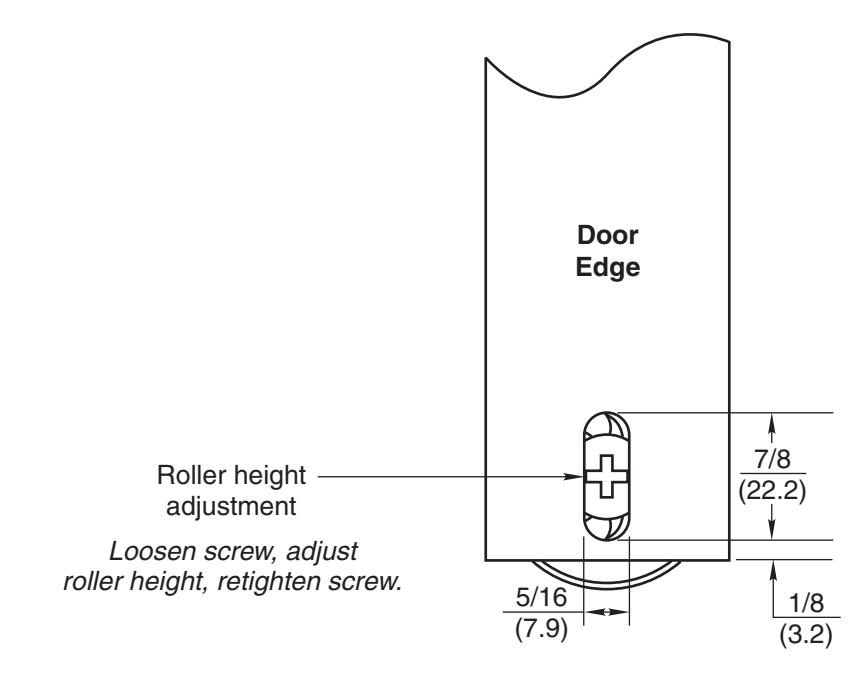

Figure 5: Roller Assembly at bottom of door.

PAGE 4

ASSA ABLOY

Wood Door Preparation

Part # 10600-003 10600-004 10600-005 10600-006 10600-015 10600-019 10600-026

Installation Instructions

MS120015 (06-09)

Wood Door Thickness: 2-1/4" (57.2) Min. Door Weight: 730 lbs. Max. for Single Roller 3-1/2" (88.9) Thick Bottom Rail Required

Description Shim Plate Threaded Block Spring Plate Roller Hub-Single Roller End Cap Gasket 1/4 Lockwasher 1/4 Star Washer 10x1 FHPSMS-STL-SLB 14 x 2 PHPSMS-SS-US32 1/4-20 x 2 RHPMS

RollerMate™ Caster for Extra Wide Doors

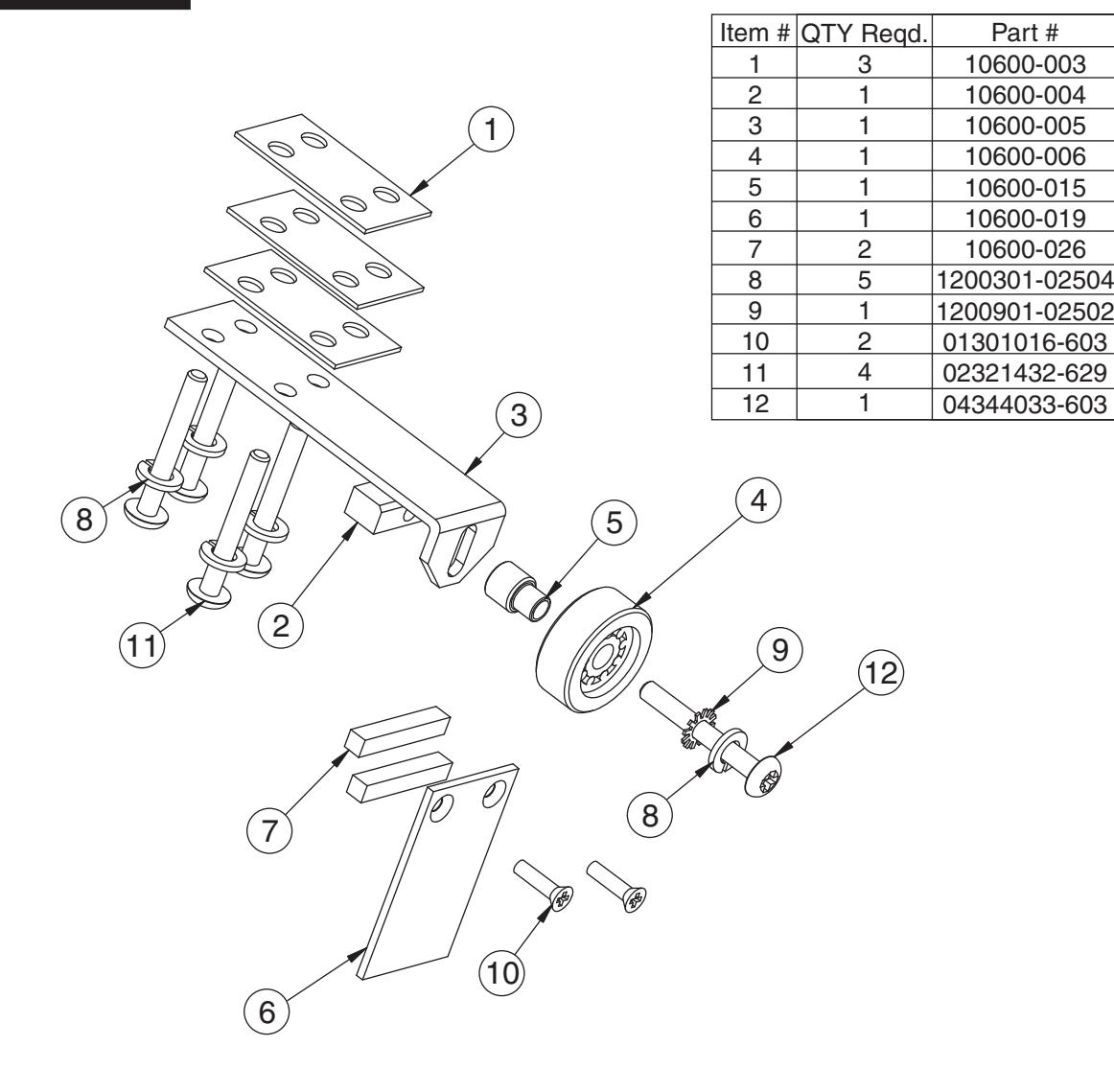

Parts List

Tools Required (not included)

• Flat Blade Screwdriver
• Phillips Screwdriver

Rixson® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company. Copyright© 2004, 2009, Yale Security Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Yale Security Inc. is prohibited.

Rixson Specialty Door Controls www.rixson.com 866-474-9766 Technical Department Rixson Specialty Door Controls www.rixson.com 866-474-9766 Technical Department

Door Preparation

PAGE 2 PAGE 3

(Door is independently hung)

Step 1

Determine clearance between door and floor as shown in Figure #1. Recommended clearance is 3/16" (4.8). Use .060" (1.5) thick shim plates provided in kit to compensate for large gaps between door and floor.

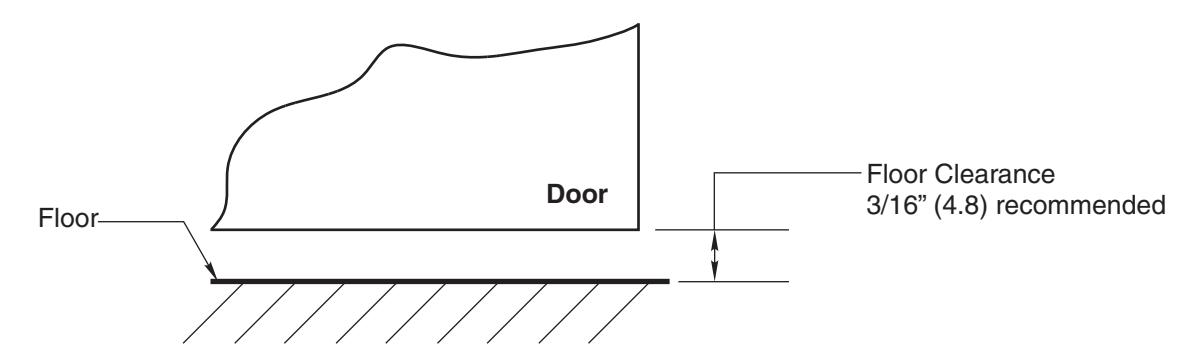

Figure 1: Clearance between door and floor.

Step 2: Wood Door Cutout

Minimum bottom rail height – 3-1/2" (88.9). Minimum door thickness – 2-1/4 (57.2). Mortise the bottom of the wood door per the dimensions on template MS120020. Do not remove skins of door, except at edge of door.

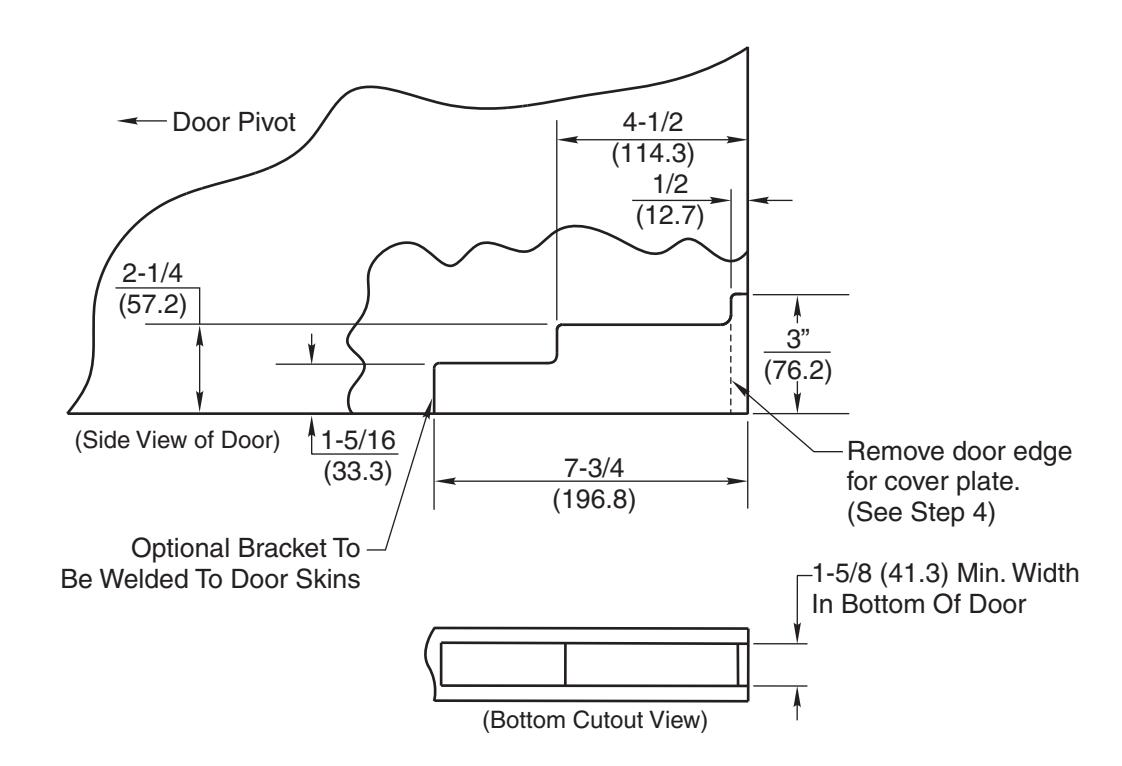

Figure 2: Mortise dimensions at bottom of wood door.

Step 3: Wood Door Cutout, (Hole Locations)

Drill holes in wood door per the dimensions in Figure 3 or refer to template MS120020.

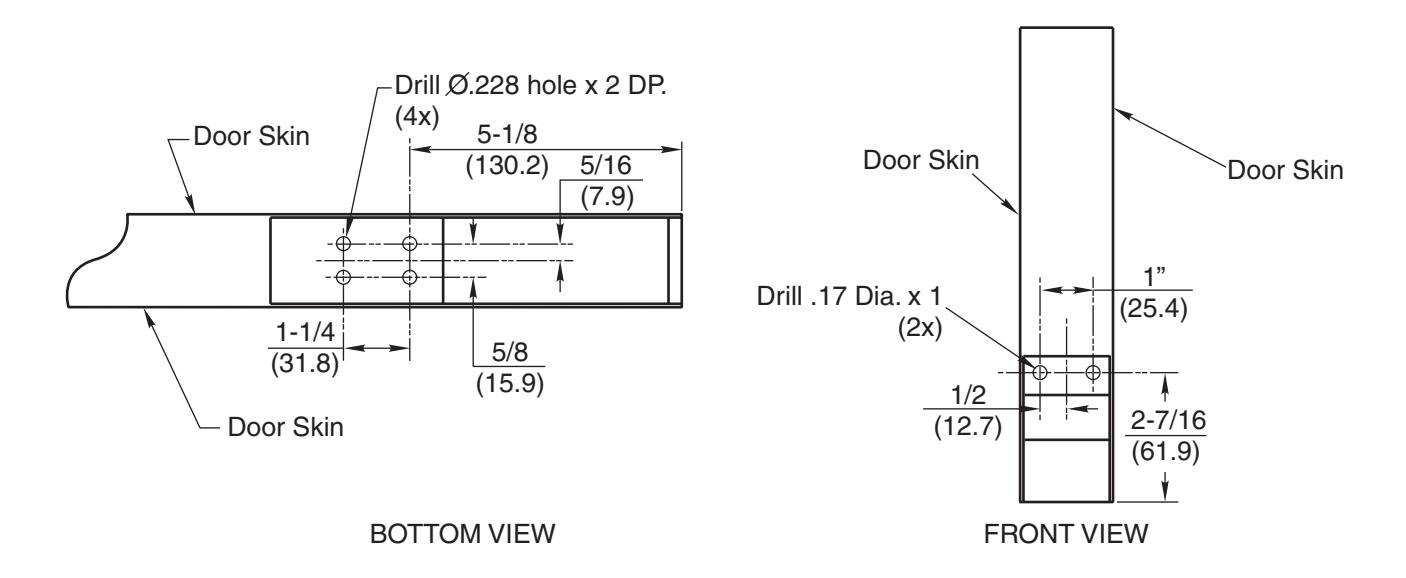

Figure 3: Location of holes in bottom of wood door.

Step 4: Wood Door Cutout, (Edge Slot Cutout–No Front Cover Plate)

If Front Cover Plate is not desired, cut a slot in the skin at the edge of door, per the cutout dimensions in Figure 4.

Figure 4: Slot cutout dimensions in skin at edge of door.
