2460

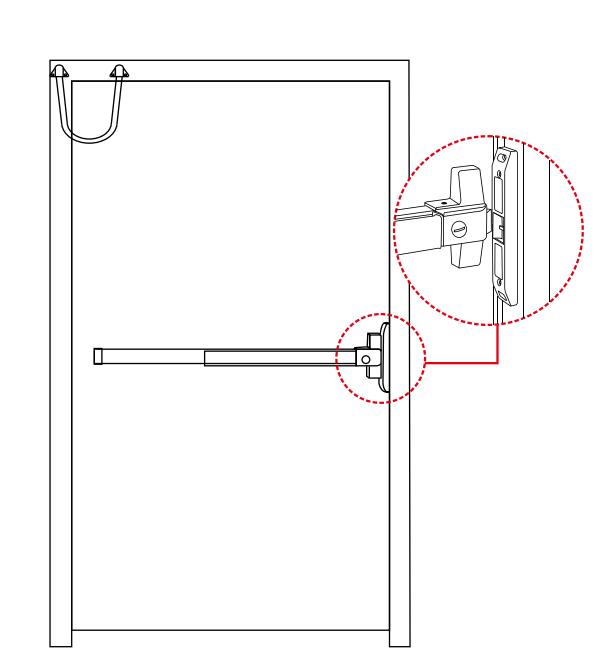

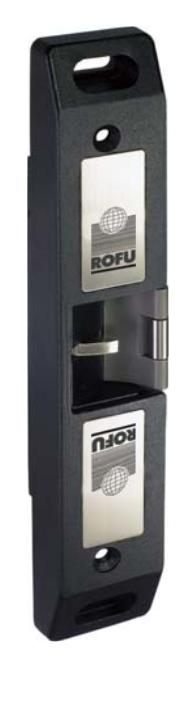

ROFU 2460 Rim Mount Strike is a partial surface mount electric strike designed for doors with crash bars. Latch and lock status monitoring is standard for 2460, and the strike operates at 12~28 VDC/VAC. The strike can be easily reversed between fail-safe and fail-secure.

  • Field reversible: fail-safe or fail-secure
  • Non-handed and fully reversible
  • Accommodates 11/16" (17mm) latchbolt
  • Static strength 1500 LB (680 KG)
  • Latch & lock monitoring
  • Surface mounted
  • Zinc alloy construction in black finish
  • Endurance testing: 1,000,000 cycles tested
  • Anti-friction roller keeper

SPECIFICATION

VOLTAGE 12~28 VAC/VDC
CURRENT 230 mA/12 VDC, 140 mA/28 VDC
440 mA/12 VAC, 230 mA/28 VAC
STATIC STRENGTH 1500 LB (680 KG)
OPERATING TEMP. 14°F to 113F (-10°C~+45°C)

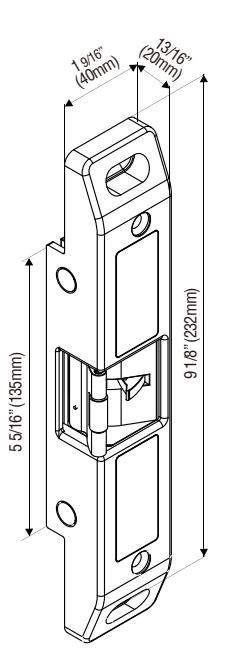

DIMENSION 9 1/8" x 1 9/16" x 13/16" (1 3/16")
Maximum Latch Throw 11/16" (17mm)

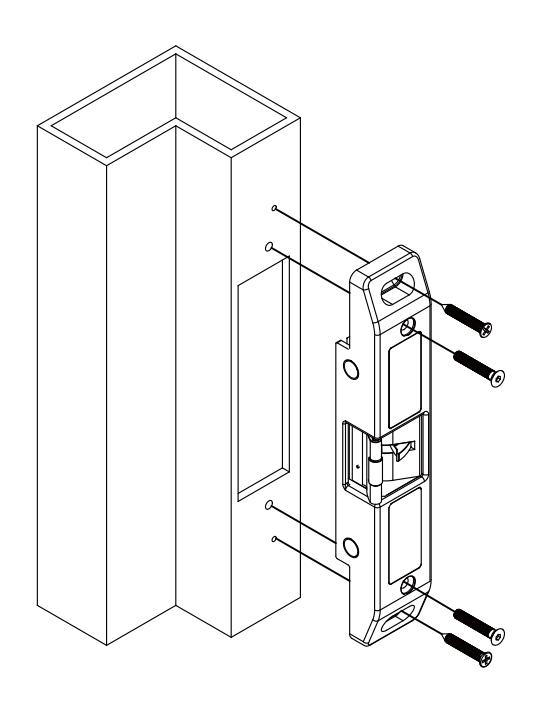

Hollow Metal Installation
