COMMERCIAL AND INDUSTRIAL SLIDING AND FOLDING DOOR HARDWARE

Introduction to
PC Henderson

Pg 2

Commercial Straight Sliding Systems

Pg 3


	Husky	→	100 and 200 lbs.	Pg 4

	Husky	-	Glass Panels up to 165 lbs.	Pg 6

	Pacer	→	Wood and Metal Doors up to 440 lbs.	Pg 7

	Pacer	→	Glass up to 285 lbs.	Pg 9

=	Florinal	-	Wood, Metal, or Glass	Pa 12

Commercial Folding Systems

Pg 14

0 /
Husky →	➤ 55 and 100 lbs.	Pg 16
Pacer Centerfold	➤ Wood Doors up to 165 lbs.	Pg 18
Pacer Endfold →	➤ Wood Doors up to 165 lbs.	Pg 20
Pacer Endfold -	Glass Doors up to 99 lbs.	Pg 22
Pacer Endfold Exter	rior	Pg 24
Pacer Endfold Alum	inum	Pg 26
Flexirol Centerfold		Pg 28
Flexirol Endfold Inte	erior	Pg 30
Flexirol Endfold Ext	erior	Pg 32
Flexirol Endfold Alu	minum	Pg 34
Flexirol Folding Gla	ss	Pg 36

Commercial Multidirectional Systems Pg 38


Pacer 135°	→ Wood and Aluminum Doors up to 264 lbs.	Pg 40

Pacer 135°	→ Glass Doors up to 264 lbs.	Pg 42

Flexirol 90°	→ Wood and Aluminum Doors up to 220 lbs.	Pg 44

Flexirol 90°	→ Glass Doors up to 220 lbs.	Pg 46

Flexirol 135°	Wood and Aluminum Doors up to 1100 lbs.	Pg 48

Flexirol 135°	→ Glass Doors\nup to 1100 lbs.	Pg 50

Industrial and Stainless Steel Track and Hardware Pg 53


Straight Sliding Industrial	→ 290-307 wood Door Hardware	Pg 54
Straight Sliding Industrial	→ 290-307 metal Door Hardware	Pg 56
Straight Sliding Commercial (Bottom Roller)	→ Mansion and Majestic Wood Door Hardware	Pg 62
Straight Sliding Industrial (Bottom Roller)	→ Sherwood 225-800 Wood Door Hardware	Pg 66
Straight Sliding Industrial (Bottom Roller)	→ Sherwood 225-800 Metal Door Hardware	Pg 70
Folding Industrial	→ Tangent 290-305 Folding Door Hardware	Pg 74
Round-the- Corner Industrial	→ Tangent 290-305 Round-The-Corner Door Hardware	Pg 78
Folding Partitions	→ Council 290-305 End Folding Door Hardware	Pg 82
Folding Partitions	→ Council 290-305 Center Folding Door Hardware	Pg 86
Folding Section Doors (Bottom Roller)	→ Arcade A70 End Folding and Center Folding Door Hardware	Pg 90
Overhead Runways	→ 280-305	Pg 94
Sliding Cantilever Gate Hardware	→ Titan	Pg 98
inlace Cecal	C4::-a: -la.4

Stainless Steel Straight Sliding Industrial Pg 100


Track, Guide Channel, Guides	→ 28	80/SS, 290/SS, 301/SS	Pg	101
Brackets	→ 1/	SS, 1X/SS, 3/SS, 3X/SS	Pg	102
Hangers		84/SS, 285/SS, 53/SS, 6/SS, 57/SS	Pg	104
Top-Hung (Wood or Metal Straight Sliding)	→ 28	30/SS	Pg	105
Top-Hung (Wood or Metal Straight Sliding)	→ 29	90/SS	Pg	106
Top-Hung (Wood or Metal Straight Sliding)	→ 30	01/SS	Pg	108

Component Illustrations Pg 110

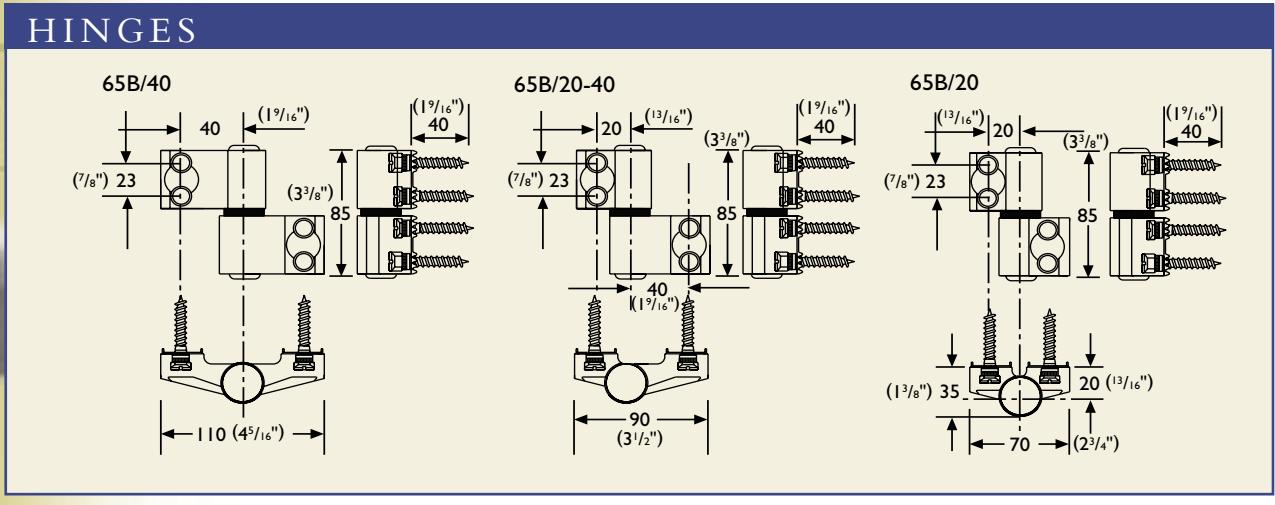

Components	~	Hinges, Brack Pivot Sets, Gui			110
Track & Channel	~	280-307 Tra 89-99 Char		Pg	118
Track Brackets	~	Pacer, Flexi	rol, Husky	Pg	119
Hangers				Pg	120

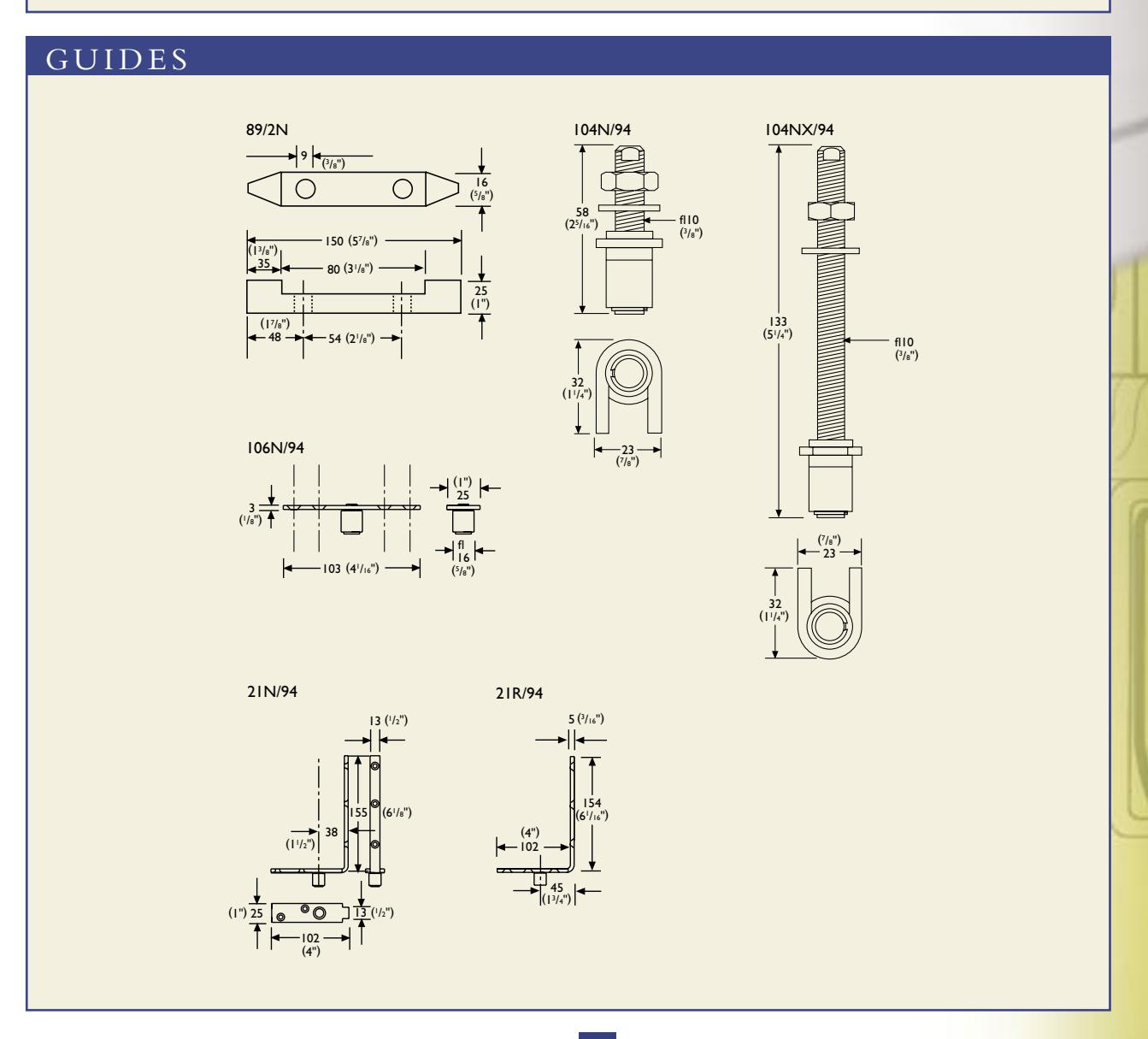

Guides and Other	r Ac	cessories		Pg	121
P C Henderson A	dve	ertising		Pg	122

Product Index

Pg 124

HENDERSON

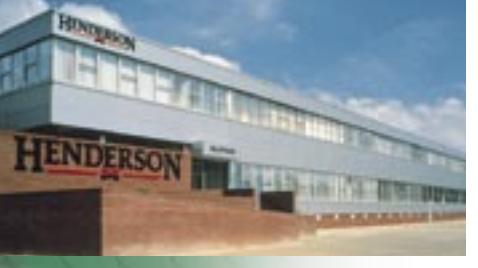

P C Henderson has long been acknowledged as the world leader in the design and manufacture of Sliding Gear Systems for residential, commercial and industrial applications.

Established in 1921, the company is a member of Cardo Door, the largest Business Area within Cardo AB, a major European engineering products group with an annual turnover in excess of £700 million.

P C Henderson is based in Bowburn in North East England and has subsidiaries in Holland and Ireland. The company has a long established sales and distribution network in over 70 countries, with head office support from Henderson's fully trained technical sales team.

The company is committed to quality and is registered to BS EN ISO 9002: 1994 Quality Systems.

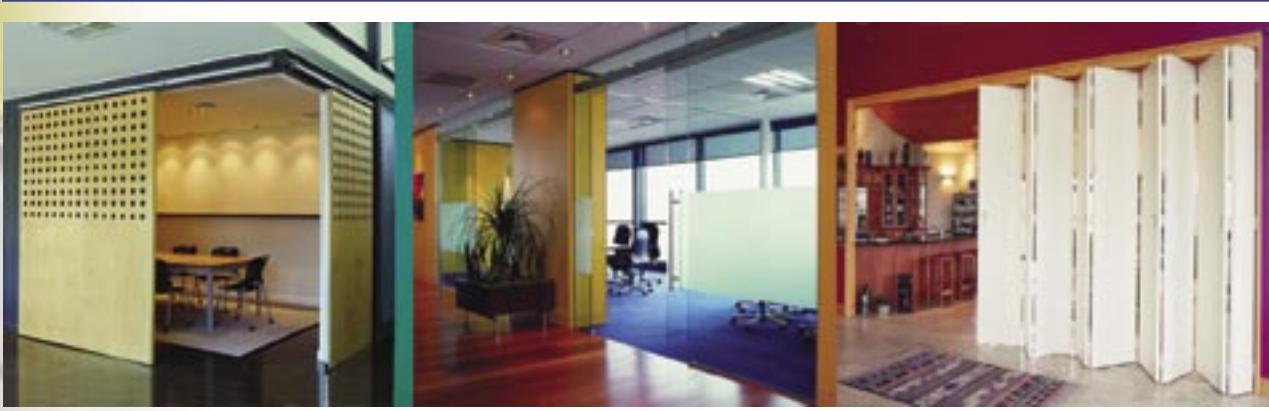

HENDERSON COMMERCIAL RANGE

The three models in the Henderson commercial range - Husky Glass, Pacer and Flexirol - are suitable for doors weighing up to 1100 lbs. (500kg). They are ideal for applications such as shop-fronts, hotels, conference centers and offices, where smooth action, high performance and aesthetics are important.

You can choose from wood, aluminum and glass door options, with straight sliding, folding and multidirectional stacking systems. Flexirol multidirectional systems can accommodate 90° and 135° movement. Pacer systems allow 135° movement.

Aluminum track can be painted on site to match interior colors and ceilings. Pacer track has the option of clip-on aluminum fascia.

COMPONENTS

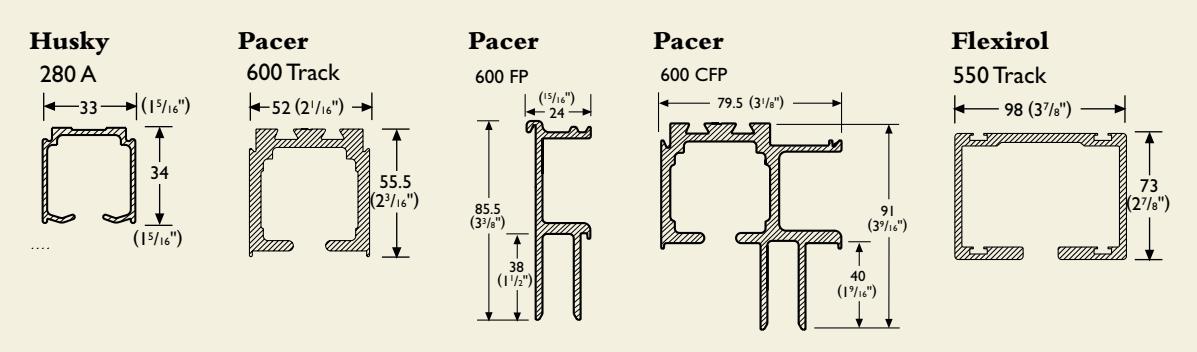

TRACK, INTERSECTS AND CURVES

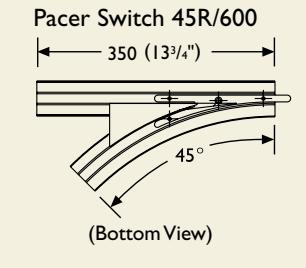

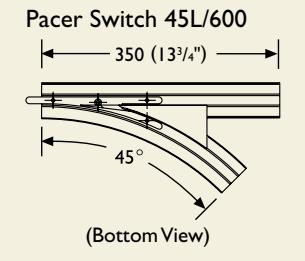

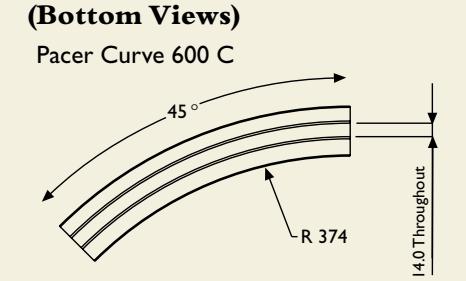

PACER CURVES/INTERSECTS

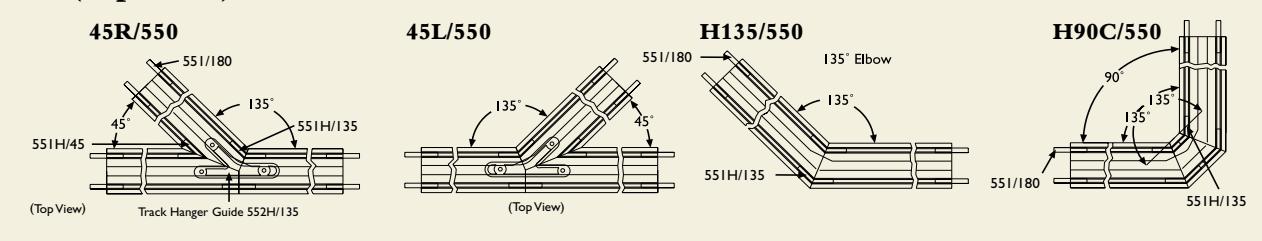

FLEXIROL 556 JUNCTIONS/INTERSECTS (Top Views)

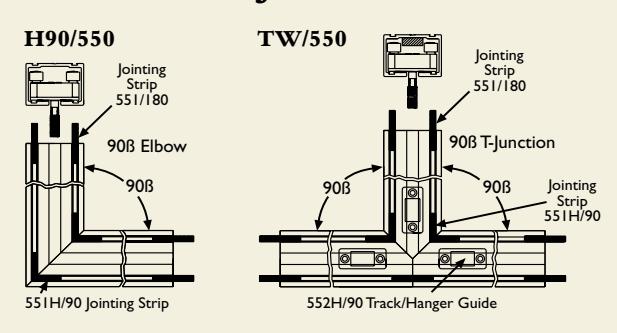

FLEXIROL 555 JUNCTIONS/INTERSECTS

Pacer track supplied in mill finish as standard. Flexirol track supplied in mill finish and RAL 9010 as standard.

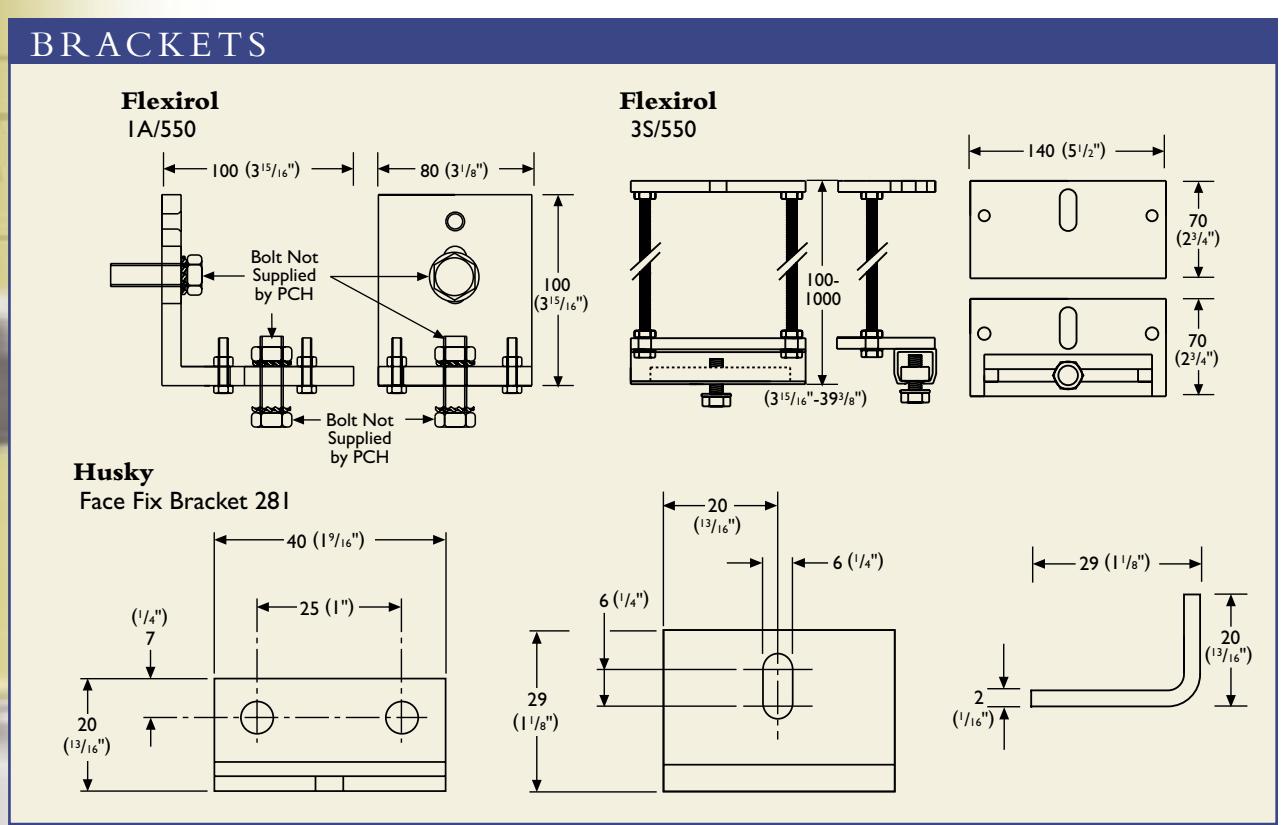

Pacer Bracket 1B Pacer Jointing Bracket 1BX (23/4") 70 (33/8") (15/16") (15/16") 48 (17/8") 48 (17/8")

HANGERS

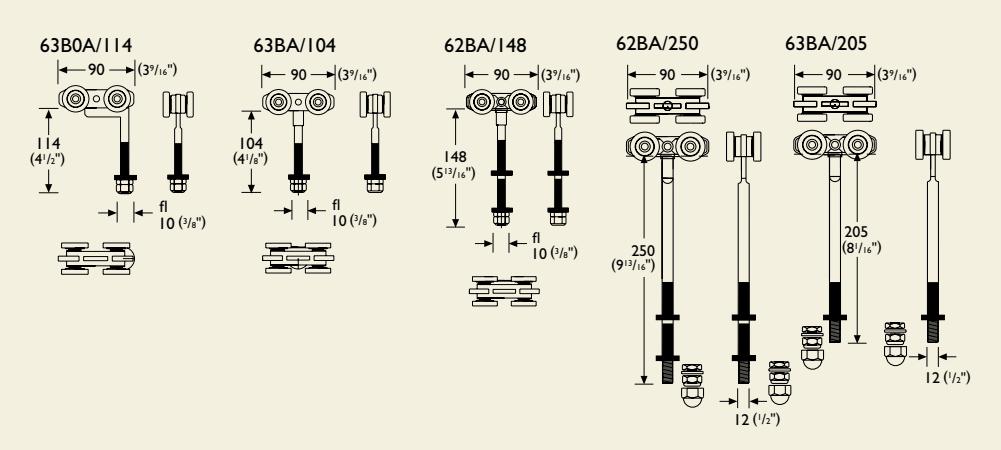

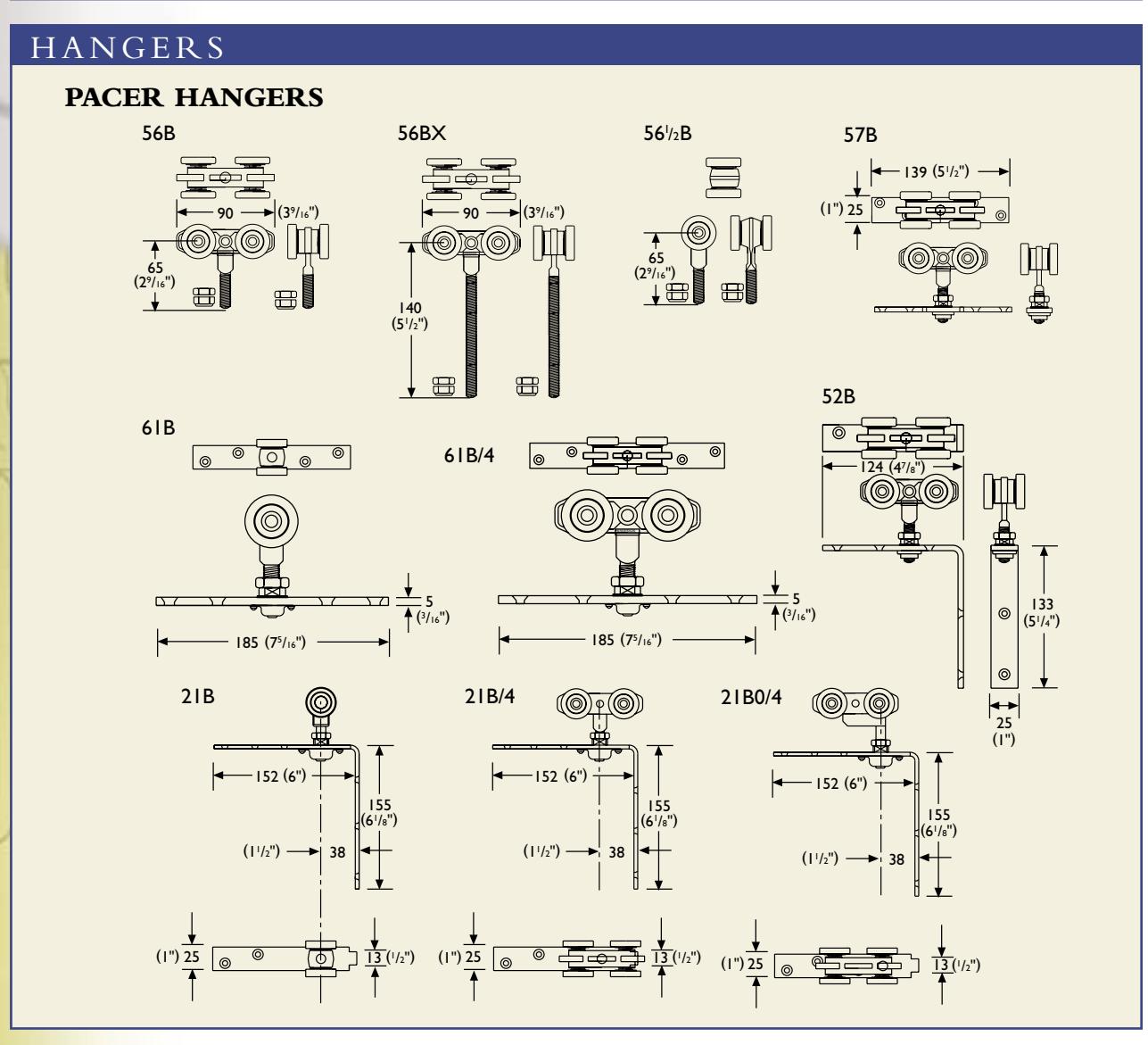

PACER HANGERS

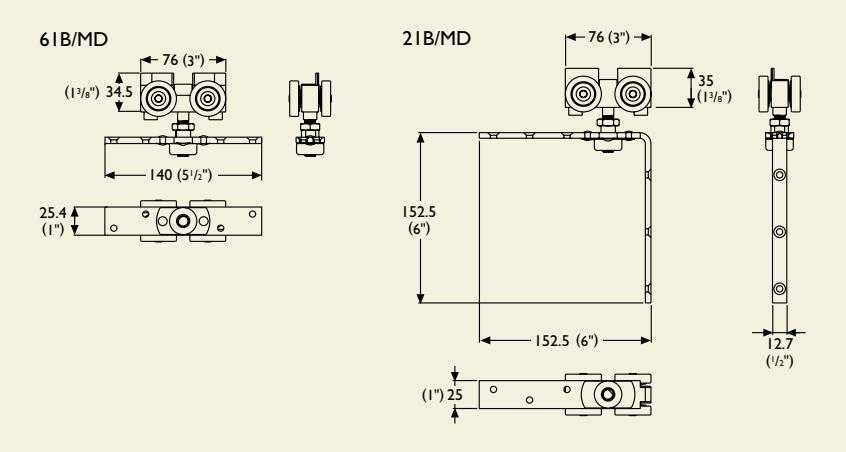

PACER MULTIDIRECTIONAL HANGERS

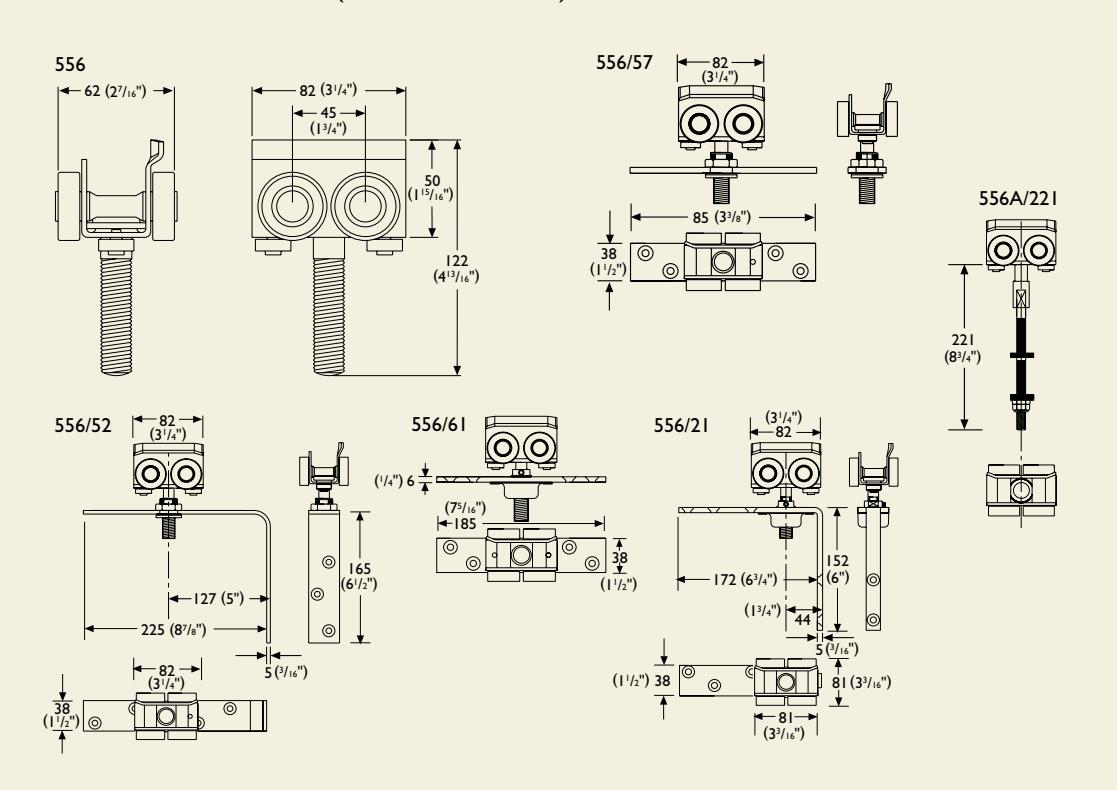

FLEXIROL HANGERS (135° movement)

FLEXIROL HANGERS (90° movement) 5555 555/21 38 (1/2) 555/61 555/61 555/61

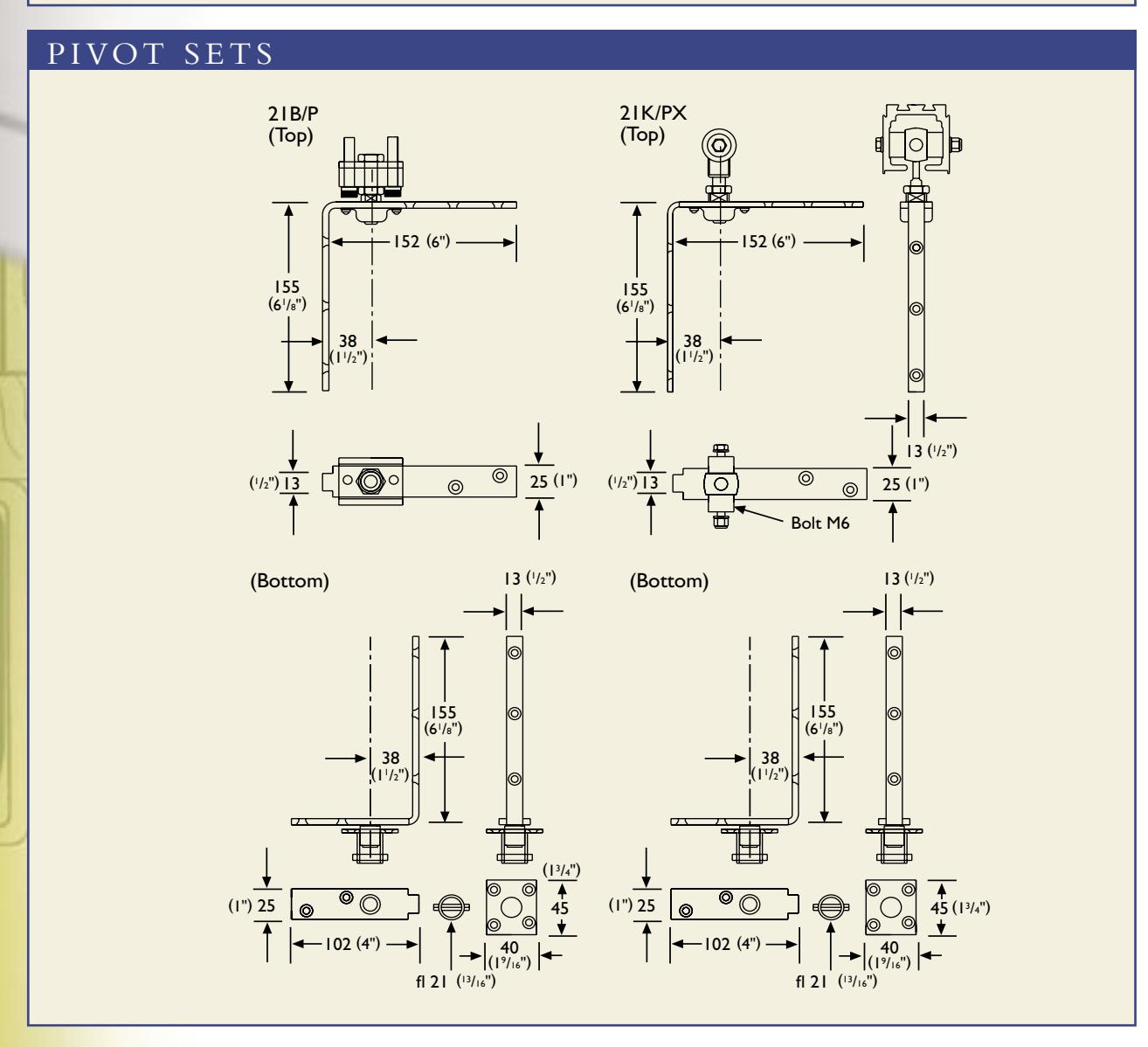

PIVOT SETS 21/550P 7 (1/4") (1/4") 7 (Bottom) – I 78 (7") 154 (6¹/₁ሬ") (13/4") 45 (Top) 45 (13/4") 102 fl 21 (13/16") 38 (1¹/₂") 0 0 fl 16 (5/8")

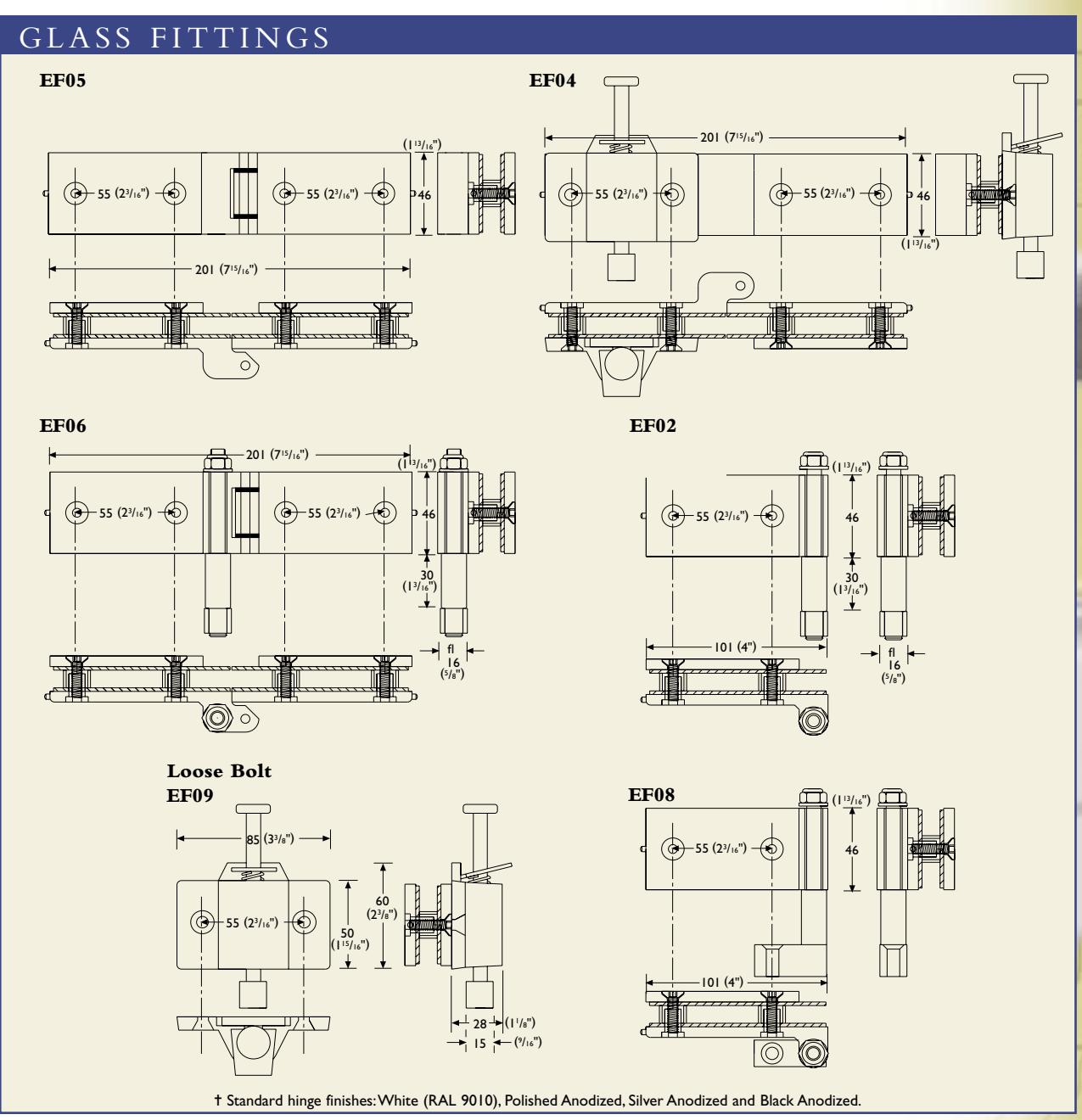

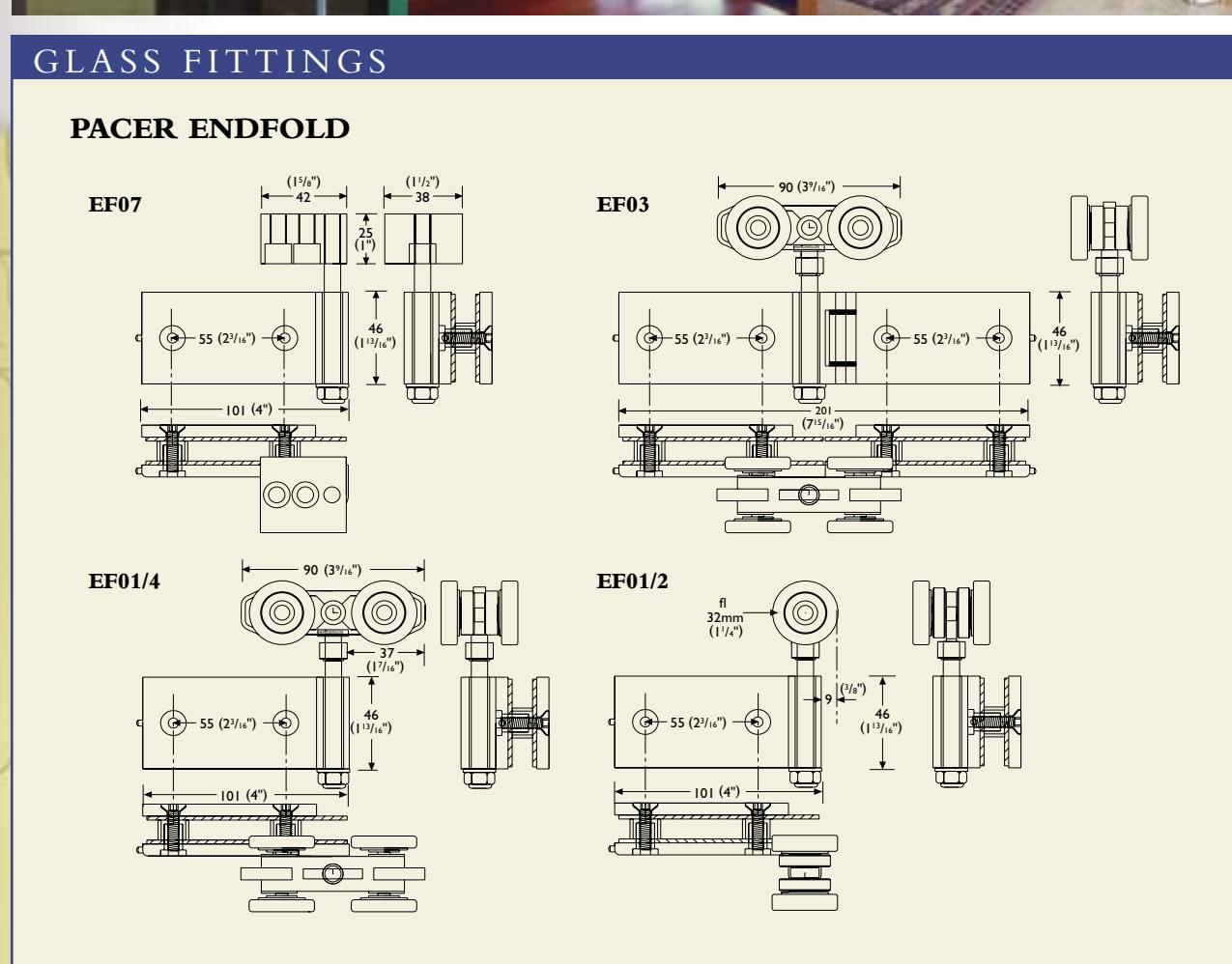

For glass cutting dimensions contact Henderson.

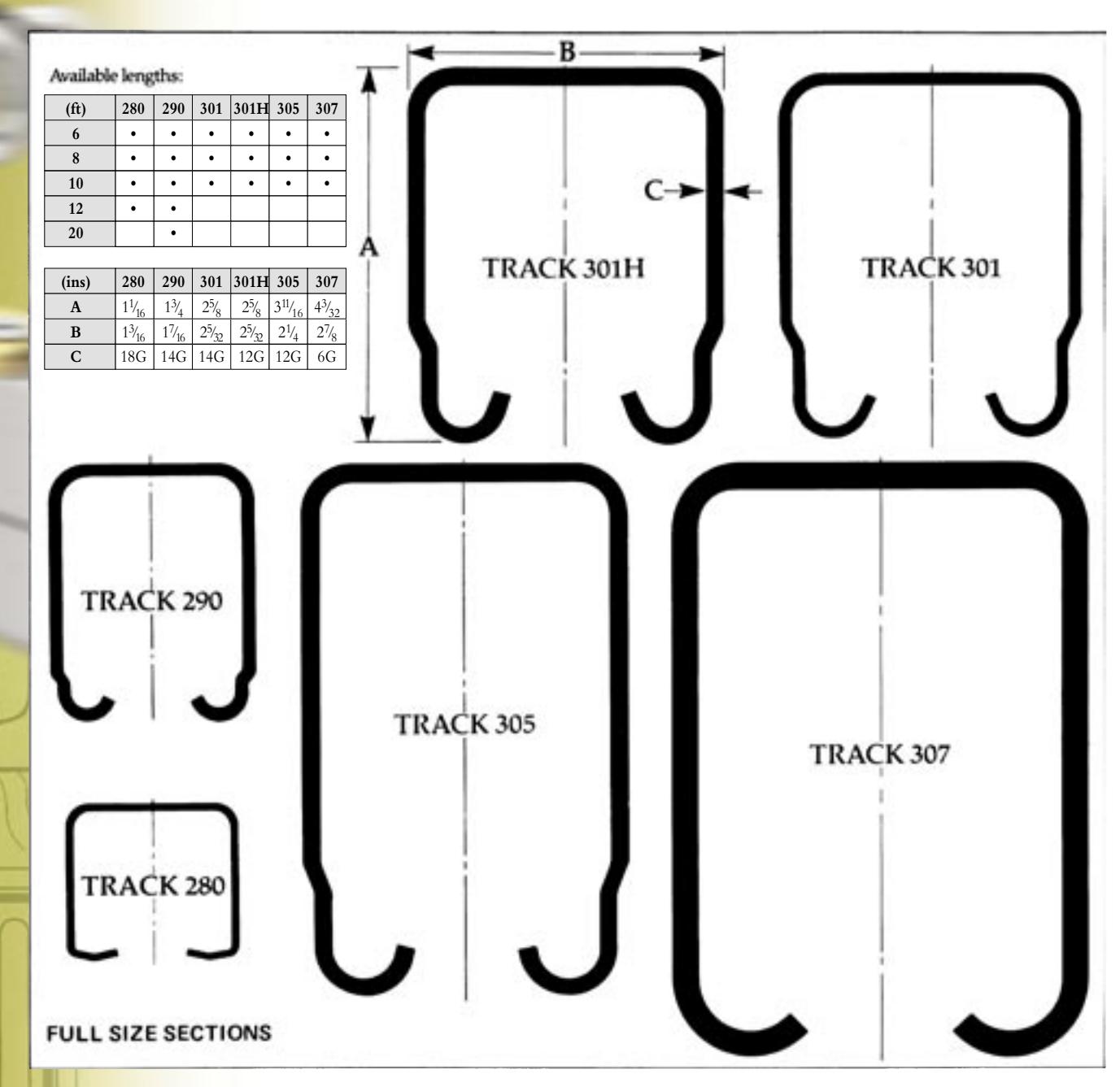

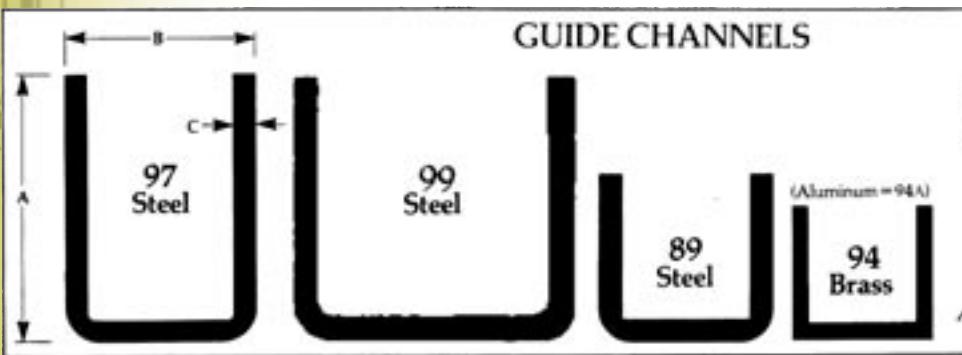

TRACK & CHANNEL

All tracks are in galvanized finish. Once installed they should be kept greased, to reduce wear and increase life. Any length of track is obtained by butting 2 pieces of track together and fixing a bracket at the joint, and closed brackets at each end.

Available lengths 89, 94A, 97, 99: 1.5/2/2.5/3 meter Available lengths 94: 1.5 meter & 3 meter

(ins)	89	94	97	99
Α	I	3/4	11/2	11/2
В	I	13/16	I 1/16	I ¹³ / ₁₆
С	I2G	I7G	12G	I2G

All dimensions in feet and inches.

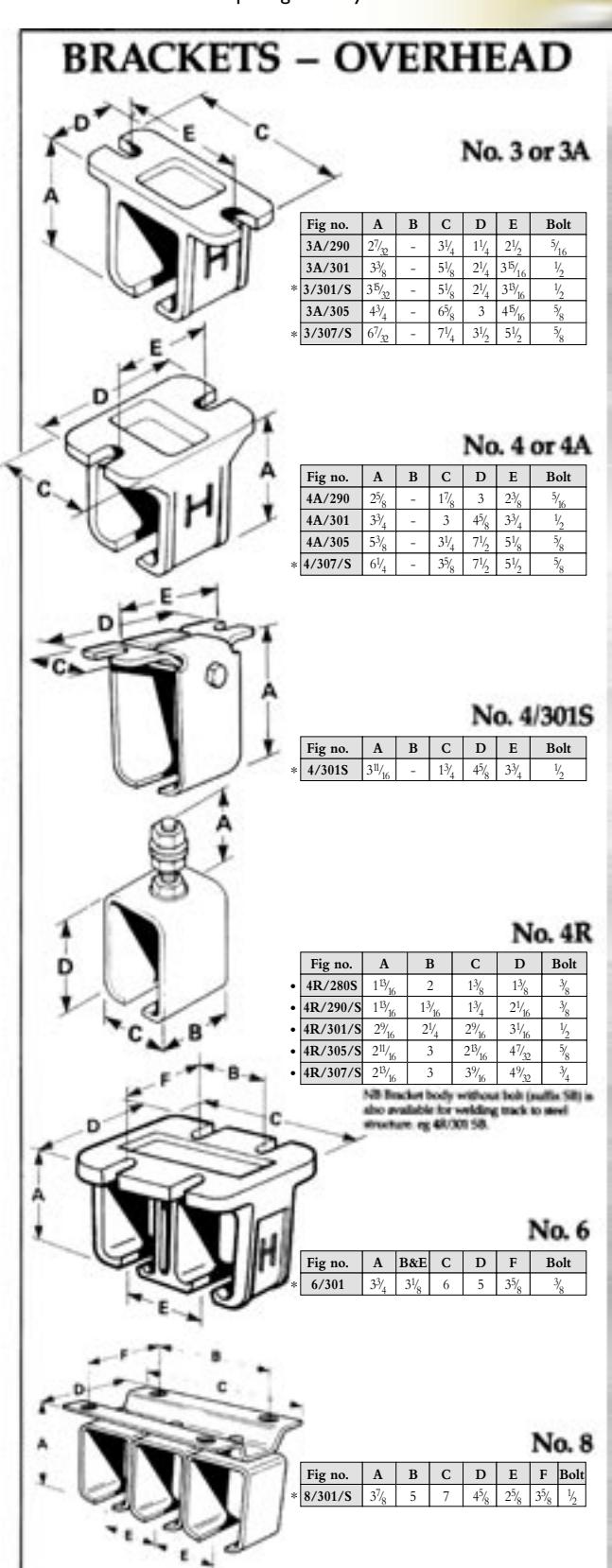

All brackets are aluminum alloy die castings except where otherwise indicated. * Pressed steel brackets in painted finish. • Pressed steel brackets – galvanized. Fit closed brackets at track ends, or fit endclips IA/30I EC (for alloy brackets) or I/30I EC (for steel brackets) in the case of all 30I track brackets. Jointing brackets are only required at track curve ends. Maximum brackets

clips IA/301 EC (for alloy brackets) or I/301 EC (for steel brackets) in the case of all 301 required at track curve ends. Maximum bracket spacing is every 3 ft.

BRACKETS - SIDEWALL No.1 or 1A D E Bolt 1A/290 1/290/S 1A/301 1/301/S 1A/305 1/307/S No. 9 or 9A D E Bolt 9A/290 9/301/S 9A/305 No. 5 Bolt 5/290 5/301 5/305 No. 7 Fig no. A B D E F Bolt

HANGERS

/N= Nylon wheels /S= Steel wheels Nylon wheels are quieter and avoid the need to grease track to reduce wear. Hence their carrying capacity is greater. For automatic doors halve the carrying capacity and use nylon wheels if possible.

No. 56 METAL DOORS

Track			Dimensions
no.	no.	A	В	С	D	Ø	Weight Capacity
290	56X/N 56K/S 56K/S 200	37/16	11/4	11//8	17/16	B/ ₃₂	300 lbs. 300 lbs. 400 lbs.
301	56A/S 56A/N	55/8	23/4	111/16	27/32	5%	600 lbs. 800 lbs.
301H	56A/S 56A/S	55/8	23/4	111/16	27/32	5%	800 lbs. 1000 lbs.
305	56C/S	63/8	23/4	111/16	3	5/8	1500 lbs.
307	56F/S 56FJ/S	87/16	33/8	21/4	37/16	13/16	2500 lbs. 4400 lbs.

No. 53 WOOD DOORS

Track			Door Weight
no.	no.	Α	В	С	D	Е	Capacity
290	53K/N 53K/S 53K/S 200	37/16	33/4	21/4	17/16	11/2-17/8	300 lbs. 300 lbs. 400 lbs.
301	53A/S 53A/N	55/8	7	3	27/32	13/4-21/4	600 lbs. 800 lbs.
301H	53A/S 53A/N	5 %	7	3	27/32	13/4-21/4	800 lbs. 1000 lbs.
305	53C/S	63/8	7	3	3	13/4-21/4	1500 lbs.
307	53FJ/S	87/16	15	21/2	37/16	23/4	4400 lbs.

No. 62 FOLDING DOORS

Track	Hanger no.	Dimensions
no.	no.	A	В	С	D
290	62K	71/16	21/4	111/16	17/16
301 301H	62A	71/16	21/4	111/16	27/32
305	62C	211/2	31/4	2	3

No. 21 FOLDING DOORS

Track
no.	no.	A	В	С	D	Е
290	21K/S 21K/N 21K/4N	6	6	1	17/16	3/16
301 301H	21A/S 21A/4S	7	6	11/2	27/32	1/4
305	21C/S	7	6	11/2	3	1/4

No. 56X METAL DOORS

Track	Hanger		Dimensions				Door Weight
no.	no.	A	В	С	D	Ø	Capacity
290	56KX/S 56KX/N	37/16	43/8	11/8	17/16	13/32	300 lbs. 400 lbs.
301	56AX/S 56AX/N	55/8	511/16	111/16	27/32	5/8	600 lbs. 800 lbs.
301H	56AX/S 56AX/N	55/8	511/16	111/16	27/32	5%	800 lbs. 1000 lbs.
305	56CX/S	63/8	511/16	111/16	3	5/8	1500 lbs.
307	56FX/S 56FJX/S	87/16	51/2	21/4	37/16	B/ ₁₆	2500 lbs. 4400 lbs.

No. 57 WOOD DOORS

Track	Hanger		Door Weight
no.	no.	A	С	D	E	F	Capacity
290	57K/N	37/16	1	51/2	1/16	1	300 lbs.
301	57A/S	55/8	23/8	75/16	1/16	11/2	600 lbs.
301H	57A/N	55/8	23/8	7 ⁵ / ₁₆	1/16	11/2	1000 lbs.
305	57C/S	63/8	21/2	75/16	1/16	11/2	1500 lbs.

No. 52 WOOD DOORS

Track	Hanger	Dimensions					Door Weight
no.	no.	A	С	D1	D2	Е	F	Capacity
290	52K/S 52K/N	37/16	1	3	2	51/4	1	300 lbs. 300 lbs.
301	52A/S	5 %	23/8	4	5	61/2	11/2	600 lbs.
301H	52A/N	5 %	23/8	4	5	61/2	11/2	1000 lbs.
305	52C/S	63/8	21/2	4		61/2	11/2	1500 lbs.

No. 63 FOLDING DOORS

Track	Hanger	Dimensions
no.	no.	A	В	С	D
290	63K	4	21/4	111/16	17/16
301 301H	63A	4	21/4	111/16	27/32
305	63C	87/8	31/4	2	3

(C)

No. 61 FOLDING DOORS

Track	Hanger no.	Dimensions
no.	Hanger no.	A	В	С	D
290	61K/S	51/2	3/ ₁₆	1	17/16
301 301H	61A/S	71/4	1/4	11/2	27/32
305	61C/S	71/4	1/4	11/2	3

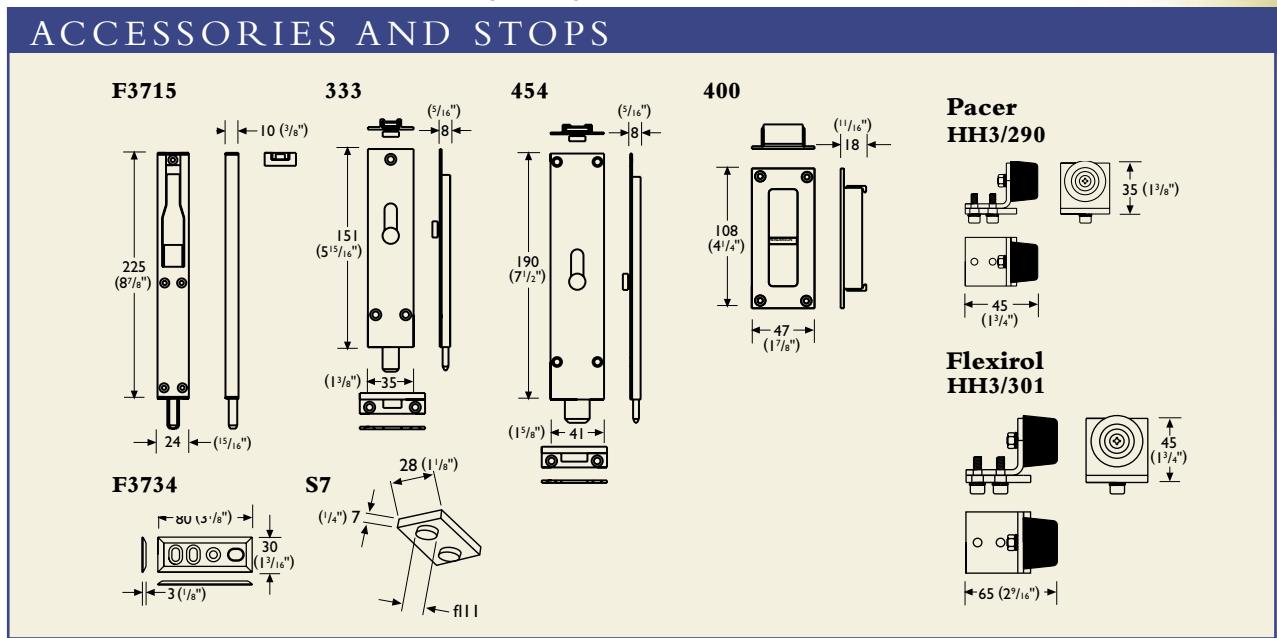

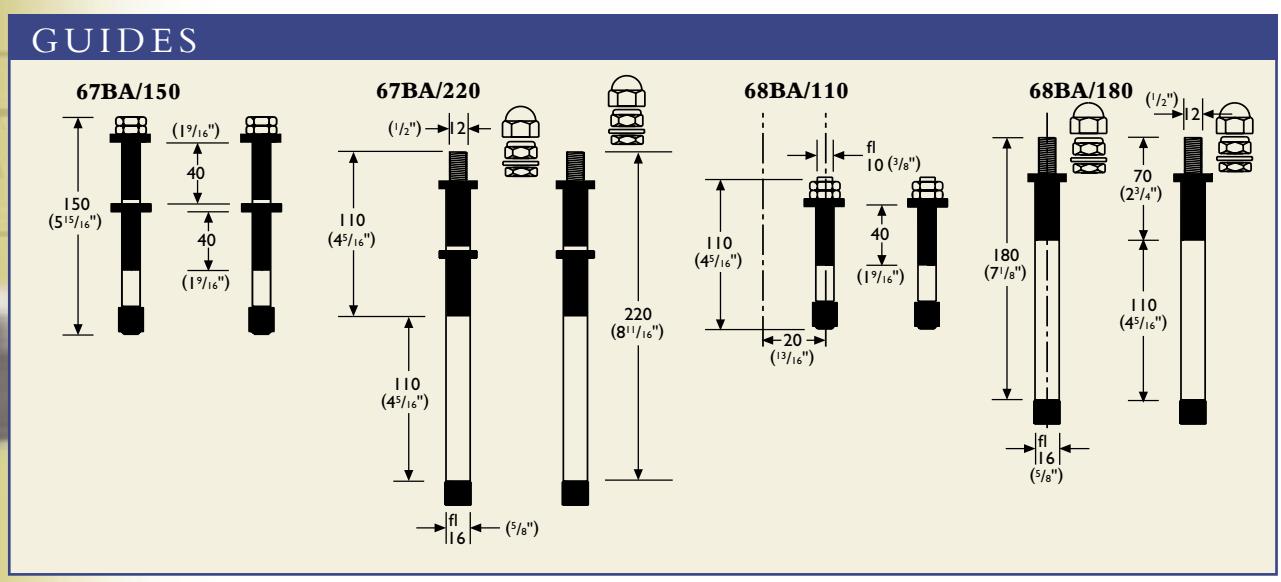

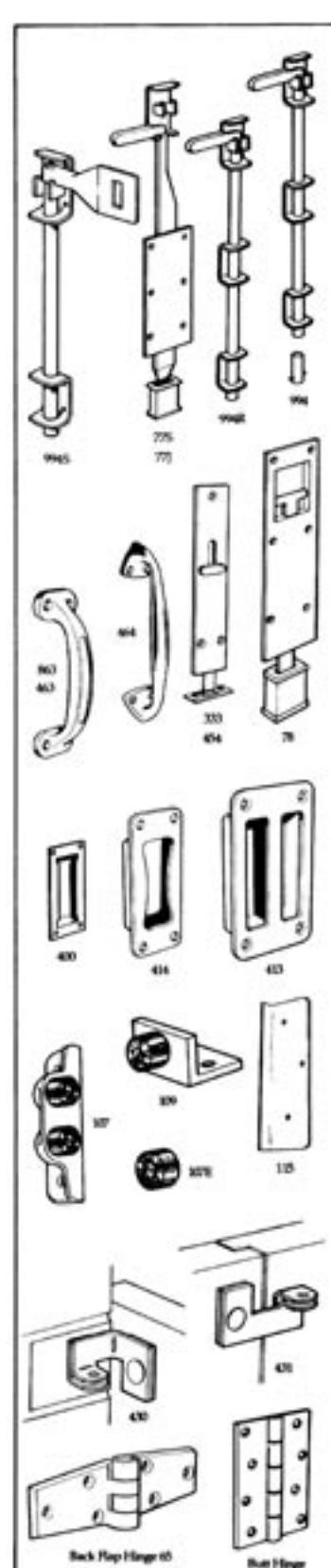

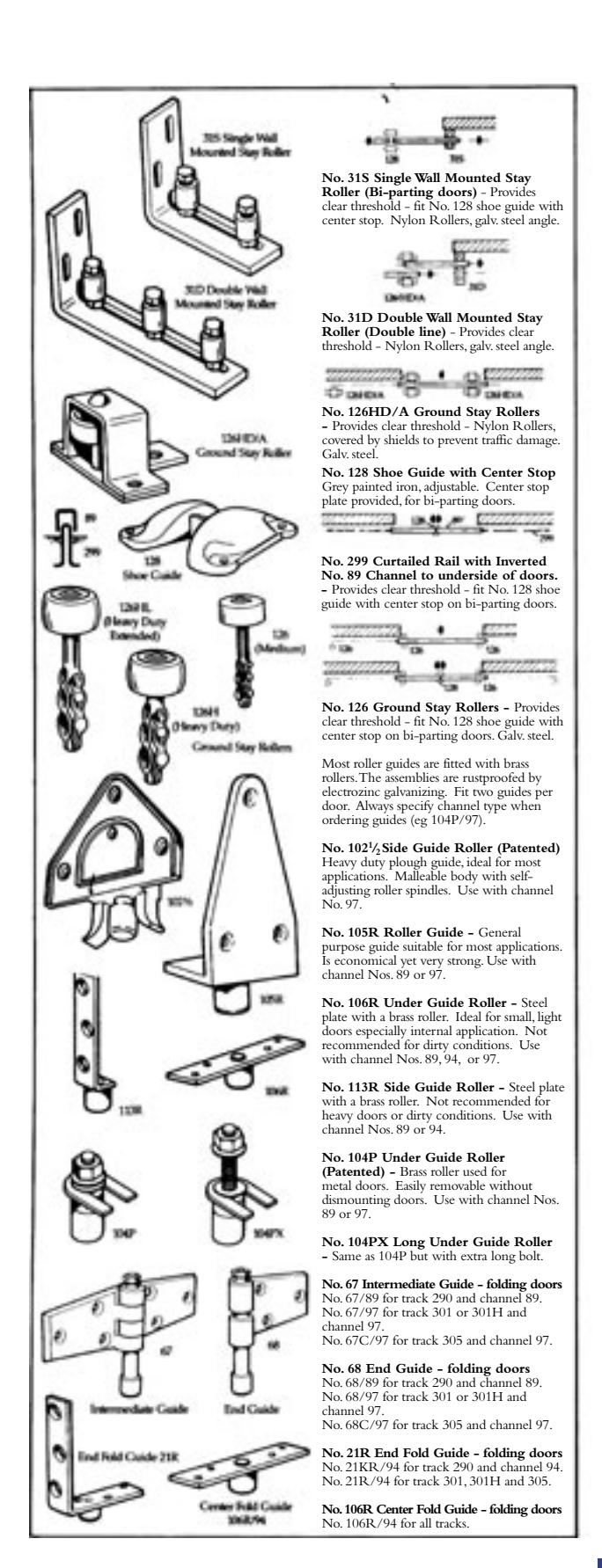

GUIDES OTHERS

No. 994 Cane Bolt -

No. 994 15" electro galvanized steel shoot with socket for concrete, when required.

No. 994X Offset Cane Bolt -

No. 994X 15" electro galvanized steel shoot with socket for concrete.

No. 994R Roller Guide Cane Bolt - No 994R electro galvanized steel shoot with brass roller. Use with channel Nos. 89 or 97.

No. 994S Locking Cane Bolt - No. 994S 15" electro galvanized steel shoot with socket for concrete. Use with padlock (Not

No. 77 Flush Bolt -

No. 77 Fusia both - No. 77] suitable for framed doors with bottom rails up to 6" x 1%". Gray painted steel. No. 77S suitable for framed doors with bottom rails up to 9" x 2½4". Gray painted steel.

No. 78 Flush Bolt - Designed for fitting to stile of flush doors minimum 5" x 13/4". Gray painted steel.

No. 333 Semi-Flush Bolt - 6" x 13/8" num alloy in satin anodized finish

No. 454 Semi-Flush Bolt - 71/2" x 19/16" aluminum alloy in satin anodized finish

No. 863 Bow Handle Gray painted iron. 51/4" x 13/4"

No. 463 Bow Handle -

No. 464 Bow Handle

Gray painted iron. 101/4" x 21/4"

No. 400 Flush Pull -

Aluminum alloy in satin anodized finish. $4^{1}/_{4}^{"}$ x $1^{7}/_{8}^{"}$ with $5^{8}/_{8}^{"}$ mortise.

No. 414 Flush Pull -Aluminum self finish. $5^{1}/_{4}$ " x $2^{1}/_{2}$ " with $3^{3}/_{4}$ "

mortise

Heavy duty Gray painted iron. 6" x 33/4" with 1" mortise

No. 115 Corner Protection Plates -Rustproofed by electrozinc plating - Fit a pair on the leading door edge.

No. 109 Single Wall or Ground Stop -Gray painted steel with rubber buffer. For light doors. Fit on wall, $\frac{2}{3}$ up door height.

No. 107E Buffer Stop -Rubber. For fitting to slamming post when other stops cannot be used.

No. 107 Single Wall Stop - Gray painted steel with rubber buffers. For medium weight doors, fit one on wall, $\frac{2}{3}$ up door height. For heavier door fit 2.

No. 431 Swivel Locking Bar Rustproofed by zinc plating. For doors sliding on outside face of wall or for securing to end post. Use with padlock (Not by PCH).

No. 430 Detachable Locking Bar -Rustproofed by zinc plating. For Straight-Run doors sliding inside and locked outside. Use with padlock (Not by PCH).

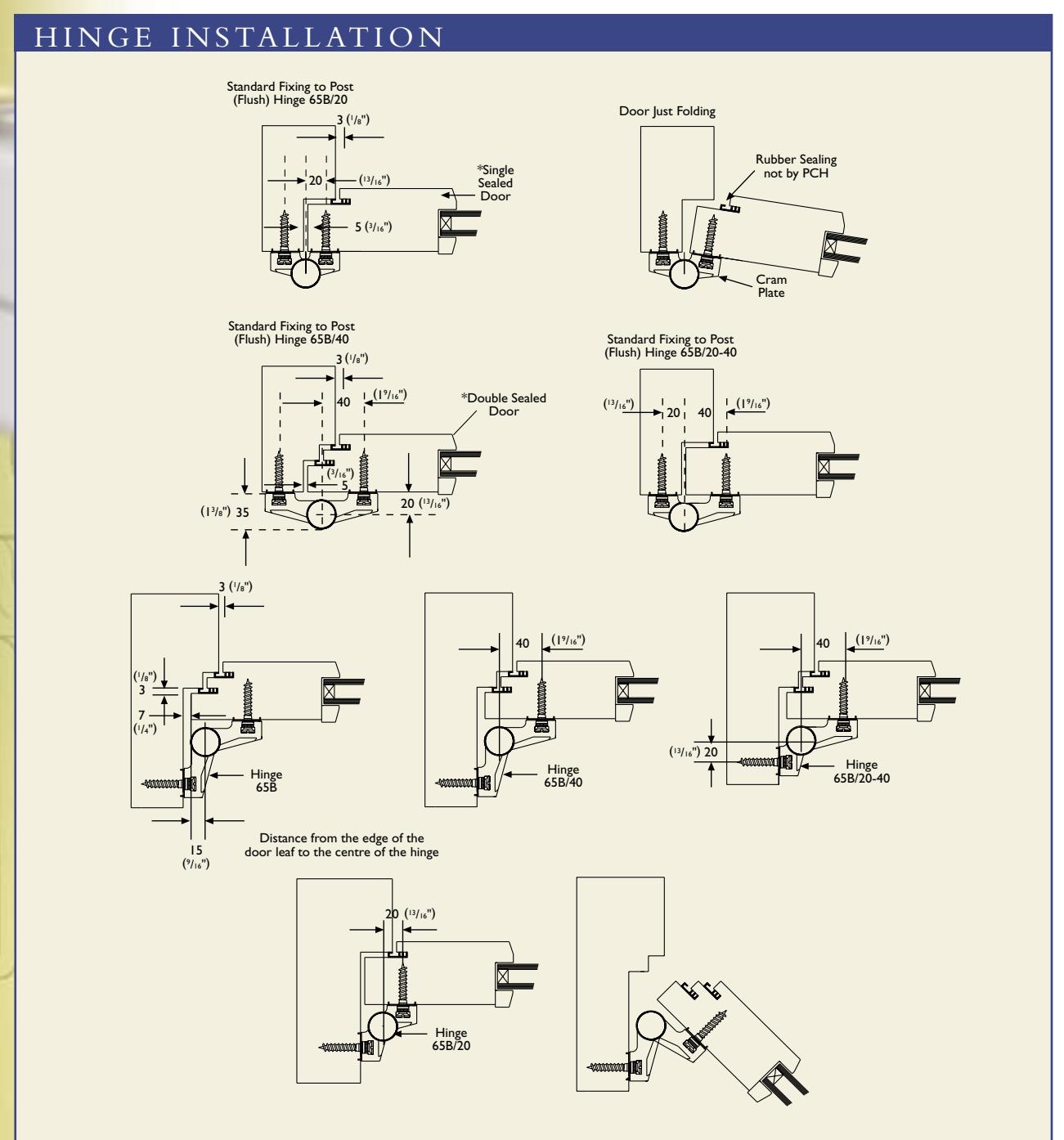

No. 65 Back Flap Hinges No. 65 for track 290, 301 or 301H.

Aluminum. No. 65C track 305. Gray painted

No. 403 Butt Hinge -No. 403/1 31/2" x 2" aluminum alloy. No. 403/2 4" x 21/8" aluminum alloy. No. 403/3 4" x 3" aluminum alloy.

Also available in steel to similar sizes and referred to as No. 37, No. 41, No. 42 respectively.

VENTURA CALIFORNIA

P.O. BOX 3780 VENTURA, CA 93006 TELEPHONE: 800.283.9988 FAX: 800.283.4050

WHITTIER CALIFORNIA

12251 EAST COAST DRIVE .. WHITTIER, CA 90601 TELEPHONE: 800.283.9988 FAX 800.283.4050

MEMPHIS TENNESSEE

P.O. Box 18966 MEMPHIS, TN 38181-0966 TELEPHONE 800,824 3016 FAX: 800.243.3656
