COMMERCIAL AND INDUSTRIAL SLIDING AND FOLDING DOOR HARDWARE

Contents

Introduction to
PC Henderson

Pg 2

Commercial Straight Sliding Systems

Pg 3

	Husky	→	100 and 200 lbs.	Pg 4
	Husky	-	Glass Panels up to 165 lbs.	Pg 6
	Pacer	→	Wood and Metal Doors up to 440 lbs.	Pg 7
	Pacer	→	Glass up to 285 lbs.	Pg 9
=	Flovirol	-	Wood, Metal, or Glass	Pa 12

Commercial Folding Systems

Pg 14

0 /		U
Husky →	➤ 55 and 100 lbs.		Pg 16
Pacer Centerfold	➤ Wood Doors up to 165 lbs.		Pg 18
Pacer Endfold →	➤ Wood Doors up to 165 lbs.		Pg 20
Pacer Endfold -	Glass Doors up to 99 lbs.		Pg 22
Pacer Endfold Exter	rior		Pg 24
Pacer Endfold Alum	inum		Pg 26
Flexirol Centerfold			Pg 28
Flexirol Endfold Inte	erior		Pg 30
Flexirol Endfold Ext	erior		Pg 32
Flexirol Endfold Alu	minum		Pg 34
Flexirol Folding Gla	ss		Pg 36

Commercial Multidirectional Systems Pg 38

Pacer 135°	→ Wood and Aluminum Doors up to 264 lbs.	Pg 40
Pacer 135°	→ Glass Doors up to 264 lbs.	Pg 42
Flexirol 90°	→ Wood and Aluminum Doors up to 220 lbs.	Pg 44
Flexirol 90°	→ Glass Doors up to 220 lbs.	Pg 46
Flexirol 135°	Wood and Aluminum Doors up to 1100 lbs.	Pg 48
Flexirol 135°	→ Glass Doors\nup to 1100 lbs.	Pg 50

Industrial and Stainless Steel Track and Hardware Pg 53

Straight Sliding Industrial	→ 290-307 wood Door Hardware	Pg 54
Straight Sliding Industrial	→ 290-307 metal Door Hardware	Pg 56
Straight Sliding Commercial (Bottom Roller)	→ Mansion and Majestic Wood Door Hardware	Pg 62
Straight Sliding Industrial (Bottom Roller)	→ Sherwood 225-800 Wood Door Hardware	Pg 66
Straight Sliding Industrial (Bottom Roller)	→ Sherwood 225-800 Metal Door Hardware	Pg 70
Folding Industrial	→ Tangent 290-305 Folding Door Hardware	Pg 74
Round-the- Corner Industrial	→ Tangent 290-305 Round-The-Corner Door Hardware	Pg 78
Folding Partitions	→ Council 290-305 End Folding Door Hardware	Pg 82
Folding Partitions	→ Council 290-305 Center Folding Door Hardware	Pg 86
Folding Section Doors (Bottom Roller)	→ Arcade A70 End Folding and Center Folding Door Hardware	Pg 90
Overhead Runways	→ 280-305	Pg 94
Sliding Cantilever Gate Hardware	→ Titan	Pg 98
inlace Cecal	C4::-a: -la.4

Stainless Steel Straight Sliding Industrial Pg 100

Track, Guide Channel, Guides	→ 28	80/SS, 290/SS, 301/SS	Pg	101
Brackets	→ 1/	SS, 1X/SS, 3/SS, 3X/SS	Pg	102
Hangers		84/SS, 285/SS, 53/SS, 6/SS, 57/SS	Pg	104
Top-Hung (Wood or Metal Straight Sliding)	→ 28	30/SS	Pg	105
Top-Hung (Wood or Metal Straight Sliding)	→ 29	90/SS	Pg	106
Top-Hung (Wood or Metal Straight Sliding)	→ 30	01/SS	Pg	108

Component Illustrations Pg 110

Components	~	Hinges, Brack Pivot Sets, Gui			110
Track & Channel	~	280-307 Tra 89-99 Char		Pg	118
Track Brackets	~	Pacer, Flexi	rol, Husky	Pg	119
Hangers				Pg	120
Guides and Other	r Ac	cessories		Pg	121
P C Henderson A	dve	ertising		Pg	122

Product Index

Pg 124

HENDERSON

P C Henderson has long been acknowledged as the world leader in the design and manufacture of Sliding Gear Systems for residential, commercial and industrial applications.

Established in 1921, the company is a member of Cardo Door, the largest Business Area within Cardo AB, a major European engineering products group with an annual turnover in excess of £700 million.

P C Henderson is based in Bowburn in North East England and has subsidiaries in Holland and Ireland. The company has a long established sales and distribution network in over 70 countries, with head office support from Henderson's fully trained technical sales team.

The company is committed to quality and is registered to BS EN ISO 9002: 1994 Quality Systems.

HENDERSON COMMERCIAL RANGE

The three models in the Henderson commercial range - Husky Glass, Pacer and Flexirol - are suitable for doors weighing up to 1100 lbs. (500kg). They are ideal for applications such as shop-fronts, hotels, conference centers and offices, where smooth action, high performance and aesthetics are important.

You can choose from wood, aluminum and glass door options, with straight sliding, folding and multidirectional stacking systems. Flexirol multidirectional systems can accommodate 90° and 135° movement. Pacer systems allow 135° movement.

Aluminum track can be painted on site to match interior colors and ceilings. Pacer track has the option of clip-on aluminum fascia.

HUSKY, PACER AND FLEXIROL FOLDING DOOR SYSTEMS

The use of folding doors is ideal for interior and, in particular, exterior situations where space is limited or where it is desirable to have the door leaves stacked behind a reveal.

With the Pacer and Flexirol folding door systems, flexibility is the key. The range covers everything from internal folding partitions to exterior folding entrance ways.

The Pacer system covers weights up to 143 lbs. (65kg) per leaf. The Flexirol system has a capacity of up to 275 lbs. (125kg). Both systems use high performance components that are extremely durable, ensuring a long, trouble-free operating life.

When considering internal partition systems, specifiers are provided with the option of either centerfold or endfold configurations.

To match the variety of materials used in modern day design, Pacer and Flexirol folding systems cater for doors of glass, wood or metal construction.

HUSKY 55

High quality hardware makes light folding doors efficient and easy-to-use. Two and four leaf kits are available.

FOR FOLDING DOORS AND ROOM DIVIDERS TO 55 lbs.

HF2/55 KITS (complete, ready to install) include:

l ea	280/4 or	pre-drilled track, in steel or
	280 A /4	aluminum, 4 foot lengths
l ea	283N	nylon bodied, acetal wheel hanger
l ea	289T	top pivot
l ea	289B	bottom pivot
3 ea	282HD	heavy duty butt hinges
(Kit components can be ordered individually)

HF4/55 KITS (complete, ready to install) include:

I ea	280/8 or	pre-drilled track, in steel or
	280 A /8	aluminum, 8 foot lengths
2 ea	283N	nylon bodied, acetal wheel hangers
2 ea	289T	top pivot
2 ea	289B	bottom pivot
6 ea	282HD	heavy duty butt hinges
(Kit components can be ordered individually)

Order KITS based on material, length of track and number of leaves:

Kit No.	Track	Max Door	Max	No. of	Door Leaf
	Mat'l / Length	Leaf Size	O pening	Leaves	Thickness
HF2/55/4	steel/4 ft.	96" H x 24" W	48"	2	13/16" - 1-3/4"
HF2/55A/4	aluminum/4 ft.	96" H x 24" W	48"	2	13/16" - 1-3/4"
HF4/55/8	steel/8 ft.	96" H x 24" W	96"	4	13/16" - 1-3/4"
HF4/55A/8	aluminum/8 ft.	96" H x 24" W	96"	4	13/16" - 1-3/4"

SOFFIT FIXED FACE FIXED

HARDWARE PACK (no."HF2/55PACK") = KIT w/o track:

l ea	283N	nylon bodied, acetal wheel hange
l ea	289T	top pivot
l ea	289B	bottom pivot
3 ea	282HD	heavy duty butt hinges

(For 4 leaf configurations, order 2 each of the above hardware pack HF2/55PACK)

OPTIONAL EXTRAS include:

281 5	281 brackets - 5 each
106HF/94	roller guide (use w/94A)
94A	aluminum floor channel
400	aluminum flush pull (4-1/4" $\backslash times$ 1-7/8")
333	aluminum flush bolt (6" x 1-3/8")

(For door leaves which weigh over 33 lbs. or are wider than 18", order one (for 2 leaf configurations) or two (for 4 leaf configurations) 106HF/94 roller guide(s) and one 94A aluminum floor channel)

HUSKY FOLDING FOR FOLDING

High quality hardware makes medium weight folding doors efficient and easyto-use. Two and four leaf kits are available.

FOR FOLDING DOORS AND ROOM DIVIDERS TO 100 lbs.

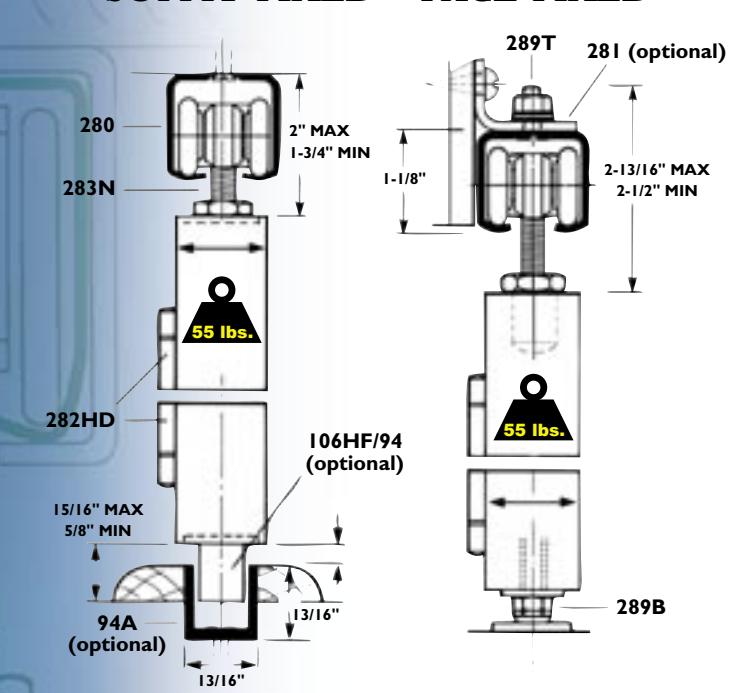

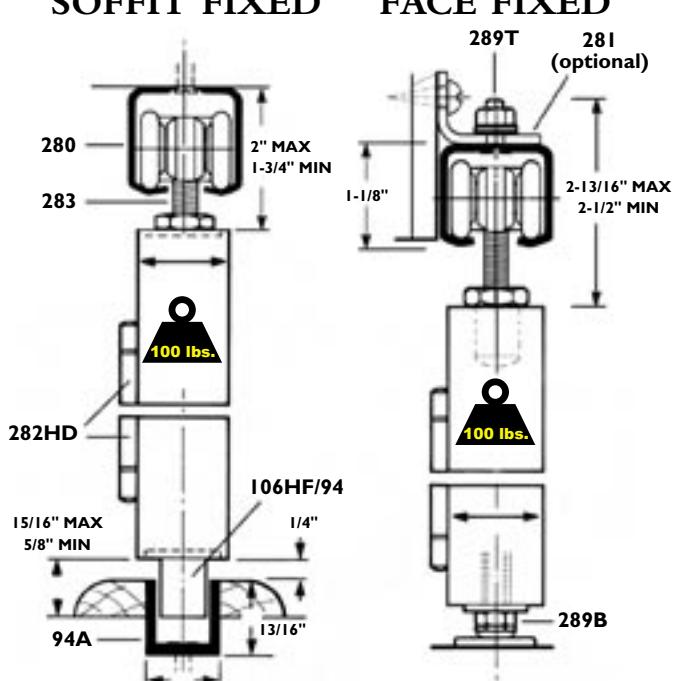

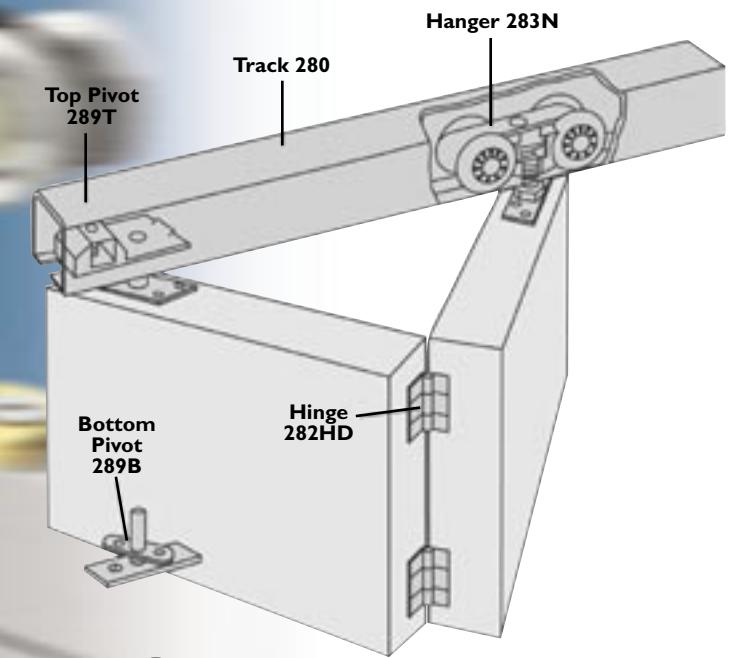

Hanger 283 Track 280 Top Pivot 289T Channel 94 Δ Hinge 282HD Bottom Pivot 289B Guide 106HF/94

HF2/100 KITS (complete, ready to install) include:

l ea	280/4 or	pre-drilled track, in steel or
	280 A /4	aluminum, 4 feet
l ea	94A/4	aluminum floor channel, 4 feet
l ea	283	nylon bodied, needle bearing,
		acetal wheel hanger
l ea	289T	heavy duty top pivot
l ea	289B	heavy duty bottom pivot
3 ea	282HD	heavy duty butt hinges
l ea	106HF/94	roller guide (use w / 94A)
(Kit components can be ordered individually)

HF4/100 KITS (complete, ready to install) include:

	(	,
l ea	280/8 or	pre-drilled track, in steel or
	280 A /8	aluminum, 8 feet
l ea	94A/8	aluminum floor channel, 8 feet
2 ea	283	nylon bodied, needle bearing
		acetal wheel hangers
2 ea	289T	heavy duty top pivots
2 ea	289B	heavy duty bottom pivots
6 ea	282HD	heavy duty butt hinges
2 ea	106HF/94	roller guides (use w/94A)
(Kit components can be ordered individually)

Order KITS based on material, length of track and number of leaves:

Kit No.	Track Mat'l / Length	Max Door Leaf Size	Max Opening	No. of Leaves	Door Leaf Thickness
HF2/100/4	steel/4 ft.	96" H x 24" W	48"	2	13/16" - 1-3/4"
HF2/100A/4	aluminum/4 ft.	96" H x 24" W	48"	2	13/16" - 1-3/4"
HF4/100/8	steel/8 ft.	96" H x 24" W	96"	4	13/16" - 1-3/4"
HF4/100A/8	aluminum/8 ft.	96" H x 24" W	96"	4	13/16" - 1-3/4"

SOFFIT FIXED FACE FIXED

HARDWARE PACK (no. "HE2/100PACK") = KIT w/o

HARDWARE FACK (III. HF2/100/ACK) - KIT W/O GACK.
l ea	283	nylon bodied, needle bearing, acetal
		wheel hanger
l ea	289T	heavy duty top pivot
l ea	289B	heavy duty bottom pivot
3 ea	282HD	heavy duty butt hinges
l ea	106HF/94	roller guide (use w/94A)
(For 4 lost configurations order 2 each of the above

(For 4 leaf configurations, order 2 each of the above hardware pack HF2/100PACK)

OPTIONAL EXTRAS include:

281 5	281 brackets - 5 each
400	aluminum flush pull (4-1/4" $\backslash times$ 1-7/8")
333	aluminum flush bolt (6" x 1-3/8")

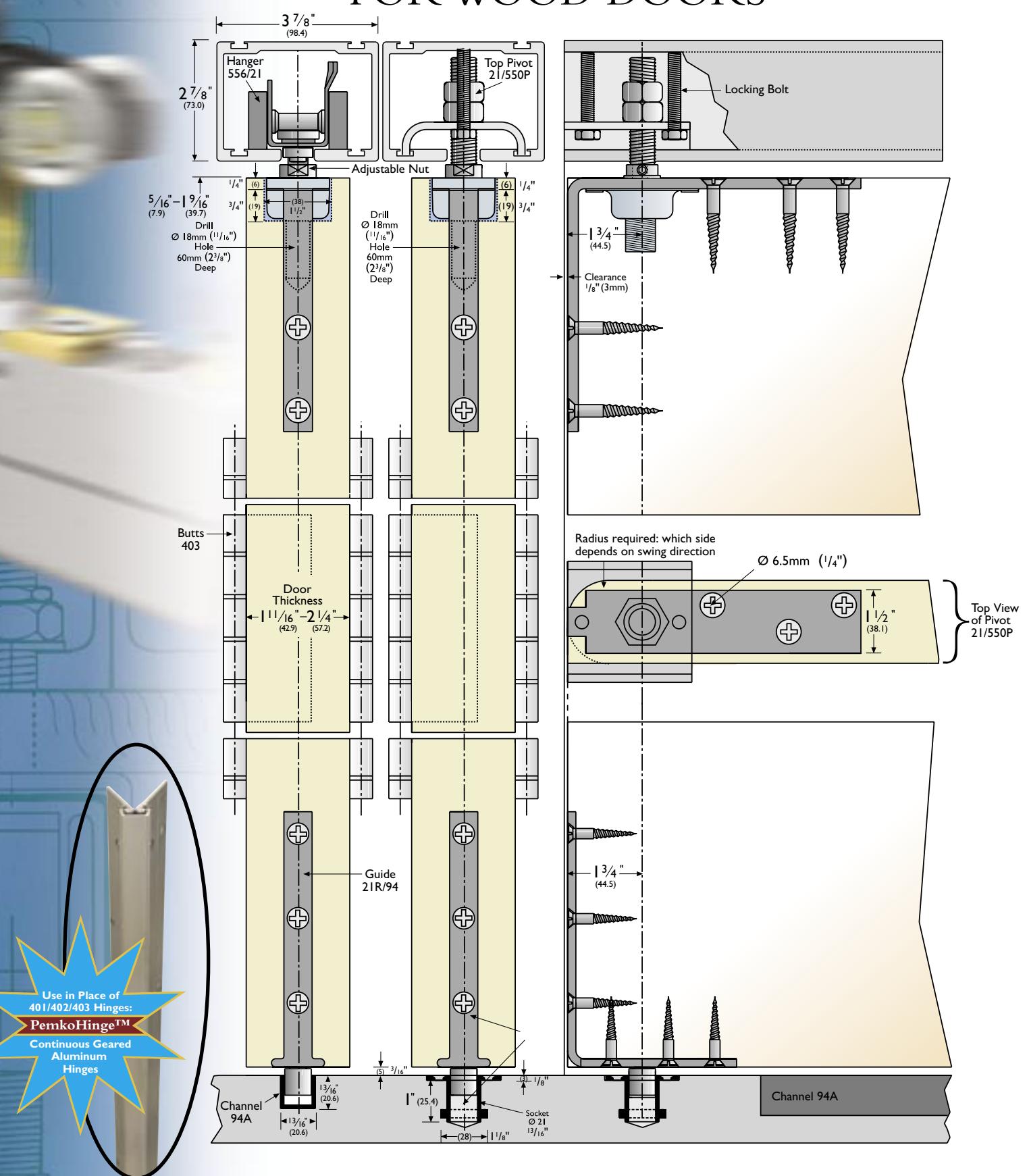

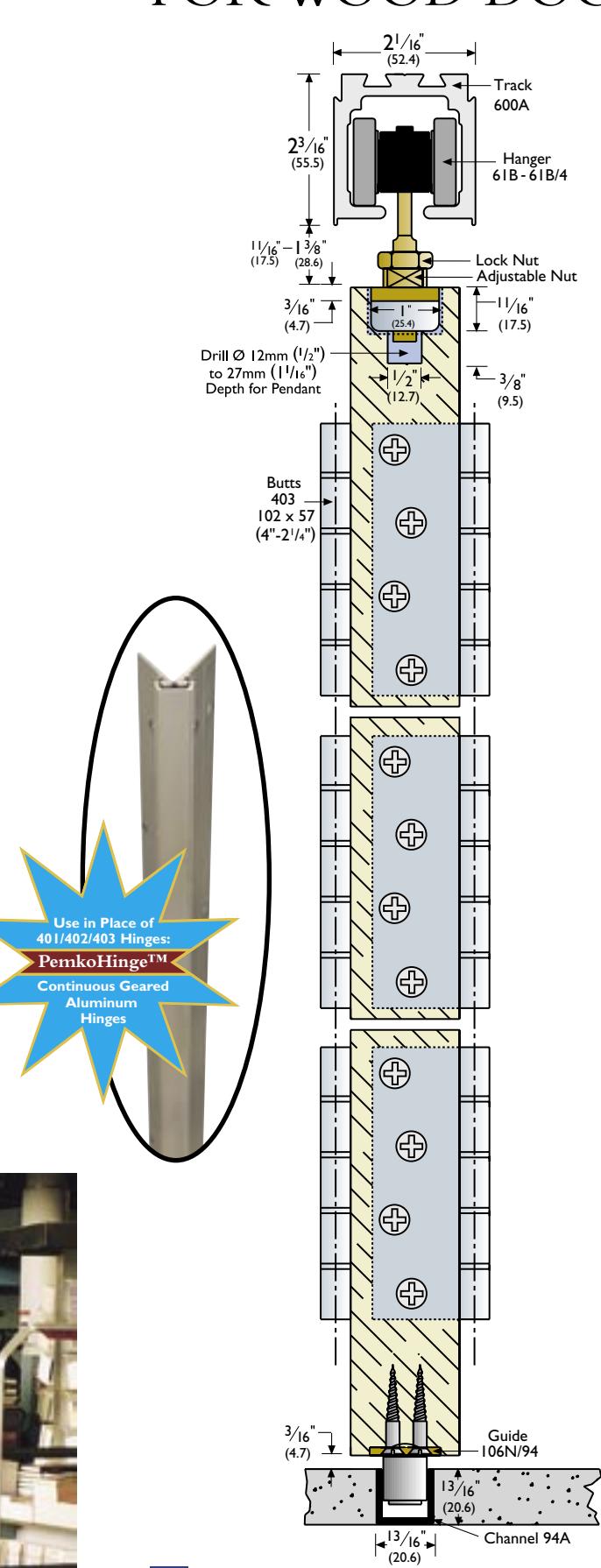

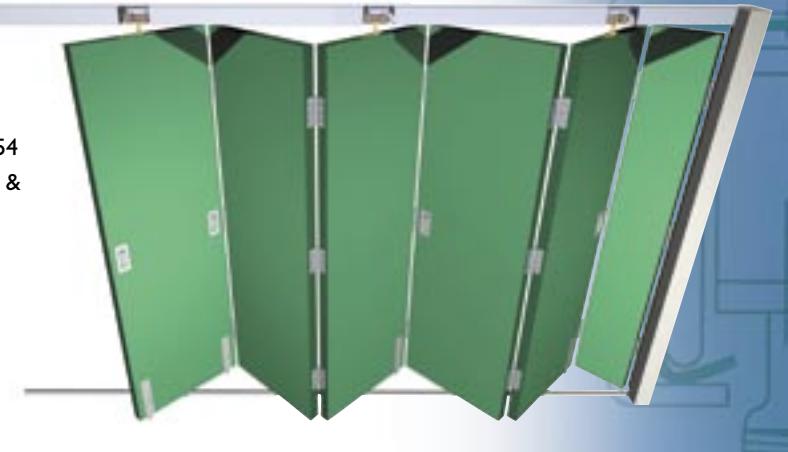

PACER INTERIOR CENTERFOLD

FOR WOOD DOORS

Max. door weight: 77 lbs. (35kg) (61B hanger)

165 lbs. (75kg) (61B/4 hanger)

Note:

Max. door height: 8'10" (2700mm) Max. door width: 2'11" (900mm)

Door thickness: 13/8"-115/16" (35mm-50mm)

APPLICATIONS

Top-hung Pacer gear and fittings for center folding wood partition doors. Leaves are hung centrally and can fold to one or both sides. For applications hinged to the jamb, $3^\{1\}/2$ , $5^\{1/2\}$ or $7^\{1/2\}$ leaves can be used with the half-leaf hinged to the jamb. For best operation of floating units, 5, 7 or 9 leaves should be used. Any access door should be hinged separately to the jamb.

DOOR TYPES

Residential and commercial wood doors.

TECHNICAL INFORMATION

Track: Aluminum

Available in 6', 8', 10', and 16'5", lengths

Brackets: Face fix ΙB

Jointing bracket IBX

61B Hangers: Two-wheeled hanger

Four-wheeled hanger 61B/4

Guides: Nylon guide roller 106N/94

Guide Channel: Brass 94

Aluminum 94A 94 channel available in 4'11" (1.5 meter)

and 9'10" (3 meter) lengths. 94A channel

available in 6', 8', and 12' lengths.

Hinges: Butt hinges Accessories:

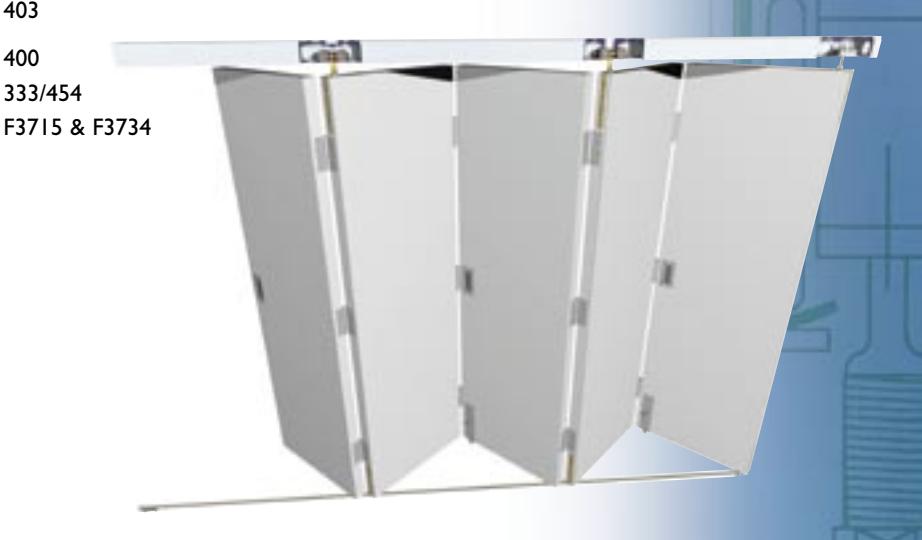

Flush pull 400

Flush bolts 333/454

Narrow flush bolt and keep F3715 & F3734

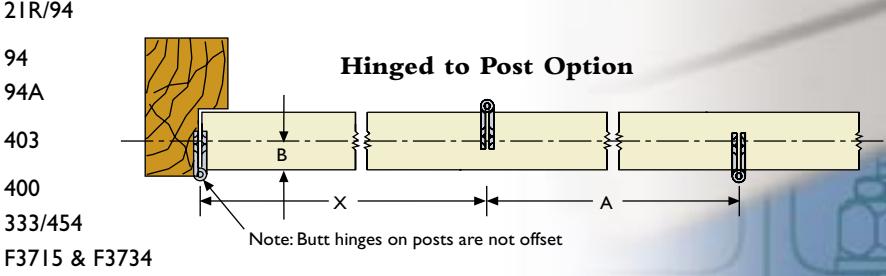

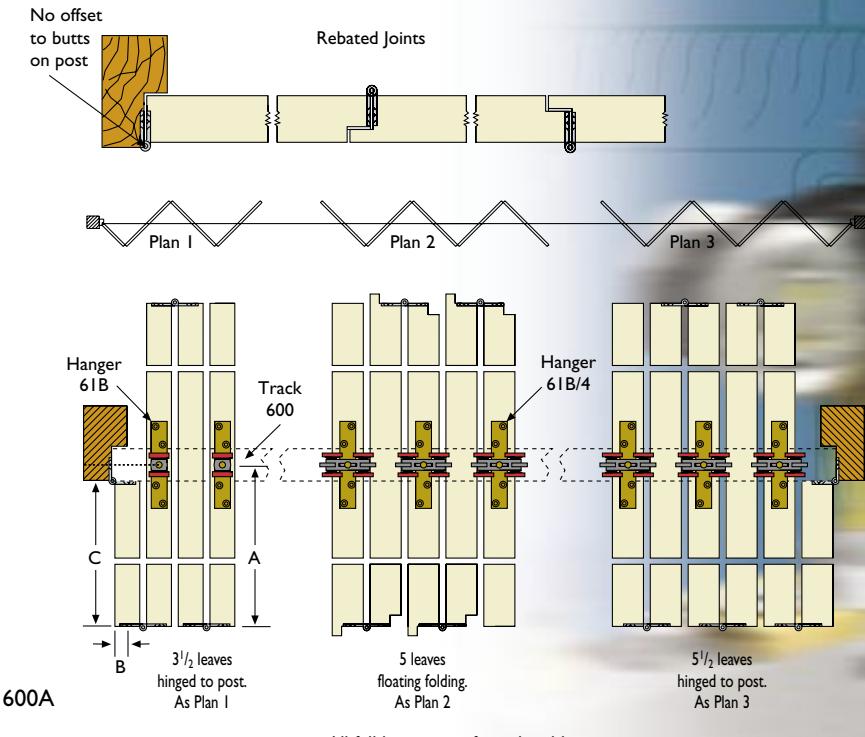

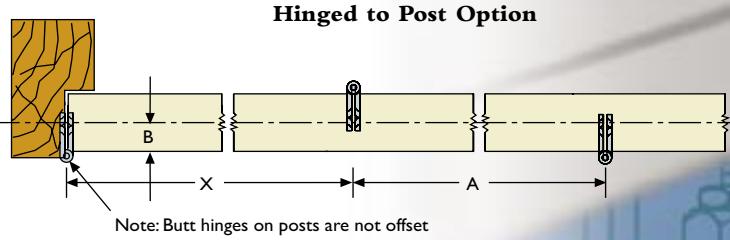

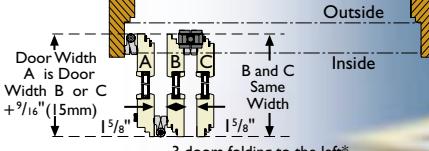

All full leaves are of equal width. A pivoting half-leaf (dimension C) is half the width of a full leaf (dimension A), less half of the leaf thickness (dimension B).

403

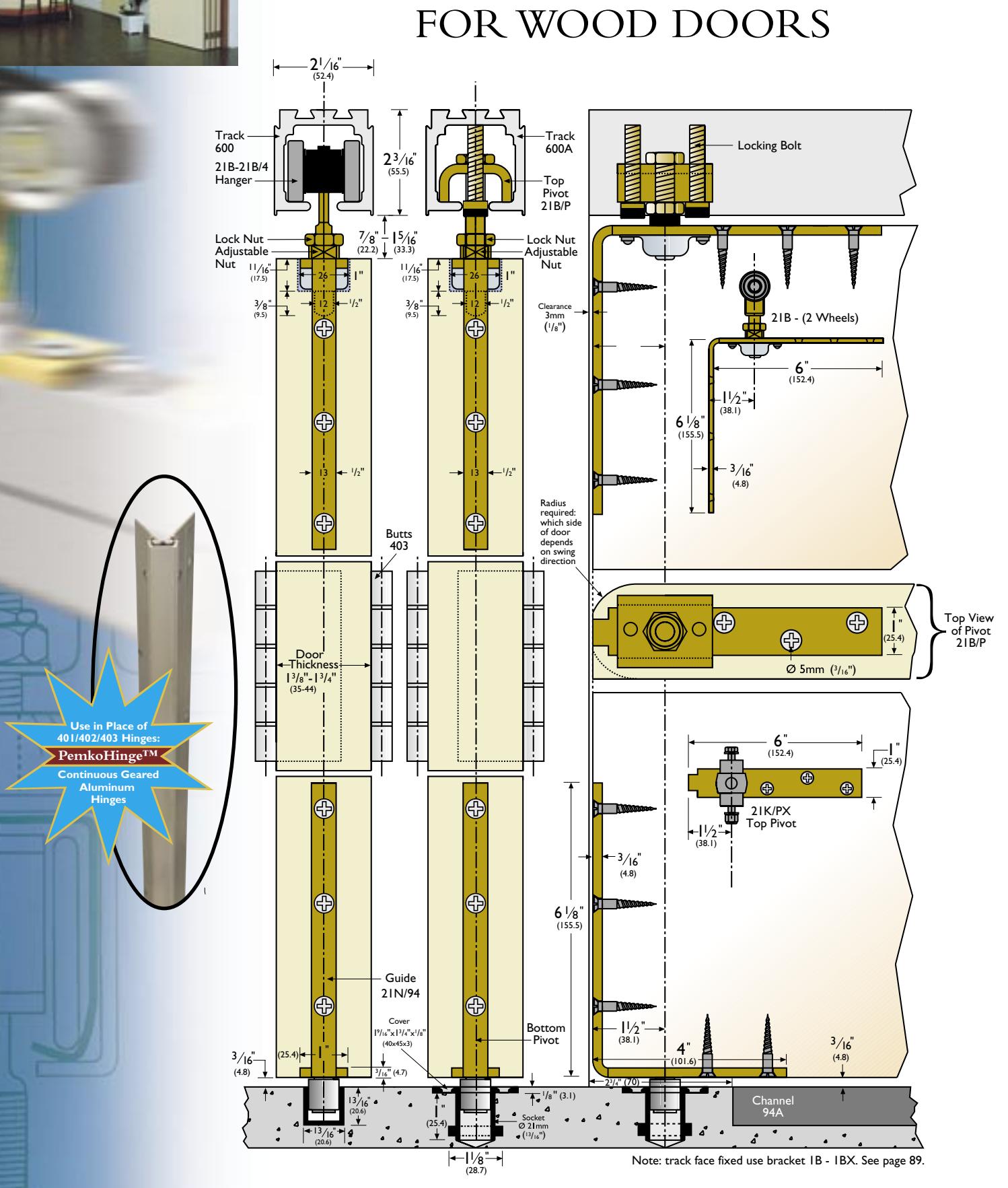

PACER INTERIOR ENDFOLD

Max. door weight: 77 lbs. (35kg) (21B hanger)

165 lbs. (75kg) (21B/4 hanger)

165 lbs. (75kg) (21BO/4 hanger)

Max. door height: 8'10" (2700mm) Max. door width: 2'11" (900mm)

Door thickness: 1³/₈"-1³/₄" (35mm-44mm)

APPLICATIONS

Pacer Endfold offers both two-wheeled and fourwheeled hangers to cover a wide range of residential and commercial applications. Leaves can be hung to the left or the right of an opening, or hung as floating units. In applications using the four-wheeled hanger with an even number of leaves folding left and right meeting in the center of the opening, an offset hanger is required (Plan 4).

DOOR TYPES

Residential and commercial wood doors.

TECHNICAL INFORMATION

Irack :	Aluminum Available in 6', 8', 10', and 16'5", lengths	600A
Brackets:	Face fix Jointing bracket	IB IBX
Hangers:	Two-wheeled hanger	21B
	Four-wheeled hanger	21B/4
	Four-wheeled offset hanger	21BO

For door widths between Pivots:

I"-13/8" (25-34mm) For door widths between 13/8"-13/4" (35-44mm)

Guides: Nylon end guide roller

Guide Channel: Brass

Aluminum

Hinges: Butt hinges

Accessories: Flush pull

Flush bolts

Narrow flush bolt and keep

94

94A 403

400

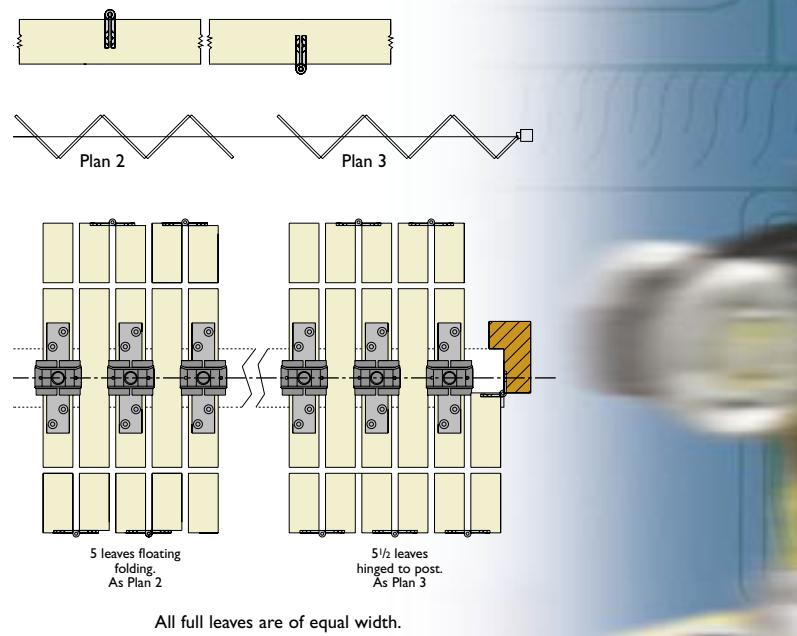

Plan I

Plan 3

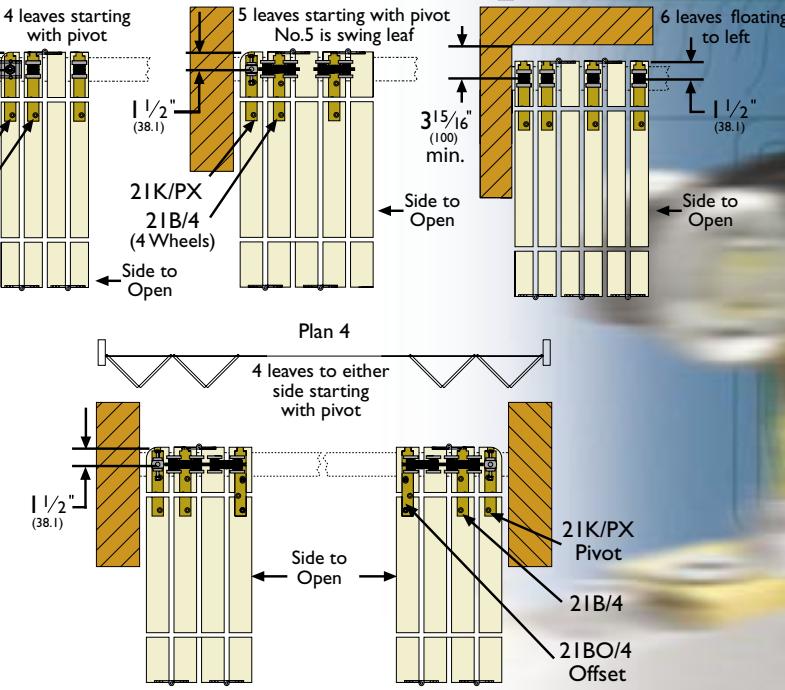

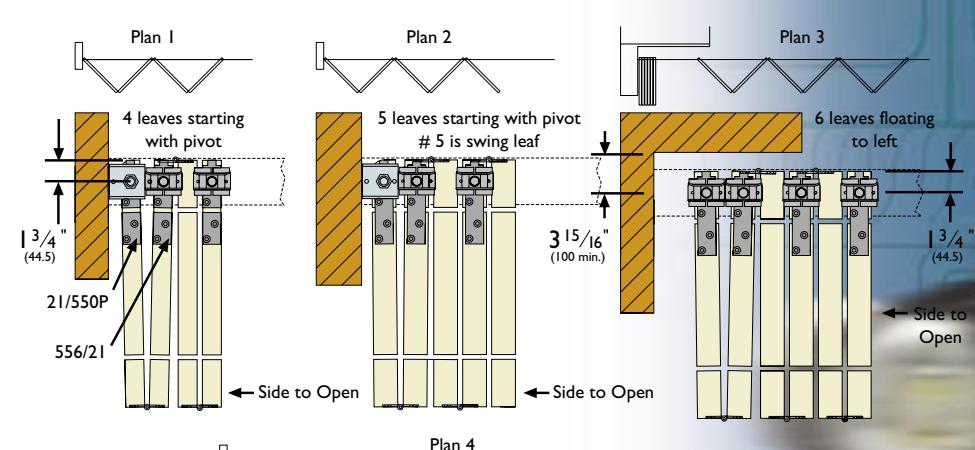

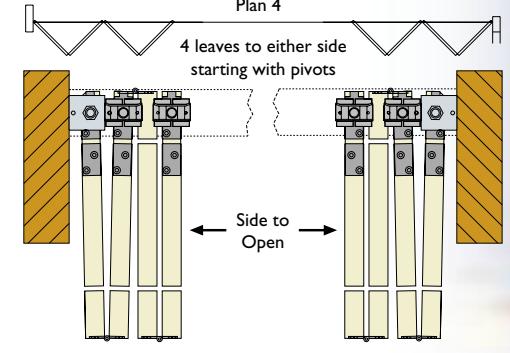

Note: Hangers and guides are to be fitted to alternate leaves only.

Plan 2

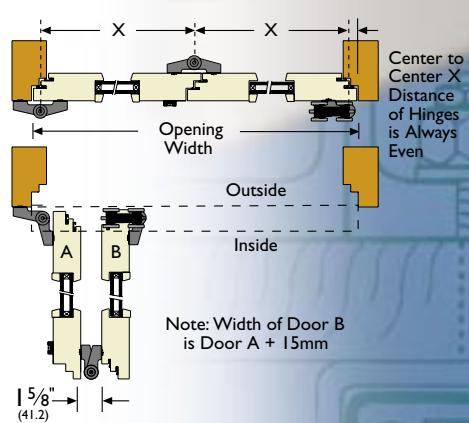

All leaves are of equal width except the leaf hinged to the post The dimension for the leaf hinged to the post (X) is, A, less B (half the leaf thickness), less 11/2" (38mm).

Formula: X=(A-B)-11/2" (38mm)

with pivot | |/2 "_ (38.1) 21B/F 21B (2 Wheels) 21BO/4 21K/PX 21B/P 21N/94

^* Note: Using a pivot allows leaves to be of equal width.

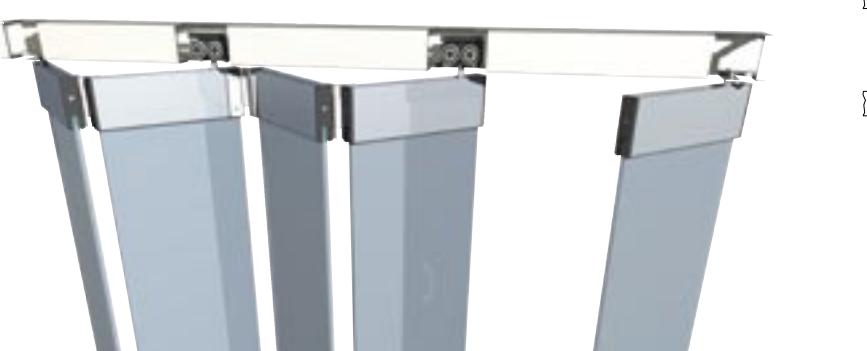

PACER ENDFOLD FOR GLASS DOORS

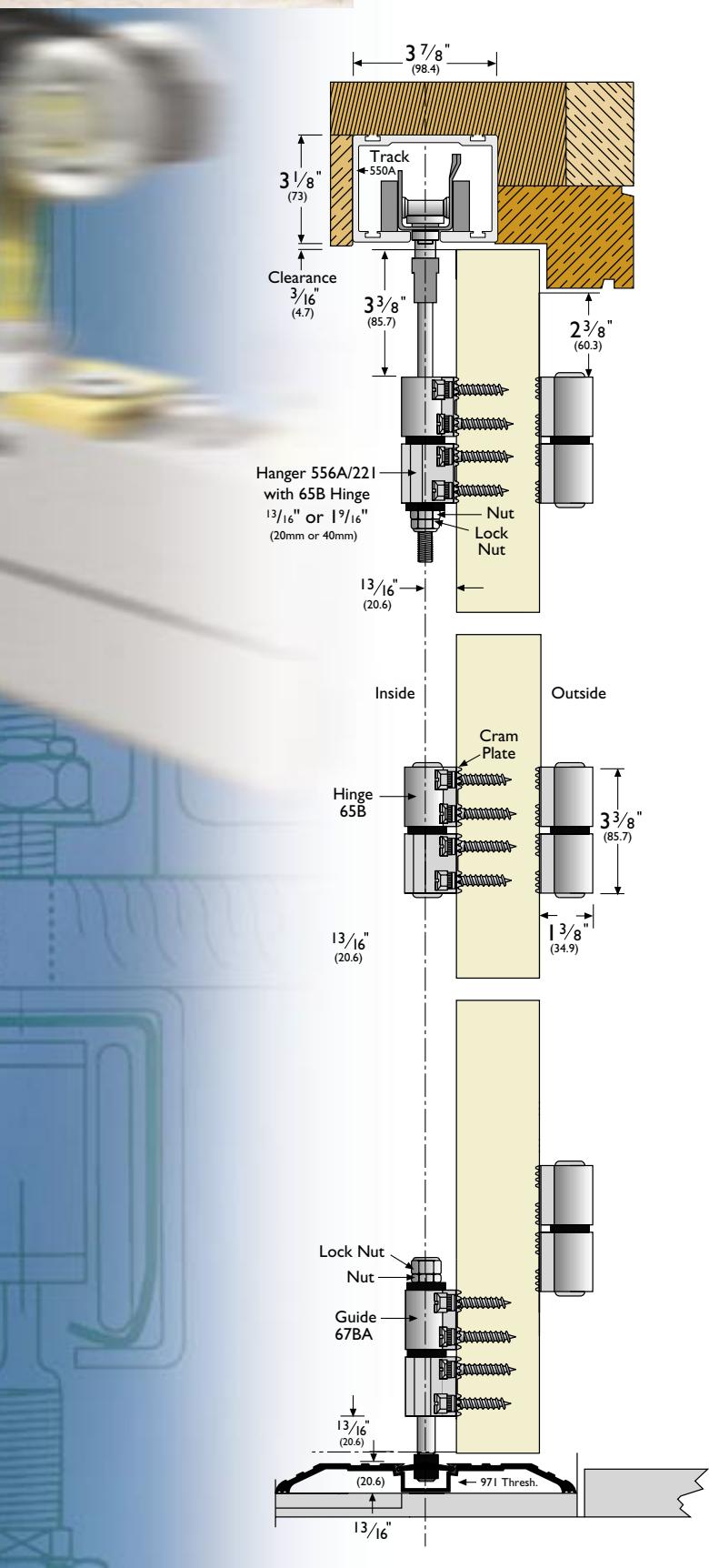

^* In Combination with 971 Glass Height is the Opening Height less 67.5mm(25/8")

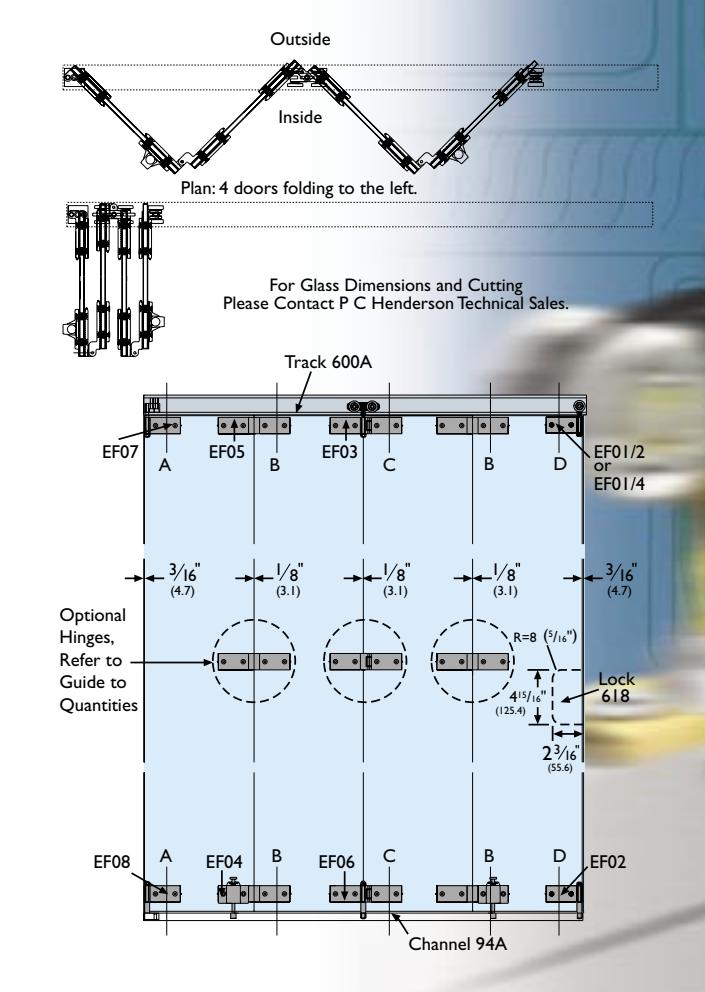

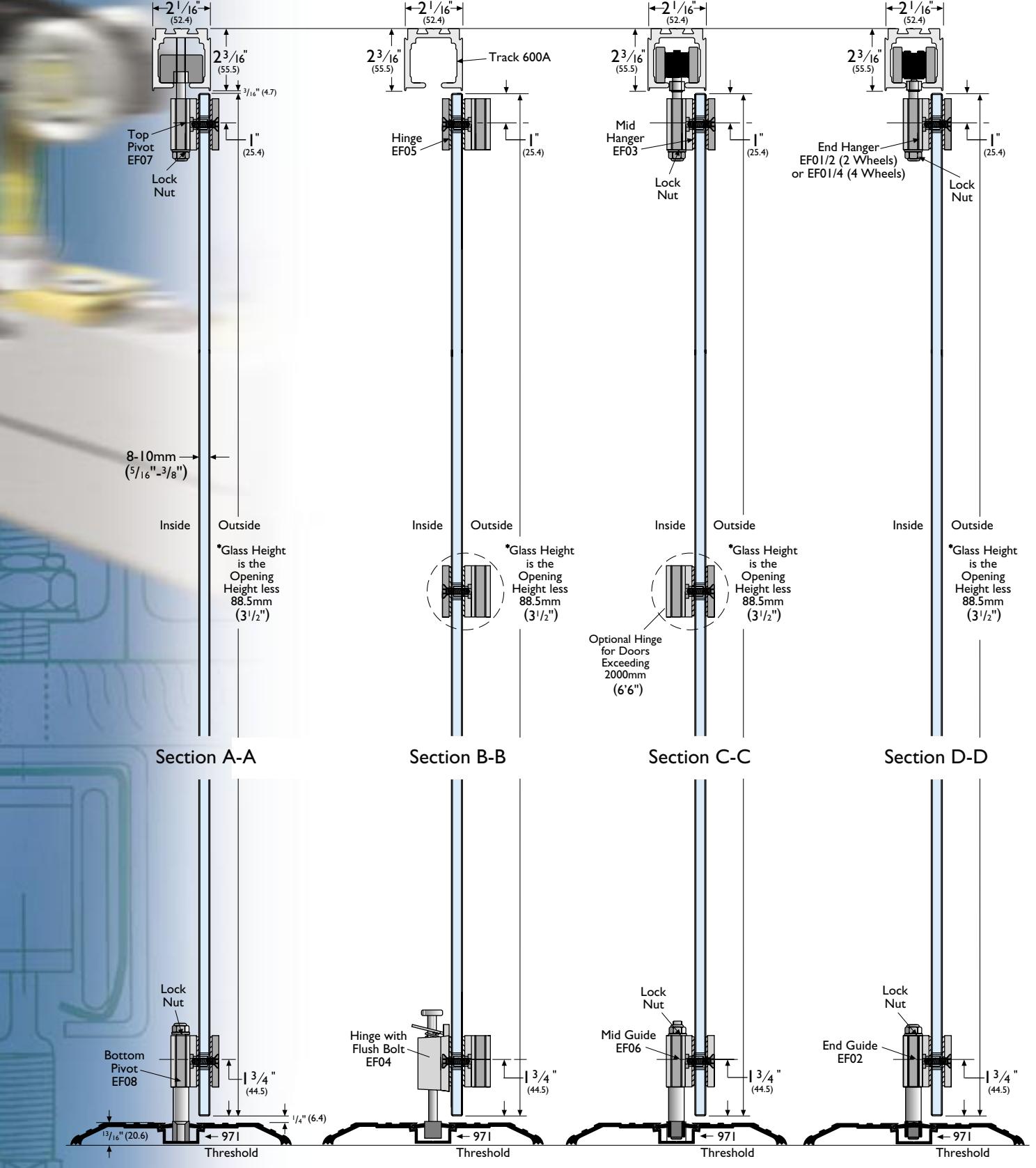

Max. panel weight: 99 lbs. (45kg) Max. panel height: 7'10" (2400mm) Max. panel width: 2'6" (750mm)

Panel thickness: 5/16" (8mm) or 3/8" (10mm)

APPLICATIONS

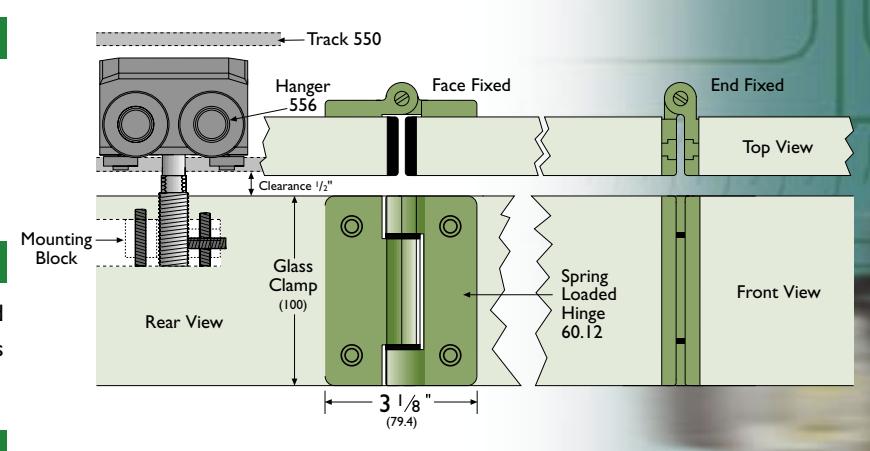

Pacer Endfold for glass is a system designed for both interior and exterior applications. Panels and hinges are connected using a system of glass hinges.

DOOR TYPES

Glass panels of 5/16" (8mm) or 3/8" (10mm) thickness in tempered glass.

TECHNICAL INFORMATION

Track :	Aluminum Available in 6', 8', 10', and 16'5", lengths	600A
Brackets:	Face fix Jointing bracket	IB IBX

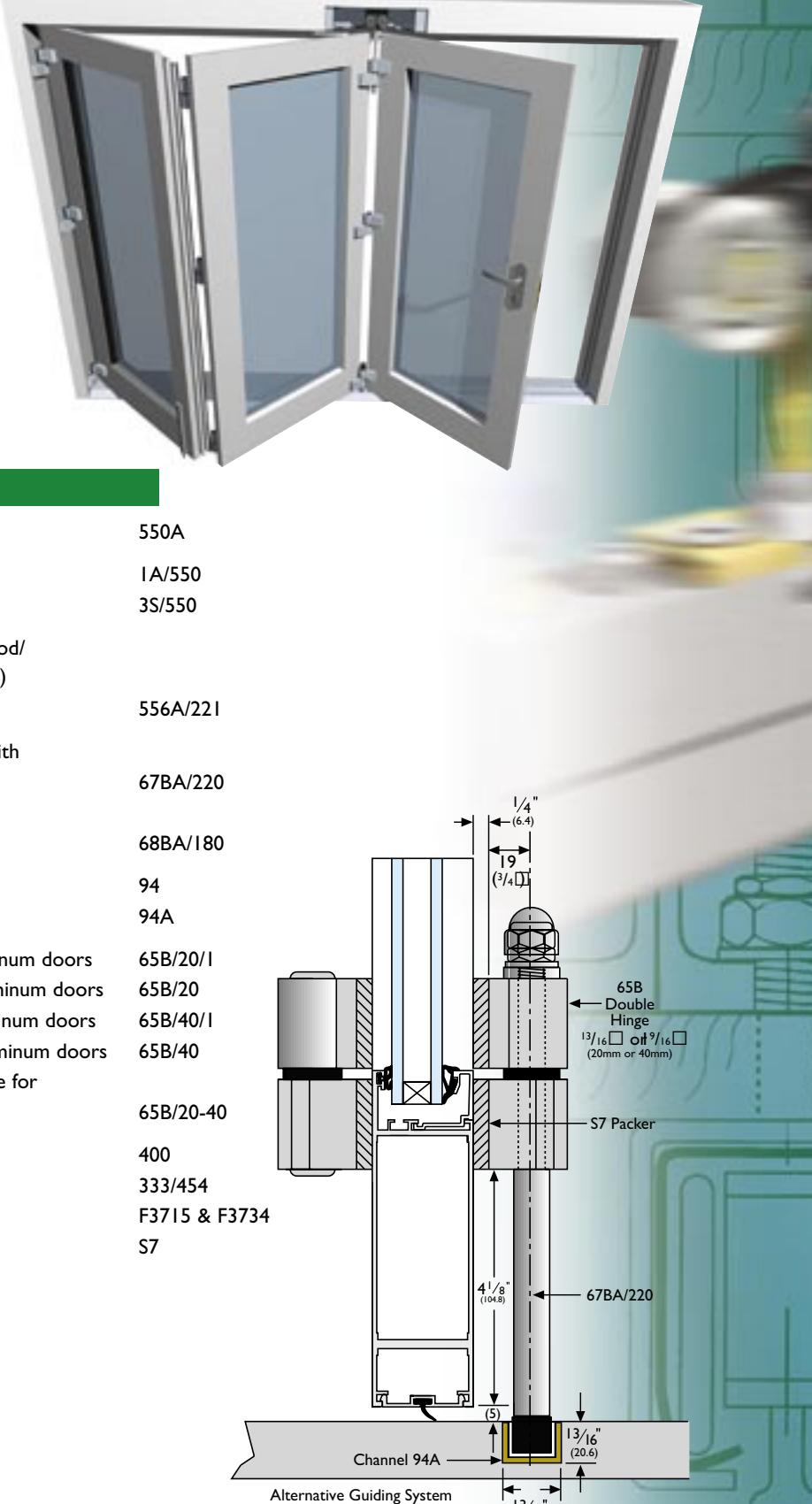

Hangers:	Two-wheeled end hanger with single hinge* Four-wheeled intermediate hanger with double hinge* Four-wheeled end hanger with single hinge*	EF01/2 EF03 EF01/4
Hinges :	Double hinge	EF05
Pivots :	Top pivot with single hinge* Bottom pivot with single hinge*	EF07 EF08
Guides:	End guide with single hinge* Intermediate guide with double hinge*	EF02 EF06
Guide Channel:	Brass Aluminum	94 94A

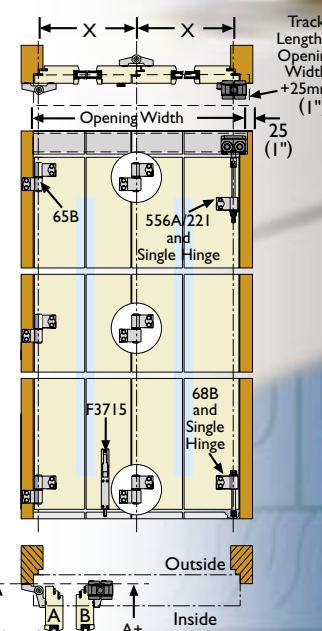

Accessories:	Double hinge with spring-loaded foot operated bolt Sliding door lock for glass panels	EF04 618

Sliding door receiving lock

Spring-loaded foot operated bolt

^* For other options see Guide to Quantities

3/8" glass 5.05 lbs./sq. ft. 1/2" glass 6.4 lbs./sq. ft.

619

EF09

^* All with stainless steel strapbolt/spindle.

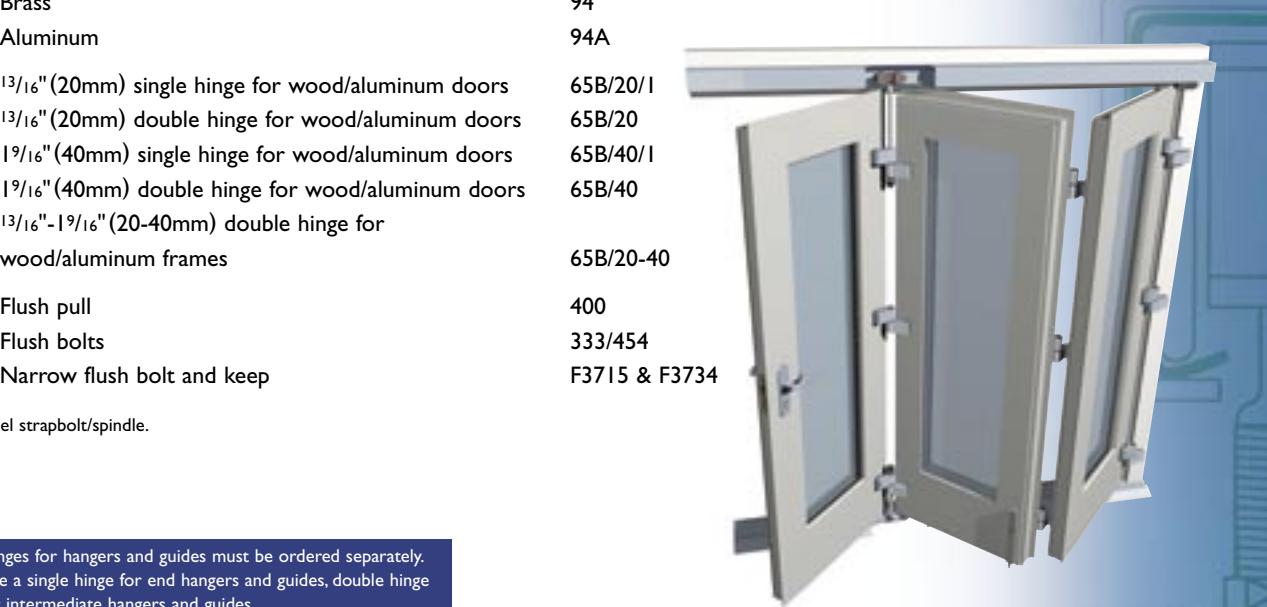

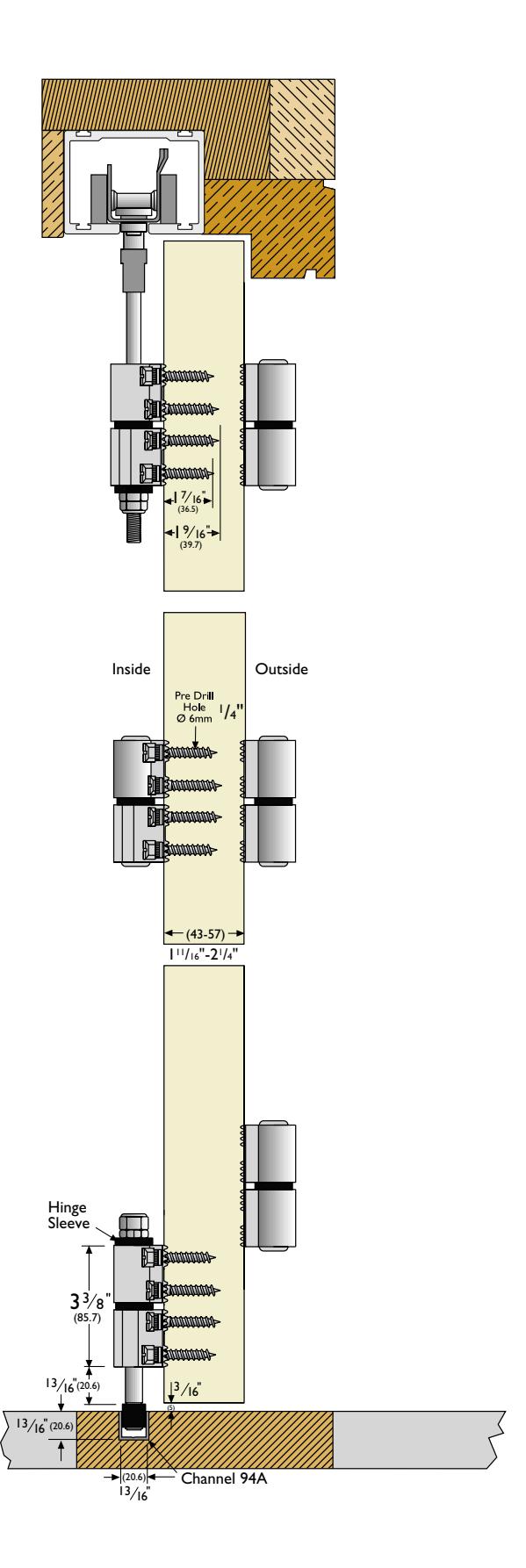

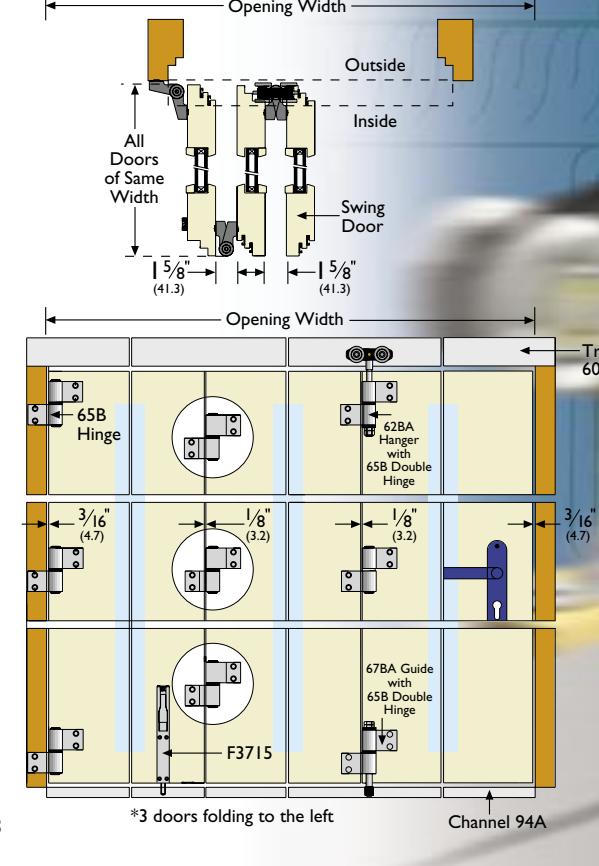

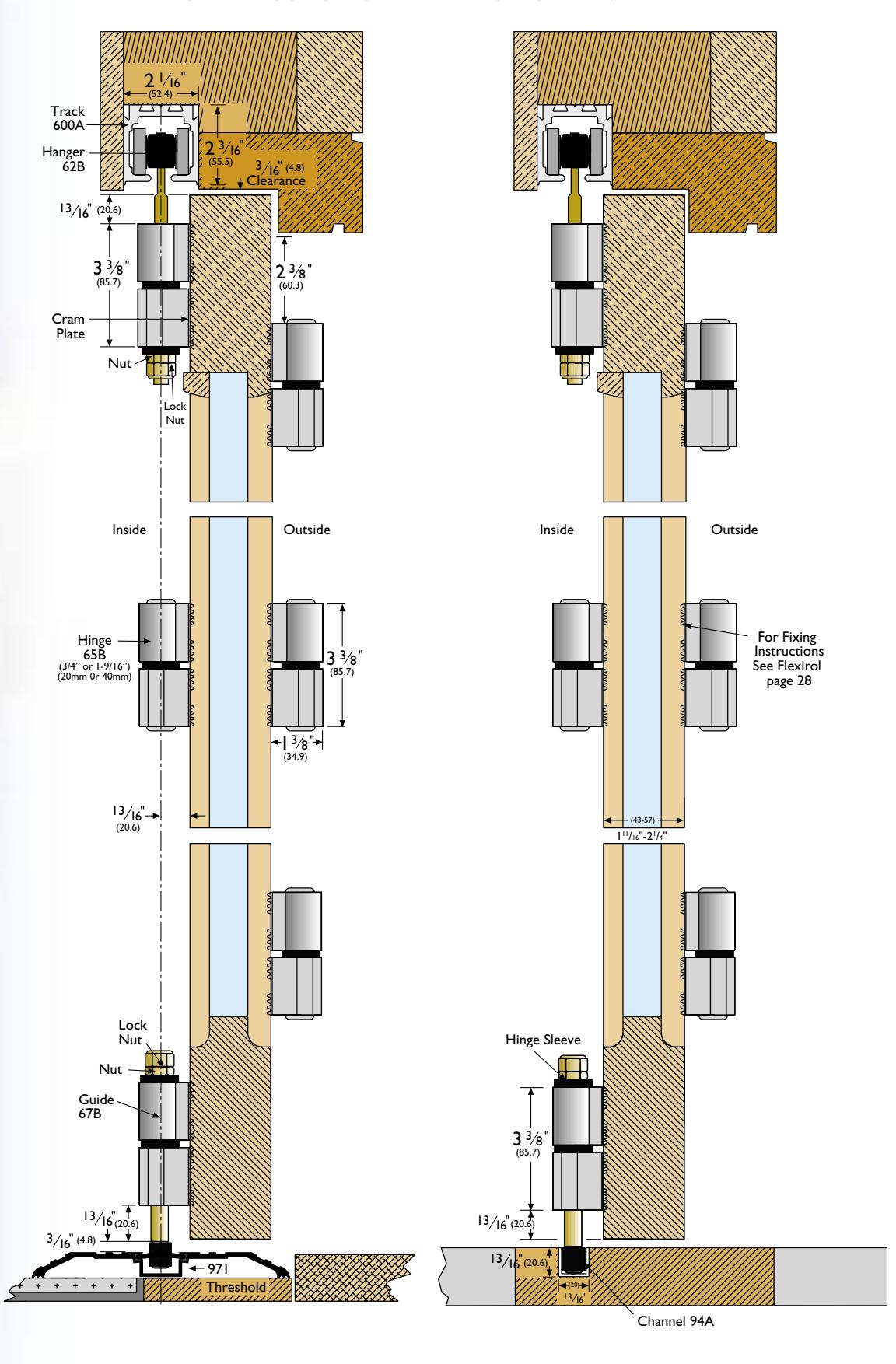

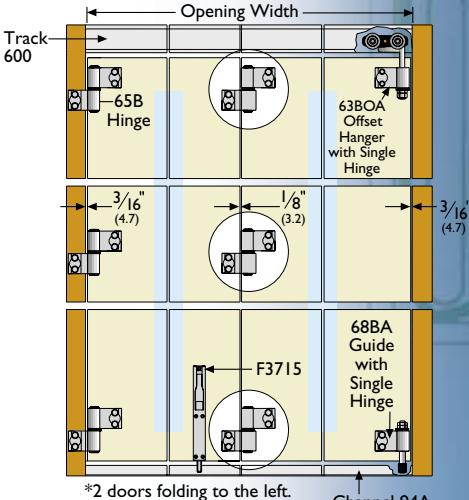

PACER EXTERIOR ENDFOLD

FOR WOOD DOORS

Max. door weight: 143 lbs. (65kg) Max. door height: 9'10" (3000mm) Max. door width: 2'11" (900mm)

Door thickness: 111/16"-21/4" (43mm-57mm)

APPLICATIONS

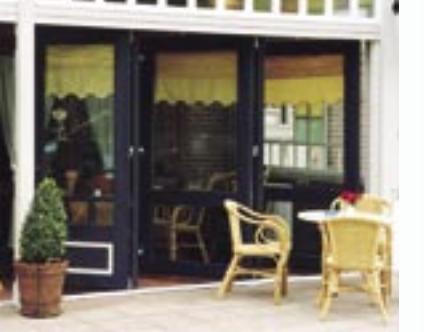

Top-hung Pacer gear for end folding exterior doors in wood. Pacer Endfold offers four-wheeled hangers with offset option to cover a wide range of residential and commercial applications. In applications using the four-wheeled hanger with an even number of leaves folding left and right meeting in the center of the opening, an offset hanger is required.

DOOR TYPES

Residential and commercial wood doors.

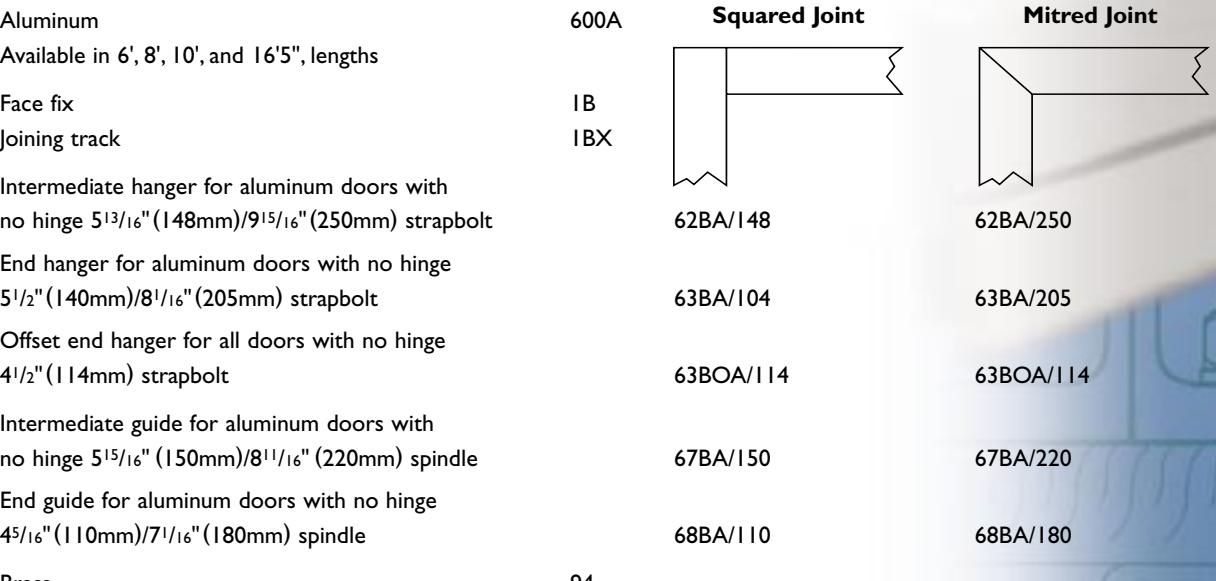

TECHNICAL INFORMATION

Aluminum Track:

Available in 6', 8', 10', and 16'5", lengths

Brackets: Face fix

Joining track

Intermediate hanger for wood doors with Hangers:

513/16" (148mm) strapbolt, no hinge End hanger for wood doors with 41/16" (104mm) strapbolt, no hinge Offset end hanger for all doors with 41/2" (114mm) strapbolt, no hinge

Guides: Intermediate guide for wood doors with

$5^\{15\}/16$ " (150mm) spindle, no hinge End guide for wood doors with 43/16" (110mm) spindle, no hinge

Guide Channel: Brass

Aluminum

Hinges:† 13/16" (20mm) single hinge for wood/aluminum doors

13/16" (20mm) double hinge for wood/aluminum doors 19/16" (40mm) single hinge for wood/aluminum doors 19/16" (40mm) double hinge for wood/aluminum doors

$^\{13\}/\_\{16\}$ "- $^\{19\}/\_\{16\}$ " (20-40mm) double hinge for

wood/aluminum frames

Accessories: Flush pull

Flush bolts

Narrow flush bolt and keep

† Refer to page 110 for hinge installation.

ΙB

IBX

94

94A

65B/20-40

333/454 F3715 & F3734

400

Channel 94A

Hinges for hangers and guides must be ordered separately. Use a single hinge for end hangers and guides, double hinge for intermediate hangers and guides.

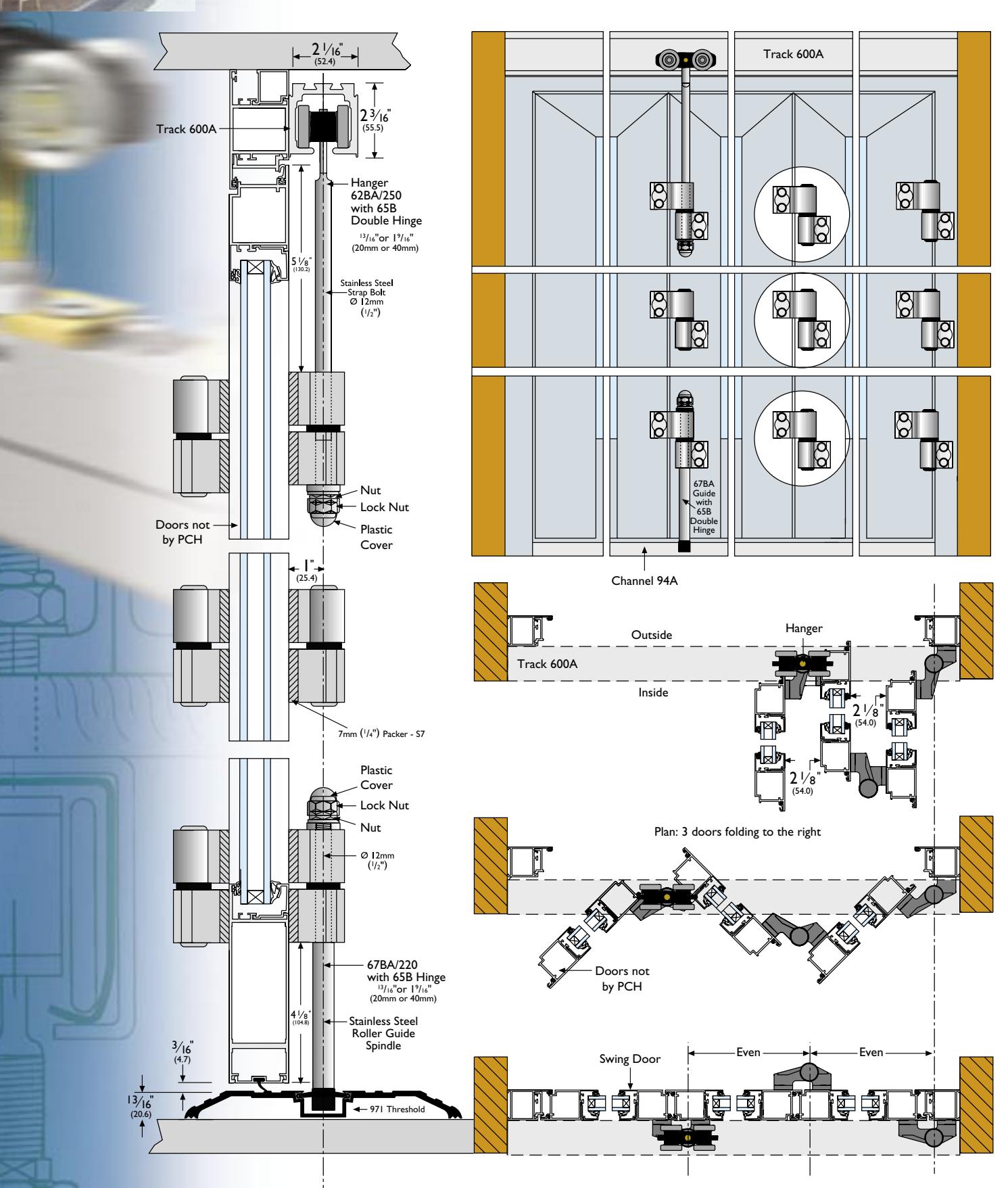

PACER EXTERIOR ENDFOLD

FOR ALUMINUM DOORS

Max. door weight: 143 lbs. (65kg) Max. door height: 9'10" (3000mm) Max. door width: 2'11" (900mm)

Door thickness: 13/8"-115/16" (35mm-50mm)

APPLICATIONS

Top-hung Pacer gear for end folding exterior doors in aluminum. Pacer Endfold offers four-wheeled hangers with an offset option to cover a wide range of residential and commercial applications. In applications with an even number of leaves folding left and right meeting in the center of the opening, an offset hanger is required.

DOOR TYPES

Pacer Exterior Endfold is suitable for both residential and commercial aluminum doors. Fixing components are not supplied as standard for aluminum doors.

TECHNICAL INFORMATION

Track: Aluminum 600A

Available in 6', 8', 10', and 16'5", lengths

Brackets: Face fix 1B

Joining track 1BX

*Hangers: Intermediate hanger for aluminum doors with

End hanger for aluminum doors with no hinge

Offset end hanger for all doors with no hinge

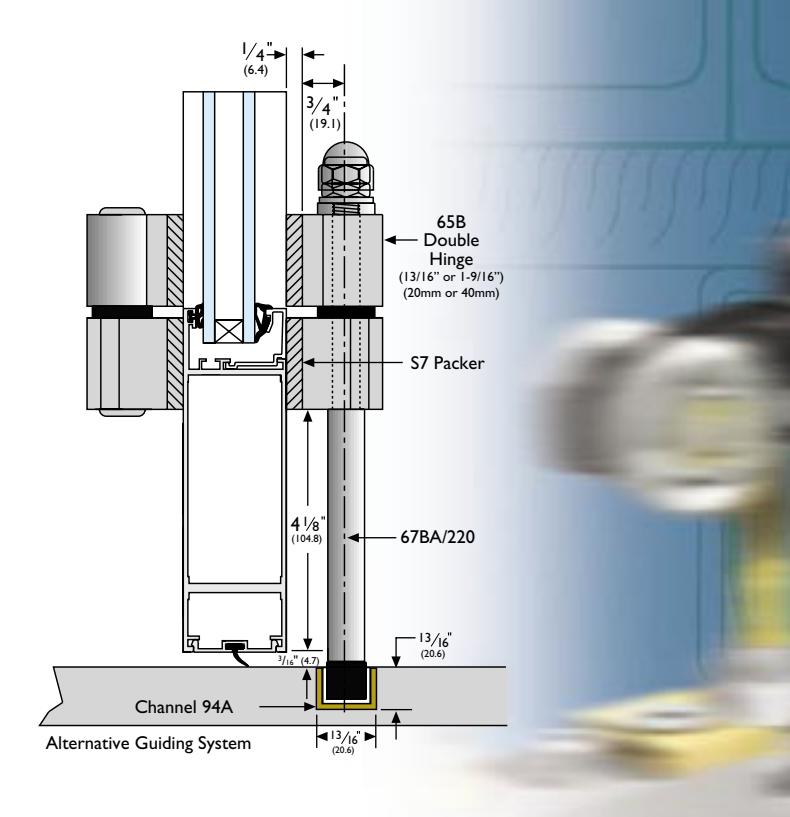

*Guides: Intermediate guide for aluminum doors with

End guide for aluminum doors with no hinge

Guide Channel: Brass 94

Aluminum 94A

Hinges: 13/16" (20mm) single hinge for wood/aluminum doors 65B/20/1

13/16" (20mm) double hinge for wood/aluminum doors 65B/20 19/16" (40mm) single hinge for wood/aluminum doors 65B/40/1 19/16" (40mm) double hinge for wood/aluminum doors 65B/40

13/16"-19/16" (20-40mm) double hinge for

wood/aluminum frames 65B/20-40

Accessories: Flush pull 400

Narrow flush bolt and keep F3715 & F3734

^* All with stainless steel strapbolt/spindle.

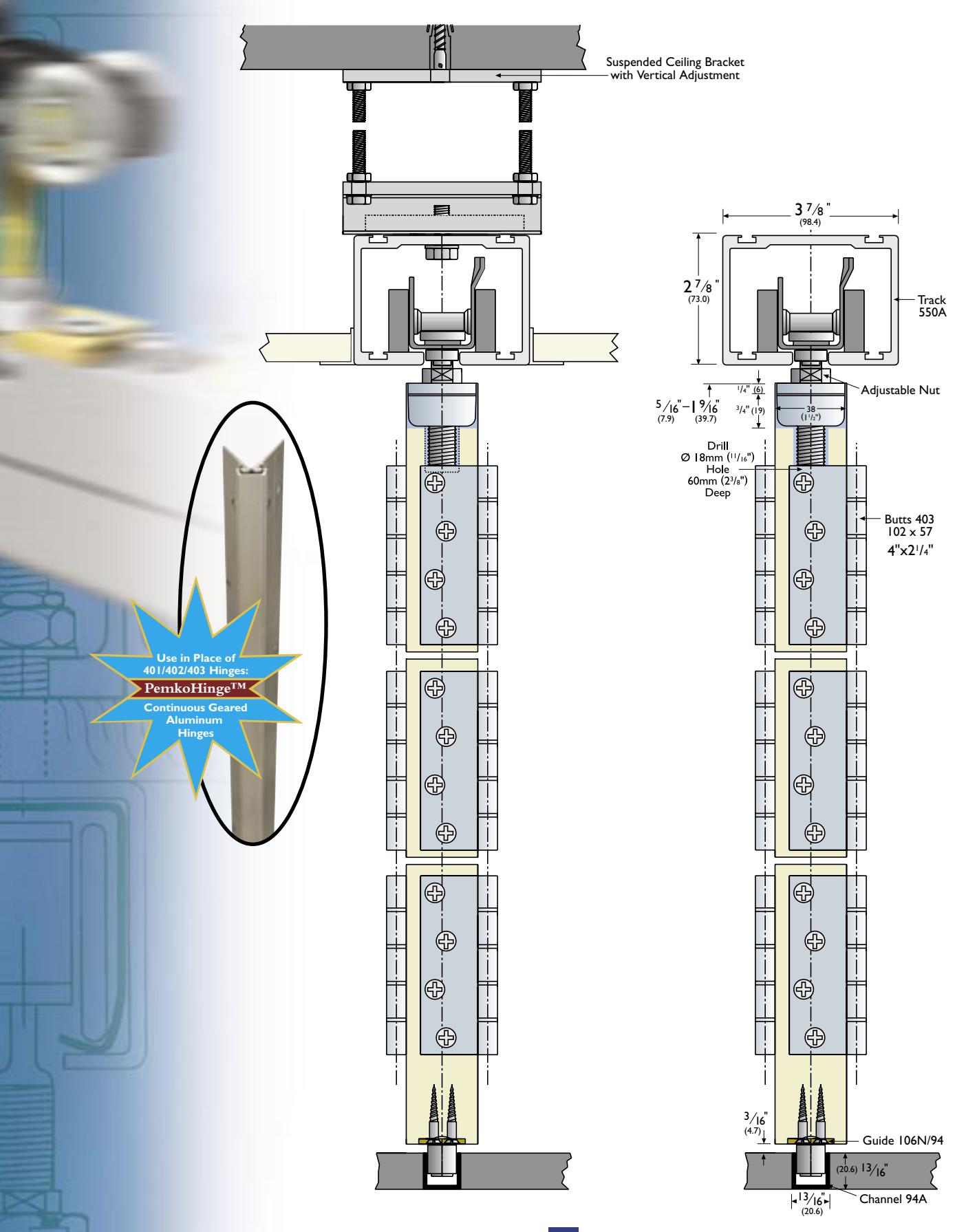

FLEXIROL INTERIOR CENTERFOLD

FOR WOOD DOORS

Max. door weight: 275 lbs. (125kg) Max. door height: 14'9" (4500mm) Max. door width: 4' (1200mm)

Door thickness: | | | | | | | | | | | | | | | | | |

APPLICATIONS

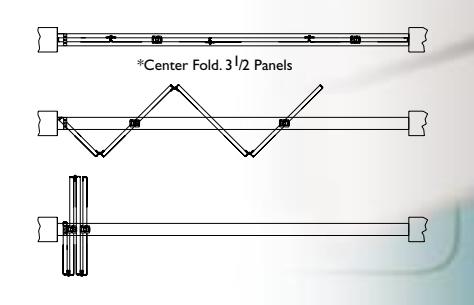

Top-hung Flexirol gear and fittings for center folding wood partition doors. Leaves are hung centrally and can fold to one or both sides. For applications hinged to the jamb, $3^\{1/2\}$ , $5^\{1/2\}$ or $7^\{1/2\}$ leaves can be used with the half-leaf hinged to the jamb. For best operation of floating units, 5, 7 or 9 leaves should be used. Any access door should be hinged separately to the jamb.

DOOR TYPES

Heavy commercial wood doors.

TECHNICAL INFORMATION

Flush pull

Accessories:

ILCIIIII	all in the City in the City
Track:		550A
Brackets:	Face fix Soffit fix	1A/550 3S/550
Hangers:	Wood doors	556/61
Guides:	Nylon roller guide	106N/94
Guide Channel:	Brass Aluminum	94 94A
Hinges:	Butt hinges	403

333/454 Flush bolts F3715 & F3734

400

Narrow flush bolt and keep

A pivoting half-leaf (dimension C) is half the width of a full leaf (dimension A), less half of the leaf thickness (dimension B).

Note: Hangers and guides are to be fitted to alternate leaves only.

FLEXIROL INTERIOR ENDFOLD

FOR WOOD DOORS

Max. door weight: 275 lbs. (125kg) Max. door height: 14'9" (4500mm) Max. door width: 4' (1200mm)

Door thickness: | | 1 | 1 | 16 | -2 | 1/4 | (43 mm - 57 mm)

APPLICATIONS

Top-hung Flexirol gear and fittings for end folding wood partition doors. Leaves can be hung to the left or right of an opening or hung as floating units.

DOOR TYPES

Heavy commercial wood doors.

TECHNICAL INFORMATION

550 Track: (see component section for range of finishes)

Brackets: Face fix IA/550

Soffit fix 3S/550

Wood doors 556/21 Hangers:

Pivots: Wood doors 21/550P

Guides: Brass end guide roller 21R/94

94 Guide Channel: Brass

Aluminum 94A

400

333/454

Hinges: Butt hinges 403

Flush bolts

Accessories:

Flush pull

Narrow flush bolt and keep

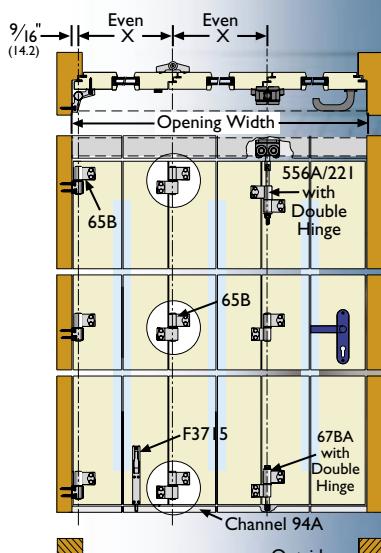

All leaves are of equal width except the leaf hinged to the post. The dimension for the leaf hinged to the post (X) is, A, less B (half the leaf thickness), less 45mm (13/4").

Formula: X=(A-B)-45mm (13/4")

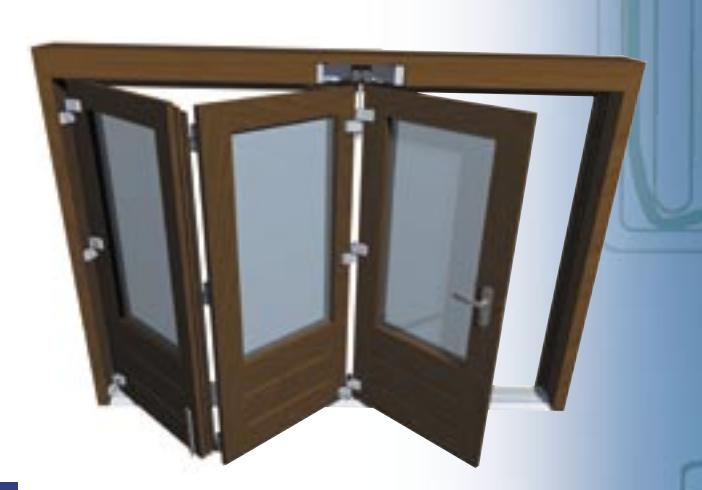

FLEXIROL EXTERIOR ENDFOLD FOR WOOD DOORS

<u>Max. door weight:</u> 275 lbs. (125kg) <u>Max. door height:</u> 14'9" (4500mm) <u>Max. door width:</u> 4' (1200mm)

Door thickness: 111/16"-21/4" (43mm-57mm)

APPLICATIONS

Top-hung Flexirol gear and fittings for heavy end folding wood doors. Leaves can be hung to the left or right of an opening.

DOOR TYPES

Heavy commercial wood doors.

TECHNICAL INFORMATION

Track :	Aluminum	550A
Brackets:	Face fix	IA/550
	Joining track	3S/550

<u>Hangers</u>: Intermediate or end hanger for wood/

aluminum doors with 83/4" (221mm)

strapbolt, no hinge 556A/221

Guides: Intermediate guide for wood doors with

5¹⁵/16" (150mm) spindle, no hinge 67BA/150

End guide for wood doors with

45/16" (110mm) spindle, no hinge 68BA/110

Guide Channel: Brass 94

Aluminum 94A

Hinges:^† 13/16" (20mm) single hinge for wood/aluminum doors 65B/20/1

13/16" (20mm) single hinge for wood/aluminum doors 65B/20 19/16" (40mm) single hinge for wood/aluminum doors 65B/40/1

19/16" (40mm) double hinge for wood/aluminum doors 65B/40

13/16"-19/16" (20-40mm) double hinge for

wood/aluminum frames 65B/20-40

Accessories: Flush pull 400

Flush bolts 333/454

Narrow flush bolt and keep F3715 & F3734

*For other options see Hinge Installation page 110.

^* All with stainless steel strapbolt/spindle.

^† Refer to page 110 for hinge installation.

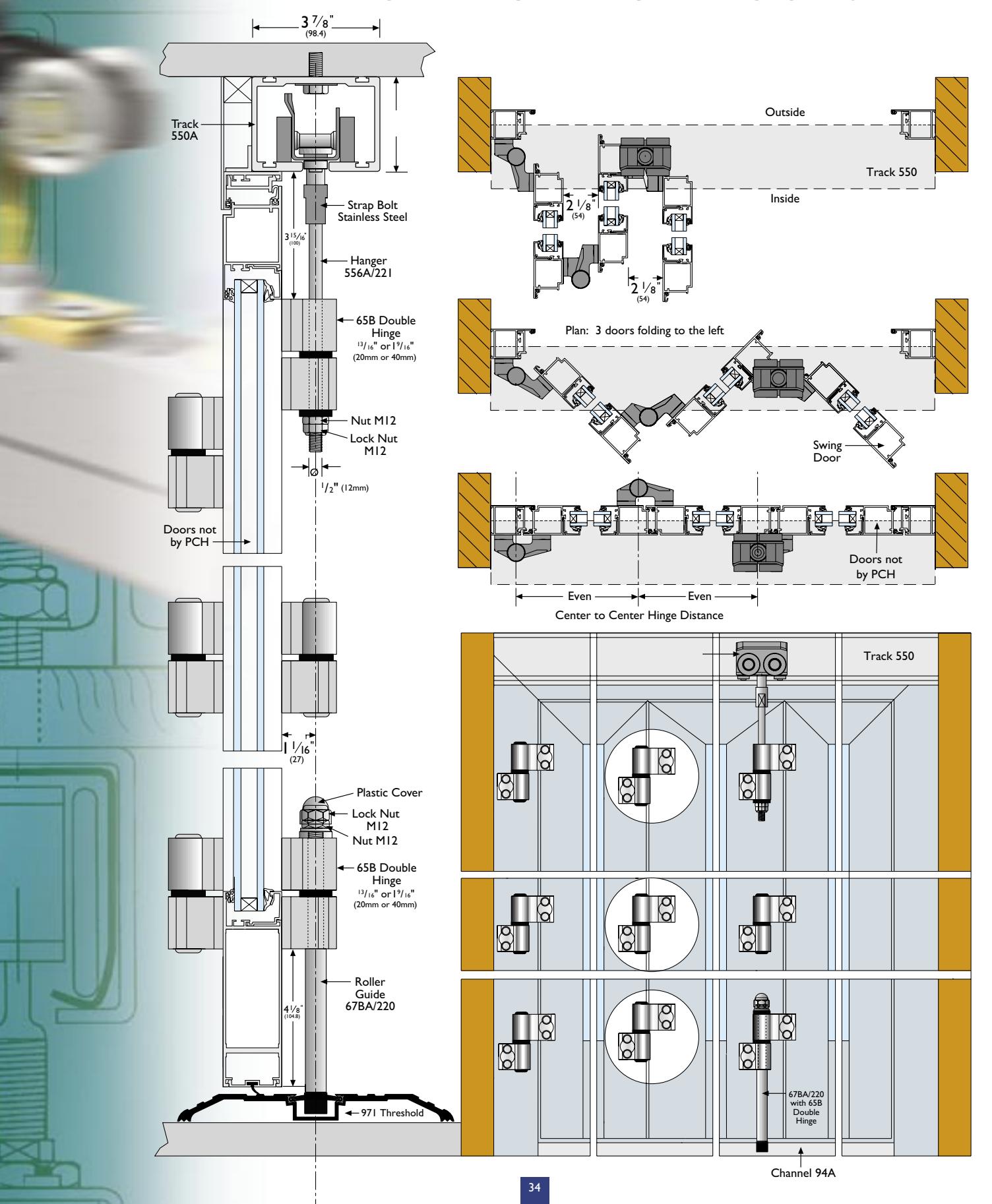

FLEXIROL EXTERIOR ENDFOLD

FOR ALUMINUM DOORS

Max. door weight: 275 lbs. (125kg) Max. door height: 14'9" (4500mm) Max. door width: 4' (1200mm)

Door thickness: 111/16"-21/4" (43mm-57mm)

APPLICATIONS

Top-hung Flexirol gear and fittings for end folding aluminum doors. Leaves can be hung to the left or right of an opening.

DOOR TYPES

Flexirol Exterior Endfold is suitable for aluminum doors Fixing components are not supplied as standard for aluminum doors.

TECHNICAL INFORMATION

Track: Aluminum 550A Brackets: Face fix 1A/5!

Brackets: Face fix IA/550 Joining track 3S/550

<u>Hangers:</u> Intermediate or end hanger for wood/

aluminum doors with 83/4" (221mm)

strapbolt, no hinge

Guides: Intermediate guide for aluminum with

515/16" (150mm) spindle, no hinge End guide for aluminum doors with 45/16" (110mm) spindle, no hinge

Guide Channel: Brass

Aluminum

Hinges:^† 13/16" (20mm) single hinge for aluminum doors

13/16" (20mm) double hinge for aluminum doors 19/16" (40mm) single hinge for aluminum doors 19/16" (40mm) double hinge for aluminum doors

13/16"-19/16" (20-40mm) double hinge for

aluminum frames

Accessories: Flush pull

Flush bolts

Narrow flush bolt and keep

1/4" (7mm) packer

Hinges for hangers and guides must be ordered separately. Use a single hinge for end hangers and guides, double hinge for intermediate hangers and guides.

$^\{\backslash ast\}$ All with stainless steel strapbolt/spindle.

^† Refer to page 110 for hinge installation.

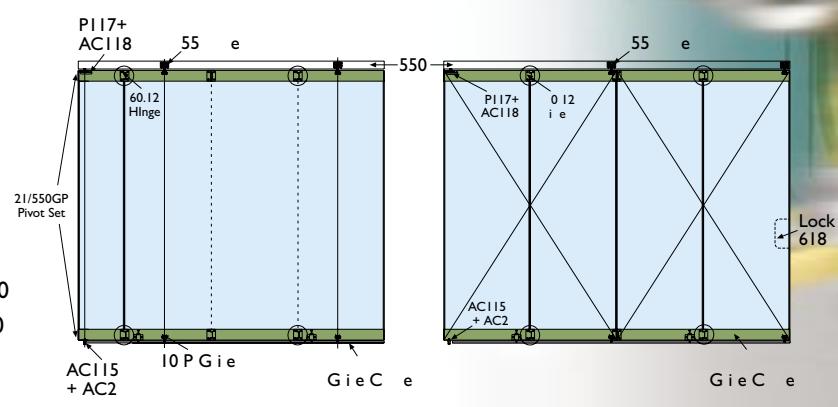

FLEXIROL 3 ⁷/₈ " CAN ALSO BE USED WITH PACER Hanger 556 2 7/8 Track 550A 1/2" (12.7) End Cap FRE12 Top Pivot P117 (21/550GP) Top Pivot Mounting Block - Insert ACI18 Spring Loaded Hinge 60.12 Top Glass -— Clamp 4 11/4" - I 1/4 " -2 ⁹/16"-2 | 3/|6" (71.4) Glass 'Turn knob 3/8"-1/2" (10-12mm) locking detail' Brush Strip GPI0 or GPI2 – Filling In-Piece Glass Profile FRP02 End Cap FRE13 3/₁₆" 3 15/16" Mounting Block -Insert AC115 FLI (21/550GP) Brush = | 5/16" | 33.3) L_1/4" (6.4) Bottom Pivot AC246 (21/550GP) 104N/94 13/16" (20.6) Channel 94A

Max. door weight: 275 lbs. (125kg) Max. door height: 8'2" (2500mm) Max. door width: 2'11" (900mm)

Door thickness: 3/8"-1/2" (10mm or 12mm)

APPLICATIONS

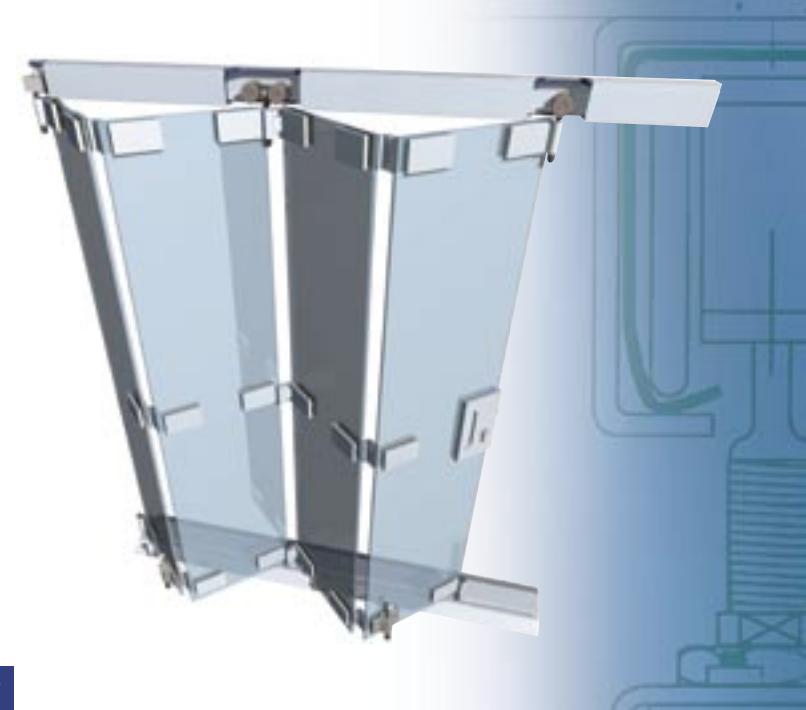

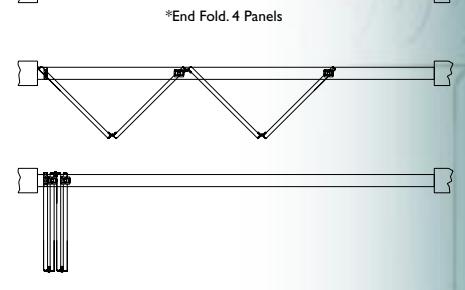

Flexirol Folding Glass covers both center fold and end fold applications depending on the placement of the hangers within the profile.

DOOR TYPES

Glass panels of 3/8" (10mm) or 1/2" (12mm) thickness in tempered or laminated glass. All profiles for glass panels are made to measure with all necessary routing completed.

TECHNICAL INFORMATION

<u>Track</u>: 550A

Brackets: Face fix IA/550

Soffit fix 3S/550

Hangers: 556 with mounting block

Pivots: Glass pivot set 21/550GP

Guides: 104N/94 with mounting block

Guide Channel: Brass 94

Aluminum 94A

Hinges: Adjustable face fixed, 60.12

spring-loaded hinge

Accessories: Glass door lock 618

Glass door receiving lock 619

GLASS WEIGHT

3/8" glass 5.05 lbs./sq. ft. 1/2" glass 6.4 lbs./sq. ft.

VENTURA CALIFORNIA

P.O. BOX 3780 VENTURA, CA 93006 TELEPHONE: 800.283.9988 FAX: 800.283.4050

WHITTIER CALIFORNIA

12251 EAST COAST DRIVE .. WHITTIER, CA 90601 TELEPHONE: 800.283.9988 FAX 800.283.4050

MEMPHIS TENNESSEE

P.O. Box 18966 MEMPHIS, TN 38181-0966 TELEPHONE 800,824 3016 FAX: 800.243.3656

#FM AUG

PEMBALES@PEMKO.COM

WEB

WWW.PEMKO.COM

HENDERS

INVESTOR IN PEOPLE
