ALL-IN-ONE PLATE, BOX AND TRANSMITTER SOLUTION

PRODUCT FAMILY

10EMR6 6" Round Text Only

10EMR6L 6" Round Logo Only

10EMR4751 4.75" Round Text & Logo

10EMR475 4.75" Round Text Only

10EMR475L 4.75" Round Logo Only

10EMS4751 4.75" Square Text & Logo

10EMS475 4.75" Square Text Only

10EMS475L 4.75" Square Logo Only

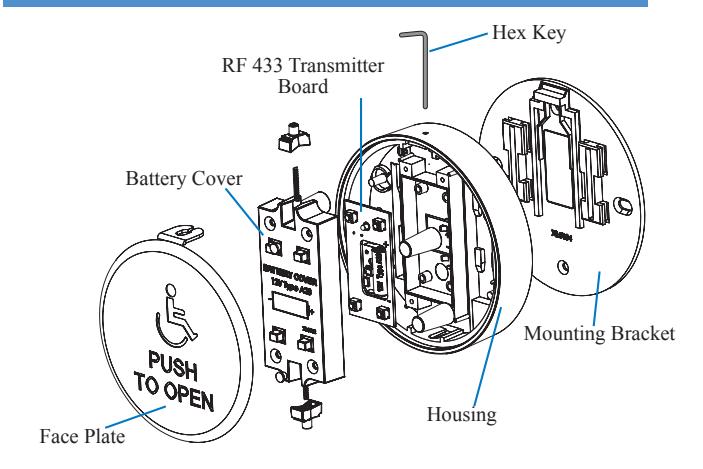

COMPONENTS (EMR SERIES SHOWM)

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

PANTHER PLATES WEATHER RESISTANT AND WIRELESS

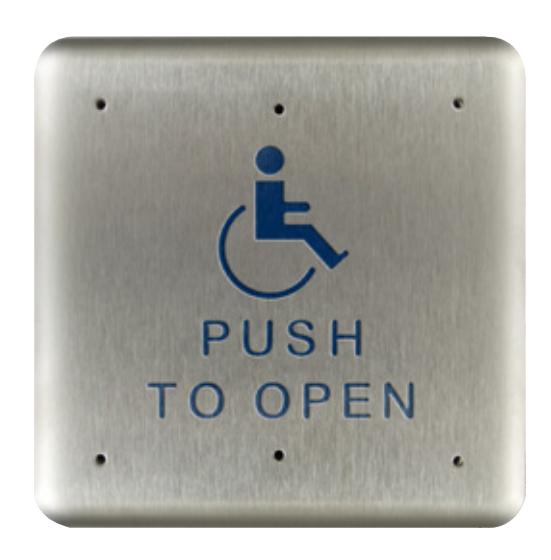

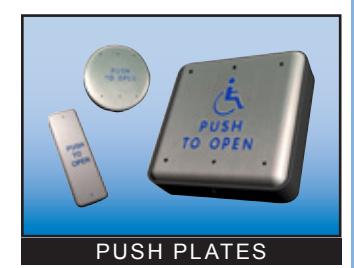

PUSH PLATES

Panther plates are an easy to mount, wireless, 4¾ inch and 6 inch round, or 4¾ inch square style PUSH PLATES with an RF 433 code-encrypted security transmitter.

Panther plates are weather-resistant, NEMA 4 rated and offer a complete solution for wireless applications.

FEATURES

• Faceplate surface is made of durable stainless steel
• Tamper-resistant, recessed faceplate with beveled edges
• Slim-line profile with no visible mounting holes
• The fully-assembled unit installs easily with a mounting plate
• Can be used to cover any existing single or double gang boxes

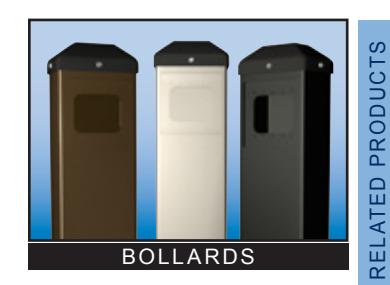

• The housing can be directly installed to any flat surface such as a wall or mounting post (Bollard) using standard screws

West: 800-544-4422 • East: 800-225-6737

VESTIBULE

BENEFITS

• NEMA 4 rated enclosure
• 6 inch and 4.75 inch models
• 304 stainless steel for maximum durability
• Stainless steel materials are 100% recyclable)

MOUNTING ACCESSORIES

• Hospitals and Healthcare Facilities
• Clean Rooms
• Colleges and Universities
• Elder Care Facilities
• Professional Buildings
• Harsh Environments

DIMENSION DETAILS

TECHNICAL SPECIFICATIONS

Dimensions

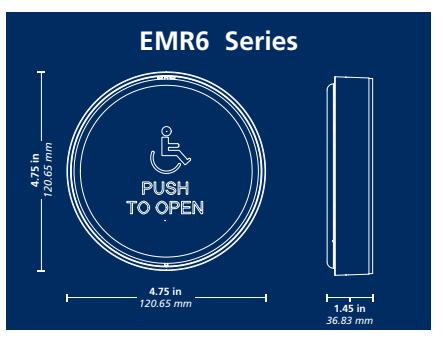

EMR6 Series (Ø x D)	6.29 in × 1.45 in

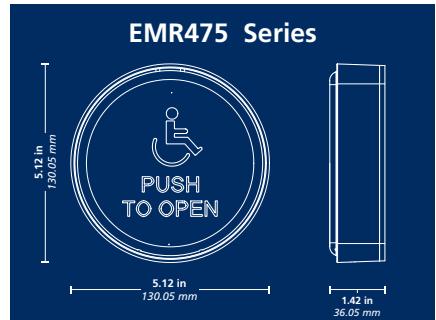

EMR475 Series (Ø × D)	5.12 in × 1.42 in

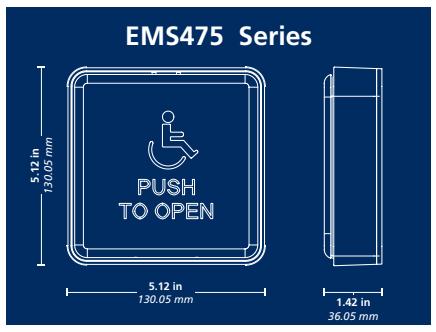

EMS475 Series (W 2 × D)	5.12 in × 1.42 in
Mounting Options	Any Flat Surface or Bollard
Transmitter Design
Transmitter Type Transmitter Frequency	Encrypted Rolling Code 433 MHz
Transmitter Frequency	433 IVITZ
Power Source	12 V Type A23 (included)
Finish	16 Gauge, 304 2B Stainless Steel
Certification	NEMA 4 FCC IC Part 15 Approved

DISCLAIMER This document as well as all other enclosed documents (quotation / specification / other) are provided «as is» without warranties of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. / Information is supplied upon the condition that the persons receiving it will make their own determination as to its suitability for their purposes prior to use. In no event will IDC be responsible for damages of any nature whatsoever resulting from the use of or reliance upon information from this document or the products to which the information refers. / IDC has the right without liability to change descriptions and specifications at any time. / Prices, shipping and availability are subject to change without prior notice.
