6300/6400 SERIES Wide Stile/Narrow Stile

Architectural Exit Device Supplemental Pricing

*Expires May, 31, 2022

Table of Contents

3	Introducing the 6300/6400 Series Architectural Exit Devices
4	How to Order Exit Device
	6300/6400 Exit Devices
5	Rim Devices
8	Surface Vertical Rod Devices
12	Concealed Vertical Rod Devices
16	Mortise Device
19	Dummy Device
21	Introducing the 6300/6400 Series Trims
22	How to Order Trims
23	6N Narrow Stile Trim
24	6W Wide Stile Trim
25	6T Thumb Latch Trim
26	6P Pull Plate Trim
27	6G Grip Pull Trim
28	6S Sectional Trim
29	Electrified Options
33	Electrified Options Pricing
34	9300 Mullion

Customer Support and Information

800.441.9692

help@pdqlocks.com

www.pdqlocks.com

www.youtube.com/user/PDQLocks

Ordering

orders@pdqlocks.com

Introducing the 6300/6400 SERIES Architectural Exit Device

Chassis support is cast for high strength.

Cush spring quiets device in both directions. Compression spring returns the touch bar providing more reliability than a torsion type spring.

Push bar has angled ends and is nearly flush when dogged.

Flush end cap is standard, heavy duty engineered casting keys into the rail for ultimate pry resistance.

Features

• Rugged, reliable, flexible, and simple design
• Designed & Assembled in Lancaster, PA
• Patent Pending
• Quiet operation large heavy-duty spring cushion quiets both the compression/extension of the push bar
• Internal compression spring ensures long lasting push bar return
• Engineered strong and overbuilt for the most demanding environments
• Durable, heavy-duty flush end cap is standard and resist prying
• Stands up to cart abuse, heavy-duty flush end cap and tapered push bar designed to deflect hits and minimize damage
• Simple field door prep and installation
• Dogging holds bar in a retracted position nearly flush with head cover and rail
• Hex Key provided to lock and unlock the device
• No exposed screws on back of bar
• True 2-3/4" backset (with 5/8" frame stop and 1/8" door gap)
• Wood and machine screws included with each device
• Devices and trim are non-handed
• Ten (10) year warranty

6300/6400 Exit Device

How to Order

Series	For Door Width	Device Type	Rating	Finish	Options	Electrified Options
63	00	R		630
63 - Wide Stile Device 64 - Narrow Stile Device	00 - 36" Door 10 - 48" Door 20 - 24" Door	R - Rim Device V - SVR Device C - CVR Device D - Dummy Device M - Wide Stile Mortise Device*	Blank - Panic Rated F - Fire Rated	613 - Dark Bronze 622 - Satin Black 626 - Satin Chrome 630 - Satin SS/ Anodized Alum	Dogging (Panic Rated Only): Blank - Hex Key Dogging CD - Cylinder Dogging LD - Less Dogging* Strikes: BS - Blade Stop Strike (Rim) DD - Double Door Strike (Rim) LBR - Less Bottom Rod (SVR/CVR) LBR-FP - Less Bottom Rod with Fire Pin (SVR/ CVR) WS - Florida HVHZ (Rim) SVR Pending EC - End Cap Cover TLA - Head Cover SNB - Sex Nuts & Bolts AM - Anti-Microbial SHS - Security Head Screws 7 - 7' door (default) 8 - 8' door 10 - 8'-10' Door	MLR - Motorized Latch Retr. AL - Alarm Kit* SS - Signal Switch on touch bar LM - Latchbolt Monitor ISMC - Industry Standard Molex Connector ALHW - Alarm kit hard wired

*Mortise in wide stile device only

*Multiple Selections Allowed *Dogging options only apply to Panic Rated

• * MLR can be combined with LM & SS
• * AL can be combined with LM * MLR and AL cannot be combined
• * ISMC available on all * AL - specify handing

Cylinder Dogging Part Number Additions

CYLINDER TYPE	KEYWAY	KEYING
D	SCC	KD
D Default L Less Cylinder SF6 Lock is SFIC prepped w/ 6 pin core SF7 Lock is SFIC prepped w/ 7 pin core SFL Lock is SFIC prepped but less core SFC Lock is SFIC prepped w/ construction core SFP Lock is SFIC prepped w/ plastic construction core LF6 Lock is Schlage LFIC prepped w/ Schlage core LFL Lock is Schlage LFIC prepped but less core LFC Lock is Schlage LFIC prepped w/ construction core *Cores sold separately - option only speci fies factory installation *Cylinder only needs to be specified for cylinder dogging	SCC – Schlage C OTHERS – See Keyway Table Page 22	KD – Keyed Different KA – Keyed Like K0 - Zero Bitted MK – Master Keyed CMK – Construction Keyed GMK – Grand Master Keyed

24" DEVICE
No cut
No electric options

Rim Devices

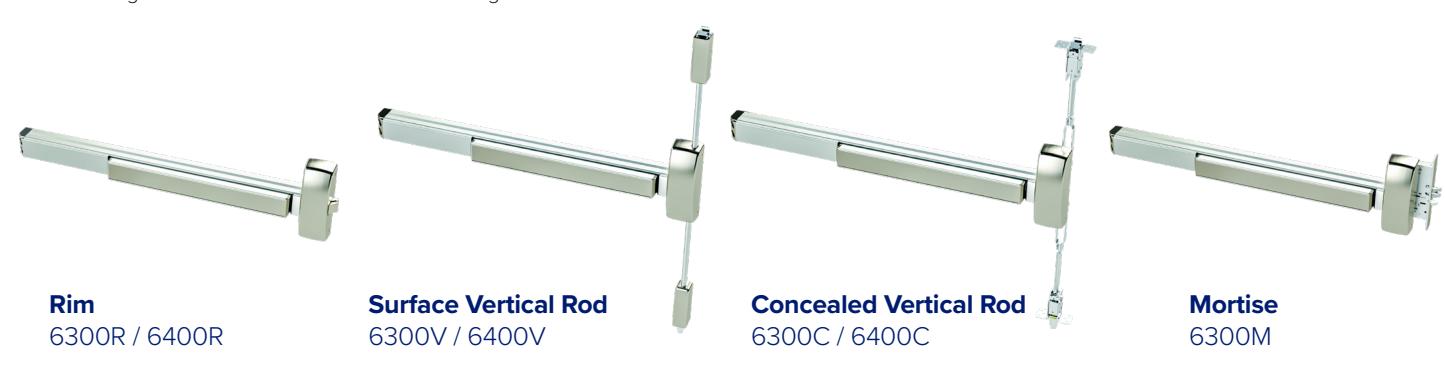

6300R Wide Stile/6400R Narrow Stile

Panic & Fire Rated

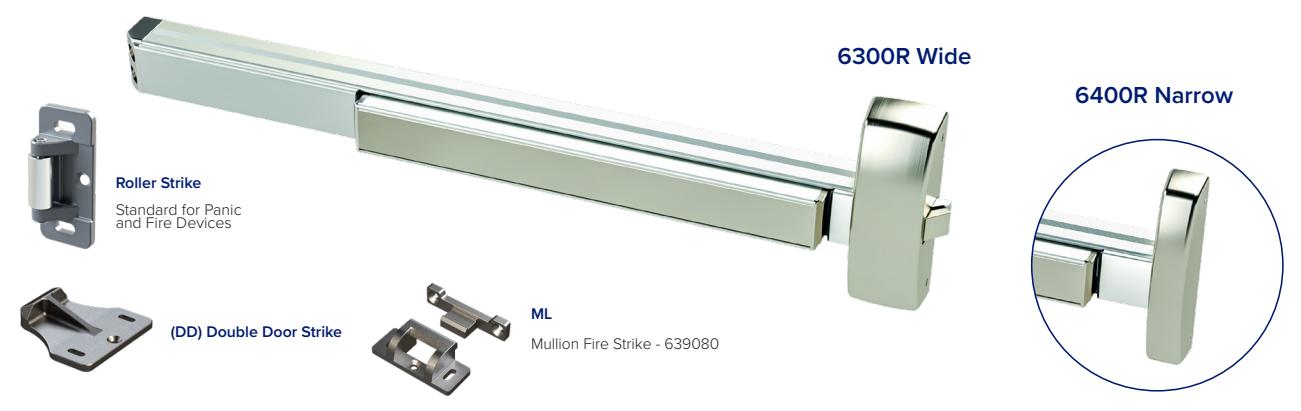

6300R/RF - Wide Stile Rim exit device with 3/4" pullman latch. Use for wide stile single door applications or for double door applications with a mullion.

6400R/RF - Narrow Stile Rim exit device with 3/4" pullman latch. Use for narrow stile single door applications or for double door applications with a mullion. Can also be used when a narrow look is desired.

Specifications

Rail	• Extruded aluminum • Specify 630F for full stainless surfaces (roll formed)
Latch	• Stainless steel dead locking with 3/4" throw
Hand	• Device is non-handed • Trim is non-handed or field reversible
Dogging	• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
Minimum Stile Width	• See chart on optional strike page 9
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" standard
Door Height	• Panic - Up to 10' • Fire - See fire ratings charts page 26
Strike Options	• Default roller • Blade stop • Double door • Windstorm/Fire Mullion - Panic Mullion uses standard roller strike
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti-Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors
Certifications Compliances Listings	• Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 3 hours. • Certified to ANSI/BHMA A156.3 Grade 1 • Approved for Florida HVHZ (High Velocity Hurricane Zone). +60/65psf • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act

6300/6400R Rim Exit Device

How to Order

Series	For Door Width	Device Type	Rating	Finish	Options	Electrified Options
63	00	R		630
63 - Wide Stile Device 64 - Narrow Stile Device	00 - 36" Door 10 - 48" Door 20 - 24" Door	R - Rim Device	Blank - Panic Rated F - Fire Rated	613 - Dark Bronze 622 - Satin Black 626 - Satin Chrome 630 - Satin SS/ Anodized Alum	Dogging (Panic Rated Only): Blank - Hex Key Dogging CD - Cylinder Dogging LD - Less Dogging* Strikes: BS - Blade Stop Strike (Rim) DD - Double Door Strike (Rim) WS - Florida HVHZ (Rim) EC - End Cap Cover TLA - Head Cover SNB - Sex Nuts & Bolts AM - Anti-Microbial SK - Shim Kit SHS - Security Head Screws	MLR - Motorized Latch Retr. AL - Alarm Kit* SS - Signal Switch on touch bar LM - Latchbolt Monitor ISMC - Industry Standard Molex Connector ALHW - Alarm kit hard wired

^* Multiple Selections Allowed *Dogging options only apply to Panic Rated

• * MLR can be combined with LM & SS
• * AL can be combined with LM
• * MLR and AL cannot be combined * ISMC available on all
• * AL specify handing

6300R Rim Wide Stile Exit Devices

PART	DESCRIPTION	630	626	613/622
6300R	Rim, Listed to UL305 for Panic, hex key dogging, 3'0" door	$1198	$1198	$1346
6300RF	Rim, Listed to UL10C for Fire, no dogging 3'0" door	$1412	$1412	$1560
6310R	Rim, Listed to UL305 for Panic, hex key dogging, 4'0" door	$1258	$1258	$1406
6310RF	Rim, Listed to UL10C for Fire, no dogging 4'0" door	$1472	$1472	$1620
6320R	Rim, Listed to UL305 for Panic, hex key dogging, 2'0" door	$1298	$1298	$1446
6320RF	Rim, Listed to UL10C for Fire, no dogging 2'0" door	$1512	$1512	$1660

Available with all electrified options.

6400R Rim Narrow Stile Exit Devices

PART	DESCRIPTION	630	626	613/622
6400R	Rim, Listed to UL305 for Panic, hex key dogging, 3'0" door	$1267	$1267	$1415
6400RF	Rim, Listed to UL10C for Fire, no dogging 3'0" door	$1481	$1481	$1629
6410R	Rim, Listed to UL305 for Panic, hex key dogging, 4'0" door	$1327	$1327	$1475
6410RF	Rim, Listed to UL10C for Fire, no dogging 4'0" door	$1501	$1501	$1649
6420R	Rim, Listed to UL305 for Panic, hex key dogging, 2'0" door	$1367	$1367	$1515
6420RF	Rim, Listed to UL10C for Fire, no dogging 2'0" door	$1581	$1581	$1729

6300/6400R Rim Mechanical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
EC	End Cap Cover	$42
TLA	Head Cover (Similar to 6200 Series)	$40
AM	Anti Microbial (630/626 only)	$162
WS	Florida HVHZ	$110
CD	Cylinder Dogging	$78
LD	Less Dogging	-
SNB	Sex Nuts & Bolts	$36
BS	Blade Stop Strike	$104
DD	Double Door Strike	$104
SHS	Tamper Proof Security Head Screws	$92

6300/6400R Rim Electrical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT

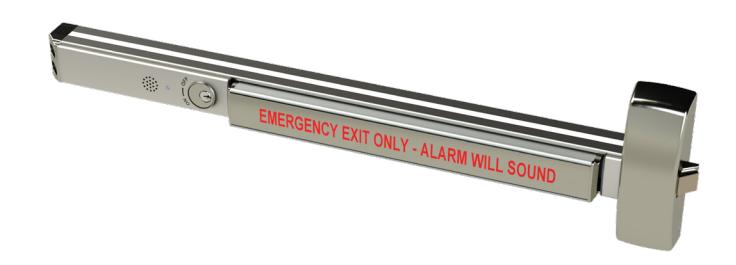

AL	Alarmed Exit	$302
LM	Latch Bolt Monitoring	$208
MLR	Motorized Latch Retraction	$914
SS	Signal Switch - Request to Exit or touch bar Monitoring	$156
ALHW	Alarmed Exit with Hard Wire Power and Relay	$422
ISMC	Industry Standard Molex Connector (order in addition to other electrified options)	$120

Parts Discount.

• 1: Electrified options not available on 24" device.
• 2: For the MLR Motorized Latch Retraction option: 3 ft devices, maximum cut is 3". 4 ft devices, maximum cut is 9".
• 3: For the Alarm option: 3 ft devices, maximum cut is 2". 4 ft devices, maximum cut is 8".

Surface Vertical Rod Device

6300V Wide Stile/6400V Narrow Stile

Panic & Fire Rated

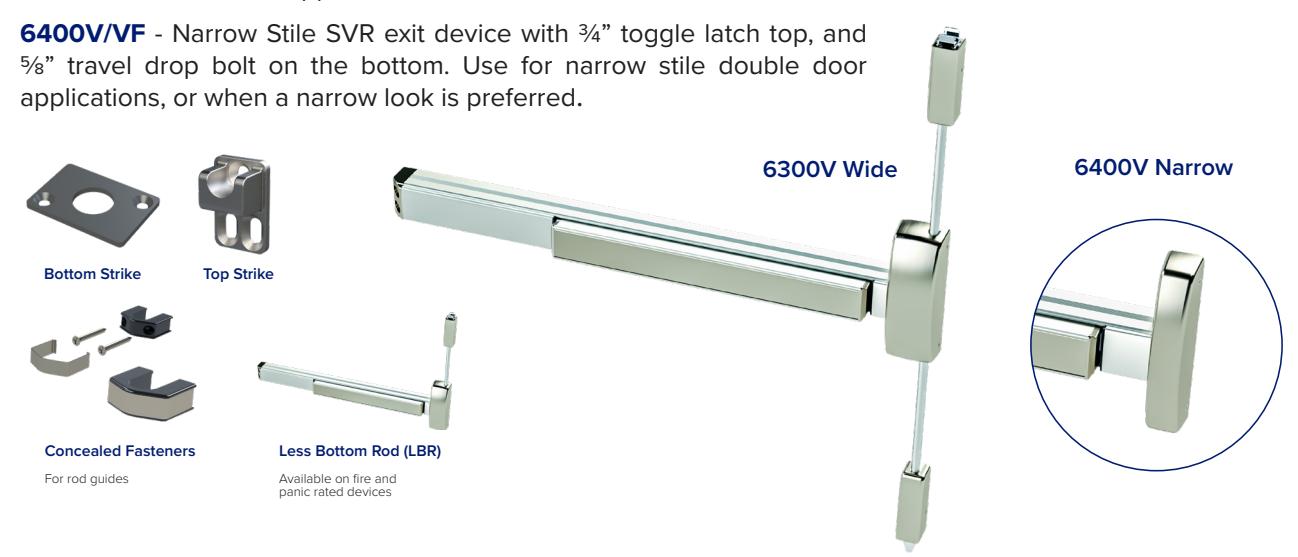

6300V/VF - Wide Stile SVR exit device with 3/4" toggle latch top, and 5/8" travel drop bolt on the bottom. Use for wide stile double door applications.

Specifications

Rail	• Extruded aluminum • Specify 630F for full stainless surfaces (roll formed)
Latch	• Top - Stainless Steel 3/4" toggle • Bottom - 5/8" Travel Drop Bolt • Less bottom rod option
Hand	• Device is non-handed • Trim is non-handed or field reversible
Dogging	• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
Minimum Stile Width	• 6300 - 3-1/2" • 6400 - 2-1/8"
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" standard
Door Height	• Panic - Up to 10' • Fire - See fire ratings charts page 26
Strike	• Cast top strike, plate bottom strike
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti-Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine screws and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors
Certifications Compliances Listings	• Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 3 hours. • ANSI/BHMA A156.3 Grade 1 • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act

6300/6400V Vertical Rod Exit Device

How to Order

Series	For Door Width	Device Type	Rating	Finish	Options	Electrified Options
63	00	V		630
63 - Wide Stile Device 64 - Narrow Stile Device	00 - 36" Door 10 - 48" Door 20 - 24" Door	V - SVR Device	Blank - Panic Rated F - Fire Rated	613 - Dark Bronze 622 - Satin Black 626 - Satin Chrome 630 - Satin SS/ Anodized Alum	Dogging (Panic Rated Only): Blank - Hex Key Dogging CD - Cylinder Dogging LD - Less Dogging*	MLR - Motorized Latch Retr. AL - Alarm Kit* SS - Signal Switch on touch bar LM - Latchbolt Monitor ISMC - Industry Standard Molex
					LBR - Less Bottom Rod (SVR/CVR) LBR-FP - Less Bottom Rod with Fire Pin (SVR/ CVR) EC - End Cap Cover	Connector ALHW - Alarm kit hard wired
					TLA - Head Cover SNB - Sex Nuts & Bolts AM - Anti-Microbial SK - Shim Kit SHS - Security Head Screws
					7 - 7' door (default) 8 - 8' door 10 - 8'-10' Door

*Multiple Selections Allowed *Dogging options only apply to Panic Rated

• * MLR can be combined with LM & SS
• * AL can be combined with LM
• * MLR and AL cannot be combined
• * ISMC available on all * AL - specify handing

6300V Surface Vertical Rod Wide Stile Exit Devices

PART	DESCRIPTION	630	626	613/622
6300V	Surface vertical rod, Listed to UL305 for Panic, hex key dogging, 3'0" door
6300VLBR	Surface vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging, 3'0" door	$1801	$1801	$1949
6300VF	Surface vertical rod, Listed to UL10C for Fire, no dogging, 3'0" door
6300VFLBR	Surface vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 3'0" door	$2015	$2015	$2163
6310V	Surface vertical rod, Listed to UL305 for Panic, hex key dogging, 4'0" door
6310VLBR	Surface vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging,4'0" door	$1861	$1861	$2009
6310VF	Surface vertical rod, Listed to UL10C for Fire, no dogging, 4'0" door
6310VFLBR	Surface vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 4'0" door	$2075	$2075	$2223
6320V	Surface vertical rod, Listed to UL305 for Panic, hex key dogging, 2'0" door
6320VLBR	Surface vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging, 2'0" door	$1901	$1901	$2049
6320VF	Surface vertical rod, Listed to UL10C for Fire, no dogging, 2'0" door
6320VFLBR	Surface vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 2'0" door	$2115	$2115	$2263

6400V Surface Vertical Rod Narrow Stile Exit Devices

PART	DESCRIPTION	630	626	613/622
6400V	Surface vertical rod, Listed to UL305 for Panic, hex key dogging, 3'0" door
6400VLBR	Surface vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging, 3'0" door	$1948	$1948	$2096
6400VF	Surface vertical rod, Listed to UL10C for Fire, no dogging, 3'0" door
6400VFLBR	Surface vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 3'0" door	$2162	$2162	$2310
6410V	Surface vertical rod, Listed to UL305 for Panic, hex key dog ging,4'0" door
6410VLBR	Surface vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging,4'0" door	$2008	$2008	$2156
6410VF	Surface vertical rod, Listed to UL10C for Fire, no dogging, 4'0" door
6410VFLBR	Surface vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 4'0" door	$2222	$2222	$2370
6420V	Surface vertical rod, Listed to UL305 for Panic, hex key dogging, 2'0" door
6420VLBR	Surface vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging, 2'0" door	$2048	$2048	$2196
6420VF	Surface vertical rod, Listed to UL10C for Fire, no dogging, 2'0" door
6420VFLBR	Surface vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 2'0" door	$2262	$2262	$2410

For devices over 7' high, add $25 per foot

6300/6400V Surface Vertical Rod Mechanical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
EC	End Cap Cover	$42
TLA	Head Cover (Similar to 6200 Series)	$40
AM	Anti Microbial (630/626 only)	$162
CD	Cylinder Dogging	$85
LD	Less Dogging	-
SNB	Sex Nuts & Bolts	$38
SHS	Tamper Proof Security Head Screws	$92
LBR	Less Bottom Rod	-
LBR-FP	Less Bottom Rod with Fire Pin (used with fire rated pair)	-

6300/6400V Surface Vertical Rod Electrical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
AL	Alarmed Exit	$302
LM	Latch Bolt Monitoring	$208
MLR	Motorized Latch Retraction	$914
SS	Signal Switch - Request to Exit and Monitoring	$156
ALHW	Alarmed Exit with Hard Wire Power and Relay	$422
ISMC	Industry Standard Molex Connector (order in addition to other electrified options)	$120

Parts Discount.

^1: Electrified options not available on 24" device.

^2: For the MLR Motorized Latch Retraction option: 3 ft devices, maximum cut is 3". 4 ft devices, maximum cut is 9".

^3: For the Alarm option: 3 ft devices, maximum cut is 2". 4 ft devices, maximum cut is 8".

Concealed Vertical Rod Device

6300C Wide Stile/6400C Narrow Stile

Panic & Fire Rated

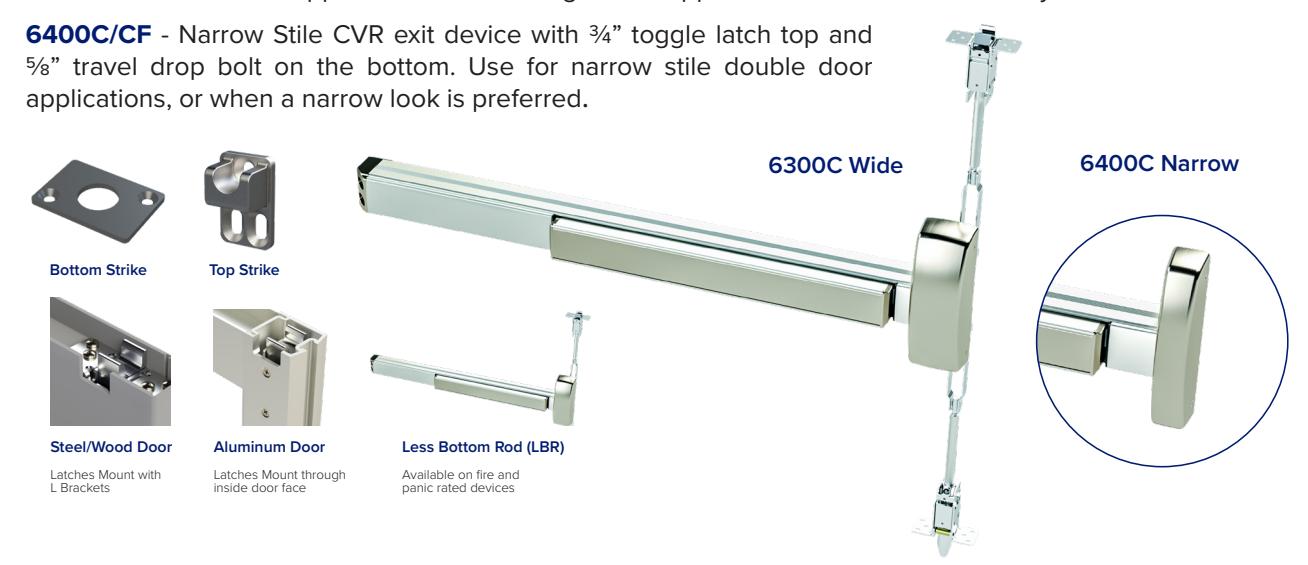

6300C/CF - Wide Stile CVR exit device with 3/4" toggle latch top, and 5/8" travel drop bolt on the bottom. Use for wide stile double door applications and for single door applications where more security is needed.

Specifications

Rail	• Extruded aluminum • Specify 630F for full stainless surfaces (roll formed)
Latch	• Top - Stainless Steel 3/4" toggle • Bottom - 5/8" Travel Drop Bolt • Less bottom rod option
Hand	• Device is non-handed • Trim is non-handed or field reversible
Dogging	• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
Minimum Stile Width	• 6300 - 3-1/2" • 6400 - 2-1/8"
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" standard
Door Height	• Panic - Up to 10' • Fire - See fire ratings charts page 26
Strike	• Cast top strike, plated bottom strike
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti-Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors
Certifications Compliances Listings	• Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 3 hours. • ANSI/BHMA A156.3 Grade 1 Pending • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act

6300/6400C Concealed Vertical Exit Device

How to Order

Series	For Door Width	Device Type	Rating	Finish	Options	Electrified Options
63	00	С		630
63 - Wide Stile Device 64 - Narrow Stile Device	00 - 36" Door 10 - 48" Door 20 - 24" Door	C - CVR Device	Blank - Panic Rated F - Fire Rated	613 - Dark Bronze 622 - Satin Black 626 - Satin Chrome 630 - Satin SS/ Anodized Alum	Dogging (Panic Rated Only): Blank - Hex Key Dogging CD - Cylinder Dogging LD - Less Dogging* LBR - Less Bottom Rod (SVR/CVR) LBR-FP - Less Bottom Rod with Fire Pin (SVR/CVR) EC - End Cap Cover TLA - Head Cover SNB - Sex Nuts & Bolts AM - Anti-Microbial 7 - 7' door (default) 8 - 8' door 10 - 8'-10' Door	MLR - Motorized Latch Retr. AL - Alarm Kit* SS - Signal Switch on touch bar LM - Latchbolt Monitor ISMC - Industry Standard Molex Connector

*Multiple Selections Allowed *Dogging options only apply to Panic Rated *MLR can be combined with LM & SS *AL can be combined with LM & MR and AL cannot be combined *ISMC available on all *AL - specify handing

6300C Concealed Vertical Rod Wide Stile Exit Devices

PART	DESCRIPTION	630	626	613/622
6300C	Concealed vertical rod, Listed to UL305 for Panic, hex key dogging, 3'0" door	4
6300CLBR	Concealed vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging, 3'0" door	$2083	$2083	$2231
6300CF	Concealed vertical rod, Listed to UL10C for Fire, no dogging, 3'0" door
6300CFLBR	Concealed vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 3'0" door	$2297	$2297	$2445
6310C	Concealed vertical rod, Listed to UL305 for Panic, hex key dogging, 4'0" door
6310CLBR	Concealed vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging,4'0" door	$2143	$2143	$2291
6310CF	Concealed vertical rod, Listed to UL10C for Fire, no dogging, 4'0" door	$2357	$2357	$2505
6310CFLBR	Concealed vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 4'0" door	$2357	$2357	$2505
6320C	Concealed vertical rod, Listed to UL305 for Panic, hex key dogging, 2'0" door	¢2402	фэ л оэ	фэээ л
6320CLBR	Concealed vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging, 2'0" door	$2183	$2183	$2331
6320CF	6320CF Concealed vertical rod, Listed to UL10C for Fire, no dogging, 2'0" door		40007	405.45
6320CFLBR	Concealed vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 2'0" door	$2397	$2397	$2545

6400C Concealed Vertical Rod Narrow Stile

PART	DESCRIPTION	630	626	613/622
6400C	Concealed vertical rod, Listed to UL305 for Panic, hex key dogging, 3'0" door		4	4
6400CLBR	Concealed vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging, 3'0" door	$2231	$2231	$2379
6400CF	Concealed vertical rod, Listed to UL10C for Fire, no dogging, 3'0" door	4		4
6400CFLBR	Concealed vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 3'0" door	$2445	$2445	$2593
6410C	Concealed vertical rod, Listed to UL305 for Panic, hex key dogging,4'0" door			4
6410CLBR	Concealed vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging,4'0" door	$2291	$2291	$2439
6410CF	Concealed vertical rod, Listed to UL10C for Fire, no dogging, 4'0" door	$2505	$2505	$2653
6410CFLBR	Concealed vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 4'0" door	$2505	$2505	$2000
6420C	Concealed vertical rod, Listed to UL305 for Panic, hex key dogging, 2'0" door	$2224	#2224	$2.470
6420CLBR	Concealed vertical rod, less bottom rod, Listed to UL305 for Panic, hex key dogging, 2'0" door	- $2331 $2331 $2		$2479
6420CF	Concealed vertical rod, Listed to UL10C for Fire, no dogging, 2'0" door			40.000
6420CFLBR	Concealed vertical rod, less bottom rod, Listed to UL10C for Fire, no dogging, 2'0" door	$2545	$2545	$2693

For devices over 7' high, add $25 per foot

6300/6400 CVR Mechanical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
EC	End Cap Cover	$42
TLA	Head Cover (Similar to 6200 Series)	$40
AM	Anti Microbial (630/626 only)	$162
CD	Cylinder Dogging	$85
LD	Less Dogging	-
SNB	Sex Nuts & Bolts	$38
SHS	Tamper Proof Security Head Screws	$92
LBR	Less Bottom Rod	-
LBR-FP	Less Bottom Rod with Fire Pin (used with fire rated pair)	-

6300/6400 CVR Electrical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
AL	Alarmed Exit	$302
LM	Latch Bolt Monitoring	$208
MLR	Motorized Latch Retraction	$914
SS	Signal Switch - Request to Exit and Monitoring	$156
ALHW	Alarmed Exit with Hard Wire Power and Relay	$422
ISMC	Industry Standard Molex Connector (order in addition to other electrified options)	$120

Parts Discount.

^1: Electrified options not available on 24" device.

^2: For the MLR Motorized Latch Retraction option: 3 ft devices, maximum cut is 3". 4 ft devices, maximum cut is 9".

^3: For the Alarm option: 3 ft devices, maximum cut is 2". 4 ft devices, maximum cut is 8".

Mortise Device

6300M Wide Stile

Panic & Fire Rated

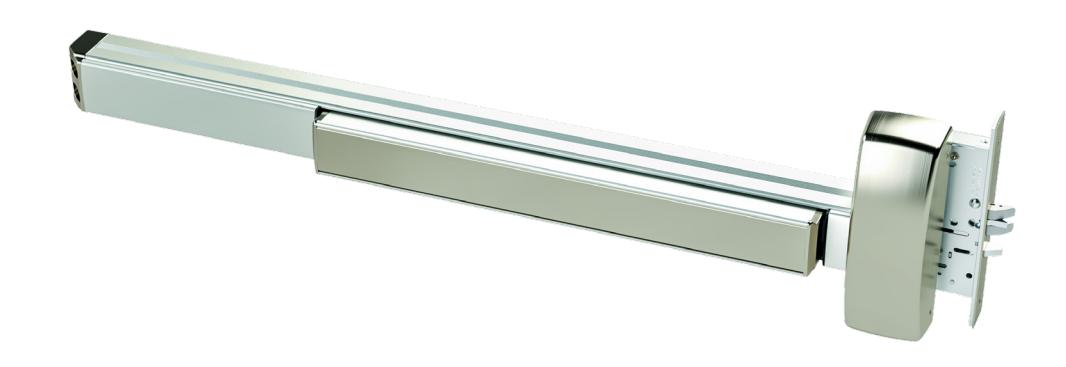

6300M - Wide Stile Mortise exit device with 3/4" throw latch bolt. Use for wide stile single door applications. Also, use for retrofit or pair with SVR/CVR/flush bolts and open back strike.

• This device is built around our signature MR series mortise lock. Easily retrofit an existing mortise lock opening with a mortise device.

Specifications

Rail	• Extruded aluminum • Specify 630F for full stainless surfaces (roll formed)
Latch	• Stainless steel dead locking with 3/4" throw
Hand	• Field reversible
Dogging	• Hex key dogging standard • Cylinder dogging optional • Dogging not available for fire labeled devices
Minimum Stile Width	• 5"
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" standard
Door Height	• Panic - Up to 10' • Fire - See fire ratings charts page 26
Strike Options	• Default ASA (4-7/8")
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Oil Rubbed Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine screws and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Motorized Latch Retraction • Request to Exit/Signal Switch • Alarmed Exit • Latch Bolt Monitor • ISMC Connectors
Certifications Compliances Listings	• Listed for UL 305 "Panic", listed for UL 10C "Fire Exit Hardware" up to 90 minutes. • Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act

6300M Mortise Exit Device

How to Order

Series	For Door Width	Device Type	Rating	Finish	Options	Electrified Options
63	00	M		630
63 - Wide Stile Device	00 - 36" Door 10 - 48" Door 20 - 24" Door	M - Wide Stile Mortise Device*	Blank - Panic Rated	613 - Dark Bronze 622 - Satin Black 626 - Satin Chrome 630 - Satin SS/ Anodized Alum	Dogging (Panic Rated Only): Blank - Hex Key Dogging CD - Cylinder Dogging LD - Less Dogging* EC - End Cap Cover TLA - Head Cover SNB - Sex Nuts & Bolts AM - Anti-Microbial SHS - Security Head Screws	MLR - Motorized Latch Retr. AL - Alarm Kit* SS - Signal Switch on touch bar LM - Latchbolt Monitor ISMC - Industry Standard Molex Connector ALHW - Alarm kit hard wired

^* Mortise in wide stile device only

• * MLR can be combined with LM & SS
• * AL can be combined with LM * MLR and AL cannot be combined
• * ISMC available on all * AL - specify handing

6300M Mortise Wide Stile Exit Devices

PART	DESCRIPTION	630	626	613/622
6300M	Mortise wide stile exit, Listed to UL305 for Panic, hex key dogging, 3'0" door width	$2006	$2006	$2154
6300MF	Mortise wide stile exit, Listed to UL10C for Fire, 3'0" door width	$2220	$2220	$2368
6310M	Mortise wide stile exit, Listed to UL305 for Panic, hex key dogging, 4'0" door width	$2066	$2066	$2214
6310MF	Mortise wide stile exit, Listed to UL10C for Fire, 4'0" door width	$2280	$2280	$2428
6320M	Mortise wide stile exit, Listed to UL305 for Panic, hex key dogging, 2'0" door	$2106	$2106	$2254
6320MF	Mortise wide stile exit, Listed to UL10C for Fire, no dogging 2'0" door	$2320	$2320	$2468

^* Multiple Selections Allowed *Dogging options only apply to Panic Rated

6300/6400M Mortise Wide Stile Mechanical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
EC	End Cap Cover	$42
TLA	Head Cover (Similar to 6200 Series)	$40
AM	Anti Microbial (630/626 only)	$162
CD	Cylinder Dogging	$85
LD	Less Dogging	-
SNB	Sex Nuts & Bolts	$38
SHS	Tamper Proof Security Head Screws	$92
LBR	Less Bottom Rod	-
LBR-FP	Less Bottom Rod with Fire Pin (used with fire rated pair)	-

6300/6400M Mortise Wide Stile Electrical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
AL	Alarmed Exit	$302
LM	Latch Bolt Monitoring	$208
MLR	Motorized Latch Retraction	$914
SS	Signal Switch - Request to Exit and Monitoring	$156
ALHW	Alarmed Exit with Hard Wire Power and Relay	$422
ISMC	Industry Standard Molex Connector (order in addition to other electrified options)	$120

^* Not at Parts Discount.

^1: Electrified options not available on 24" device.

^2: For the MLR Motorized Latch Retraction option: 3 ft devices, maximum cut is 3". 4 ft devices, maximum cut is 9".

^3: For the Alarm option: 3 ft devices, maximum cut is 2". 4 ft devices, maximum cut is 8".

Dummy Device

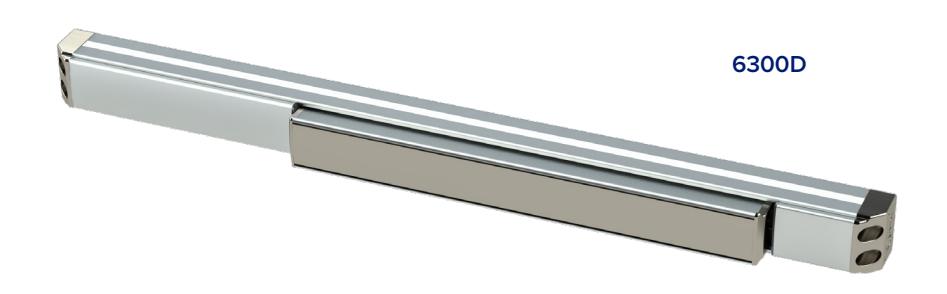

6300D Dummy

6300D - A dummy device with no latching. The device comes with an active push bar, but can also be dogged/ locked down with the included dogging kit. Order with a signal switch to operate a mag lock or other electronic devices. The device is commonly used on inside vestibule doors where latching is not required, or as an electrical switch for an auxiliary device.

Specifications

Rail	• Extruded aluminum
Hand	• Device is non-handed
Dogging	• Dogging standard • Active push bar, dog to make inactive
Minimum Stile Width	• 6300 - 3-1/2"
Door Thickness	• 1-3/4" - 2" (Consult factory for other)
Door Width	• 24", 36", 48" standard
Finishes	• 605 - Polished Brass, 606 - Satin Brass, 613 - Dark Bronze, 622 - Flat Black, 626 - Satin Chrome, 630 - Satin Stainless Steel, 630F – Full Satin Stainless Surfaces • Optional Anti Microbial Coating available on 626, 630 & 630F
Fasteners	• Includes machine and wood screws • SNB Optional
Warranty	• Ten (10) year limited warranty
Electrified Options	• Request to Exit/Signal Switch • ISMC Connectors
Certifications Compliances Listings	• Complies with ADA (Americans with Disabilities Act) and ICC/ANSI 117.1 for Accessible and Usable Buildings • Meets requirements of the Buy American Act

6300D Dummy Exit Device

How to Order

Series	For Door Width	Device Type	Rating	Finish	Options
63	00	D		630
63 - Wide Stile Device	00 - 36" Door 10 - 48" Door 20 - 24" Door	D - Dummy Device	Blank - Panic Rated	613 - Dark Bronze 622 - Satin Black 626 - Satin Chrome 630 - Satin SS/ Anodized Alum	Dogging (Panic Rated Only): SS - Signal switch on touch bar

6300/6400D Dummy Exit Devices

PART	DESCRIPTION	630	626	613/622
6300D	Dummy, 3'0" door	$875	$875	$905
6310D	Dummy, 4'0" door	$925	$925	$955
6320D	Dummy, 2'0" door	$925	$925	$955

6300/6400M Mortise Wide Stile Mechanical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
EC	End Cap Cover	$42
SNB	Sex Nuts & Bolts	$38
SHS	Tamper Proof Security Head Screws	$92

6300/6400M Mortise Wide Stile Electrical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
SS	Signal Switch - Request to Exit and Monitoring	$156

Introducing the 6300/6400 Trim Family

Trims are non-handed and use simple door prep based on a 2 hole bolt pattern with 7" centers, or a 4 hole bolt pattern with 7"x1-3/8" centers.

Narrow escutcheons work with both wide and narrow stile devices. Wide escutcheons work only with wide stile devices.

6N Narrow Escutcheon - A narrow profile escutcheon for 6300 or 6400 device. Available in 6 lever styles, and in 6 functions. Use with narrow stile devices or a wide stile device when a slimmer look is desired.

6W Wide Escutcheon - A wide escutcheon for the 6300 device. Available in 6 lever styles, and 5 functions - including electric locking. Use with wide stile devices, when a more substantial look is desired, or for retrofit where covering existing holes is important.

*Not compatible with 6400 narrow stile devices

6T Thumb Latch - A grip pull with a thumb latch for 6300 or 6400 devices. Available in 3 functions.

*Not compatible with 6400C narrow stile devices.

6P Pull Plate - Stainless Steel pull plate for 6300 device.

*Not compatible with 6400 narrow stile devices.

6G Grip Pull - A grip pull for 6300 or 6400 devices. Made of stainless steel, this grip pull is available in 2 functions.

6S Rose Trim - Rose trim that fits into standard 161 prepped door with thru bolts. Works with 6300 rim, SVR and CVR devices. Available in 3 lever styles and in 4 functions.

*Not compatible with 6400 narrow stile devices

Lever Styles

6300/6400 Exit Device Trim

How to Order

TRIM TYPE	LEVER	FINISH	CYLINDER TYPE	KEYWAY	KEYING
6N08	PHL	630	D	SCC	KD
Narrow Escutcheon 6N01 – Narrow, Blank (No lever) 6N02 – Narrow, Fixed Lever 6N03 – Narrow, Cylinder Only (No Lever) Night Latch 6N08 – Narrow, Classroom 6N09 – Narrow Storeroom 6N14 – Narrow Passage Wide Escutcheon 6W02 – Wide, Fixed Lever 6W08 – Wide, Classroom 6W09 – Wide, Storeroom 6W14 – Wide, Passage 6W99 – Electrified Sectional/Rose 6S02 – Sectional, Rigid Lever 6S08 – Sectional, Classroom 6S09 – Sectional, Storeroom 6S14 – Sectional, Passage Thumb Latch 6T05 – Thumb Latch, Classroom 6T06 – Thumb Latch, Storeroom 6T15 – Thumb Latch, Passage	PHL – Philadelphia BSN – Boston MIA – Miami *CHI – Chicago *ORL – Orlando *LAX – Los Angeles *Not available with S Trim	*605 – Bright Brass *606 – Satin Brass 613 – Dark Bronze 622 – Satin Black 625 – Bright Chrome 626 – Satin Chrome 630 – Satin Stainless *Extended lead time - Contact factory for details	D Default L Less Cylinder SF6 Lock is SFIC prepped w/ 6 pin core SF7 Lock is SFIC prepped w/ 7 pin core SFL Lock is SFIC prepped but less core SFC Lock is SFIC prepped w/ construction core SFP Lock is SFIC prepped w/ plastic construction core LF6 Lock is Schlage LFIC prepped w/ Schlage core LFL Lock is Schlage LFIC prepped but less core LFC Lock is Schlage LFIC prepped w/ construction core *Cores sold separately - option specifies factory installation	SCC – Schlage C OTHERS – See Keyway Table Page 22	KD – Keyed Different KA – Keyed Like K0 – Zero Bitted MK – Master Keyed CMK – Construction Master Keyed GMK – Grand Master Keyed OPTIONS TC - Tactile Abrasive
Pull Plate 6P03 – Pull Plate, Cylinder					Coating (Lever trims only) AM - Anti-Microbial
Grip Pull

6G03 – Storeroom

6N Narrow Escutcheon 01, 02, 03, 08, 09, 14

6W Wide Escutcheon 02, 08, 09, 14, 99

6G Grip Pull 02, 03

6T Thumb Latch 05, 06, 15

6P Pull Plate 03

6S Sectional/Rose 02, 08, 09, 14

6N Escutcheon Trim

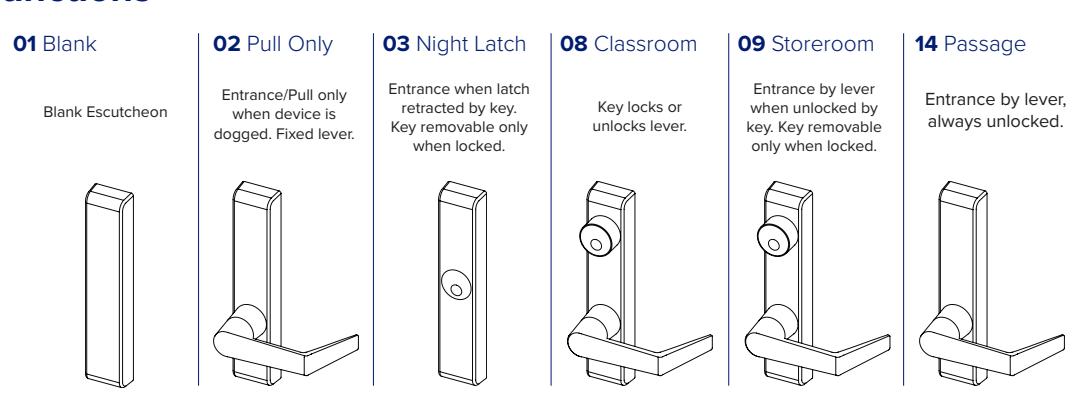

6N Functions

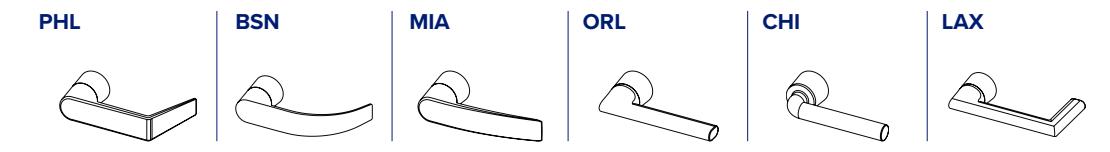

6N Lever Styles

Applicable Devices

• 6400R Narrow Rim Device
• 6400V Narrow Surface Vertical Device
• 6400C Narrow Concealed Vertical Device
• 6300R Wide Stile Rim Device

6N Narrow Stile Trim

• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device
• 6300M Wide Mortise Device (Except 03 function)

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL	8	N/C
LFL	8	$10.00
D		N/C

IC Core not included.

				10 001	e not included.
6N	APPLICATION	FUNC- TION	DESCRIPTION	LEVER	630	613/622/625
		01	Blank		$220	$250
NARROW ESCUTCHEON		02	Dummy Trim (Rigid Lever)		$621	$636
	Rim Surface Vertical Rod Concealed	03	Night Latch		$320	$350
		08	Classroom w/ Lever	PHL, BSN, MIA, ORL, CHI, LAX	$604	4700
	Vertical Rod Mortise	09	Storeroom w/ Lever		$694	$709
		14	Passage w Lever		$621	$636

6W Escutcheon Trim

6W Functions

Entrance/Pull only when device is dogged. Fixed lever.

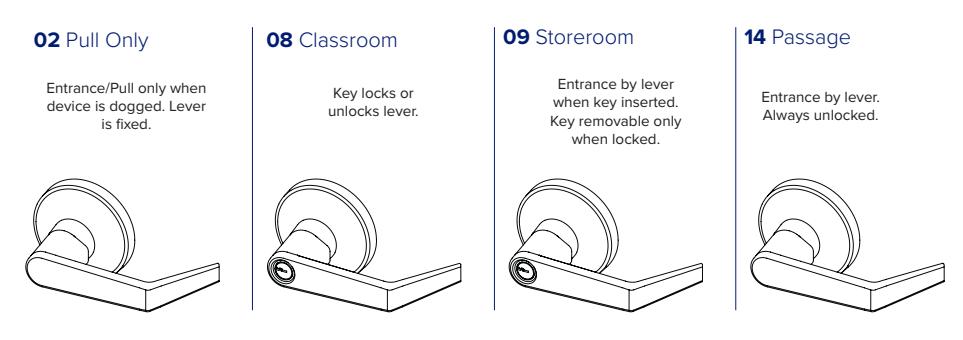

08 Classroom

Key locks or unlocks lever. Conversion kit included to convert locking function.

09 Storeroom

Entrance by lever when unlocked by key. Key removable only when locked.

14 Passage

Entrance by lever, always unlocked.

99 Electrified

Locked/Unlocked electronically. FS/FSF configurable. Entry by key. Key does not change lock state.

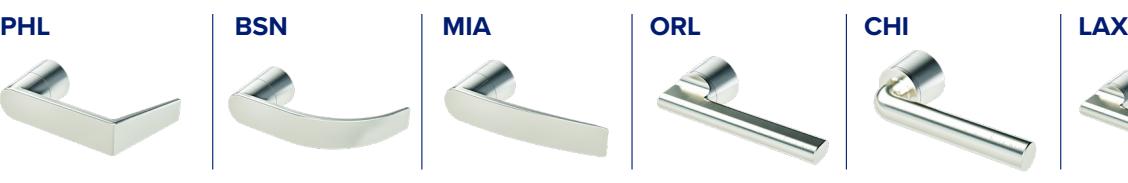

6W Lever Styles

PHL

Applicable Devices

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device
• 6300M Wide Mortise Device

6W Wide Stile Trim

6W	APPLICA- TION	FUNC- TION	DESCRIPTION	LEVER	630	613/ 622/625/626
WIDE STILE		02	Dummy Trim (Rigid Lever)		$583	$613
	Rim Surface	08	Classroom w/ Lever		$671	¢701
	Vertical Rod Concealed	09	Storeroom w/ Lever	PHL, BSN, MIA, ORL, CHI, LAX	$671	$701
	Vertical Rod Mortise	14	Passage w/ Lever		$583	$613
		99	Electrified Storeroom		$1370	$1400

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL		N/C
LFL		$10.00
D		N/C

IC Core not included.

6T Thumb Latch Escutcheon Trim

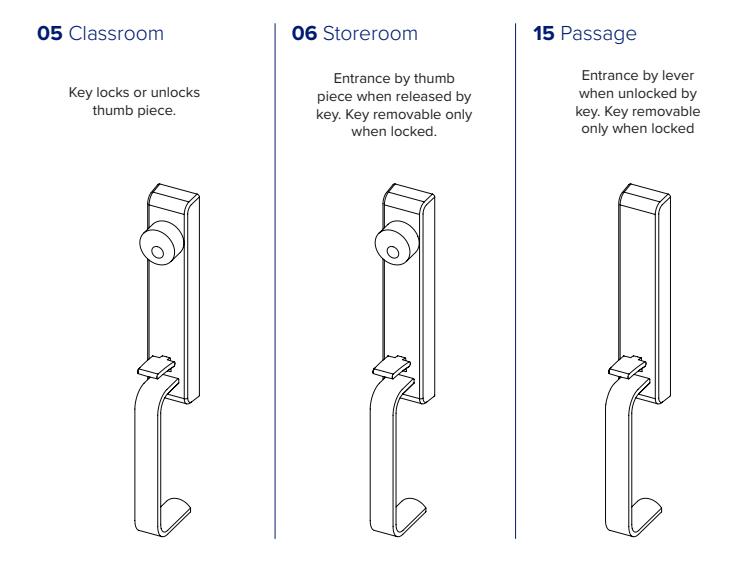

6T Functions

Applicable Devices

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300M Wide Mortise Device
• 6400R Narrow Rim Device
• 6400V Narrow Surface Vertical Device

6T Thumb Latch Trim

6Т	APPLICATION	FUNC- TION	DESCRIPTION	630	613/622
THUMB LATCH	Rim	05	Classroom	$564	$594
	Surface Vertical Rod Concealed	06	Storeroom	$ 3 0 4	$594
	Vertical Rod	15	Passage	$486	$516

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL		N/C
LFL	8	$10.00
D		N/C

IC Core not included.

6P Pull Plate Trim

6P Functions

Applicable Devices

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device

6P Pull Trim

6P	APPLICATION	FUNC- TION	DESCRIPTION	630	613/622

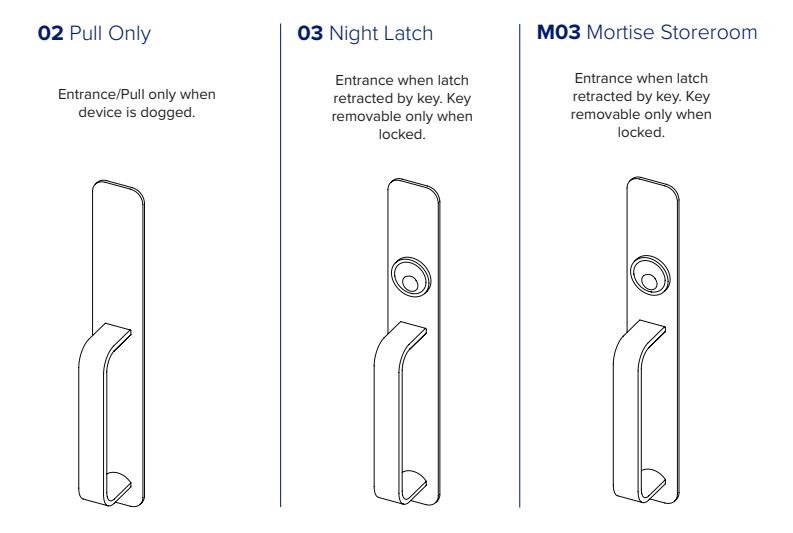

PULL TRIM	Rim Surface Vertical Rod Concealed Vertical Rod	02	Dummy Pull Trim	$160	$190

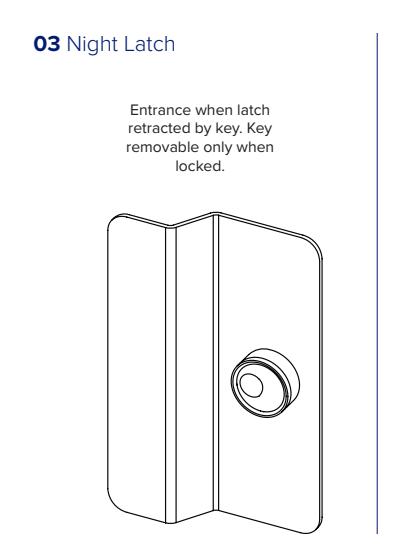

		03	Night Latch	$178	$208

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL	8	N/C
LFL	8	$10.00
D		N/C

IC Core not included.

6G Grip Pull Trim

6G Functions

Applicable Devices

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device
• 6300M Wide Mortise Device (02 Function only)
• 6400R Narrow Rim Device
• 6400V Narrow Surface Vertical Device
• 6400C Narrow Concealed Vertical Device

6G Grip Pull Trim

6G	APPLICATION	FUNCTION	DESCRIPTION	630	613/622
GRIP PULL		02	Dummy Trim (Grip Pull only)	$233	$263
	Rim Surface Vertical Rod Concealed Vertical Rod	03	Night Latch	$310	$340
		M03	Night Latch (Mortise Device)	$310	$340

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL	8	N/C
LFL	8	$10.00
D		N/C

IC Core not included.

6S Rose Trim

6S Functions

6S Lever Styles

Applicable Devices

• 6300R Wide Stile Rim Device
• 6300V Wide Surface Vertical Device
• 6300C Wide Concealed Vertical Device

6S Sectional Trim

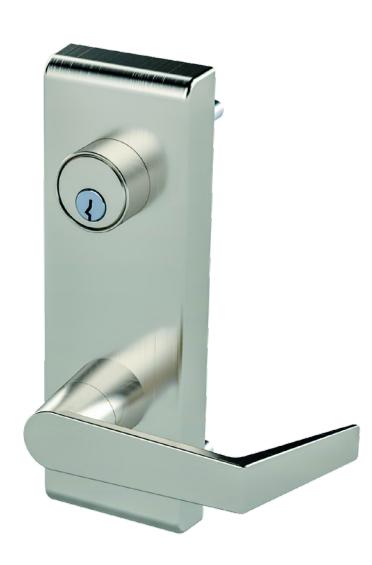

6 S	APPLICA- TION	FUNC- TION	DESCRIPTION	LEVER	626	613/622
SECTIONAL LEVER		02	Dummy Trim		$309	$339
	Rim Surface	08	Classroom w/ Lever	BSN, MIA, PHI	$442	$472
	Vertical Rod Concealed Vertical Rod	09	Storeroom w/ Lever		ΨΤΤΖ	Ψ112
		14	Passage w/ Lever		$367	$397

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL		N/C
LFL	8	$10.00
D		N/C

IC Core not included.

Option	Description	MLR	AL	SS	LM	ISMC
MLR	Motorized Latch Retraction			O	O	O
AL	Alarmed Exit				O*	O
SS	Signal Switch on touch bar	O			O	O
LM	Latch bolt Monitoring	O	O	O		O
ISMC	Industry Standard Connec tor (Molex® Type)	O	O	O	O

O= option O*= Standard on SVR/CVR Not compatible Cannot be combined

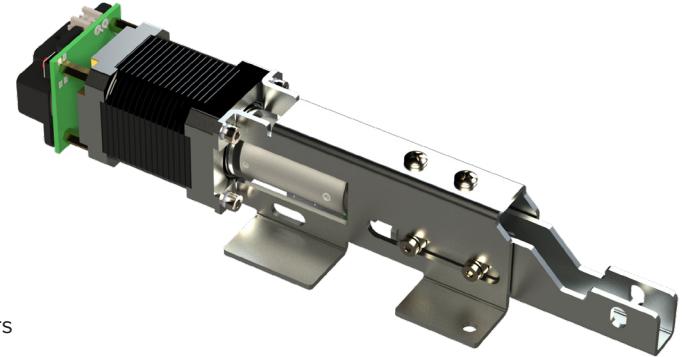

MLR - Motorized Latch Retraction

Operation

When power is applied the MLR retracts the latch(es) allowing the door to be opened. Duration of latch retraction is controlled by the access control system. Power can be continuously applied to electronically dog the exit device.

Features

• Works with 6300 wide stile or 6400 narrow stile devices; panic or fire labeled
• Innovative motor drive retracts push pad
• Allows free egress at all times
• Suitable for pairing with Low Energy Power Operators

Electrical Specifications

• Input voltage 24 VDC ± 10%
• Non-polarized power leads
• Latch Retraction Speed: ~300mS
• Average in-rush current: 900mA
• Average holding current: 200mA

Retrofit kit part number: 639065

• Designed to field retrofit 6300 or 6400 series devices
• Includes motor drive module, connectors and fasteners

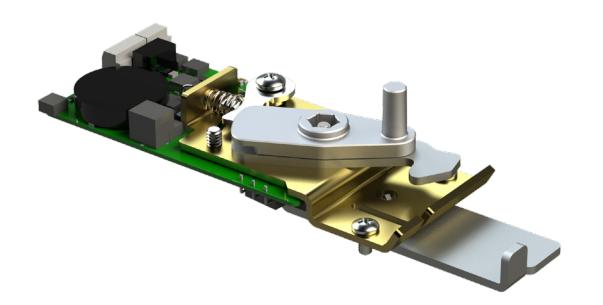

AL - Alarm Kit ALHW - Alarm Kit (Hardwire power & relay output)

Operation

Battery powered self-contained alarm kit for 6300 or 6400 exit device.

The alarm kit is armed via clockwise rotation of the key. If armed, a siren sounds, and the red LED rapidly flashes when the touch bar is depressed. Factory default is continuous alarm. Rotate key counterclockwise to silence siren and disarm the unit.

Alarm kit for panic devices include a third position for dogging the device.

Alarm Mode: Unit can be configured to auto silence the alarm after 7, 3 or 1 minute.

Armed State: Red LED blinks every 10-seconds to indicate unit is armed.

Armed State: Red LED blinks every 10-seconds to indicate unit is armed.

Low Battery: Siren will intermittently chirp when battery is low (<7VDC). Siren chirps regardless of arming state.

Battery Life: 1-year life expectancy in armed, unactuated state.

Siren Intensity: 95dB @ 4in

Operating Temperature: 0 C – 49 C

Max Relative Humidity: 85% (non-condensing)

Included Decal: "EMERGENCY EXIT ONLY – ALARM WILL

SOUND"

Latchbolt Monitor: Standard for SVR device

Optional Rim Latchbolt Monitor: Adds latchbolt monitor. When armed, either the touch bar or latchbolt monitor actuate siren.

Optional Relay Output: Adds a Single Pole Double Throw (SPDT) relay and hardwire power input to the unit. When armed, relay state changes when the touch bar is depressed. Can be used with access control systems. Dry contact SPDT rated 125VAC/ 60VDC with 9VDC coil

Bar Length:

36" Device – 2" max cut 48" Device – 8" max cut

Electrical Specifications:

Power Requirements: One 9-VDC Alkaline Battery (included).

Optional (with relay output): 12-24VDC/VAC ±10% hardwired power. Battery can be used as emergency backup. It is protected from hardwired power.

Power Consumption:

Typical: 18μA

During alarming: 18mA

How to order: Specify AL for alarm kit or ALHW alarm kit with optional hardwire and relay output.

Panic rated device -

Position 1: On/Armed

Position 2: Off

Position 3: Off & Dogged

Fire Rated Device -

Position 1: On/Armed Position 2: Off

6W 99 - Electrified Locking/Unlocking Trim

For ordering information see trim section

Operation

Field selectable operation - Fail Safe (Unlocked when power removed) or Fail Secure (Locked when power removed). Key allows entry but does not change state of lock.

Features

• Motorized locking/unlocking
• Field changeable from Fail Secure (Default) to Fail Safe
• AC or DC input voltage.
• Works with rim, surface vertical rod and concealed vertical rod devices.
• Two (2) year warranty
• Designed and assembled in the USA, Lancaster, PA.

Electrical Specifications

• Non-polarized power leads
• Power requirements: 12-24VDC/VAC ± 10%
• Average in-rush current: 12-24VDC/VAC: 1A for 1 second
• Average holding current: 12-24VDC: 5mA after 30 seconds 12-24VAC: 15mA after 30 seconds
• Power must be applied for a minimum of 5 seconds

SS - Signal Switch/ REX - Request to exit

Operation:

Monitors push bar operation. NO or NC operation.

Electrical Specifications:

Single Pull Double Throw (SPDT): 125VAC – 3A 30VDC – 3A

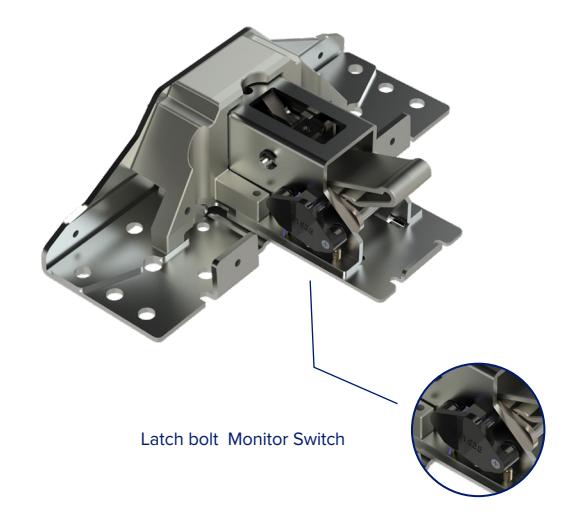

LM - Latch bolt Monitor Switch

Operation:

Monitors latch status. Available on Rim, SVR, CVR and Mortise. NO or NC operation.

Electrical Specifications:

Single Pull Double Throw (SPDT): 125VAC – 3A 30VDC – 3A

ISMC - Industry Standard Molex Connector

Operation:

Molex type connectors for simpler wiring

Terminal insertion end shown for ISMC connector (PDQ P/N 88850)

Function	Wire Color	Optional ISMC Pin#
Power*	White/Blue	1
Power*	White/Blue	2
REX(COM)	Yellow	3
REX(N/O)	Red	4
REX(N/C)	Gray	5
LM(COM)	Black	6
LM(N/0)	Brown	7
LM(N/C)	Blue	8

*Power wires are non-polar

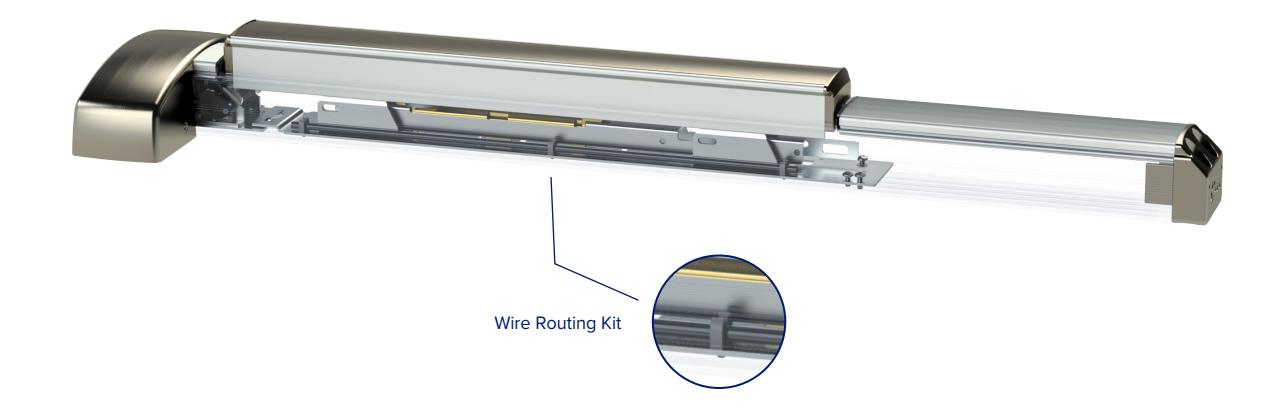

Wire Routing Kit

Included with Latch bolt Monitor Switch, 6W99 Trim, and available as a kit.

Description: Safely route wires through device where they will not be pinched.

6300/6400 Electrical Options

PART	DESCRIPTION	EXIT DEVICE ADJUSTMENT
AL	Alarmed Exit	$302
LM	Latch Bolt Monitoring	$208
MLR	Motorized Latch Retraction	$914
SS	Signal Switch - Request to Exit or touch bar Monitoring	$156
ALHW	Alarmed Exit with Hard Wire Power and Relay	$422
ISMC	Industry Standard Molex Connector (order in addition to other electrified options)	$120

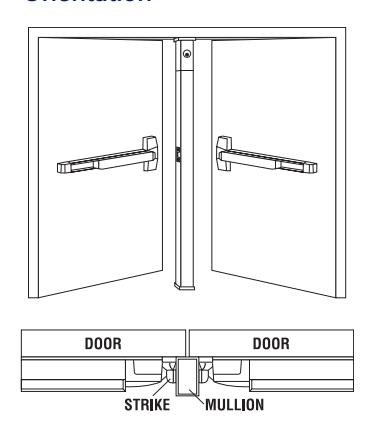

9300 Mullion

Specifications

Mullion Head/Foot brackets:	• Cast Stainless Steel
Tube Dimensions:	• Powder Coated 2" x 3" Steel - 3/16" Wall
Strike:	• 639080 Strike included for Fire Labeled • Strike not included for panic mullion. Use supplied strike with exit device.
Size:	• 8' or 10' lengths - Can easily be cut to shorter size in field
Finish:	• Powder Coated 689 (Aluminum) - can be painted
Electrified Options:	• Wire routing w/ plugs
Warranty:	• One (1) year limited warranty
Certifications: Compliances: Listings:	• Fire model is 3 hour fire labeled for pairs up to and including 8' x 8' (With 6300RF/6400RF Rim Device) • Meets requirements of the Buy American Act

Mullions - Key Removable

PART	DESCRIPTION	689
9300-689	Mullion, 8' non-fire rated and under opening height (can be cut down to non standard opening height)	$1305
9300F-689	Mullion, 8' Listed to UL10C for Fire and under opening height (can be cut down to non standard open ing height)	$1721
9310-689	Mullion, 10' and under opening height (can be cut down to non standard opening height)	$1416
9310F-689	Mullion, 10' Listed to UL10C for Fire and under opening height (can be cut down to non standard open ing height)	$1832

Mullions - Non Key Removable

PART	DESCRIPTION
9301-689	Mullion, 8' and under opening height (can be cut down to non standard opening height)	$1224
9301F-689	Mullion, 8' Listed to UL10C for Fire and under opening height (can be cut down to non standard open ing height)	$1639
9311-689	Mullion, 10' and under opening height (can be cut down to non standard opening height)	$1334
9311F-689	Mullion, 10' Listed to UL10C for Fire and under opening height (can be cut down to non standard open ing height)	$1750

Notes:

• 1. Fire Rated mullion listed only when used with PDQ's 6300/6400 Fire Rated Devices. Use with any other device will void UL Fire Rating.
• 2. Mullions shipped UPS will be assessed an $8.00 handling up charge.
• 3. Rim Cylinder sold separately.

9300 Mullion

How to order

DEVICE TYPE	FOR DOOR HEIGHT	REMOVABLE TYPE	RATING	OPTIONS
93	0	0	_	_
93 - Mullion	0 - 8' and under Door 1 - 10' and under Door	0 - Key Removable 1 - Non Key Removable	Blank - Non Fire Rated F - Fire Rated	EM - Electrified Mullion

Key Removable Only

CYLINDER TYPE	KEYWAY	KEYING
D	SCC	KD
D Default L Less Cylinder SF6 Lock is SFIC prepped w/ 6 pin core SF7 Lock is SFIC prepped w/ 7 pin core SFL Lock is SFIC prepped but less core SFC Lock is SFIC prepped w/ construction core SFP Lock is SFIC prepped w/ plastic construction core LF6 Lock is Schlage LFIC prepped w/ Schlage core LFL Lock is Schlage LFIC prepped but less core LFC Lock is Schlage LFIC prepped but less core LFC Lock is Schlage LFIC prepped w/ construction	SCC – Schlage C OTHERS – See Keyway Table Page 22	KD – Keyed Different KA – Keyed Like KO - Zero Bitted MK – Master Keyed CMK – Construction Keyed GMK – Grand Master Keyed
core

CYLINDER OPTIONS	ICON	LOCK ADJUSTMENT
SFL		N/C
LFL	8	$10.00
D		N/C

IC Core not included.

639081 - Mullion Storage Kit

Kit includes items necessary to mount/ store mullion on the wall when not in use.

Accessories

PART	DESCRIPTION	PART LIST PRICE
631617	Mullion Fire Strike (Includes fasteners)	$79
639081	Mullion Storage Kit	$299

Note: Strike sold as replacement only. Must provide Order number of previous purchased item.

Parts discount applies.

Electrified Mullion

PART	DESCRIPTION	689
9300-689-EM	Mullion, removable by cylinder, 8' and under opening height (can be cut down to non standard opening height), Factory electrified routing prep using Industry standard molex connectors	$1865
9300F-689-EM	Mullion, Listed to UL10C for Fire, removable by cylinder, 8' and under opening height (can be cut down to non standard opening height), Factory electrified routing prep using Industry standard molex con nectors	$2281
9301-689-EM	Mullion, removable by use of hex key, 8' and under opening height (can be cut down to non standard opening height), Factory electrified routing prep using Industry standard molex connectors	$1784
9301F-689-EM	Mullion, Listed to UL10C for Fire, removable by use of hex key, 8' and under opening height (can be cut down to non standard opening height), Factory electrified routing prep using Industry standard molex connectors	$2199
9310-689-EM	Mullion, removable by cylinder, 10' and under opening height (can be cut down to non standard open ing height), Factory electrified routing prep using Industry standard molex connectors	$1976
9311-689-EM	Mullion, removable by use of hex key, 10' and under opening height (can be cut down to non standard opening height), Factory electrified routing prep using Industry standard molex connectors	$2392

Notes:

• 1. Fire Rated mullion listed only when used with PDQ's 6300/6400 Fire Rated Devices. Use with any other device will void UL Fire Rating.
• 2. Mullions shipped UPS will be assessed an $8.00 handling up charge.
• 3. Rim Cylinder sold separately.

Phone: 800.441.9692

Tech Support: 833.273.7832 Email: help@pdqlocks.com

Headquarters: 2230 Embassy Drive, Lancaster, PA 17603

P.O. Box 6426, Lancaster, PA 17607

Regional Distribution Centers: Lancaster, PA | Norcross, GA

Kansas City, MO | Auburn, WA

pdqlocks.com

LT2096 4-2022
