PD25-M-SVR

INSTALLATION INSTRUCTIONS

The PD25-M-SVR (PD26 Mechanical) is our architectural grade 1 exit device. Electrified it comes equipped with motorized latch retraction utilizing our PTS "Push to Set" technology.

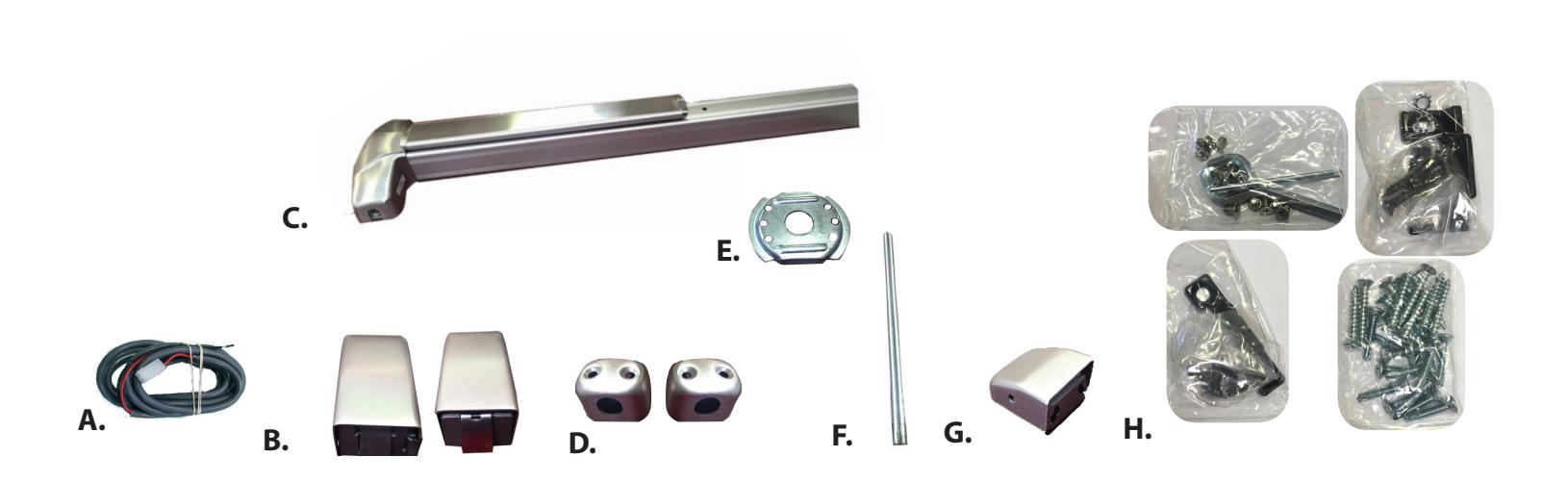

PD25 Includes

  • A. 6' 2-Pin Power Lead (not included with PD26
  • B. Top & Bottom Latch
  • C. PD25-M Device w/ MM module
  • D. Rod Guides
  • E. Strike
  • F. SVR Rods
  • G. End Cap
  • H. 4 Screw Pack

Tools Required

• Cordless Drill

TECHNICAL INFORMATION

S PECIFICATIONS

  • Input Voltage: 24VDC +/- 10%
  • Wire gauge: Minimum 18 gauge
  • Direct wire run no relays or access control units in-between power supply & module

Low Torque Mode

  • Average Latch Retraction Current: 600 mA
  • Average Holding Current: 150 mA

Standard Torque Mode- Ships STANDARD

  • Average Latch Retraction Current: 900 mA
  • Average Holding Current: 215 mA

High Torque Mode

Average Latch Retraction Current: 2 Amp

Average Holding Current: 250 mA

OPTIONAL

REX S witch

Rating: .5A @24VAC

Configuration:

Green - Common (C)

Blue - Normally Open (NO)

GRAY - NORMALLY CLOSED (NC

SETTING PTS

**Important Info** Make sure to set PTS before finishing installation!

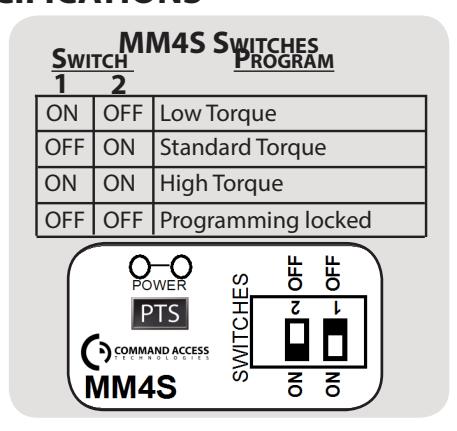

Step 1 - Select your preferred torque mode (ships in standard torque) Press the device push pad to the desired setting. (Recommend to fully depress and release 5%, giving the device a little room for changing door conditions.)

Step 2- While depressing the push pad, apply power. (i.e. presenting the credential to the reader).

Step 3 - Continue to keep pad depressed, the device will beep 6 times. After the beeps have stopped, release the pad and now the adjustment is complete. If not to your liking repeat the three steps. That's all there is to it.

Step 4 - Once you found the right location, switch the dip switches to off to lock in programming.

TROUBLESHOOTING & DIAGNOSTICS

BEEPS EXPLANATION SOLUTION
2 Beeps Over Voltage > 30V unit will shut down. Check voltage & adjust to 24 V.
3 Beeps Under Voltage < 20V unit will shut down. Check voltage & adjust to 24 V.
4 Beeps Failed Sensor Verify all 3 sensor wires are installed correctly. Replace sensor if problem persists by contacting office.
5 Beeps Retraction or Dogging failure
  1. Device physically binding during retraction or pulled from the dogged position.
  2. After 1 st fail: 5 beeps then immediately attempts to retract again.
  3. After 2 nd fail: 5 beeps with pause in-between for 30 seconds then device attempts to retract again.
  4. After 3 rd fail: 5 beeps every 7 minutes, device will not attempt to retract.
  5. To Reset: Depress bar for 5 seconds at any time.
6 Beeps Push to Set Device is recording it's new position and power mode after the 6th beep.

2

RECOMMEND POWER SUPPLIES:

All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory.

• PS210

• PS220/220B

  • PS440B
  • PS480B
  • PS1

  • PS5-4 • PS5-6
  • PS2/2B

For more information click here or go to our website

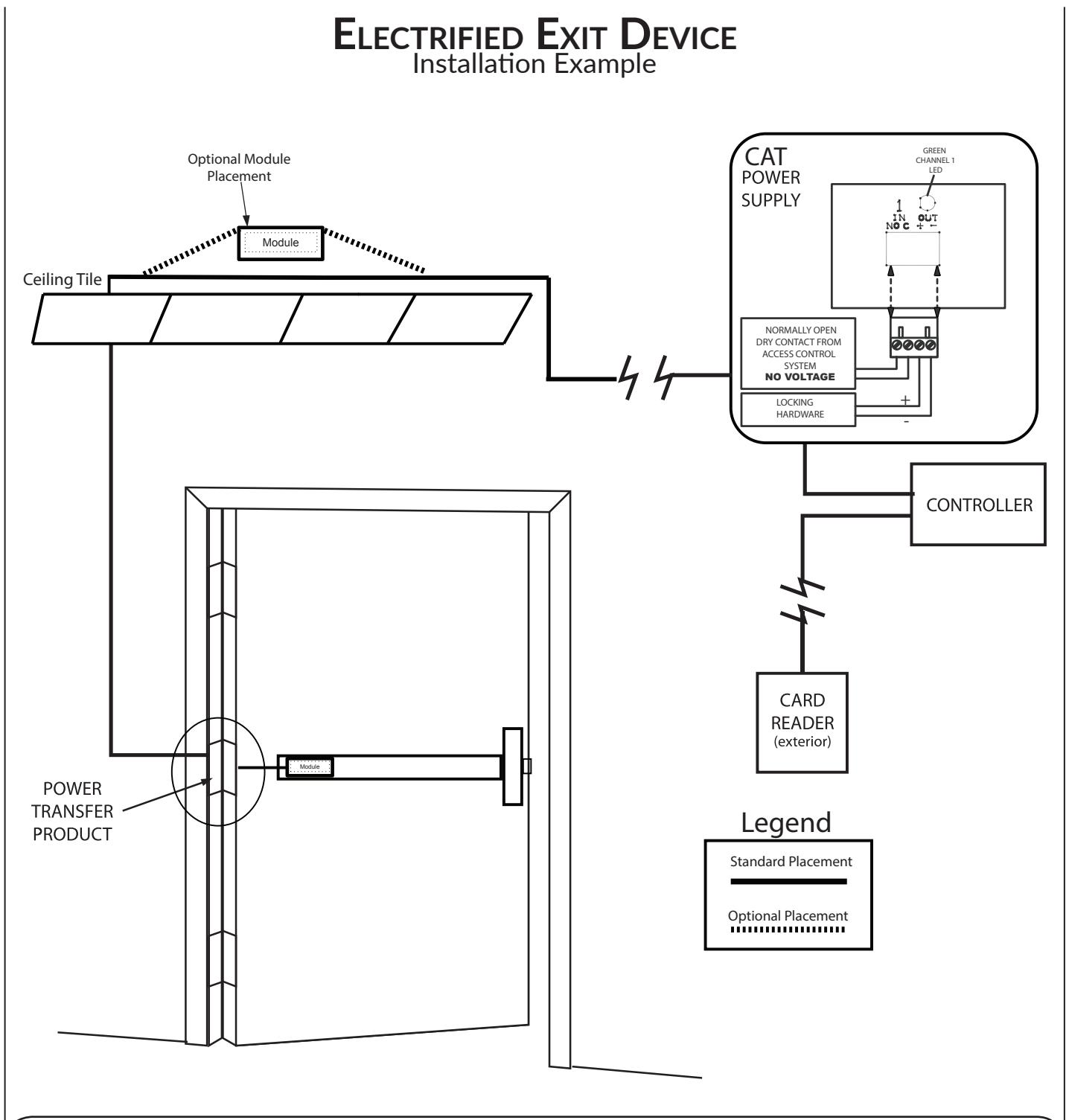

Electrified Exit Device

Installation Example

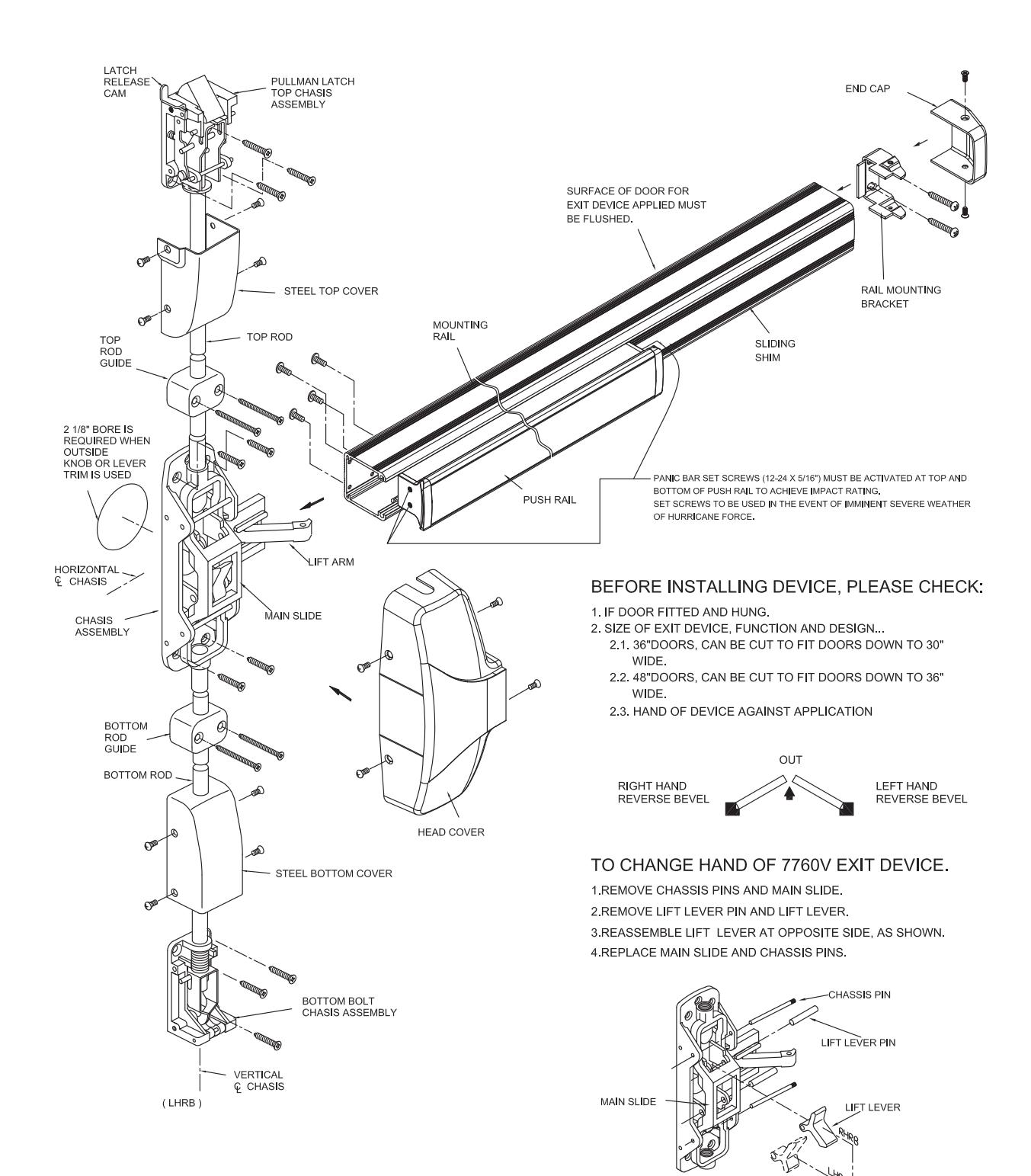

Electrified Exit Device Installation Example

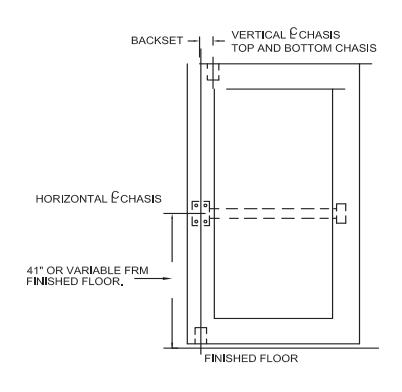

1. MARK VERTICAL AND HORIZONTAL REFERENCE LINE ON DOOR.

DETERMINE BACKSET TO LOCATE VERTICAL REFERENCE LINE. 1. IF LOCK STILE IS 4-1/2" WIDE OR WIDER, BACKSET IS 2-3/4".

2. IF LOCK STILE IS LESS THAN 4-1/2" WIDE, BACKSET IS HALF OF THE EXPOSED WIDTH OF LOCK STILE.

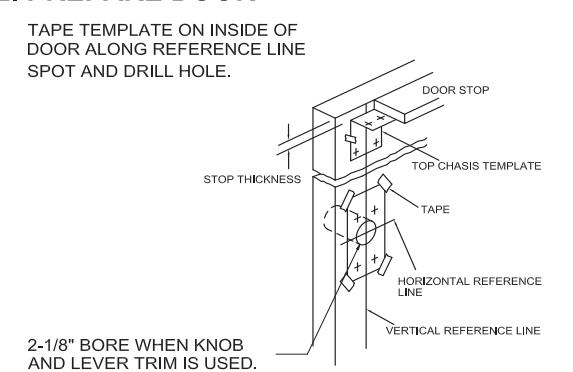

2. PREPARE DOOR

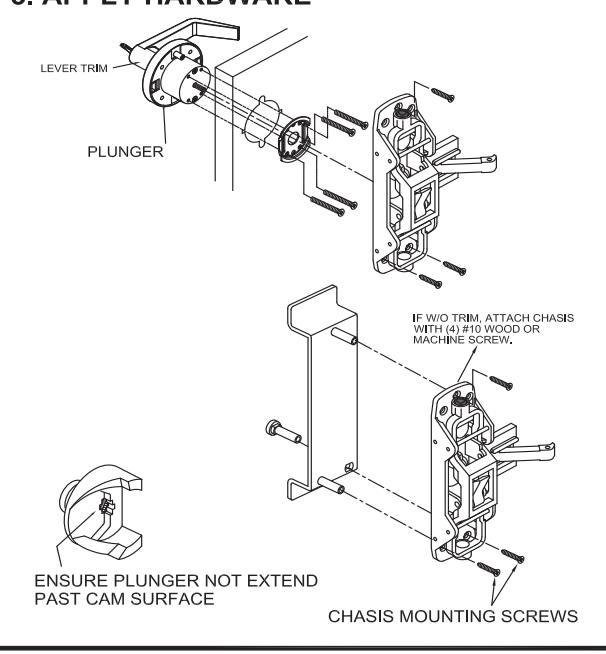

3. APPLY HARDWARE

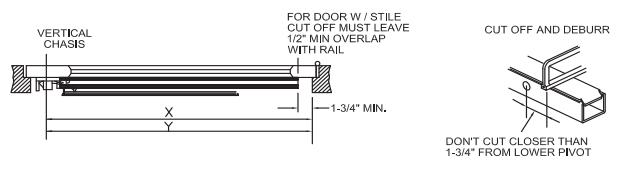

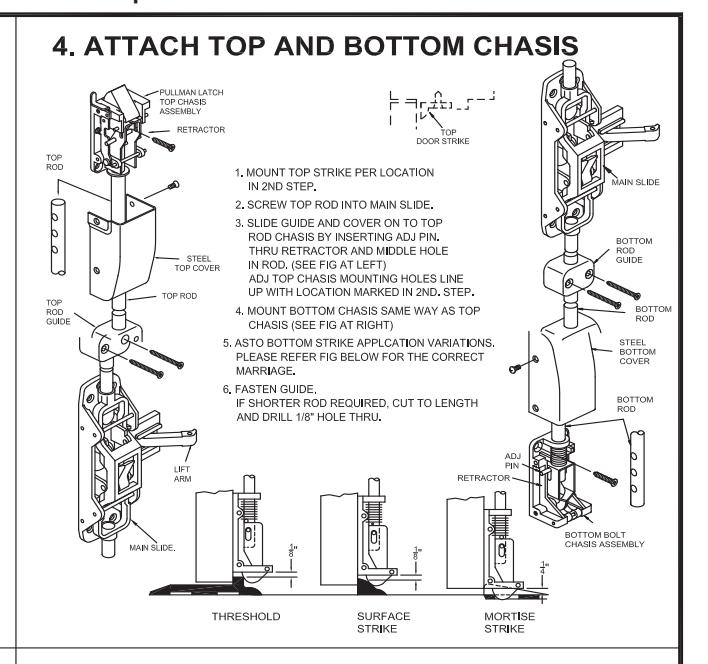

5. APPLY RAIL ASSEMBLE

  • 1. CHECK THE SIZE OF DEVICE, IF CUTTING TO LENGTH IS REQUIRED.
  • 2. DETERMINE CUT OFF LENGTH "X" BY SUBTRACTING 1-3/4" FROM "Y", MARK CUT OFF POINT ON MOUNTING RAIL.

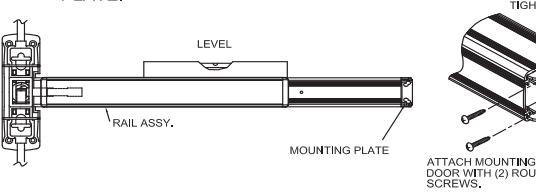

3. DEPRESS ARM INTO RAIL OPENING AND SLIDE RAIL ONTO CHASIS. LEVEL RAIL AND FASTEN CHASIS AND MOUNTING PLATE.

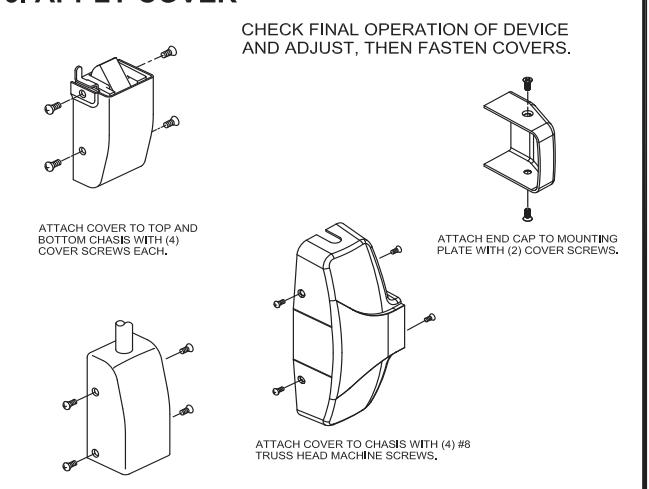

6. APPLY COVER

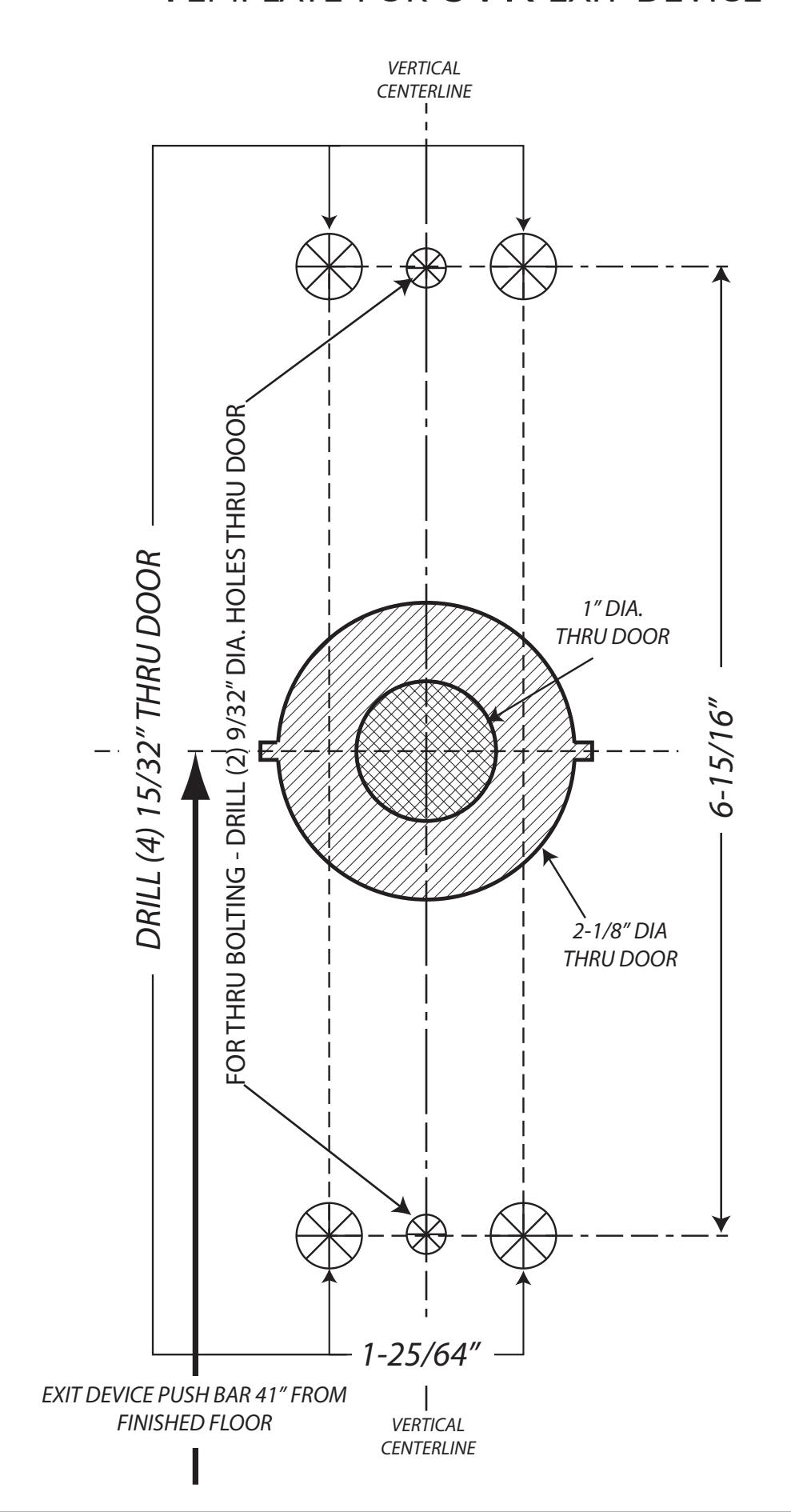

TEMPLATE FOR SVR EXIT DEVICE

TEMPLATE FOR RIM EXIT DEVICES

TEMPLATE FOR SVR LATCHES

FOR LOCATION ON THE DOOR PLEASE REFER TO PANIC BAR TEMPLATE

ANSI SCALE UNIT VERSION 1:1
#PRINTED TO SIZE inches inches

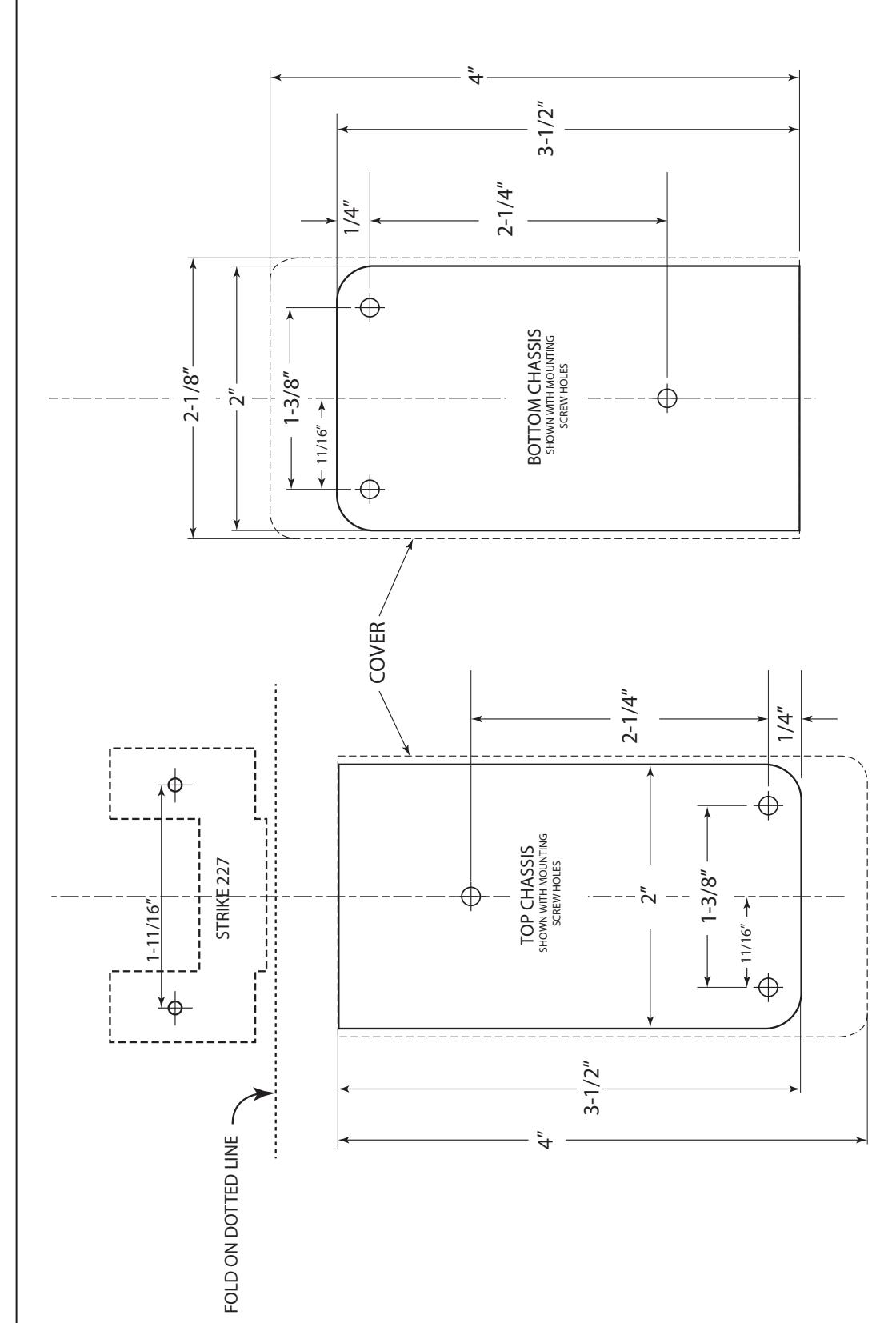

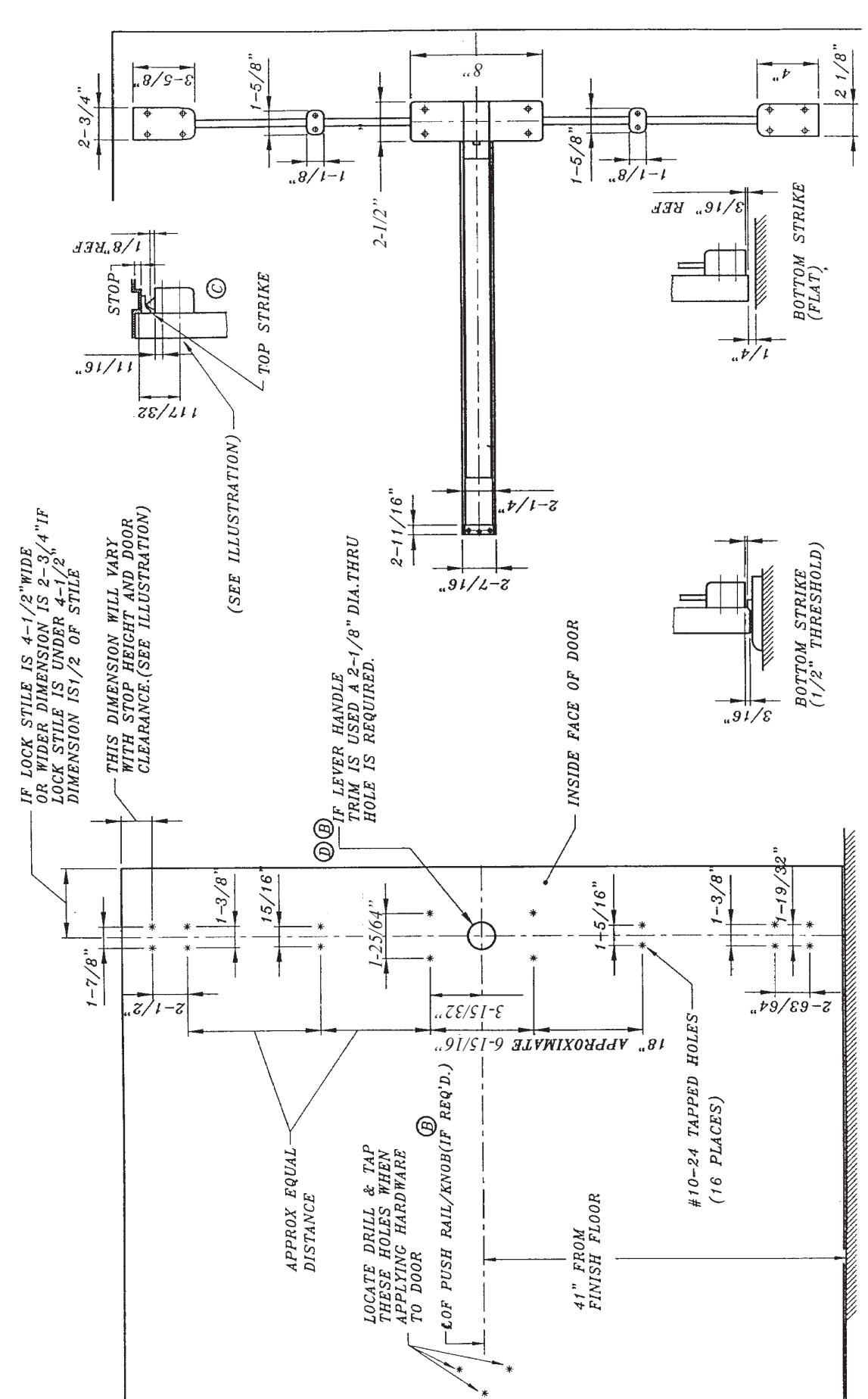

DESCRIPTION TEMPLATE FOR NON-FIRE RATED TOP AND BOTTOM CHASSIS ASSEMBLY
APPLICABLE FOR 2200, 7700 & 9800 SERIES
