PD15-M SERIES

• Retrofits the Jackson 1285/95 & Kawneer 1686/1786 series exit devices
• Motorized Latch Retraction w/ Easy adjustment
• •Long wire runs w/ 18ga -

No need for speciality power supply right above the door.

•3 YEAR NO HASSLE WARRANTY

ommand Access PD15-M series is a motorized latch pullback Grade 1 storefront exit ✓ device; made for use in all institutions and commercial buildings storefront applications. All PD15-M models are equipped with our PTS "push to set" technology. As a retrofit for the Jackson 1285/95 & Kawneer 1686/1786 series models are designed to utilize the existing mounting locations and mortise or rod & case assemblies without having to remove the door. Install this device with the confidence of knowing that the PD15-M series meets or exceeds the high standards of other grade 1 products and carries our 3-year "no hassle " warranty, meaning we will support you.

SPECIFICATIONS

ELECTRONICS

• System protection unit shutdown when voltage exceeds 28VDC
• Standard Average Current Peak: 1.3A, Average Current Hold: 170mA
• High Torque Average Current Peak: 2A, Average Current Hold: 250mA
• PTS adjustment approx. 1/4"
• 300' Run w/ 18ga

Accessories - Additional charges

• · Request to Exit (REX) Switch available factory installed
• Request to Exit Kit (PD15REXKIT-M-ED) Switch available for installation in the field

F EATURES:

• Our motorized latch retraction is fast, quiet, and smooth!
• MM4 Smart Module: On board diagnostics with audible feedback for adjustment and power issues
• "PTS": 5 second electronic adjustment for easy post installation adjustment
• Electric dogging rated for continuous duty Auto re-engage if pulled from the dogged position
• Low current draw: Compatible with most 24VDC, 1A (or greater) regulated & linear power supplies
• Up to 300' with 2-18ga --Long wire runs with provides installer with convenience of placing the locking device power supply in a centralized location; i.e. the same closet as the access panel
• 8' cable with Quick Connect for MM4 module to easily connect to power supply lead
• The slim, compact attractive low profile design enables mounting on narrow-style doors.
• Maintains factory dogging
• 3-year "no hassle" warranty Longer than the traditional 1 year warranty because our stuff works!

U.S. Customer Support 1-888-622-2377

Visit our website for more details www.CommandAccess.com

Canada Customer Support 1-855-823-3002

HARDWARE

HANDING

• Device is non-handed.

Pushbar Length

• Standard sizes: dimensioned for 36" and 48" openings. Standard width bars can be field cut to the next smallest opening width.

48" & 36" - Cutdown all the way to the pushpad

D OOR T HICKNESS

Suits 1-3/4" standard

PROJECTION

• 2-5/8" when fully projected, 1-5/8" when dogged.

STILE WIDTH

• Minimum 2" Stile. Fits narrow, medium, and wide stile aluminum doors.

D ogging

• Standard dogging with hex key or cylinder dogging option. Electric dogging also available.

F ASTENERS

Standard self-tapping screws

VERTICAL RODS

Top and bottom steel rods for easy adjustmentStandard device is adjustable for nominal door heights

How to Order-

Models Available - Sub PD16 for mechanical devices

PD15-M-RIM - Complete RIM device, Non-Handed, Motorized Latch Retraction, w/electric FAIL SECURE (EU) dogging. Specify Alum or Duro Finish. 24V ONLY

PD15-M-CVR - Complete CVR device, Non-Handed, Motorized Latch Retraction, w/electric FAIL SECURE (EU) dogging. Specify Alum or Duro Finish. 24V ONLY

- Available in 48" with an upcharge.

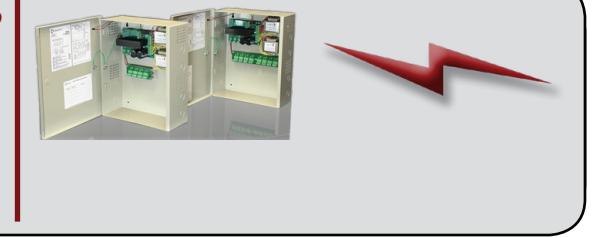

NEED A LOCKING HARDWARE POWER SUPPLY?

RECOMMENDED LOCKING HARDWARE POWER SUPPLIES:

PS220/220B

PS210 PS440B

PS204/PS204B

PS480B
