PRICE LIST

Institutional grade cabinet locks, padlocks and accessories

ABOUT OLYMPUS LOCK

Institutional grade cabinet locks.

EXPERIENCE

Olympus Lock has over 30 years of experience designing and manufacturing easily rekeyable pin tumbler, interchangeable core and engineered cabinet lock bodies for third party cylinders. We offer a wide selection of keyways and cabinet lock solutions for commercial and institutional facilities. Our design philosophy is to create locks that provide long-term benefits to the facility through increased efficiency and easy maintenance.

INNOVATION

We hold numerous U.S. and Canadian patents proving our commitment to provide innovative solutions for your cabinet lock needs. It has always been the intent of Olympus to provide cabinet locks that are easy to install, use and service. Each product is carefully designed, engineered and manufactured to exacting standards. We offer a wide range of accessories to make the installation, use, and service of our products as easy as possible.

SERVICE

Our delivery is the fastest in the industry. We have an extensive inventory of off-the-shelf masterkeyed locks and can ship most custom keyed orders within 1-5 business days.

SPECIFICATIONS

Olympus is an AIA certified education provider. We provide comprehensive pre-written architectural specifications for each of our locks. Specifications can be downloaded directly from our web site at www.olympus-lock.com or refer to pages 72 through 74 of our full-line Olympus Lock product catalog.

APPLICATIONS

Olympus cabinet locks are used in a variety of cabinet and casework applications including: K-12 public schools, colleges and universities, correctional facilities, medical offices, hospitals, casinos, retail cash drawers, lockers, kiosks, retail showcases, airline ticket counters, museums, hotels and motels, amusement parks, theaters, restaurants, country clubs, libraries, airports, police stations, fire stations and churches.

PIN TUMBLER SOLUTIONS

Olympus Lock specializes in pin-tumbler cabinet locks for the institutional and retail marketplace. When large numbers of locks will be installed within a facility, pin tumbler locks are preferred because they are more secure and allow the complex master keying and sub-master keying required in larger institutional settings such as schools, banks and hospitals. We provide a wide range of cabinet lock options for the cost conscious, yet security minded user. Beyond that, we can supply cabinet locks keyed to match your door hardware allowing for "one-key" simplification.

ELECTRONIC KEY RECORDS

We manage and save all our custom keying records for future reference. Need to add locks to an existing job? No problem. We've got all the records at our fingertips making it easy for you to order locks for various job phases. We manage the records so you don't have to.

CONTACT

Visit our website at olympuslock.com , call us toll-free at 800-525-0954 or email us at info@olympus-lock.com for more information. Subscribe online to our eNews list and receive new product announcements, technical bulletins.

REFERENCE		STANDARD CYLINDER LOCKS		BEST KEYWAY
About Olympus Lock	2	S SERIES (SCHLAGE C KE	YWAY)	3/4" UTILITY CAM LOCK
Replacement Guide		General Keying Information		General Keying Information
landing/Key-Retaining Chart		7005		B72
Finish Chart		800S		TRB7 Spacer Collars
Custom Plating Charges		8205	,	7707 Spacer Condis23, 3
low to Order		829R		CYLINDERS
General Keying Information		850S		SFIC & SCHLAGE c KEYWAY
deficial keying information	0	L78
TERMS, CONDITIONS, WARRAN	TY			General Keying Information
r ter ter	40	LC SERIES (LESS CYLINDE	•	206/207 Series SFIC
Conditions of Sales		700LC		78-201 Series Schlage C
Cancellation Policy		800LC	(Grade 1) 21	Plastic Thumbturns for IC Locks3

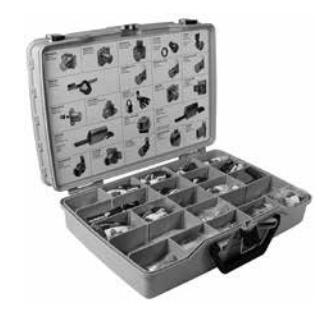

Delivery		820LC		SAMPLE & SERVICE KITS
Freight Policy		829R-LC	(Grade 1) 22	SAME LE & SERVICE RITS
/linimum Order Amount		850LC	22	SK SERIES
Returned Goods Policy		L78LC	22	SK-0024
imited Warranty		LC SERIES (LESS CYLINDE	R/SARGENT\	SK-003 4
California Proposition 65 Statement	48	754LC	·	SK-0044
RIM CYLINDER CONVERSION K	IT	854LC		SK-0054
MINI CILLINDEN CONVERSION K		0J4LC	25	SK-0064
SLT SERIES		INTERCHANGEABLE (	CORE LOCKS	CABINET HARDWARE
SLT-O1 (NEW)		SMALL FORMAT (BEST CO	OMPATIBLE)
SLT-02 (NEW)	7	General Keying Information	•	WIRE PULL / ELBOW CATCH / SLIDE BOLT
PADLOCKABLE CAM LOCK		206/207 SFIC Cylinders		EC Series Elbow Catch (NEW)4
ADLUCKABLE CAIVI LUCK		720		SB Series Slide Bolt (NEW)4

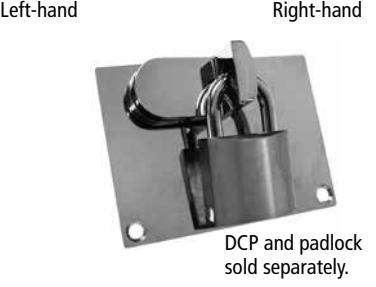

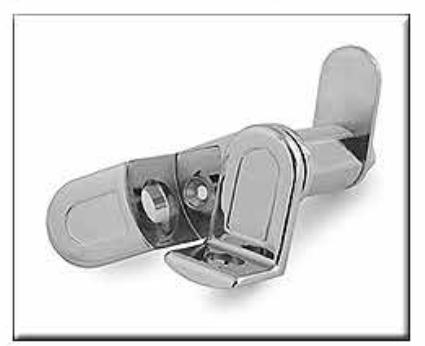

CAM LOCK/HASP		720B-DM		102 Series Wire Pull4
OCP	8	721		INCTALLATION TOOLS
DCP500	8	722		INSTALLATION TOOLS
		723		DRILL JIG / PUNCH
SMALL PIN LOCKS		724VR		CL-HIT-25 Cabinet Lock Drill Guide 4
N SERIES (NATIONAL KEYWAY)		725MD		CL-MP-118 Double-D Metal Punch4
General Keying Information	6

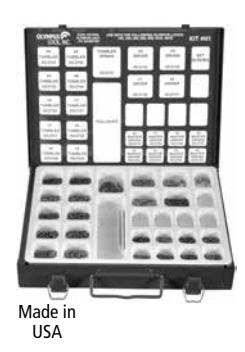

100DR / 100B(Grade		725ML 725RD		PARTS & ACCESSORIES
200DW / 200B(Grade				PIN KITS / PIN ACCESSORIES
100M(Grade		725RL		N1 4
200M (Grade		725RSL		R1
300SD(Grade	-	728MBL
		729R		Replacement Pins4
329R		950IC		KEYS & KEYING CHARGES
998		L72V	34	Cut Keys 4

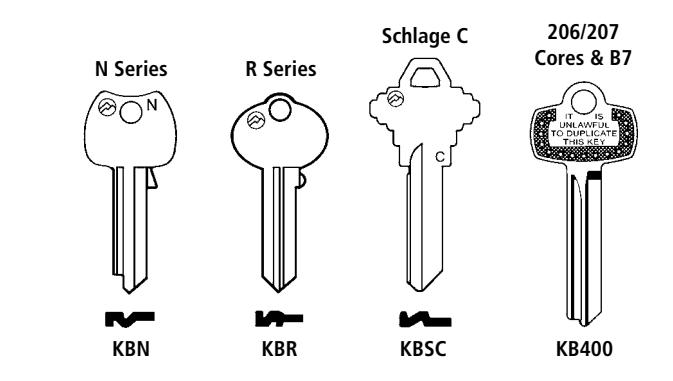

999		CORBIN/RUSSWIN		Keyblanks4
OCN1,2,3,4(Grade		CR1125RD	26	Grand Master Keying Charges4
-C10/FC26-AR	13	CR1125RL		Custom Stamping Charges4
20V	12	CR25		OTHER PARTS & ACCESSORIES
N078	14		20
⁷ 37	12	MEDECO/YALE		Additional Cabinet Lock Parts4

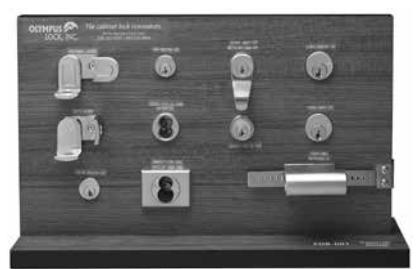

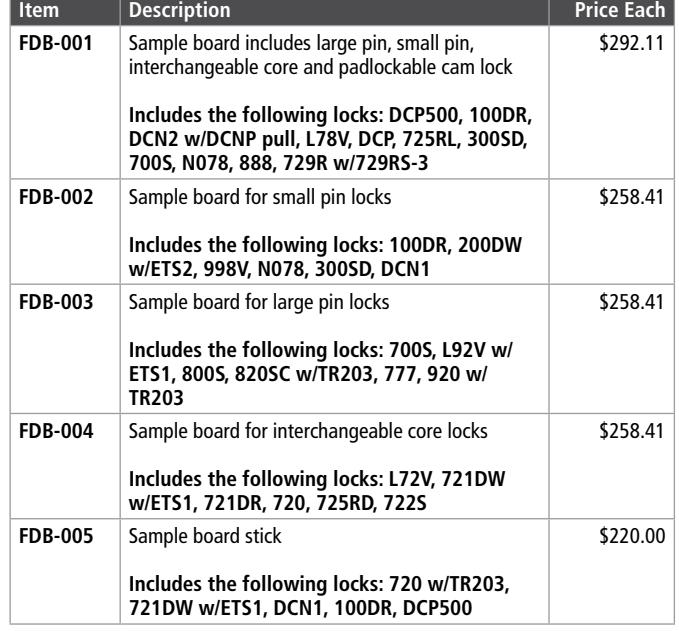

54C	12	931DR		FDB Display Boards4
SERIES (CCL KEYWAY)		931DW		Interior Plastic Spacers
General Keying Information	6	ME93 (For Medeco IC)		Plastic Thumbturns for IC Locks

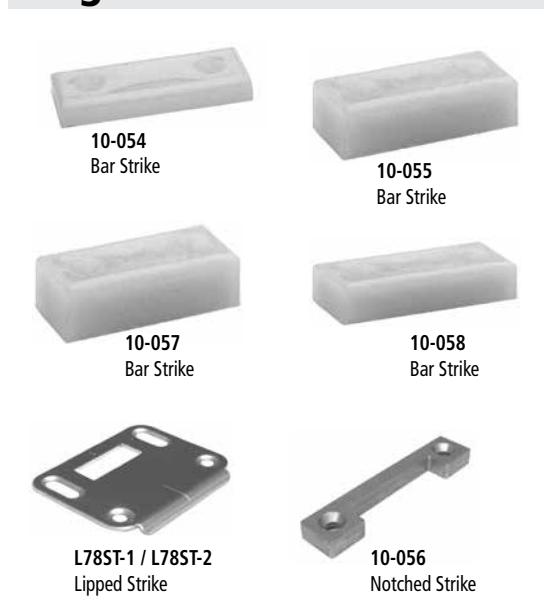

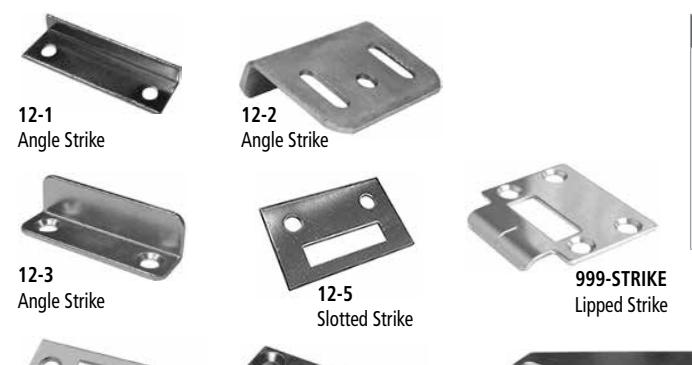

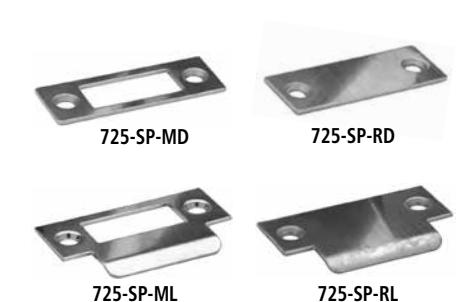

600DR / 500B(Grade		YA93 (For Yale IC)	28	Strikes 3
:00DW / 600B(Grade	,	SARGENT		Spacer Collars (for cam locks)3
		SA54	28	Through-Bolt Plates & Pulls3
00M(Grade	•		20	Trim Rings3
600M(Grade	-	SCHLAGE FULL SIZE	,_ ,	DADLOCKS

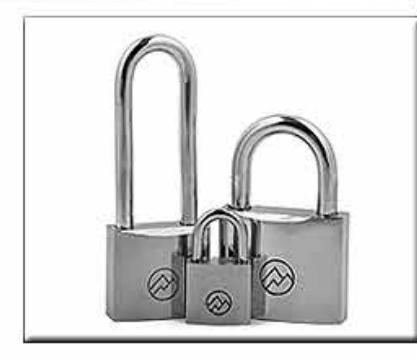

100SD		777	` '	PADLOCKS

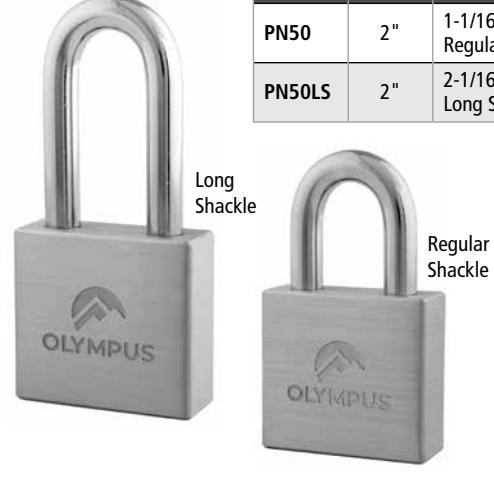

129R		888		N Series National Keyway Padlocks (NEW) 4

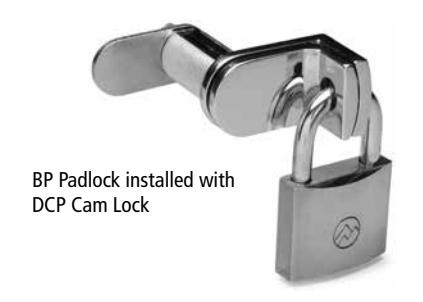

96		920	(Grade 1) 24	Mountain Series (BP Blister Packed)4
997		929R	(Grade 1) 25	Corbin/Russwin IC Core4
CD1 2 2 4 /C I-	1\ 17	1001/	25	COIDIII/1(033WIII IC COIC4
DCR1,2,3,4(Grade	1) 17	L92V	25

REPLACEMENT GUIDE

Information given is for dimensional and keyway replacement only. Olympus Lock cabinet locks differ from other manufacturer's locks because they are covered by at least two patents and are easily rekeyable in five minutes or less with readily available tools.

Corbin/CCL Security Products		Olympu	s Lock R Series	5
15748 15749 15750 15783	Cam Lock	5/8" 13/16" 1" 1"	DCR1	Cam Lock	1-1/16"
15890	Cam Lock	1-5/16"	DCR3	Cam Lock	1-7/16"
0666 1/2	Drawer Latch	7/8"	996	Drawer Latch	7/8"
0666 1/2	Drawer Latch	1-1/8"	996	Drawer Latch	1-3/8"
Not Availa	Not Available		997	Door Latch	7/8"
Not Availa	ble		997	Door Latch	1-3/8"
0737	Door Lock	3/4" 7/8"	500DR	Door Lock	7/8"
0737	Door Lock	1-1/8" 1-3/8"	500DR	Door Lock	1-3/8"
0738	Drawer Lock	3/4" 7/8"	600DW	Drawer Lock	7/8"
0738	Drawer Lock	1-1/8" 1-3/8"	600DW	Drawer Lock	1-3/8"
02063	Drawer Lock	7/8"	R078	Drawer Lock	1-1/8"
02291	Sliding Door	7/8"	400SD	Sliding Door	1"
Not Availa	Not Available			Ratchet Lock	1/4"

IR / Schlage Lock			Olympus	Lock* 700/80	0 Series
CL1000LBC	Door Lock	1-1/8"	700SC	Door Lock	1-1/8"
CL1000LBD	Door Lock	1-3/8"	700SC	Door Lock	1-3/8"
CL2000LBC	Drawer Lock	1-1/8"	800SC	Drawer Lock	1-1/8"
CL2000LBD	Drawer Lock	1-3/8"	800SC	Drawer Lock	1-3/8"

^* Olympus Lock offers Schlage C keyway only or less cylinder.

File Cabine	File Cabinet Locks		Lock* FC10 Series
HON F24/ F28	HON Original (disc tumbler)	FC10	File Cabinet Lock
SRS2185	SRS Replacement Lock (disc tumbler)	FC10	File Cabinet Lock
HON F26	HON Original (disc tumbler)	FC10 + FC26-AR	File Cabinet Lock + Adapter Ring
SRS2190	SRS Replacement Lock (disc tumbler)	FC10 + FC26-AR	File Cabinet Lock + Adapter Ring
*Olympus equivalent locks are on National D4291/D4292 pin tumbler keyway.

Sargent		Olympu	Olympus Lock* 754/854 Series
1654	Door Lock	754LC	Door Lock - less cylinder
1655	Door Lock	754LC	Door Lock - less cylinder
Not Available		854LC	Drawer Lock - less cylinder
*Locks are less cylinder for use with Sargent original cylinders.

CompX/National Cabinet Lock		Olympus I	ock N Series
C8102	Cam Lock	1-1/16"	DCN1	Cam Lock	1-1/16"
C8103	Cam Lock	1-3/16"	DCN2	Cam Lock	1-3/16"
C8106	Cam Lock	1-7/16"	DCN3	Cam Lock	1-7/16"
C8108 C8109	Cam Lock	1-3/4"	DCN4	Cam Lock	1-3/4"
C8173	Door Lock	7/8"	100DR	Door Lock	7/8"
C8174 C8175	Door Lock	1-1/8" 1-3/8"	100DR	Door Lock	1-3/8"
C8178	Drawer Lock	7/8"	200DW	Drawer Lock	7/8"
C8177 C8179	Drawer Lock	1-1/8" 1-3/8"	200DW	Drawer Lock	1-3/8"
Not Availa	Not Available		200DW	Drawer Lock	1-5/8"
C8142	Sliding Door	1-1/8"	300SD	Sliding Door	1-1/8"
C8163	Drawer Lock	7/8"	N078	Drawer	1-1/8"
Not Availa	ble		N078	Drawer	1-3/8"
Not Availa	ble		N078L/R	Door	1-1/8"
Not Availa	ble		N078L/R	Door	1-3/8"
C8131	Drawer Latch	7/8"	998/L20V	Drawer Latch	7/8"
Not Availa	ble		998/L20V	Drawer Latch	1-3/8"
C8139	Door Latch	3/4"	999	Door Latch	7/8"
Not Availa	ble		999	Door Latch	1-3/8"
Not Availa	ble		FC10	File Cabinet	n/a
C8137	T-Bolt Drawer	1/4"	T37	T-Bolt Drawer	1/4"
C8140	Ratchet Lock	1/4"	329R	Rachet Lock	1/4"

Best Access	Olympus Lock
3L	721 Series	Door/Drawer Lock	Deadbolt
5E	B7 Series	Non-IC cam lock	Cam Lock
5L7RD	725RD Series	Door/Drawer Lock	Deadbolt
5L7RL	725RL Series	Door/Drawer Lock	Spring Latch
5L7MD	725MD Series	Door/Drawer Lock	Deadbolt
5L7ML	725ML Series	Door/Drawer Lock	Spring Latch
8L	728MBL	Mailbox Lock	Spring Latch
1E7E4	720 / 720B	Door/Drawer	Cam Lock
1E7D4	720B-DM	Direct Drive	Cam Lock
2P73	724VR	File Cabinet Lock	Round Bolt
2S 2S-TBM	722S 722S-TBM	Plunger Lock	Sliding Door
3S	729R	Ratchet Lock	Sliding Door
45	7235	Through-glass	Sliding Door
Not Available	L72V	Drawer Lock	Spring Latch
Not Available	950IC	Drawer Lock	Deadlocking

HANDING

LH RH Left-hand (LH) Hinged on left Right-hand (RH) Hinged on right CABINET DOORS VH IH Inverted-hand (IH) Vertical-hand (VH) DRAWERS

STANDARD FUNCTION

Key removable in the locked or unlocked position. Locks ship with standard function unless key retaining is specified at time of order.

KEY RETAINING

The key cannot be removed from the lock while in the "unlocked" position. Key-retaining function is generally used in instances where cabinets or drawers should not be left unlocked.

HANDING

Handed locks must be ordered either LH, RH, VH or IH (see figure at left).

Non-handed locks can be ordered as either door or drawer. Door locks will work in both LH or RH applications and drawer locks will work for both vertical or inverted function.

FINISHES

FINISH CODES

Bolt locks up

Not all finishes are available on all products. See catalog or price page for the standard finishes available on a specific item.

Bolt locks down

US Code	BHMA	Description
US10B (10B)	613	Oil rubbed bronze
US19	622	Flat black coated
US26	625	Bright chrome
US26D (26D)	626	Dull chrome

US Code	BHMA	Description
US3	605	Bright brass
US4	606	Satin brass
US32	629	Polished stainless steel
US32D	630	Satin stainless steel

CUSTOM PLATING CHARGES

For custom finishes see the Special Finish/Custom Plated List Prices chart to determine the custom plated price. Call Olympus Lock for lead time and availability.

Special Finish / Custom Plated List Prices	List Price Add On
Custom or special finishes: To calculate the "Price Each" for custom plated locks, add the amount in the List Price Add On charge column to the "custom, non-stock, or custom keyed" list price of the product.
Minimum order: Custom plating orders require a 100 piece minimum order.
Lead time: 8 - 10 weeks
Item Nos: 100, 200, 300, 329R, 400, 429R, 500, 600, 999, 998, 997, 996	Add $51.00
Item Nos: 700, 800, 820, 829R, 754, 854, 850, 950, L20V, L78, L72V, L92V, B7, DCN, DCR, FC10, N078, R078, T37, DCP, DCP500	Add $41.00
Item Nos: 720, 721, 723, 724, 725, 728, 729, 777, 820, 829, 888, 920, 929, 931, CR1125, CR25, ME93, SA54, YA93	Add $36.00

HOW TO ORDER

ORDERING LOCKS

Olympus needs certain information about the locks you are ordering to correctly fill your order. For most of our locks you will need to indicate:

barrel / cylinder length
finish / color
keying information KA, KD or MK

STOCK KEYED LOCKS

N Series National keyway (4-pin): KD, KA# 101, 103, 107, 915

100/200/DCN Series: Additional (4-pin) KA# 51001, 51002, 51003, 51004
T37 Series : Additional (4-pin) 51001 to 51011 and 001 to 030

R Series CCL R1 keyway (5-pin): KD, KA# 4T2, 4T3

S Series Schlage C keyway (5-pin): KD, 0-BIT, KA# 101, 102

CUSTOM KEYING SERVICES

Olympus Lock offers custom keying services for your special cabinet lock keying needs. We inventory a huge supply of master keyed locks on our most popular keyways so that we can quickly fulfill your custom keyed order. We pride ourselves on being able to ship your master keyed order faster than anyone else in the industry. If you have other special keying needs such as grand master keying or non-stock master keyed systems we will be glad to accommodate you.

HOW TO ORDER MASTER/CUSTOM KEYED LOCKS

Master keyed or custom keyed locks require detailed information as to the nature of the keying. The more information the better.

All master keyed orders ship standard with 2 change keys per lock and 2 master keys per project (except for IC cores). Additional change keys or master keys can be ordered separately. (See pricing on page 37)

Large keyed alike, master keyed or grand master keyed jobs which include 10 or more KA/MK groups must have a key schedule submitted in written form and reference a "project name" and "project location." It is critical we have "project name" and "project location" information so that we can create a record of your project for future reference in case you need to order replacement locks or keys and add additional groups to your project.

Indicate on your custom keyed lock order if the locks are for a "new" or "existing" project. For existing projects you will need to reference your initial "project name and location" information. We will refer to your project record and original lock schedule(s) so that we can correctly key your order.

For more detailed information about custom keying, master keying and grand master keying, see Keying Information on page 6.

KEYING INFORMATION

GRAND MASTER OR GREAT GRAND MASTER KEYING

Before we can create a 3 level grand master key system or 4 level (or higher) great grand master key system, we need to have a realistic idea of the complete number of masters, sub masters and key codes that the system will require and whether there will be future expansion. Without this information at the beginning of the process, the options for future expansion may be limited.

SPECIAL STAMPING

See below for standard lock face and key stamping. Custom lock face and key stamping/engraving is available for an additional charge. See page 37 for pricing.

N Series National keyway

STOCK KEYING

4-pin standard : KD and KA# 101, 103, 107, 915
100/200/DCN: Additional (4-pin) KA# 51001, 51002, 51003, 51004
T37: Additional (4-pin) KA# 51001 through 51011 and 001 through 030

STOCK MASTER KEYING

5-pin standard: Orders ship with 2 master keys per project and 2 change keys per lock. Includes 4-digit numeric key code stamped on the change keys and face of lock. Provide key schedule at time of order.

NON-STOCK MASTER KEYING

4-pin: Orders ship standard with 2 master keys per project and 2 change keys per lock. Includes 3-digit numeric key code stamped on the change keys and face of lock. Provide key schedule at time of order. 5-pin: Orders ship standard with 2 master keys per project and 2 change keys per lock. Includes 4-digit numeric key code stamped on the change keys and face of lock. Provide key schedule at time of order.

GRAND MASTER OR MULTIPLE MASTER KEY SYSTEM

5-pin: Orders ship standard with 2 grand master keys per project and 2 change keys per lock. Includes 4-digit numeric key code stamped on the change keys and face of lock. Provide key schedule and full scope of project at time of order and indicate required number of sub master keys for each group. Sub master keys are charged separately.

S Series Schlage C Keyway

STOCK KEYING

5-pin standard : KD and KA# 101, 102

STOCK MASTER KEYING

5-pin standard: Orders ship standard with 2 master keys per project and 2 change keys per lock. Includes numeric key code stamped on the change keys. Lock face stamping available separately. Provide key schedule at time of order.

NON-STOCK MASTER KEYING

5-pin: Locks ship standard with 2 master keys per project and 2 change keys per lock. Includes numeric key code stamped on the change keys. Lock face stamping available separately. Provide key schedule at time of order. 6-pin: Locks ship standard with 2 master keys per project and 2 change keys per lock. Includes numeric key code stamped on the change keys. Lock face stamping available separately. Provide key schedule at time of order.

GRAND MASTER OR MULTIPLE MASTER KEY SYSTEM

5-pin: Orders ship standard with 2 grand master keys per project and 2 change keys per lock. Includes numeric key code stamped on the change keys. Lock face stamping available separately. Provide key schedule and full scope of project at time of order and indicate required number of sub master keys for each group. Sub master keys are charged separately.

6-pin: Orders ship standard with 2 grand master keys per project and 2 change keys per lock. Includes numeric key code stamped on the change keys. Lock face stamping available separately. Provide key schedule and full scope of project at time of order and indicate required number of sub master keys for each group. Sub master keys are charged separately.

R Series CCL R1 Keyway

STOCK KEYING

5-pin standard : KD and KA# 4T2, 4T3

STOCK MASTER KEYING

5-pin standard: Orders ship standard with 2 master keys per project and 2 change keys per lock. Includes 3-digit numeric key code stamped on the change keys and face of lock. Provide key schedule at time of order.

NON-STOCK MASTER KEYING

5-pin: Orders ship standard with 2 master keys per project and 2 change keys per lock. Includes 3-digit numeric key code stamped on the change keys and face of lock. Provide key schedule at time of order.

* 6-pin: Orders ship standard with 2 master keys per project and 2 change keys per lock. Includes numeric key code stamped on the change keys and face of lock. Provide key schedule at time of order.

GRAND MASTER OR MULTIPLE MASTER KEY SYSTEM

5-pin: Orders ship standard with 2 grand master keys per project and 2 change keys per lock. Includes numeric key code stamped on the change keys and face of lock. Provide key schedule and full scope of project at time of order and indicate required number of sub master keys for each group. Sub master keys are charged separately.

* 6-pin: Orders ship standard with 2 grand master keys per project and 2 change keys per lock. Includes numeric key code stamped on the change keys and face of lock. Provide key schedule and full scope of project at time of order and indicate required number of sub master keys for each group. Sub master keys are charged separately.

* 6-pin keying: Available on 500, 600, 996, and 997 series locks only.

SFIC Small Format IC

STOCK KEYING

N/A : All cores are custom keyed. Specify keyway and type of keying at time of order.

CUSTOM / MASTER KEYING

6-pin or 7-pin: Orders ship standard with 2 change keys per core. Includes numeric key code stamped on the change keys. 2 additional cut keys (master keys and/or control keys—specify at time of order) are included with each project. Provide key schedule at time of order. Additional keys may be purchased separately.

GRAND MASTER OR MULTIPLE MASTER KEY SYSTEM

6-pin or 7-pin: Orders ship standard with 2 change keys per core. Includes numeric key code stamped on the change keys. 2 additional cut keys (master keys and/or control keys—specify at time of order) are included with each project. Provide key schedule and full scope of project at time of order and indicate required number of sub master keys for each group. Sub master keys are charged separately.

SLT SERIES Rim Cylinder Conversion Kit

Conversion Kit: allows you to convert a SALTO US rim cylinder into a latch or deadbolt cabinet lock. Also compatible with most major US rim cylinders.

Standard Function: will work for cabinet doors or drawers.

Accepts: SALTO G9B1 GEO US rim cylinder and other

third party US rim cylinders. Rim Cylinder: not included

STL-01 Includes 10-350 plastic spacer, L78ST-1-SS stainless steel lip strike, SLT-TR 21/64" trim bezel SLT-02 Includes: 10-350 plastic spacer, 10-054 1/4" plastic bar strike, SLT-TR 21/64" trim bezel

SLT-O1 Door or Drawer Latch Lock

Standard function: Non-handed. Can be used for doors or drawers. Packed 10 per box.

	4
1	1
	0.	7	Н
1		0

Item	Finish	Cyl. Length	Barrel Diameter	Description	Weight	Price Each
SLT-01	26D	Determined by provided rim cylinder screws and tailpiece	1-9/64"	Cabinet Lock Conversion Kit for SALTO Electronic Rim Cylinder and other third party US rim cylinders	4.87 lbs/box	$78.00

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SLT-O2 Door or Drawer Deadbolt Lock

Standard function: Non-handed. Can be used for doors or drawers. Packed 10 per box.

Item	Finish	Cyl. Length	Barrel Diameter	Description	Weight	Price Each
SLT-02	26D	Determined by provided rim cylinder screws and tailpiece	1-9/64"	Cabinet Lock Conversion Kit for SALTO Electronic Rim Cylinder and other third party US rim cylinders	4.87 lbs/box	$78.00

DCP SERIES Padlockable Cam Lock

Function: Uses padlock as locking device. Compatibility: Accepts most standard padlocks with a shackle diameter of 3/8" (10 mm) or less.

Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Padlocks: See padlocks on page 45-46 of this price list.

DCP Padlockable Cam Lock

Standard: DCP ships standard with DCP-LC cam and spur washer. Packed 10 per box.

Item	Finish	Fits Material	Description	Weight	Price Each
DCP	US26D, US26, US3, US19	1-7/32"	Accepts most standard padlocks	3.9 lbs/box	$11.78
DCNP-500-ARP Anti-rotation plate (available separately)
See chart below for additional cams.

DCP500 Padlockable Cam Lock (with finger pull)

Standard: DCP500 ships standard with DCP-LC cam and spur washer. Packed 10 per box.

Item	Finish	Description	Weight	Price Each
DCP500	US26, US26D 1-7/32"	Accepts most standard padlocks	4.1 lbs/box	$13.07
DCNP-500-ARP	Anti-rotation plate (available separately)
	See chart below for additional cams.

Cam	Cam Type	Description	Price Each
DCP-SC	Straight	7/8" short straight cam	$1.32
DCP-LC	Straight	1-1/4" long straight cam	$1.66
DCP-LC-112	Straight	1-1/2" long straight cam	$1.66
DCP-LC-134	Straight	1-3/4" long straight cam	$1.66
DCP-LC-225	Straight	2-1/4" long straight cam	$1.76
DCP-LC-250	Straight	2-1/2" long straight cam	$1.76

STRAIGHT CAMS FOR DCP OR DCP500 OFFSET CAMS FOR DCP OR DCP500

Cam	Cam Type	Description	Price Each
DCP-1-14	Offset	1" long cam with 1/4" offset	$1.66
DCP-LBC	Offset	1-1/4" long cam with 1/4" offset	$1.66
DCP-118-18	Offset	1-1/8" long cam with 1/8" offset	$1.66
DCP-LBC-138	Offset	1-3/8" long cam with 3/8" offset	$1.76
DCP-LBC-178	Offset	1-7/8" long cam with 1/2" offset	$1.76
DCP-112-14	Offset	1-1/2" long cam with 1/4" offset	$1.76
DCP-114-18	Offset	1-1/4" long cam with 1/8" offset	$1.76
DCP-114-38	Offset	1-1/4" long cam with 3/8" offset	$1.76

DCP-SP1 Padlock Bumper Plate

Function: Protects face of cabinet from padlock. Packed each.

Item	Finish	Approx. Size	Description	Price Each
DCP-SP1	US32, US26D	2" x 4"	Padlock bumper plate	$14.44
DCP-SP2	US32, US26D	2" x 4"	Padlock bumper plate	$14.44

Keyway: National D4291(4-pin) or D4292 (5-pin) keyway

Stock KD/KA: 4 pin standard Stock KA#: 101, 103, 107, 915 Stock KA#: 51001 through 51011 (not

available on all items)

Stock master keyed: 5 pin standard

Pin Kit: Use N1 Pin Kit for rekeying

Keyblanks: 4-pin use KBN-4-NP (equivalent to NA14, 1069L), 5-pin use KBN-5-NP (equivalent to NA12, 1069LA). See page 43 for cut keys and keyblanks. Finishes: For finishes not listed, see charges under

"custom plating" in this price list or consult

factory.

Accessories: Additional accessories available for these products. See accessories section or consult factory.

Custom stamping: See page 43. Keying information: See page 6.

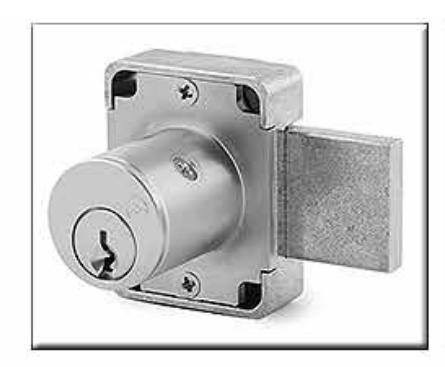

100DR Door Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07121 Woodwork Institute (WI) acknowledged product

US19 flat black finish now available

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. See handing chart on page 5 for proper handing of locks (left or right). Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
100DR 100DR	26D, US4 26D, US4	7/8" 7/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$32.14 $35.41
100DR 100DR	26D, US4 26D, US4	1-3/8" 1-3/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	5.5 lbs/box 5.5 lbs/box	$32.14 $35.41
100DR 100DR	10B, US19 10B, US19	7/8" 7/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$52.15 $55.37
100DR 100DR	10B 10B	1-3/8" 1-3/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	5.5 lbs/box 5.5 lbs/box	$52.15 $55.37
				Key-retaining: Specify item 100KL for left-hand doors and 100KR for right-hand doors. (KL and KR desig nation are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
				Grand master (3-level system), or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00
	Weather resistant: Includes weather resistant components. Suitable for outdoor use in covered areas only. Specify 100B series. Include finish, barrel length and keying.					$7.00
	Long bolt: For long bolt #15-1-35 factory installed in lock (specify -LB option). Bolts available separately for $9.45 list price each. Extends bolt length to 1-1/2".	Add on price	$15.00

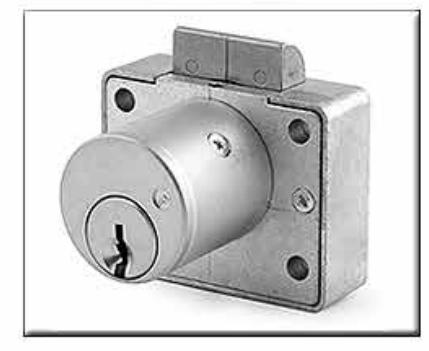

200DW Drawer Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07041 Woodwork Institute (WI) acknowledged product

US19 flat black finish now available

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. See the handing chart on page 5 for proper handing of locks (vertical or inverted). Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
200DW	26D, US4	7/8"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	4.8 lbs/box	$32.14
200DW	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	4.8 lbs/box	$35.41
200DW	26D, US4	1-3/8"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	5.5 lbs/box	$32.14
200DW	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.5 lbs/box	$35.41
200DW	26D	1-5/8"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	5.8 lbs/box	$34.46
200DW	26D	1-5/8"	5 pin	Stock master keyed or non stock KD, KA	5.8 lbs/box	$37.67
200DW	10B, US19	7/8"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	4.8 lbs/box	$52.15
200DW	10B, US19	7/8"	5 pin	Stock master keyed or non stock KD, KA	4.8 lbs/box	$55.37
200DW	10B, US19	1-3/8"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	5.5 lbs/box	$52.15
200DW	10B, US19	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.5 lbs/box	$55.37
200DW	10B	1-5/8"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	5.8 lbs/box	$55.16
200DW	10B	1-5/8"	5 pin	Stock master keyed or non stock KD, KA	5.8 lbs/box	$58.41
				Key-retaining: Specify item 200KI for inverted drawers and 200KV for vertical drawers. (KI and KV desig nations are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
	Grand master (3-level system), or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.					$6.00
	Weather resistant: Includes weather resistant components. Suitable for outdoor use in covered areas only. Specify 200B series. Include finish, barrel length and keying.					$7.00
	Long bolt: For long bolt #15-1-35 factory installed in lock (specify -LB option). Bolts available separately for $9.45 list price each. Extends bolt length to 1-1/2".	Add on price	$15.00

100M Door Deadbolt Lock (MRI Series)

ANSI/BHMA A156.11 Grade 1, E07121 Woodwork Institute (WI) acknowledged product

100M MRI Series: Include all non-ferrous (non-magnetic) metals and materials and are suitable for use in medical applications including Magnetic Resonance Imaging (MRI) suites due to their non-magnetic properties. Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. See handing chart on page 5 for proper handing of locks (left or right). Keys: Includes copper plated non-magnetic keys (KBN-5B). Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
100M 100M	26D 26D	7/8" 7/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$41.50 $44.75
100M 100M	26D 26D	1-3/8" 1-3/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	5.5 lbs/box 5.5 lbs/box	$41.50 $44.75
	Key-retaining: Specify item 100MKL for left-hand doors and 100MKR for right-hand doors. (MKL and MKR designation are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
	Grand master (3-level system), or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00
Long bolt: For long bolt #15-1-35 factory installed in lock (specify -LB option). Bolts available separately for $9.45 list price each. Extends bolt length to 1-1/2".						$15.00

200M Drawer Deadbolt Lock (MRI Series)

ANSI/BHMA A156.11 Grade 1, E07041 Woodwork Institute (WI) acknowledged product

200M MRI Series: Include all non-ferrous (non-magnetic) metals and materials and are suitable for use in medical applications including Magnetic Resonance Imaging (MRI) suites due to their non-magnetic properties. Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. See handing chart on page 5 for proper handing of locks (vertical or inverted). Keys: Includes copper plated non-magnetic keys (KBN-5B). Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
200M 200M	26D 26D	7/8" 7/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$41.50 $44.75
200M 200M	26D 26D	1-3/8" 1-3/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	5.5 lbs/box 5.5 lbs/box	$41.50 $44.75
200M 200M	26D 26D	1-5/8" 1-5/8"	4 pin 5 pin	KD, KA 101,103,107,915,51001,51002,51003,51004 Stock master keyed or non stock KD, KA	5.8 lbs/box 5.8 lbs/box	$43.43 $46.62
				Key-retaining: Specify item 200MKI for inverted drawers and 200MKV for vertical drawers. (MKI and MKV designations are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
	Grand master (3-level system), or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.					$6.00
	Long bolt: For long bolt #15-1-35 factory installed in lock (specify -LB option). Bolts available separately for $9.45 list price each. Extends bolt length to 1-1/2".	Add on price	$15.00

300SD Sliding Door Push Lock

Standard function: Key removable in locked or unlocked position. Packed 10 per box.


Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
300SD 300SD	26D, US3 26D, US3	1" 1"	4 pin 5 pin	KD, KA 101,103,107,915 Stock master keyed or non stock KD, KA	2.9 lbs/box 2.9 lbs/box	$45.39 $48.79
300SD 300SD	10B 10B	1" 1"	4 pin 5 pin	KD, KA 101,103,107,915 Stock master keyed or non stock KD, KA	2.9 lbs/box 2.9 lbs/box	$64.17 $67.51
	Grand master (3-level system), or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

329R Showcase/Ratchet Lock

Standard function: Key removable in locked or unlocked position. Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
329R 329R	26D 26D	For 1/4" panels For 1/4" panels	4 pin 5 pin	KD, KA 101,103,107,915 Stock master keyed or non stock KD, KA	5.3 lbs/box 5.3 lbs/box	$43.64 $46.91
Grand master (3-level system), or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.						$6.00

DCN Cam Lock

ANSI/BHMA A156.11 Grade 1 E07261 / E07271 Woodwork Institute (WI) acknowledged products

Standard function: Key removable in locked or unlocked position. Ships with DCNP-500-ARP (anti-rotation plate), DCNP-100-SC (straight cam) and DCNP-100-BC (reversible offset cam). Key-retaining: For key removable in locked position only (key-retaining), purchase optional cam shifters DCNP-200-KR (for drawers) or DCNP-200-KDR (for doors). Optional cams and accessories: See chart below. Packed 10 per box.

Item	Finish	Cyl. Length	Pinning	Pin Tumbler Keying	Weight	Price Each
DCN1	26D, US3	1-1/16"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	2.6 lbs/box	$23.36
DCN1	26D, US3	1-1/16"	5 pin	Stock master keyed or non stock KD, KA	2.6 lbs/box	$26.43
DCN2	26D, US3	1-3/16"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	2.7 lbs/box	$23.36
DCN2	26D, US3	1-3/16"	5 pin	Stock master keyed or non stock KD, KA	2.7 lbs/box	$26.43
DCN3	26D, US3	1-7/16"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	2.9 lbs/box	$23.36
DCN3	26D, US3	1-7/16"	5 pin	Stock master keyed or non stock KD, KA	2.9 lbs/box	$26.43
DCN4	26D, US3	1-3/4"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	3.2 lbs/box	$23.36
DCN4	26D, US3	1-3/4"	5 pin	Stock master keyed or non stock KD, KA	3.2 lbs/box	$26.43
DCN1	10B	1-1/16"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	2.6 lbs/box	$41.04
DCN1	10B	1-1/16"	5 pin	Stock master keyed or non stock KD, KA	2.6 lbs/box	$44.14
DCN2	10B	1-3/16"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	2.7 lbs/box	$41.04
DCN2	10B	1-3/16"	5 pin	Stock master keyed or non stock KD, KA	2.7 lbs/box	$44.14
DCN3	10B	1-7/16"	4 pin	KD, KA 101,103,107,915,51001,51002,51003,51004	2.9 lbs/box	$41.04
DCN3	10B	1-7/16"	5 pin	Stock master keyed or non stock KD, KA	2.9 lbs/box	$44.14
DCN4	10B	1-3/4"	4 pin	KD, KA 101,103,107,915	3.2 lbs/box	$41.04
DCN4	10B	1-3/4"	5 pin	Stock master keyed or non stock KD, KA	3.2 lbs/box	$44.14
	Grand master (3-level system), or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.					$6.00

Note: Offset cams are reversible and can be used in either the inbent or outbent position.

Item	Description / Packed Each	Price Each
DCNP-HD-875	7/8" long straight cam	$1.79
DCNP-HD-1	1" long straight cam	$1.79
DCNP-100-SC	1-1/4" long straight cam	$1.79
DCNP-100-SC2	1-3/4" long straight cam	$1.79
DCNP-100-SC3	1-1/2" long straight cam	$1.79
DCNP-100-LC	3" long straight cam	$1.79
DCNP-100-BC	1-1/4" long cam, 5/16" offset	$1.79
DCNP-100-BC5	1-1/4" long cam, 1/2" offset	$1.79
DCNP-100-HC1	1-1/2" long hook cam, 5/16" offset	$1.79
DCNP-100-HD	1-7/16" long cam, 1/2" offset	$1.79
DCNP-100-HD2	1-3/4" long cam, 5/16" offset	$1.79
DCNP-100-HD3	1-1/8" long cam, 5/16" offset	$1.79
DCNP-100-LBC	1-1/2 long cam, 5/16" offset	$1.79
DCNP-100-B1	Straight cam with oval cutout	$1.79
DCNP-100-B2	U-shaped cam	$2.28
DCNP-100-B3	Straight hook cam	$1.79
DCNP-100-WB	Short cam / 90° offset arm	$1.79

Item	Description / Packed Each	Price Each
DCNP-500-ARP	Anti-rotation plate	$1.96
DCNP-300-FP	Finger pull	$2.21
DCNP-200-KR DCNP-200-KDR	Key-retaining shifter (Drawer) Key-retaining shifter (Door)	$1.68 $1.68
T37DC-NP	Number plate ring	$0.65
DCNP-GW*	Glass washer	$1.05
DCNP-SPW	Pronged wood washer	$0.79
TRB7-18-26D TRB7-14-26D TRB7-12-26D	1/8" spacer collar, 26D 1/4" spacer collar, 26D 1/2" spacer collar, 26D	$3.09 $3.84 $4.45
*DCNP-GW is a plastic washer with a peel-and-stick adhesive back used for mounting DCN on glass.

The following warning is applicable to all parts listed on this page:

L20V Drawer Latch Lock

Standard function: Spring latch. For cabinet doors, place lock on side. Packed 10 per box.


Item	Finish	Cyl. Length	Pinning	Pin Tumbler Keying	Weight	Price Each
L20V L20V	26D 26D	7/8" 7/8"	4 pin 5 pin	KD, KA 101,103,107,915 Stock master keyed or non stock KD, KA	4.9 lbs/box 4.9 lbs/box	$49.22 $52.44
L20V L20V	26D 26D	1-3/8" 1-3/8"	4 pin 5 pin	KD, KA 101,103,107,915 Stock master keyed or non stock KD, KA	5.7 lbs/box 5.7 lbs/box	$49.22 $52.44
Grand master (3-level system), or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

T37 T-Bolt Lock

Standard function: Key removable in locked or unlocked position. Includes: brass fixing nut and standard bolt. Packed 10 per box.

Item	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
T37	26D	1/4"	4 pin	KD, KA 101,103,107,915	2.1 lbs/box	$28.40
T37	26D	1/4"	4 pin	KA 51001 through 51011, KA 001 through 030	2.1 lbs/box	$28.40
T37	26D	1/4"	4 pin	Stock master keyed or non stock KD, KA	2.1 lbs/box	$31.49

Grand master keying not available.

Item	Description	Packed	Price Each
T37-1	Standard bolt (requires bolt spring sold separately)	Packed Each	$7.61
T37-2	Optional long bolt (requires bolt spring sold separately)	Packed Each	$12.48
T37-3	Optional short bolt (requires bolt spring sold separately)	Packed Each	$7.61
T37-RC	Optional spring mounting clip (for 0" to 11/64" material thickness)	Packed Each	$1.31
T37-SP	Replacement bolt spring	Packed Each	$0.42
T37-TS	Replacement top slide / pin cover	Packed Each	$0.70
T37-TR	Replacement trim collar (standard)	Packed Each	$2.49
T37-NKIT	Number plate kit for T37 (Includes below 2 items)	Packed Each	$3.14
T37DC-NP	Number plate only	Packed Each	$0.65
T37-TR2	Trim collar for use with number plates	Packed Each	$2.49

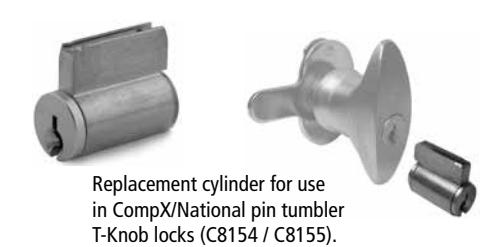

T54C T-Knob Cylinder Replacement Kit

Standard: T54C ships standard with 2 ringed 4-pin National D4291 keyblanks (our KBN-4-NP). Does not include pins or springs. 5-pin keyblanks are available separately (KBN-5-NP). Custom keyed upon request. Note: Olympus does not sell T-knob locks, only the replacement cylinders. The T54C will work with all C8154/ C8155 T-knob locks regardless of handing or key operation. Packed 25 per box.

Item	Finish	Pinning	Pin Tumbler Keying	Weight	Price Each
T54C	26D	n/a	No pins or springs / drilled for 5 pins	2.4 lbs/box	$17.81
T54C	26D	4 or 5 pin	Stock master keyed or non stock KD, KA	2.4 lbs/box	$22.26

Grand master keying not available.

999 Door Latch Lock

999R

999L

Standard function: Spring latch. Field reversible: Can be reconfigured into all four handings (LH, RH, VH or IH). Handing: See the handing chart on page 5 for proper handing of locks. Packed 10 per box.

Item	Handing	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
999R	RH	26D, US4	7/8"	4 pin	KD, KA 101,103,107,915	5.0 lbs/box	$49.22
999R	RH	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	5.0 lbs/box	$52.44
999R	RH	26D, US4	1-3/8"	4 pin	KD, KA 101,103,107,915	5.7 lbs/box	$49.22
999R	RH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.7 lbs/box	$52.44
999L	LH	26D, US4	7/8"	4 pin	KD, KA 101,103,107,915	5.0 lbs/box	$49.22
999L	LH	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	5.0 lbs/box	$52.44
999L	LH	26D, US4	1-3/8"	4 pin	KD, KA 101,103,107,915	5.7 lbs/box	$49.22
999L	LH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.7 lbs/box	$52.44
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

998 Drawer Latch Lock

998V

998I

Item	Handing	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
998V	VH	26D, US4	7/8"	4 pin	KD, KA 101,103,107,915	5.0 lbs/box	$49.22
998V	VH	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	5.0 lbs/box	$52.44
998V	VH	26D, US4	1-3/8"	4 pin	KD, KA 101,103,107,915	5.7 lbs/box	$49.22
998V	VH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.7 lbs/box	$52.44
998I	IH	26D, US4	7/8"	4 pin	KD, KA 101,103,107,915	5.0 lbs/box	$49.22
998I	IH	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	5.0 lbs/box	$52.44
998I	IH	26D, US4	1-3/8"	4 pin	KD, KA 101,103,107,915	5.7 lbs/box	$49.22
998I	IH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.7 lbs/box	$52.44
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

FC10 File Cabinet Lock Kit

Standard function: Direct replacement for HON F24/F28 style file cabinet lock. Includes all parts necessary for complete lock replacement. Use the optional FC26-AR adapter with the standard FC10 file cabinet lock kit for replacement of HON F26 style file cabinet lock. Packed 10 per box.

Item	Finish	Fits	Pinning	Pin Tumbler Keying	Weight	Price Each
FC10 FC10	26D 26D	HON vertical file cabinets*	4 pin 5 pin	KD, KA 101,103,107,915 Stock master keyed or non stock KD, KA	2.5 lbs/box 2.5 lbs/box	$31.90 $35.17
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

Item	Finish	Fits	Description	Price Each
FC26-AR	26D	HON vertical file cabinets*	Adapter ring allows use of FC10 file cabinet lock kit in HON F26 style applications	$4.62

N078 Diamond Back Drawer Lock

Standard function: Key removable in locked or unlocked position. Packed 10 per box.


Item	Handing	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
N078 N078	VH VH	26D, US4 26D, US4	1-1/8" 1-1/8"	4 pin 5 pin	KD, KA 101,103,107,915 Stock master keyed or non stock KD, KA	3.1 lbs/box 3.1 lbs/box	$26.74 $29.96
N078 N078	VH VH	26D, US4 26D, US4	1-3/8" 1-3/8"	4 pin 5 pin	KD, KA 101,103,107,915 Stock master keyed or non stock KD, KA	3.6 lbs/box 3.6 lbs/box	$29.19 $32.45
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.						$6.00
					Optional bolt: Add this charge to the above prices for factory installed optional bolt 078-LB1-DW	Add on price	$7.00

Item	Description	Packed	Price Each
078-LB1-DW	Optional 1/2" outbent long bolt for N078 drawer locks (bolt only)	Packed Each	$4.14

N078 Diamond Back Door Lock

Standard function: Key removable in locked or unlocked position. See the handing chart on page 5 for proper handing of locks (left-hand or right-hand). Packed 10 per box.

Item	Handing	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
N078R	RH	26D, US4	1-1/8"	4 pin	KD, KA 101,103,107,915	3.1 lbs/box	$26.74
N078R	RH	26D, US4	1-1/8"	5 pin	Stock master keyed or non stock KD, KA	3.1 lbs/box	$29.96
N078R	RH	26D, US4	1-3/8"	4 pin	KD, KA 101,103,107,915	3.6 lbs/box	$29.19
N078R	RH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	3.6 lbs/box	$32.45
N078L	LH	26D, US4	1-1/8"	4 pin	KD, KA 101,103,107,915	3.1 lbs/box	$26.74
N078L	LH	26D, US4	1-1/8"	5 pin	Stock master keyed or non stock KD, KA	3.1 lbs/box	$29.96
N078L	LH	26D, US4	1-3/8"	4 pin	KD, KA 101,103,107,915	3.6 lbs/box	$29.19
N078L	LH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	3.6 lbs/box	$32.45
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00
					Optional bolt: Add this charge to the above prices for factory installed optional bolt 078-LB-DR	Add on price	$7.00

Item	Description	Packed	Price Each
078-LB-DR	Optional 1/4" longer bolt for N078 door locks (bolt only)	Packed Each	$2.32

Keyway: CCL R1 Keyway (5-pin), 6-pin keying available

KD/KA: 5 pin standard

Stock KA Nos. 4T21579, 4T37526 Stock master keyed: 5 pin standard Pin Kit: Use R1 Pin Kit for rekeying

Keyblanks: 5-pin use KBR-5-NP (equivalent to CO106, 1003A), 6-pin use KBR-6 (equivalent to L1003A). See page 43 for cut keys and keyblanks.

Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See the accessories section or consult factory. Custom stamping: See page 43. Keying information: See page 6.

500DR Door Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07121 Woodwork Institute (WI) acknowledged product

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
500DR 500DR	26D, US4 26D, US4	7/8" 7/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$36.29 $40.39
500DR 500DR	26D, US4 26D, US4	1-3/8" 1-3/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	5.6 lbs/box 5.6 lbs/box	$36.29 $40.39
500DR 500DR	10B 10B	7/8" 7/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$59.29 $63.39
	Key-retaining: Specify item 500KL for left-hand doors and 500KR for right-hand doors. (KL and KR designa tion are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
price.				Grand master (3-level system), systems with multiple master keys, or 6 pin keying: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for	Add on price	$6.00
Weather resistant: Includes weather resistant components. Suitable for outdoor use in covered areas only. Specify 500B series. Include finish, barrel length and keying.						$7.00
	Long bolt: For long bolt #15-1-35 factory installed in lock (specify -LB option). Bolts available separately for $9.45 list price each. Extends bolt length to 1-1/2".	Add on price	$15.00

600DW Drawer Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07041 Woodwork Institute (WI) acknowledged product

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. See the handing chart on page 5 for proper handing of locks (vertical or inverted). Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
600DW 600DW	26D, US4 26D, US4	7/8" 7/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$36.29 $40.39
600DW 600DW	26D, US4 26D, US4	1-3/8" 1-3/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	5.6 lbs/box 5.6 lbs/box	$36.29 $40.39
600DW 600DW	10B 10B	7/8" 7/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$59.29 $63.39
600DW 600DW	10B 10B	1-3/8" 1-3/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	5.6 lbs/box 5.6 lbs/box	$59.29 $63.39
				Key-retaining: Specify item 600KI for inverted drawers and 600KV for vertical drawers. (KI and KV designa tions are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
price.				Grand master (3-level system), systems with multiple master keys, or 6 pin keying: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for	Add on price	$6.00
	Weather resistant: Includes weather resistant components. Suitable for outdoor use in covered areas only. Specify 600B series. Include finish, barrel length and keying.	Add on price	$7.00
	Long bolt: For long bolt #15-1-35 factory installed in lock (specify -LB option). Bolts available separately for $9.45 list price each. Extends bolt length to 1-1/2".	Add on price	$15.00

500M Door Deadbolt Lock (MRI Series)

ANSI/BHMA A156.11 Grade 1, E07121 Woodwork Institute (WI) acknowledged product

500M MRI Series: Include all non-ferrous (non-magnetic) metals and materials and are suitable for use in medical applications including Magnetic Resonance Imaging (MRI) suites due to their non-magnetic properties. Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. See handing chart on page 5 for proper handing of locks (left or right). Keys: Includes copper plated non-magnetic keys (KBR-5B). Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
500M 500M	26D 26D	7/8" 7/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$46.29 $50.39
500M 500M	26D 26D	1-3/8" 1-3/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	5.6 lbs/box 5.6 lbs/box	$46.29 $50.39
	Key-retaining: Specify item 500MKL for left-hand doors and 500MKR for right-hand doors. (MKL and MKR designation are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
factory for price.	Grand master (3-level system), systems with multiple master keys, or 6 pin keying: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call	Add on price	$6.00
	Long bolt: For long bolt #15-1-35 factory installed in lock (specify -LB option). Bolts available separately for $9.45 list price each. Extends bolt length to 1-1/2".	Add on price	$15.00

600M Drawer Deadbolt Lock (MRI Series)

ANSI/BHMA A156.11 Grade 1, E07041 Woodwork Institute (WI) acknowledged product

600M MRI Series: Include all non-ferrous (non-magnetic) metals and materials and are suitable for use in medical applications including Magnetic Resonance Imaging (MRI) suites due to their non-magnetic properties. Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. See the handing chart on page 5 for proper handing of locks (vertical or inverted). Keys: Includes copper plated non-magnetic keys (KBR-5B). Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
600M 600M	26D 26D	7/8" 7/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	4.8 lbs/box 4.8 lbs/box	$46.29 $50.39
600M 600M	26D 26D	5.6 lbs/box 5.6 lbs/box	$46.29 $50.39
	Key-retaining: Specify item 600MKI for inverted drawers and 600MKV for vertical drawers. (MKI and MKV designations are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
factory for price.	Grand master (3-level system), systems with multiple master keys, or 6 pin keying: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call	Add on price	$6.00
	Long bolt: For long bolt #15-1-35 factory installed in lock (specify -LB option). Bolts available separately for $9.45 list price each. Extends bolt length to 1-1/2".	Add on price	$15.00

400SD Sliding Door Push Lock

Standard function: Key removable in locked or unlocked position. Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
400SD	26D, US3	1"	5 pin	KD, KA 4T21579, 4T37526	2.9 lbs/box	$44.28
400SD	26D, US3	1"	5 pin	Stock master keyed or non stock KD, KA	2.9 lbs/box	$48.38
400SD	10B	1"	5 pin	KD, KA 4T21579, 4T37526	2.9 lbs/box	$67.28
400SD	10B	1"	5 pin	Stock master keyed or non stock KD, KA	2.9 lbs/box	$71.38
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

429R Showcase/Ratchet Lock

Standard function: Key removable in locked or unlocked position. Packed 10 per box.


Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
429R 429R	26D 26D	For 1/4" panels For 1/4" panels	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	5.3 lbs/box 5.3 lbs/box	$44.28 $48.38
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

DCR Cam Lock

ANSI/BHMA A156.11 Grade 1 E07261 / E07271

Woodwork Institute (WI) acknowledged products

Standard function: Key removable in locked or unlocked position. Ships with DCNP-500-ARP (anti-rotation plate), DCNP-100-SC (straight cam) and DCNP-100-BC (reversible offset cam). Key-retaining: For key removable in locked position only, purchase optional cam shifters DCNP-200- KR (for drawers) or DCNP-200-KDR (for doors). Optional cams and accessories: See chart below. Packed 10 per box.

Item	Finish	Cyl. Length	Pinning	Pin Tumbler Keying	Weight	Price Each
DCR1	26D, US3	1-1/16"	5 pin	KD, KA 4T21579, 4T37526	2.6 lbs/box	$27.00
DCR1	26D, US3	1-1/16"	5 pin	Stock master keyed or non stock KD, KA	2.6 lbs/box	$31.10
DCR2	26D, US3	1-3/16"	5 pin	KD, KA 4T21579, 4T37526	2.7 lbs/box	$27.00
DCR2	26D, US3	1-3/16"	5 pin	Stock master keyed or non stock KD, KA	2.7 lbs/box	$31.10
DCR3	26D, US3	1-7/16"	5 pin	KD, KA 4T21579, 4T37526	2.9 lbs/box	$27.00
DCR3	26D, US3	1-7/16"	5 pin	Stock master keyed or non stock KD, KA	2.9 lbs/box	$31.10
DCR4	26D, US3	1-3/4"	5 pin	KD, KA 4T21579, 4T37526	3.2 lbs/box	$27.00
DCR4	26D, US3	1-3/4"	5 pin	Stock master keyed or non stock KD, KA	3.2 lbs/box	$31.10
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

Note: Offset cams are reversible and can be used in either the inbent or outbent position.

Item	Description / Packed Each	Price Each
DCNP-HD-875	7/8" long straight cam	$1.79
DCNP-HD-1	1" long straight cam	$1.79
DCNP-100-SC	1-1/4" long straight cam	$1.79
DCNP-100-SC2	1-3/4" long straight cam	$1.79
DCNP-100-SC3	1-1/2" long straight cam	$1.79
DCNP-100-LC	3" long straight cam	$1.79
DCNP-100-BC	1-1/4" long cam, 5/16" offset	$1.79
DCNP-100-BC5	1-1/4" long cam, 1/2" offset	$1.79
DCNP-100-HC1	1-1/2" long hook cam, 5/16" offset	$1.79
DCNP-100-HD	1-7/16" long cam, 1/2" offset	$1.79
DCNP-100-HD2	1-3/4" long cam, 5/16" offset	$1.79
DCNP-100-HD3	1-1/8" long cam, 5/16" offset	$1.79
DCNP-100-LBC	1-1/2 long cam, 5/16" offset	$1.79
DCNP-100-B1	Straight cam with oval cutout	$1.79
DCNP-100-B2	U-shaped cam	$2.28
DCNP-100-B3	Straight hook cam	$1.79
DCNP-100-WB	Short cam / 90° offset arm	$1.79

Item	Description / Packed Each	Price Each
DCNP-500-ARP	Anti-rotation plate	$1.96
DCNP-300-FP	Finger pull	$2.21
DCNP-200-KR DCNP-200-KDR	Key-retaining shifter (Drawer) Key-retaining shifter (Door)	$1.68 $1.68
T37DC-NP	Number plate ring	$0.65
DCNP-GW*	Glass washer	$1.05
DCNP-SPW	Pronged wood washer	$0.79
TRB7-18-26D TRB7-14-26D TRB7-12-26D	1/8" spacer collar, 26D 1/4" spacer collar, 26D 1/2" spacer collar, 26D	$3.09 $3.84 $4.45
*DCNP-GW is a plastic washer with a peel-and-stick adhesive

back used for mounting DCN on glass.

The following warning is applicable to all parts listed on this page:

R078 Diamond Back Drawer Lock

Standard function: Key removable in locked or unlocked position. Packed 10 per box.


Item	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
R078 R078	26D, US4 26D, US4	1-1/8" 1-1/8"	5 pin 5 pin	KD, KA 4T21579, 4T37526 Stock master keyed or non stock KD, KA	3.1 lbs/box 3.1 lbs/box	$27.43 $31.54
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00
	Optional bolt: Add this charge to the above prices for factory installed optional bolt 078-LB1-DW	Add on price	$7.00

Item	Description	Packed	Price Each
078-LB1-DW	Optional 1/2" offset long bolt for N078 drawer locks (bolt only)	Packed Each	$4.14

997 Door Latch Lock

997R

997L

Item	Handing	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
997R	RH	26D, US4	7/8"	5 pin	KD, KA 4T21579, 4T37526	5.0 lbs/box	$52.70
997R	RH	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	5.0 lbs/box	$56.81
997R	RH	26D, US4	1-3/8"	5 pin	KD, KA 4T21579, 4T37526	5.7 lbs/box	$52.70
997R	RH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.7 lbs/box	$56.81
997L	LH	26D, US4	7/8"	5 pin	KD, KA 4T21579, 4T37526	5.0 lbs/box	$52.70
997L	LH	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	5.0 lbs/box	$56.81
999L	LH	26D, US4	1-3/8"	5 pin	KD, KA 4T21579, 4T37526	5.7 lbs/box	$52.70
999L	LH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.7 lbs/box	$56.81
factory for price.	Grand master (3-level system), systems with multiple master keys, or 6 pin keying: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call	Add on price	$6.00

996 Drawer Latch Lock

996V

996I

Item	Handing	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
996V	VH	26D, US4	7/8"	5 pin	KD, KA 4T21579, 4T37526	5.0 lbs/box	$52.70
996V	VH	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	5.0 lbs/box	$56.81
996V	VH	26D, US4	1-3/8"	5 pin	KD, KA 4T21579, 4T37526	5.7 lbs/box	$52.70
996V	VH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.7 lbs/box	$56.81
996I	IH	26D, US4	7/8"	5 pin	KD, KA 4T21579, 4T37526	5.0 lbs/box	$52.70
996I	IH	26D, US4	7/8"	5 pin	Stock master keyed or non stock KD, KA	5.0 lbs/box	$56.81
996I	IH	26D, US4	1-3/8"	5 pin	KD, KA 4T21579, 4T37526	5.7 lbs/box	$52.70
996I	IH	26D, US4	1-3/8"	5 pin	Stock master keyed or non stock KD, KA	5.7 lbs/box	$56.81
Grand master (3-level system), systems with multiple master keys, or 6 pin keying: Add to the

Grand master (3-level system), systems with multiple master keys, or 6 pin keying: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.

Add on price $6.00

S SERIES Schlage C Keyway

ANSI/BHMA A156.11 Grade 1, E07121 Woodwork Institute (WI) acknowledged product

Keyway: Schlage C keyway Cylinder: 6 pin solid brass cylinder KD/KA/0-BIT: 5 pin standard Stock KA Nos. 101, 102

Master keyed: 6 pin standard. Includes numeric key code stamped on the change keys. Lock face stamping available separately. See custom stamping charges, page 43.

Keyblanks: 5-pin use KBSC-5, 6-pin use KBSC-6. See page

43 for cut keys and keyblanks.

Finishes: For finishes not listed, see charges under "custom

plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See accessories section or consult factory.

Custom stamping: See page 43. Keying information: See page 6.

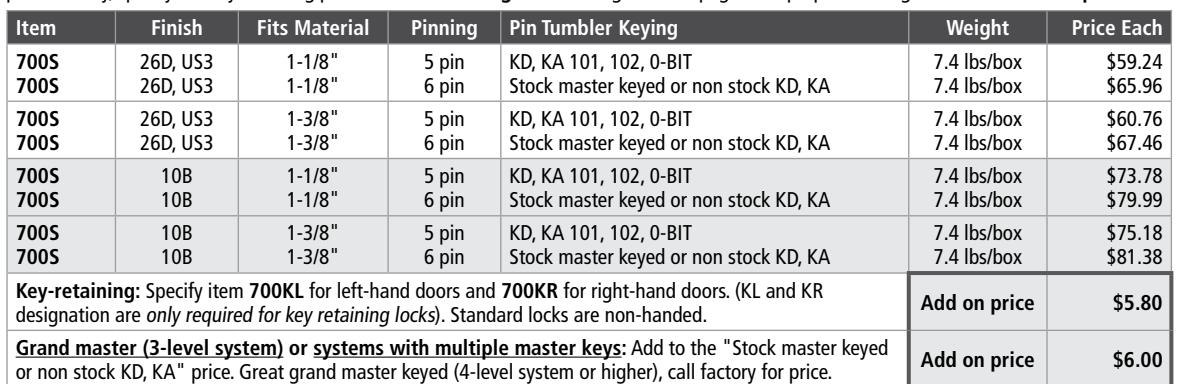

700S Deadbolt Door Lock

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. Handing: See handing chart on page 5 for proper handing of locks. Packed 10 per box.

800S Deadbolt Drawer Lock

ANSI/BHMA A156.11 Grade 1, E07041 Woodwork Institute (WI) acknowledged product

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. Handing: See handing chart on page 5 for proper handing of locks. Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
800S	26D, US3	1-1/8"	5 pin	KD, KA 101, 102, 0-BIT	7.3 lbs/box	$59.24
800S	26D, US3	1-1/8"	6 pin	Stock master keyed or non stock KD, KA	7.3 lbs/box	$65.96
800S	26D, US3	1-3/8"	5 pin	KD, KA 101, 102, 0-BIT	7.2 lbs/box	$60.76
800S	26D, US3	1-3/8"	6 pin	Stock master keyed or non stock KD, KA	7.2 lbs/box	$67.46
800S	10B	1-1/8"	5 pin	KD, KA 101, 102, 0-BIT	7.3 lbs/box	$73.78
800S	10B	1-1/8"	6 pin	Stock master keyed or non stock KD, KA	7.3 lbs/box	$79.99
800S	10B	1-3/8"	5 pin	KD, KA 101, 102, 0-BIT	7.2 lbs/box	$75.18
800S	10B	1-3/8"	6 pin	Stock master keyed or non stock KD, KA	7.2 lbs/box	$81.38
	Key-retaining: Specify item 800KI for inverted drawers and 800KV for vertical drawers. (KI and KV designation are only required for key retaining locks). Standard locks are non-handed.	Add on price	$5.80
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

820S Cam Lock

Includes: 720-PL3 (anti-rotation plate), lost-motion and key retaining door/drawer cam shifters, 720-3-1 and 720-3-2 cams. Additional cams available separately. Due to length of cylinder, installation may require use of trim collar. See page 32 for details. Packed 10 per box.

Item	Finish	Cyl. Length	Pinning	Pin Tumbler Keying	Weight	Price Each
820S 820S	26D, US3 26D, US3	1-23/32" 1-23/32"	5 pin 6 pin	KD, KA 101, 102 Stock master keyed or non stock KD, KA	6.3 lbs/box 6.3 lbs/box	$60.52 $67.24
Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

Item	Description	Packed	Price Each
Additional cams	720-3-1, 720-3-2, 720-3-3, 720-3-4, 720-3-5	Packed Each	$2.59
Trim Collars	TR201 (1/8"), TR202 (1/4"), TR203 (3/8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
SW-1	Switch accessory pack	Packed Each	$9.96
720-PL3	Anti-rotation plate	Packed Each	$2.07

829R Showcase/Ratchet Lock

Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 ANSI standards

Standard function: Key removable in locked or unlocked position. Includes: 729RS-1 strap for 1/4" panel thickness. Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
829R 829R	26D 26D	For 1/4" panels For 1/4" panels	5 pin 6 pin	KD, KA 101, 102 Stock master keyed or non stock KD, KA	7.0 lbs/box 7.0 lbs/box	$72.33 $79.03
	Grand master keyed (3-level system) or non stock master keyed: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

Item	Description	Packed	Price Each
729RS-2	Optional strap for 3/8" panel thickness	Packed Each	$8.58
729RS-3	Optional strap for maximum 5/8", minimum 3/8" panel thickness	Packed Each	$12.98

850S Deadlatching Drawer Lock

Standard function: Spring latch with deadlocking mechanism. Turn lock 90 degrees for door function. Includes: Matching lip strike. Packed 10 per box.

Item	Finish	Fits Material	Pinning	Pin Tumbler Keying	Weight	Price Each
850S	26D, US3	1-1/8"	5 pin	KD, KA 101, 102	8.3 lbs/box	$72.21
850S	26D, US3	1-1/8"	6 pin	Stock master keyed or non stock KD, KA	8.3 lbs/box	$78.92
850S	26D, US3	1-3/8"	5 pin	KD, KA 101, 102	8.3 lbs/box	$76.38
850S	26D, US3	1-3/8"	6 pin	Stock master keyed or non stock KD, KA	8.3 lbs/box	$83.10
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

L78 Door Latch Lock

L78V

L78I

Standard function: Spring latch. Reversible: Locks are field reversible into any of the 4 handings (drawer VH or IH, door LH or RH). Handing: See handing chart on page 5 for proper handing of locks. Packed 10 per box.


Item	Handing	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
L78R	RH	26D, US3	1-1/8"	5 pin	KD, KA 101, 102	8.6 lbs/box	$74.99
L78R	RH	26D, US3	1-1/8"	6 pin	Stock master keyed or non stock KD, KA	8.6 lbs/box	$81.70
L78R	RH	26D, US3	1-3/8"	5 pin	KD, KA 101, 102	9.0 lbs/box	$76.49
L78R	RH	26D, US3	1-3/8"	6 pin	Stock master keyed or non stock KD, KA	9.0 lbs/box	$83.20
L78L	LH	26D, US3	1-1/8"	5 pin	KD, KA 101, 102	8.6 lbs/box	$74.99
L78L	LH	26D, US3	1-1/8"	6 pin	Stock master keyed or non stock KD, KA	8.6 lbs/box	$81.70
L78L	LH	26D, US3	1-3/8"	5 pin	KD, KA 101, 102	9.0 lbs/box	$76.49
L78L	LH	26D, US3	1-3/8"	6 pin	Stock master keyed or non stock KD, KA	9.0 lbs/box	$83.20
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

L78 Drawer Latch Lock

L78R

L78L

Item	Handing	Finish	Fits Mat.	Pinning	Pin Tumbler Keying	Weight	Price Each
L78V	VH	26D, US3	1-1/8"	5 pin	KD, KA 101, 102	8.6 lbs/box	$74.99
L78V	VH	26D, US3	1-1/8"	6 pin	Stock master keyed or non stock KD, KA	8.6 lbs/box	$81.70
L78V	VH	26D, US3	1-3/8"	5 pin	KD, KA 101, 102	9.0 lbs/box	$76.49
L78V	VH	26D, US3	1-3/8"	6 pin	Stock master keyed or non stock KD, KA	9.0 lbs/box	$83.20
L78I	IH	26D, US3	1-1/8"	5 pin	KD, KA 101, 102	8.6 lbs/box	$74.99
L78I	IH	26D, US3	1-1/8"	6 pin	Stock master keyed or non stock KD, KA	8.6 lbs/box	$81.70
L78I	IH	26D, US3	1-3/8"	5 pin	KD, KA 101, 102	9.0 lbs/box	$76.49
L78I	IH	26D, US3	1-3/8"	6 pin	Stock master keyed or non stock KD, KA	9.0 lbs/box	$83.20
	Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	Add on price	$6.00

LC SERIES Less Cylinder for Schlage

Schlage: Chambers standard or Primus/ Everest Schlage key-in-knob cylinders. Compatibility: Accepts third-party Schlage-compatible key-in-knob or deadbolt cylinders including ILCO #1599, Kaba, GMS and others. Also accepts electronic cylinders such as Videx, ASSA Cliq and Medeco Logic.

Assa: Requires use of 1-3/8" lock. Works with Assa cylinder #65611. Medeco: Requires use of 1-3/8" lock.

6 pin #20-009S4 5 pin #20-008S4

Biaxial: 6 pin #20W009S4

5 pin #20W008S4

Keymark: 6 pin #20K009S4 Key retaining: #20W200S1

Finishes: For finishes not listed, see charges under "custom finishes" in this price list or consult factory. Accessories: Additional accessories are available for these products. See accessories section or consult factory.

Cylinders: See page 35 for Schlage C cylinders. See page 44 for additional

parts pricing.

700LC Door Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07121 Woodwork Institute (WI) acknowledged product

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. 700LCA includes: 10-360 universal driver and 10-361 tailpiece for Schlage compatible cylinders. 700LCM includes: 10-360 universal driver, 10-362 tailpiece for Schlage compatible cylinders, 10-363 tailpiece for Medeco cylinders and 10-364 tailpiece for Assa cylinders. Packed 10 per box.

Item	Finish	Fits Material	Cylinder	Description	Weight	Price Each
700LCA	26D, US3	1-1/8"	N/A	Less cylinder, door	5.6 lbs/box	$49.41
700LCM	26D, US3	1-3/8"	N/A	Less cylinder, door	5.5 lbs/box	$50.91
700LCA	10B	1-1/8"	N/A	Less cylinder, door	5.6 lbs/box	$64.69
700LCM	10B	1-3/8"	N/A	Less cylinder, door	5.5 lbs/box	$66.08

Item	Description	Packed	Price Each
78-KABA-CONV	Conversion kit for KABA cylinders	Packed Each	$5.58

800LC Drawer Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07041 Woodwork Institute (WI) acknowledged product

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. 800LCA includes: 10-360 universal driver and 10-361 tailpiece for Schlage compatible cylinders. 800LCM includes: 10-360 universal driver, 10-362 tailpiece for Schlage compatible cylinders, 10-363 tailpiece for Medeco cylinders and 10-364 tailpiece for Assa cylinders. Packed 10 per box.

Item	Finish	Fits Material	Cylinder	Description	Weight	Price Each
800LCA	26D, US3	1-1/8"	N/A	Less cylinder, drawer	5.6 lbs/box	$49.41
800LCM	26D, US3	1-3/8"	N/A	Less cylinder, drawer	5.5 lbs/box	$50.91
800LCA	10B	1-1/8"	N/A	Less cylinder, drawer	5.6 lbs/box	$64.69
800LCM	10B	1-3/8"	N/A	Less cylinder, drawer	5.5 lbs/box	$66.08

Item	Description	Packed	Price Each
78-KABA-CONV	Conversion kit for KABA cylinders	Packed Each	$5.58

820LC Cam Lock

Includes: 720-PL3 (anti-rotation plate), lost-motion and key retaining door/drawer cam shifters, 720-3-1 and 720-3-2 cams. Additional cams available separately. Due to overall length of cylinder, installation may require use of trim collar. See page 32 for details. Note: This lock does not accept Medeco cylinders. Packed 10 per box.

Item	Finish	Cyl. Length	Cylinder	Description	Weight	Price Each
820LC	26D, US3	1-23/32"	N/A	Less cylinder	4.6 lbs/box	$50.69

Item	Description	Packed	Price Each
Additional cams	720-3-1, 720-3-2, 720-3-3, 720-3-4, 720-3-5	Packed Each	$2.59
Trim Collars	TR201 (1/8"), TR202 (1/4"), TR203 (3/8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
SW-1	Switch accessory pack	Packed Each	$9.96
720-PL3	Anti-rotation plate	Packed Each	$2.07

LC SERIES Less Cylinder for Schlage

850LC Deadlatching Drawer Lock

Standard function: Spring latch with deadlocking mechanism. Turn lock 90 degrees for door function. Includes: Matching lip strike. Packed 10 per box.

Item	Finish	Fits Material	Cylinder	Description	Weight	Price Each
850LCA	26D, US3	1-1/8"	N/A	Less cylinder, drawer	6.7 lbs/box	$62.37
850LCM	26D, US3	1-3/8"	N/A	Less cylinder, drawer	7.0 lbs/box	$66.55

829R-LC Showcase/Ratchet Lock

Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 ANSI standards

Standard function: Key removable in locked or unlocked position. Includes: 729RS-1 strap for 1/4" panel thickness. Packed 10 per box.

Item	Finish	Fits Material	Cylinder	Description	Weight	Price Each
829R-LC	26D	For 1/4" panels	N/A	Less cylinder	5.3 lbs/box	$62.49

Item	Description	Packed	Price Each
829-MD	Optional Medeco driver pack - required if using Medeco original cylinders	Packed Each	$9.59
729RS-2	Optional strap for 3/8" panel thickness	Packed Each	$8.58
729RS-3	Optional strap for maximum 5/8", minimum 3/8" panel thickness	Packed Each	$12.98

L78-LC Door Latch Locks

L78L

L78R

Standard function: Spring latch. Reversible: Locks are field reversible into any of the 4 handings (drawer VH or IH, door LH or RH). Handing: See the handing chart on page 5 for proper handing of locks. Packed 10 per box.

Item	Handing	Finish	Fits Mat.	Cylinder	Description	Weight	Price Each
L78R-LCA	LH	26D, US3	1-1/8"	N/A	Less cylinder, LH door	7.0 lbs/box	$65.15
L78R-LCM	LH	26D, US3	1-3/8"	N/A	Less cylinder, LH door	7.4 lbs/box	$66.65
L78L-LCA	RH	26D, US3	1-1/8"	N/A	Less cylinder, RH door	7.0 lbs/box	$65.15
L78L-LCM	RH	26D, US3	1-3/8"	N/A	Less cylinder, RH door	7.4 lbs/box	$66.15

L78-LC Drawer Latch Locks

L78I

Handing: See the handing chart on page 5 for proper handing of locks. Packed 10 per box.

Item	Handing	Finish	Fits Mat.	Cylinder	Description	Weight	Price Each
L78V-LCA	VH	26D, US3	1-1/8"	N/A	Less cylinder, VH drawer	7.0 lbs/box	$65.15
L78V-LCM	VH	26D, US3	1-3/8"	N/A	Less cylinder, VH drawer	7.4 lbs/box	$66.65
L78I-LCA	IH	26D, US3	1-1/8"	N/A	Less cylinder, IH drawer	7.0 lbs/box	$65.15
L78I-LCM	IH	26D, US3	1-3/8"	N/A	Less cylinder, IH drawer	7.4 lbs/box	$66.15

Standard function: Spring latch. Reversible: Locks are field reversible into any of the 4 handings (drawer VH or IH, door LH or RH).

LC SERIES Less Cylinder for Sargent

Compatibility: Accepts Sargent C480-2 (13-3457) deadbolt cylinder. Finishes: For finishes not listed, see charges under "custom finishes" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See accessories section or consult factory.

754LC Door Deadbolt Lock

ACCEPTS SARGENT C480-2 (13-3457) DEADBOLT CYLINDER

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Packed 10 per box.

Item	Finish	Fits Material	Cylinder	Description	Weight	Price Each
754LC	26D, US3	1-3/8"	N/A	Less cylinder, door	5.7 lbs/box	$51.40

854LC Drawer Deadbolt Lock

ACCEPTS SARGENT C480-2 (13-3457) DEADBOLT CYLINDER

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Packed 10 per box.

Item	Finish	Fits Material	Cylinder	Description	Weight	Price Each
854LC	26D, US3	1-3/8"	N/A	Less cylinder, drawer	5.7 lbs/box	$51.40

LC SERIES Less Cylinder for Schlage (works with locks on pages 21-22)

DID YOU KNOW

Our less cylinder for Schlage cabinet lock bodies accept ILCO #1599 replacement cylinders? Our Schlage compatible "less cylinder" cabinet locks are compatible for use with the ILCO key-in-knob #1599 replacement cylinder. The #1599 is available in 32 keyways allowing you to key your cabinets to match your facility door hardware.

AVAILABLE KEYWAYS


Arrow 1179 AA
Corbin 59 A1-2 CD
Corbin 60 CA
Corbin 67 CB
Corbin 77 CC
Corbin/Russwin L4 CE
Dexter 67 XE
DO5-DO6 DB
Dominion 1054F DA
Ilco Composite NA
Kwikset 1176 KS
Lockwood 1004 LA

AVAILABLE KEYWAYS (cont.)

Lori 80................................................. UE


Lori Centric 90 UD
Lori Composite NB
Lori L100 UB
Russwin 981R RA
Russwin D1 RB
Russwin 981/852 Composite RC
Sargent LA GA
Sargent LA-LC GB
Sargent RA-RC GC
Schlage C-L SX
Schlage E SE
Schlage F SF
Schlage C SC
Segal 9 FA
Weiser/Falcon E WA
Weiser 1555 WE
ILCO X1054K UA
Yale 8 (5 pin only) YA
Yale GA (5 pin only) YG

IC CORE Schlage Full Size

For SCHLAGE interchangeable core cylinders

Compatibility: Accepts Schlage-style full-size / large format IC cores Schlage: Chambers both standard or Primus/Everest Schlage full-size interchangeable cores.

Mul-T-Lock: Chambers Mul-T-Lock large format IC cores.

Cores: Schlage full-size IC cores not included. Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See accessories section or consult factory.

777 Door Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07121 Woodwork Institute (WI) acknowledged product

Standard: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers. Handing: See chart on page 5 for proper handing of locks (left-hand or right-hand). Packed 10 per box.

Item	Handing	Finish	Fits Material	Description	Weight	Price Each
777ICP	N/A	26D, US3	1-7/16"	Schlage IC door lock body	7.3 lbs/box	$75.22
777ICP	N/A	10B	1-7/16"	Schlage IC door lock body	7.3 lbs/box	$88.55

KEY-RETAINING FUNCTION (KEY REMOVABLE IN LOCKED POSITION ONLY)

Item	Handing	Finish	Fits Material	Description	Weight	Price Each
777IC-DRK	RH or LH	26D, US3	1-7/16"	Key-retaining, Classic Cores	7.3 lbs/box	$81.02
777P-DRK	RH or LH	26D, US3	1-7/16"	Key-retaining, Primus/Everest Cores	7.3 lbs/box	$81.02
777IC-DRK	RH or LH	10B	1-7/16"	Key-retaining, Classic Cores	7.3 lbs/box	$94.35
777P-DRK	RH or LH	10B	1-7/16"	Key-retaining, Primus/Everest Cores	7.3 lbs/box	$94.35
	Key-retaining: Cycle to "locked" position before inserting core.

888 Drawer Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07041 Woodwork Institute (WI) acknowledged product

Standard: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers below. Handing: See chart on page 5 for proper handing of locks (vertical or inverted). Packed 10 per box.

Item	Handing	Finish	Fits Material	Description	Weight	Price Each
888ICP	N/A	26D, US3	1-7/16"	Schlage IC drawer lock body	7.3 lbs/box	$75.22
888ICP	N/A	10B	1-7/16"	Schlage IC drawer lock body	7.3 lbs/box	$88.55

KEY-RETAINING FUNCTION (KEY REMOVABLE IN LOCKED POSITION ONLY)

Item	Handing	Finish	Fits Material	Description	Weight	Price Each
888IC-DWK	IH or VH	26D, US3	1-7/16"	Key-retaining, Classic Cores	7.3 lbs/box	$81.02
888P-DWK	IH or VH	26D, US3	1-7/16"	Key-retaining, Primus/Everest Cores	7.3 lbs/box	$81.02
888IC-DWK	IH or VH	10B	1-7/16"	Key-retaining, Classic Cores	7.3 lbs/box	$94.35
888P-DWK	IH or VH	10B	1-7/16"	Key-retaining, Primus/Everest Cores	7.3 lbs/box	$94.35
	Key-retaining: Cycle to "locked" position before inserting core.

920 Cam Lock

ANSI/BHMA A156.11 Grade 1 E07261/E07271 Woodwork Institute (WI) acknowledged product

Includes: 720-PL3 (anti-rotation plate), lost-motion and key retaining door/drawer cam shifters, 720-3-1 and 720-3-2 cams. Additional cams available separately. Packed 10 per box.

Item	Finish	Cyl. Length	Description	Weight	Price Each
920LM/DM	26D, US3	1-7/16"	Schlage IC cam lock body	4.1 lbs/box	$50.80
Item	Description	Packed	Price Each
Additional cams		720-3-1, 720-3-2, 720-3-3, 720-3-4, 720-3-5		Packed Each	$2.59
Trim Collars			TR201 (1/8"), TR202 (1/4"), TR203 (3/8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
SW-1	Switch accessory pack		Packed Each	$9.96
720-PL3	Anti-rotation plate		Packed Each	$2.07

IC CORE Schlage Full Size

L92V Drawer Latch Lock

Standard function: Spring latch. For cabinet doors, place lock on side. Packed 10 per box.

Item	Finish	Cyl. Length	Description	Weight	Price Each
L92V	26D, US3	1-7/16"	Schlage IC drawer latch lock body	6.8 lbs/box	$70.95

929R Showcase/Ratchet Lock

Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 ANSI standards

Woodwork Institute (WC) acknowledged product

Standard: Key removable in locked or unlocked position. Includes: 729RS-1 strap for 1/4" panel thickness. Packed 10 per box.

Item	Finish	Size	Description	Weight	Price Each
929R	26D	For 1/4" panels	Schlage IC ratchet lock body for sliding doors	5.1 lbs/box	$61.33

Item	Description	Packed	Price Each
729RS-2	Optional strap for 3/8" panel thickness	Packed Each	$8.58
729RS-3	Optional strap for maximum 5/8", minimum 3/8" panel thickness	Packed Each	$12.98

IC CORE Corbin/Russwin

Compatibility: Accepts Corbin/Russwin 6 or 7 pin IC cores.

Cores: Corbin/Russwin cores not included. Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See accessories section or consult factory.

CR1125RD Rim (Surface) Mount Deadbolt Locks

CR1125RDVH Woodwork Institute (WI) acknowledged product

Standard function: Key removable in locked or unlocked position. Includes: 1125-1 spacer for 6-pin cores and solid rectangular strike. Handing: See the handing chart on page 5 for proper handing of locks. Packed 10 per box.

Item	Handing	Finish	Fits Mat.	Description	Weight	Price Each
CR1125RD	RH	26D	1-1/8"	Rim deadbolt, right-hand door lock body	5.0 lbs/box	$56.70
CR1125RD	LH	26D	1-1/8"	Rim deadbolt, left-hand door lock body	5.0 lbs/box	$56.70
CR1125RD	VH	26D	1-1/8"	Rim deadbolt, vertical drawer lock body	5.0 lbs/box	$56.70

CR1125RL Rim (Surface) Mount Latch Locks

CR1125RLVH Woodwork Institute (WI) acknowledged product

Standard function: Spring latch. For cabinet doors, place lock on side. Includes: 1125-1 spacer for 6-pin cores and lip strike. Packed 10 per box.

Item	Handing	Finish	Fits Mat.	Description	Weight	Price Each
CR1125RL	VH	26D	1-1/8"	Rim latch, vertical drawer lock body	5.0 lbs/box	$56.70

CR25 Cam Lock

Includes: 720-PL3 (anti-rotation plate), lost-motion and key retaining door/drawer cam shifters, 720-3-1 and 720-3-2 cams and 1125-1 spacer for 6-pin cores. Additional cams available separately. Packed 10 per box.

Item	Finish	Cyl. Length	Description	Weight	Price Each
CR25LM/DM	26D	1-7/16"	IC cam lock body	4.9 lbs/box	$50.80
Item Description				Packed	Price Each
Additional cams		720-3-1, 720-3-2, 720-3-3, 720-3-4, 720-3-5		Packed Each	$2.59
Trim Collars			TR201 (1/8"), TR202 (1/4"), TR203 (3/8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
SW-1	Switch accessory pack			Packed Each	$9.96
720-PL3	Anti-rotation plate			Packed Each	$2.07

IC CORE Medeco / Assa / Yale

IMPORTANT: Keymark cores require SFIC cabinet lock bodies.

Medeco Core: Accepts Medeco (6-pin) IC core cylinder #32-0201. Medeco core requires use of Medeco #94- 0009 or Olympus 931-1M spacer. The 931DR/DW ships standard with Olympus 931-1M spacer.

Yale Core: Accepts Yale 1210 Series (6-pin) IC core cylinder or Medeco's #31-0100 Yale compatible cylinder.

Assa Core: Accepts Assa's Yale 6 pin compatible large format IC core.

Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See the accessories section or consult factory.

931DR Door Deadbolt Lock

Woodwork Institute (WI) acknowledged product

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers below. Handing: See handing chart on page 5 for proper handing of locks (left or right). Includes: 931-1M spacer or Medeco 6-pin IC core cylinders. Packed 10 per box.

Item	Finish	Fits Material	Cylinder	Description	Weight	Price Each
931DR	26D, US3	1-3/8"	N/A	IC door lock body	6.5 lbs/box	$63.65
931DR-KR	26D, US3	1-3/8"	N/A	IC door lock body (key retaining)	6.5 lbs/box	$69.45

Key-retaining: Cycle to "locked" position before inserting core.

931DW Drawer Deadbolt Lock

Woodwork Institute (WI) acknowledged product

Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Key-retaining: For key removable in locked position only, specify the key-retaining part-numbers above. Handing: See handing chart on page 5 for proper handing of locks (vertical or inverted). Includes: 931-1M spacer or Medeco 6-pin IC core cylinders. Packed 10 per box.

Item	Finish	Fits Material	Cylinder	Description	Weight	Price Each
931DW	26D, US3	1-3/8"	N/A	IC drawer lock body	6.5 lbs/box	$63.65
931DW-KR	26D, US3	1-3/8"	N/A	IC drawer lock body (key retaining)	6.5 lbs/box	$69.45
	Key-retaining: Cycle to "locked" position before inserting core.

^** IMPORTANT NOTE: Medeco Keymark cylinders require SFIC lock bodies (see 721DW).

IC CORE Medeco

For MEDECO style large format interchangeable core cylinders

IMPORTANT: Keymark cores require SFIC cabinet lock bodies. Medeco Core: Accepts Medeco (6-pin) IC core cylinder #32-0201.

Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See the accessories section or consult factory.

ME93 Cam Lock

For Medeco IC**

Includes: 720-PL3 (anti-rotation plate), lost-motion and key retaining door/drawer cam shifters, 720-3-1 and 720-3-2 cams. Additional cams available separately. Packed 10 per box.

Item	Finish	Cyl. Length	Description	Weight	Price Each
ME93LM/DM	26D	1-7/16"	IC cam lock body for Medeco IC	3.6 lbs/box	$50.80
Item Description			Packed	Price Each
Additional cams		720-3-1, 720-3-2, 720-3-3, 720-3-4, 720-3-5			$2.59
Trim Collars			TR201 (1/8"), TR202 (1/4"), TR203 (3/8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
SW-1		Switch accessory pack			$9.96
720-PL3	Anti-rotation plate			Packed Each	$2.07

^** IMPORTANT NOTE: Medeco Keymark cylinders require SFIC lock bodies ( see 720 Series locks ).

^** IMPORTANT NOTE: Medeco Keymark cylinders require SFIC lock bodies (see 721DR).

IC CORE Yale

Yale Core: Accepts Yale 1210 Series (6-pin) IC core cylinder.

Assa Core: Accepts Assa's Yale 6-pin compatible large

format IC core. Cylinders: Not included.

Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See the accessories section or consult factory.

YA93 Cam Lock

For Yale IC

Includes: 720-PL3 (anti-rotation plate), lost-motion and key retaining door/drawer cam shifters, 720-3-1 and 720-3-2 cams. Additional cams available separately. Packed 10 per box.

Item	Finish	Cyl. Length	Description	Weight	Price Each
YA93LM/DM	26D	1-7/16"	IC cam lock body for Yale/Assa IC	3.7 lbs/box	$50.80
Item Description				Packed	Price Each
Additional cams	720-3-1, 720-3-2, 720-3-3, 720-3-4, 720-3-5			Packed Each	$2.59
Trim Collars			TR201 (1/8"), TR202 (1/4"), TR203 (3/8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
SW-1		Switch accessory pack			$9.96
720-PL3	Anti-rotation plate			Packed Each	$2.07

IC CORE Sargent

Compatibility: Accepts Sargent 6300 series and Sargent"Degree" interchangeable cores. Cores: Cores not included with locks.

Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See accessories section or consult factory.

SA54 Cam Lock

For Sargent IC

Includes: 720-PL3 (anti-rotation plate), lost-motion and key retaining door/drawer cam shifters, 720-3-1 and 720-3-2 cams. Packed 10 per box.

Item	Finish	Cyl. Length	Description	Weight	Price Each
SA54LM/DM	26D	1-7/16"	IC cam lock body for Sargent IC	3.9 lbs/box	$50.80

Item	Description	Packed	Price Each
Additional cams	720-3-1, 720-3-2, 720-3-3, 720-3-4, 720-3-5	Packed Each	$2.59
Trim Collars	TR201 (1/8"), TR202 (1/4"), TR203 (3/8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
SW-1	Switch accessory pack	Packed Each	$9.96
720-PL3	Anti-rotation plate	Packed Each	$2.07

BEST KEYWAY Utility Cam Lock

Compatibility: Retrofits Best 5E style 3/4" diameter cam lock.

Keyways: Available in A, B, E, F, G, J, K, L, R keyways. Keys: Use KB-400 series (See pages 35 and 43). Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Custom stamping: See page 43. Keying information: See page 6.

B7 Best Keyway Cam Lock

Woodwork Institute (WI) acknowledged product


Item	Keyway	Finish	Cyl. Length	Pin Tumbler Keying	Weight	Price Each
B7 B7	See below See below	26D 26D	1-3/16" 1-3/16"	O-Bit Stock master keyed or non stock KD, KA	3.1 lbs/box 3.1 lbs/box	$34.55 $40.49
Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.					Add on price	$6.00

Available keyways: A, B, E, F, G, J, K, L, R (Specify keyway when ordering)

Use KB-400 series (See page 43). A B E F G J K L R

For keyblanks and cut keys:

OPTIONAL PARTS OPTIONAL CAMS

Item	Description / Packed Each	Price Each
DCNP-500-ARP	Anti-rotation plate	$1.96
DCNP-300-FP	Finger pull	$2.21
DCNP-200-KR DCNP-200-KDR	Key-retaining shifter (Drawer) Key-retaining shifter (Door)	$1.68 $1.68
T37-NKIT	Number plate ring kit	$3.14
T37DC-NP	Number plate ring only	$0.65
DCNP-GW*	Glass washer	$1.05
DCNP-SPW	Pronged wood washer	$0.79
S-SPRING	Pin spring for rekeying B7 cam locks	$0.14

*DCNP-GW is a plastic washer with peel-and-stick adhesive back (used for mounting B7 on glass).

TRB7 Trim Spacer Collars

TRB7-18 1/8"

TRB7-14 1/4"

TRB7-12 1/2"

Use with: B7, DCN or DCR cam locks

Item	Description / Packed Each	Price Each
TRB7-18-26D	1/8" spacer/trim collar	$3.09
TRB7-14-26D	1/4" spacer/trim collar	$3.84
TRB7-12-26D	1/2" spacer/trim collar	$4.45

Note: Offset cams are reversible and can be used in either the inbent or outbent position.

Item	Description / Packed Each	Price Each
DCNP-HD-875	7/8" long straight cam	$1.79
DCNP-HD-1	1" long straight cam	$1.79
DCNP-100-SC	1-1/4" long straight cam	$1.79
DCNP-100-SC2	1-3/4" long straight cam	$1.79
DCNP-100-SC3	1-1/2" long straight cam	$1.79
DCNP-100-LC	3" long straight cam	$1.79
DCNP-100-BC	1-1/4" long cam, 5/16" offset	$1.79
DCNP-100-BC5	1-1/4" long cam, 1/2" offset	$1.79
DCNP-100-HC1	1-1/2" long hook cam, 5/16" offset	$1.79
DCNP-100-HD	1-7/16" long cam, 1/2" offset	$1.79
DCNP-100-HD2	1-3/4" long cam, 5/16" offset	$1.79
DCNP-100-HD3	1-1/8" long cam, 5/16" offset	$1.79
DCNP-100-LBC	1-1/2 long cam, 5/16" offset	$1.79
DCNP-100-B1	Straight cam with oval cutout	$1.79
DCNP-100-B2	U-shaped cam	$2.28
DCNP-100-B3	Straight hook cam	$1.79
DCNP-100-WB	Short cam / 90° offset arm	$1.79

The following warning is applicable to all parts listed on this page:

IC CORE "Best" Small Format

Compatibility: Accepts Best, Arrow, Falcon or compatible 6 or 7 pin small format interchangeable core cylinders. Medeco Keymark: Accepts Medeco Keymark cylinders. Cylinders: Not included with locks. Best compatible cores can be purchased separately. See page 35 of this price list.

Finishes: For finishes not listed, see charges under "custom plating" in this price list or consult factory.

Accessories: Additional accessories are available for these products. See accessories section or consult factory.

720 Cam Lock

ANSI/BHMA A156.11 Grade 1 E07261/E07271 Woodwork Institute (WI) acknowledged product

Retrofits: Best 1E7E4. Includes: 720-PL3 (anti-rotation plate), lost-motion and key retaining door/drawer cam shifters, 720-3-1 and 720-3-2 cams. Additional cams available separately. Packed 10 per box.

Item	Finish	Cyl. Length	Description	Weight	Price Each
720LM/DM	26D, US26, US3, US4	1-7/16"	IC Cam Lock (zinc die cast body)	4.0 lbs/box	$43.82
Item Description			Packed	Price Each
Additional came	ns 720-3-1, 720-3-2, 720-3-3, 720-3-4, 720-3-5		720-3-5	Packed Each	$2.59
Trim Collars	TR201 (1/8"), TR202	(1/4"), TR203 (3	//8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
SW-1	Switch accessory pack	Switch accessory pack		Packed Each	$9.96
720-PL3	Anti-rotation plate			Packed Each	$2.07

720B-DM Medical Cart/Direct Drive Cam Lock

Retrofits: Best 1E7D4. Includes: TR201 and TR202 (trim collars) and 720-3-D1 short cam. Works with BEST original direct drive cams. Packed 10 per box.

Item	Finish	Cyl. Length	Description	Weight	Price Each
720B-DM	26D	1-7/16"	IC Cam Lock (solid brass body)	3.9 lbs/box	$53.93

Item	Description	Packed	Price Each
Additional cams	720-3-SC1 (switch cam)	Packed Each	$3.43
Trim Collars	TR201 (1/8"), TR202 (1/4"), TR203 (3/8"), TR204 (5/32"), TR200A (Pkg)	Packed Each	See page 37
720-PL3	Anti-rotation plate	Packed Each	$2.07

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other perioductive harm. For more information go to www.P65Warnings.ca.gov.

7225 Sliding Door Push Lock

Retrofits: Best 2S and 2S-TBM. Standard function: Key removable in locked or unlocked position. Key-retaining (KR): Key removable in locked position only. Material: Solid brass body construction. Packed 10 per box.

Item	Finish	Fits Material	Description	Key Function	Weight	Price Each
722S	26D	3/4" - 1-1/2"	IC push lock body	Standard	5.4 lbs/box	$63.00
722S-KR	26D	3/4" - 1-1/2"	IC Push lock body	Key-retaining	5.4 lbs/box	$66.15
722S-TBM	26D	3/4" - 1-1/2"	IC push lock, through-bolt mount IC push lock, through-bolt mount	Standard	5.8 lbs/box	$68.25
722S-TBM-KR	26D	3/4" - 1-1/2"		Key-retaining	5.8 lbs/box	$71.40

WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

723S Sliding Door Cylinder Housing

722S-TBM

Retrofits : Best 4S. Includes : 3 sizes of screws (7/16", 3/4" and 1"). Cylinders : Requires special 207S SFIC cylinders (see cylinders on page 30). Also works with Best original #6C or #6CP cylinders. Packed 10 per box .

Item	Finish	Fits Material	Description	Weight	Price Each
723S	26D, US26	Adjustable	Sliding door cylinder housing	1.6 lbs/box	$36.75

721DR Door Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07121 Woodwork Institute (WI) acknowledged product

US19 flat black finish now available

Retrofits: Best 3L. Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Includes: All parts to convert between door/drawer function and to convert to key-retaining function. Key-retaining: Key removable in locked position only. For factory configured key-retaining locks, specify the key-retaining part-numbers below. Handing: See chart on page 5 for proper handing of locks (left or right). SP1 option: Includes prong driver with short pins for use with Sargent XC and Marks high security cylinders. Packed 10 per box.

Item	Finish	Fits Mat.	Description	Weight	Price Each
721DR	26D, US26, US3	1-1/4"	IC door lock body	6.1 lbs/box	$50.56
721DR-SP1	26D, US26, US3	1-1/4"	IC door lock body (with short prongs)	6.1 lbs/box	$63.64
721DR-138	26D	1-3/8"	IC door lock body	5.8 lbs/box	$52.03
721DR	10B, US19	1-1/4"	IC door lock body	6.1 lbs/box	$67.15
721DR-SP1	10B, US19	1-1/4"	IC door lock body (with short prongs)	6.1 lbs/box	$82.64
Door long bolt: For long bolt #721-1-LB factory installed in lock (specify -LB option). Bolts available separately for $9.75 list price each. Extends bolt length to 2-3/4".	Add on price	$15.00

KEY-RETAINING FUNCTION (KEY REMOVABLE IN LOCKED POSITION ONLY)

Item	Finish	Fits Mat.	Description	Weight	Price Each
721DR-KR	26D, US26, US3	1-1/4"	IC door lock body (key retaining)	6.1 lbs/box	$56.36
721DR-KR138	26D	1-3/8"	IC door lock body (key retaining)	5.8 lbs/box	$57.83
721DR-KR	10B, US19	1-1/4"	IC door lock body (key retaining)	6.1 lbs/box	$72.95
Door long bolt: For long bolt #721-1-LB factory installed in lock (specify -LB option). Bolts available separately for $9.75 list price each. Extends bolt length to 2-3/4".	Add on price	$15.00
Key-retaining: Cycle to "locked" position before inserting core.

721DW Drawer Deadbolt Lock

ANSI/BHMA A156.11 Grade 1, E07041 Woodwork Institute (WI) acknowledged product

US19 flat black finish now available

Retrofits: Best 3L. Standard function: Key removable in locked or unlocked position. Standard locks are non-handed. Includes: All parts to convert between door/drawer function and to convert to key-retaining function. Key-retaining: Key removable in locked position only. For factory configured key-retaining locks, specify the key-retaining part-numbers below. Handing: See chart on page 5 for proper handing of locks (vertical or inverted). SP1 option: Includes prong driver with short pins for use with Sargent XC and Marks high security cylinders. Packed 10 per box.

Item	Finish	Fits Mat.	Description	Weight	Price Each
721DW	26D, US26, US3	1-1/4"	IC drawer lock body	6.1 lbs/box	$50.56
721DW-SP1	26D, US26, US3	1-1/4"	IC drawer lock body (with short prongs)	6.1 lbs/box	$63.64
721DW-138	26D	1-3/8"	IC drawer lock body	5.8 lbs/box	$52.03
721DW	10B, US19	1-1/4"	IC drawer lock body	6.1 lbs/box	$67.15
721DW-SP1	10B, US19	1-1/4"	IC drawer lock body (with short prongs)	6.1 lbs/box	$82.64
Drawer long bolt: For long bolt #721-1-LB factory installed in lock (specify -LB option). Bolts available separately for $9.75 list price each. Extends bolt length to 2-3/4".				Add on price	$15.00

KEY-RETAINING FUNCTION (KEY REMOVABLE IN LOCKED POSITION ONLY)

Item	Finish	Fits Mat.	Description	Weight	Price Each
721DW-KR	26D, US26, US3	1-1/4"	IC drawer lock body (key retaining)	6.1 lbs/box	$56.36
721DW-KR138	26D	1-3/8"	IC drawer lock body (key retaining)	5.8 lbs/box	$57.83
721DW-KR	10B, US19	1-1/4"	IC drawer lock body (key retaining)	6.1 lbs/box	$72.95
	Door long bolt: For long bolt #721-1-LB factory installed in lock (specify -LB option). Bolts available separately for $9.75 list price each. Extends bolt length to 2-3/4".	Add on price	$15.00
	Key-retaining: Cycle to "locked" position before inserting core.

724VR Medical Cart / File Cabinet Lock

Retrofits: Best 2P73. Includes: Red "caution" flag when unlocked. Packed 10 per box.

Item	Finish	Description	Weight	Price Each
724VR	26D	Medical cart/file cabinet lock body — vertical slot, round bolt	2.6 lbs/box	$49.35

IC CORE "Best" Small Format

725MD Mortise Mount Deadbolt Locks

Shown as VH DRAWER

725MD

ANSI/BHMA A156.11 Grade 1

Retrofits: Best 5L7MD. Material thickness: Standard lock fits up to 1-1/2" material thickness and 1-3/8" lock fits up to 1-3/4" material when mortised into the door or drawer material. Standard function: Key removable in locked and unlocked position: Key-retaining: Key removable in locked position only. Handing: See chart on page 5. Packed 10 per box.

Item	Finish	Fits Mat.	Description	Weight	Price Each
725MD-DR-RH 725MD-DR-LH	26D, US26, US3, US4 26D, US26, US3, US4	1-1/16" - 1-1/2" 1-1/16" - 1-1/2"	RH Door LH Door	5.0 lbs/box 5.0 lbs/box	$44.94 $44.94
725MD-DW-VH 725MD-DW-IH	26D, US26, US3, US4 26D, US26, US3, US4	1-1/16" - 1-1/2" 1-1/16" - 1-1/2"	VH Drawer IH Drawer	5.0 lbs/box 5.0 lbs/box	$44.94 $44.94
725MD-DWKVH	26D, US26, US3, US4	1-1/16" - 1-1/2"	VH Drawer (key retaining)	5.0 lbs/box	$44.94
US10B finish				Add on price	$17.00

Item	Finish	Fits Mat.	Description	Weight	Price Each
725MD3DR-RH	26D	1-3/8" - 1-3/4"	RH Door (1-3/8" barrel)	5.7 lbs/box	$47.04
725MD3DR-LH	26D	1-3/8" - 1-3/4"	LH Door (1-3/8" barrel)	5.7 lbs/box	$47.04
725MD3DW-VH	26D	1-3/8" - 1-3/4"	VH Drawer (1-3/8" barrel)	5.7 lbs/box	$47.04
725MD3DW-IH	26D	1-3/8" - 1-3/4"	IH Drawer (1-3/8" barrel)	5.7 lbs/box	$47.04
725MD3DWKVH	26D	1-3/8" - 1-3/4"	VH Drawer (key retaining, 1-3/8")	57 lbs/box	$47.04

725ML Mortise Mount Latch Locks

Shown as VH DRAWER

725ML

ANSI/BHMA A156.11 Grade 1

Retrofits: Best 5L7ML. Standard function: Spring latch. Key-retaining: Key removable in locked position only. Handing: See chart on page 5. Material thickness: Standard lock fits up to 1-1/2" material thickness and 1-3/8" lock fits up to 1-3/4" material when mortised into the door or drawer material. Packed 10 per box.

Item	Finish	Fits Mat.	Description	Weight	Price Each
725ML-DR-RH	26D, US26, US3, US4	1-1/16" - 1-1/2"	RH Door	5.3 lbs/box	$44.94
725ML-DR-LH	26D, US26, US3, US4	1-1/16" - 1-1/2"	LH Door	5.3 lbs/box	$44.94
725ML-DW-VH	26D, US26, US3, US4	1-1/16" - 1-1/2"	VH Drawer	5.3 lbs/box	$44.94
725ML-DW-IH	26D, US26, US3, US4	1-1/16" - 1-1/2"	IH Drawer	5.3 lbs/box	$44.94
725ML-DWRVH	26D, US26, US3, US4	1-1/16" - 1-1/2"	VH Drawer (reverse latch)	5.3 lbs/box	$44.94
725ML-DWRIH	26D, US26, US3, US4	1-1/16" - 1-1/2"	IH Drawer (reverse latch)	5.3 lbs/box	$44.94
US10B finish				Add on price	$17.00

Item	Finish	Fits Mat.	Description	Weight	Price Each
725ML3DR-RH	26D	1-3/8" - 1-3/4"	RH Door (1-3/8" barrel)	5.9 lbs/box	$47.04
725ML3DR-LH	26D	1-3/8" - 1-3/4"	LH Door (1-3/8" barrel)	5.9 lbs/box	$47.04
725ML3DW-VH	26D	1-3/8" - 1-3/4"	VH Drawer (1-3/8" barrel)	5.9 lbs/box	$47.04
725ML3DW-IH	26D	1-3/8" - 1-3/4"	IH Drawer (1-3/8" barrel)	5.9 lbs/box	$47.04
725ML3DWRVH	26D	1-3/8" - 1-3/4"	VH Drawer (reverse latch, 1-3/8")	5.9 lbs/box	$47.04
725ML3DWRIH	26D	1-3/8" - 1-3/4"	IH Drawer (reverse latch, 1-3/8")	5.9 lbs/box	$47.04

725RD Rim (Surface) Mount Deadbolt Locks

Shown as VH DRAWER

. . . . . . . . . . . . . . . . . . . .

ANSI/BHMA A156.11 Grade 1

Retrofits: Best 5L7RD. Standard function: Key removable in locked or unlocked position. Key-retaining: Key removable in locked position only. Handing: See chart on page 5. Packed 10 per box.

Item	Finish	Fits Mat.	Description	Weight	Price Each
725RD-DR-RH 725RD-DR-LH	26D, US26, US3, US4 26D, US26, US3, US4	1-1/16" 1-1/16"	RH Door LH Door	5.0 lbs/box 5.0 lbs/box	$44.94 $44.94
725RD-DW-VH 725RD-DW-IH	26D, US26, US3, US4 26D, US26, US3, US4	1-1/16" 1-1/16"	VH Drawer IH Drawer	5.0 lbs/box 5.0 lbs/box	$44.94 $44.94
725RD-DWKVH	26D, US26, US3, US4	1-1/16"	VH Drawer (key retaining)	5.0 lbs/box	$44.94
US10B finish	Add on price	$17.00

Item	Finish	Fits Mat.	Description	Weight	Price Each
725RD3DR-RH	26D	1-3/8"	RH Door (1-3/8" barrel)	5.7 lbs/box	$47.04
725RD3DR-LH	26D	1-3/8"	LH Door (1-3/8" barrel)	5.7 lbs/box	$47.04
725RD3DW-VH	26D	1-3/8"	VH Drawer (1-3/8" barrel)	5.7 lbs/box	$47.04
725RD3DW-IH	26D	1-3/8"	IH Drawer (1-3/8" barrel)	5.7 lbs/box	$47.04
725RD3DWKVH	26D	1-3/8"	VH Drawer (key retaining, 1-3/8")	5.7 lbs/box	$47.04

$\overline{\mathbb{V}}$

725RL Rim (Surface) Mount Latch Locks

Shown as VH DRAWER

725RL

ANSI/BHMA A156.11 Grade 1

Retrofits: Best 5L7RL. Standard function: Spring latch. Reverse latch: Use for in-swinging doors. Handing: See chart on page 5. Packed 10 per box.

Item	Finish	Fits Mat.	Description	Weight	Price Each
725RL-DR-RH	26D, US26, US3, US4	1-1/16"	RH Door	5.3 lbs/box	$44.94
725RL-DR-LH	26D, US26, US3, US4	1-1/16"	LH Door	5.3 lbs/box	$44.94
725RL-DW-VH	26D, US26, US3, US4	1-1/16"	VH Drawer	5.3 lbs/box	$44.94
725RL-DW-IH	26D, US26, US3, US4	1-1/16"	IH Drawer	5.3 lbs/box	$44.94
725RL-DWRVH	26D, US26, US3, US4	1-1/16"	VH Drawer (reverse latch)	5.3 lbs/box	$44.94
725RL-DWRIH	26D, US26, US3, US4	1-1/16"	IH Drawer (reverse latch)	5.3 lbs/box	$44.94
US10B finish	US10B finish

Item	Finish	Fits Mat.	Description	Weight	Price Each
725RL3DR-RH	26D	1-3/8"	RH Door (1-3/8" barrel)	5.9 lbs/box	$47.04
725RL3DR-LH	26D	1-3/8"	LH Door (1-3/8" barrel)	5.9 lbs/box	$47.04
725RL3DW-VH	26D	1-3/8"	VH Drawer (1-3/8" barrel)	5.9 lbs/box	$47.04
725RL3DW-IH	26D	1-3/8"	IH Drawer (1-3/8" barrel)	5.9 lbs/box	$47.04
725RL3DWRVH 725RL3DWRIH	RL3DWRVH 26D 1-3/8"		VH Drawer (reverse latch, 1-3/8") IH Drawer (reverse latch, 1-3/8")	5.9 lbs/box 5.9 lbs/box	$47.04 $47.04

725RSL Enclosure Locks for NEMA Traffic Control Boxes*

Shown as VH DRAWER

725RSL-VH

IMPORTANT: For standard latch bolt, see 725RL or 725ML. Retrofits: Best 5L7RL (with option code -SL). Function: "square latching bolt." *725RSL is a specialized function for use in metal electrical/traffic enclosure boxes. Includes: Solid brass cylinder housing (US26D or US4 finish only). Handing: See chart on page 5. Packed 10 per box.

	· •	•
Item	Finish	Fits Mat.	Description	Weight	Price Each
725RSL-RH	26D, US4	1-1/16"	RH Door - Square Latch	6.0 lbs/box	$52.08
725RSL-LH	26D, US4	1-1/16"	LH Door - Square Latch	6.0 lbs/box	$52.08
725RSL-VH	26D, US4	1-1/16"	VH Drawer - Square Latch	6.0 lbs/box	$52.08

IC CORE "Best" Small Format

728MBL Mailbox Lock

Retrofits: Best 8L. Standard function: Spring latch. Handing: See chart on page 5. Packed 10 per box.

Item	Finish	Fits Material	Description	Weight	Price Each
728MBL	26D	Adjustable	IC Mail Box Lock (right-hand)	2.9 lbs/box	$38.85

729R Showcase/Ratchet Lock

Complies with clause 6.3 (8.2~8.4) of ANSI/BHMA A156.11 ANSI standards Woodwork Institute (WI)

Retrofits: Best 3S. Standard function: Key removable in locked or unlocked position. Includes: Ships standard with 729RS-1 strap for 1/4" panel thickness. Packed 10 per box.

Item	Finish	Size	Description	Weight	Price Each
729R	26D	For 1/4" panels	Ratchet lock for sliding doors	6.2 lbs/box	$59.55

Item	Description	Packed	Price Each
729RS-2	Optional strap for 3/8" panel thickness	Packed Each	$8.58
729RS-3	Optional strap for maximum 5/8", minimum 3/8" panel thickness	Packed Each	$12.98

acknowledged product WARNING: This product can expose you to chemicals including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

950IC Dead Latching Drawer Lock

Standard function: Spring latch with deadlocking mechanism. Turn lock 90 degrees for door function. Includes: Matching lip strike. Packed 10 per box.

Item	Finish	Fits Material	Description	Weight	Price Each
950IC	26D, US3	1-1/8"	IC dead latching drawer lock	7.1 lbs/box	$58.87

L72V Drawer Latch Lock

Standard function: Spring latch. For door applications, place lock on side. Includes: Lip strike. SP1 option: Includes prong driver with short pins for use with Sargent XC and Marks high security cylinders. Packed 10 per box.

Item	Finish	Fits Material	Description	Weight	Price Each
L72V	26D, US3	1-1/8"	IC drawer latch lock	6.9 lbs/box	$56.70
L72V-SP1	26D, US3	1-1/8"	IC drawer latch lock (with short prongs)	6.9 lbs/box	$75.51

CYLINDERS Small Format IC & Schlage C Keyway

206 & 207 SFIC Cylinders (Cores are small format Best, Arrow, Falcon compatible)

BEST compatible interchangeable core cylinders

206 AND 207 SERIES AVAILABLE KEYWAYS A B C D E F G H J K L M Q 1C 1D KMT300

206/207 SERIES SMALL FORMAT 6 OR 7 PIN IC CYLINDERS

206 / 207 SFIC Cores

Item	Description	Price Each
206(x)-(y)	6 pin core, uncombinated	$23.34
206(x)-(y)-CUST	6 pin core, KA, KD or MK	$39.27
207(x)-(y)	7 pin core, uncombinated	$24.61
207(x)-(y)-CUST	7 pin core, KA, KD or MK	$40.49
206/207 in US10B fin	nish ( A keyway only) add-on	$3.00
master keys: Add to	vel system) or systems with multiple the "Stock master keyed or non stock KD, Id master keyed (4-level system or higher),	$6.00
+ c ·c ı	A D C D E E C II I I I I I A O A C A D I I I I I I I I I I I I I I I I I I

$x^* = Specify keyway: A,B,C,D,E,F,G,H,J,K,L,M,Q,1C,1D,KMT300$

y* = Specify finish: 26D, US4

207S SERIES SMALL FORMAT 7 PIN IC CYLINDERS

For use with Olympus 723S sliding door cylinder housings.

Item	Description	Price Each
207SA-26D	7 pin glass core, A keyway, uncombinated	$32.51
207SA-26D-CUST	7 pin glass core, A keyway, KA, KD or MK	$48.51

SFIC Cores Stocked in A keyway. Other keyways: B,C,D,E,F,G,H,J,K,L,M,Q,1C,1D or KMT300 available by special order. Call for availability.

PAINTED CORES (BLUE / GREEN / RED)

We can match your blue, green or red painted Best cores.

Item	Color	Description	Price Each
207-A-BL	BLUE	7 pin, keyed "Blue"	$41.51
207-A-GR	GREEN	7 pin, keyed "Green"	$41.51
207-A-RD	RED	7 pin, keyed "Red"	$41.51

The following warning is applicable to all parts listed on this page:

SPECIFICATIONS

Cores: Equivalent to Best, Arrow, Falcon or similar small format interchangeable cores

Standard finish: 26D or US4 (US10B available) Painted cores: 207 (7 pin only) available in blue (BL), green (GR) or red (RD)

KEYING INFORMATION

Uncombinated: Core only (does not include pins, springs or keys)

Keyed cores: Specify KA, KD or MK.

Keyed cores include 2 change keys per core. 2 additional cut keys (master keys and/or control keys) are shipped with each order. Additional keys are available separately.

Stamping/Engraving: Custom stamping or engraving for cores and keys is available for an additional charge. See page 43 for details.

FOR USE WITH

L72V, 720, 721, 722, 723, 724, 725, 728, 729 and 950 locks

SFIC CONSTRUCTION CORES

SFIC locks ship standard with 725-PA plastic actuator (except 728MBL and 723S). Brass keyed construction cores are available for an additional charge and may be returned for credit at a later date. Construction cores receive one change key per 10 cores and one control key per 20 cores. Additional keys may be purchased at the standard price. For more information call our customer service department at 800-525-0954.

KEYBLANKS & CUT KEYS

Item	Description	Price Each
KB-400K(x*)	Keyblank for 6 or 7 pin core	$2.47
KB-400K(x*)-CUST	Cut key for 6 or 7 pin core	$3.47
KB-400K(x*)-CK	Cut control key for 6 or 7 pin core	$3.47
KB-400K(x*)-MK	Cut master key for 6 or 7 pin core	$3.47

$x^* = Specify keyway: A,B,C,D,E,F,G,H,J,K,L,M,Q,1C,1D,KMT300$

78-201 Schlage C Keyway Cylinders

SCHLAGE style C keyway replacement cylinder

Item No.	Finish	Universal Driver 10-360 Position		For use with	Keying	Price Each
78-201H26D-CUST 78-201HUS4-CUST	26D US4	Horizontal	Ô	700LC 829R-LC 850S	KD, KA or stock master keyed	$37.85
78-201V26D-CUST 78-201VUS4-CUST	26D US4	Vertical	0	800LC 820LC	KD, KA or stock master keyed	$37.85
78-201-26D-CUST 78-201-US4-CUST	26D US4	N/A	Not required	L78	KD, KA or stock master keyed	$37.85
Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.					Add on price	$6.00

2 keys per cylinder.

Keying information: See page 6.

Keys & keyblanks: See page 43.

ACCESSORIES Wire Pulls

PA Series Plastic Actuators

Item	Description	Price Each
725-PA	Ships standard with small format IC locks: L72V,720,721,722,724,725, 728,729,950 locks Ships standard with Corbin/Russwin IC locks: CR1125,CR25	$2.49
7788-PA-D	Ships standard with Schlage FSIC locks: L92V,777,888,920,929	$2.49
931-PA	Ships standard with Medeco/Yale IC locks: 931,ME93,YA93	$2.49

SPACERS White Plastic

Small Pin For 7/8" Barrel Diameter Locks

WP21, WP22, WP23, WP24 interior spacers: These spacers are used for flush fitting locks on various material thicknesses. They are intended for use on the interior of the cabinet door or drawer and can be stacked to create the desired thickness. Packed each.

Item	Finish	Description	Use With	Price Each
WP21 WP22 WP23	White Plastic White Plastic White Plastic	3/32" thick spacer 1/4" thick spacer 1/2" thick spacer	100, 200, 500, 600, N078, R078, L20V	$1.44 $1.50 $1.58
WP24	White Plastic	1/8" thick spacer	999, 998, 997, 996	$1.44

Large Pin For 1-1/8" Barrel Diameter Locks

10-348, 10-349, 10-350, & 10-351, WP725, WP726 interior spacers: These spacers are used for flush fitting locks on various material thicknesses. They are intended for use on the interior of the cabinet door or drawer and can be stacked to create the desired thickness. Packed each.

Item	Finish	Description	Use With	Price Each
10-348 10-349 10-350	White Plastic White Plastic White Plastic	1/4" thick spacer 1/2" thick spacer 1/8" thick spacer	700, 721, 754, 777, 800, 850, 854, 888, 931, 950, L72V, L92V	$2.02 $2.10 $1.94
10-351	White Plastic	1/8" thick spacer	L78	$1.94
WP725 WP726	White Plastic White Plastic	1/8" thick spacer for 1/4" thick spacer for	725RD, 725RL, CR1125	$2.02 $2.09

SPACER COLLARS

TR200 Series For 1-1/8" Diameter Cam Locks

TR200A (PKG), TR201, TR202, TR203, TR204 trim collars: Provide forward spacing to bring lock face forward on thin material thicknesses. Packed each.

Item	Finish	Description	Use With	Price Each
TR200A	32D, US3	Trim collar package	720, 820, 920, CR25, ME93, SA54, YA93 Package includes: TR201, TR202 and TR203	$12.45
TR201 TR202 TR203	32D, US3 32D, US3 32D, US3	1/8" trim collar 1/4" trim collar 3/8" trim collar	720, 820, 920, CR25, ME93, SA54, YA93	$3.65 $4.15 $4.65
TR204	32D	5/32" trim collar	720, 820, 920, CR25, ME93, SA54, YA93	$3.82

TRB7 Series For 3/4" Diameter Cam locks

1/8"

TRB7-18 TRB7-18

1/2"

TRB7-18, TRB7-14, TRB7-12 trim collars: Provide forward spacing to bring lock face forward on thin material thicknesses. Use with: 3/4" diameter DCN/DCR/B7 cam locks. Packed each.

Item	Finish	Description	Use With	Price Each
TRB7-18	26D	1/8" trim collar	DCN, DCR, B7 cam locks	$3.09
TRB7-14	26D	1/4" trim collar		$3.84
TRB7-12	26D	1/2 trim collar		$4.45

TRIM RINGS

1/4"

Trim Rings For 7/8" Barrel Diameter Locks

Fits: 7/8" diameter cabinet locks. Function: Covers up unevenly drilled holes or other flaws around the hole site. Packed each.

Item	Finish	Description / Use with	Price Each
TR1256	26D, US4	Trim ring for 7/8" diameter cabinet locks: 100, 200, 500, 600, 996, 997, 998,	$3.12
TR1256	10B	999, L20V, N078, R078	$4.05

Trim Rings For 1-1/8" Barrel Diameter Locks

Fits: 1-1/8" diameter cabinet locks. Function: Covers up unevenly drilled holes or other flaws around the hole site. Packed each.

Item	Finish	Description / Use with	Price Each
TR78	26D, US3	Trim ring for 1-1/8" diameter cabinet locks: 700, 721, 725, CR1125, 754, 777,	$3.38
TR78	10B	800, 850, 854, 888, 931, 950, L72V, L78, L92V	$4.41

THROUGH-BOLT Mounting Hardware

Small Pin For 7/8" Barrel Diameter Locks

ETS2 / ETST2 Through-bolt plate & spacer/template

ETS2-PL Cabinet Pull

ETS2, ETS3, ETS6: Through-bolt mounting plate is for use on the exterior of the cabinet door or drawer and provide throughbolt mounting of cabinet locks for a more secure installation. ETST2, ETST3: Spacer/template is 1/8" thick and can be used either behind the ETS through-bolt plate on the front of the cabinet or between the cabinet lock body and the cabinet material on the inside of the cabinet or drawer. ETS2-PL: Is installed on the cabinet face and serves as a cabinet pull in either door or drawer applications. Packed each.

Item	Finish	Thickness	Description / Use with	Price Each
ETS2-PL	26D, US3	1/8"	Cabinet pull for 100, 200, 500, 600, L20V	$8.58
ETS2-125 ETS2-250 ETST2	26D, US3 26D, US3 26D, US3	1/8" 1/4" 1/8"	Through-bolt plate for 100, 200, 500, 600, L20V Through-bolt plate for 100, 200, 500, 600, L20V Spacer/template for ETS2 and ETS2-PL	$7.92 $7.92 $3.24
ETS6	26D, US3	1/4"	Through-bolt plate for 999, 998, 997, 996	$7.92

ETS2-PL installed with lock

Large Pin For 1-1/8" Barrel Diameter Locks

ETS1 / ETST1 Through-bolt plate & spacer/template

ETS1-PL Cabinet Pull

ETS4 Through-bolt plate for 777

ETS5 Through-bolt plate for 888

ETS1, ETS4, ETS5: Through-bolt mounting plate is for use on the exterior of the cabinet door or drawer and provide throughbolt mounting of cabinet locks for a more secure installation. ETS1B: Blank (no hole) faceplate for non-locking cabinets or drawers. ETST1: Spacer/template is 1/8" thick and can be used either behind the ETS through-bolt plate on the front of the cabinet or between the cabinet lock body and the cabinet material on the inside of the cabinet or drawer. ETS1-PL: Is installed on the cabinet face and serves as a cabinet pull in either door or drawer applications. Packed each.

Item	Finish	Thickness	Description / Use with	Price Each
ETS1-PL	26D, US3	1/8"	Cabinet pull (requires use of ETS1-125 or ETS1-250) for 700, 721, 754, 777, 800, 850, 854, 888, 931, 950, L72V, L92V	$8.58
ETS1-125	26D, US3	1/8"	Through-bolt plate for 700, 721, 754, 777, 800, 850, 854, 888, 931, 950, L72V, L92V	$7.92
ETS1-250	26D, US3	1/4"	Through-bolt plate for 700, 721, 754, 777, 800, 850, 854, 888, 931, 950, L72V, L92V	$7.92
ETS1B	26D, US3	1/4"	Blank through-bolt plate (no center hole)	$7.92
ETST1	26D, US3	1/8"	Spacer/template for ETS1, ETS1B, ETS1-PL, ETS4, ETS5	$3.24
ETS4 ETS5	26D, US3 26D, US3	1/2" 1/2"	Through-bolt plate for 777 Through-bolt plate for 888	$9.46 $9.46

Slotted Strike

Small Pin For 7/8" Barrel Diameter Locks

Item	Finish	Description	Price Each
12-1	26D, US4	Small angle strike	$1.83
12-2	26D	Heavy duty angle strike	$1.94
12-3	26D	Medium angle strike	$1.83
12-4	ZP	Frameless drawer strike (zinc plated)	$6.81
12-5	SS	Heavy duty slotted strike	$2.57
56-1	26D, US4	Bar strike	$1.83
07S	26D, US4	Slotted strike	$1.89
999-STRIKE	US3	Lipped strike	$2.21

Large Pin For 1-1/8" Barrel Diameter Locks

Frameless Drawer Strike

56-1

Bar Strike

Item	Finish	Description	Price Each
10-052	26D	Slotted strike 1/4" bar strike 1/2" bar strike Notched strike 0.65" bar strike 3/8" bar strike	$2.15
10-054	White Plastic		$2.15
10-055	White Plastic		$2.15
10-056	26D		$2.15
10-057	White Plastic		$2.15
10-058	White Plastic		$2.15
10-352	26D	Screw pack: 10-052 slotted strike + screws	$2.38
10-354	White Plastic	Screw pack: 10-054 1/4" bar strike + screws	$2.38
10-355	White Plastic	Screw pack: 10-055 1/2" bar strike + screws	$2.38
850-210-SP	US4	Lipped strike for 850/950 (1-1/8 barrel length)	$5.67
850-211-SP	US4	Lipped strike for 850 (1-3/8" barrel length)	$5.67
L78ST-1	US3	Lipped strike for L78 (1-1/8" barrel length)	$2.76
L78ST-1-SS	Stainless Steel	Lipped strike for L72V, L92V (1-3/8" barrel length)	$2.76
L78ST-2	US3	Lipped strike for L78 (1-3/8" barrel length)	$2.76

IC Core For 725/CR1125 Series Locks

Item	Finish	Description	Use With	Price Each
725-SP-MD-US3	US3	Screw pack: Slotted strike + screws	Mortise Deadbolt	$3.05
725-SP-MD-SS	Stainless Steel	Screw pack: Slotted strike + screws		$3.05
725-SP-ML-US3	US3	Screw pack: Slotted lip strike + screws	Mortise Latch	$3.05
725-SP-ML-SS	Stainless Steel	Screw pack: Slotted strike + screws		$3.05
725-SP-RD-US3	US3	Screw pack: Flat strike + screws	Rim Deadbolt	$3.05
725-SP-RD-SS	Stainless Steel	Screw pack: Flat strike + screws		$3.05
725-SP-RL-US3	US3	Screw pack: Flat lipped strike + screws	Rim Latch	$3.05
725-SP-RL-SS	Stainless Steel	Screw pack: Flat lipped strike + screws		$3.05

725-SP-ML

CABINET HARDWARE & TOOLS

Elbow Catch & Slide Bolt

Item	Description	Price Each
EC-1-26D	Elbow catch and strike components bulk packed separately without mounting screws	$3.35
EC-2-26D	Elbow catch and strike packaged individually with mounting screws	$3.60

Item	Description	Price Each
SB-3-US26	3" Slide Bolt (Distributor Pack), packaged individually with 4 screws	$7.00

102 Series Wire Pulls

Use: Wire pulls can be mounted on small or large pin Olympus 2000 handles or used as standard door/drawer pulls on wood or laminate cabinetry. Packed each.

Item	Finish	Description	Price Each
102-015-96SC	26D	3-3/4" satin chrome, oval wire pull	$5.62
102-015-96	US3	3-3/4" polished brass, oval wire pull	$5.62
102-015-96-10B	10B	3-3/4" oil rubbed bronze, oval wire pull	$10.49
102-015-4SC	26D	4" satin chrome, oval wire pull	$5.62
102-015-4	US3	4" polished brass, oval wire pull	$5.62

CL-HIT-25 Cabinet Lock Drill Guide

Includes: Four sizes of drill bushings: 3/4", 7/8", 1-1/8" and 1-1/4". For use with Forstner type drill bits. Not compatible with hole saws, paddle or spade type bits.

Item	Description	Price Each
CL-HIT-25	Cabinet Lock Drilling Guide	$295.05

CL-MP-118 Double-D Metal Punch (for 1-1/8" diameter cam locks)

Usage: Punches a DOUBLE "D" hole in sheet metal cabinet drawers and doors. Use on metal cabinets or any type of sheet metal door made with 18 gauge (.048) or lighter steel. Punches a DOUBLE "D" hole size 7/8" wide by 1-1/8" high. For use with 1-1/8" diameter Olympus cabinet locks 720, 820, 920, CR25, ME93, SA54, YA93.

Item	Description	Price Each
CL-MP-118	Double-D Metal Punch - for 1-1/8" diameter cam locks	$342.30

DISPLAY BOARDS & SAMPLE KITS

FDB Series Olympus Display Boards

FDB-001

FDB-002 FDB-003

FDB-004

SK Series Product Sample & Service Kits

SK-002 Contains a broad sampling of our best selling locks and accessories. The kit comes in its own plastic, 2 level case with each product carefully marked and separated by dividers.

SK-003 Contains a broad sampling of our small format interchangeable core (SFIC) cabinet locks and accessories. The kit comes in its own plastic, 2 level case with each product carefully marked and separated by dividers.

SK-004 Contains a sampling of our most popular parts and accessories. The kit comes in its own plastic, 2 level case with parts marked and separated by dividers. Provides additional room for extra locks and accessories.

Item	Description	Price Each
SK-002	General Product Line See list of contents: olympuslock.com/sk-002.htm	$572.00
SK-003	Small Format IC Core See list of contents: olympuslock.com/sk-003.htm	$572.00
SK-004	Parts Kit See list of contents: olympuslock.com/sk-004.htm	$156.00
SK-005	N Series Locks See list of contents: olympuslock.com/sk-005.htm	$572.00
SK-006	Schlage C Keyway Locks See list of contents: olympuslock.com/sk-006.htm	$572.00

SK-005 Contains a sampling of our N Series (National Keyway) cabinet locks and accessories. The kit comes in its own plastic, 2 level case with each product carefully marked and separated by dividers.

SK-006 Contains a sampling of our Schlage C Keyway cabinet locks and accessories. The kit comes in its own plastic, 2 level case with each product carefully marked and separated by dividers.

Pin Kits For N Series & R Series Cabinet Locks

Item	Description	Qty/Pkg	Weight	Price Each
N1 Use with N Series	N1 Keying Kit (includes metal box) For Olympus N Series National D4291/D4292 keyway Includes: 100 ea. Drivers 1-4, 100 ea. Master drivers 2-9, 100 ea. Tumblers 0-9, 100 ea. Tumbler springs, 10 ea. Set screws, 1 ea. Plug follower	Kit	5.5 ea.	$209.48
R1 Use with R Series	R1 Keying Kit (includes metal box) For Olympus R Series CCL R1 keyway Includes: 100 ea. Master pins 2-9, 100 ea. Bottom pins 0-9, 100 ea. Drivers 0 & 5, 100 ea. Tumbler springs, 10 ea. Set screws, 1 ea. Plug follower	Kit	5.5 ea.	$209.48
Extra pins for key kits	Specify keyway and pins required (bags of 100) See chart below for individual pin part-numbers	100/bag		$12.79
OC3737	Tumbler springs for N or R series locks (bags of 100)	100/bag		$12.79
S100	Set screws for N or R series locks	Each		$0.46
FL1	Plug follower for N or R series locks	Each	0.034 ea.	$14.70

The following warning is applicable to all parts listed on this page:

N SERIES National D4291/D4292 keyway pins


Pin Item	Description	Qty/pkg	Price/pkg
OC3730	Driver #1	100/bag	$12.79
OC3731	Driver #2	100/bag	$12.79
OC3732	Driver #3	100/bag	$12.79
OC3733	Driver #4	100/bag	$12.79
OC3740	Master driver #2	100/bag	$12.79
OC3741	Master driver #3	100/bag	$12.79
OC3742	Master driver #4	100/bag	$12.79
OC3743	Master driver #5	100/bag	$12.79
OC3744	Master driver #6	100/bag	$12.79
OC3745	Master driver #7	100/bag	$12.79
OC3746	Master driver #8	100/bag	$12.79
OC3747	Master driver #9	100/bag	$12.79
OC3750	Tumbler #0	100/bag	$12.79
OC3751	Tumbler #1	100/bag	$12.79
OC3752	Tumbler #2	100/bag	$12.79
OC3753	Tumbler #3	100/bag	$12.79
OC3754	Tumbler #4	100/bag	$12.79
OC3755	Tumbler #5	100/bag	$12.79
OC3756	Tumbler #6	100/bag	$12.79
OC3757	Tumbler #7	100/bag	$12.79
OC3758	Tumbler #8	100/bag	$12.79
OC3759	Tumbler #9	100/bag	$12.79

R SERIES CCL R1 keyway pins

Pin Item	Description	Qty/pkg	Price/pkg
X025	Master pin #2	100/bag	$12.79
X038	Master pin #3	100/bag	$12.79
X050	Master pin #4	100/bag	$12.79
X063	Master pin #5	100/bag	$12.79
X075	Master pin #6	100/bag	$12.79
X088	Master pin #7	100/bag	$12.79
X100	Master pin #8	100/bag	$12.79
X113	Master pin #9	100/bag	$12.79
W111	Bottom pin #0	100/bag	$12.79
W123	Bottom pin #1	100/bag	$12.79
W136	Bottom pin #2	100/bag	$12.79
W148	Bottom pin #3	100/bag	$12.79
W161	Bottom pin #4	100/bag	$12.79
W173	Bottom pin #5	100/bag	$12.79
W186	Bottom pin #6	100/bag	$12.79
W198	Bottom pin #7	100/bag	$12.79
W210	Bottom pin #8	100/bag	$12.79
W223	Bottom pin #9	100/bag	$12.79
X155	Driver #0	100/bag	$12.79
X088	Driver #5	100/bag	$12.79

KEYS & STAMPING CHARGES

Keying & Stamping Charges

For information on standard code stamping, see Keying Information on page 6.

Keying	Add on Price Each
Grand master (3-level system) or systems with multiple master keys: Add to the "Stock master keyed or non stock KD, KA" price. Great grand master keyed (4-level system or higher), call factory for price.	$6.00
Great grand master keyed (4-level system or higher):	Call for price
Special (non-standard) code stamping cost per lock: Includes special stamping face of cabinet lock and on one side of both operating keys.	$6.60

N SERIES — NATIONAL KEYWAY KEY PROFILES

KEYBLANKS

Item	Description	Price Each
KBN-4-NP	National 4 pin keyblank (D4291)	$1.41
KBN-5-NP	National 5 pin keyblank (D4292)	$1.41
KBN-5B	National 5 pin keyblank (D4292) non-magnetic	$1.41

CUT KEYS

Item	For National Keyway Locks	Price Each
KB-101-NP	Cut key for KA #101	$3.31
KB-103-NP	Cut key for KA #103	$3.31
KB-107-NP	Cut key for KA #107	$3.31
KB-915-NP	Cut key for KA #915	$3.31
KB-51001-NP	Cut key for KA #51001	$3.31
KB-51002-NP	Cut key for KA #51002	$3.31
KB-51003-NP	Cut key for KA #51003	$3.31
KB-51004-NP	Cut key for KA #51004	$3.31
KB-51005-NP	Cut key for KA #51005	$3.31
KB-51006-NP	Cut key for KA #51006	$3.31
KB-51007-NP	Cut key for KA #51007	$3.31
KB-51008-NP	Cut key for KA #51008	$3.31
KB-51009-NP	Cut key for KA #51009	$3.31
KB-51010-NP	Cut key for KA #51010	$3.31
KB-51011-NP	Cut key for KA #51011	$3.31
KBN-4-CUST	Custom cut 4-pin key	$3.31
KBN-5-CUST	Custom cut 5-pin key	$3.31
KBN-5B-CUST	Custom cut 5-pin key, non-magnetic	$3.31
KB-GM1MK-NP	National GM1 (4-pin) master key	$3.31
KB-GM2MK-NP	National GM2 (5-pin) master key	$3.31
KB-GM2MK-5B	National GM2 (5-pin) master key MRI	$3.31
KB-GM3MK-NP	National GM300 (5-pin) master key	$3.31

KEYBLANKS

Item	Description	Price Each
KBR-5-NP	CCL 5 pin keyblank (R1)	$1.41
KBR-6-NP	CCL 6 pin keyblank (R1)	$1.41
KBR-5B	CCL 6 pin keyblank (R1) non-magnetic	$1.41

CUT KEYS

Item	For CCL Keyway Locks	Price Each
KB-4T2-NP	Cut key for KA #4T21579	$3.31
KB-4T3-NP	Cut key for KA #4T37526	$3.31
KBR-5-CUST	Custom cut 5-pin key	$3.31
KBR-5B-CUST	Custom cut 5-pin key, non-magnetic	$3.31
KBR-6-CUST	Custom cut 6-pin key	$3.31
KB-R1MK-NP	Cut CCL R1 (5 pin) master key	$3.31
KB-R1MK-5B	Cut CCL R1 (5 pin) master key MRI	$3.31

S SERIES — SCHLAGE C KEYWAY

KEYBLANKS

Item	Description	Price Each
KBSC-5	Schlage "C" 5 pin keyblank	$1.39
KBSC-6	Schlage "C" 6 pin keyblank	$1.39

CUT KEYS

Item	For Schlage C Keyway Locks	Price Each
KB-700-101 KB-700-102	Cut key for KA#101 Cut key for KA#102	$3.47 $3.47
KB-700-CUST	Custom cut key Schlage C keyway	$3.47
KB-700MK	Cut Schlage C (5-pin) master key	$3.47

R SERIES — CCL R1 KEYWAY 206/207 IC CORES & B7 CAM LOCKS

KEYBLANKS

Item	Description	Price Each
KB-400K(x*)	SFIC 6 or 7 pin keyblank (x*) - See page 20 for available keyways For use with small format 206/207 series IC cores or B7 series cam locks	$2.47

CUT KEYS

Item	For Small Format IC Cores & B7	Price Each
KB-400K(x*)-CUST	Cut key for 6 or 7 pin	$3.47
KB-400K(x*)-CK	Cut control key for 6 or 7 pin	$3.47
KB-400K(x*)-MK	Cut master key for 6 or 7 pin	$3.47

x* = Specify keyway: A,B,C,D,E,F,G,H,J,K,L,M,Q,1C,1D,KMT300

The following warning is applicable to all parts listed on this page:

ADDITIONAL Parts & Accessories

FOR DCN/DCR/B7/T37

Item	Description	Price Each
B7-TS	Pin cover/top slide for B7	$0.79
DCNP-GW	Glass mounting washer	$1.05
DCNP-RS	Plug retainer staple DCN/DCR/T37	$0.84
DCNP-SL	Pin cover/top slide for DCN/DCR	$0.79
DCNP-SPW	Pronged wood washer	$0.79
DCNP-200-OCD	Outer cam driver	$1.68
DCNP-200-RCS	Reverse cam stop	$1.68
DCNP-300-FP	Finger pull, stainless steel	$2.21
S200-ZP-LT	Machine screw	$0.84
DCNP-600-NUT	Brass fixing nut	$4.15
DCNP-200-KR	Key retaining driver-drawer	$1.68
DCNP-200-KDR	Key retaining driver-door	$1.68
DCNP-500-ARP	Anti rotation plate	$1.96

FOR N SERIES & R SERIES LOCKS

Item	Description	Price Each
1256-3	Cylinder washer, 100/200/500/600	$0.83
1256-4-78	Pin cover, 100/200/500/600, 7/8"	$0.83
1256-4-138	Pin cover, 100/200/500/600, 1-3/8"	$0.83
07834C-1	Pin cover for 300/400/N078/R078	$0.83
15-1-35	Extended bolt for 100/500	$9.45
15-2	100/500 bolt driver (standard function)	$1.32
15-2KR	100/500 key-retaining bolt driver	$1.32
26-2	200/600 bolt driver (standard function)	$1.32
26-2KR	200/600 key-retaining bolt driver	$1.32
S160	Stop screw for 300/400	$0.84
34-9	Strike bushing for 300/400	$1.66
S170	Bolt extender for 300/400	$2.21
S120-SS	Strike screw #6 x 1/2" SS (MRI)	$0.46
S125-SS	Lock mounting screw #6 x 1" SS (MRI)	$0.46
S130-UB	Assembly screw (100/200/500/600) (MRI)	$0.84

FOR 700 & 800

Item	Description	Price Each
10-361	Driver bar for 7/8"	$1.50
10-361-KR	Driver bar for 7/8" (key-retaining)	$1.50
10-362	Driver bar for 1-3/8"	$1.50
10-362-KR	Driver bar for 1-3/8" (key-retaining)	$1.50
10-363	Driver bar, Medeco	$1.50
10-364	Driver bar, ASSA	$1.50
10-360	Universal driver	$1.22
10-112	Bolt driver, ASSA	$5.87
10-212	Bolt driver, ASSA	$5.87
78-KABA-CONV	Kit for KABA cylinders (for 700LC/800LC)	$5.58
S190	Set screw	$0.84

777 & 888 SERIES

Item	Description	Price Each
7788-PA-13	Plastic actuator, for key retaining	$2.49
7788-PA-24	Plastic actuator, for key retaining	$2.49
7788-PA-D	Plastic actuator, for standard function	$2.49

920 SERIES

Item	Description	Price Each
7788-PA-D	Plastic actuator, for standard function	$2.49

931 SERIES

Item	Description	Price Each
931-DR-11	Door driver disk	$5.87
931-DW-11	Drawer driver disk	$5.87
931-PA	Plastic actuator	$2.49
931-1	Spacer for Medeco 6-pin IC core cylinders	$2.21

721 SERIES

Item	Description	Price Each
725-PA	Plastic actuator	$2.49
721-1	Standard reversible bolt for 721	$5.87
721-1-LB	Extended reversible bolt for 721	$9.45
721-2	Bolt driver (lost motion or key retaining)	$2.10
721-DR-11	Prong driver (door) for 1-1/4" lock	$5.87
721-DW-11	Prong driver (drawer) for 1-1/4" lock	$5.87
721-DRPD-138	Prong driver (door) for 1-3/8" lock	$6.53
721-DWPD-138	Prong driver (drawer) for 1-3/8" lock	$6.53
721-DR-11-SP1	Short pin prong driver (door) for 1-1/4" lock	$5.51
721-DW-11-SP1	Short pin prong driver (drawer) for 1-1/4" lock	$5.51
S190	Set screw	$0.84

CR1125 SERIES

Item	Description	Price Each
725-PA	Plastic actuator	$2.49
1125-1	6 pin core spacer	$1.39

725 SERIES

Item	Description	Price Each
725-PA	Plastic actuator	$2.49
725-1	Internal spacer for 6-pin SFIC cores	$1.39

729, 829 & 929 SHOWCASE/RATCHET LOCKS

Item	Description	Price Each
729RS-1	Strap for 1/4" thick material (ships standard)	$8.58
729RS-2	Strap for 3/8" thick material	$8.58
729RS-3	Adjustable strap for up to 5/8" thick material	$12.98

720, 820, 920, CR25, ME93, SA54, YA93 CAM LOCKS (excludes 720B-DM)

Item	Description	Price Each
720-CDLM	Cam driver, lazy motion	$1.76
720-CDDM	Cam driver, direct motion (key-retain) door	$1.76
720-KR	Cam driver, direct motion (key-retain) drawer	$1.76
720-3-1	Short cam, 7/8"	$2.59
720-3-2	Long vertical cam, 1-3/4"	$2.59
720-3-3	Long inverted cam, 1-3/4"	$2.59
720-3-4	Long straight cam, 3"	$2.59
720-3-5	Long inverted bent cam	$2.59
720-4	Brass fixing nut	$4.15
S200-ZP-LT	Machine screw	$0.84
S260	Threaded cam stop pin	$0.84
720-PL3	Anti-rotation plate	$2.07

FOR 720LM/DM

Item	Description	Price Each
725-PA	Plastic actuator	$2.49
725-1	Internal spacer	$1.39
720-PD	Prong driver	$4.36

720B-DM

Item	Description	Price Each
725-PA	Plastic actuator	$2.49
720-3-D1	Short cam, direct drive	$2.59
720-3-SC1	Switch cam, direct drive	$3.43
720-4	Brass fixing nut	$4.15
720-PL3	Stabilizer plate	$2.07

The following warning is applicable to all parts listed on this page:

BRASS PADLOCKS

Keyway: National D4291(4-pin) or D4292 (5-pin) keyway

Stock KD/KA: 4 pin standard Stock KA#: 101, 103, 107, 915 Stock KA#: 51001 through 51004 Master keyed: 5 pin standard Pin Kit: Use N1 Pin Kit for rekeying

Keyblanks: 4-pin use KBN-4-NP (equivalent to NA14, 1069L), 5-pin use KBN-5-NP (equivalent to NA12, 1069LA). See page 43 for cut keys and keyblanks.

Custom stamping: See page 43. Keying information: See page 6.

PN50 N Series National Keyway Padlocks

Packaged: Packed each. Cores: Not included.

BP Mountain Series Blister Packed Brass Padlocks

Special note on our keyed different padlocks: Keyed different codes are not guaranteed against interchange. Packaged: BP Mountain Series padlocks are sold in full box quantities only (see box quantities below).

Item	Width	Keying	Shackle	Box Qty	Case Qty	Price Each
BP075	3/4"	KD, KA 30	Regular	10	200	$3.41
BP100	1"	KD, KA 40,45	Regular	10	200	$4.69
BP125	1-1/4"	KD, KA 51	Regular	10	100	$6.22
BP125LS	1-1/4"	KD, KA 51,59	Long	10	50	$6.41
BP150	1-1/2"	KD, KA 60,61,65	Regular	10	100	$8.67
BP150LS	1-1/2"	KD, KA 60,65	Long	10	50	$8.92
BP175	1-3/4"	KD, KA 70,75	Regular	5	75	$10.35
BP200	2"	KD, KA 80	Regular	5	75	$13.80

B = Distance between top of lock and inside shackle

C = Width of inside shackle

D = Shackle diameter

BP PADLOCK MEASUREMENTS

Item	A	Keying	B	C	D	Box Qty	Box Weight
BP075	3/4"	KD or KA 30	3/8"	3/8"	1/8"	10	1.1 lbs.
BP100	1"	KD or KA 40, 45	1/2"	1/2"	5/32"	10	1.1 lbs.
BP125	1-1/4"	KD or KA 51	5/8"	5/8"	7/32"	10	2.1 lbs.
BP125-LS	1-1/4"	KD or KA 51, 59	2-1/8"	5/8"	7/32"	10	3.1 lbs.
BP150	1-1/2"	KD or KA 60, 61, 65	7/8"	7/8"	1/4"	10	3.9 lbs.
BP150-LS	1-1/2"	KD or KA 60, 65	2-1/2"	7/8"	1/4"	10	4.7 lbs.
BP175	1-3/4"	KD or KA 70, 75	1"	1"	9/32"	5	2.9 lbs.
BP200	2"	KD or KA 80	1-1/8"	1"	11/32"	5	3.1 lbs.

Note: All fractional measurements are approximate.

BP (MOUNTAIN) SERIES PADLOCK KEYBLANKS

Item	Description	Packaged	Price / Box
KB220	Fits BP075 - 3/4" Padlock	50/box	$29.40
KB225	Fits BP100 - 1" Padlock	50/box	$29.40
KB235	Fits BP125 - 1-1/4" Padlock	50/box	$29.40
KB240	Fits BP150 - 1-1/2" Padlock	50/box	$29.40
KB240	Fits BP175 - 1-3/4" Padlock	50/box	$29.40
KB250	Fits BP200 Padlock - 2" Padlock	50/box	$29.40

CRB200 Corbin/Russwin Interchangeable Core Padlock Bodies

Packaged: Packed each. Cores: Not included.

Item	Width	Shackle	Keying	Packaged	Price Each
CRB200-IC6	2" - 50mm	7/8" (25 mm) Opening Regular Shackle	Accepts Corbin/Russwin 6-pin IC Cylinders (cylinders not included)	Each	$49.39
CRB200-IC6-LS	2" - 50mm	2-5/8" (65 mm) Opening Long Shackle	Accepts Corbin/Russwin 6-pin IC Cylinders (cylinders not included)	Each	$51.16

OLYMPUS LOCK, INC. Institutional Grade Cabinet Locks

Schlage

Padlocks

TERMS, CONDITIONS & WARRANTY

CONDITIONS OF SALE

Payment Terms: 2% 10 days, net 30 days. All payment terms are subject to credit approval. Past due balances are subject to a late payment charge of 1.5% per month, or the maximum permitted by applicable law, whichever is less.

Remittance Address: All payments should be sent by mail to: Olympus Lock, Inc.,

PO Box 1277, Lynnwood, WA 98046

Minimum Order: $25.00 net excluding freight.

Minimum Annual Purchases: $10,000.00 net excluding freight for open account status.

Prices: Olympus Lock, Inc. reserves the right to change prices and add or remove items at any time and without prior notice.

Conditions: All specifications are subject to withdrawal or change at any time and without prior notice. Olympus Lock reserves the right to refuse orders which may be submitted. All prices F.O.B. Lynnwood, Washington, US Funds.

OFFICE HOURS & CONTACT INFORMATION

Office Hours: 7:00 AM to 4:00 PM Pacific Standard Time

Phone: 206-362-3290, Toll-Free: 800-525-0954, Fax: 206-362-3569 Street Address: 18424 Highway 99, Lynnwood, WA 98037

Website: www.olympuslock.com Company email: info@olympus-lock.com

U.S. SHIPMENTS

All merchandise is shipped F.O.B. from our Lynnwood, Washington warehouse and becomes the property of the customer when accepted by the carrier. Olympus Lock will pay freight charges on orders of $1,500.00 net or more to a single destination within the continental U.S.A. (excluding Alaska) via the carrier of our choice. For Hawaii and Alaska Customers: Olympus will pay freight on shipments of $1,500.00 net or more to closest U.S. West Coast port.

CANADIAN SHIPMENTS

All merchandise is shipped F.O.B. our Lynnwood, Washington warehouse and becomes the property of the customer when accepted by the carrier. Olympus Lock will pay freight charges on Canadian orders of $1,500.00 net or more to closest U.S.A. border crossing via the carrier of our choice provided this information is clearly specified at time of order. Olympus Lock will pay freight charges on Canadian orders of $2,000.00 net or more to a single Canadian destination via the carrier of our choice. All duty and/or customs charges are the sole responsibility of the customer.

DELIVERY

Claims resulting from loss, shortages or damage-in-transit must be reported to Olympus Lock within 15 days of delivery. Any claims resulting from shortages, overages, or the shipment of incorrect products by Olympus Lock must be reported to Olympus Lock within 15 days of delivery. Olympus Lock does not assume responsibility for any damages resulting from any delays in delivery.

CANCELLATIONS

Cancellations or alterations to orders will be accepted only when the cancellation or alteration can be made without loss to Olympus Lock. Orders for non-stock and/or custom items may not be cancelled after work has begun.

RETURNED GOODS POLICY

No material is to be returned without our verbal or written permission in advance. All returned goods require a Returned Goods Authorization (RGA) number to be obtained from Olympus Lock prior to returning the goods. Only products purchased within the last 12 months may be returned. Any products purchased more than 12 months prior are ineligible for return. Whether goods may be returned will be at the sole discretion of Olympus Lock, Inc. Merchandise returned must be identified as to original purchase order number, date of purchase, and shipper's name and address.

A 25% restocking fee will apply to all returned goods which are found not to be the responsibility of Olympus Lock.

18424 Highway 99 | Lynnwood, WA 98037 206-362-3290 | 800-525-0954 | Fax 206-362-3569 Email: info@olympus-lock.com

www.olympuslock.com

All goods must be shipped freight prepaid and received at our warehouse within 30 days of receiving an RGA number. Goods not received within 30 days of RGA issuance or for which an RGA number was not issued will not be returned and no credit will be issued.

Returned goods must be received in first-class resalable condition and in original factory packaging. The determination of "first-class resalable condition" will be at the sole discretion of Olympus Lock. Goods that are returned and determined by Olympus Lock not to be in first-class resalable condition will not be returned, will be scrapped at the factory, and no credit will be issued.

The following are non-returnable:

1. Custom keyed, non-stock items
2. Goods that have been installed
3. Goods that required custom stamping
4. Goods with custom, special order finishes
5. Products or parts that have been modified
6. Obsolete or discontinued items

LIMITED WARRANTY

Olympus Lock warrants that its products are free from defects in workmanship and materials under normal installation, use and service. This warranty does not cover defects or damages arising from improper installation, improper maintenance, ordinary wear and tear, misuse or abuse.

The only liability of the company in tort or in contract, whether under this warranty or otherwise shall be limited to repair or replacement of products which are returned prepaid to us within one year of the date of original purchase.

This is a limited warranty and is in lieu of all other representations and expressed or implied warranties. Under no circumstances shall Olympus Lock be made liable for any incidental or consequential damages or losses.

WARNING: CALIFORNIA PROPOSITION 65 STATEMENT

This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

What is California Proposition 65?

Also known as the Safe Drinking Water and Toxic Enforcement Act of 1986, California Proposition 65 is a law that requires warning to consumers if a product exposes consumers to a wide variety of chemicals known by the State of California to cause cancer, birth defects and/or other reproductive harm. Proposition 65 applies only in California.

What does the Proposition 65 Warning mean?

A Proposition 65 warning means that the business issuing the warning knows that one or more listed chemicals is merely present in its product. A warning must be given unless a business demonstrates that the exposure it causes poses "no significant risk."

Why does Olympus Lock place a Proposition 65 warning on its products?

A Proposition 65 warning means one of two things: (1) the company evaluated the exposure and has concluded that product exceeds the "no significant risk level"; or (2) the company has chosen to provide a warning simply based on its knowledge about the presence of a listed chemical without attempting to evaluate the exposure.

Out of an abundance of caution, Olympus Lock has elected to place the Proposition 65 warning on all products shipped to California.

facebook.com/OlympusLock

youtube.com/OlympusLock

twitter.com/OlympusLock

linkedin.com/company/olympus-lock-inc-

enews sign up: olympuslock.com

Copyright © 2019 Olympus Lock, Inc. all rights reserved. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders. Information and specifications in this document are subject to change without notice at any time. The information provided in this document is as complete and correct as is reasonably possible. All box and case weights are approximate. We cannot guarantee the accuracy of information provided to us by other manufacturers as they are under no obligation to notify us of changes to products or specifications. Printed in USA 07/19.

Olympus_2019-07-01_Price_List_PL1901

PRICE LIST

ABOUT OLYMPUS LOCK

Institutional grade cabinet locks.

EXPERIENCE

INNOVATION

SERVICE

SPECIFICATIONS

APPLICATIONS

PIN TUMBLER SOLUTIONS

ELECTRONIC KEY RECORDS

CONTACT

TABLE OF CONTENTS

REPLACEMENT GUIDE

HANDING

LH RH Left-hand (LH) Hinged on left Right-hand (RH) Hinged on right CABINET DOORS VH IH Inverted-hand (IH) Vertical-hand (VH) DRAWERS

STANDARD FUNCTION

KEY RETAINING

HANDING

FINISHES

FINISH CODES

CUSTOM PLATING CHARGES

HOW TO ORDER

ORDERING LOCKS

STOCK KEYED LOCKS

CUSTOM KEYING SERVICES

HOW TO ORDER MASTER/CUSTOM KEYED LOCKS

KEYING INFORMATION

GRAND MASTER OR GREAT GRAND MASTER KEYING

SPECIAL STAMPING

N Series National keyway

STOCK KEYING

STOCK MASTER KEYING

NON-STOCK MASTER KEYING

GRAND MASTER OR MULTIPLE MASTER KEY SYSTEM

S Series Schlage C Keyway

STOCK KEYING

STOCK MASTER KEYING

NON-STOCK MASTER KEYING

GRAND MASTER OR MULTIPLE MASTER KEY SYSTEM

R Series CCL R1 Keyway

STOCK KEYING

STOCK MASTER KEYING

NON-STOCK MASTER KEYING

GRAND MASTER OR MULTIPLE MASTER KEY SYSTEM

SFIC Small Format IC

STOCK KEYING

CUSTOM / MASTER KEYING

GRAND MASTER OR MULTIPLE MASTER KEY SYSTEM

SLT SERIES Rim Cylinder Conversion Kit

SLT-O1 Door or Drawer Latch Lock

SLT-O2 Door or Drawer Deadbolt Lock

DCP SERIES Padlockable Cam Lock

DCP Padlockable Cam Lock

DCP500 Padlockable Cam Lock (with finger pull)

STRAIGHT CAMS FOR DCP OR DCP500 OFFSET CAMS FOR DCP OR DCP500

DCP-SP1 Padlock Bumper Plate

100DR Door Deadbolt Lock

200DW Drawer Deadbolt Lock

100M Door Deadbolt Lock (MRI Series)

200M Drawer Deadbolt Lock (MRI Series)

300SD Sliding Door Push Lock

329R Showcase/Ratchet Lock

DCN Cam Lock

L20V Drawer Latch Lock

T37 T-Bolt Lock

T54C T-Knob Cylinder Replacement Kit

999 Door Latch Lock

998 Drawer Latch Lock

FC10 File Cabinet Lock Kit

N078 Diamond Back Drawer Lock

N078 Diamond Back Door Lock

500DR Door Deadbolt Lock

600DW Drawer Deadbolt Lock

500M Door Deadbolt Lock (MRI Series)

600M Drawer Deadbolt Lock (MRI Series)

400SD Sliding Door Push Lock

429R Showcase/Ratchet Lock

DCR Cam Lock

R078 Diamond Back Drawer Lock
