Norton Rixson 6000 Series Operator, D6051 Double Doors Widths 36 – 48 and Reveals for 1, 8 to 3, 110 Max…_7360-1054

Single Pull Side

Left Hand

(view from below)

Interior

Door

NOTE:

- All illustrations on this page shown with 36" (914mm) wide doors

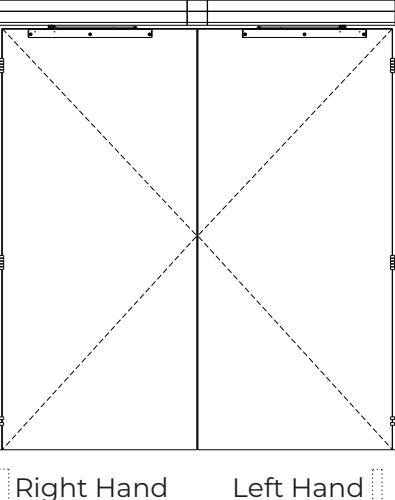

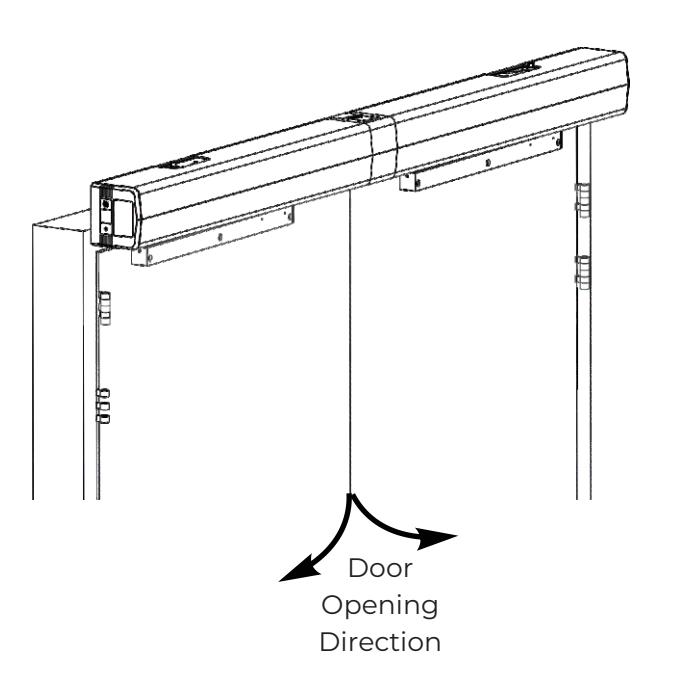

Double Door Pull Side

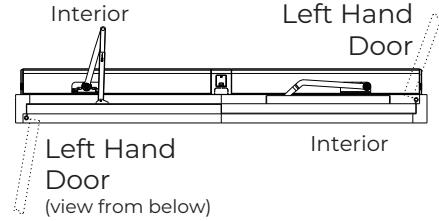

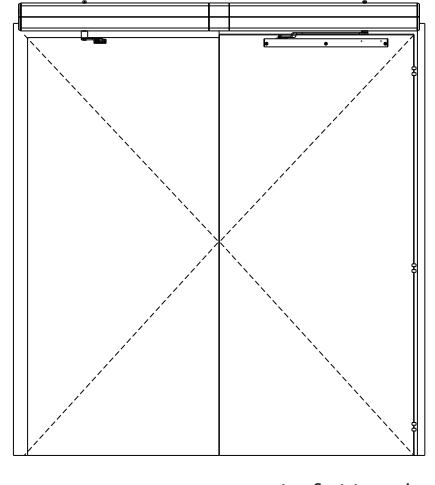

Double Door Double Egress Left Hand

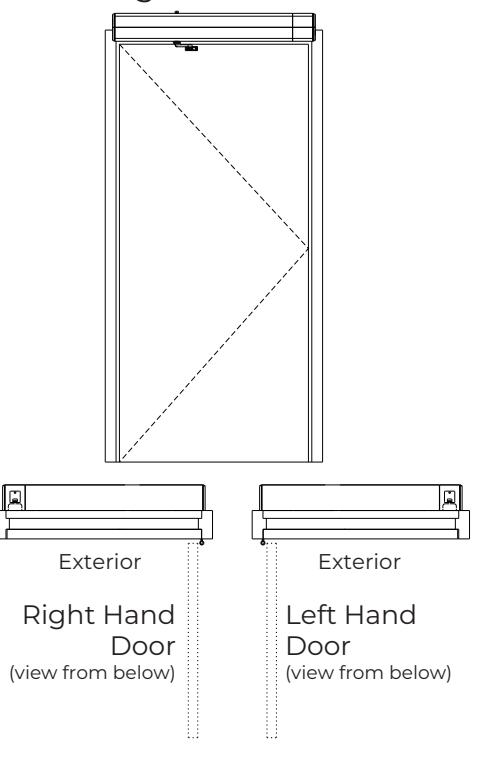

Single Push Side

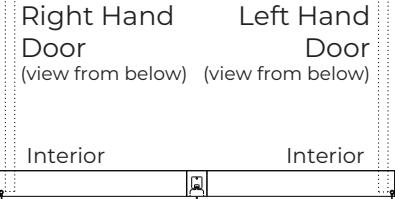

Right Hand

(view from below)

Interior

Door

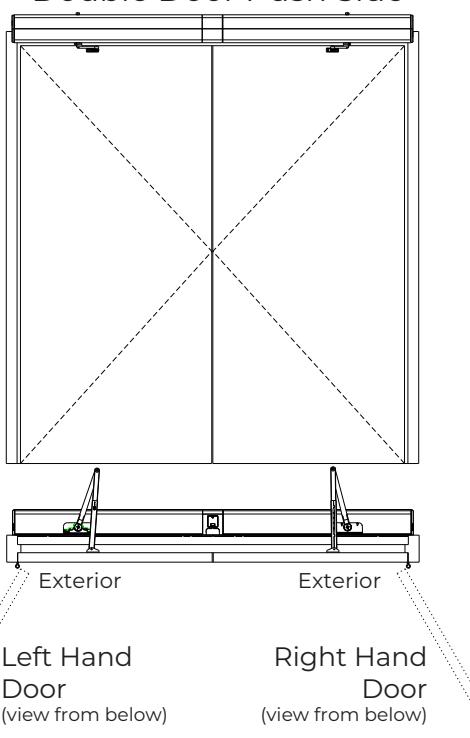

Double Door Push Side

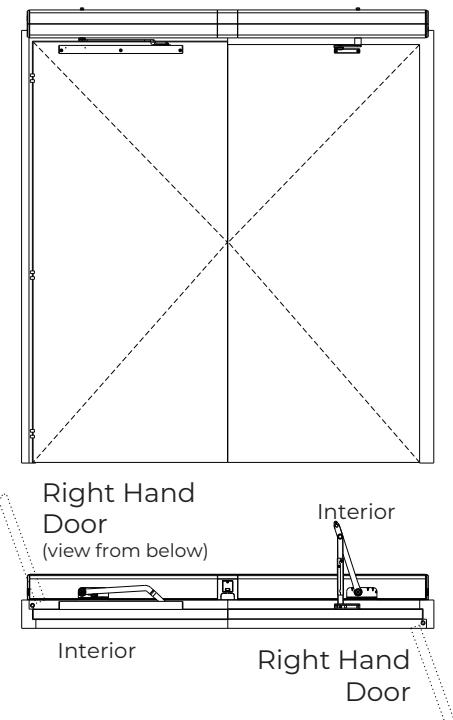

Double Door Double Egress Right Hand

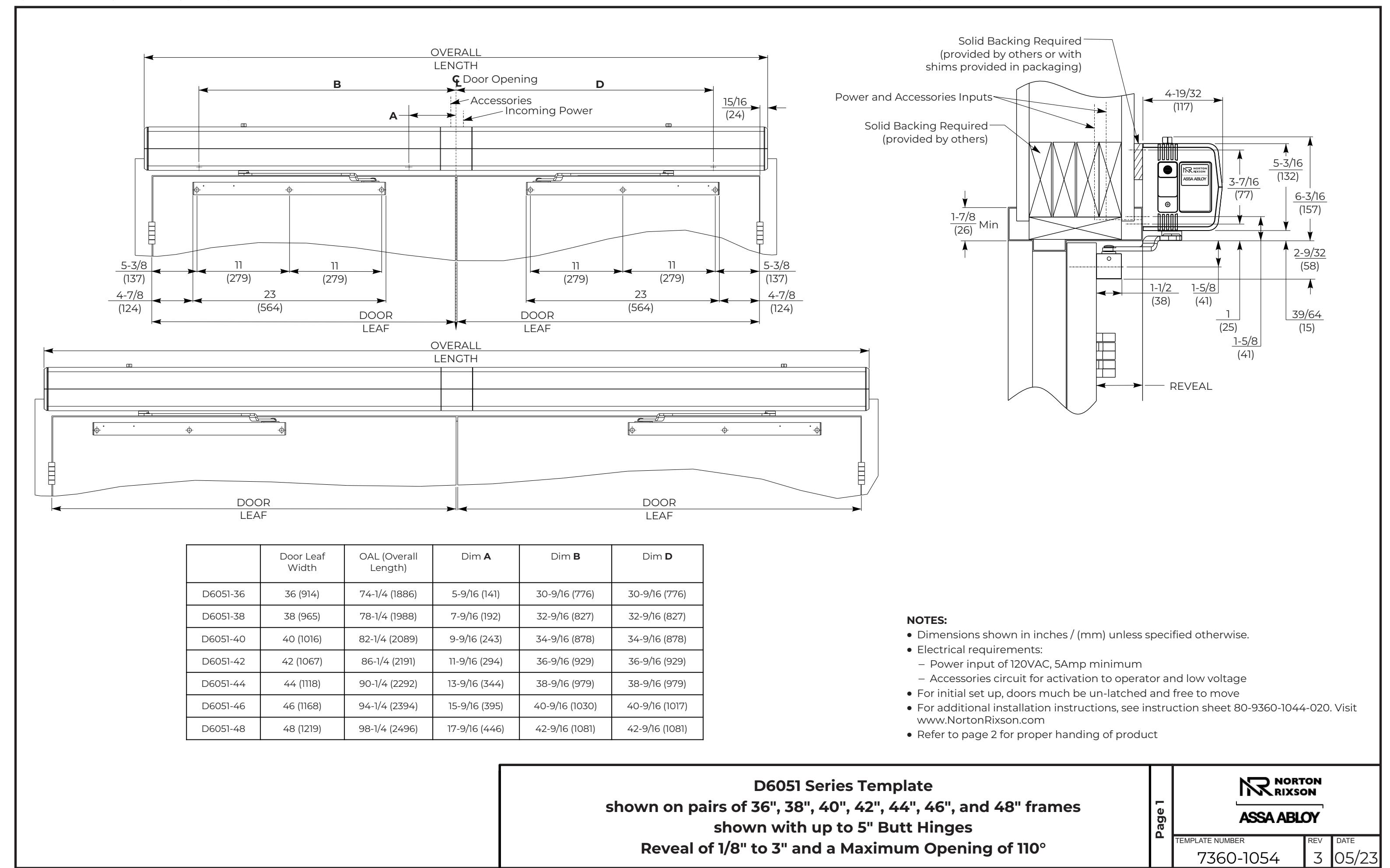

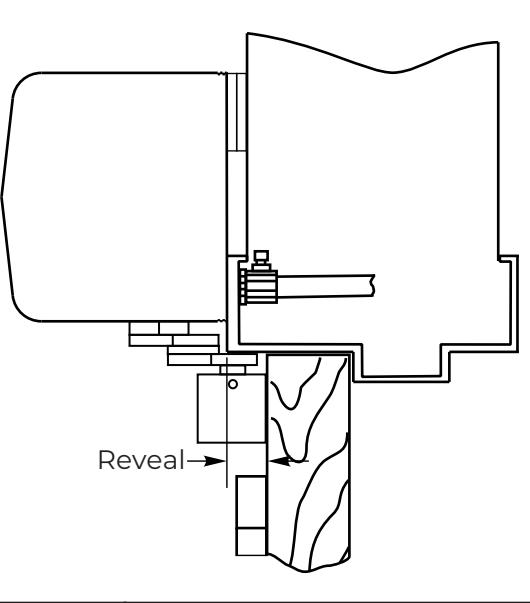

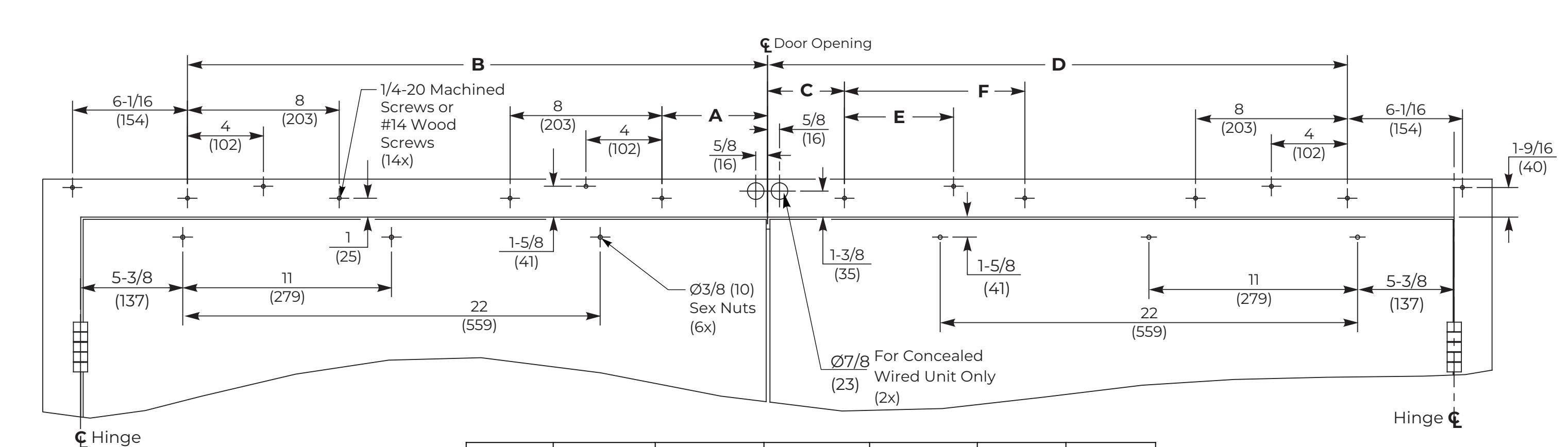

D6051 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 1/8" to 3" and a Maximum Opening of 110°

N e e e e e e e e e e e e e e e e e e e

7360-1054

3 05/23

	Dim A	Dim B	Dim C	Dim D	Dim E	Dim F
D6051-36	5-9/16 (141)	30-9/16 (776)	4-1/16 (103)	30-9/16 (776)	5-3/4 (146)	9-1/2 (241)
D6051-38	7-9/16 (192)	32-9/16 (827)	4-1/16 (103)	32-9/16 (827)	7-3/4 (197)	11-1/2 (292)
D6051-40	9-9/16 (243)	34-9/16 (878)	9-9/16 (243)	34-9/16 (878)	4 (102)	8 (203)
D6051-42	11-9/16 (294)	36-9/16 (929)	10-1/16 (256)	36-9/16 (929)	5-3/4 (146)	9-1/2 (241)
D6051-44	13-9/16 (344)	38-9/16 (979)	12-1/16 (306)	38-9/16 (979)	5-3/4 (146)	9-1/2 (241)
D6051-46	15-9/16 (395)	40-9/16 (1030)	14-1/16 (356)	40-9/16 (1017)	5-3/4 (146)	9-1/2 (241)
D6051-48	17-9/16 (446)	42-9/16 (1081)	16-1/16 (408)	42-9/16 (1081)	5-3/4 (146)	9-1/2 (241)

NOTES:

• Do not scale drawing.
• Operator shown for pull side double door application.
• All dimensions are given in inches and millimeters.
• Recommended thickness for reinforcements in hollowmetal doors and frames should provide a combined material thickness of .164 (4.2) MIN.
• This template information based upon use of 5 (127) maximum width butt hinges or 3/4 (19) offset pivots.

D6051 Series Template shown on pairs of 36", 38", 40", 42", 44", 46", and 48" frames shown with up to 5" Butt Hinges Reveal of 1/8" to 3" and a Maximum Opening of 110°
