J1600 Series UniTrol Non-Handed Door Closer

Arm Models UNI-J1601, UNI-J1603BC, and UNI-J1604BC

Top Jamb Mount Installation Instructions

ASSA ABLOY

Non-hold Open and Hold Open (H) models, adjustable size 1-6 (UNI-J1601(H) model &) and size 3 & 4 (UNI-J1603BC(H) and UNI-J1604BC(H) models). Hold open models are not UL-listed.

/ WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm.

For more information go to: www.P65warnings.ca.gov.

READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.

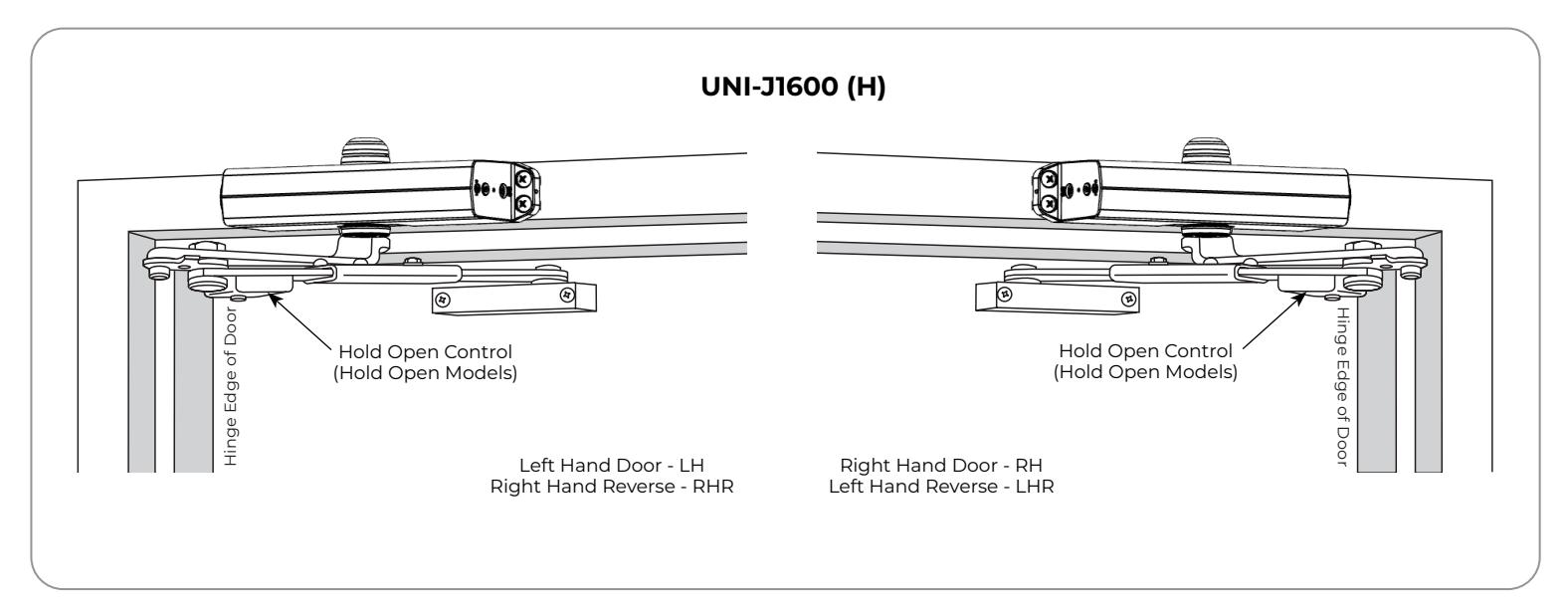

J1600 Series UniTrol Arm Closer

ATTENTION:

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
Doors should be hung on ball bearing or anti-friction hinges

Door and frame must be properly reinforced.
Always consult door/frame manufacturer for fastener compatibility.
Adjust closing time speed between 4 and 7 seconds from 90° to 0°. Use of door by handicapped, elderly or small children may require greater closing time.
These door closers should NOT be installed on exposed side (weather side) of exterior doors.
Dimensions are given in inches (millimeters).

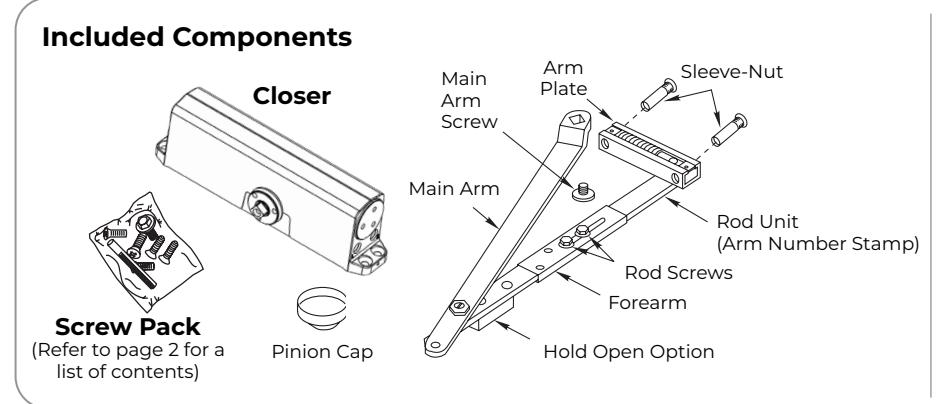

Supplied Hardware

Mounting Hardware		Door or Frame	Drill
	Closer to Frame: 1/4-14 x 1-1/2 Oval Flat Head Mach. Screw	Wood/Metal	3/16" (4.8mm) for wood
	Closer to Frame: 1/4-20 x 3/4 Oval Flat Head Mach. Screw	Metal	Drill #7 (.201 dia. or 5.1mm) Tap 1/4-20

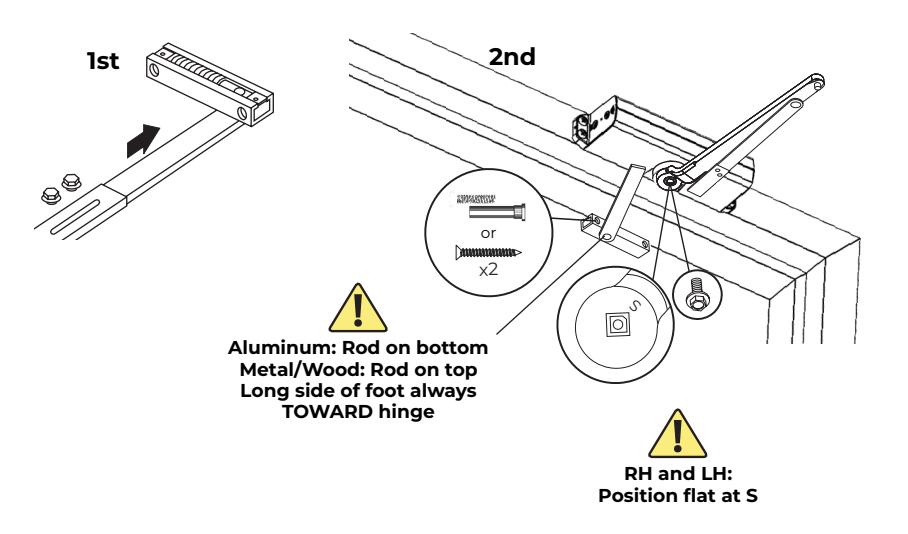

	Arm Foot to Door: Sleeve Nut and Bolt (SNB) with 1/4-20 x 1-1/2 Oval Flat Head Mach. Screw (recommended)	Hollow Metal	9/32" (7.0mm) thru 3/8" (9.5mm) door face opposite to closer
		Aluminum or Wood	3/8" (9.5mm) thru
Accessorate to the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the control of the co	Arm Foot: Thru Bolt and Grommet Nut (TBGN) (optional)	All	9/32" (7.0mm) thru 3/8" (9.5mm) dia. x 3/8" (9.5mm) deep, door face opposite to closer
)mmmmms>	Arm Foot to Door: 14-10 x 2 Flathead Sheet Metal Screw	Wood	3/16" (4.8mm)

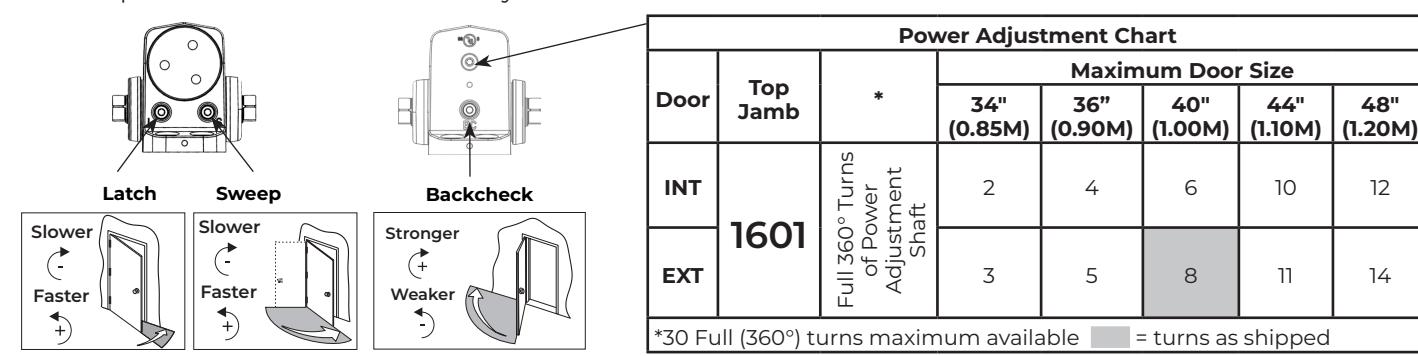

Closer Adjustments

Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve. Door must be open to adjust spring closing power. Refer to the chart.

Use of a power drill will void the Warranty.

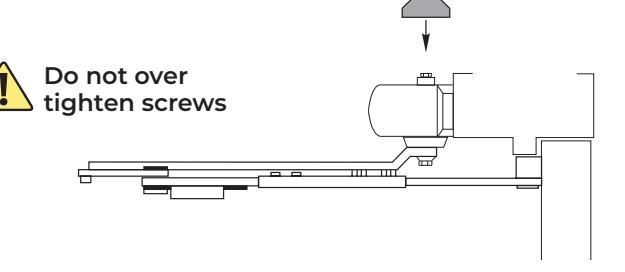

Pinion Cap or Cover

Screw pinion cap onto pinion shaft by hand or with a Phillips screwdriver.

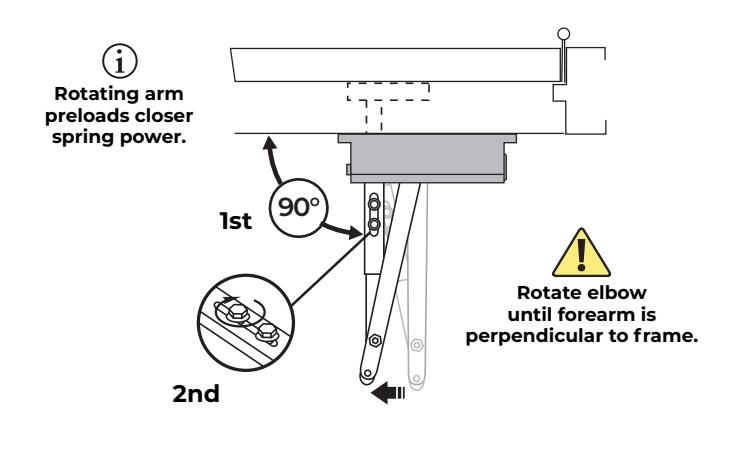

J1600 Unitrol Top Jamb Mount Installation

1. Prepare door and frame.

NOTES:

IMPORTANT: Installation instructions cover either non hold open or hold open models.

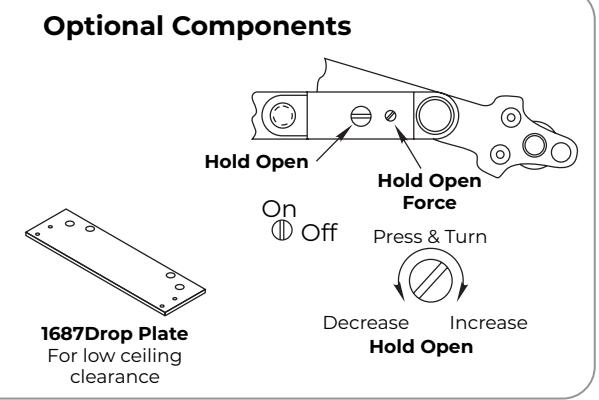

1. If ceiling clearance is between 1-3/4" and 2-5/8" (44 - 67mm), use 1687 Drop Plate. Prepare door and frame accordingly.

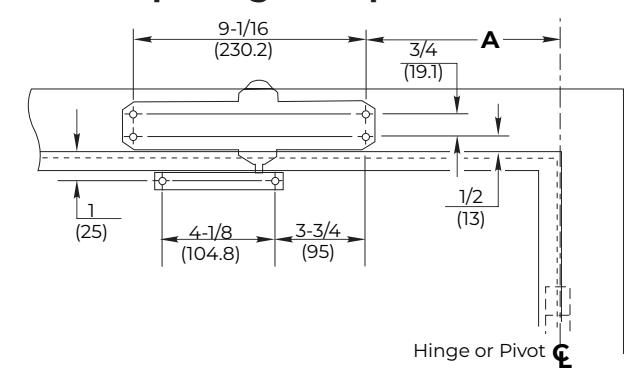

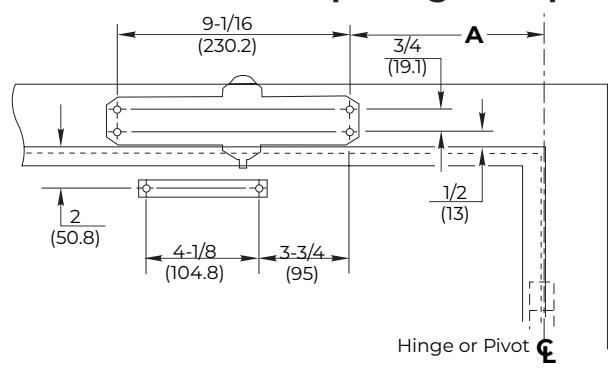

2. Using dimensions for hold-open or stop angle desired, mark and drill

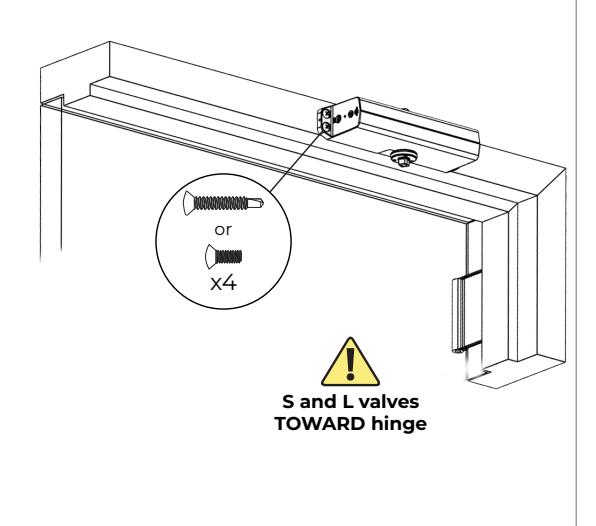

- y Four (4) holes on frame face for closer (or drop plate)

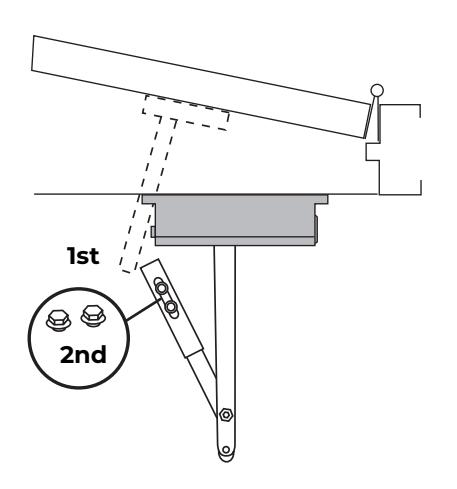

- y Two (2) holes on door for arm foot

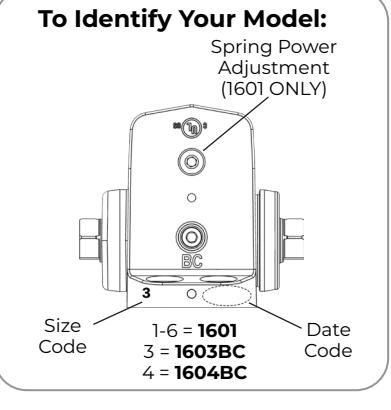

- y UNI1601 ONLY: Set approximate closing power using "Power Adjustment Chart" on page 2.


Opening	Dimension A
Hold Open	Stop	Inches (mm)
85°	90°	9-1/8 (232)
90°	95°	8-3/8 (213)
95°	100°	7-3/4 (197)
100°	105°	7-3/8 (187)
105°	110°	6-3/4 (171)
110°	115°	6-1/2 (165)

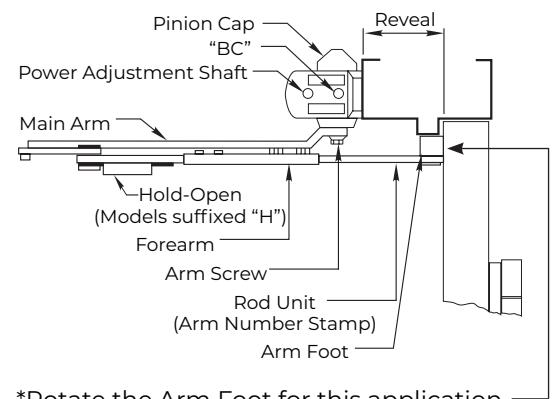

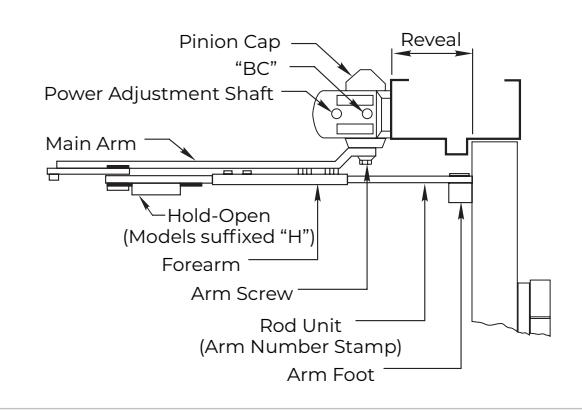

Arm Identification (Stamped on Arm)
Reveal	Non Hold Open	Hold Open
0" - 3/8" (0 - 10mm)	J6600-4	J6600-7
1/2" - 2" (13 - 50mm)	J6200-4	J6200-7
2-1/8" - 3-1/4" (55 - 83mm)	J6100-4	J6100-7
3-3/8" - 4-1/4" (85 - 108mm)	J6400-4	J6400-7
4-3/8" - 5-3/8" (111 - 137mm)	J6500-41	J6500-71
5-1/2" - 6-3/8" (140 - 162mm)	J6500-42	J6500-72
6-1/2" - 7-3/8" (165 - 187)	J6500-43	J6500-73
