1600 Series Door Closer

Parallel Rigid Arm and CloserPlus Models Standard Frame, Narrow Frame, and Flush Partition Installation Instructions

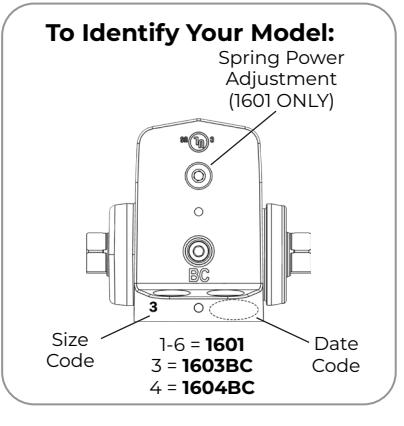

Parallel Rigid Arm models: PR1601 (Adjustable from size 1-6), PR1603BC/PR1604BC (Size 3 and 4) CloserPlus Models: CLP1601 (Adjustable from size 1-6), CLP1603BC/CLP1604BC (Size 3 and 4).

/ WARNING

This product can expose you to lead which is known to the state of California to cause cancer and birth defects or other reproductive harm.

For more information go to: www.P65warnings.ca.gov.

READ AND FOLLOW ALL INSTRUCTIONS. SAVE THESE INSTRUCTIONS.

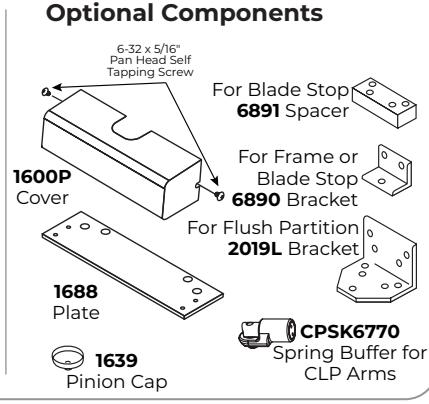

Optional Arms with

Riveted Elbows

ASSA ABLOY

1600 Series Parallel Rigid Arm and CloserPlus Installation

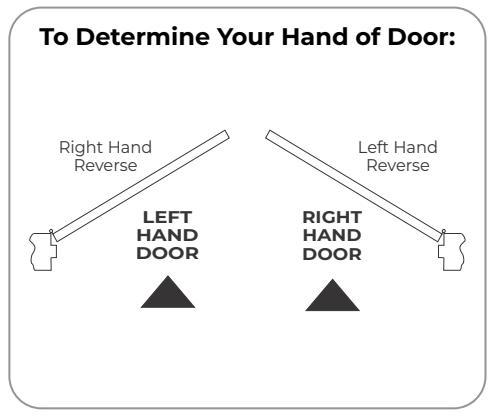

ATTENTION:

An incorrectly installed or improperly adjusted door closer can cause property damage or personal injury. These installation instructions should be followed to avoid the possibility of misapplication or misadjustment.

• For special applications, a separate door and frame preparation template is packed with these instructions. Use this instruction sheet for installation sequence and closer adjustments only.
• Doors should be hung on ball bearing or anti-friction hinges.

• A separate door stop is recommended.
• Always consult door/frame manufacturer for fastener compatibility.
• Door and frame must be properly reinforced.
• Adjust closing time speed between 3 and 7 seconds from 90° to 0°.
• These door closers should NOT be installed on exposed side (weather side) of exterior doors.
• Dimensions are given in inches (millimeters).

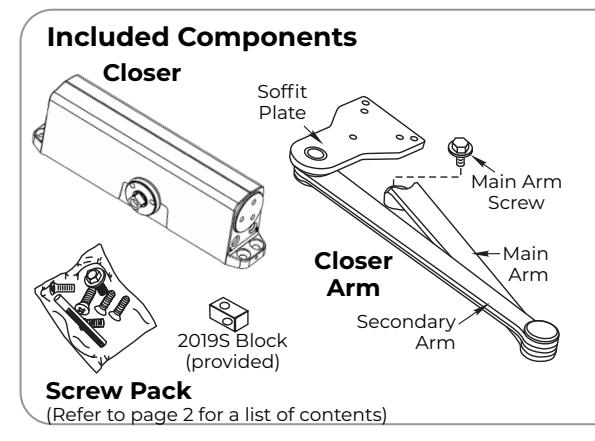

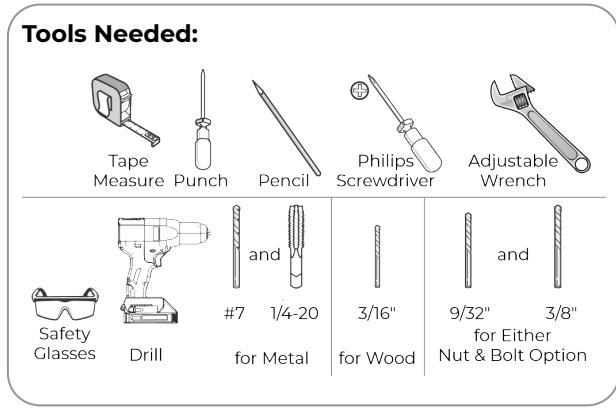

Supplied Hardware

	Mounting Hardware	Door or Frame	Drill
	Closer, Soffit Plate: 1/4-14 x 1-1/2 Oval Flat Head Self Drilling Screw	Wood/Metal	3/16" (4.8mm) for wood
	Closer, Soffit Plate: 1/4-20 x 3/4 Oval Flat Head Mach. Screw		Drill #7 (.201 dia. or 5.1mm) Tap 1/4-20
	Soffit Plate: 1/4-20 x 1-1/2 Oval Flat Head Mach. Screw	Metal	3/16" (4.8mm) for wood
	Closer: Sleeve Nut and Bolt (SNB)	Hollow Metal	9/32" (7.0mm) thru 3/8" (9.5mm) door face opposite to closer
	with 1/4-20 x 3/4 Oval Flat Head Mach. Screw (recommended)	Aluminum or Wood	3/8" (9.5mm) thru
	Closer: Thru Bolt and Grommet Nut (TBGN) (optional)	All	9/32" (7.0mm) thru 3/8" (9.5mm) dia. x 3/8" (9.5mm) deep, door face opposite to closer

Closer Adjustments

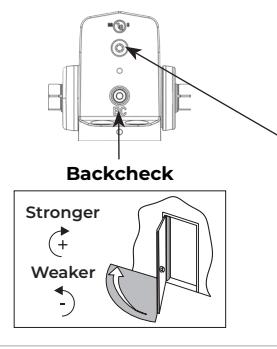

Use provided hex wrench to turn valves. NEVER force valves out of closer. NEVER completely close backcheck valve. Door must be open to adjust spring closing power. Refer to the chart.

Use of a power drill will void the Warranty.

Spring Closing Power			Number of Turns Required
			Maximum Door Size
Door	Parallel Arm	*	34" (0.85M)	36" (0.90M)	40" (1.00M)	44" (1.10M)	48" (1.20M)
Interior	PR1601/	° Turns	3	5	8	11	14
Exterior	CLP1601	Full 360	5	8	11	16	19
*30 Fu	ıll (360°) turns	vailable |	= tur	ns as shi	pped

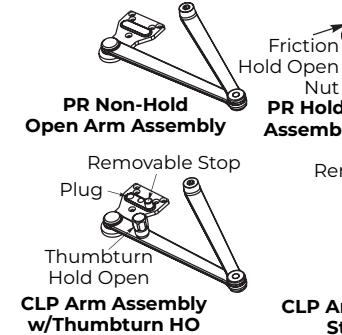

Thumbturn Hold-Open

Option for CloserPlus Arm (Units suffixed T)

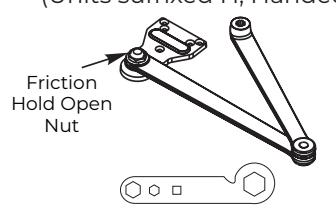

Friction Hold-Open

Option for Parallel Rigid Arm (Units suffixed H; Handed)

Hold door open to desired angle and tighten nut with supplied wrench.

Spring Buffer

Option for CLP Arm

Remove stop, cap or plug before installing.

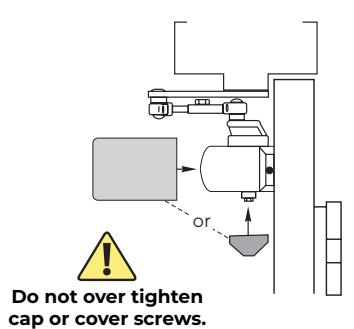

Pinion Cap or Cover

Experience a safer and more open world

1600 Series Parallel Rigid Arm and CloserPlus Installation

1600 Closer Installation

1. Prepare door and frame.

• 1. Determine closer model, arm model and all optional components are appropriate for desired application.
• 2. Select angle of opening.
• 3. Using standard frame, narrow frame or flush partition template, mark and drill four (4) holes on push side of door for closer body (Dims A and B) OR 1688 drop plate (Dims A and C).
• 4. Using template, mark and drill five (5) holes on stop and/or rabbet for soffit plate OR four (4) holes on transom face for 2019L bracket.

NOTE: A separate door and frame preparation template is required for applications not covered in these instructions.

NOTE: Be sure to measure from centerline of pivot.

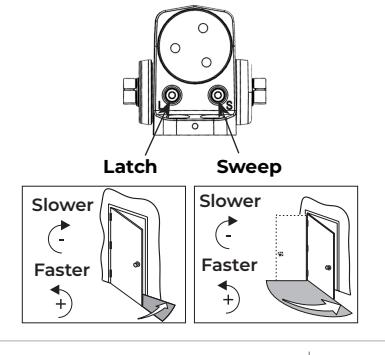

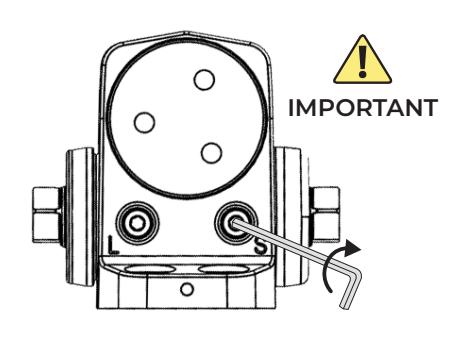

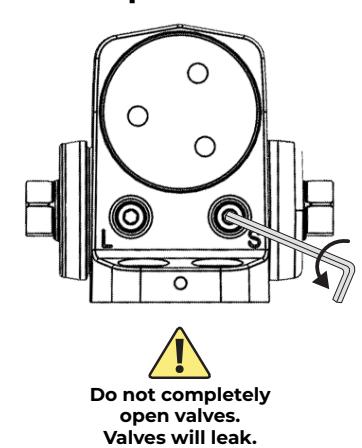

2. Close latch and sweep valves

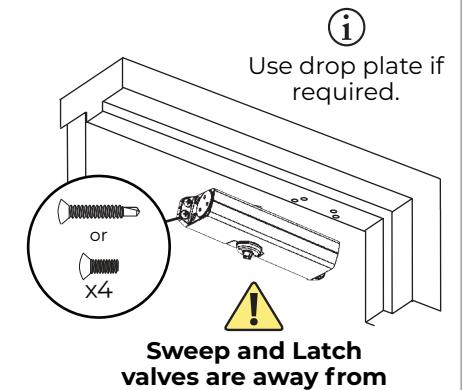

3. Mount closer.

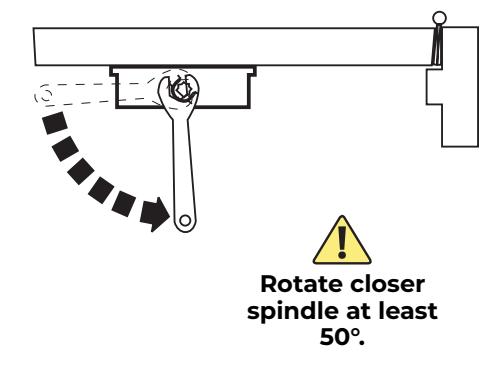

4. Rotate closer spindle.

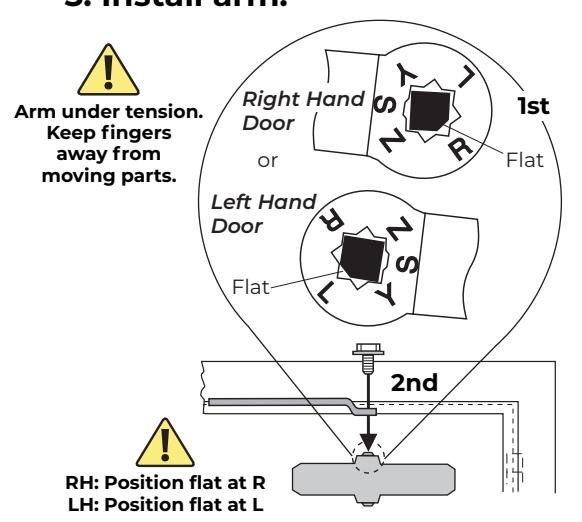

5. Install arm.

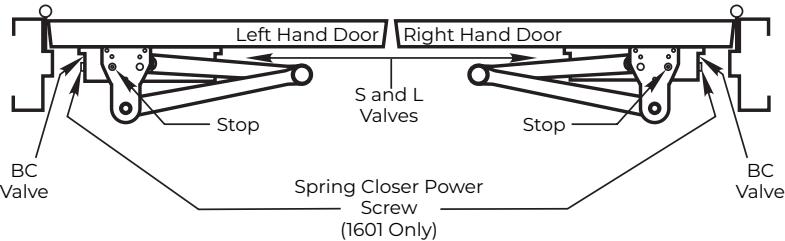

6. Open latch and sweep valves.

hinge side of door.

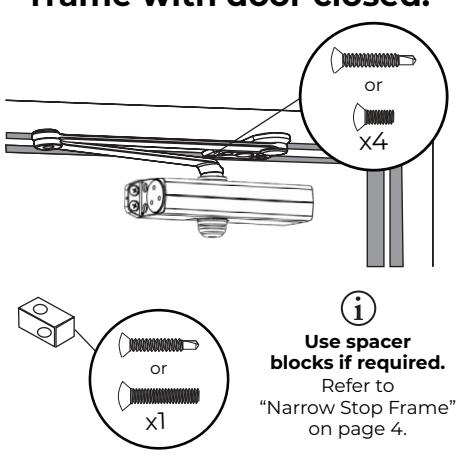

7. Fasten soffit plate to frame with door closed.

The PR1600 or CLP1600 Closer has now been installed.

Go to page 2 for closer adjustments and decorative cap or cover installation.

3

1600 Series Parallel Rigid Arm and CloserPlus Installation

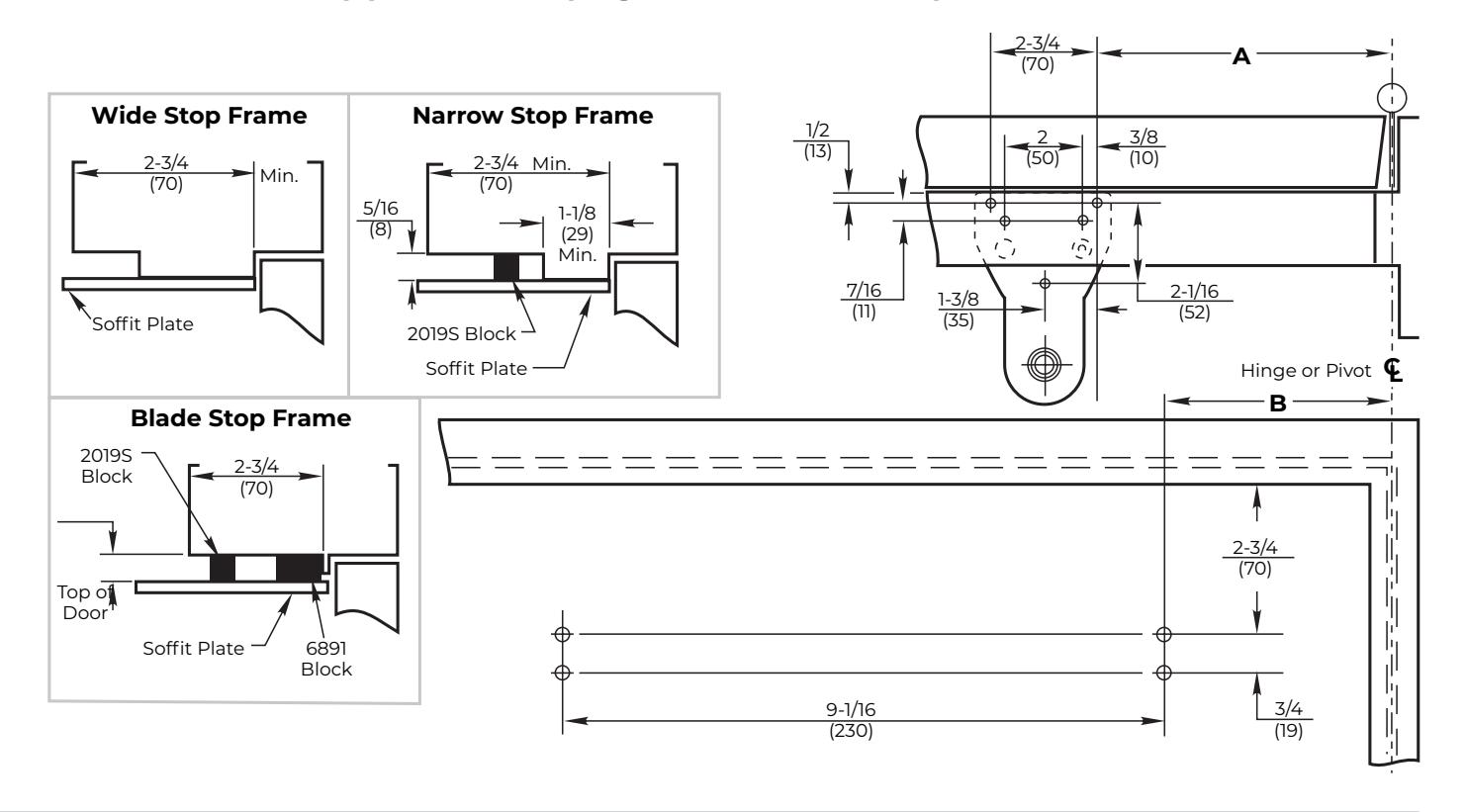

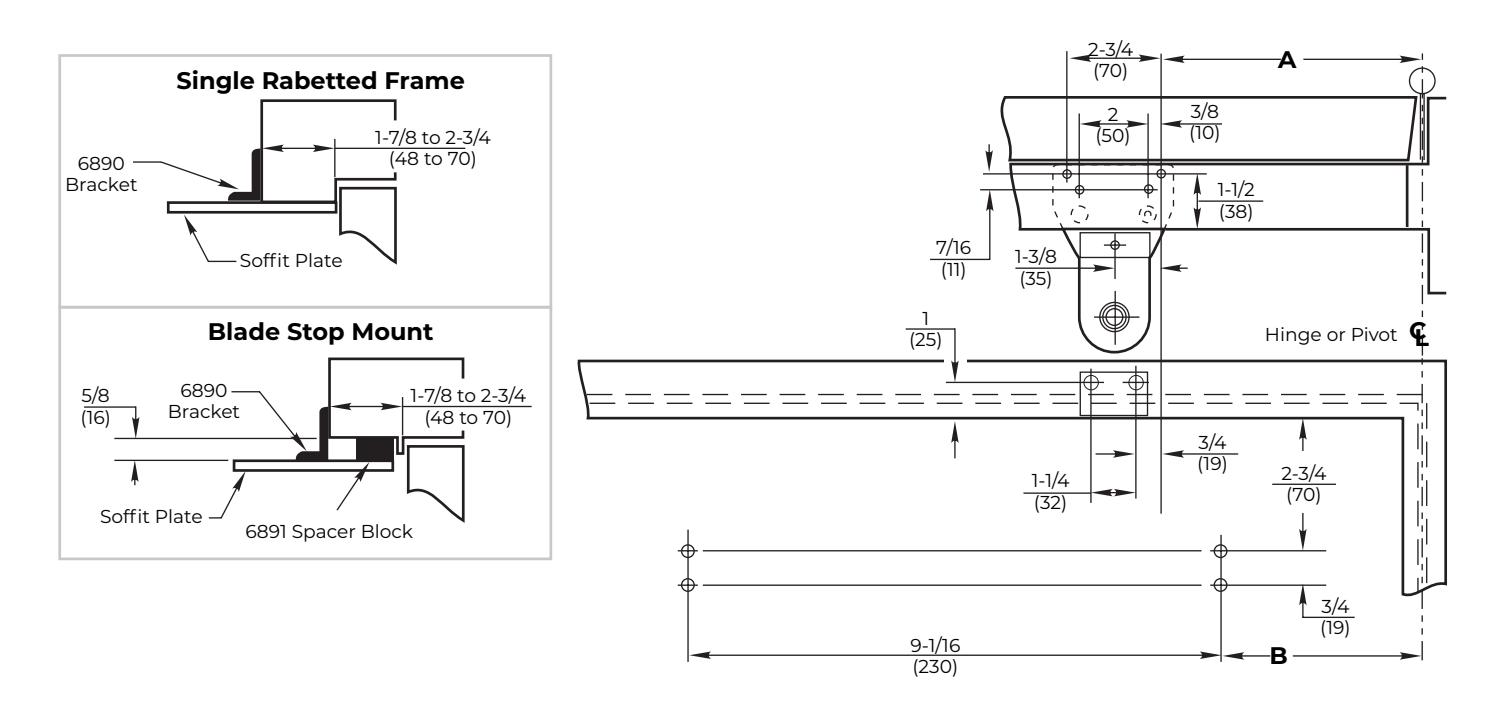

Standard Frame Applications (Right Hand Shown)

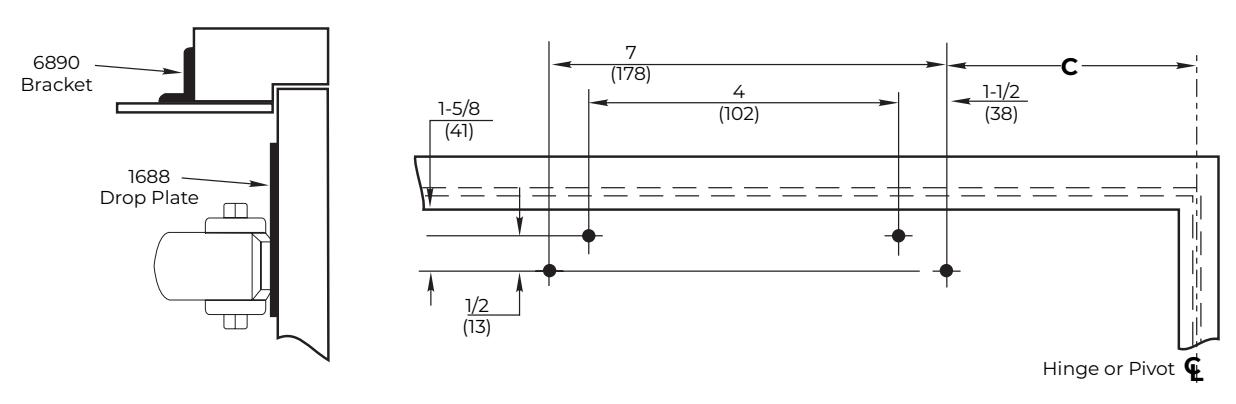

Standard Frame with 1688 Drop Plate Applications (Right Hand Shown)

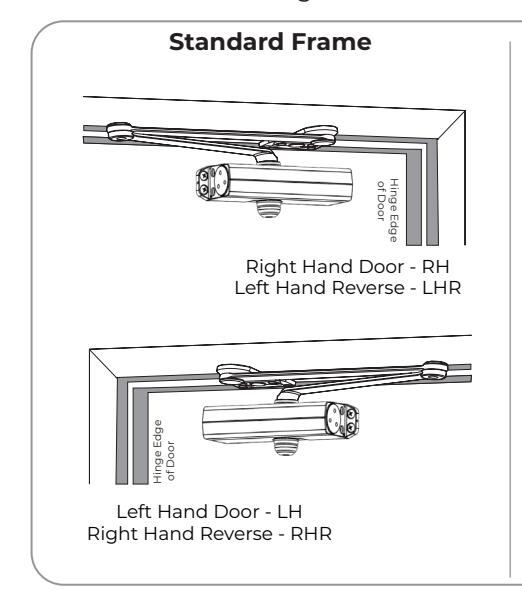

Standard Frame
	Dim	Up to 85°	85° - 90°	90° - 95°	95° - 100°	100° - 105°	105° - 110°	110° - 130°	130° - 180°
a 2 &	А		9-5/8	(244)		8-1/8 (206)			6-1/8 (156)
Parallel Rigid Models	В		7-5/8	(194)		6-1/8 (156)			4-1/8 (105)
ğ - Σ	С		8-5/8	(219)		7-1/8 (181)			5-1/8 (130)
CloserPlus Models	А	11-1/8 (283)	10-3/8 (264)	9-5/8 (244)	9 (229)	8-3/8 (213)	7-3/4 (197)	-	_
	В	9-1/8 (232)	8-3/8 (213)	7-5/8 (194)	7 (178)	6-3/8 (162)	5-3/4 (146)	-	_
	С	10-1/8 (257)	9-3/8 (238)	8-5/8 (219)	8 (203)	7-3/8 (187)	6-3/4 (171)	-	_

1600 Series Parallel Rigid Arm and CloserPlus Installation

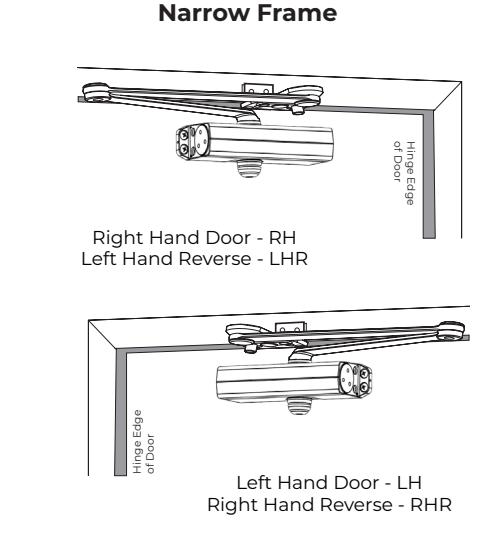

Narrow Frame Applications (Right Hand Shown)

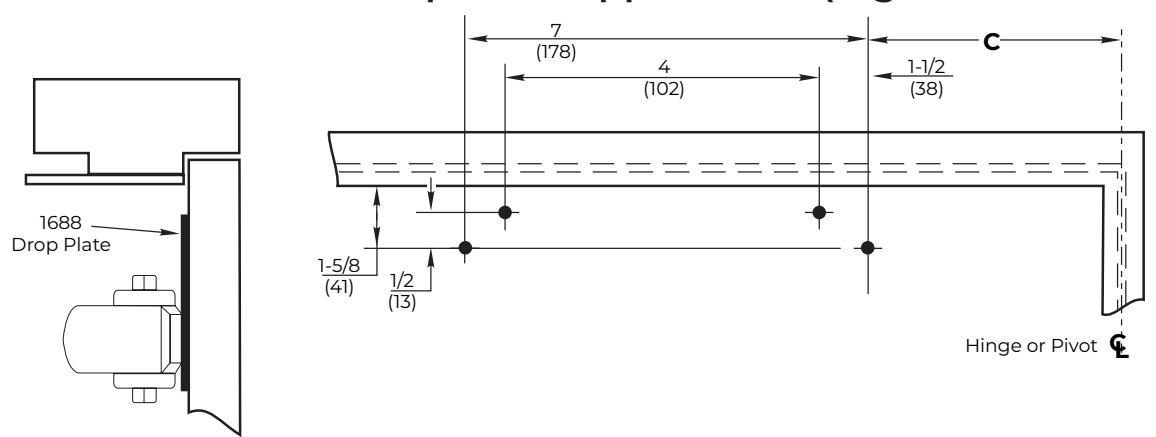

Narrow Frame with 1688 Drop Plate Applications (Right Hand Shown)

Narrow Frame
	Dim	Up to 85°	85° - 90°	90° - 95°	95° - 100°	100° - 105°	105° - 110°	110° - 130°	130° - 180°
	A		9-5/8 (244)			8-1/8 (206)			6-1/8 (156)
Parallel Models Rigid	B		7-5/8 (194)			6-1/8 (156)			4-1/8 (105)
	C		8-5/8 (219)			7-1/8 (181)			5-1/8 (130)
CloserPlus Models	A	11-1/8 (283)	10-3/8 (264)	9-5/8 (244)	9 (229)	8-3/8 (213)	7-3/4 (197)	–	–
	B	9-1/8 (232)	8-3/8 (213)	7-5/8 (194)	7 (178)	6-3/8 (162)	5-3/4 (146)	–	–
	C	10-1/8 (257)	9-3/8 (238)	8-5/8 (219)	8 (203)	7-3/8 (187)	6-3/4 (171)	–	–

Approved 2023-02-23

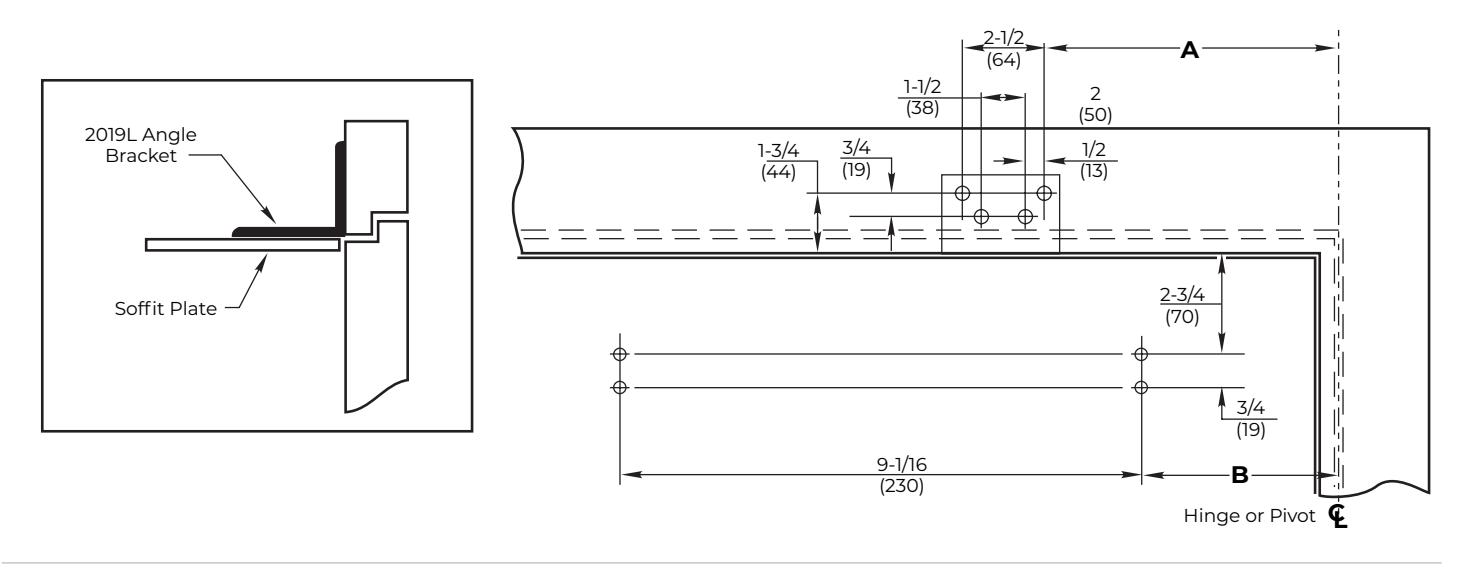

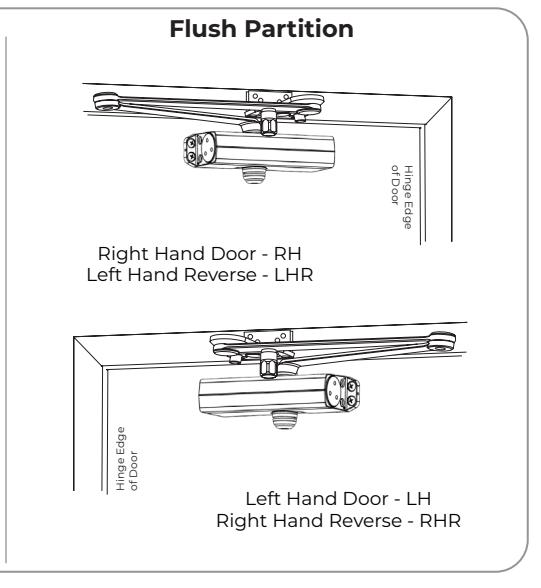

Flush Partition Applications (Right Hand Shown)

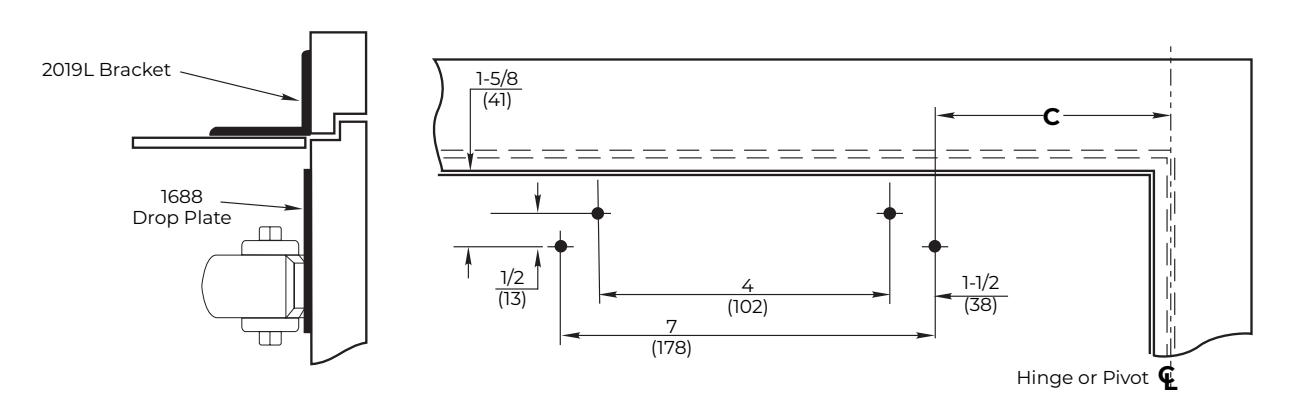

Flush Partition with 1688 Drop Plate Applications (Right Hand Shown)

Flush Partition
	Dim	Up to 85°	85° - 90°	90° - 95°	95° - 100°	100° - 105°	105° - 110°	110° - 130°	130° - 180°
	A		9-3/4 (248)				6-1/4 (159)
Parallel Models Rigid	B		7-5/8 (194)			6-1/8 (156)			4-1/8 (105)
	C		8-5/8 (219)			7-1/8 (181)			5-1/8 (130)
	A	11-1/4 (286)	10-1/2 (267)	9-3/4 (248)	9-1/8 (232)	8-1/2 (216)	7-7/8 (200)	-	-
CloserPlus Models	B	9-1/8 (232)	8-3/8 (213)	7-5/8 (194)	7 (178)	6-3/8 (162)	5-3/4 (146)	-	-
	C	10-1/8 (257)	9-3/8 (238)	8-5/8 (219)	8 (203)	7-3/8 (187)	6-3/4 (171)	-	-

Technical Product Support:

Monroe, NC 28112 USA Phone: 877.974.2255 ext: 2
