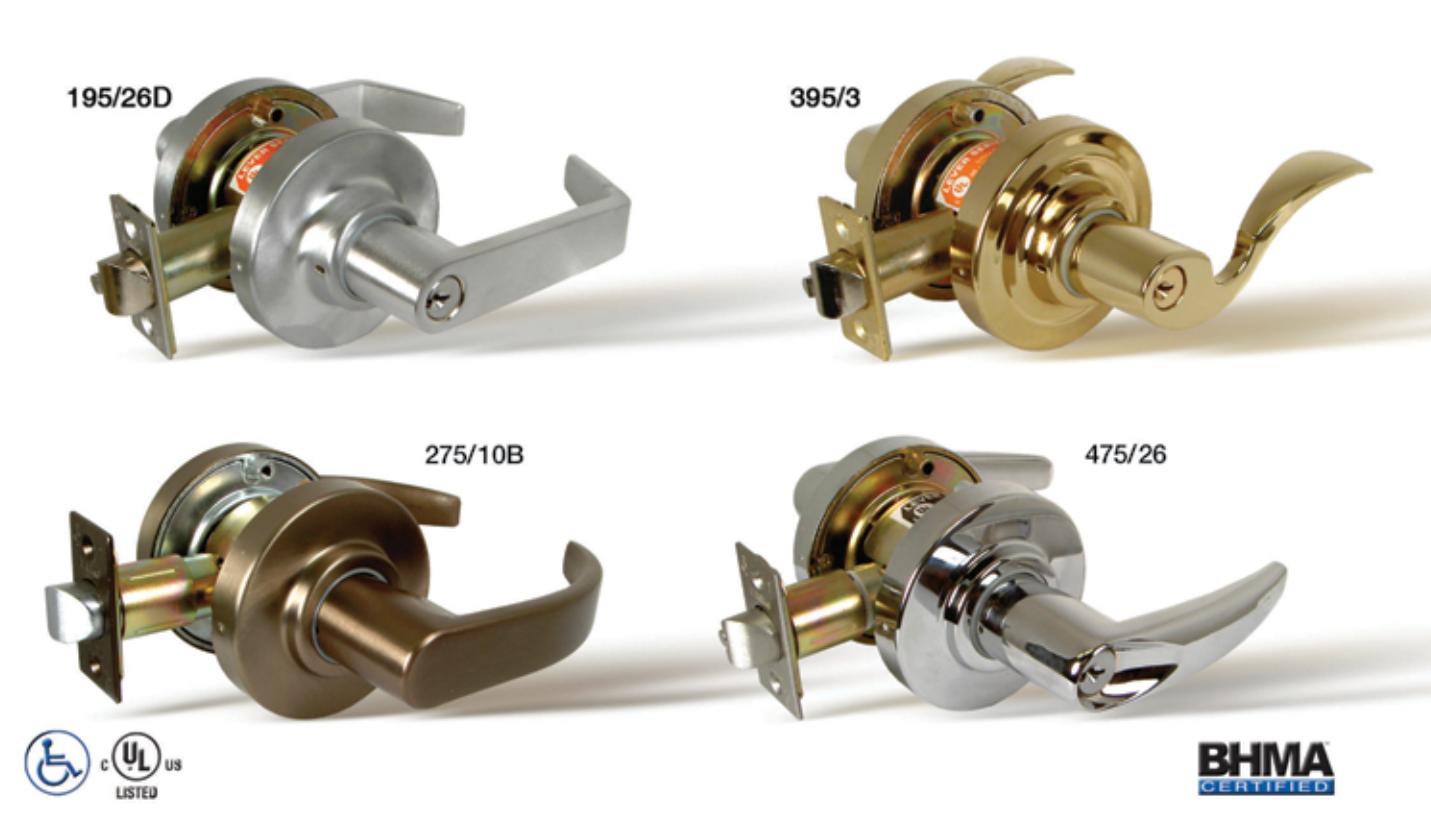

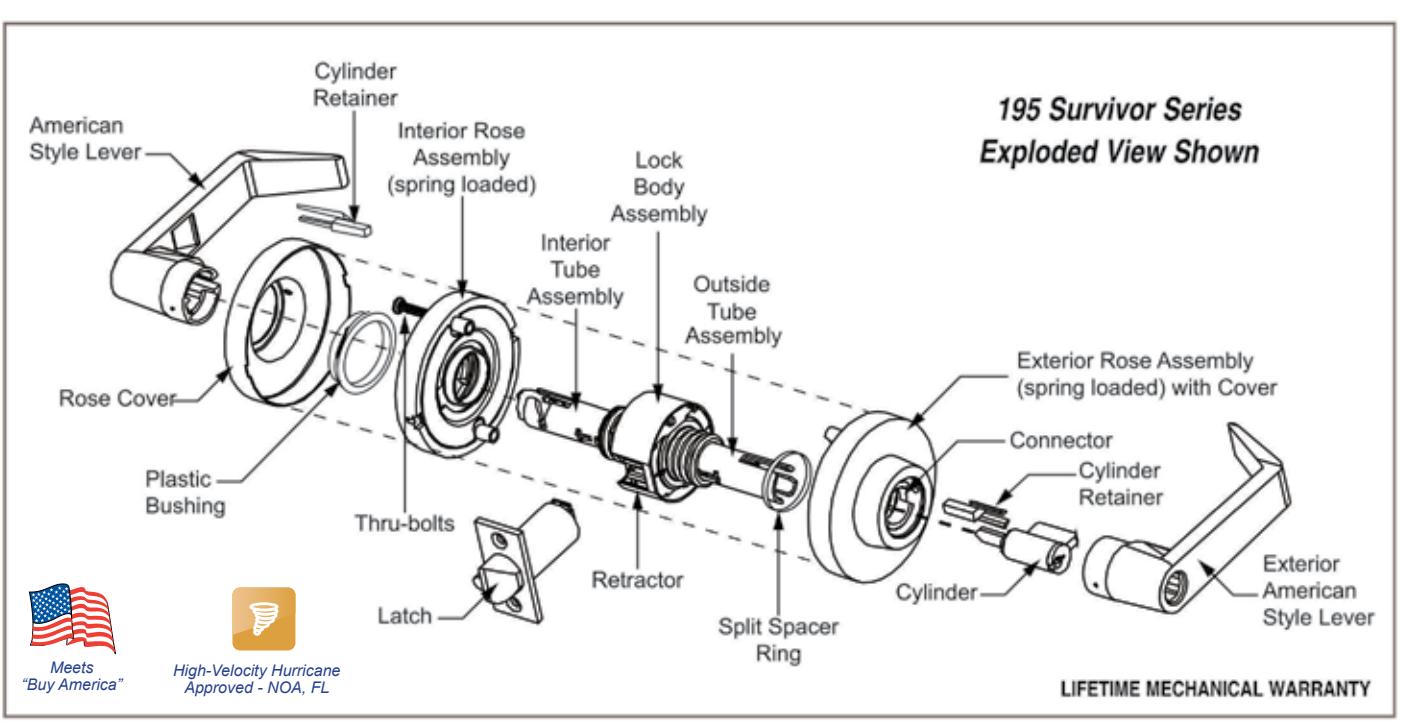

95 Series Grade 1 Cylindrical Survivor Leversets
| 195 American Lever | 295 Crescent Lever | 395 Monaco Lever | 495 Titan Lever |
|---|---|---|---|
|
4-1/2"
4-1/2" 1/2" 1/2" 1/3-7/16" |
6-3/4" — |
|
6-3/4" → | 4-1/2" ↓ | 7-1/2" → | 5" ↓ ↓ ↑ 3-7/16" |
Standard Features
- . ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating
- Backset: 2-3/4", 2-3/8" Available
- Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; Stainless steel nose
- . Levers: Solid cast Zamac; w/ 1/2" return (except 395 & 495)
- Roses: Thru-bolted, 3-7/16" dia., spring loaded 2-#10 thru-bolts
- . Strike: #1135, 4-7/8" ASA curved lip strike
- Door thickness: 1-5/8" to 1-7/8"; For 1-3/8" door use K1904 spacer
- Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys
- · Stainless steel retractor
- NOTE: 395 Series is NOT available with IC Core
* LIFETIME * MECHANICAL
WARRANTY
| SERIES 195, 295, 395, 495 | ||||
|---|---|---|---|---|
| MARKS # | FINICH | |||
| COMM. | IC CORE | DESCRIPTION | ANSI# |
FINISH
GROUPS |
| CYL. | CYL.* | anours | ||
| N | _ | PASSAGE | F75 | |
| L | - | PRIVACY | F76 | |
| LK | - | PRIVACY | F76 MOD. | |
| P | - | PATIO | F77 | |
| DC | RDC | COMMUNICATING | F80 | |
| A | RA | ENTRY | F81 | |
| В | RB | ENTRY | F82A | |
| AB | RAB | ENTRANCE | F109 | |
| AQ | _ | EXIT | F83 | |
| S | RS | CLASSROOM | F84 | |
| F | RF | STOREROOM | F86 | |
| DW | RDW | INSTITUTION | F87 | |
| DA | RDA | VESTIBULE | F88 | 3, 4, |
| FQ | _ | EXIT | F89 | 10, 10B, |
| T | RT | CORRIDOR | F90 | 26, 26D |
| TK | RTK | HOSPITAL/PRIV. | F90 MOD. | |
| GB | RGB | STORE DOOR | F91 | |
| BS | RBS | SVC. STATION LOCK | F92 | |
| Н | - | HOTEL | F93 | |
| DB | RDB | CLASSROOM INTRUDER | F110 | |
| DO | - | DUMMY TRIM OUTSIDE | ||
| DT | _ | FULL DUMMY TRIM | _ | |
| NB | - | COMM. PASSAGE | F111 | | | |
| FB | RFB | COMM. STOREROOM | F112 | | | |
| SB | RSB | COMM. CLASSROOM | F113 | |
| FEL | RFEL | ELECTRICALLY LOCKED | _ | | | |
| FEU | RFEU | ELECTRICALLY UNLOCKED | _ | |
CEDIES 105 205 205 405
NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
| OPTIONS | CODE | ||
|---|---|---|---|
| For 2* doors | D1 | ||
| For 2-1/4" doors | D2 | ||
| Over 2-1/4" - 4" thickness | D9 | ||
| 2-3/8" backset, 1" x 2-1/4" face | E6 | ||
| 2-3/4" backset, 3/4" throw, Gr. 1 | E8 | ||
| Solid latch for electric strike | E9 | ||
| 3-3/4" backset, 9/16" throw, Gr. 1 | E10 | ||
| Less cylinder | G3 | ||
| 2-3/4" "T" strike | S3 | ||
| AMERICAN LEVER ONLY Accepts: | |||
| Yale conventional | F7. | ||
| Sargent conventional cylinder | F8 | ||
| Corbin conventional cylinder | F9 | ||
| Corbin 6 pin IC core | F12 | ||
| Corbin 7 pin IC core | F13 | ||
| Yale 6 pin IC core | F14 | ||
| Yale 7 pin IC core | F15 | ||
| Schlage 6 pin IC core (195 Only) | F19 | ||
| Sargent IC core | F20 | ||
| AMERICAN & CRESCENT LEVER ONLY Accepts: | |||
| Medeco IC core large format | F21 | ||
ELECTRIFIED MODELS AVAILABLE
Electrified Functions: 100% Duty Cycle 24v AC/DC, supplied w/ bridge rectifier EU - 210 ma; EL - 125 ma
★ Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®.
IC Core Tailpieces ARE Included.
75 Series Grade 2 Cylindrical Survivor Leversets
| 175 American Lever | 275 Crescent Lever | 375 Monaco Lever | 475 Titan Lever |
|---|---|---|---|
|
4-3/4"
4-3/4" 3-1/4" |
6-3/4" — |
1-1/2" — 1/2" — 1/4" — 1/4" |
6-3/4" — |
4-1/2" — 3-1/4" |
7-1/2" → 5" 3-1/4" |
Standard Features
- . ANSI-A156.2 Grade 2 Plus, UL listed 3 Hr. Fire Rating
- Backset: 2-3/4
- Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
- Levers: Solid cast Zamac; w/ 1/2" return (except 375 & 475)
- Roses: Thru-bolted, 3-1/4" dia., spring loaded 2-#10 thru-bolts
- . Strike: #1145, ASA strike
- Door thickness: 1-5/8" to 1-7/8"; For 1-3/8" door use K1704 spacer
- . Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys
- · Stainless steel retractor
- NOTE: 375 Series is NOT available with IC Core
* LIFETIME *
MECHANICAL WARRANTY
| MAE | RKS# | SERIES 175, 275, 375, 475 | ||
|---|---|---|---|---|
|
COMM.
CYL. |
IC CORE
CYL.* |
DESCRIPTION | ANSI# |
FINISH
GROUPS |
| N | _ | PASSAGE | F75 | |
| L | _ | PRIVACY | F76 | |
| Р | _ | PATIO | F77 | |
| DC | RDC | COMMUNICATING | F80 | |
| Α | RA | ENTRY | F81 | |
| В | RB | ENTRY | F82A | |
| AB | RAB | ENTRANCE | F109 | |
| AQ | - | EXIT | F83 | |
| S | RS | CLASSROOM | F84 | |
| F | RF | STOREROOM | F86 | 3, 4, |
| DW | RDW | INSTITUTION | F87 | 10, 10B, |
| DA | RDA | VESTIBULE | F88 | 26, 26D |
| FQ | _ | EXIT | F89 | |
| Т | RT | CORRIDOR | F90 | |
| BS | RBS | SVC. STATION LOCK | F92 | |
| Н | _ | HOTEL | F93 | |
| DO | - | DUMMY TRIM OUTSIDE | - | |
| DT | - | FULL DUMMY TRIM | _ | |
| NB | - | COMM. PASSAGE | F111 | |
| FB | RFB | COMM. STOREROOM | F112 | |
| SB | RSB | COMM. CLASSROOM | F113 |
PACKED 6 PER CASE NOTE: Split designs and/or finishes are priced at the highest design and/or finish • Special finishes, consult factory
| OPTIONS | CODE |
|---|---|
| For 2" doors | D1 |
| For 2-1/4" doors | D2 |
| 2-3/8" backset, 1" x 2-1/4" face | E6 |
| 2-3/4" backset, 9/16" throw, Gr. 1, UL Listed | E7 |
| 2-3/4" backset, 3/4" throw, Gr. 1 | E8 |
| 5" bakcset, 9/16" throw, Gr. 1 | E9 |
| 3-3/4" backset, 9/16" throw, Gr. 1 | E10 |
| Less cylinder | G3 |
| 2-3/4" T strike | S3 |
| AMERICAN LEVER ONLY Accepts: | |
| Yale conventional | F7 |
| Sargent conventional cylinder | F8 |
| Corbin conventional cylinder | F9 |
| Corbin 6 pin IC core | F12 |
| Corbin 7 pin IC core | F13 |
| Yale 6 pin IC core | F14 |
| Yale 7 pin IC core | F15 |
| Schlage 6 pin IC core (175 Only) | F19 |
| Sargent IC core | F20 |
| AMERICAN & CRESCENT LEVER ONLY Accep | ts: |
| Medeco IC core large format | F21 |
| • |
★ Standard & HI-SECURITY™ IC Core Models:
Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®.
IC Core Tailpieces ARE Included.
| ANSI # CODE | Marks Functio | n |
|---|---|---|
| F75 PASSAGE: | I/S O/S | |
| Latch by lever either side. | N | |
| F76 PRIVACY: | Т | |
| Latch by lever either side unless outside lever locked by | IRL | ١. |
| push-button from inside. Outside unlocks by turning inside | L | |
| lever, outside emergency turn or closing door. | ||
| F76 (MOD.) HOSPITAL/PRIVACY: | ||
| Latch by lever either side unless outside lever locked by | Jet . | |
| push-button from inside. Outside unlocks by turning inside | L | |
| lever, outside emergency turn-knob or closing door. | ||
| F77 PATIO: | Н | |
| Deadlocking latch by lever either side unless outside | Jel - | ١, |
| lever locked by push-button inside. Unlocks by turning | P | |
| inside lever or closing door. | ||
| F80 COMMUNICATING: | ||
| Key both sides. Locks or unlocks either lever | DO | |
| independent of the other. Deadlocking latch. | ഥ | |
| F81 ENTRY: | ||
| Deadlocking latch bolt by lever either side except when | 1=1 | |
| outside locked by turn-button inside. When outside locked, | Α | |
| key outside or lever inside opens lock. Turn-button | 181 | |
| operated manually. | ||
| F82A ENTRY: | Т | |
| Deadlocking latch by lever either side. Outside locked by | ||
| push-button inside. When outside locked by push-button | l. | |
| inside, key opens lock, unlocks push-button. Inside lever | В | |
| always opens latch. Closing door does not release | - | |
| push-button. | ||
| F83 EXIT: | Т | |
| Deadlocking latch by lever either side except when outside | Jel | ٠. |
| locked by turn-button inside. Inside lever always opens | A | |
| latch. Turn-button operated manually. | ||
| F84 CLASSROOM: | Н | |
| Deadlocking latch by lever inside. | P | S |
| Outside lever locked or unlocked by key. | ľ | |
| , , | Н | |
| F86 STOREROOM: | J_RL | L |
| Deadlocking latch by lever inside, key outside. | r | |
| Outside lever always locked. | ||
| F87 INSTITUTION: | lel. | |
| Both levers always locked. | 3 6 | D١ |
| Deadlocking latch by key both sides. | ||
| F88 VESTIBULE: | ||
| Deadlocking latch by lever either side, except when | D | |
| outside lever locked by key inside. Key outside retracts | D | |
| deadlocking latch. Inside always open. | ||
| F89 EXIT: | FO | |
| Deadlocking latch by lever inside. Outside always locked. | ۲, | |
| L | ||
| F90 CORRIDOR: | ||
| Deadlocking latch by lever either side unless outside | P | Т |
| locked by key or inside push-button. Unlock by key, turning | □" | |
| the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the state of the s |
| AND II CORE | Made South | |
|---|---|---|
| ANSI # CODE | Marks Function I/S O/S | n |
| F90 (MOD.) HOSPITAL/PRIVACY: Deadlocking latch by lever either side unless outside locked by lever or inside push-button. Unlock by turn-knob, turning inside lever or closing door. | тк | |
| F91 STORE DOOR | ||
| (95 Series Leverset ONLY): Deadlocking latch by lever either side except when both levers are locked by key from either side. | ·—[] | GB |
| F92 SERVICE STATION LOCK: Deadlocking latch by lever either side unless outside locked by key or inside push-button. Unlock by key, turning inside lever or closing door, except when slotted push-button is turned in locked position. Inside ever always opens latch. | BS | |
| F93 HOTEL: Deadlocking latch by lever inside. Outside lever always locked. Inside push-button projects indicator on cylinder face shutting out all keys except emergency key. Turning inside lever or closing door releases push-button. | [] | н |
| F109 ENTRY: Outside locked by pushing turn-button inside. Key outside opens lock. Rotating inside lever releases button and outside lever. By pushing and turning inside button, outside lever remains locked. Deadlocking latch. | [] | АВ |
| F110 CLASSROOM INTRUDER: Deadlocking latch by lever either side, except when outside locked by key inside. Key outside locks or unlocks outside. Inside always open | [] - | DB |
|
DUMMY TRIM:
Outside only, rigid. |
⊢ | DO |
|
DUMMY TRIM:
Both sides, rigid. |
⊣ ⊢ | DT |
| F111 COMMUNICATING PASSAGE: Blank outside. Deadlocking latch by lever inside. | NB | |
|
F112 COMMUNICATING STOREROOM:
Blank outside. Deadlocking latch by key only. Lever always locked. |
FB | |
| F113 COMMUNICATING CLASSROOM: Blank outside. Inside lever locked or unlocked by key. Deadlocking latch. | [] - | SB |
| ELECTRICALLY LOCKED - FEL (Fail Safe): Outside always locked electrically. Open by key outside, switch or loss of power. Deadlocking latch by lever inside. Lever only. | — []—; | FEI |
| ELECTRICALLY UNLOCKED - FEU (Fail Secure): Outside always locked until unlocked by key or electrically energized. Deadlocking latch by lever inside. Lever only. | FEU |
