Locking Solutions: Security & Value for a Lifetime

Introduction

Marks USA Architectural Guide was created to give a more in-depth description about products suitable for installation in School Systems, Housing Authorities, Hospitals, Commercial Buildings, etc. Contained within this guide is information about our Nova and Protector Series Mortise Locksets, Commercial Grade Mortise Locksets and Deadlocks, Survivor Series Cylindrical Leversets, Defender Series Deadbolts & Deadlatches, our Custom Lockset Division, LifeSaver® Behavioral Health and Institutional Life Safety Locksets, Hospital Push/Pull Paddlesets, the i-Qwik Electronic Access Control Series, LocDown® School Lockdown Locks, ArchiTech® Designer Wireless Access Series, Exit Devices, and HI-SECURITY™ Cylinders. The guide assists the institutional user by informing the reader of lockset features which will satisfy the requirements of institutional facilities for both design and maintenance.

Mortise Locksets 1-7 NOVA Series 5 & 55 Grade 1 Mortise Locksets Protector Series BE101 & LA118 Grade 1 Mortise Locksets	1 2
Series 7 & 9 Commercial Grade Mortise Locksets; Series 31, 2 & 3 Mortise Deadlocks Mortise & Tubular Lock Trim Mortise Lockset Functions	3 4-5 6-7

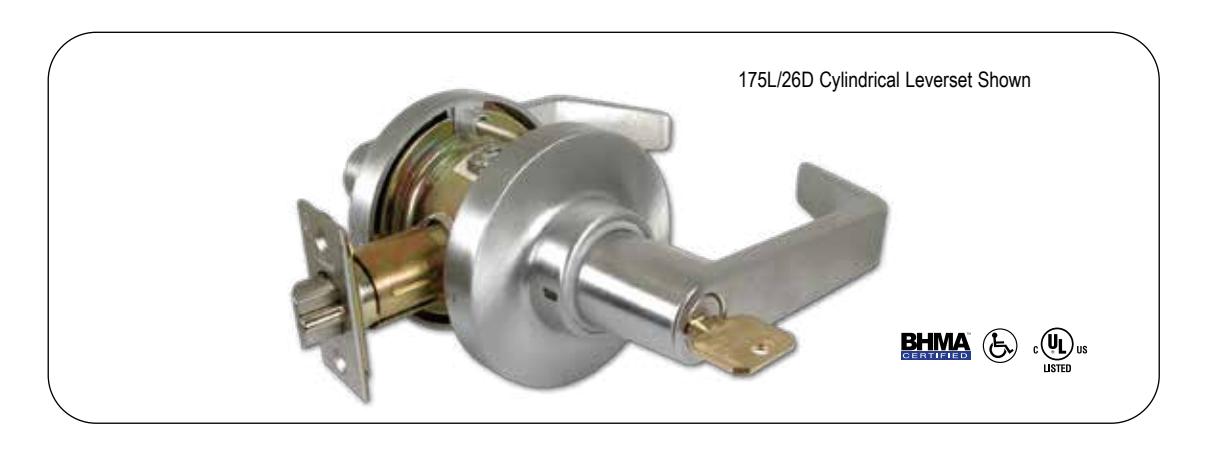

Cylindrical Locksets 8-13 Survivor Series Grades 1 & 2 Cylindrical Leversets Clutch System Super Strength Retractor Long Life Lever Support Springs Strength & Life Quick Installation Easy Installation Uses Most Available Cylinders (Tailpieces: Standard & IC Core) Cylinders ADA • Grades 1 & 2 • Made in U.S.A Survivor Series Grade 1 REX & Electrified Leversets 175 Grade 2 Economy Series Cylindrical Leversets	8 9 9 9 9 9 10 10 10 10 11 12
Cylindrical Knob/Lever Functions Tubular Deadbolts & Cylindrical Cartridge Deadlatches 14-15	13

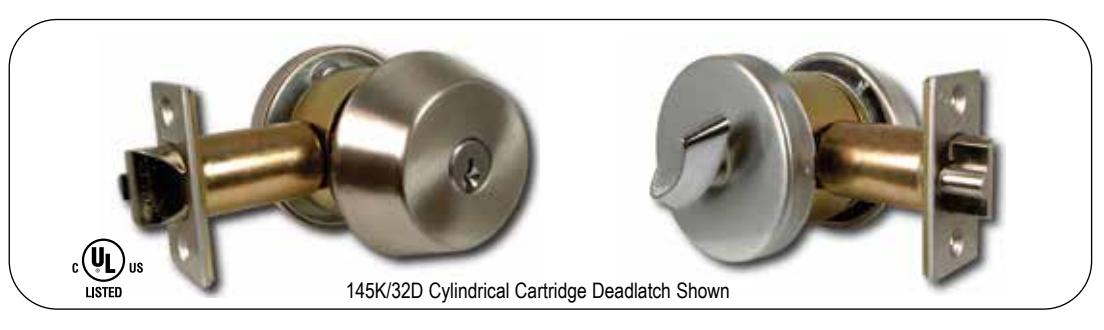

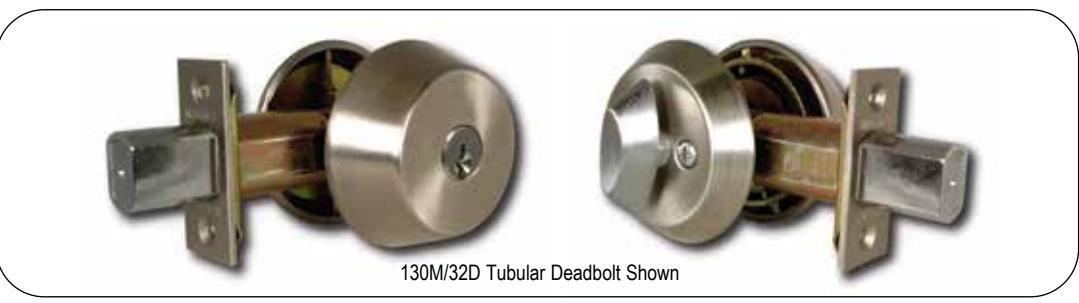

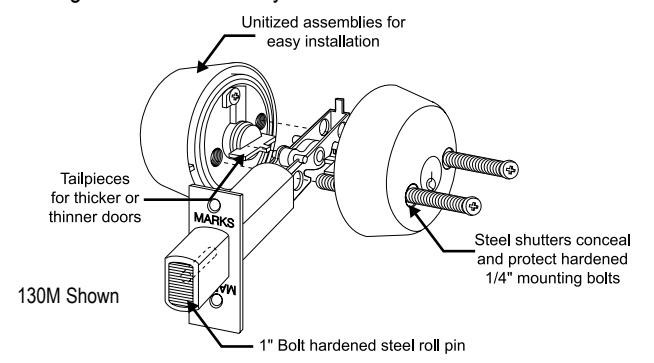

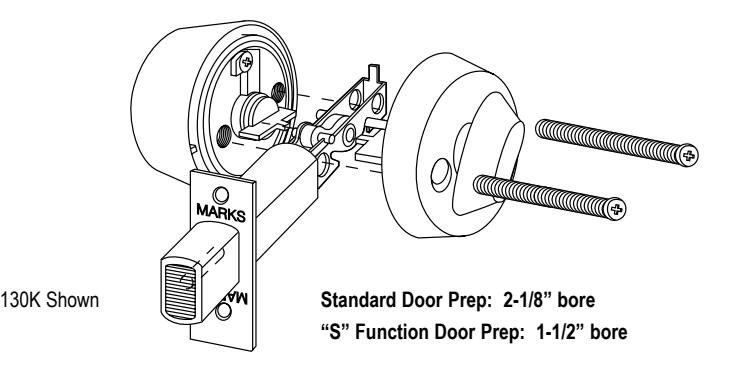

Defender Series Tubular Deadbolts & Cylindrical Cartridge Deadlatches Unique Features Protective Steel Shutters Simple Fast Assembly One Cylinder Fits All Easy Retrofit Deadbolt	14 15 15 15 15 15
Custom Lockset Division 16 About Marks USA Custom Lockset Division	16

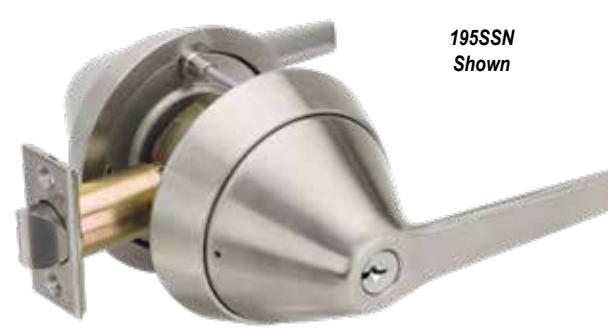

LifeSaver™ Institutional Life Safety Locksets 17-20 195BH D-Lig Slide Behavioral Health Cylindrical Locksets, Grade 1 5BH D-Lig Slide Behavioral Health Mortise Locksets, Grade 1 SS55 Series Institutional Life Safety Grade 1 Mortise Locksets - Knobs SS19 Series Institutional Life Safety Grade 1 Mortise Locksets - Levers SS19 Series Institutional Life Safety Grade 1 Cylindrical Locksets - Levers SS55 Series Institutional Life Safety Grade 1 Cylindrical Locksets - Knobs and Mortise Deadlocks	17 18 19 20 21 22

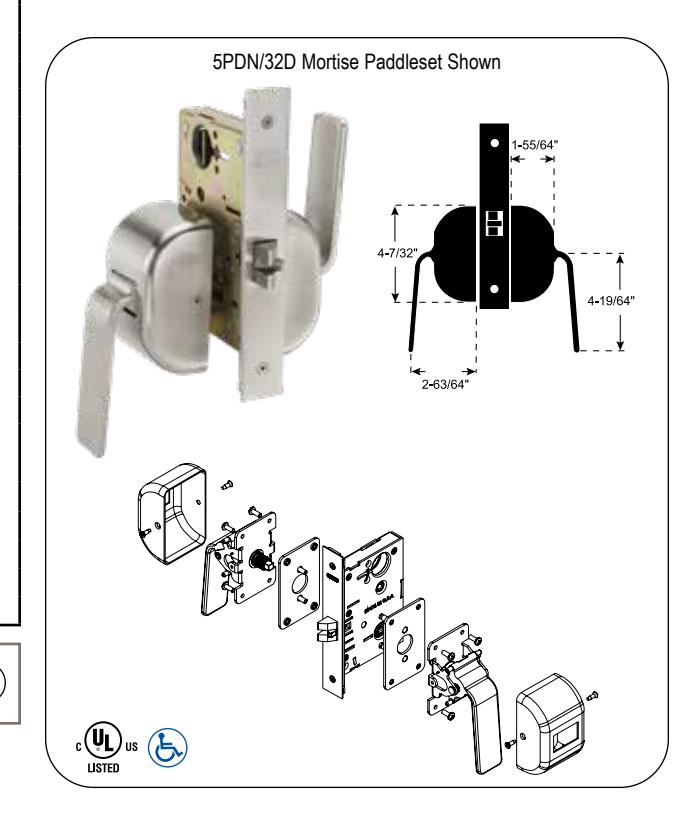

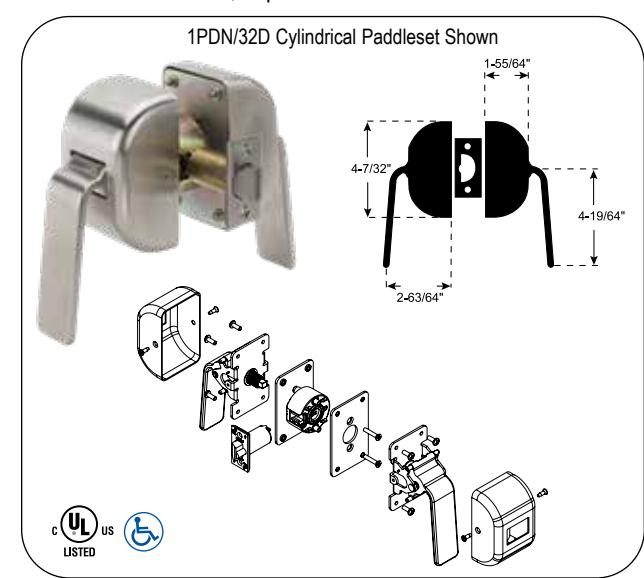

Hospital Locksets 23 PD Series Grade 1 Mortise & Cylindrical Push/Pull Paddlesets	23

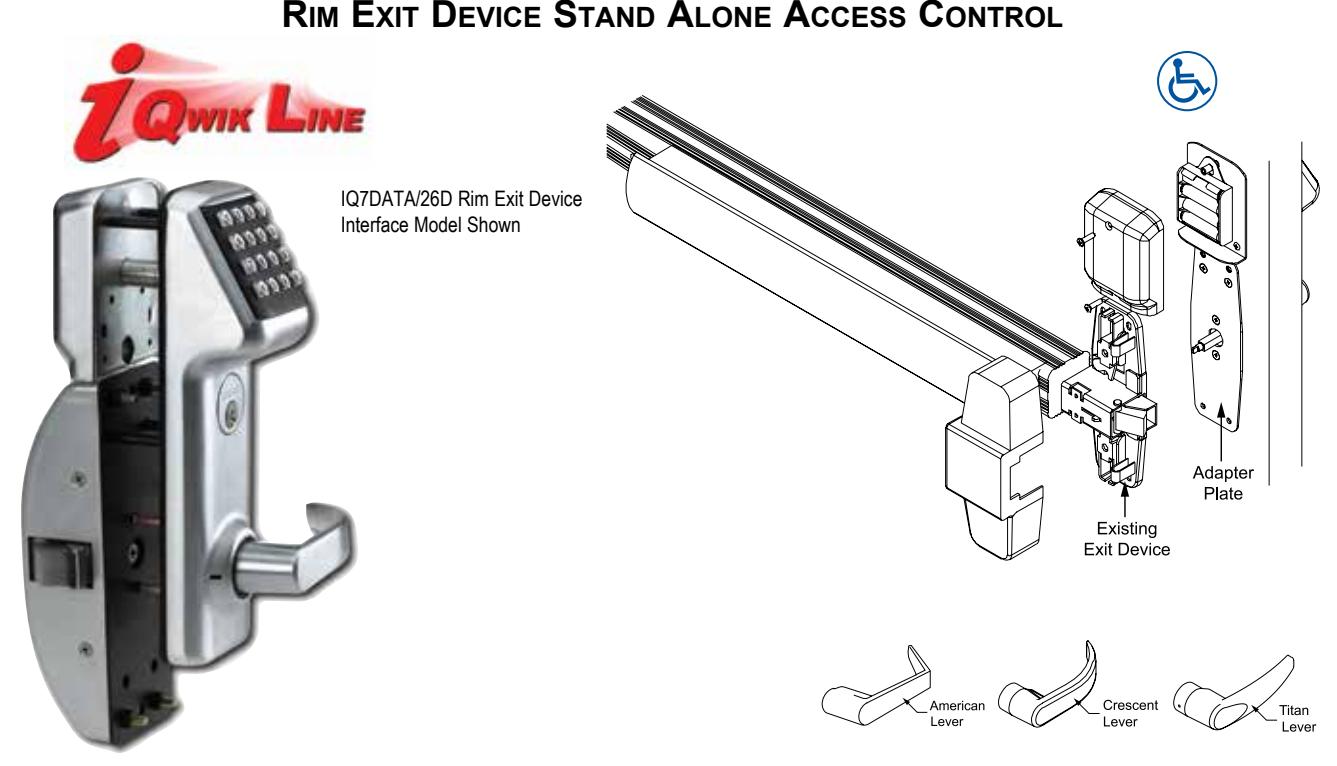

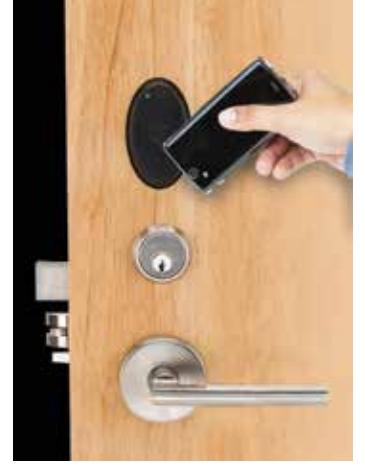

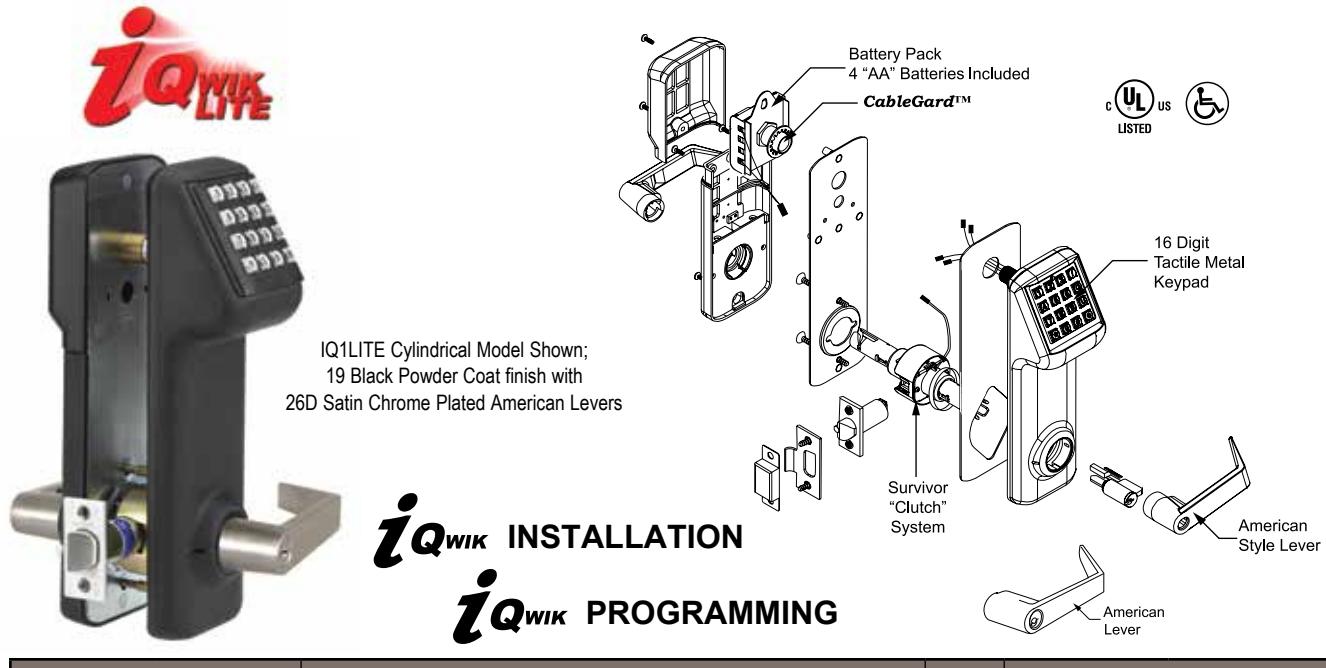

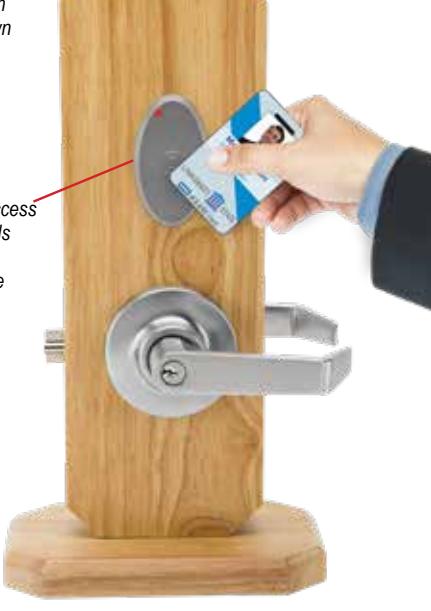

Electronic Access Control 25-25 i-Qwik LITE Series Electronic Access Control i-Qwik Series Rim Exit Device Stand Alone Access Control, Adapter Plates	24 25

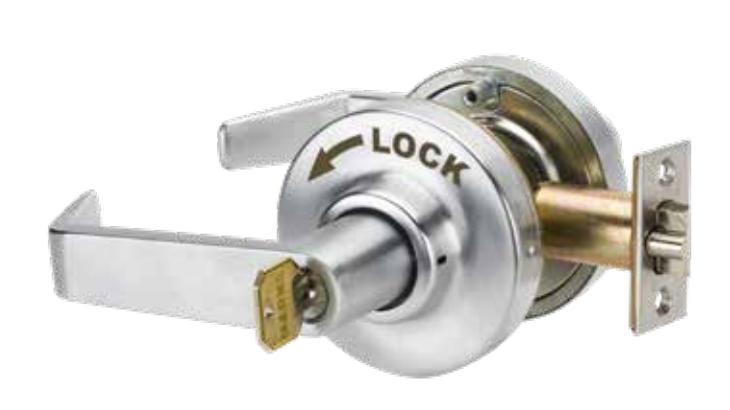

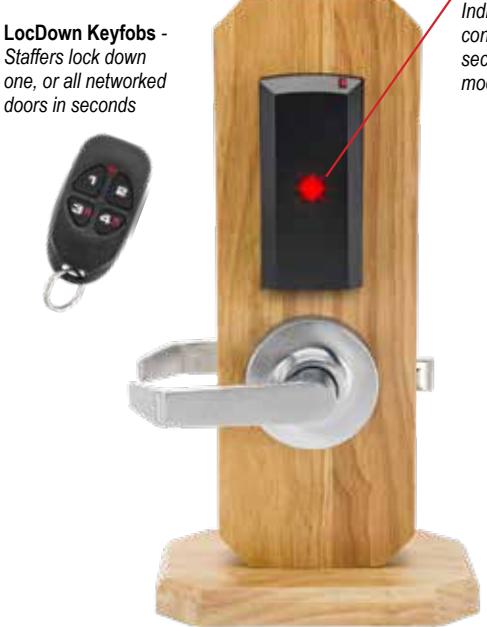

School and Classroom LocDown™ Locks 26-27
LA318GJ	27

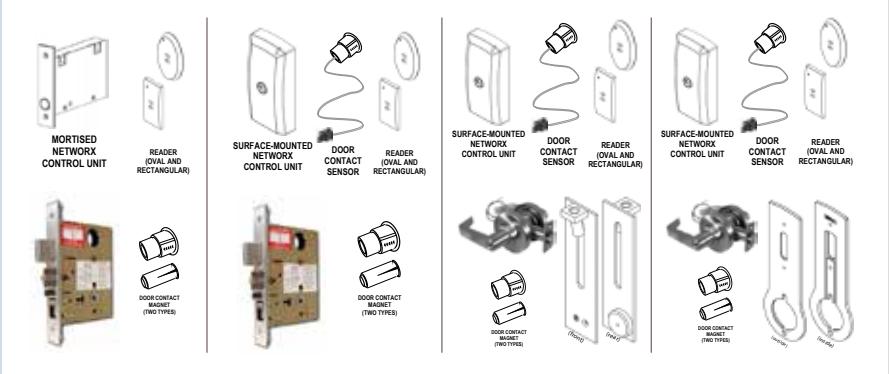

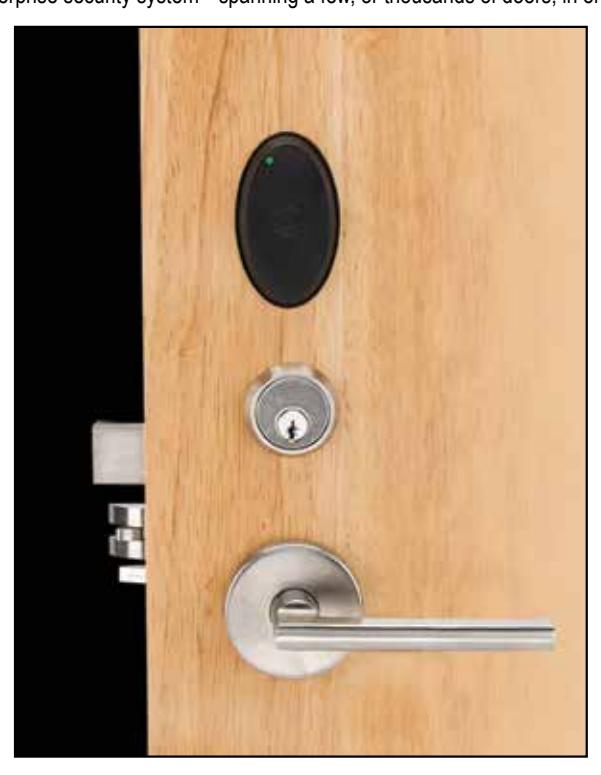

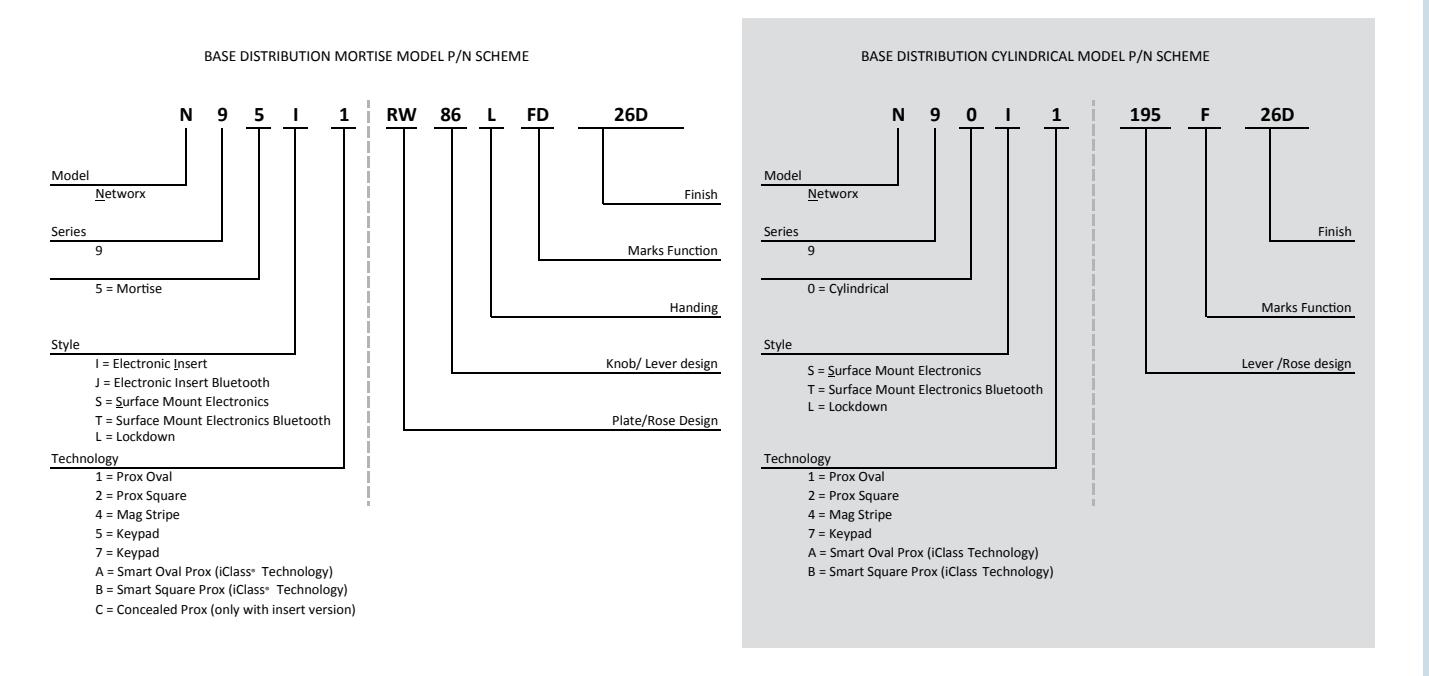

ArchiTech™ Custom Wireless Access Control Platform . 28-31 Standalone, Networked, Enterprise ArchiTech Networked Access with Keyfob Lockdown Trilogy Networx Gen.2 Gateways & Expanders Trim Options / How To Order www.designalock.com	28 29 30 31 31

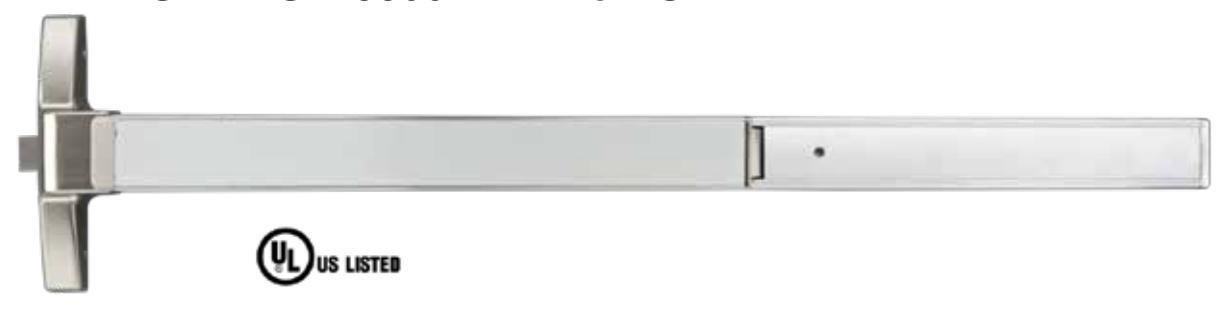

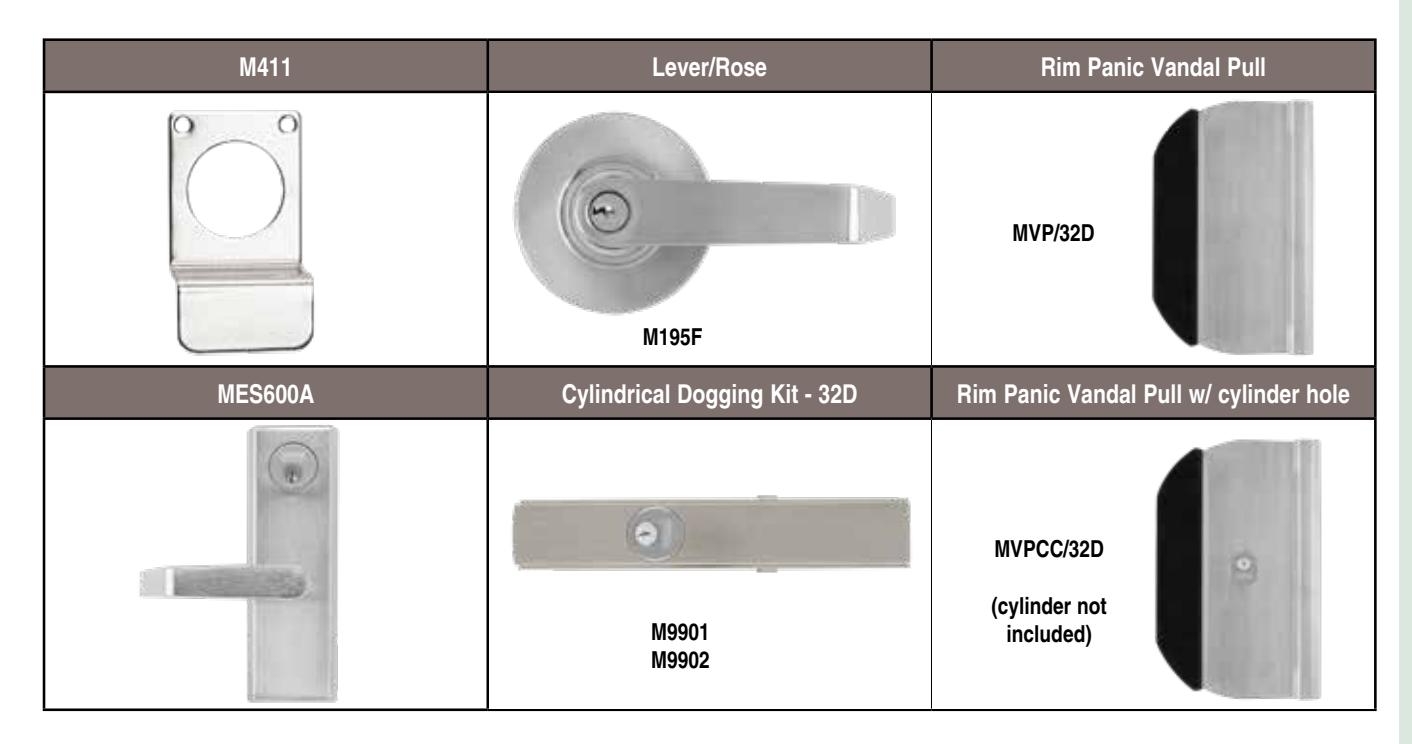

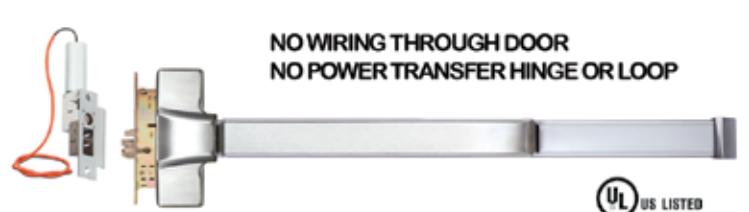

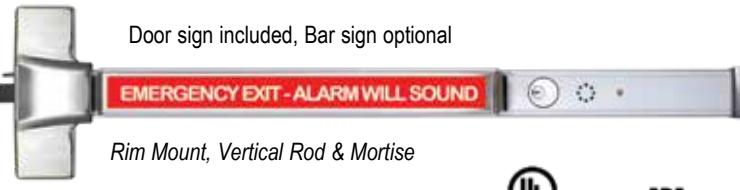

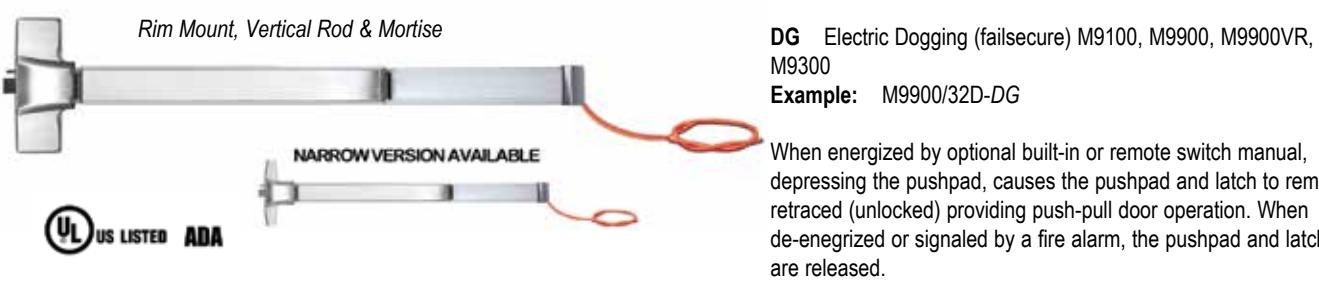

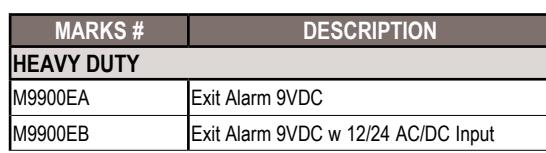

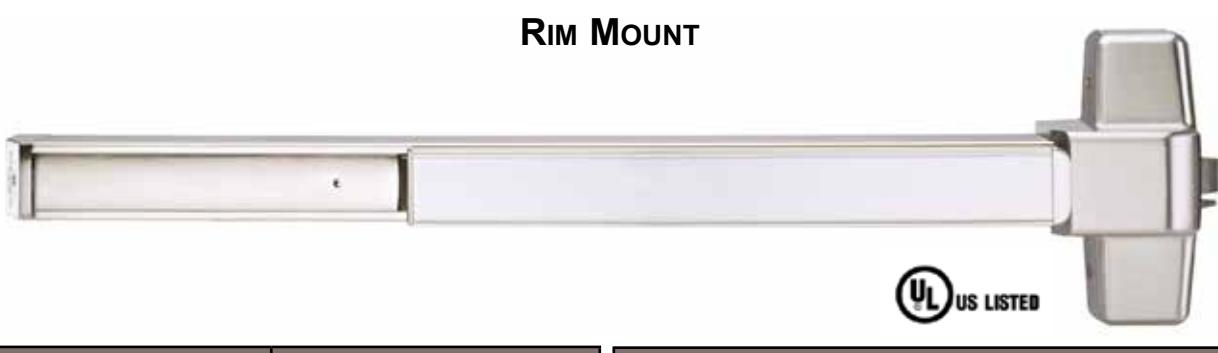

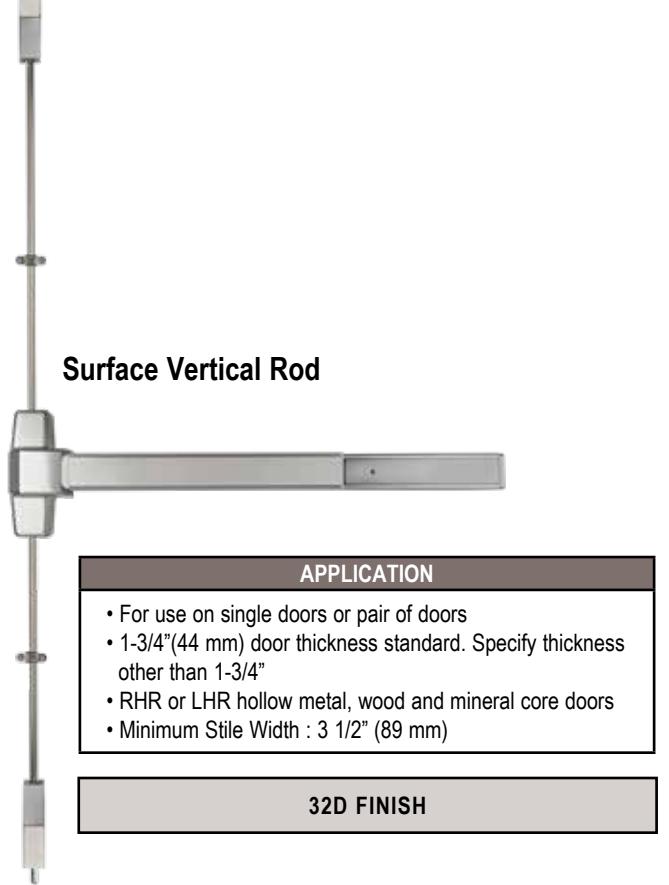

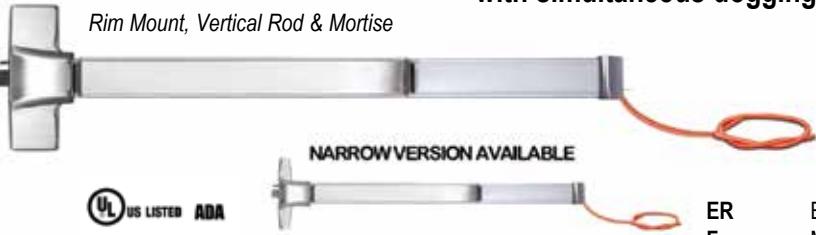

Exit Devices 32-36 Series M9900 Exit Device - Rim Mount Series M9900 VR Exit Device Series M9900 Exterior Trim Series M195 Exit Device Trim Series M8800 Narrow Stile Exit Device Electric Latch Retraction Exit Alarm Electric Frame Actuator Electric Dogging	32 32 33 34 34 35 35 36 36

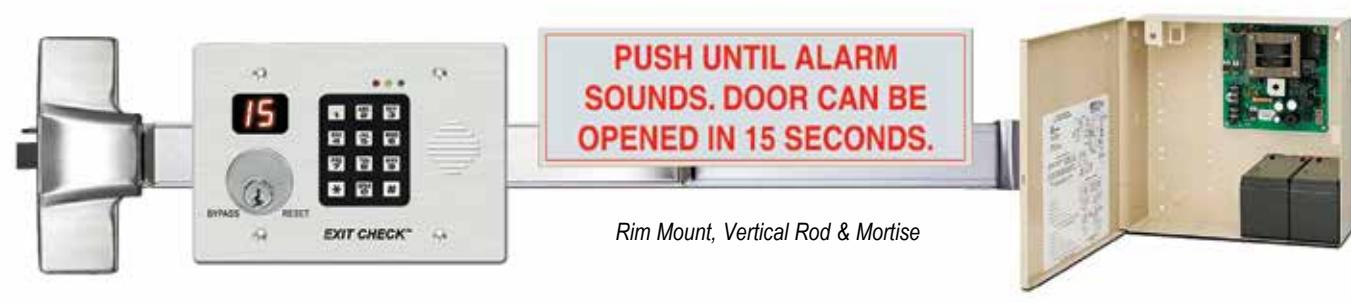

Delayed Egress	36

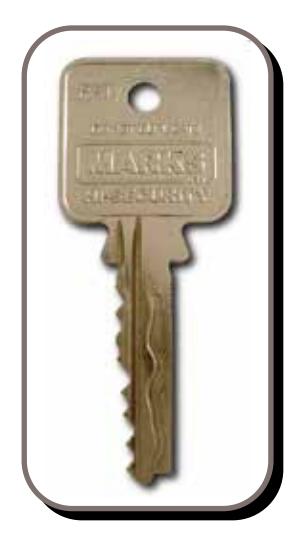

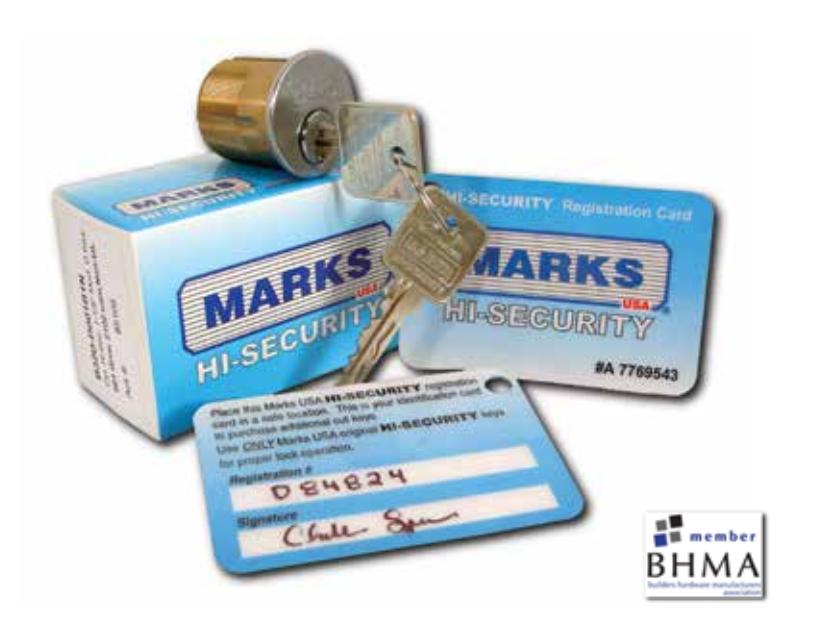

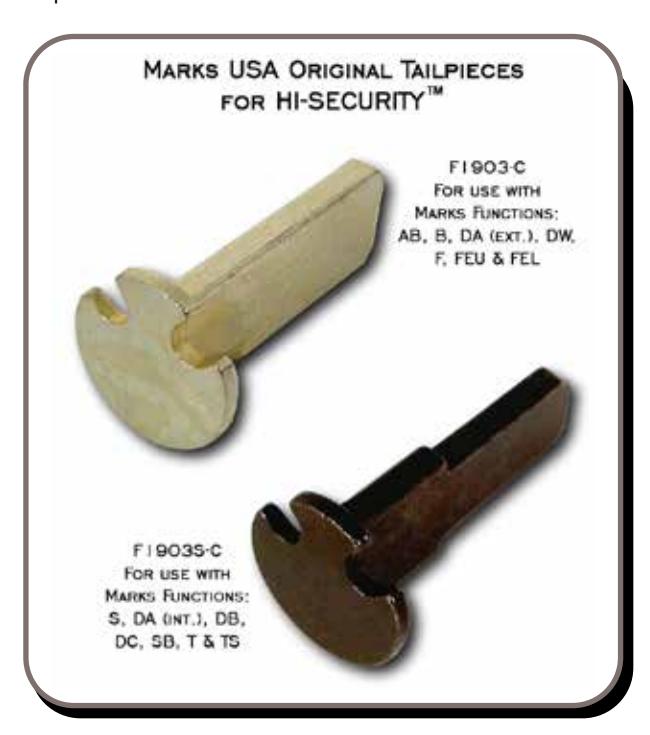

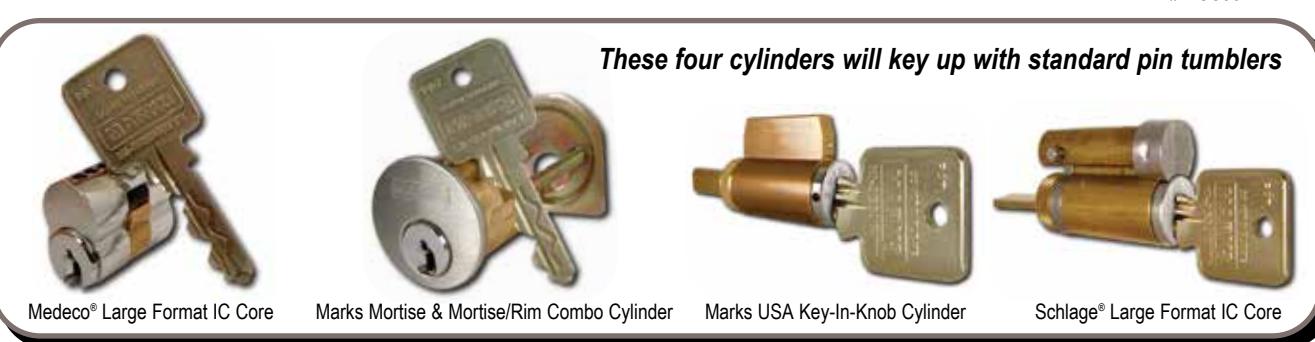

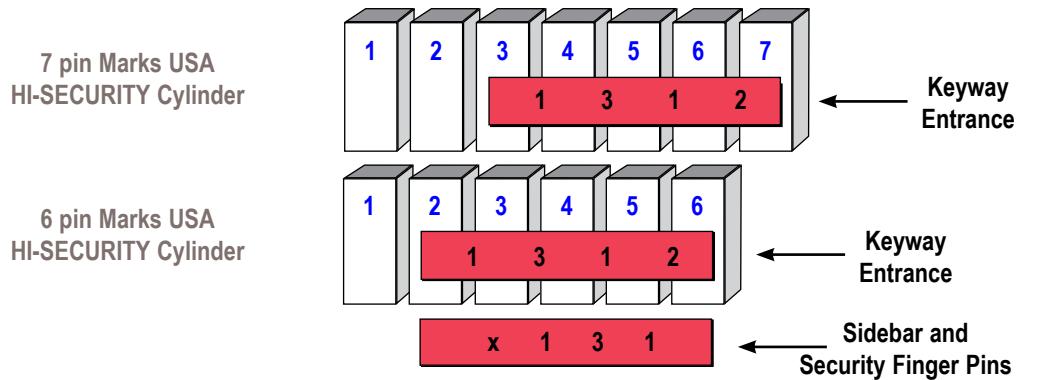

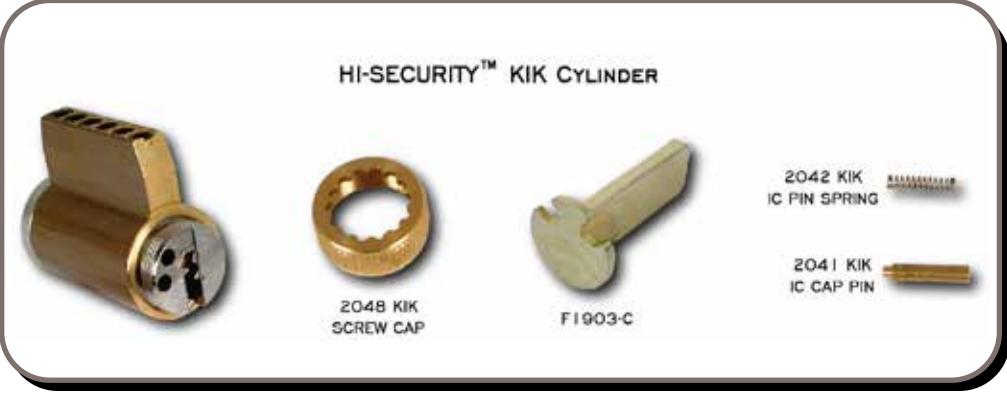

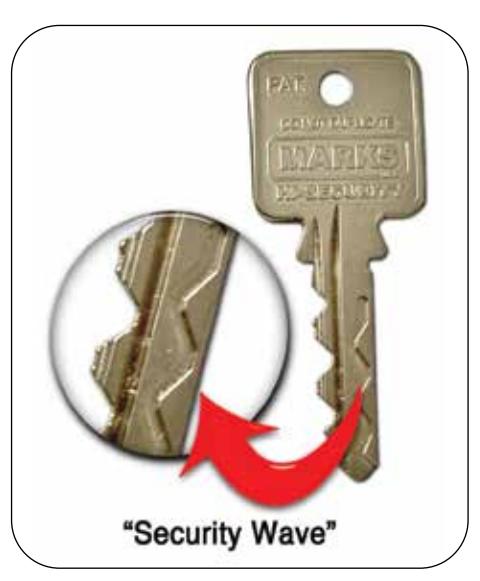

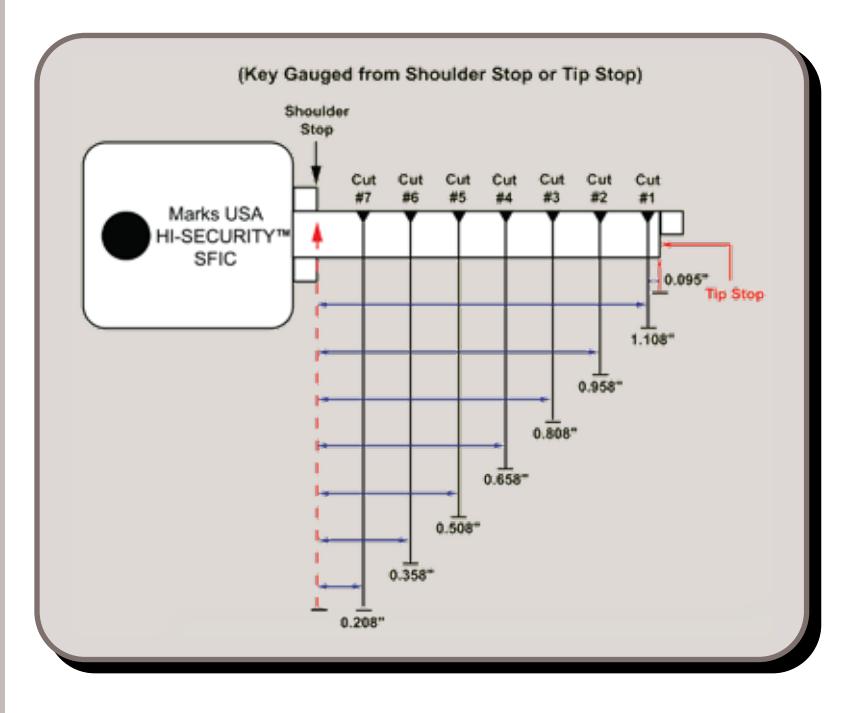

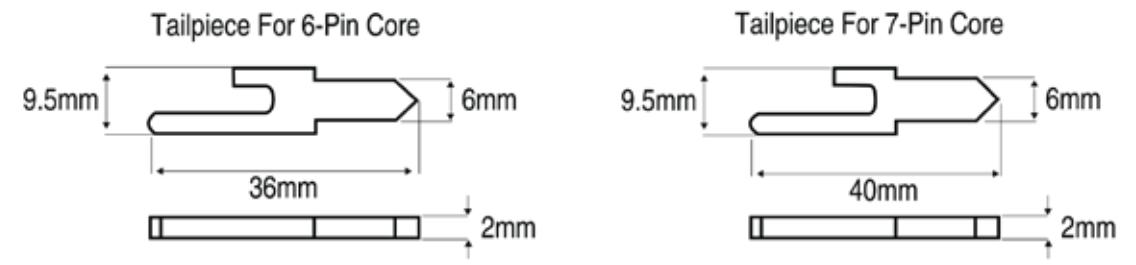

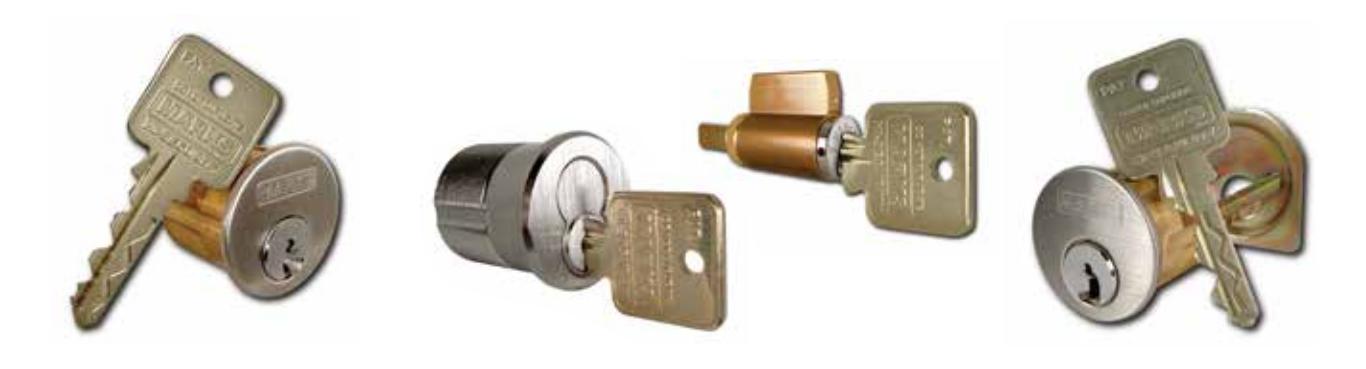

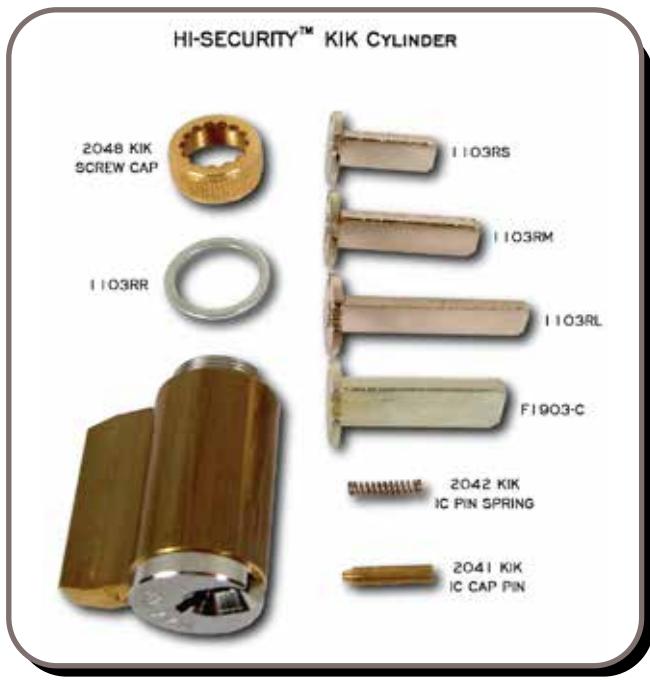

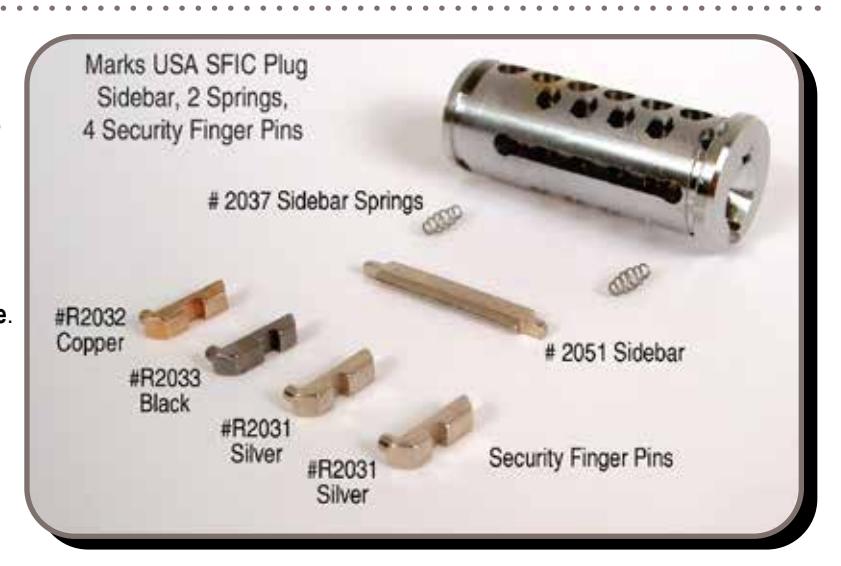

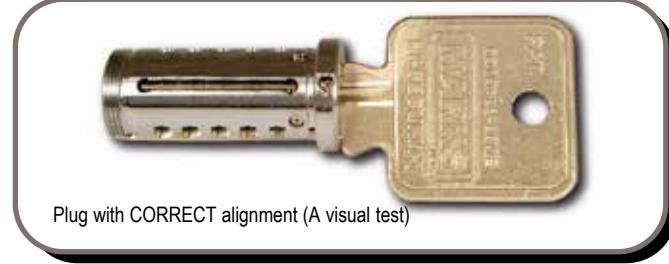

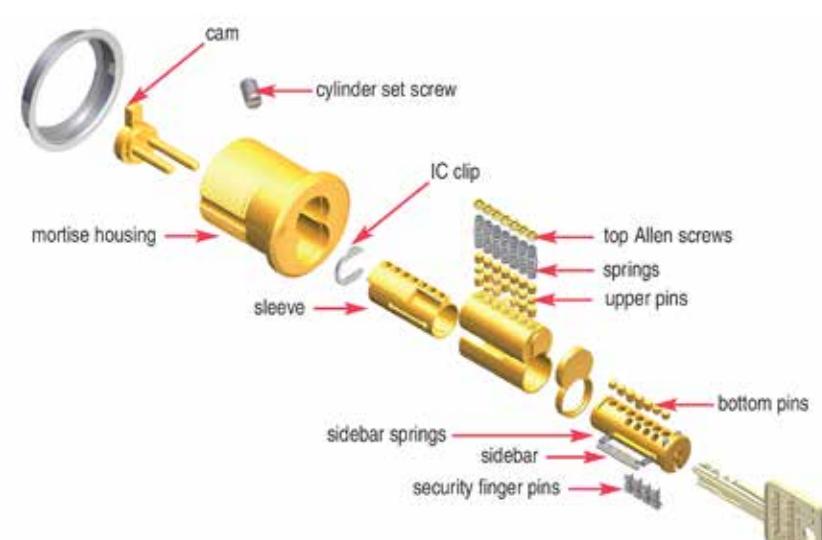

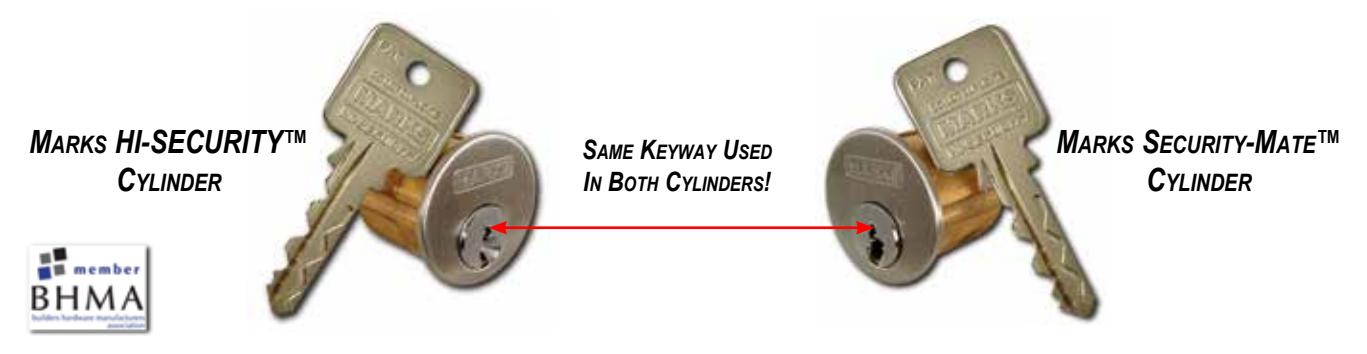

HI-SECURITY™ & Security-Mate™ Cylinders 37-45 What Makes Marks HI-SECURITY™ Cylinders Unique? Cylinder Configuration Marks Security-Mate™ Cylinders HI-SECURITY™ Key Control Management Package Service Equipment Small Format Interchangeable Core (SFIC) Sidebar & Security Finger Pins Security Finger Pin Replacement Procedure Another Key Control Option Operation & Hardware Installation Compatibility Key Blank Overview Key Specifications Pin Specifications Combinating & Capping Procedures HI-SECURITY™ Cams & Tailpieces HI-SECURITY™ Retro-Fit Key-In-Knob Tailpieces45 HI-SECURITY™ Retro-Fit Key-In-Knob Tailpieces (cont'd.) Marks USA Warranties Terms & Conditions 46	37 37 38 39 39 40 40 40 41 41 41 42 42 43 44 45 45

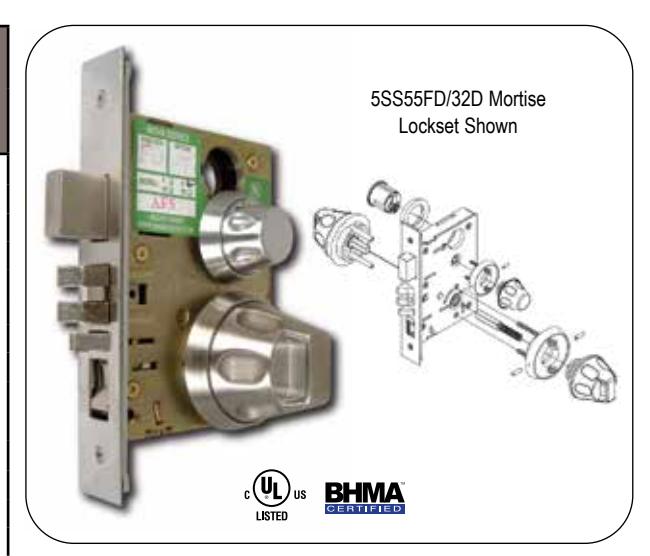

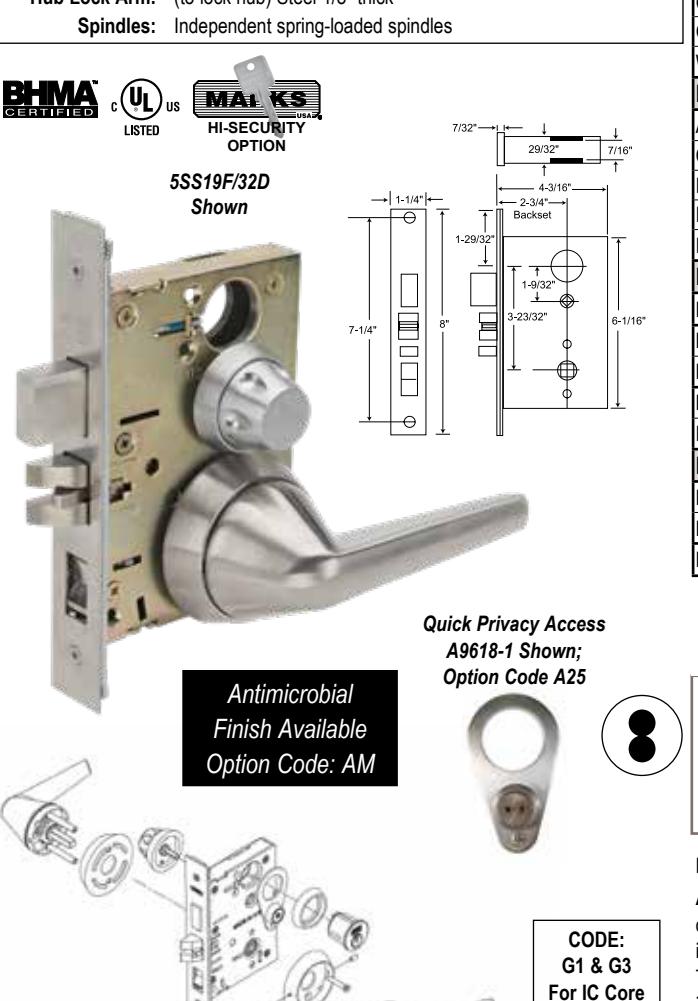

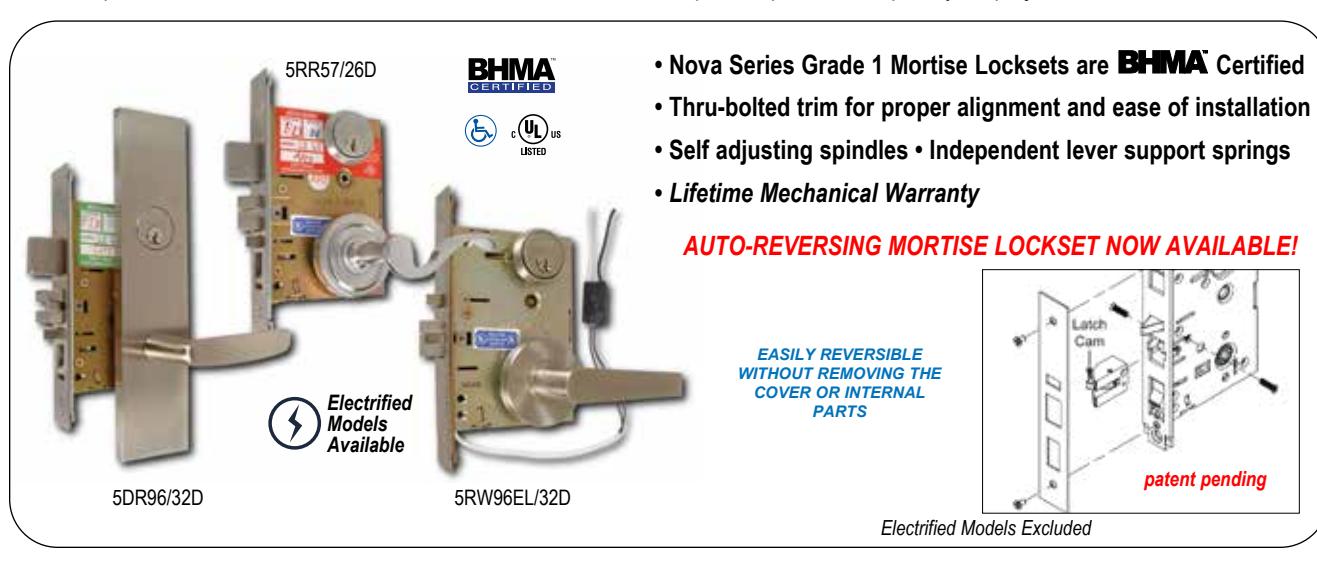

NOVA SERIES 5 & 55

MORTISE LOCKSETS ANSI 156.13 GRADE 1

Nova Series 5 & 55 Mortise Locksets -

Our Nova Series Mortise Locksets represent years of development into world class BHMA Certified mortise locksets and carry the Marks Lifetime Mechanical Warranty. The Nova Series is available with a variety of different knobs, levers, roses and plates as well as custom capabilities with 32 functions in popular finishes. Whether your application is a single style single function lockset or an entire complex with multiples and varieties, the Nova Series has the form, fit and competitive price to complete your project.

MARKS # 5 & 55	FUNCTION	ANSI#	FINISH GROUPS
KEYED SIN	GLE CYLINDER, NO DEADBOLT
D	OFFICE / VESTIBULE
DW	VESTIBULE
E	OFFICE	F04
EW	STOREROOM	F07
J	CLASSROOM	F05
JM, JR	HOSPITAL (HOLDBACK)	F06
GL	INST. PRIVACY	F26
EL	ELECTRICALLY LOCKED
EU	ELECTRICALLY UNLOCKED
KEYED SIN	GLE CYLINDER, WITH DEADBOLT
Α	ENTRANCE	F08, F10
В	ENTRANCE	F21
F	DORMITORY	F12
FS	DORMITORY
FW	DORMITORY	F13
FD	APARTMENT	F20
Н	HOTEL	F15	3, 10, 10B,
LH	SPEC. PRIVACY		32, 32D
KEYED DO	JBLE CYLINDER, NO DEADBOLT		32, 320
G	ENTRANCE	F09
GC	INTRUDER LATCHBOLT	F32
GG	CLASSROOM SECURITY
GR	CLASSROOM SECURITY w/HOLDBACK
WW	INSTITUTION	F30
KEYED DO	UBLE CYLINDER, WITH DEADBOLT
AC	ENTRANCE	F35
С	STOREROOM	F14
FC	INTRUDER DEADBOLT	F34
FA	DORMITORY	F11
FX	DORMITORY	F33
KEYLESS
N	PASSAGE	F01
L	BATHROOM	F02
LF	PRIVACY	F19
LJ	PRIVACY	F22
EX	EXIT	F31

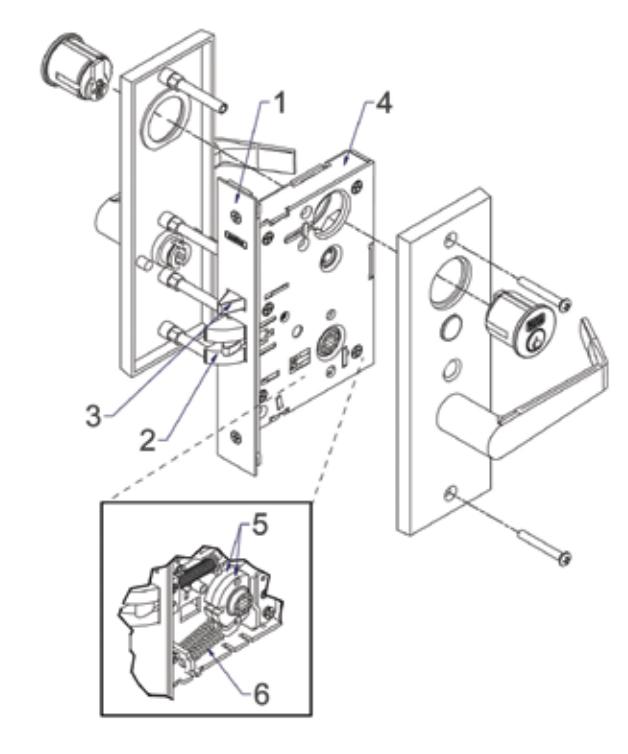

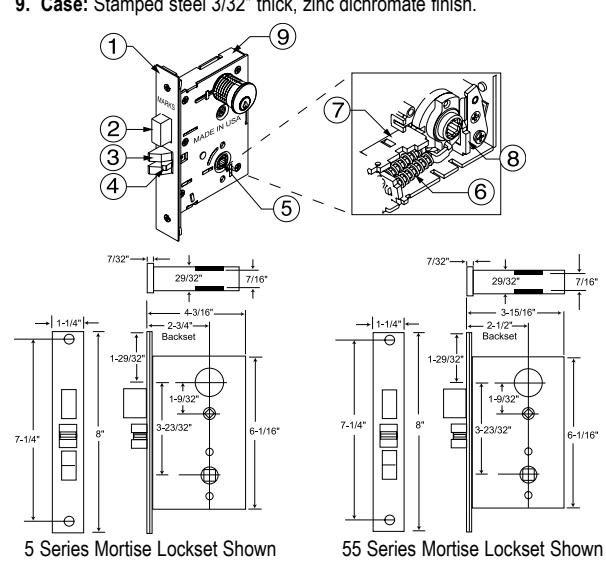

STANDARD FEATURES

5 Series (2-3/4" backset); 55 Series (2-1/2" backset)
1. Lock Front: Adjustable bevel steel backplate 1-1/4" x 8" x 7/64" thick stainless steel. Cover plate 1/16" thick.
2. Deadbolt: Stainless steel with hardened roll pins, 1" throw.
3. Latch: Solid stainless steel with antifriction latch lever. 3/4" throw (reversible).
4. Auxiliary Deadlatch: 1/2" throw (reversible).
5. Hubs: Steel, 9/32" on diamond, 5/16" on square with security separator. Independent exterior and interior lever support springs.

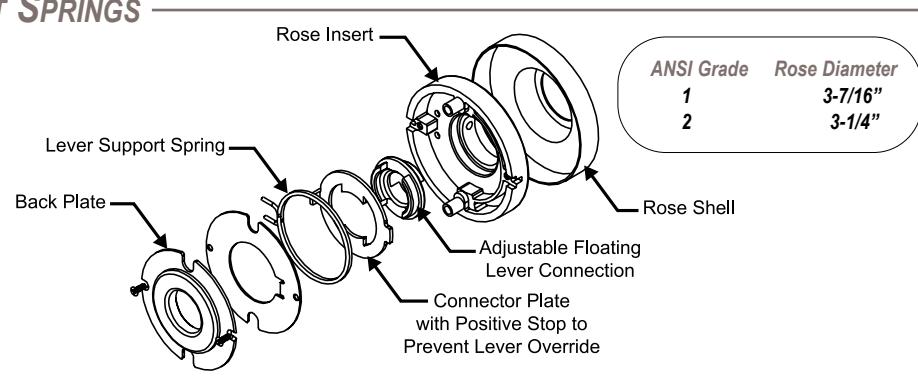

6. Lever Support Springs: Lever support springs with 5/16" Hubs
7. Hub Follower: (to lock hub) steel 1/8" thick.
8. Hub Stop: (to limit lever travel) steel 1/8" thick.
9. Case: Stamped steel 3/32" thick, zinc dichromate finish.

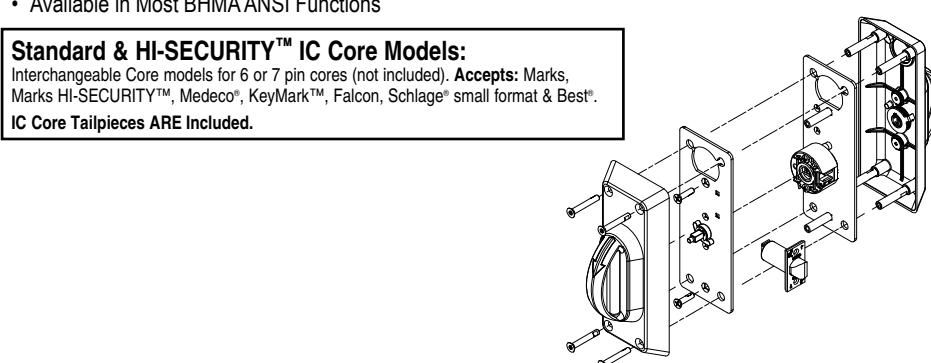

* Standard & HI-SECURITY™ IC Core Models:

Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.

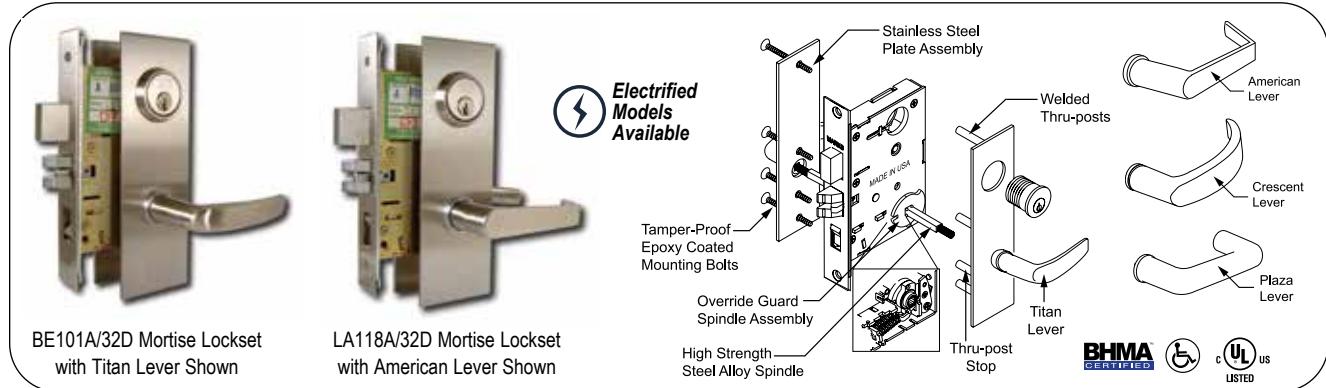

PROTECTOR SERIES

MAXIMUM SECURITY MORTISE LOCKSETS ANSI 156.13 GRADE 1

PROTECTOR SERIES

All Marks USA Protector Series mortise locksets feature an "Override Guard" which is designed to result in spindle failure when torque of over 550 foot lbs. is applied. The lockset remains locked and when spindle is replaced, the lockset is fully operational. Protector Series locksets have a lifetime mechanical warranty, meet or exceed all operational and security tests of ANSI A156.13-2002 for Series 1000, Grade 1. Protector Series Locksets are UL listed, 3-hour fire rated and meet ADA requirements.


MARKS # BE101 & LA118	FUNCTION	FINISH GROUPS&
KEYED SINGLE C	YLINDER, NO DEADBOLT
D	OFFICE VESTIBULE
DW	VESTIBULE
E	OFFICE	F04
EW	STOREROOM	F07
GL	INST. PRIVACY	F26
J	CLASSROOM	F05
JM, JR	HOSPITAL (HOLDBACK)	F06
EL	ELECTRICALLY LOCKED
EU	ELECTRICALLY UNLOCKED		3, 10, 10B, 32D
KEYED SINGLE C	YLINDER, WITH DEADBOLT		105, 325
A	ENTRANCE	F08, F10
В	ENTRANCE	F21
F	DORMITORY	F12
FS	DORMITORY
FW	DORMITORY	F13
FD	APARTMENT	F20	]
Н	HOTEL	F15
LH	SPEC. PRIVACY

MARKS # BE101 & LA118	FUNCTION	ANSI#	FINISH GROUPS&
KEYED DOUBLE C	YLINDER, NO DEADBOLT
G	ENTRANCE	F09
GC	INTRUDER LATCHBOLT	F32
WW	INSTITUTION	F30
KEYED DOUBLE C	YLINDER, WITH DEADBOLT		]
AC	ENTRANCE	F35
С	STOREROOM	F14
FC	INTRUDER DEADBOLT	F34
FA	DORMITORY	F11	0.40
FX	DORMITORY	F33	3, 10, 10B, 32D
KEYLESS			100, 320
N	PASSAGE	F01
L	BATHROOM	F02
LF	PRIVACY	F19
LJ	PRIVACY	F22
EX	EXIT	F31	] \|
DUMMY TRIM
DI, DO	DUMMY TRIM INSIDE/OUTSIDE
DT	DUMMY TRIM

❖Additional Finishes, Consult Factory.

STANDARD FEATURES

Performance Specifications:

Life Test: 1,500,000 cycles minimum.

Exterior and Interior Trim Specifications:

Brushed stainless steel plate assemblies with machined lever bearings. Screwless stainless steel levers assembled to plate with hardened snap rings. (Levers cannot be removed without disassembling trim plates from inside.)

Additional trim designs are available with override guard lock protection, Consult factory.

Exterior: 4 welded thru-posts. Center posts pass through lock body, automatically aligning trim 8-1/2" x 2-3/4" x 1/8" thick

Interior: 4 stainless steel, tamper-proof mounting bolts connecting inside plate. 8-1/2" x 2-3/4" x 1/8" thick

Cylinder: 1-1/8" long solid brass, 6 pin with 2 keys Strike: 4-7/8" x 1-1/4" x 3/32" thick, 5/8" curved lip Conforms to ANSI spec., A115.1

Door Thickness: 1-3/4" standard. Extended range available Screwless Lever Choices: American, Crescent, Plaza & Titan

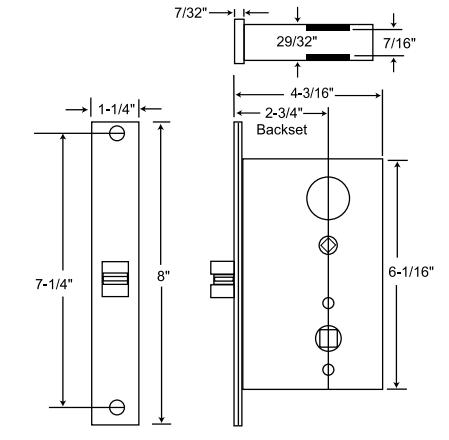

Lock Specifications: 5 Series (2-3/4" Backset)

NOVA SERIES GRADE 1 MORTISE LOCKSETS ARE BHMA CERTIFIED

Lock Front: Adjustable bevel steel backplate 1-1/4" x 8" x 7/64" thick;

Cover plate 1/16" thick with tamper-proof screws Deadbolt: Stainless steel with hardened roll pins, 1" throw

Latch: Solid stainless steel with antifriction latch lever, 3/4" throw (reversible)

Aux. Deadlatch: 1/2" throw (reversible)

Case: Stamped steel 1/16" thick

Hubs: Steel, 5/16" on square w/security separator, 9/32" on diamond; Independent exterior and interior lever support springs

Hub Lock Arm: Steel 1/8" thick (to lock hub)

Exterior Lever Override Guard Integral cam spindle/spring assembly engages hub lock arm, case hardened steel, 1/8" thick. Interior Lever Override Guard Integral cam spindle/spring assembly prevents interior lever override, case hardened steel, 1/8" thick

★ Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included. **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tailpieces ARE Included.** **Tail

COMMERCIAL GRADE

Series 7 & 9 Mortise Locksets & Series 31, 2 & 3 Mortise Deadlocks

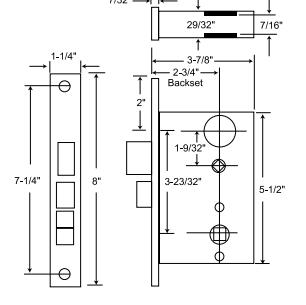

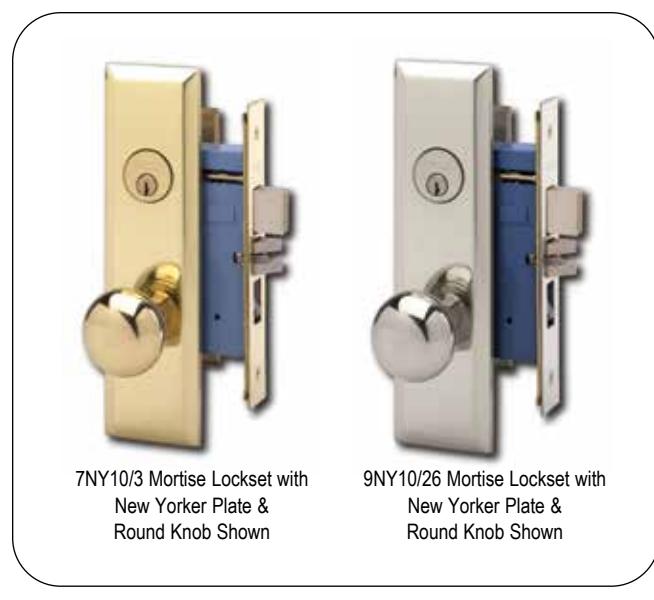

COMMERCIAL GRADE MORTISE LOCKSETS SERIES 7 & 9 -

Marks 7 & 9 Series Mortise Locksets feature a high pressure cast Zamac body with a baked enamel finish to resist corrosion, cast alloy 1" throw deadbolt for strength, and a flexible face plate that may be installed flat or with a 3 degree bevel. The 7 & 9 Series are available with a variety of different knobs, levers, roses and plates making these efficient mortise locksets a great choice for commercial applications when grade 1 fire rated locksets are not required.

MARKS # 7 & 9	FUNCTION	ANSI#	FINISH GROUPS
KEYED SINGLE C	YLINDER, NO DEADBOLT
D	OFFICE / VESTIBULE
DW	VESTIBULE
KEYED SINGLE C	YLINDER, WITH DEADBO	LT
Α	ENTRANCE	F08, F10
В	ENTRANCE	F21
F	DORMITORY	F12
FS	DORMITORY
FW	DORMITORY	F13	3, 10, 10B,
KEYED DOUBLE	CYLINDER, WITH DEADB	OLT	32, 32D
AC	ENTRANCE	F35
С	STOREROOM	F14
FA	DORMITORY	F11
FX	DORMITORY	F33
KEYLESS
N	PASSAGE	F01
L	BATHROOM	F02
LF	PRIVACY	F19

* Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, ( 🖁 ) KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.

STANDARD FEATURES

Series 7:

Backset: 2-3/4"

Bolt throw: Cast alloy full 1" throw

Latch throw: 5/8" (anti-friction) Case: High pressure cast Zamac, baked enamel finish

Front: 1-1/4" x 8". Flat or 3° bevel Hubs: 9/32" on square steel with

security separator

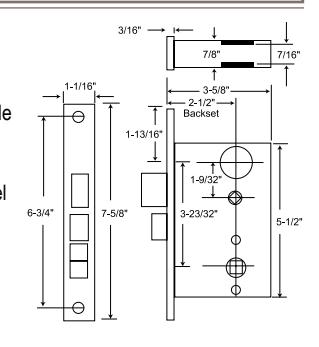

Series 9:

Backset: 2-1/2"

Bolt throw: Cast alloy full 1" throw

Latch throw: Solid brass 1/2" throw, reversible Case: High pressure cast Zamac,

baked enamel finish

Front: 1-1/16" x 7-5/8", Flat or 3° bevel

Hubs: 9/32" on square steel

with security separator

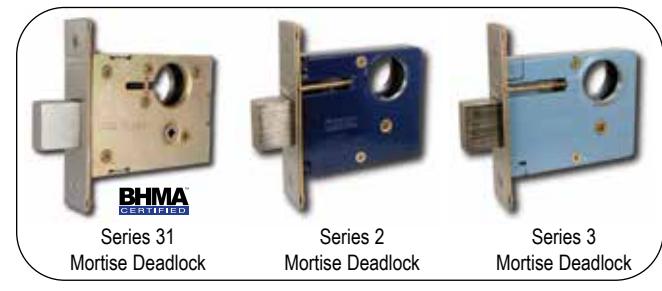

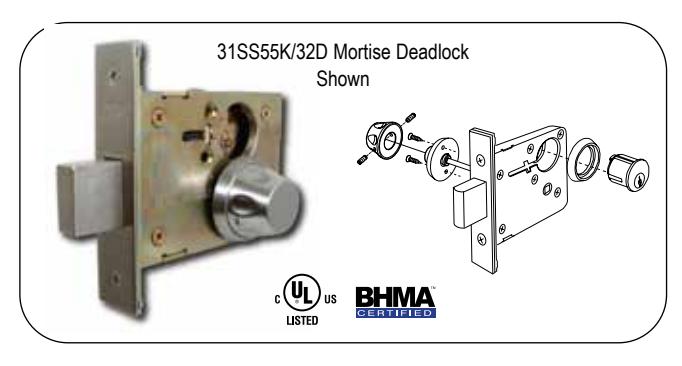

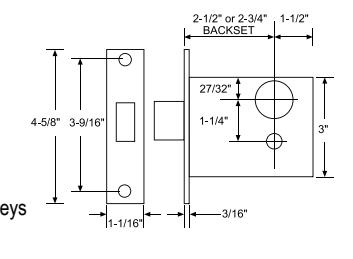

MORTISE DEADLOCKS SERIES 31, 2 & 3

MARKS # 31, 2 & 3	FUNCTION	ANSI#	FINISH GROUPS
_	LOCK ONLY	_
K	CYLINDER x TURNPIECE	E06072	3, 3E, 10,
L	COMMUNICATING SINGLE CYL.	E06082	, , ,
M	DOUBLE CYLINDER	E06062	10B, 26, 26D,
S	CLASSROOM (Specify Handing)	E06092	32, 32D
Χ	TURNPIECE ONLY

* Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.

STANDARD FEATURES

Series 31 BHMA Certified:

Backset: 2-3/4'

Bolt throw: 1" stainless steel with

hardened roll pins Case: Stamped Steel Front: 1-1/16" x 4-5/8"

adjustable bevel

Cylinder: Solid brass cylinder,

6-pin, "C" keyway, 2 keys

Strike: #4035 Included

Series 2 & 3:

Backset: Series 2: 2-1/2"

Series 3: 2-3/4"

Bolt throw: 1"

Case: High pressure cast Front: 1-1/16" x 4-5/8" flat or

3° bevel

Cylinder: Solid brass cylinder,

6-pin, "C" keyway, 2 keys

Strike: #4035 Included

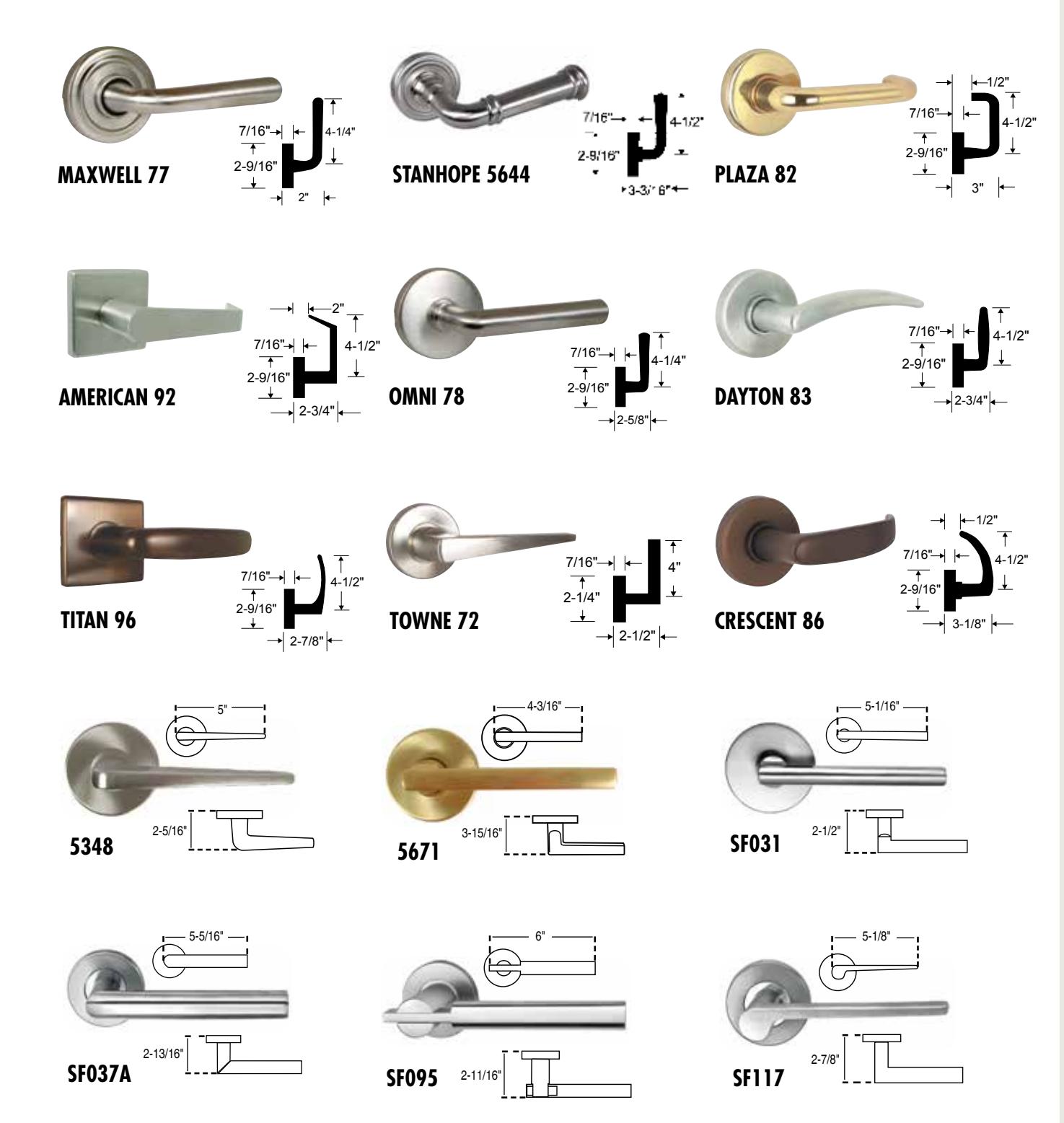

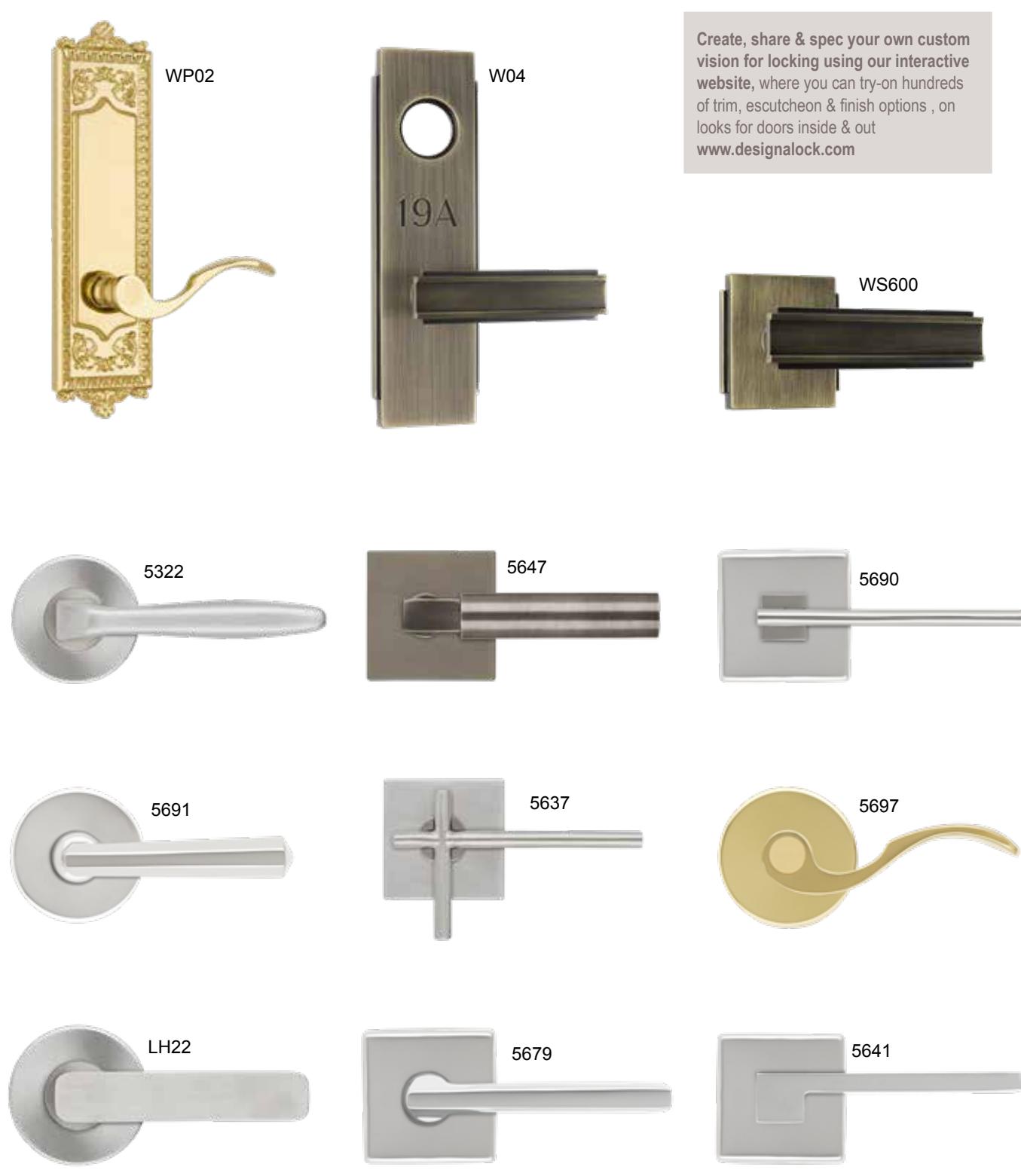

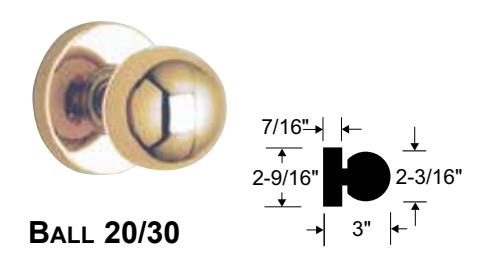

MORTISE & TUBULAR LOCK TRIM

NOTE: ROSES ALSO AVAILABLE IN 2-1/4" DIAMETER

TRIM -

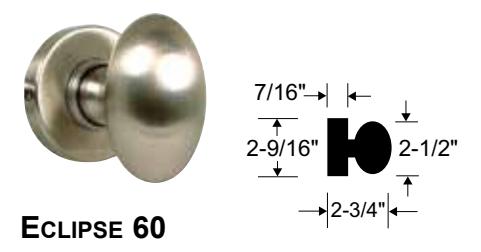

Marks USA offers a great many designs of knobs, levers, turnpieces and pull handles in both brass and stainless steel. Locksets using these designs need minimum orders and may require longer delivery time since they are not normally stocked. At this time, there are more than 300+ designs available and more are being added constantly. We also offer designs made to customers individual specifications.

MORTISE & TUBULAR LOCK TRIM

NOTE: ROSES ALSO AVAILABLE IN 2-1/4" DIAMETER

TRIM -

MOR TISE LOCKSE T F U NCTIONS ANSI 156.13 Gra d e 1

Mortise Lockset Functions

SINGLE CYLINDER FUNCTIONS				SINGLE CYLINDER FUNCTIONS
ANSI #	Cam	Strike Marks Function		ANSI #	Cam	Strike Marks Function
F04: OFFICE Latch by knob/lever either side except when outside knob/lever locked by stop-button in front; then by key outside. Auxiliary latch deadlocks latch. Inside always open.	2101	I/S O/S	E	F20: APARTMENT Latch by knob/lever either side except when outside locked by stop-button or projected deadbolt. Latch deadlocked by auxiliary latch or deadbolt. Deadbolt and latch by key outside. Deadbolt by turnpiece inside. Inside knob/lever retracts latch & deadbolt simultaneously, leaving outside locked.	2102	I/S O/S	FD
F05: CLASSROOM Latch by knob/lever either side except when outside knob/lever locked by key. When locked, latch bolt retracted by key. Inside always open. Auxiliary latch deadlocks latch.	2105		J	F21: ENTRANCE Latch by knob/lever either side. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch.	2102		B
F06: HOLDBACK "A" Latch by knob/lever either side except when outside knob/lever locked or unlocked by key. Auxiliary latch deadlocks latch. Inside always open. Inside knob/ lever unlocks outside lever. Latch bolt can be locked in retracted position by locking inside hub. Can be used with blank outside trim.	2105		JM	F26: INSTITUTIONAL PRIVACY Latch by knob/lever either side except when outside knob/lever locked by inside thumbturn. Latch deadlocked by auxiliary latch. Key outside opens latch. When outside locked, inside knob/lever retracts latch, automatically unlocking outside knob/ lever.	I/S 2101 2105		GL
F06: HOLDBACK "B" Latch by knob/lever either side except when outside knob/lever locked or unlocked by key. Auxiliary latch deadlocks latch. Inside always open. Inside knob/			JR	OFFICE VESTIBULE: Latch by knob/lever either side except when outside knob/lever locked by stop-button in front; then by key outside.	2101		D
lever will not unlock outside knob/lever. Latch bolt can be locked in retracted position by locking outside hub. Can not be used with blank outside trim.	2105			VESTIBULE: Latch by knob/lever inside, key outside. Outside knob/lever always rigid.	2101		DW
F07: STOREROOM Latch by knob/lever inside, key outside. Outside knob/lever always rigid. Auxiliary latch deadlocks latch. Inside always open.	2101		EW	DORMITORY: Latch by knob/lever inside. Outside knob/lever always rigid. Deadbolt and latch by key outside. Deadbolt by turnpiece inside. When deadbolt is projected, latch is deadlocked. Inside knob/lever retracts latch and deadbolt simultaneously.	2102		FS
F08, F10: ENTRANCE Latch by knob/lever either side except when outside locked by stop-button; then by key outside, knob/ lever inside. Deadbolt by key outside, turnpiece inside. Deadbolt deadlocks latch.	2102		A	SPECIAL PRIVACY: Inside knob/lever always free, outside rigid. Latch by knob/lever inside, key outside. Deadbolt by turnpiece inside, emergency release outside. Inside knob/lever retracts deadbolt and latch simultaneously. Auxiliary	2102		LH
F12: DORMITORY Latch by knob/lever either side except when outside knob/lever locked by stop-button or projected deadbolt. Deadbolt by turnpiece inside. Inside knob/ lever retracts latch and deadbolt simultaneously, leaving outside locked. Deadbolt deadlocks latch.	2102		F	latch deadlocks latch. STOREROOM: Latch by thumbpiece inside. Key outside.	2101		DN
F13: DORMITORY Latch by knob/lever either side except when projected deadbolt locks outside knob/lever and deadlocks latch. Deadbolt and latch by key			FW	STOREROOM: Latch by thumbpiece or knob/lever inside. Key outside. Auxiliary latch deadlocks latch.	2101		EN
outside. Deadbolt by turnpiece inside. Inside knob/ lever retracts latch and deadbolt simultaneously, automatically unlocking outside knob/lever.	2102			ELECTRIFIED FUNCTIONS ELECTRICALLY LOCKED (Fail Safe):
F15: HOTEL Inside knob/lever always free, outside rigid. Latch by				Outside always locked electrically. Open by key outside, switch or loss of power. Auxiliary latch deadlocks latch. Inside always open.	2101		EL
knob/lever inside, key outside. (When deadbolt projected by turnpiece all keys are shut out except emergency key). Inside knob/lever retracts deadbolt and latch simultaneously. Auxiliary latch or deadbolt deadlocks latch. Indicator available.	2102		H	ELECTRICALLY UNLOCKED (Fail Secure): Outside always locked until unlocked by key or electrically energized. Auxiliary latch deadlocks latch. Inside always open.	2101		EU

MORTISE LOCKSET FUNCTIONS

ANSI 156.13 GRADE 1

MORTISE LOCKSET FUNCTIONS -

MORTISE LOCKSET FUNCTIO	N2
DOUBLE CYLINDER FUNCTIONS ANSI #	Cam	Strika	Marks Fun	oction	NON-KEYED FUNCTIONS ANSI #		Ctriko	Marks Fun	otion
F09: ENTRANCE Latch by knob/lever either side except when outside knob/lever locked by key inside, latch retracted by key outside. Outside remains locked. Auxiliary latch deadlocks latch.	2101 2106	5036	I/S O/S	G	F01: PASSAGE Latch by knob/lever either side.		9035	I/S O/S	N
F11: DORMITORY Latch by knob/lever either side except when outside knob/lever locked by stop-button or projected dead-bolt. Deadbolt by key either side. Inside knob/lever retracts latch and deadbolt simultaneously leaving outside locked. Deadbolt deadlocks latch.	2102	9035		FA	F02:BATHROOM* Latch by knob/lever either side. Deadbolt by turnpiece inside. Deadbolt deadlocks latch. To unlock from outsi remove emergency button, insert emergency key in access hole and turn. Optional coinkey assembly available.		9035		L
F14: STOREROOM Latch by knob/lever either side. Deadbolt by key either side. Deadbolt deadlocks latch.	VS 2102	9035		С	F19: PRIVACY* Latch by knob/lever either side except when projected
F24: APARTMENT HANDLE Latch by thumbpiece either side except when outside is locked by key inside. When outside is locked, latch retracted by key outside or thumbpiece inside. Auxiliary latch deadlocks latch.	2101 2106	5036		G	deadbolt locks outside knob/lever and deadlocks latch. Deadbolt by tumpiece inside. Inside knob/lever retracts		9035	L	LF
F25: STOREROOM "B" Body Latch by thumbpiece either side. Deadbolt by key either side.	2102	9035	î	С	F22: PRIVACY Latch by knob/lever either side except when outside knob/			I
F25: STOREROOM Latch by thumbpiece either side except when outside thumbpiece locked by stop-button in front; then by key outside. Deadbolt by key both sides. Deadbolt deadlocks latch.	2102	9035		so	lever is locked by inside tumpiece. Turning inside knob/ lever or closing door unlocks outside lever. To unlock from outside, remove emergency button, insert emergency key in access hole and turn. Optional coin key assembly available.		9035	لللاً ا	LJ
F30: INSTITUTION Both knob/levers rigid. Auxiliary latch deadlocks latch. Latch by key either side.	2101	5036		ww	F31: EXIT Latch by knob/lever inside, non-removable blank trim or no trim outside. Auxiliary latch deadlocks latch.		5036	L	EX
F32: INTRUDER LATCH BOLT Latch by knob/lever either side except when outside knob/lever is locked from inside or outside by key. Latch operated by key from inside or outside. Auxiliary latch, deadlocks latch. Inside always open.	2105	5036		GC	F16: DEADLOCK Deadbolt by key either side.	Cam 2102	9035		T
CLASSROOM SECURITY Latch bolt retracted by knob/lever from either side\nunless outside is locked by key from either side. Auxiliary latch deadlocks latch bolt when door is locked. Inside knob/lever is always free for immediate	2101	5036		GG	F17: DEADLOCK Deadbolt by key outside and turnpiece inside.	2102	9035	ŀ	P
egress. CLASSROOM SECURITY w/HOLDBACK Latch bolt retracted by knob/lever from either side	VS (1)	•			F18: DEADLOCK Deadbolt by key one side only.	2102	9035		S
unless outside is locked by key from either side. When locked, latch bolt retracted by key outside or knob/ lever inside. Auxiliary latch deadlocks latch bolt when door is locked. Depress inside knob/lever and turn key 360° for holdback feature. Inside knob/lever always	2101	5036		GR		2102	9035	4	sc
free for immediate egress. F33: DORMITORY	//S				DEADLOCK FUNCTIONS E06072: CYLINDER BY TURNPIECE	Ω
Latch by knob/lever either side except when projected deadbolt locks outside knob/lever and deadlocks latch.				FΧ	Deadbolt by inside turnpiece or outside key.		2102	•••••	K
Deadbolt and latch by key either side. Inside knob/ lever retracts latch and deadbolt simultaneously, auto- matically unlocking outside knob/lever.	6	9035	4		E06082: COMMUNICATING SINGLE CYLINDER* Deadbolt by key from one side only.	£	2102		L
F33: DORMITORY Latch by knob/lever either side except when projected deadbolt locks outside knob/lever and deadlocks latch.	2102			FC	E06062: DOUBLE CYLINDER Deadbolt by key either side.	T D	2102		M
Deadbolt and latch by key either side. Inside knob/ lever retracts latch and deadbolt simultaneously, auto- matically unlocking outside knob/lever.	L D	5035			E06092: CLASSROOM Deadbolt by outside key. Turnpiece will retract but not project deadbolt.	2 4	2102		S
key outside. Deadbolt by key either side. Deadbolt	2102	9035		AC	TURNPIECE Deadbolt by inside turnpiece.	S D	2102	•	Х
deadlocks latch.	4		] = [		*PRIVACY INDICATOR AVAILABLE

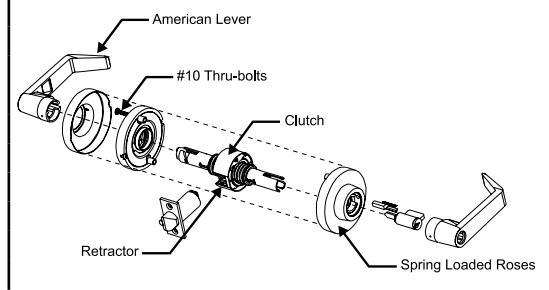

SURVIVOR SERIES

CYLINDRICAL LEVERSETS ANSI 156.2 GRADES 1 & 2

SURVIVOR SERIES

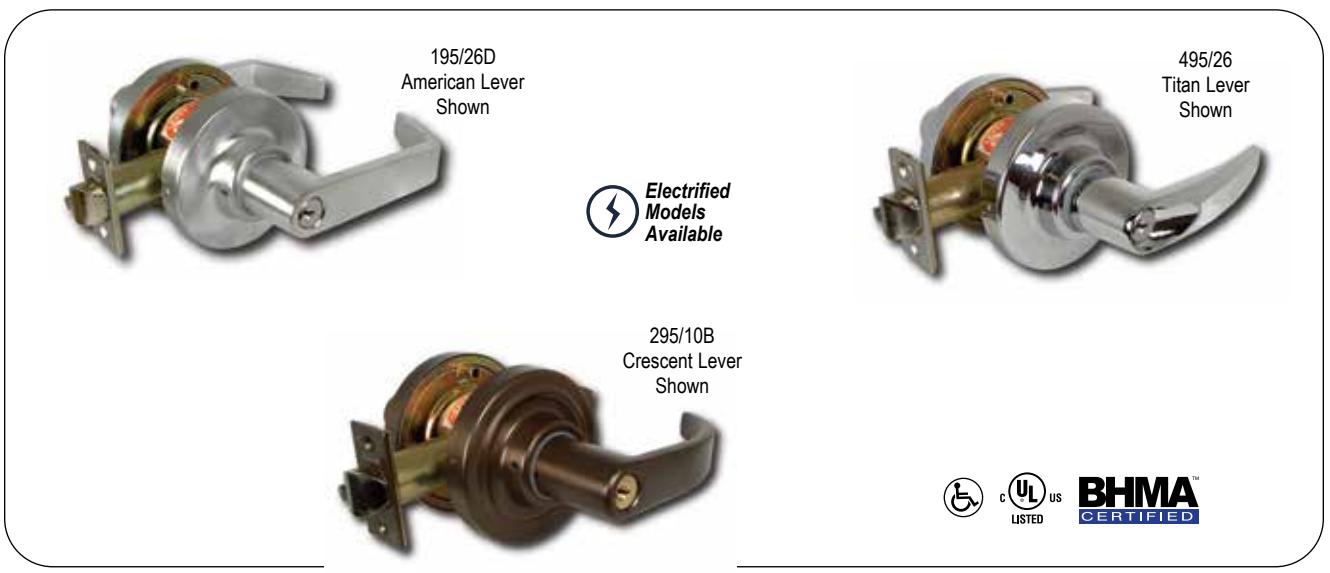

Marks USA Survivor Series locksets are the most durable cylindrical lever locksets. The series is offered in four lever styles, conventional cylinder, IC core for "Best" size cores and Schlage as well as others. The Survivor Series locksets are backed by Marks lifetime mechanical warranty. All functions are available in six standard finishes, are UL Listed for 3-hour fire rating, and satisfy ADA requirements.

	KS GRADE 1 295, 395, 495		KS GRADE 2 275, 375, 475
COMM. CYL.	IC CORE CYL.* 395 Not Available IC Core	COMM. CYL.	IC CORE CYL.* 375 Not Available IC Core	DESCRIPTION	ANSI#	FINISH GROUPS
N	_	N	1	PASSAGE	F75
L	_	L	-	PRIVACY	F76
LK	_	_	_	PRIVACY	F76 MOD.
Р	_	Р		PATIO	F77
DC	RDC	DC	RDC	COMMUNICATING	F80
Α	RA	Α	RA	ENTRY	F81
В	RB	В	RB	ENTRY	F82A
AB	RAB	AB	RAB	ENTRANCE	F109
AQ	_	AQ	1	EXIT	F83
S	RS	S	RS	CLASSROOM	F84
F	RF	F	RF	STOREROOM	F86
DW	RDW	DW	RDW	INSTITUTION	F87
DA	RDA	DA	RDA	VESTIBULE	F88	3, 4,
FQ	_	FQ	1	EXIT	F89	10, 10B,
Т	RT	T	RT	CORRIDOR	F90	26, 26D
TK	RTK	\| -	1	HOSPITAL/PRIVACY	F90 MOD.
GB	RGB	_	1	STORE DOOR	F91
BS	RBS	BS	RBS	SERVICE STATION LOCK	F92
Н	_	Н	_	HOTEL	F93
DB	RDB	_	_	CLASSROOM INTRUDER	F110
DO	_	DO	_	DUMMY TRIM OUTSIDE	_
DT	_	DT	_	FULL DUMMY TRIM	_
NB	_	NB	_	COMMERCIAL PASSAGE	F111
FB	RFB	FB	RFB	COMMERCIAL STOREROOM	F112
SB	RSB	SB	RSB	COMMERCIAL CLASSROOM	F113

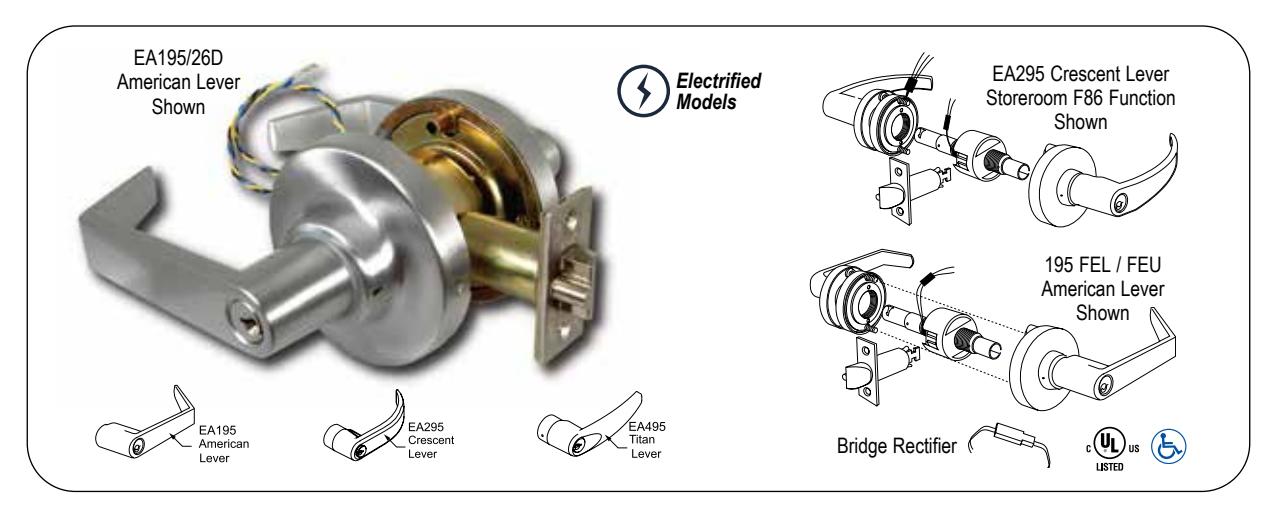

FEL	RFEL	_	_	ELECTRICALLY LOCKED
FEU	RFEU	_	_	ELECTRICALLY UNLOCKED	_

STANDARD FEATURES

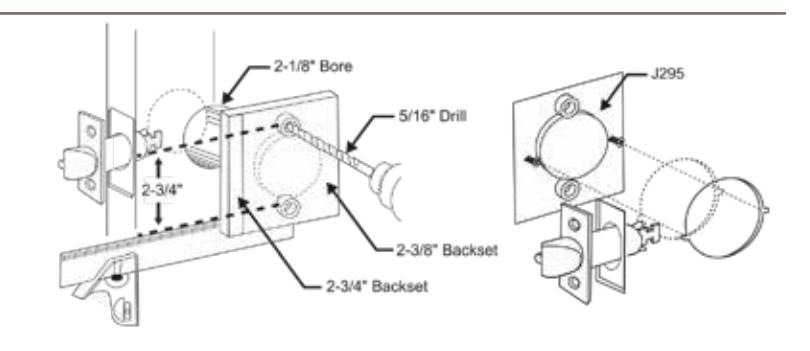

Backset: 2-3/4"; 2-3/8", 3-3/4" & 5" Optional
Levers: Solid cast Zamac; w/ 1/2" return (Except 395, 495, 375 & 475)
Door thickness: 1-5/8" 1-7/8"; 1-3/8" doors use K1904 spacer.
Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys
UL Listed, 3 hour fire rated

95 Series

Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; Stainless steel nose
Roses: Thru-bolted, 3-7/16" dia., spring loaded 2-#10 thru-bolts
Strike: #1135, 4-7/8" ASA curved lip strike

75 Series:

Latch #1134, Front: 1-1/8" x 2-1/4"; Throw: 1/2"; Stainless steel nose
Roses: Thru-bolted, 3-1/4" dia., spring loaded 2-#10 thru-bolts
Strike: #1136, 2-3/4" "T" strike

GRADE 1 95 SERIES LEVERSETS TESTED TO TWICE BHMA CYCLES

* Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included).

Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.

SURVIVOR SERIES

Cylindrical Leversets ANSI 156.2 Grades 1 & 2

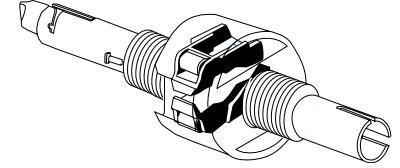

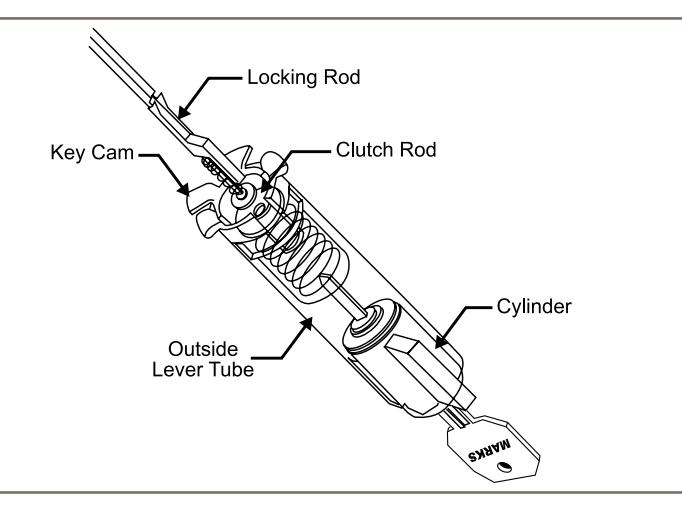

Clutch System

When locked, the Survivor's clutch disengages the outside lever allowing it to turn freely without opening the latch. This reduces the torque applied to the outside lever. Other locksets with RIGID levers are prone to failure because of excessive torque.

Super Strength Retractor

The Survivor's retractor is cast stainless steel with bronze roller bearings for ultra-high strength, smooth operation & long life.

Long Life Lever Support Springs

Each Survivor rose contains it's own proprietary high strength lever support spring.

Twice BHMA continuous cycles, NO LEVER DROOP...EVER!

Strength & Life

SURVIVOR:

Withstands torque of 1800 inch-pounds; over twice ANSI/BHMA (1996) test value
Life tested over twice BHMA cycles; Fully operational after these tests

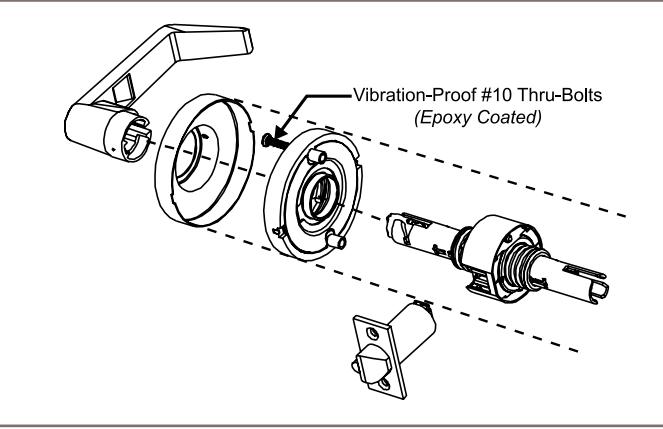

Thru-bolting with #10 epoxy coated bolts assures vibration-proof mounting
Only two thru-bolts for easy installation
Breakaway handles (American & Crescent design) protect against excessive abuse

Quick Installation

The Survivor easily adjusts for door thickness
1-5/8" 1-7/8" without the use of spacer plates or special tools
Adjustment is made by merely rotating outside rose
Spacer plates are available for 1-3/8" doors with K1904 spacer rings
Extend to 2-1/4" door thickness with D7 option

SURVIVOR SERIES

Cylindrical Leversets ANSI 156.2 Grades 1 & 2

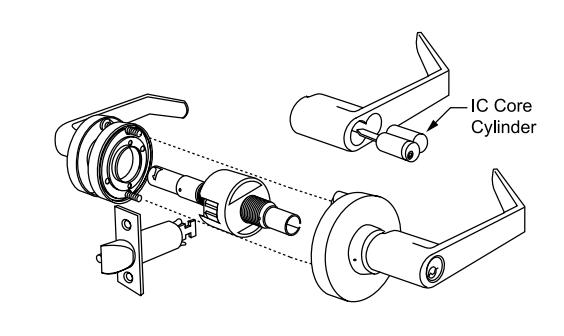

Easy Installation

Survivor door preparation is simplified with the fast and accurate, easy to use J295 installation tool. One side is for the 2-3/4" backset, the other for the 2-3/8" backset. For use with either wood or metal doors.

Uses Most Available Cylinders

Our locksets accept many other OEM standard, HI-SECURITY™ and IC Core cylinders using MARKS adapter tailpieces.

Cylindrical Lock Tailpieces

Cylindrical IC Core Tailpieces

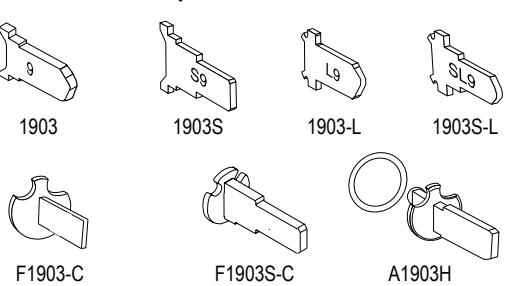

CYLINDRICAL LOCK TAILPIECES
PART #	FUNCTION	CYLINDER
1903	AB, B, DA (ext.), DW, F, FEL, FEU
1903S	S, DA (int.), DB, DC, SB, T	MARKS 1982
1903-L	AB, B, DA (ext.), DW, F, FEL, FEU	Arrow PK 100C, Ilco 705, Lori 1539, Sargent 13-3266,
1903S-L	S, DA (int.), DB, DC, SB, T	Abloy, ASSA 65673, 65691
F1903-C	AB, B, DA (ext.), DW, F, FEL, FEU	Schlage 23-001, Primus,
F1903S-C	S, DA (int.), DB, DC, SB, T	Corbin-Russwin 2000-034
A1903H	H	Marks 1982H, Schlage 23-014

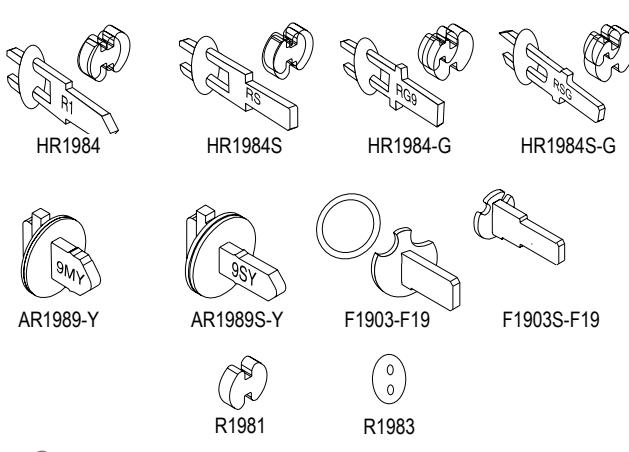

	IC CORE TAILPIECES
HR1984	AB, B, DA (ext.), DW, F, FEU, FEL	6 or 7 pin Marks, KSP,
HR1984S	S, DA (int.), DB, DC, SB, T	Best® , Falcon, Medeco® , Keymark™, Sargent® , Schlage® Small Format
HR1984-G	AB, B, DA (ext.), DW, F, FEU, FEL
HR1984S-G	S, DA (int.), DB, DC, SB, T	6 or 7 pin Corbin
AR1989-Y	AB, B, DA (ext.), DW, F, FEU, FEL	6 or 7 pin Yale
AR1989S-Y	S, DA (int.), DB, DC, SB, T
AR1999-M	AB, B, DA (ext.), DW, F, FEU, FEL	Medeco®
AR1999S-M	S, DA (int.), DB, DC, SB, T
F1903-F19	AB, DW, F	6 pin Schlage®
F1903S-F19	S, DA, DB, DC, SB, T	Large Format
R1981	Spacer
R1983	Security Disc

Cylinders

The Grade 1 Survivor is supplied with 6 pin cylinders in MARKS "C" keyway with 2 nickel-silver keys.

The Grade 2 Survivor is supplied with 5 pin cylinders in MARKS "C" keyway with 2 brass keys.

Grade 1 and Grade 2 are also available in 6 or 7 pin IC Core models for Best®, Corbin-Russwin, Medeco®, "Keymark™", Schlage® & Yale sizes.

ADA • Grades 1 & 2 • Meets By America

American & Crescent style levers returning to within 1/2" of door surface
Satisfies all Federal ADA and State Disability requirements
ANSI/BHMA specification 156.2 (1996) Series 4000, Grade 1 & 2
UL Listed for 3 hour fire rating

SURVIVOR SERIES REX & ELECTRIFIED LEVERSETS ANSI 156.2 GRADES 1 & 2

SURVIVOR WITH REQUEST TO EXIT -

Our Grade 1 Electrified Survivor Series locksets featuring "The Clutch" are available for operation as either electrically locked or unlocked. When locked, the Survivor's clutch disengages the outside lever allowing it to turn freely without opening the latch. The Grade 1 Survivor Series Cylindrical Leverset incorporates a Request to EXit switch in both the Electrified (FEL & FEU) and Storeroom functions. Activating the inside lever for egress initiates the built-in REX output, providing a momentary signal for the access control REX input for alarm shunt during egress with all the features of the Survivor Electrified Lockset

	A295, EA395, EA495 /ERSETS	FUNCTION	ANSI#	DESCRIPTION	FINISH
CONVENTIONAL CORE	IC CORE*				GROUPS
F	RF	STOREROOM	F86	Latch by lever inside. Outside lever always locked.
FEL	RFEL	ELECTRICALLY LOCKED	-	Outside always locked electrically. Open by key outside, switch or loss of power. Latch by lever inside.	3, 4, 10, 10B, 26, 26D
FEU	RFEU	ELECTRICALLY UNLOCKED	_	Outside always locked until unlocked by key or electrically energized. Latch by lever inside.	20, 200

	, 295, 395, 495 D LEVERSETS	FUNCTION	DESCRIPTION	FINISH
CONVENTIONAL CORE	IC CORE*			GROUPS
FEL	RFEL	ELECTRICALLY LOCKED	Outside always locked electrically. Open by key outside, switch or loss of power. Deadlocking latch by lever inside. Lever only.	3, 4, 10, 10B,
FEU	EU RFEU ELECTRICAI UNLOCKE		Outside always locked until unlocked by key or electrically energized. Deadlocking latch by lever inside. Lever only.	26, 26D

STANDARD FEATURES

Backset: 2-3/4"; 2-3/8", 3-3/4" & 5" Optional
Latch #1834, Front: 1-1/8" x 2-1/4"; Throw: 9/16"; Stainless steel nose
Levers: Solid cast Zamac w/ 1/2" return
Rose: Thru-bolted, 3-7/16" dia., spring loaded 2-#10 thru-bolts
Strike: #1135, 4-7/8" ASA curved lip
Door thickness: 1-5/8" to 1-7/8" (For 1-3/8" door use K1704 spacer.)
Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys or IC Core housing
Electrified functions 100% duty cycle, 24V/AC supplied with bridge rectifier; 24V/DC. .21 Amps
12V/DC Optional, Contact factory for additional options
Request to Exit Switch: Single pole, double throw, 3 amp,125 AC, wired either normally open or normally closed (REX Switch is not standard on electrified leverset)
Features "The Clutch" for trouble free service
UL Listed, 3 hour fire rated

**Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included).

Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.

175 ECONOMY SERIES

CYLINDRICAL LEVERSETS ANSI 156.2 GRADE 2

175 ECONOMY SERIES -

Marks USA New 175 Grade 2 Economy Series gives you the performance and quality of a Grade 1 lockset at a Grade 2 price. Perfect for commercial applications in Office Buildings, Schools, Universities, Hospitals and much more. This series is offered in conventional cylinder, IC core for "Best" size cores, Medeco", Corbin and Schlage as well as others. All functions are available in two standard finishes, are UL Listed for 3-hour fire rating, satisfy ADA requirements and are backed by Marks lifetime mechanical warranty.

MARK	S # 175			FINISH
COMM. CYL.	IC CORE CYL.*	FUNCTION	ANSI#	GROUPS
N	_	PASSAGE	F75
L	_	PRIVACY	F76
Р	_	PATIO	F77
DC	RDC	COMMUNICATING	F80
AB	RAB	ENTRY	F109
AQ	_	EXIT	F83
S	RS	CLASSROOM	F84
F	RF	STOREROOM	F86
DW	RDW	INSTITUTION	F87	260 400
DA	RDA	VESTIBULE	F88	26D, 10B
FQ	_	EXIT	F89
Т	RT	CORRIDOR	F90
BS	RBS	SERVICE STATION LOCK	F92
DO	_	DUMMY TRIM OUTSIDE	_
DT	_	FULL DUMMY TRIM	_
NB	_	COMMUNICATING PASSAGE	F111
FB	RFB	COMMUNICATING STOREROOM	F112
SB	RSB	COMMUNICATING CLASSROOM	F113

LEVERS ARE PACKED 6 PER CASE • IC Core Models: Tailpieces included, core not included

STANDARD FEATURES

Backset: 2-3/4"
Latch #1134, Front: 1-1/8" x 2-1/4"
· Levers: Solid cast Zamac; w/ 1/2" return
Roses: Thru-bolted, spring loaded 2-#10 thru-bolts (Inside rose cover included)
Strike: #1145/32D
Door thickness: 1-5/8" to 1-7/8"
Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys

** Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.

CYLINDRICAL KNOB/LEVER FUNCTIONS ANSI 156.2 Grades 1 & 2

Cylindrical Lever Functions

ANSI # CODE	Marks Function		ANSI # CODE	Marks Function
F75 PASSAGE:	I/S O/S		F90 (MOD.) HOSPITAL/PRIVACY:	I/S O/S
Latch by knob/lever either side.		N	Deadlocking latch by knob/lever either side unless outside locked by knob/lever or inside push-button.
F76 PRIVACY: Latch by knob/lever either side unless outside knob/lever locked by push-button from inside.		L	Unlock by turn-knob, turning inside knob/lever or closing door. F91 STORE DOOR (95 Series Leverset ONLY):		TK
Outside unlocks by turning inside knob/lever, outside emergency turn or closing door.			Deadlocking latch by knob/lever either side except when both knob/levers are locked by key from either side.		GB
F76 (MOD.) HOSPITAL/PRIVACY: Latch by knob/lever either side unless outside knob/lever locked by push-button from inside. Outside unlocks by turning inside knob/lever, outside emergency turn-knob or closing door.		LK	F92 SERVICE STATION LOCK: Deadlocking latch by knob/lever either side unless outside locked by key or inside push-button. Unlock by key, turning inside knob/lever or closing door, except		BS
F77 PATIO: Deadlocking latch by knob/lever either side unless outside knob/lever locked by push-button inside. Unlocks by turning inside knob/lever or closing door.		P	when slotted push-button is turned in locked position. Inside knob/lever always opens latch. F93 HOTEL:
F80 COMMUNICATING: Key both sides. Locks or unlocks either knob/lever independent of the other. Deadlocking latch.		DC	Deadlocking latch by knob/lever inside. Outside knob/ lever always locked. Inside push-button projects indica tor on cylinder face shutting out all keys except emer gency key. Turning inside knob/lever or closing door		H
F81 ENTRY: Deadlocking latch bolt by knob/lever either side except when outside locked by turn-button inside. When outside locked, key outside or knob/lever inside opens lock. Turn-button operated manually.		A	releases push-button. F109 ENTRY: Outside locked by pushing turn-button inside. Key outside opens lock. Rotating inside knob/lever releases button and outside knob/lever. By pushing and turning		AB
F82A ENTRY: Deadlocking latch by knob/lever either side. Outside locked by push-button inside. When outside locked	B		inside button, outside knob/lever remains locked. Deadlocking latch.
by push-button inside, key opens lock, unlocks push-button. Inside knob/lever always opens latch. Closing door does not release push-button. F83 EXIT:			F110 CLASSROOM INTRUDER: Deadlocking latch by knob/lever either side, except when outside locked by key inside. Key outside locks or unlocks outside. Inside always open		DB
Deadlocking latch by knob/lever either side except when outside locked by turn-button inside. Inside knob/ lever always opens latch. Turn-button operated manu		AQ	DUMMY TRIM: Outside only, rigid.		DO
ally. F84 CLASSROOM:			DUMMY TRIM: Both sides, rigid.		DT
Deadlocking latch by knob/lever inside. Outside knob/lever locked or unlocked by key.		S	F111 COMMUNICATING PASSAGE: Blank outside. Deadlocking latch by knob/lever inside.		NB
F86 STOREROOM: Deadlocking latch by knob/lever inside, key outside. Outside knob/lever always locked.		F	F112 COMMUNICATING STOREROOM: Blank outside. Deadlocking latch by key only. Knob/lever always locked.		FB
F87 INSTITUTION: Both knob/levers always locked. Deadlocking latch by key both sides.		DW	F113 COMMUNICATING CLASSROOM: Blank outside. Inside knob/lever locked or unlocked by		SB
F88 VESTIBULE: Deadlocking latch by knob/lever either side, except when outside knob/lever locked by key inside. Key outside retracts deadlocking latch. Inside always open.		DA	key. Deadlocking latch. ELECTRICALLY LOCKED - FEL: (Fail Safe)
F89 EXIT: Deadlocking latch by knob/lever inside. Outside always locked.		FQ	Outside always locked electrically. Open by key outside, switch or loss of power. Deadlocking latch by lever inside. Lever only.		FEL
F90 CORRIDOR: Deadlocking latch by knob/lever either side unless outside locked by key or inside push-button. Unlock by key, turning inside knob/lever or closing door.		T	ELECTRICALLY UNLOCKED - FEU: (Fail Secure) Outside always locked until unlocked by key or electrically energized. Deadlocking latch by lever inside. Lever only.		FEU

DEFENDER SERIES

TUBULAR DEADBOLTS & CYLINDRICAL CARTRIDGE DEADLATCHES

DEFENDER SERIES DEADBOLTS & DEADLATCHES -

In addition to our tubular style deadbolts, Marks USA has now developed a cylindrical cartridge deadlatch (145 Series). The result is an easy to install deadlocking latch with a stainless steel nose and 9/16" throw. The Defender series are available in both conventional as well as IC core cylinder models.

MARKS # 130				FINISH
COMMERCIAL CYLINDER	IC CORE CYLINDER*	DESCRIPTION	ANSI#	GROUPS
K	RK	CYLINDER x TURNPIECE	E0151
L	RL	COMMUNICATING SINGLE CYL	E0161
М	RM	DOUBLE CYLINDER	E0141	3, 10, 10B, 26D, 32, 32D
S	RS	CLASSROOM	E0171	200, 32, 320
Х	_	TURNPIECE x BLANK PLATE	E0191

STANDARD FEATURES

· Bolt: 1" throw
Unitized assemblies for 2-1/8" bore
Strike: #1335, 2-3/4" x 1-1/8" strike
Door thickness: 1-5/8" to 1-7/8"
· Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys
2-3/8" Backset
Latch: 1" x 2-1/4" front

* Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores

(not included).

Accepts: Marks, Medeco KeyMark™, Falcon & Best®. IC Core Tailpieces ARE Included.

MARKS # 145				EMICH
COMMERCIAL CYLINDER	IC CORE CYLINDER*	DESCRIPTION	ANSI#	FINISH GROUPS
K	RK	CYLINDER x TURNPIECE	E0121
L	RL	COMMUNICATING SINGLE CYL	E0131	0.40.400
M	RM	DOUBLE CYLINDER	E0111	3, 10, 10B, 26D, 32, 32D
Х	_	TURNPIECE x BLANK PLATE	_	200, 32, 320
KL	RKL	CYLINDER BY LEVER	_

STANDARD FEATURES

· Series 1 cylindrical cartridge
· Latch: Grade 1. 9/16" throw
2-3/4" Backset
Unitized assemblies for 2-1/8" bore
Strike: #1136, 2-3/4" strike
Door thickness: 1-3/8" to 2-3/8"
· Cylinder: MARKS "C"keyway, 6 pin w/ 2 keys
Latch: 1-1/8" x 2-1/4" front
UL Listed, 3 hour fire rated

* Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included).

Accepts: Marks, Medeco KeyMark™, Falcon & Best®. IC Core Tailpieces ARE Included.

DEFENDER SERIES

Tubular Deadbolts & Cylindrical Cartridge Deadlatches

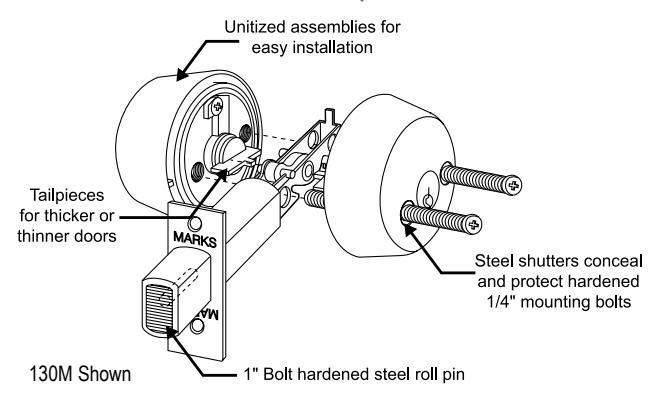

Defender Series Unique Features

Protective Steel Shutters

The Defender's steel shutters on the interior assembly conceal and protect the two hardened 1/4" mounting bolts which thru-bolt through the latch assembly.

Simple Fast Assembly

Defender is designed for quick easy installation
One piece assemblies
Unitized exterior and interior trim assemblies have no loose components
Tailpiece orientation and latch positioning, required on other deadbolts, is unnecessary
Trim and latch are fully reversible and can be assembled randomly

One Cylinder Fits All

The Defender utilizes standard key-in-knob cylinders; same as MARKS cylindrical locksets. This important feature eliminates extra inventory of special cylinders making the key-in-knob cylinder inventory more versatile.

Provides access to largest variety of keyways
Models also available for 6 or 7 pin IC cores (Best™ size) Conventional IC Core

Easy Retrofit Deadbolt

Fits standard 2-1/8" diameter door prep
The Defender offers a choice of tailpieces for MARKS & other OEM cylinders
Fits 1-1/4" to 2-1/4" thick doors (Normally supplied for 1-3/4" door)
Marks USA adapter tailpieces available for OEM conventional & IC Core cylinders

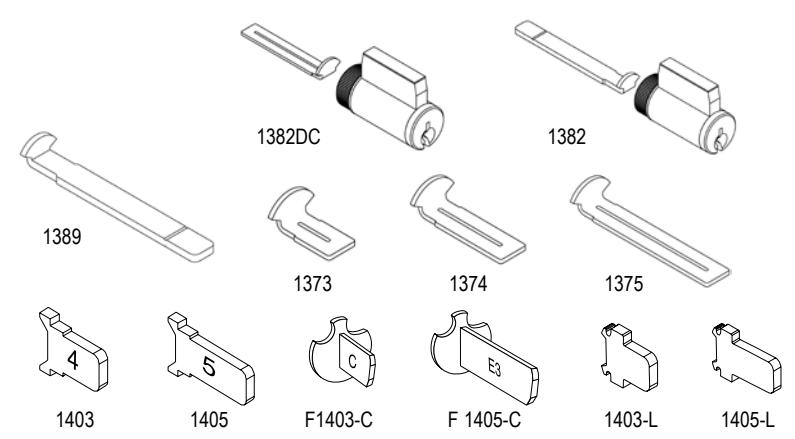

PART #	TAILPIECES FOR 130 DEADBOLTS
	DOUBLE CYLINDER
1373	1-5/16" to 1-3/8"
1374	1-5/8" to 2"	MARKS 1382DC
1375	2-1/8" to 2-3/8"
SINGLE CYLINDER
1389	1-3/4" to 2-1/4"	MARKS 1382
	TAILPIECES FOR 145 DEADLATCHES
1403	1-5/8" to 1-7/8"	MARKS
1405	2" to 2-1/4"	TAILPIECE
F1403-C	1-5/8" to 1-7/8"	SCHLAGE®
F1405-C	2" to 2-1/4"	TAILPIECE
1403-L	1-5/8" to 1-7/8"	LORI / ILCO
1405-L	2" to 2-1/4"	TAILPIECES

CU S TOM LOCKSE T DIVISION W e M a k e L ockse t s T o S u t Y o u r Nee d s

About Marks USA

MARKS USA was established in 1977 to serve a growing demand for a mortise lock manufacturing company who would satisfy the needs of an expanding market. Since then, the product line has grown to include residential and commercial locksets to meet and exceed the most stringent UL and BHMA/ANSI specifications. In 1989, the Custom Lockset Division was created to accommodate customers with special requirements of either lock function or design. Custom locksets have been developed for municipal and commercial applications as shown. These are various custom locksets developed to accommodate our customers needs. This is only a sampling of our solutions. We at the Custom Lockset Division welcome the opportunity to respond to special applications requiring a custom engineered lock product. We look forward to the challenge.

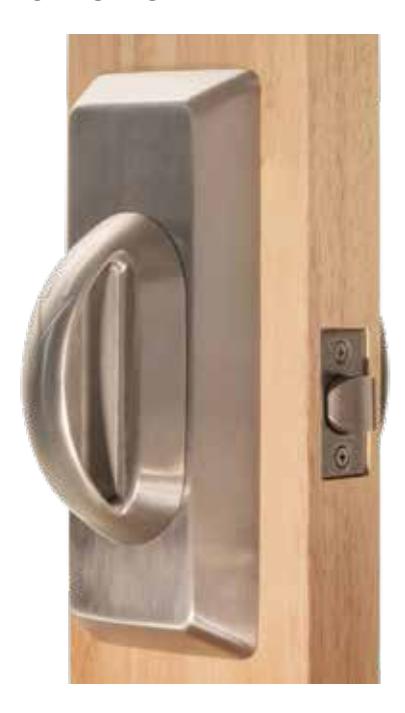

LifeSaver Grade 1 Series 195BH

D-LIG SLIDE BEHAVIORAL HEALTH CYLINDRICAL LOCKSETS

SERIES 195BH
MAR	KS#
COMM. CYL.	ACCEPTS IC CORE CYL.*	DESCRIPTION	ANSI#	FINISH
N	_	PASSAGE	F75
L	_	PRIVACY	F76	]
В	RB	ENTRY	F82A
S	RS	CLASSROOM	F84
F	RF	STOREROOM	F86
DW	RDW	INSTITUTION	F87
DB	RDB	CLASSROOM INTRUDER	F110	32D
DO	_	DUMMY TRIM OUTSIDE	_	320
DT	_	FULL DUMMY TRIM	_
NB	_	COMM. PASSAGE	F111
FB	RFB	COMM. STOREROOM	F112
SB	RSB	COMM. CLASSROOM	F113
FEL	RFEL	ELECTRICALLY LOCKED
FEU	RFEU	ELECTRICALLY UNLOCKED

STANDARD FEATURES:

Rating: ANSI A156.2 Grade 1, UL Listed 3Hr Fire Rating
· 5- Point Ligature Resistant Slide Trim
Backset: 2 3/4" Standard, 2 3/8", 3 3/4" and 5" available
· Latch: #1834, stainless Steel Nose
Ergonomic solid cast Stainless Steel Slide, Slides down freely in the locked or unlocked position
Escutcheon Plate solid cast Stainless Steel thru bolted for strength and easy installation
· Meets BHMA 156.34 Anti Ligature Trim Standard
· Tamper Resistant mounting screws
Strike: #1135, 4 7/8" ASA curved lip Strike
Door Thickness: 1 3/4", consult factory for thicker doors
Cylinder: Conventional Key n Knob Cylinder, Marks "C" Keyway, 6 pin w/2 keys Available in IC and all OEM cylinder preps
· Marks Hi-Security Cylinder available
Marks Stainless Steel Retractor Long life 3X the BHMA Grade 1 cycle Standard
· Antimicrobial Finish available Code AM
· Marks Lifetime Mechanical Warranty
· Available in Most BHMA ANSI Functions

- LifeSaver Grade 1 Series 5BH

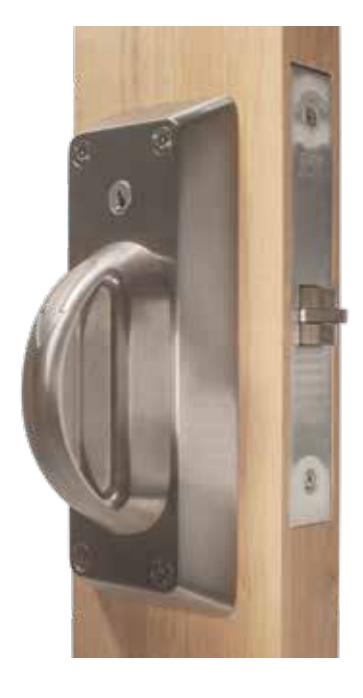

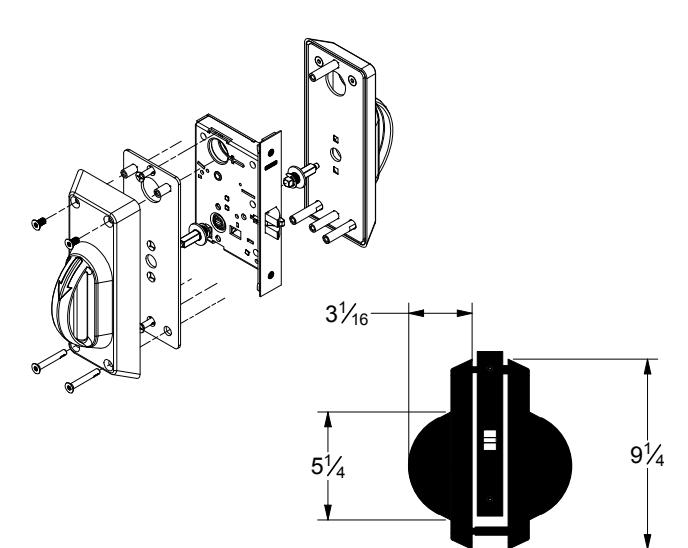

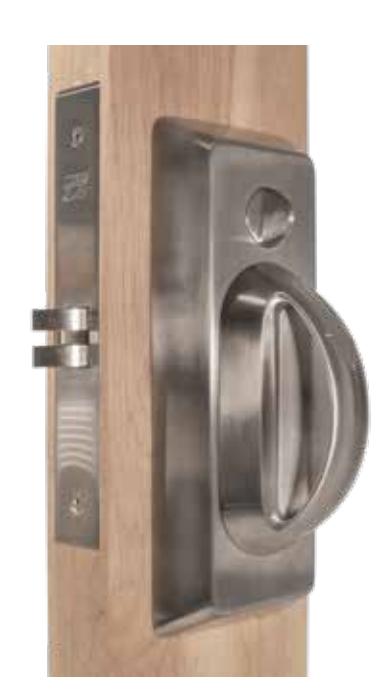

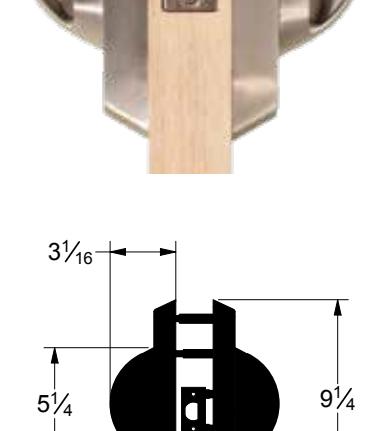

D-LIG SLIDE BEHAVIORAL HEALTH MORTISE LOCKSETS

SERIES 5BH
MARKS #	FUNCTION*	ANSI#	FINISH
	KEYED SINGLE CYLINDER, NO DI	EADBOLT
DW	VESTIBULE
EW	STOREROOM	F07
J	CLASSROOM	F05	200
GL	INSTIT. PRIVACY	F26	32D
EL	ELECTRICALLY LOCKED
EU	ELECTRICALLY UNLOCKED
KEYED DOUBLE CYLINDER, NO DEADBOLT
GC	INTRUDER LATCHBOLT	F32
GG	CLASSROOM SECURITY		32D
ww	INSTITUTIONAL	F30
	KEYLESS
N	PASSAGE	F01	200
LJ	PRIVACY	F22	32D
DUMMY TRIM
DI	DUMMY TRIM INSIDE
DO	DUMMY TRIM OUTSIDE		32D
DT	FULLY DUMMY

*Consult Factory for more available functions

Standard & HI-SECURITY™ IC Core Models:

Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.

STANDARD FEATURES:

Rating: ANSI A156.13 Grade 1, UL Listed 3Hr Fire Rating
· 5- Point Ligature Resistant slide Trim
Backset: 2 3/4" Standard, 2 1/2" Consult Factory
Latch: #1834, stainless Steel Nose
Ergonomic solid cast Stainless Steel Slide, Slides down freely in the locked or unlocked position
Escutcheon Plate solid cast Stainless Steel thru bolted for strength and easy installation
Meets BHMA 156.34 Anti Ligature Trim Standard
· Tamper Resistant mounting screws
Ligature Resistant ADA Thumbturn available where applicable
Strike: #1135, 4 7/8" ASA curved lip Strike
Door Thickness: 1 3/4", consult factory for thicker doors
Cylinder: Conventional Key n Knob Cylinder, Marks "C" Keyway, 6 pin w/2 keys – Available in IC and all OEM cylinder preps
· Marks Hi-Security Cylinder available
Marks Stainless Steel Retractor Long life 3X the BHMA Grade 1 cycle Standard
Antimicrobial Finish available Code AM
· Marks Lifetime Mechanical Warranty
· Available in Most BHMA ANSI Functions

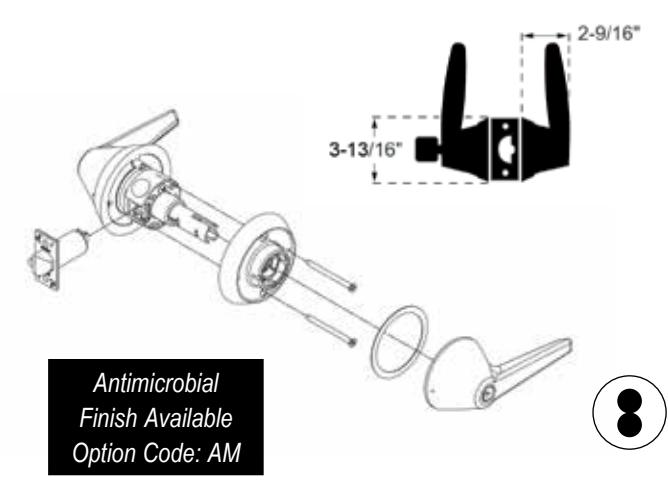

LifeSaver 195SS SERIES - LEVERS - Institutional Life Safety Cylindrical Locksets

		SERIES 195SS
MAI	RKS#			FINISH
COMM. CYL.	IC CORE CYL.*	DESCRIPTION	ANSI#	GROUPS
N	T -	PASSAGE	F75
L	_	PRIVACY	F76	]
LK	_	PRIVACY	F76 MOD.	]
Р	_	PATIO	F77
DC	RDC	COMMUNICATING	F80
В	RB	ENTRY	F82A
AQ	_	EXIT	F83	1
S	RS	CLASSROOM	F84	1
F	RF	STOREROOM	F86	1
DW	RDW	INSTITUTION	F87
DA	RDA	VESTIBULE	F88
FQ	_	EXIT	F89	32D
Т	RT	CORRIDOR	F90	320
TK	RTK	HOSPITAL/PRIV.	F90 MOD.	1
GB	RGB	STORE DOOR	F91	]
BS	RBS	SVC. STATION LOCK	F92
Н	_	HOTEL	F93	1
DO	_	DUMMY TRIM OUTSIDE	_	1
DT	_	FULL DUMMY TRIM	_	1
NB	_	COMM. PASSAGE	F111
FB	RFB	COMM. STOREROOM	F112	]
SB	RSB	COMM. CLASSROOM	F113
FEL	RFEL	ELECTRICALLY LOCKED
FEU	RFEU	ELECTRICALLY UNLOCKED		1
				PACKED 6 PER CASE

Standard Features

ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating
Backset: 2-3/4" Standard, 2-3/8", 3-3/4", 5" Available
Latch #1834, stainless steel nose
· Levers: Solid cast stainless steel
Roses: Thru-bolted, spring loaded, #10 thru-bolts
Strike: #1135, 4-7/8" ASA curved lip strike
Door thickness: 1-5/8" to 1-7/8"
Cylinder: MARKS "C" keyway, 6 pin w/ 2 keys
· Stainless steel retractor
Clutch

OPTIONS	CODE
For 2" doors	D1
For 2-1/4" doors	D2
Over 2-1/4" - 4" thickness	D9
2-3/8" backset, 1" x 2-1/4" face	E6
2-3/4" backset, 3/4" throw, Gr. 1	E8
5" backset, 9/16" throw, Gr. 1	E9
3-3/4" backset, 9/16" throw, Gr. 1	E10
Less cylinder	G3
2-3/4" "T" strike	S3

	OPTIONS	CODE
]	Sargent conventional cylinder	F8
1	Corbin conventional cylinder	F9
1	Corbin 6 pin IC core	F12
1	Yale 6 pin IC core	F14
	Sargent IC core	F20
1

* Standard & HI-SECURITY™ IC Core Models:

Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best® IC Core Tailpieces ARE Included. WHEN ORDERING IC CORE CYLINDER, ADD THE PREFIX "R" TO THE PART NUMBER ie: 5SS55RA/32D

INSTITUTIONAL LIFE SAFETY MORTISE LOCKSETS

Standard Features Performance Specifications Life Test: 1,500,000 cycles minimum. Trim Specifications - Exterior & Interior Trim: · Solid stainless steel interior and exterior tapered levers recessed into thru-bolted roses · Specially ergonomically designed integral grooved turn knob for elderly and handicapped access (Patent D#587556) on some functions. Needle bearings ensure smoothness of operation Clutch Cylinder: Solid stainless steel cylinders with solid stainless steel security collars; Optional HI-SECURITY™ cylinders available Strike: 4-7/8" curved lip stainless steel w/tamperproof screws Door Thickness: 1-3/4" standard; Extended range available Door Prep: ANSI A115.1 lock face cutout, with 2-1/8" through hole for knob/rose assembly Backset: 5 Series: 2-3/4" standard, 55 Series: 2-1/2" optional Lock Front: Adjustable bevel steel backplate 1-1/4" x 8" x 7/64" thick, Cover plate 1/16" thick with tamper proof screws Latch: Solid stainless steel with antifriction latch lever, 3/4" throw (reversible) Aux. Deadlatch: 1/2" throw, (reversible) Case: Stamped steel 3/32" thick, zinc dichromate finish Hubs: Steel, 9/32" on diamond, 5/16" on square w/security separator (to lock hub) Steel 1/8" thick

MARKS # COMM. CYL.	FUNCTION	ANSI#	SERIES SS19 5 & 55 FINISH GROUPS
KEYED SINGLE CY	LINDER, NO DEADBOLT
D	OFFICE VEST.
DW	VESTIBULE
E	OFFICE	F04
EW	STOREROOM	F07
J	CLASSROOM	F05
JM, JR	HOSPITAL	F06
GL	INSTITUTIONAL PRIVACY	F26
EL	ELECTRICALLY LOCKED
EU	ELECTRICALLY UNLOCKED	1
KEYED SINGLE CY	LINDER, WITH DEADBOLT
A	ENTRANCE	F08,
В	ENTRANCE	F10 F21
F	DORMITORY	F12
FS	DORMITORY	FIZ
FW	DORMITORY	F13
	1 2 2	FIS
	YLINDER, NO DEADBOLT	T 500	\|
G	APARTMENT	F09	{
GC	INTRUDER LATCHBOLT	F32	32D
GG	CLASSROOM SECURITY	-
GR	CLASSRM. SEC. w/HOLDBACK
WW	INSTITUTIONAL	F30
	YLINDER, WITH DEADBOLT	T 505
AC	ENTRANCE	F35
C	STOREROOM	F14
FC	INTRUDER DEADBOLT	F34
FA	DORMITORY	F11
FX FSC	DORMITORY	F33
KEYLESS	Invocanos	T 504
N	PASSAGE	F01
L	BATHROOM	F02
LF	PRIVACY	F19
LJ	PRIVACY	F22
EX	EXIT	F31
DUMMY TRIM	L
DI	DUMMY TRIM INSIDE	ļ
DO	DUMMY TRIM OUTSIDE	\|
DT	FULLY DUMMY

★ Standard & HI-SECURITY™ IC Core Models:

Interchangeable Core models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY™, Medeco®, KeyMark™, Falcon, Schlage® small format & Best®

IC Core Tailpieces ARE Included. WHEN ORDERING IC CORE CYLINDER, ADD THE PREFIX "R" TO THE PART NUMBER IE: 5SS55RA/32D

Function "LJ" F22:

ANSI F22 Latch by lever either side except when outside lever is locked by inside turnpiece. Turning inside lever or closing door unlocks outside lever. To unlock from outside, remove emergency button, insert emergency key in access hole and turn. Optional coin key assembly available.

Option

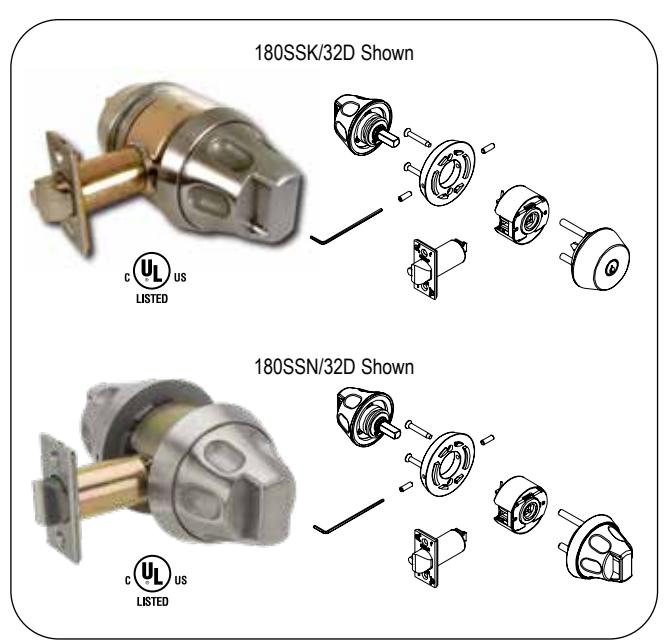

LifeSaver 5SS55 SERIES

Institutional Life Safety Cylindrical Locksets ANSI 156.2 Grade 1 & Mortise Deadlocks ANSI 156.5 Grade 1

MARKS # 1 SS55				FINISH
COMM. CYLINDER	IC CORE CYLINDER*	FUNCTION	ANSI#	GROUPS
KEYED SING
K	RK	CYLINDER x KNOB	E0121	220
KEYLESS	32D
N	_	PASSAGE	F75

MARKS # 31SS55				FINISH
COMM. CYLINDER	IC CORE CYLINDER*	FUNCTION	ANSI#	GROUPS
KEYED SING
K	RK	CYLINDER x KNOB	E06071	32D
_	RS	CLASSROOM	E06091

STANDARD FEATURES

PERFORMANCE SPECIFICATIONS

Life Test: 1,500,000 cycles minimum.

ANSI Test: Meets or exceeds all operational and security tests of

ANSI specifications A156.2-2003 for series 1000, Grade 1.

Fire Test: UL Listed, 3 hour fire rated.

TRIM SPECIFICATIONS

Exterior & Interior Trim:

Solid stainless steel interior and exterior tapered knobs recessed into thru-holted roses
Specially designed finger indented safety knobs with recessed grip and ergonomically designed integral grooved turn knob for elderly and handicapped access (Patent #D587556).
Needle bearings ensure smoothness of operation

1SS55K Cylindrical Deadlatch Lockset: ANSI E0121 Cylinder x Knob

Latch by knob inside, key outside.

Strike: #1136, 2-3/4" "T" strike; #1135 4-7/8" ASA strike optional

Door Prep: ANSI 115.2

Latch: ANSI 156.2, Grade 1, 3 Hour fire rated

Door Thickness: 1-3/4"

Backset: 2-3/4" Backset; 3-3/4" and 5" backsets also available

Latch Face: 1-1/8" x 2-1/4" with tamper proof screws Cylinder: Solid brass cylinder, 6-pin, "C" keyway; Optional HI-SECURITY™ cylinders available

1SS55N Cylindrical Lockset: ANSI F75 Passage

Latch by knob either side, always open.

Strike: #1136, 2-3/4" "T" strike

Door Prep: ANSI 115.2

Latch: ANSI 156.2, Grade 1, 3 Hour fire rated Backset: 2-3/4" backset standard, 2-3/8" backset optional;

3-3/4" and 5" backsets also available

Latch Face: 1-1/8" x 2-1/4" with tamper proof screws

Latch Throw: 9/16"

STANDARD FEATURES

PERFORMANCE SPECIFICATIONS

Life Test: 1,500,000 cycles minimum.

ANSI Test: Meets or exceeds all operational and security tests of

ANSI A156.5-2001 for series 31, Grade 1.

Fire Test: UL Listed, 3 hour fire rated.

TRIM SPECIFICATIONS

Interior Trim:

Solid stainless steel interior trim including finger indented safety knobs which recess into solid brass through-bolted roses.

Series 31 Deadlock Specifications ANSI E06071 Cylinder x Turnpiece

Deadbolt by outside key. Interior safety knob will retract but not project deadbolt.

Backset: 2-3/4"

Strike: #4035 1-1/8" x 3-1/8" standard.

#3135 4-7/8" x 1-1/4" optional

Bolt Throw: 1" Stainless steel with hardened roll pins

Case: Stamped steel

Front: 1-1/16" x 4-5/8" adjustable bevel Cylinder: Solid brass cylinder, 6-pin, "C" keyway.

Optional HI-SECURITY™ cylinders available.

SERIES INSTITUTIONAL LIFE SAFETY LOCKSETS -

Marks USA Custom Lock Division has developed ANSI Grade 1 Institutional Life Safety Locksets to address Managed Liability, Accident Prevention, Life Safety and Security in Behavioral Health Care Institutions. The shape and construction of the SS55 & SS19 Series locksets are designed to restrict the attachment of lines, laces, etc. to door knobs and levers. In addition, with the knobs/ levers recessed into the rosettes, the chance of capturing a line between the knob/lever and rosette is substantially eliminated.

	RKS # 5 SS55	FUNCTION	ANSI#	FINISH
COMM. CYL.	IC CORE CYL.*	FUNCTION	ANOI#	GROUPS
KEYED SIN	IGLE CYLIN	IDER, NO DEADBOLT
D	RD	OFFICE VEST.
DW	RDW	VESTIBULE
E	RE	OFFICE	F04
EW	REW	STOREROOM	F07
J	RJ	CLASSROOM	F05
JM, JR	RJM, RJR	HOSPITAL	F06
GL	RGL	INSTITUTIONAL PRIVACY	F26
EL	REL	ELECTRICALLY LOCKED
EU	REU	ELECTRICALLY UNLOCKED
KEYED SIN	IGLE CYLIN	IDER, WITH DEADBOLT
Α	RA	ENTRANCE	F08, F10
В	RB	ENTRANCE	F21
F	RF	DORMITORY	F12
FS	RFS	DORMITORY
FW	RFW	DORMITORY	F13
KEYED DO	UBLE CYLI	NDER, NO DEADBOLT
G	RG	APARTMENT	F09
GC	RGC	INTRUDER LATCHBOLT	F32
GG	RGG	CLASSROOM SECURITY		32D
GR	RGR	CLASSROOM SECURITY w/HOLDBACK
WW	RWW	INSTITUTIONAL	F30
KEYED DO	UBLE CYLI	NDER, WITH DEADBOLT		İ
AC	RAC	ENTRANCE	F35	ĺ
С	RC	STOREROOM	F14
FC	RFC	INTRUDER DEADBOLT	F34	İ
FA	RFA	DORMITORY	F11
FX	RFX	DORMITORY	F33
KEYLESS
N	_	PASSAGE	F01
Ĺ	_	BATHROOM	F02	ĺ
LF	_	PRIVACY	F19
LJ		PRIVACY	F22	İ
EX	_	EXIT	F31
DUMMY TRIM
DI	_	DUMMY TRIM INSIDE
DO	\|	DUMMY TRIM OUTSIDE	1	ĺ
DT		FULLY DUMMY	1	İ
		1		L

STANDARD FEATURES

PERFORMANCE SPECIFICATIONS

Life Test: 1,500,000 cycles minimum.

ANSI Test: Meets or exceeds all operational and security tests of ANSI

specifications A156.13-2005 for series 5000, Grade 1.

Fire Test: UL Listed, 3 hour fire rated.

TRIM SPECIFICATIONS

Exterior & Interior Trim:

Solid stainless steel interior and exterior tapered knobs recessed into thru-bolted roses
Specially designed finger indented safety knobs with recessed grip and ergonomically designed integral grooved turn knob for elderly and handicapped access (Patent #D587556)
· Needle bearings ensure smoothness of operation

Cylinder: Solid brass cylinders with solid brushed chrome security

collars. Optional HI-SECURITY™ available.

Strike: 4-7/8" curved lip stainless steel w/tamperproof screws.

Door Thickness: 1-3/4" standard. Extended range available.

Door Prep: ANSI A115.1 lock face cutout, with 2-1/8" through

hole for knob/rose assembly.

Backset: 5 Series: 2-3/4" standard, 55 Series: 2-1/2" optional Lock Front: Adjustable bevel steel backplate 1-1/4" x 8" x 7/64" thick.

Cover plate 1/16" thick with tamper proof screws.

Latch: Solid stainless steel with antifriction latch lever, 3/4" throw

(reversible).

Aux. Deadlatch: 1/2" throw, (reversible).

Case: Stamped steel 3/32" thick, zinc dichromate finish. Hubs: Steel, 9/32" on diamond, 5/16" on square with

security separator.

Hub Lock Arm: (to lock hub) Steel 1/8" thick. Spindles: Independent spring-loaded spindles.

PD SERIES HOSPITAL LOCKSETS

CYLINDRICAL & MORTISE PUSH/PULL PADDLESETS CYLINDRICAL ANSI 156.2 GRADE 1 & MORTISE ANSI 156.13 GRADE 1

PD Series Hospital Locksets -

FUNCTION

Our unique cylindrical and mortise hospital push/pull paddlesets feature universal assemblies where you can choose to install handles to point two-up or two-down or one-up and one-down. No handing needed. Marks USA design innovation also produced an improved short angle design meaning easier hands free push/pull for the user. Great retrofit, superior for new construction!

FINISH GROUPS

MARKS # 11	FUNCTION F	4N2I#	FINISE	I GROUPS
KEYLESS				32D
N	PASSAGE	F75
MARKS # 5 & 55 PD	FUNCTION AF			FINISH GROUPS
KEYED SING	LE CYLINDER, NO DEADBOLT	·
D	OFFICE VEST.
DW	VESTIBULE
E	OFFICE		F04
EW	STOREROOM		F07
J	CLASSROOM		F05
JM, JR	HOSPITAL		F06
GL	INSTITUTIONAL PRIVACY		F26
EL	ELECTRICALLY LOCKED
EU	ELECTRICALLY UNLOCKED
KEYED SING	LE CYLINDER, WITH DEADBOLT	Γ
Α	ENTRANCE		F08, F10
В	ENTRANCE		F21
F	DORMITORY		F12
FS	DORMITORY
FW	DORMITORY		F13
FD	APARTMENT		F20
Н	HOTEL		F15
LH	SPECIAL PRIVACY			32D
KEYED DOU	BLE CYLINDER, NO DEADBOLT
G	APARTMENT		F09
GC	INTRUDER LATCHBOLT		F32
GG	CLASSROOM SECURITY
GR	CLASSROOM SECURITY w/HOL	DBACK
WW	INSTITUTIONAL		F30
KEYED DOU	BLE CYLINDER, WITH DEADBOL	.T
AC	ENTRANCE		F35
С	STOREROOM		F14
FC	INTRUDER DEADBOLT		F34
FA	DORMITORY		F11
FX	DORMITORY		F33
KEYLESS
N	PASSAGE		F01
L	BATHROOM		F02
LF	PRIVACY		F19
LJ	PRIVACY		F22
EX	EXIT		F31

STANDARD FEATURES

Cylindrical:

Backset: 2-3/4" standard, 2-3/8", 3-3/4" and 5" optional
Strike: #1136, 2-3/4" "T" strike; #1135 4-7/8" ASA strike optional
Government standard #161

Mortise:

Backset: 5 Series 2-3/4". 55 Series 2-1/2"
Strike: #9035, 4-7/8" ASA curved lip strike

Door Thickness: 1-3/4", self adjusting for thicker doors
ANSI-A156.2, Grade 1
Lead lining and engraving available
ADA Compliant Non-Handed
Functional, modern design with variable mounting positions
Standard 32D finish, consult factory for available finishes
· Easily reversible configuration for push or pull styles

I-QWIK LITE ELECTRONIC ACCESS CONTROL No-Nonsense Access Control Right Out Of The Box!

MAR	KS#	LOCKSET TYPE		# OF FINISH USERS GROUPS
For Finish 19	For Finish 26D	LOCKSET TYPE		# OF FINISH USERS GROUPS
IQ1LITE	IQ1L/26D	Cylindrical Lockset		19:
IQ2LITE	IQ2L/26D	Mortise Lockset	160	Black Powder Coat with	26D: Satin Chrome Plated
IQ7LITE	IQ7L/26D	Rim Exit Device Interface Adapter plates operate most manufacturers Rim Exit Devices Adapter plates for Mounting Exit Devices are sold separately, see page 21.		26D Satin Chrome Plated American Levers	26D: Satin Chrome Plated

I-QWIK LITE STANDARD FEATURES

CableGard™ protects wires for easy installation
Standard ANSI door prep with one additional hole
Pre-programmed code
· Keypad programmable
160 User codes
Temporary user codes
Passage mode

Pin only mode
· Double code entry for maximum security
Two wire remote release
16 Digit tactile metal keypad
Weatherproof standard
Audible & visible entry indicator
Audible low battery alert

4 "AA" batteries, 95,000 operations
Easy installation

LOCKSET SPECIFICATIONS

IQ1 LITE CYLINDRICAL LOCKSET

Door Thickness: 1-3/4" standard

For thicker doors, Consult factory

Handing: Non-handed

Key Override: Marks "C" keyway, 6 pin w/2 keys,

IC Core optional

Lock Body: Cylindrical "Survivor" featuring

the "Clutch" for trouble free service

Latch: Grade 2, 2-3/4" backset, 1/2" throw,

3 Hour UL fire rated

Strike Plate: 4-7/8" ASA strike

IQ2 LITE MORTISE LOCKSET

Door Thickness: 1-3/4" standard

For thicker doors, Consult factory

Handing: Field reversible

Key Override: 1-1/8" Mortise cylinder, 6 pin w/2 keys

Lock Body: Grade 1, Series 5, 2-3/4" backset,

3/4" anti-friction latch, 3 Hour UL fire rating

Auxiliary Latch: 1/2" throw

Bolt Throw: 1" (Optional deadbolt functions - Consult factory)

Clutch: The "Clutch" for trouble free service

Strike Plate: 4-7/8" ASA standard

IQ7 LITE RIM EXIT DEVICE INTERFACE

Door Thickness: 1-3/4" standard

For thicker doors, Consult factory

Handing: Non-handed

Key Override: 1-1/8" Mortise cylinder,

6 pin w/2 keys

Clutch: The "Clutch" for trouble

free service

Adapter plates operate most manufacturers Rim Exit Devices. Adapter plates for Mounting Exit Devices are sold separately, see page 21.

I-QWIK SERIES ELECTRONIC ACCESS CONTROL

MARKS #		LOCKSET	FINISH
	For Finish 19 For Finish 26D	TYPE	GROUPS
IQ7LITE	IQ7L/26D	Rim Exit Device Interface Adapter plates operate most manufacturers Rim Exit Devices Adapter plates for Mounting Exit Devices are sold separately, see below.	19: Black Powder Coat with 26D Satin Chrome Plated American Levers	26D: Satin Chrome Plated

Standard Features

For the IQ7 LITE standard features and lockset specifications, see page 18.
Additional finishes, consult factory

Adapter Plates

Rim exit device interface with a choice of adapter plates to fit most rim exit devices (available separately) are listed below:

DESCRIPTION	PART #
M9900 - Von Duprin 99 Rim Adapter Plate/Detex Advantex 10 Series Rim Adapter Plate	E7071
Precision 1100 Rim Adapter Plate	E7072
Yale 7100 Rim Adapter Plate/Corbin ED5200 Rim Adapter Plate	E7073
Dorma 9300 Rim Adapter Plate	E7074
Sargent 8800 Rim Adapter Plate/Arrow 3800 Rim Adapter Plate	E7075
Precision 21 Rim Adapter Plate/Precision 2100 Rim Adapter Plate**	E7076
Von Duprin 88 - Special Order, Consult Factory	E7077
Monarch 18R Exit Device Adapter Plate	E7078

^** MUST USE PRECISION #BP21 BACKPLATE

LocDown ™

FOR ADDED SAFETY IN AN EMERGENCY, TEACHERS CAN LOCK THEIR CLASSROOM DOORS FROM THE INSIDE WITH THE LOCDOWN™ SERIES CLASSROOM LOCKS BY MARKS USA.

LOCDOWN™ SERIES FOR EVERY EDUCATIONAL BUILDING AND DOOR -

Typical Classroom function cylindrical locksets are designed to be locked or unlocked from the exterior, with the interior always in an open position. The new LocDown™ Classroom Intruder Lockset by MARKS USA, is designed to be locked or unlocked from the exterior, always open on the interior, but allows in emergency life safety situations, the teacher to secure the classroom without stepping into the hallway to lock the outside handle. For More on our K-12/Campus Security Solutions also visit www.savischool.com


:
F110 Classroom Intruder	-
Deadlocking latch by knob/lever either side; except when outside locked by key inside. Key outside locks or unlocks outside; inside always open	> □	DB
F32 Intruder Latch Bolt
Latch by knob/lever either side except when outside knob/lever is locked from inside or outside by key. Auxiliary latch deadlocks latch bolt when door is locked. Inside knob/lever is always free from immediate egress. Latch operated by key from inside or outside.	5036	GC
Classroom Security	1
Latch by knob/lever either side except when outside knob/lever is locked from inside or outside by key. Auxiliary latch deadlocks latch bolt when door is locked. Inside knob/lever is always free for immediate egress.	5036	GC
Classroom Security w/Holdback
Latch bolt retracted by knob/lever from either side unless outside is locked by key from either side. When locked, latch bolt retracted by key outside or knob/lever inside. Auxiliary latch deadlocks latch bolt when door is locked. Depress inside knob/lever and turn key 360° for holdback feature. Inside knob/lever always free for	5036	GR

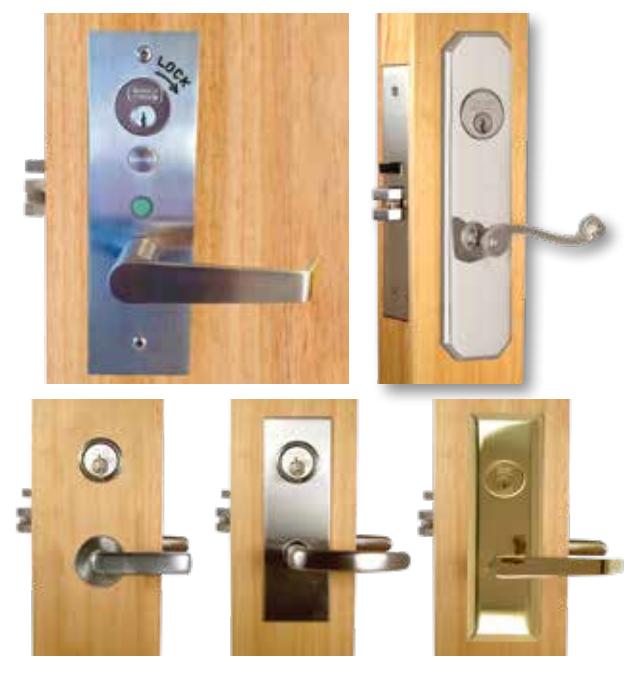

AVAILABLE IN ALL LEVER AND ESCUTCHEON TRIM

At the first sign of trouble outside, lock down a classroom instantly
Faculty & students remain safely within classroom, no need to open door
The interior lever is capable of retracting the latch at any time
Available as cylindrical locks with cylindrical function F110 or as mortise locks with mortise function F32
Double-cylinder cylindrical lockset built to ANSI/BHMA Grade 1 specs
Can be ordered with levers that meet the ADA, Life Safety and local jurisdiction codes
Mortise locks meet or exceed ANSI/BHMA 156.13 Grade 1 specifications
· Easy Retro-Fit Installation

LEVERS AVAILABLE TO ACCEPT FOLLOWING OEM

CYLINDERS:

Yale Conventional, Sargent Conventional, Corbin Conventional, Corbin 6 Pin IC Core, Corbin 7 Pin IC Core, Yale 6 Pin IC Core, Yale 7 Pin IC Core, Schlage 6 Pin IC Core, Sargent IC Core, Medeco IC Core Large Format, BEST, Falcon SFIC

immediate egress.

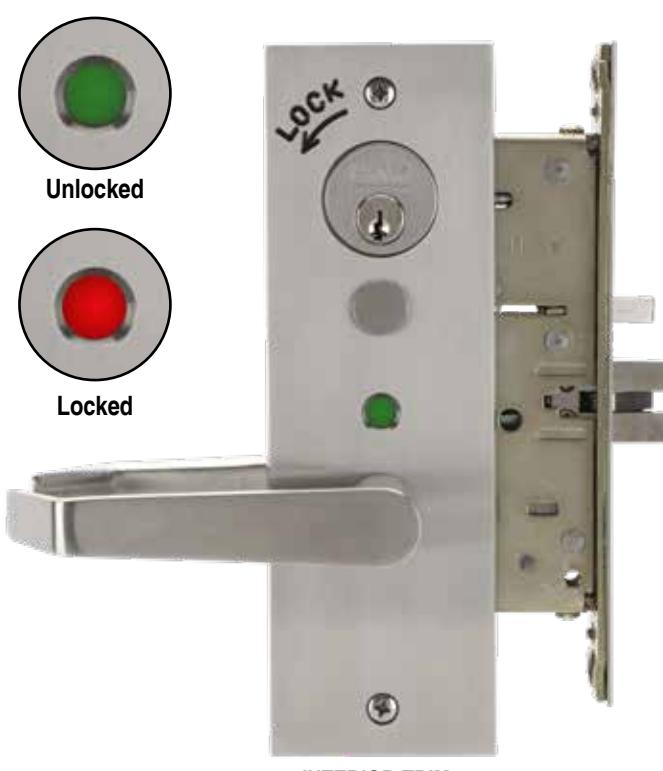

LocDown™

For added safety in an emergency, teachers can lock their classroom doors from the inside with the LocDown™ Series Classroom locks by Marks USA.

INTERIOR TRIM

For More Marks & Napco School Solutions & Resources on K12/Campus Security Risk Reduction see www.SAVISchool.com

Standard Features

Performance Specifications:

Life Test 1,500,000 cycles, minimum

Strength Test: 530 inch lbs. torque on exterior lever. When applied, lockset

remains locked. (Torque of over 550 inch lbs. will cause spindle failure. However, lockset remains locked once spindle is replaced, lockset is fully operational.)

ANSI Test Certified to meet or exceed all operational and security tests

of ANSI/BHMA A156.13-2012 for series 1000, Grade 1.

Fire Test: UL listed, 3 hour fire rated; Meets ADA requirements.

Function Specifications: LA318GJ Classroom Intruder:

Latch by lever either side except when outside lever is locked from inside or outside by key. When locked, exterior key will retract latchbolt. Outside key locks or unlocks exterior lever. Inside key is single acting in one direction and will lock exterior lever only; will not unlock exterior lever. Auxiliary latch deadlocks latch. Inside always free for egress

Trim: Cast satin stainless steel escutcheon 8-1/2"x2-3/4"x7/16". Recess in escutcheon to accept cylinder with rotating

cylinder ring. Cast screwless satin stainless steel lever handles to within 1/2" from face of door secured to escutcheon plate with hardened steel retainer ring. Lever handle, with spring-loaded torque sensitive 5/16" spindle. Integral torque override preventer recessed into escutcheon plate. Spindle will yield if excessive torque applied,

preventing any damage to lock body.

Exterior: Two ¼" diameter threaded thru posts.

Two ¼" diameter center posts pass thru lock body,

automatically aligning trim.

Interior: Two #10-32 phillips head stainless steel mounting thru bolts.

Escutcheon with "LOCK" and directional arrow engraved and black filled near cylinder location. Occupancy indicator ecessed into escutcheon plate. Indicator window to display unlocked (green day-glo) and LocDown™ (red day-glo)

positions

Cylinders: Two 1-1/8", 6-pin solid brass with 2101 cam int., 2105

cam ext., with two keys. Outside cylinder rotates in both directions. Inside cylinder rotates in one direction only. Cams supplied to accommodate Corbin™, Sargent™ and

Schlage™ cylinders.

Strike: 4-7/8" X 1-1/4" X 3/32" thick, 5/8" curved lip.

Conforms to ANSI spec. 115.1.

Door Thickness: 1-3/4"

Lock Body: 5 series "GJ" function double cylinder lock. Lock handing

completely reversible without opening lock case

ArchiTech™

Designer Wireless Access Control Platform

Series: Standalone, Networked, Enterprise

ArchiTech™ Series Networx® Locks are an ideal access control solution; elegantly blending advanced wireless access control convenience within any décor, in an attractive, infinitely customizable designer locking form factor, in choice of trims and finishes. Ideal for educational, commercial office or multi-dwelling residential settings, these stylish, durable locks, leveraging proven Networx access control technology, offer a choice of ID credential technology, and can be used to control access a door at a time; across a wireless network; or as an integral part of a new or existing enterprise security system—spanning a few, or thousands of doors, in one building, a campus or multiple sites around the world.

Standard Configurations

Performance Overview

• All Applications and Doors - Cylindrical and Mortise models for wood and metal doors, for new and existing applications, with wireless surface mount or mortised-in electronics and batteries.
• Customize To Match Any Aesthetic Look, For Every Décor - Over 300 locks, levers, roses and finishes to choose from, durable ANSI/BHMA Grade 1 hardware over 300 locks, levers, roses and finishes
• Future-Proof Multi-Technology Access ID Credentials Replace Cumbersome Keys – HID® Prox, Mag Stripe, Smart Cards, PIV, keyfobs and remote buttons
• Emergency Lock-Down option via lock, button, keyfob or server (where networked). (Global Unlock via server too.)
• Proven, Low Maintenance, Wireless Installation And Unsurpassed Battery-Life with Advanced Power-Saver circuit, with years of use in even high-traffic areas, using off-the-shelf AA batteries.
• Flexible System Programming Locally using a USB Gateway or remotely across a wireless network (using free Alarm Lock DL-WINDOWS Windows- based software) or integrated on an enterprise class IT environment, in realtime, using LENEL
• Networking Choices Choose 802.11 or Ethernet network, with wireless encrypted bi-directional gateways, in which many locks communicate to a single gateway, expander, or use a wireless RF USB Gateway equivalent. For entry door applications and the like, used in conjunction with strikes and mags, use with Networx NetPanels. Or, use as a single-door control, in real time, as part of the IT-Network environment, with Continental Access CA4K® , Lenel OnGuard® Integrated Access Control & Video Security or Software House Connected Partner Program® Platforms.‡

Features:

5000 Users, 500 Scheduled Events & 40,000 Event Audit Trail
Surface-Mount or Mortised-in Electronics and Battery Pack
Lock available in Mortise and Cylindrical versions
Real Time Clock
Uses 4 AA Batteries 3 year battery life, typ. using advanced Power-Saver circuit
Operated via access card, keyfob or bluetooth enabled iLock® App.
DL-Windows Software for programming Or in enterprise networx, in real time, use with Continental Access® CA4K® , Lenel OnGuard® Integrated Access Control & Video Security or Software House Connected Partner Program® Platforms
USB Radio Gateway Method or Via Networx Gateways (Ethernet, 802.11 or POE)
Manual Card Enrollment Option for Quick Installation
Wireless programming range: up to 100 ft.
ANSI / BHMA Grade 1 Certified, UL Listed 3 Hours

Auto-Deadbolt option for automatic keyless locking of deadbolt upon exiting, ideal for residential applications
Includes standard lever rose hardware design
Mortise version compatible with all 300+ optional architectural trim / lever or knob designs
Stainless steel latch, 2-3/4" backset
Auto-Reverse lock body tested to 6 million cycles
Lock Body Self cleaning long life motor
Door closure monitor / electronic deadbolt monitor
Key override standard or high-security
Optional integrated door position indicator switch

ARCHITECH™ N90L

IDEAL FOR SCHOOL & CAMPUS SAFETY

Lockdown Strobe Indicator flashes to confirm lock is in secure. lockdown mode

Choice of access ID credentials replace cumbersome keys

Designer Wireless Access Control Networked Locks include multi-technology ID reader access control convenience for any door and decor, with choice of handles, finishes and reader shape
Easily, securely networked via 802.11 or ethernet, spanning a few or thousands of doors, in one building, a campus or multiple sites in an enterprise (also available in standalone model)
Emergency LocDown Keyfobs & Flashing Strobe Indicator In emergency, lockdown one or multiple locks globally with remote pocket sized keyfob. Lockdown indicator vividly flashes on the inside door, confirming lock activation and providing peace of mind to occupants
Programmable Lockdown/Unlock Privileges For added security, programmable user privileges can be varied by group, i.e., all users can be given global lockdown privileges, while only select users can have both lockdown & unlock privileges, etc.
. Cylindrical ArchiTech Locks neatly, quickly retrofit any standard door lock, with easy surface mount electronics, for use in all applications - Including wood and metal doors, for new and existing applications
Customizable oval or square Access ID Reader, in black or silver and three levers to choose from - American 195, Crescent 295 & Titan 495 - See lever photos on back
Future-Proof Multi-Technology Access ID Credentials Replace Cumbersome Keys - HID® Prox, Mag Stripe, Smart Cards, PIV, keyfobs and remote buttons

· Proven, Low Maintenance, Wireless Installation and Unsurpassed Battery-Life with Advanced Power-Saver circuit, for years of use in even high-traffic areas, powered by 4 off-the-shelf AA Batteries. 3 to 4 years, typ.
Flexible System Monitoring, Control & Programming Program locally using a USB Gateway or remotely across a wireless network (using free Alarm Lock DL-WINDOWS Windows- based software). Or, in Real-Time Enterprise platforms, using either Continental Access CA4K®, Lenel® OnGuard® or support via Software House® Connected Partner Program®

Minimizing hardware & installation costs, a single gateway module can be placed anywhere in any size network and interface between the PC and up to 63 Networx locks. At its maximum, a, ArchiTech Networx system can comprise of up to 50 Gateways for the networking of up to 2000 locks or access controlled doors
Compact LocDown Keyfob Program up to 10 keyfobs per lock. For added security, program different users for global lockdown & unlock privileges
Up to 5000 users/ credential holders, 500 Scheduled Events & 36,000 Event Audit Trail
Non-handed for easy installation and versatility

ArchiTech Lock Designs

Concealed electronics

Mortised-in electronics and

Cylindrical; Surface Mounted Electronics (back box not shown)

Mortise; Surface Mounted Electronics

Mag Reader

Keypad

ArchiTech™

Designer Wireless Access Control Platform

Series: Trilogy Networx Gen.2 Gateways & Expanders

AL-IME2 Gen. 2 Gateway The Trilogy Networx AL Generation Gateway, interfaces Networx locks with a PC network via a hardwire Ethernet connection. It is very similar in function to the original hardwired Networx

Gateway Modules, but is enhanced with additional extended potential range, supporting up to seven (7) Expanders (model AL-IME2-EXP Expanders). Each Expander can extend the AL-IME2 Gateway's coverage area by approximately 100 feet. Also both Gen. 2 Gateways and matching Expanders have a new modern styling, and three LED indicators, blending into any décor.

AL-IM2-80211 Gen. 2 802.11 Gateway

Similar to model above, but this 802.11 Gateway Module includes a bi-directional radio, and interfaces Networx locks with a PC network with hardwire Ethernet and wireless 802.11. It is very similar in function to the original 802.11 Networx Gateway Modules, but is enhanced with additional extended potential range, supporting up to seven (7) Expanders (model AL-IME2-EXP Expanders). Each Expander can

extend the AL-IM2-80211 Gateway's coverage area by approximately 100 feet.

AL-IME2-POE Gen. 2 Gateway The Trilogy Networx AL-IME2-POE (Power Over Ethernet) Hardwired Gateway interfaces Networx locks with a PC network with hardwire Power-Over-Ethernet. It is very similar in function to the original hardwired Networx Gateway Modules, but is enhanced with alternative power, and additional extended

potential range, supporting up to seven (7) Expanders (model AL-IME2-EXP Expanders).

AL-IME2-EXP Expander

Trilogy® Networx™ Expander extends the coverage area of a Gen 2 Series Gateways to Trilogy Networx Locks within a PC network, allowing greater distances for the placement of up to a maximum rated capacity of 63 Networx locks per Version 2 Gateway.

AL-IME2-PIE Plug-in Expander

The Trilogy® Networx™ Plug-In Expander extends the coverage area of a Generation 2 Series AL-IME2 Gateway to Trilogy Networx Locks within a PC network, allowing greater .2 802.11 distances for the placement of up to a maximum rated capacity of 63 networx locks per Version 2 Gateway.

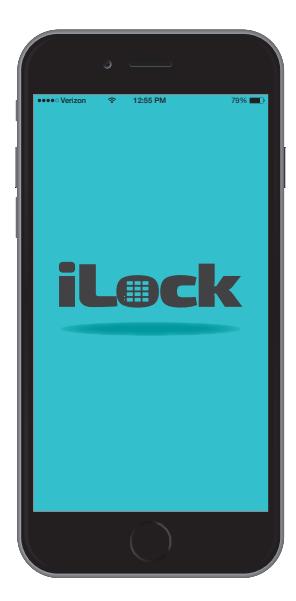

Use the iLock® App to unlock your Networx ArchiTech™ Bluetooth® Series Door Lock in seconds!

Introducing iLock, the easy smartphone mobile solution for unlocking your Trilogy® ArchiTech Bluetooth Series Designer Access Control Locks from any smart device without the need to carry cumbersome ID cards or keys. Password protected access is secure through the use of Bluetooth LE® and proprietary encryption. Additionally, an optional feature can be utilized, requiring a password for each unlock request.

The Key is Your Smartphone & More Secure Technology

Any Smart Device can be the Access Key: Much more than an ID card displayed on your smartphone, for your security, ArchiTech & its iLock App are

wirelessly linked together, each supplying its portion of stored encrypted data to provide secure access without a key, fuss or worry, ensuring user identities. A unique combination of convenience and cloneproof peace of mind, the ArchiTech platform uses universally-compatible Bluetooth LE technology, so they can use any smart device to unlock ArchiTech on your door(s); and do so from afar, at a comfortable, customizable range of up to 30 feet away. For even greater security users

can add an optional passcode, entered on their phone App. Coming soon: emailable digital eKeys for guests or service temporary access, too.

iLock App is available from both iTunes and the Google Play Store

ArchiTech™

Designer Wireless Access Control Platform

Series: Trim Options and How to Order

Standard Model Ordering. Infinite Custom Models Also Available, Call for Ordering Assistance

ArchiTech: Hundreds of Options for ArchiTech to be Customized. Select Standard Mortise & Tubular Lock Trim & Rose Options. See Page 5 For Trim Designs.

www.designalock.com Create your own custom lock looks

Create and share a custom lock vision for any space or building with www.designalock.com interactive site for trying out various lock looks for locks inside and out. Ideal for Architects, Designers and Building Operating Management who want their access control and locking "look" to be as welcome as the security they provide.

SERIES M9900 - EXIT DEVICE

MARKS #	FUNCTION
M9900	Rim Panic
M9900F	Fire Rated Rim Panic
M9900 - 48	Rim Panic - 48"
M9900F - 48	Fire Rated Rim Panic - 48"

OPTIONS
M9900	33" LENGTH FOR 36" DOOR
M9900 - 48"	42" LENGTH FOR 48" DOOR

SPECIFICATIONS

Doors: 1-3/4" thick standard.
End cover: Flush mounted beveled "Panic Protector" design.
Strike: Roller strike.
Rail Assembly: Extruded Aluminum, 32D finish. • Dead latch Bolt: Stainless Steel 3/4" throw.
Dead latch Bolt: Stainless Steel 5/8".
Dogging feature: Allen Key (M9900)
UL listed: For "Panic Hardware" and Fire Rated Model 3 hour fire doors up to 38" x 86".
ANSI: ANSI 156.3 (2001), requirements for Grade 1.
3 Hour Fire Rating
Finish: 32D
- EXTRUSION HEAVY GAGE, 32D FINISH
  - PANIC PROTECTOR™ END CAP
- LIFETIME MECHANICAL WARRANTY
- EASY INSTALLATION, ECONOMICAL

SERIES M9900 VR - EXIT DEVICE

MARKS #	FUNCTION
M9900 VR	Rim Panic Vertical Rod
M9900F VR	Fire Rated Rim Panic Vertical Rod
M9900 - 48 VR	Rim Panic Vertical Rod - 48"
M9900F - 48 VR	Fire Rated Rim Panic Vertical Rod - 48"

SPECIFICATIONS

Device Head Cover: Zinc alloy or stainless steel

Chassis: Steel, plated

Mechanism Housing: Extruded aluminum Push Bar Base: Extruded aluminum Touch Plate: Stainless steel

End Cap: Stainless steel

Top Latch: Stainless steel 37/64" (14.8mm)

Top Strike: Included

Bottom Latch: Stainless steel 37/64" (14.8mm)

Bottom Strike: Included

Latch Case Covers: Steel, stainless steel or brass

Vertical Rods: Aluminum tube

Hand: Non-handed

Mounting: Machine screws standard. Sex bolts optional. Order

"SNB" for wood or unreinforced metal doors

Dogging: Allen-type key furnished

Finish: 32D

Outside Trim: Order separately Standard height: For 7'0" doors

UL Listed: ANSI/BHMA Grade1 Panic Exit Hardware, 3-Hour Fire

Rating

EXIT DEVICES

SERIES M9900 - EXTERIOR TRIM

MARKS #	FUNCTION

M411	Finger Pill - no cylinder
MESC600A	Lever / Escuteon Trim Entry
MESC600F	Lever / Escuteon Trim Storeroom
MESC600N	Lever / Escuteon Trim Passage
MESC600DT	Lever / Escuteon Trim Dummy Trim
M9901	36 inch Panic Device Dogging Kit
M9902	48 inch Panic Device Dogging Kit
MVR8	Vertical Rod 8 ft extention - Code 8
MVR10	Vertical Rod 10 ft extention - Code 10
MVRB	Vertical Rod - Bottom Rod
MVP/32D	Rim Panic Vandal Pull
MVPCC/32D	Rim Panic Vandal Pull w/ cylinder hole

ENTRY LEVER TRIM

Standard Marks "C" Keyway KNK cylinder for panic device.
Cylinder locks or unlocks lever, rigid when locked; when unlocked retracts latch bolt.
Marks 26D Finish / Standard 1-3/4" Door Thickness
IC Prep Code G1, Less Cylinder G3

Escutcheon Lever Design

Thru bolt design
Non Handed design. Easily field reversible.
Marks 32D Finish / Standard 1-3/4" Door Thickness
Standard Marks "C" Keyway 1-1/4 Mortise cylinder with special cam
IC Prep Code G1
Less Cylinder G3

CAMS & TAILPIECES

MORTISE CYLINDER CAMS

M9907 MESC600A

M9908 MESC600F

M9909 MESC600A IC CORE HOUSING

M9910 MESC600A IC CORE HOUSING

KNK CYLINDER TAILPIECES

M9903 MLHL650A - CLIP ON

F1903.SCH MLHL650F - SCREW CAP

M9984 MLHL650A or

F - IC CORE 627 PIN

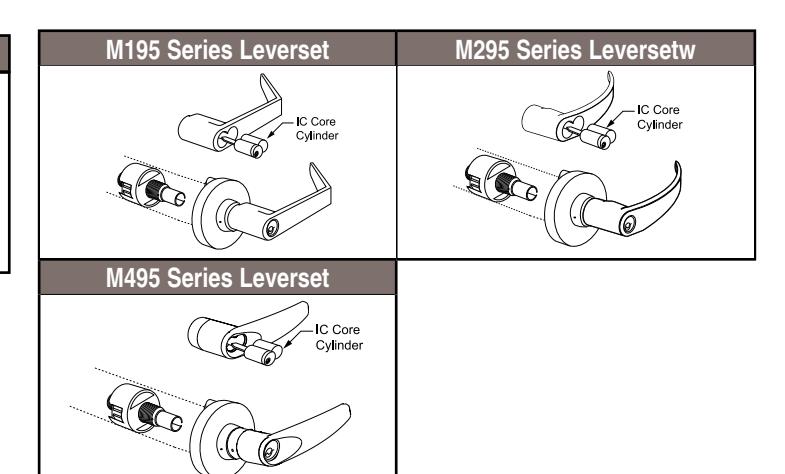

SERIES M195 - EXIT DEVICE TRIM

Specifications

Solid cast Zamac, with 1/2" return (except 395 & 495) Thru-bolted, 3-7/16" spring loaded Roses Levers: Roses:

Door Thickness: 1-5/8" - 1-7/8" Clutch: Standard Chassis: Aluminum

MARKS "C" keyway, 6 pin w/ 2 keys Cylinder: IC Core model - Core not included

Lifetime Mechanical Warranty

MARKS #	Trim
M195S/295/395/495	MLHL650S
M195F/295/395/495	MLHL650F
M195N/295/395/495	MLHL650N
M195DT/295/395/495	MLHL650DT

OPTIONS	CODE
Yale Conventional	F7
Sargent conventional cylinder	F8
Corbin conventional cylinder	F9
Corbin 6 pin IC core	F12
Corbin 7 pin IC core	F13
Yale 6 pin IC core	F14
Yale 7 pin IC core	F15
Schlage 6 pin IC core	F19
Sargent IC core	F20
Medeco IC core large format	F21
Less Cylinder	G3

★ Standard & HI-SECURITY<sup>™</sup> IC Core Models: Interchangeable Core

models for 6 or 7 pin cores (not included). Accepts: Marks, Marks HI-SECURITY $^{\text{TM}}$ , Medeco $^{\circ}$ , KeyMark™, Falcon, Schlage® small format & Best®. IC Core Tailpieces ARE Included.

SERIES M8800 - NARROW STILE EXIT DEVICE

MARKS#	FUNCTION
M8800	Rim Panic
M8800 - 48	Rim Panic - 48"

	SPECIFICATIONS
Specification: Requirement S	Conforms to ANSI BHMA A156.3 Grade 1 Exit Device
	ANSI/UL305 Standard for Safety for Panic Hardware
	2013 California Building Code Sec. 11B-309.4
For Doors:	(Please specify when ordering non standard size doors)
	Thickness: Standard 1 3/4", may fit with door thickness up to 2"
	Width: Standard 36" or 48", may fit door width 30"~48"
Mounting:	Furnished Standard with Wood and Machine Screws
Head Cover:	Zinc Alloy
Chassis:	Aluminum
Rail Assembly touch bar	: Heavy Gauge extruded aluminum with stainless steel on top of
End Cap:	Zinc Alloy
Hand:	Non-handed
Latch Bolt:	Stainless Steel, 3/4" (18mm) throw
Strike:	Roller Strike (Stainless Steel)
Dogging:	Allen Key (equipped on panic rate devices only)
Finish:	32D: Satin Stainless Steel Finish 10B: Oil Rubbed Bronze Finish
Dimension: of touch bar	Touch bar height from finished floor: 41" (1041mm) from center
	Touch Bar Projection: Neutral: 3 5/16" (84mm) Depressed: 2 19/32" (66mm)
	Head Cover: LxWxH: 206mm x 76mm x 71mm
	Device Length: 34 5/8" (88cm) for 36" door width 46 5/8" (118.5 cm) for 48" door width

Electric Latch Retraction

with simultaneous dogging

MARKS #	DESCRIPTION
HEAVY DUTY
M9900ER	Electric Latch Retraction
M9900ERP	Electric Latch Retraction w 602 Power Supply

ER Electric Latch Retractionwith simultaneous dogging

For: M9900 Example: M9900/32D- ER

Operation: Momentary or maintained latch bolt and push pad retraction

Automatic re-triggering of latch retraction

Voltage: 24VDC @ 450 mA activation, 180 mA continuous

602RF 1 Amp power supply (1 EMC max) 632RF 2 Amp power supply (2 EMC max)

EMC 2-station sequencer required for automatic doors only. Monitoring Available Latch status and REX output available

Exit Alarm

EA Exit Alarm, 9V battery powered

EB Exit Alarm, 12-24V AC/DC input, 9V battery backup

For: M9900, M9900VR Example: M9900/32D- EA

• 100 dB alarm; visual and audible On/Off status: Armed - green LED blinks every 4 seconds, Alarm mode - red LED, Bypass - no LED

Remote status output
15 or 60 second arming delay
2 modes: Continuous alarm with manual key reset; Automatic re-arm 2 minutes after door closes with any manual key reset before 2 minutes.

Options: • Push pad sign

6, 10 & 20 minutes alarm; 1 or 5 second re-arm delay
Remote access control, arm, disarm inputs
REX and latch status outputs

Electric Frame Actuator

MARKS #	DESCRIPTION	Monitoring Available
HEAVY DUTY
M9900EFA	HiTower Pro Fram Actuator Controller Fire Exit

EFA Hitower Pro Frame Actuator Controlled Fire Exit Device

Features include failsafe operation and unlocks by access control, power loss or signal from fire command center. Door stays latched even when unlocked. All wiring is maintained in the strike jamb. Complies with national building and fire codes

Specify Handing and Voltage: 24VDC, 24VAC, 115VAC

Electric Dogging

MARKS #	DESCRIPTION
HEAVY DUTY
M9900DG	Electric Dogging, Fail Secure
M9900DGP	Electric Dogging, Fail Secure w 602 Power Supply

M9300

Example: M9900/32D- DG

When energized by optional built-in or remote switch manual, depressing the pushpad, causes the pushpad and latch to remain retraced (unlocked) providing push-pull door operation. When de-enegrized or signaled by a fire alarm, the pushpad and latch are released.

Voltage: 170/100 mA @ 12/24VDC

Monitoring Available: Latch status and REX output available

Delayed Egress

DE Wall mount delayed egress controller with keypad and electrified exit device, M9900

Example: M9900F/32D- DE

DEK Keypad controller with redundant key switch capable of

all keypad control features

602RF 1 Amp power supply

User PIN codes may be assigned to 1, 2 or all control functions. Reset, sustained bypass and momentary bypass (RES)
Audible alarm voice release time, warning or safety message
Visual display countdown, locked/unlocked, egress executed
15 or 30 second exit delay, 1 or 2 second nuisance delay 2 minutes

Monitoring Available: Latch status available

MARKS #	DESCRIPTION
HEAVY DUTY
M9900DE	Delayed Egress
M9900KDE	Delayed Egress w Keyswitch
M9900DEP	Delayed Egress w 602 Power Supply
M9900KDEP	Delayed Egress w Keyswitch W 602 Power Supply
M9900VRDE	Delayed Egress
M9900VRKDE	Delayed Egress w Keyswitch
M9900VRDEP	Delayed Egress w 602 Power Supply
M9900VRKDEP	Delayed Egress w Keyswitch W 602 Power Supply

HI-SECURITY™ CYLINDERS HI-SECURITY ™ Cylinders & Security-Mate ™ Cylinders

What Makes Marks HI-SECURITY™ Cylinders Unique?

Marks USA patented HI-SECURITY™ cylinders offer a secondary mechanical locking mechanism that creates resistance to bump and picking attacks. In addition, the design supports a corresponding configuration on the key blank called a "security wave" (shown below) that supports prevention of unauthorized duplication of keys. The locking principal is adaptable to standard cylinders and large and small format interchangeable cores. Marks USA HI-SECURITY keyways and security waves are of proprietary origination. The distribution of key blanks is factory controlled. Multiple keyways and security codes are available. Assignment is by geographic or customer category type. The Marks USA HI-SECURITY pick and bump resistance features are designed with added security in mind for cylinders, cores and key blanks. In addition, patents provide legal protection for patent infringement against those who attempt to produce or manufacture key blanks or cylinders. Marks USA will aggressively defend its patent rights!

Cylinder Configuration

Marks HI-SECURITY cylinders are manufactured of brass bar stock. Cylinders are available in a variety of models. In standard construction, there are 1-1/8", 1-1/4", 1-3/8", 1-1/2", and 1-3/4" mortise cylinders. There are a variety of 1" and 1-1/8" combination mortise/rim cylinders, key-in-knob, large format interchangeable specifically for Medeco® , Schlage® locks and Best® type small format interchangeable core models in 6 and 7 pin lengths. Standard and large format cylinders may be ordered with the UL 437 HI-SECURITY option for greater drill resistance, Non-UL with the same pick and bump protection and in Security-Mate (A standard pin tumbler only cylinder without HI-SECURITY features, but matching the same key blank; shown on page 26). SFIC is currently available in Non-UL model only at this time. There are a variety of keying options available. "Zero-bitted" cylinders are shipped standard with either a factory default security code or are supplied with a specific customer security code. The common pin tumbler section of the cylinder has springs, driver pins and accommodates a key blank cut to zero in all positions.

HI-SECURITY™ Cylinders & Security-Mate™ Cylinders

Marks Security-Mate™ Cylinders

Marks USA Security-Mate Cylinders are intended to complement Marks HI-SECURITY Cylinder applications. Cylinders may be integrated into a Marks HI-SECURITY key system. Driven by dealer and consumer demand for a more economic cylinder solution for interior doors such as closets, where less security is needed but the convenience of carrying a single key is desired, Security-Mate is a natural addition to the product line. Security-Mate Cylinders are made of quality bar brass with precision tolerances, made in five or six pin configuration and available in Mortise, Mortise-rim Combo and Key-in-Knob cylinder configurations. Only Marks patented HI-SECURITY keys will operate the Security-Mate Cylinder.

Marks USA HI-SECURITY Key Control Management Package

1. A Unique Registered, Securely Designed Scalable System: A custom security solution is defined after careful consideration of your people, operational and safety requirements. A quality system plan allows for expansion, eliminating obsolescence and costly replacement as much as possible.
2. A "Standard" Written Key Control Policy: Once you have a registered system, implementation is a critical key to maintaining a secure system. We highly recommend a standard template. We also recommend you issue the Company Key Control Policy when you issue new keys to every employee.
3. Documented Patented Key Control Technology: Patented lock and key technology is assurance your investment will provide the highest rate of return. Patents protect you from unauthorized key duplication by preventing the manufacturing of key blanks.

BEWARE: "DO NOT DUPLICATE" OR SIMILAR WARNING STAMPED ON A KEY IS SIMPLY NOT ENOUGH PROTECTION!

4. Record keeping & Capability of Audit:

Each registered system cut key must have unique identification stamped on the bow, (numbers, letters or symbols). In your "Key Log", record each key holder with the unique identification number found on the key. Each employee should sign for the key issued with the date noted for the record. Every key is identified as to each cylinder it will operate. This knowledge eliminates risk and when keys are found, it is easy to identify the key holder.

5. Process for Retrieving Keys When People Leave the Business: Accounting for all the keys in the system eliminates the need and cost to re-key. By having people sign for the key when issued, and sign out upon return of the key, you are able to take inventory of all cut and assigned keys and assess risk…If you can account for all of the keys in the system, you simply re-issue an existing key number to a new user.

HI-SECURITY™ Cylinders & Security-Mate™ Cylinders

Service Equipment

Standard pin kits for standard cylinder construction are used, however Marks USA does make available specialty pins such as mushroom and hardened steel pins to add security. The plug size is the industry standard .050.


Key Depths	Bottom Pins	Spacing
0 = .335	0 = .165	1 = .246
1 = .320	1 = .180	2 = .402
2 = .305	2 = .195	3 = .558
3 = .290	3 = .210	4 = .714
4 = .275	4 = .225	5 = .870
5 = .260	5 = .240	6 = 1.026
6 = .245	6 = .255
7 = .230	7 = .270
8 = .215	8 = .285
9 = .200	9 = .300

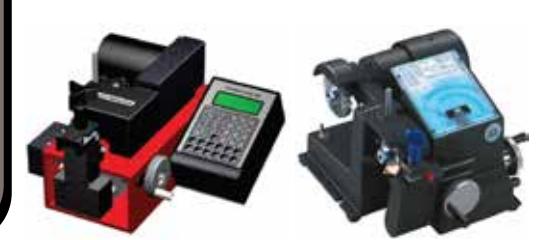

Standard key cutting equipment for either originating a new key by code or duplicating an existing key may be used. An HPC Code Card (HSC387) is available. In addition technical data for cutting keys on ITL, Framon, etc. is also available. Soon a Pro-Lock Blue Punch will be made available. Standard cylinder keys are measured from the shoulder stop. From the shoulder to the center of the first cut the measurement is .246 and .0156 from 1-2, 2-3, 3-4, 4-5, 5-6.

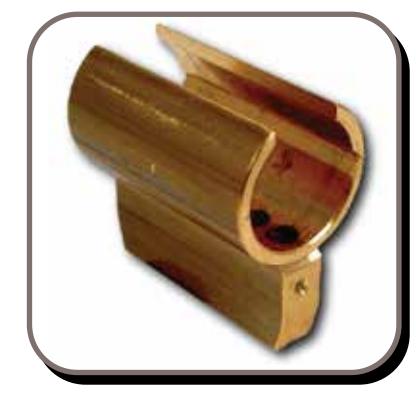

There is a special holding fixture that makes assembly of key-in-knob cylinders easier. Insert plug into the fixture, rotate plug to the "bottoms up" position, then begin inserting security finger pins. Insert pins by color code, sizes 1 through 4, then insert key (note there is not a shear line so pins will appear to be below the plug surface). Security finger pins are "position pins". Insert two springs, and sidebar…if the sidebar depresses allowing rotation of the plug, you are ready to rotate the plug 180° and load the traditional pin tumblers. Driver Pins may include mushroom and or hardened steel designs, however they are not necessary for operation, but enhance attempts to pick and bump.

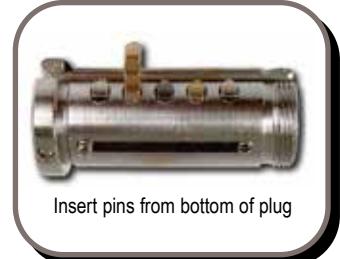

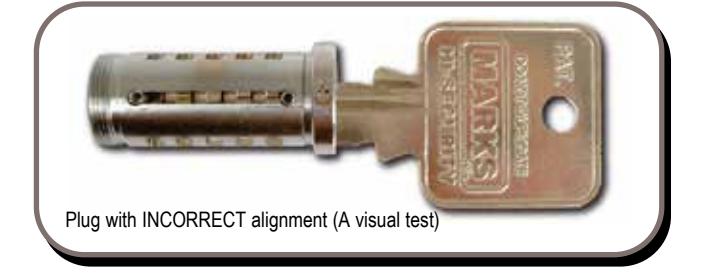

Plug with key, security finger pins and sidebar assembled. Insert loaded plug into the housing. You can either preload the housing using a following tool or remove the individual threaded retainer screws and load the bottom pins, drivers and springs from the top, the final step, inserting and tightening the individual threaded allen-wrench driven retainer screws.

NOTE: Use a 5 Pin key blank for 1" Mortise cylinder and use a 6 Pin key blank for 1-1/8" Mortise cylinder and up.

HI-SECURITY™ Cylinders & Security-Mate™ Cylinders

Small Format Interchangeable Core (SFIC)

EXPLODED VIEW Marks USA Small Format Interchangeable Core (SFIC):

The cylinder plug within the SFIC contains four security finger pins. These non-spring loaded security finger pins along with random mushroom top pins make the Marks USA HI-SECURITY™ Cylinder virtually pick, drill and bump resistant.

SIDEBAR & SECURITY FINGER PINS

Sidebar & Security Finger Pin Cautions

SFIC cores are equipped with four security finger pins due to the presence of the sidebar mechanism. Disassembly of the SFIC core is not recommended. If for some reason disassembly must be done, there are several cautions…First, the Security finger pins will fall out if the key is not inserted . Second, the sidebar and springs will fall out if not held in place . Third, the sidebar can be rotated, like the hands of a clock from right to left, but do not reverse the sidebar…the sidebar is tapered on one side and flat on the other…if you reverse the sidebar, with flat side out, you lose the core, it locks in place.

There are two springs that push outwardly against the security sidebar. Once the plug is removed from the shell, use caution as the sidebar and springs are free to fall from the plug. Here are the most important factors to consider if removing the plug from its shell:

1. The four sidebar security finger pins are held in place ONLY if the key is in the plug. If the key is removed when the plug has also been removed, the security finger pins will fall out from the bottom of the plug. Replacement and realignment may be done visually.

Security Finger Pin Replacement Procedure

If the security finger pins fall out of the plug, you can reinsert them. Keeping in mind that each pin has a specific location, replace the first security finger pin (your choice) and insert key. Make sure visually that the "open space" is visible in the sidebar area when the key is inserted. If a horizontal bar appears anywhere in the sidebar space, that particular security finger pin belongs in one of the other positions. Remove the key and let the security finger pin fall out the bottom, being ready to catch it. Continue placing that pin in another slot until the security wave of the key matches the security finger pin. Continue this process until the four pins align so the sidebar can be retracted. This should take a minimal amount of time.

2. The sidebar and its two springs will fall out if they are not held in place with the thumb and/or fingers.
3. CAUTION: The sidebar can be rotated (like the hands of a clock) 180° with no adverse effect. However, it CANNOT be flipped 180°degrees (away from you). If this is done, when the plug is reassembled, the core will remain in a permanent locked position and the plug cannot be removed. Thus, the core will have to be discarded as it will remain inoperable and can no longer be used. The reason is the tapered end is designed to rotate within the cylinder housing as it adapts to the circular contour. The squared edge that fits securely inside the slot of the security finger pin is not conducive to the same motion!

HI-SECURITY™ Cylinders & Security-Mate™ Cylinders

ANOTHER KEY CONTROL OPTION

The Marks USA HI-SECURITY™ SFIC provides another keying advantage with its sidebar technology. Since a 7 pin key can be used to access both 7 pin and 6 pin cores of the same keyway, an alternative method of key control can be utilized. With minor shifting of the security finger pin arrangement (and discarding the security finger pin to the far right), 6 pin cores can be coordinated to work in conjunction with a 7 pin Marks key. Within a 6 pin core, a 7 pin key, with the example security wave of 1312 can operate the 6 pin core with security finger pin modifications. Because the 7 pin key will not be able to be fully inserted into a 6 pin core (of the same keyway), only the first three security finger pins will be used to operate the core - in this example it is 131. However, the security finger pins must be shifted in order from left to right within the plug to the following pattern: x131 (the x represents an empty security finger pin position).

Key Control Alternative

Using a 7 pin Marks USA HI-SECURITY SFIC in a 6 pin Marks USA HI-SECURITY SFIC (same keyway)

Adjusted security finger pin arrangement in the 6 pin core to allow the 7 pin Marks USA HI-SECURITY Key to operate it (same keyway) x = Empty Position

OPERATION & HARDWARE INSTALLATION

The Marks USA HI-SECURITY SFIC operates similarly to that of any standard small format core. Installing the Marks USA HI-SECURITY SFIC into existing other manufacturer SFIC hardware, the following two exceptions should be noted:

• When installing the Marks USA HI-SECURITY SFIC into an existing mortise housing, the left throw pin must be sheared in order to accommodate the security sidebar. This can be easily accomplished with the Shear Tool (# HSICT) available from Marks USA.

When installing the Marks USA HI-SECURITY™ SFIC into a leverset, use the correct Marks tailpiece that matches the pin configuration of the core (6 pin or 7 pin).
Kits available for HI-SECURITY IC Core Tailpieces: HR1984-HS for use with Marks Functions AB, B, DA (ext.), DW, F, FEU & FEL. HR1984S-HS for use with Marks Functions S, DA (int.), DB, DC, SB, T & TS. (See grid on page 9)

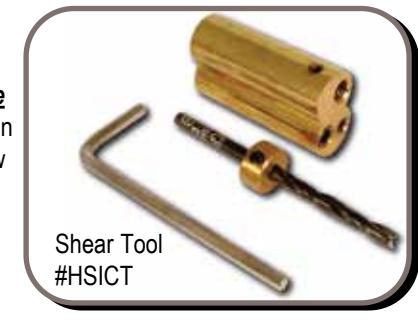

NOTE: One of the two throw pins must be sheared in order to accommodate the security sidebar. See the above illustrations.

COMPATIBILITY

The Marks USA HI-SECURITY Core can be used similarly as with any other SFIC with one exception: When using the Marks USA HI-SECURITY SFIC core in a pre-existing IC mortise housing, one of the two throw pins must be sheared in order to accommodate the security sidebar. This is the throw pin that aligns with the security sidebar. The Shear Tool can easily accomplish this task. It has been carefully designed to remove a small piece of the throw pin so that the core will fit properly into its mortise housing. This tool can be utilized when installing a 6 or 7 pin Marks USA HI-SECURITY core into its respective housing. The shear tool is quick and easy to use. Insert the brass "figure 8" drill guide into the cylinder housing cavity, tighten the allen head screw to secure one leg of the throw member to eliminate chattering, then insert drill cut through to stop. Loosen allen screw and remove. Insert SFIC.

HI-SECURITY Cylinders & Security-Mate™ Cylinders

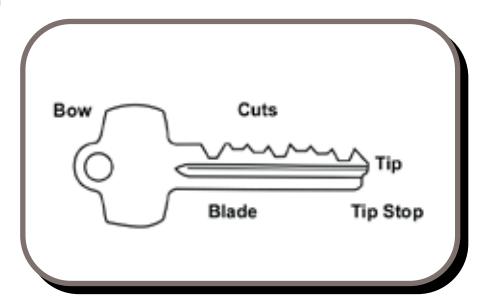

KEY BLANK OVERVIEW

Key Blank Orientation: It is generally accepted that SFIC key blanks are originated and gauged from the tip stop. This is true with Marks HI-SECURITY!

Originating/Duplicating Marks USA HI-SECURITY Keys: Keys can be originated on standard key code cutting equipment. In addition, keys can be duplicated on any standard key duplicating machine. There exists an HPC card for those using HPC code card machines. The DSD for the HPC Blue Shark can be entered manually, using the Shoulder Stop reference. Since the security waves are factory controlled, the top bitting is all that is necessary to duplicate or originate keys.

Ordering Key Blanks: Distribution of key blanks is carefully managed by authorized distributors. Within the standard product line, Marks USA HI-SECURITY technology offers over 900 Security Wave configurations for each keyway. Participating HI-SECURITY Wholesale Distributors have access to a common national security wave as well as several unique Dealer or End User based security waves. Any locksmith or institution that meets required quantities may purchase an exclusive Security Wave .

Key System Management:

A blank signature card with a random number is provided with each cylinder and may be used to file systems, identify authorized signatures and system registry for future use.

Key Blanks Lengths:

There is one key blank available for the Marks USA HI-SECURITY SFIC to accommodate both 6 and 7 pin cores. One note, the Marks USA HI-SECURITY key blank has shoulders on the tip stop key. (shown right)

KEY SPECIFICATIONS

Marks USA HI-SECURITY™ SFIC Key Spacing & Depth Specifications

Cut Depth	Bottom Pin Code Length
.3187	.1100 0
.3062	.1225 1
.2937	.1350 2
.2812	.1475 3
.2687	.1600 4
.2562	.1725 5
.2437	.1850 6
.2312	.1975 7
.2187	.2100 8
.2062	.2225 9
A2 Pin Increment	= .0125"
Pin Stack Total	= .397"

Pin Stack Total = .397" Coded Stack Length = 23 Spacing of Cuts = .150" Root of Cut = .054" Angle of Cut = 90° Pin Diameter = .108"

HI-SECURITY CYLINDERS & SECURITY-MATE™ CYLINDERS

PIN SPECIFICATIONS for the Marks USA HI-SECURITY™ SFIC · · · · · · · · · PIN SPECIFICATIONS:

Most SFIC systems follow the A2 System of pin depths created by BEST® Lock Company. It is by far the most common. The A4 System of pin depths is used especially when large numbers of key combinations are required. The A2 and A4 Systems are listed here. When ordering combinated Marks USA HI-SECURITY™ cores from the factory, the A2 System is standard, and is the

A2 SFIC Pin Specification Chart

factory default when no pin increment system is specified.

Two-Step Master Keying System - .0125" Increments

Key Depth	Bottom Pin Length	Coded Number
.3187 .3062	.1100 .1225
.2937	.1350
.2812 .2687	.1475
.2562	.1725	5
.2437 .2312	.1850
.2187 .2062	.2100

Wafer Pin	Coded	Wafer Pin	Coded
Length	Number	Length	Number
.0250	2	.1375	11
.0375	3	.1500	12
.0500	4	.1625	13
.0625	5	.1750	14
.0750	6	.1875	15
.0875	7	.2000	16
.1000	8	.2125	17
.1125	9	.2250	18
.1250	10	.2375	19

Pin Stack Total: = .397 Coded Stack Length: 23 Cut: TIP to BOW

Decoding: Subtract; 13 minus Code of Top Pin

Multiplier: Top Pin Length x 80 = Coded Length (rounded)

Root of Cut: .054 Angle of Cut: 90° Pin Diameter: .108

Spacing (TIP to BOW from center of cut):

From Tip Stop, each cut:

#1 = .088#2 = .238 #3 = .388#4 = .538

#5 = .688 #6 = .838

#7 = .988

A4 SFIC Pin Specification Chart

Two-Step Master Keying System - .0121" Increments

Depth	Length	Number
.318	.110	0
.297	.131	1
.276	.152	2 3
.255	.173	3
.234	.194	4
.213	.215	5
	Wafer Pin	Coded
	Length	Number
	.021	1
	.042	2
	.063	3
	.084	4
	.105	5
	.126	6
	.147	7
	.168	8
	.189	9
	.210	10
	.231	11

Pin Stack Total: = .404 Coded Stack Length: 14

Cut: TIP to BOW

Decoding: Subtract; 8 minus Code of Top Pin

Multiplier: Top Pin Length x 48 = Coded Length (rounded)

Root of Cut: .054 Angle of Cut: 90° Pin Diameter: .108

Spacing (TIP to BOW from center of cut):

From Tip Stop, each cut:

#1 = .088#2 = .238

#3 = .388

#4 = .538

#5 = .688

#6 = .838

#7 = .988

COMBINATING & CAPPING PROCEDURES

Combinating (Pinning) the Marks USA HI-SECURITY SFIC is no different than other small format cores. It is assumed that you have the bitting lists and pin segments for each chamber of every core. If you do not, you must secure this information or construct a system via mathematical calculations, slide charts, computer software or another appropriate source.

The basic combinating procedure is as follows:

1. Use your Ejector Pin (or Downie Pin) and line up the shear lines in the empty core. Keep the aligning tool in place in the last chamber.
Insert the Bottom Pin in Chamber #1 after placing core loading block or on suitable device. Insert the Master Pin or Control Pin next, depending on the keying structure. If the next pin is a small wafer, hold the core in your hand and tilt slightly to the side, watching the pin as it is placed so that it does not fall into the hole and turn sideways. Insert the Top Pin.
5. Check that each pin has fallen to its lowest level in the chamber and is situated flat. Use Ejector tool to push down to even out the stack.
It is recommended you test each core with all keys or with finger atop chambers with springs inserted.
Place core into holder and secure each individual chamber with allen screws as seen in the image below.

HI-SECURITY Cylinders & Security-Mate™ Cylinders

MARKS USA HI-SECURITY™ CAMS & TAILPIECES

MORTISE CYLINDER CAMS
	PART #	DESCRIPTION
	2101HS	Straight Cam
	2102HS	Clover Cam
	2103HS	G - Cam
	2104HS	Adams Rite Cam
	2105HS	J - Cam

Schlage® LARGE FORMAT IC CORE HOUSING CAMS
	PART #	DESCRIPTION
	R2101-C	Straight Cam
	R2102-C	Clover Cam
	R2103-C	G - Cam
	R2104-C	Adams Rite Cam
	R2105-C	J - Cam

CYLINDRICAL TAIL PIECES
PART #		FUNCTIONS
	F1903-C	AB, B, DA (ext.), DW, F, FEU & FEL
	F1903S-C	S, DA (int.), DB, DC, SB, T, TS

CYLINDRICAL IC CORE TAIL PIECES
PART #		FUNCTIONS
	HR1984-HS	AB, B, DA (ext.), DW, F, FEU, FEL
	HR1984S-HS	S, DA (int.), DB, DC, SB, T, TS

MARKS USA HI-SECURITY RETRO-FIT Key-In-Knob Tailpieces

The Marks USA HI-SECURITY Key-In-Knob Cylinder is assembled with the standard Marks tailpiece F1903-C as seen in the below photo.

HI-SECURITY Cylinders & Security-Mate™ Cylinders

MARKS USA HI-SECURITY™ RETRO-FIT Key-In-Knob Tailpieces (cont'd.)

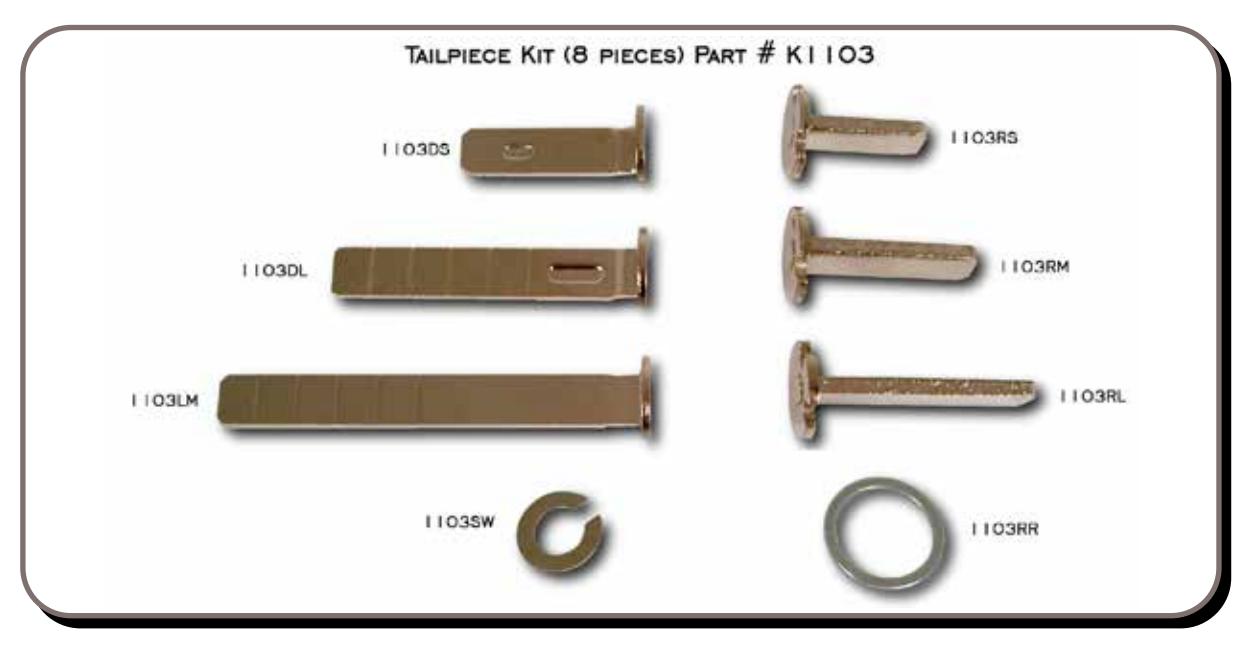

The NEW Marks USA HI-SECURITY RETRO-FIT Key-In-Knob Tailpiece Kit # K1103 is used with Marks USA HI-SECURITY Key-In-Knob Cylinders, thus enabling retrofit to a variety of key-in-knob or deadbolt lock cylinders using the screw cap retainer. The spacer creates appropriate space for replacement tailpieces to fit securely and operate smoothly when the cylinder is fully assembled.

Tailpieces used with the Marks USA HI-SECURITY Key-In-Knob Cylinders for key-in-knob or key-in-lever locksets include the F1903-C for Marks AB, B, DA (ext.), DW, F, FEU & FEL functions; The F1903S-C for Marks S, DA (int.), DB, DC, SB, T & TS functions.

The three new tailpieces (shown right) retrofit a variety of other locksets. Spacer 1360-F19 is included as well providing for smooth operation and secure fastening when accommodating replacement tailpieces.

Marks USA original tailpieces (shown left) for use with the 10, 70, 80 & 95 Lines are constructed as a single piece, unlike many replacements that are two pieces.

*Lifetime Mechanical Limited Warranty: MARKS USA warrants that its products are free from defects in materials and workmanship. This warranty is limited to the lifetime of the door on which our lock is installed. In the event our product does not conform to this warranty, MARKS USA will repair or replace the product free of charge. This warranty does not cover defects or damage arising from improper installation, lack of or improper maintenance, improper storage, shipping and handling, ordinary wear and tear, misuse, abuse, accident, unauthorized service, or use with unauthorized non-MARKS products or parts. We reserve the right to make changes in materials, components or manufacturing methods.

Liability under all warranties expressed or implied is limited to replacement of the defective goods. This warranty does not cover nor provide for the reimbursement or payment of incidental or consequential damages. Additionally, the company will not warrant ANSI A156.2 Grade 2 lever product installed in educational facilities and student housing.

2-Year Electronic Limited Warranty: MARKS USA warrants to the original purchaser that its products are free from defects in materials and workmanship so long as they occupy the premises In the event our product does not conform to this warranty, MARKS USA will repair or replace the product free of charge at its sole discretion. This warranty does not cover defects or damage arising from improper installation, lack of or improper maintenance, improper storage, shipping and handling, improper application or specification, ordinary wear and tear, misuse, abuse, accident, improper voltage, unauthorized service, or use with unauthorized non-MARKS products or parts. We reserve the right to make changes in materials, components or manufacturing methods. Liability under all warranties expressed or implied is limited to replacement of the defective goods. This warranty does not cover nor provide for the reimbursement or payment of incidental or consequential damages or any shipping charges related to exercising of this warranty.

Lifetime Finish Limited Warranty: MARKS USA finishes with the suffix "E" indicate finishes which have a "PVD" coating. Locksets with the "3E" finish will be warranted to the original user against tarnishing as long as the user occupies the residential premises upon which the lockset was originally installed. Locksets with this finish, used in commercial applications will be limited to two years. This warranty does not cover scratches, abrasion, abused or misused products. Upon return of a defective product to Marks USA, we will, at our sole discretion, either replace the product or refund the purchase price in exchange for the product. Due to climatic conditions, chemical or abrasive actions, other finishes are excluded from this warranty. This warranty does not cover nor provide for the reimbursement or payment of incidental or consequential damages arising from the sale of the product.

Marks USA Antimicrobial Finish - Peace of mind for your hardware application when protected against Germs and Mold using Stericoat AM. This Marks USA antimicrobial finish is recommended for hospitals, assisted living facilities, schools and childcare facilities. Use code "AM" when ordering product with antimicrobial finish.

365 Bayview Ave. • Amityville, NY • 11701 • 800-645-9445 • Fax: 631-225-6136 salesinfo@marksusa.com • www.marksusa.com

www.designalock.com • www.SAVISchool.com

Marks USA is a Division of NAPCO Security Technologies, Inc. • NAPCO • Alarm Lock • Continental Access • Marks USA

ArchiTech, LifeSaver, Survivor, Hi-Security, iQwik, X-it, LocDown, Trilogy and Networx are trademarks of NAPCO Security. Other trademarks listed are properties of their respective companies.

Marks USA Architectural Full Product Line Catalog

Introduction

Table of Contents

NOVA SERIES 5 & 55

MORTISE LOCKSETS ANSI 156.13 GRADE 1

Nova Series 5 & 55 Mortise Locksets -

STANDARD FEATURES

* Standard & HI-SECURITY™ IC Core Models:

PROTECTOR SERIES

MAXIMUM SECURITY MORTISE LOCKSETS ANSI 156.13 GRADE 1

PROTECTOR SERIES

STANDARD FEATURES

Performance Specifications:

Exterior and Interior Trim Specifications:

Lock Specifications: 5 Series (2-3/4" Backset)

NOVA SERIES GRADE 1 MORTISE LOCKSETS ARE BHMA CERTIFIED

COMMERCIAL GRADE

Series 7 & 9 Mortise Locksets & Series 31, 2 & 3 Mortise Deadlocks

COMMERCIAL GRADE MORTISE LOCKSETS SERIES 7 & 9 -

STANDARD FEATURES

Series 7:

Series 9:

MORTISE DEADLOCKS SERIES 31, 2 & 3

STANDARD FEATURES

Series 31 BHMA Certified:

Series 2 & 3:

MORTISE & TUBULAR LOCK TRIM

NOTE: ROSES ALSO AVAILABLE IN 2-1/4" DIAMETER

TRIM -

MORTISE & TUBULAR LOCK TRIM

MORTISE & TUBULAR LOCK TRIM

TRIM -

MOR TISE LOCKSE T F U NCTIONS ANSI 156.13 Gra d e 1

Mortise Lockset Functions

MORTISE LOCKSET FUNCTIONS

MORTISE LOCKSET FUNCTIONS -

SURVIVOR SERIES

CYLINDRICAL LEVERSETS ANSI 156.2 GRADES 1 & 2

SURVIVOR SERIES

STANDARD FEATURES

95 Series

75 Series:

SURVIVOR SERIES

Cylindrical Leversets ANSI 156.2 Grades 1 & 2

Clutch System

Super Strength Retractor

Long Life Lever Support Springs

Strength & Life

SURVIVOR:

Quick Installation

SURVIVOR SERIES

Cylindrical Leversets ANSI 156.2 Grades 1 & 2

Easy Installation

Uses Most Available Cylinders

Cylindrical Lock Tailpieces

Cylindrical IC Core Tailpieces

Cylinders

ADA • Grades 1 & 2 • Meets By America

SURVIVOR SERIES REX & ELECTRIFIED LEVERSETS ANSI 156.2 GRADES 1 & 2

SURVIVOR WITH REQUEST TO EXIT -

STANDARD FEATURES

**Standard & HI-SECURITY™ IC Core Models: Interchangeable Core models for 6 or 7 pin cores (not included).

175 ECONOMY SERIES

CYLINDRICAL LEVERSETS ANSI 156.2 GRADE 2

175 ECONOMY SERIES -

STANDARD FEATURES

CYLINDRICAL KNOB/LEVER FUNCTIONS ANSI 156.2 Grades 1 & 2

Cylindrical Lever Functions

DEFENDER SERIES

TUBULAR DEADBOLTS & CYLINDRICAL CARTRIDGE DEADLATCHES

DEFENDER SERIES DEADBOLTS & DEADLATCHES -

STANDARD FEATURES

STANDARD FEATURES

DEFENDER SERIES

Tubular Deadbolts & Cylindrical Cartridge Deadlatches

Defender Series Unique Features

Protective Steel Shutters

Simple Fast Assembly

One Cylinder Fits All

Easy Retrofit Deadbolt
