MAGLOCKS UL LISTED ELECTROMAGNETIC LOCKS ULTIMATE PROTECTION

FEATURES

• Lock status sensor (bond sensor) and visual LED on 600 and 1200 lb models
• Includes adjustable relock time delay (0 90 secs)
• Field selectable 12/24V DC
• Installation hardware included for typical applications
• Convenient plug-in wire terminals
• Available for single doors and double doors without center mullion

IDC Maglocks offer the ultimate protection for most

10MAGLOCK1UL 1200LB – SINGLE

10MAGLOCK3UL 600LB – SINGLE

10MAGLOCK5UL 1200LB – DOUBLE

10MAGLOCK6UL 600LB – DOUBLE

10LZBRMAG1UL (1) 'L' and (1) 'Z'

10LZBRMAG3UL (1) 'L' and (1) 'Z' use with 10MAGLOCK3UL

10UBRACKETUL U-Bracket – Glass Doors

MAG5LZUL MAG6LZUL (2) 'L' and (2) 'Z'

10FILLER12UL 10FILLER34UL FILLER BAR

Vertical Spacer Bars

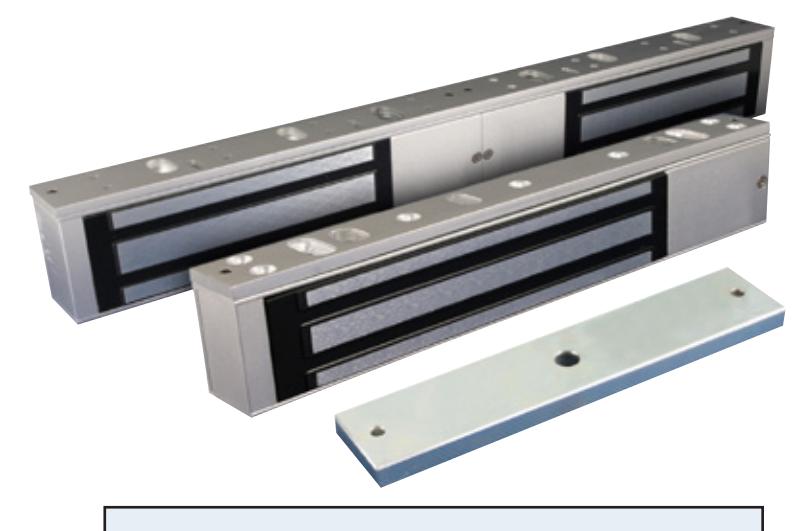

Armature Housing

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC www.intldoorclosers.com

West: 800-544-4422 • East: 800-225-6737

TECHNICAL SPECIFICATIONS

10MAGLOCK3UL Single 10MAGLOCK6UL

Double

HOLDING FORCE 600 lbs

INPUT VOLTAGE 12 or 24V DC

Note: This product is recommended to be used with a UL-Listed Power Supply

CURRENT DRAW

Single 0.50A @ 12V DC 0.25A @ 24V DC

Dual

1.00A @ 12 VDC 0.50A @ 24V DC

DIMENSIONS

Single

9.84" × 1.85" × 1.02" (250mm × 47mm × 26mm)

Dual

19.76" × 1.85" × 1.02" (502mm × 47mm × 26mm)

HOLD TIMER 0-90 sec

HOLD TIMER 0-90 sec

10MAGLOCK1UL Single 10MAGLOCK5UL Double

HOLDING FORCE

1200 lbs

INPUT VOLTAGE 12 or 24V DC

Note: This product is recommended to be used with a UL-Listed Power Supply

CURRENT DRAW

Single

0.50A @ 12V DC 0.25A @ 24V DC

Dual

1.03A @ 12V DC 0.52A @ 24V DC

DIMENSIONS

Single 10.47" × 2.91" × 1.58" (266mm × 74mm × 40mm)

Dual

20.94" × 2.91" × 1.58" (532mm × 74mm × 40mm)

MAGLOCK APPLICATIONS

► Install IDC Maglocks in security applications including: portals in hotels, retail outlets or where egress control is needed

Maglocks

Armature Plate

► IDC Maglocks, when combined with IDC's other security products, are designed to ensure ultimate security in clean room, airlock, and also mantrap applications

• Clean Room / Airlock Application

RELATED PRODUCTS

R2E-100 UL / ULC Listed, Active Infrared, Request To Exit Detector designed for access control applications

• Swinging Door Application

Weather Resistant Maglocks Increased protection on more heavy duty doors and gates

Cylindrical Strikes UL / ULC Listed, low profile, all-in-one, universal electric strike

West: 800-544-4422 • East: 800-225-6737

Rim/Exit Strikes UL / ULC Listed, surface mount electric strike
