MS21H TOUCHLESS SOLUTIONS PERFORMANCE SERIES

MAGIC SWITCH

MS21H SERIES

Wave Goodbye to Germs Say Hello to Touchless Activation

MS21H SERIES

10MS21HR1 6" Round Text & Logo

10MS21HR 6" Round Text ONLY

10MS21HRLL 6" Round Logo ONLY

10MS21HS1 4¾" Square Text & Logo

10MS21HS 4¾" Square Text ONLY

10MS21HSLL 4¾" Square Logo ONLY

The MS21 is a state-of-the-art touchless activation plate that utilizes capacitance technology to detect and trigger activation in automatic doors. The low profile, hands-free MS21 includes a stainless steel faceplate and illuminated LED mounting ring for maximum durability and visibility. Other innovative features include adjustable detection zones, audible alerts, NEMA 4-rated enclosure and customizable faceplate text and logos.

The MS21 combines form and function into an aesthetically pleasing design that is ideal for healthcare facilities, clean rooms, washdown areas and a variety of other applications.

TOUCHLESS SOLUTION ELIMINATES SPREAD OF GERMS

FEATURES AND BENEFITS

• Touchless design reduces spread of bacteria, disease and contamination
• LED illumination increases plate visibility
• Stainless steel faceplate improves durability and reduces deterioration caused by liquids and other cleaning agents
• Low profile, beveled design reduces accidental damage from errant objects like carts or hospital beds
• Various design options available to match any application
• Audible alert can be turned on or off to signal activation

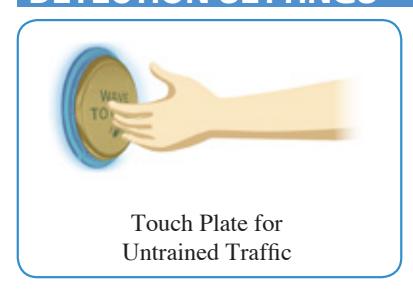

• Adjustable detection zone provides added levels of customization

International Door Closers, Inc.

COPYRIGHT 2018 INTERNATIONAL DOOR CLOSERS, INC

West: 800-544-4422 • East: 800-225-6737

www.intldoorclosers.com

CLEAN ROOMS

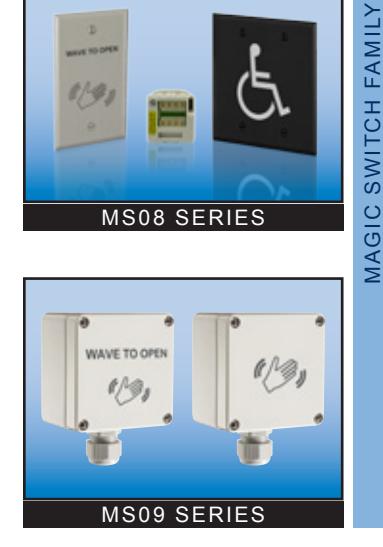

MS08 SERIES

APPLICATIONS

• Hospitals and Healthcare Facilities
• Clean Rooms
• Colleges and Universities
• Elder-care Facilities
• Professional Buildings
• Retail

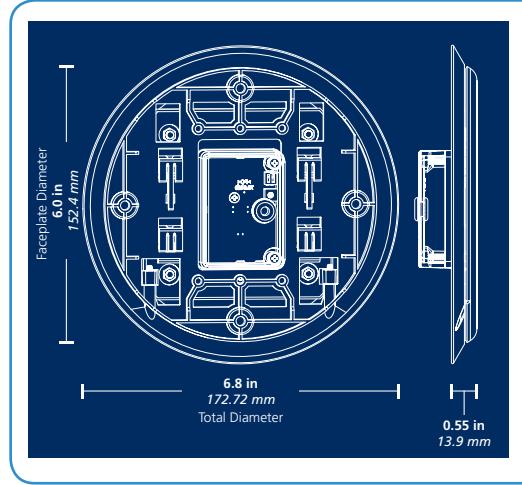

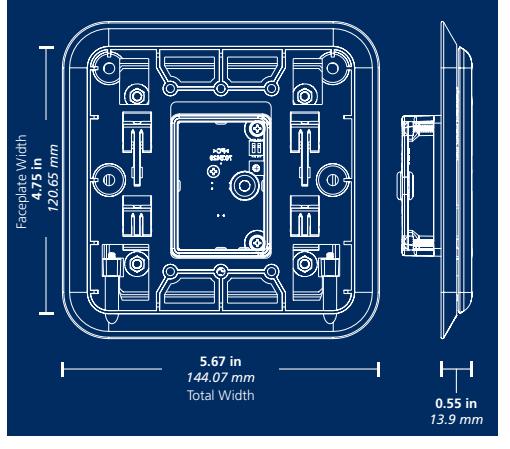

DIMENSION DETAILS

TECHNICAL SPECIFICATIONS

Technology Type	Knowing Act / Capacitance Technology
Detection Mode	Capacitance / Proximity
Supply Voltage	12 to 24 VAC / VDC; ±10%
Current Consumption	30 mA
Temperature Range	-20°F to +120°F
Degree of Protection	NEMA 4
Sensing Zone	Maximum sensing zone will vary depending on the following: Size (area) of an object | orientation of an object | speed of an object | environmental conditions
Relay	1 Form A solid-state relay; 0.4 A, 60 VAC / VDC
Cable Length	10 inches (5 conductor)
Material	Stainless Steel (faceplate) Clear Polycarbonate (Mounting Ring and Backplate Enclosure)

DISCLAIMER This document as well as all other enclosed documents (quotation / specification / other) are provided «as is» without warranties of any kind, either expressed or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement. / Information is supplied upon the condition that the persons receiving it will make their own determination as to its suitability for their purposes prior to use. In no event will IDC be responsible for damages of any nature whatsoever resulting from the use of or reliance upon information from this document or the products to $which\; the\; information\; \backslash \; refers.\; \backslash \; \backslash textit\{/\}\backslash \; IDC\; \backslash \; has\; the\; \backslash \; right\; \backslash \; without\; \backslash \; liability\; \backslash \; to\; \backslash \; change\; \backslash \; descriptions\; \backslash \; and\; \backslash \; specifications$ at any time. / Prices, shipping and availability are subject to change without prior notice.
